PL AlphaPix 2, LED-Panel, 50x50cm, 168x168px, IP40
inkl. MwSt. zzgl. Versandkosten
Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.
- Artikel-Nr.: APIX2
In this fast-paced market, the AlphaPix 2 family keep ahead of the game by consistently delivering top-quality images with the latest high-resolution indoor LED displays. The AlphaPix 2 family use black-faced SMD LED for high-contrast and superb colour consistency in a robust, lightweight die-cast aluminium housing. The frame and fast interlocking system create a seamless image with minimal setup time. To deliver the perfect image, the AlphaPix 2 series features a high refresh-rate, advanced greyscale properties and automatic image correction along with a viewing angle of up to 160°.
Main features:
- Rental-friendly die-cast aluminium housing
- Black-face LED for high-contrast and superb colour consistency
- Magnetic front access LED display modules for fast and easy maintenance
- Flicker-free on camera
- High-performance video reproduction at every level of brightness
- 160° viewing angle
- CE and EMC certified by TUV
TECHNICAL SPECIFICATIONS
VIDEO

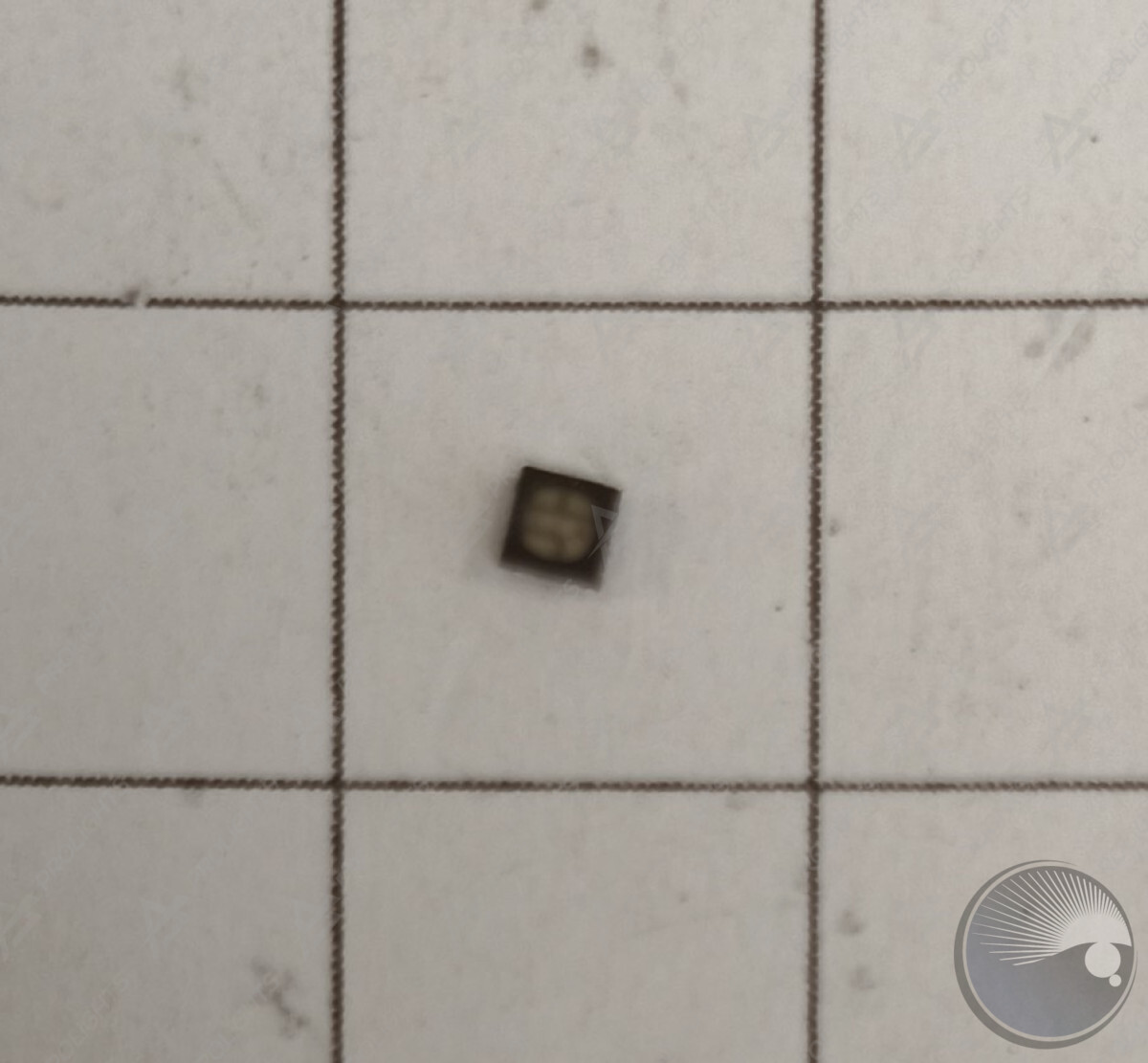

- LED source: SMD 2020 high-power FC black face
- Pixel pitch: 2.97mm / 0.12''
- Panel resolution: 168x168pixels
- Module resolution: 84x84pixels
- Luminous flux: 1.000nit
- Grayscale: 16 bit
- Refresh rate ≥: 3.840Hz
- Drive Mode: 1/16 scan, constan current
- Vertical viewing angle: 160°
- Horizontal viewing angle: 160°
- LED density: 112.896LED/sqm
- Dead Pixel Ratio: <0,002
- LED avg life span: 100.000
ELECTRICAL
- Power input/output: powerCON
- Power supply: AC 110/230 V 50/60 Hz
- Max power consumption (panel): 130W
- Avg power consumption (panel): 45W
- Max power consumption (sqm): 520W
- Avg power consumption (sqm): 180W
- Standby power consumption (pannello): 10,8W
- Max rated current/panel:: AC 220 V / 0,6 A
- Max power output: 8modules
- Working temperature: -10 ~ +40°C
- Working humidity: 10 - 90%
CONTROL
- Control protocol: Novastar
- Signal input: RJ45
- Signal output: RJ45
MECHANICS
- Module size (WxH): 250x250mm / 9.84''x9.84''
- Panel size(WxHxD): 500x500x90mm / 19.69''x19.69''x3.54''
- Vertical hanging system: built-in aliscaf clamp support
- Cooling: natural cooling of the peculiar chassis and to absence of fans
- Connection: seamless locking system
- Body: die-cast aluminium housing
- Color: black
- IP rating: IP40
- Panel weight: 8kg / 17.64lbs
- Weight per square meter: 32kg / 70.55lbs
- Hanging Panel Quantity ≤: 20
- Compliant Standard: CE
