PL EclPanel TWCJr, RGB+warmweiß, 2.200K - 15.000K

EclPanel TWCJr, is the compact 1x1 LED soft light that provides a beautiful, wide source of soft and precise colours. In addition to this, the PROLIGHTS EclPanel TWCJr comes with a full range of white reproductions, from daylight through to tungsten tones, reaching a superior light quality with high CRI, TLCI and TM-30.The EclPanel TWCJr allows for quick and accurate local adjustment of light through 3 rotatory knobs with three fully featured modes: CCT with +/- green shift, HSI for total control of hue, saturation and intensity, FX mode to access the on board pixel cinema effects.The unit can also be controlled on a per-section basis, allowing for reproduction of onboard customisable effects or to be self-made through the lighting desk.Both methods provide eye-candy, with the appealing and modern front looks and cinematic special effects.The unit is designed with an onboard driver and built-in power supply and, being lightweight, the EclPanel TWCJr offers easy rigging and cabling making it the perfect lighting tool for every location.

Main features:

• 370W RGB + Warm White LED source (driven @ 220W)
• CRI > 94; R9 > 88,8; TLCI > 92
• 4 section pixel control and built-in lighting effects for cinema applications
• Silent operation with multiple fan modes
• Battery connection (4pXLR 24-36V): compatible with industry standard external batteries (optional)

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

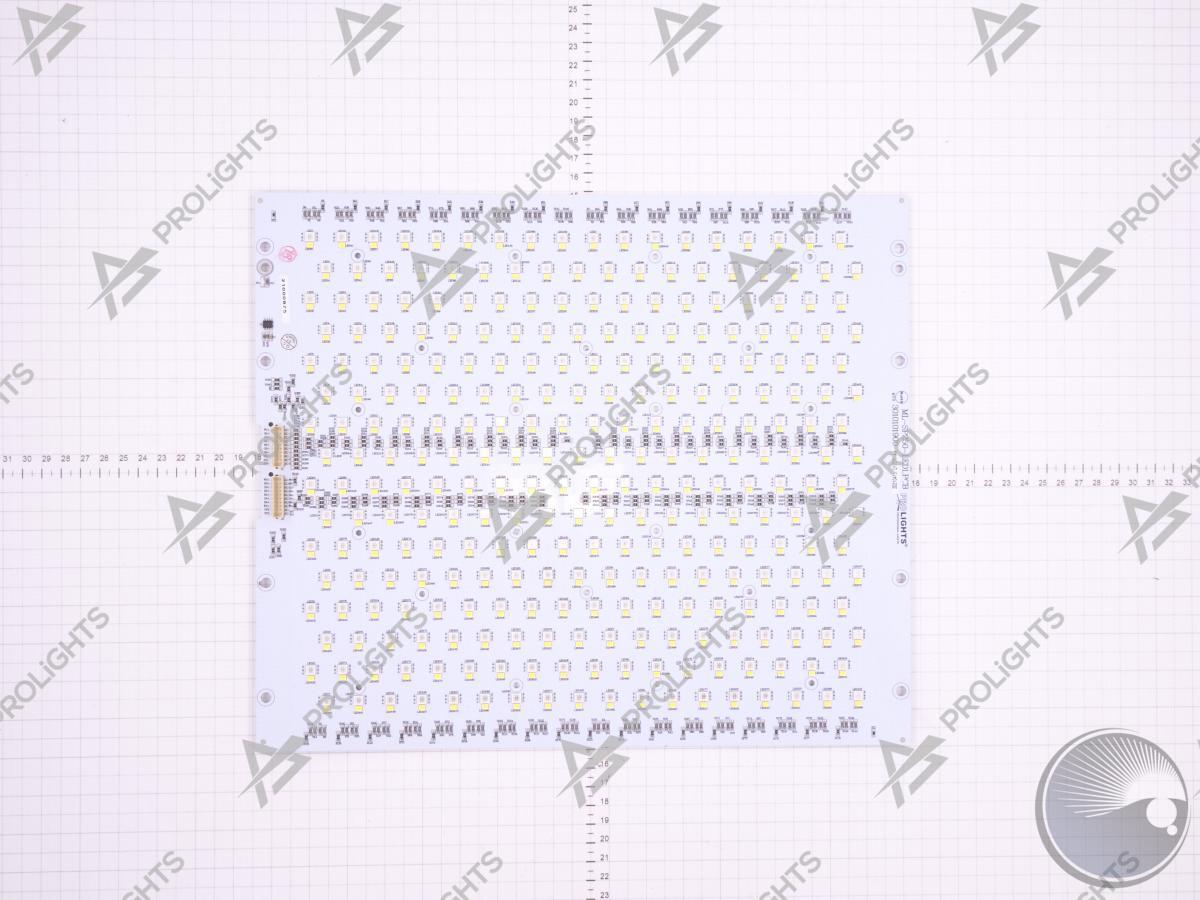

• Source: 370W RGB + Warm White LEDs (driven @ 220W)
• Luminous flux: 17'109lm @4.000 K with LD filter
• Lux: @4000K, 265lx @5 m
• CRI: 90 @3.200 K; 94 @5.600 K
• R9: 84,1 @3.200 K; 88,8 @5.600 K
• TLCI: 92 @5.600 K
• TM30 Rf: 90 @3.200 K; 89,4 @5.600 K
• TM30 Rg: 105 @3.200 K; 104 @5.600 K
• Source life expectancy: > 50.000 h

OPTICS

• Beam angle: 102°
• Field angle: 158°
• Lens type: medium density diffusion panel (interchangeable)
• Additional optics: see available accessories

COLOUR SYSTEM

• Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, colour macros, CTO on colours
• Colour mixing: RGB + Warm White
• CCT: CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
• White presets: 2.800 K - 10.000K with 28 K resolution
• Colour wheel: virtual colour wheel with macros
• Macros: Gels library on-board

DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer, colours
• Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
• Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

• Body: sturdy die-cast aluminium body
• Body colour: black

CONTROL

• Protocols: DMX512, RDM, W-DMX, rotatory knob

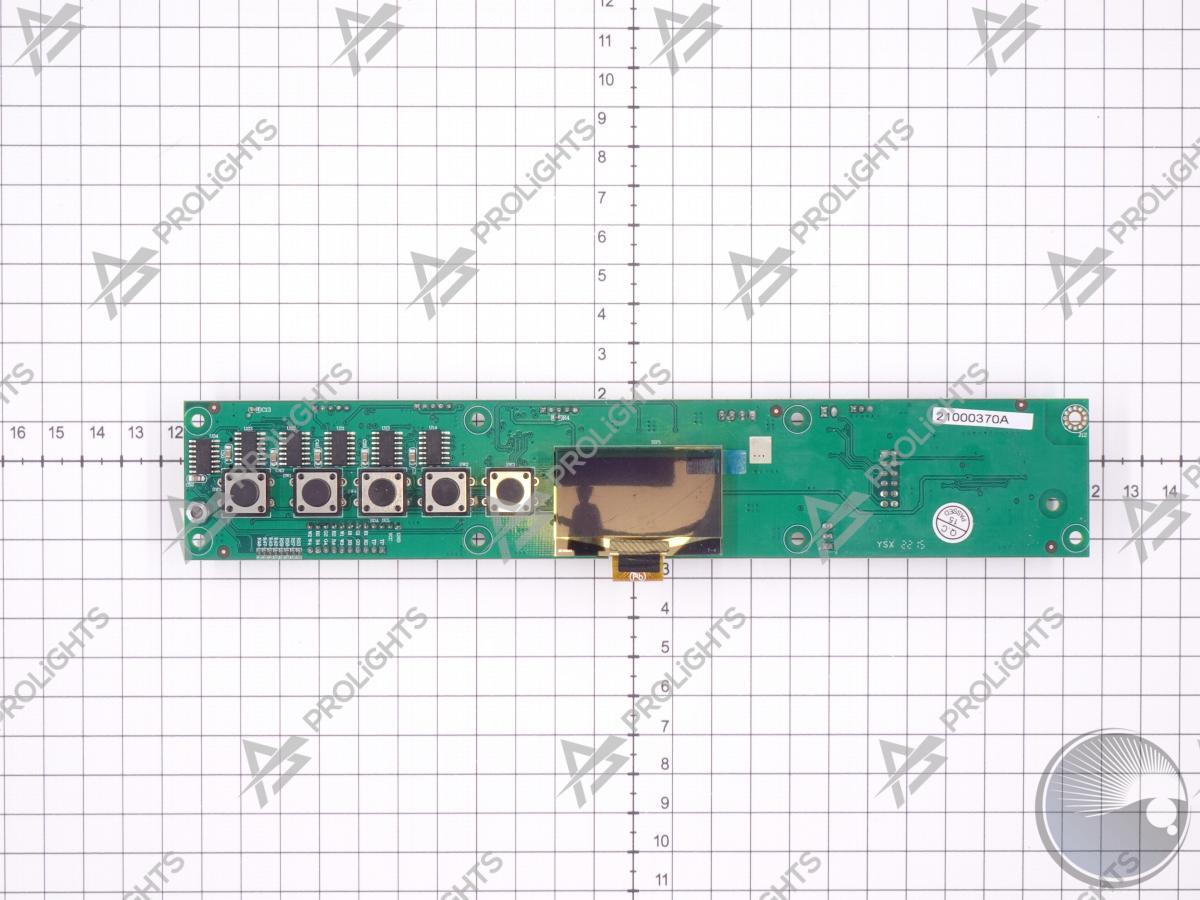

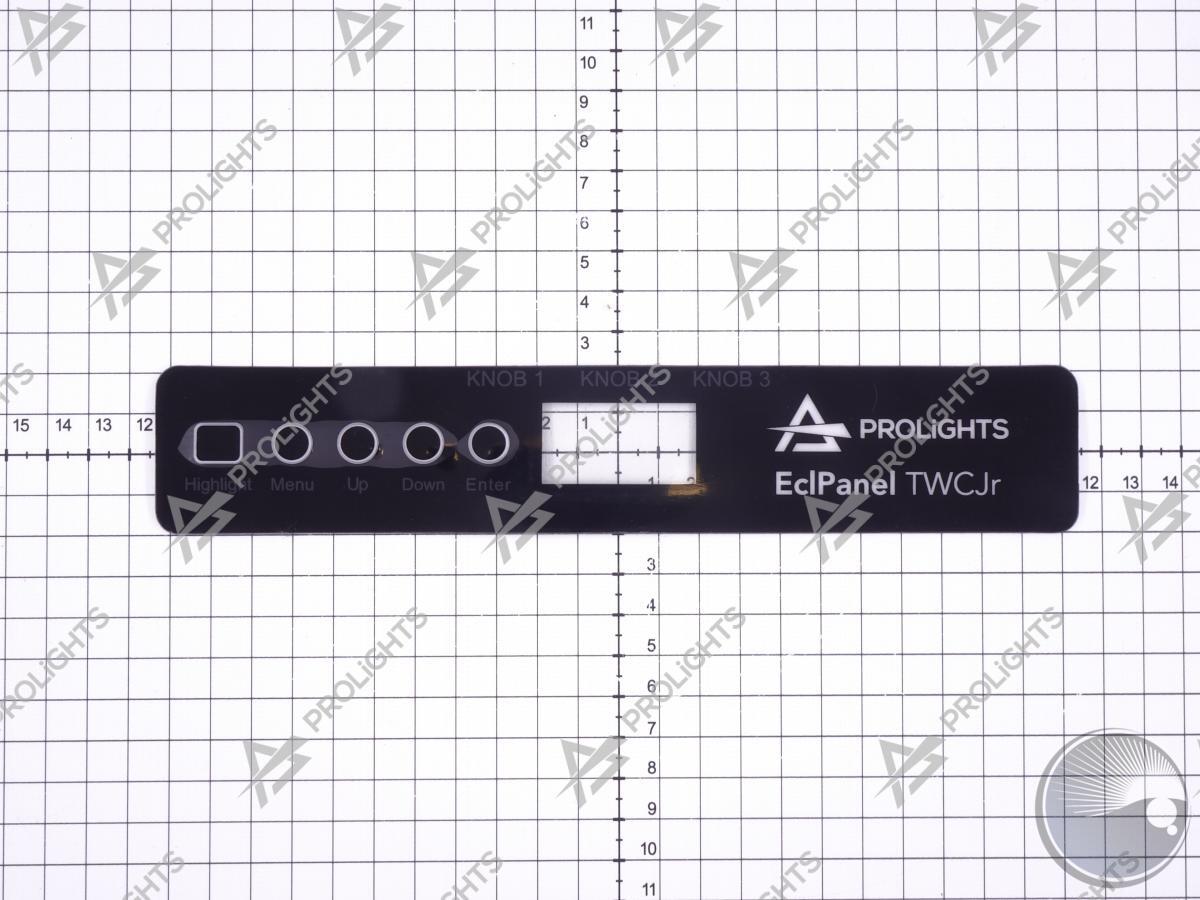

• Stand Alone: selectable mode through 3 rotatory knobs
• Pixel control: 4 section control
• Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings
• Display: Graphic User Interface
• Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Display battery: self-charging battery backup
• Operating temperature: -10° ~ +45°
• LED Control: flicker free frequency with adjustable PWM
• Selectable PWM: 600 ~ 40.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Low Voltage DC mains: 24-36V
• Max power consumption: 230W
• Output (at 230V): 10 units on a single power line
• Power factor: >0,97
• Inrush current: 230VAC/10.7A, 100VAC/11.2A

PHYSICAL

• IP rating: 20
• Cooling: active, silent operation
• Suspension and fixing: bracket for hanging and positioning
• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
• Low Voltage DC connector: XLR 4p
• Dimensions (WxHxD): 529x432x144mm / 20.83''x17.01''x5.67''
• Dimensions with PO system (WxHxD): 546x556x144mm / 21.5''x21.89''x5.67''
• Weight: 10,5kg / 23.15lbs
• Weight with PO system: 11,8kg / 26.01lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
