PL EclPar TU, 177W, 3200K, schwarz

EclPar is a range of multipurpose LED fixtures with a single source, delivering silent operation, high quality of light and optical flexibility, designed to redefine the standard for theatrical, TV and corporate applications. EclPar TU and DY features a 177W white LED source (3.200 K TU; 6.000 K DY) delivering a tremendous lumen output and superior light quality with CRI and R9 > of 96. EclPar UV is a real UV LED luminaire with a 365nm wavelength LED source. The fixture offers an extensive accessory range including barn doors, filter frame, egg crate and a multitude of interchangeable lenses. EclPar features a smooth 16-bit dimming as well as RDM control and adjustable PWM to look good in front of a camera.

Main features:

• 177W White LED source (3.200 K TU; 5.600 K DY) with CRI and R9 > of 96; UV 108W 365nm wavelength LED source
• Flex lens system: TU and DY 24° on-board - 12° and 73° included - 40° optional - UV 40° on-board
• Silent operation and adjustable PWM

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

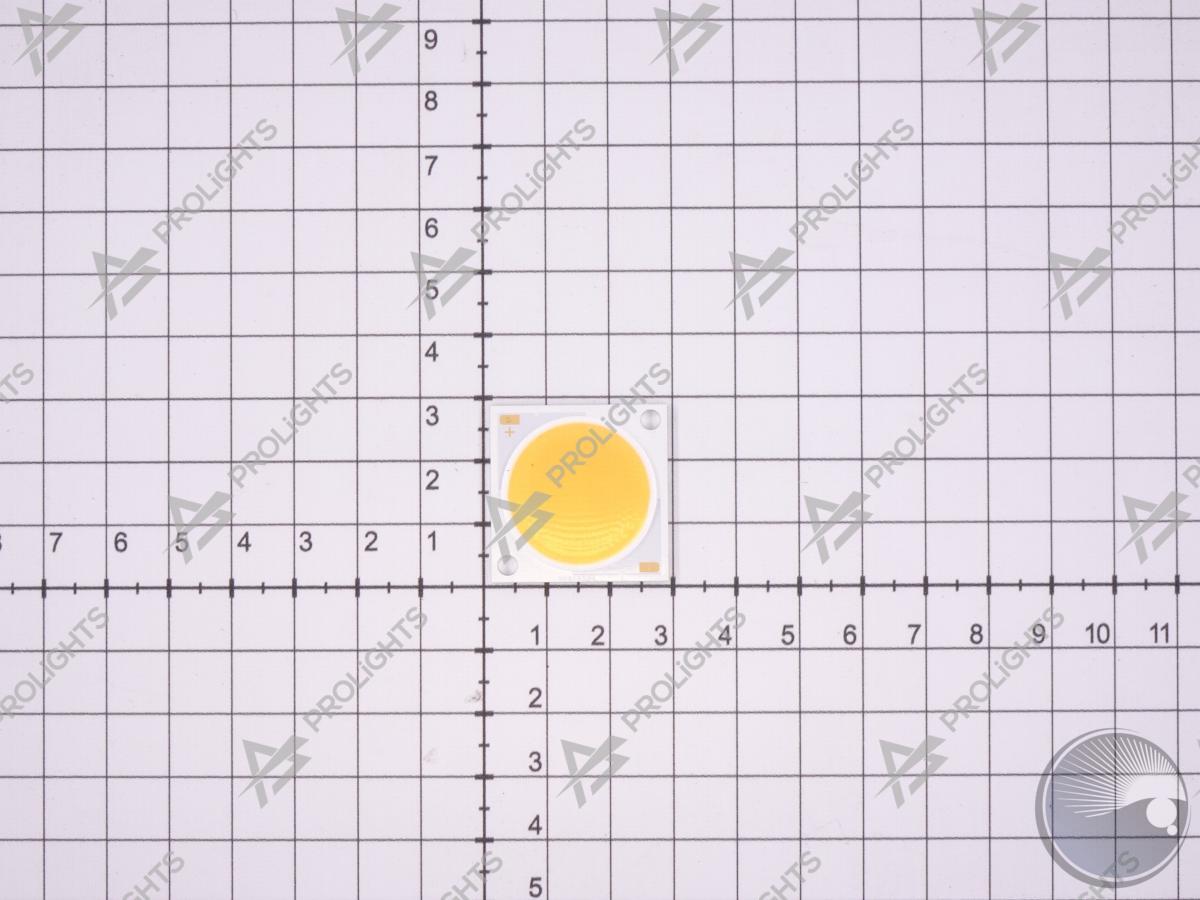

• Source: 177 W white LED / 108W UV LED
• CCT: (TU) 3.200K - (DY) 5.600
• Luminous flux: (TU) 12°: 11'726 lm - 24°: 12'454 lm - 73°: 11'834lm @full
• Luminous flux: (DY) 12°: 13'739 lm - 24°: 14'436 lm - 73°: 13'913 lm; (UV) 229,07 lm
• Lux: (TU) 12°: 5'102 lx - 24°: 2'333 lx - 73°: 344lx @5 m full
• Lux: (DY) 12°: 5'947 lx - 24°: 2'777 lx - 73°: 413 lx; (UV) 5'724lx @5 m full
• CRI: > 97 for TU; > 96 for DY
• R9: > 97 for TU; > 96 for DY
• TLCI: > 98 for TU; > 95 for DY
• TM30 Rf: > 93 for TU; > 90 for DY
• TM30 Rg: < 102 for TU; < 101 for DY
• Source life expectancy: > 70.000 h

OPTICS

• Beam angle: with different lens included: 12° / 24° / 73°
• Field angle: with different lens included: 28° / 41° / 104°
• Lens diameter: 163mm / 6.42''
• Lens type: fresnel lens
• Additional optics: 24° (onboard - for TU and DY versions), 12° and 73° lens included (for TU and DY versions), 40° lens optional (for TU and DY versions)
• Other: 40° lens included on board in UV version; no other lenses availables

DYNAMIC EFFECTS

• Static mode: selection of static colour
• Manual mode: manual adjustment of dimmer and strobe
• Auto mode: built-in programs with execution speed adjustment

BODY

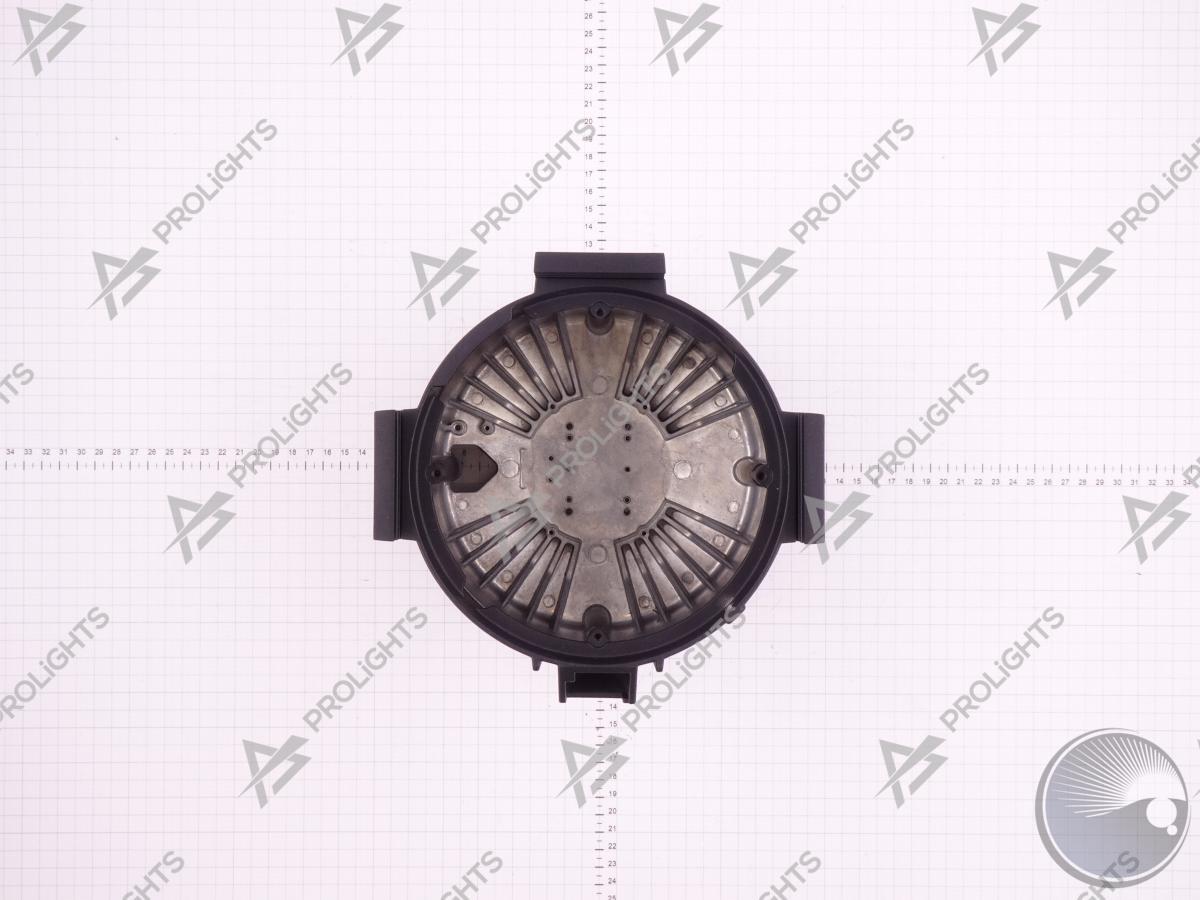

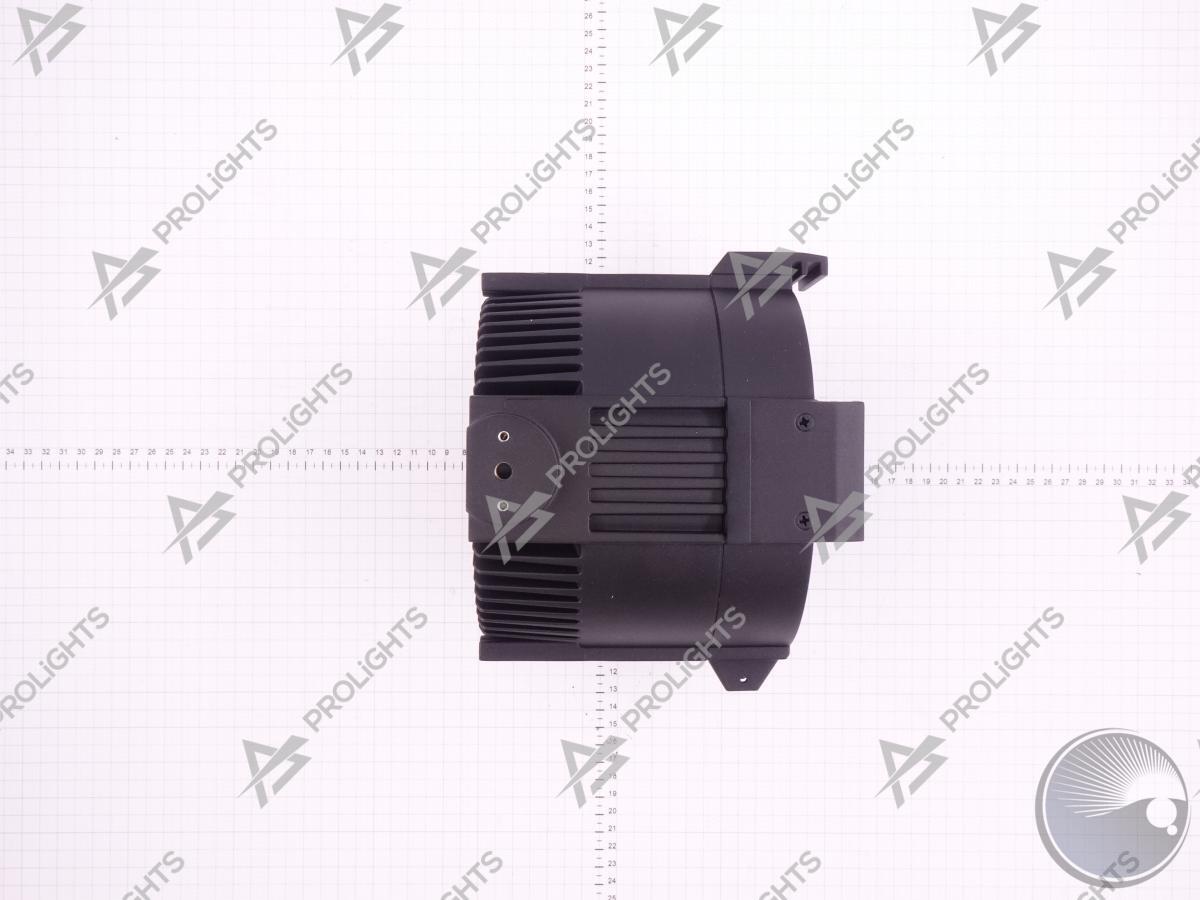

• Body: aluminium die-casting
• Body colour: black
• Other: gel frame holder included in the box (for TU and DY versions) - egg crate optional - barndoors optional

CONTROL

• Protocols: DMX512, RDM
• DMX channels: 1 / 2 / 3 / 6channel
• RDM: RDM for remote monitoring and settings

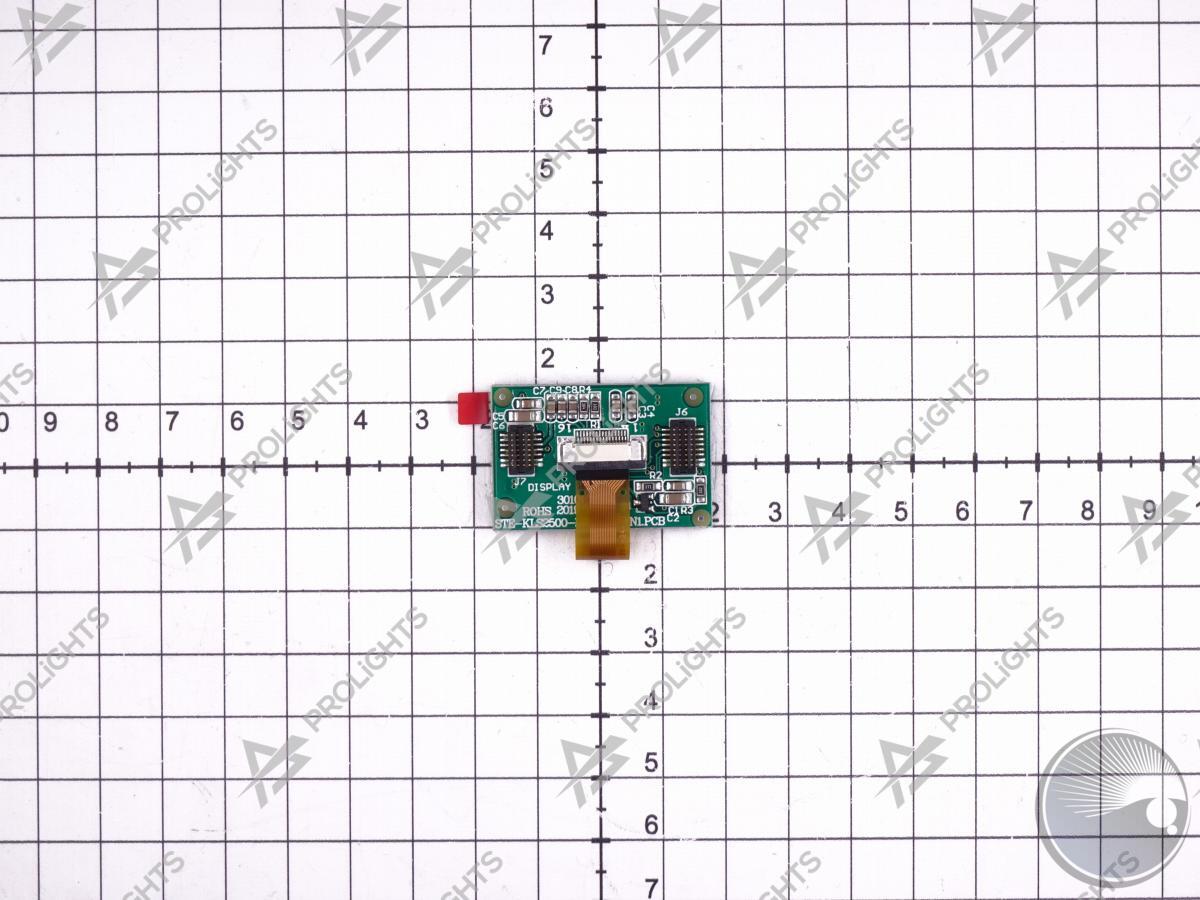

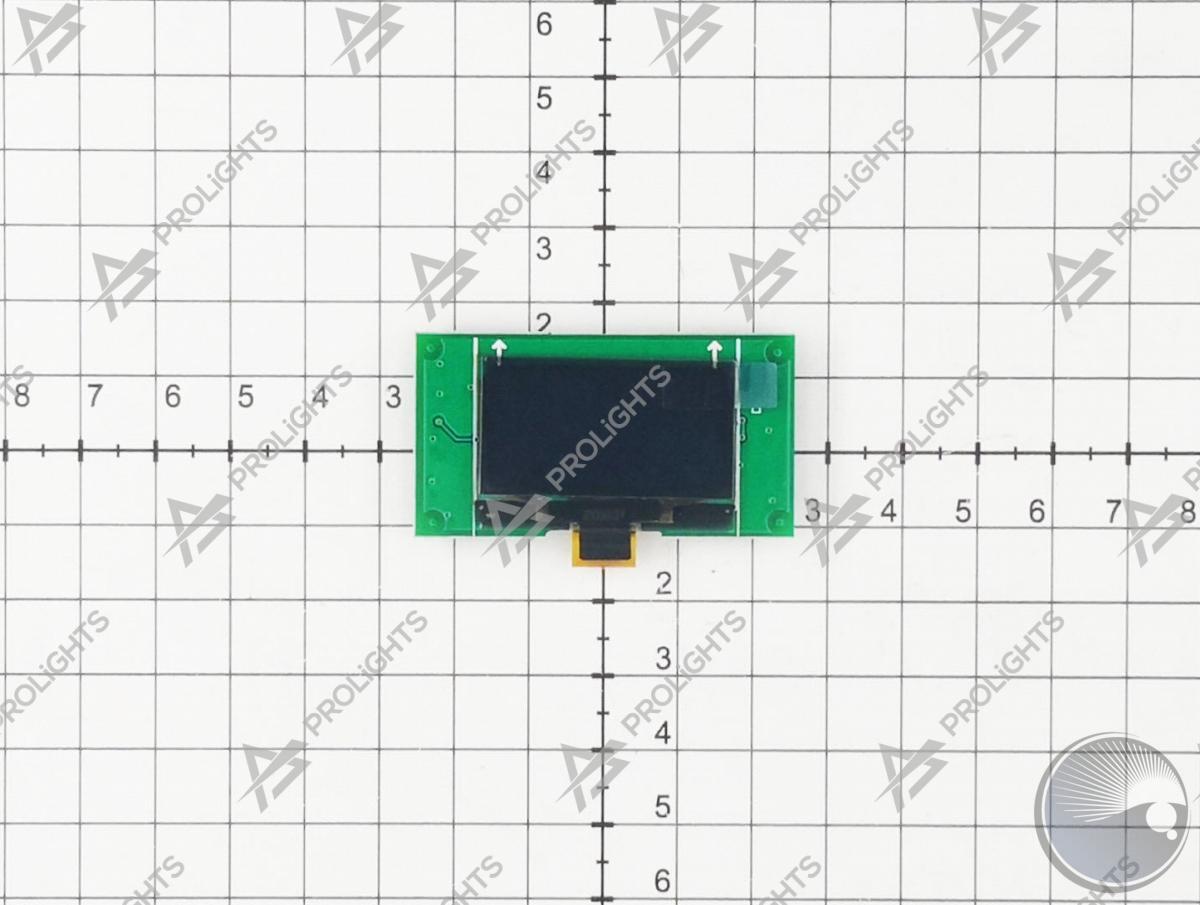

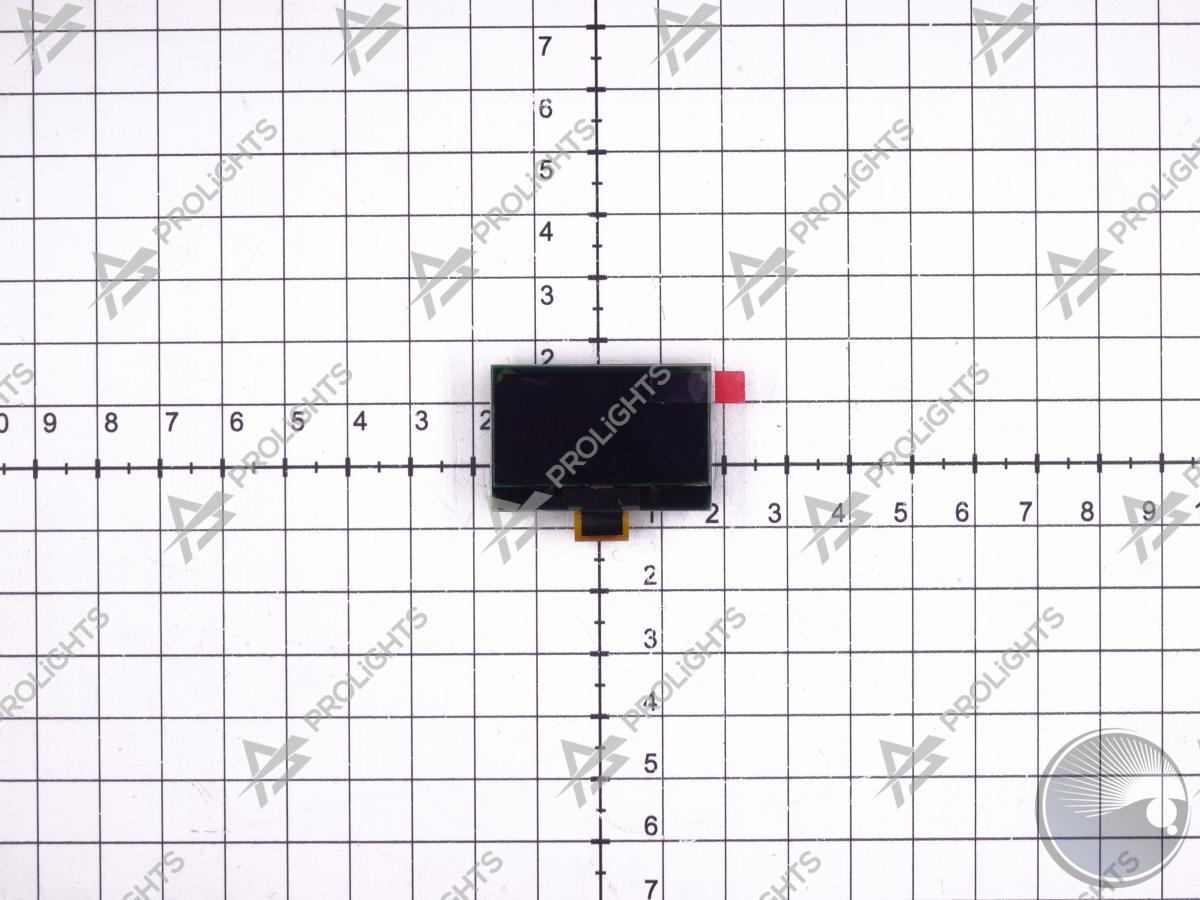

• Display: OLED display
• Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Operating temperature: -10° ~ +45°
• LED Control: flicker free operation
• Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

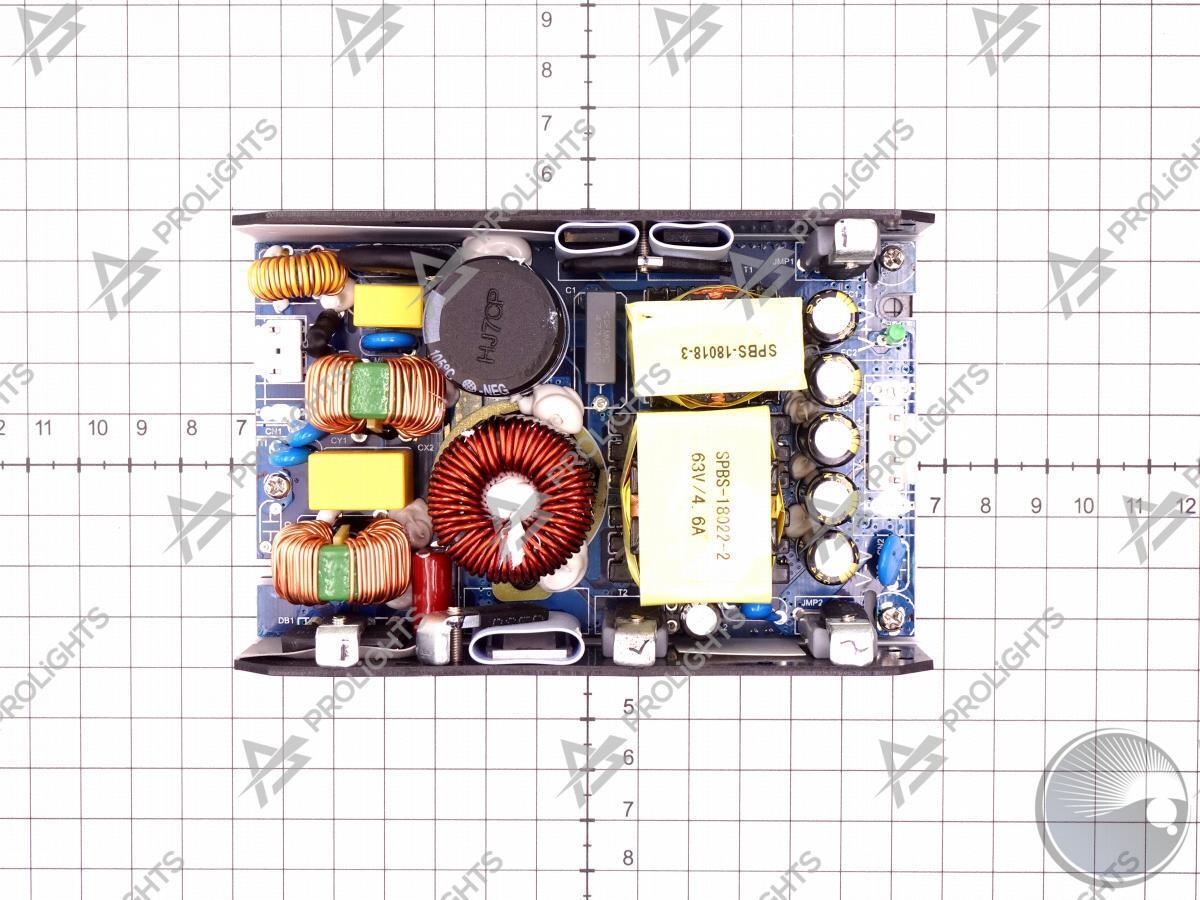

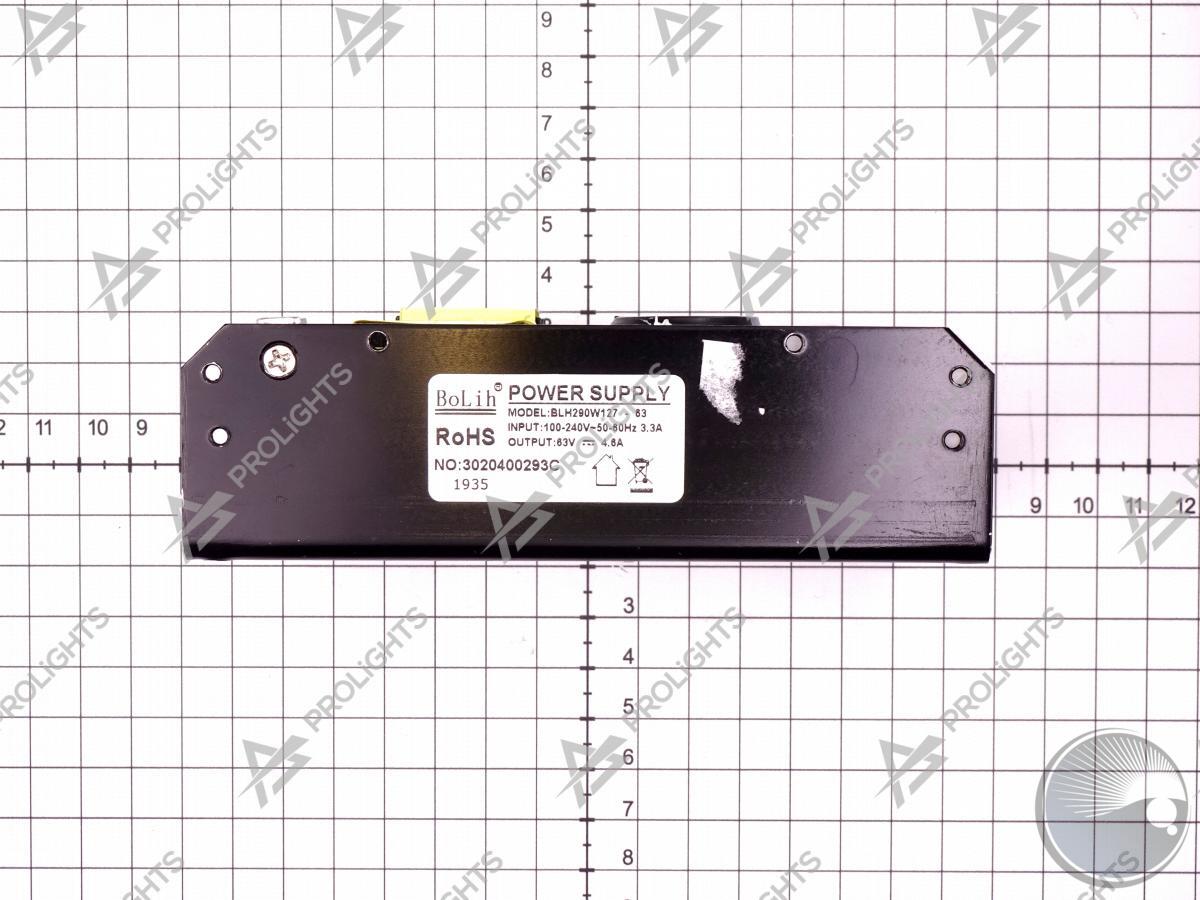

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: (TU, DY) 207 W - (UV) 204W
• Output (at 230V): (TU, DY) 12 - (UV) 16 units on a single power line
• Power factor: > 0.95

PHYSICAL

• IP rating: 20
• Cooling: active, silent operation
• Suspension and fixing: any position with quick-lock omega brackets
• Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
• Power connection: Neutrik powerCON IN/OUT connectors
• Dimensions (WxHxD): 316x404x317mm / 12.44''x15.91''x12.48''
• Weight: 5,5kg / 12.13lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM
