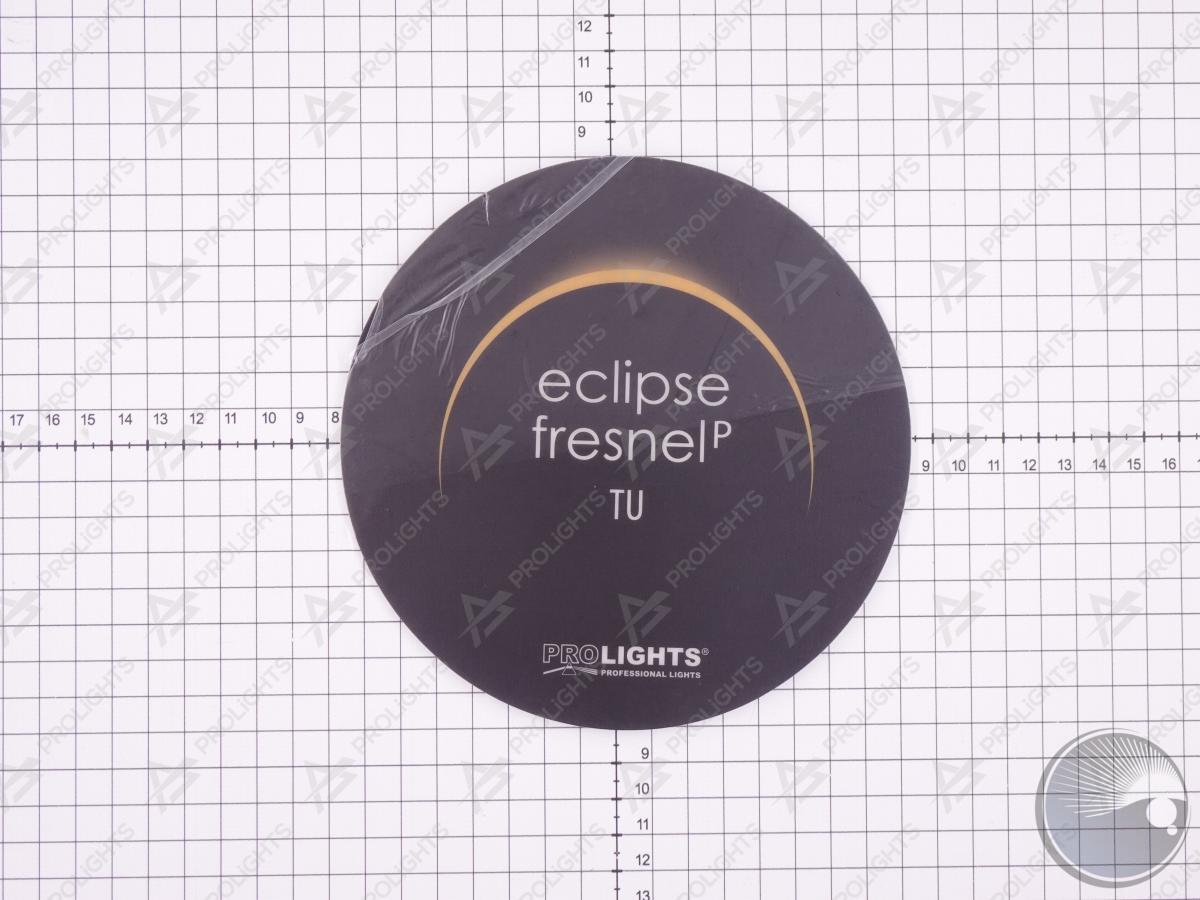

PL EclFresnel PTU, 230W, 3200K, P.O., schwarz

EclFresnel is the LED replacement for a standard tungsten 1.000W Fresnel. Featuring the output characteristics of a traditional Fresnel but with beam control, functional barn doors and a powerful source that focuses on outstanding colour rendition. The EclFresnel adds all the advantages of LED to the Fresnel.

Main features:

• TU (3.200 K) and DY (5.600 K) versions available both with HD dimming
• Fresnel lens with 17° to 66° zoom range
• Silent operation for studio and stage use

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 230W high-power white LED
• CCT: (TU) 3.200 K - (DY) 5.600
• Luminous flux: (TU) (17°) 10'842 lm (66°) 13'320lm @full
• Luminous flux: (DY) (17°) 12'546 lm (66°) 15'623 lm @full
• Lux: (TU) (17°) 3'728 lx - (66°) 1'019lx @5 m full
• Lux: (DY) (17°) 4'260 lx - (66°) 1'182lx @5 m full
• CRI: (TU) >98 - (DY) >95
• R9: (TU) >90 - (DY) >90
• TLCI: (TU) >98; (DY) >95
• TM30 Rf: (TU) >92; (DY) >89
• TM30 Rg: (TU) >99; (DY) >98
• Source life expectancy: > 50.000 h

OPTICS

• Zoom: 17° - 66° manual
• Lens diameter: 8'' - 200mm / 0.31''
• Lens type: fresnel zoom lens
• Other: barndoor and gel frame included

COLOUR SYSTEM

• Colour mixing: white

DYNAMIC EFFECTS

• Static mode: selection of static dimmer
• Manual mode: manual adjust of dimmer throught menu and knob
• Auto mode: built-in programs with execution speed adjustment

BODY

• Hardware on-board: included filter frame, 8 doors barndoor, spigot
• Pan angle: (for pole operated version) 360° with manual regulation
• Tilt angle: (for pole operated version) 340° with manual regulation
• Body: sturdy die-cast aluminium body
• Body colour: black, white finishing available
• Other: Spigot 28 mm

CONTROL

• Protocols: DMX512, RDM, rotatory knob
• DMX channels: ch1: 1 / 2 - ch2: 2 / 3 / 5channel
• RDM: RDM for remote monitoring and settings
• Display: Graphic User Interface
• Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
• Master/Slave: for synchronised operation of more units linked in a chain
• Other: 16bit control of dimmer

ELECTRONICS

• Dimmer: linear 0 ~ 100%, manual knob dimmer
• Dimmer curves: selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Operating temperature: -10° ~ +45°
• LED Control: flicker free frequency with adjustable PWM
• Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 220W
• Output (at 230V): 10 units on a single power line
• Power factor: 0,95

PHYSICAL

• IP rating: 20
• Cooling: combination of heat pipe cooling system and low noise fan
• Suspension and fixing: bracket for hanging and positioning
• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
• Dimensions (WxHxD): 283x440x343mm / 11.14''x17.32''x13.5''
• Dimensions with PO system (WxHxD): 341x545x343mm / 13.43''x21.46''x13.5''
• Weight: 7,5kg / 16.53lbs
• Weight with PO system: 9,7kg / 21.38lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM
