PL EclProfile CT+, 96x3W 6-Farb-LED, schwarz, ohne Linsentubus

EclProfile CT+ is a high quality, six colour mixing LED ellipsoidal.Designed to reach the finest quality of light for white tones and colour spectrum, its custom LED array and powerful on-board colour control allows to reach bright and high-quality whites, up to 97 of CRI, keeping a consistent output and ensuring a total control of the light.The wide feature set includes special theatrical functions such as tungsten emulation on dimming, colour gels, virtual CTO and studio  functions, such as +/- green correction on linear white CCT.

Main features:

• Linear white CCT from 2.800 K to 10.000 K with CRI up to 97.
• RGB / CMY / HSI / XY / RAW colours control of the six colours LED array for easy access to any desired colour.
• Industry standard colour gels matching, tungsten emulation on dimming, tint control (+/- green).

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

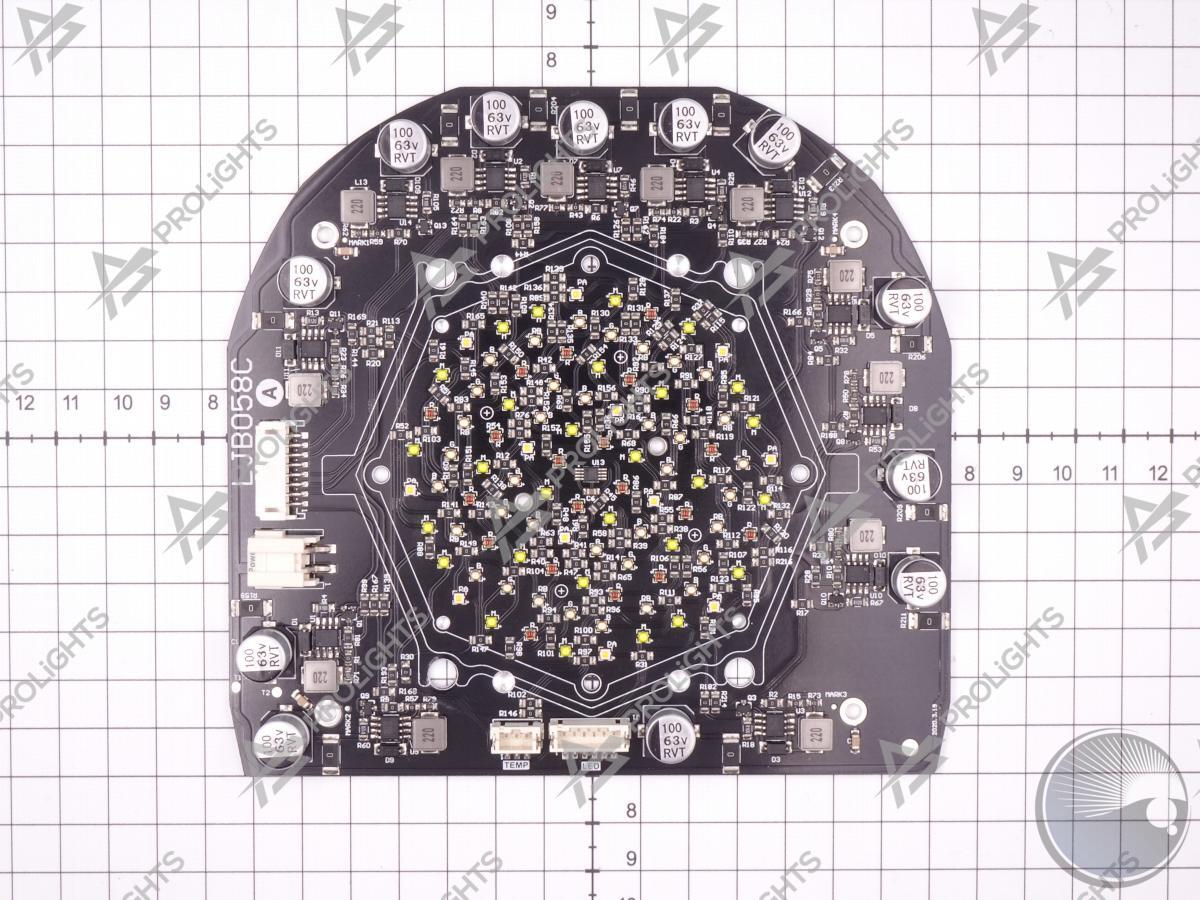

• Source: Luxeon-C; 96x3W 6 colour custom LEDs source (red, green, blue, royal blue, mint, pc amber)
• CCT: @full 5.000
• Luminous flux: (5°) 3'805 lm; (10°) 4'790 lm; (14°) 5'047 lm; (19°) 5'380 lm; (26°) 6'681 lm; (36°) 6'814 lm; (50°) 5'773 lm; (70°) 7'430lm @full
• Luminous flux: (zoom 15°-30°) (min angle) 5'290 lm; (max angle) 6'664 lm - (zoom 25°-50°) (min angle) 7'042 lm; (max angle) 9'817 @full
• Lux: (5°) 14'638 lx; (10°) 8'663 lx; (14°) 3'812 lx; (19°) 2'530 lx; (26°) 1'759 lx; (36°) 810 lx; (50°) 474 lx; (70°) 306lx @5 m full
• Lux: (zoom 15°-30°) (min angle) 3'502 lx; (max angle) 1'800 lx - (zoom 25°-50°) (min angle) 2'608 lx; (max angle) 974lx @5 m full
• CRI: 93,7 @3.200 K; 97,6 @5.600 K
• R9: 98,6 @3.200 K; 98,2 @5.600 K
• TLCI: 95 @5.600 K
• TM30 Rf: 92 @5.600 K
• TM30 Rg: 100,1 @5.600 K
• Source life expectancy: > 50.000 h

OPTICS

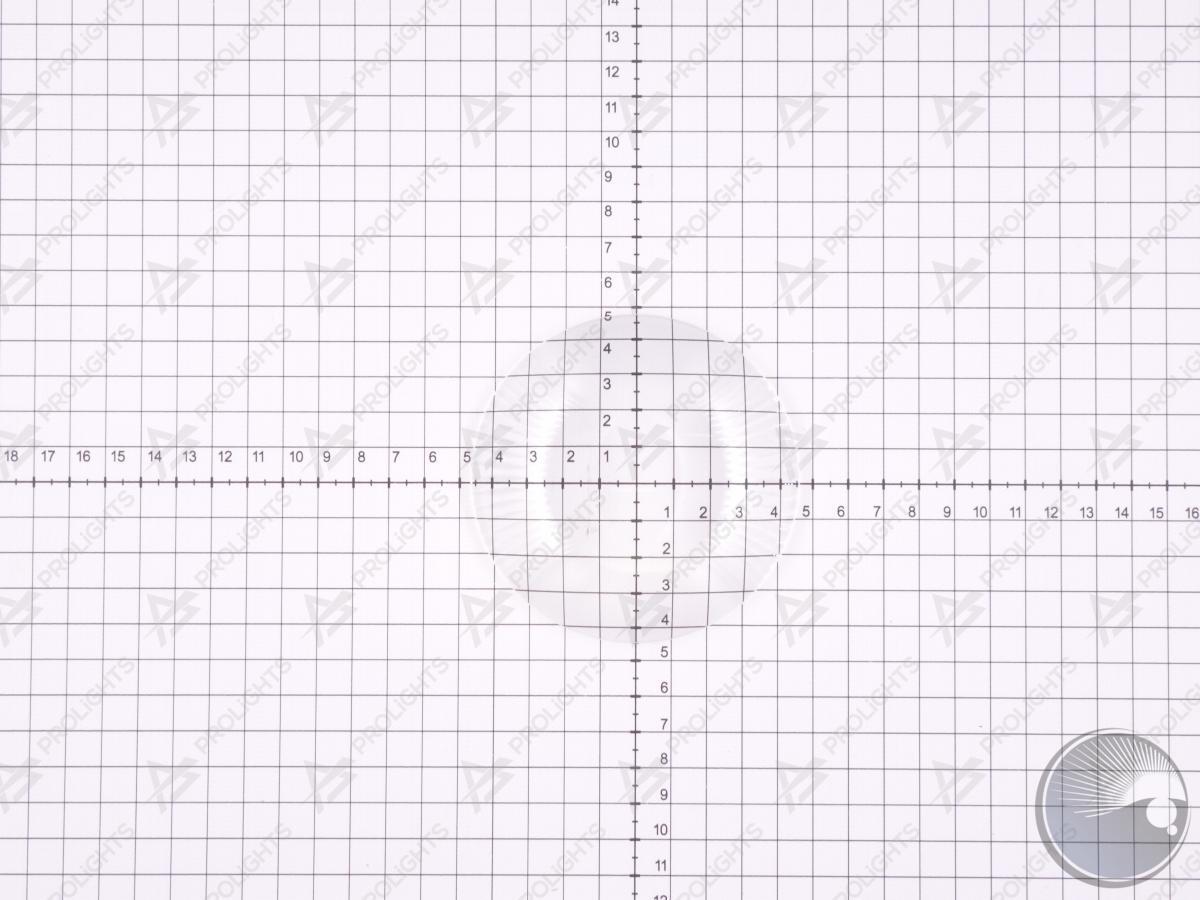

• Lens type: high-quality glass lens optics
• Additional optics: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°
• Focus: manual
• Other: see available accessories

COLOUR SYSTEM

• Colour mixing: RGB, Royal Blue, Mint, PC Amber
• CCT: CCT control, + / - green correction, tungsten emulation
• White presets: 2.800 K ~ 10.000K
• Colour wheel: colour gels matching and RGB / HSI / CMY selectable colour mode

DYNAMIC EFFECTS

• Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
• Special features: 4 fan modes available and output management and linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

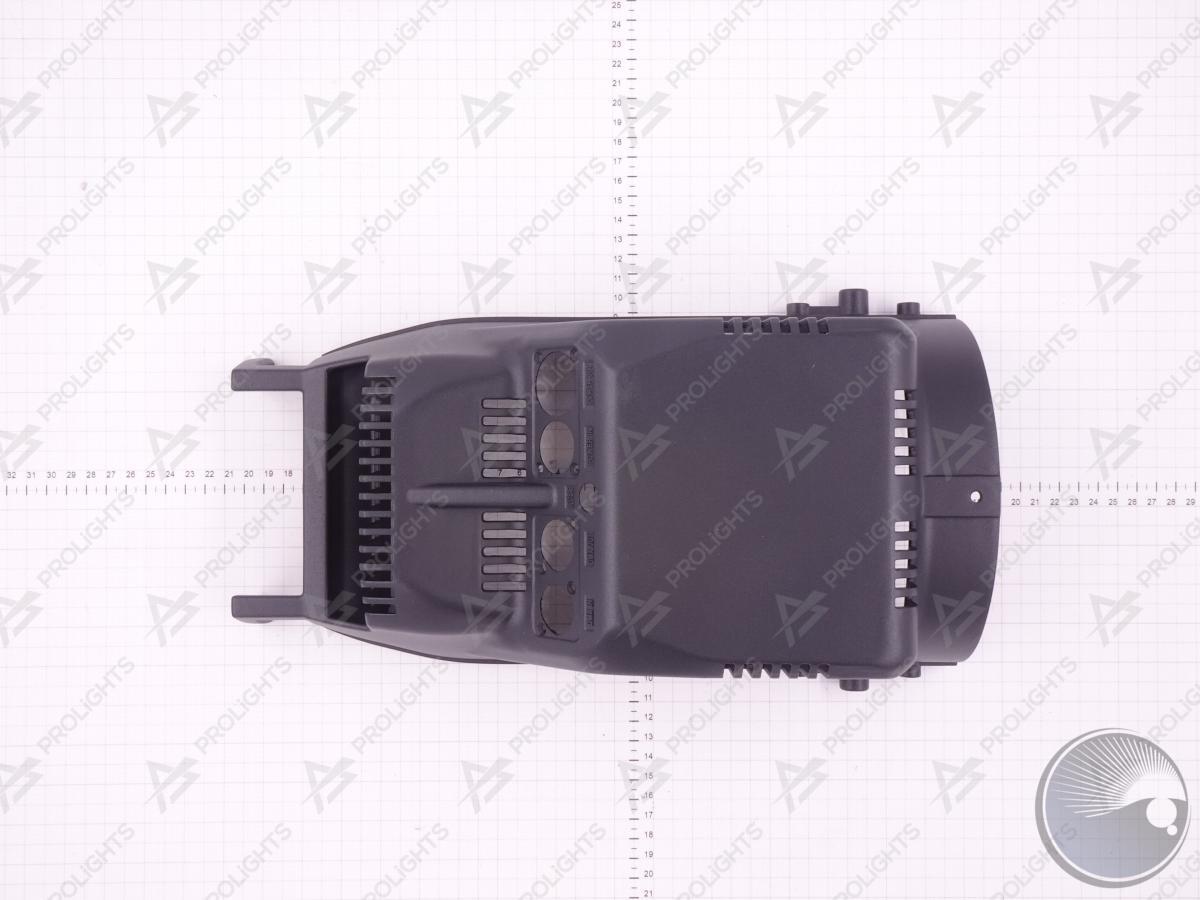

• Body: sturdy die-cast aluminium body
• Body colour: RAL 9004

CONTROL

• Protocols: DMX512, RDM
• Stand Alone: selection of static colours, white presets, manual colours and built-in effects with adjustable speed
• DMX channels: UNO / DUO / Basic / Standard / Extended / RAW Direct / RAW 16bit / XYchannel
• RDM: RDM for remote monitoring and settings

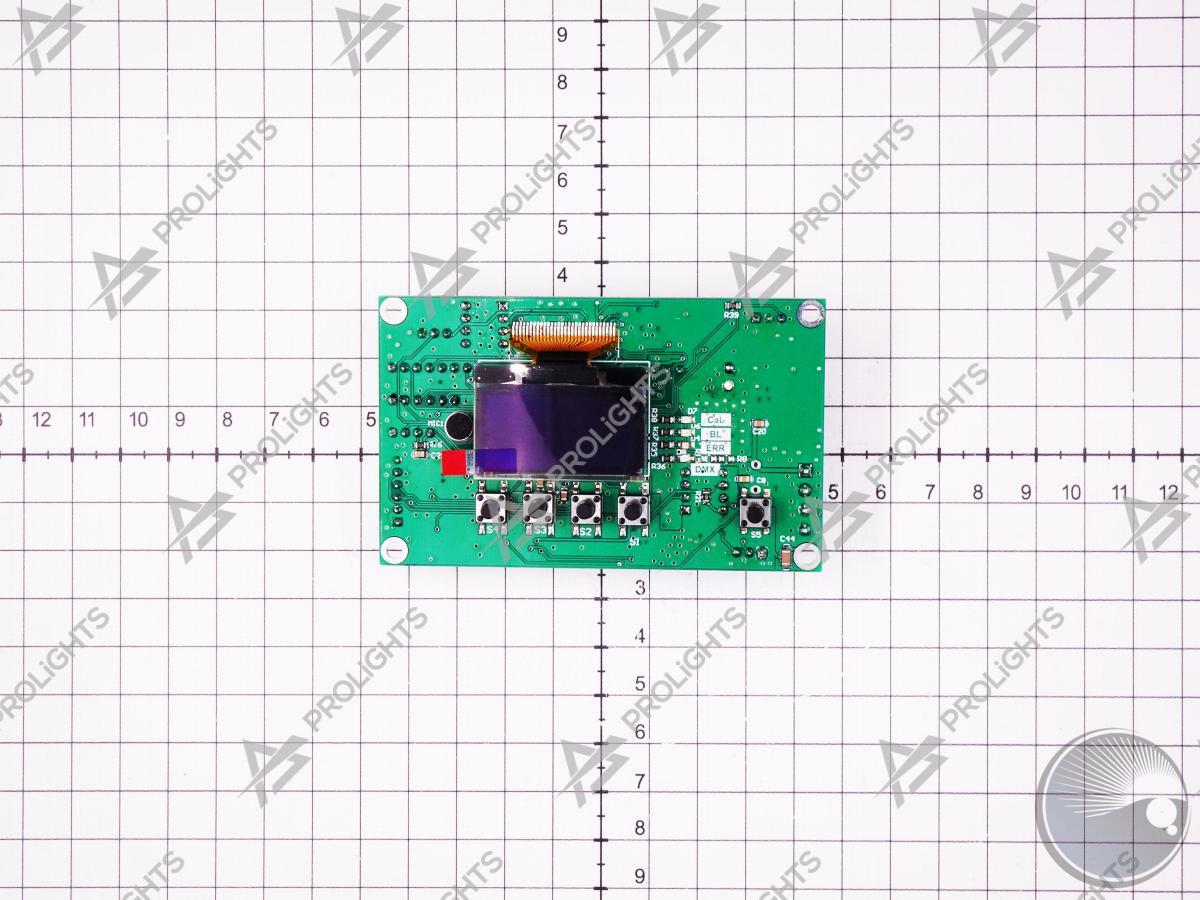

• Display: Graphic User Interface
• Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included (through dedicated software)
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 25 Hz, electronic
• Operating temperature: -20° ~ +45°
• LED Control: flicker free operation
• Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 270W
• Output (at 230V): 7 units on a single power line
• Power factor: > 0,95

PHYSICAL

• IP rating: 20

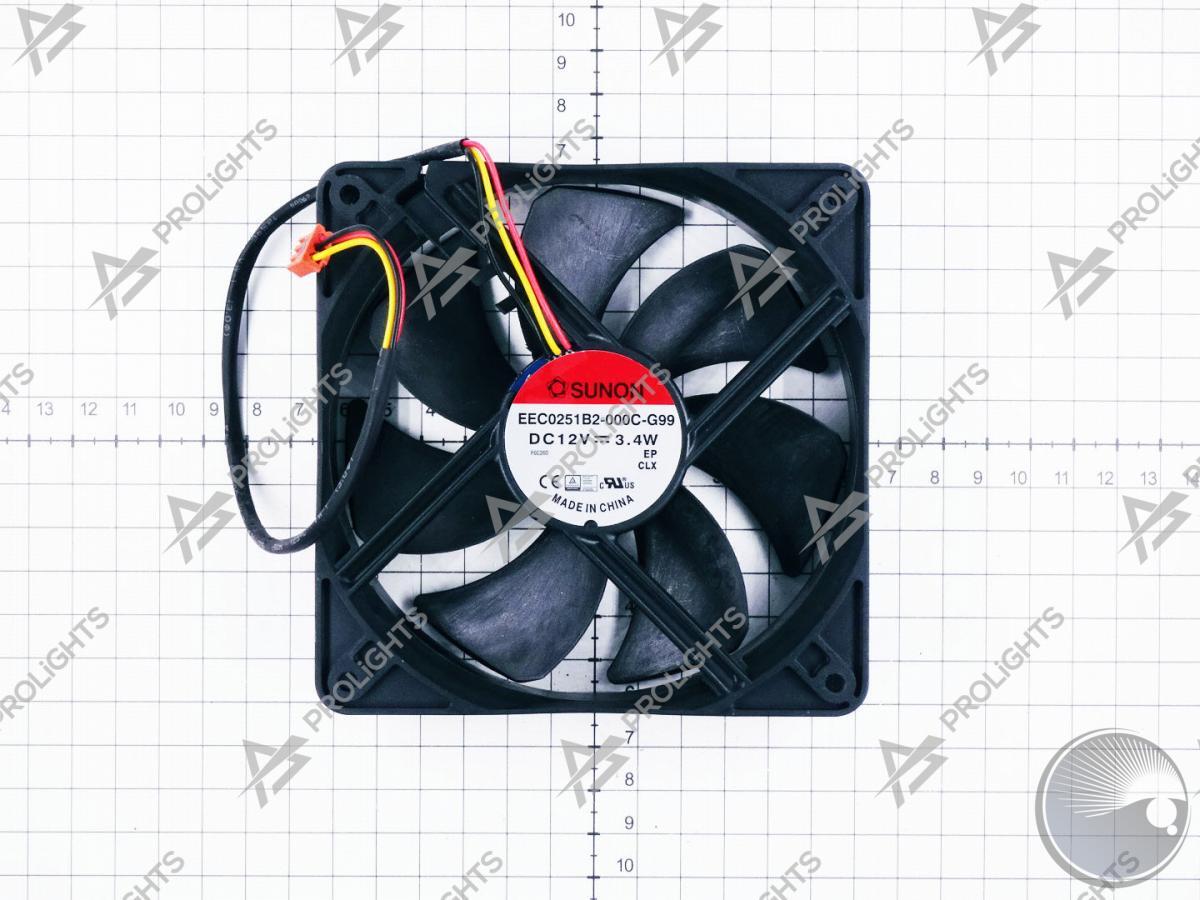

• Cooling: low noise fan
• Suspension and fixing: bracket for hanging and positioning
• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
• Dimensions (WxHxD): 264x259x539mm / 10.39''x10.2''x21.22''
• Weight: 7,9kg / 17.42lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
