PL EclCyclorama 100, 330W RGB+warmweiß, 100cm

2.094,40 € *

inkl. MwSt. zzgl. Versandkosten

Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.

  • ECLCYC100
EclCyclorama 100 is a soft-edge, linear cyclorama and floodlight, designed in a surprisingly low... mehr
Produktinformationen "PL EclCyclorama 100, 330W RGB+warmweiß, 100cm"

EclCyclorama 100 is a soft-edge, linear cyclorama and floodlight, designed in a surprisingly low profile form factor to meet applications at both front and end of the stage, offering an unprecedent level of brightness in its category. The fixture is equipped with a custom and calibrated RGB + Warm White LED source, which is capable to deliver a linear and high quality white reproduction of the entire spectrum with high CRI, TLCI and TM30 performances. The optical system has been designed to offer a very wide asymetric beam angle, and capable of a superior lumen efficiency, making the EclCyclorama range a very flexible solution, suitable for both application where fixture are connected each other or separated by a considerable distance, without worrying of dark-edge or uniformity gaps. The fixture is extremely user friendly and offers a multitude of control possibilities being DMX, RDM, Artnet, sACN and Wireless DMX.

Main features:

  • RGB + Warm White colour systems allows high quality of whites (CRI 93 @3.200 K) and bright colours.
  • Slim design, with only 12 cm height for easy implementation in the front or at the back of the stage.
  • Wide Asymmetric beam angle to allow flexible installation at modular distances between fixtures
  • Hardware designed with tilt angle adjustment, beam control and flexible hanging and ground stacking applications.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

  • Source: 330W RGB + Warm White
  • Luminous flux: (with 40°x80° filter on board) 27'342lm @full
  • Lux: @1 m to wall and 1,5 m height @full (with standard filter 40°x80°) 1'240 lx - (with 40° filter) 2'610 lx - (with 10°x60° filter) 3'110 lx - (with 30°x60° filter) 2'880lx
  • CRI: 93 @3.200 K; 92,6 @5.600 K
  • R9: 88 @3.200 K; 93,7 @5.600 K
  • TLCI: 91 @5.600 K
  • TM30 Rf: 89,8 @5.600 K
  • TM30 Rg: 106 @5.600 K
  • Source life expectancy: > 50.000 h

OPTICS

  • Beam angle: (VxH) 40°x80°
  • Additional optics: see available accessories

COLOUR SYSTEM

  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K
  • Colour wheel: virtual colour wheel with macros

DYNAMIC EFFECTS

  • Control Resolution: 16-bit dimmer, colours
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Body: sturdy die-cast aluminium body
  • Body colour: black
  • Other: +/- 8° angle adjusting

CONTROL

  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
  • Wireless Control: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

ELECTRONICS

  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 400W
  • Power factor: >0,94

PHYSICAL

  • IP rating: IP20
  • Cooling: heat sink without fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: RJ45 IN/OUT
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 1000x119x148mm / 39.37''x4.69''x5.83''
  • Weight: 9,6kg / 21.16lbs

CERTIFICATIONS / APPROVALS

  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
Weiterführende Links zu "PL EclCyclorama 100, 330W RGB+warmweiß, 100cm"

PL FUSE HOLDERSP004816PL FUSE HOLDER

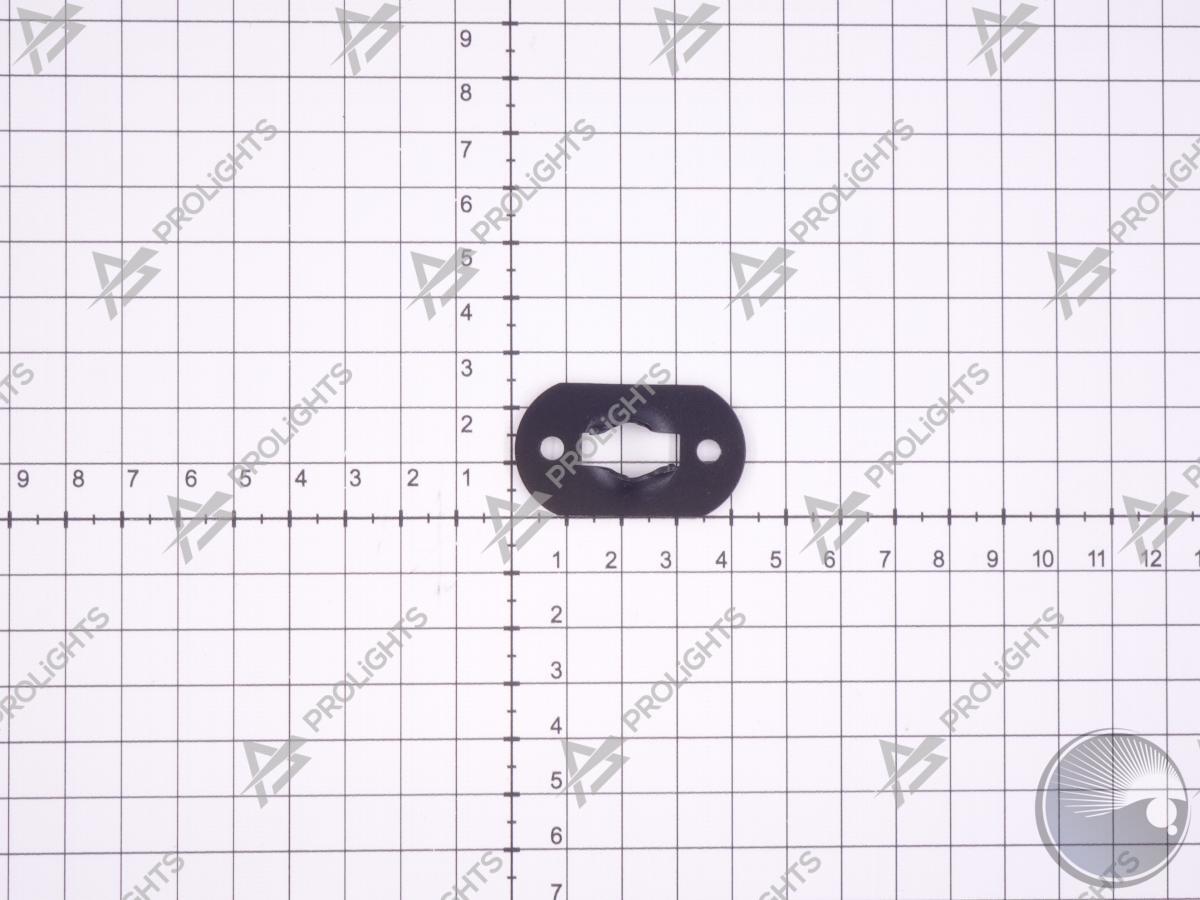

PL CLAMP LOCK, 61101466 (ersetzt 4010302997)SP006916PL CLAMP LOCK, 61101466 (ersetzt 4010302997)
PL W-DMX PCB (Tiny)SP012351PL W-DMX PCB (Tiny)
PL W-DMX PCB (Tiny)SP012351PL W-DMX PCB (Tiny)
PL ETHERNET PCBSP014029PL ETHERNET PCB

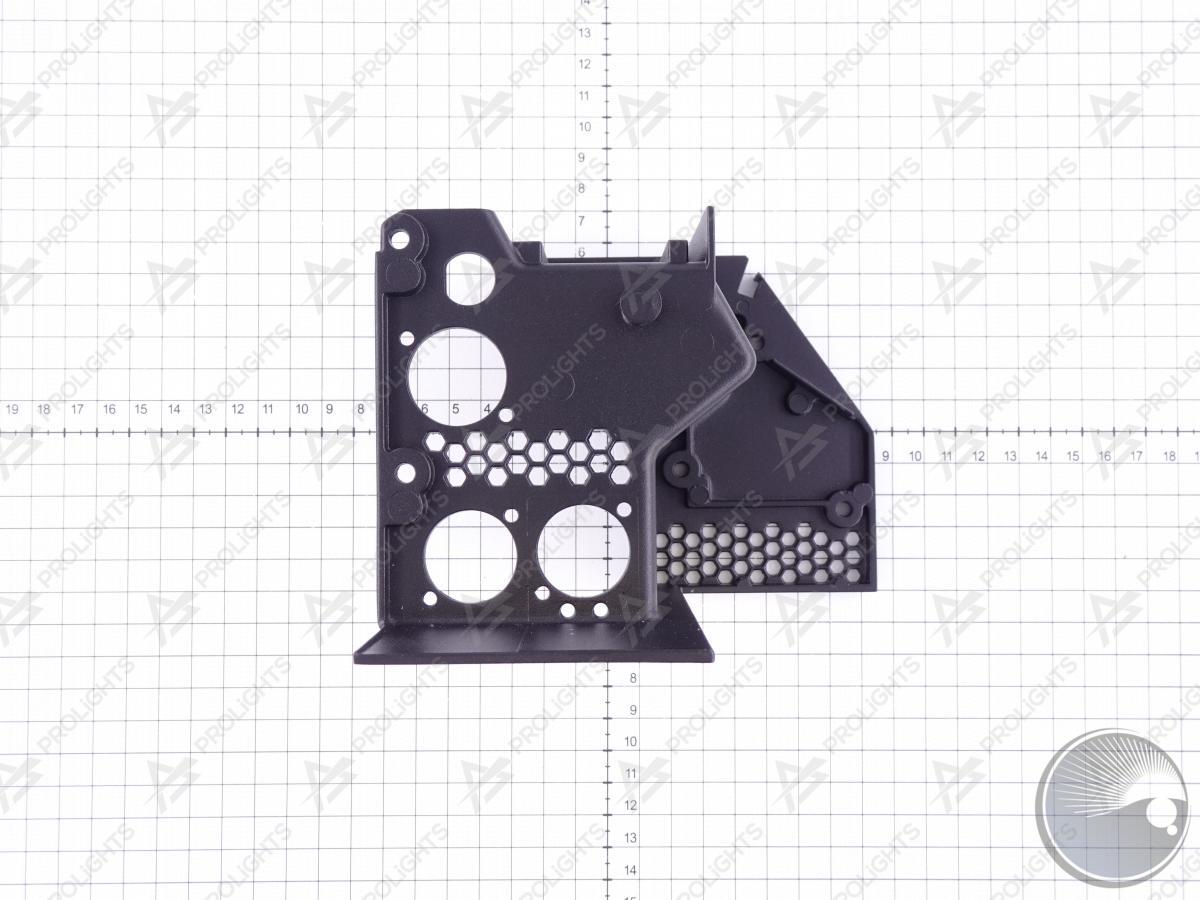

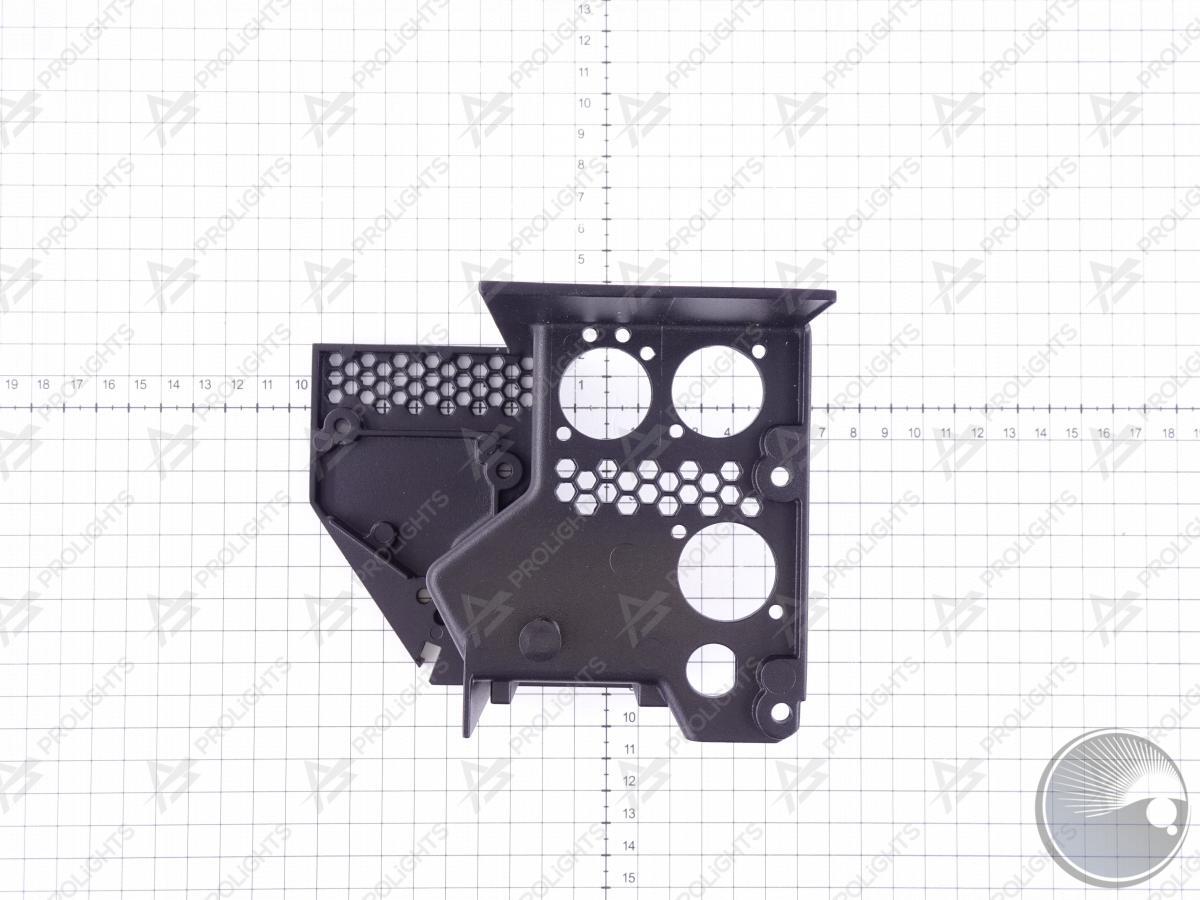

PL SIDE COVER 1SP014697PL SIDE COVER 1
PL SIDE COVER 1SP014697PL SIDE COVER 1

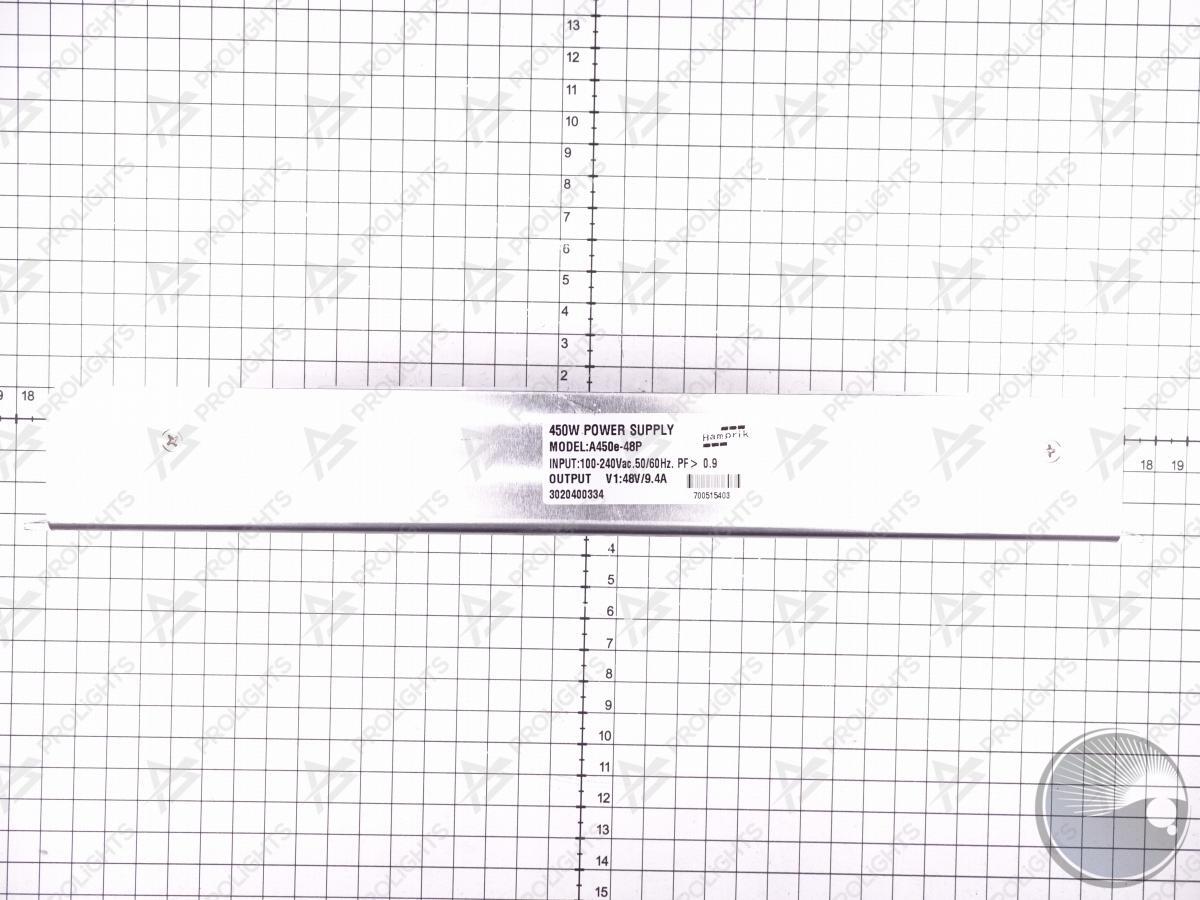

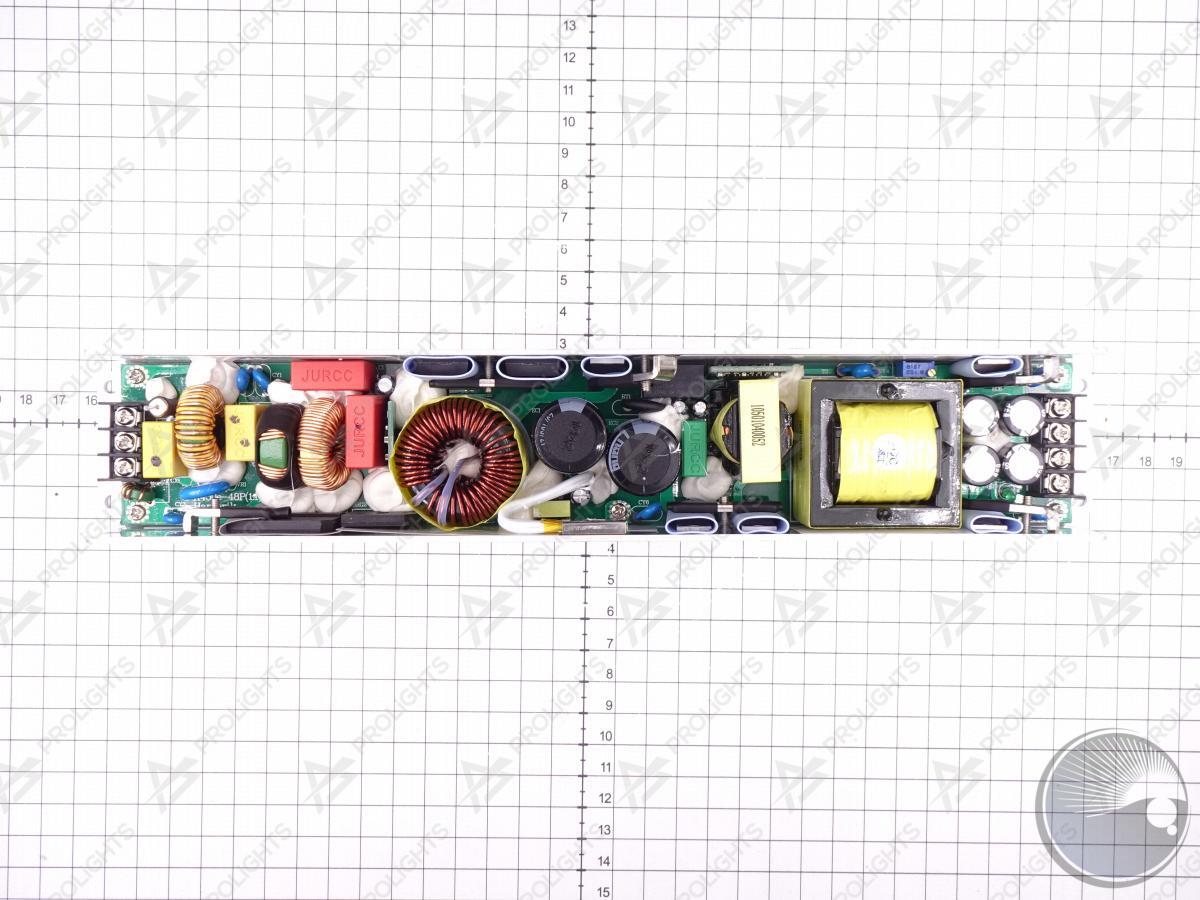

PL POWER SUPPLY(SP ECLCYC100 8 AG)SP014700PL POWER SUPPLY(SP ECLCYC100 8 AG)
PL POWER SUPPLY(SP ECLCYC100 8 AG)SP014700PL POWER SUPPLY(SP ECLCYC100 8 AG)

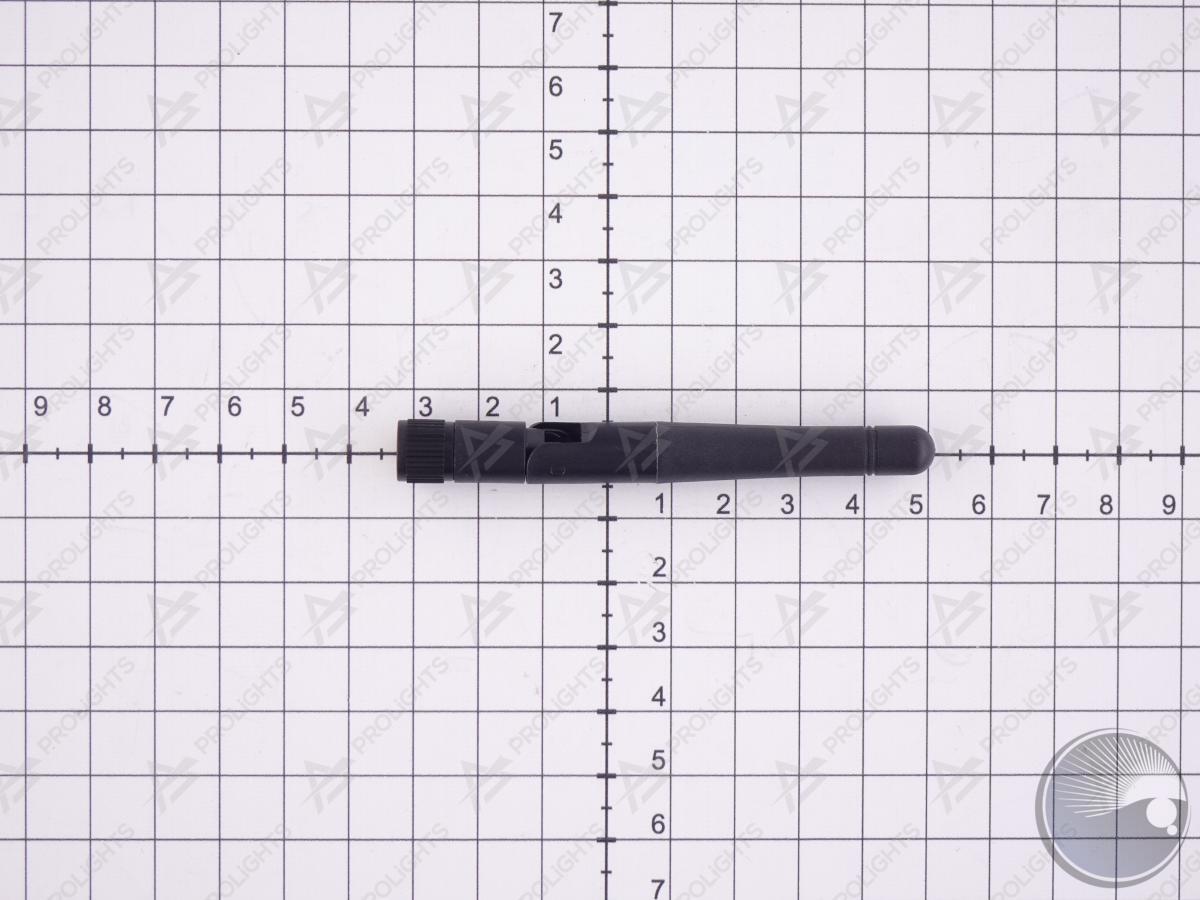

PL ANTENNASP014703PL ANTENNA

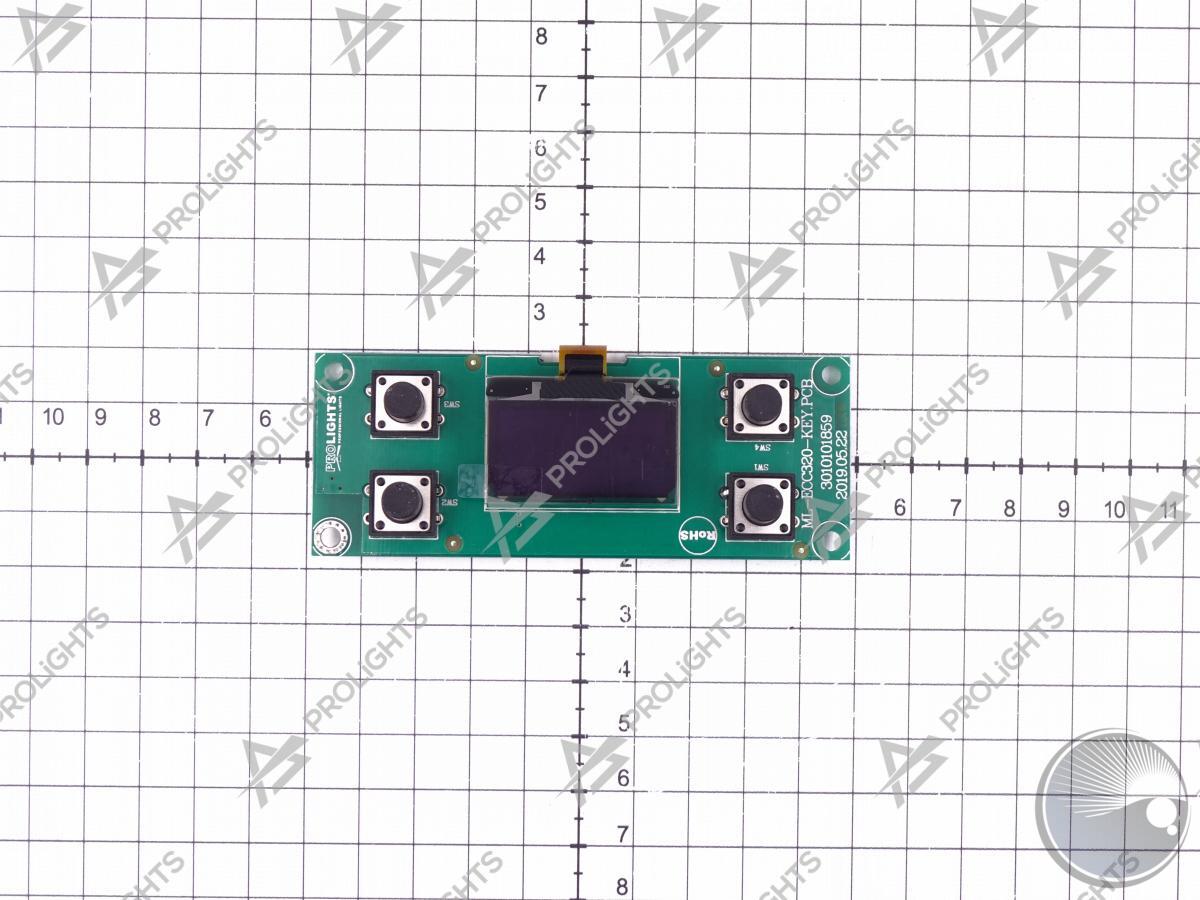

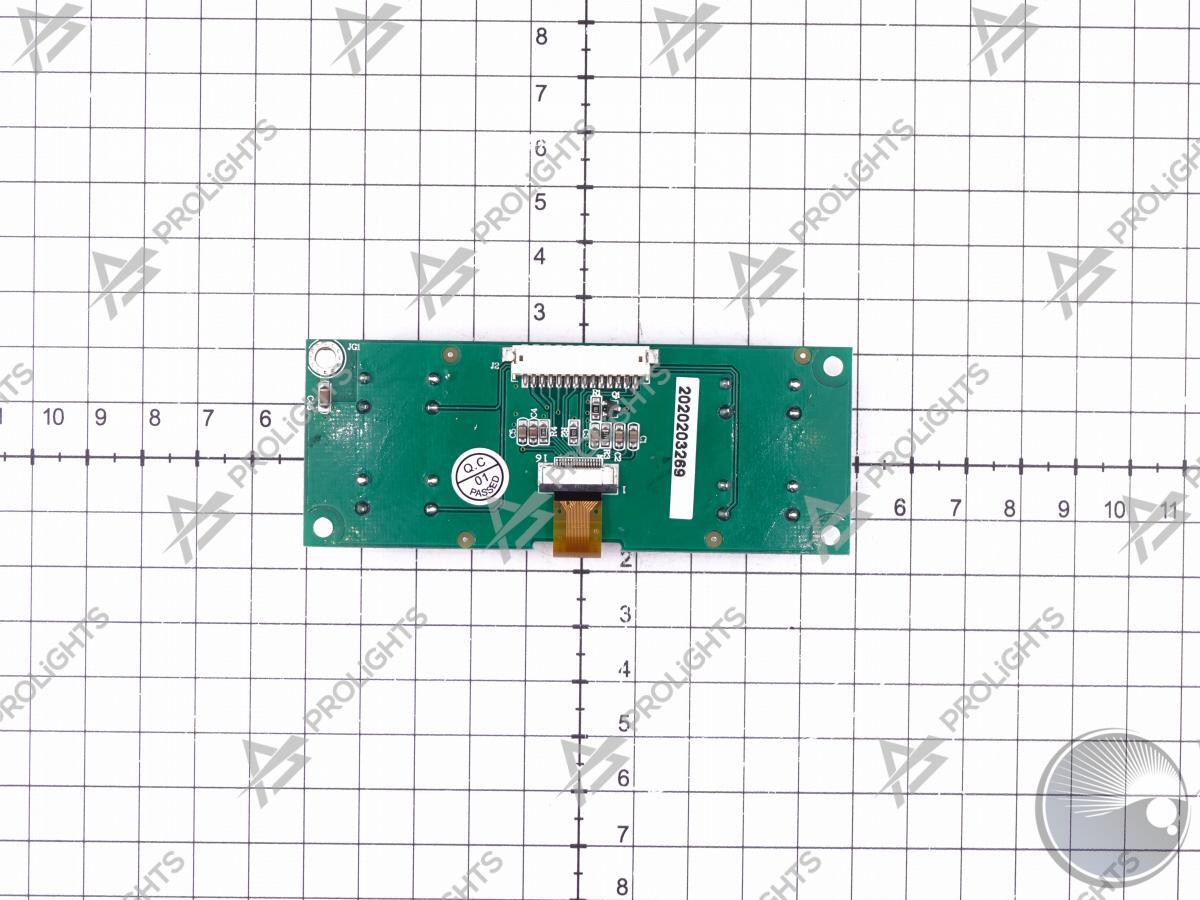

PL DISPLAY PCBSP014707PL DISPLAY PCB
PL DISPLAY PCBSP014707PL DISPLAY PCB

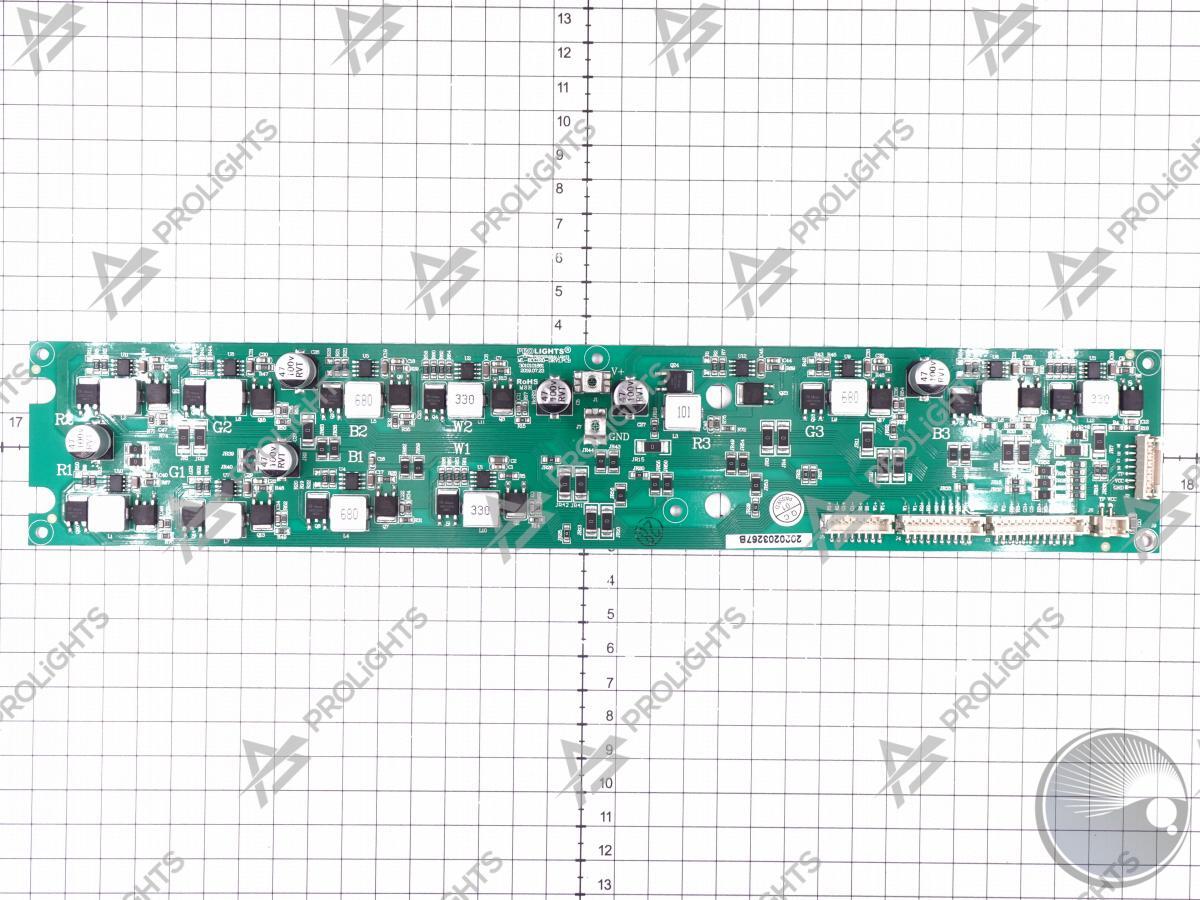

PL Driver PCBSP014709PL Driver PCB

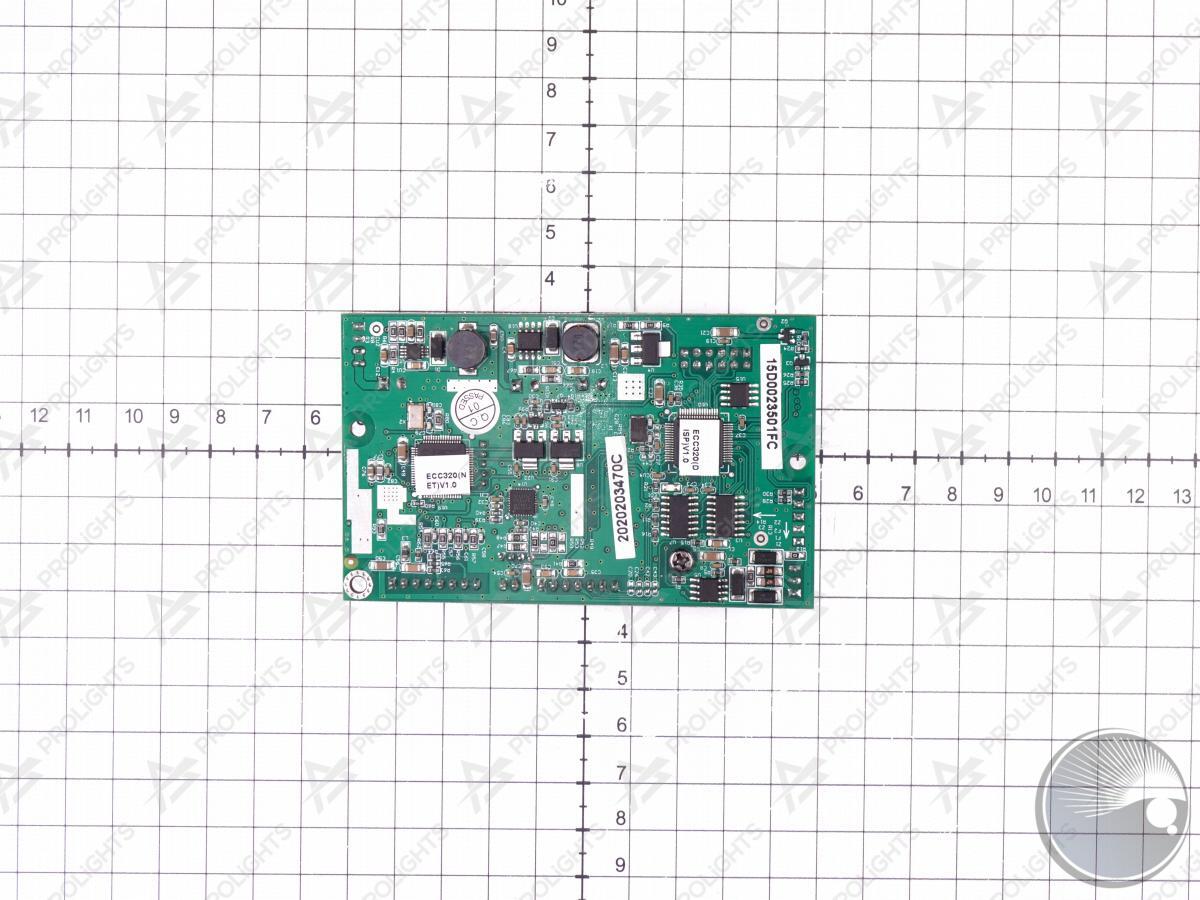

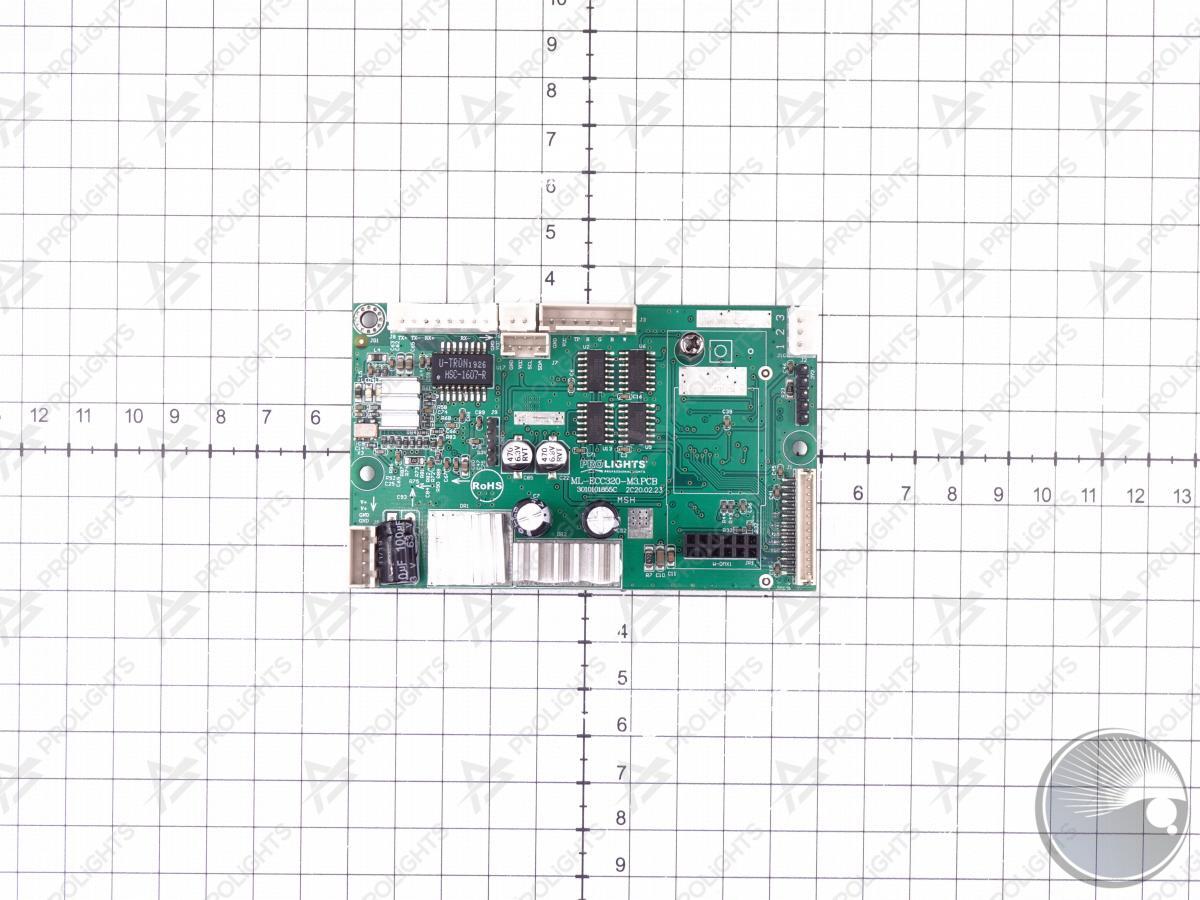

PL Master PCB (Disp)SP014712PL Master PCB (Disp)
PL Master PCB (Disp)SP014712PL Master PCB (Disp)
SP014717PL FILTER, 32200554
SP014720PL LED PCB

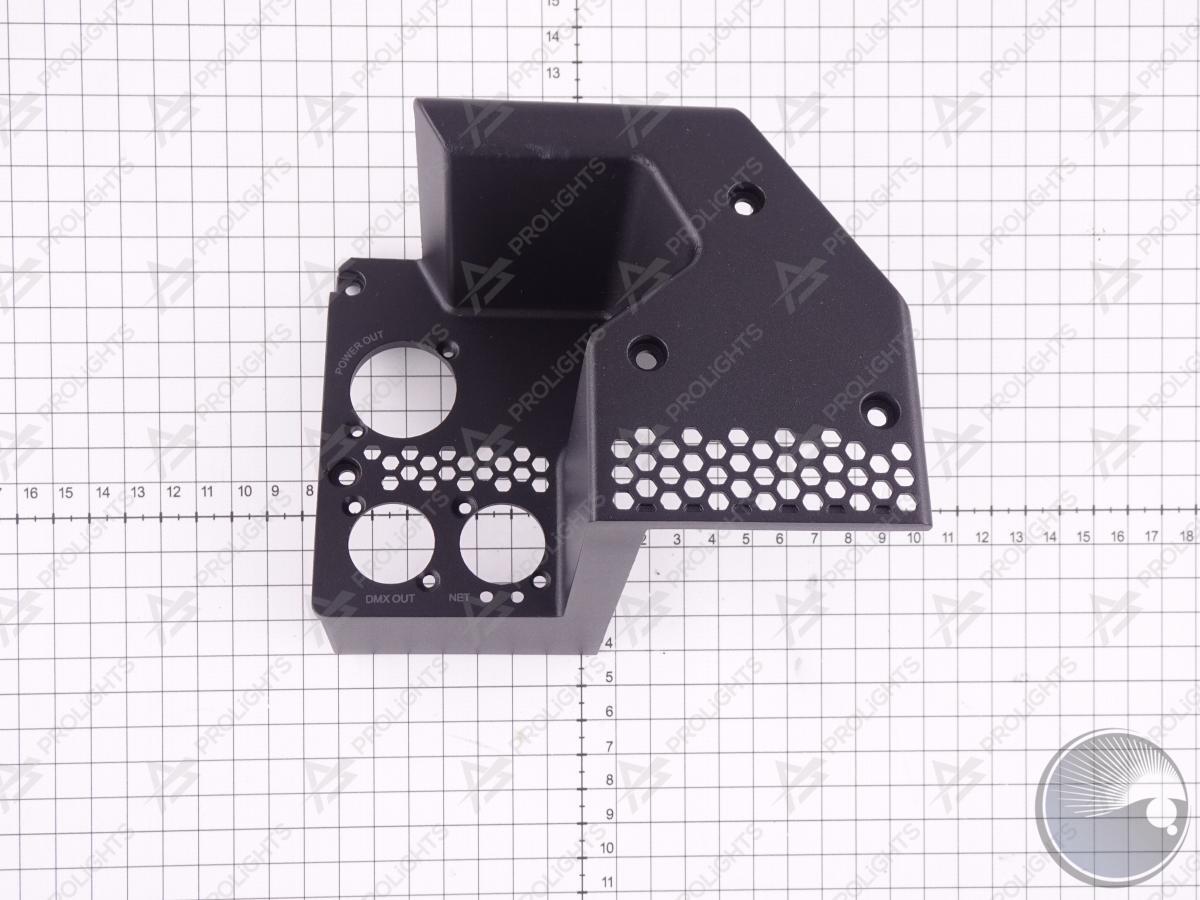

PL SIDE COVER 2SP014724PL SIDE COVER 2

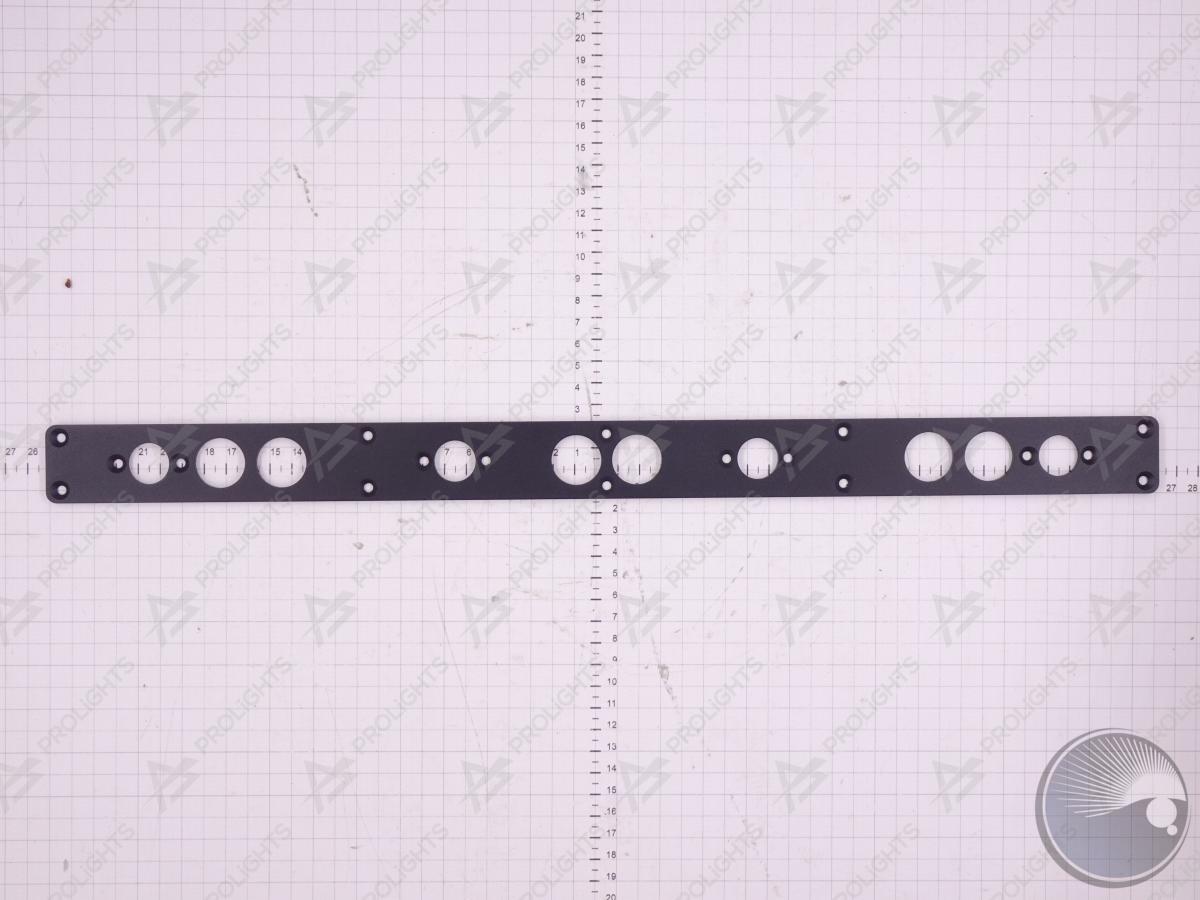

PL CLAMP LOCK HOLDER PLATESP014734PL CLAMP LOCK HOLDER PLATE

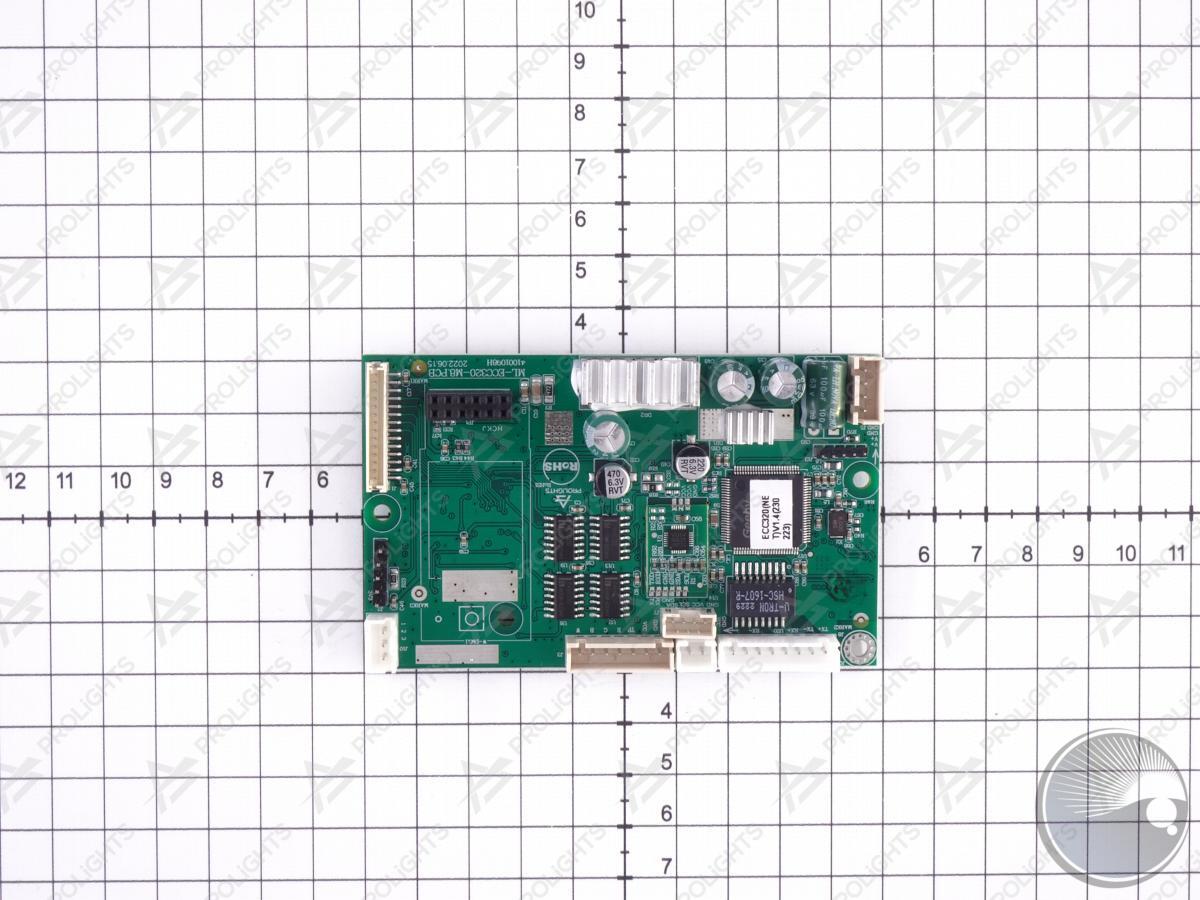

PL Master PCB (Disp)SP015279PL Master PCB (Disp)
PL CRMX - W-DMX Tx/Rx BOARDSP015296PL CRMX - W-DMX Tx/Rx BOARD
PL CRMX - W-DMX Tx/Rx BOARDSP015296PL CRMX - W-DMX Tx/Rx BOARD

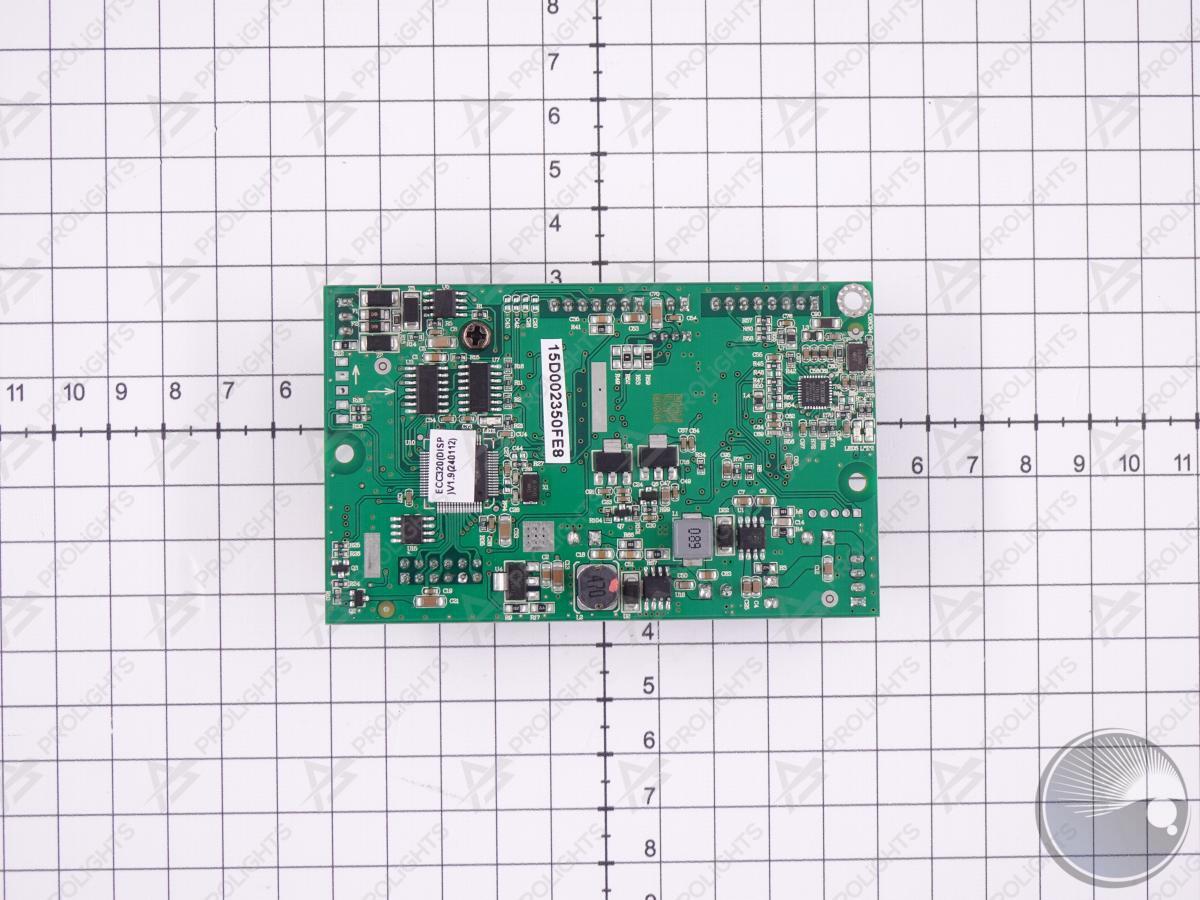

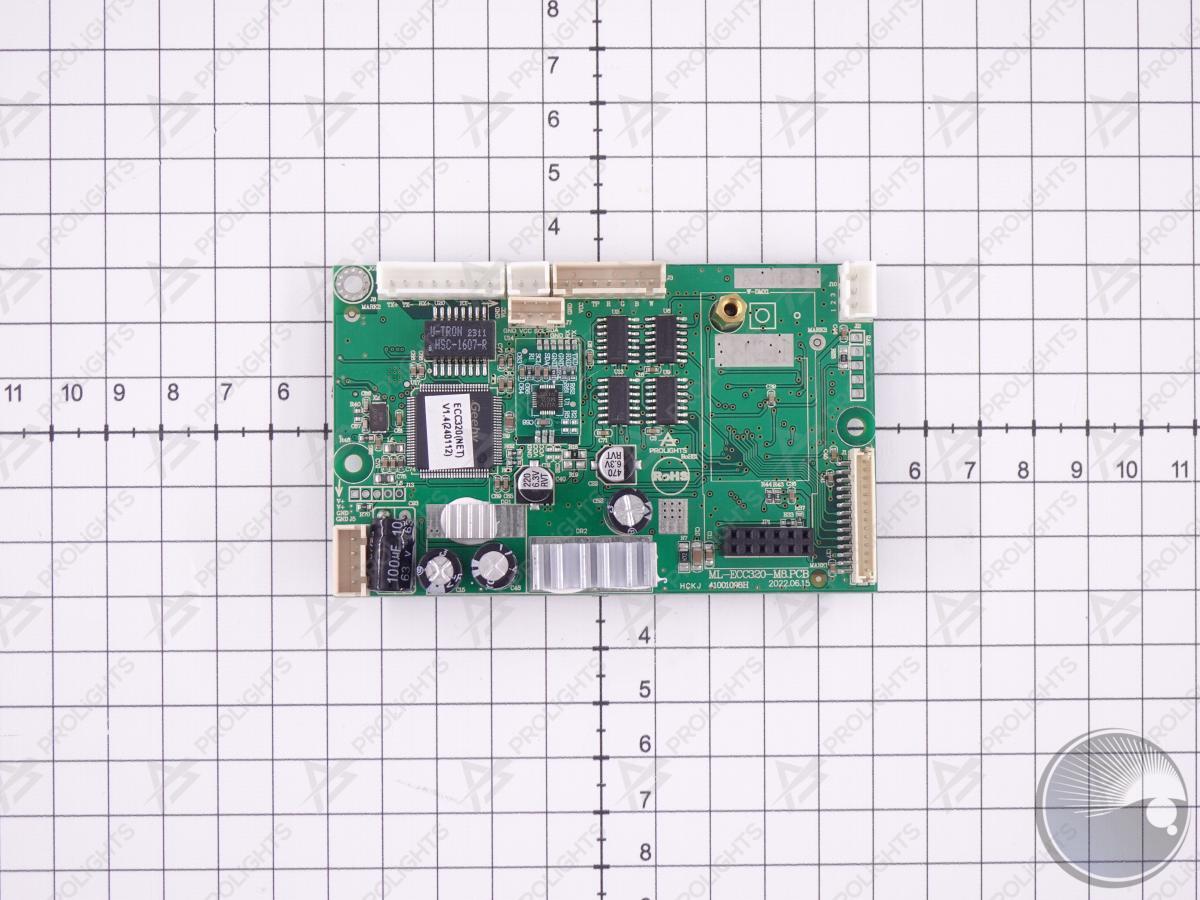

PL Master PCB (Disp) - Rev. 3.0SP015927PL Master PCB (Disp) - Rev. 3.0
