PL SunBlast 3000FC, RGBW-LED Strobe, 48-Zellen, IP65, schwarz

Sunblast 3000FC is an exceptionally powerful IP65 graphic strobe, blinder and flood. Available in white or full colour versions and designed to deliver simply staggering light levels, this versatile fixture can provide an unbelievable punch over a huge area.

Main features:

• Staggering 180'000 lumen output with 120° beam angle
• IP65 rating
• Graphics effects from 48 individually controllable groups of RGBW LEDs

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

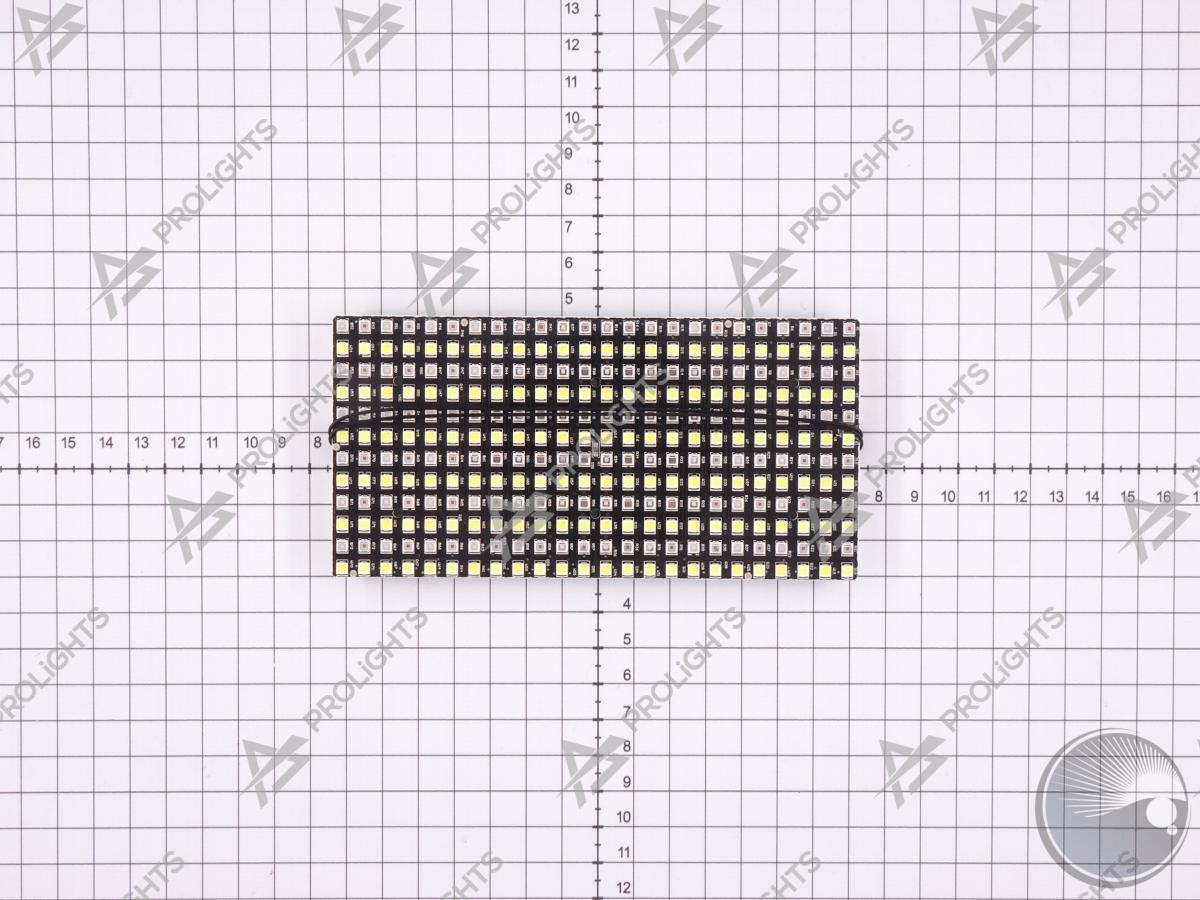

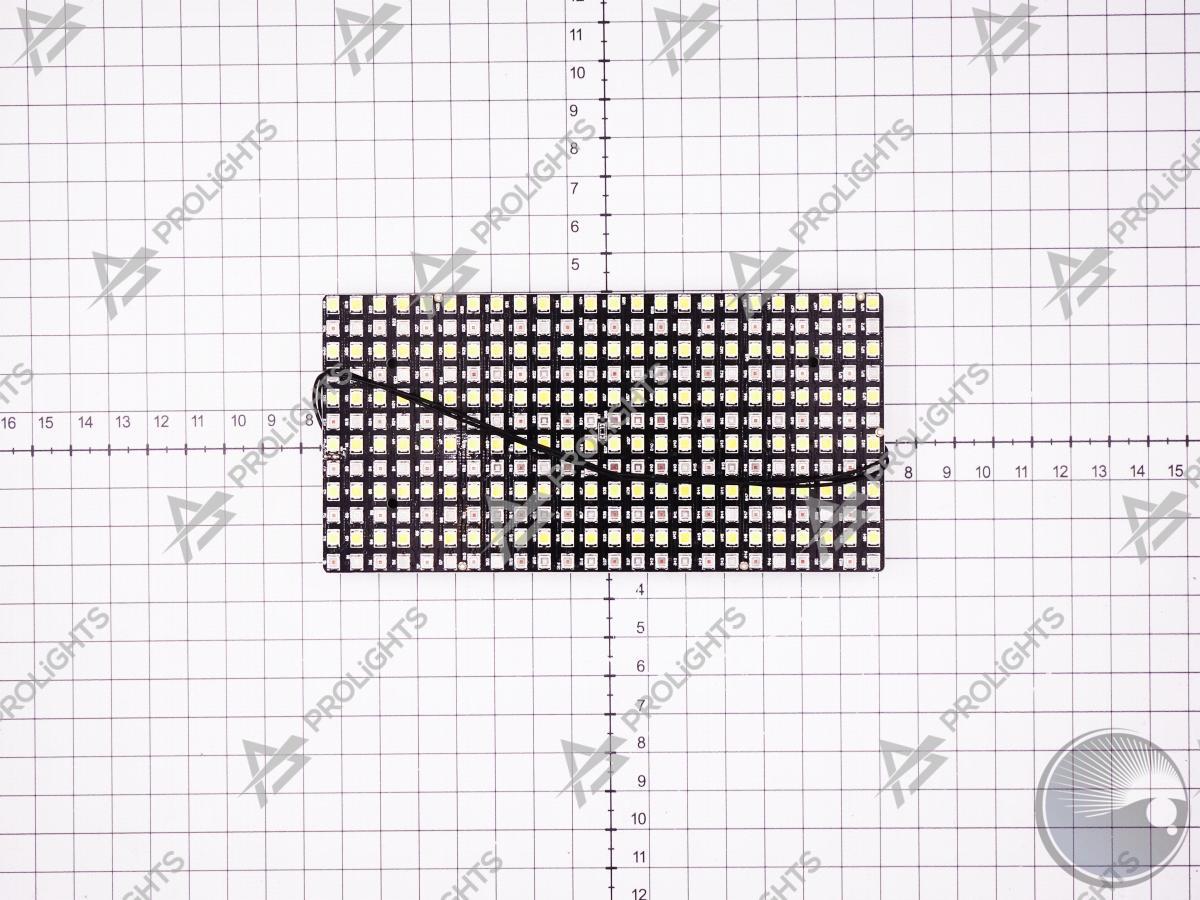

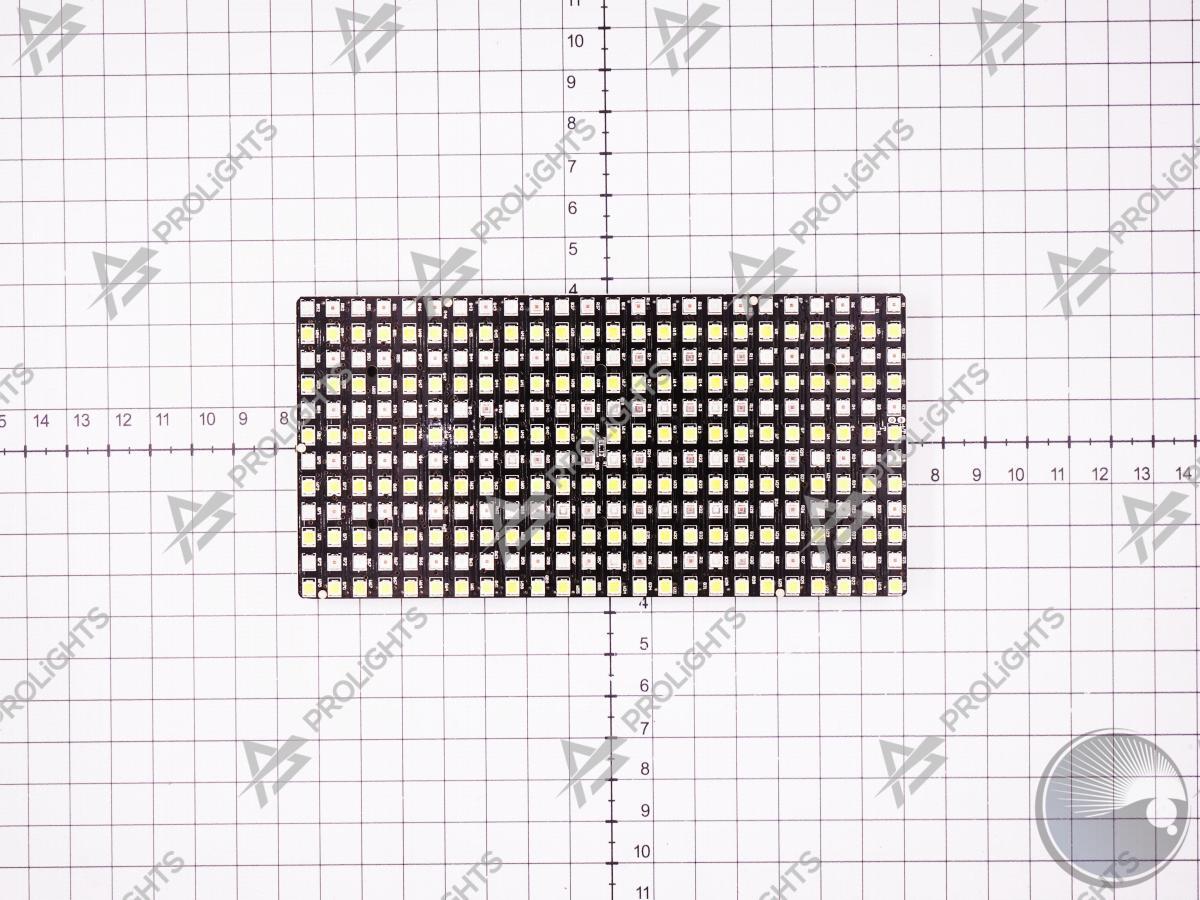

• Source: 1.728x1W RGBW LEDs
• CCT: full ON 6.500
• Luminous flux: strobing: 180'000 lm - full static: 34'717lm
• Lux: full static: 1'425lx @3 m full
• Lux: strobing: 565lx @5 m full
• Source life expectancy: > 30.000 h

OPTICS

• Beam angle: 111°
• Field angle: 153°

COLOUR SYSTEM

• Colour mixing: RGBW / FC

DYNAMIC EFFECTS

• Rotating gobos: dynamic patterns with speed and rotation control
• Pixel patterns: pre-programmed dynamic and static patterns
• FX generator: adjustable foreground/background colour, index, speed, direction
• Static mode: selection of static colour
• Manual mode: manual adjustment of colour
• Auto mode: built-in programs with execution speed adjustment

BODY

• Body: sturdy die-cast aluminium body
• Body colour: black

CONTROL

• Protocols: DMX512, RDM, Art-Net, Kling-Net
• Pixel control: 1 / 2 / 4 / 8 / 16 / 48 individually select and control sections
• RDM: RDM for remote monitoring and settings
• Display: black TFT touch display
• Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Operating temperature: -10° ~ +45°
• LED Control: flicker free operation
• Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: strobe : 1.500 W (peak) - static: 580W
• Max power consumption (at 120V): strobe: 1.550 W (peak) - static 602W
• Output (at 230V): 2 units on a single power line
• Output (at 120V): 1 units on a single power line

PHYSICAL

• IP rating: 65 for temporary outdoor application, not for fixed installations
• Cooling: active, silent operation
• Suspension and fixing: hanging bracket for floor positioning with "Quick-Lock" system
• Signal connection: Seetronic XLR 5p IN/OUT connectors
• Data connection: Art-Net RJ45 IN/OUT
• Power connection: Seetronic powerCON waterproof IN/OUT connectors
• Dimensions (WxHxD): 468x179x268mm / 18.43''x7.05''x10.55''
• Weight: 14kg / 30.86lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
