PL Astra Profile600IP, 600W LED, 7-62°, IP65, schwarz

The Astra Profile600IP is a bright, waterproofed (IP65) LED profile moving light, designed for any large-scale touring applications and exterior installations.Despite its waterproof exterior, this unit is tremendously bright and offers a superior evenness compared to other fixtures in the same class.Its light source delivers a pure white light emission at 6,500K, reaching 21,200 lumens whilst achieving a flat field beam projection.The Astra Profile600IP's optical system moves linearly from 7° to 62°, and it's equipped with a brand-new 600W LED sourceThe extensive feature set of the Astra Profile600IP includes a 4-layer motorized framing system, linear CMY and CTO, 5,600K high CRI filter, colour and gobo wheels, frost filter, prism, and an iris.

Main features:

• IP65 LED Moving Profile equipped with a 600W long life LED source (6,500K)
• 7° to 62° linear zoom
• 4-layer motorized framing shutters, Linear CMY+CTO, 5,600K high CRI filter, animation wheel, gobo and colour wheels, one frost filter, prism and iris

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 600W White LED
• CCT: 6.500K
• Luminous flux: (7°) 14'877 lm - (62°) 21'200lm
• Lux: (7°) 57'569 lx - (62°) 1'144lx @5 m
• CRI: > 70 (CCT 5.600K and CRI > 90 with high CRI filter on color wheel)
• Source life expectancy: > 30.000 h

OPTICS

• Zoom: 7° - 62° motorised linear zoom
• Lens diameter: 150mm / 5.91''
• Lens type: HD anti-reflection lenses with achromatic coating
• Focus: motorised

COLOUR SYSTEM

• Colour mixing: linear CMY
• CCT: linear CTO correction 2.700 K ~ 6.500 K
• Colour wheel: open + 5,600K high CRI filter + 6 colour filters

DYNAMIC EFFECTS

• Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
• Animation wheel: animation wheel with CW and CCW rotation
• Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
• Gobo size: outer: 29,9 mm - image: 22 mm - thickness: 1,1 mm
• Circular prism: 4f with bi-directional rotation, indexing
• Frost: linear 0 - 100% frost filter
• Iris: 5 - 100% motorised iris

BODY

• Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
• Pan angle: 540°
• Tilt angle: 270°
• Pan/Tilt resolution: bit 8 / 16-bit
• Feedback: automatic repositioning after accidental movement
• Body: weatherproof IP65 construction
• Body colour: black

CONTROL

• Protocols: DMX512, RDM, ArtNet, sACN, W-DMX + CRMX
• DMX channels: 29 / 39 / 54channel
• Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings

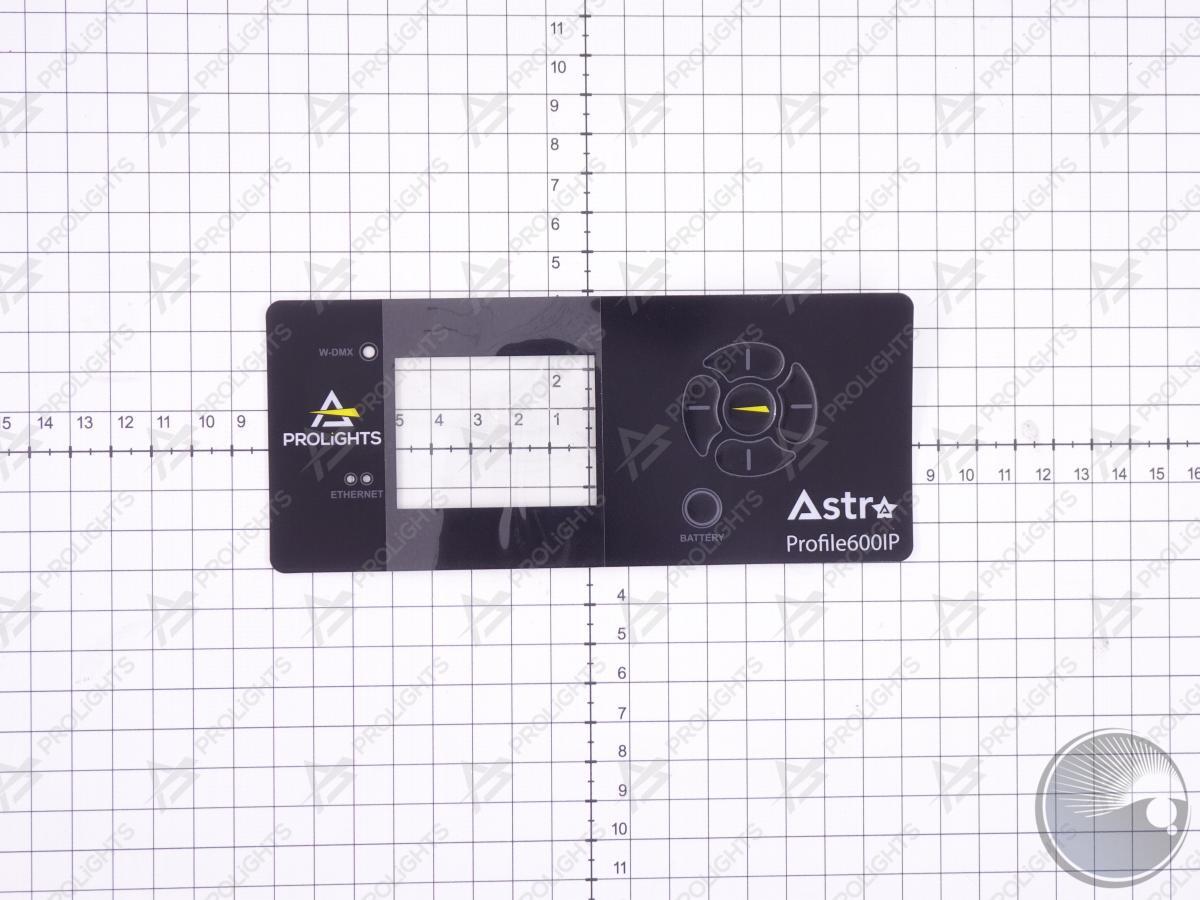

• Display: Graphic User Interface
• Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
• Other: 16bit control of dimmer and colour

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Display battery: self-charging battery backup
• Operating temperature: -20° ~ +45°
• LED Control: flicker free frequency with adjustable PWM
• Selectable PWM: 600 ~ 50.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 750W
• Power factor: >0,97
• Inrush current: 240VAC/34.7A, 115VAC/18.4A

PHYSICAL

• IP rating: 65 for temporary outdoor use (*)

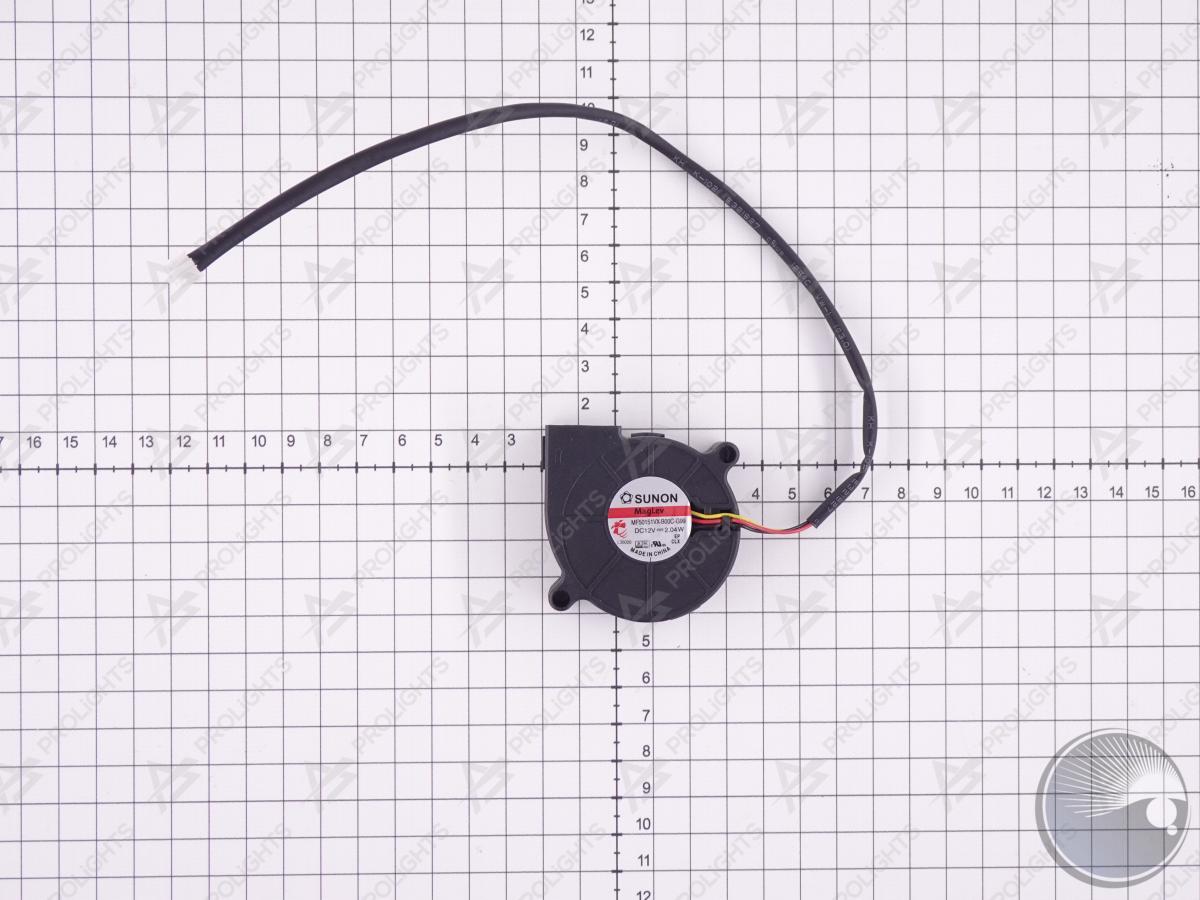

• Cooling: combination of heat pipe cooling system and low noise fan
• Suspension and fixing: any position with quick-lock omega brackets
• Pan / tilt lock: for transportation and maintenance
• Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
• Data connection: IP65 Art-Net RJ45 IN/OUT
• Power connection: Seetronic powerCON TRUE IP65 IN
• Dimensions (WxHxD): 454x730x334mm / 17.87''x28.74''x13.15''
• Weight: 45,6kg / 100.53lbs

(*)

• NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM
