PL PanoramaIP WBX, IP65, LED Washlight, 19x40W, 3-45°

PanoramaIP WBX is a stunning IP65 high-output, LED wash light with pixel ring designed to bring the workhorse LED wash light to outdoor events. Featuring 19 of Osrams new 40 W RGBW Ostar LEDs, it delivers a massive output with a huge colour range and an extensive toolkit of effects.

Main features:

• IP65 for temporary outdoor application, not for fixed installation.
• 19 LED RGBW / FC Osram 40W and outer RGB pixel ring.
• Massive 4,5° to 36° linear zoom range from beam to wash.
• Individual pixel control with on-board FX generator for both LEDs and pixel ring for fast and precise effects.
• Heat-pipe cooling system for efficient cooling with virtually no noise.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

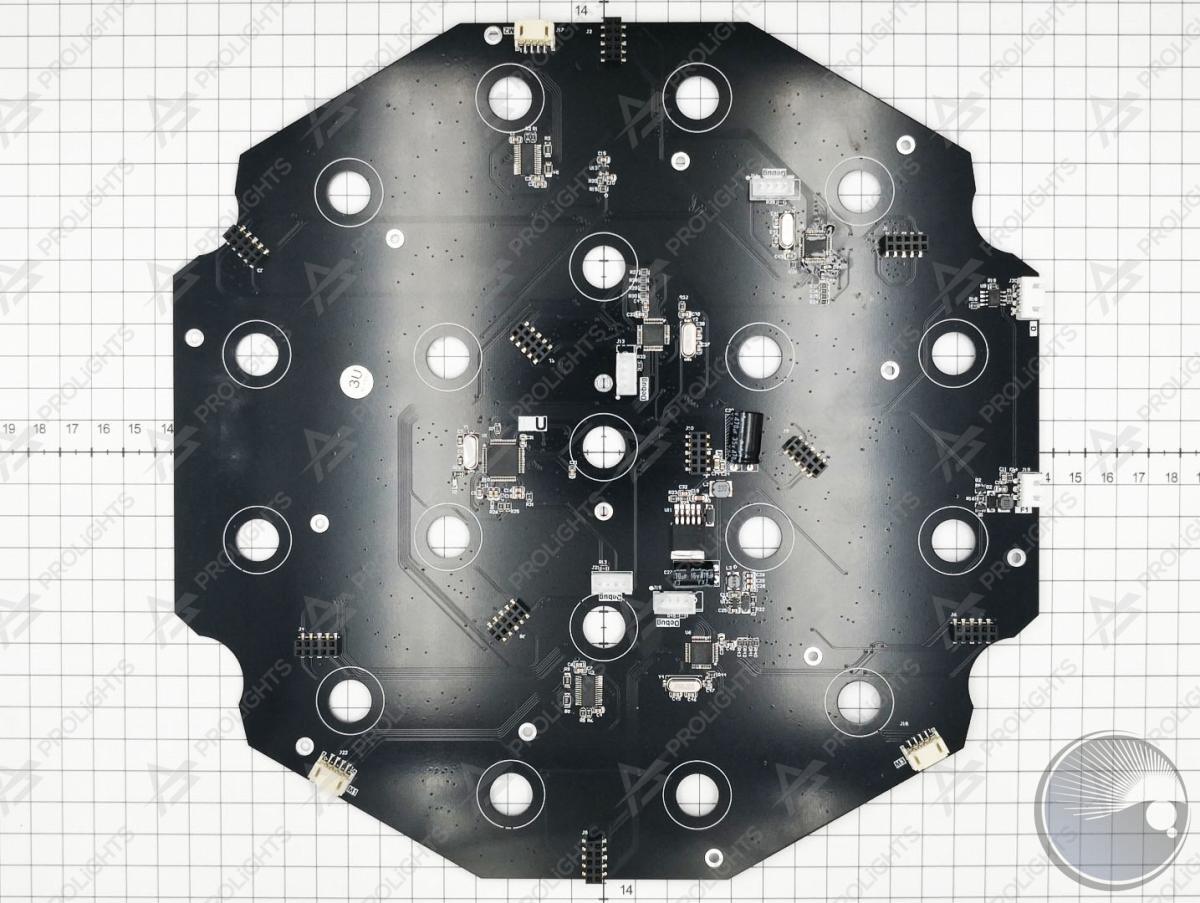

• Source: 19x40W RGBW Osram Ostar LEDs
• Luminous flux: (4,5°) 4'452 lm - (36°) 5'803lm @full
• Lux: (4,5°) 33'893 lx - (36°) 1'764lx @5 m full

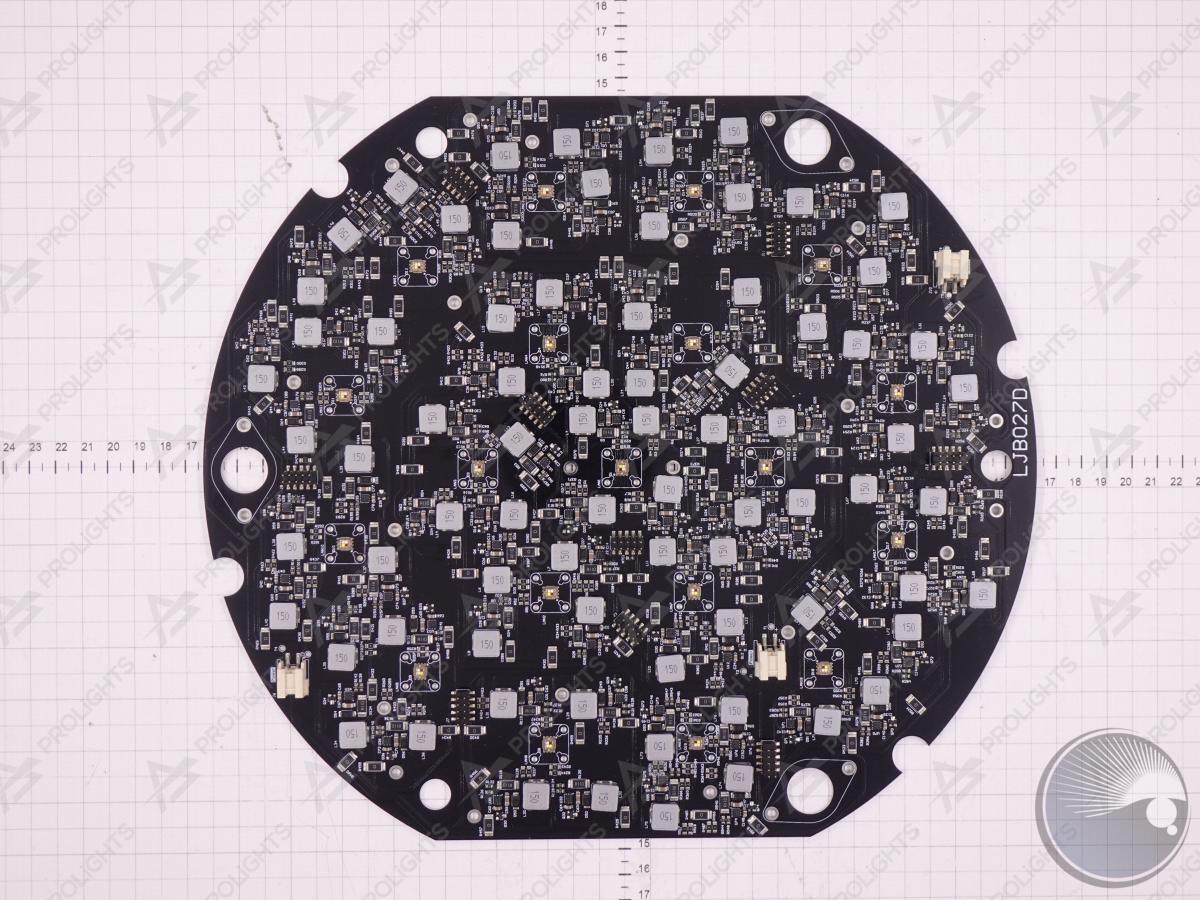

• Other: outer RGB, pixel ring with frost film
• Source life expectancy: > 50.000 h

OPTICS

• Zoom: 4,5° - 36° motorised linear zoom
• Lens type: high-quality glass lens optics
• Additional optics: diffuser on outer pixel ring

COLOUR SYSTEM

• Colour mixing: RGBW / FC
• CCT: CCT control through dedicated DMX channel
• White presets: 2.000 K - 10.000K
• Colour wheel: virtual colour wheel with macros
• Macros: several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

• Pixel patterns: pre-programmed dynamic and static patterns
• FX generator: adjustable foreground/background colour, index, speed, direction
• Special features: outer RGB, pixel ring with several built in FX macros

BODY

• Pan angle: 540° - 630°
• Tilt angle: 267°
• Pan/Tilt resolution: bit 16-bit
• Feedback: automatic repositioning after accidental movement
• Body: weatherproof IP65 construction
• Body colour: black

CONTROL

• Protocols: DMX512, RDM, Art-Net, W-DMX
• DMX channels: V1: 18 / 42 / 44 / 120 - V2: 18 / 42 / 44 / 120channel
• Pixel control: pixel2pixel control
• Wireless Control: included, wireless solution receiver
• RDM: RDM for remote monitoring and settings
• Display: LCD high resolution colour display with autoflip
• Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
• Hibernation: power safe mode when lost DMX
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Strobe / shutter: 1 - 30 Hz, electronic
• Display battery: self-charging battery backup
• Operating temperature: -20° ~ +40°
• LED Control: flicker free operation

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 650W
• Output (at 230V): 4 units on a single power line
• Power factor: > 0,95
• Inrush current: 240VAC/34.7A, 115VAC/18.4A

PHYSICAL

• IP rating: 65 for temporary outdoor application, not for fixed installations
• Cooling: combination of heat pipe cooling system and low noise fan
• Suspension and fixing: any position with quick-lock omega brackets
• Signal connection: Seetronic XLR 5p IN/OUT connectors
• Data connection: Art-Net RJ45 IN/OUT
• Power connection: Neutrik powerCON TRUE1 IN connector
• Dimensions (WxHxD): 531x676x326mm / 20.91''x26.61''x12.83''
• Weight: 35kg / 77.16lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM
