PL Astra Hybrid330, 330W LED, 3°- 46°, schwarz

The Astra Hybrid330 is a bright LED hybrid moving head that boasts exceptional power relative to its compact size, producing an array of breathtaking visual effects.Its optical system offers a linear range from 3.5° to 52°, furnished with a sizable 140mm front lens. This unique combination enables an intense beam and homogenous spotlight, providing an exceptional lumen output and surpassing the evenness offered by arc-discharge fixture in its category.The comprehensive features of the Astra Hybrid330 encompass a variety of functions. These include aerial effects with a dense, parallel beam and sharp projection textures, pattern effects, linear CMY, three colour wheels, an animation wheel, dual overlapping prisms, frost, and two gobo wheels.

Main features:

• 330W LED hybrid moving light
• Zoom range from 3.5° to 52°
• Full features with linear CMY, animation wheel, two gobos, three colours, two prisms, and frost

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 330W high-power white LED
• CCT: 7.000
• Luminous flux: (3,5°) 8'158 lm - (52°) 11'684lm
• Lux: (3,5°) 97'996 lx - (52°) 1'566lx @5 m full
• Source life expectancy: > 30.000 h

OPTICS

• Zoom: 3,5° - 52° motorised linear zoom

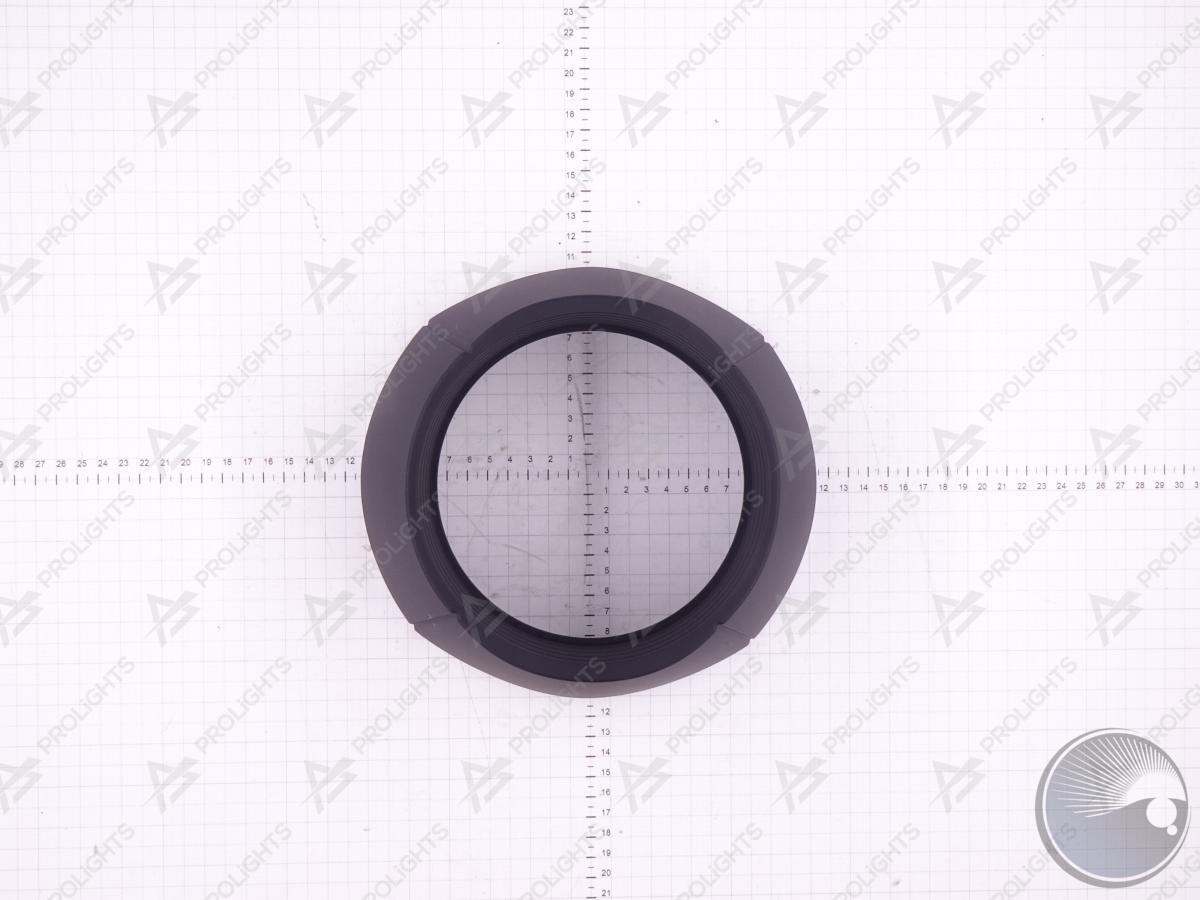

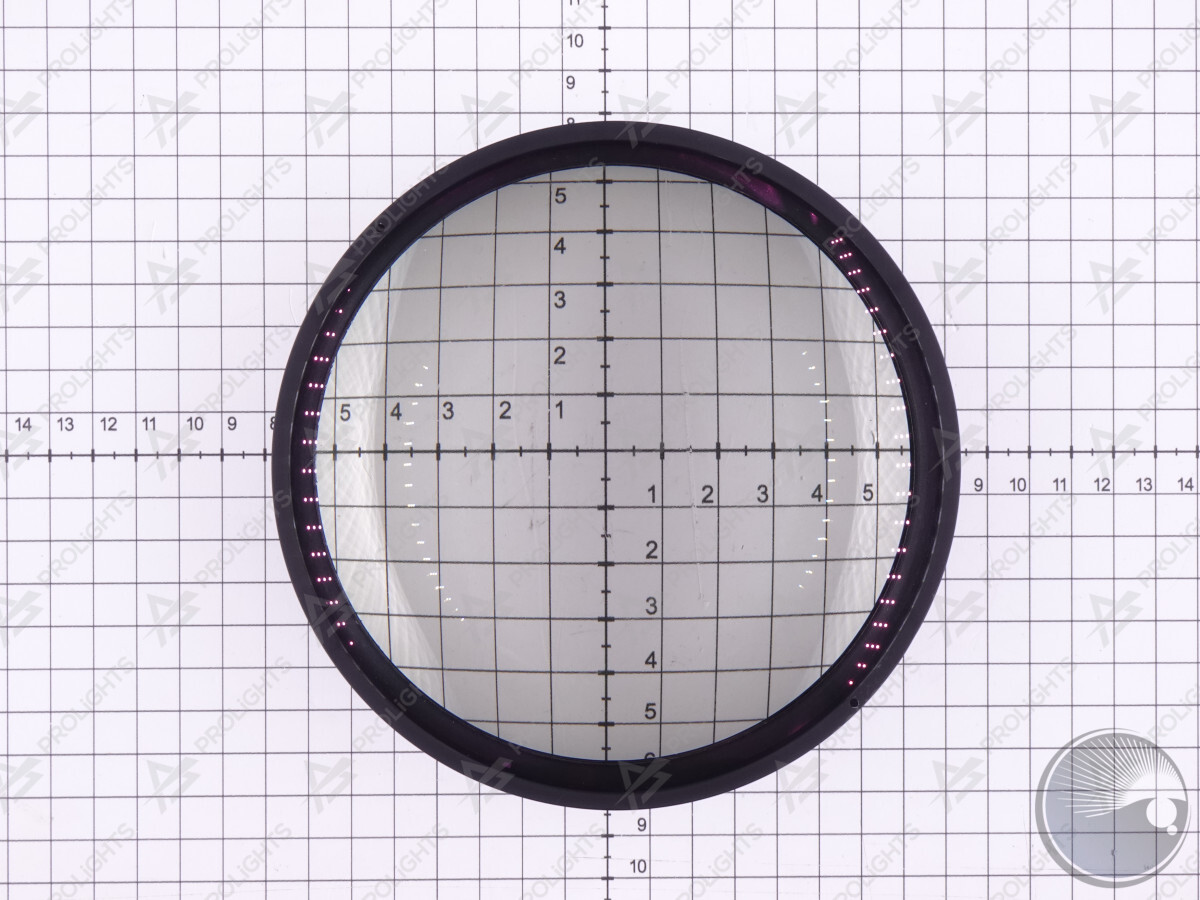

• Lens diameter: 140mm / 5.51''
• Lens type: HD anti-reflection lenses with achromatic coating
• Focus: motorised

COLOUR SYSTEM

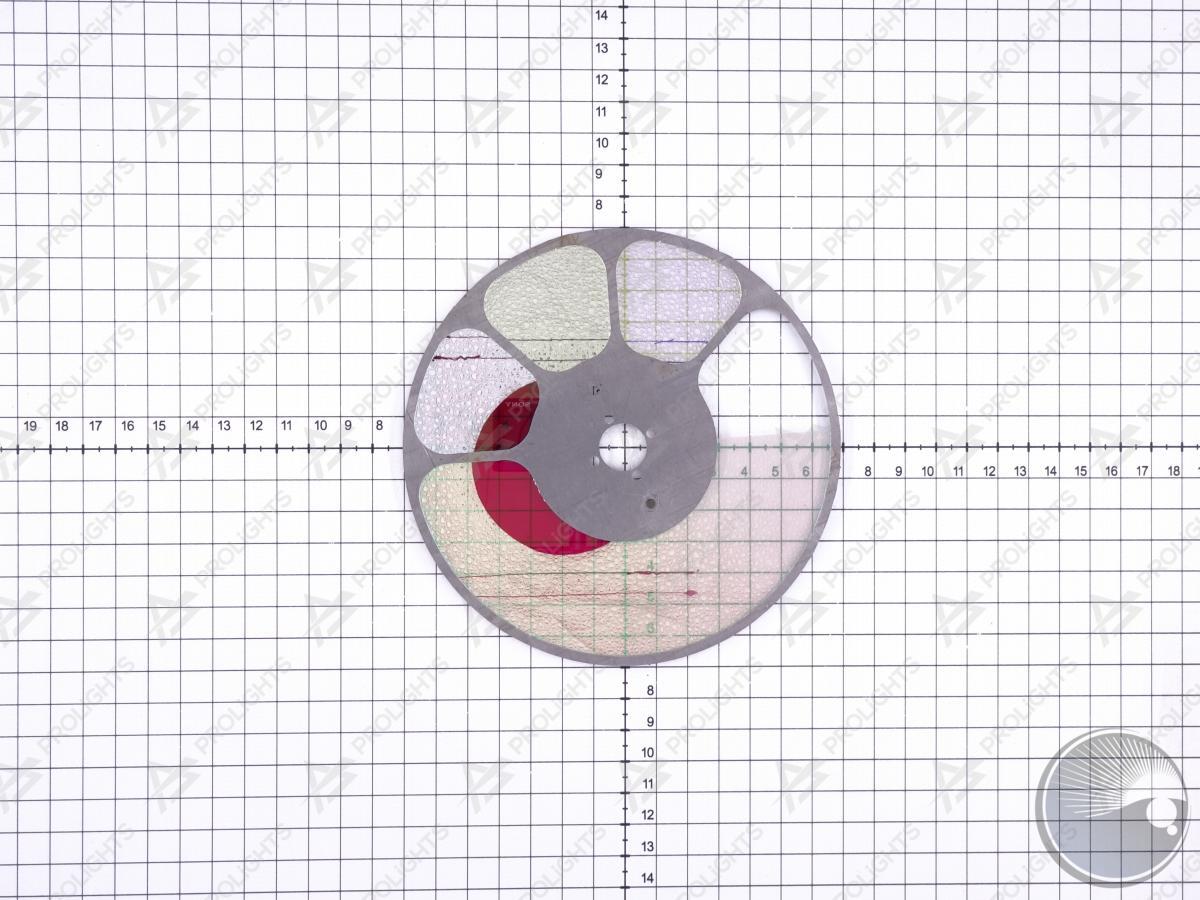

• Colour mixing: CMY colour system on 3 gradually fading colour wheels
• CCT: on wheel 2.400 K and 3.200 K

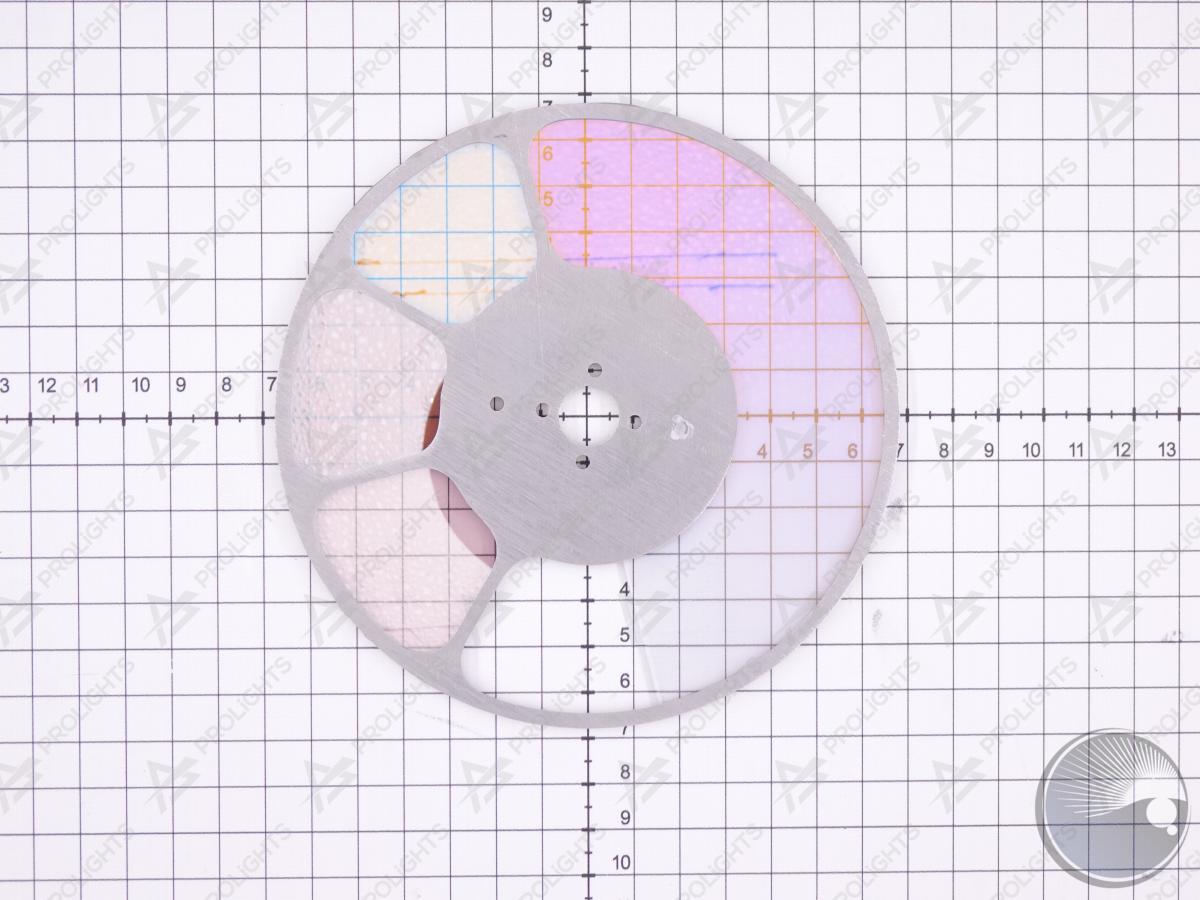

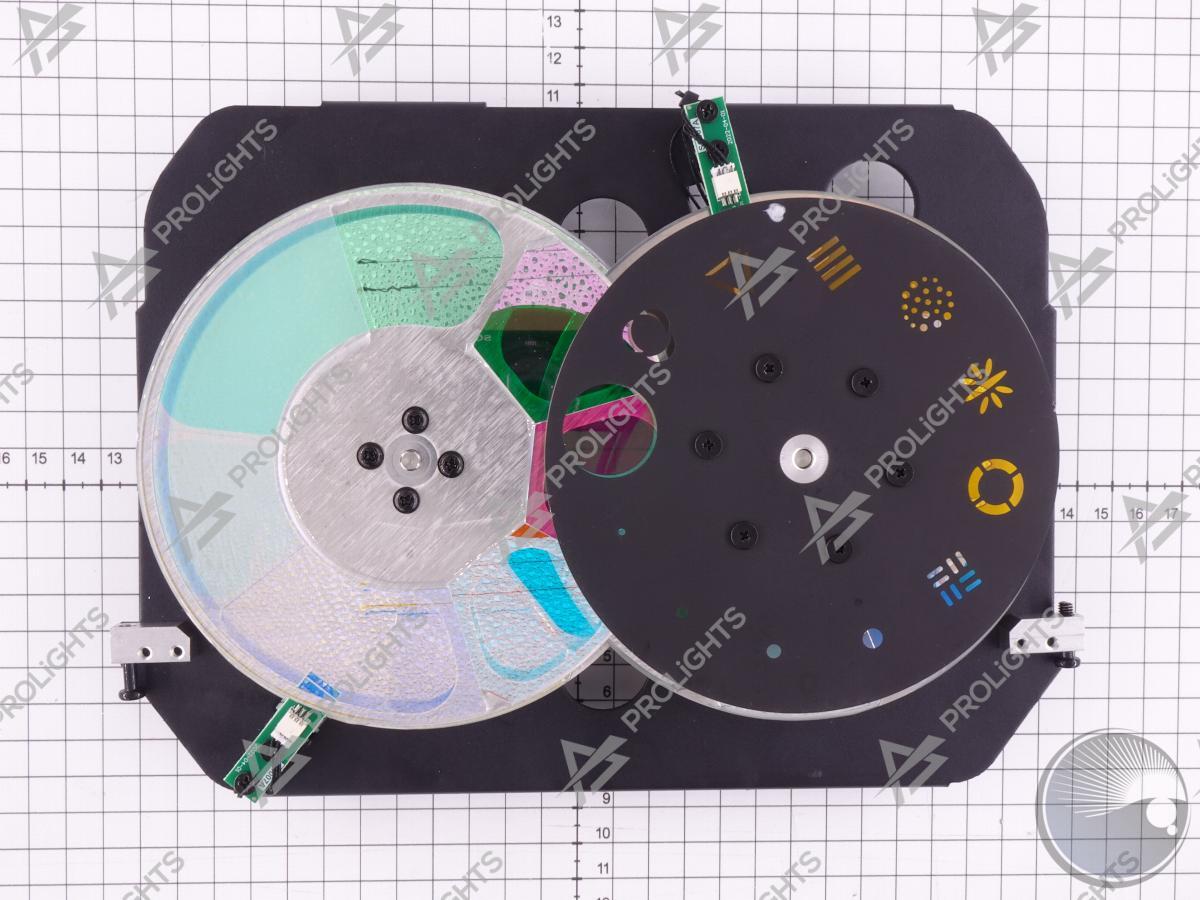

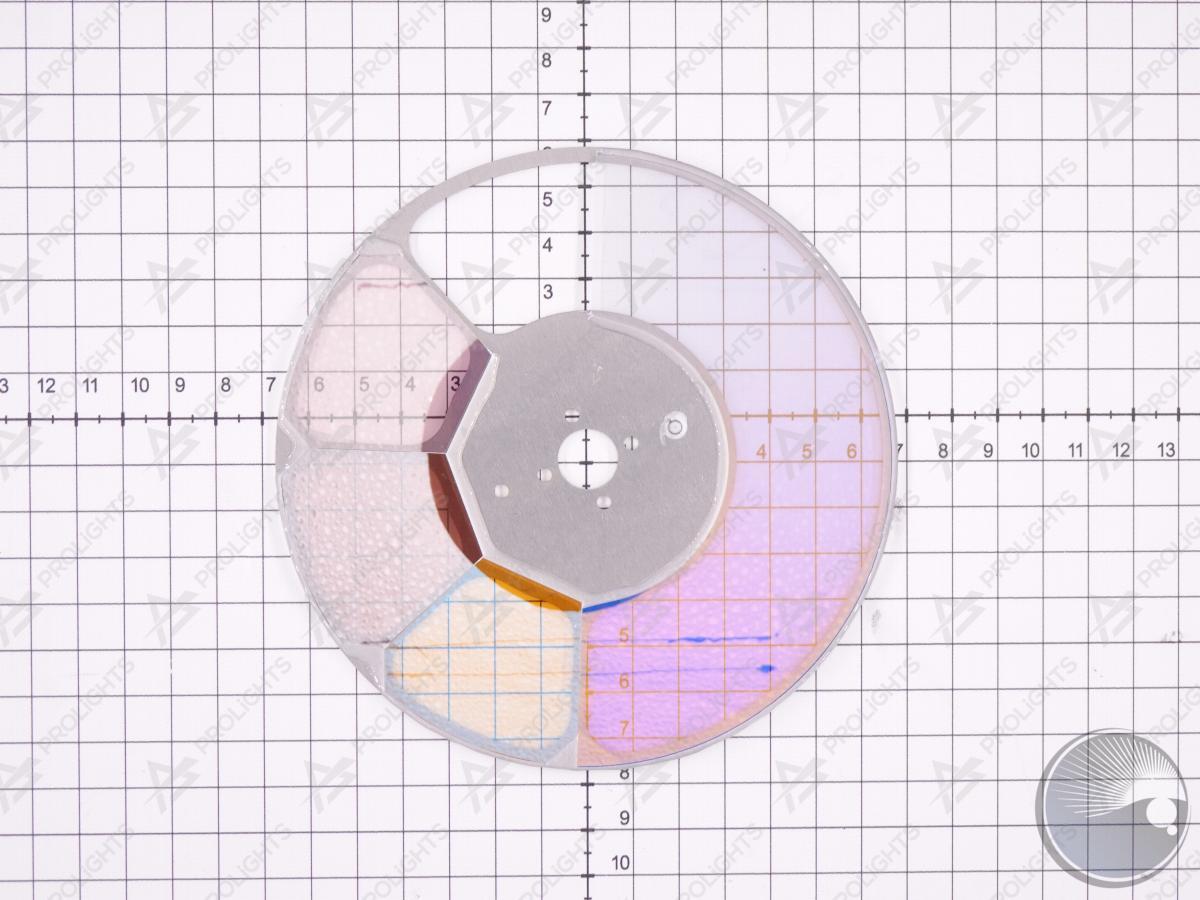

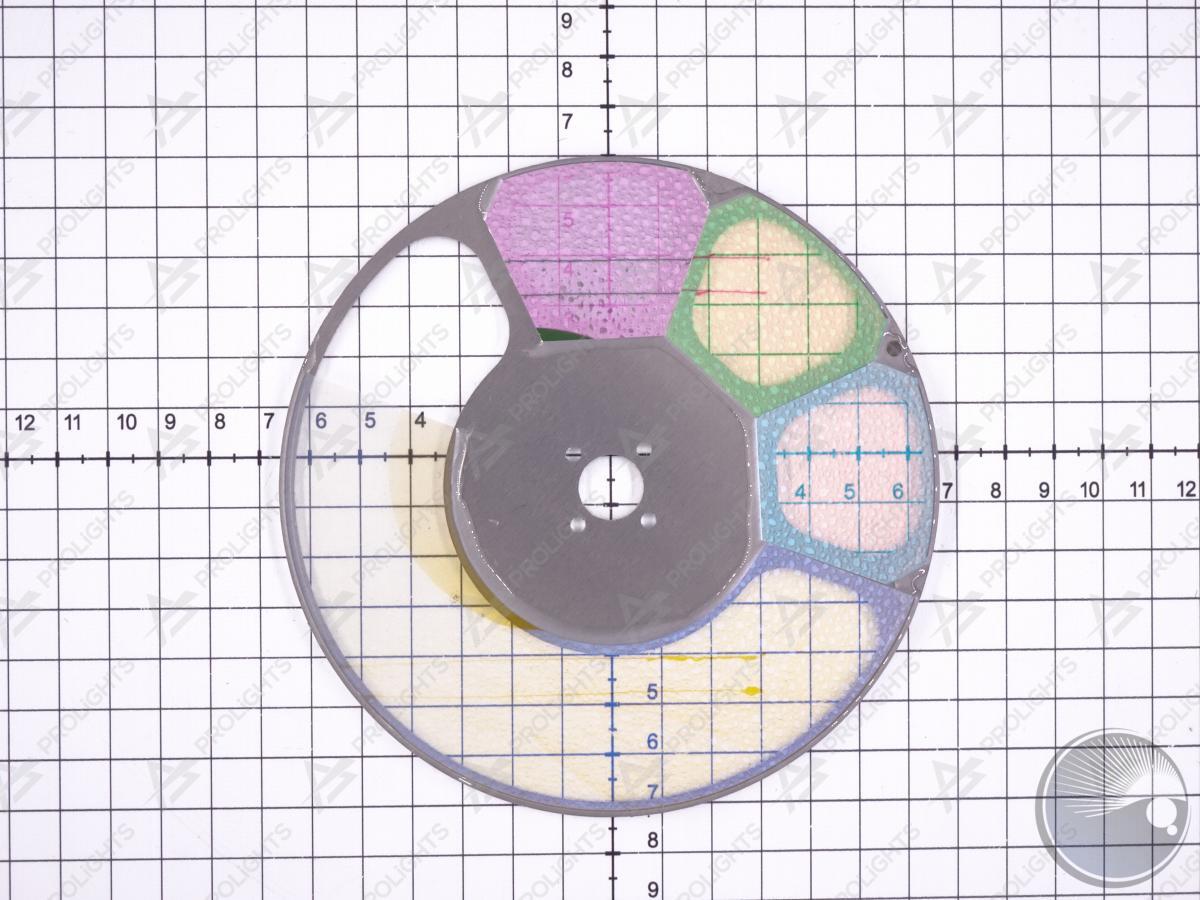

• Colour wheel: 9 dichroic filters on 3 independent colour wheels
• Colour wheel: High CRI colour filters

DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer
• Animation wheel: animation wheel with CW and CCW rotation

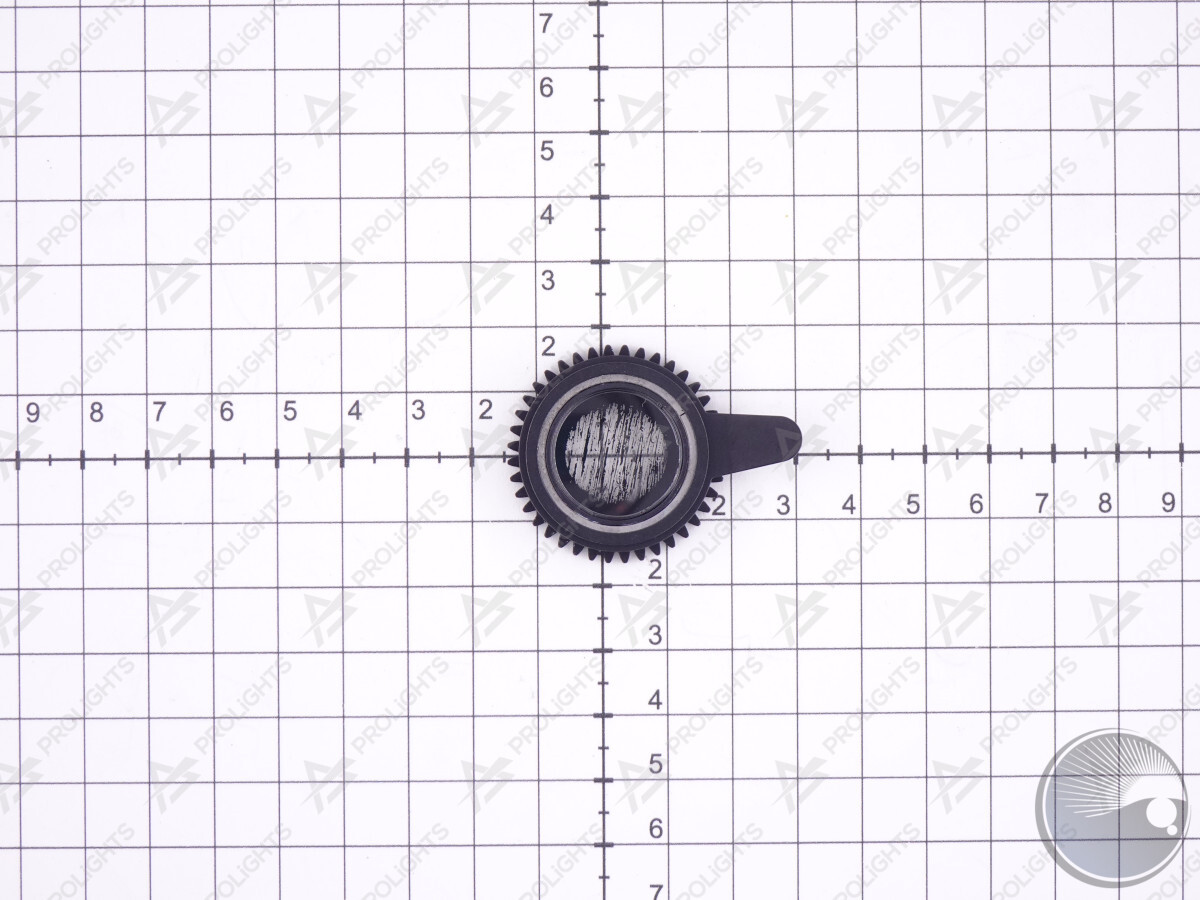

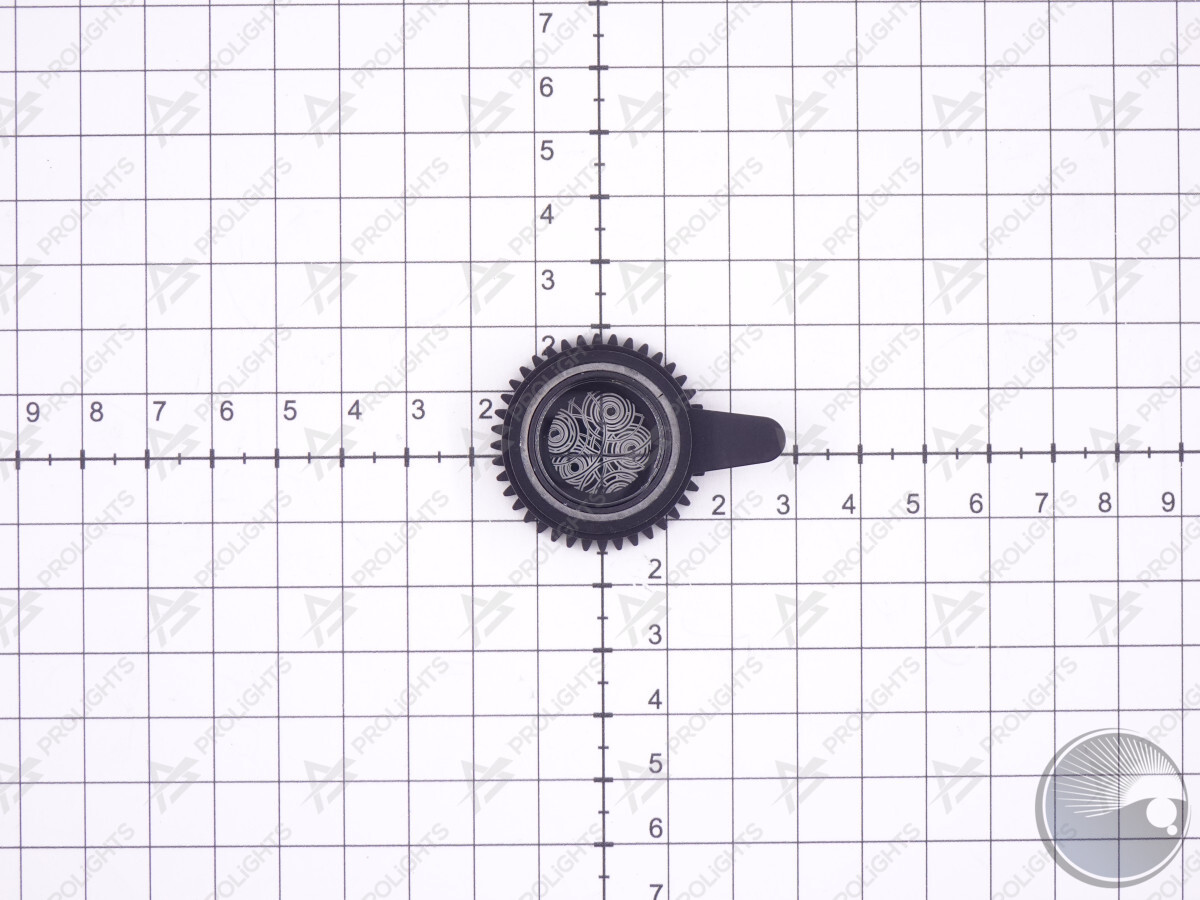

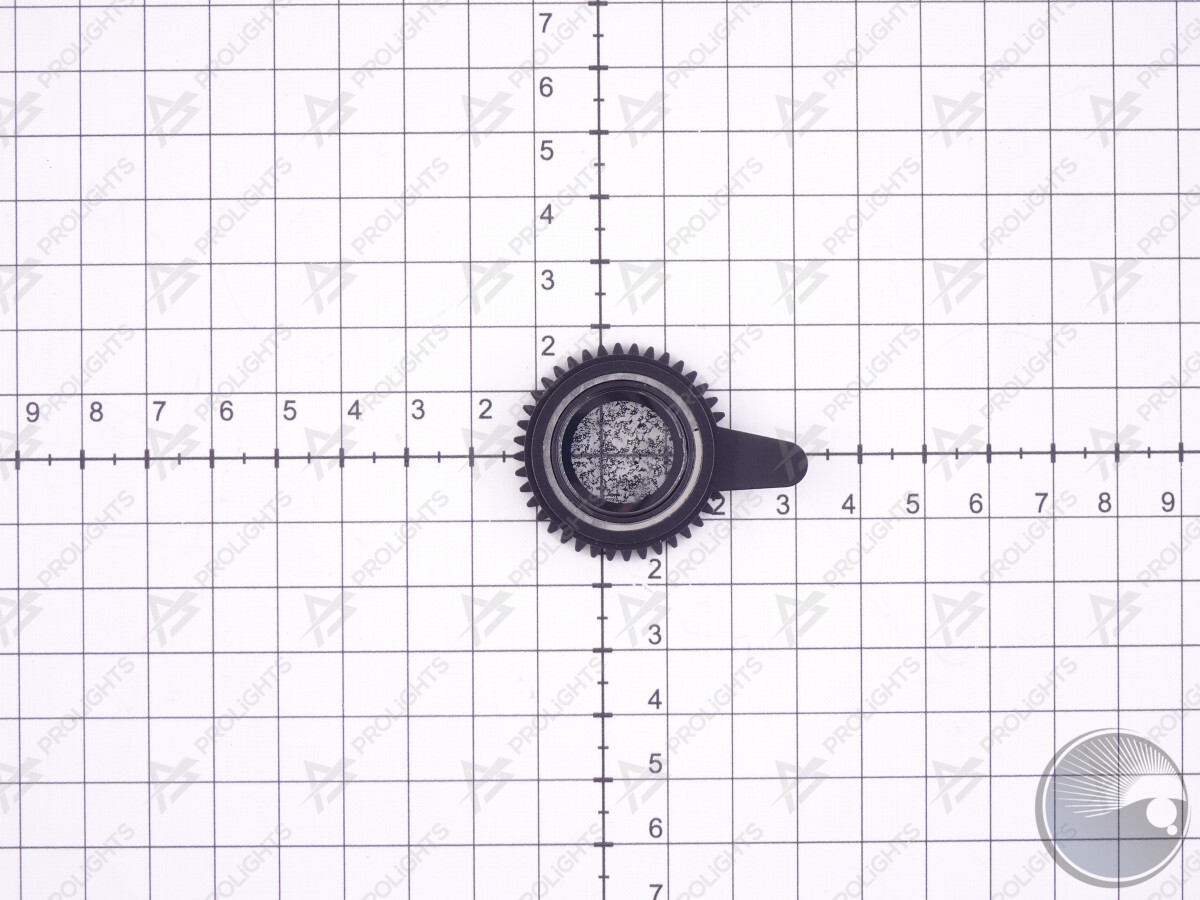

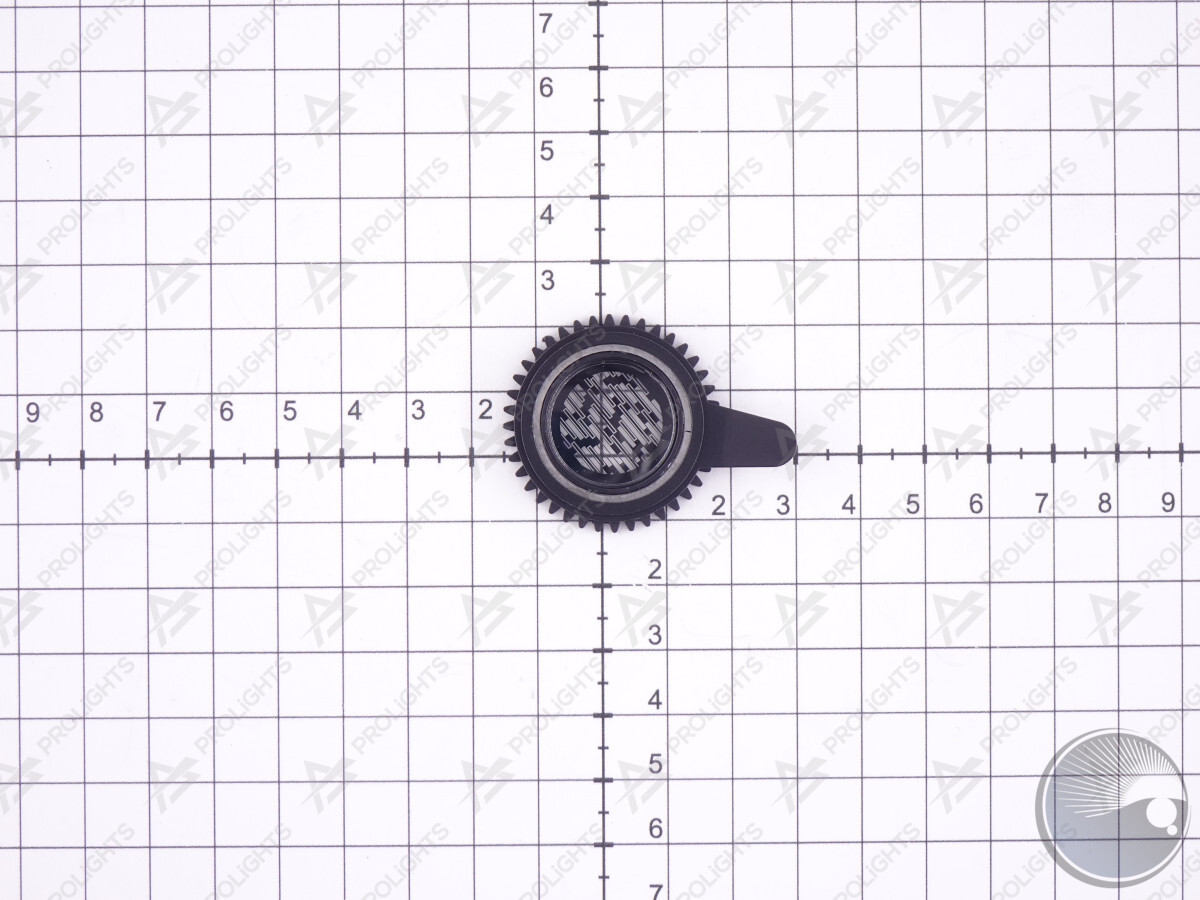

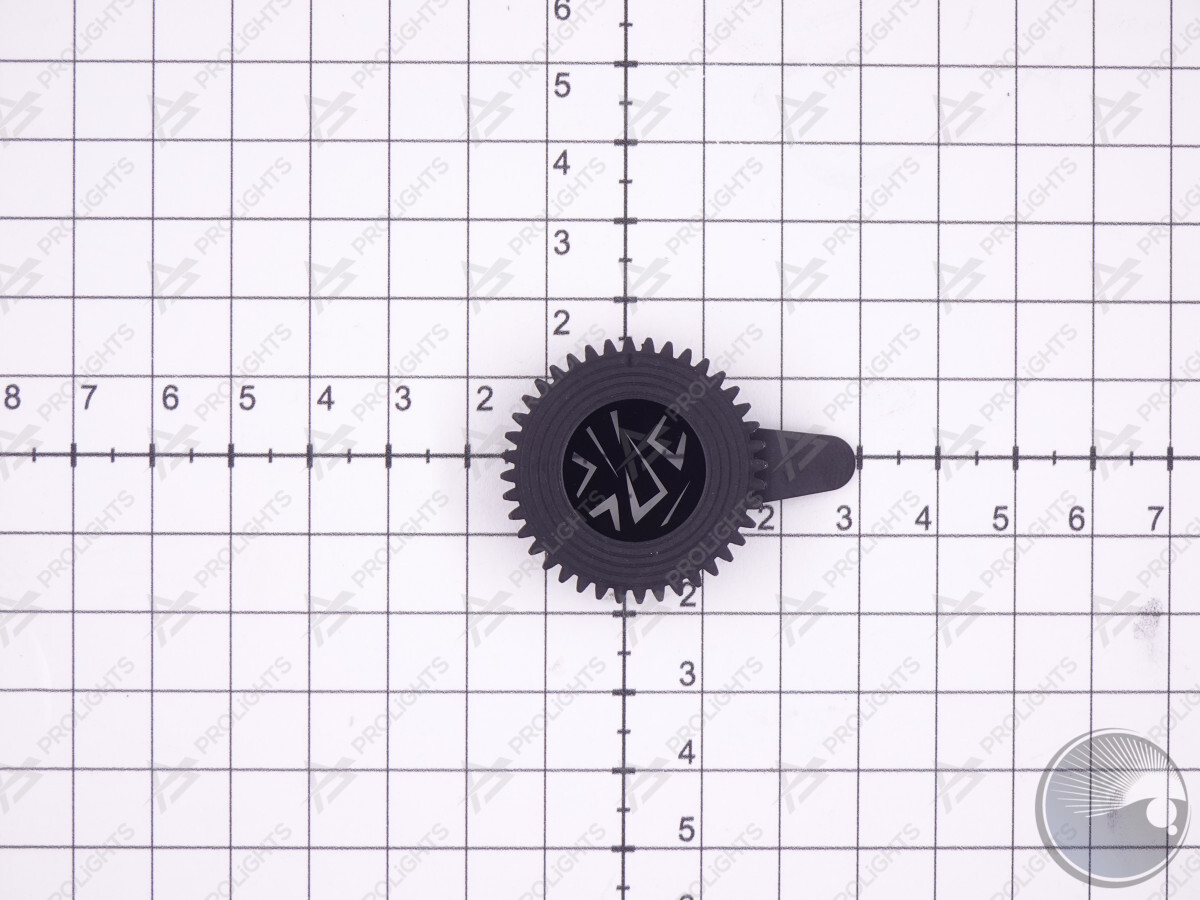

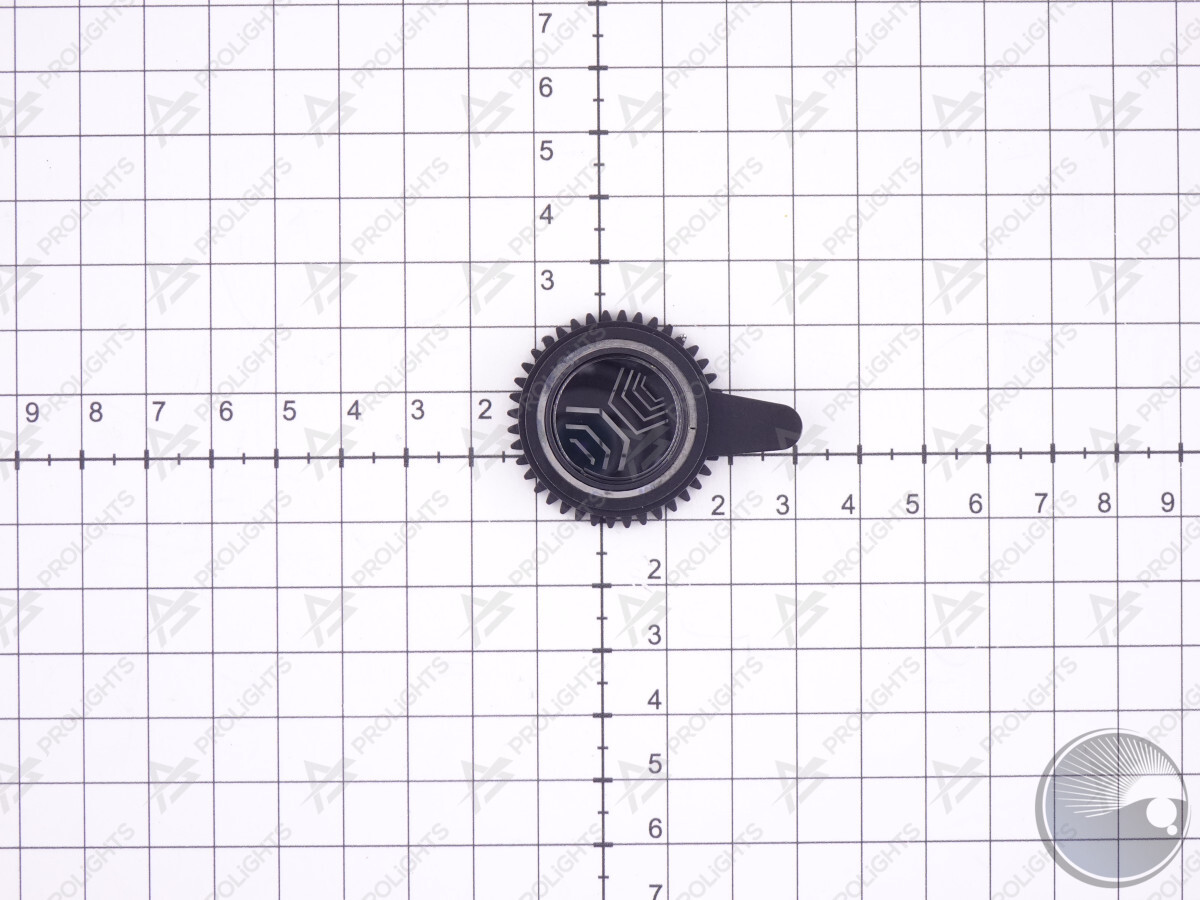

• Rotating gobos: 8 rotating gobos + open, interchangeable, indexing
• Gobo size: outer: 20 mm - image: 16 mm - thickness: up to 3 mm
• Fixed gobos: 11 fixed gobos + open
• FX generator: 2 prisms overlap for spectacular aerial effects
• Circular prism: 8f with bi-directional rotation, indexing
• Linear prism: 6f with bi-directional rotation, indexing
• Frost: linear 0 - 100% frost filter

BODY

• Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
• Pan angle: 540°
• Tilt angle: 270°
• Pan/Tilt resolution: bit 8 / 16-bit
• Feedback: automatic repositioning after accidental movement

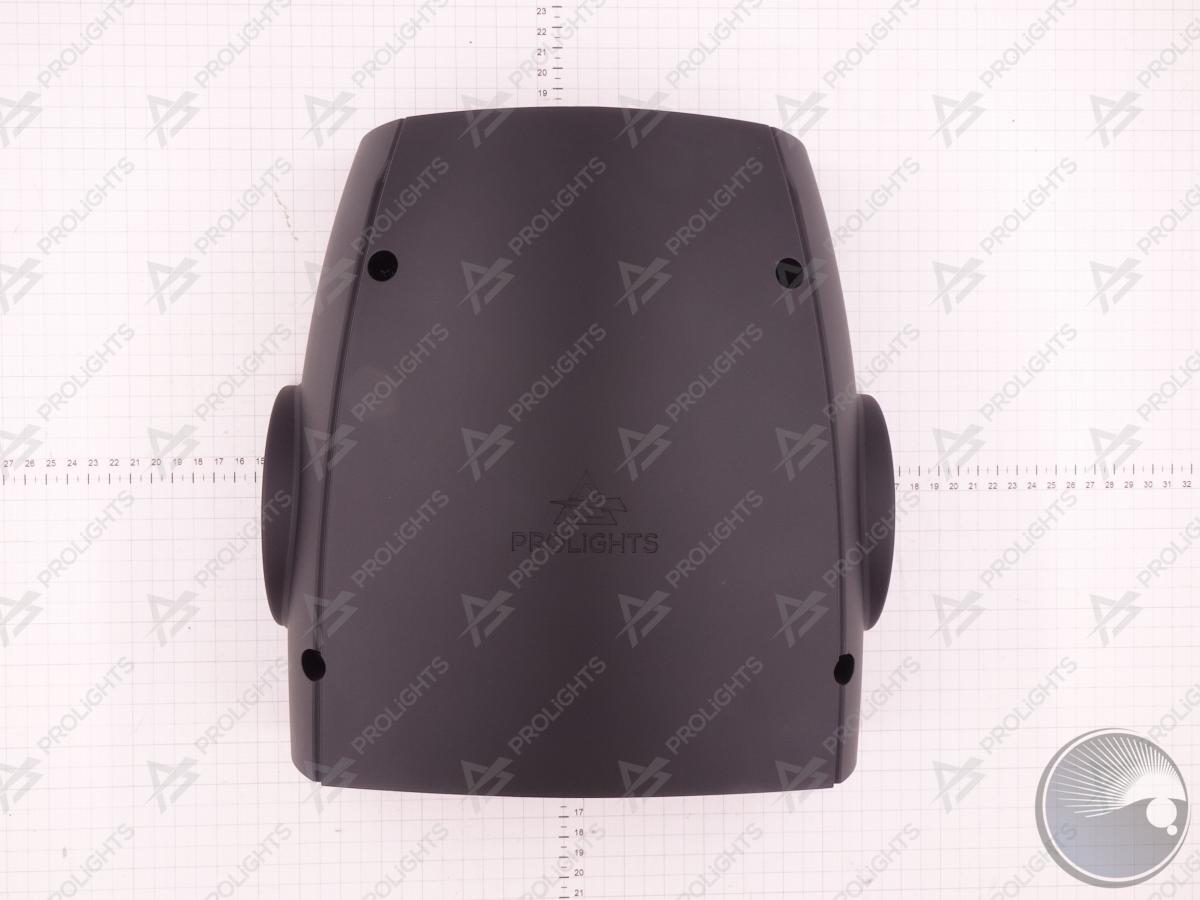

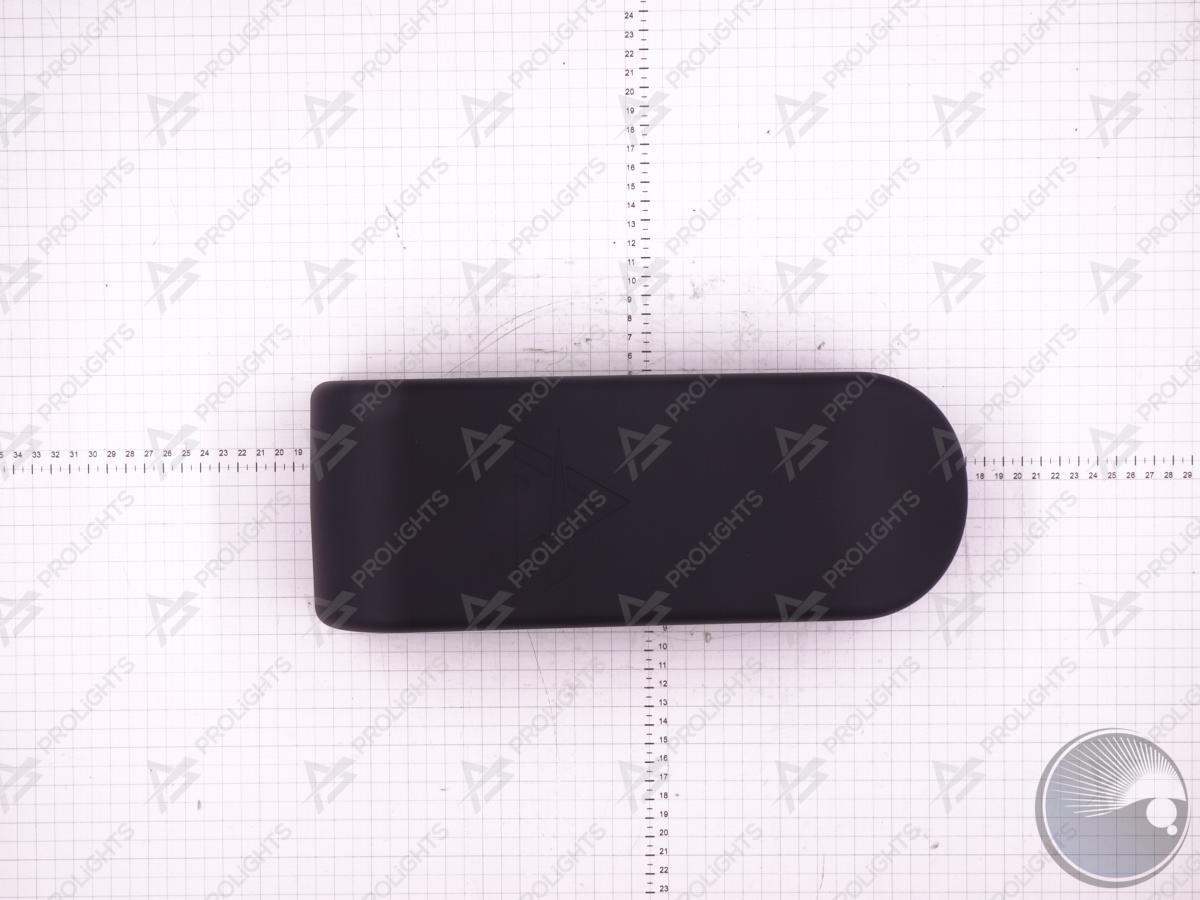

• Body: aluminium structure with high-resistance polycarbonate cover
• Body colour: RAL 9004

CONTROL

• Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
• DMX channels: 29channel

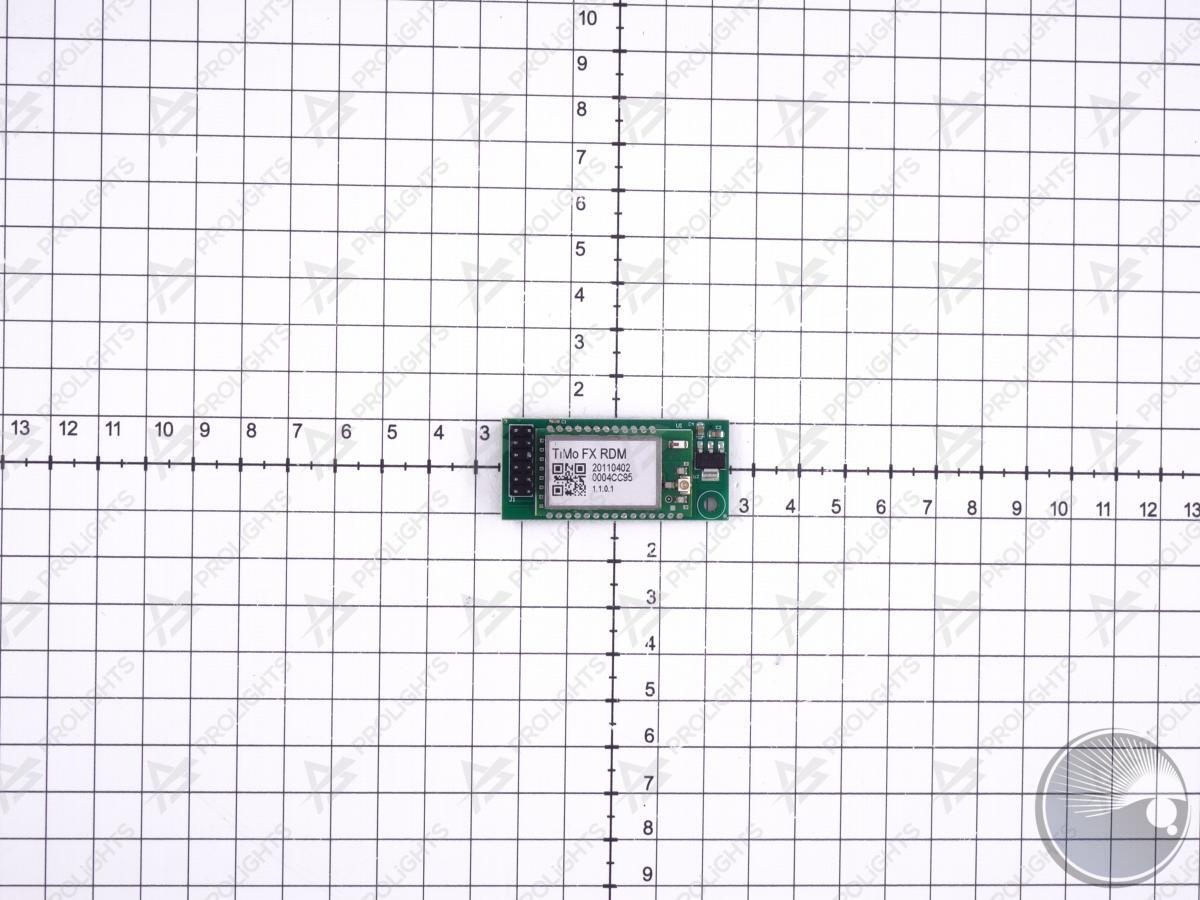

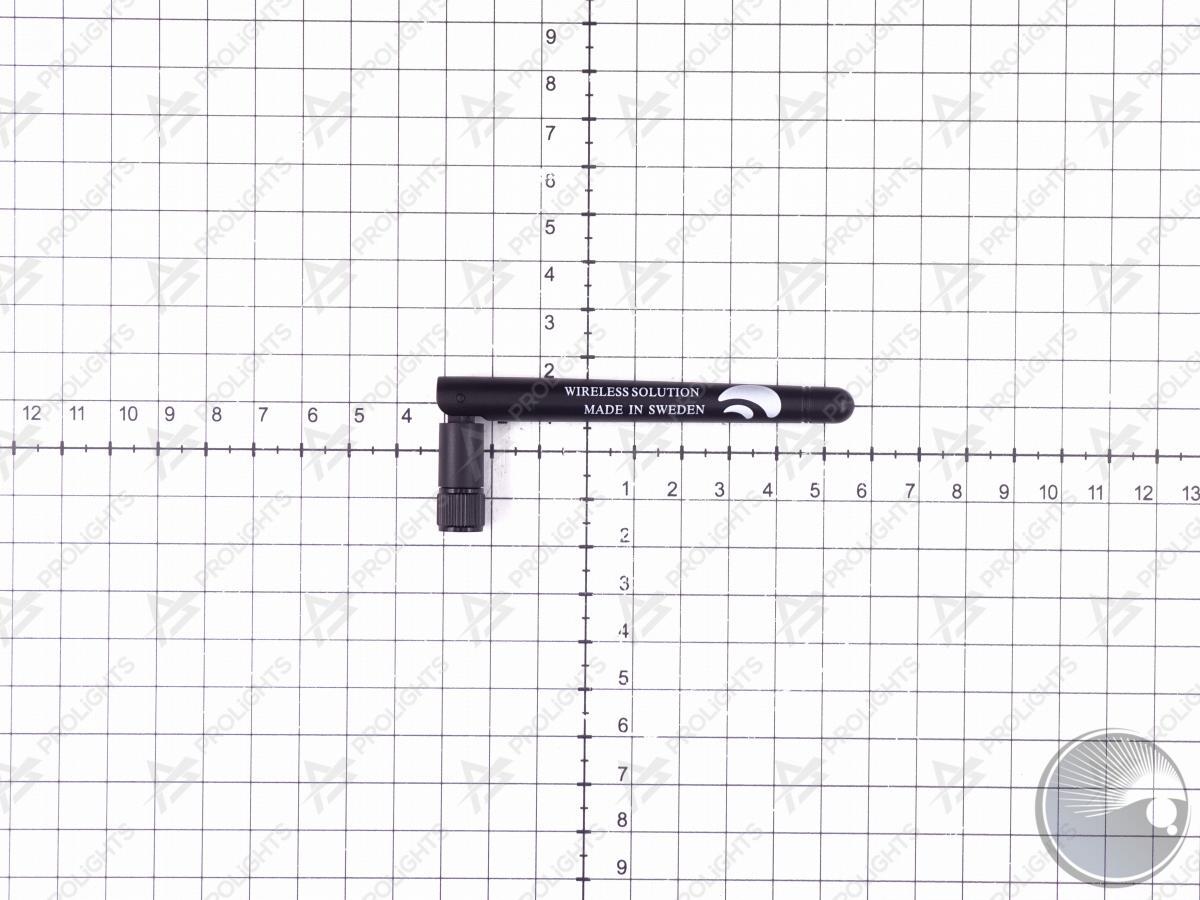

• Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings

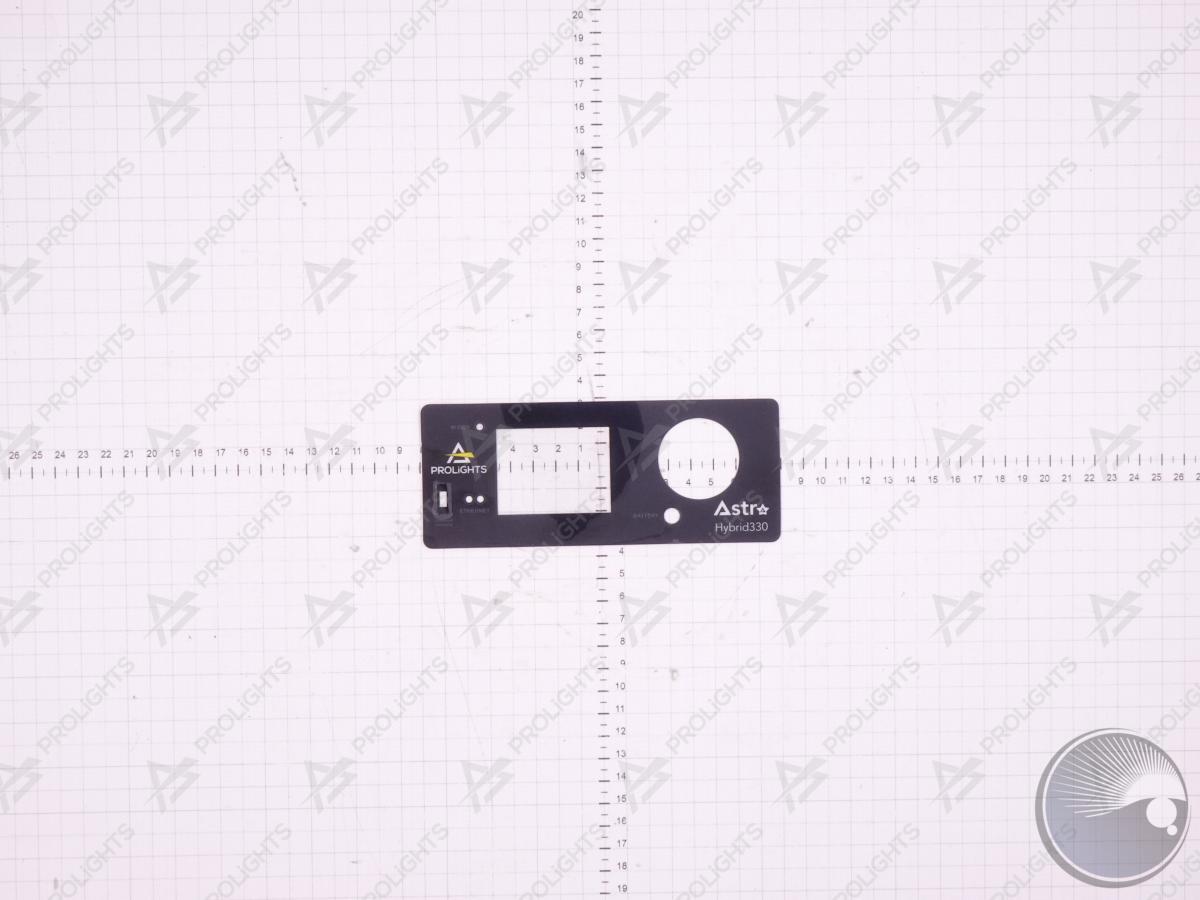

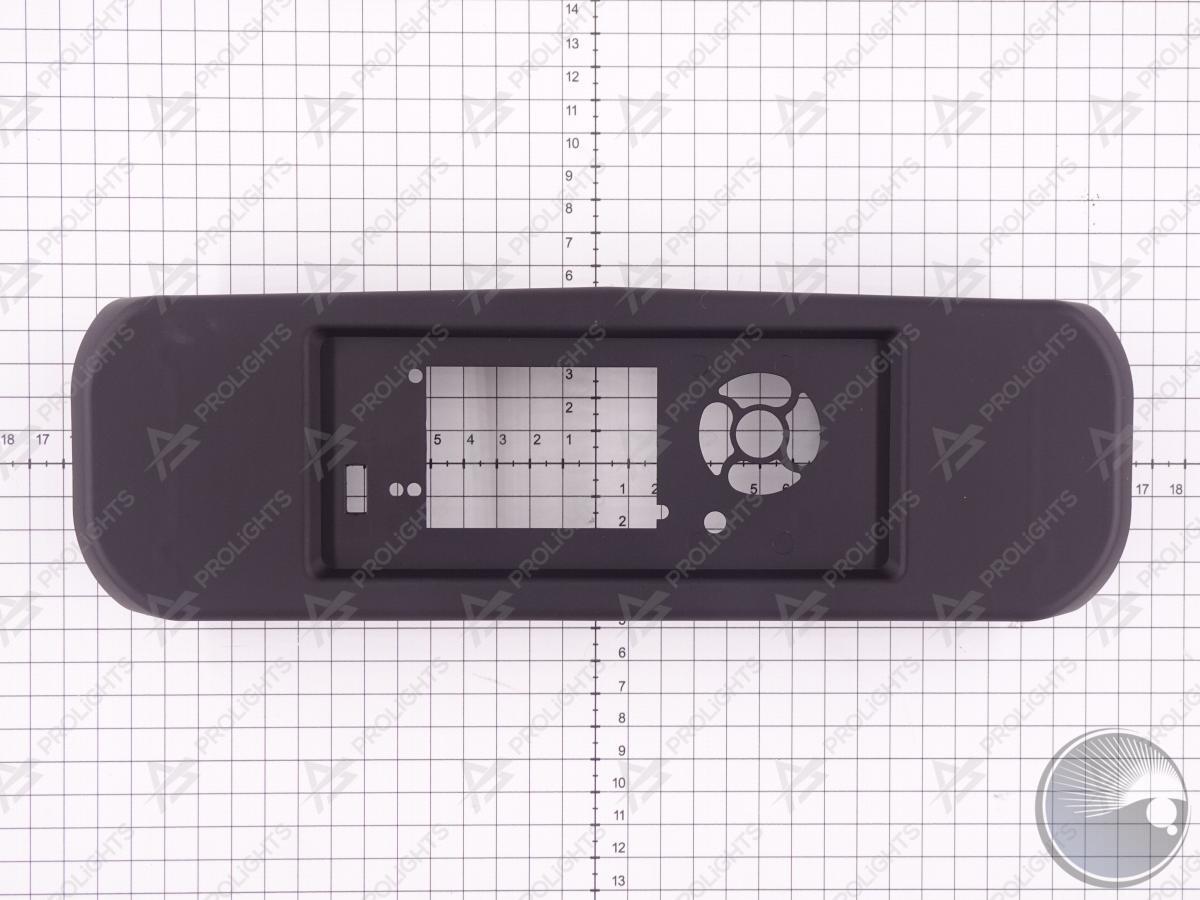

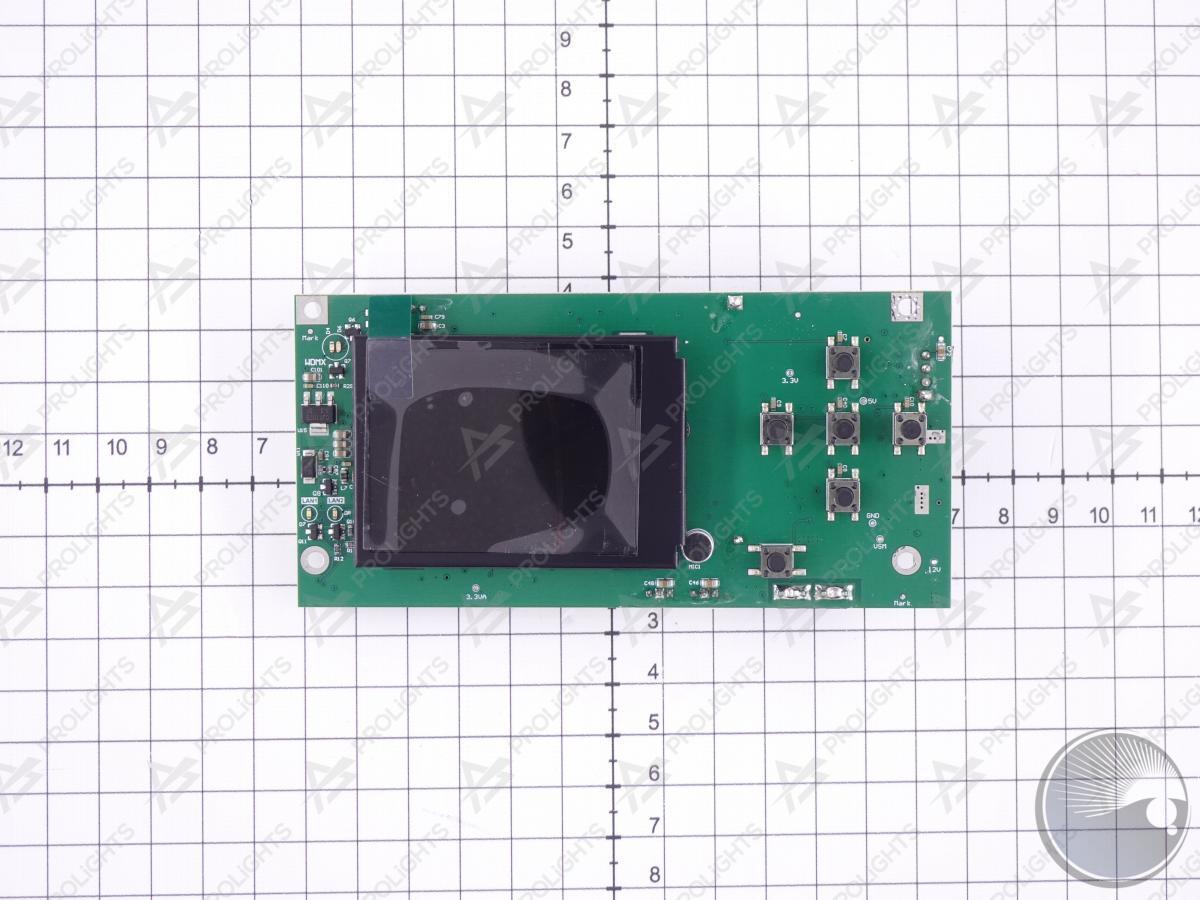

• Display: LCD high resolution colour display with autoflip
• Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included or via USB pen drive
• Other: Ethernet pass through in case of PSU or Master PCB failure

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic

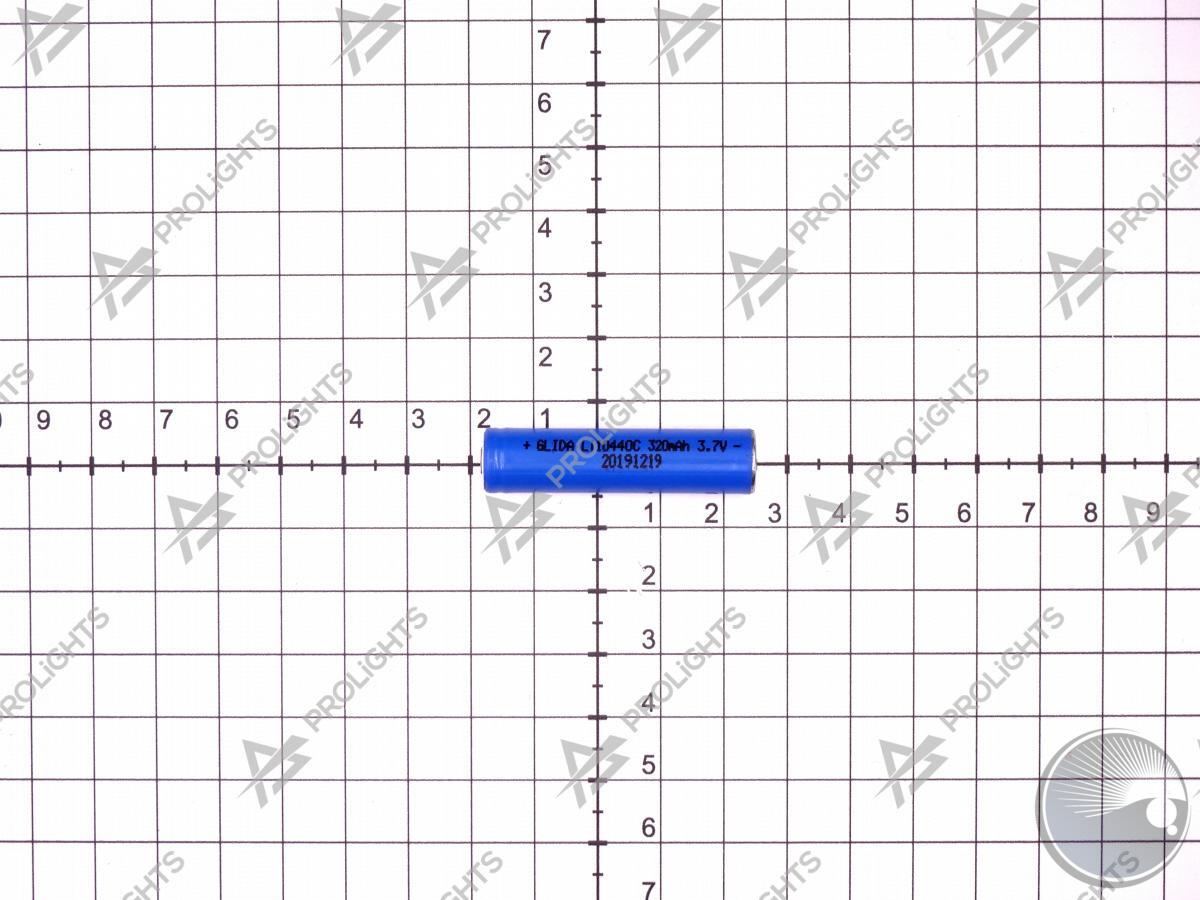

• Display battery: self-charging battery backup
• Operating temperature: -10° ~ +45°
• LED Control: flicker free frequency with adjustable PWM
• Selectable PWM: 600 ~ 50.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz (max absolutes range: 90-264V - 50/60Hz)
• Max power consumption: 517W
• Output (at 230V): 4 units on a single power line
• Power factor: > 0,98

PHYSICAL

• IP rating: 20

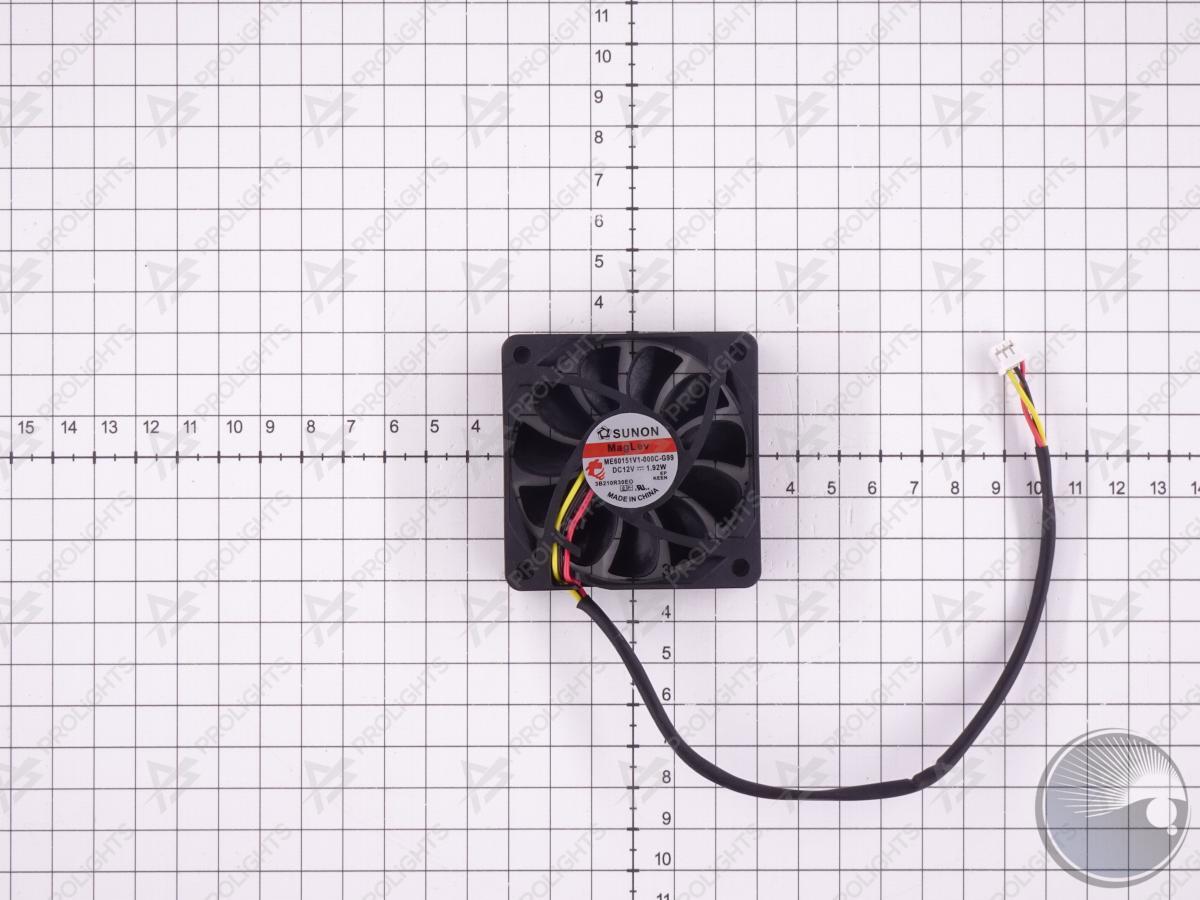

• Cooling: combination of heat pipe cooling system and low noise fan
• Suspension and fixing: any position with quick-lock omega brackets

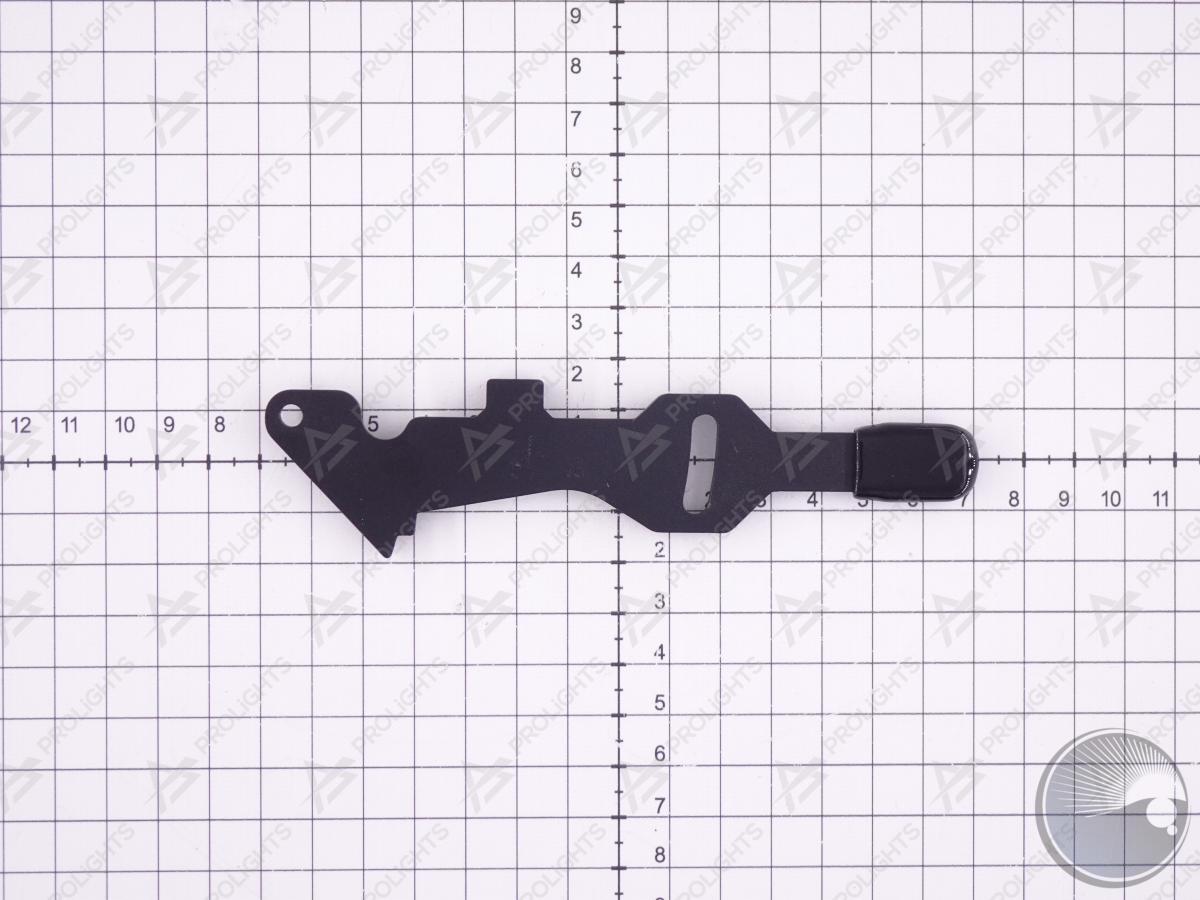

• Pan / tilt lock: for transportation and maintenance

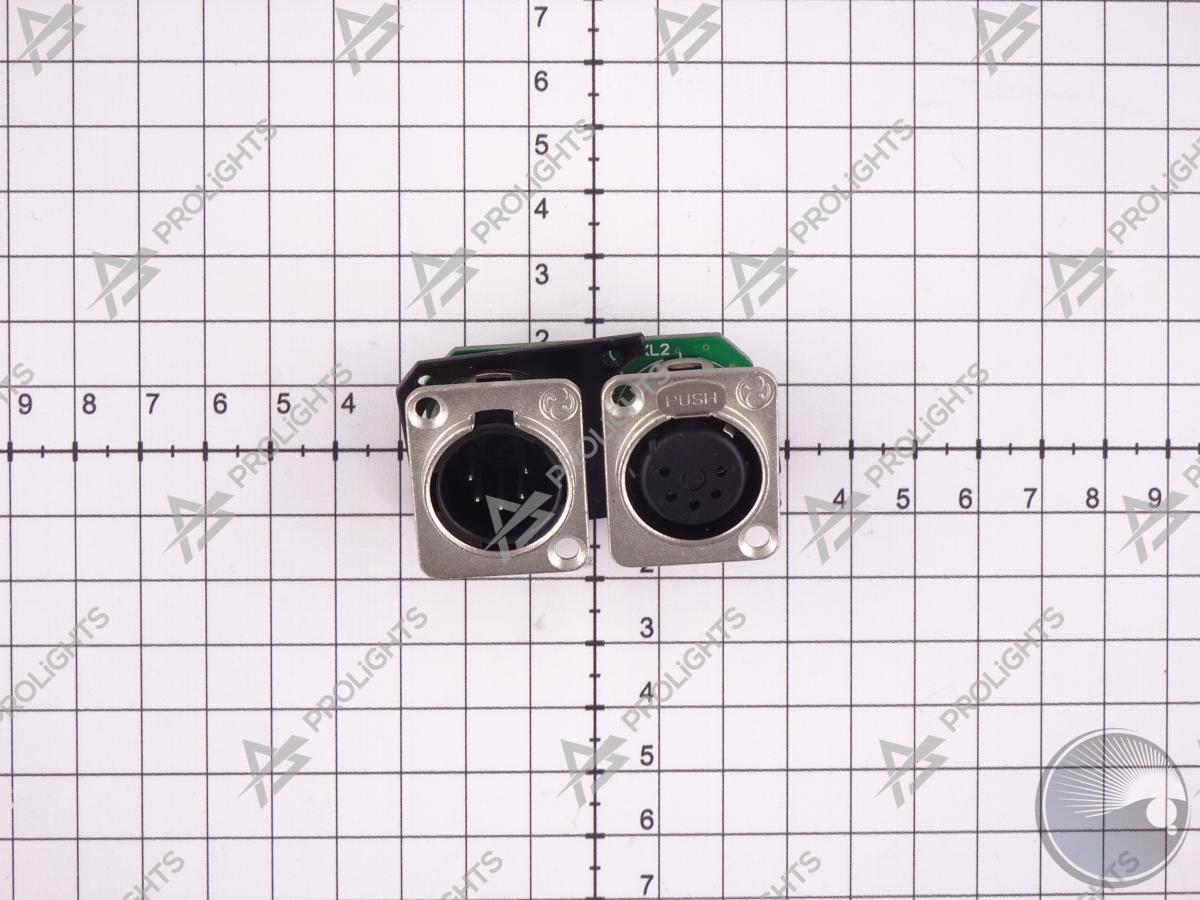

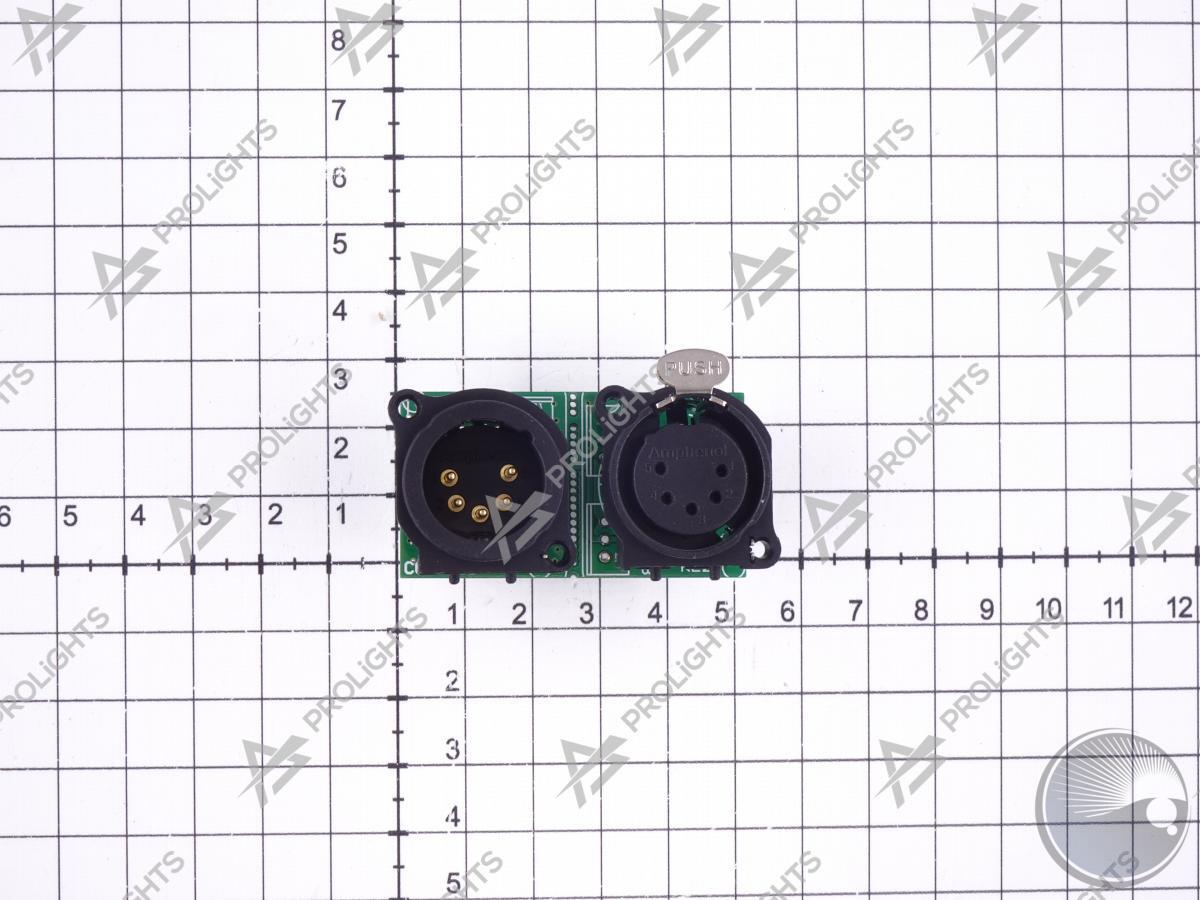

• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Data connection: Neutrik Art-Net RJ45 IN/OUT
• Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
• Dimensions (WxHxD): 411x638x244mm / 16.18''x25.12''x9.61''
• Weight: 21,6kg / 47.62lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
