PL Astra Wash19Pix, 19x40W RGBW, 4-54°, schwarz

PL Astra Wash19Pix, 19x40W RGBW, 4-54°, schwarz

4.790,94 € *

inkl. MwSt. zzgl. Versandkosten

Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.

Artikel-Nr.: ASTRAWASH19PIX

Astra Wash19Pix is an LED moving wash light, designed to be a workhorse for any touring,... mehr

Menü schließen

Produktinformationen "PL Astra Wash19Pix, 19x40W RGBW, 4-54°, schwarz"

Astra Wash19Pix is an LED moving wash light, designed to be a workhorse for any touring, corporate and event applications, offering a superior level of brightness and advanced creative effect possibilities.Based on a 40W Osram RGBW LED light source, plus the exterior pixel ring, this unit features an extremely high-efficiency optical system capable of zooming from 4° to 54°, making this luminaire extremely versatile for any application.Astra Wash19Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN, Kling-Net and RDM.

Main features:

Silent operation, smooth and fast movements
Zoom from 4° to 54° with high optical efficiency
Pixel and ring control, precise white CCT, multiple FX and colour features

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

Source: 19x40W RGBW Osram Ostar LEDs
Luminous flux: (4°) 5'505 lm - (54°) 10'143lm @full
Lux: (4°) 45'146 lx - (54°) 1174lx @5 m full
Other: outer RGB pixel ring with frost film
Source life expectancy: > 50.000 h

OPTICS

Zoom: 4° - 54° motorised linear zoom
Lens type: honeycomb gapless plano-convex optics
Additional optics: diffuser on outer pixel ring

COLOUR SYSTEM

Colour mixing: RGBW / FC
CCT: CCT control, + / - green correction, tungsten emulation
White presets: 2.800 K ~ 10.000K
Colour wheel: virtual colour wheel with macros
Macros: several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

Control Resolution: 16-bit dimmer, colours
Pixel patterns: pre-programmed dynamic and static patterns
FX generator: adjustable foreground/background colour, index, speed, direction
Special features: outer RGB, pixel ring with several built in FX macros and linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
Pan angle: 540°
Tilt angle: 233°
Feedback: automatic repositioning after accidental movement
Body: aluminium structure with high-resistance polycarbonate cover
Body colour: see variants

CONTROL

Protocols: DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
DMX channels: main personality 29 / 32 / 53channel
Pixel control: OFF, ring and pixel2pixel
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: LCD high resolution colour display with autoflip
Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -10° ~ +45°
LED Control: flicker free operation
Selectable PWM: 600 ~ 50.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 620W
Output (at 230V): 4 units on a single power line
Power factor: > 0,95

PHYSICAL

IP rating: 20
Cooling: forced air with fan
Suspension and fixing: any position with quick-lock omega brackets
Pan / tilt lock: for transportation and maintenance
Signal connection: Amphenol XLR 5p IN/OUT connectors
Data connection: Neutrik Art-Net RJ45 IN/OUT
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
Dimensions (WxHxD): 410x514x250mm / 16.14''x20.24''x9.84''
Weight: 17,4kg / 38.36lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

Weiterführende Links zu "PL Astra Wash19Pix, 19x40W RGBW, 4-54°, schwarz"

mehr

Zurück

	SP009933	PL 350MAH - 3.7V - BACKUP BATTERY
	SP009949	PL SINGLE LED(SP STARK400 11 SA - HEAD)

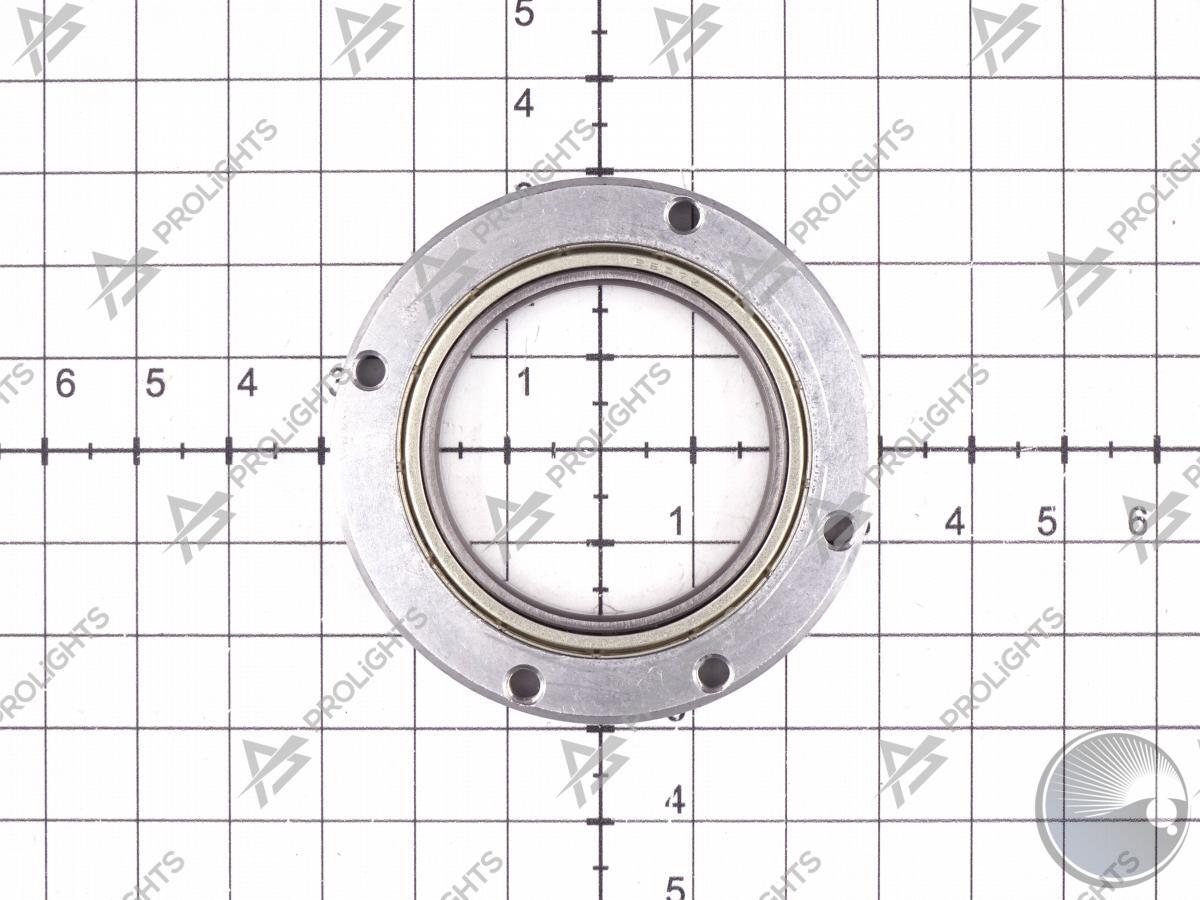

	SP010026	PL TILT AXIS
	SP010193	PL CABLE PROTECTING RING
	SP010193	PL CABLE PROTECTING RING
	SP010617	PL QUICK LOCK HOLDER
	SP010618	PL QUICK LOCK CAP
	SP011411	PL 5-PIN DMX (MATTE COVER)
	SP011411	PL 5-PIN DMX (MATTE COVER)
	SP011539	PL NEW PAN STOP (NOT COMPATIBLE WITH A220100478)

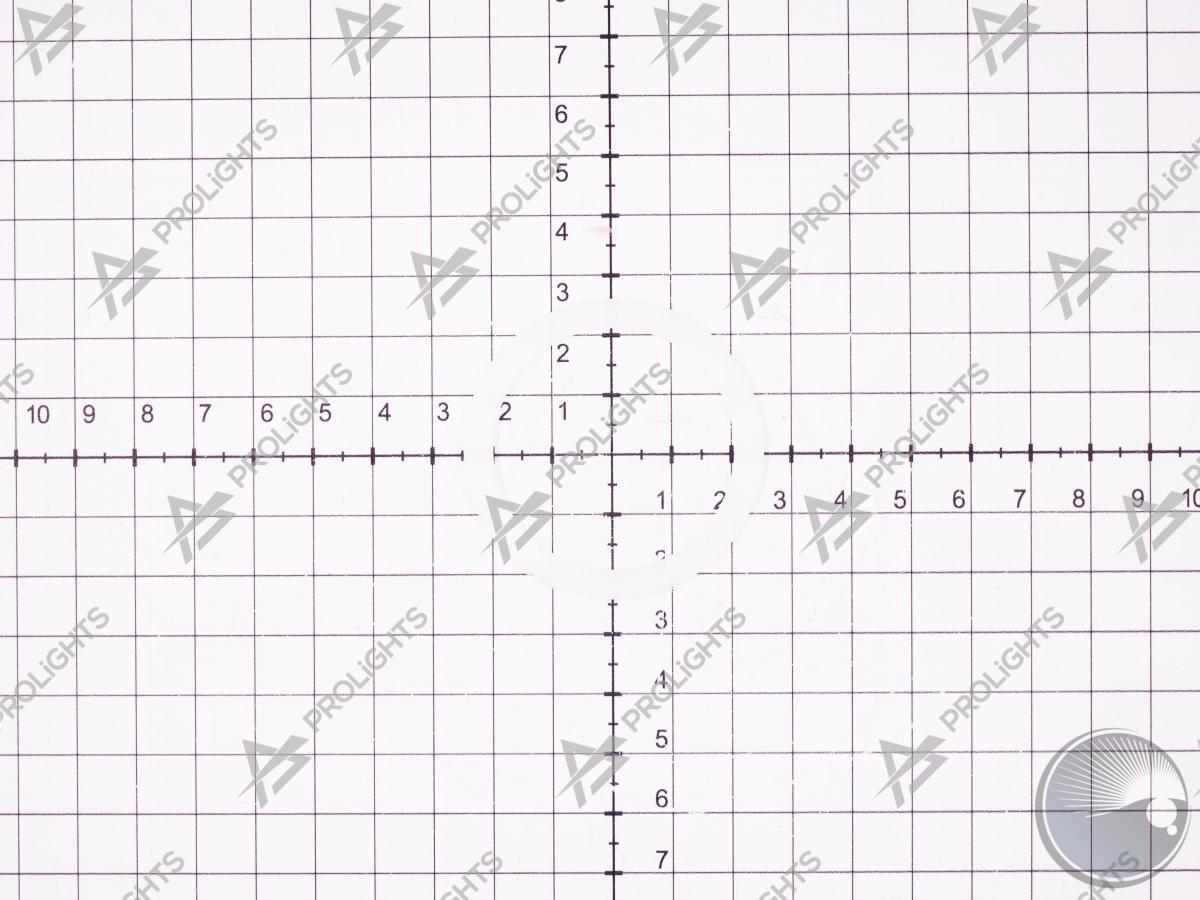

	SP011540	PL NEW PLASTIC WASHER (NOT COMPATIBLE WITH A040200094)

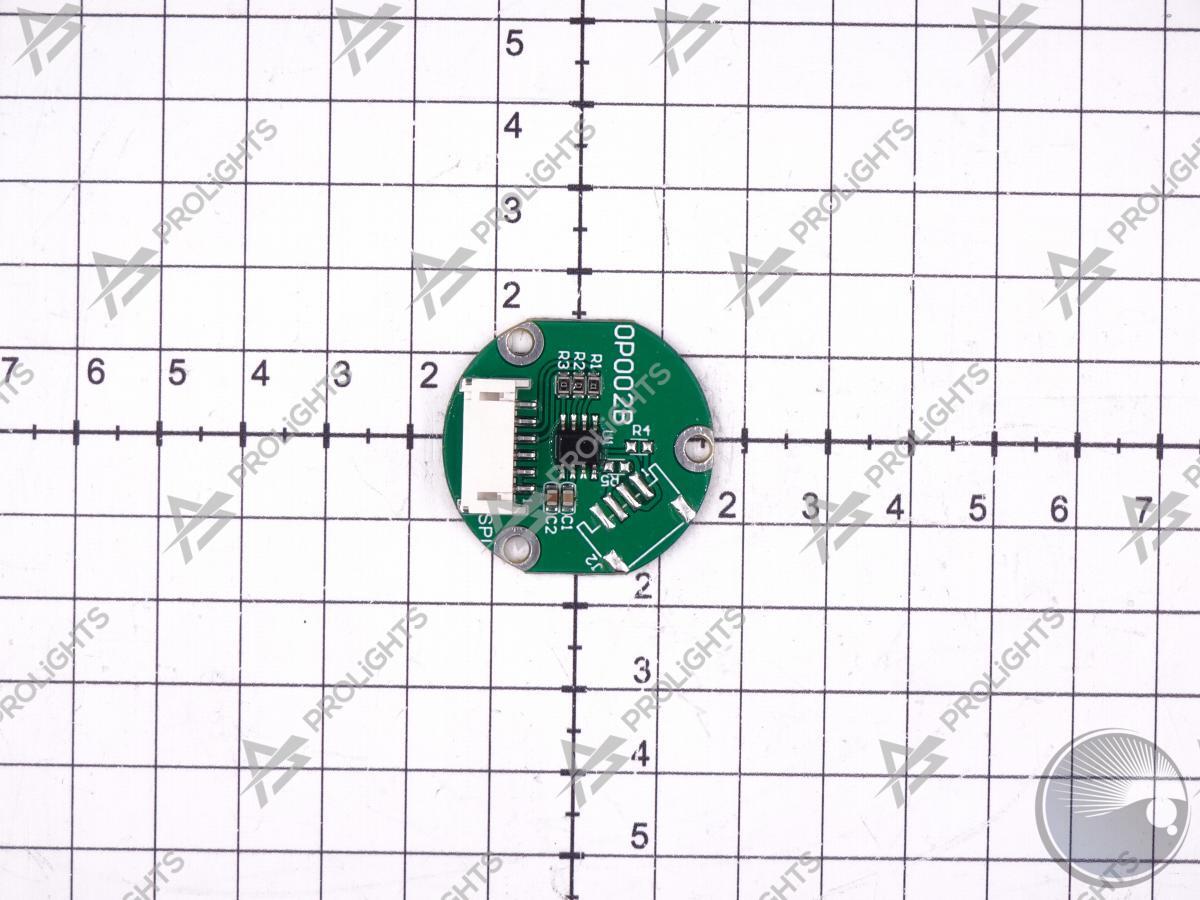

	SP011924	PL ENCODER PCB

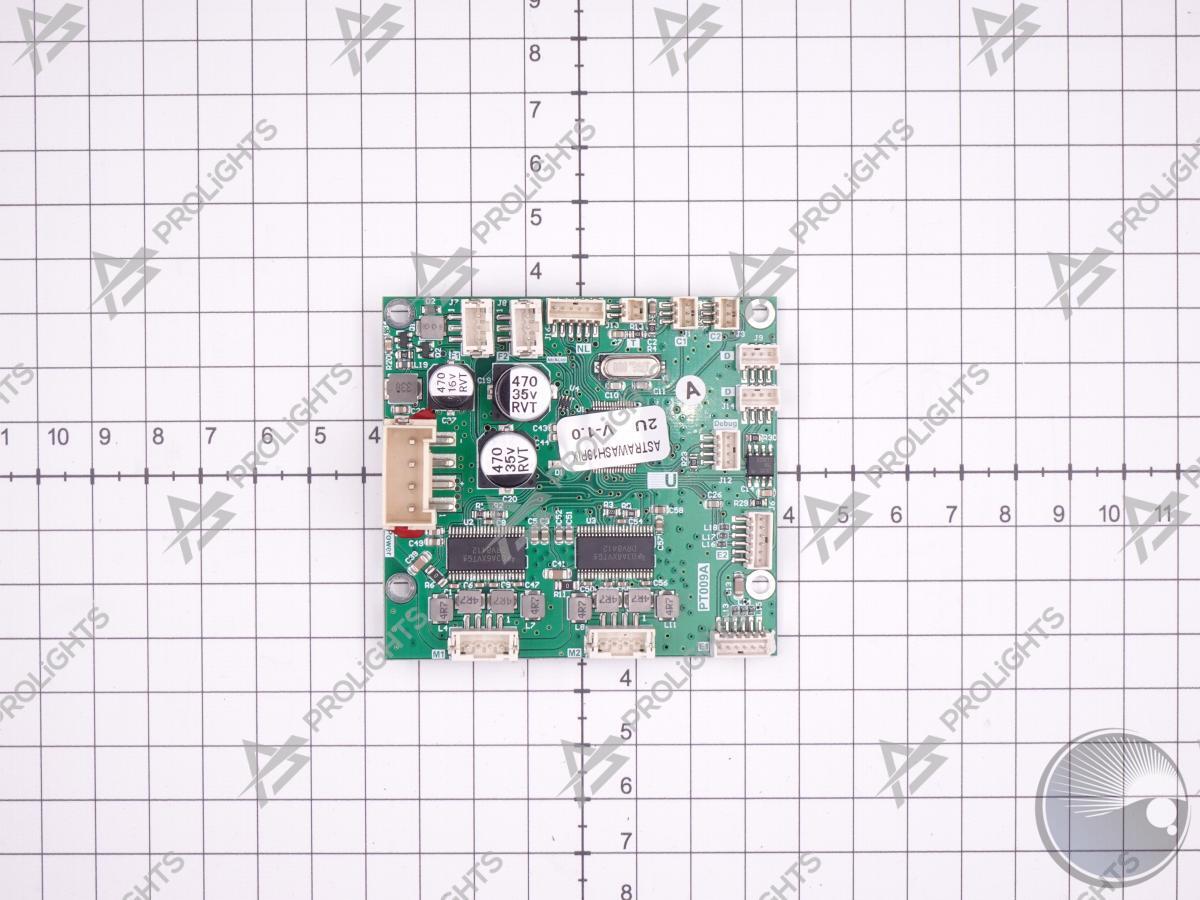

	SP011926	PL PAN/TILT PCB (2U)

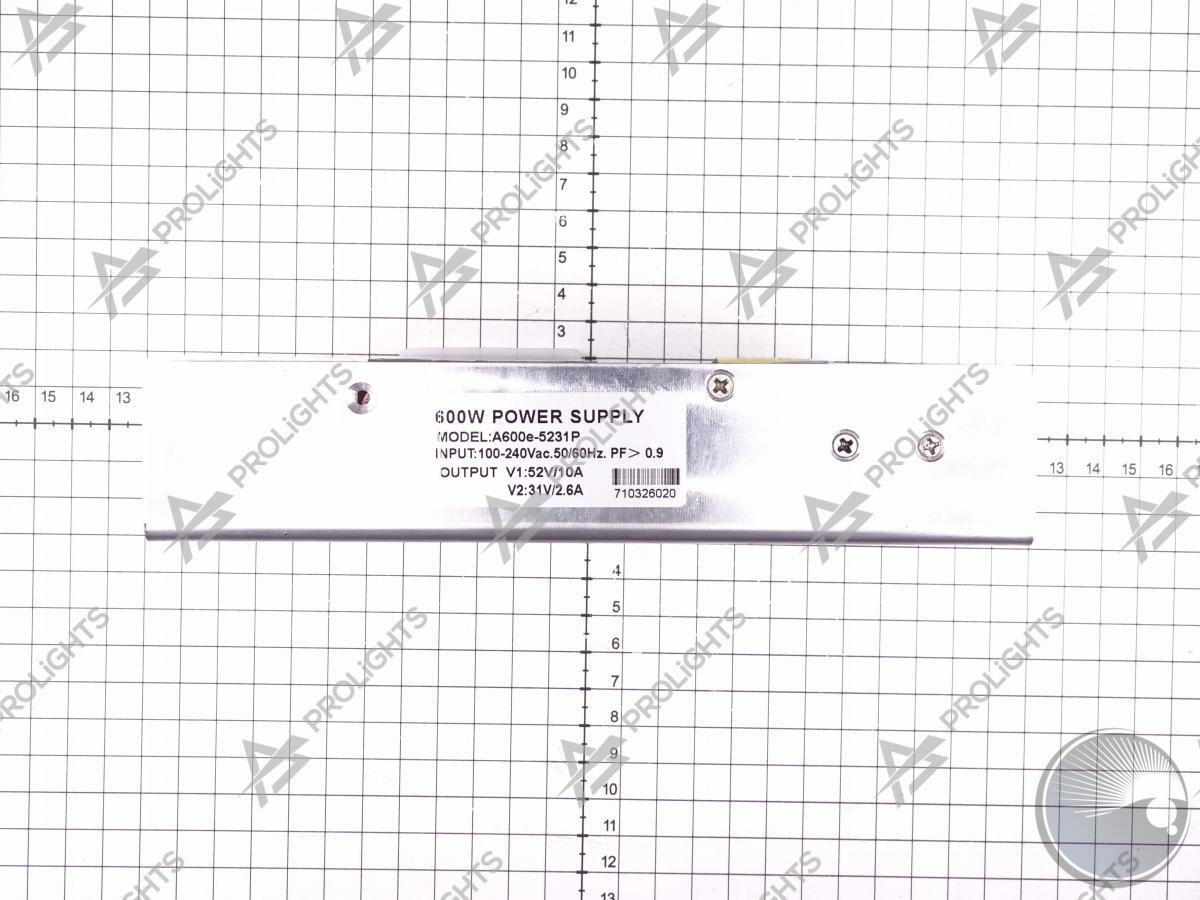

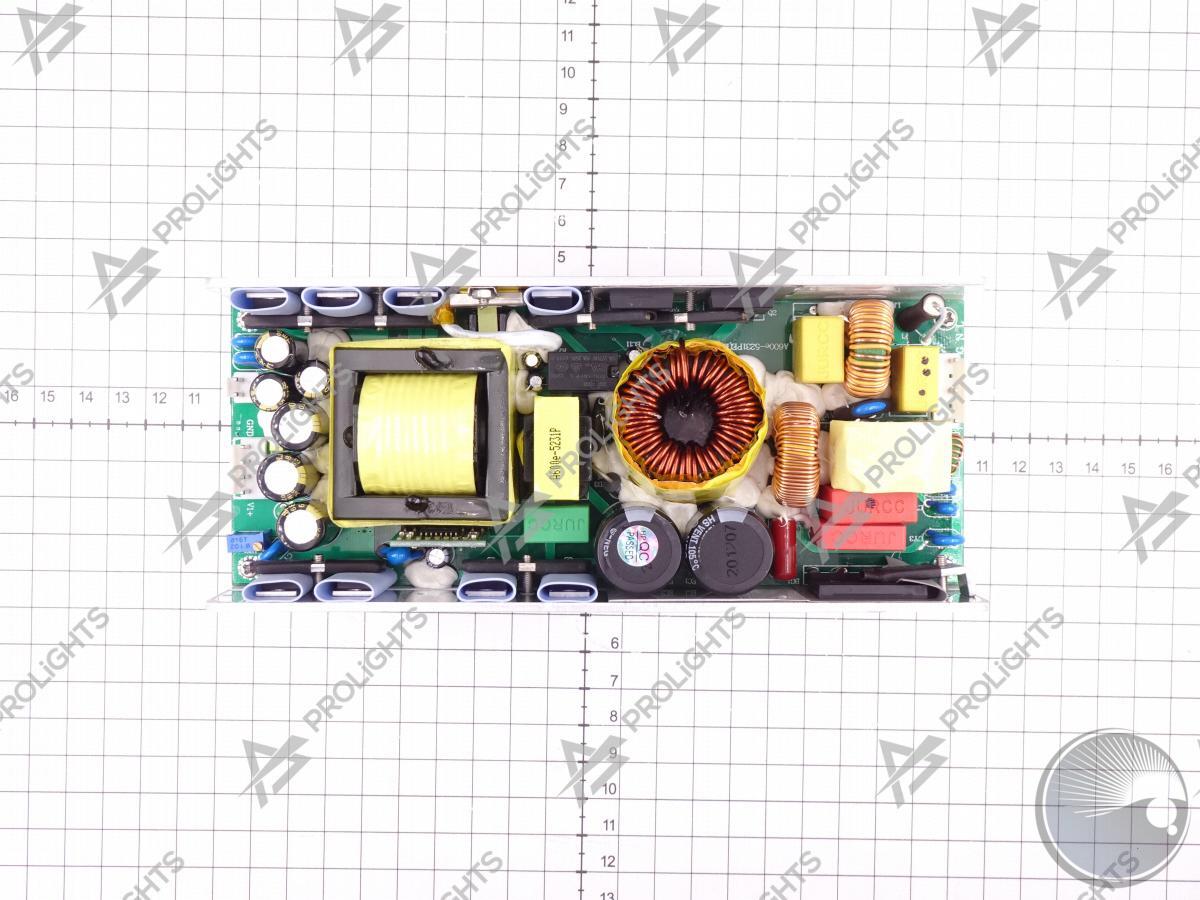

	SP011930	PL POWER SUPPLY, A18010006500
	SP011930	PL POWER SUPPLY, A18010006500
	SP011931	PL LED BOARD (1)

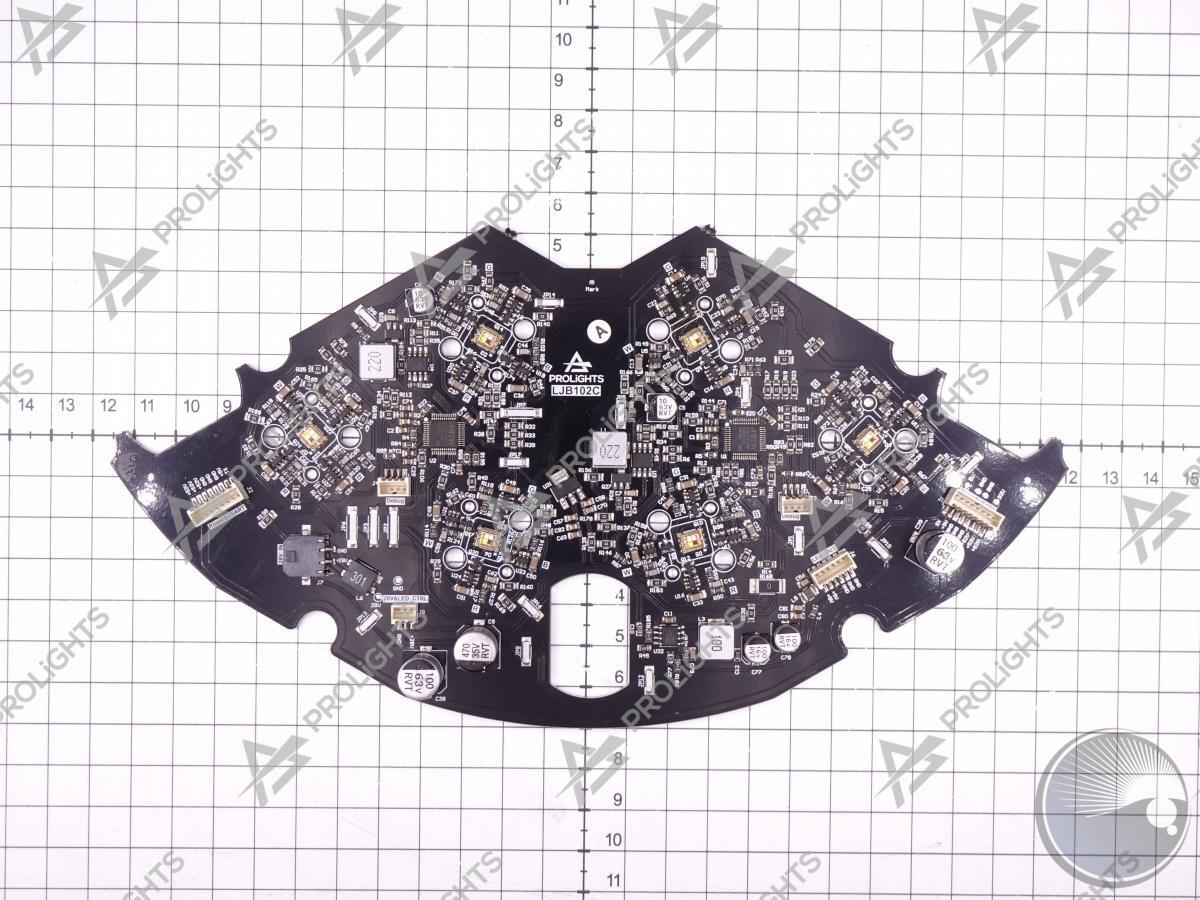

	SP011932	PL LED BOARD (2)

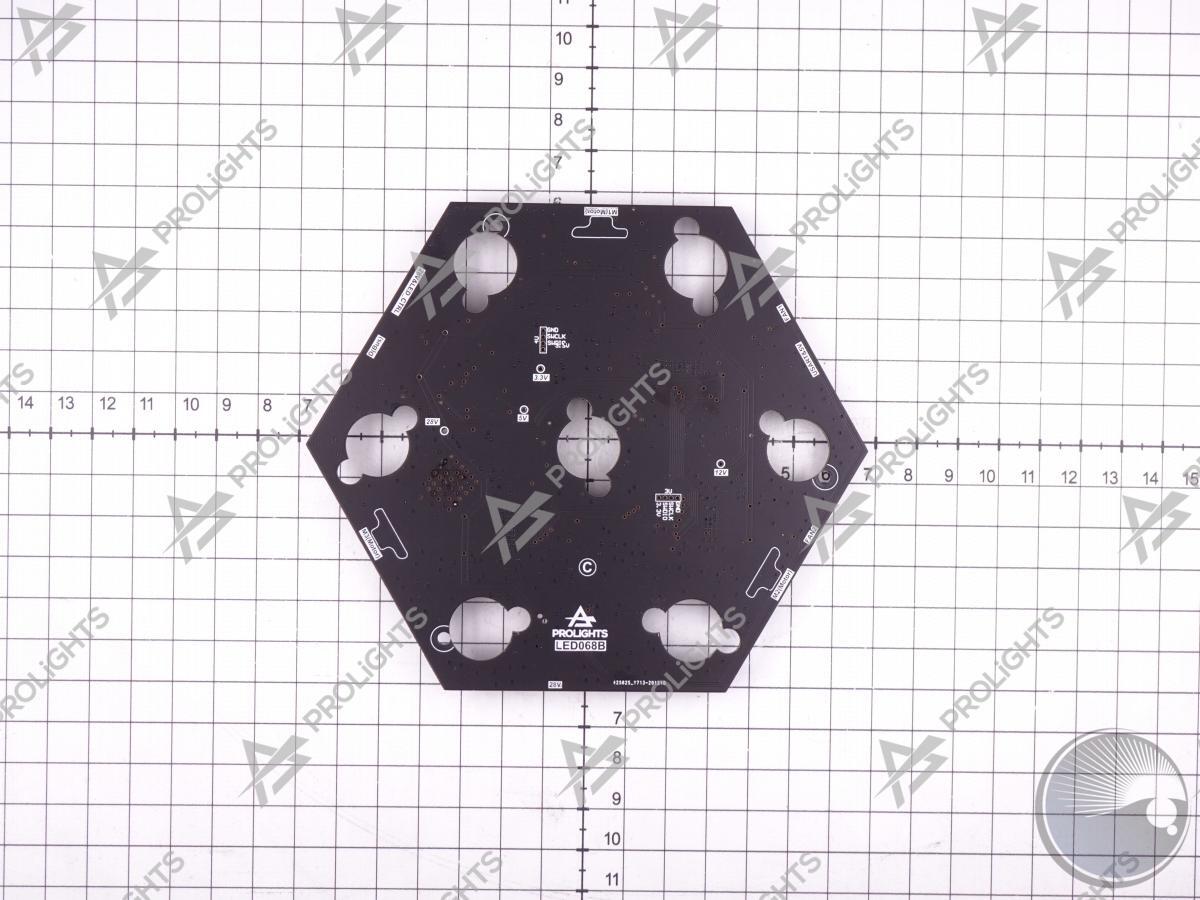

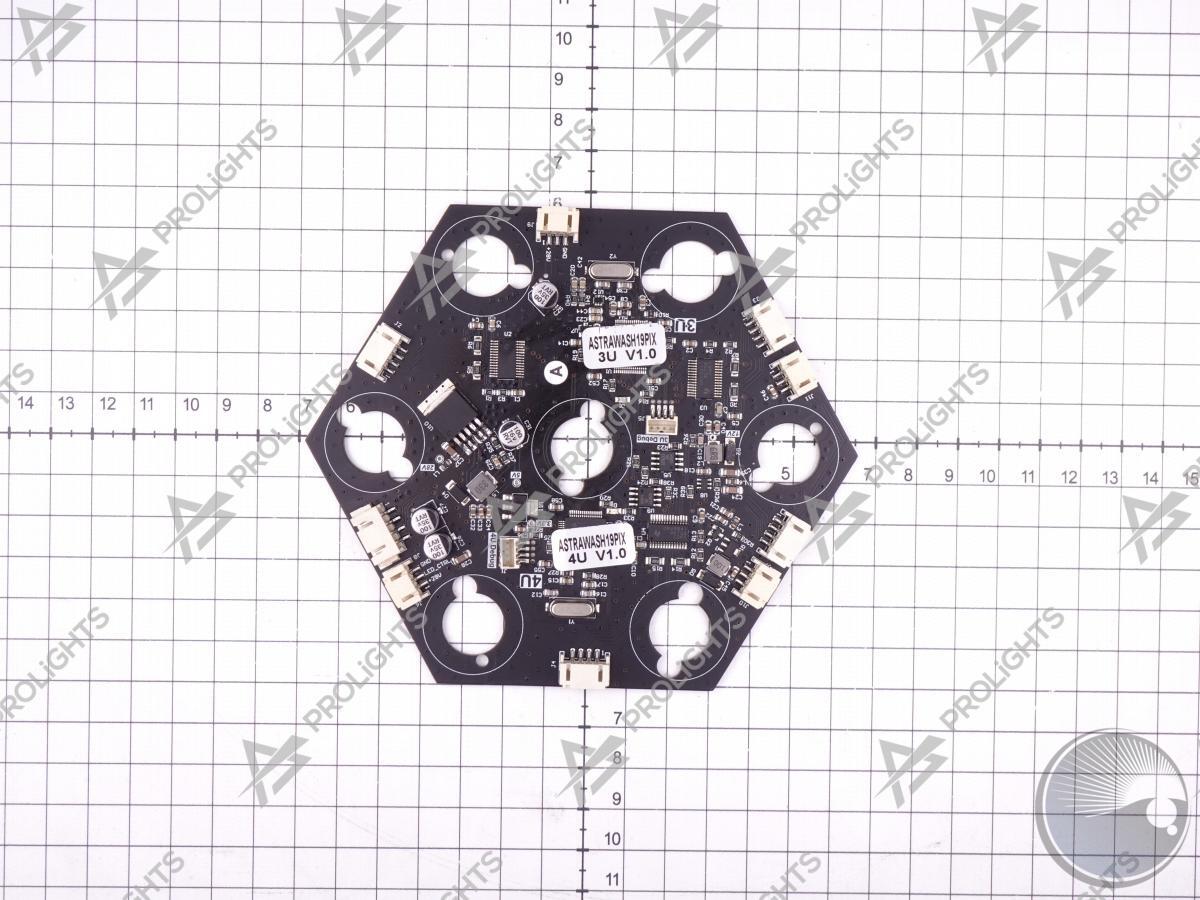

	SP011934	PL LED DRIVING PCB (3U)
	SP011934	PL LED DRIVING PCB (3U)

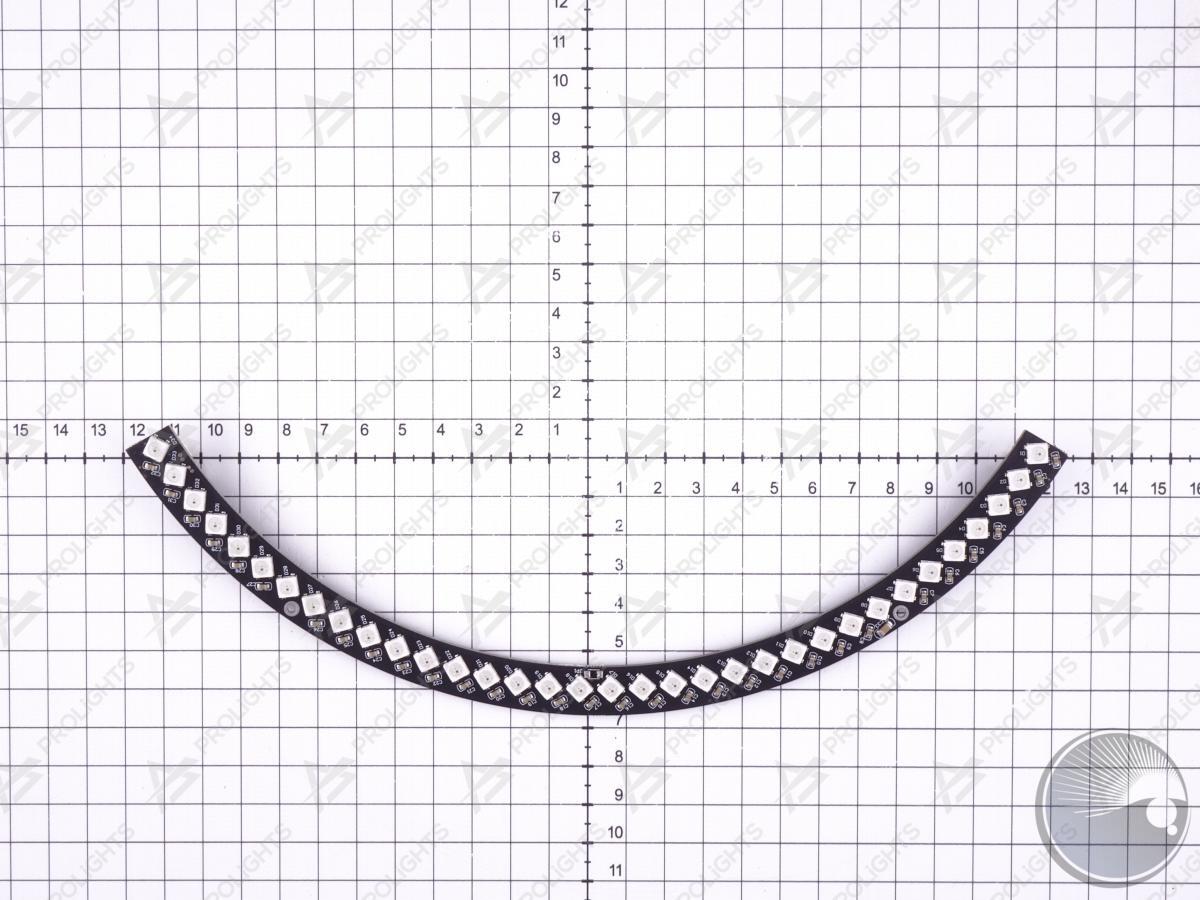

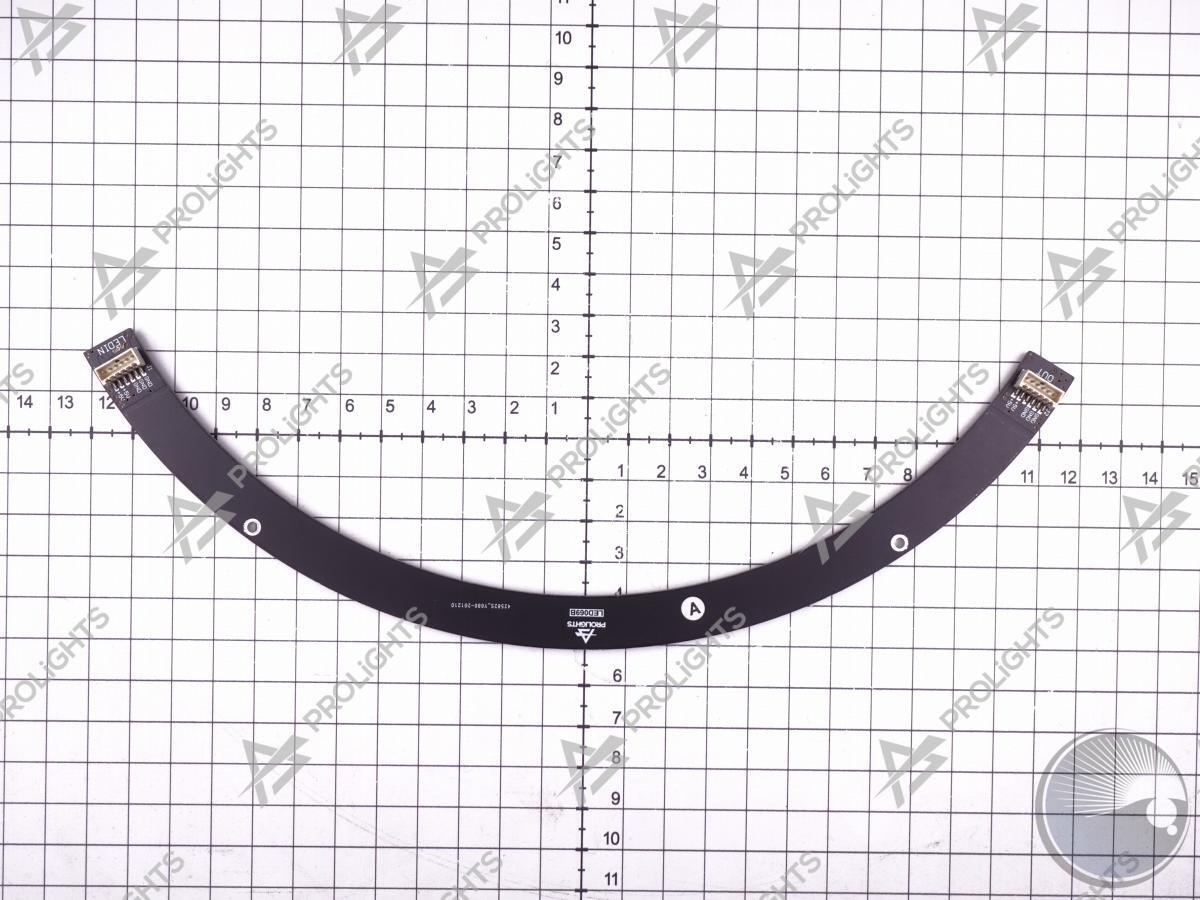

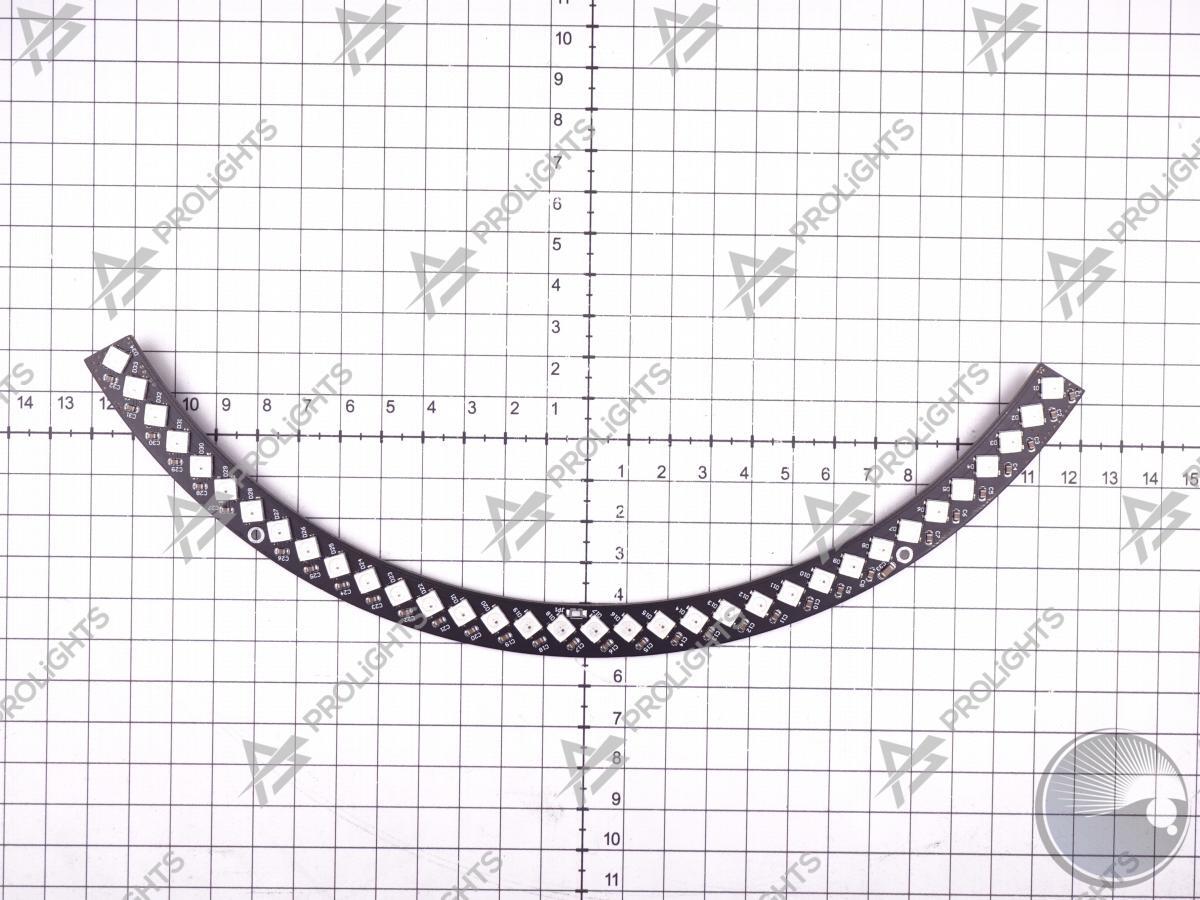

	SP011935	PL LED STRIP 01(SP ASTRAWASH19PIX 109 SA - HEAD)
	SP011935	PL LED STRIP 01(SP ASTRAWASH19PIX 109 SA - HEAD)

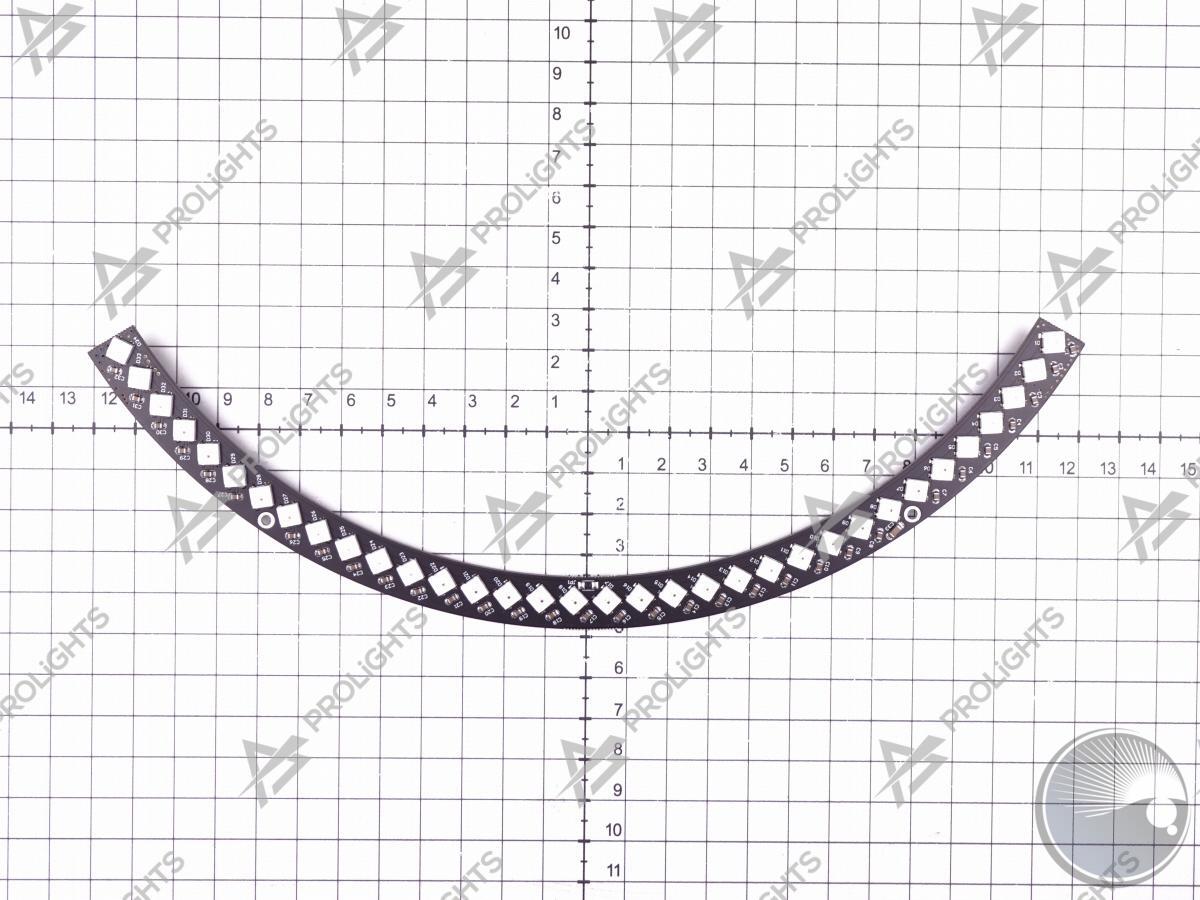

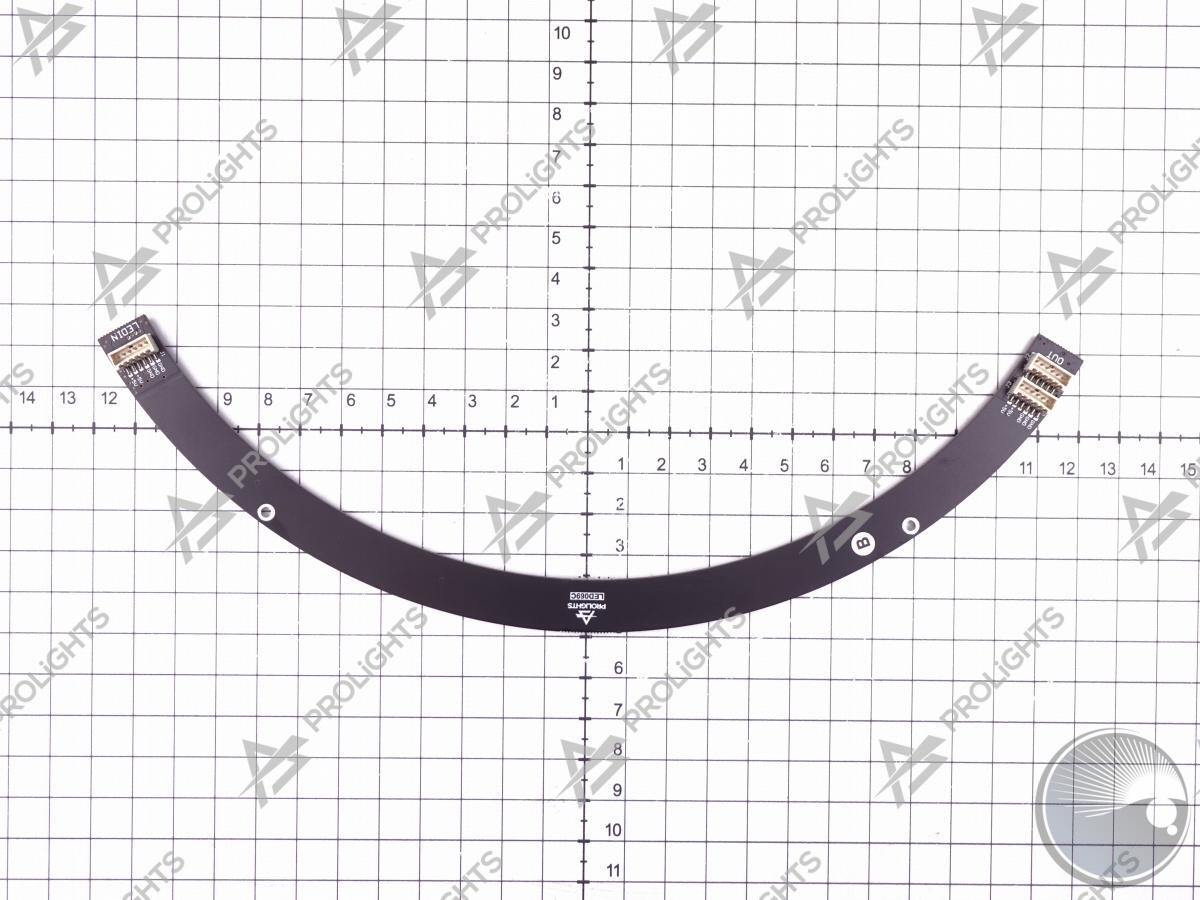

	SP011936	PL LED STRIP 02(SP ASTRAWASH19PIX 110 SA - HEAD)
	SP011936	PL LED STRIP 02(SP ASTRAWASH19PIX 110 SA - HEAD)

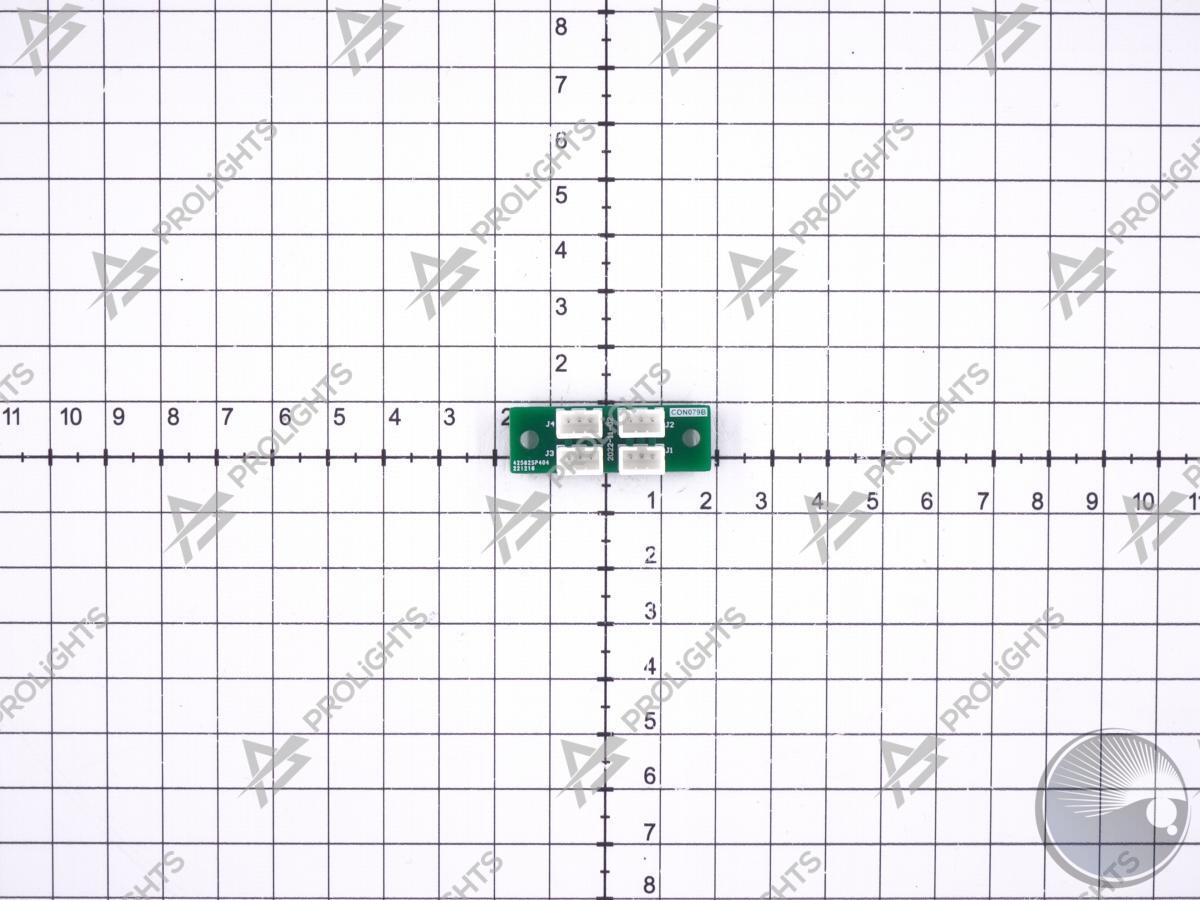

	SP011944	PL TRANSFER PCB

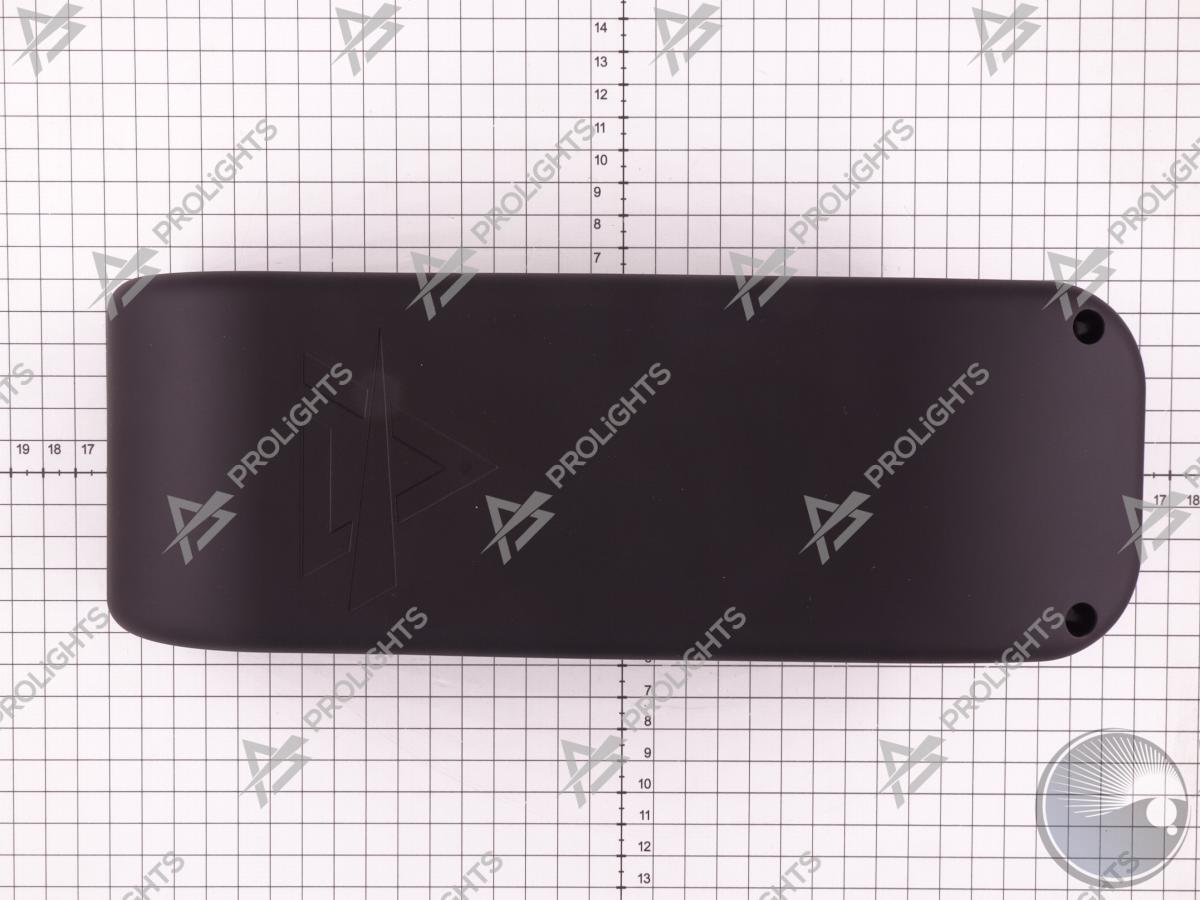

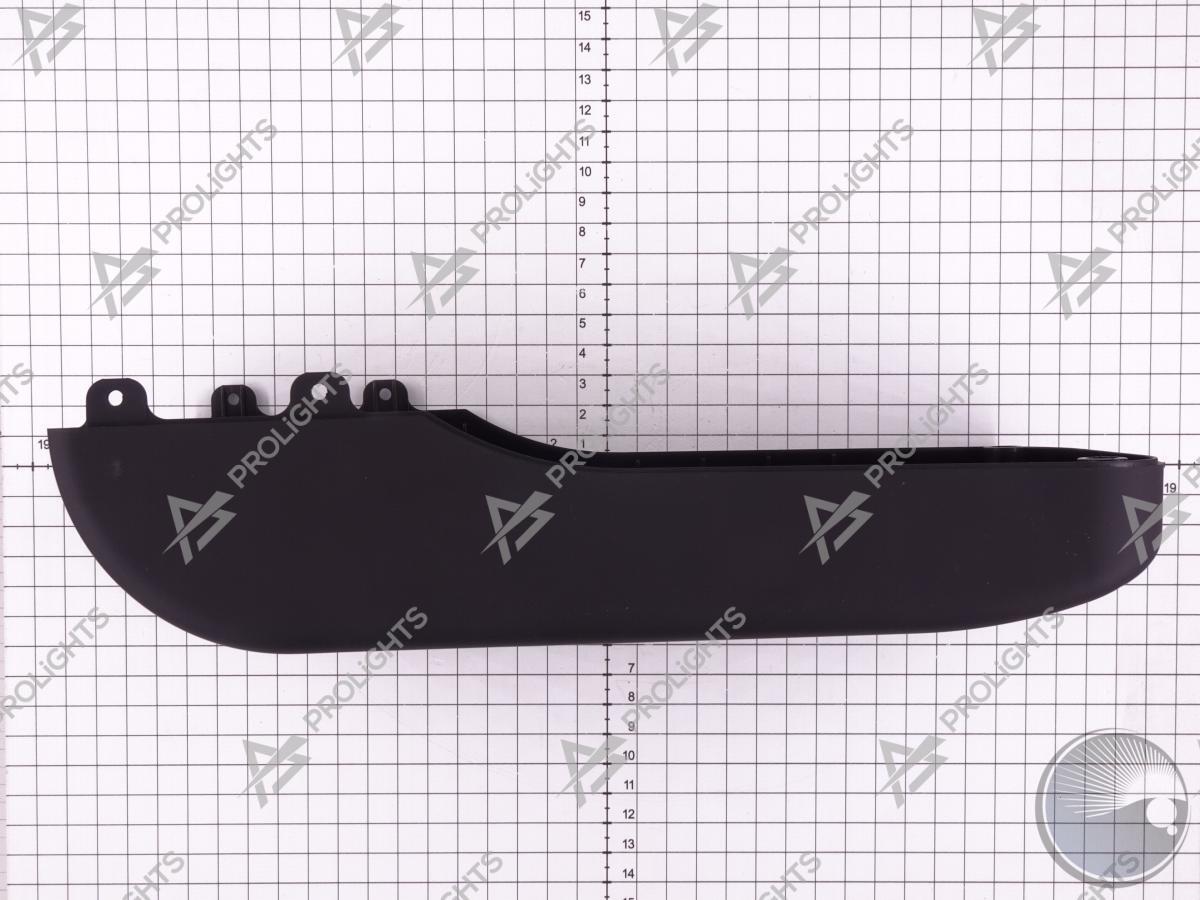

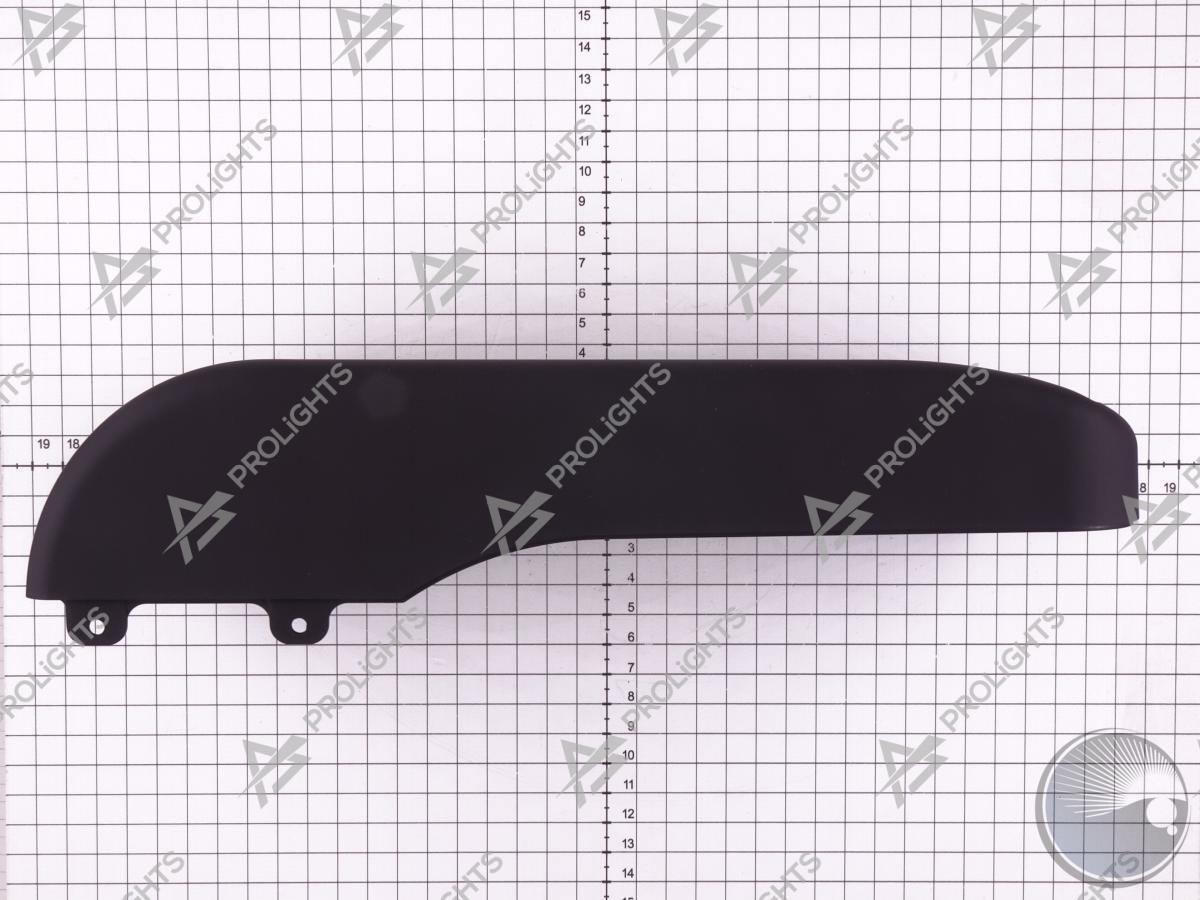

	SP012214	PL ARM COVER 01
	SP012214	PL ARM COVER 01
	SP012214	PL ARM COVER 01

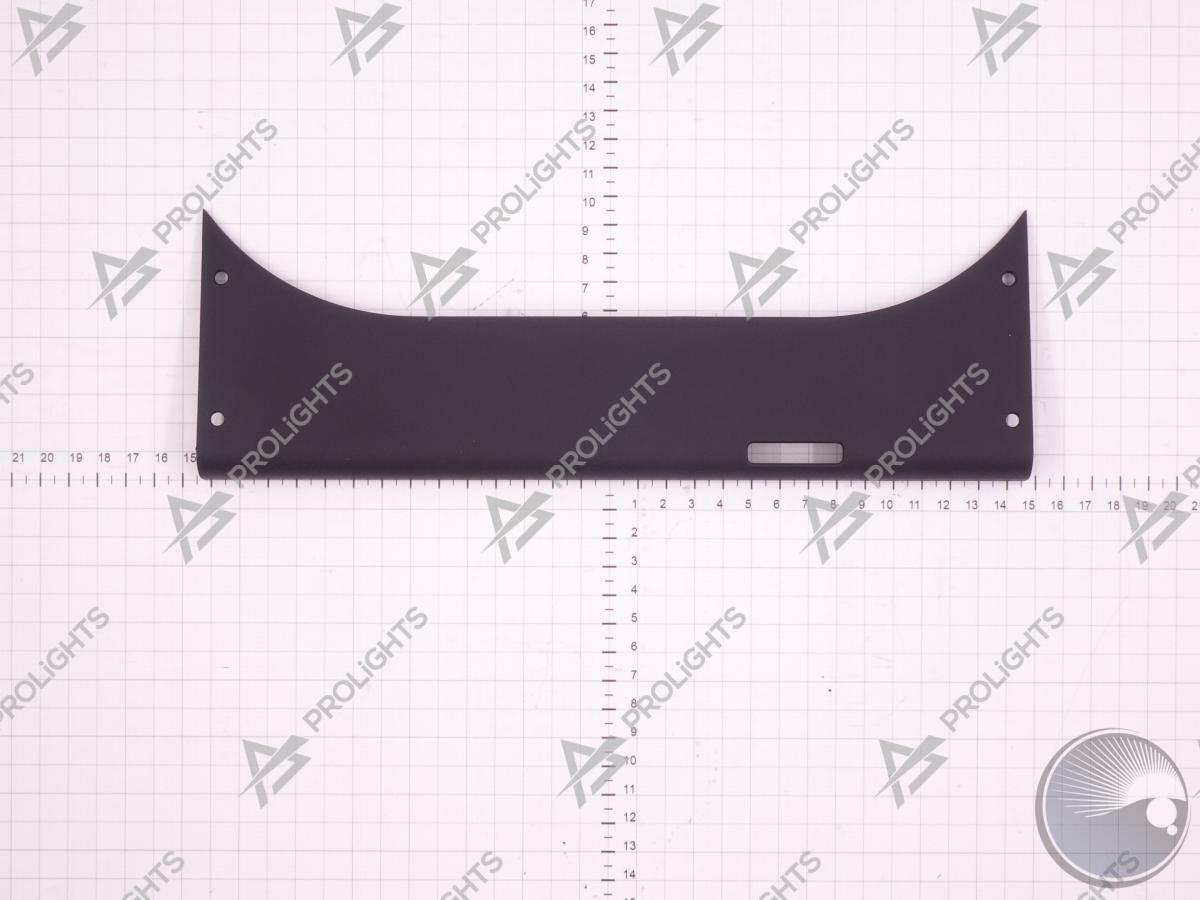

	SP012221	PL ARM COVER-FRONT

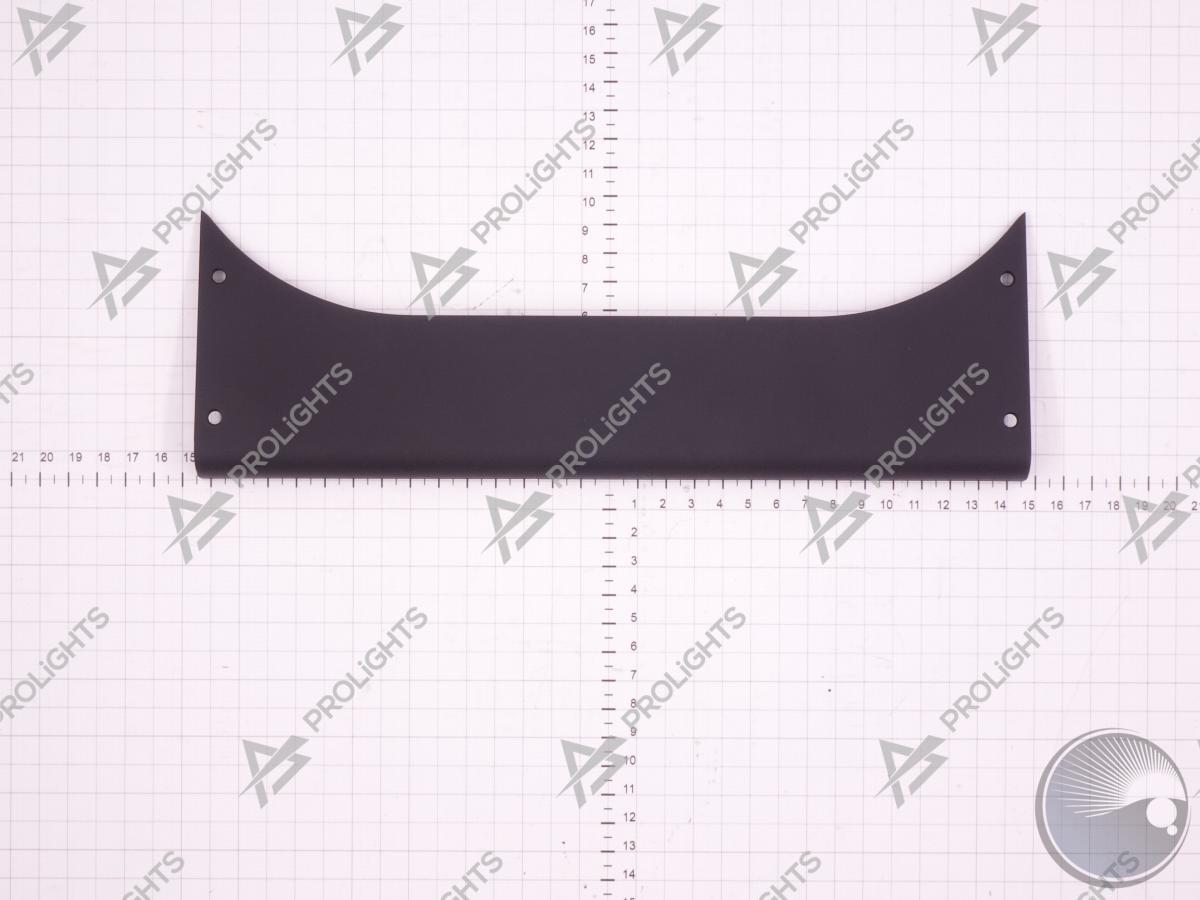

	SP012224	PL ARM COVER-SIDES
	SP012229	PL TRANSFER PCB, B010000268XA

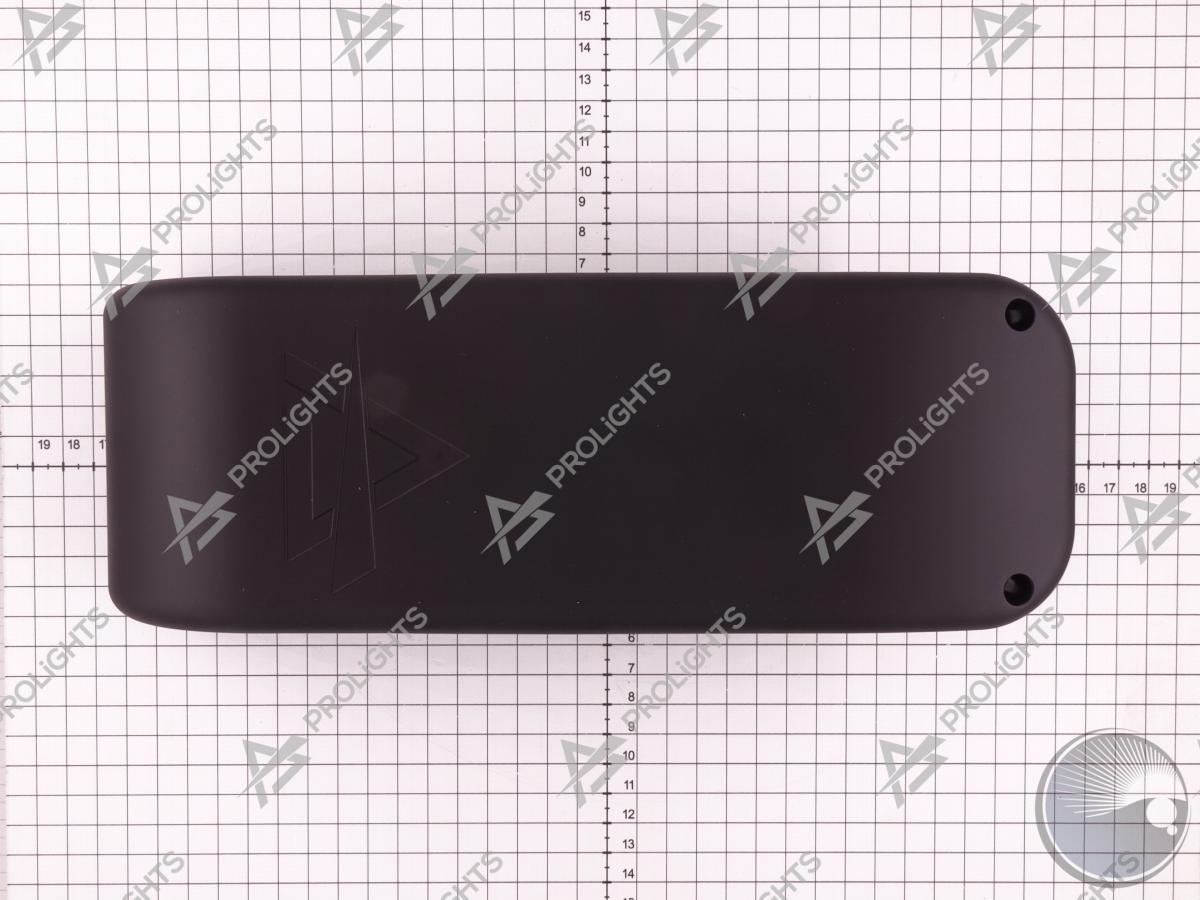

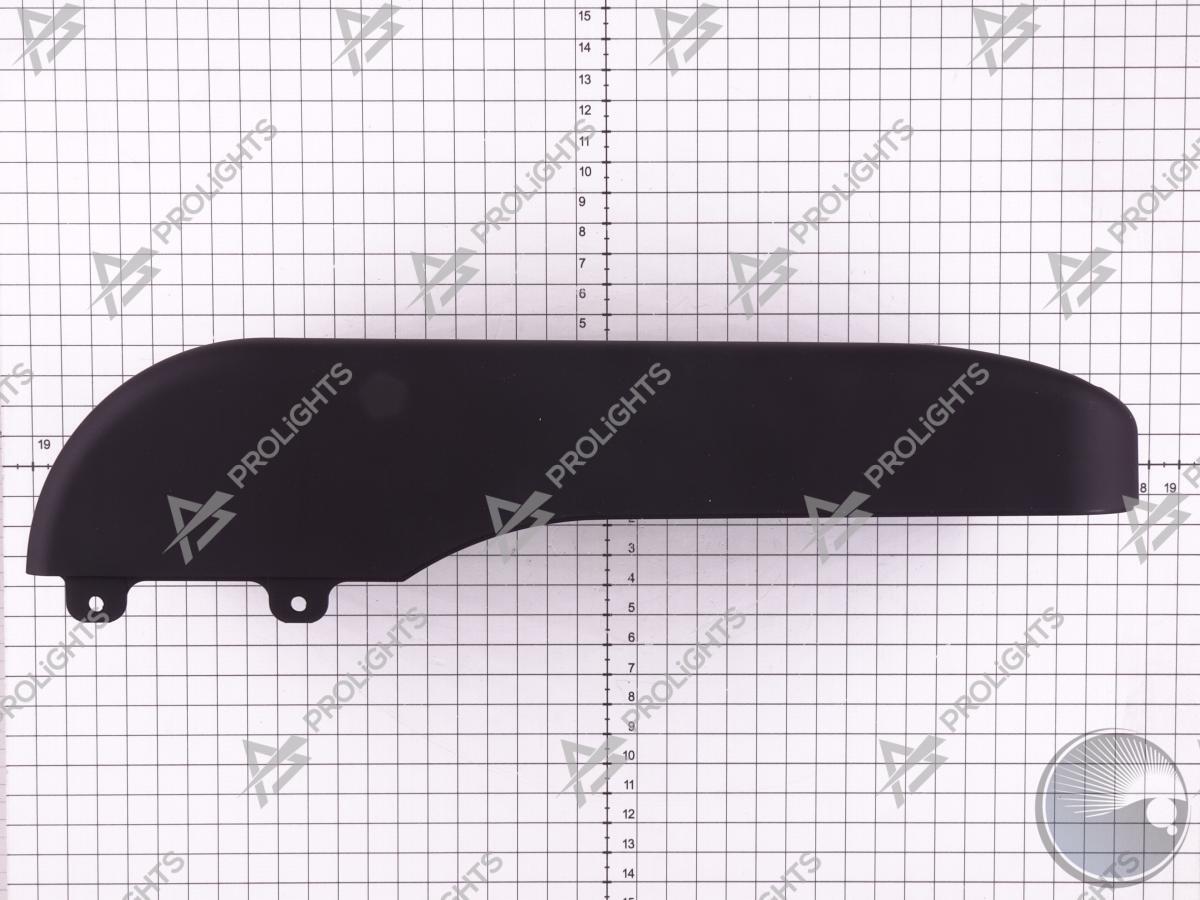

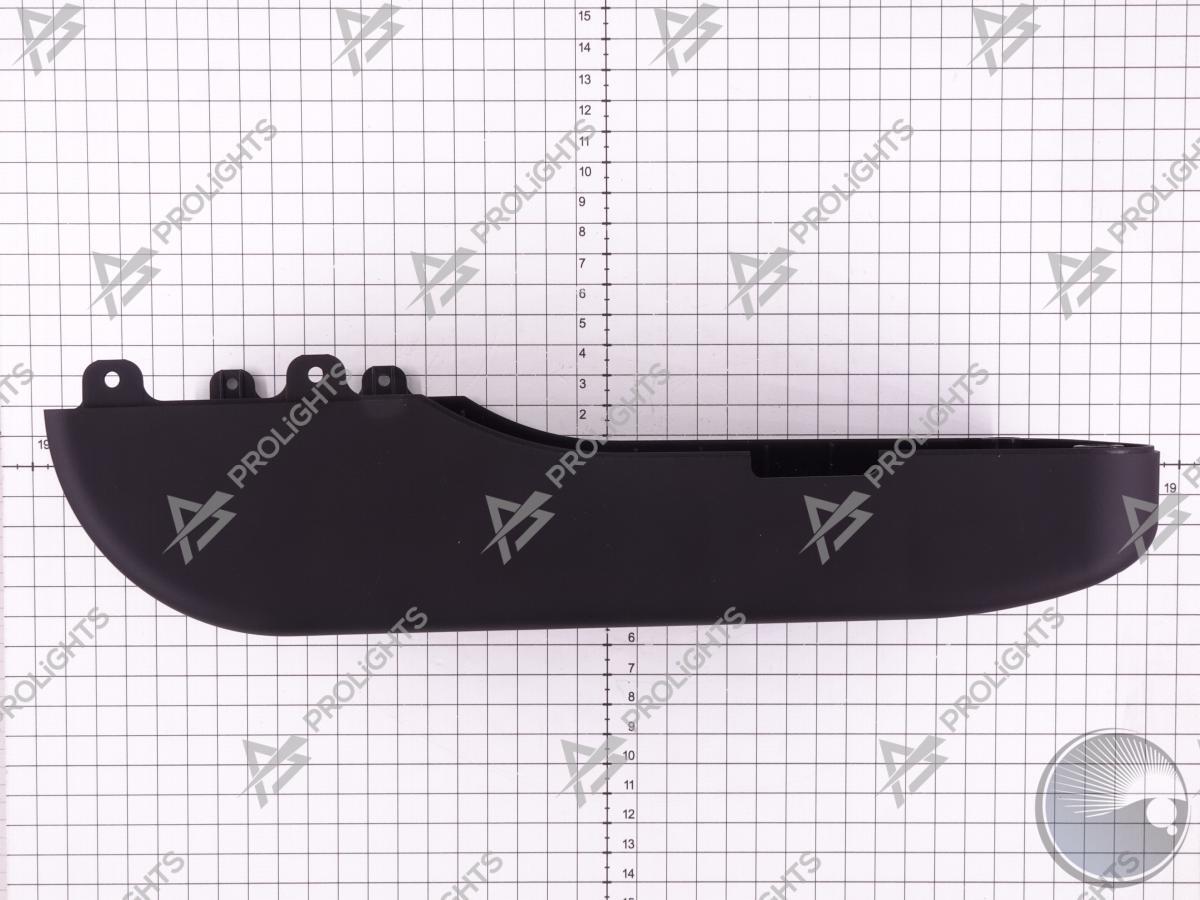

	SP012234	PL ARM COVER 02
	SP012234	PL ARM COVER 02
	SP012234	PL ARM COVER 02

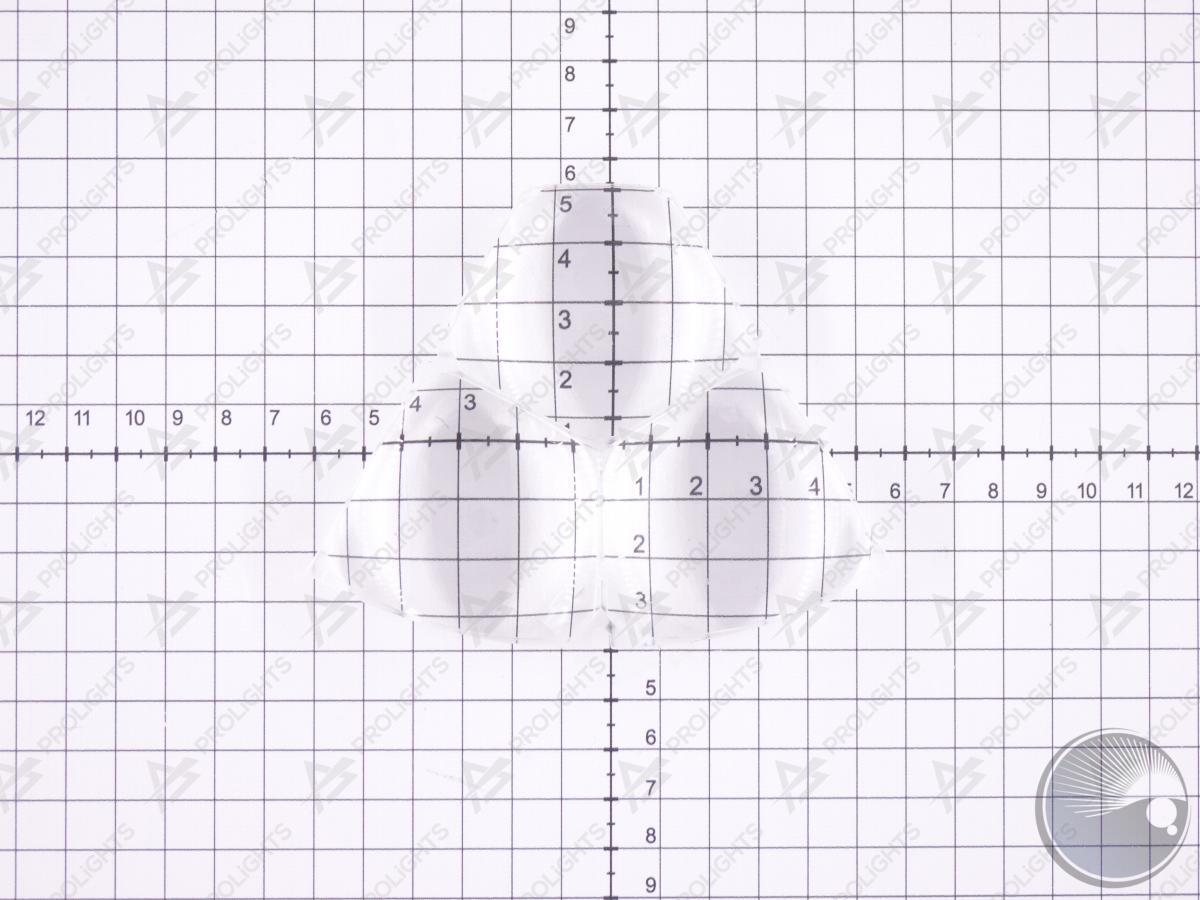

	SP012239	PL 3 ASSEMBLY LENS

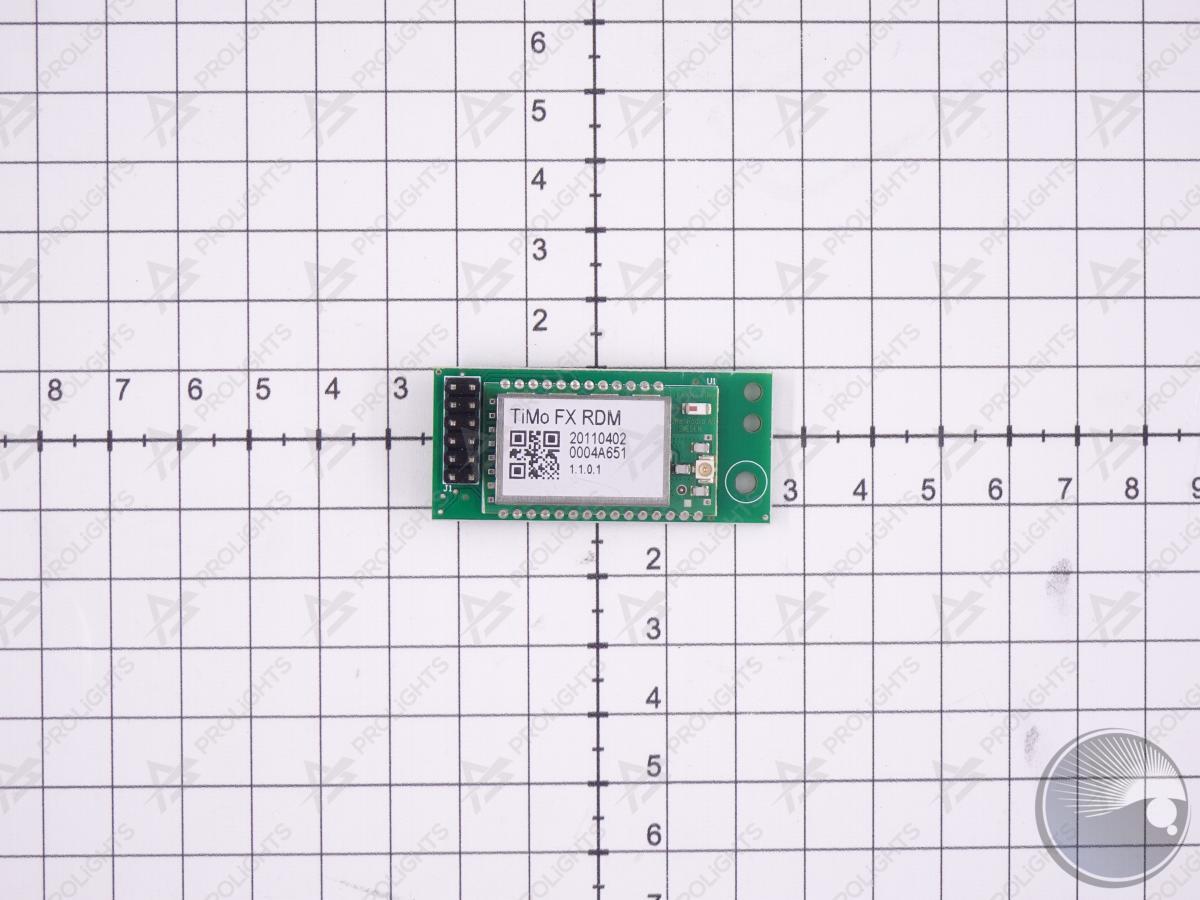

	SP012351	PL W-DMX PCB (Tiny)
	SP012351	PL W-DMX PCB (Tiny)
