PL Pixie Wash, LED Washlight, 60W, 7-40°

Pixie Wash is a single source, compact LED wash luminaire with a 7° to 40° zoom. Featuring a single 60W LED, its small form factor and near-silent cooling make it ideal for low ceilings or noise-sensitive environments.

Main features:

• Single 60W Osram Ostar RGBW LED with extensive colour range
• Massive 7° to 40° linear zoom with a smooth, even beam
• HD dimming

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 60W RGBW Osram Ostar LED
• Luminous flux: (7°) 1'432 lm - (40°) 1'311lm @full
• Lux: (7°) 3'808 lx - (40°) 296lx @5 m full
• Source life expectancy: > 50.000 h

OPTICS

• Zoom: 7° - 40° motorised linear zoom
• Lens diameter: 100mm / 3.94''
• Lens type: high-quality glass lens optics

COLOUR SYSTEM

• Colour mixing: RGBW / FC
• CCT: CCT control through dedicated DMX channel
• White presets: 2.700 K ~ 8.000K
• Colour wheel: virtual colour wheel with macros

DYNAMIC EFFECTS

• Auto mode: built-in programs with execution speed adjustment

BODY

• Pan angle: 540°
• Tilt angle: 270°
• Pan/Tilt resolution: bit 8 / 16-bit
• Feedback: automatic repositioning after accidental movement
• Body: aluminium structure with high-resistance polycarbonate cover
• Body colour: black, white finishing available

CONTROL

• Protocols: DMX512
• DMX channels: 13 / 16channel
• Display: Graphic User Interface
• Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Display battery: self-charging battery backup
• Operating temperature: -10° ~ +45°
• LED Control: flicker free operation

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 112W
• Output (at 230V): 22 units on a single power line

PHYSICAL

• IP rating: 20

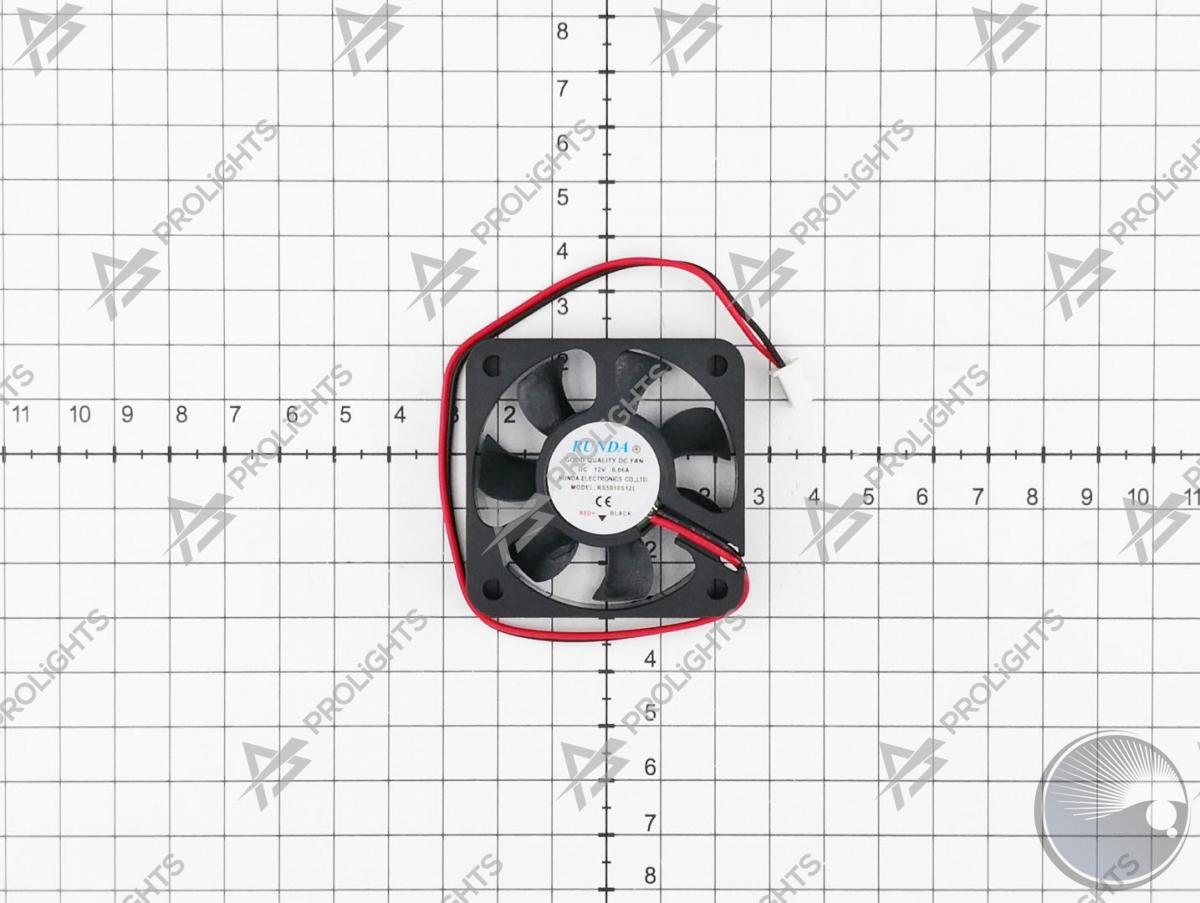

• Cooling: active, silent operation
• Suspension and fixing: any position with quick-lock omega brackets
• Signal connection: XLR 5p IN/OUT connectors
• Power connection: Neutrik powerCON IN/OUT connectors
• Dimensions (WxHxD): 253x329x205mm / 9.96''x12.95''x8.07''
• Weight: 7kg / 15.43lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
