PL LumiPix 8H, LED-Bar, 8x12W RGBAW+UV, 22°, IP33, 50cm, schwarz
inkl. MwSt. zzgl. Versandkosten
Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.
- Artikel-Nr.: LUMIPIX8H
Lumipix 8H is a linear 50 cm LED batten designed for professional use, employing an innovative optical system combined with a new light source performing 6 primary colour mixing, RGBWAP full colour, granting unprecedented chromatic performance. The super-slim design combined with the extreme colour precision and light output make Lumipix 8H a flexible and versatile solution for every kind of application or within venues as their architectural, cyclorama, wall-washer, pixel effect or blinder.
Main features:

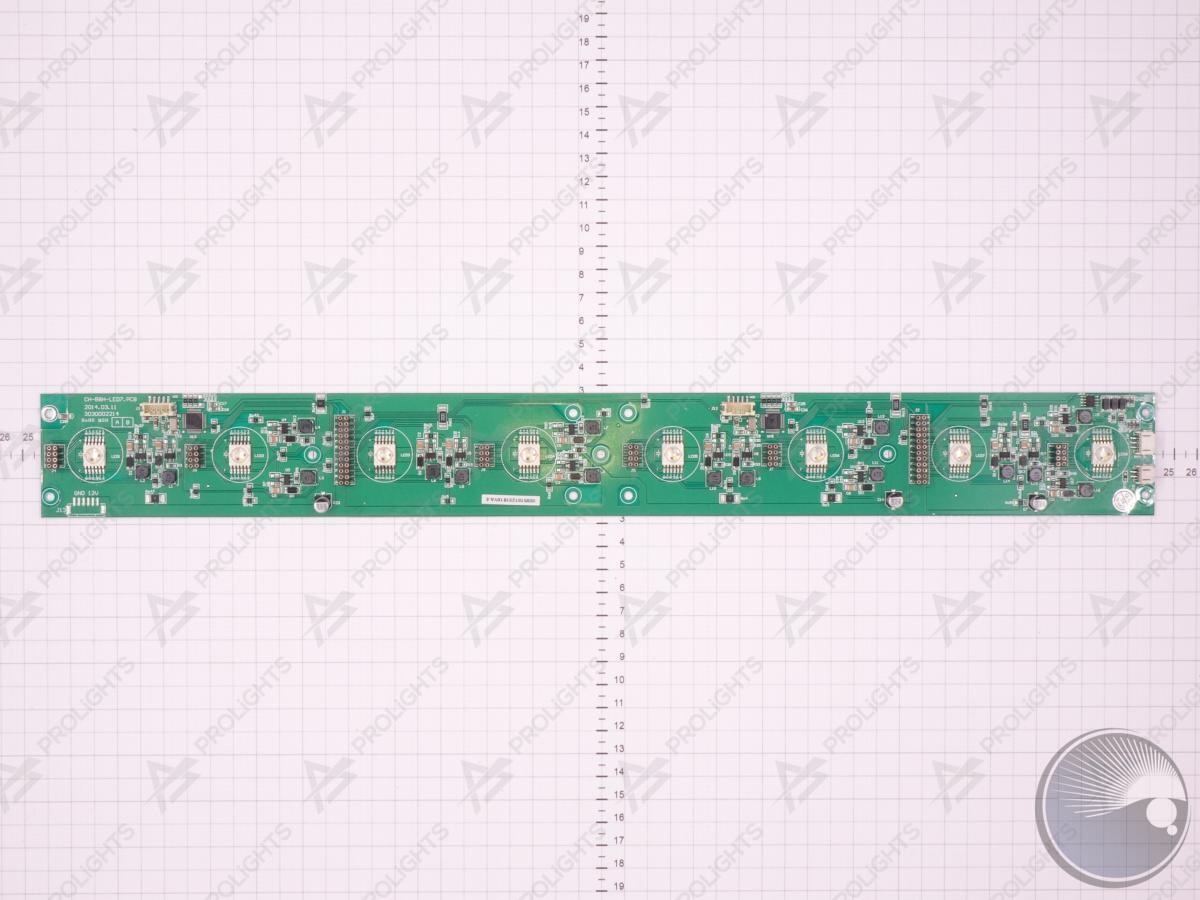

- LED batten with 8 individually controllable 12W RGBWA + UV LEDs
- Extensive colour palette and powerful output
- Flicker-free operation for IMAG and broadcast
TECHNICAL SPECIFICATIONS
LIGHT SOURCE
- Source: 8x12W RGBWAP LEDs
- Luminous flux: 2'065lm
- Lux: (15°) 1'214lx @3 m full
- Source life expectancy: > 50.000 h
OPTICS
- Beam angle: 22°
- Field angle: 36°
- Lens diameter: 42mm / 1.65''
- Additional optics: 25° and 45° (optional)
COLOUR SYSTEM
- Colour mixing: RGBWAP / FC
- White presets: 3.200 K -10.000K
- Colour wheel: virtual colour wheel with macros
- Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
- Static mode: selection of static colour
- Manual mode: manual adjustment of colour
- Auto mode: built-in programs with execution speed adjustment
BODY
- Body: sturdy die-cast aluminium body
- Body colour: black
CONTROL
- Protocols: DMX512
- DMX channels: 3 / 6 / 8 / 12 / 48 / 53channel
- Pixel control: pixel2pixel control
- Display: LCD display
- Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 25 Hz, electronic
- Operating temperature: -10° ~ +45°
- LED Control: flicker free operation
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 85W
- Max power consumption (at 120V): 87W
- Output (at 230V): 16 units on a single power line
PHYSICAL
- IP rating: 33
- Cooling: passive cooling and fan-free

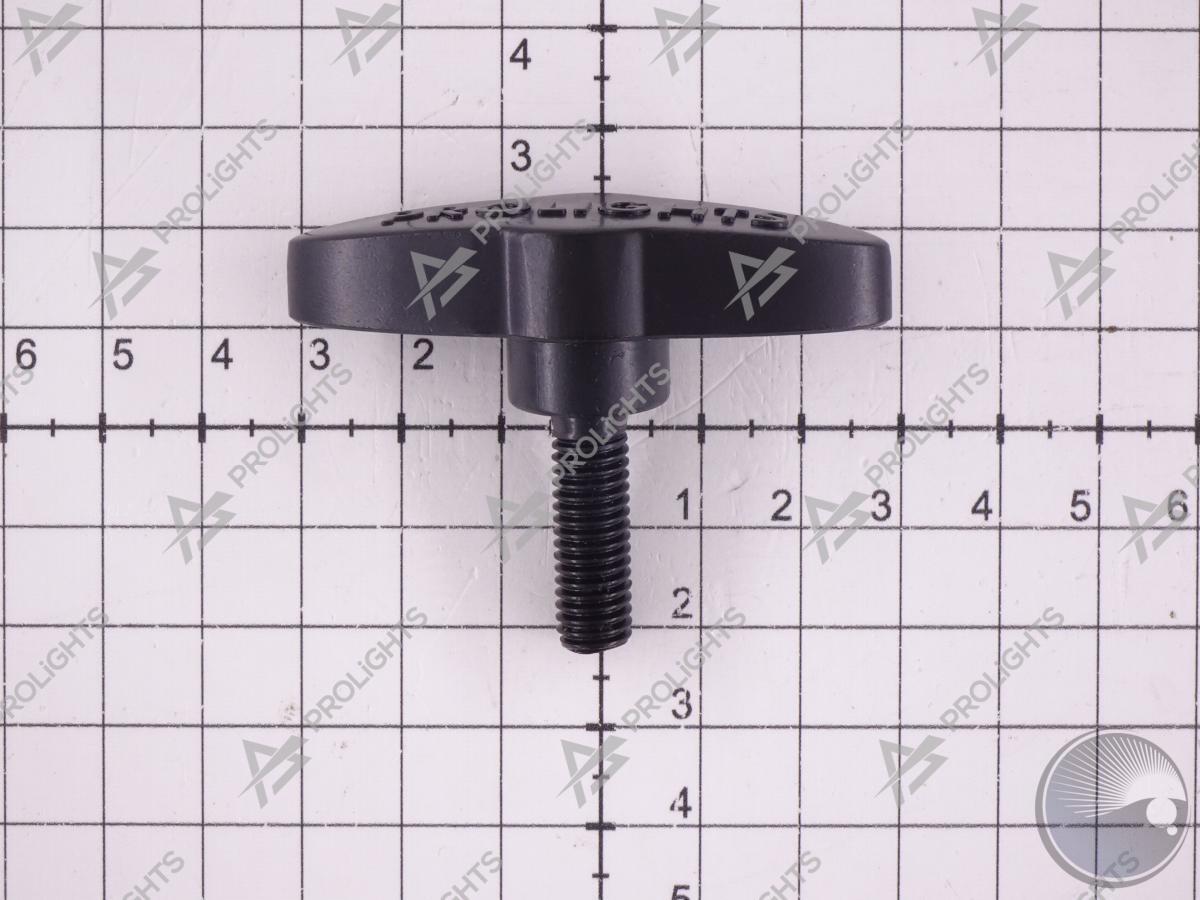

- Suspension and fixing: bracket for hanging and positioning

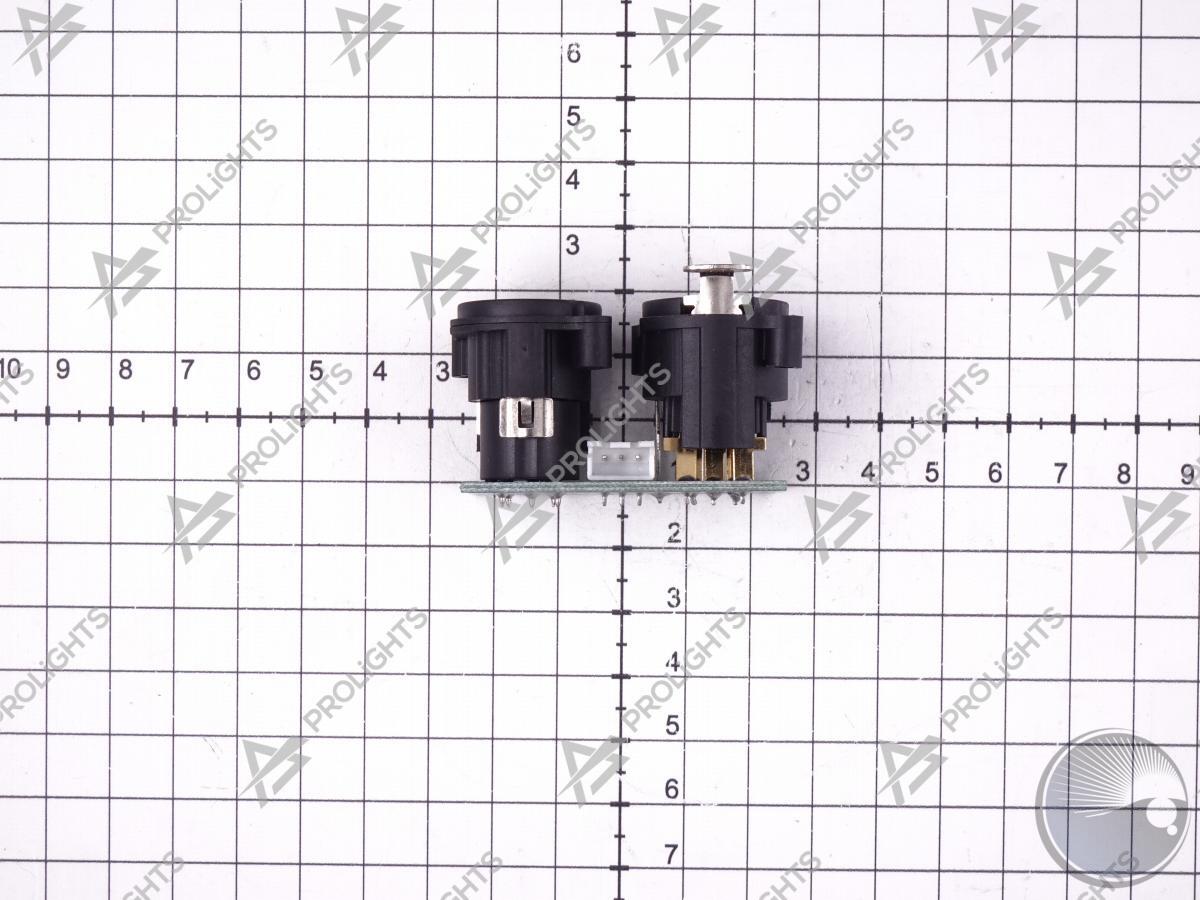

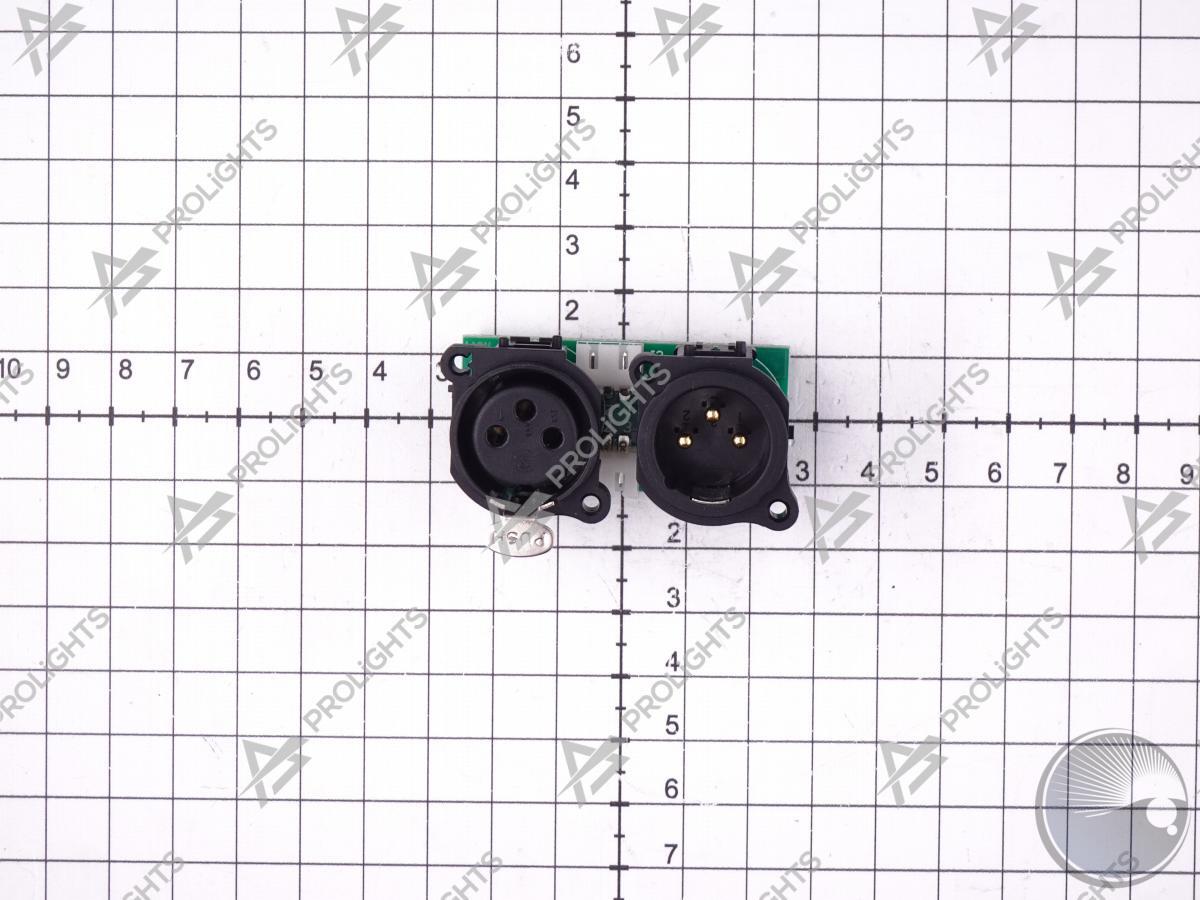

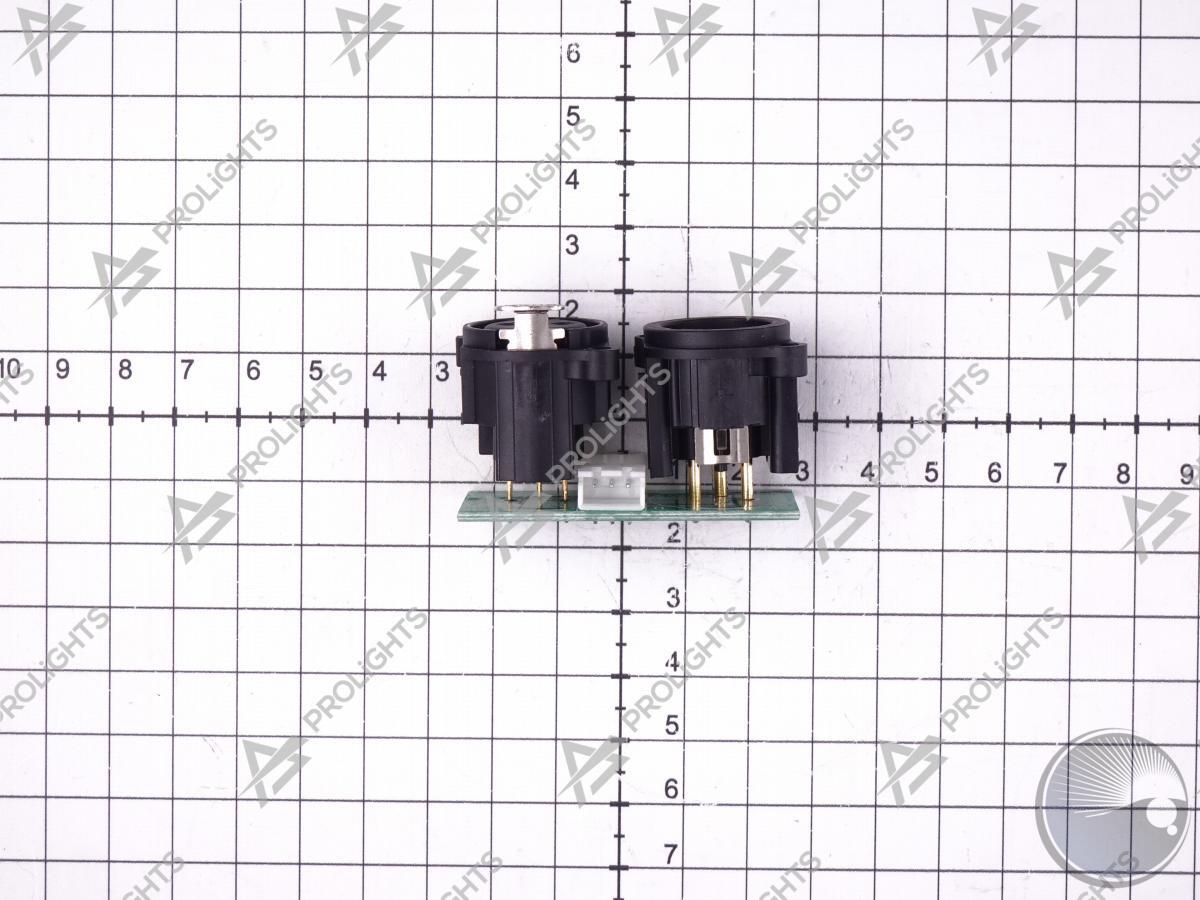

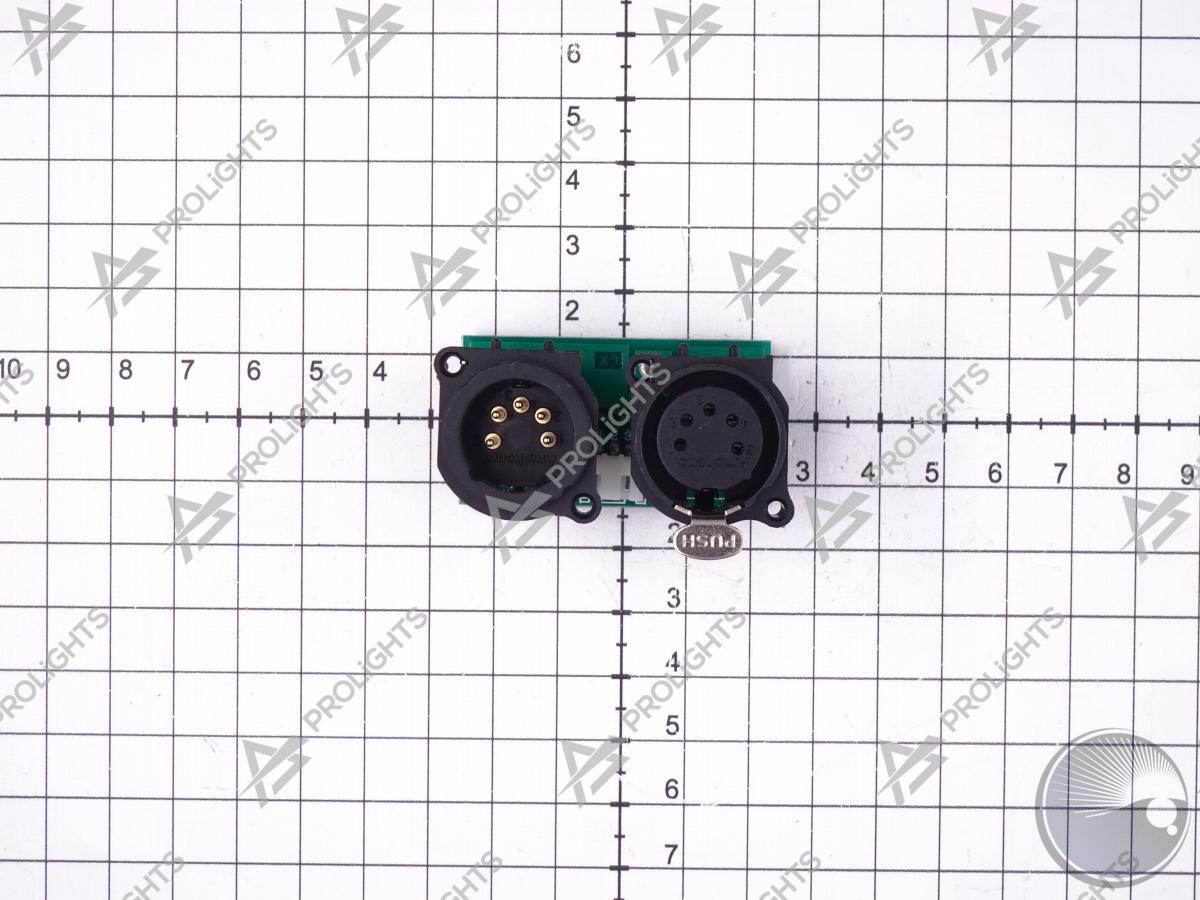

- Signal connection: XLR 3p + 5p IN/OUT connectors
- Power connection: Neutrik powerCON IN/OUT connectors
- Dimensions (WxHxD): 582x80x183mm / 22.91''x3.15''x7.2''
- Weight: 3,3kg / 7.28lbs
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM
