PL Smart BatWash, 15x20W RGB+warmweiß, 15°, IP65, schwarz

The Smart BatWash is a high-powered LED Wash light that can be operated wirelessly or wired. This IP65 Wash Light has 15 x 20W RGB + Warm White LED emitters, and it's Spektra™ calibrated to guarantee consistency, high-quality white values (CRI >93), a dynamic array of true colours with smooth colour mixing, and a powerful 6,282-lumen output. The Smart BatWash is very flexible - it can be used wirelessly with the built-in battery, using CRMX or W-DMX or, alternatively, wired with power and data cables, bypassing the battery and enabling higher brightness levels. The beam angle can easily be adjustable through a magnetic beam shaper filter, allowing a broader coverage whilst keeping a high output. The Smart BatWash has all the software features of the Ecl range, sharing the same user settings and capabilities.

Main features:

• High-powered IP65 LED Wash light, wireless (CRMX+W-DMX)/wired control, battery/AC power
• 15x20W RGB + Warm White LED source, powerful 6,282-lumen output high CRI (>93)
• Range of holographic filters that modify the shape of the beam angle

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

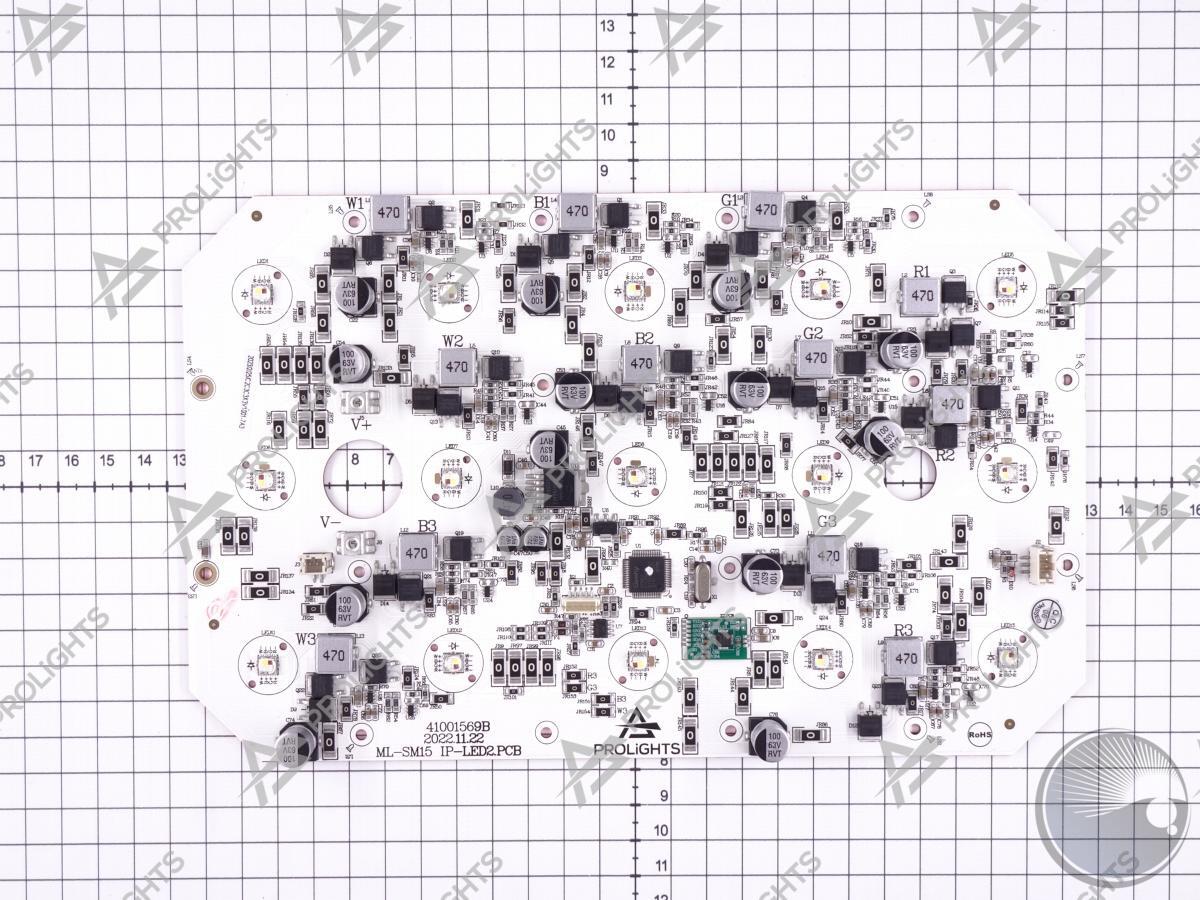

• Source: 15x20W RGB + Warm White LED
• Luminous flux: 6'300 lm @full
• Lux: 4'451lx @5 m full
• CRI: > 95 @3200K ; > 93 @5600K
• R9: > 98 @3200K ; > 93 @5600K
• TLCI: > 84 @5600K
• TM30 Rf: 94.2 @3200K ; > 92 @5600K
• TM30 Rg: 104.4 @3200K ; > 105 @5600K
• Source life expectancy: > 50.000 h

OPTICS

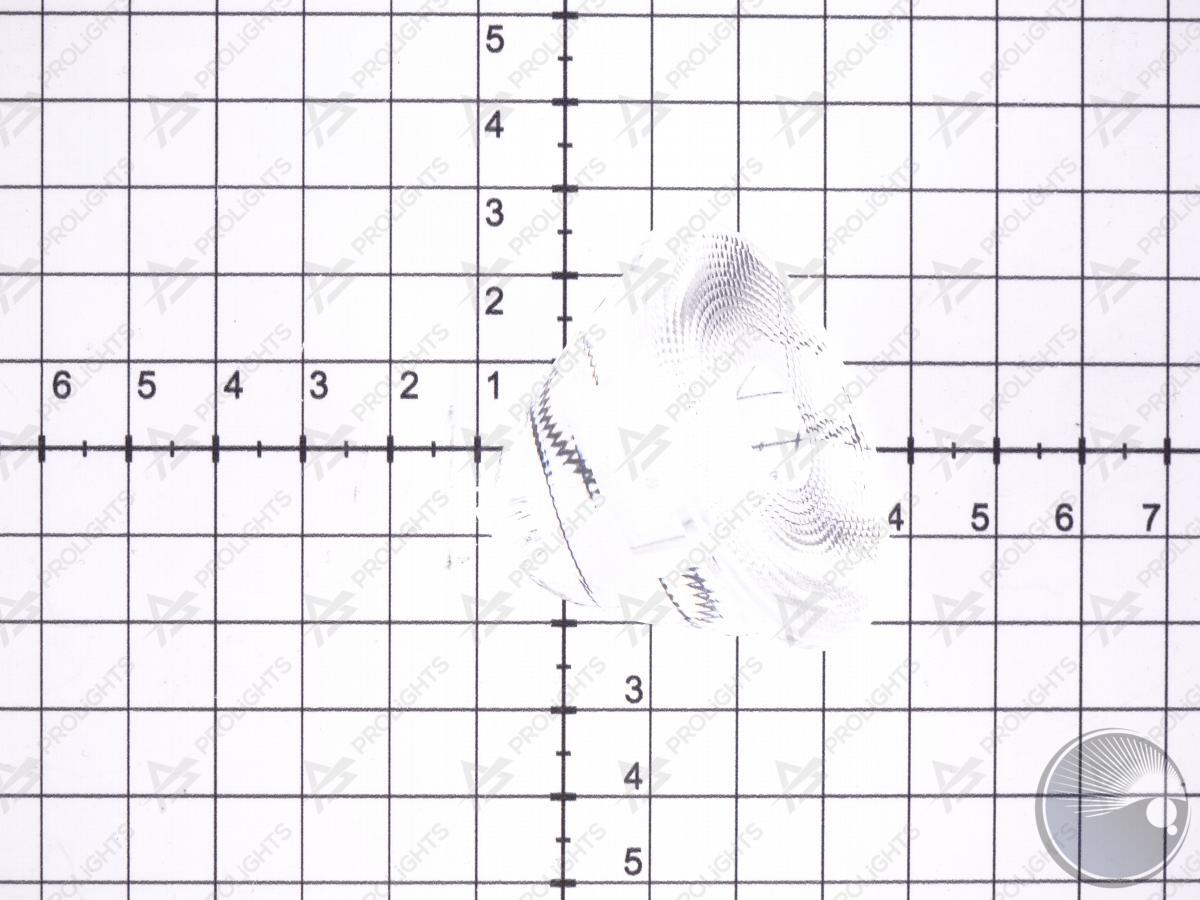

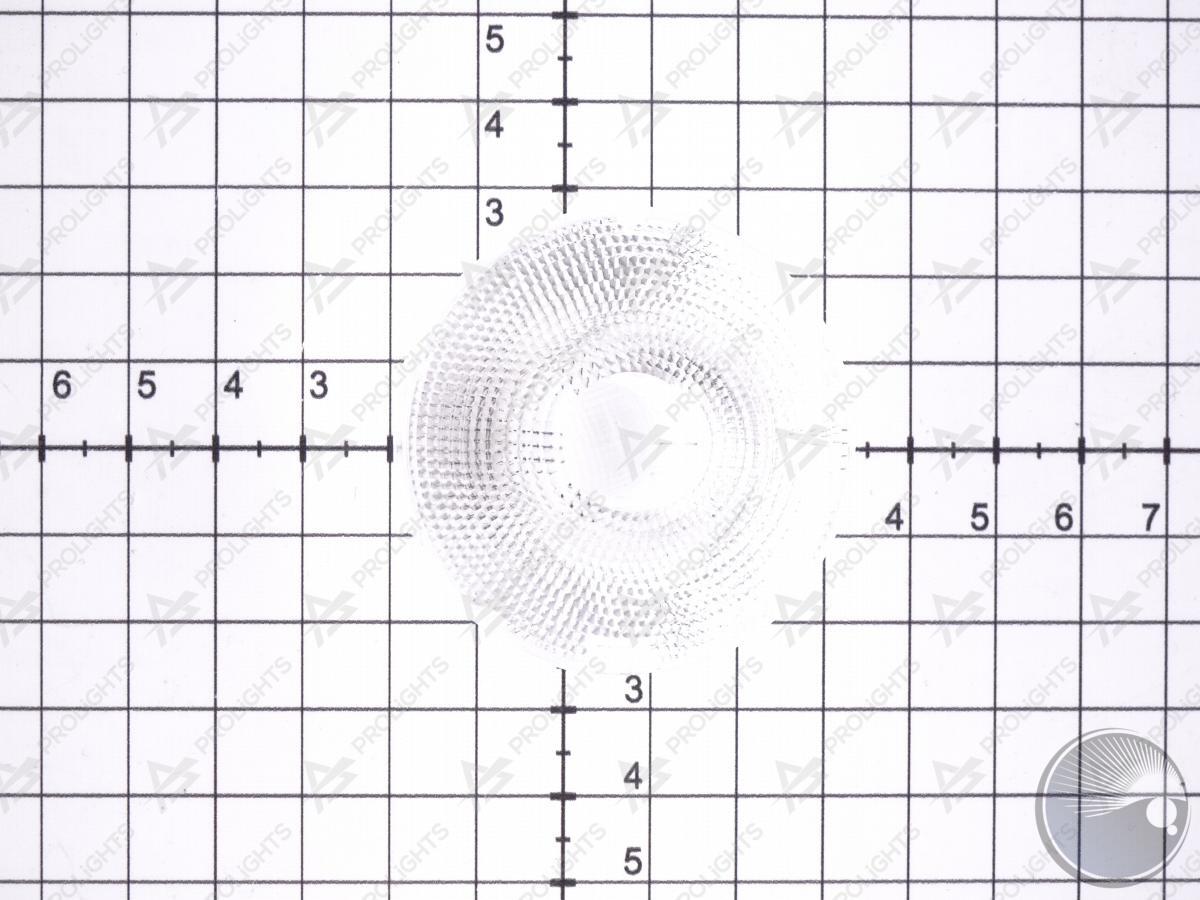

• Beam angle: 10°

COLOUR SYSTEM

• Colour mixing: RGBWW
• CCT: CCT control through dedicated DMX channel
• White presets: 2'800K - 10'000K
• Colour wheel: virtual colour wheel with macros
• Macros: built-in white presets

DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer, colours
• Static mode: selection of static colour
• Manual mode: manual adjustment of colour
• Auto mode: built-in programs with execution speed adjustment

BODY

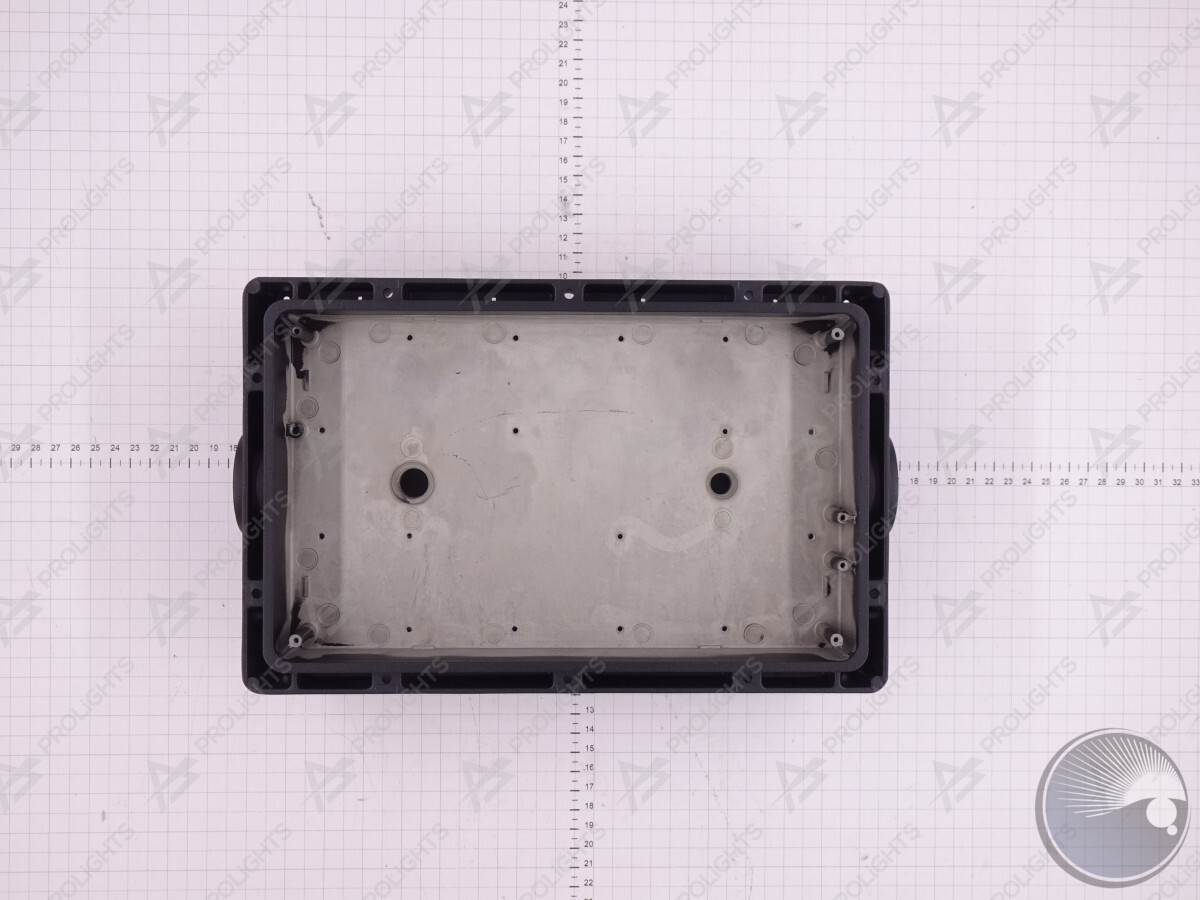

• Body: sturdy die-cast aluminium body
• Body colour: RAL 9004

CONTROL

• Protocols: CRMX+W-DMX, DMX512, RDM
• Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings
• Display: Graphic User Interface
• Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
• IR: infrared sensor controlled by remote
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Operating temperature: 0° ~ +45°
• LED Control: flicker free operation
• Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

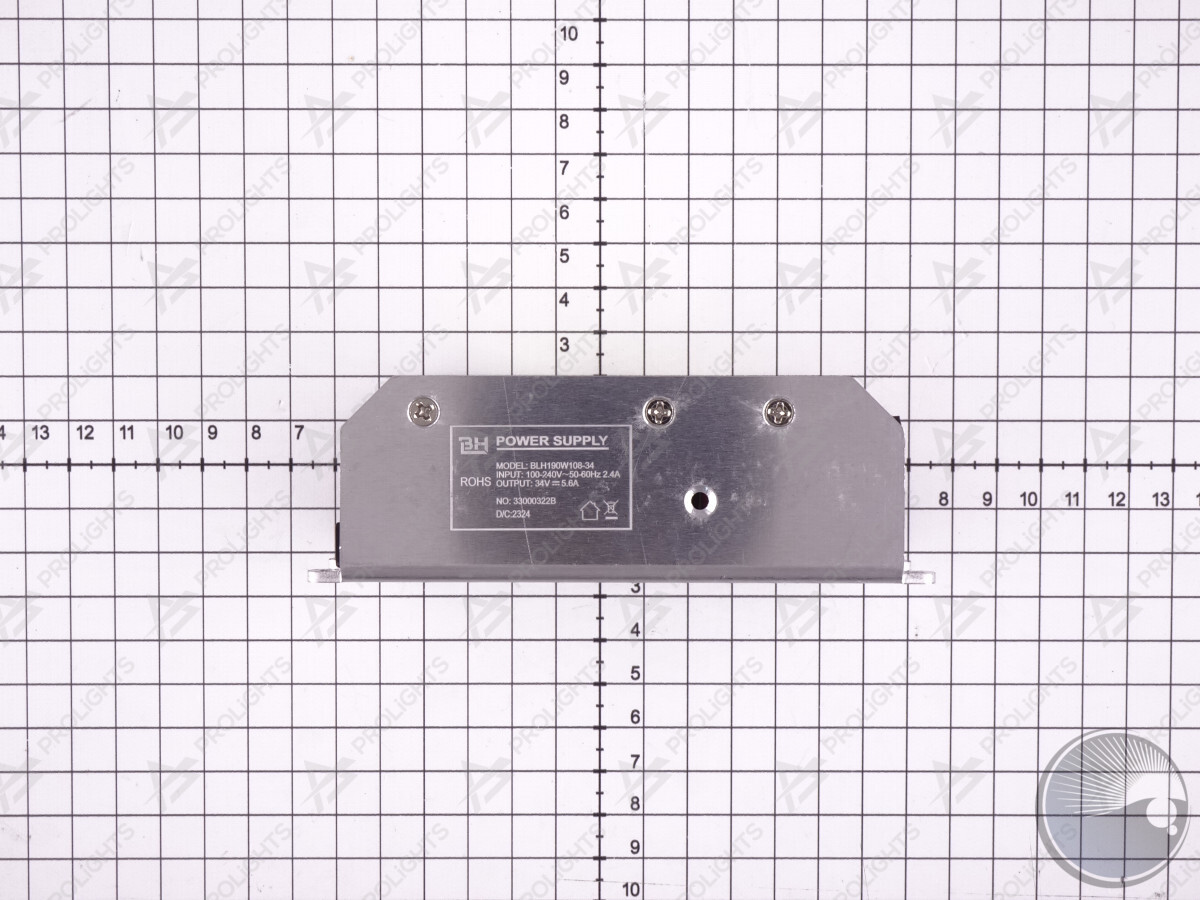

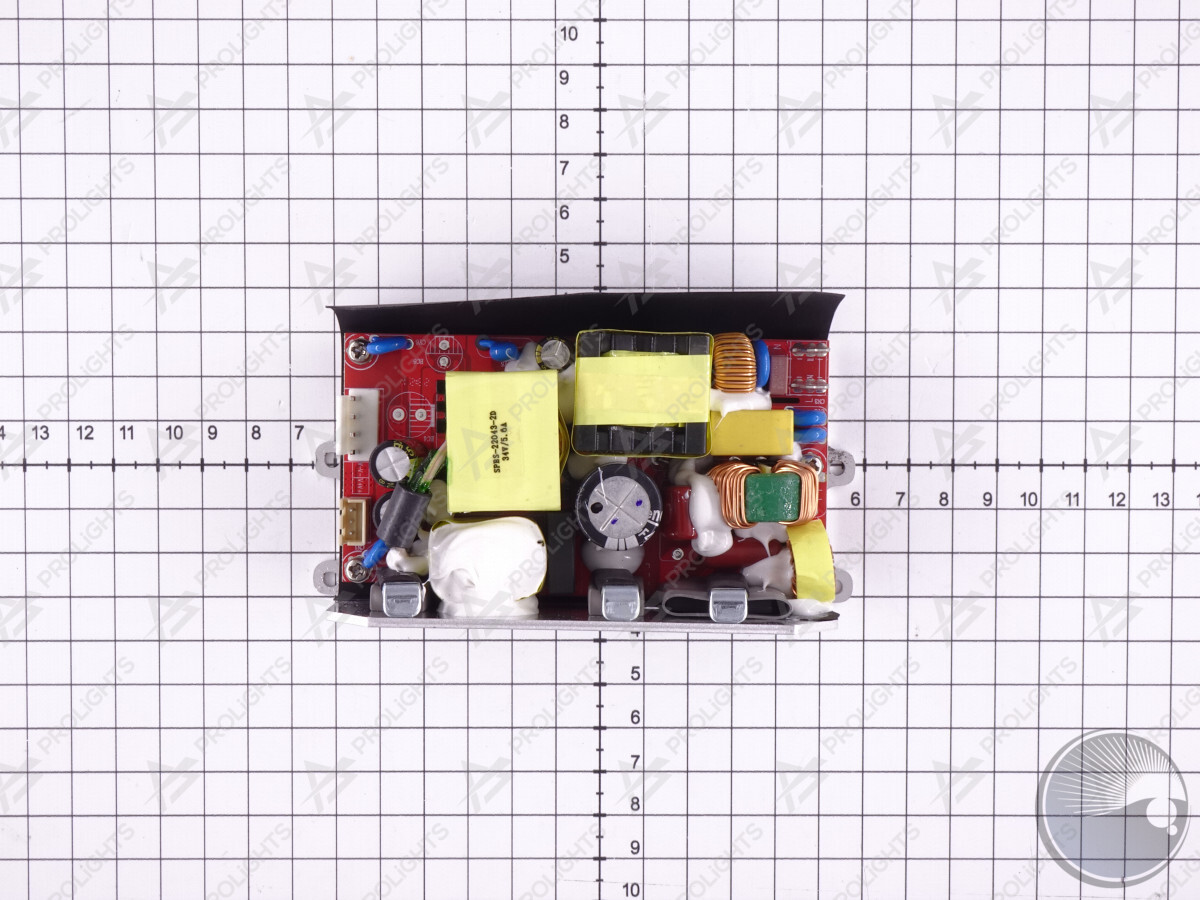

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 180W
• Output (at 230V): 11 units on a single power line
• Output (at 120V): 5 units on a single power line
• Power factor: >0,94

BATTERY

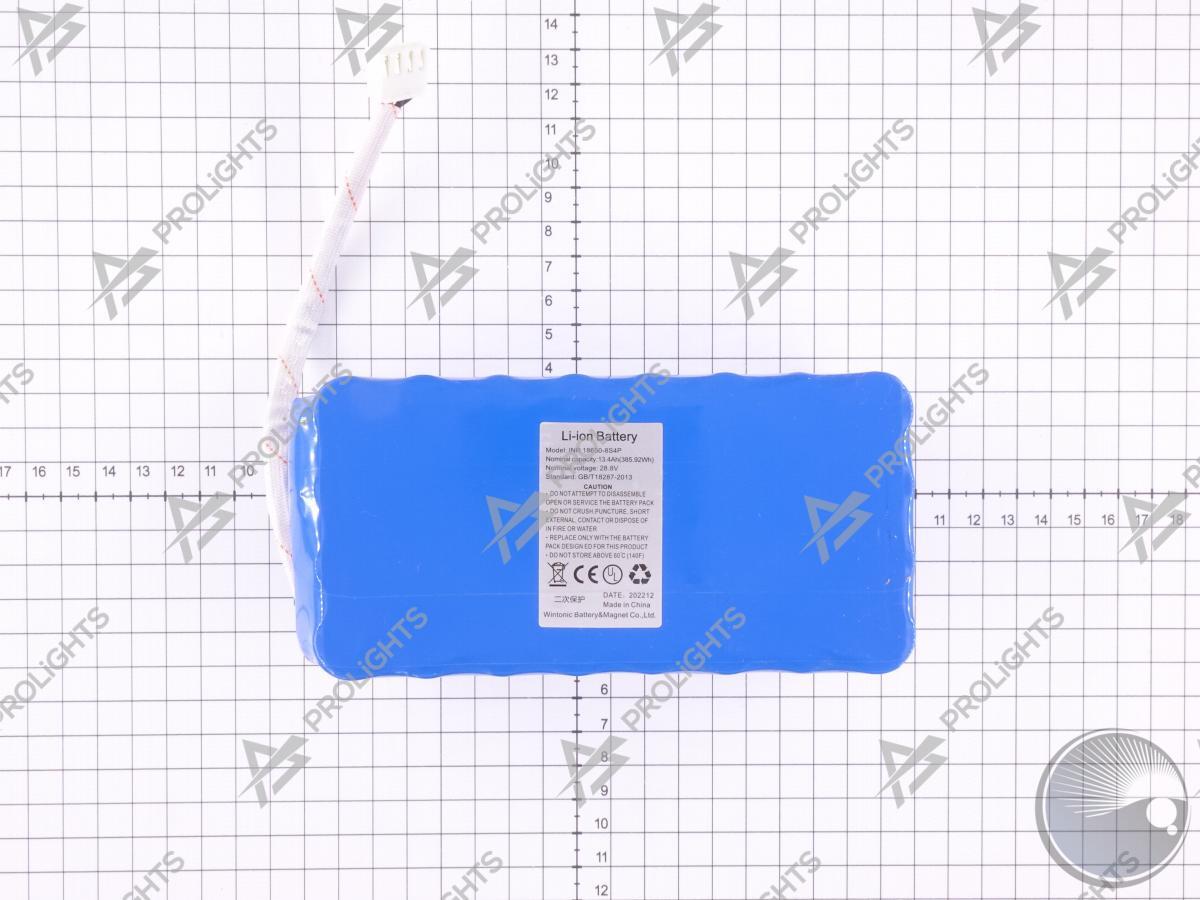

• Battery: 16,8V lithium
• Estimated battery life: Selectable 3h / 6h / 8h / 12h / 16h / 18h
• Re-charge connection: Directly from the mains power or magnetic fast-charge in case
• Re-charge time: 5h/max
• Battery status: shown on display
• Other: Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase

PHYSICAL

• IP rating: 65 for temporary outdoor application, not for fixed installations

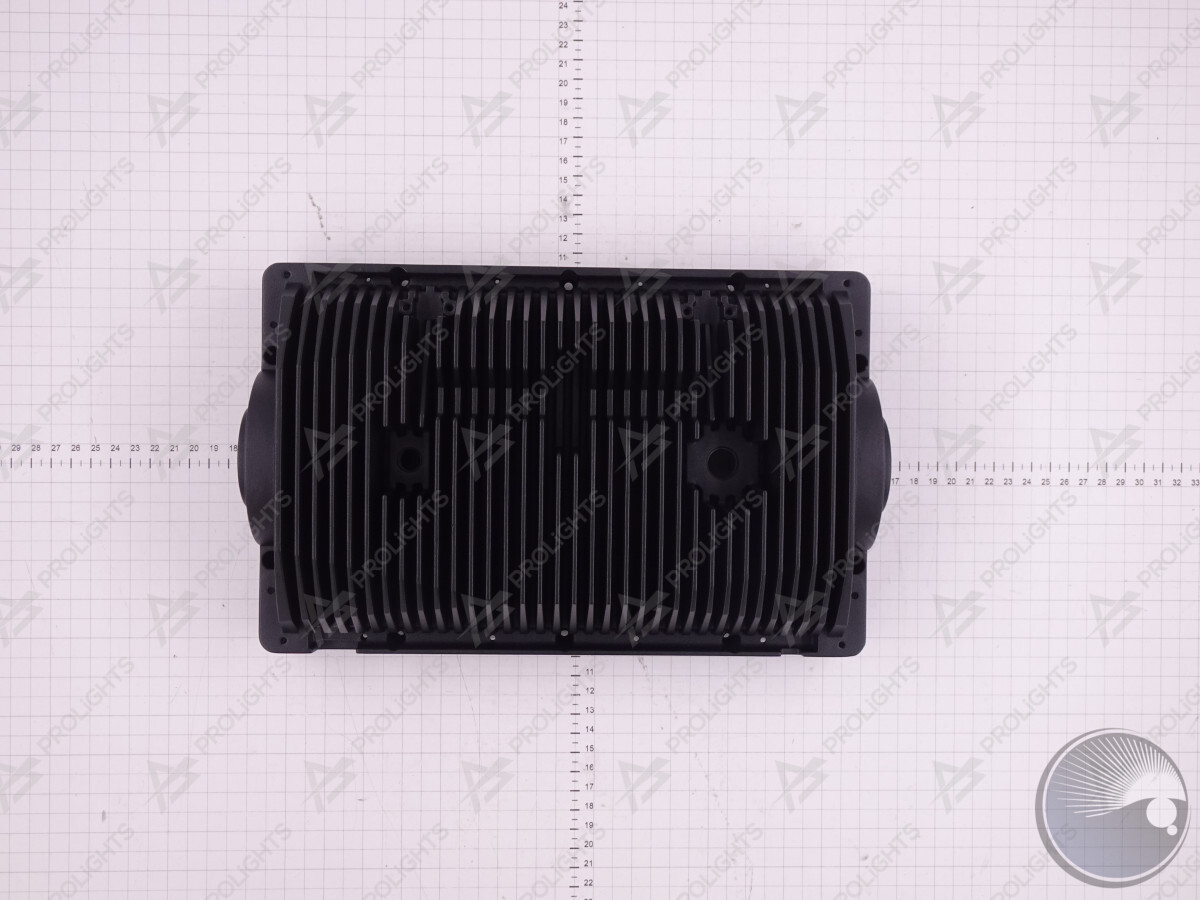

• Cooling: passive cooling and fan-free

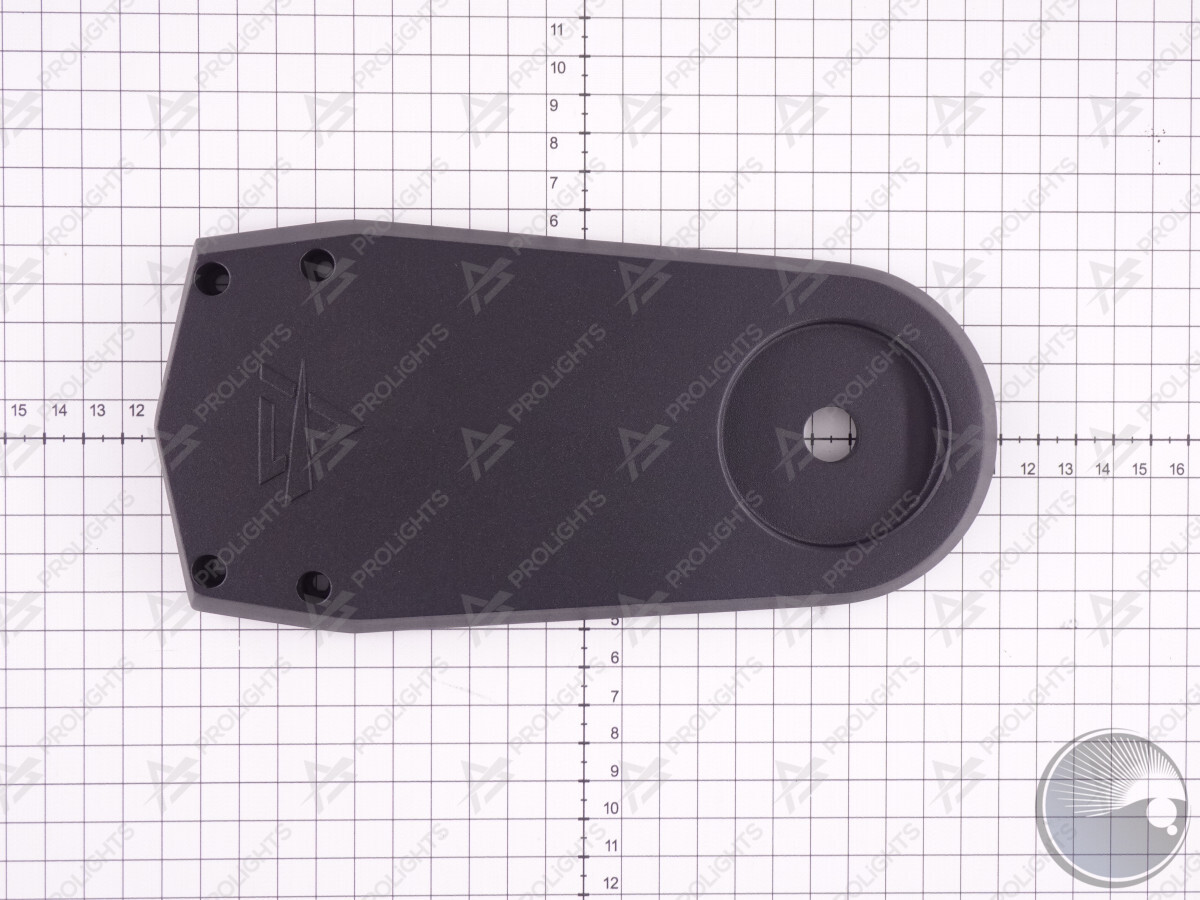

• Suspension and fixing: any position with quick-lock omega brackets
• Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
• Power connection: magnetic DC connector for battery recharge and Seetronic powerCON TRUE IP65 IN/OUT connector
• Dimensions (WxHxD): 381x344x143mm / 15''x13.54''x5.63''
• Weight: 9,8kg / 21.61lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
