PL Smart BatIP, 4x8W RGBW, IP54, WiFi-DMX, schwarz
inkl. MwSt. zzgl. Versandkosten
Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.
- Artikel-Nr.: SMARTBATIP
Smart BatIP is the new waterproof version of the highly popular Smart Bat, expanding the possible application of this versatile luminaire to outdoor venues or for architectural applications. Smart BatIP is equipped with a lithium battery pack and a built-in Wi-Fi module for cable-free operation. The transmission of the DMX signal is through Wi-Fi, the transmission unit WIFIBOX is compatible with any DMX controller or through the mobile app SmartColors available for any Android or IOS device.
Main features:
- IP54 for temporary outdoor use
- W-DMX: built-in Wi-Fi receiver
- Adjustable foot support for tilt regulation (up to 20°)
- Ergonomic carrying handle for transportation and positioning
- SmartColors app for iOS and Android
- Battery life: 12 hours (colour change mode)
TECHNICAL SPECIFICATIONS
LIGHT SOURCE

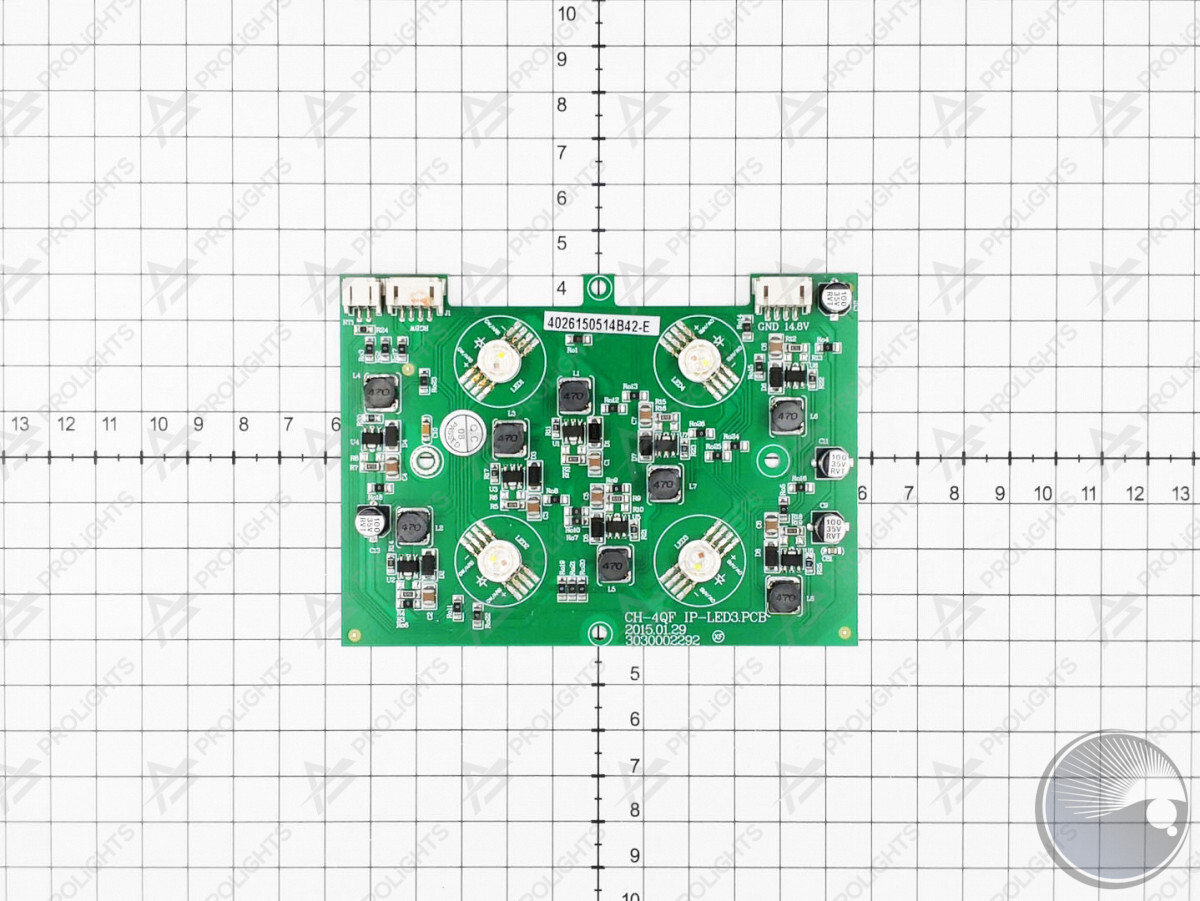

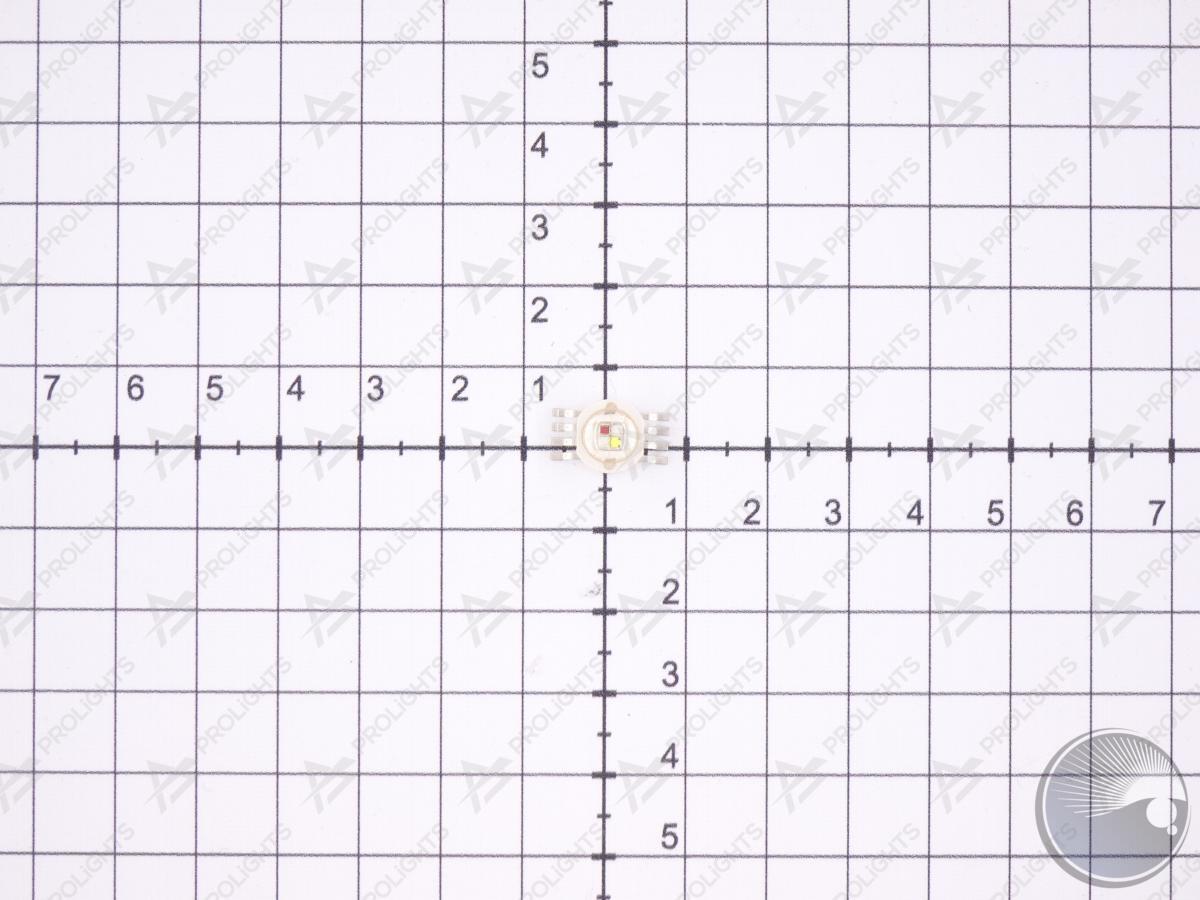

- Source: 4x8W RGBW LEDs
- Lux: 980lx @3 m full
- Source life expectancy: > 50.000 h
OPTICS
- Beam angle: 15°
- Field angle: 30°
- Lens diameter: 42mm / 1.65''
- Additional optics: 25° and 45° optional
COLOUR SYSTEM
- Colour mixing: RGBW / FC
- White presets: 3200 K ~ 10.000K
- Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
- Static mode: selection of static colour
- Manual mode: manual adjustment of colour
- Auto mode: built-in programs with execution speed adjustment
BODY
- Tilt angle: ° adjustable foot support for tilt regulation (up to 20°)
- Body: sturdy die-cast aluminium body
- Body colour: black
CONTROL
- Protocols: DMX512
- DMX channels: 4 / 6 / 10channel
- Wireless Control: integrated, proprietary protocol compatible with WIFIBOX, WDBOX

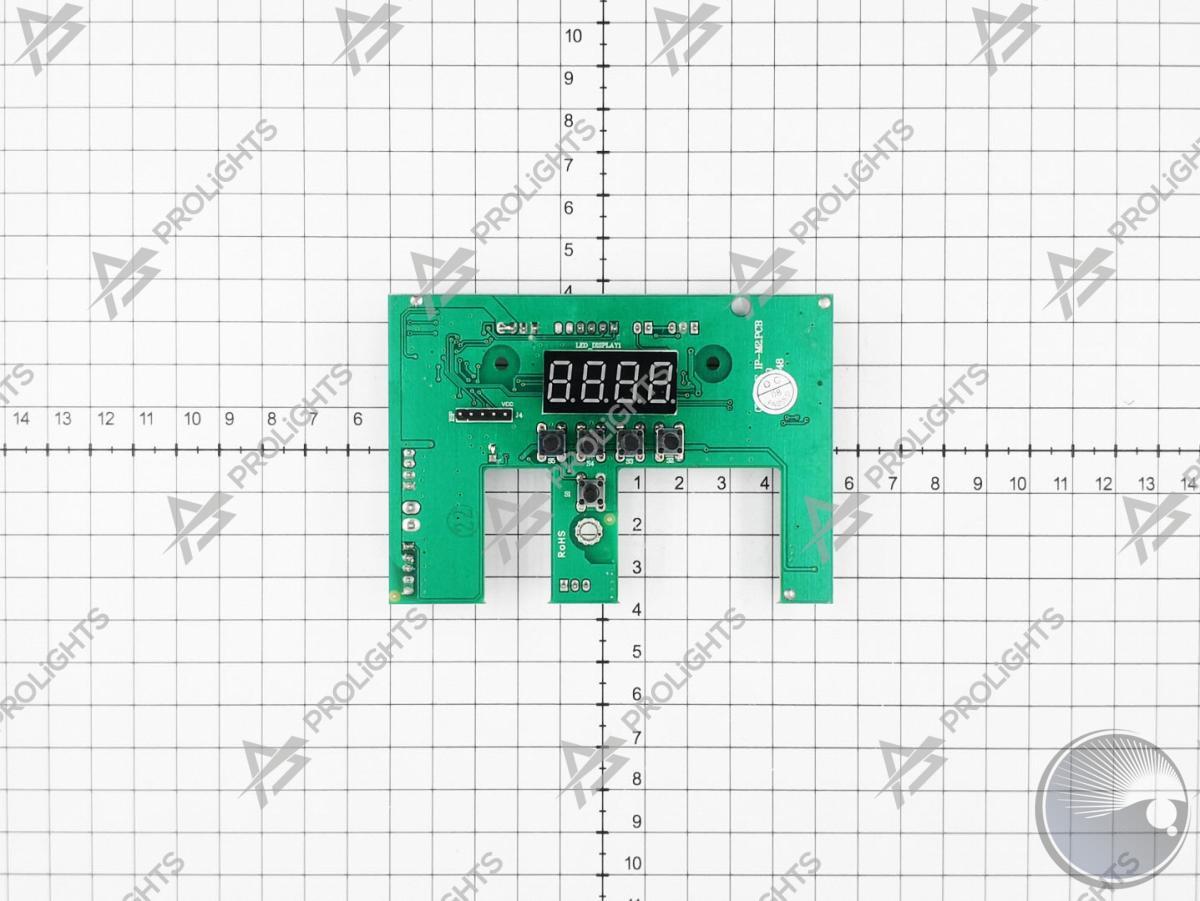

- Display: LED display user interface
- Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

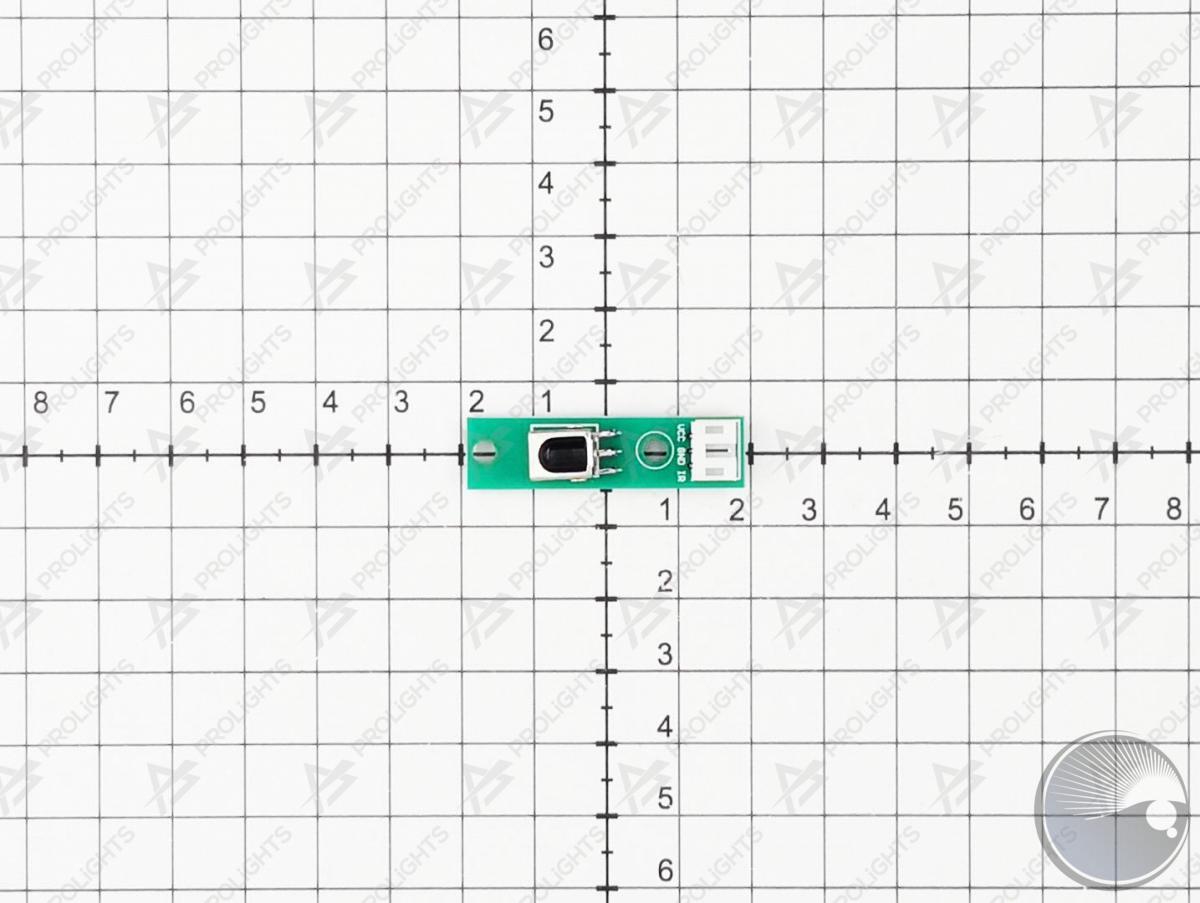

- IR: infrared sensor controlled by remote
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 25 Hz, electronic
- Operating temperature: 0° ~ +40°
- LED Control: flicker free operation
ELECTRICAL
- Max power consumption: 0
- Mains power supply: 100-240V - 50/60Hz
BATTERY

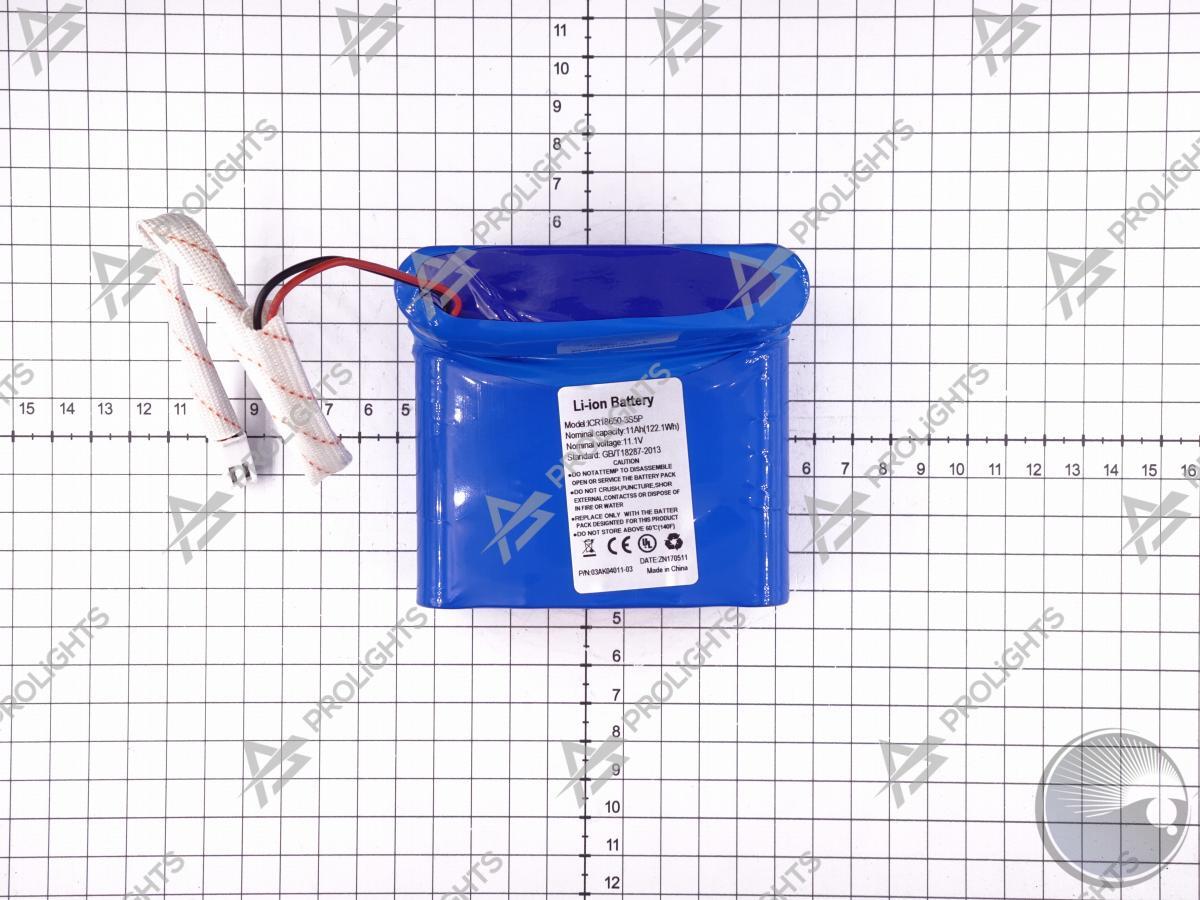

- Battery: 11,1V lithium
- Estimated battery life in colour change mode up to: 12h
- Estimated battery life in full-mode up to: 6h
- Re-charge connection: power cable
- Re-charge time: 5h/max
- Battery status: shown on display
PHYSICAL
- IP rating: 54
- Cooling: passive cooling and fan-free
- Suspension and fixing: M12 threaded insert for easy clamp installation

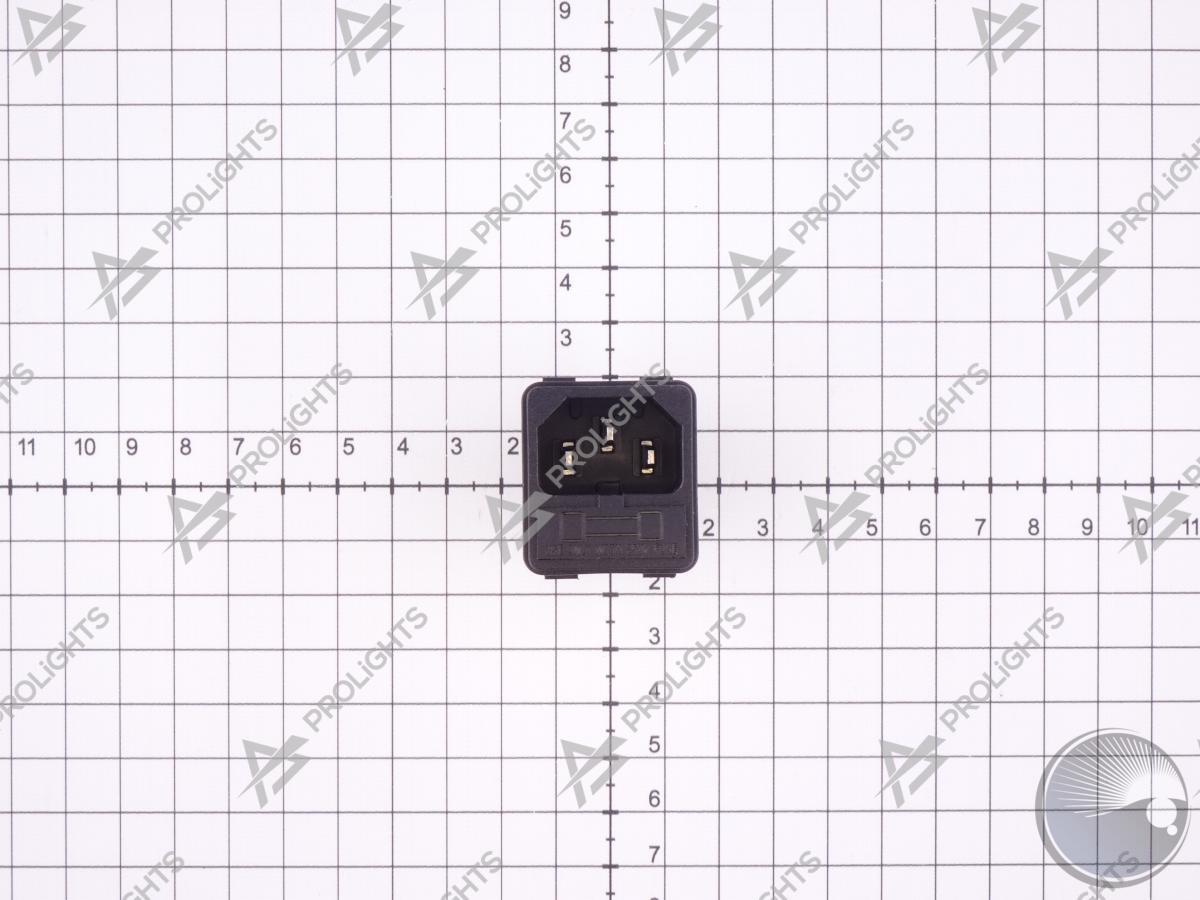

- Power connection: IEC 10 A IN
- Dimensions (WxHxD): 138x191x145mm / 5.43''x7.52''x5.71''
- Weight: 3,6kg / 7.94lbs
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM
