OBSIDIAN Netron EN6D

Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features it is the ideal device for permanent installations requiring a compact design and flexible wiring options.

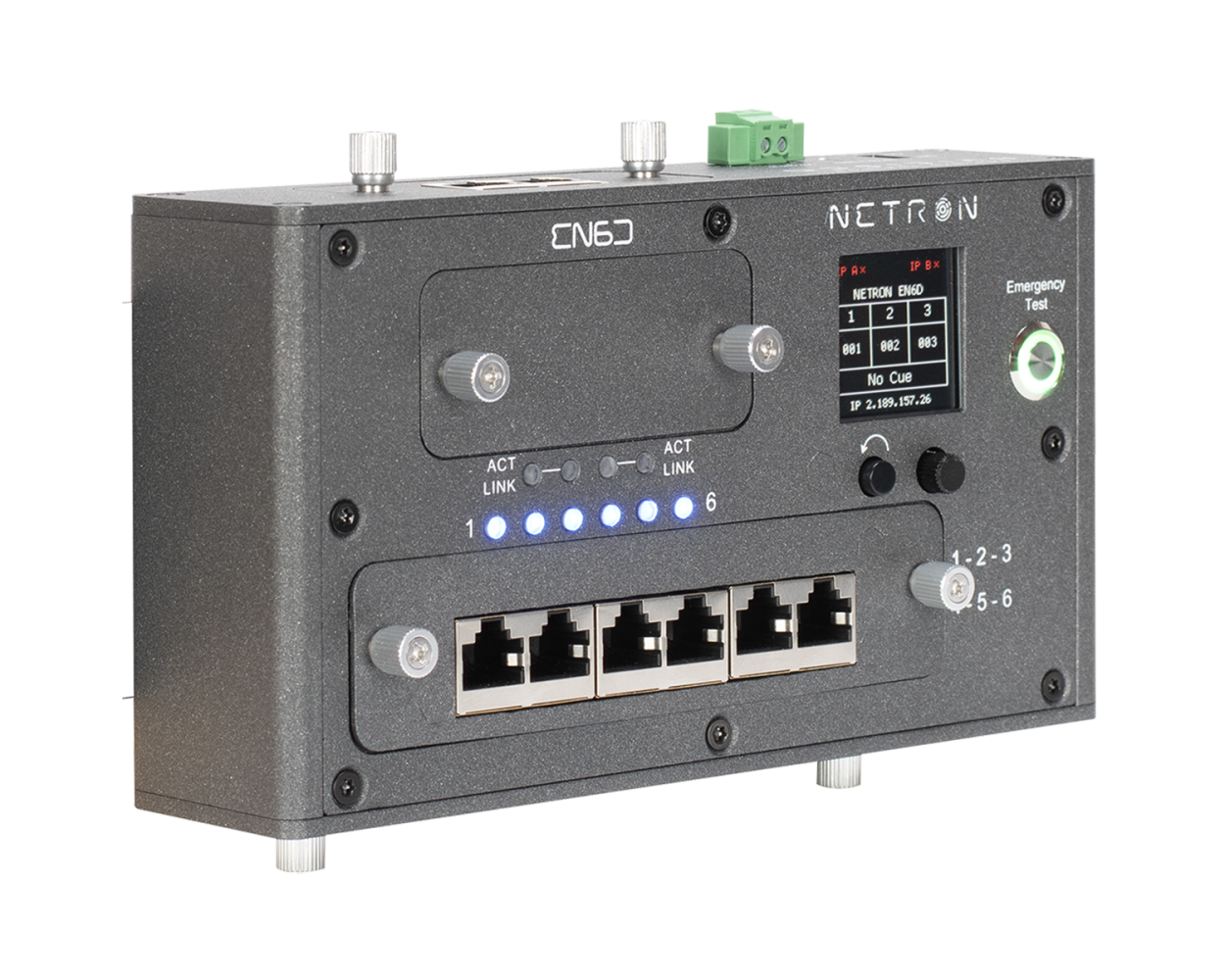

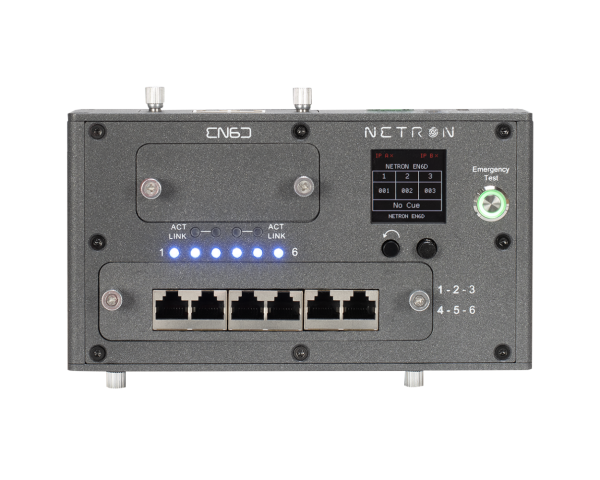

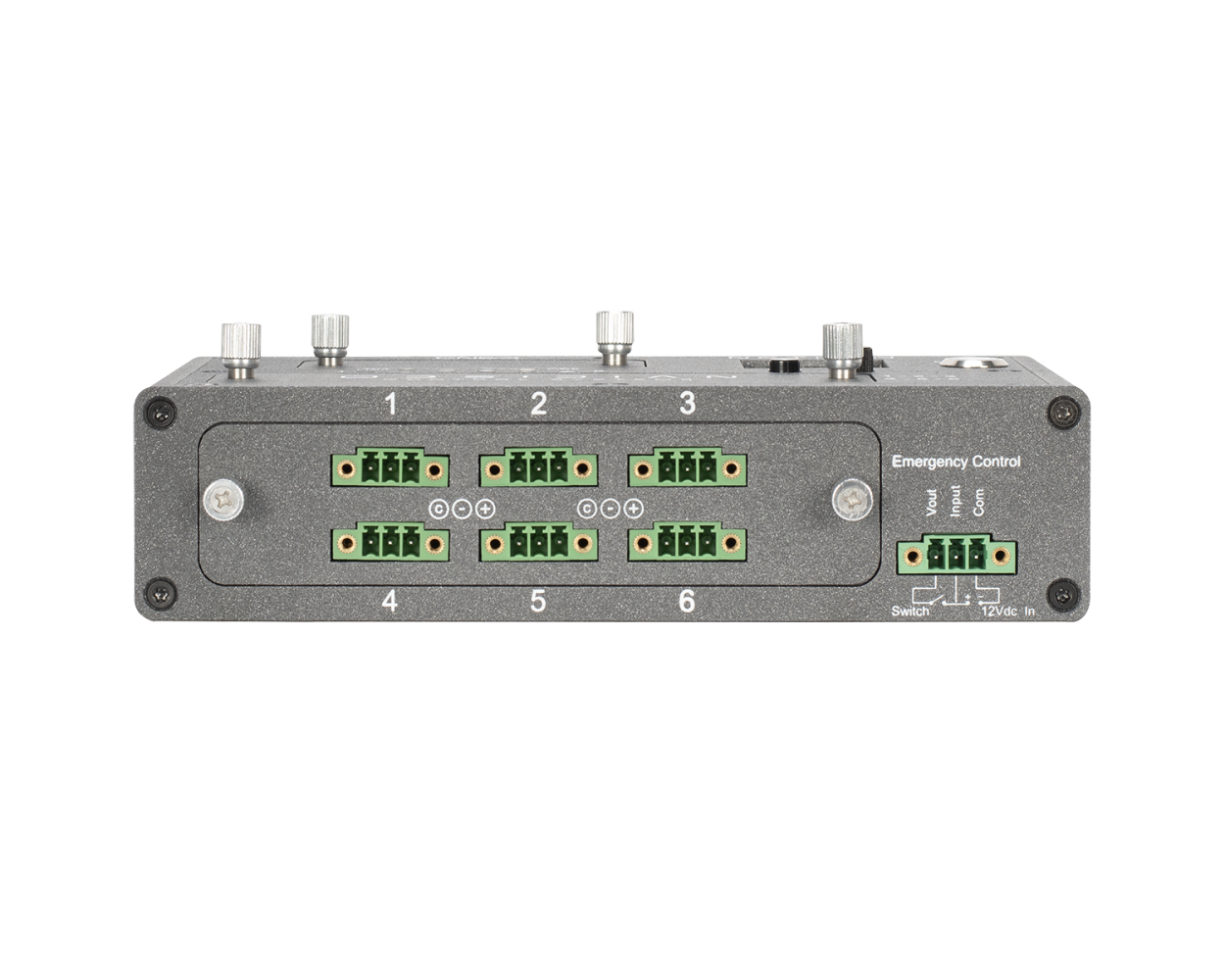

The innovate connector configurations allow the NETRON EN6D to be configured with RJ45, screw-terminals or IDC (Insulation displacement connectors). All options are included through exchangeable plates, which can be installed on the top /bottom or front of the EN6D, depending on installer preference or space considerations.

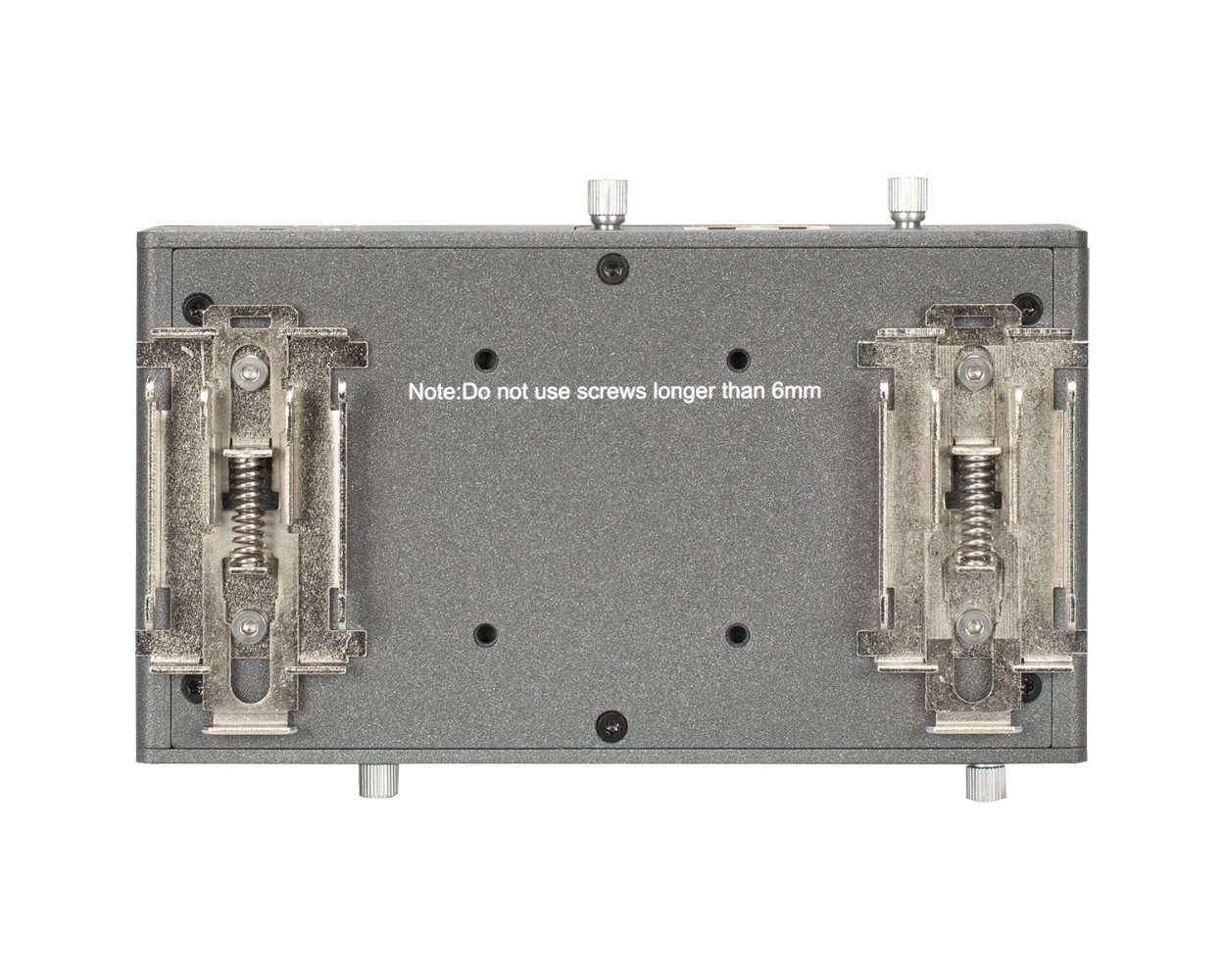

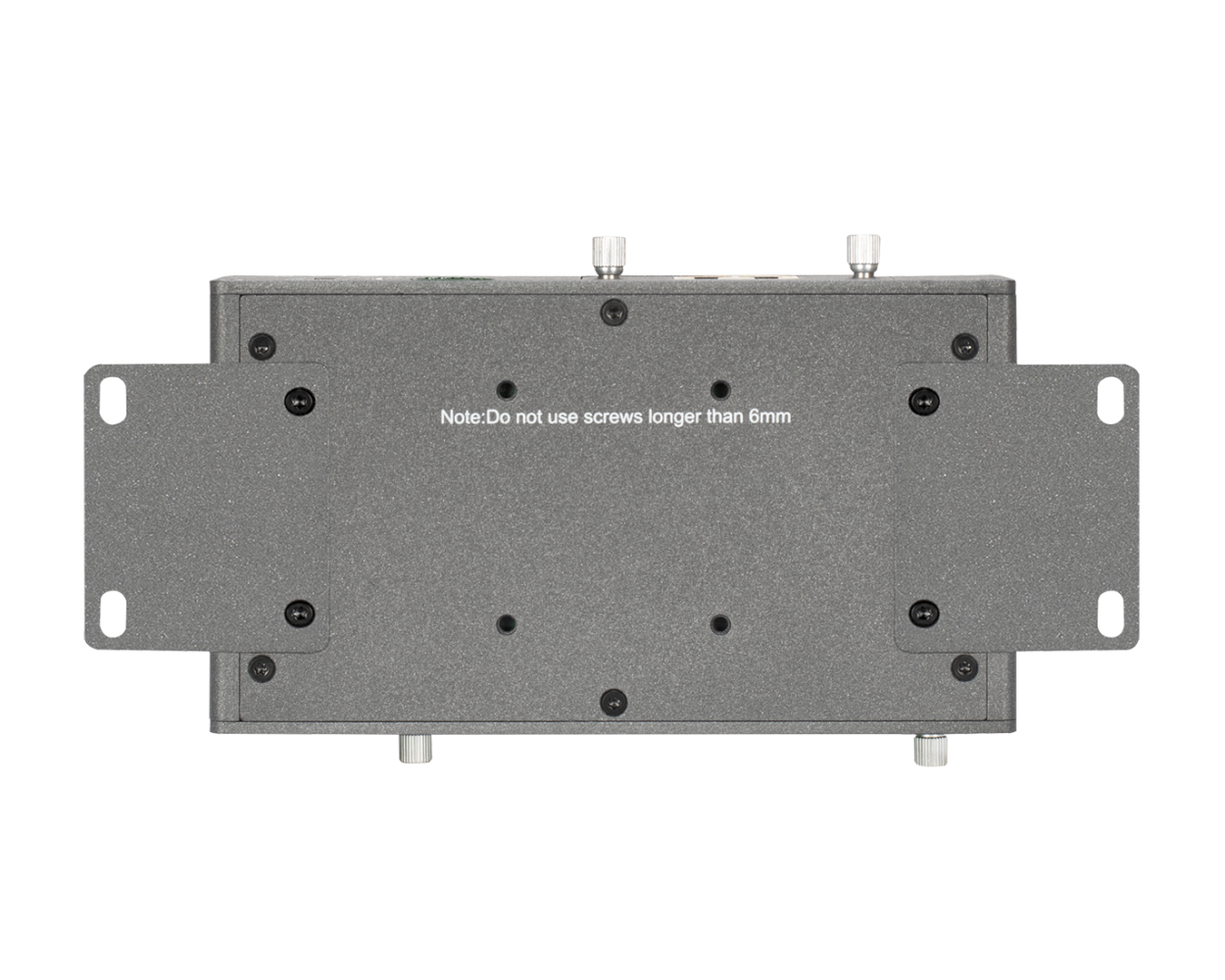

Additionally, the DIN Rail brackets can be exchanged with wall mount brackets for an alternative mounting option.
The NETRON EN6D can be powered by POE or the wide range DC Input from 9-48V.

The NETRON EN6D is UL924 compliant with a dedicated emergency cue, wet or dry contact closure and a prominent test button with integrated LED feedback. The device allows to record a custom cue or set all DMX channels to 100%. Emergency off timeout can be customized and individual channels excluded from the emergency cue.



• RJ45, screw terminal or IDC connectivity
• Configurable Top, Bottom and Front ports
• RDM, Artnet and sACN support
• Factory and user presets for plug and play setup
• POE or 9-48V DC power
• 1.3” OLED Display with rotary knob
• 99 Internal cues with fade and delay time
• Emergency Cue System with test button and contact closure
• Remote configuration via internal webpage
• Powder-coated aluminum DIN Rail housing
• Unlocks ONYX NOVA 4-Universe License
