Strike P38

Auf Anfrage!

  • STRIKEP38
STRIKE  P38 STRIKE P38 is a compact, punchy and outdoor-ready blinder and strobe... mehr
Produktinformationen "Strike P38"

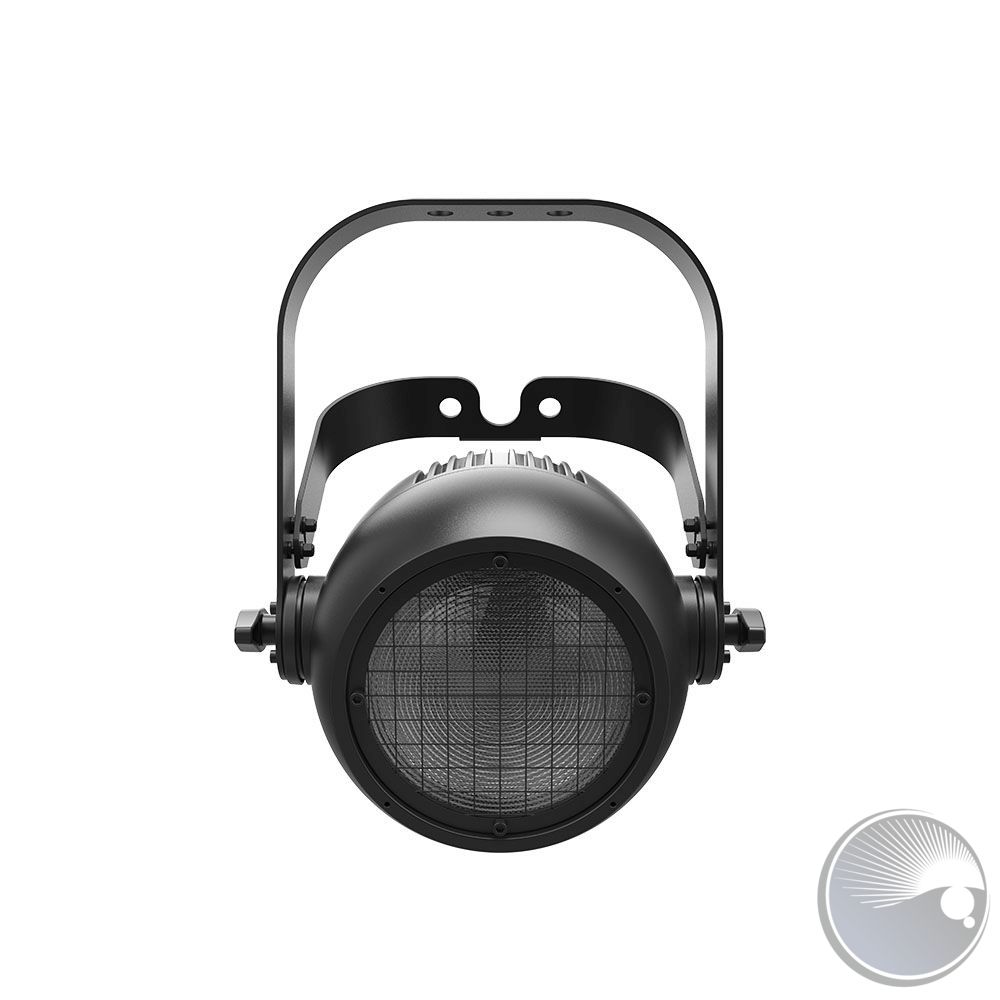

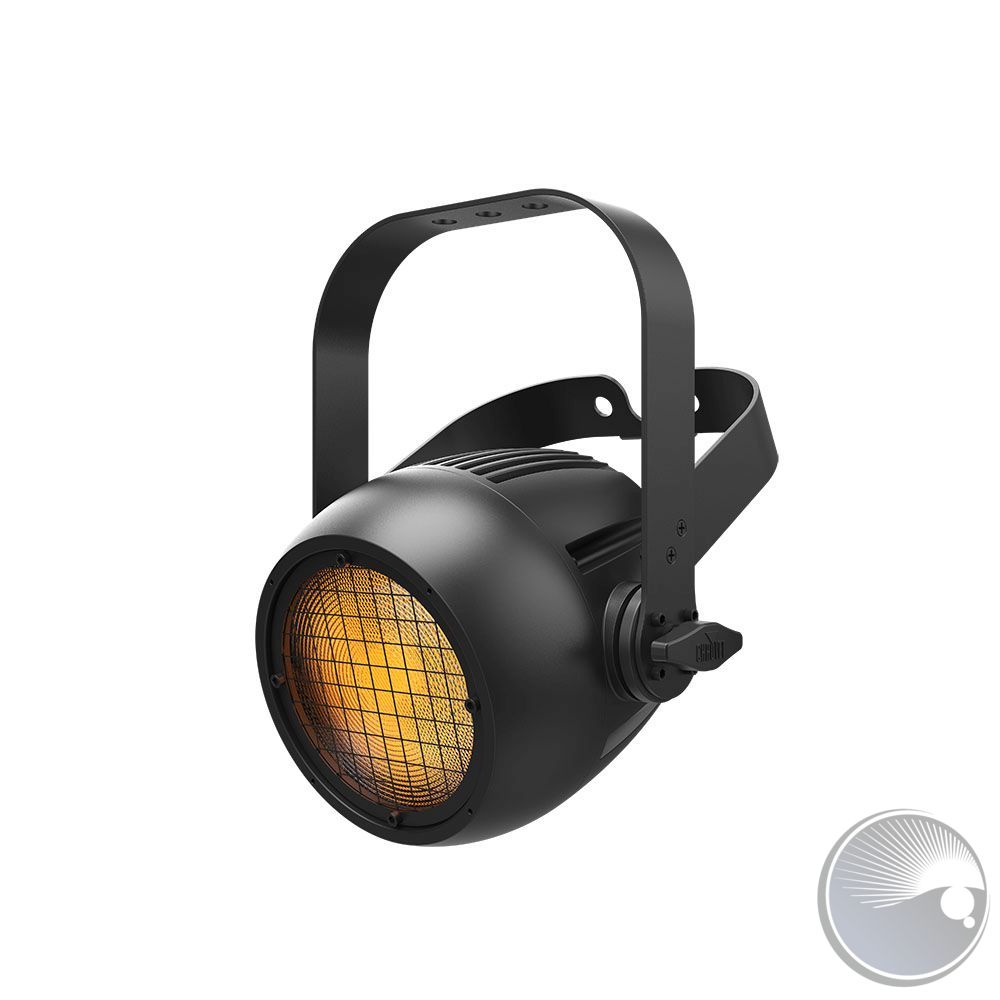

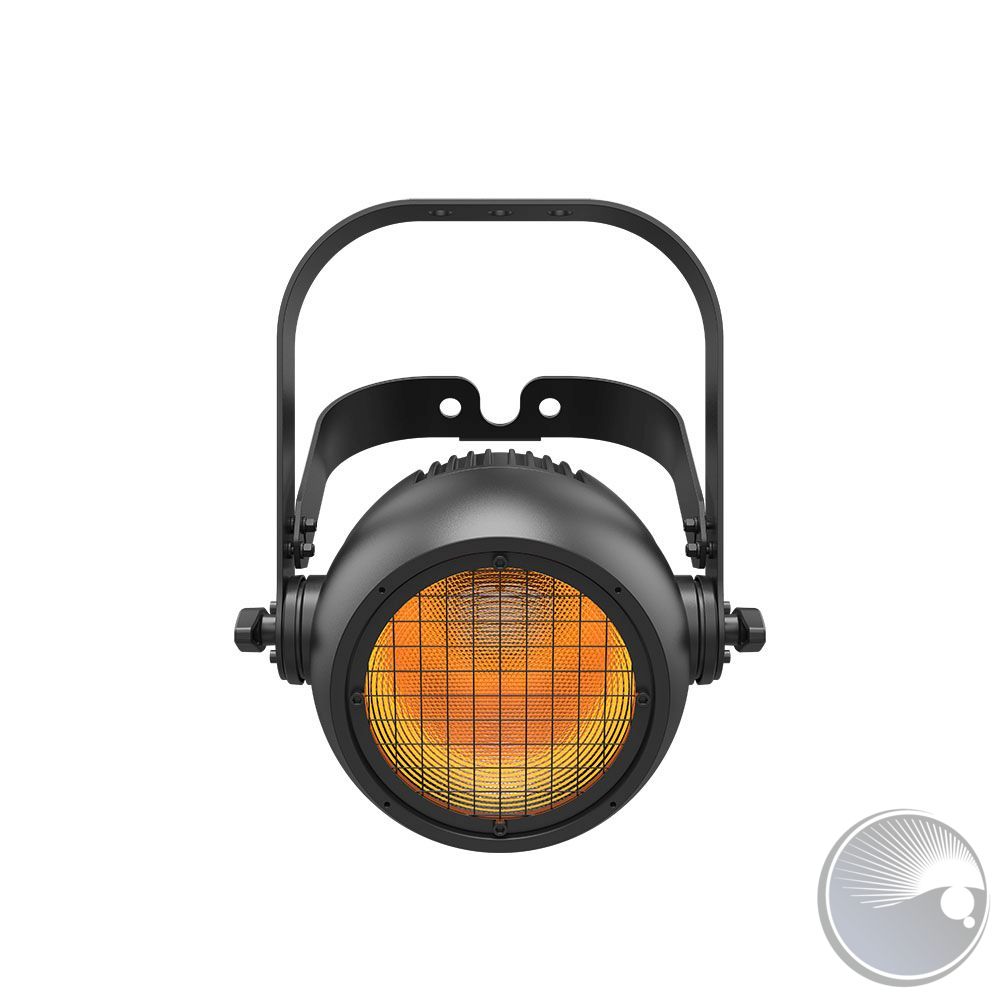

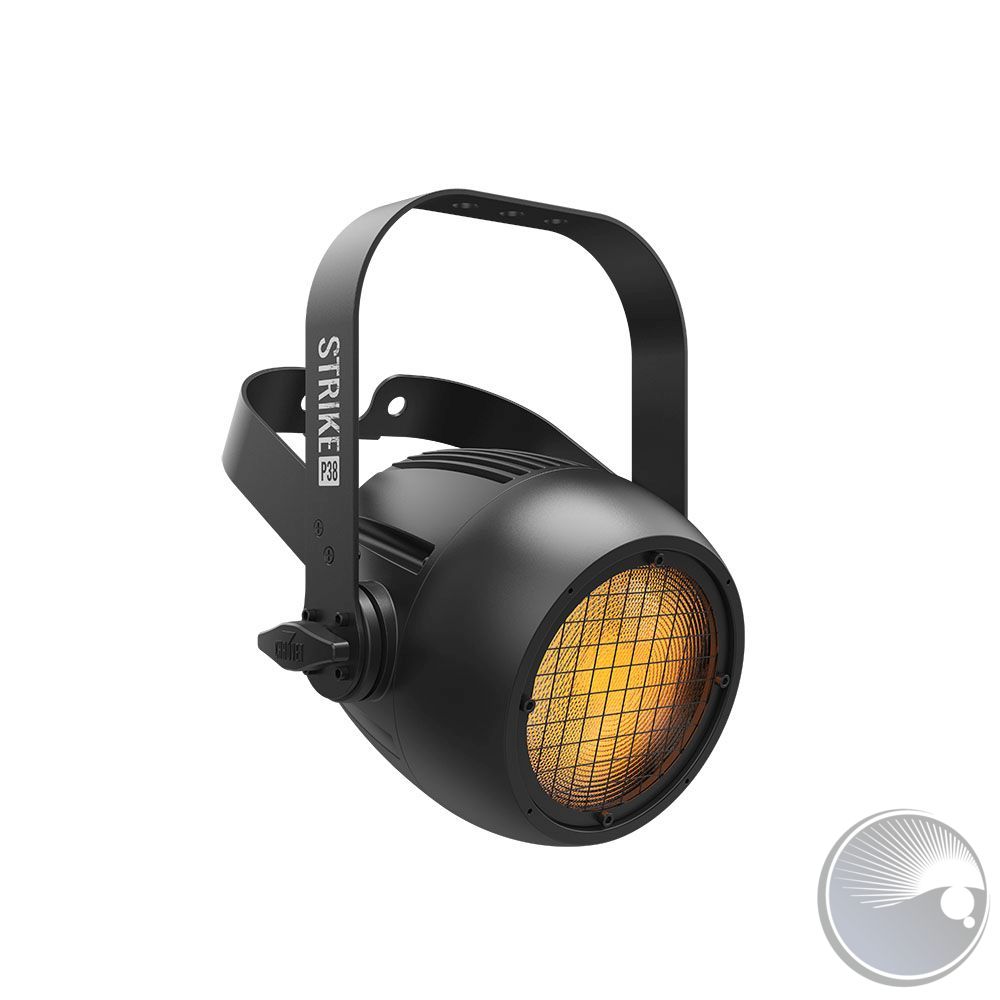

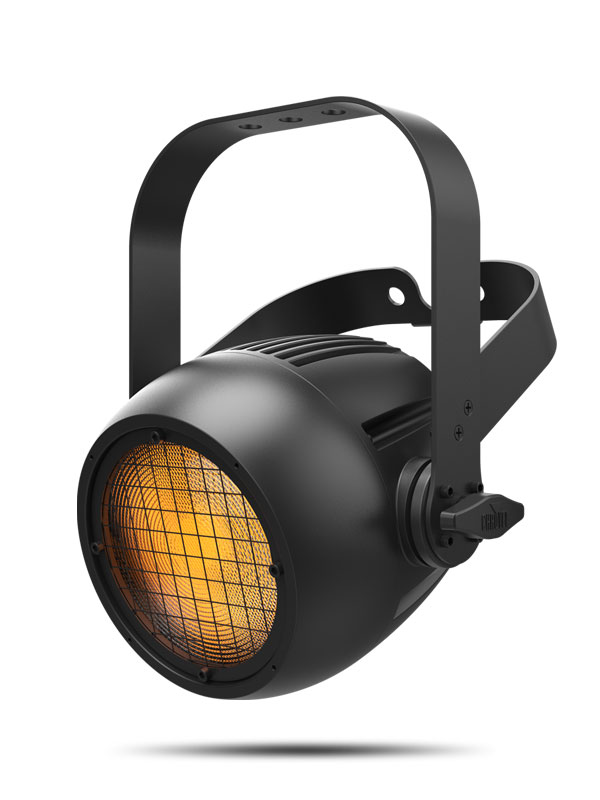

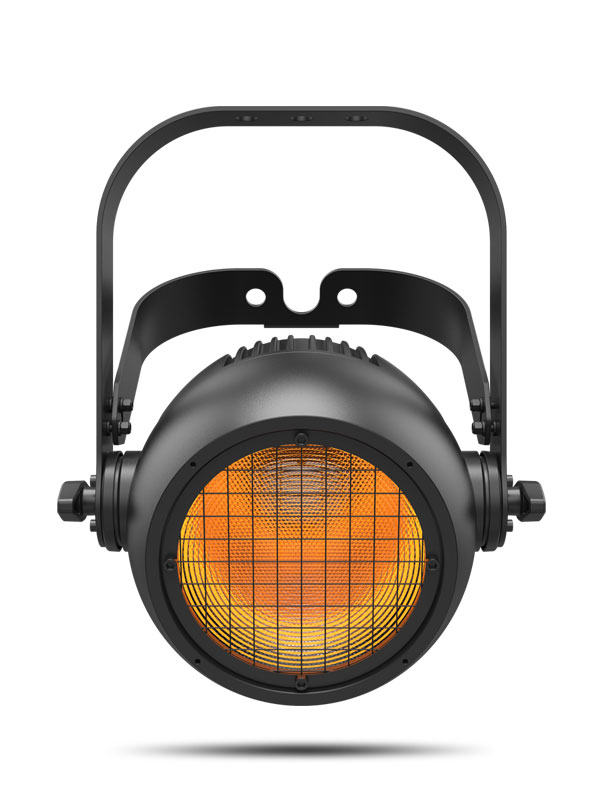

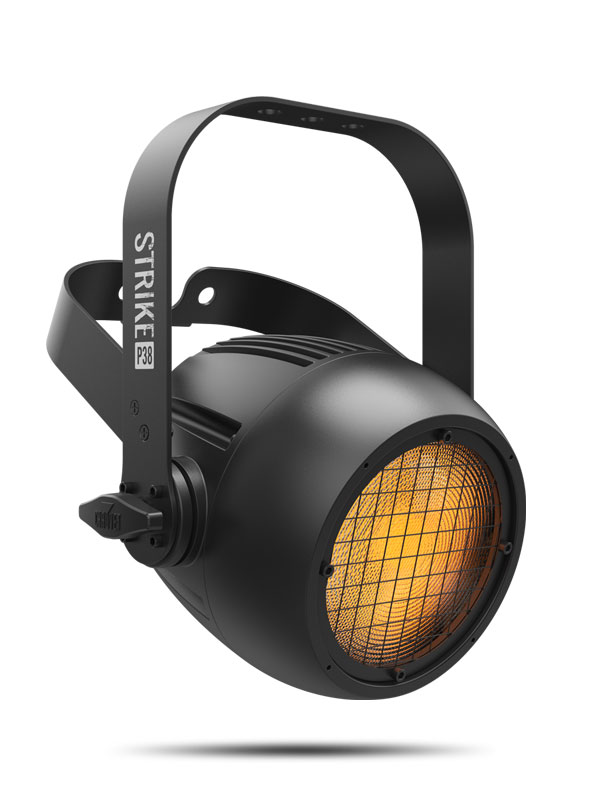

STRIKE P38

STRIKE P38 is a compact, punchy and outdoor-ready blinder and strobe powered by a 90 W warm white LED source. An emulated “amber shift” warms the Color Temperature of the light as it dims to perfectly mimic incandescent lights. IP-rated direct power and DMX connections eliminate undesirable whips. Control it with adjustable PWM and RDM for added flexibility.



AT A GLANCE

  • Intense single pod blinder/strobe rated IP65 for all-weather use

  • Emulated “red shift” to mimic incandescent fixtures perfectly.

  • 16-bit dimming control for smooth, perfect fades

  • Strobe functionality for high-impact effects on-the-fly

  • Easy to use OLED display

  • Adjustable Pulse Width Modulation (PWM)

  • RDM (Remote Device Management) for added flexibility

SPECIFICATIONS

OPTICAL

  • Light Source: 1 LED (WW) 90 W, (1.19 A), 2688 K, 50,000 hours life expectancy.
  • Light Source: 8 LEDs (Amber) 5 W, (0.07 A), 50,000 hours life expectancy.
  • Color Temperature (at full): 2754 K
  • Color Temperature (at 10%): 1899 K
  • CRI: 92
  • Beam Angle: 27°
  • Field Angle: 51°
  • Lumens: 2,186
  • Illuminance: 325 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Strobe Rate: 0 to 29 Hz
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 11.93 x 10.27 x 7.25 in (303 x 261 x 184 mm)
  • Weight: 8.4 lb (3.8 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 6.25 in (159 mm)

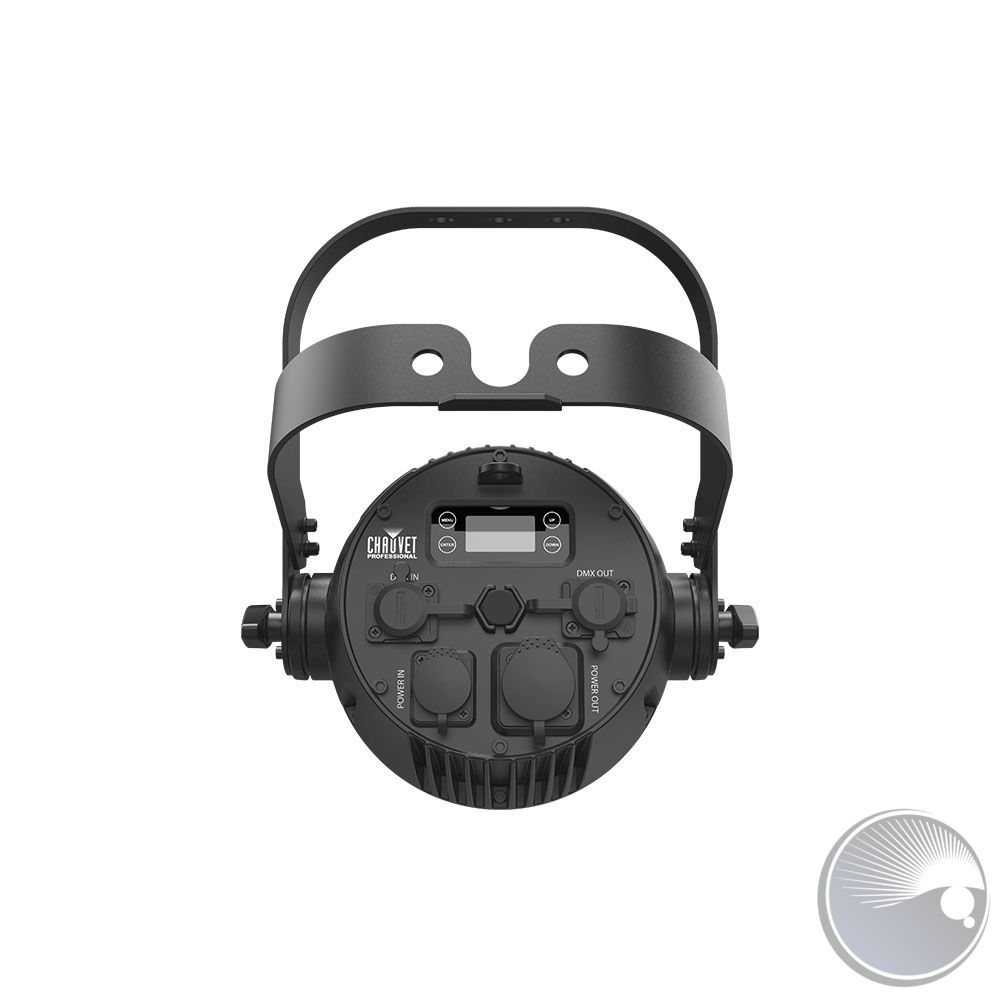

CONNECTIONS

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Protocol(s): DMX, RDM
  • DMX Channels: 1, 3, 4, 5 or 6
  • Modes/Personalities: 5 personalities (1ch, 3ch, 4ch, 5ch, 6ch)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 30 units @ 120 V; 50 units @ 208 V; 55 units @ 230 V
  • Power and Current: 54 W, .449 A @ 120 V, 60 Hz
  • Power and Current: 56 W, .267 A @ 208 V, 60 Hz
  • Power and Current: 58 W, .245 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

  • STRIKE P38
  • Seetronic Powerkon IP65 power cord
  • Gel frame (6.25 in/158.75 mm accessories)

OPTIONAL ACCESSORIES

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Seetronic Powerkon power linking cables
  • 5-pin IP or Non-IP DMX Cables
  • Ovation F6.25 Barndoor
Weiterführende Links zu "Strike P38"

5 pin XLR IP connecter(M) (BOM#30)PTF11000004645 pin XLR IP connecter(M) (BOM#30)
5 pin XLR IP connecter(F) (BOM#22)PTF11000004655 pin XLR IP connecter(F) (BOM#22)
Power socket Assembly (out) (BOM#26)PTF1100000468Power socket Assembly (out) (BOM#26)
Pressure valve (BOM#18)PTF1491700004Pressure valve (BOM#18)
GEL FRAME (BOM#53)PTF2440102422GEL FRAME (BOM#53)
DISPLAY PCB\(BOM#22)PTJ2020201509DISPLAY PCB\(BOM#22)

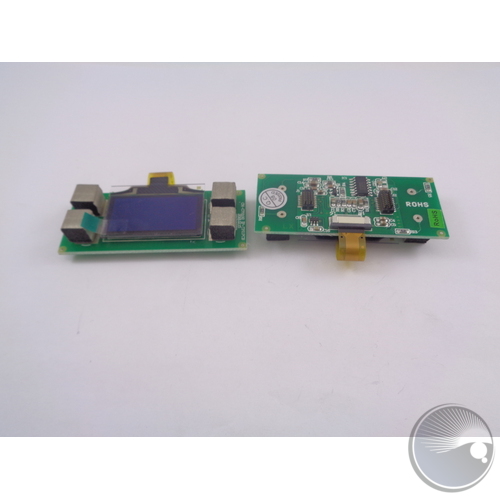

DISPLAY PCB\(BOM#22)PTJ2020201625DISPLAY PCB\(BOM#22)

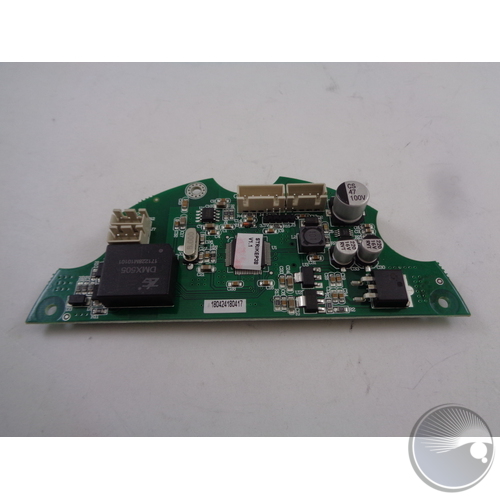

MPCB(BOM#21)PTJ2020202281MPCB(BOM#21)

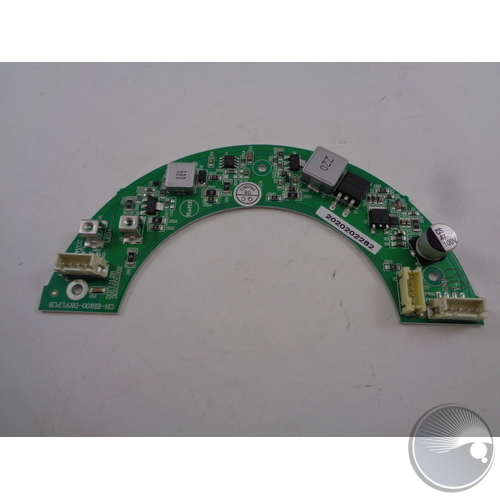

DRIVER PCB(BOM#13)PTJ2020202282DRIVER PCB(BOM#13)

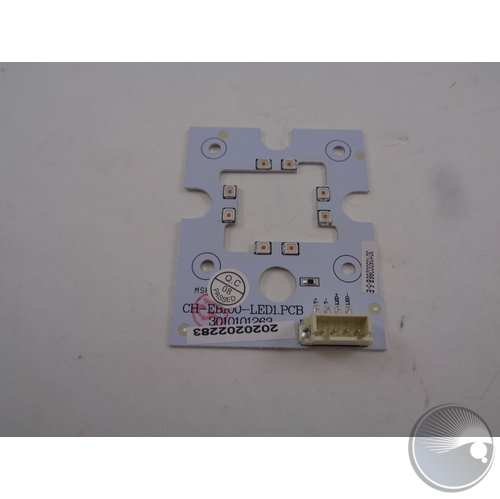

LED PCB(BOM#15)PTJ2020202283LED PCB(BOM#15)
PTJ3010500267 LED(BOM#16)
PTJ3020100406THREAD LENS(BOM#8)
PTJ3020100407PC LEN(BOM#14)
DISPLAY GLASS LENS (BOM#22)PTJ3020200229DISPLAY GLASS LENS (BOM#22)
POWER SUPPLY(BOM#19)PTJ3020400276APOWER SUPPLY(BOM#19)

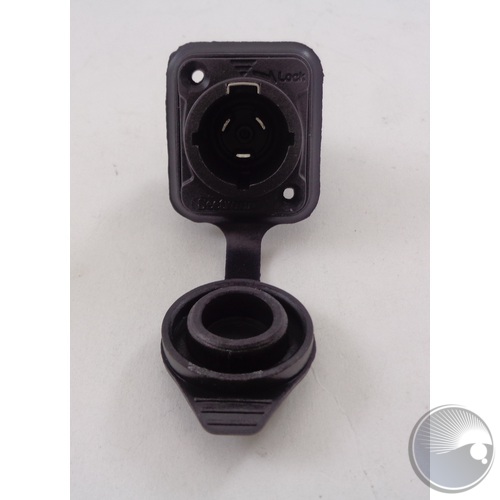

IP POWER IN SOCKET (BOM#16)PTJ3020800033IP POWER IN SOCKET (BOM#16)
DISPLAY CUSHION RUBBER (BOM#8)PTJ3021300070DISPLAY CUSHION RUBBER (BOM#8)
PTJ3021300178CUSHION RUBBER FOR BASING-1(BOM#12)
PTJ3021300179ACUSHION RUBBER FOR BASING-2(BOM#20)
PTJ3021300180CUSHION RUBBER FOR PMMA LEN(BOM#9)

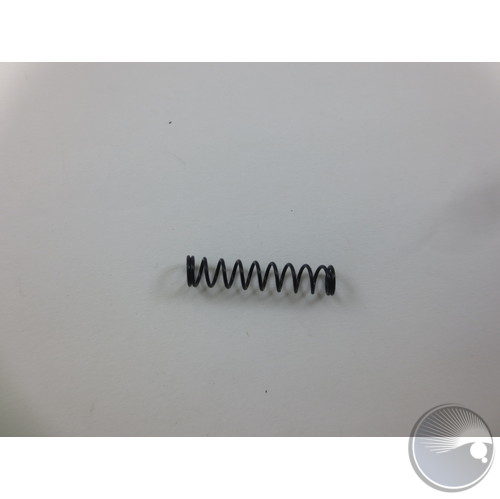

SRING(BOM#4)PTJ3021600076SRING(BOM#4)

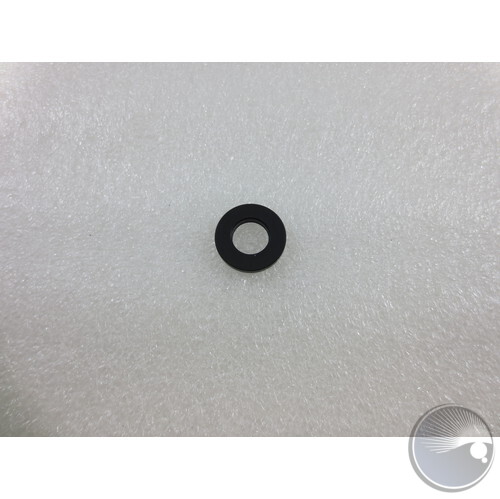

RING FOR HANGING BRACKET KNOBE(BOM#36)PTJ3021700485RING FOR HANGING BRACKET KNOBE(BOM#36)

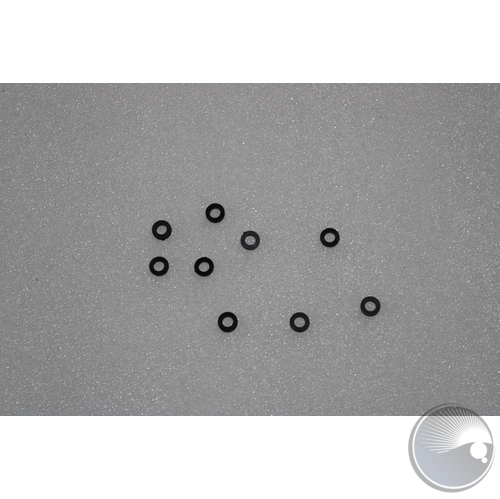

PTJ3021700509RING FOR BRACKET(BOM#34)
PTJ4010103857POWER HOLDER(BOM#18)

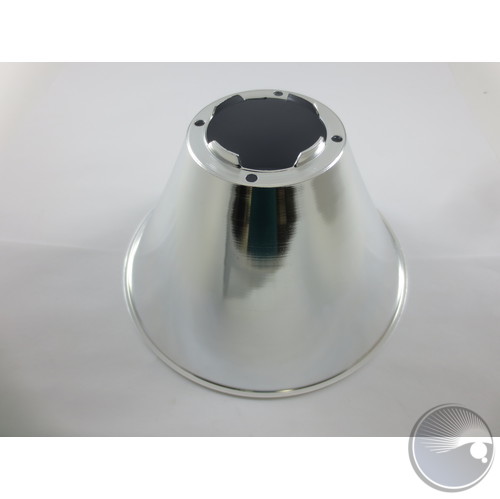

REFLECT CUP(BOM#11)PTJ4010103861REFLECT CUP(BOM#11)

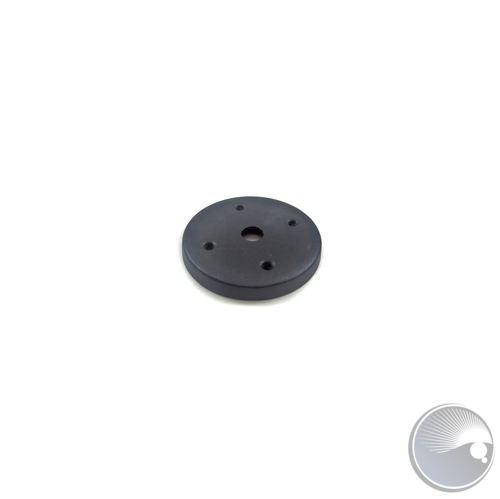

BRACKET HOLDER(BOM#37)PTJ4010301920BRACKET HOLDER(BOM#37)

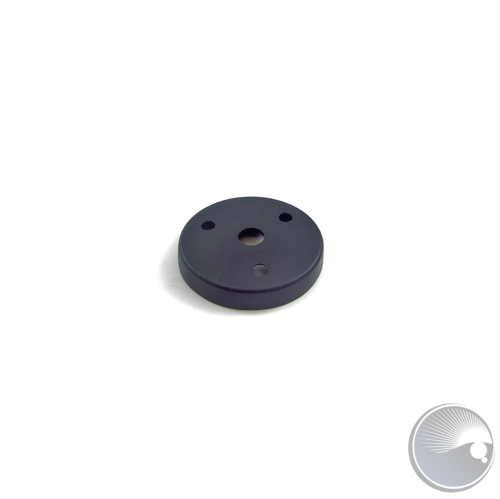

TURNPLATE(BOM#38)PTJ4010301922TURNPLATE(BOM#38)
HANGING BRACKET KNOB (BOM#39)PTJ4010302560HANGING BRACKET KNOB (BOM#39)

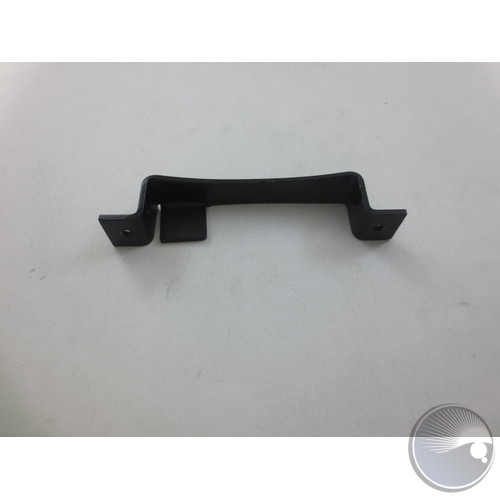

PLATE USE ON THE GEL FRAME LOCK(BOM#5)PTJ4010302907PLATE USE ON THE GEL FRAME LOCK(BOM#5)
PTJ4010304046HOUSING(BOM#17)
PTJ4010304051PMMA LEN COVER(BOM#10)

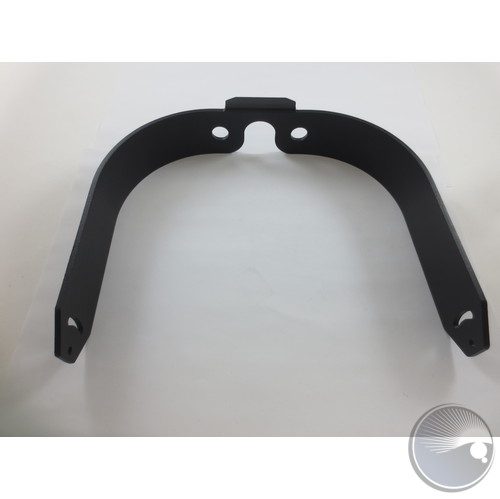

HANGING BRACKET-INNER (BOM#33)PTJ4010304052AHANGING BRACKET-INNER (BOM#33)

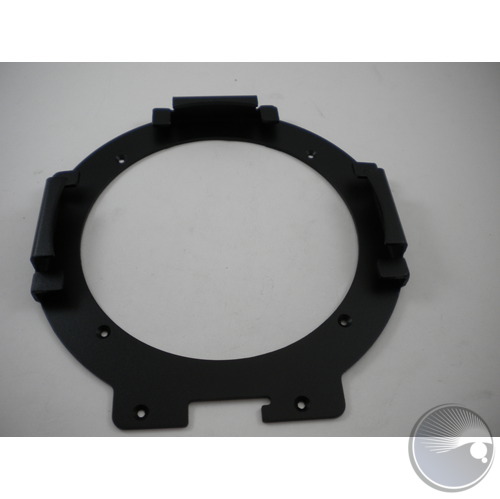

GEL FRAME HOLDER(BOM#2)PTJ4010304053GEL FRAME HOLDER(BOM#2)

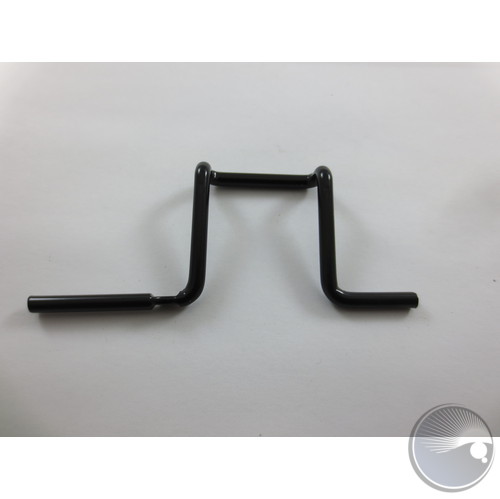

GEL FRAME CLIP(BOM#3)PTJ4010304054GEL FRAME CLIP(BOM#3)
PTJ4010304055TOP COVER(BOM#6)

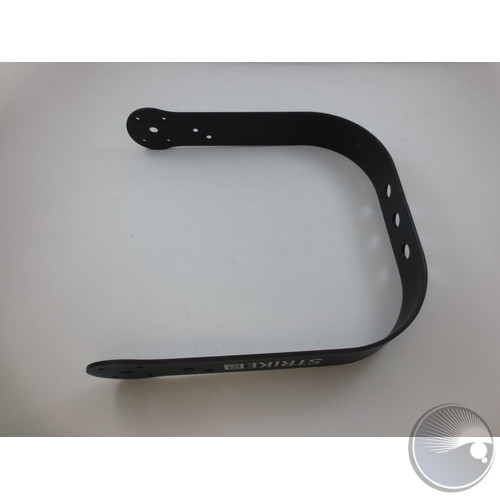

HANGING BRACKET-OUTER (BOM#32)PTJ4010304056HANGING BRACKET-OUTER (BOM#32)
PTJ4010304057DISPLAY COVER(BOM#23)
PTJ4010304058GLASS COVER(BOM#7)
PTJ4010402092REAL(BOM#26)
