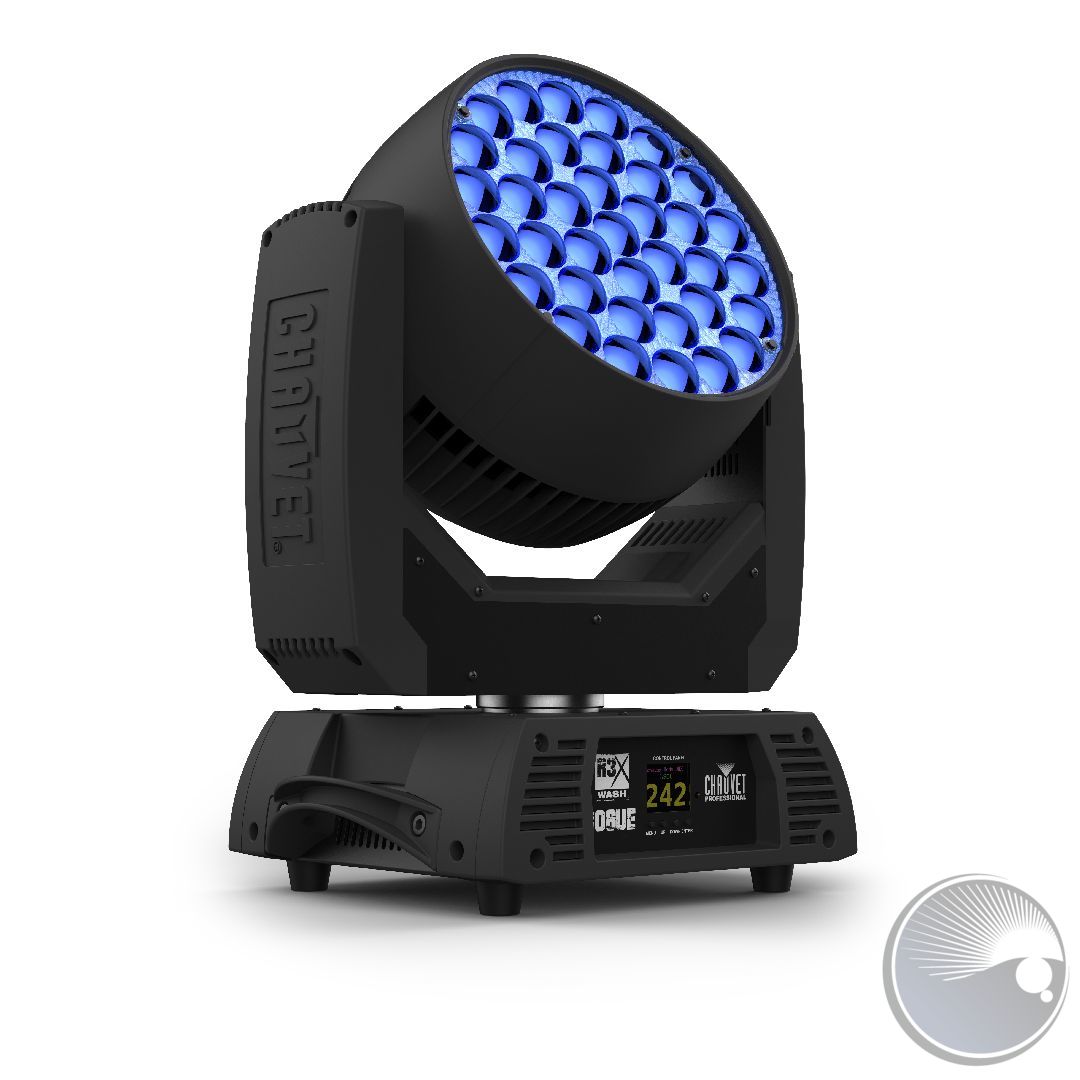

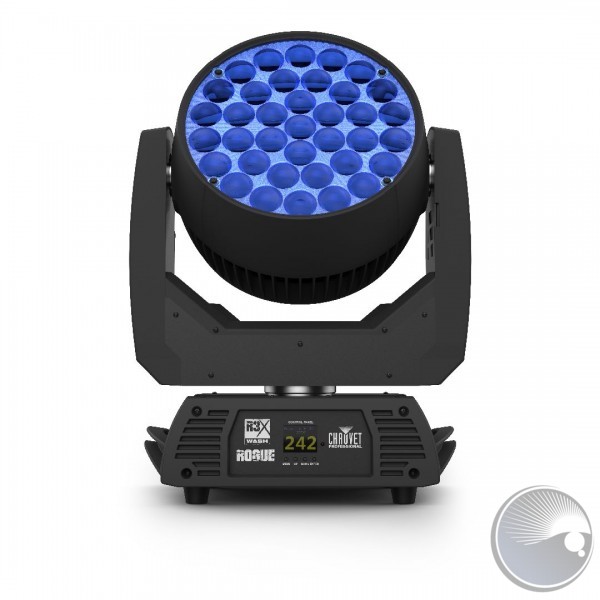

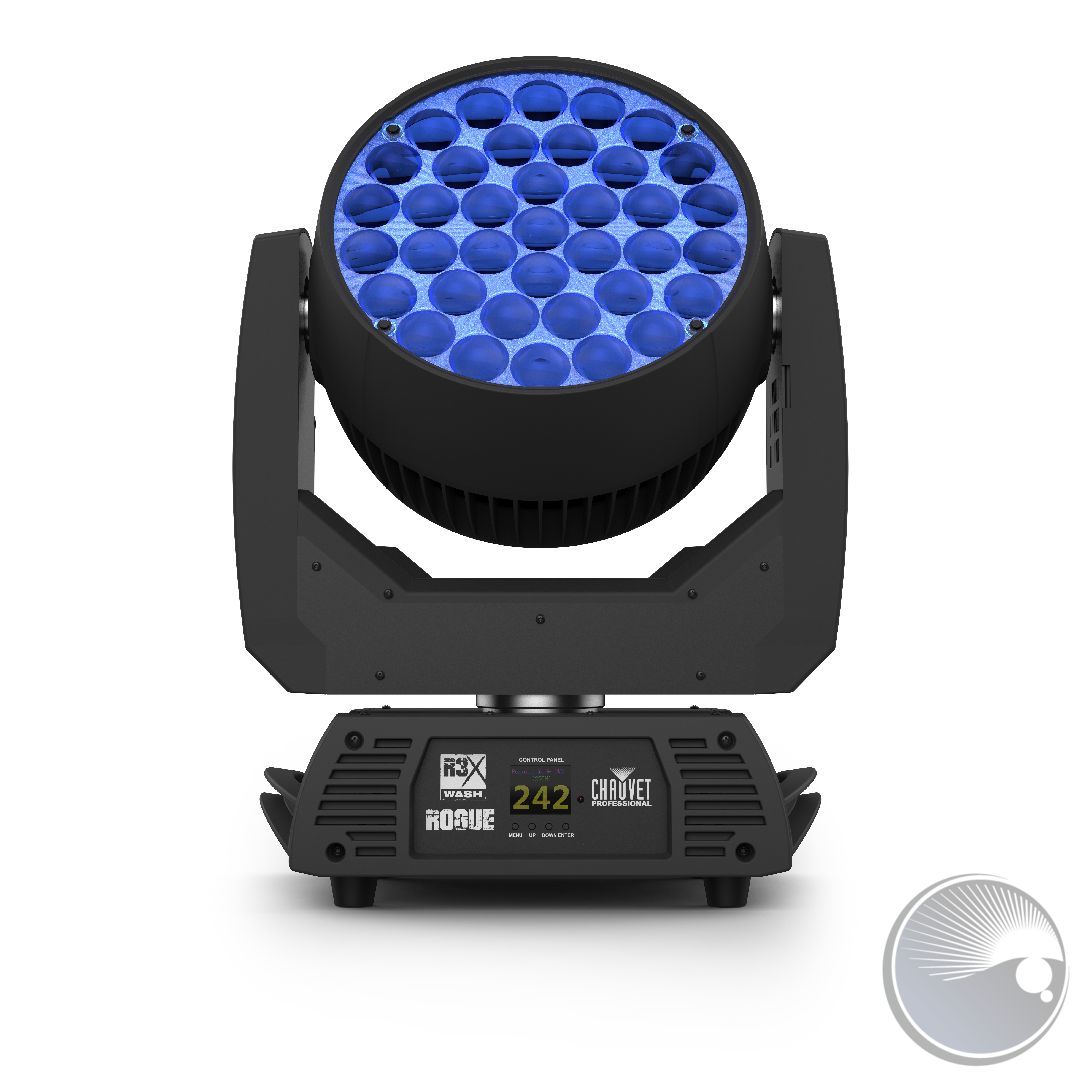

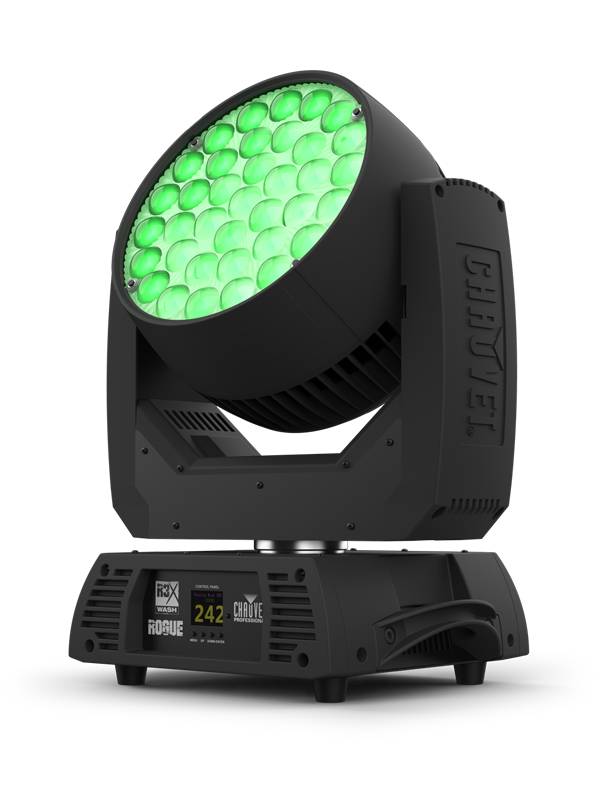

Rogue R3X Wash

Auf Anfrage!

  • ROGUER3XWASH
Rogue  R3X Wash Rogue R3X Wash is a feature packed moving wash workhorse ideal for... mehr
Produktinformationen "Rogue R3X Wash"

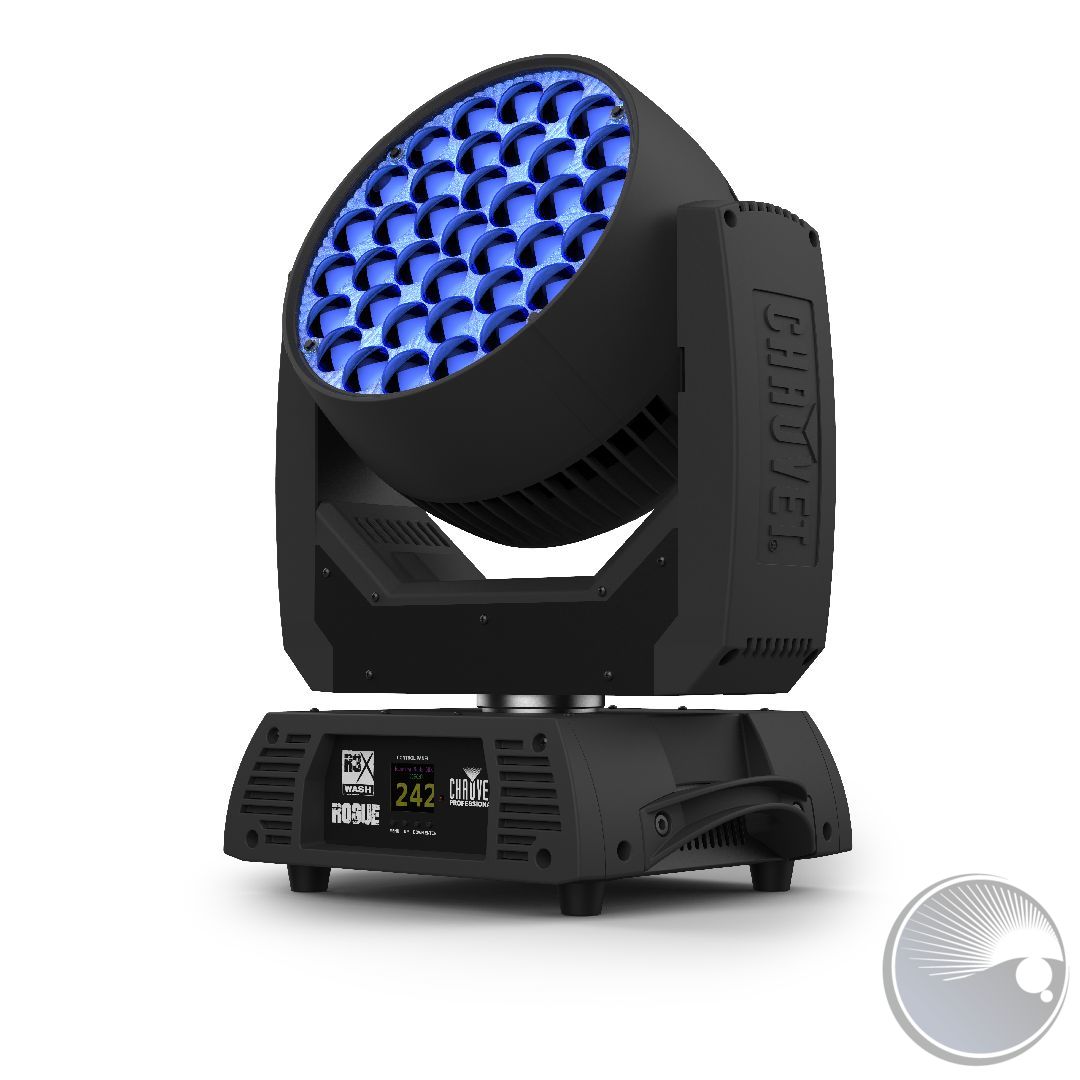

Rogue R3X Wash

Rogue R3X Wash is a feature packed moving wash workhorse ideal for rental and production inventories. It outputs a bright, evenly dispersed light and offers nine zones of LED control to pixel map its 37 (25 W) RGBW quad-LEDs. A quick moving zoom range of 12° – 49° gives it the spread to cover large areas. Smooth color mixing, simple and complex DMX channel profiles, and powerCON in and out round out the excellent features of this outstanding moving wash.



AT A GLANCE

  • Fully featured RGBW LED yoke wash fixture with LED zone control and zoom

  • 16-bit dimming of master dimmer as well as individual colors for smooth control of fades

  • 37 RGBW LEDs, 25 W each

  • 3- and 5-pin DMX input/output connections

  • 9 zones of LED control for pixel mapping effects

  • Unique lens design offers excellent color mixing

  • Fast, smooth pan and tilt movement

  • RDM enabled for remote addressing and trouble shooting

  • User-selected calibrated white for 7500 K at full output

  • Selectable LED maximum output to match legacy Rogue R3 Washes

  • Selectable PWM options for camera operation

  • 6 distinct dimming modes for different dimming needs

  • Omega mounting bracket, fits all Rogue and Maverick fixtures

  • Easy to read OLED display with simple, effective menu options

  • Simple and complex DMX channel profiles for programming versatility

SPECIFICATIONS

OPTICAL

  • Light Source: 37 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
  • Color Temperature (range): 2,800 to 10,000 K
  • Beam Angle: 9.3° to 33.9°
  • Field Angle: 11.6° to 49.5°
  • Zoom Angle: 11.6° to 49.5°
  • Lumens – Source: 17,000
  • Lumens – Output: 13,440
  • Illuminance (11.6°): 18,260 lux @ 5 m
  • Illuminance (49.5°): 1,556 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

  • Pan and Tilt: 540°/230°
  • Pan and Tilt Ranges: 180°, 360°, 540° Pan/90°, 180°, 230° Tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No
  • Recall Custom Programs: No

CONSTRUCTION / PHYSICAL

  • Dimensions: 15.51 x 11.73 x 18.50 in (394 x 298 x 470 mm)
  • Weight: 38.5 lb (17.46 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

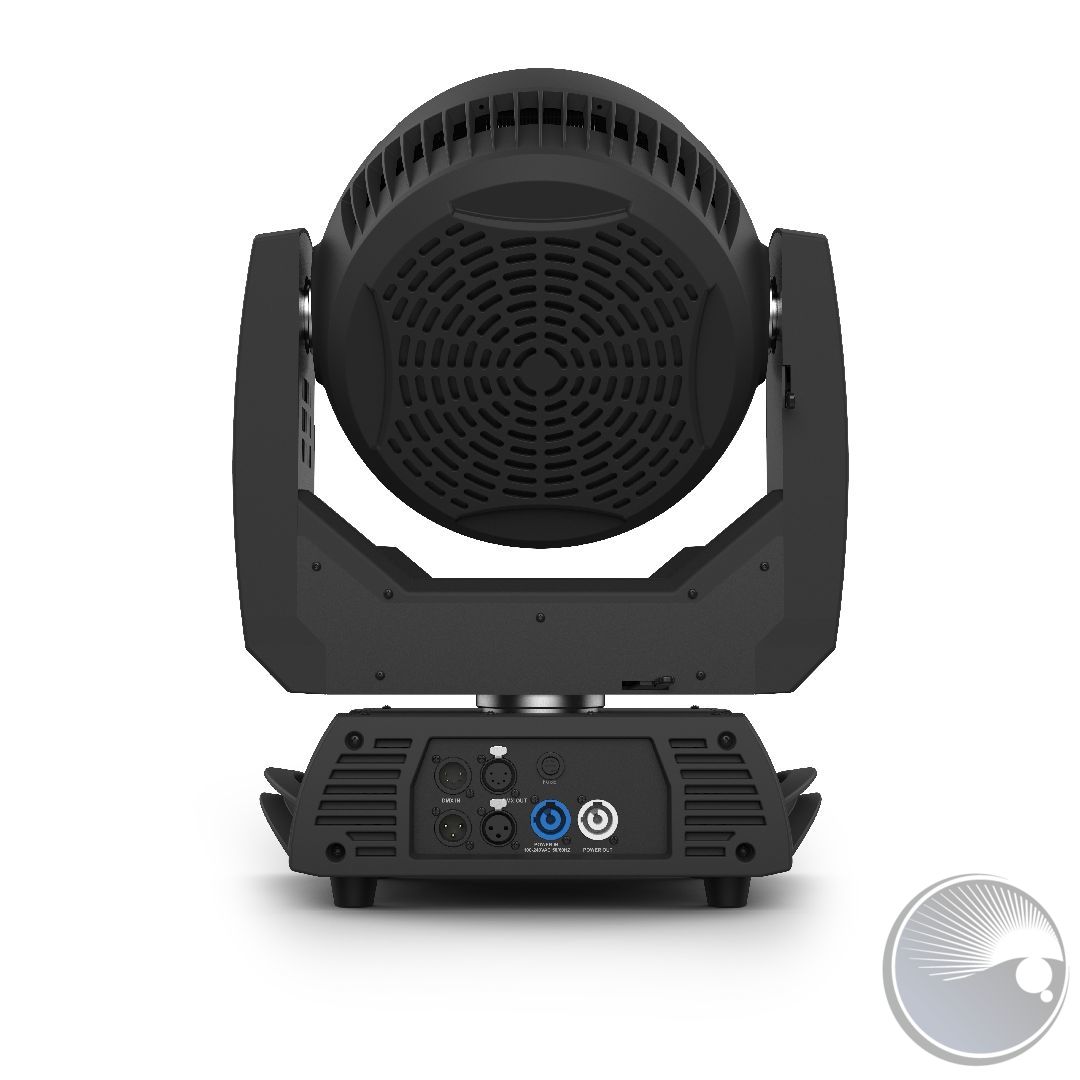

CONNECTIONS

  • Power Connection: Edison (local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 21, 62, 71, 107
  • Modes/Personalities: 4 personalities

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V
  • Power and Current: 661 W, 5.60 A @ 120 V, 60 Hz
  • Power and Current: 653 W, 3.136 A @ 208 V, 60 Hz
  • Power and Current: 650 W, 2.85 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

  • Rogue R3X Wash
  • Neutrik® powerCON® power cord
  • 2 Omega brackets with mounting hardware

OPTIONAL ACCESSORIES

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Safety Cable: SC-07
  • Neutrik® powerCON® cables
  • DMX Cables
  • Flight Case: CP4CASER3W
  • UPLOAD 08
Weiterführende Links zu "Rogue R3X Wash"

PTF1001002202Aviation plug power output socket (BOM#2)
PTF1001002302Power socket (Blue) IP44 55-210351-15 31.2x26.5x35 CE ROSH UL (BOM#18)
PTF2700003804US Powercon Cable (Type B NEMA 5-15 Style)
PTH010102014370heatsink Fan Bracket (BOM#109)
PTH010405010191Omega Bracket CD-D23-140 Version 4
base front cover PRO-2R-A01-02 (BOM#16)PTH1010102196301base front cover PRO-2R-A01-02 (BOM#16)
PTH1010102196421base side board PRO-2R-A01-06 (BOM#4)
motor support bracket PRO-715-A03-06 (BOM#93)PTH1010102215771motor support bracket PRO-715-A03-06 (BOM#93)
pan oriantation chip LS440A0213 (BOM#74)PTH1010102250691pan oriantation chip LS440A0213 (BOM#74)
PTH1010102250731pan lock pick LS-440-A02-15 (BOM#92)
tilt lock shrapnel LS-440-A02-17 (BOM#78)PTH1010102250771tilt lock shrapnel LS-440-A02-17 (BOM#78)
PTH1010102270351tilt lock wheel MK1WA0208 (BOM#43)
stainless steel chip LS-440-A02-21 (BOM#82)PTH1010102271511stainless steel chip LS-440-A02-21 (BOM#82)
PTH1010102301601slide bracket DJ3RA0212 (BOM#45)
PTH1010102309551pan bracket PRO-3715-A01-01 (BOM#15)
display PCB board PRO-3715-A01-05 (BOM#25)PTH1010102309571display PCB board PRO-3715-A01-05 (BOM#25)
tilt bracket PRO-3715-A02-03 (BOM#58)PTH1010102309671tilt bracket PRO-3715-A02-03 (BOM#58)
tilt motor bracket accessory PRO-3715-A02-04 (BOM#49)PTH1010102309691tilt motor bracket accessory PRO-3715-A02-04 (BOM#49)
tilt bracket accessory PRO-3715-A02-05 (BOM#57)PTH1010102309711tilt bracket accessory PRO-3715-A02-05 (BOM#57)
PTH1010102309731tilt magnetic sensor bracket PRO-3715-A02-06 (BOM#34)
PTH1010102309751arm wire board PRO-3715-A02-07 (BOM#62)
PTH1010102309791tilt lock pick PRO-3715-A02-09 (BOM#45)
PTH1010102309811arm front board PRO-3715-A02-10 (BOM#51)
PTH1010102309831arm back board PRO-3715-A02-11 (BOM#66)
PTH1010102309851pan motor bracket PRO-3715-A02-12 (BOM#68)
PTH1010102309871head bracket PRO-3715-A03-01 (BOM#110)
PTH1010102309891front bracket PRO-3715-A03-02 (BOM#120)
PTH1010102312291dust filter press board PRO-3715-A03-04 (BOM#104)
PTH1010102322991motor mat board PRO-3715-A02-15 (BOM#95)
PTH1010102332491base board PRO-3715-A01-02 (BOM#18)
PTH1010102333431wind blocker PRO-3715-A01-07 (BOM#22)
PTH1010102333471pan wire board PRO-3715-A02-13 (BOM#53)
PTH1010102334271arm strengthen board PRO-3715-A02-08 (BOM#67)
tilt motor bracket PRO-3715-A02-02 (BOM#48)PTH1010102334301tilt motor bracket PRO-3715-A02-02 (BOM#48)
PTH1010102335631power supply board PRO-3715-A01-06 (BOM#6)
PTH1010102335661arm connection bracket PRO-3715-A02-01 (BOM#55)
PTH1010102512661power supply bracket 1 PRO-3715-A01-03 (BOM#23)
PTH1010102512671power supply bracket 2 PRO-3715-A01-04 (BOM#21)
standoff PRO-715-B01 (BOM#87)PTH1010202215801standoff PRO-715-B01 (BOM#87)
PTH1010202226201pan support post 1 PRO-16R-B11 (BOM#14)
pan lock axis LS440B02 (BOM#87)PTH1010202251391pan lock axis LS440B02 (BOM#87)
pan slider axis LS440B05 (BOM#64)PTH1010202251421pan slider axis LS440B05 (BOM#64)
tilt slider axis LS440B07 (BOM#81)PTH1010202251431tilt slider axis LS440B07 (BOM#81)
tilt lock axis LS-440-B08 (BOM#81)PTH1010202251501tilt lock axis LS-440-B08 (BOM#81)
ball screw LS-440-B20 (BOM#65)PTH1010202251561ball screw LS-440-B20 (BOM#65)
PTH1010202259741axis bushing LS440B24 (BOM#50)
slider wheel axis LS440B26 (BOM#42)PTH1010202263001slider wheel axis LS440B26 (BOM#42)
pan oriantation cover MK1WB04 (BOM#62)PTH1010202270601pan oriantation cover MK1WB04 (BOM#62)

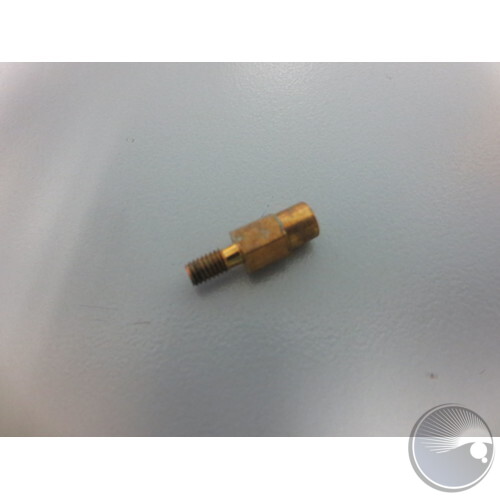

magnetic post MK1W-B05 (BOM#82)PTH1010202270631magnetic post MK1W-B05 (BOM#82)
gear DL39605 (BOM#34)PTH1010202270701gear DL39605 (BOM#34)
PTH1010202309481head connection block PRO-3715-B01 (BOM#112)
PTH1010202309491pan lock mat cover PRO-3715-B02 (BOM#91)
PTH1010202309511pan axis PRO-3715-BZ01 (BOM#87)
PTH1010202309531tilt axis 1 PRO-3715-BZ03 (BOM#56)
PTH1010202309541tilt axis 2 PRO-3715-BZ04 (BOM#50)
PTH1010202319881motor cover PRO-3715-B04 (BOM#113)
PTH1010202327291rubber cover PRO3715B05 (BOM#84)
optocoupler bracket PRO-3715-B06 (BOM#70)PTH1010202380291optocoupler bracket PRO-3715-B06 (BOM#70)

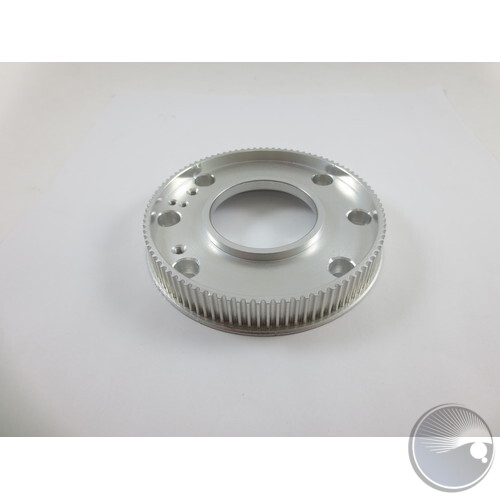

gear DL-396-04 (BOM#81)PTH1010202519651gear DL-396-04 (BOM#81)
PTH1010401205321standoff 589M3 (BOM#54)
aluminum tube ?6×2.5?4.2 (BOM#44)PTH1010402163611aluminum tube ?6×2.5?4.2 (BOM#44)
PTH1010402209971standoff 634.2 (BOM#65)
PTH1010402313551standoff 82.55.1 (BOM#111)
PTH1010403165683standoff H622M3 (BOM#119)
standoff H624 M3 (BOM#256)PTH1010403165703standoff H624 M3 (BOM#256)
PTH1010403165883standoff H642M3 (BOM#107)
PTH1010403216201standoff H613.56 M3 M3X6 (BOM#89)
PTH1010502320951heatsink CD-Z09 (BOM#109)
140Dmm OMEGA BRACKET (BOM#34)PTH1040000230891140Dmm OMEGA BRACKET (BOM#34)
pulley M-20R Moving Spot,PRO-3715 (BOM#40)PTH1040000331031pulley M-20R Moving Spot,PRO-3715 (BOM#40)
pan pulley PRO-3715 LED Moving Wash (BOM#73)PTH1040000332561pan pulley PRO-3715 LED Moving Wash (BOM#73)
PTH1040000332631tilt bushing 1 PRO-3715 LED Moving Wash (BOM#39)
PTH1040000332641tilt bushing 2 PRO-3715 LED Moving Wash (BOM#59)
base front cover PRO-100S-C01 (BOM#3)PTH1060100181931base front cover PRO-100S-C01 (BOM#3)
base side cover PRO-100S-C02 (BOM#3)PTH1060100181941base side cover PRO-100S-C02 (BOM#3)
base side cover PRO-100S-C02 (BOM#3)PTH1060100181941base side cover PRO-100S-C02 (BOM#3)
base side cover PRO-100S-C02 (BOM#3)PTH1060100181941base side cover PRO-100S-C02 (BOM#3)
base side cover PRO-100S-C02 (BOM#3)PTH1060100181941base side cover PRO-100S-C02 (BOM#3)
base side cover PRO-100S-C02 (BOM#3)PTH1060100181941base side cover PRO-100S-C02 (BOM#3)
handle PRO-100S-C03 (BOM#2)PTH1060100181951handle PRO-100S-C03 (BOM#2)
PTH1060100310541arm top cover PRO-3715-C02 (BOM#52)
head front cover PRO-3715-C03 (BOM#126)PTH1060100310551head front cover PRO-3715-C03 (BOM#126)
head back cover PRO-3715-C04 (BOM#102)PTH1060100310561head back cover PRO-3715-C04 (BOM#102)

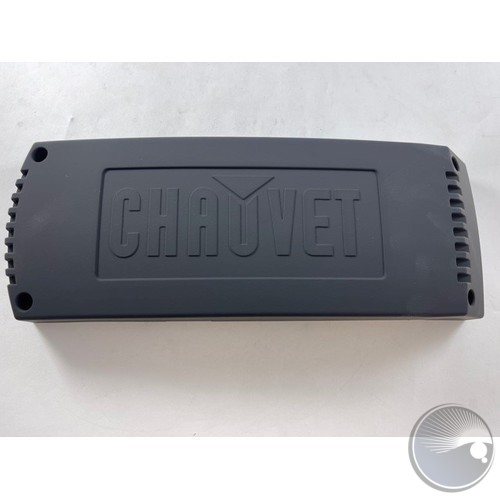

arm cover PRO-3715-C01 (BOM#33)PTH1060100382211arm cover PRO-3715-C01 (BOM#33)
display lens cover CDC39×32×2.5 (BOM#9)PTH1060200181811display lens cover CDC39×32×2.5 (BOM#9)
motor cover 3 PRO-715-C09 (BOM#117)PTH1060200229721motor cover 3 PRO-715-C09 (BOM#117)
motor cover 2 PRO-715-C08 (BOM#85)PTH1060200241181motor cover 2 PRO-715-C08 (BOM#85)
PTH1060200308732wire cover M-20R-C07 (BOM#51)
DMX board DMX012B (BOM#40)PTH2020302267381DMX board DMX012B (BOM#40)
optocoupler PCB GD005 E (BOM#71)PTH2020302380561optocoupler PCB GD005 E (BOM#71)
PTH2020302433451magnetic sensor HE-14B (BOM#35)

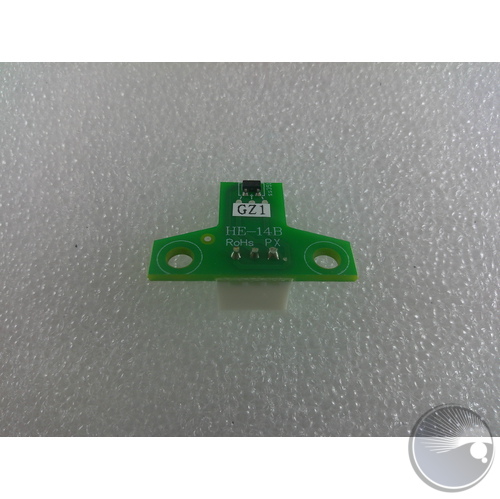

magnetic sensor HE-14B (BOM#75)PTH2020302433471magnetic sensor HE-14B (BOM#75)

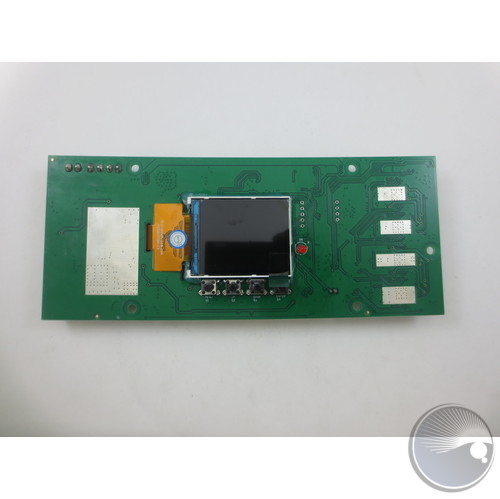

Display PCB MH217A (BOM#19)PTH2020302517771Display PCB MH217A (BOM#19)

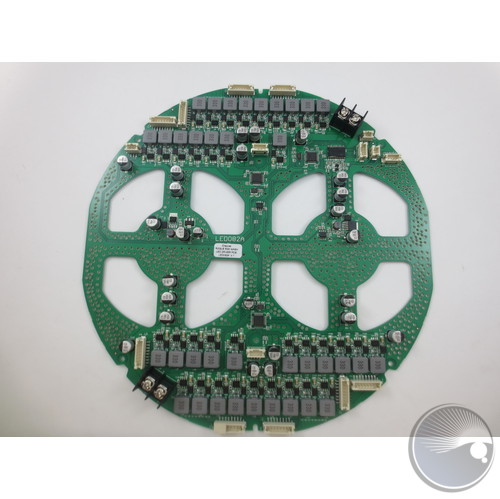

LED driver PCB LED082A (BOM#105)PTH2020302518131LED driver PCB LED082A (BOM#105)

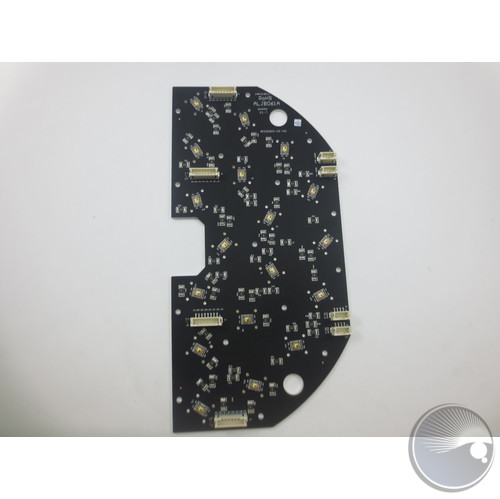

LED PCB ALJB061A (BOM#114)PTH2020302520591LED PCB ALJB061A (BOM#114)

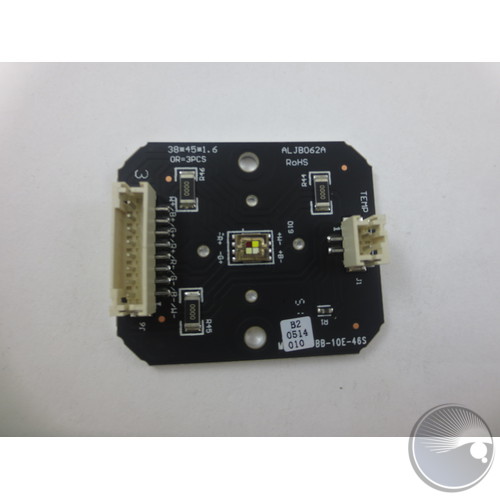

LED PCB ALJB062A (BOM#132)PTH2020302520601LED PCB ALJB062A (BOM#132)
motor 24HE5106-30 (BOM#94)PTH2030100270481motor 24HE5106-30 (BOM#94)

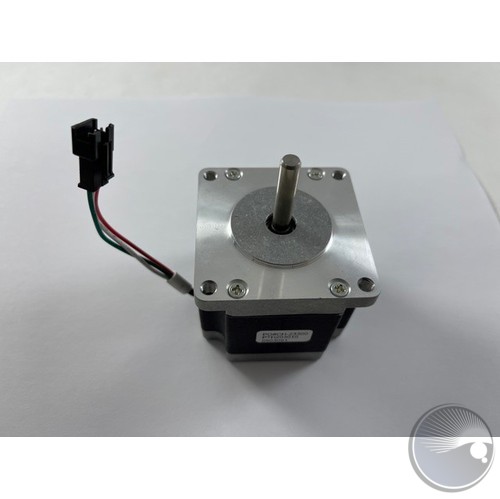

motor 24HEG5207E-30M5-500 (BOM#64)PTH2030100503091motor 24HEG5207E-30M5-500 (BOM#64)
motor 25PM30006-05N (BOM#123)PTH2030101342041motor 25PM30006-05N (BOM#123)
PTH2030201331951fan DFH1225B (BOM#108)

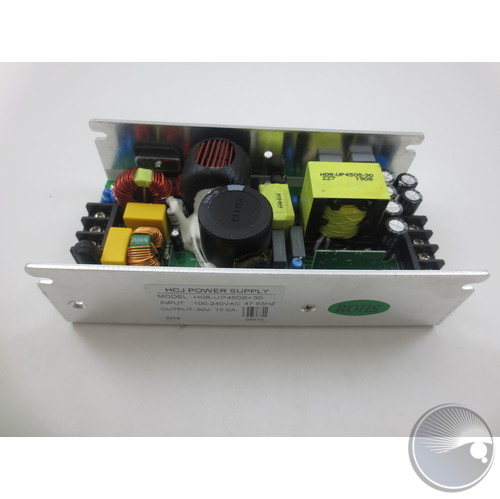

power supply H08-UP450S30 (BOM#13)PTH2030700310601power supply H08-UP450S30 (BOM#13)
gear DL-315-07-02 (BOM#83)PTH2040000328881gear DL-315-07-02 (BOM#83)
gear DL-315-09-02 (BOM#98)PTH2040000328891gear DL-315-09-02 (BOM#98)
PTH2040000332571pan bushing PRO-3715 LED Moving Wash (BOM#79)
fog 14×16mm 10° (BOM#86)PTH2040606230221fog 14×16mm 10° (BOM#86)
light guide post LL01EDBKH100L06 (BOM#79)PTH2040900214301light guide post LL01EDBKH100L06 (BOM#79)
light guide post bracket LL01OSTY100H2 (BOM#80)PTH2040900214311light guide post bracket LL01OSTY100H2 (BOM#80)
lens cluster CD-F01-01 (BOM#127)PTH2040900310571lens cluster CD-F01-01 (BOM#127)
PTH2070501522501sticker ROGUE R3X WASH (BOM#30)
dust filter CD-K01 (BOM#103)PTH2071100322321dust filter CD-K01 (BOM#103)
screw M8×30 (BOM#47)PTH2080502127751screw M8×30 (BOM#47)
screw M8×90 (BOM#31)PTH2080502179851screw M8×90 (BOM#31)
screw M8 (BOM#69)PTH2081002126951screw M8 (BOM#69)
PTH2081106253031ring ?10 (BOM#88)
belt 3M-570-10mm (BOM#37)PTH2090101210721belt 3M-570-10mm (BOM#37)
belt 3M-447-12mm (BOM#78)PTH2090101310581belt 3M-447-12mm (BOM#78)
PTH2090300333191rubber mat D0040 (BOM#87)
machine feet GL-012 (BOM#2)PTH2090400177052machine feet GL-012 (BOM#2)
rubber ring 5119.5 (BOM#116)PTH2090400177062rubber ring 5119.5 (BOM#116)
quick lock screw M20 (BOM#47)PTH2090500180091quick lock screw M20 (BOM#47)
open ring CD-J01-01A (BOM#133)PTH2090500332601open ring CD-J01-01A (BOM#133)
spring ?10×38×1.2 (BOM#78)PTH2090601173371spring ?10×38×1.2 (BOM#78)
spring ?10×47×1.2 (BOM#68)PTH2090601276121spring ?10×47×1.2 (BOM#68)
fuse 12A 520 250V (BOM#9)PTH2090900246921fuse 12A 520 250V (BOM#9)
PTH2091302169601axis circlip 351.5 (BOM#61)
open circlip ?4 (BOM#66)PTH2091302169621open circlip ?4 (BOM#66)
magnet ?3×3 (BOM#77)PTH2091400234741magnet ?3×3 (BOM#77)
rubber ring 136 (BOM#82)PTH2091500227791rubber ring 136 (BOM#82)
PVC rubber cover 14x8 (BOM#68)PTH2091500249071PVC rubber cover 14x8 (BOM#68)
PTH2091500333622heatsink CP300-200400 (BOM#106)
motor accessory 25PM-70 V3 (BOM#99)PTH2091500339461motor accessory 25PM-70 V3 (BOM#99)
Complete Frost Filter Assembly PRO-3715-A03-03 (BOM#125)PTH210200012554Complete Frost Filter Assembly PRO-3715-A03-03 (BOM#125)
PTH210200014412Omega hanging bracket V2, Shorter with 6mm wahser CD-D13 140mm (BOM#57)

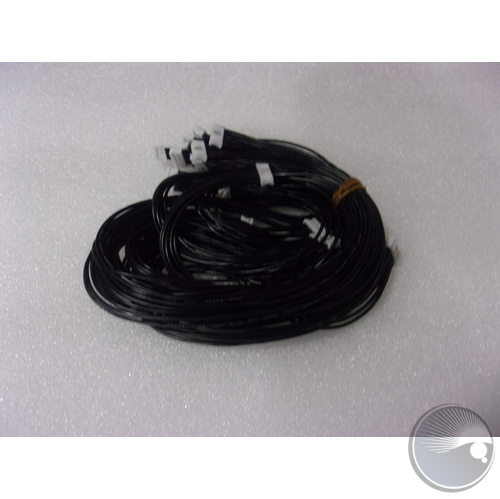

PTH210200014952LED Driver to LED Board wire
PTH2120100504121Single LED
magnetic sensor HE-11 (BOM#37)PTH280100706magnetic sensor HE-11 (BOM#37)
fan DFL7015B (BOM#27) longer wires than PTH2030201101351PTHDFL7015Bfan DFL7015B (BOM#27) longer wires than PTH2030201101351
pan mat chip EX575A0120 (BOM#74)PTHEX575A0120pan mat chip EX575A0120 (BOM#74)
copper screw EX575B03 (BOM#82)PTHEX575B03copper screw EX575B03 (BOM#82)
base bracket PRO-5R-A01-02 (BOM#30)PTHPRO5RA0102base bracket PRO-5R-A01-02 (BOM#30)
pan oriantation post PRO5RB19 (BOM#63)PTHPRO5RB19pan oriantation post PRO5RB19 (BOM#63)
Panel mount fuse holder (BOM#29)PTJ3027001001Panel mount fuse holder (BOM#29)
UPLOAD08UPLOAD08/MR UPLOAD (CPMOVEUP) ***Order from Location 1***

Es sind leider keine Geräte verfügbar.

Es kann vorkommen, dass in unserem Lager noch gebrauchte Geräte vorhanden sind. Fragen Sie gerne über unsere Service-Hotline +49 871 40875521 oder per Email info@lights-whatever.de bei uns nach. Wir helfen Ihnen gerne weiter!

Bewertungen lesen, schreiben und diskutieren... mehr
Kundenbewertungen für "Rogue R3X Wash"
Bewertung schreiben
Bewertungen werden nach Überprüfung freigeschaltet.

Die mit einem * markierten Felder sind Pflichtfelder.

Ich habe die Datenschutzbestimmungen zur Kenntnis genommen.

Zuletzt angesehen
