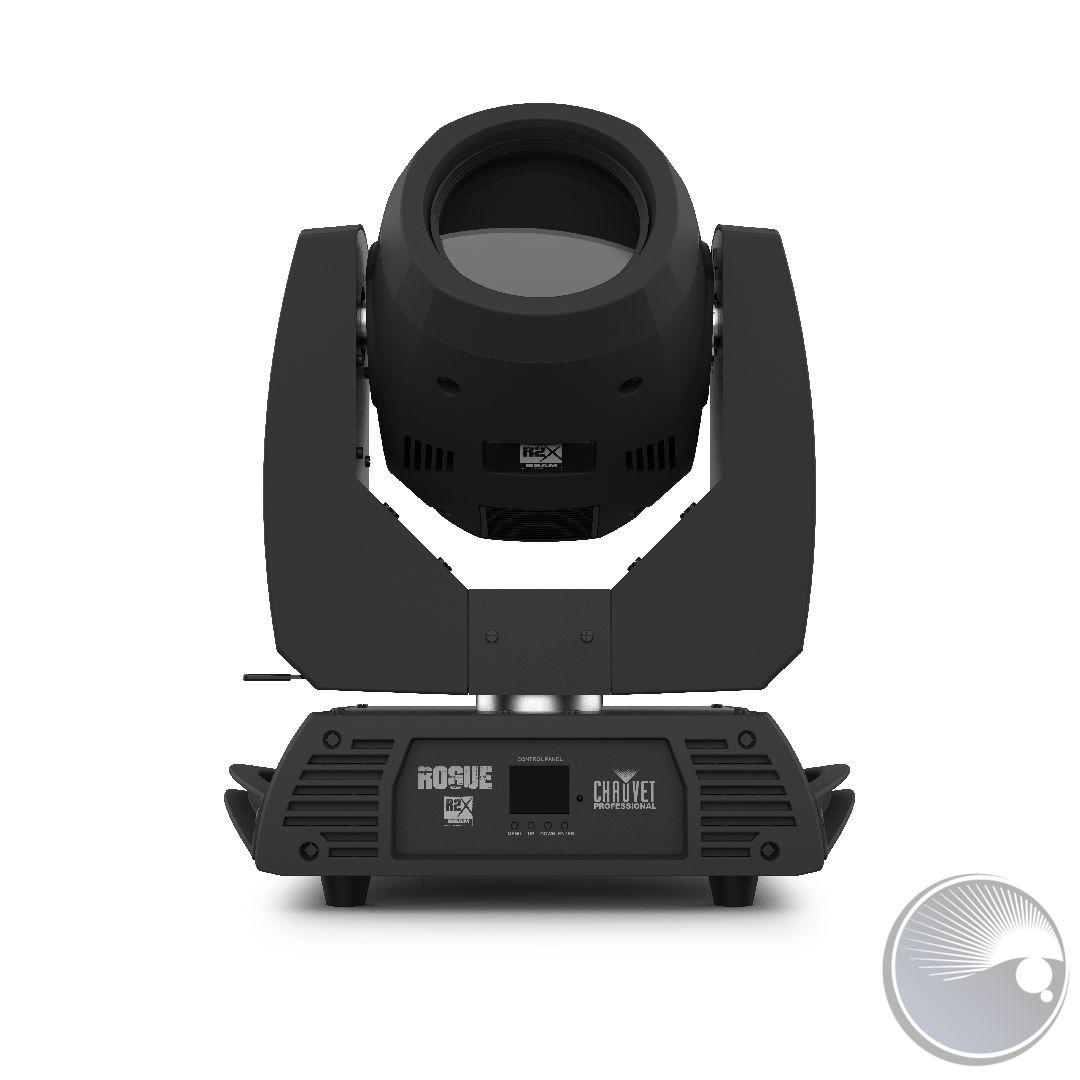

Rogue R2X Beam

Auf Anfrage!

  • ROGUER2XBEAM

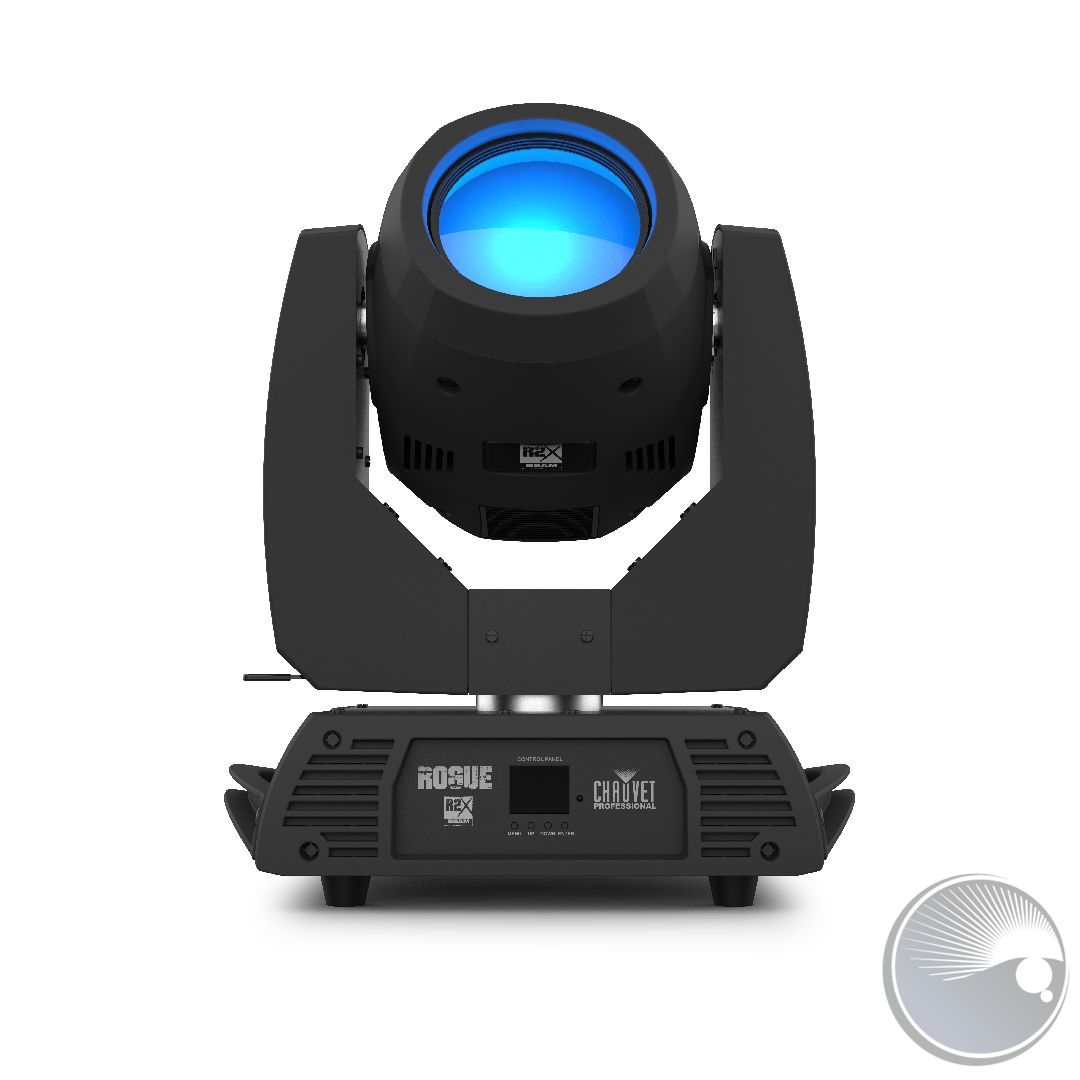

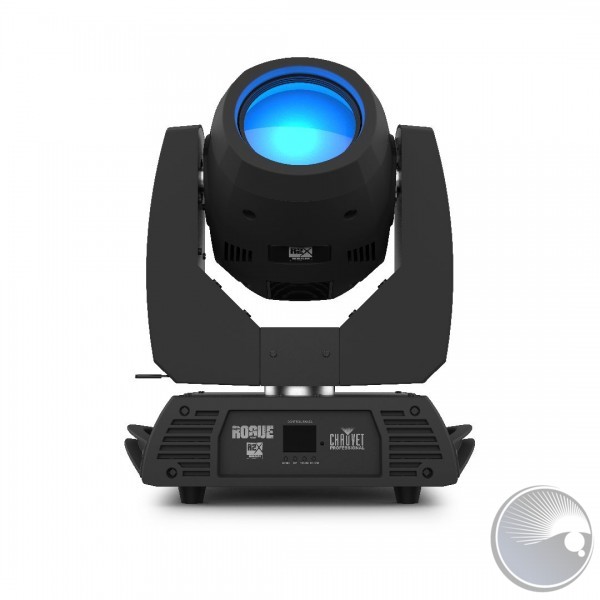

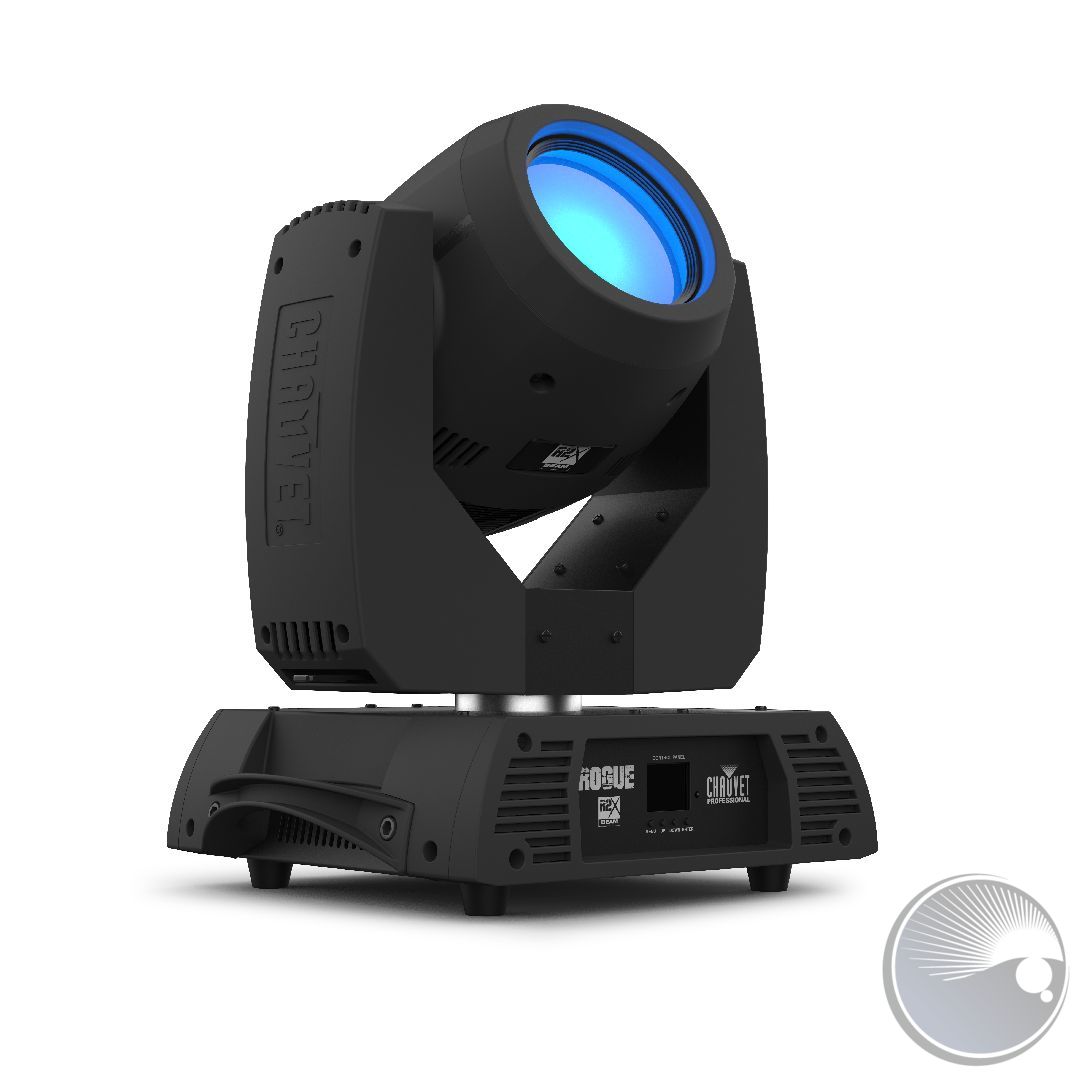

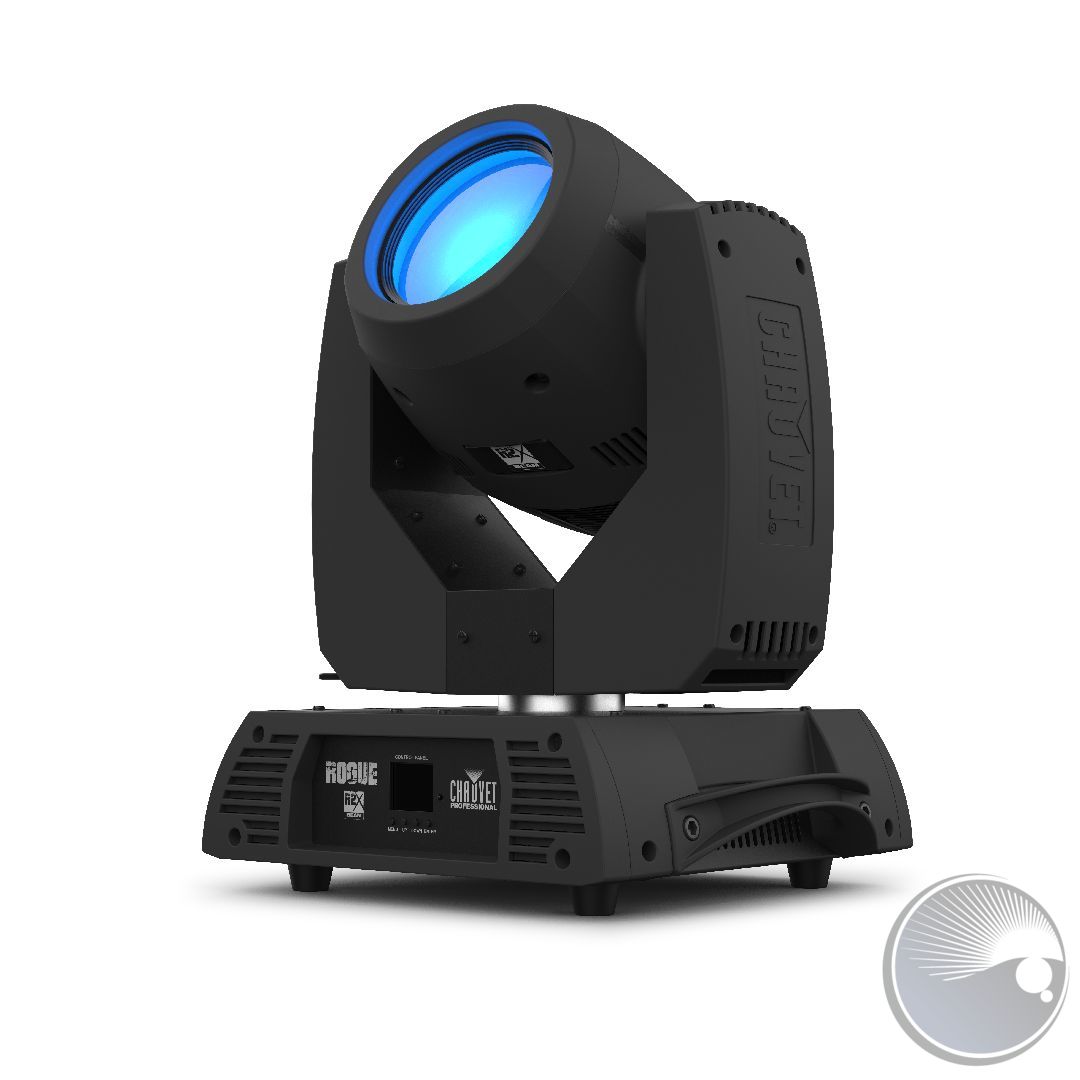

Rogue  R2X Beam Rogue R2X Beam is the light cannon of the Rogue series, boasting an... mehr
Produktinformationen "Rogue R2X Beam"

Rogue R2X Beam

Rogue R2X Beam is the light cannon of the Rogue series, boasting an intense 134,000 lux at 15 meters from its 231 W Osram Sirius lamp. This fully-featured beam can be focused down to 1 degree for extremely focused aerial effects, and comes with 14 fixed colors in a fully scrollable, variable speed color wheel, which also provides split-colors perfectly. Additionally, the unit features individually controllable and overlapping 8 and 5-facet prisms for an endless supply of creative and dynamic beam looks. Frost and focus options ensure even light distribution and the unit is equipped with RDM and DMX protocols.



AT A GLANCE

  • Fully featured, high powered beam fixture with a single color wheel, single static gobo wheel, and overlapping prisms

  • Fast and precise movement of Pan and Tilt functions

  • Individually controllable and overlappable 8 and 5-facet prisms

  • Frost for even light distribution

  • Tight 1° beam for extremely focused areal effects

  • RDM Enabled for remote addressing and trouble shooting

  • 17 static gobos for massive visual impact

SPECIFICATIONS

OPTICAL

  • Light Source: Osram Sirius 231 W lamp, 7900 K, 2,000 hours life expectancy
  • Color Temperature (at full): 7293 K
  • Beam Angle: 1.8°
  • Field Angle: 3.7°
  • Lumens – Source: 10,500
  • Lumens - Output: 7,821
  • Illuminance (total): 150,684 lux @ 15 m

DYNAMIC EFFECTS

  • Pan and Tilt: 540°/270
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
  • Colors: 14 + white, split colors, continuous scroll at variable speeds
  • Gobos: 17 + open (17 metal), continuous scroll at variable speeds
  • Dimmer: Motorized
  • Shutter/Strobe: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Prism: 5 Facets, motorized, rotating
    8 Facets, motorized, rotating
  • Strobe Rate: 0 to 20 Hz
  • Move-in-Black: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 16.1 x 12.8 x 19.2 in (409 x 327 x 490 mm)
  • Weight: 45.4 lb (20.6 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

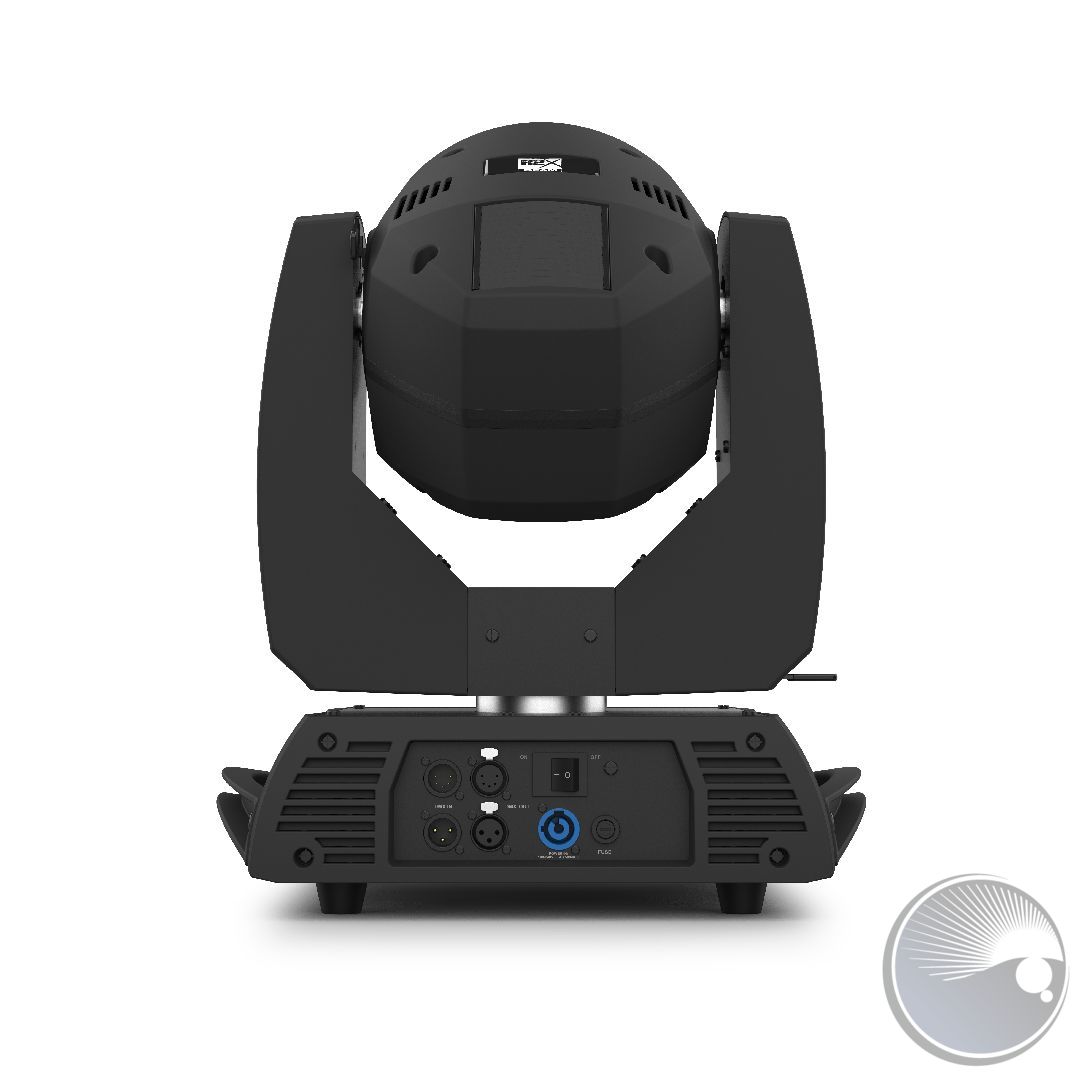

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik
  • Power Input: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 16 or 19
  • Modes/Personalities: 2 personalities (16, 19)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 384 W, 3.18 A @ 120 V, 60 Hz
  • Power and Current: 378 W, 1.81 A @ 208 V, 60 Hz
  • Power and Current: 382 W, 1.61 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

  • Rogue R2X Beam
  • Neutrik powerCON power cord
  • 2 Omega brackets with mounting hardware

OPTIONAL ACCESSORIES

Weiterführende Links zu "Rogue R2X Beam"

7amp 250V FUSE7AMPGMA7amp 250V FUSE
PTF1001002302Power socket (Blue) IP44 55-210351-15 31.2x26.5x35 CE ROSH UL (BOM#18)
PTF2700003804US Powercon Cable (Type B NEMA 5-15 Style)
Omega Bracket CD-D23-140 Version 4PTH010405010191Omega Bracket CD-D23-140 Version 4
fan net 6×6 (BOM#14)PTH02100600fan net 6×6 (BOM#14)
PTH0301230BALLAST (BOM#8)
PTH100700000931Shutter Motor Wire Harness
PTH100700001235Wire Harness
PTH1010102197101pan bracket PRO-5R-A01-03 (BOM#10)
PTH1010102197141power socket board PRO-5R-A01-05 (BOM#25)
PTH1010102197221ballast bracket PRO-5R-A01-09 (BOM#22)

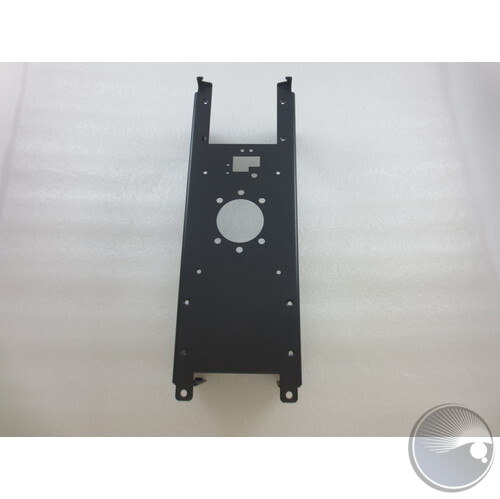

arm connection bracket PRO-5R-A02-02 (BOM#109)PTH1010102197281arm connection bracket PRO-5R-A02-02 (BOM#109)
PTH1010102197301arm bracket cover board PRO-5R-A02-03 (BOM#60)
PTH1010102197441tilt magnetic sensor bracket PRO-5R-A02-10 (BOM#44)
PTH1010102197581pan lock pick PRO-5R-A02-17 (BOM#85)
tilt strap barrier PRO-5R-A02-19 (BOM#39)PTH1010102197621tilt strap barrier PRO-5R-A02-19 (BOM#39)
PTH1010102198101lens flange press board PRO-5R-A03-26 (BOM#166)
PTH1010102230931arm right barrier PRO-5R-A02-01-02 (BOM#59)
PTH1010102230941arm bracket PRO-5R-A02-01-01 (BOM#57)
PTH1010102230951arm left barrier PRO-5R-A02-01-03 (BOM#61)
pan oriantation chip LS440A0213 (BOM#74)PTH1010102250691pan oriantation chip LS440A0213 (BOM#74)
PTH1010102259961dial wheel LS-440-A02-20 (BOM#88)
PTH1010102319221lens bracket PRO-5R-A03-19 (BOM#167)
PTH1010102320091quick lock screw mat board IS-100-A03-01 (BOM#80)
PTH1010102382821head main bracket PRO-7R-A03-01 (BOM#127)
PTH1010102382841back bracket PRO-7R-A03-02 (BOM#125)
PTH1010102382861lamp adjust bracket PRO-7R-A03-03 (BOM#120)

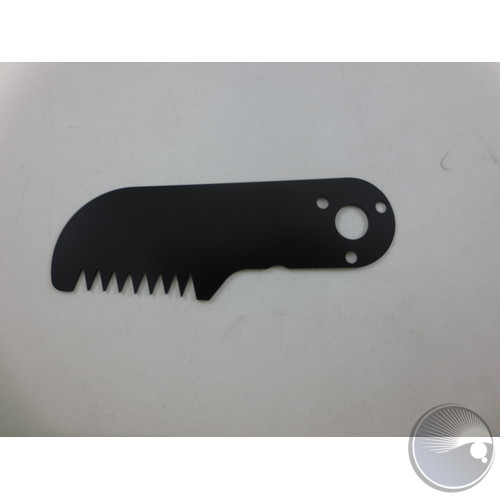

shutter 1 PRO-7R-A03-04 (BOM#132)PTH1010102382871shutter 1 PRO-7R-A03-04 (BOM#132)

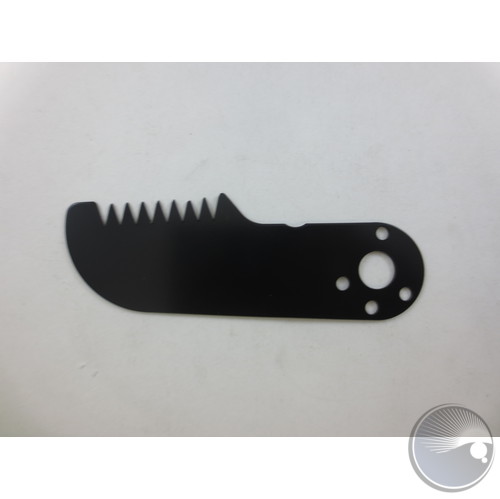

shutter 2 PRO-7R-A03-05 (BOM#131)PTH1010102382891shutter 2 PRO-7R-A03-05 (BOM#131)
PTH1010102382911lamp wiring bracket PRO-7R-A03-06 (BOM#190)
PTH1010102382951prism motor bracket PRO-7R-A03-08 (BOM#150)
PTH1010102382991magnetic sensor bracket PRO-7R-A03-10 (BOM#178)
PTH1010102386151PCB bracket PRO-7R-A02-01 (BOM#72)
PTH1010102409271net PRO-5R-A03-24 (BOM#143)
PTH1010102410221arm front barrier PRO-5R-A02-01-04 (BOM#56)
PTH1010102411281tilt lock PRO-5R-A02-13 (BOM#49)
PTH1010102412471base board PRO-5R-A01-01 (BOM#5)
PTH1010102412491base side board PRO-5R-A01-07 (BOM#12)

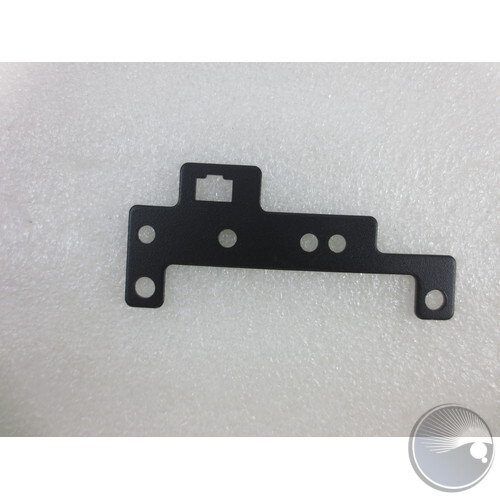

fan bracket PRO-5R-A03-07 (BOM#116)PTH1010102412511fan bracket PRO-5R-A03-07 (BOM#116)
PTH1010102413261power supply bracket PRO-7R-A01-01 (BOM#8)
PTH1010102413271front bracket PRO-7R-A03-14 (BOM#175)
PTH1010102413301front main bracket PRO-7R-A03-15 (BOM#163)
PTH1010102413341wind barrier PRO-7R-A03-17 (BOM#192)
PTH1010102420921arm bracket strengthen board PRO-5R-A02-06 (BOM#107)
PTH1010102425451pan lock wheel PRO-5R-A02-08 (BOM#91)
PTH1010102438801light barrier PRO-7R-A03-18 (BOM#151)
PTH1010102449001fan light barrier PRO-7R-A03-19 (BOM#117)

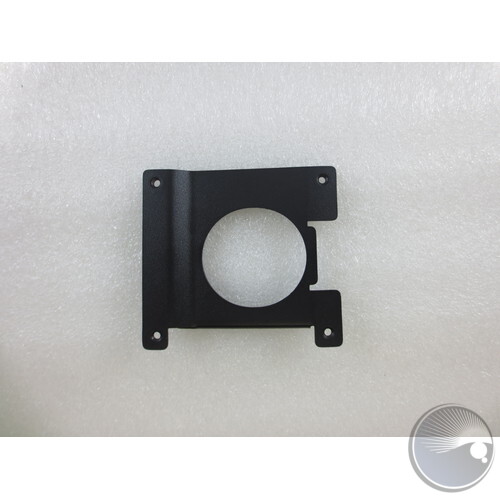

heat sink bracket PRO-7R-A03-11 (BOM#128)PTH1010102459561heat sink bracket PRO-7R-A03-11 (BOM#128)
PTH1010102461521shrapnel PRO-7R-A03-13 (BOM#191)
PTH1010102462961gobo motor bracket PRO-7R-A03-07 (BOM#139)
PTH1010102468611fan bracket PRO-7R-A03-16 (BOM#187)
PTH1010202175031gear DL-312-01 (BOM#113)
PTH1010202175041gear DL-216-01 (BOM#180)
PTH1010202200831lens flange PRO-5R-B01 (BOM#172)
PTH1010202200901pan support post PRO-5R-B14 (BOM#28)
PTH1010202200941pan axis PRO-5R-BZ01 (BOM#67)
PTH1010202200951pan bushing PRO-5R-BZ02 A (BOM#96)
PTH1010202200981tilt bushing 1 PRO-5R-BZ05 A (BOM#52)
PTH1010202200991tilt bushing 2 PRO-5R-BZ06 A (BOM#65)
PTH1010202201001bearing mat cover PRO-5R-BZ07 NR (BOM#94)
PTH1010202205112lamp adjust screw PRO-5R-B15 (BOM#189)
PTH1010202230031mat tube PRO-5R-B22 (BOM#80)
PTH1010202272281gear DL-312-06 (BOM#89)
PTH1010202273981pan oriantation mat cover PRO-200S-B01 (BOM#81)
PTH1010202298671lamp adjust block DJ3RB09 (BOM#86)
gear DL-396-06 (BOM#79)PTH1010202359381gear DL-396-06 (BOM#79)
PTH1010202383061gobo wheel main axis PRO-7R-B01 (BOM#135)

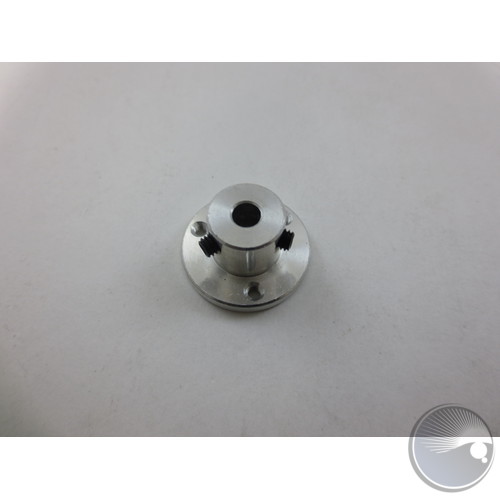

shutter flange PRO-2R-B01 (BOM#130)PTH1010202410241shutter flange PRO-2R-B01 (BOM#130)
PTH1010202413361lens slider PRO-7R-B04 (BOM#168)
PTH1010202413371focus slide cover PRO-7R-B05 (BOM#169)
PTH1010202413591wind guide cover PRO-7R-B06 (BOM#188)
PTH1010202413621gear DL-378-01 D (BOM#49)
PTH1010202425661pan oriantation post 2 PRO5RB19 (BOM#71)
PTH1010401158591aluminum post ?6×6M3 (BOM#178)
PTH1010401158812standoff 623 M3 (BOM#214)
PTH1010401158831aluminum post ?6×25M3 (BOM#170)

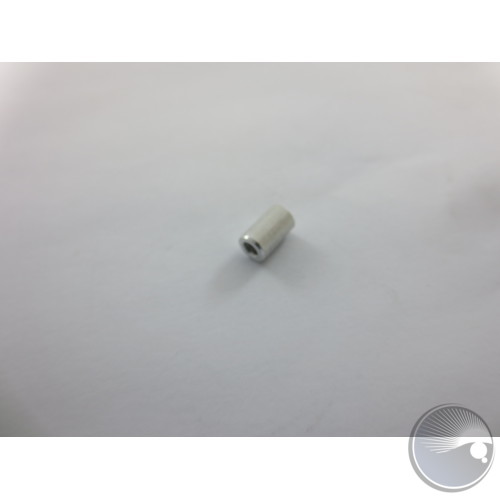

aluminum post 58 M3 (BOM#133)PTH1010401161961aluminum post 58 M3 (BOM#133)
PTH1010401173601magnetic post 66 M3 3.13 (BOM#177)
aluminum post ?5×98 M3 (BOM#57)PTH1010401173721aluminum post ?5×98 M3 (BOM#57)
PTH1010401286741aluminum post 594 (BOM#108)
PTH1010402163022aluminum tube 56 3.2 (BOM#171)
PTH1010402163221aluminum tube ?6×5?3.2 (BOM#141)
aluminum tube ?6×2.5?4.2 (BOM#44)PTH1010402163611aluminum tube ?6×2.5?4.2 (BOM#44)
PTH1010402163621aluminum tube ?6×3?3.2 (BOM#81)
PTH1010402163641standoff 64 3.2 (BOM#235)
PTH1010402208531aluminum post ?10×3.5?5.2 (BOM#44)
PTH1010402215471aluminum tube ?6×2.5 ?3.2 (BOM#41)
PTH1010402312691Aluminum Tube 6x1.5 3.2 (BOM#300)
PTH1010402315591aluminum tube 61.33.2 (BOM#45)
PTH1010403164891aluminum post H849 M4 (BOM#174)
PTH1010403165581aluminum post H6×12 M3 (BOM#97)
PTH1010403165671aluminum post H6×21 M3 (BOM#72)
PTH1010403165731aluminum post H6×27M3 (BOM#137)
PTH1010403166541aluminum post H811.5 M4 (BOM#126)

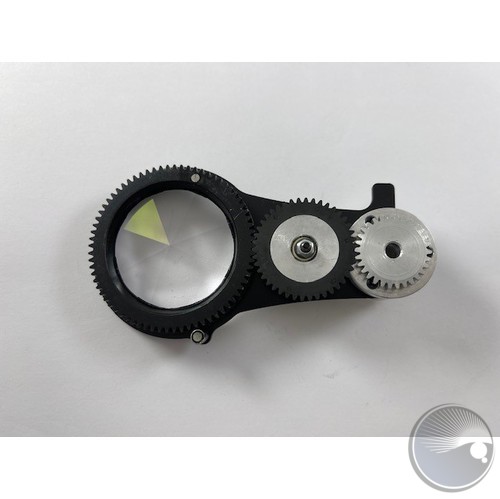

8 facet prism PRO-7R Moving Beam (BOM#159)PTH10400004629818 facet prism PRO-7R Moving Beam (BOM#159)

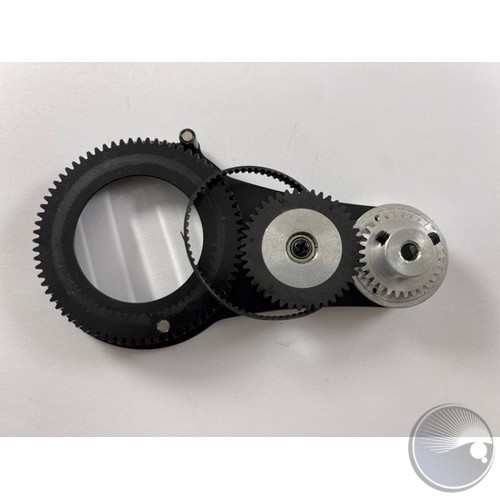

5 facet prism PRO-7R Moving Beam (BOM#157)PTH10400004630115 facet prism PRO-7R Moving Beam (BOM#157)

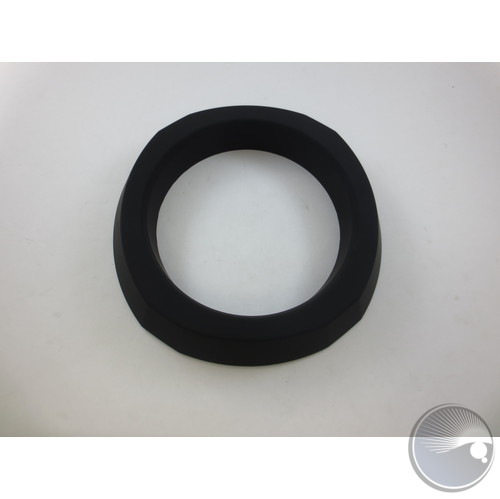

lens cover PRO-5R-C05 (BOM#176)PTH1060100181891lens cover PRO-5R-C05 (BOM#176)

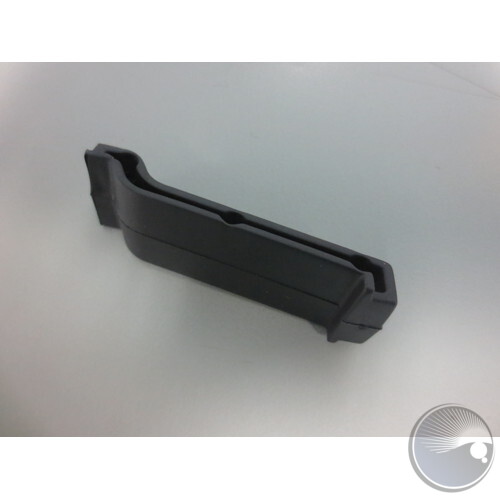

short rubber tape PRO-5R-C06 (BOM#184)PTH1060100181901short rubber tape PRO-5R-C06 (BOM#184)

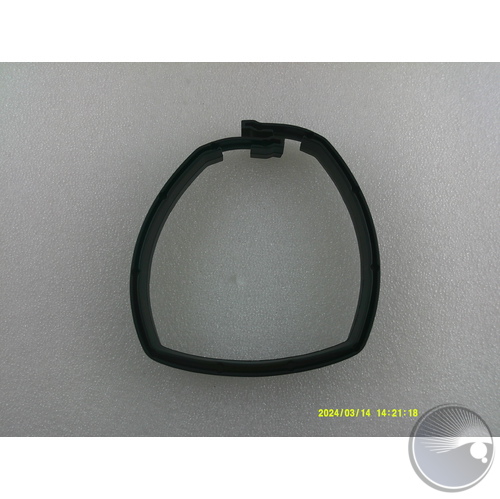

long rubber tape PRO-5R-C07 (BOM#185)PTH1060100181911long rubber tape PRO-5R-C07 (BOM#185)

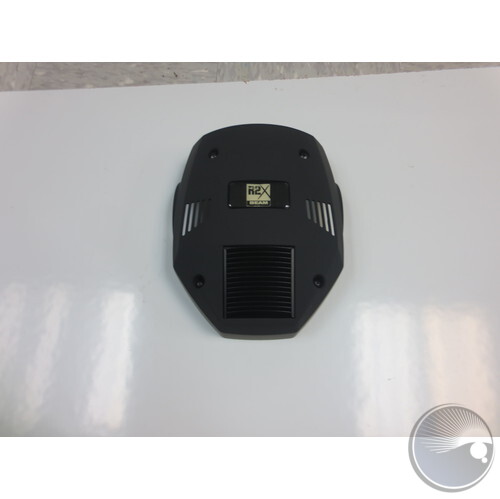

head cover PRO-5R-C04 (BOM#144)PTH1060100425421head cover PRO-5R-C04 (BOM#144)
display lens cover CDC39×32×2.5 (BOM#9)PTH1060200181811display lens cover CDC39×32×2.5 (BOM#9)
PTH1060200205161optocoupler cover PRO-5R-C09 (BOM#59)
PTH14HY00620stepper motor 14HY00620 (BOM#23)
PTH14HY00630stepper motor 14HY00630 (BOM#51)
Locking Washer for Fast LockPTH152000222Locking Washer for Fast Lock
DMX board DMX012B (BOM#40)PTH2020302267381DMX board DMX012B (BOM#40)
PTH2020302385931Display PCB MH067 H (BOM#4)

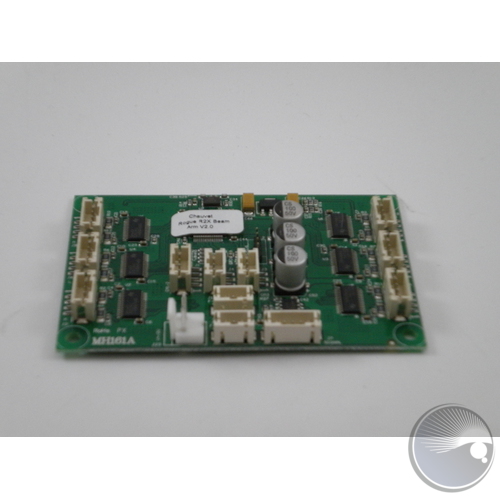

motor driver PCB MH161A (BOM#73)PTH2020302393071motor driver PCB MH161A (BOM#73)
PTH2020302395561magentic sensor HE-21 A (BOM#160)
magnetic sensor HE-10 D (BOM#3)PTH2020302426921magnetic sensor HE-10 D (BOM#3)
magnetic sensor HE-24 (BOM#82)PTH2020302431221magnetic sensor HE-24 (BOM#82)
motor driver PCB MH160 A (BOM#75)PTH2020302461751motor driver PCB MH160 A (BOM#75)

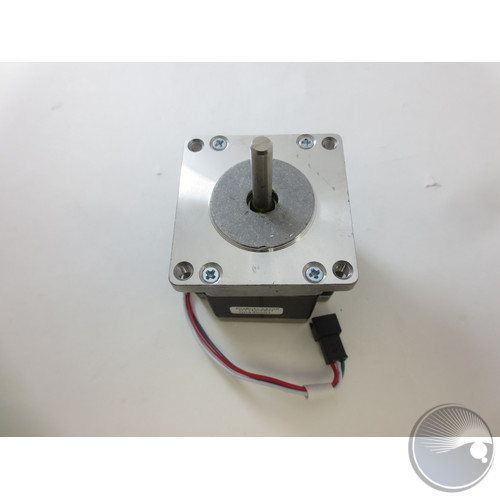

stepper motor 24HEG5207C-30-500 (BOM#81)PTH2030100445551stepper motor 24HEG5207C-30-500 (BOM#81)
stepper motor 16HY018-18H (BOM#169)PTH2030101100901stepper motor 16HY018-18H (BOM#169)

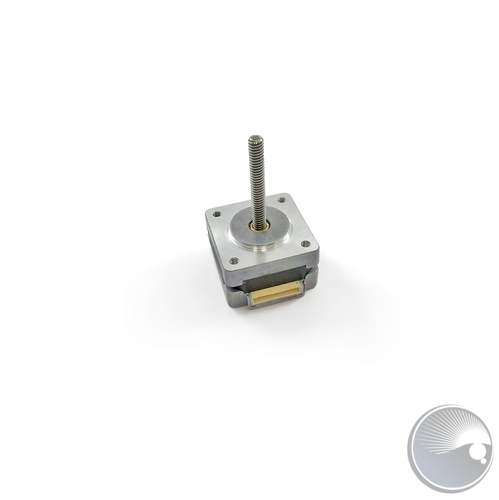

stepper motor 35SHD0303T1 (BOM#117)PTH2030101176811stepper motor 35SHD0303T1 (BOM#117)
PTH2030102412781stepper motor 39SHA6002C-10 (BOM#147)
stepper motor 24HC430807C (BOM#48)PTH2030117179931stepper motor 24HC430807C (BOM#48)
FAN DC 12V 0.13A DFL6010B - 2-pin female 2.0 (BOM#124)PTH2030201101291FAN DC 12V 0.13A DFL6010B - 2-pin female 2.0 (BOM#124)

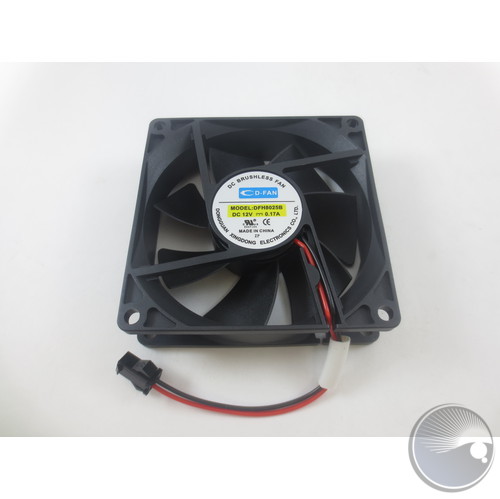

fan DFH8025B (BOM#115)PTH2030201101321fan DFH8025B (BOM#115)
fan 12V?0.20A DFL7015B 2-pin female 2.54 (BOM#29)PTH2030201101351fan 12V?0.20A DFL7015B 2-pin female 2.54 (BOM#29)

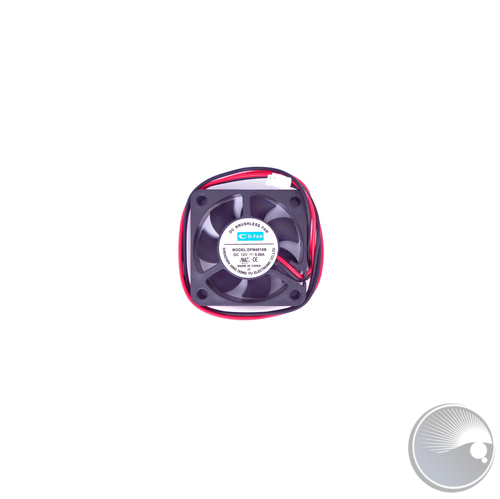

fan 12V?0.08A DFM4010B (BOM#53)PTH2030201180651fan 12V?0.08A DFM4010B (BOM#53)
fan MF50151VX-B00C-G99 (BOM#286)PTH2030202455621fan MF50151VX-B00C-G99 (BOM#286)
PTH2030700310081POWER SUPPLY H17U100D+1228 (BOM#20)

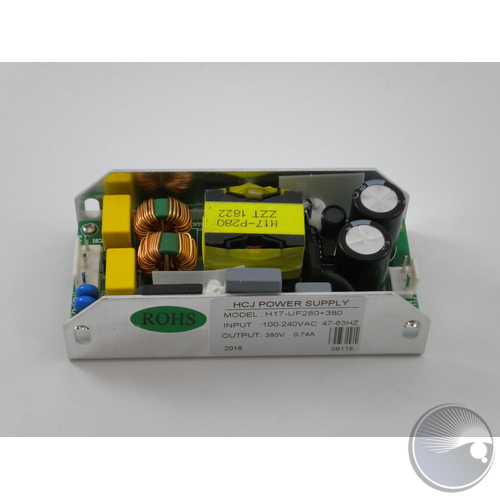

power supply H17-UF280380 (BOM#10)PTH2030700388811power supply H17-UF280380 (BOM#10)
PTH2040000310521frost PRO-7R Moving Beam (BOM#153)

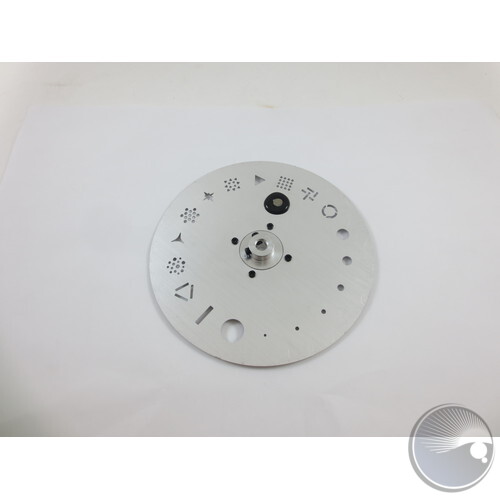

static gobo wheel PRO-7R Moving Beam (BOM#136)PTH2040000383051static gobo wheel PRO-7R Moving Beam (BOM#136)

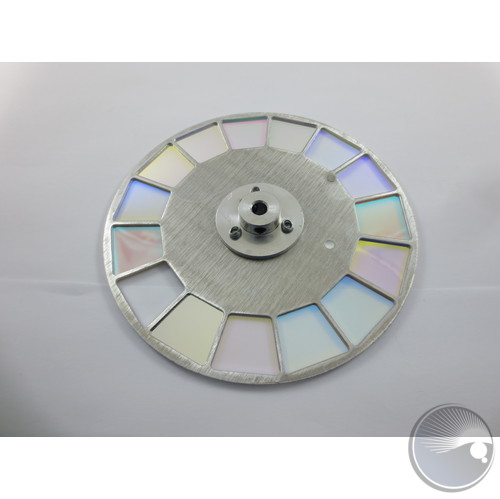

color wheel PRO-7R Moving Beam (BOM#137)PTH2040000461731color wheel PRO-7R Moving Beam (BOM#137)

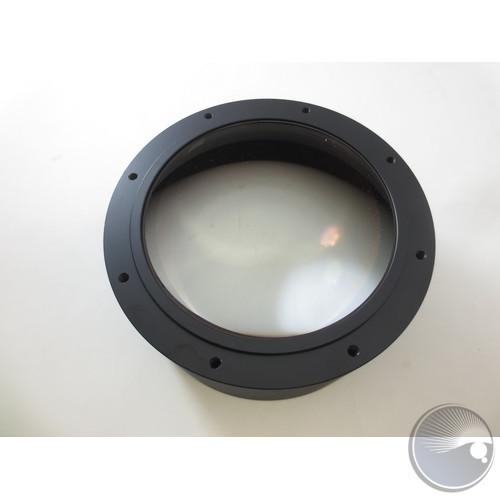

objective lens A152-120R (BOM#173)PTH2040107174181objective lens A152-120R (BOM#173)
heat sink 22.5×45×2.0mm (BOM#96)PTH2041002174211heat sink 22.5×45×2.0mm (BOM#96)
PTH2070501383541black sticker PRO-7R CMY Moving Beam (BOM#42)
screw M8×35 (BOM#13)PTH2080502127961screw M8×35 (BOM#13)
screw M8×90 (BOM#31)PTH2080502179851screw M8×90 (BOM#31)
screw M8 (BOM#69)PTH2081002126951screw M8 (BOM#69)
1/4 quick lock screw ?12×?6×18.5 (BOM#105)PTH20817003845411/4 quick lock screw ?12×?6×18.5 (BOM#105)
PTH20817003845511/4 quick lock shrapnel 33×20×10 (BOM#82)
PTH20817003845611/4 quick lock ring ?12.5 (BOM#81)
syncronization strap 3M-492-9mm (BOM#40)PTH2090101256262syncronization strap 3M-492-9mm (BOM#40)

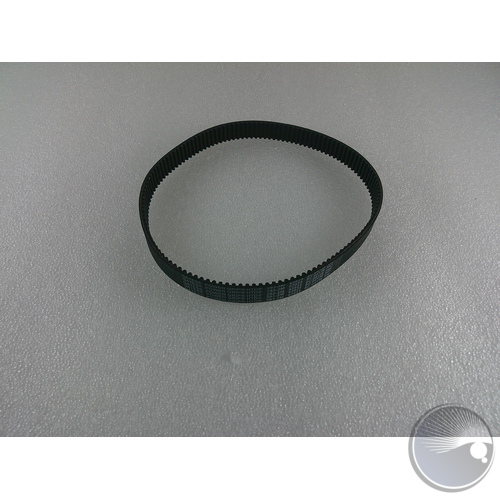

syncronization strap 3M-393-12mm (BOM#90)PTH2090101412211syncronization strap 3M-393-12mm (BOM#90)
PTH2090102281311syncronization strap B118MXL-3mm (BOM#179)
axletree 6006Z (BOM#9)PTH2090201171681axletree 6006Z (BOM#9)
PTH2090201179421bearing 6206ZZ 30x62x16 (BOM#74)
PTH2090400171611rubber ring ?6 (BOM#122)
machine feet GL-012 (BOM#2)PTH2090400177052machine feet GL-012 (BOM#2)
PTH2090400177073plasctic standoff H615 (BOM#24)
PTH2090400254311wire rubber ring ?8×?18 (BOM#166)
silicone cover 14.5×2.5×30 (BOM#87)PTH2090400264101silicone cover 14.5×2.5×30 (BOM#87)
silicone cover 14.5×2×16 (BOM#54)PTH2090400279431silicone cover 14.5×2×16 (BOM#54)
fan net 7×7 (BOM#19)PTH2090500170761fan net 7×7 (BOM#19)
Quick lock (BOM#72)PTH2090500180071Quick lock (BOM#72)
spring ?10×38×1.2 (BOM#78)PTH2090601173371spring ?10×38×1.2 (BOM#78)
press spring ?8×35×0.8 (BOM#59)PTH2090602168741press spring ?8×35×0.8 (BOM#59)
PTH2090602303631spring ?6×9×0.8 (BOM#85)

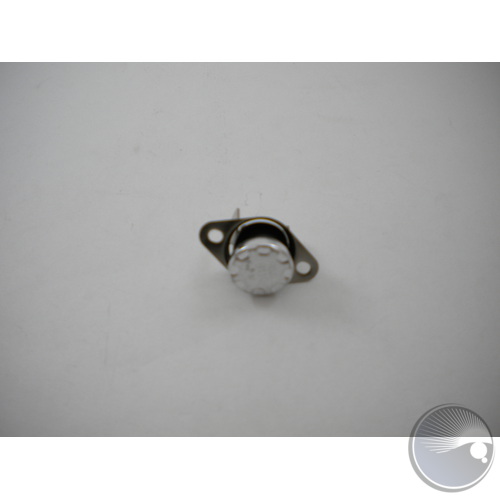

temperature controller sensor 110° 250V 10A (BOM#135)PTH2090702210621temperature controller sensor 110° 250V 10A (BOM#135)
POWER SUPPLY switch RF1004 (BOM#49)PTH2090704169132POWER SUPPLY switch RF1004 (BOM#49)
silicone tube 69 (BOM#138)PTH2091004169231silicone tube 69 (BOM#138)
silicone tube ?3×4 (BOM#121)PTH2091004210162silicone tube ?3×4 (BOM#121)
PTH2091101179061copper post 3×6+6 (BOM#194)
axis circlip ?30×1.2 (BOM#55)PTH2091302169581axis circlip ?30×1.2 (BOM#55)
PTH2091302381391bearing circlip DIN471?8 (BOM#133)
magnet ?3×3 (BOM#159)PTH2091400168401magnet ?3×3 (BOM#159)
magnet ?3×3 (BOM#77)PTH2091400234741magnet ?3×3 (BOM#77)
PTH2091400448521magnet 52 (BOM#138)
PTH2091500391521steel rope JL201A1.0mm×15cm (BOM#120)
PTH2091700179151half open round magnetic ring SCRC 16×16×8 (BOM#50)
PTH2091700179161magnetic ring ?20×10×10 (BOM#160)
PTH2091700179171square magnetic ring SCRC 130A 293032 (BOM#33)
PTH2091700179181magnetic ring F2 RH26×28.5×13 (BOM#161)

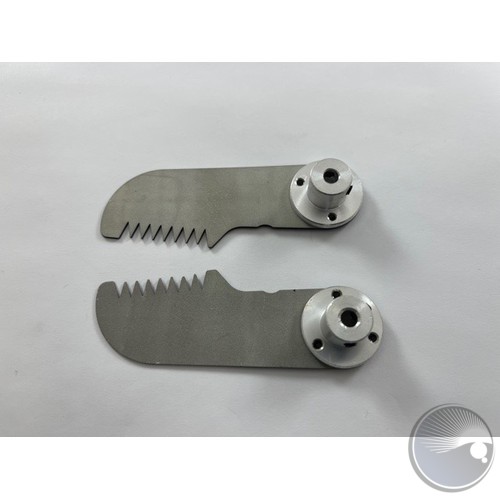

Shutter blade assemblyPTH210200013013Shutter blade assembly
magnetic sensor HE-11 (BOM#37)PTH280100706magnetic sensor HE-11 (BOM#37)
optocoupler pcb AGD004 B (BOM#70)PTH28AGD004Boptocoupler pcb AGD004 B (BOM#70)
axletree 6906Z (BOM#12)PTH9006906axletree 6906Z (BOM#12)
circlip cover EX300BZ07 (BOM#54)PTHEX300BZ07circlip cover EX300BZ07 (BOM#54)
pan mat chip EX575A0120 (BOM#74)PTHEX575A0120pan mat chip EX575A0120 (BOM#74)
copper screw EX575B03 (BOM#82)PTHEX575B03copper screw EX575B03 (BOM#82)
base bracket PRO-5R-A01-02 (BOM#30)PTHPRO5RA0102base bracket PRO-5R-A01-02 (BOM#30)
base face cover PRO-5R-A01-06 (BOM#16)PTHPRO5RA0106base face cover PRO-5R-A01-06 (BOM#16)
magnetic ring press board PRO-5R-A01-10 (BOM#34)PTHPRO5RA0110magnetic ring press board PRO-5R-A01-10 (BOM#34)
PTHPRO5RA0116display board cover PRO-5R-A01-04 (BOM#2)
PTHPRO5RA0204tilt motor bracket PRO-5R-A02-04 (BOM#93)
pan motor bracket PRO-5R-A02-05 (BOM#63)PTHPRO5RA0205pan motor bracket PRO-5R-A02-05 (BOM#63)
tilt lock pick PRO-5R-A02-12 (BOM#53)PTHPRO5RA0212tilt lock pick PRO-5R-A02-12 (BOM#53)
tilt lock support board PRO-5R-A02-14 (BOM#52)PTHPRO5RA0214tilt lock support board PRO-5R-A02-14 (BOM#52)
pan lock bracket PRO-5R-A02-15 (BOM#89)PTHPRO5RA0215pan lock bracket PRO-5R-A02-15 (BOM#89)
pan lock hook PRO-5R-A02-16 (BOM#88)PTHPRO5RA0216pan lock hook PRO-5R-A02-16 (BOM#88)
pan lock cover board PRO-5R-A02-18 (BOM#85)PTHPRO5RA0218pan lock cover board PRO-5R-A02-18 (BOM#85)
dial (BOM#51&59)PTHPRO5RA0220dial (BOM#51&59)
PTHPRO5RB11pan lock mat cover PRO-5R-B11 (BOM#71)
tilt lock block PRO-5R-B12 (BOM#49)PTHPRO5RB12tilt lock block PRO-5R-B12 (BOM#49)
tilt lock mat cover PRO-5R-B13 (BOM#51)PTHPRO5RB13tilt lock mat cover PRO-5R-B13 (BOM#51)
pan oriantation post 1 PRO-5R-B18 (BOM#68)PTHPRO5RB18pan oriantation post 1 PRO-5R-B18 (BOM#68)
PTHPRO5RBZ03tilt axis 1 PRO-5R-BZ03 (BOM#46)
PTHPRO5RBZ04tilt axis 2 PRO-5R-BZ04 (BOM#48)
base front cover PRO-5R-C01 (BOM#1)PTHPRO5RC01base front cover PRO-5R-C01 (BOM#1)
base side cover PRO-5R-C02 (BOM#7)PTHPRO5RC02base side cover PRO-5R-C02 (BOM#7)
arm cover PRO-5R-C03 (BOM#36)PTHPRO5RC03arm cover PRO-5R-C03 (BOM#36)
handle PRO-5R-C08 (BOM#12)PTHPRO5RC08handle PRO-5R-C08 (BOM#12)
Panel mount fuse holder (BOM#29)PTJ3027001001Panel mount fuse holder (BOM#29)
UPLOAD08UPLOAD08/MR UPLOAD (CPMOVEUP) ***Order from Location 1***
USSR231***LOC1***lamp SIRIUS HRI 231W (BOM#118)

Es sind leider keine Geräte verfügbar.

Es kann vorkommen, dass in unserem Lager noch gebrauchte Geräte vorhanden sind. Fragen Sie gerne über unsere Service-Hotline +49 871 40875521 oder per Email info@lights-whatever.de bei uns nach. Wir helfen Ihnen gerne weiter!

Bewertungen lesen, schreiben und diskutieren... mehr
Kundenbewertungen für "Rogue R2X Beam"
Bewertung schreiben
Bewertungen werden nach Überprüfung freigeschaltet.

Die mit einem * markierten Felder sind Pflichtfelder.

Ich habe die Datenschutzbestimmungen zur Kenntnis genommen.

Zuletzt angesehen
