- Artikel-Nr.: ROGUER3BEAM

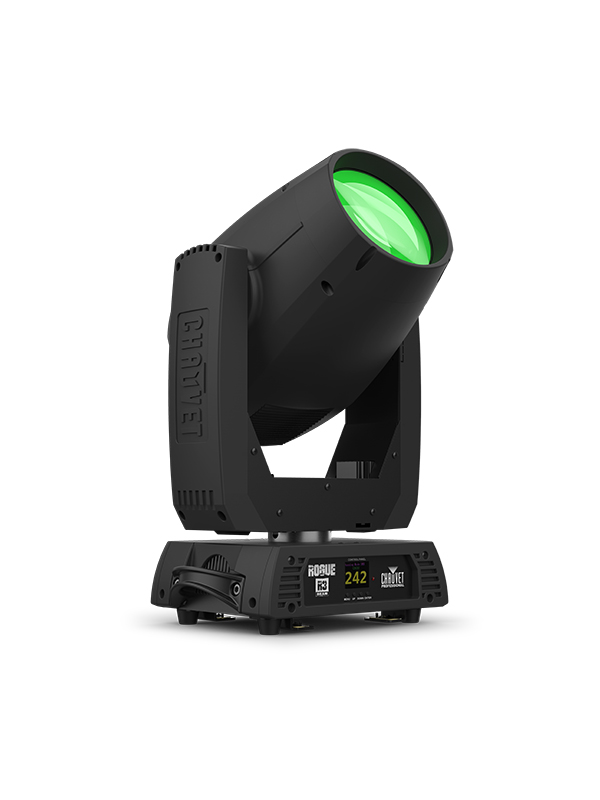

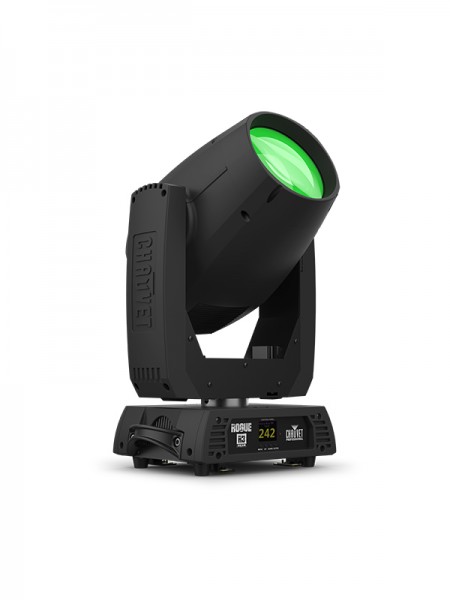

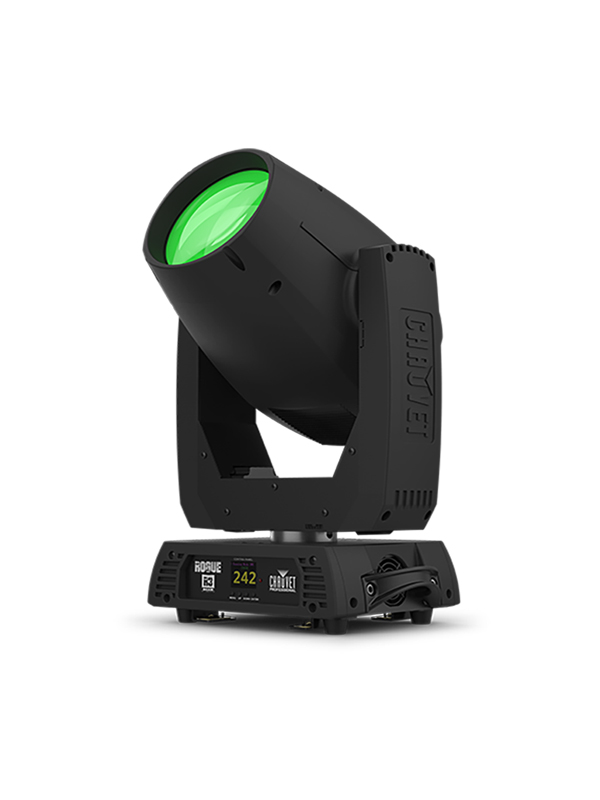

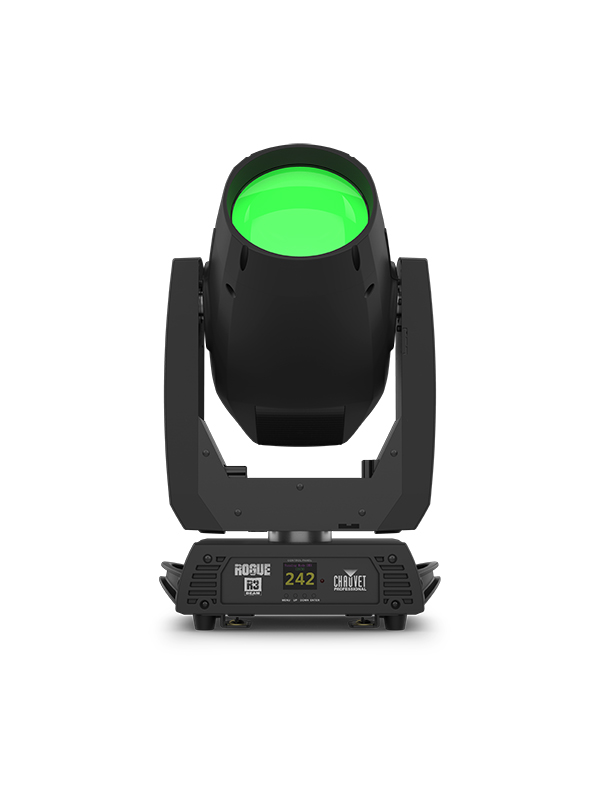

Rogue R3 Beam
Rogue R3 Beam is the light cannon of the Rogue series, outputting over 208,000 lux at 15 meters from its 300 W Ushio NSL lamp. This fully-featured beam can be focused down to 0.8° degrees for extremely focused aerial effects alongside motorized frost and focus options. A color wheel equipped with 14 colors complimented by a gobo wheel with 17 gobos give you a wealth of dynamic effects, and both wheels are fully scrollable at variable speeds. Additionally, the unit features individually overlapping 8 and 24-facet prisms for an endless supply of creative beam looks. The unit is equipped with RDM and DMX protocols and features multiple control personalities.
AT A GLANCE
-
Fully featured, high powered beam fixture with a single color wheel, single static gobo wheel, layerable prisms, and 300 W Ushio NSL lamp rated at 8,000 hours life
-
Fast and precise movement of pan and tilt functions
-
Individually controllable and layerable 8- and 24-facet prisms
-
Frost for even light distribution
-
Tight 0.8° beam for extremely focused areal effects
-
RDM enabled for remote addressing and troubleshooting
-
17 static gobos for massive visual impact
SPECIFICATIONS
OPTICAL
- Light Source: 300W NSL Ushio lamp, 8000 K (color temp), 8,000 hours life expectancy
- Color Temperature (at full): 7657 K
- CRI: 80.8

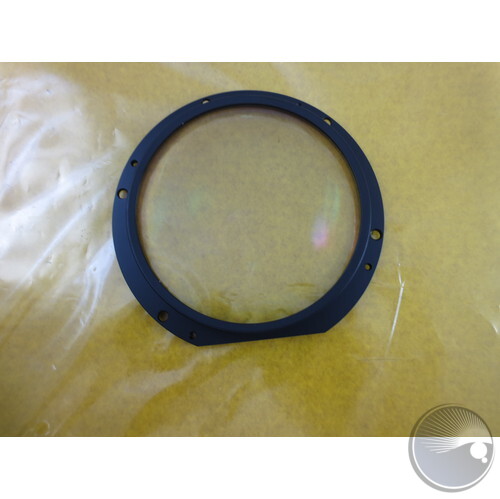

- Front Lens Diameter: 153 mm
- Beam Angle: 0.8°
- Field Angle: 1.6°
- Cutoff Angle: 2°
- Lumens – Output: 30,878
- Illuminance (total): 208,006 lux @ 15 m
DYNAMIC EFFECTS
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
- Colors: 14 + white, split colors, continuous scroll at variable speeds
- Gobos : 17 + open (17 metal), continuous scroll at variable speeds
- Dimmer: Motorized
- Shutter/Strobe: Motorized
- Focus: Motorized
- Frost: Motorized
- Prism: 8 facets, motorized, rotating
- Prism: 24 facets, motorized, rotating
- Strobe Rate: 0 to 15 Hz
- Move in Black: Yes
CONSTRUCTION / PHYSICAL
- Dimensions: 12.79 x 8.66 x 21.65 in (325 x 220 x 550 mm)
- Weight: 34.4 lb (15.6kg)
- Exterior Color: Black
- Housing Material: High-impact flame-retardant polymer

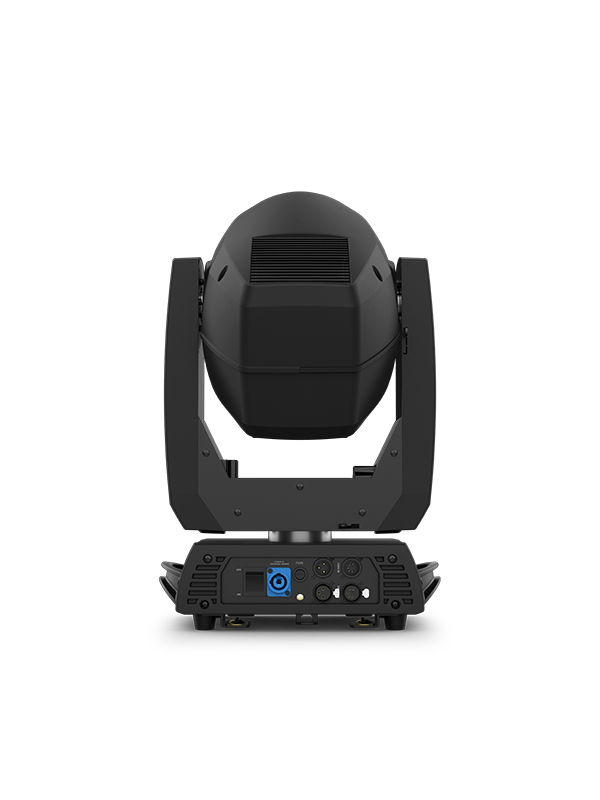

CONNECTIONS
- Power Connection: Edison (Local) plug to Neutrik
- Power Input: Neutrik powerCON
- Power Output: Neutrik® powerCON®
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
CONTROL
- Control Protocol: DMX, RDM
- DMX Channels: 16 or 19
- Modes/Personalities: 2 personalities (16, 19)
ELECTRICAL
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 422 W, 4.20 A @ 100 V, 60 Hz
- Power and Current: 418 W, 3.55 A @ 120 V, 60 Hz
- Power and Current: 411 W, 1.98 A @ 208 V, 60 Hz
- Power and Current: 411 W, 1.78 A @ 230 V, 50 Hz
- Power and Current: 406 W, 1.68 A @ 240 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
- CE, MET
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
- Rogue R3 Beam
- Neutrik powerCON power cord
- 2 Omega brackets with mounting hardware
OPTIONAL ACCESSORIES
- Professional Clamps: CTC-50HC, CTC-50HCN
- Safety Cable: SC-07
- DMX cables
- Flight Case: #CP2CASER2XR3SPOT
- UPLOAD 08 software uploader
