Ovation CYC 1FC

1.130,50 € *

inkl. MwSt. zzgl. Versandkosten

Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.

  • OVATIONCYC1FC
Ovation  CYC 1 FC Ovation CYC 1 FC is an incredibly sleek, discreet, and light weight... mehr
Produktinformationen "Ovation CYC 1FC"

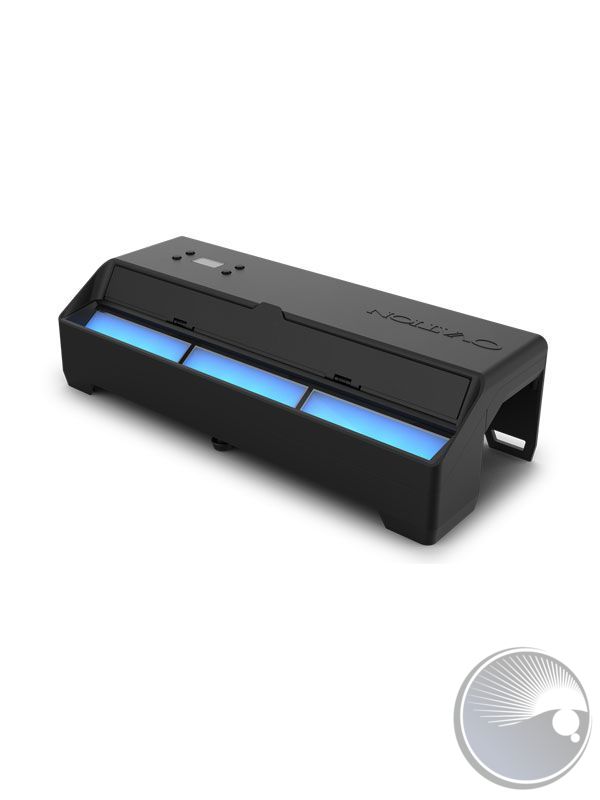

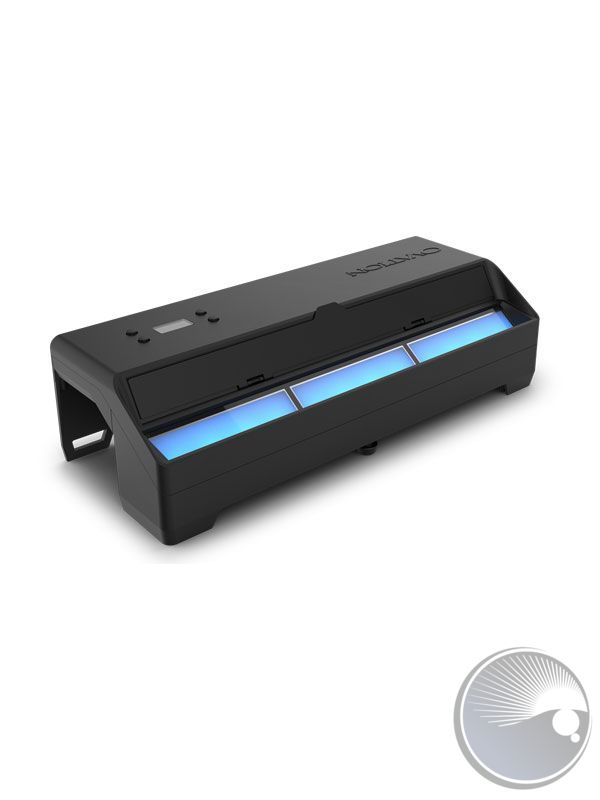

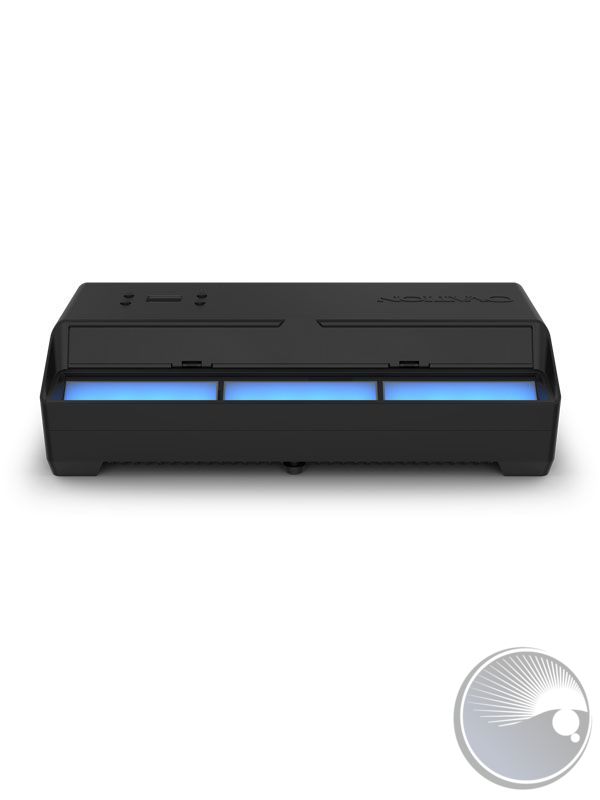

Ovation CYC 1 FC

Ovation CYC 1 FC is an incredibly sleek, discreet, and light weight CYC that delivers a wide, smooth field of light with significant reach. Completely convection cooled, the unit is ideal for applications where silent operation is critical. Ovation Cyc 1 FC features the advanced RGBAL color-mixing system found in our other Full Color Ovation units to render nearly any color with tremendous realism and saturation. Given the low-profile of the unit, it can also be used effectively as a footlight. The versatile fixture has an integrated kick stand and included glare shield that can adjust and shape its throw and also features an included omega bracket.

AT A GLANCE

  • Low-profile and lightweight cyclorama wash or footlight fixture

  • Display a full spectrum of hues with RGBAL LEDs for theatre, film and production

  • Theatre-ready with 16-bit dimming of master dimmer and individual colors

  • Beam modification with built in “kick stand” and adjustable glare shield

  • Flat, even field of light with superior color mixing

  • Virtual Color wheel with color matched to popular gel colors and color temperature presets

  • RDM (Remote Device Management) for added flexibility

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • Silent operation for use in studio and theatre applications

SPECIFICATIONS

OPTICAL

  • Light Source: 60 LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime) 1.75 to 4.57 W, (1.4 A), 6935 K, 50,000 hours life expectancy.
  • Color Temperature (range): 2800 to 6500 K
  • CRI (3200 K): 81.1
  • Beam Angle: 81.1° (Horizontal)
  • Beam Angle: 87.1° (Vertical)
  • Field Angle: 124.6° (Horizontal)
  • Field Angle: 148.1° (Vertical)
  • Lumens: 8,966
  • Illuminance: 210 lux @ 5 m
  • PWM Frequency: 600, 1200, 2000, 4000, 6000, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 27 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No
  • Recall Custom Programs: No

CONSTRUCTION / PHYSICAL

  • Dimensions: 16.14 x 6.29 x 4.33 in (410 x 160 x 110 mm)
  • Weight: 9 lb (4.2 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 2, 4, 5, 8, 11, 13, 14, 16 or HSV
  • Modes/Personalities: 9 personalities (2, 4, 5, 8, 11, 13, 14, 16 HSV)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 11 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V
  • Power and Current: 139 W, 1.14 A @ 120 V, 60 Hz
  • Power and Current: 137 W, 0.64 A @ 208 V, 60 Hz
  • Power and Current: 137 W, 0.58 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

  • OVATION CYC-1FC
  • Neutrik powerCON power cord
  • Omega bracket with mounting hardware

OPTIONAL ACCESSORIES

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Neutrik® powerCON® cables
  • 3-pin or 5-pin DMX Cables
Weiterführende Links zu "Ovation CYC 1FC"

PTF1001002202Aviation plug power output socket (BOM#2)
PTF1001002302Power socket (Blue) IP44 55-210351-15 31.2x26.5x35 CE ROSH UL (BOM#18)
PTF2700003804US Powercon Cable (Type B NEMA 5-15 Style)
140Dmm OMEGA BRACKET (BOM#34)PTH1040000230891140Dmm OMEGA BRACKET (BOM#34)
DMX IN PCB (BOM#4)PTJ2020202367DMX IN PCB (BOM#4)
DMX OUT PCB (BOM#21)PTJ2020202368DMX OUT PCB (BOM#21)

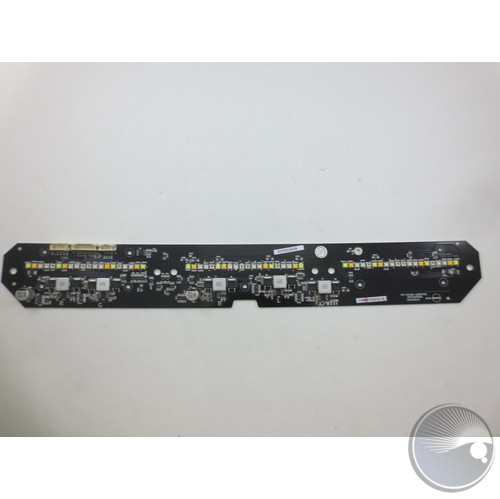

LED PCB (BOM#29)PTJ2020202950BLED PCB (BOM#29)

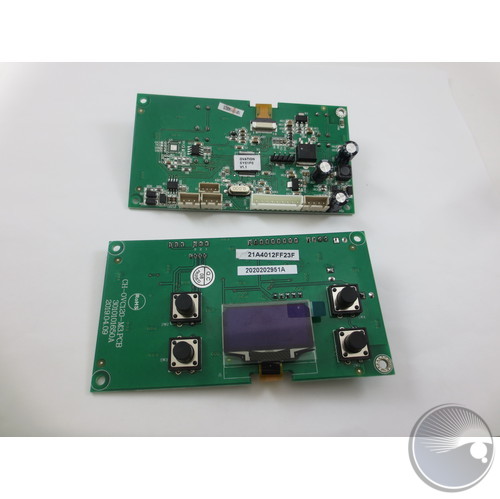

MPCB/DISPLAY (BOM#14)PTJ2020202951AMPCB/DISPLAY (BOM#14)
PTJ3019001043BUTTON COVER (BOM#12)

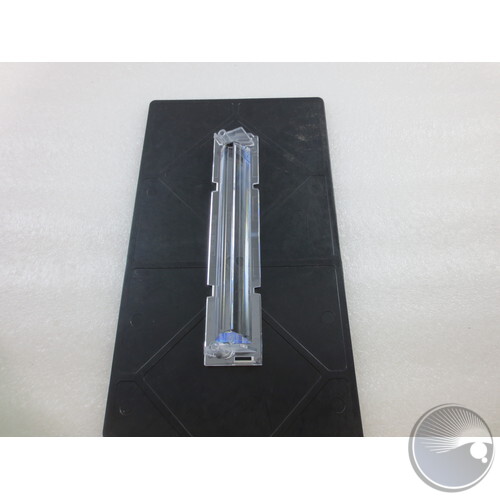

LENS (BOM#28)PTJ3020100490LENS (BOM#28)
PTJ3020200073DISPLAY CLEAR LENS(BOM#7)

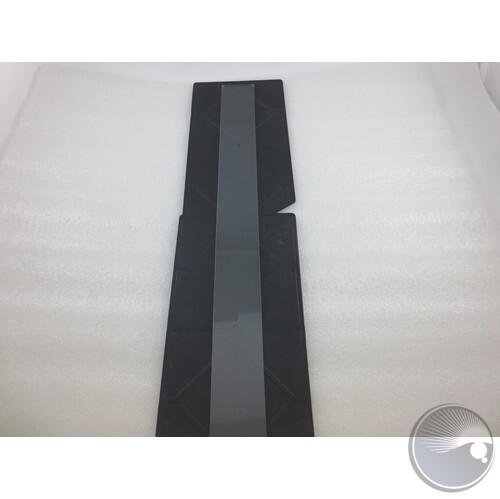

FRONT GLASS (BOM#25)PTJ3020200378FRONT GLASS (BOM#25)
PTJ302030068320 DEGREE FILTER (BOM#26)
POWER SUPPLY (BOM#10)PTJ3020400288POWER SUPPLY (BOM#10)
PTJ3021300263CUSHION RUBBER FOR GLASS LENS (BOM#24)
PTJ3021700560LOCK NUT (BOM#18)

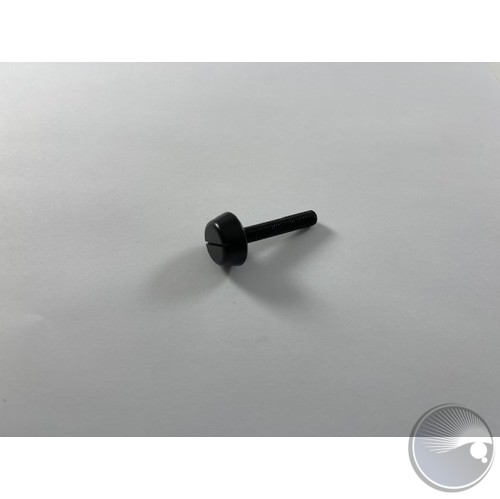

REGULATING SCREW (BOM#30)PTJ3021701180REGULATING SCREW (BOM#30)
PTJ3021701181ALINT 1 (BOM#3)
PTJ3021701182LINT 2 (BOM#2)
PTJ3021701183LINT 3 (BOM#7)
PTJ3021701184LINT 4 (BOM#22)
PTJ3021701185LINT 5 (BOM#23)
PTJ3021701186LINT 6 (BOM#19)
Panel mount fuse holder (BOM#29)PTJ3027001001Panel mount fuse holder (BOM#29)
PTJ4010302041POWER SOCKET COVER (BOM#19)
CLAMP LOCK (BOM#21)PTJ4010302997CLAMP LOCK (BOM#21)
PTJ4010305378CLAMP LOCK HOLDER (BOM#31)
PTJ4010305379ABARN DOOR ASSEMBLY (BOM#12)
PTJ4010305380BHOLDER SLICE 1 (BOM#13)
PTJ4010305381FRONT LENS FASTEN PLATE (BOM#17)
HOUSING (BOM#9)PTJ4010305383AHOUSING (BOM#9)
PTJ4010402456TOP COVER (BOM#11)
PTJ4020100520REFLECT CUP (BOM#27)
PTJ4020100583HANDLE 1 (BOM#8)
PTJ4020100584HANDLE 2 (BOM#18)
