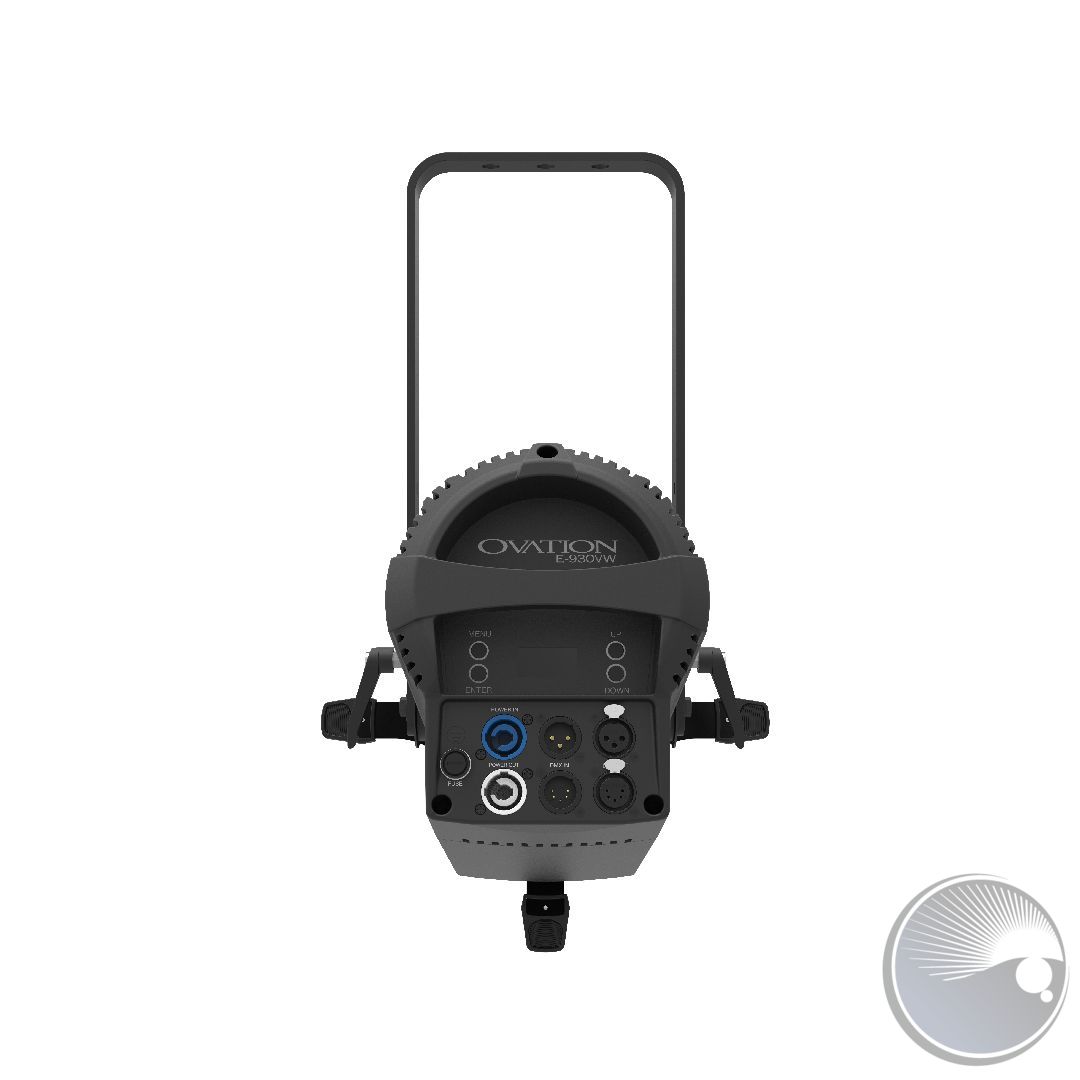

Ovation E-930VW

1.701,70 € *

inkl. MwSt. zzgl. Versandkosten

Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.

  • OVATIONE930VW
Ovation  E-930VW Ovation E-930VW  is a high-performance, variable white... mehr
Produktinformationen "Ovation E-930VW"

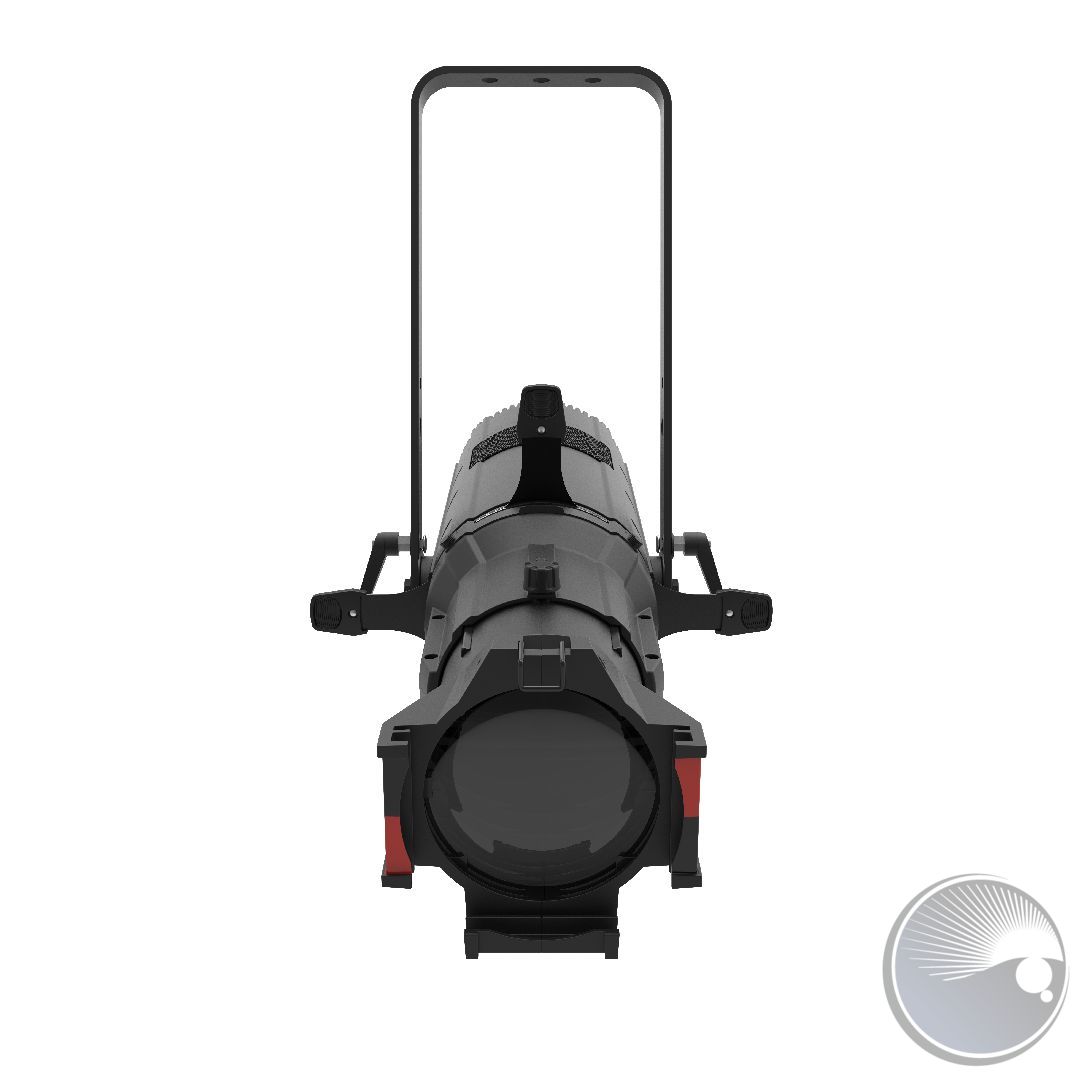

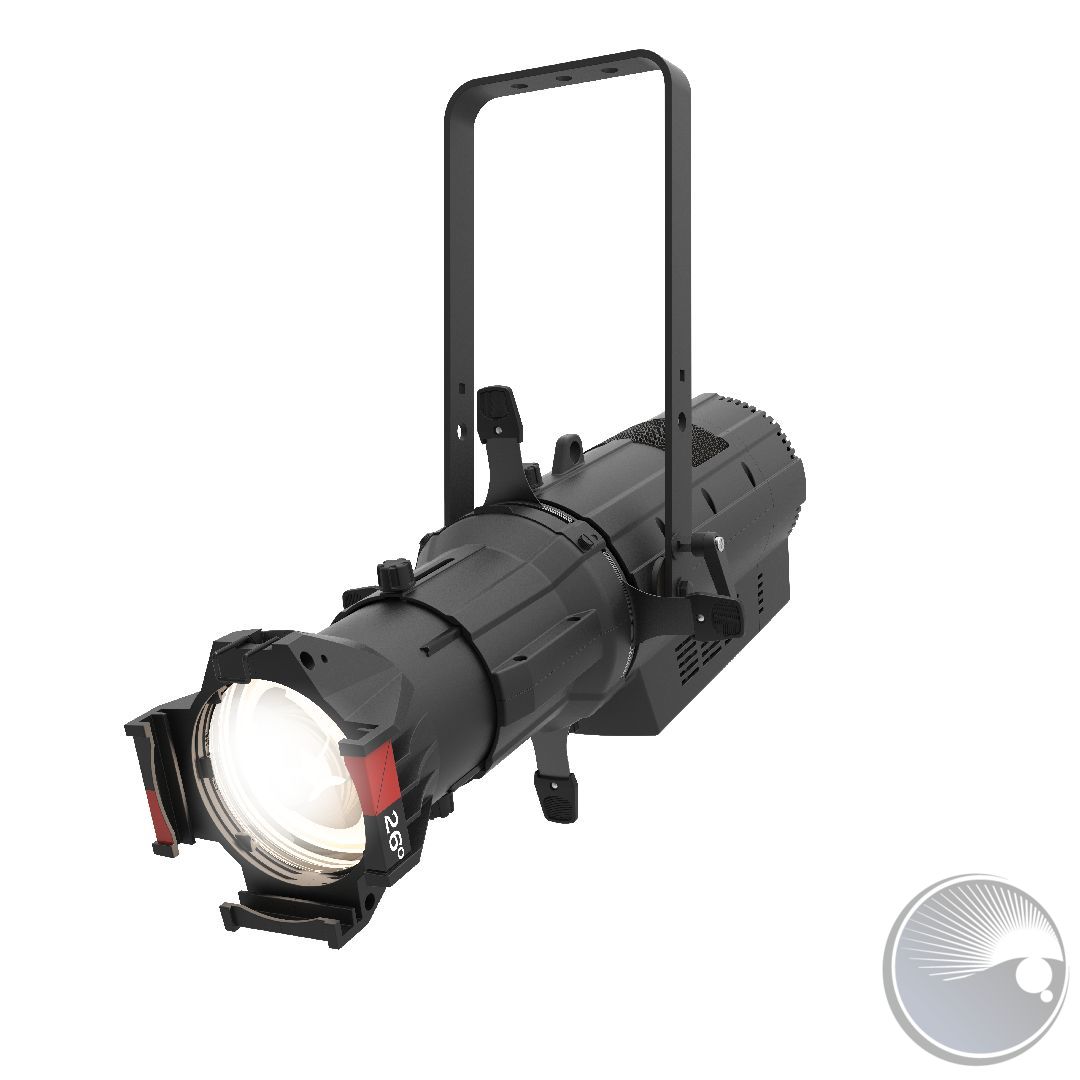

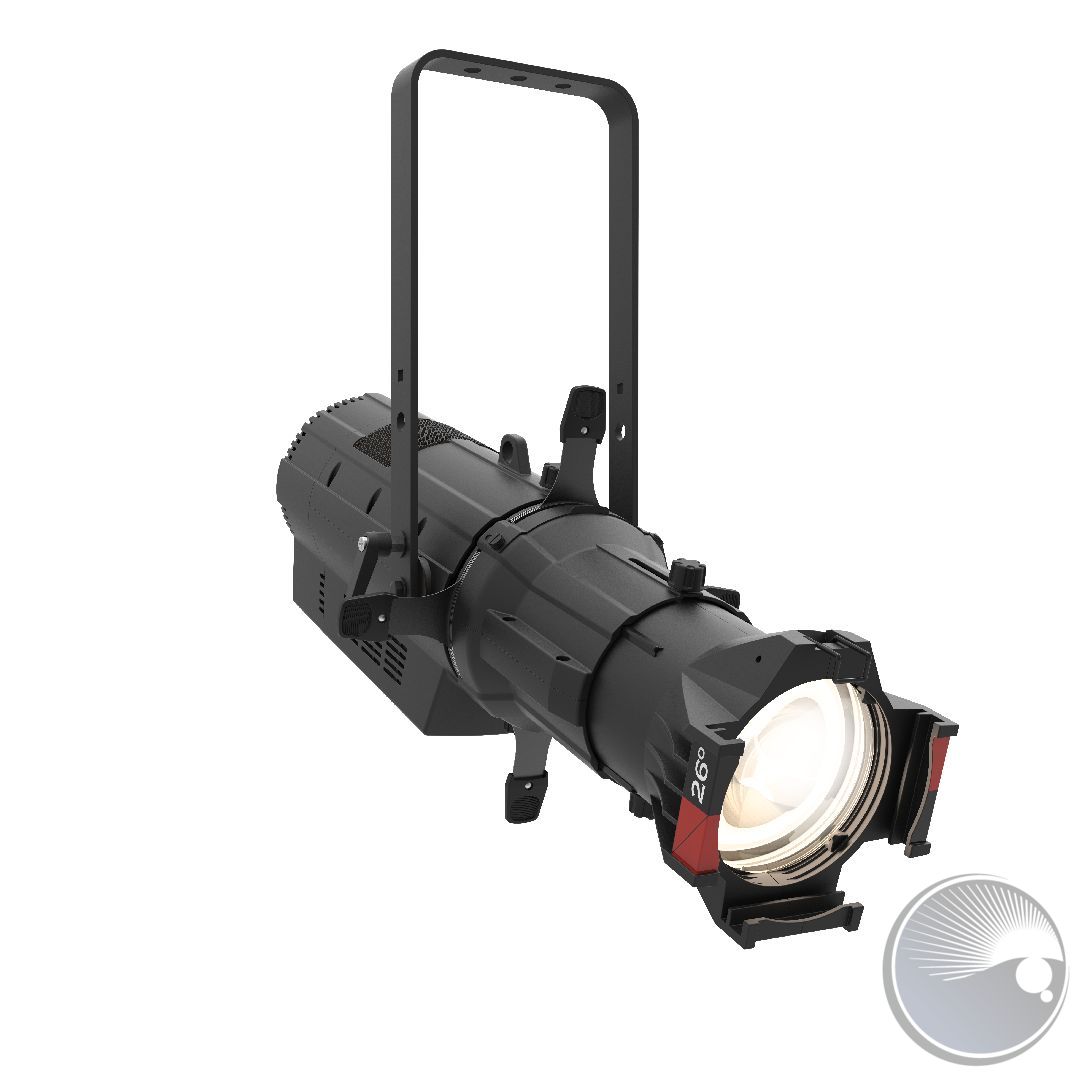

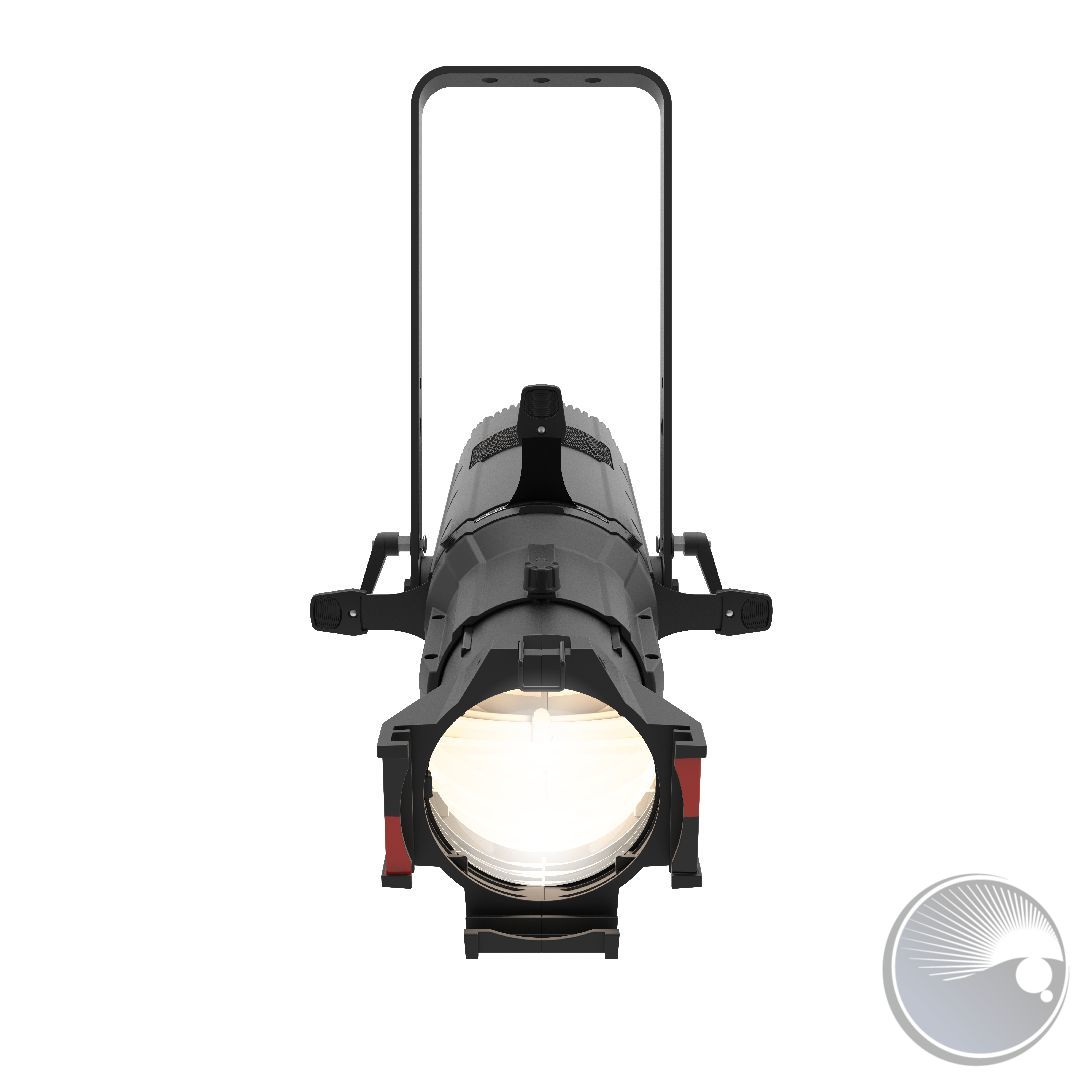

Ovation E-930VW

Ovation E-930VW is a high-performance, variable white ellipsoidal style fixture that utilizes our unique 6-color LED system. This fixture projects a bright, beautifully flat field of light in nearly any temperature of white with high CRI and CQS. Each Color Temperature can be further adjusted for +/- green to perfect the field of light. For times when a splash of color is needed, the fixture can also give you full control of each color of LED as well.



AT A GLANCE

  • Variable white ERS-style lighting fixture for theatre, film and production

  • Color Temperature Presets from 2800 K to 8000 K with high CRI and CQS

  • Beautiful 16-bit dimming

  • Proprietary LED engine delivers tremendous, equal output at all color temperatures

  • +/- Green adjustment via DMX or on-board control

  • Independent color control over the 6-color engine when a splash of color is needed

  • RDM (Remote Device Management) for added flexibility

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • Virtually silent operation for use in studio and theatre applications

  • Works perfectly with industry standard lens tubes and accessories

SPECIFICATIONS

OPTICAL

  • Light Source: 91 LEDs (6 red, 15 orange-red, 9 green, 12 blue, 10 royal blue, 39 lime) 3 W, (960 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 8000K
  • CRI: 88-92
  • Beam Angle (w/5° lens): 5°
  • Beam Angle (w/10° lens): 8°
  • Beam Angle (w/14° lens): 12°
  • Beam Angle (w/19° lens): 17°
  • Beam Angle (w/26° lens): 22°
  • Beam Angle (w/36° lens): 27°
  • Beam Angle (w/50° lens): 38°
  • Beam Angle (w/15°–30° lens)(Narrow): 10°
  • Beam Angle (w/15°–30° lens)(Wide): 22°
  • Beam Angle (w/25°–50° lens)(Narrow): 20°
  • Beam Angle (w/25°–50° lens)(Wide): 36°
  • Field Angle (w/5° lens): 7°
  • Field Angle (w/10° lens) : 10°
  • Field Angle (w/14° lens): 14°
  • Field Angle (w/19° lens): 18°
  • Field Angle (w/26° lens): 25°
  • Field Angle (w/36° lens): 33°
  • Field Angle (w/50° lens): 50°
  • Field Angle (w/15°–30° lens)(Narrow): 14°
  • Field Angle (w/15°–30° lens)(Wide): 29°
  • Field Angle (w/25°–50° lens)(Narrow): 22°
  • Field Angle (w/25°–50° lens)(Wide): 39°
  • Lumens (w/5° lens):
  • Lumens (w/10° lens):
  • Lumens (w/14° lens): 4,399
  • Lumens (w/19° lens): 4,817
  • Lumens (w/26° lens): 5,485
  • Lumens (w/36° lens): 5,306
  • Lumens (w/50° lens): 5,037
  • Illuminance (w/5° lens): 27,300 lux @ 5 m
  • Illuminance (w/10° lens): 12,700 lux @ 5 m
  • Illuminance (w/14° lens): 7,560 lux @ 5 m
  • Illuminance (w/19° lens): 3,765 lux @ 5 m
  • Illuminance (w/26° lens): 2,210 lux @ 5 m
  • Illuminance (w/36° lens): 1,296 lux @ 5 m
  • Illuminance (w/50° lens): 537 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Narrow): 6,990 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Wide): 1,815 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Narrow): 2,464 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Wide): 975 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 28 Hz
  • Focus: Manual
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: No

CONSTRUCTION / PHYSICAL

  • Dimensions (fixture only): 25.04 x 13.54 x 23.22 in (636 x 344 x 590 mm)
  • Dimensions (w/5° lens extended): 46.14 x 14.17 x 14.48 in (1172 x 360 x 368 mm)
  • Dimensions (w/10° lens extended): 37.44 x 12.16 x 23.22 in (951 x 309 x 317 mm)
  • Dimensions (w/26° lens extended): 28.06 x 13.54 x 23.22 in (800 x 344 x 590 mm)
  • Dimensions (w/15°–30° lens): 37 x 11.52 x 10.33 in (939.8 x 287.9 x 262.62 mm)
  • Dimensions (w/25°–50° lens): 29.75 x 11.52 x 10.33 in (755.65 x 287.9 x 262.62 mm)
  • Weight (fixture only): 16.6 lb (7.5 kg)
  • Weight (w/5° lens): 22.4 lb (10.2 kg)
  • Weight (w/10° lens): 20.4 lb (9.3 kg)
  • Weight (w/14° lens): 22 lb (9.97 kg)
  • Weight (w/26° lens): 20.6 lb (9.34 kg)
  • Weight (w/15°–30° lens): 29.2 lb (13.24 kg)
  • Weight (w/25°–50° lens): 26.2 lb 11.88 kg)
  • Exterior Color: Black
  • Accessory Holder/Gel Frame Size (14°, 19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
  • Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)
  • Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)
  • Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 3, 5, 6, 8, 11, 15, 17
  • Modes/Personalities: 6 personalities (3, 5, 6, 8, 11, 15, 17)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V
  • Power and Current: 226 W, 2.253 A @ 120 V, 60 Hz
  • Power and Current: 272 W, 1.303 A @ 208 V, 60 Hz
  • Power and Current: 272 W, 1.192 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

  • Ovation E-930VW
  • Neutrik® powerCON® power cord

REQUIRED ACCESSORIES

OPTIONAL ACCESSORIES

  • Professional Clamps: CTC-50HCCTC-50HCN
  • Neutrik powerCON cables
  • 3-pin or 5-pin DMX Cables
  • Color Blending Filters: DF60X1D, DF20D
  • RDM2go
  • Ovation Zoom Lenses: OHDZOOM1530, OHDZOOM2550
  • Gobo Holder: Ovation B-Size Metal or Glass Gobo Holder
  • Iris: Ovation 20-leaf Iris

ORDERING INFO

  • Item Code: 03121411
Weiterführende Links zu "Ovation E-930VW"

3.15AMPGMAF3.15AL250V FUSE
OVBGOBOGLASS*LOC1* OVATION B-SIZE GLASS GOBO HOLDER
OVBGOBOMETAL*LOC1* OVATION B-SIZE METAL GOBO HOLDER
PTF1001002202Aviation plug power output socket (BOM#2)
PTF1001002302Power socket (Blue) IP44 55-210351-15 31.2x26.5x35 CE ROSH UL (BOM#18)
M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)PTF1340110771M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)

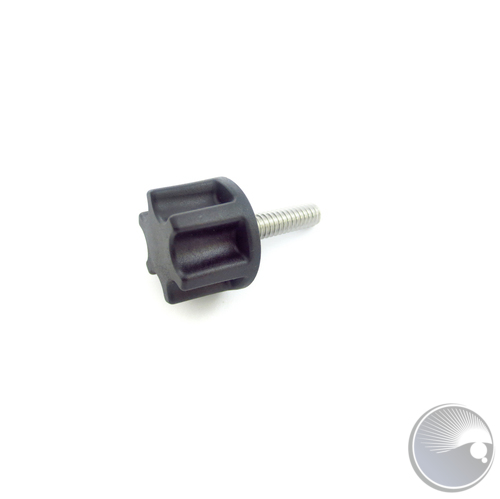

THUMB SCREW/KNOB (BOM#11)PTF2440000125THUMB SCREW/KNOB (BOM#11)
PTF2700003804US Powercon Cable (Type B NEMA 5-15 Style)
5-PIN DMX XLR SOCKET PCB (BOM#19)PTJ20100337005-PIN DMX XLR SOCKET PCB (BOM#19)
PTJ2010325000DMX XLR SOCKET PCB 3 (BOM#20)
DISPLAY PCBPTJ2020201330DISPLAY PCB
DRIVER PCB A (BOM#6)PTJ2020202176DRIVER PCB A (BOM#6)

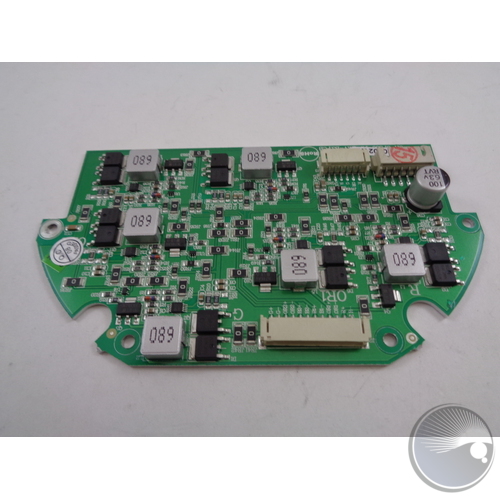

DRIVER PCB B (BOM#4)PTJ2020202177DRIVER PCB B (BOM#4)

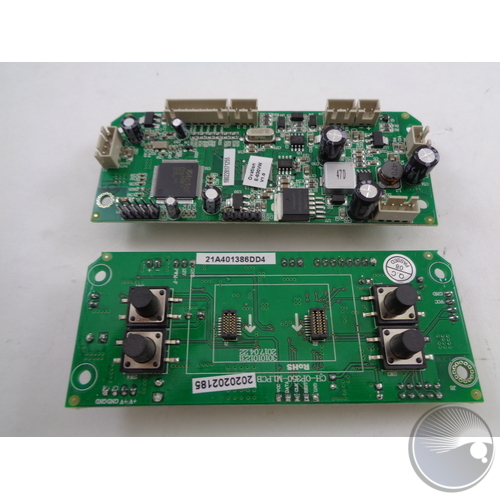

MPCB (BOM#8) Ver. 2.1PTJ2020202185MPCB (BOM#8) Ver. 2.1

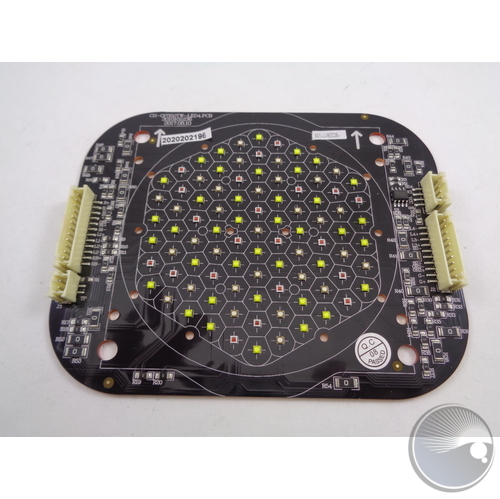

LED PCB (BOM#15)PTJ2020202196LED PCB (BOM#15)

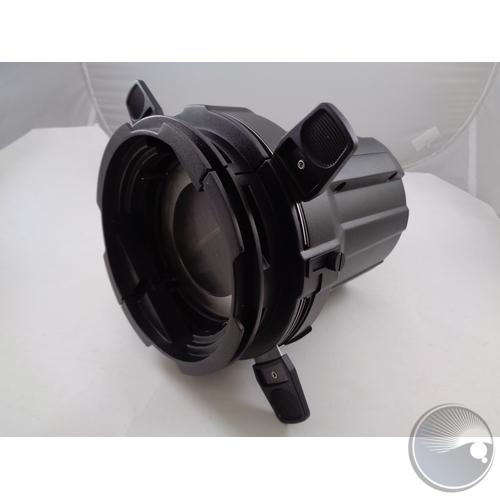

BARREL ASSEMBLY W/ SHUTTERS (BOM#36,37,38,40,41,42,4344,45,46)PTJ2030100057BARREL ASSEMBLY W/ SHUTTERS (BOM#36,37,38,40,41,42,4344,45,46)

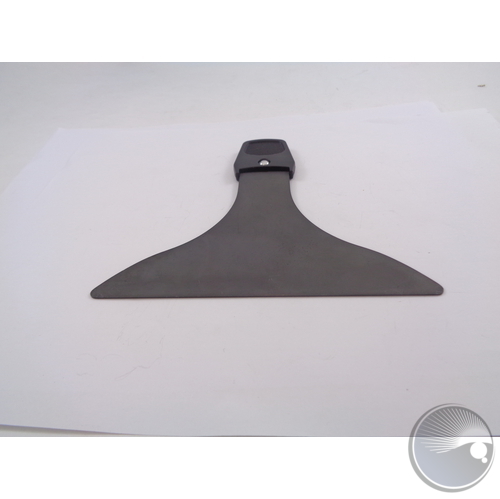

SHUTTER BLADE ASSEMBLY (BOM#45,46)PTJ2030100076SHUTTER BLADE ASSEMBLY (BOM#45,46)

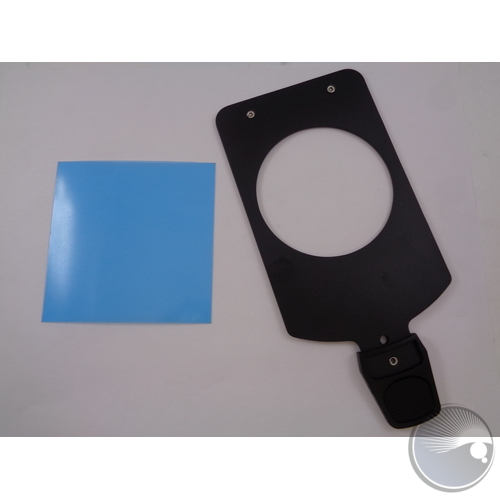

Soft Focus Filter w/ HolderPTJ2030100091Soft Focus Filter w/ Holder

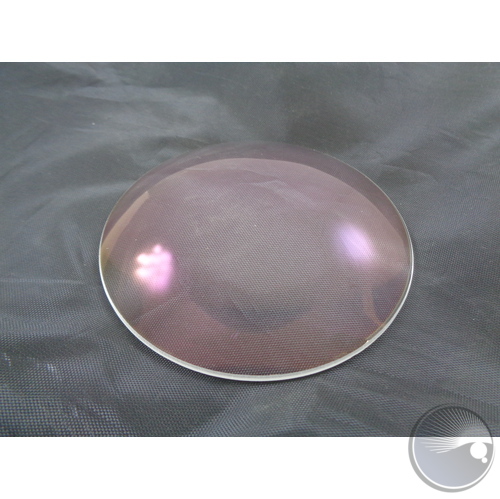

SPHERICAL CONDENSE (BOM#38)PTJ3020200213SPHERICAL CONDENSE (BOM#38)

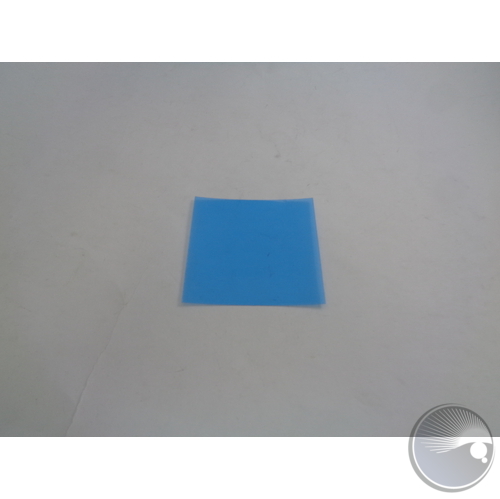

COLOR BLENDING FILTERPTJ3020300266COLOR BLENDING FILTER

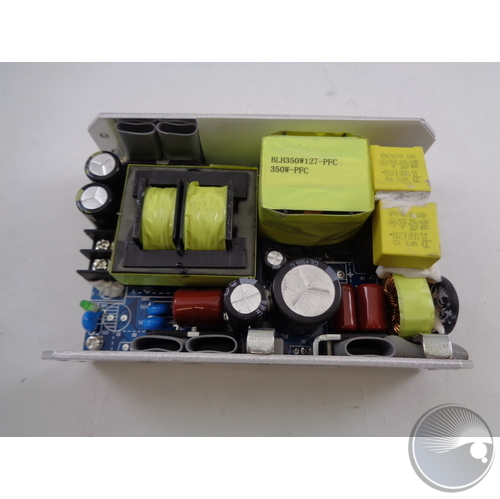

POWER SUPPLY (BOM#46)PTJ3020400263POWER SUPPLY (BOM#46)

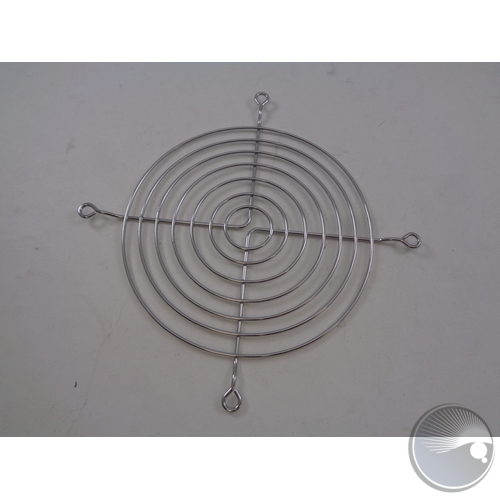

FAN NET (BOM#23)PTJ3020900026FAN NET (BOM#23)

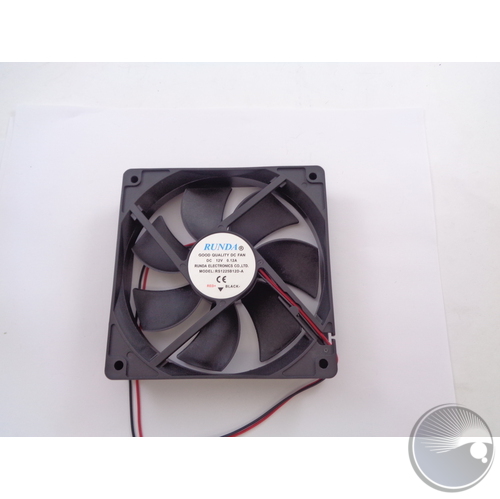

FAN (BOM#24)PTJ3020900035FAN (BOM#24)
PTJ3021600044SPRING (BOM#67)
HM SCREW (BOM#6)PTJ3021700158HM SCREW (BOM#6)
LARGE INSIDE SCREW HANGING BRACKET (BOM#27)PTJ3021700412LARGE INSIDE SCREW HANGING BRACKET (BOM#27)
RING (BOM#32)PTJ3021700452RING (BOM#32)
Panel mount fuse holder (BOM#29)PTJ3027001001Panel mount fuse holder (BOM#29)
PTJ3030100038STAND OFF USE ON HEAT SINK (BOM#5)
PTJ3030100221STAND OFF USE ON DRIVER PCB (BOM#9)
PTJ3050802408DISPLAY STICKER (BOM#2)

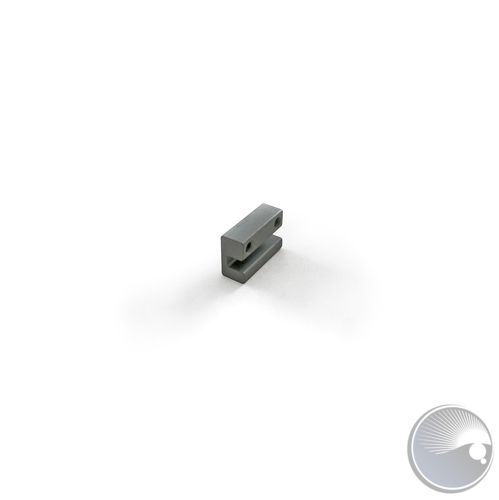

ALUMINUM SHEET FOR FIXING SHUTTER TUBE (BOM#4)PTJ4010102024ALUMINUM SHEET FOR FIXING SHUTTER TUBE (BOM#4)
PTJ4010103632HEAT SINK (BOM#44)
PTJ4010103636POWER HOLDER (BOM#40)
PTJ4010200026REFLECT TUBE HOLDER (BOM#36)
PTJ4010200028ASHUTTER BLADE HOLDER 4 (BOM#20)
PTJ4010200029ASHUTTER BLADE HOLDER 3(BOM#22)

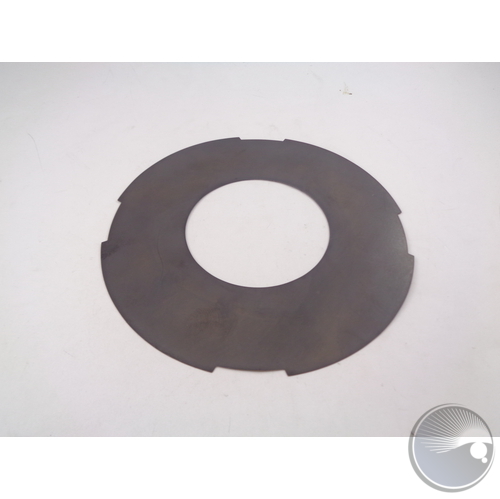

SHUTTER BLADE HOLDER 2 (BOM#23)PTJ4010200030SHUTTER BLADE HOLDER 2 (BOM#23)

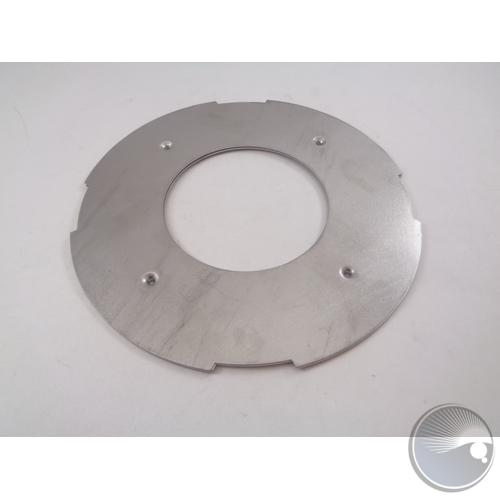

SHUTTER BLADE HOLDER 1 (BOM#24)PTJ4010200031SHUTTER BLADE HOLDER 1 (BOM#24)
PTJ4010302041POWER SOCKET COVER (BOM#19)

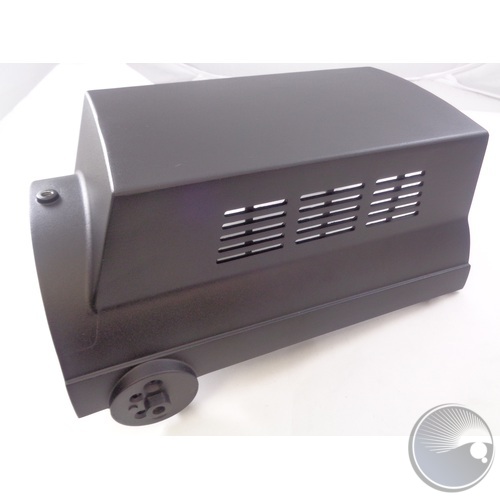

HOUSING (BOM#3)PTJ4010302514HOUSING (BOM#3)
HOUSING TOP COVER (BOM#35)PTJ4010302515HOUSING TOP COVER (BOM#35)

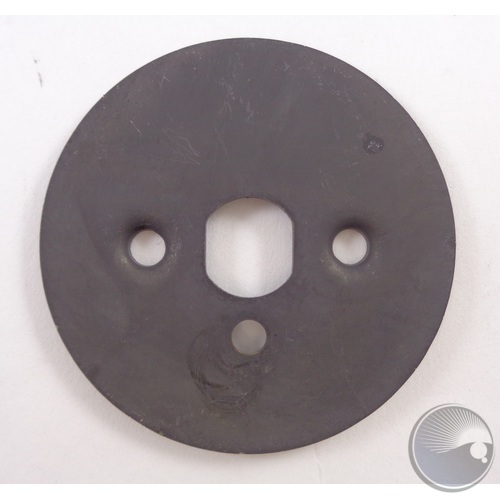

ROUND METAL PART (BOM#6)PTJ4010302516ROUND METAL PART (BOM#6)
PTJ4010302519ALUMINIUM PLATE FOR THE REAR (BOM#20)
PTJ4010302524WIND DEFLECTOR (BOM#29)

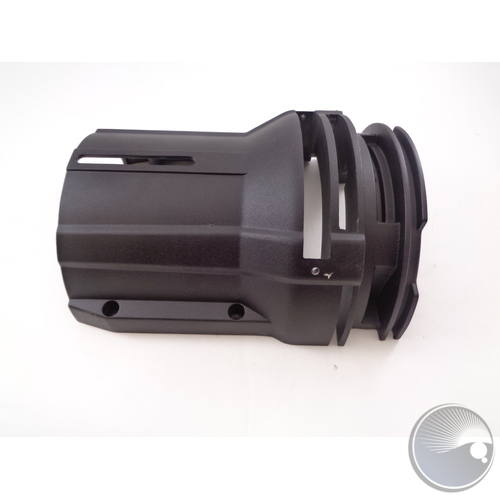

SHUTTER TUBE1 (BOM#38)PTJ4010302525SHUTTER TUBE1 (BOM#38)

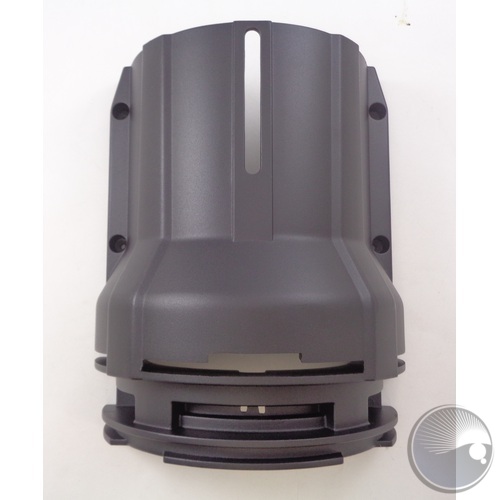

SHUTTER TUBE 2 (BOM#44)PTJ4010302526SHUTTER TUBE 2 (BOM#44)
THUMB SCREW (BOM#60)PTJ4010302528THUMB SCREW (BOM#60)

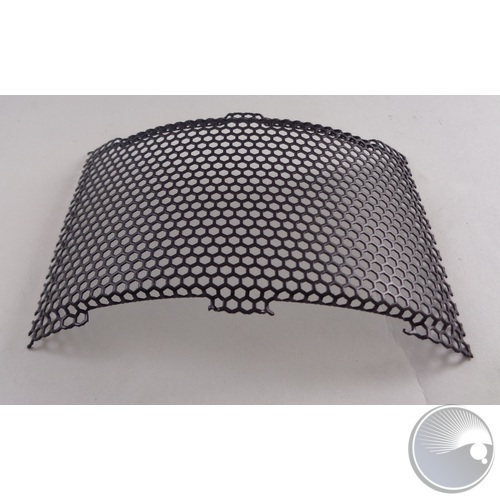

VENTILATE NET (BOM#28)PTJ4010302529VENTILATE NET (BOM#28)

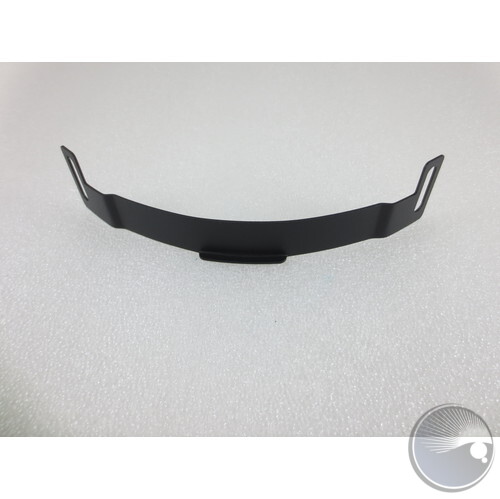

SHADOW SHIELD (BOM#27)PTJ4010303018SHADOW SHIELD (BOM#27)
PTJ4010303833AFAN HOLDER (BOM#14)
PTJ4010303834HEAT SINK HOLDER (BOM#47)

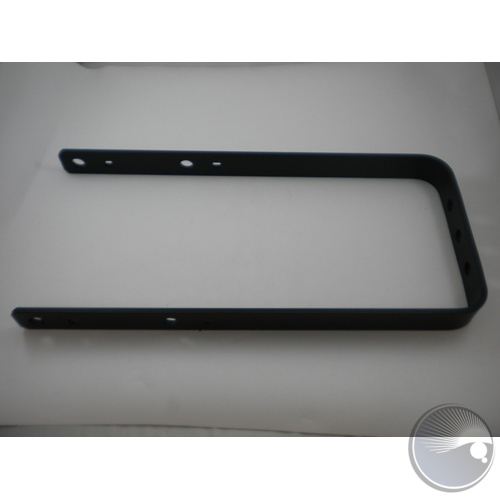

HANGING BRACKET (BOM#42)PTJ4010303836HANGING BRACKET (BOM#42)
PTJ4010303837WIND DEFLECTOR USE ON HOUSING COVER (BOM#10)
PTJ4010401983AREAR (BOM#1)
FRAMING SHUTTER*4 (BOM#70)PTJ4020200211FRAMING SHUTTER*4 (BOM#70)

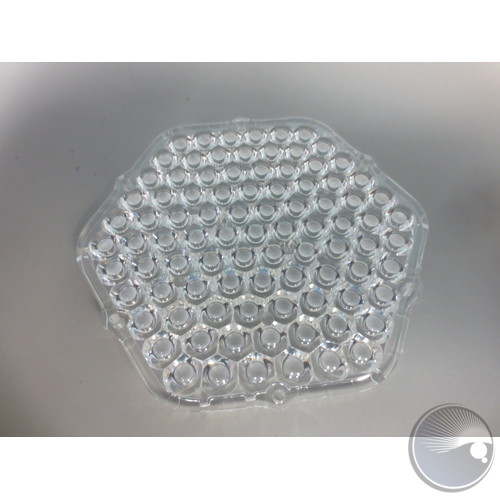

LENS (BOM#33)PTJ4020200303LENS (BOM#33)

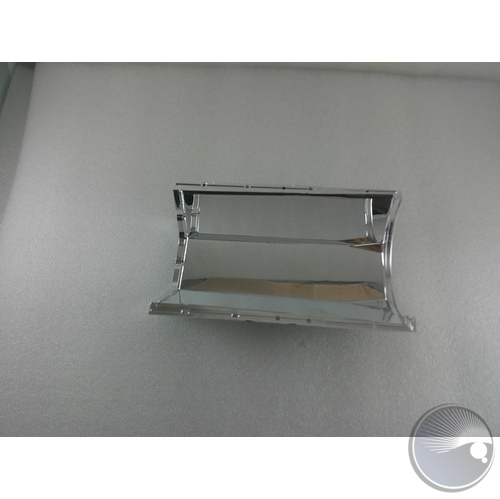

REFLECTIVE TUBE (BOM#37)PTJ4020200304REFLECTIVE TUBE (BOM#37)

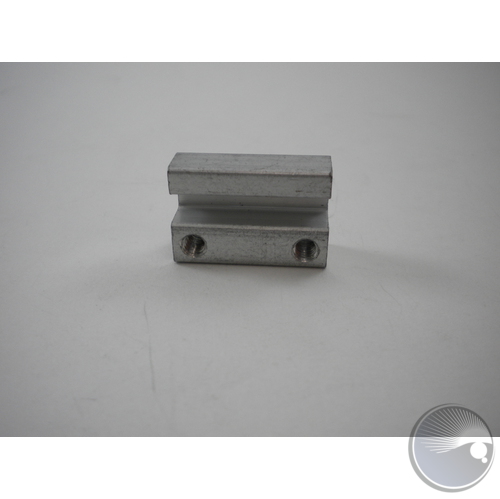

ETC LENS ADAPTER - ZOOM BARREL LUG / ALUMINUM BLOCK - (alternate for BOM#4)PTJ5000000015ETC LENS ADAPTER - ZOOM BARREL LUG / ALUMINUM BLOCK - (alternate for BOM#4)
