RDM2go

Auf Anfrage!

  • RDM2GO
RDM2go AT A GLANCE Handheld tool for managing fixtures and systems with DMX, RDM, and... mehr
Produktinformationen "RDM2go"

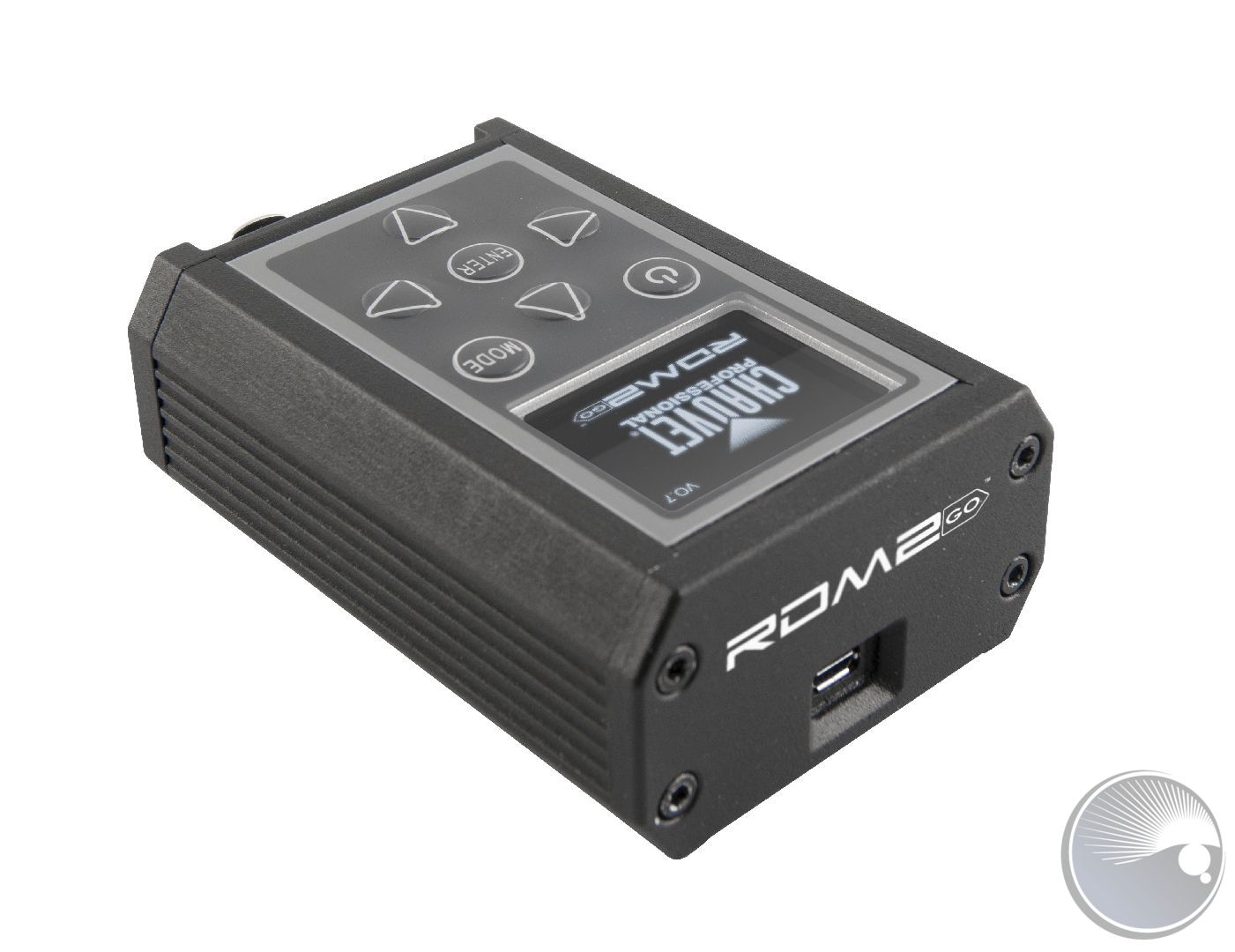

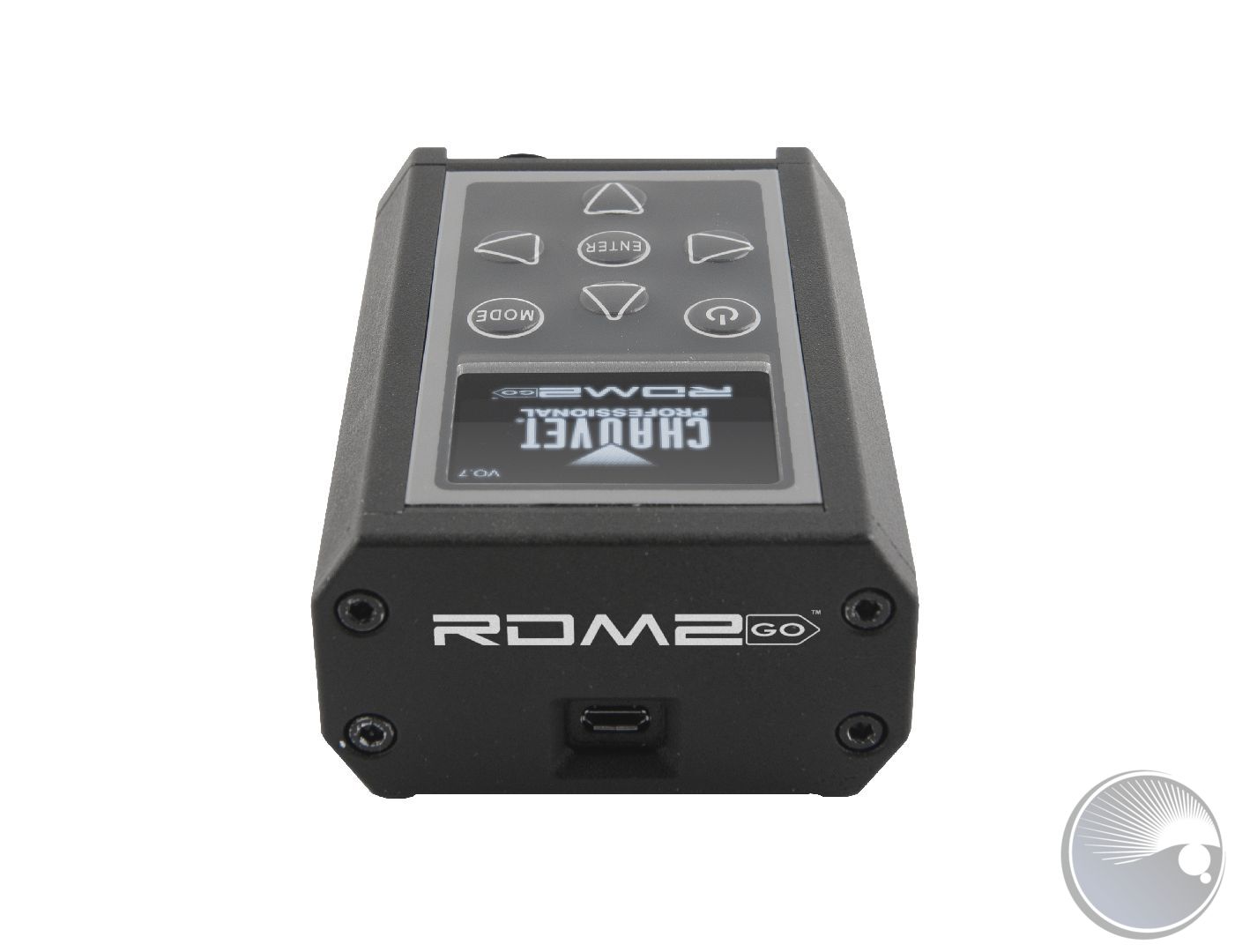

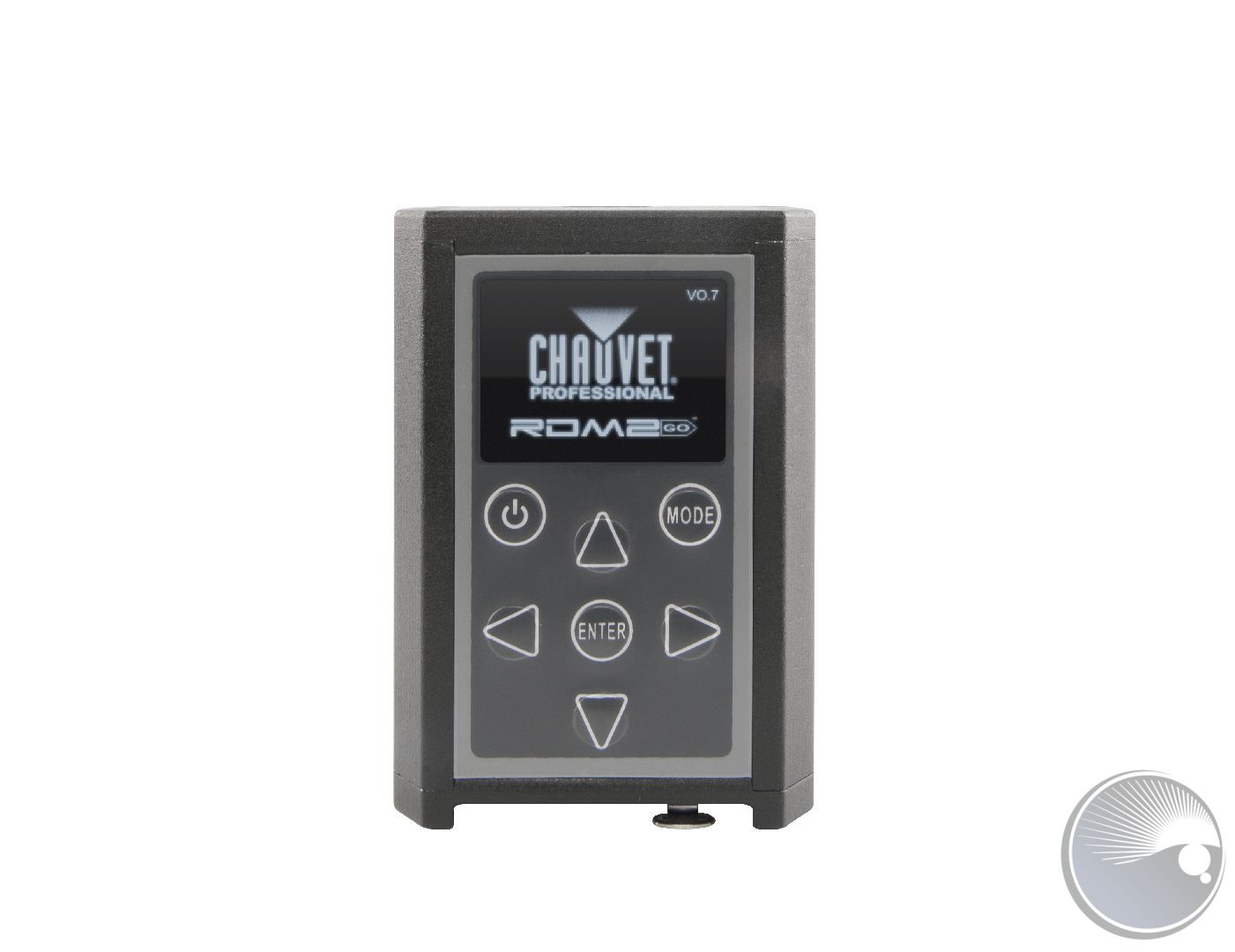

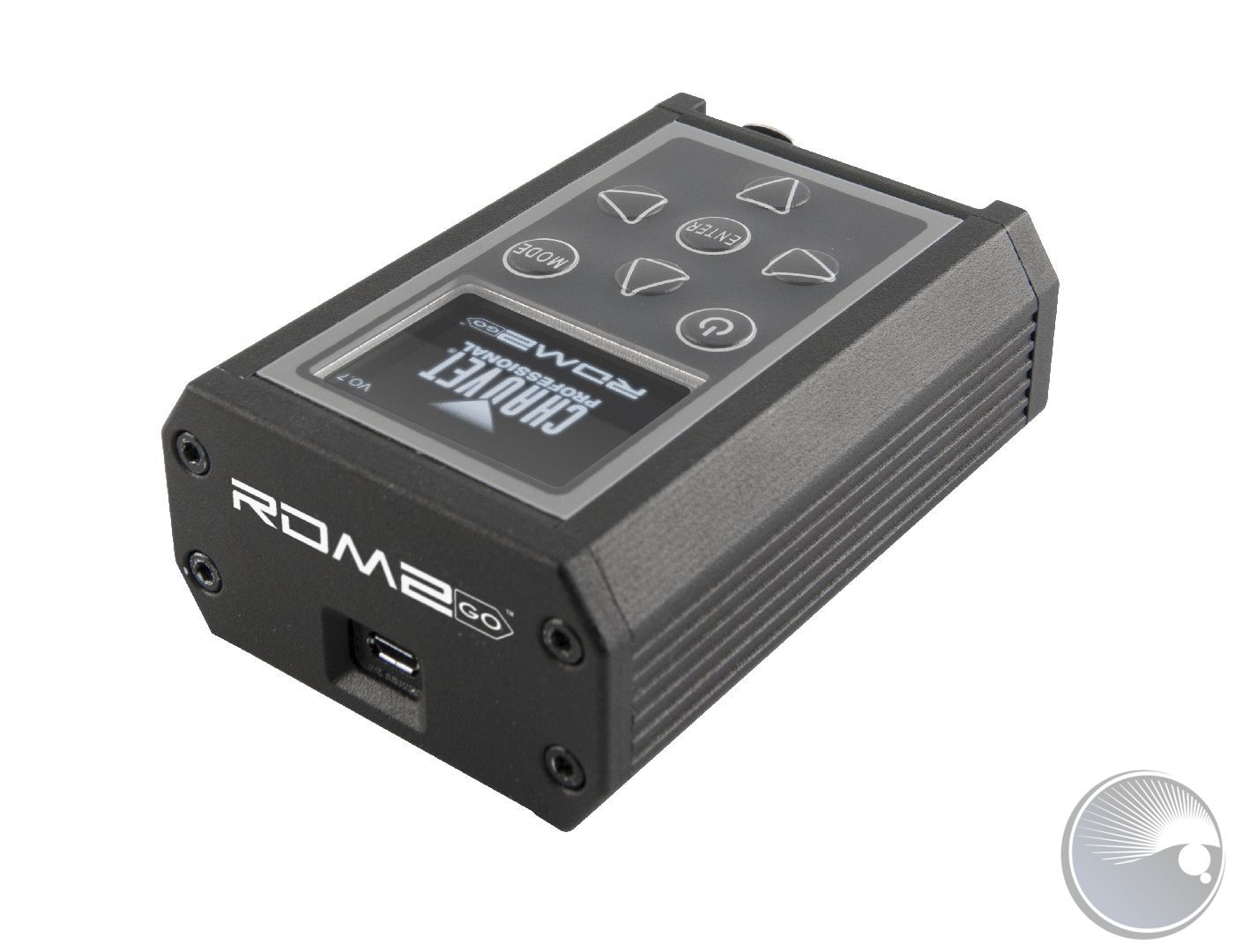

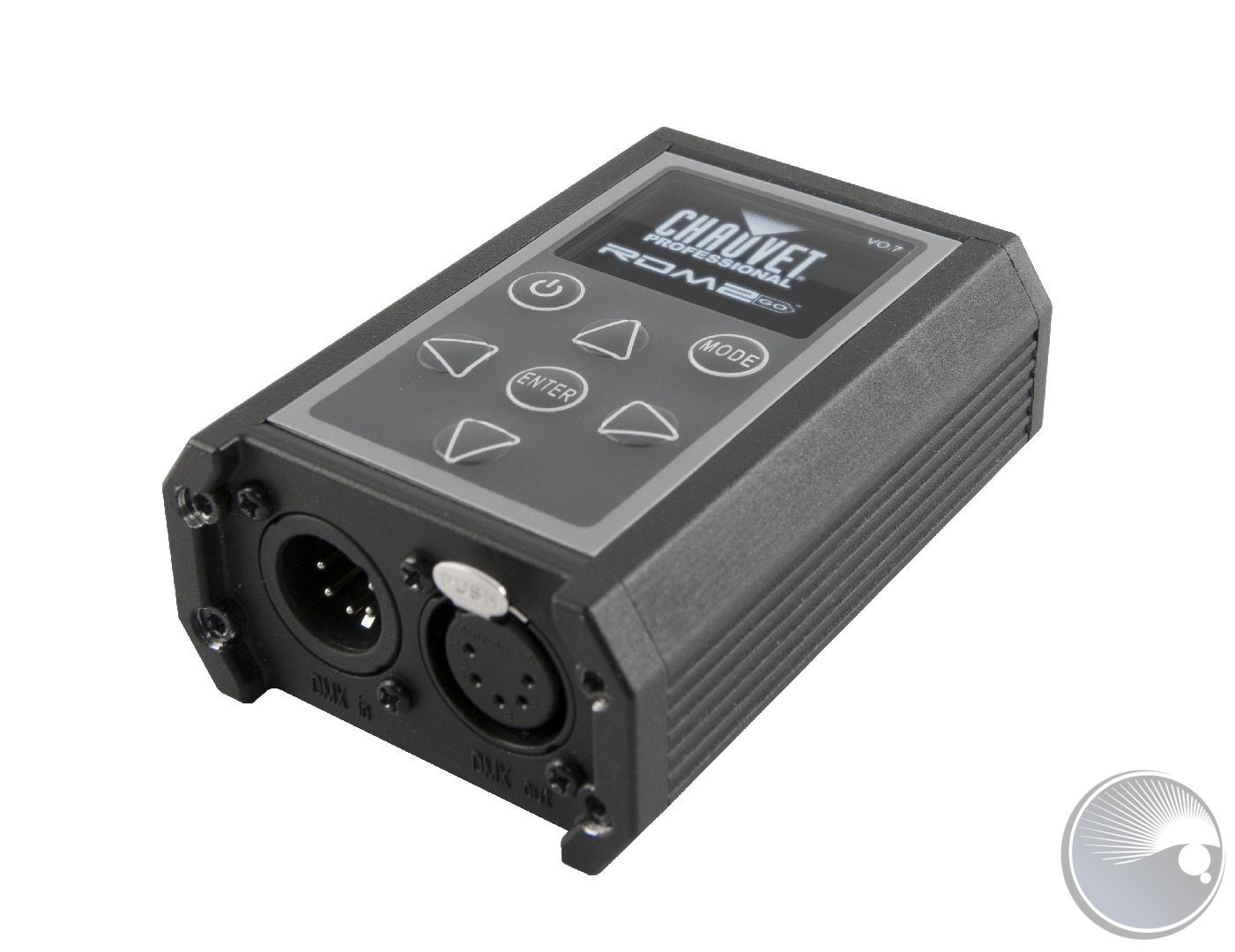

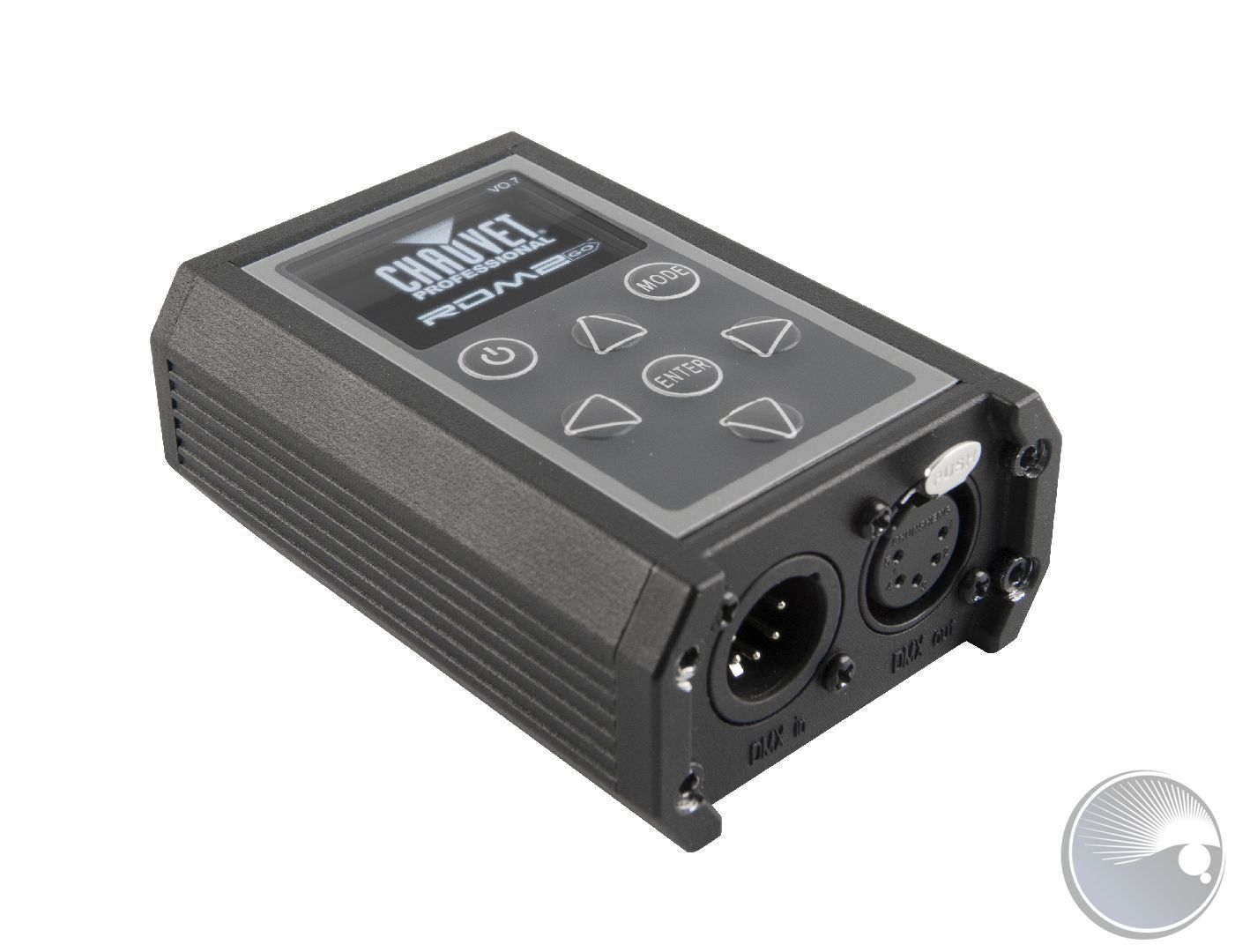

RDM2go

AT A GLANCE

  • Handheld tool for managing fixtures and systems with DMX, RDM, and Ilumicode based control

  • Easily address, locate and monitor RDM capable fixtures

  • Check DMX addressing, cabling, and store/playback basic snapshots

  • Address and set personalities of Ilumicode based architectural fixtures

  • Comes with connector adaptors, USB charging cord and belt clip pouch

SPECIFICATIONS

DYNAMIC EFFECTS

  • Standalone Color Mixing: Yes
  • Color Temperature Presets (Ilumicode): Yes
  • Dim Modes (Ilumicode): 5
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes


CONSTRUCTION / PHYSICAL

  • Dimensions: 2.76 x 1.52 x 3.92 in (70 x 39 x 100 mm)
  • Weight: 0.77 lb (0.35 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast


CONNECTIONS

  • Power Input: Micro USB-B Male

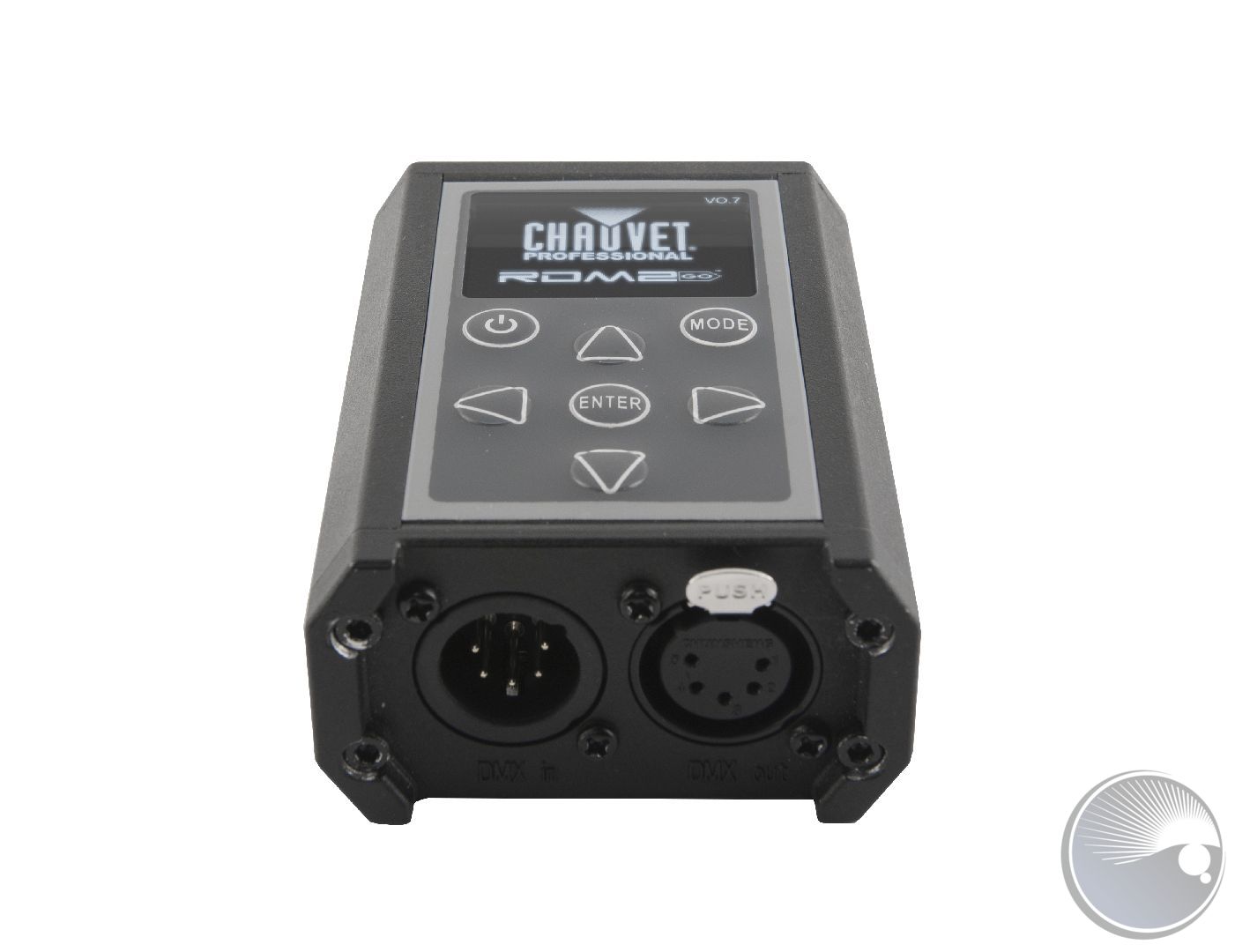

  • Data Connectors: 5-pin XLR
  • Cable Length (power): 3 ft (0.91 m)


CONTROL

  • Protocol(s): DMX, RDM, Ilumicode
  • DMX Channels: 1, 2, 3, 4, 5, 6 or 7
  • Modes/Personalities (Ilumicode): 13 personalities (ARC 1, ARC 1+D, ARC2, ARC2+D, ARC3, ARC3+D, ARC FULL, REMOTE, SOLID, SPECIAL1, SPECIAL2, VW, VW+D)


ELECTRICAL

  • Power and Current: 18 W, 0.15 A @ 120 V, 60 Hz
  • Power and Current: 18 W, 0.09 A @ 208 V, 60 Hz
  • Power and Current: 18 W, 0.08 A @ 230 V, 50 Hz
  • BATTERY

    • Battery type: Lithium Ion
    • Rechargeable: Yes
    • Battery Life: 8 hours
    • Battery Power: 3.7 V, 1,200 mAh


    CERTIFICATIONS / QUALIFICATIONS

    • CE
    • IP Rating: IP20, dry location

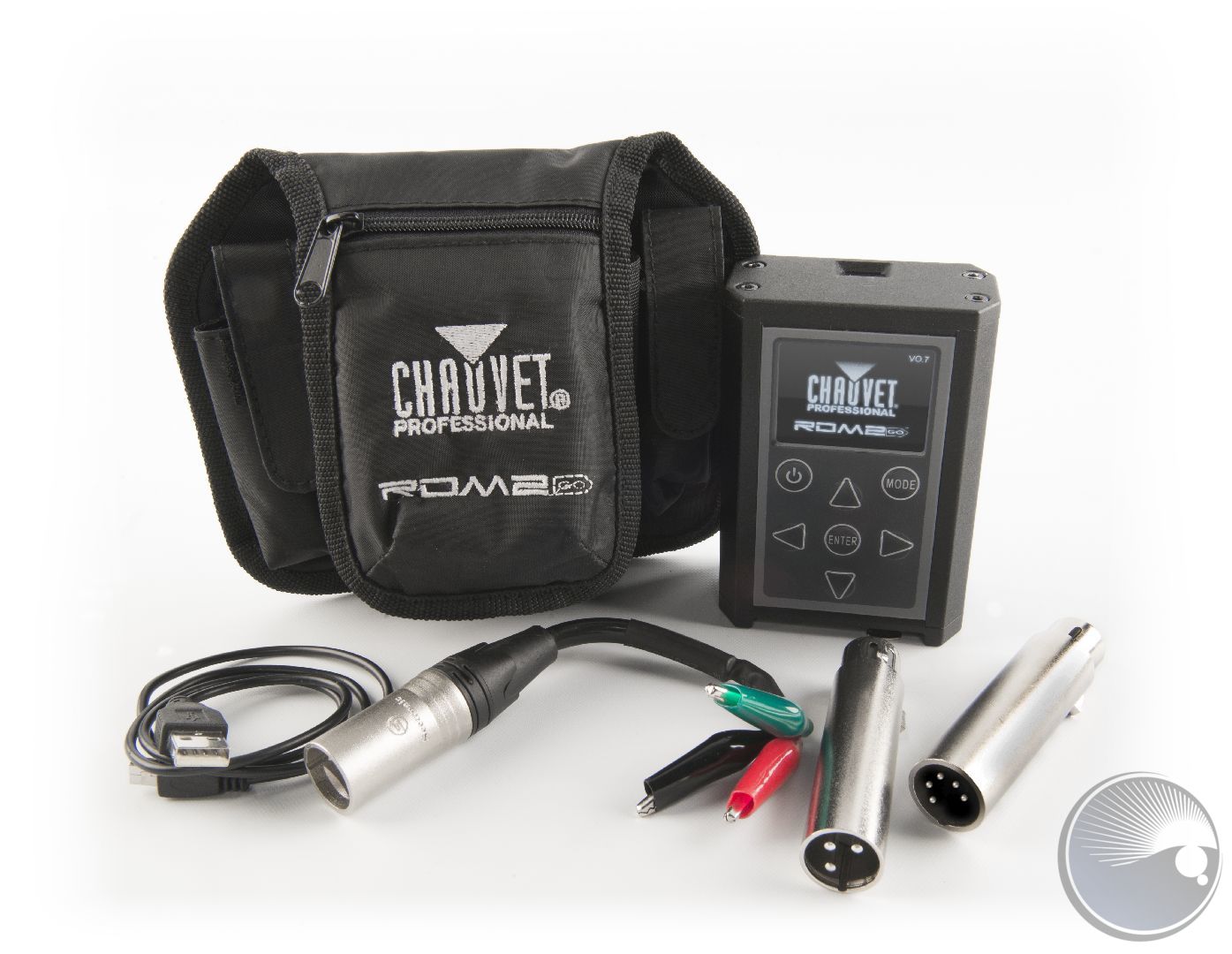

    WHAT'S INCLUDED

    • RDM2go
    • Carry Pouch
    • 2 pc, 3- to 5-pin converters
    • 5-pin male to bare wire adaptor
    • USB-A Male to Micro USB-B Male (3 ft)
Weiterführende Links zu "RDM2go"

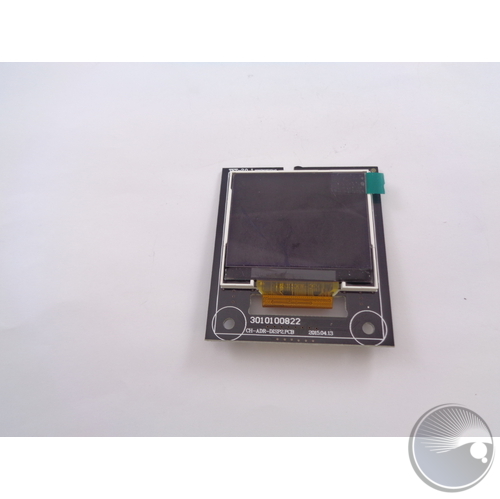

DISPLAY PCB (BOM#5)PTJ2020201182DISPLAY PCB (BOM#5)
TOUCHING BOARD (BOM#3)PTJ2020201183TOUCHING BOARD (BOM#3)

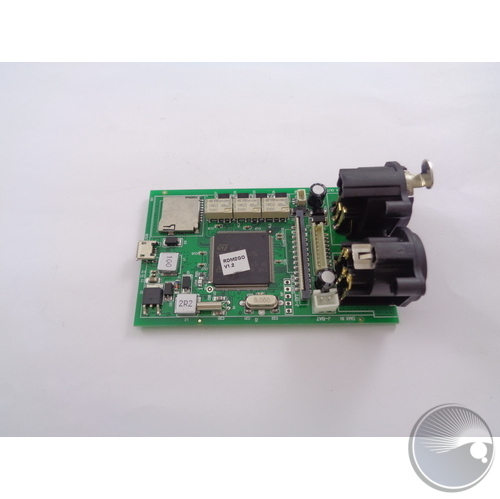

MPCB (BOM#9)PTJ2020201215MPCB (BOM#9)

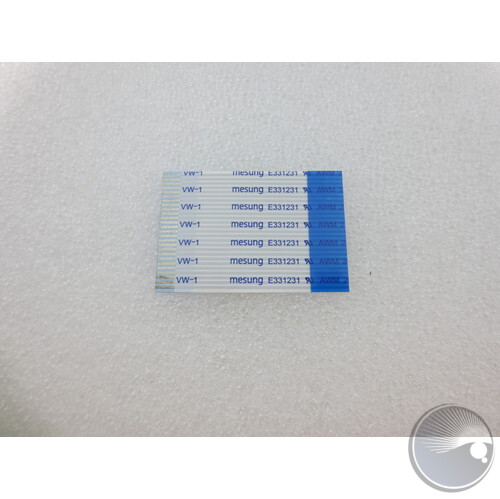

Ribbon from Display PCB to MPCBPTJ3010800220Ribbon from Display PCB to MPCB

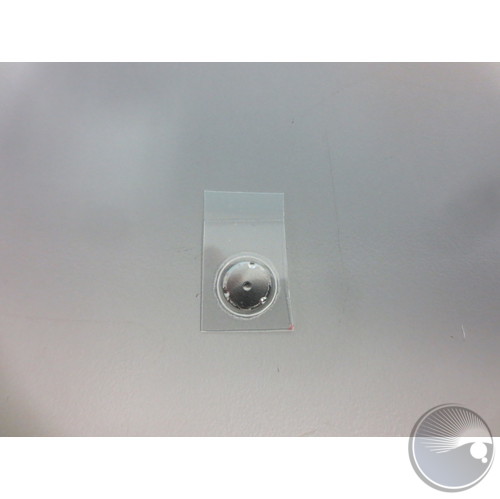

BUTTON TAB (BOM#2)PTJ3011800032BUTTON TAB (BOM#2)
BUTTON TAB (BOM#2)PTJ3011800032BUTTON TAB (BOM#2)
BUTTON TAB (BOM#2)PTJ3011800032BUTTON TAB (BOM#2)
BUTTON TAB (BOM#2)PTJ3011800032BUTTON TAB (BOM#2)
BUTTON TAB (BOM#2)PTJ3011800032BUTTON TAB (BOM#2)

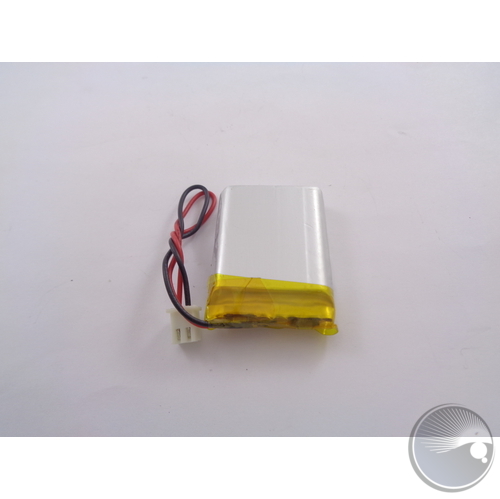

BATTERY (BOM#7)PTJ3012000026BATTERY (BOM#7)
PTJ3050101491POUCH (BOM#17)

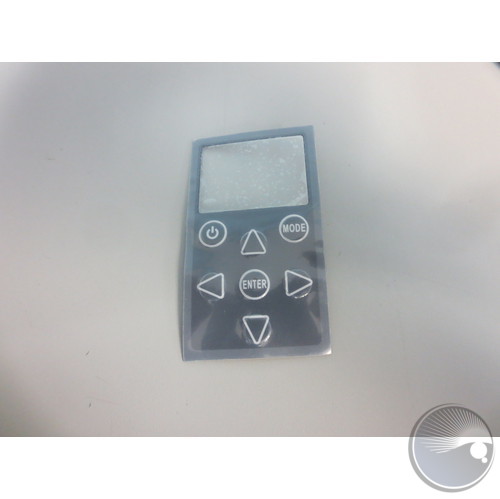

DISPLAY STICKER (BOM#1)PTJ3050801312DISPLAY STICKER (BOM#1)

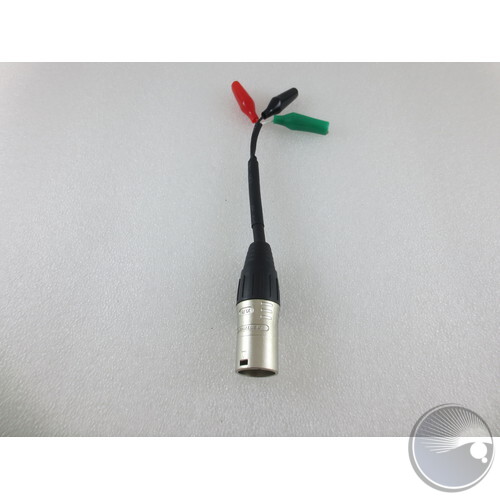

DMX PALLET (BOM#13)PTJ3080100058DMX PALLET (BOM#13)

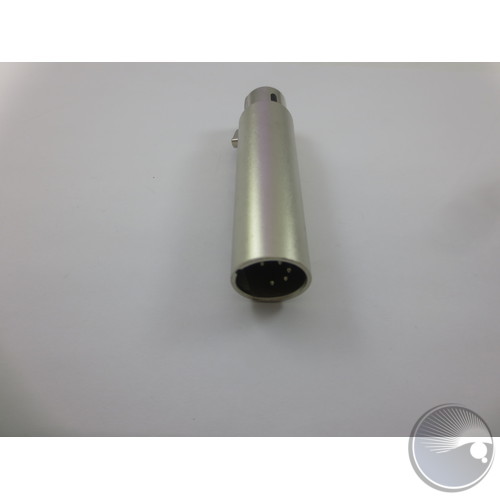

3PIN FEMALE TURN 5PIN MALE (BOM#15)PTJ30801000593PIN FEMALE TURN 5PIN MALE (BOM#15)

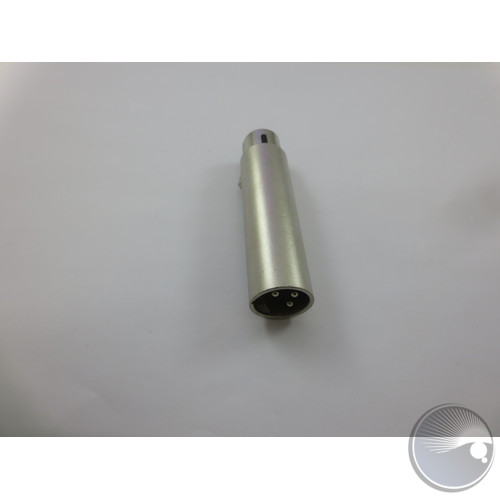

3PIN MALE TURN 5PIN FEMALE (BOM#16)PTJ30801000603PIN MALE TURN 5PIN FEMALE (BOM#16)

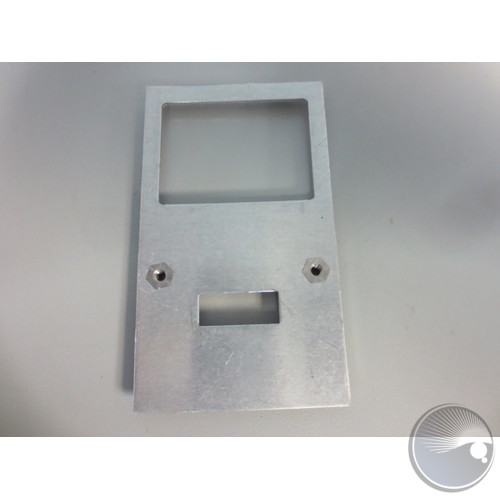

PANEL HOLDER (BOM#4)PTJ4010102282PANEL HOLDER (BOM#4)
PANEL HOLDER (BOM#4)PTJ4010102282PANEL HOLDER (BOM#4)
PANEL HOLDER (BOM#4)PTJ4010102282PANEL HOLDER (BOM#4)
PANEL HOLDER (BOM#4)PTJ4010102282PANEL HOLDER (BOM#4)
PANEL HOLDER (BOM#4)PTJ4010102282PANEL HOLDER (BOM#4)
PTJ4010302338ALUM HOUSING (BOM#10)
PTJ4010302340REAR (BOM#12)
PTJ4010302341FRONT COVER (BOM#8)

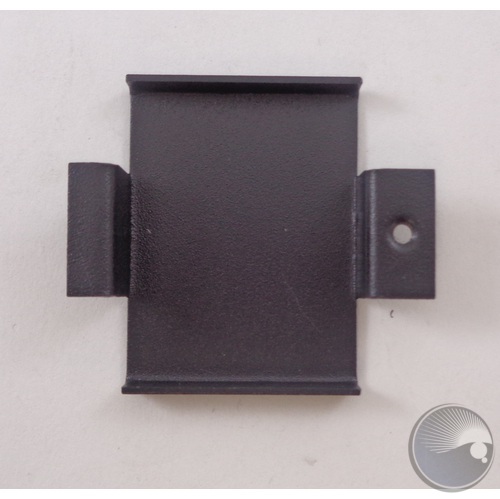

COVER FO BATTERY (BOM#6)PTJ4010302342COVER FO BATTERY (BOM#6)
BATTERY HOLDER (BOM#11)PTJ4030300001BATTERY HOLDER (BOM#11)
PTJ52000406Branded bag
USB CABLE (BOM#8)PTK104022625USB CABLE (BOM#8)
