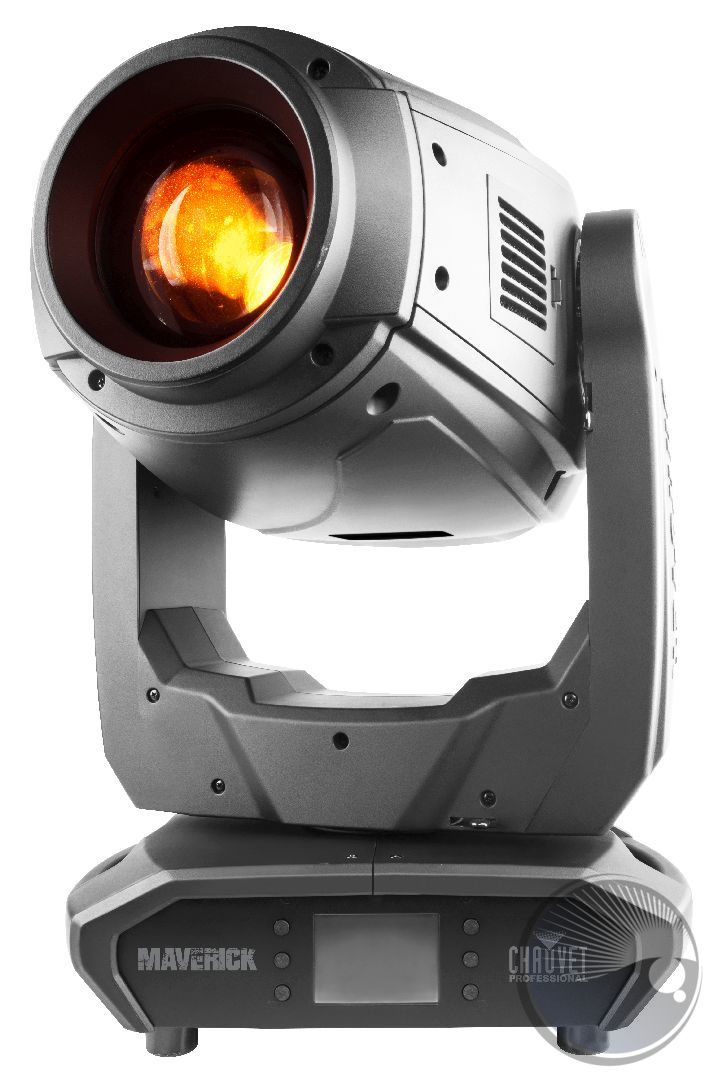

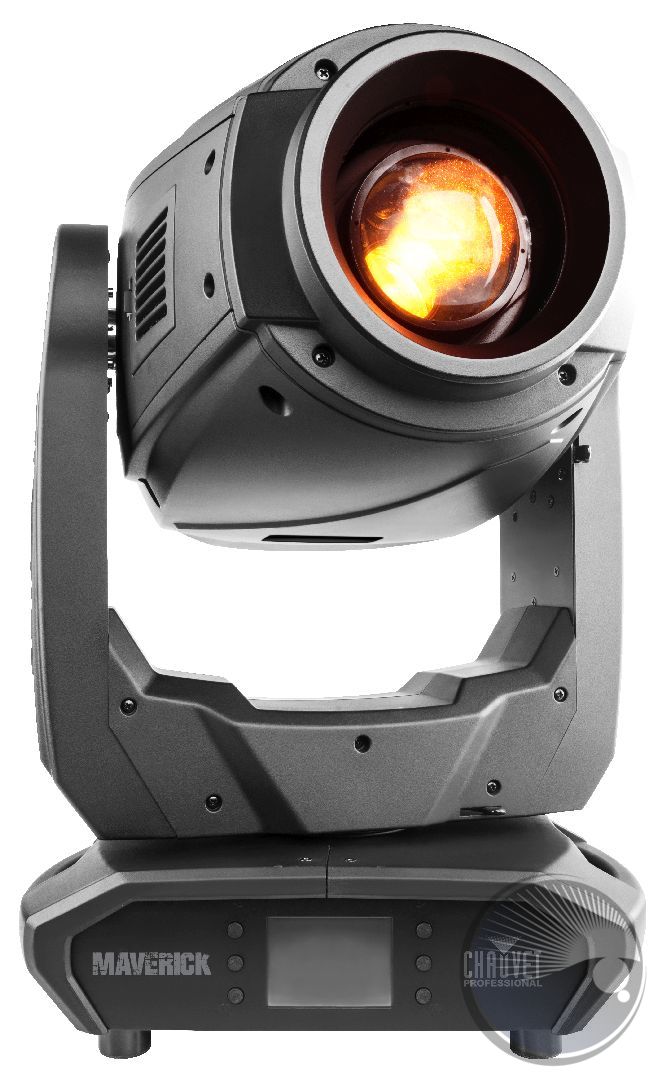

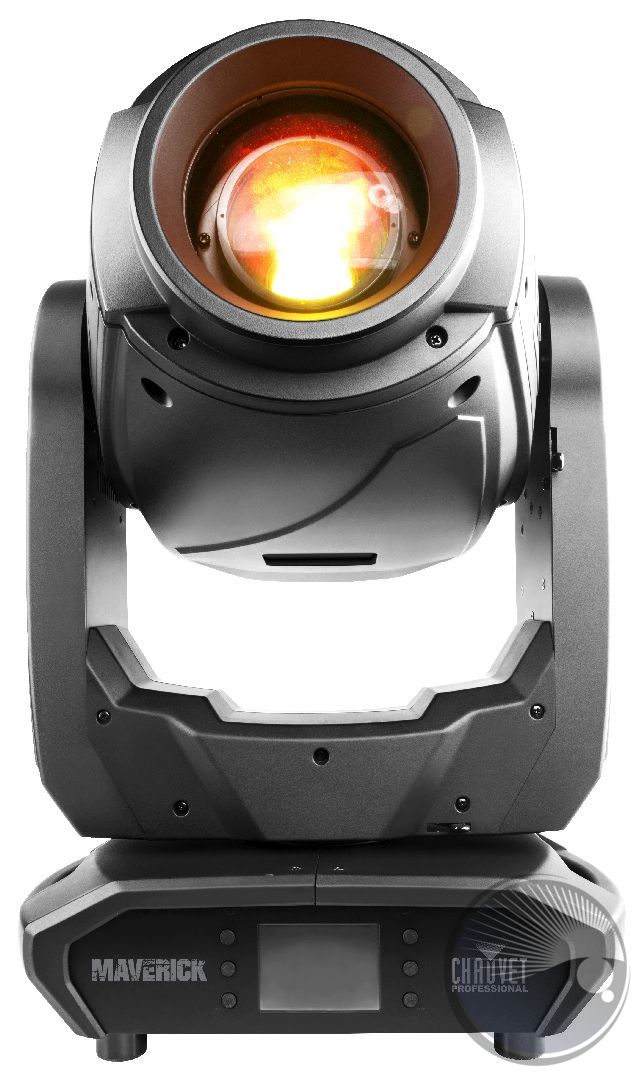

Maverick MK2 Spot

Auf Anfrage!

  • MAVERICKMK2SPOT
Maverick  MK2 Spot Maverick MK2 Spot is a stunningly bright moving yoke spot featuring... mehr
Produktinformationen "Maverick MK2 Spot"

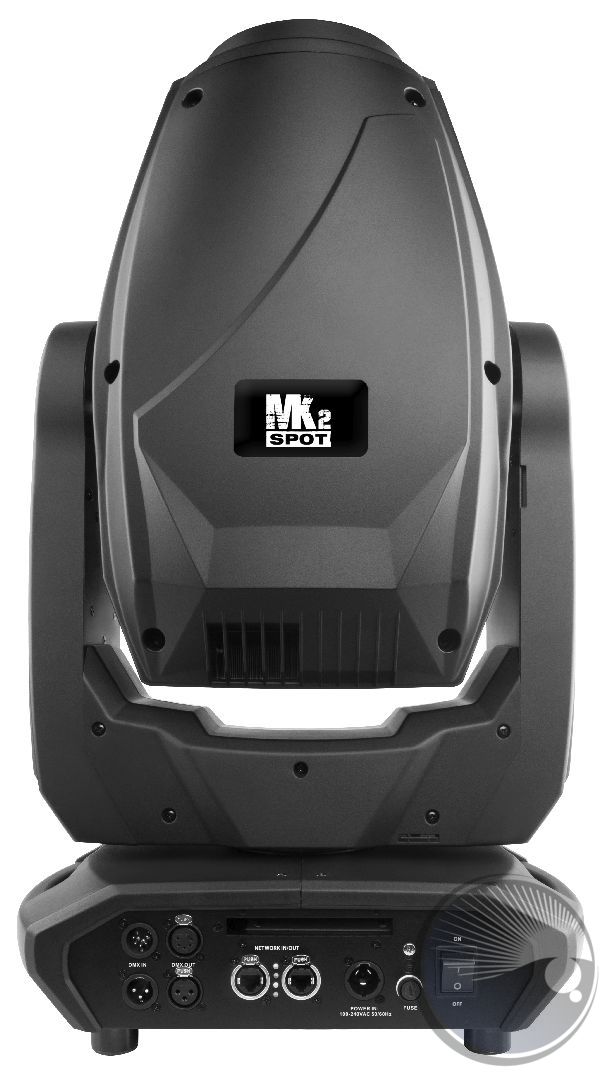

Maverick MK2 Spot

Maverick MK2 Spot is a stunningly bright moving yoke spot featuring a 440 W LED engine, precision engineered optics, CMY + CTO color mixing, two 6-position rotating slot and lock gobo wheels, a 7-position + white color wheel, variable frost, 3-facet prism and 14.7º – 40.5º zoom range. Control it as you see fit with DMX, sACN, Art-Net, or W-DMX.



AT A GLANCE

  • Fully featured 440W LED yoke spot fixture including CMY+CTO color mixing, a color wheel, zoom optics, and two rotating gobo wheels

  • 16-bit dimming of master dimmer for smooth control of fades

  • Variable CMY+CTO color mixing system to create a wide pallet of colors

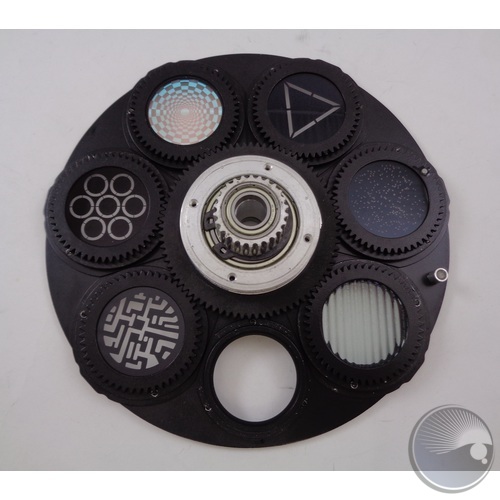

  • Two rotating, indexing and interchangeable slot and lock gobo wheels

  • DMX , W-DMX, sACN, and Art-Net for full flexibility of control options

  • 14.7° to 40.5° zoom angle for variable beam sizes

  • Iris, 3-facet prism, and frost for beam control

  • True 1 compatible power input

  • Battery backup display with auto rotate depending on fixture orientation

SPECIFICATIONS

OPTICAL

  • Light Source: 1 LED (CW) 440 W, (5.6 A), 6808 K, 50,000 hours life expectancy
  • Color Temperature (at full): 7101 K
  • Front Lens diameter: 116 mm
  • CRI: 73
  • Beam Angle: 12° to 35.6°
  • Field Angle: 14.7° to 40.5°
  • Zoom Angle: 14.7° to 40.5°
  • Lumens - Source: 28,000
  • Lumens - Output: 18,506
  • Illuminance (13°): 20,200 lux @ 5 m
  • Illuminance (37°): 2,731 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: 7 + white, split colors, continuous scroll at variable speeds
  • Colors: CMY flags, CTO flag

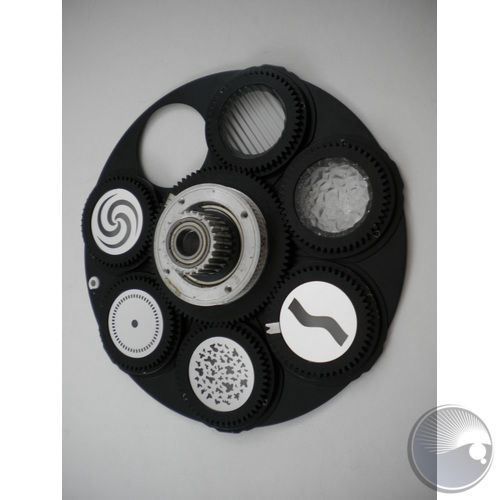

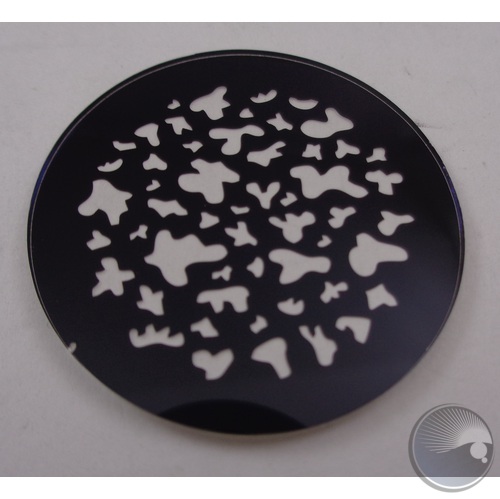

  • Gobos (1): 6 + open (6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 6 + open (6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobo Size (1) : Gobo Wheel 1 (rotating): 32 mm (outside), 28 mm (image), 3.3 mm (max. thickness)
  • Gobo Size (2) : Gobo Wheel 2 (rotating): 32 mm (outside), 28 mm (image), 3.3 mm (max. thickness)
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Iris: Motorized
  • Prism: 3 Facets, motorized, rotating
  • Strobe Rate: 0 to 20 Hz
  • Move-in-Black: Yes
  • Dim Curves: 4

CONSTRUCTION / PHYSICAL

  • Dimensions: 15.1 x 9.8 x 26.4 in (385 x 250 x 671 mm)
  • Weight: 62.8 lb (28.5 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

CONNECTIONS

  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR, Neutrik
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: Art-Net, sACN, DMX, W-DMX
  • DMX Channels: 24 or 32
  • Art-Net Channels: 24 or 32
  • Modes/Personalities: 2 personalities (24, 32)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 740 W, 6.01 A @ 120 V, 60 Hz
  • Power and Current: 723 W, 3.63 A @ 208 V, 60 Hz
  • Power and Current: 700 W, 3.33 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

  • Maverick MK2 Spot
  • Seetronic Powerkon IP65 power cord
  • Omega bracket with mounting hardware

REQUIRED ACCESSORIES

OPTIONAL ACCESSORIES

Weiterführende Links zu "Maverick MK2 Spot"

FUSE - 10A250V10AMPGMAFUSE - 10A250V
PTF1013000100antenna A40501 (BOM#8)
waterproof power socket (BOM#24)PTF1100000469waterproof power socket (BOM#24)
Power cord (BOM#41)PTFX20147Power cord (BOM#41)
PTH1010102137781atrap loose hook EX575A0404 (BOM#230)
battery press board IB-5R-A01-07 (BOM#35)PTH1010102198361battery press board IB-5R-A01-07 (BOM#35)
PTH1010102250191base board LS440A0101 (BOM#40)
PTH1010102250271pan bracket LS440A0102 (BOM#34)

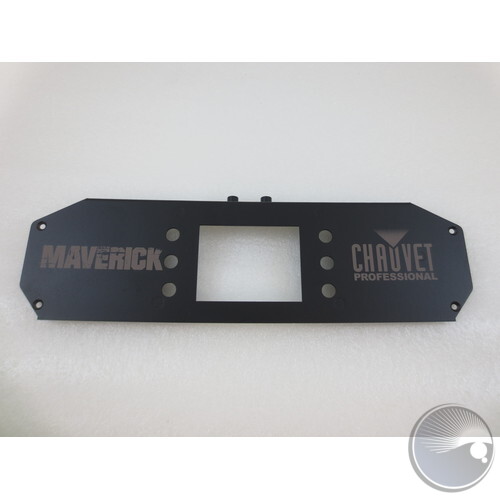

display board bracket LS440A0103 (BOM#23)PTH1010102250291display board bracket LS440A0103 (BOM#23)

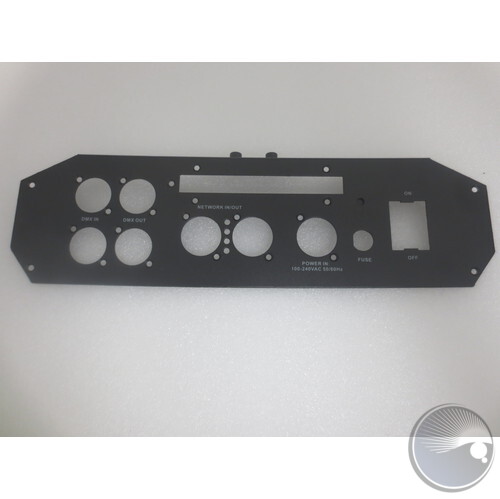

power socket board LS440A0104 (BOM#1)PTH1010102250321power socket board LS440A0104 (BOM#1)
PTH1010102250341fan bracket LS440A0105 (BOM#32)

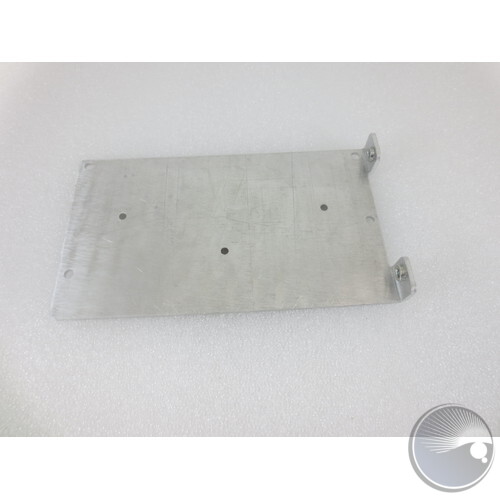

POWER SUPPLY bracket LS440A0106 (BOM#41)PTH1010102250361POWER SUPPLY bracket LS440A0106 (BOM#41)
PTH1010102250381POWER SUPPLY bracket LS440A0107 (BOM#39)

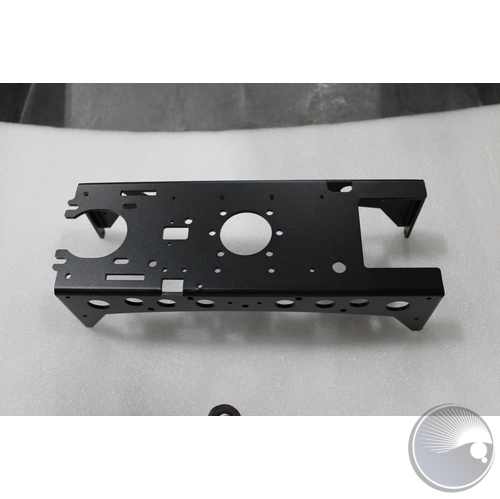

PTH1010102250421arm connection bracket LS440A0201 (BOM#89)
tilt motor bracket accessory LS440A0204 (BOM#76)PTH1010102250491tilt motor bracket accessory LS440A0204 (BOM#76)
PTH1010102250501tilt bracket accessory LS440A0205 (BOM#76)
PTH1010102250551arm front barrier LS440A0206 (BOM#71)

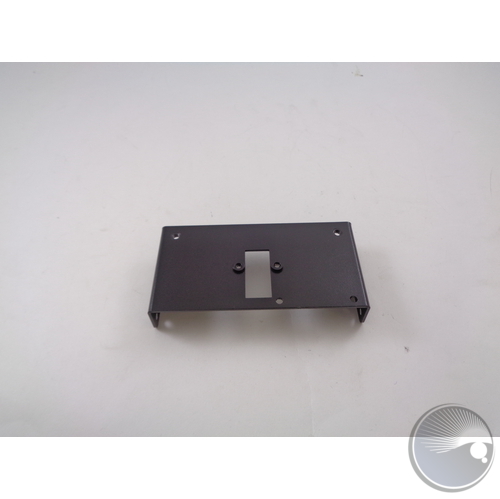

arm cover installation bracket LS440A0207 (BOM#50)PTH1010102250571arm cover installation bracket LS440A0207 (BOM#50)
PTH1010102250591arm cover installation bracket LS440A0208 (BOM#84)
PTH1010102250611arm strengthen board LS440A0209 (BOM#88)
PTH1010102250631pan motor bracket LS440A0210 (BOM#87)
PTH1010102250651pan magnetic sensor bracket LS440A0211 (BOM#133)
sider wheel bracket LS440A0212 (BOM#90)PTH1010102250671sider wheel bracket LS440A0212 (BOM#90)
pan oriantation chip LS440A0213 (BOM#74)PTH1010102250691pan oriantation chip LS440A0213 (BOM#74)
tilt lock wheel LS-440-A02-14 (BOM#66)PTH1010102250711tilt lock wheel LS-440-A02-14 (BOM#66)
PTH1010102250731pan lock pick LS-440-A02-15 (BOM#92)
tilt lock pick LS440A0216 (BOM#81)PTH1010102250751tilt lock pick LS440A0216 (BOM#81)
tilt lock shrapnel LS-440-A02-17 (BOM#78)PTH1010102250771tilt lock shrapnel LS-440-A02-17 (BOM#78)
PTH1010102250781tilt motor installation board LS440A0218 (BOM#106)
PTH1010102250801wheel bracket LS440A0219 (BOM#94)

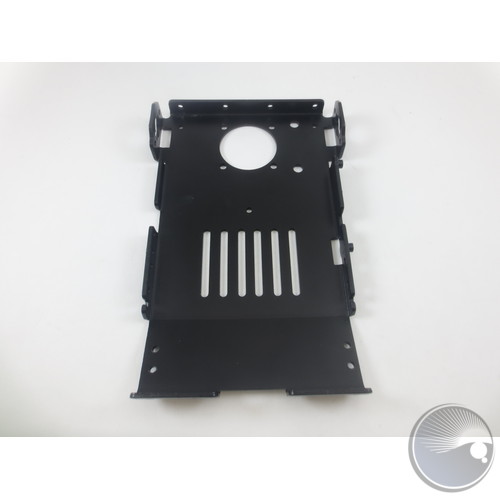

head left bracket LS440A0303 (BOM#271)PTH1010102250861head left bracket LS440A0303 (BOM#271)

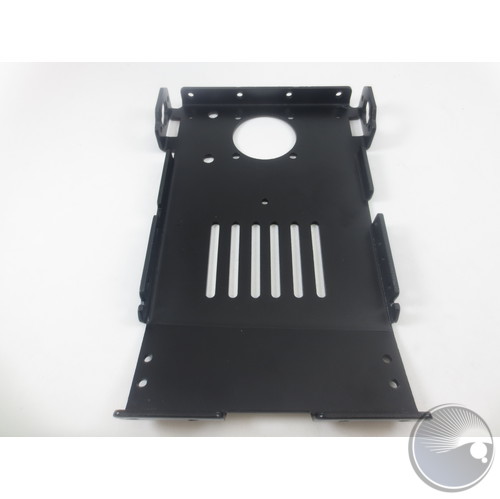

head right bracket LS440A0304 (BOM#284)PTH1010102250881head right bracket LS440A0304 (BOM#284)
PTH1010102250961focus lens bracket LS440A0308 (BOM#142)

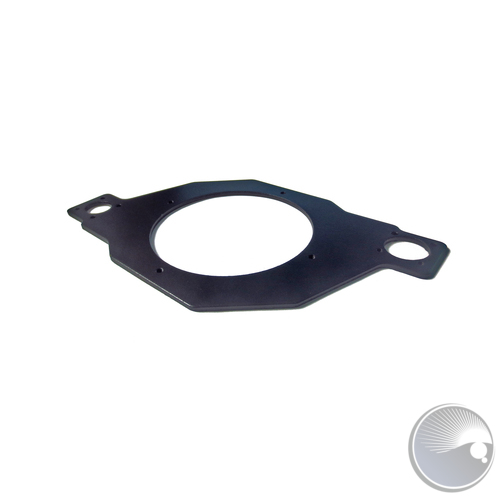

zoom set bracket LS440A0309 (BOM#175)PTH1010102250981zoom set bracket LS440A0309 (BOM#175)

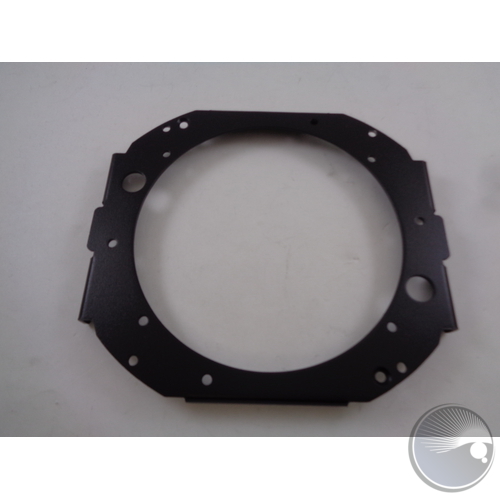

lens bracket LS440A0310 (BOM#171)PTH1010102251001lens bracket LS440A0310 (BOM#171)

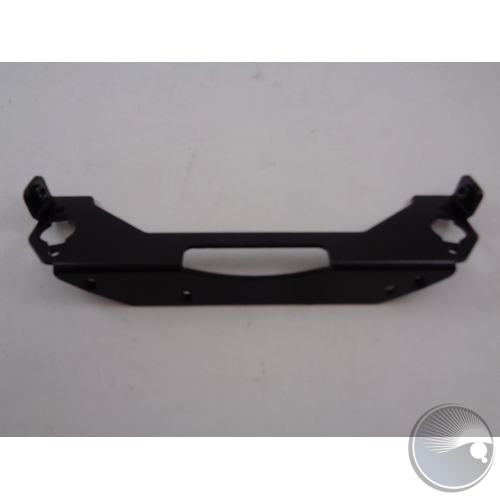

head cover installation bracket LS440A0311 (BOM#169)PTH1010102251021head cover installation bracket LS440A0311 (BOM#169)
PTH1010102251061belt fix board LS-440-A03-13 (BOM#167)
belt fix board 2 LS-440-A03-14 (BOM#162)PTH1010102251081belt fix board 2 LS-440-A03-14 (BOM#162)
PTH1010102251141gobo fix bracket LS440A0315 (BOM#188)
PTH1010102251181motor installation board LS440A0319 (BOM#207)
PTH1010102251261small fan bracket LS440A0321 (BOM#190)
PTH1010102251281motor mat board LS-440-A03-22 (BOM#348)
PTH1010102251301cmy fix bracket LS440A0323 (BOM#267)
PTH1010102251321cmy fix bracket LS440A0324 (BOM#256)
PTH1010102251341cmy motor bracket LS440A0326 (BOM#253)
PTH1010102259681cmy motor bracket LS440A0325 (BOM#249)
PTH1010102260021CMY base mat board LS440A0327 (BOM#241)
PTH1010102260061safety rope buckle LS-440-A03-29 (BOM#192)

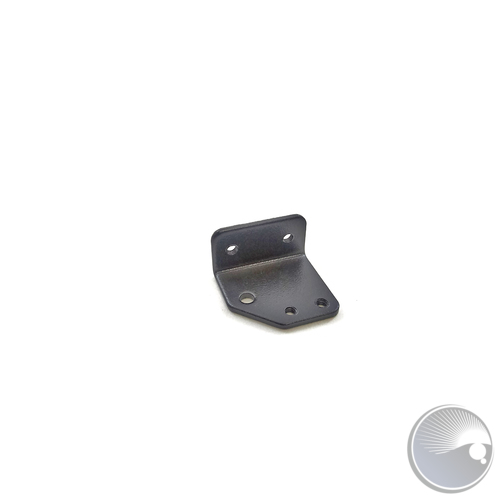

focus magnetic sensor bracket LS440A0328 (BOM#185)PTH1010102260081focus magnetic sensor bracket LS440A0328 (BOM#185)
wifi bracket LS-440-A01-08 (BOM#14)PTH1010102265661wifi bracket LS-440-A01-08 (BOM#14)
PTH1010102265681wire board bracket LS440A0109 (BOM#3)
power socket board accessory LS-440-A01-10 (BOM#9)PTH1010102267161power socket board accessory LS-440-A01-10 (BOM#9)
lens installation PCB LS-440-A03-30 (BOM#158)PTH1010102267441lens installation PCB LS-440-A03-30 (BOM#158)
stainless steel chip LS-440-A02-21 (BOM#82)PTH1010102271511stainless steel chip LS-440-A02-21 (BOM#82)

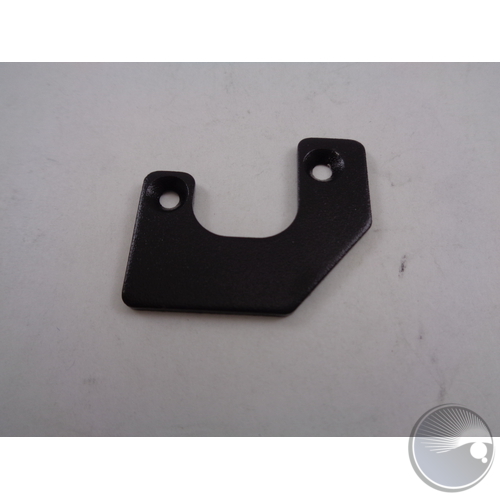

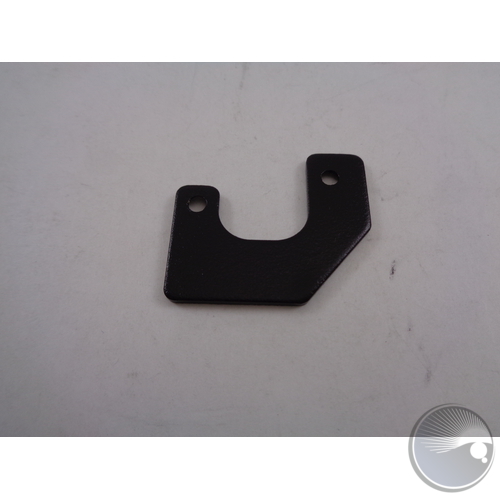

head installation board accessory 01 LS440A0331 (BOM#170)PTH1010102274531head installation board accessory 01 LS440A0331 (BOM#170)
head cover installation accessory 02 LS440A0332 (BOM#167)PTH1010102274551head cover installation accessory 02 LS440A0332 (BOM#167)
PTH1010102278001base strengthen LS440A0111 (BOM#35)
PTH1010102278021oriantation board LS440A0333 (BOM#272)
PTH1010102278061oriantation board LS440A0335 (BOM#274)
antenna clip LS-440-A01-12 (BOM#10)PTH1010102278171antenna clip LS-440-A01-12 (BOM#10)
PTH1010102282541head front bracket LS440A0307 D (BOM#135)
PTH1010102288591head front side bracket LS440A0306B (BOM#153)
PTH1010102288601gobo motor LS440A0316E (BOM#206)
PTH1010102288621gobo connection bracket LS440A0317C (BOM#192)
PTH1010102288651gobo connection bracket LS440A0318B (BOM#228)
PTH1010102288661adjust board LS440A0334B (BOM#282)
PTH1010102290331heat sink bracket LS440A0301F (BOM#273)

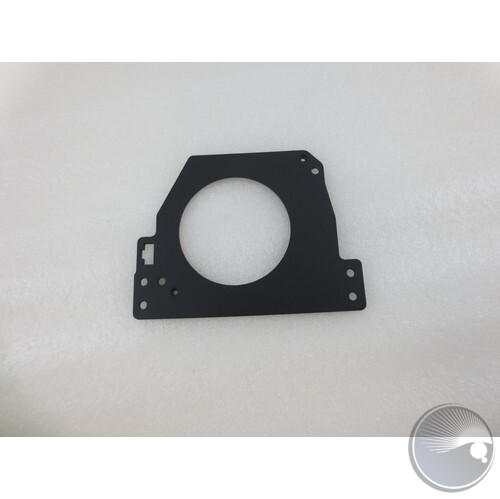

fan bracket LS440A0302 (BOM#269)PTH1010102290351fan bracket LS440A0302 (BOM#269)
PTH1010102290371head back board LS440A0305D (BOM#280)
PTH1010102320091quick lock screw mat board IS-100-A03-01 (BOM#80)
quick lock ring ?12.5 (BOM#167)PTH101012quick lock ring ?12.5 (BOM#167)
PTH1010202151451strap axis EX575B28 (BOM#229)
gear DL31202 (BOM#115)PTH1010202213461gear DL31202 (BOM#115)
PTH1010202251381pan support post LS440B01 (BOM#37)
pan lock axis LS440B02 (BOM#87)PTH1010202251391pan lock axis LS440B02 (BOM#87)
PTH1010202251401pan lock block LS440B03 (BOM#121)
pan slider axis LS440B05 (BOM#64)PTH1010202251421pan slider axis LS440B05 (BOM#64)
tilt slider axis LS440B07 (BOM#81)PTH1010202251431tilt slider axis LS440B07 (BOM#81)
PTH1010202251451focus slider cover LS440B09 (BOM#139)
PTH1010202251461zoom slider cover LS440B10 (BOM#163)

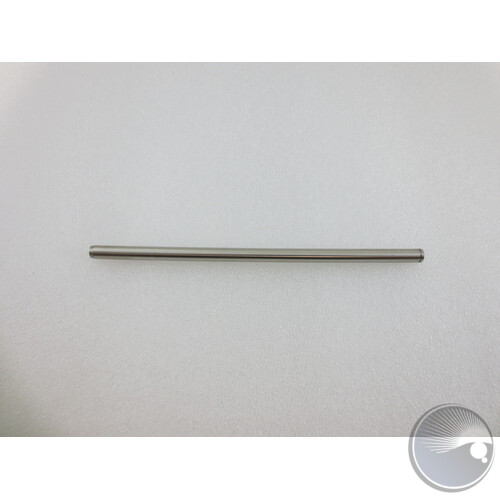

slide bar LS440B11 (BOM#164)PTH1010202251471slide bar LS440B11 (BOM#164)
slider socket LS440B12 (BOM#129)PTH1010202251481slider socket LS440B12 (BOM#129)
PTH1010202251491slider axis LS440B13 (BOM#148)
tilt lock axis LS-440-B08 (BOM#81)PTH1010202251501tilt lock axis LS-440-B08 (BOM#81)
PTH1010202251511gobo fix axis LS440B14 (BOM#194)
PTH1010202251521gobo mat post LS440B15 (BOM#199)
PTH1010202251531gobo mat post LS440B16 (BOM#195)
PTH1010202251541gobo mat post LS440B17 (BOM#220)
ball screw LS-440-B20 (BOM#65)PTH1010202251561ball screw LS-440-B20 (BOM#65)
PTH1010202251571pan axis LS440BZ01 (BOM#110)

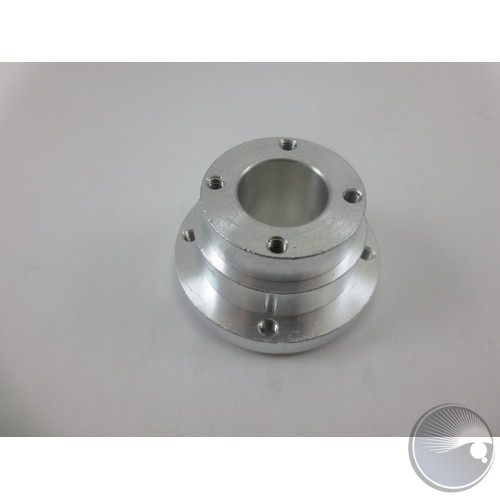

tilt axis LS440BZ03 (BOM#69)PTH1010202251591tilt axis LS440BZ03 (BOM#69)
PTH1010202251601tilt axis LS440BZ04 (BOM#73)
PTH1010202251631tilt axis LS440BZ07 (BOM#96)

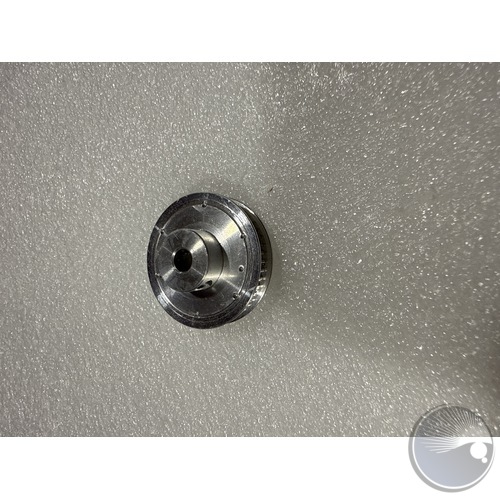

PTH1010202254221gear DL-245-01 (BOM#223)
gear DL312001 (BOM#89)PTH1010202254231gear DL312001 (BOM#89)
PTH1010202254241gear DL312002 (BOM#119)
PTH1010202254251gear set DL340360 (BOM#98)
pan lock cover LS440B19 (BOM#89)PTH1010202259701pan lock cover LS440B19 (BOM#89)
PTH1010202259711zoom sliding sleeve socket LS-440-B06 (BOM#161)
PTH1010202259721post LS440B21 (BOM#283)
PTH1010202259731pan bearing cover LS440B23 (BOM#81)
PTH1010202259741axis bushing LS440B24 (BOM#50)
PTH1010202259751zoom sliding sleeve 2 LS-440-B18 (BOM#160)
PTH1010202260281gobo cover LS440B22 (BOM#191)
slider wheel axis LS440B26 (BOM#42)PTH1010202263001slider wheel axis LS440B26 (BOM#42)
PTH1010202263011CMY pulley cover 1 LS-440-B27 (BOM#262)
PTH1010202263021CMY pulley cover 2 LS-440-B28 (BOM#289)

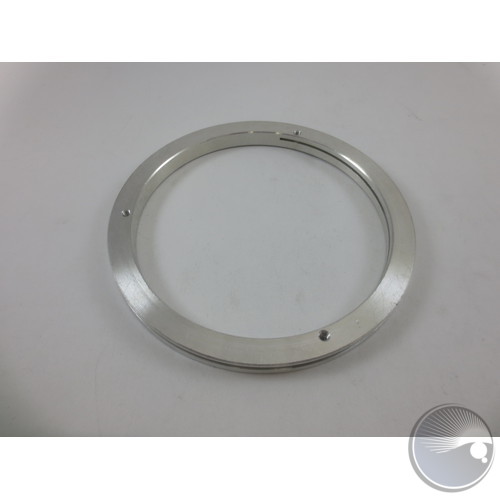

circlip ring LS440B30 (BOM#279)PTH1010202263031circlip ring LS440B30 (BOM#279)
PTH1010202265641gobo mat post LS440B29 (BOM#224)
zoom axis LS440B31 (BOM#161)PTH1010202265651zoom axis LS440B31 (BOM#161)
gear CL-5008-01 (BOM#290)PTH1010202272201gear CL-5008-01 (BOM#290)
PTH1010202274521gear DL32601 (BOM#201)

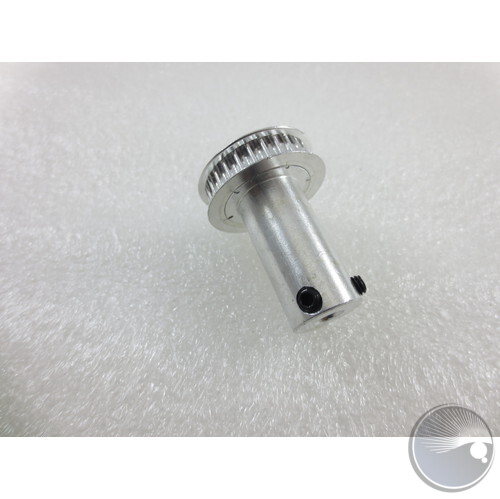

gear DL32602 (BOM#221)PTH1010202274721gear DL32602 (BOM#221)

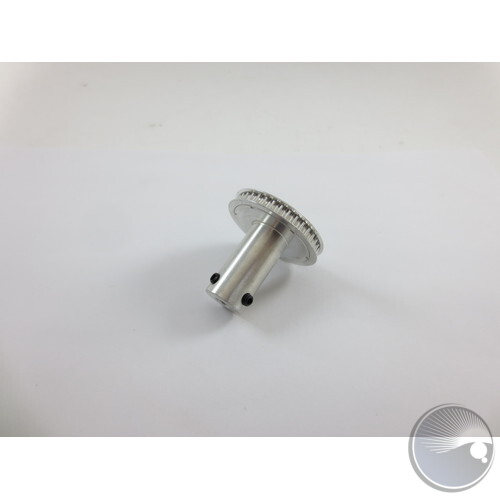

gear DL33604 (BOM#226)PTH1010202274731gear DL33604 (BOM#226)
PTH1010202279081cmy cover LS440B33 (BOM#250)

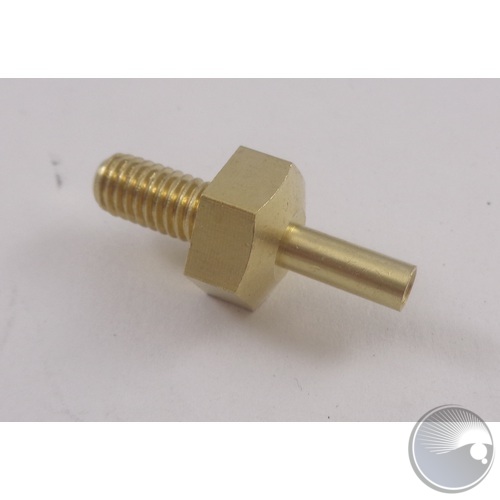

focus axis LS440B35 (BOM#158)PTH1010202280691focus axis LS440B35 (BOM#158)
PTH1010202280971gear DL-312-07 NR (BOM#128)
PTH1010202288681gobo support post LS440B36 (BOM#187)
LED press block LS-440-B25 (BOM#297)PTH1010202290401LED press block LS-440-B25 (BOM#297)
PTH1010202328231CMY Slider Wheel Cover LS440B40 (BOM#302)
PTH1010202328241CMY Slider Wheel Cover LS440B41 (BOM#301)
PTH1010202361881copper tube LS440B42(BOM#152)
PTH1010401160251aluminum post Φ6×19M3 (BOM#141)
PTH1010401265082aluminum post Φ5×98.5M3 (BOM#83)
PTH1010401282491aluminum post Φ12×177 M4 (BOM#165)
PTH1010402163221aluminum tube ?6×5?3.2 (BOM#141)
PTH1010402163241standoff 6x6 3.2 (BOM#210)
aluminum tube ?6×2.5?4.2 (BOM#44)PTH1010402163611aluminum tube ?6×2.5?4.2 (BOM#44)
PTH1010402163621aluminum tube ?6×3?3.2 (BOM#81)
PTH1010402163911standoff 6x2 3.2 (BOM#216)
PTH1010402253592copper tube ?10×4?5.2 (BOM#79)
PTH1010402253602copper tube ?10×3.5?6 (BOM#111)
copper pipe ?8×3?4.1 (BOM#287)PTH1010402290451copper pipe ?8×3?4.1 (BOM#287)
PTH1010402312691Aluminum Tube 6x1.5 3.2 (BOM#300)
HEXAGONAL ALUMINUM POSTPTH1010403164551HEXAGONAL ALUMINUM POST
PTH1010403165621aluminum post H6×16M3 (BOM#225)
aluminum post H6×17 M3 (BOM#88)PTH1010403165631aluminum post H6×17 M3 (BOM#88)
PTH1010403165691aluminum post H6×23 M3 (BOM#51)
PTH1010403165711aluminum post H6×25M3 (BOM#121)
PTH1010403165791aluminum post H6×33M3 (BOM#16)
PTH1010403166121aluminum post H612.5 M3 (BOM#94)
PTH1010502290431heat sink CD-Z06B (BOM#293)
140Dmm OMEGA BRACKET (BOM#34)PTH1040000230891140Dmm OMEGA BRACKET (BOM#34)

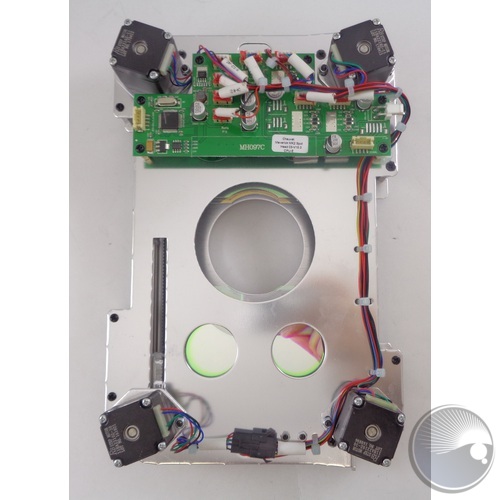

Module C CMY/Color Mixing Assembly - LS-440-03-03-00PTH1040000243811Module C CMY/Color Mixing Assembly - LS-440-03-03-00

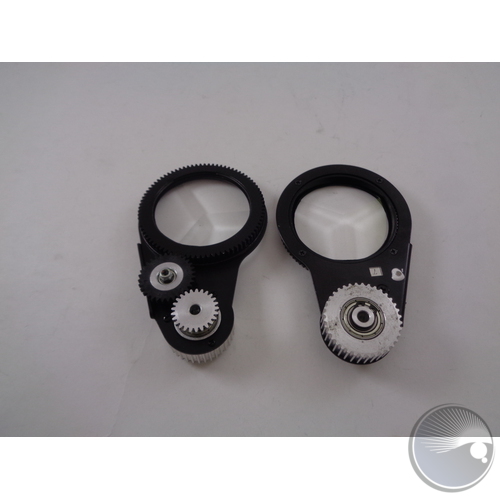

prism wheel IS440 LED Moving Spot (BOM#176)PTH1040000252861prism wheel IS440 LED Moving Spot (BOM#176)
PTH1040000278631slider wheel (BOM#41)
pan slider wheel (BOM#65)PTH1040000278641pan slider wheel (BOM#65)
PTH1040000278651pulley 1 LS/IS-440 (BOM#127)
focus slider LS/IS440 LED Moving Spot (BOM#159)PTH1040000283521focus slider LS/IS440 LED Moving Spot (BOM#159)

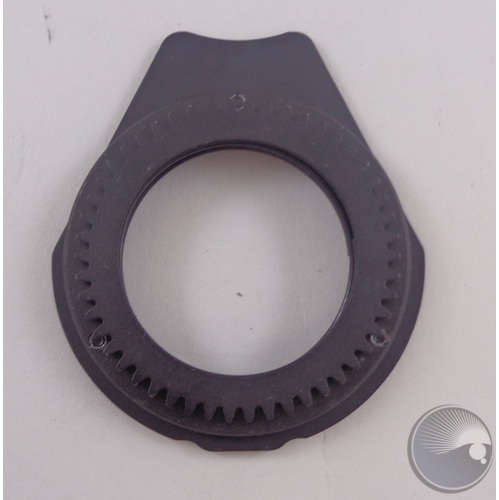

Standard GOBO Holder (same for wheel 1&2)PTH1040000361191Standard GOBO Holder (same for wheel 1&2)

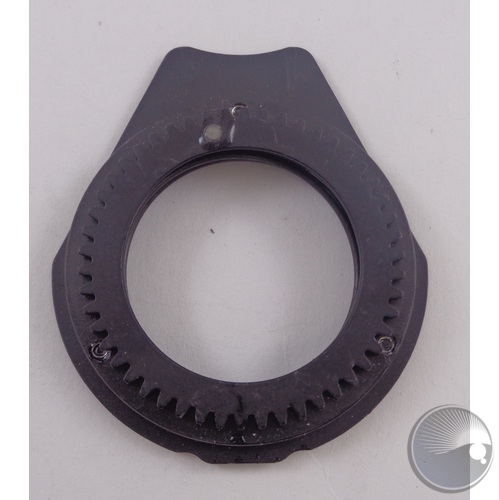

GOBO Holder 2 with magnet (Wheel 1 only)PTH1040000361201GOBO Holder 2 with magnet (Wheel 1 only)

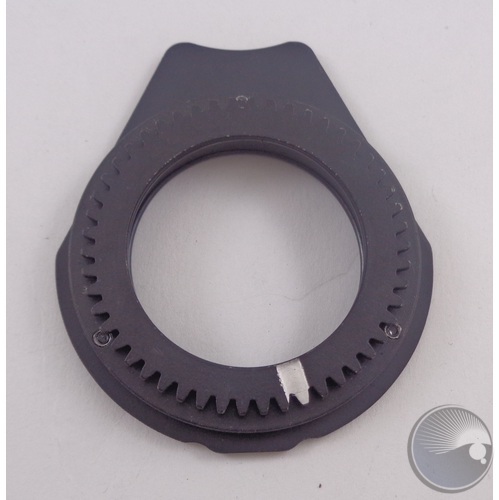

GOBO Holder 3 with gap (Wheel 2 only)PTH1040000361211GOBO Holder 3 with gap (Wheel 2 only)
arm cover LS440C03 (BOM#59)PTH1060100257021arm cover LS440C03 (BOM#59)
handle LS-440-C02 (BOM#38)PTH1060100257031handle LS-440-C02 (BOM#38)

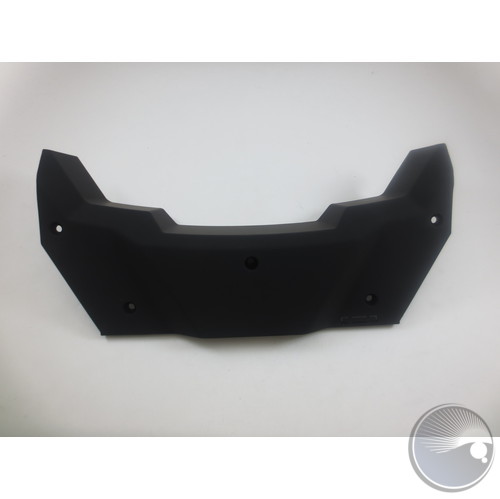

arm front cover LS440C04 (BOM#70)PTH1060100257041arm front cover LS440C04 (BOM#70)

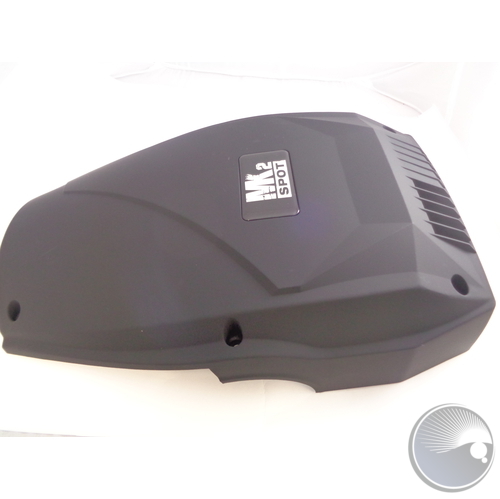

head cover LS440C06 (BOM#125)PTH1060100259601head cover LS440C06 (BOM#125)

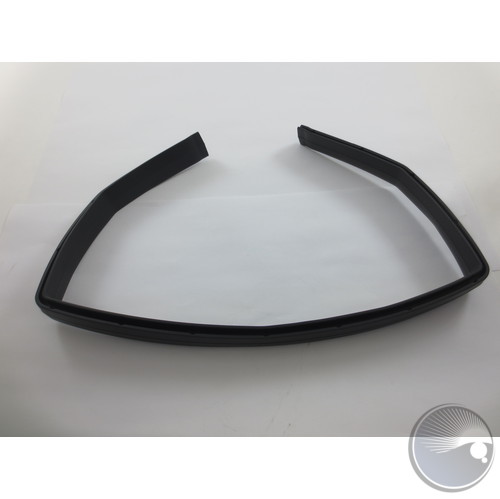

rubber tape LS440C07 (BOM#122)PTH1060100264971rubber tape LS440C07 (BOM#122)
PTH1060100265001wind guide board LS440C10 (BOM#285)

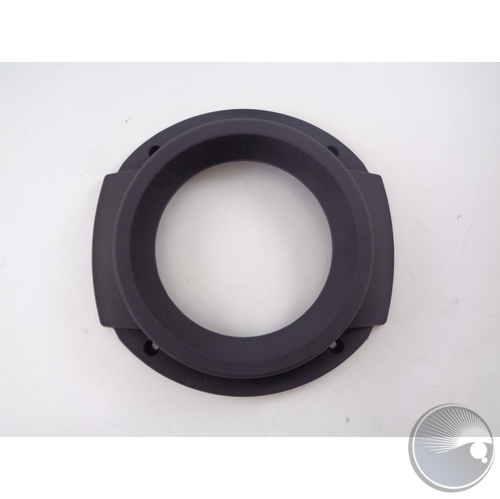

lens cover LS440C05 (BOM#173)PTH1060100267611lens cover LS440C05 (BOM#173)

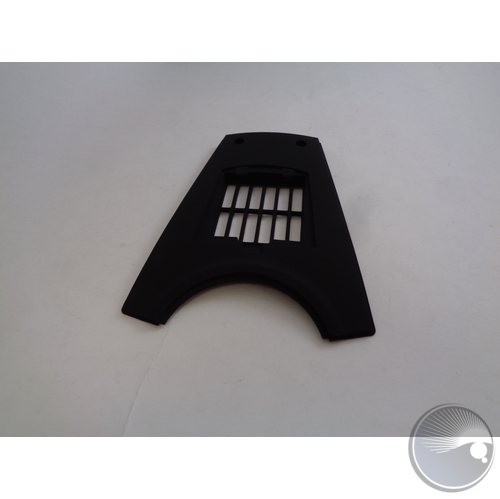

head side cover LS440C08 (BOM#126)PTH1060100277251head side cover LS440C08 (BOM#126)
dust proof cover cover LS440C09 (BOM#143)PTH1060100308771dust proof cover cover LS440C09 (BOM#143)
base face cover LS440C01 (BOM#3)PTH1060100381631base face cover LS440C01 (BOM#3)
flange 1200C0302 (BOM#104)PTH1060200122491flange 1200C0302 (BOM#104)
CMY base 1 EX700W-C03-A (BOM#260)PTH1060200122601CMY base 1 EX700W-C03-A (BOM#260)
CMY base 2 EX700W-C03-B (BOM#284)PTH1060200122621CMY base 2 EX700W-C03-B (BOM#284)
CMY base 3 EX700W-C03-C (BOM#261)PTH1060200122641CMY base 3 EX700W-C03-C (BOM#261)
CMY base 4 EX700W-C03-D (BOM#285)PTH1060200122661CMY base 4 EX700W-C03-D (BOM#285)
PTH1090500171161cmy slider EX575B32 (BOM#243)
Locking Washer for Fast LockPTH152000222Locking Washer for Fast Lock
stepper motor 17HD2023C (BOM#100)PTH17HD2023Cstepper motor 17HD2023C (BOM#100)
PTH2020302248731motor DRIVER PCB MH088A (BOM#136)
magnetic sensor HE14A (BOM#73)PTH2020302252331magnetic sensor HE14A (BOM#73)
magnetic sensor HE14A (BOM#32)PTH2020302253611magnetic sensor HE14A (BOM#32)

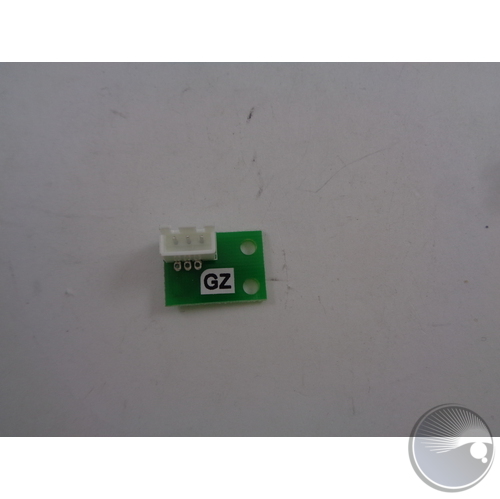

magnetic board HE12A (BOM#182)PTH2020302253621magnetic board HE12A (BOM#182)
magnetic sensor HE12 A - Rear Focus Bracket Mount LS-350-03-01-00 (BOM#181)PTH2020302255341magnetic sensor HE12 A - Rear Focus Bracket Mount LS-350-03-01-00 (BOM#181)
connection pcb MH096 B (BOM#60)PTH2020302262681connection pcb MH096 B (BOM#60)
PTH2020302262761full color display board LCD014A (BOM#140)
PTH2020302262901motor driver driver MH097C (BOM#252)
PTH2020302263221MOTOR DRIVER PCB MH087B (BOM#214)
PTH2020302263371MPCB MH125A V14.0 in BASE (BOM#26)
switch pcb ZJ038A (BOM#105)PTH2020302263901switch pcb ZJ038A (BOM#105)
optocoupler PCB GD004 B (BOM#213)PTH2020302265871optocoupler PCB GD004 B (BOM#213)

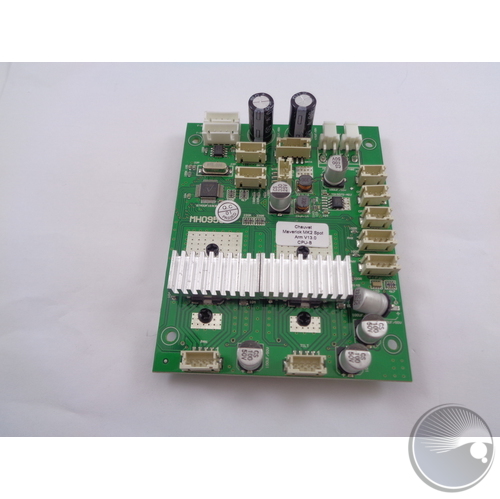

Arm Driver PCB MH095C (BOM#82)PTH2020302266311Arm Driver PCB MH095C (BOM#82)
DMX board DMX012B (BOM#40)PTH2020302267381DMX board DMX012B (BOM#40)
ethernet connector ZJ034 Amphenol (BOM#7)PTH2020302269051ethernet connector ZJ034 Amphenol (BOM#7)
PTH2020302279861led driver board MH101F (BOM#30)
wireless pcb A40895G4-R_GPTH2020303265531wireless pcb A40895G4-R_G
plastic standoff 44 2.8 (BOM#14)PTH2021900109181plastic standoff 44 2.8 (BOM#14)
battery with pcb ICR14430-500mAh 3.7V, 1.85wh (BOM#112)PTH2021900301511battery with pcb ICR14430-500mAh 3.7V, 1.85wh (BOM#112)

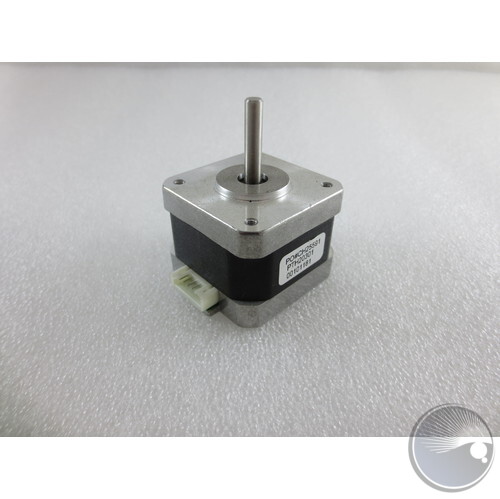

stepper motor 17HD003N24 (BOM#154)PTH2030100101181stepper motor 17HD003N24 (BOM#154)

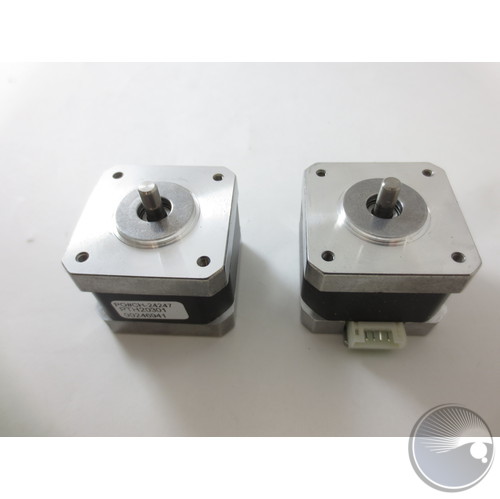

stepper motor 17HD003N10 (BOM#212)PTH2030100246941stepper motor 17HD003N10 (BOM#212)

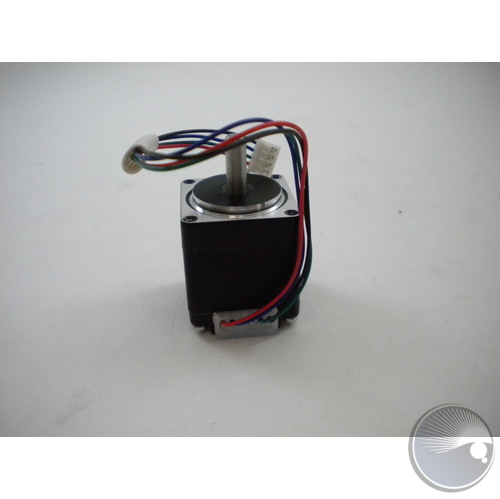

stepper motor 11HA2210Z15 (BOM#251)PTH2030100277081stepper motor 11HA2210Z15 (BOM#251)
stepper motor 11HA2210Z-30 (BOM#291)PTH2030100277091stepper motor 11HA2210Z-30 (BOM#291)

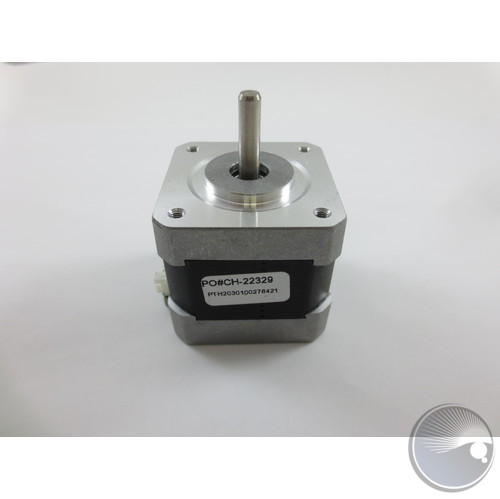

stepper motor 17HDB300720 (BOM#210)PTH2030100278421stepper motor 17HDB300720 (BOM#210)

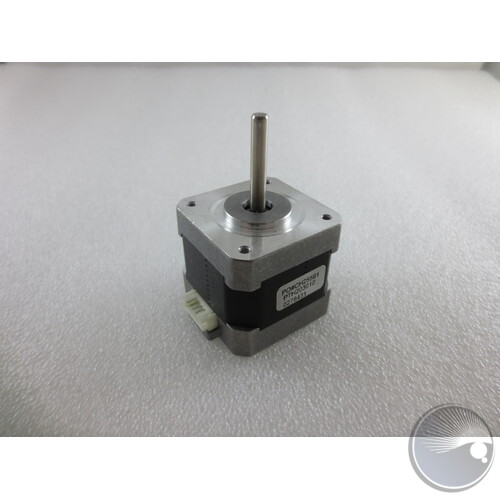

stepper motor 17HDB300730 (BOM#208)PTH2030100278431stepper motor 17HDB300730 (BOM#208)
stepper motor PL24HC2L315001 (BOM#72) Works for both Tilt & PanPTH2030101179941stepper motor PL24HC2L315001 (BOM#72) Works for both Tilt & Pan

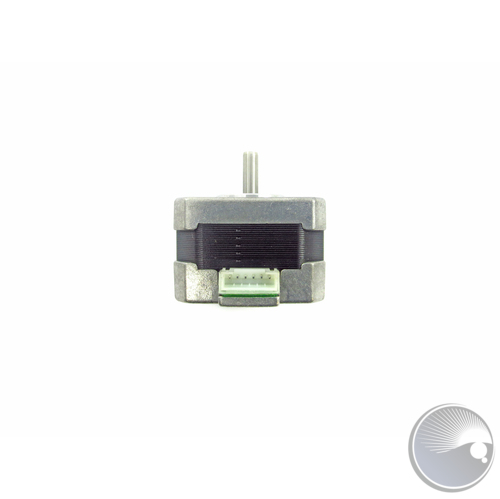

stepper motor 42SHK060315 (BOM#140)PTH2030103210521stepper motor 42SHK060315 (BOM#140)

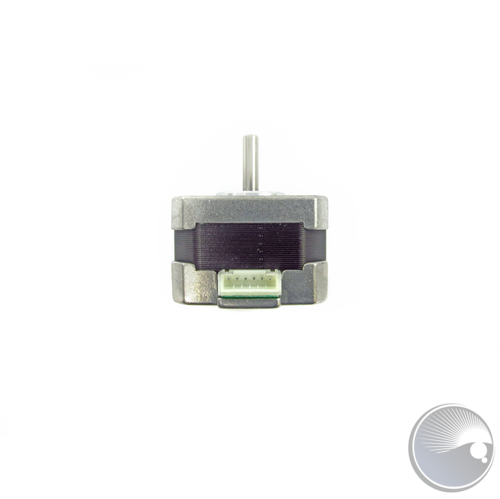

stepper motor 42SHK060320 (BOM#209)PTH2030103210531stepper motor 42SHK060320 (BOM#209)

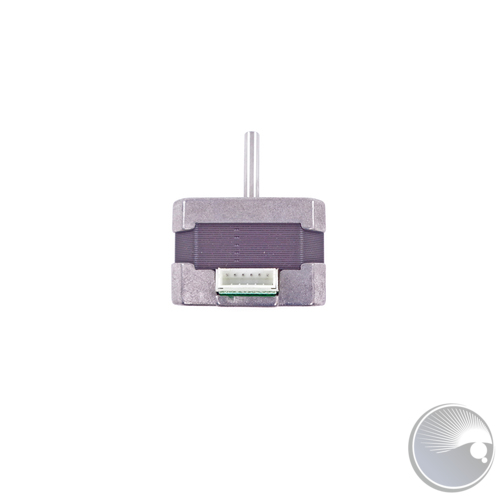

stepper motor 42SHK060325 (BOM#186)PTH2030103210541stepper motor 42SHK060325 (BOM#186)
stepper motor 42SHK060330 (BOM#94)PTH2030103227661stepper motor 42SHK060330 (BOM#94)
Base fan 12V?0.20A DFL7015B 3-pin female (BOM#18)PTH2030201262032Base fan 12V?0.20A DFL7015B 3-pin female (BOM#18)

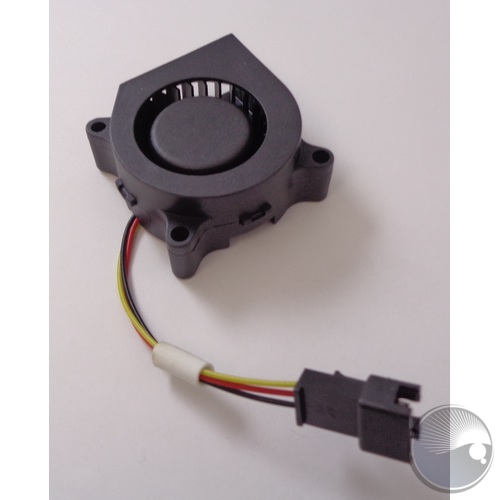

fan DFL4020B - 12V .07A (BOM#189)PTH2030202262021fan DFL4020B - 12V .07A (BOM#189)
PTH2030700252521power supply CA500-80V6A (BOM#24)
PTH2030700267361POWER SUPPLY DJ112A240D30.1 (BOM#44)
PTH2040000248001Module D Head Back Assembly - LS-440-03-04-00
rotating gobo wheel 1 LS440 LED Moving Spot (BOM#196)PTH2040000252761rotating gobo wheel 1 LS440 LED Moving Spot (BOM#196)

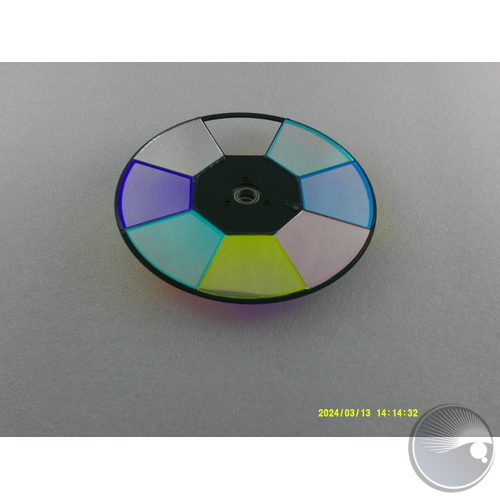

color wheel LS440 LED Moving Spot (BOM#193)PTH2040000254211color wheel LS440 LED Moving Spot (BOM#193)

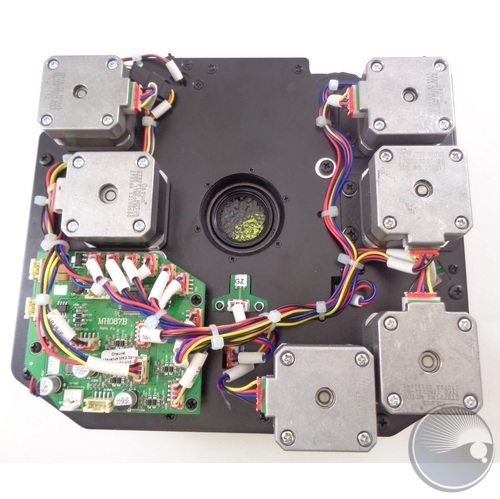

Module B Gobo Motor Bracket Assembly - LS-440-03-02-00PTH2040000260591Module B Gobo Motor Bracket Assembly - LS-440-03-02-00
rotating gobo wheel 2 LS440 LED Moving Spot (BOM#202)PTH2040000277411rotating gobo wheel 2 LS440 LED Moving Spot (BOM#202)
tilt bushing 1 LSIS-440 LED Moving Spot (BOM#64)PTH2040000277891tilt bushing 1 LSIS-440 LED Moving Spot (BOM#64)
tilt bushing 2 LSIS-440 LED Moving Spot,M-1D LED Moving Wash (BOM#55)PTH2040000277901tilt bushing 2 LSIS-440 LED Moving Spot,M-1D LED Moving Wash (BOM#55)
PTH2040000277911pan bushing LS440 LED Moving Spot (BOM#99)
PTH2040000277921pan bushing LS/IS440/ (BOM#123)
PTH2040000277931gear DL3150601 (BOM#117)
gear set DL3150701 (BOM#69)PTH2040000277941gear set DL3150701 (BOM#69)

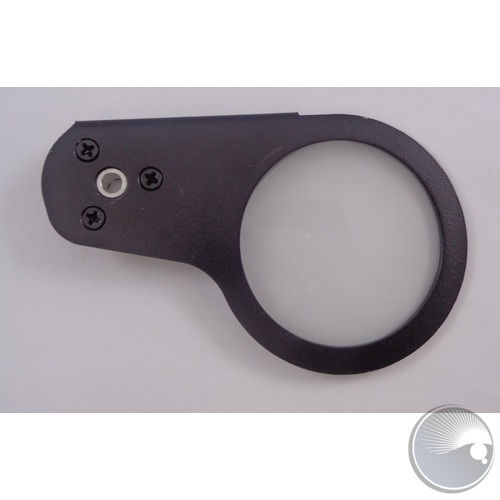

frost lens set LS440 LED Moving Spot (BOM#181)PTH2040000277951frost lens set LS440 LED Moving Spot (BOM#181)
iris set LS/IS-440,PRO-150S/300S (BOM#167)PTH2040000277961iris set LS/IS-440,PRO-150S/300S (BOM#167)
Fan assembly DFM5010B 12V .12A FAN1J140.15 3-Pin Female (BOM#109)PTH2040000506091Fan assembly DFM5010B 12V .12A FAN1J140.15 3-Pin Female (BOM#109)
PTH2040000548421wire harness on LS-440-03-01-00 module

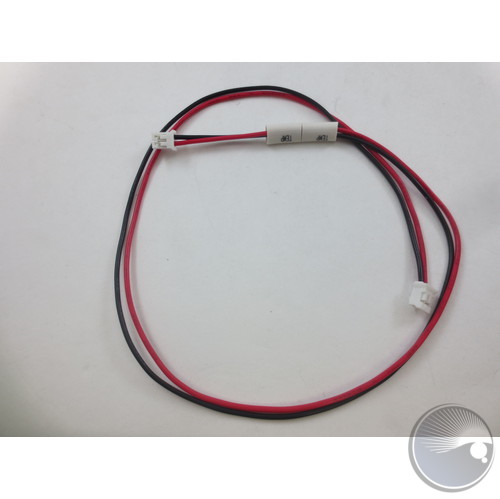

2 wire cable from LED Driver card to the CPU A cardPTH20400005902212 wire cable from LED Driver card to the CPU A card

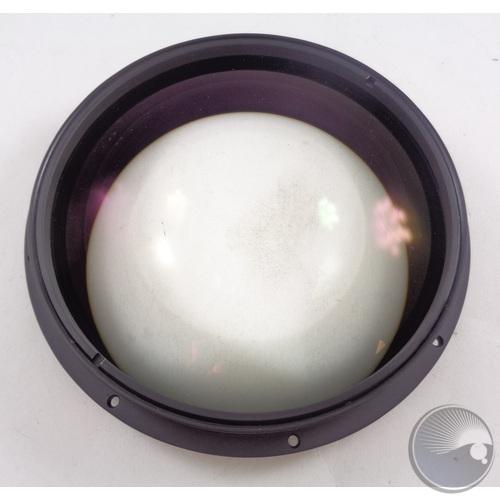

lens set KO90703 (BOM#172)PTH2040107244381lens set KO90703 (BOM#172)

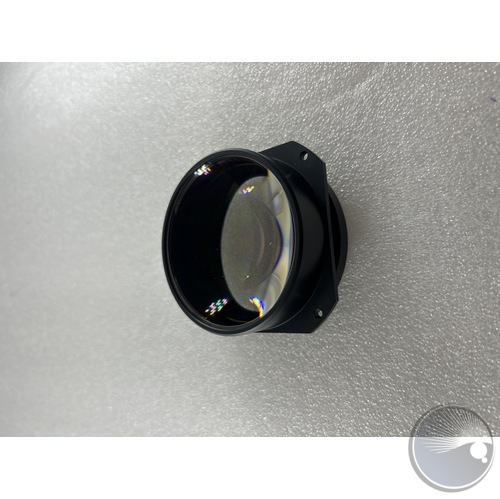

PTH2040107244391zoom set KO90702 (BOM#174)
PTH2040107279481focus set A152-471-1 (BOM#171)
Shower Glass GOBO#5 (Wheel 2)PTH2040501253551Shower Glass GOBO#5 (Wheel 2)
Checker Vortex glass gobo ?32-C070-30-C01 (BOM#247)PTH2040501253741Checker Vortex glass gobo ?32-C070-30-C01 (BOM#247)
Lenticular glass gobo ?32-C075-28-D03 (BOM#244)PTH2040501262441Lenticular glass gobo ?32-C075-28-D03 (BOM#244)
Star Field glass gobo ?32-C074-28-C01 (BOM#245)PTH2040501277301Star Field glass gobo ?32-C074-28-C01 (BOM#245)
glass gobo ?32-C028-28-C01 (BOM#246)PTH2040501277311glass gobo ?32-C028-28-C01 (BOM#246)
Rings of Rings glass gobo ?32-C084-28-C01 (BOM#248)PTH2040501277321Rings of Rings glass gobo ?32-C084-28-C01 (BOM#248)

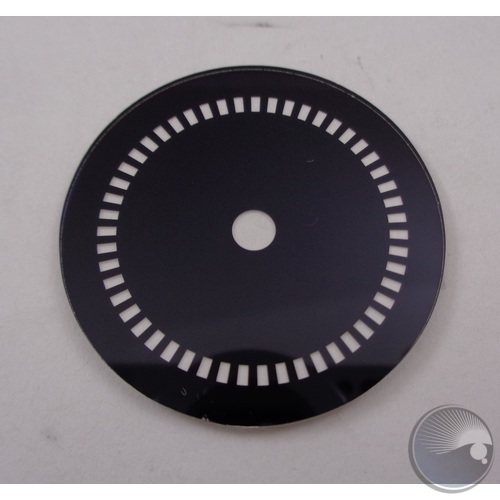

Dot Chiclets GOBO (Wheel 2)PTH2040501277331Dot Chiclets GOBO (Wheel 2)
Splot Breakup GOBO (Wheel 2)PTH2040501277341Splot Breakup GOBO (Wheel 2)

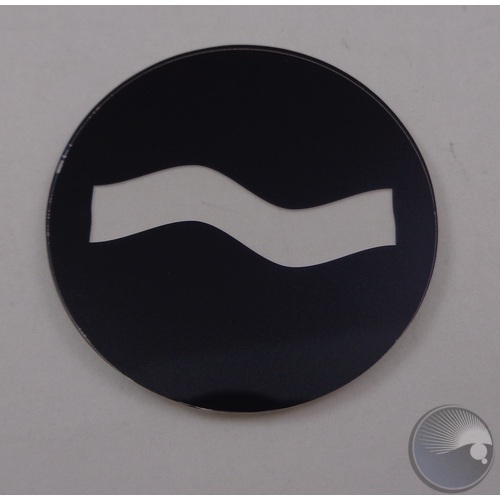

Wavy Bar GOBO (Wheel 2)PTH2040501277351Wavy Bar GOBO (Wheel 2)

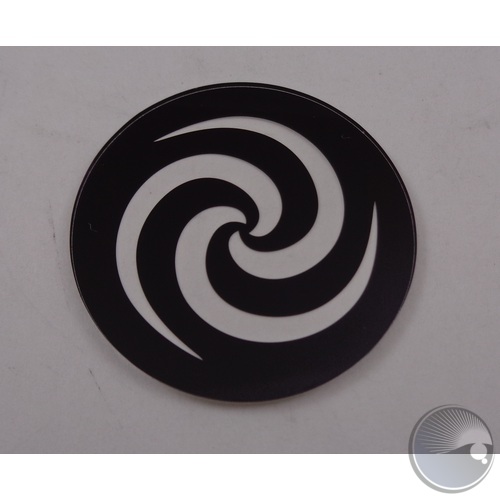

Spiral GOBO (Wheel 2)PTH2040501277361Spiral GOBO (Wheel 2)
Circuits Glass gobo ?32-C088-26-C01 (BOM#249)PTH2040501289431Circuits Glass gobo ?32-C088-26-C01 (BOM#249)
stainless steel open ?32-C001-28-B01 (BOM#243)PTH2040502409301stainless steel open ?32-C001-28-B01 (BOM#243)
wireless connection cable A40921 (BOM#96)PTH2050700291771wireless connection cable A40921 (BOM#96)
PTH2070501259841sticker LS440 LED Moving Spot (BOM#47)
dust proof sponge/filter 62mm×68mm×7mm (BOM#142)PTH2071100304521dust proof sponge/filter 62mm×68mm×7mm (BOM#142)

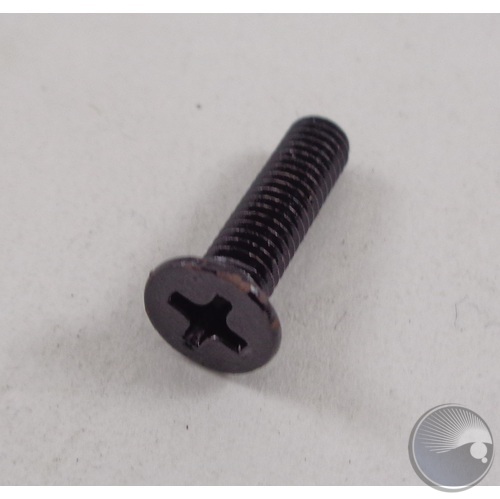

Bolt for the TiltPTH2080302126481Bolt for the Tilt
screw M8×25 (BOM#22)PTH2080502173331screw M8×25 (BOM#22)
PTH2080502250041screw M8×80 (BOM#53)
loose proof screw M4 (BOM#26)PTH2081002126921loose proof screw M4 (BOM#26)
screw M8 (BOM#69)PTH2081002126951screw M8 (BOM#69)
ring ?8×?16×1 (BOM#84)PTH2081103252391ring ?8×?16×1 (BOM#84)
PTH2081103253481ring Φ6×Φ16×1.2 (BOM#155)
PTH2081106253031ring ?10 (BOM#88)
quick lock screw ?12×?6×18.5 with phillips head (BOM#166)PTH2081700176951quick lock screw ?12×?6×18.5 with phillips head (BOM#166)
quick lock shrapnel 33×20×10 (BOM#168)PTH2081700176971quick lock shrapnel 33×20×10 (BOM#168)
PTH2090101247172syncronization belt 3M-411-4mm (BOM#129)
PTH2090101260311syncronization strap 3M-171-4mm (BOM#177)
PTH2090101273942syncronization strap 3M-468-12mm (BOM#94)
PTH2090101274361syncronization strap 3M-285-4mm (BOM#223)
PTH2090101274371syncronization strap 3M1684mm (BOM#221)
PTH2090101275631syncronization strap 3M-591-10.5mm (BOM#38)
PTH2090101275641syncronization strap 3M28510.5mm (BOM#97)
PTH2090101279551belt 3M-189-8mm (BOM#187)
PTH2090101296711syncronization strap 3M-318-3mm (BOM#227)
PTH2090102260371syncronization strap B105MXL4mm (BOM#222)
PTH2090102262091syncronization belt B220MXL-2.5mm (BOM#267)
PTH2090201261721bearing MR115ZZ (BOM#310)
PTH2090300275101wire buckle T4010 (BOM#219)
PTH2090300275111round buckle T10 (BOM#149)
PTH2090400254311wire rubber ring ?8×?18 (BOM#166)
button cap AJM-10x6 (BOM#28)PTH2090400256161button cap AJM-10x6 (BOM#28)
machine feet (BOM#129)PTH2090400259771machine feet (BOM#129)
fan net 7×7 (BOM#19)PTH2090500170761fan net 7×7 (BOM#19)
quick lock screw M20 (BOM#47)PTH2090500180091quick lock screw M20 (BOM#47)
spring ?4×20×0.4 (BOM#103)PTH2090601168481spring ?4×20×0.4 (BOM#103)
spring ?10×38×1.2 (BOM#78)PTH2090601173371spring ?10×38×1.2 (BOM#78)
spring ?10×47×1.2 (BOM#68)PTH2090601276121spring ?10×47×1.2 (BOM#68)
spiral circlip ?(35+31.5)×16×1.0 (BOM#242)PTH2090602326591spiral circlip ?(35+31.5)×16×1.0 (BOM#242)
assembled switch pcb ZJ009A KW12 5A/3A 125/250VAC BOM#261)PTH2090701168841assembled switch pcb ZJ009A KW12 5A/3A 125/250VAC BOM#261)
POWER SUPPLY switch RF1004 (BOM#49)PTH2090704169132POWER SUPPLY switch RF1004 (BOM#49)
PTH2091004169221rubber tube 58 (BOM#27)
silicone tube 69 (BOM#138)PTH2091004169231silicone tube 69 (BOM#138)
PTH2091004182531silicone tube Φ3×Φ5 (BOM#128)
PTH2091101166831copper post 3×8 (BOM#175)
PTH2091101166851copper post 3×10 (BOM#20)
copper post 3×11 (BOM#21)PTH2091101166861copper post 3×11 (BOM#21)
PTH2091101257231copper post 3×7 (BOM#125)
PTH2091302169601axis circlip 351.5 (BOM#61)
open circlip ?4 (BOM#66)PTH2091302169621open circlip ?4 (BOM#66)
PTH2091302246971circlip Φ8 (BOM#118)
magnet ?3×3 (BOM#77)PTH2091400234741magnet ?3×3 (BOM#77)
steel rope JL201 1.0mm×15cm (BOM#146)PTH2091500217051steel rope JL201 1.0mm×15cm (BOM#146)
PVC rubber cover 14x8 (BOM#68)PTH2091500249071PVC rubber cover 14x8 (BOM#68)
PTH2120100254331LED module Atria HL440A440W (BOM#276)

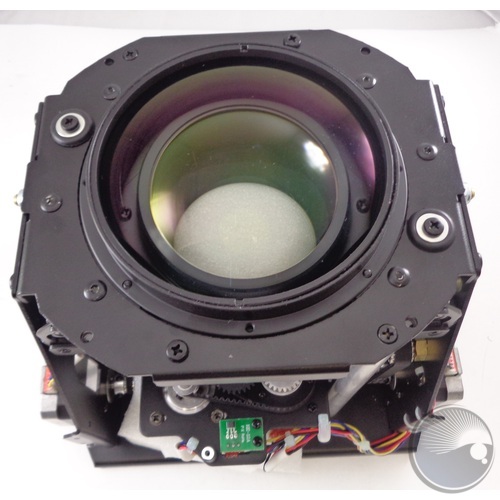

Module A Focus Zoom Assembly - LS-440-03-01-00PTH2170000272931Module A Focus Zoom Assembly - LS-440-03-01-00

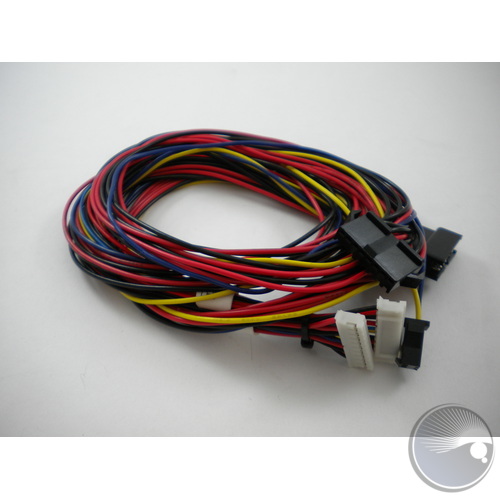

LED Wire HarnessPTH2400000495671LED Wire Harness
optocoupler pcb AGD004 B (BOM#70)PTH28AGD004Boptocoupler pcb AGD004 B (BOM#70)
PTH28GD001A1optocoupler pcb GD001A (BOM#107)

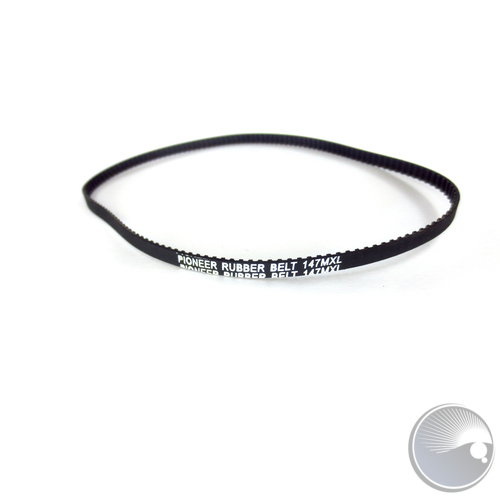

syncronization strap B147MXL4mm (BOM#197)PTHB147MXL4MMsyncronization strap B147MXL4mm (BOM#197)
gear DL-220-02 (BOM#271)PTHDL22002gear DL-220-02 (BOM#271)
pan mat chip EX575A0120 (BOM#74)PTHEX575A0120pan mat chip EX575A0120 (BOM#74)
copper screw EX575B03 (BOM#82)PTHEX575B03copper screw EX575B03 (BOM#82)

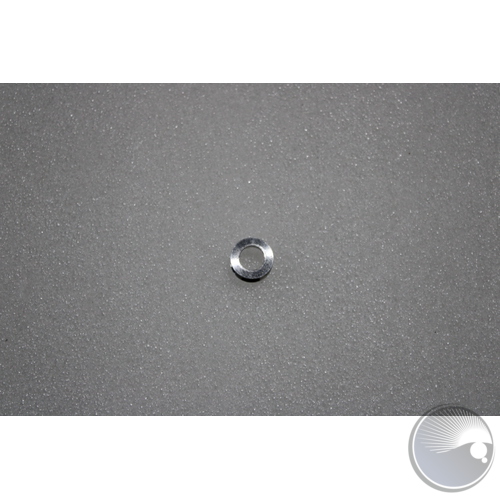

PTHEX575B27strap press wheel 2 EX575B27 (BOM#55)
PTHPRO200SA0311strap press chip PRO-200S-A03-11 (BOM#156)
PTHPRO2RBZ03axle bushing (BOM#52)
base bracket PRO-5R-A01-02 (BOM#30)PTHPRO5RA0102base bracket PRO-5R-A01-02 (BOM#30)
PTHPRO5RB15lamp adjust screw PRO5RB15 (BOM#156)
pan oriantation post PRO5RB19 (BOM#63)PTHPRO5RB19pan oriantation post PRO5RB19 (BOM#63)
Panel mount fuse holder (BOM#29)PTJ3027001001Panel mount fuse holder (BOM#29)

Es sind leider keine Geräte verfügbar.

Es kann vorkommen, dass in unserem Lager noch gebrauchte Geräte vorhanden sind. Fragen Sie gerne über unsere Service-Hotline +49 871 40875521 oder per Email info@lights-whatever.de bei uns nach. Wir helfen Ihnen gerne weiter!

Bewertungen lesen, schreiben und diskutieren... mehr
Kundenbewertungen für "Maverick MK2 Spot"
Bewertung schreiben
Bewertungen werden nach Überprüfung freigeschaltet.

Die mit einem * markierten Felder sind Pflichtfelder.

Ich habe die Datenschutzbestimmungen zur Kenntnis genommen.

Zuletzt angesehen
