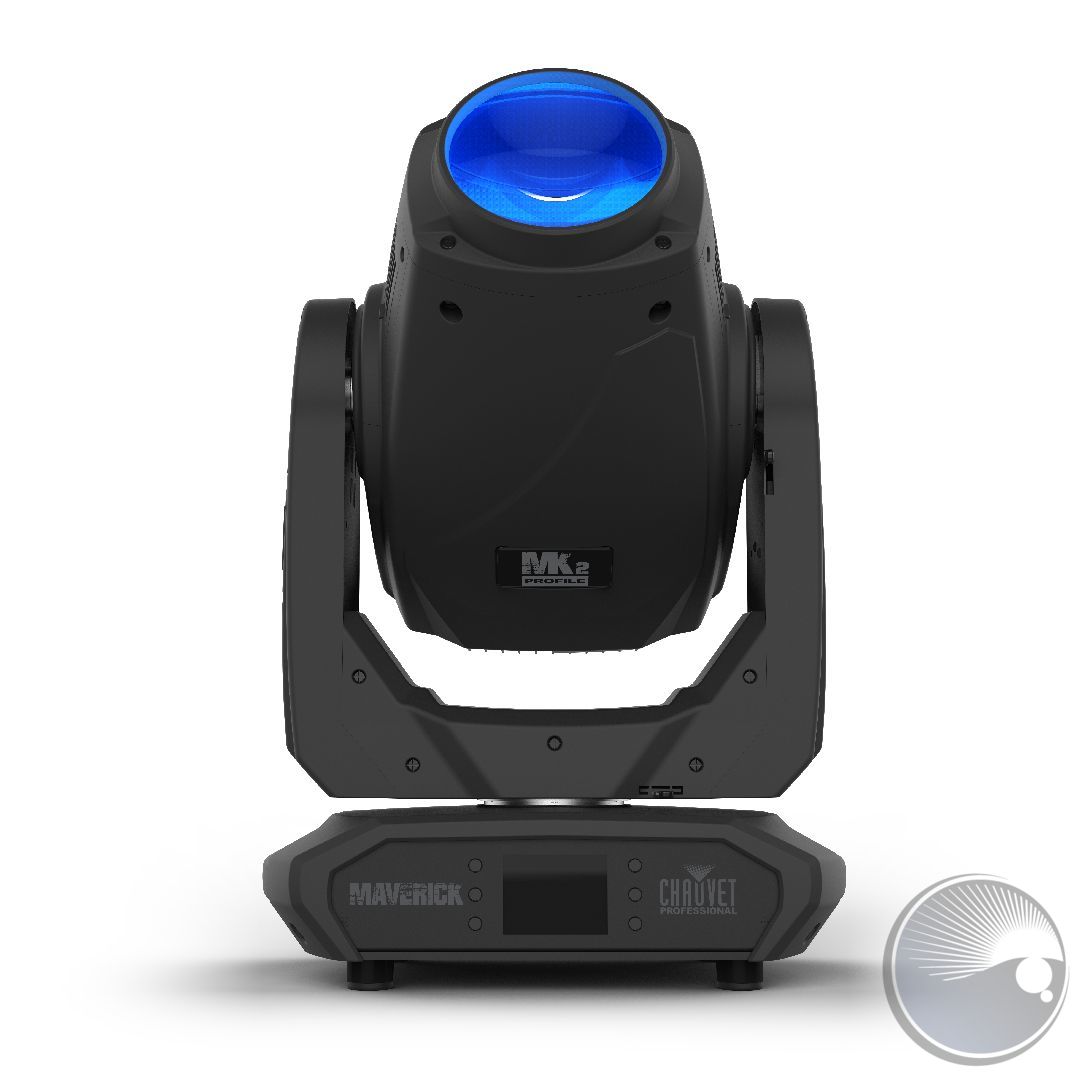

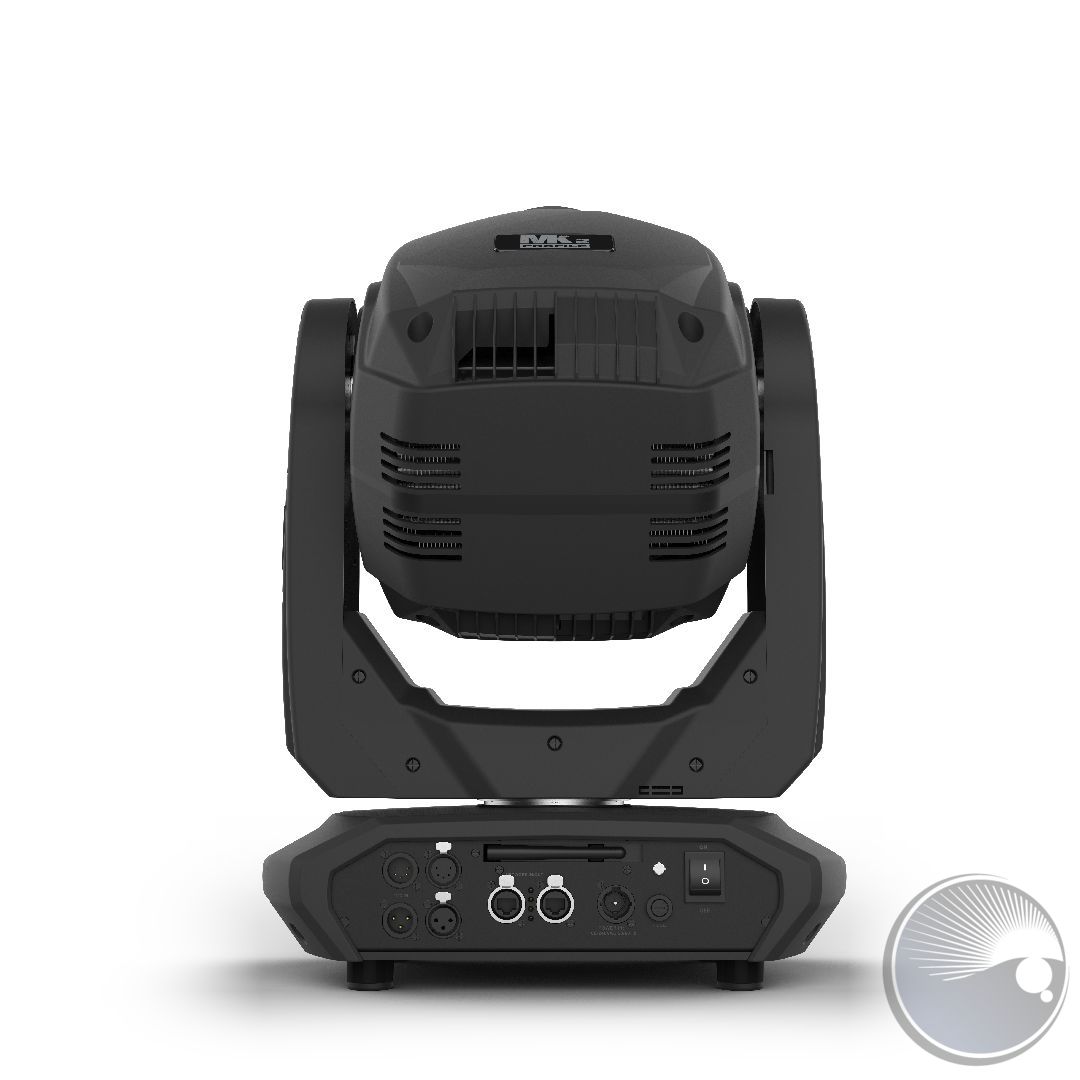

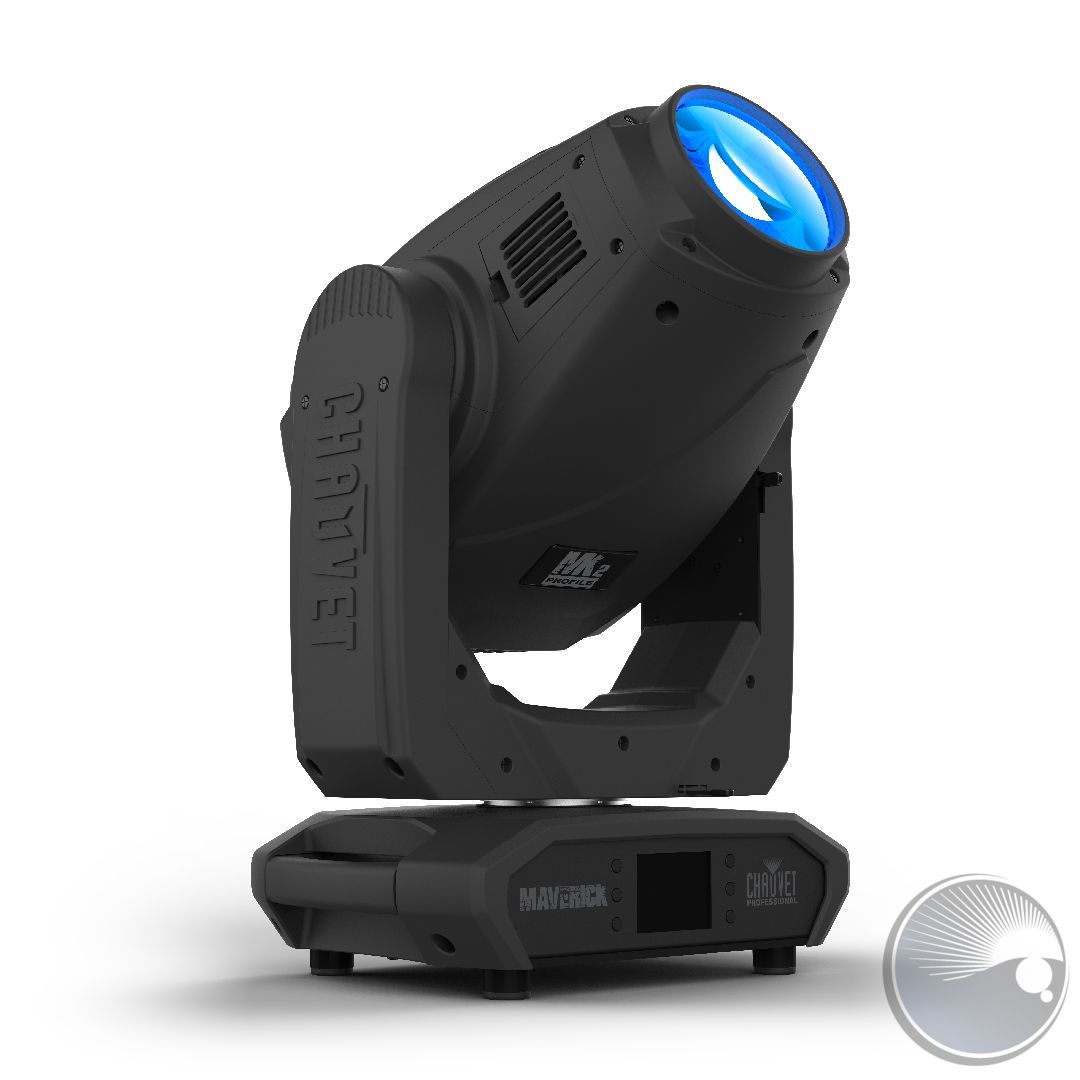

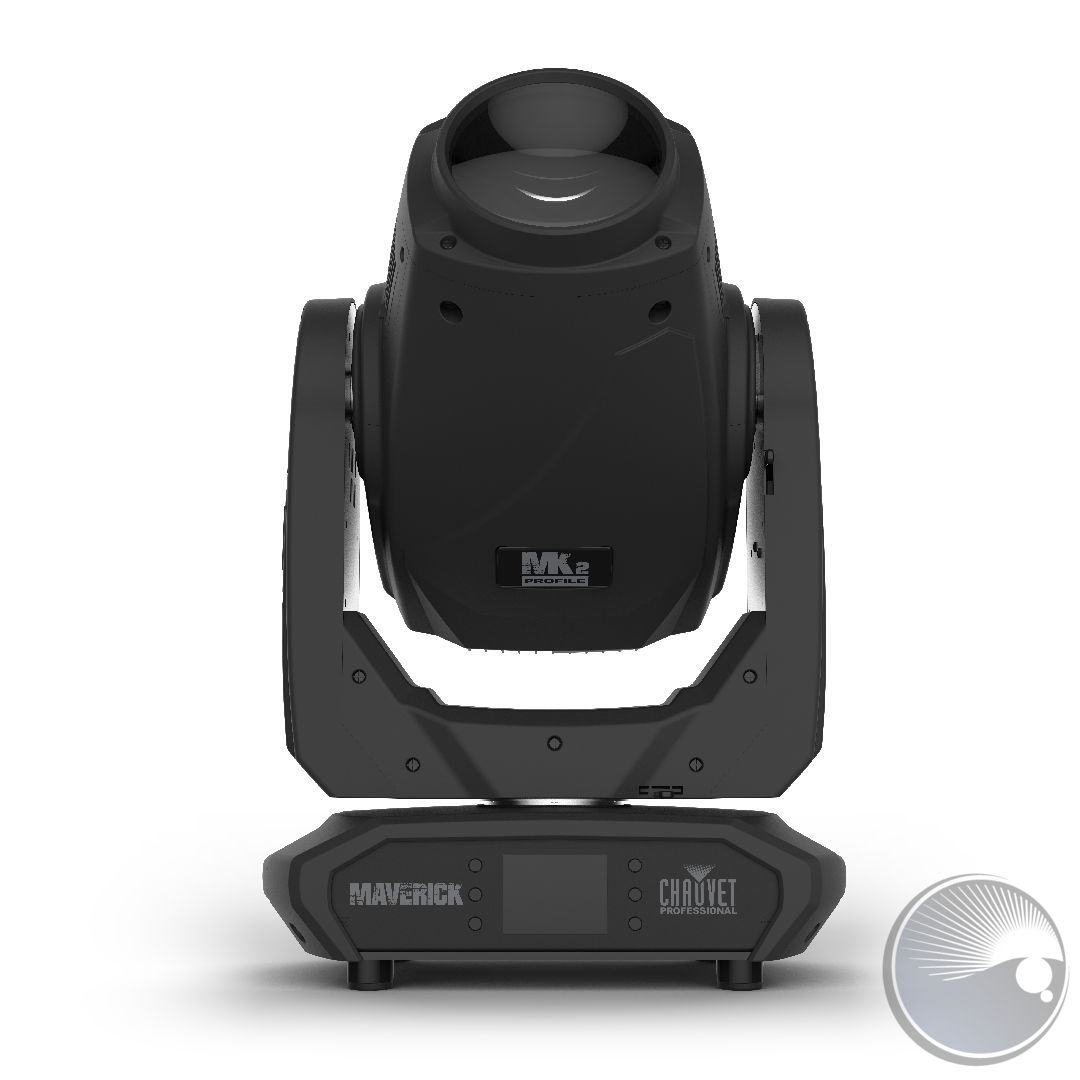

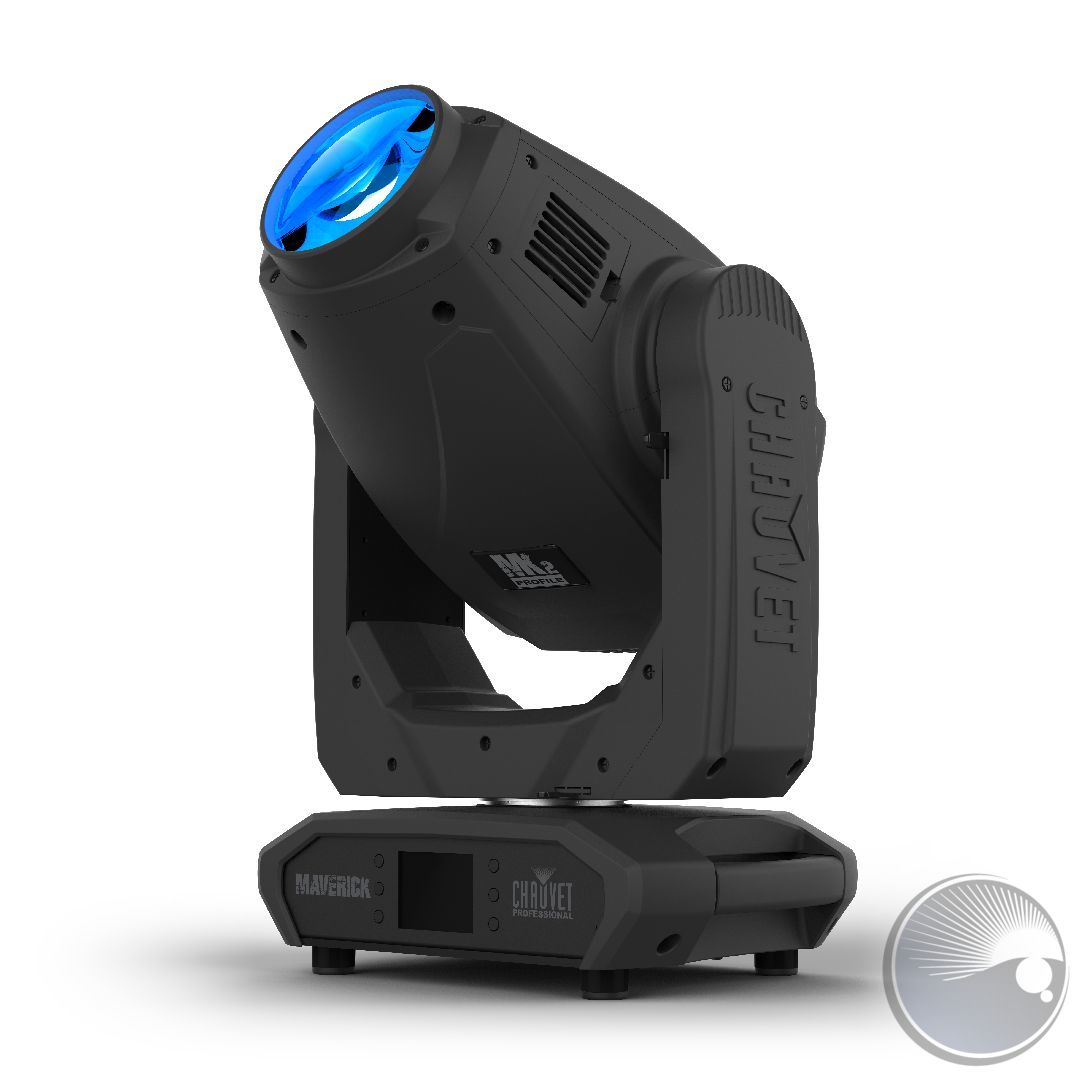

Maverick MK2 Profile

Auf Anfrage!

  • MAVERICKMK2PROFILE
Maverick  MK2 Profile Maverick MK2 Profile  delivers ultimate artistic precision... mehr
Produktinformationen "Maverick MK2 Profile"

Maverick MK2 Profile

Maverick MK2 Profile delivers ultimate artistic precision via its advanced 4-blade dual position rotating framing system, a stunningly bright 440 W LED engine, two 6-position rotating slot and lock gobo wheels, CMY + CTO color mixing, a 7-position + white color wheel, variable frost, 3-facet prism, and a 13° to 38° zoom range. Take control with DMX, sACN, Art-Net, or W-DMX, and test with RDM.



AT A GLANCE

  • Fully featured >90 CRI 440 W LED yoke profile fixture including CMY+CTO color mixing, a four blade framing shutter system with rotation, a color wheel, 3:1 zoom, and two rotating gobo wheels

  • 16-bit dimming of master dimmer for smooth control of fades

  • Variable CMY+CTO color mixing system to create a wide pallet of colors

  • Two rotating, indexing and interchangeable slot and lock gobo wheels

  • DMX , WDMX, sACN, and Art-Net for full flexibility of control options

  • RDM control over DMX for fixture reporting

  • 13.2° to 38.4° zoom angle for variable beam sizes

  • Iris, 3-facet prism, and frost for beam control

  • True 1 compatible power input

  • Battery backup display with auto rotate depending on fixture orientation

SPECIFICATIONS

OPTICAL

  • Light Source: 1 LEDs (CW) 440 W, (6.5 A), 6,016 K, 50,000 hours life expectancy
  • Color Temperature (at full): 6160 K
  • Front Lens diameter: 116 mm
  • CRI: >90
  • Beam Angle: 11.3° to 34.1°
  • Field Angle: 13.2° to 38.4°
  • Zoom Angle: 13° to 37°
  • Lumens - Source: 20,000
  • Lumens - Output: 11,519
  • Illuminance (13°): 13,617 lux @ 5 m
  • Illuminance (36°): 1,843 lux @ 5 m
  • Selectable PWM: 600Hz, 1,200Hz, 2,000Hz, 4,000Hz, 6,000Hz, 15,000Hz

DYNAMIC EFFECTS

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: 7 + white, split colors, continuous scroll at variable speeds
  • Colors: CMY flags, CTO flag
  • Gobos (1): 6 + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 6 + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating): 32 mm (outside), 28 mm (image), 1.1 mm (max. thickness)
  • Gobo Size: Gobo Wheel 2 (rotating): 32 mm (outside), 26 mm (image), 1.1 mm (max. thickness)
  • Framing Shutters: 4 blades, each with dual axis movement
  • Framing Shutter rotation: 90°
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Iris: Motorized
  • Prism: 3 Facets, motorized, rotating
  • Strobe Rate: 0 to 20 Hz
  • Move-in-Black: Yes
  • Dim Curves: 4

CONSTRUCTION / PHYSICAL

  • Dimensions:15.5 x 10.9 x 26.4 in (394 x 279 x 671 mm)
  • Weight: 69.8 lb (31.7 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

CONNECTIONS

  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: Art-Net, DMX, W-DMX, sACN
  • DMX Channels: 33 or 50
  • Art-Net Channels: 33 or 50
  • Modes/Personalities: 2 personalities (33, 50)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 750 W, 6.32 A @ 120 V, 60 Hz
  • Power and Current: 732 W, 3.5 A @ 208 V, 60 Hz
  • Power and Current: 734 W, 3.1 A @ 230 V, 50 Hz
  • Breaker Size: F12 A, 250 V

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

  • Maverick MK2 Profile
  • Seetronic Powerkon IP65 power cord
  • Omega bracket with mounting hardware

OPTIONAL ACCESSORIES

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Safety Cable: SC-07
  • IP Rated Seetronic® Powerkon Extensions
  • DMX cables
  • Flight Case: CP2CASEMK
  • UPLOAD 08 software uploader
Weiterführende Links zu "Maverick MK2 Profile"

PTF1013000100antenna A40501 (BOM#8)
waterproof power socket (BOM#24)PTF1100000469waterproof power socket (BOM#24)
Power cord (BOM#41)PTFX20147Power cord (BOM#41)
battery press board IB-5R-A01-07 (BOM#35)PTH1010102198361battery press board IB-5R-A01-07 (BOM#35)

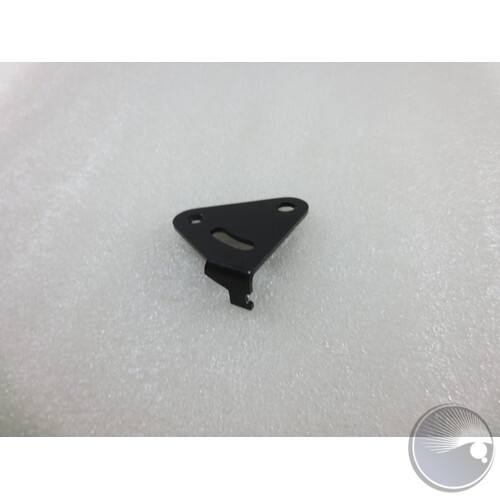

sider wheel bracket LS440A0212 (BOM#90)PTH1010102250671sider wheel bracket LS440A0212 (BOM#90)
tilt lock wheel LS-440-A02-14 (BOM#66)PTH1010102250711tilt lock wheel LS-440-A02-14 (BOM#66)
tilt lock shrapnel LS-440-A02-17 (BOM#78)PTH1010102250771tilt lock shrapnel LS-440-A02-17 (BOM#78)
PTH1010102251061belt fix board LS-440-A03-13 (BOM#167)

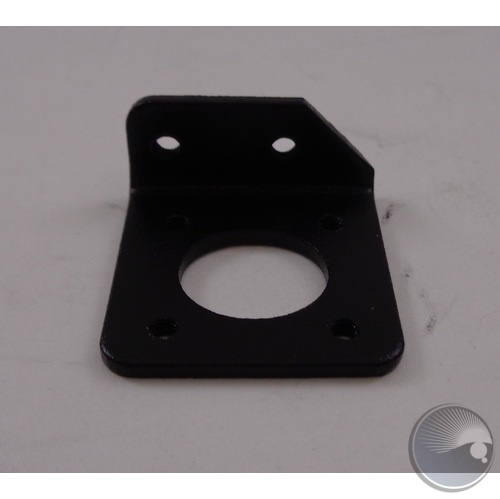

belt fix board 2 LS-440-A03-14 (BOM#162)PTH1010102251081belt fix board 2 LS-440-A03-14 (BOM#162)
PTH1010102260021CMY base mat board LS440A0327 (BOM#241)
PTH1010102260061safety rope buckle LS-440-A03-29 (BOM#192)
wifi bracket LS-440-A01-08 (BOM#14)PTH1010102265661wifi bracket LS-440-A01-08 (BOM#14)
power socket board accessory LS-440-A01-10 (BOM#9)PTH1010102267161power socket board accessory LS-440-A01-10 (BOM#9)

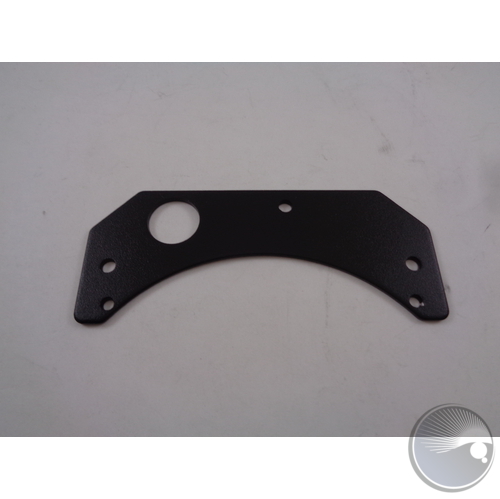

lens installation PCB LS-440-A03-30 (BOM#158)PTH1010102267441lens installation PCB LS-440-A03-30 (BOM#158)
stainless steel chip LS-440-A02-21 (BOM#82)PTH1010102271511stainless steel chip LS-440-A02-21 (BOM#82)
antenna clip LS-440-A01-12 (BOM#10)PTH1010102278171antenna clip LS-440-A01-12 (BOM#10)
PTH1010102295031strengthen board M-20R-A03-57 (BOM#143)
pan stop chip LS-350-A02-14 (BOM#91)PTH1010102327491pan stop chip LS-350-A02-14 (BOM#91)
PTH1010102329001base power supply fix board LS350A0113 (BOM#14)
PTH1010102336381PCB bracket LS-350-A01-14 (BOM#22)
PTH1010102351691base strengthen board 1 LS350A0103 (BOM#7)
PTH1010102351711base strengthen board 2 LS350A0104 (BOM#13)
PTH1010102351751base board dust net LS350A0106 (BOM#11)
PTH1010102351791base accessory bracket LS350A0111 (BOM#51)

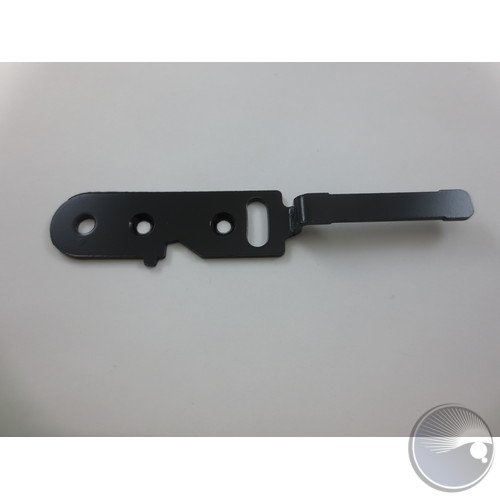

pan lock pick LS350A0208 (BOM#100)PTH1010102351971pan lock pick LS350A0208 (BOM#100)
pan index chip LS-350-A02-13 (BOM#104)PTH1010102352071pan index chip LS-350-A02-13 (BOM#104)

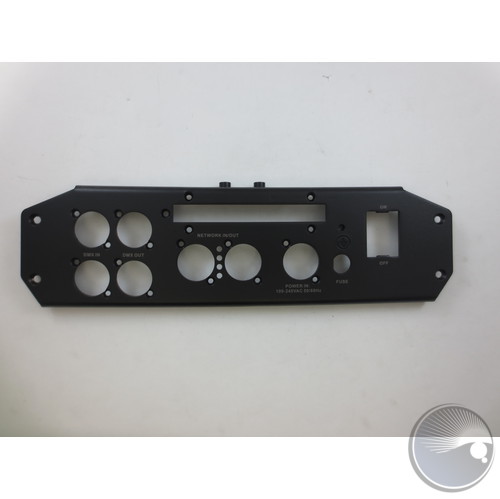

power supply socket board LS350A0107 (BOM#30)PTH1010102352531power supply socket board LS350A0107 (BOM#30)
PTH1010102352551base handle board LS-350-A01-08 (BOM#48)

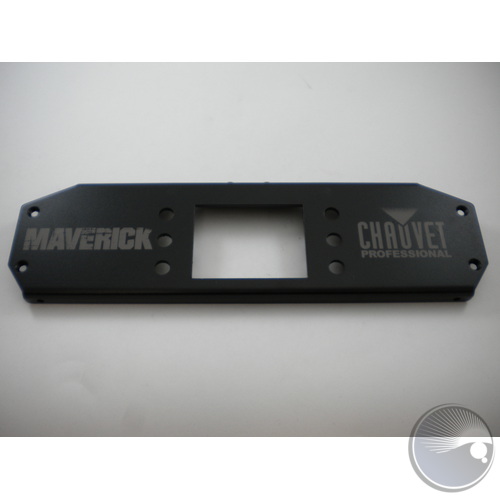

display PCB bracket LS350A0110 (BOM#53)PTH1010102352571display PCB bracket LS350A0110 (BOM#53)

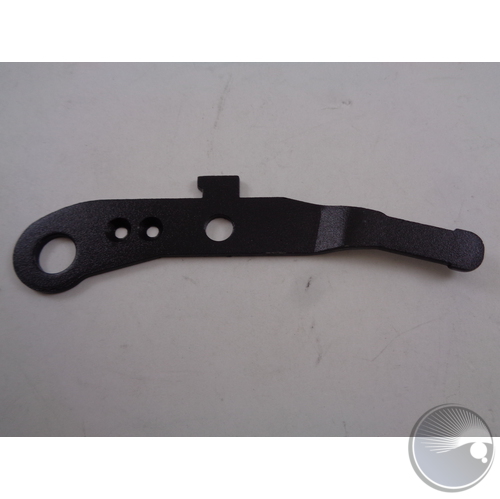

tilt lock pick LS350A0215 (BOM#68)PTH1010102354521tilt lock pick LS350A0215 (BOM#68)
PTH1010102355451pan bracket 1 LS-350-A01-15 (BOM#41)
PTH1010102357321tilt bracket accessory board M440P-A02-03 (BOM#74)
PTH1010102357341tilt motor bracket accessory M440P-A02-04 (BOM#73)
PTH1010102357361arm cover installation bracket 2 M440P-A02-05 (BOM#79)
PTH1010102357401rotating gobo wheel magnetic sensor bracket M440P-A03-04 (BOM#220)
PTH1010102357471head cover installation bracket M440P-A03-12 (BOM#157)
PTH1010102357491gobo wheel fix bracket M440P-A03-13 (BOM#200)
PTH1010102357501CMY fix bracket M440P-A03-15 (BOM#257)
PTH1010102357511CMY fix bracket 1 M440P-A03-14 (BOM#277)
PTH1010102357811motor installation board QG-A03-04 (BOM#167)
PTH1010102357871focus magnetic sensor bracket M440P-A03-16 (BOM#176)
PTH1010102358011fan lock board M440P-A03-03 (BOM#226)
PTH1010102360861base side cover net 2 LS350A0112 (BOM#5)
PTH1010102367671CMY motor bracket 1 M440P-A03-19 (BOM#255)
PTH1010102367681CMY motor bracket 2 M440P-A03-20 (BOM#256)
PTH1010102367691color mat board M440P-A03-22 (BOM#212)
PTH1010102371632pan lock insert board LS-350-A02-18 (BOM#100)
PTH1010102371721pan lock block LS-350-A02-19 (BOM#102)
PTH1010102372671pan motor bracket M440P-A02-08 (BOM#85)
pan lock stop board LS-350-A02-04 (BOM#96)PTH1010102372691pan lock stop board LS-350-A02-04 (BOM#96)
PTH1010102372711pulley bracket LS-350-A02-05 (BOM#105)
PTH1010102372731pan wire board LS-350-A02-02 (BOM#108)
PTH1010102378831fan installation bracket M440P-A02-09 (BOM#80)
PTH1010102380751zoom lens bracket M440P-A03-25 (BOM#153)
PTH1010102380771switch PCB fix board M440P-A03-26 (BOM#173)
PTH1010102380851base wind guide board M440P-A01-02 (BOM#25)
PTH1010102380881base dust cover 2 M440P-A01-05 (BOM#19)
PTH1010102382361power supply bracket M440P-A01-03 (BOM#23)
PTH1010102384981tilt stop support board LS-350-A02-17 (BOM#61)
PTH1010102404901gobo wheel bracket A M440P-A03-27 (BOM#215)
PTH1010102405471arm cover installation bracket M440P-A02-06 (BOM#57)
PTH1010102410481pan motor strengthen board M440P-A02-10 (BOM#88)
PTH1010102410971fan bracket M440P-A03-34 (BOM#334)
PTH1010102410991gobo fan bracket M440P-A03-05 (BOM#238)
PTH1010102412191focus limit board M440P-A03-33 (BOM#135)
PTH1010102412271base board M440P-A01-01 (BOM#49)
PTH1010102412321lens bracket M440P-A03-32 (BOM#159)
PTH10101024123515010 fan safety net M440P-A01-04 (BOM#29)
PTH1010102412361strengthen board 1 M440P-A03-06 (BOM#239)
PTH1010102412371head strengthen bracket M440P-A03-07 (BOM#175)
PTH1010102412381strengthen board M440P-A03-08 (BOM#203)
PTH1010102412391CMY bracket M440P-A03-09 (BOM#300)
PTH1010102412401framing shutter bracekt oriantation chip M440P-A03-10 (BOM#306)
PTH1010102413641big fan bracket M440P-A03-17 (BOM#295)
PTH1010102416651faming shutter bracket QG-A03-01 (BOM#180)
PTH1010102416661framing shutter support bracket QG-A03-02 (BOM#193)
PTH1010102416701focus lens bracket M440P-A03-23 (BOM#142)
PTH1010102416731fan wire fix board M440P-A03-35 (BOM#335)
PTH1010102416751head side cover press board M440P-A03-21 (BOM#330)
PTH1010102417611wire fix board 2 M440P-A03-28 (BOM#232)
PTH1010102417631wire fix board M440P-A03-11 (BOM#309)
PTH1010102418231head front bracket M440P-A03-01 (BOM#131)
PTH1010102429461pan strengthen bracket M440P-A02-02 (BOM#97)
PTH1010102429511head front side bracket M440P-A03-02 (BOM#125)
PTH1010102429521heat sink bracket M440P-A03-18 (BOM#298)
PTH1010102429921pan spring cook M440P-A02-07 (BOM#311)
PTH1010202171161CMY slider EX-575-B32 (BOM#268)
gear DL31202 (BOM#115)PTH1010202213461gear DL31202 (BOM#115)

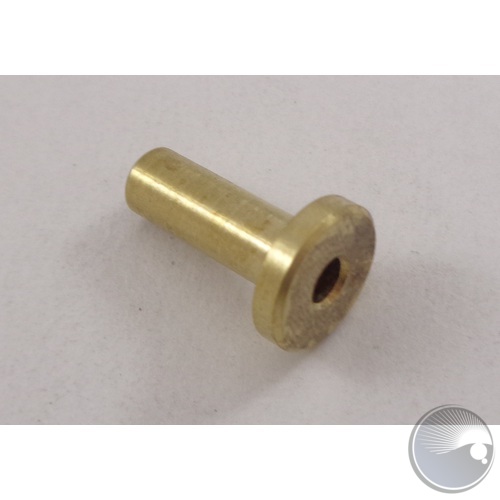

tilt slider axis LS440B07 (BOM#81)PTH1010202251431tilt slider axis LS440B07 (BOM#81)
tilt lock axis LS-440-B08 (BOM#81)PTH1010202251501tilt lock axis LS-440-B08 (BOM#81)
ball screw LS-440-B20 (BOM#65)PTH1010202251561ball screw LS-440-B20 (BOM#65)
PTH1010202254221gear DL-245-01 (BOM#223)
PTH1010202259711zoom sliding sleeve socket LS-440-B06 (BOM#161)
PTH1010202259741axis bushing LS440B24 (BOM#50)
PTH1010202259751zoom sliding sleeve 2 LS-440-B18 (BOM#160)

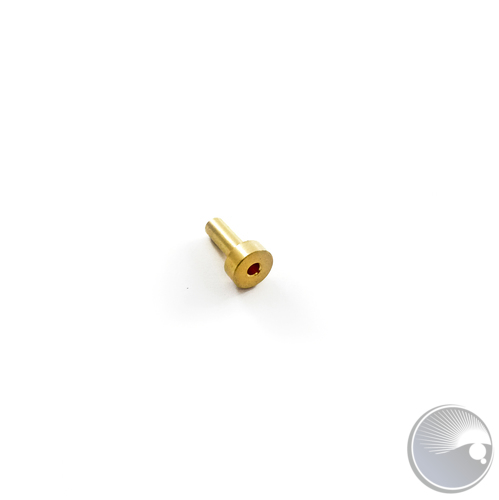

slider wheel axis LS440B26 (BOM#42)PTH1010202263001slider wheel axis LS440B26 (BOM#42)
PTH1010202263011CMY pulley cover 1 LS-440-B27 (BOM#262)
PTH1010202263021CMY pulley cover 2 LS-440-B28 (BOM#289)
gear CL-5008-01 (BOM#290)PTH1010202272201gear CL-5008-01 (BOM#290)
PTH1010202279081cmy cover LS440B33 (BOM#250)
PTH1010202280971gear DL-312-07 NR (BOM#128)

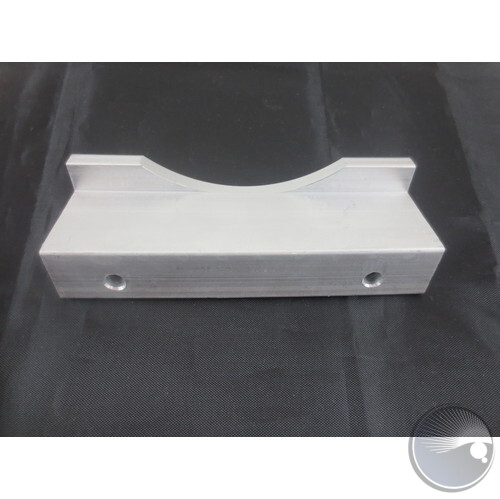

LED press block LS-440-B25 (BOM#297)PTH1010202290401LED press block LS-440-B25 (BOM#297)

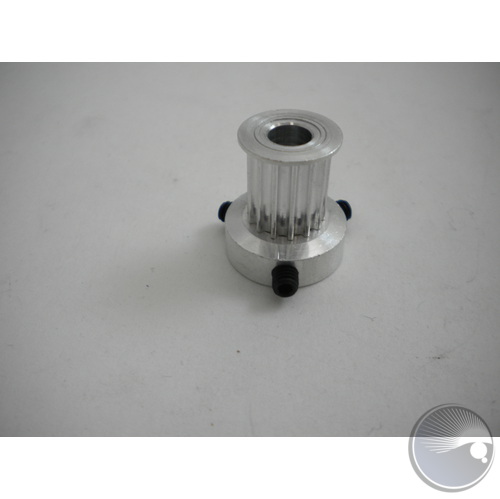

gear DL31402 (BOM#110)PTH1010202306071gear DL31402 (BOM#110)
PTH1010202311721color wheel axis fix cover LS-440-B39 (BOM#205)
PTH1010202315701gear DL-3105-01-01NR (BOM#103)

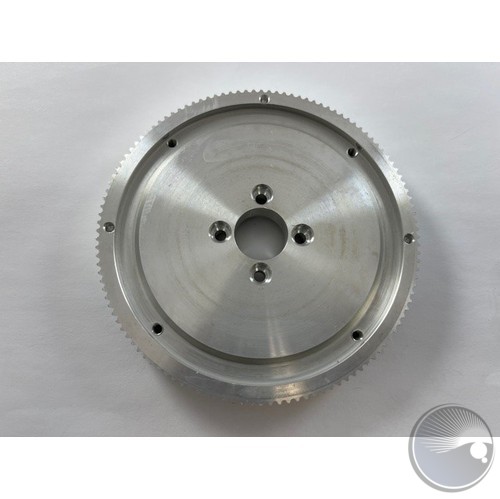

gear DL312003 (BOM#76)PTH1010202327081gear DL312003 (BOM#76)

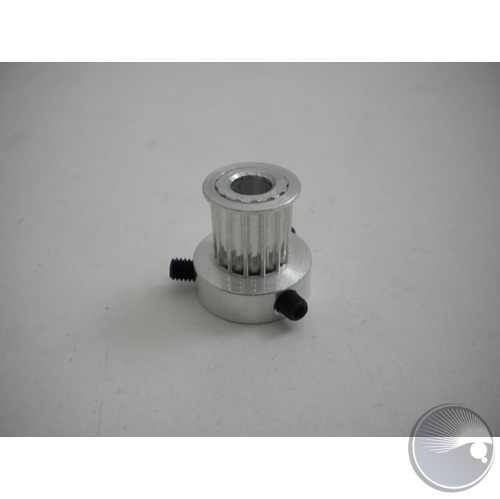

gear DL31403 (BOM#81)PTH1010202336541gear DL31403 (BOM#81)
PTH1010202352611press wheel axis LS350B02 (BOM#216)
PTH1010202352821press wheel LS350B18 (BOM#292)
PTH1010202352831base dust net clip 2 LS350B19 (BOM#12)

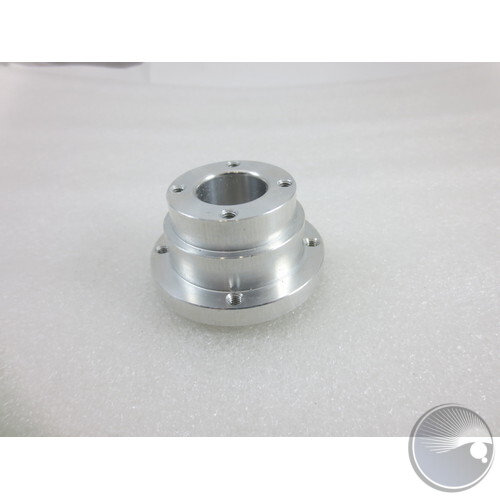

tilt axis 1 LS350B33 (BOM#67)PTH1010202352981tilt axis 1 LS350B33 (BOM#67)
PTH1010202352991tilt axis 2 LS350B34 (BOM#56)
PTH1010202353001optocoupler installation axis LS350B35 (BOM#62)
PTH1010202357191left right support block M440P-B01 (BOM#305)
PTH1010202357221CMY slider axis 1 M440P-B06 (BOM#275)
PTH1010202357241color mat post 2 M440P-B08 (BOM#211)
PTH1010202357251focus silding cover M440P-B09 (BOM#141)
PTH1010202357761framing shutter axis QG-B01-00 (BOM#170)
PTH1010202364001zoom sliding cover LS-440-B10 (BOM#162)

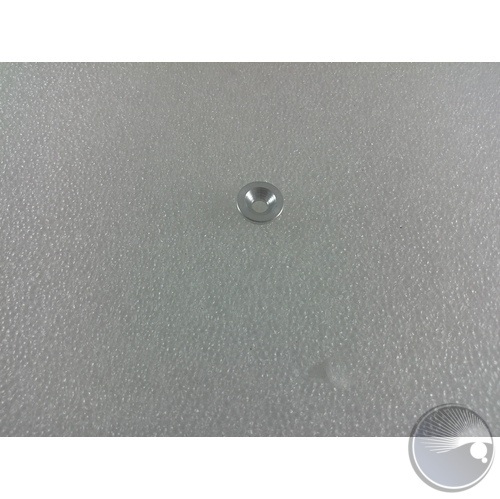

magnet post M440P-B03 (BOM#228)PTH1010202367241magnet post M440P-B03 (BOM#228)
PTH1010202371581quick lock buckle LS-350-B32 (BOM#131)

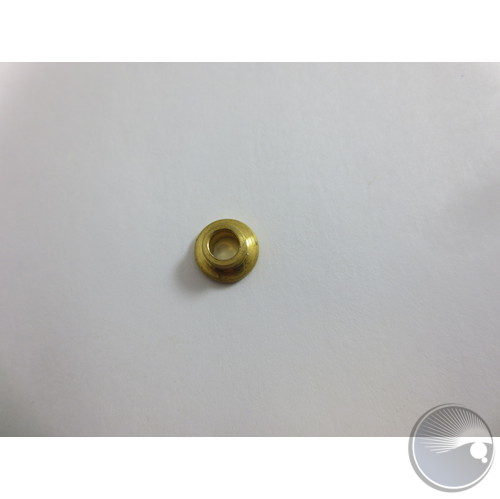

pan lock post LS350B09 (BOM#98)PTH1010202371651pan lock post LS350B09 (BOM#98)
PTH1010202375431optocoupler support M440PB11 (BOM#60)
PTH1010202379681pulley post LS-440-B13 (BOM#126)
PTH1010202380791gear DL-336-03 (BOM#204)
PTH1010202380951gear DL-326-03 (BOM#229)
PTH1010202380971gear CL-18208-01 (BOM#171)
PTH1010202384721tilt pulley axis 2 LS-350-B06 (BOM#107)
PTH1010202392861pan stop post LS-350-B10 (BOM#103)
PTH1010202410761pan axis press ring LS-350-B04 (BOM#106)
PTH1010202410801pan pulley axis 1 LS-350-B08 (BOM#106)
PTH1010202412291zoom axis M440P-B14 (BOM#329)
PTH1010202412311slider socket M440P-B15 (BOM#134)

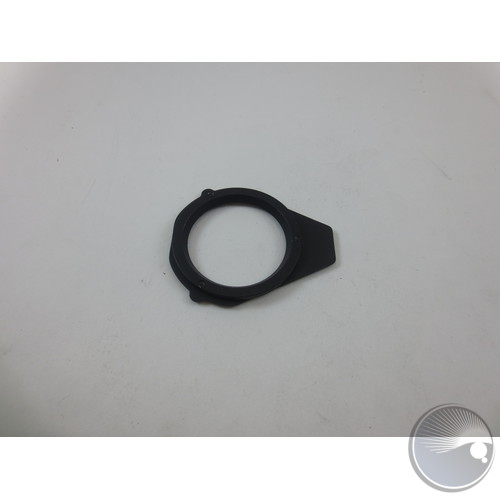

open holder set XZTAP-28-01 (BOM#250)PTH1010202417481open holder set XZTAP-28-01 (BOM#250)
PTH1010202418241color wheel axis M440P-B04 (BOM#336)
PTH1010202421211slider M440P-B16 (BOM#136)
PTH1010202422971gobo wheel fix axis M440P-B07 (BOM#231)
PTH1010202422981gear CL-2808-01 (BOM#169)
PTH1010202425661pan oriantation post 2 PRO5RB19 (BOM#71)
PTH1010202429911CMY slider axis 2 M440P-B05 (BOM#276)
PTH1010202433651small focus axis M440P-B13 (BOM#140)
PTH1010202433661motor bracket fix block M440P-B02 (BOM#304)
PTH1010202433671rotating gobo wheel adjust screw M440P-B10 (BOM#217)

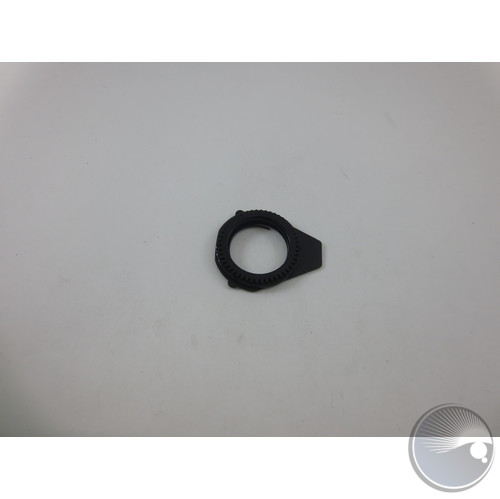

gobo holder set XZTAP-28-01-B (BOM#251)PTH1010301417431gobo holder set XZTAP-28-01-B (BOM#251)
PTH1010400167122standoff 64.5 3.2 (BOM#268)
PTH1010401158562standoff 64 M3 (BOM#172)
PTH1010401158772standoff 6*20 M3 (BOM#168)
PTH1010401158831aluminum post ?6×25M3 (BOM#170)
PTH1010401162011aluminum post ?5×12 M3 (BOM#38)
PTH1010401393121copper post 655 M35 (BOM#15)
PTH1010401422991standoff 68.5 M3 (BOM#168)
PTH1010402163221aluminum tube ?6×5?3.2 (BOM#141)
PTH1010402163241standoff 6x6 3.2 (BOM#210)
PTH1010402163281aluminum tube ?6×8?3.2 (BOM#105)
aluminum tube ?6×2.5?4.2 (BOM#44)PTH1010402163611aluminum tube ?6×2.5?4.2 (BOM#44)
PTH1010402163621aluminum tube ?6×3?3.2 (BOM#81)
PTH1010402163641standoff 64 3.2 (BOM#235)
PTH1010402163872aluminum tube ?5×4 3.2 (BOM#46)
PTH1010402163911standoff 6x2 3.2 (BOM#216)

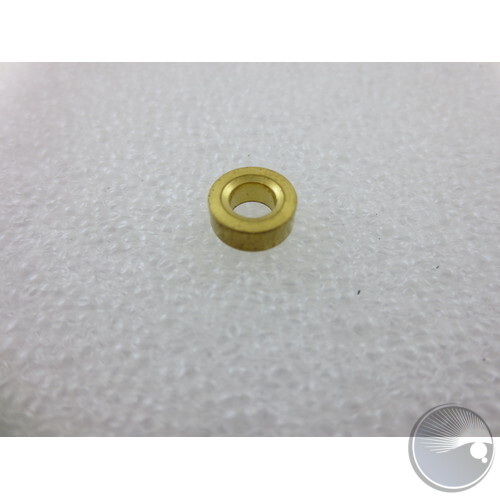

copper pipe ?8×3?4.1 (BOM#287)PTH1010402290451copper pipe ?8×3?4.1 (BOM#287)
PTH1010402312691Aluminum Tube 6x1.5 3.2 (BOM#300)
PTH1010403165621aluminum post H6×16M3 (BOM#225)
PTH1010403165661aluminum post H620 M3 (BOM#82)
PTH1010403165711aluminum post H6×25M3 (BOM#121)
PTH1010403165721aluminum post H6×26 M3 (BOM#337)
PTH1010403165941aluminum post H6×48M3 (BOM#16)
PTH1010403165971aluminum post H6×51M3 (BOM#34)
PTH1010403166101aluminum post H6×10.5M3 (BOM#338)
PTH1010403166121aluminum post H612.5 M3 (BOM#94)
standoff MK1W-B06 (BOM#165)PTH1010403302672standoff MK1W-B06 (BOM#165)
PTH1010404418181prism limit socket H8×12+?5×12 M4 8MM 5X12 NR (BOM#148)
PTH1010502290431heat sink CD-Z06B (BOM#293)
140Dmm OMEGA BRACKET (BOM#34)PTH1040000230891140Dmm OMEGA BRACKET (BOM#34)
PTH1040000278631slider wheel (BOM#41)
pan slider wheel (BOM#65)PTH1040000278641pan slider wheel (BOM#65)
PTH1040000278651pulley 1 LS/IS-440 (BOM#127)

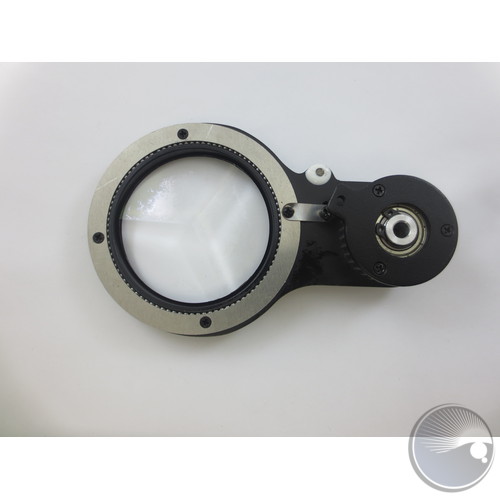

prism wheel M440P (BOM#150)PTH1040000367261prism wheel M440P (BOM#150)
PTH1040000590161gobo holder
handle LS-440-C02 (BOM#38)PTH1060100257031handle LS-440-C02 (BOM#38)

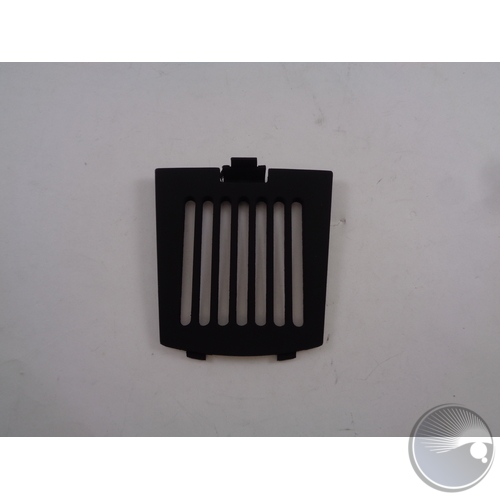

dust proof cover cover LS440C09 (BOM#143)PTH1060100308771dust proof cover cover LS440C09 (BOM#143)

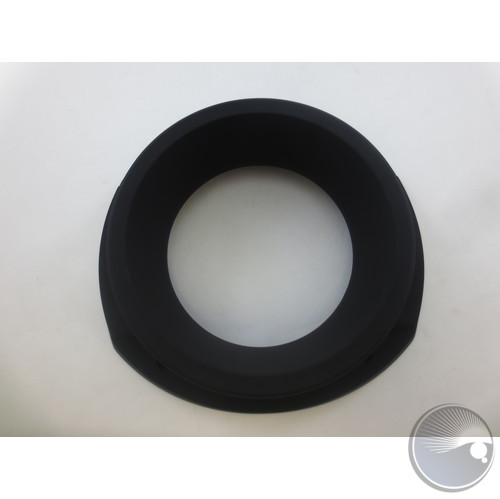

objective lens ring M440P-C01 (BOM#161)PTH1060100367801objective lens ring M440P-C01 (BOM#161)

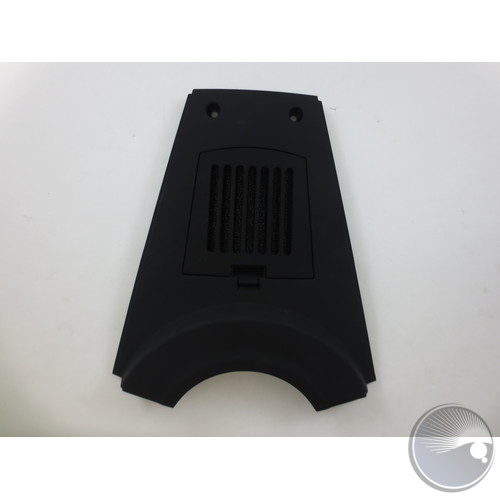

head side cover M440P-C03 (BOM#115)PTH1060100367821head side cover M440P-C03 (BOM#115)

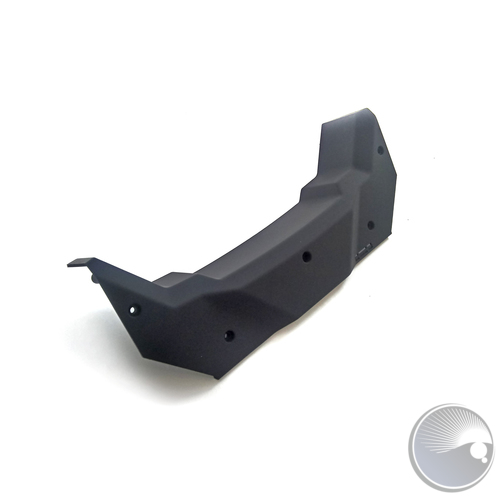

arm front cover M440P-C05 (BOM#69)PTH1060100367831arm front cover M440P-C05 (BOM#69)

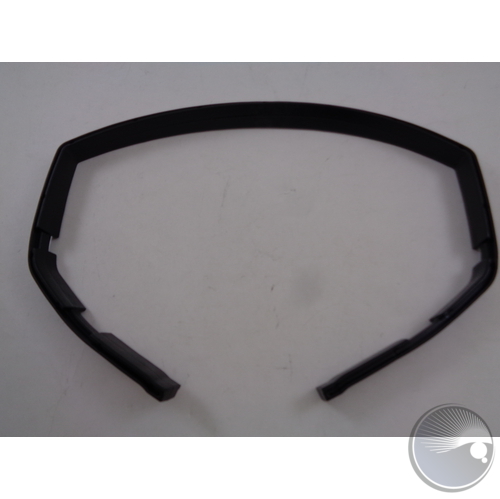

PVC rubber tape M440P-C04 (BOM#118)PTH1060100367841PVC rubber tape M440P-C04 (BOM#118)

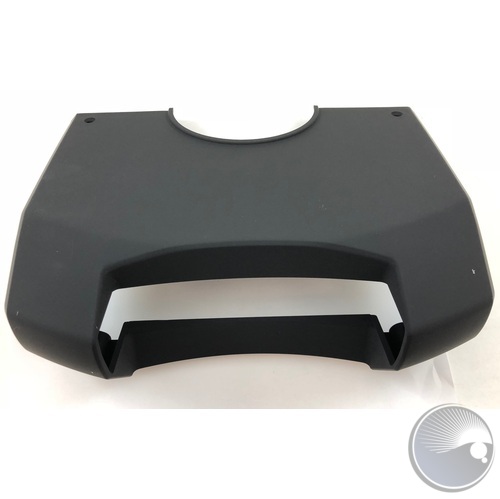

base face cover LS440C01 (BOM#3)PTH1060100381631base face cover LS440C01 (BOM#3)

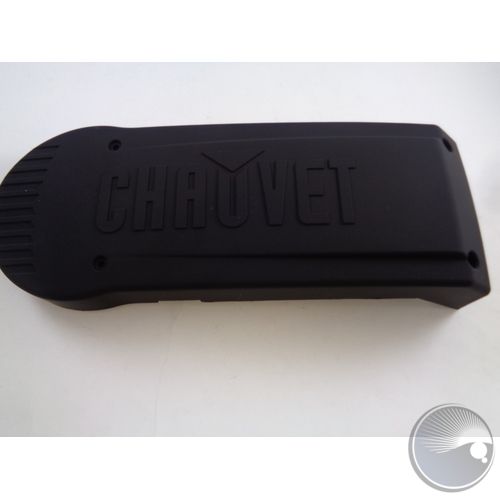

arm cover LS350C07 (BOM#46)PTH1060100382091arm cover LS350C07 (BOM#46)

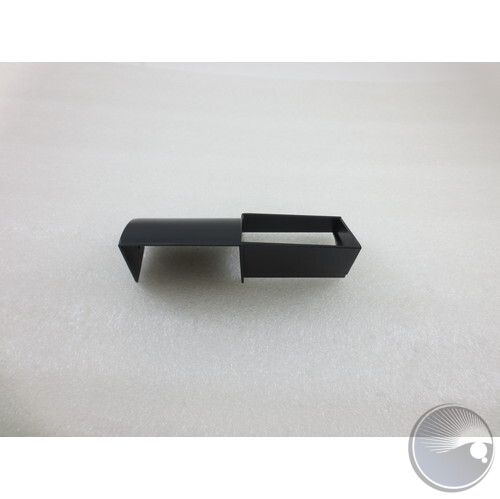

wind guide cover LS-440-C10 (BOM#292)PTH1060100414811wind guide cover LS-440-C10 (BOM#292)

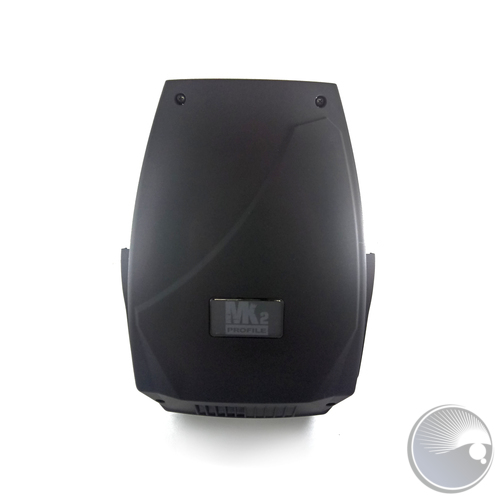

head cover M440P-C02 (BOM#114)PTH1060100434711head cover M440P-C02 (BOM#114)

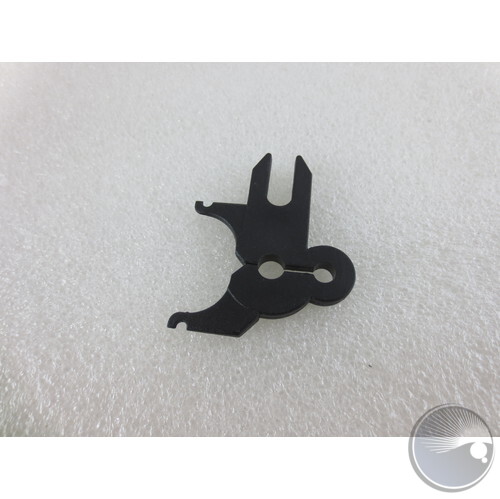

flange 1200C0302 (BOM#104)PTH1060200122491flange 1200C0302 (BOM#104)
CMY base 1 EX700W-C03-A (BOM#260)PTH1060200122601CMY base 1 EX700W-C03-A (BOM#260)
CMY base 2 EX700W-C03-B (BOM#284)PTH1060200122621CMY base 2 EX700W-C03-B (BOM#284)
CMY base 3 EX700W-C03-C (BOM#261)PTH1060200122641CMY base 3 EX700W-C03-C (BOM#261)
CMY base 4 EX700W-C03-D (BOM#285)PTH1060200122661CMY base 4 EX700W-C03-D (BOM#285)
PTH1060200308732wire cover M-20R-C07 (BOM#51)
PTH1060200353351base wire cover LS-350-C09 (BOM#87)

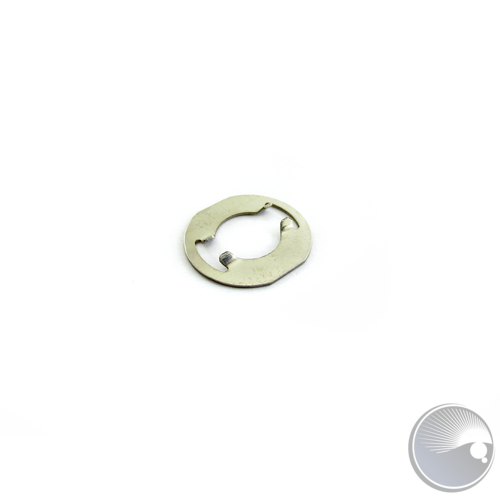

Locking Washer for Fast LockPTH152000222Locking Washer for Fast Lock
PTH2020302237511magnetic sensor HE-12 A (BOM#124)

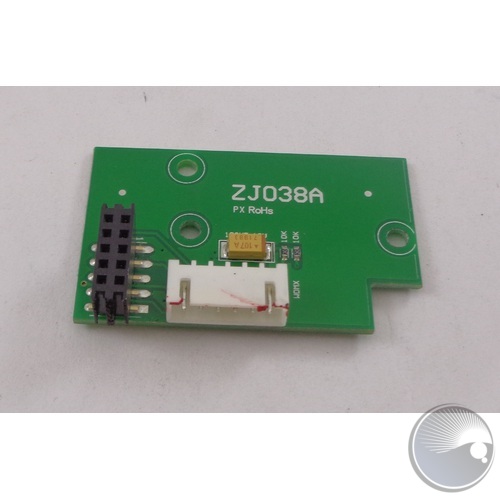

switch pcb ZJ038A (BOM#105)PTH2020302263901switch pcb ZJ038A (BOM#105)

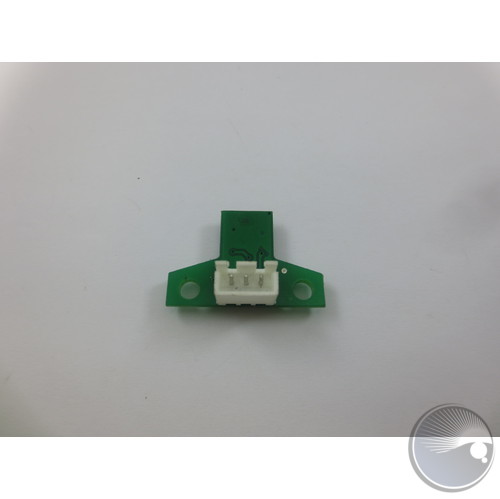

optocoupler PCB GD004 B (BOM#213)PTH2020302265871optocoupler PCB GD004 B (BOM#213)
ethernet connector ZJ034 Amphenol (BOM#7)PTH2020302269051ethernet connector ZJ034 Amphenol (BOM#7)
full color display PCB LCD014 (BOM#30)PTH2020302288791full color display PCB LCD014 (BOM#30)

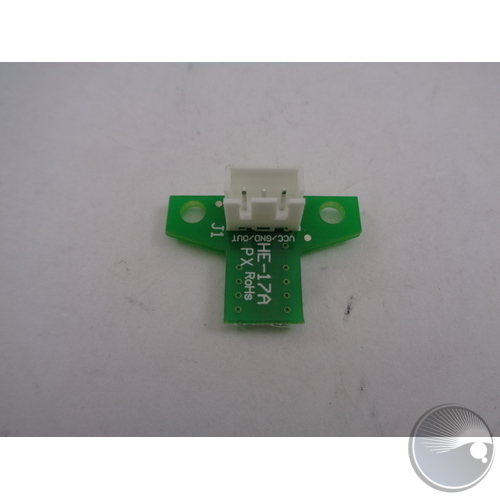

magnetic sensor HE17 A (BOM#94)PTH2020302334721magnetic sensor HE17 A (BOM#94)

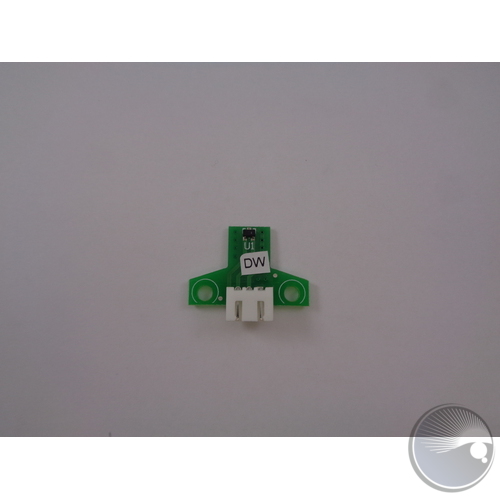

magnetic sensor HE17 A (BOM#79)PTH2020302353681magnetic sensor HE17 A (BOM#79)

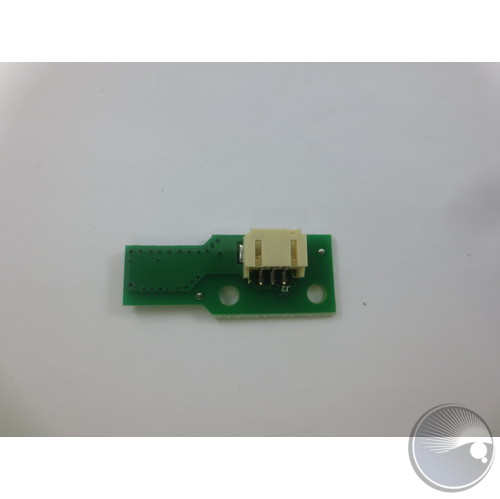

magnetic sensor PCB HE-18 (BOM#233)PTH2020302355881magnetic sensor PCB HE-18 (BOM#233)

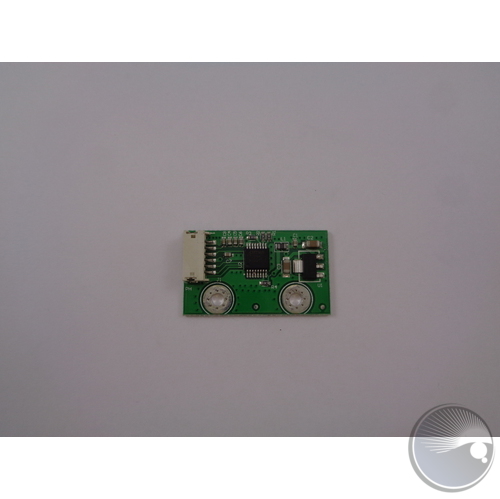

magnetic encoder PCB MK006 E (BOM#59)PTH2020302355941magnetic encoder PCB MK006 E (BOM#59)

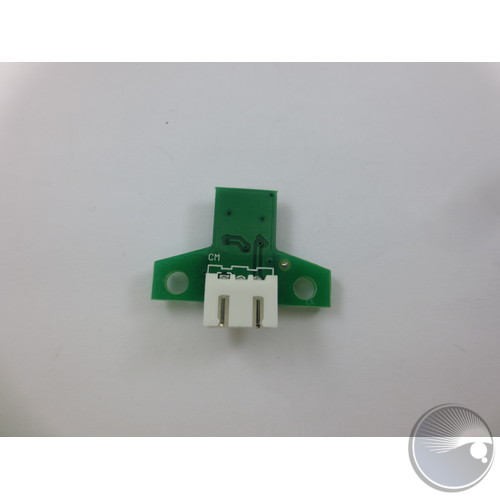

optocoupler PCB GD004 B (BOM#235)PTH2020302373181optocoupler PCB GD004 B (BOM#235)
PTH2020302374761magnetic sensor HE-19 C (BOM#332)
PTH2020302379031Switch PCB MH151A (BOM#177)

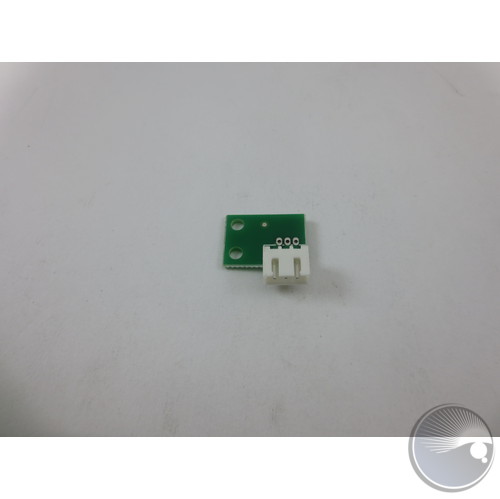

magnetic sensor HE-12 A (BOM#132)PTH2020302399021magnetic sensor HE-12 A (BOM#132)
magnetic sensor HE-14 A (BOM#92)PTH2020302399031magnetic sensor HE-14 A (BOM#92)
wireless pcb A40895G4-R_GPTH2020303265531wireless pcb A40895G4-R_G
battery 14430 (BOM#34)PTH2021900205781battery 14430 (BOM#34)

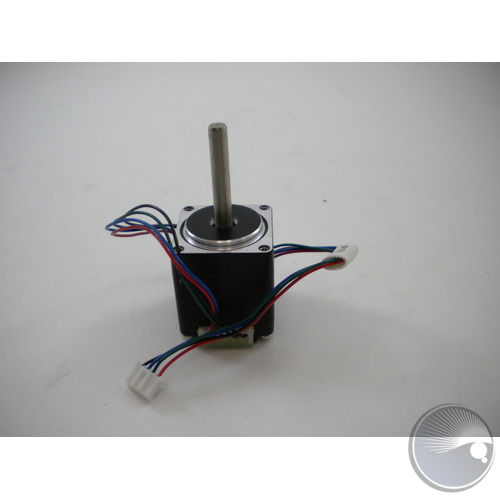

stepper motor 11HA2210Z-30 (BOM#291)PTH2030100277091stepper motor 11HA2210Z-30 (BOM#291)
stepper motor 17HD003N-24 (BOM#86)PTH2030101101181stepper motor 17HD003N-24 (BOM#86)
motor 42SHK0603-15 (BOM#199)PTH2030101210521motor 42SHK0603-15 (BOM#199)

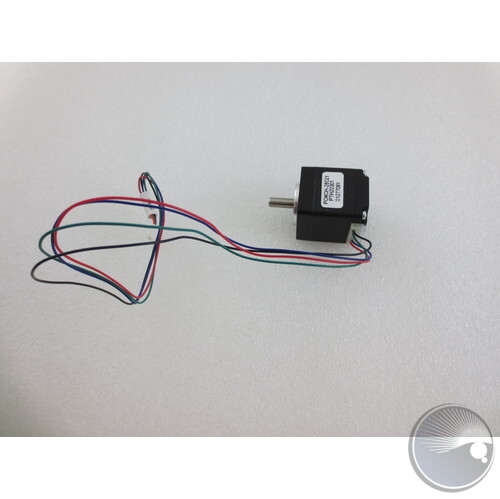

stepper motor 11HA2210Z15 (BOM#264)PTH2030101277081stepper motor 11HA2210Z15 (BOM#264)

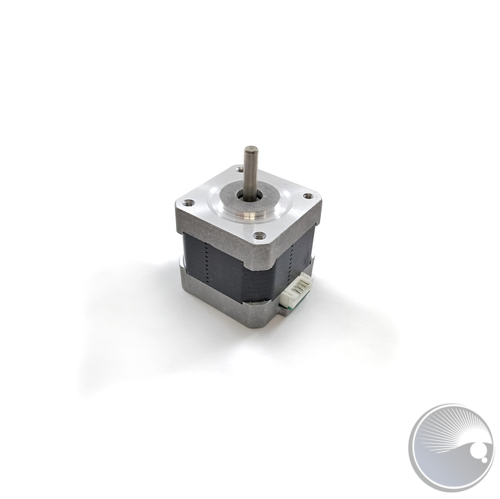

stepper motor 17HDB3007-20 (BOM#241)PTH2030101278421stepper motor 17HDB3007-20 (BOM#241)

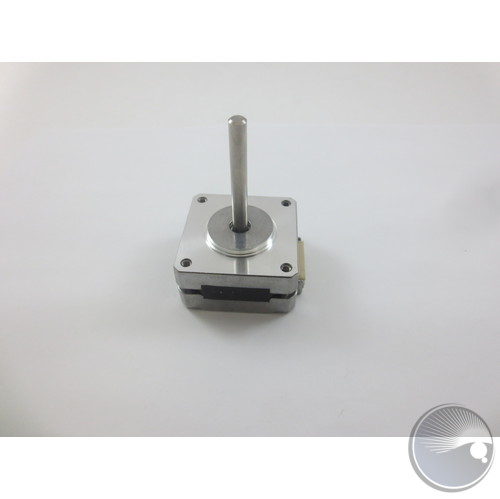

stepper motor 16HY01840 (BOM#137)PTH2030101334691stepper motor 16HY01840 (BOM#137)
PTH2030101366261stepper motor 42SHD4202-16 (BOM#199)

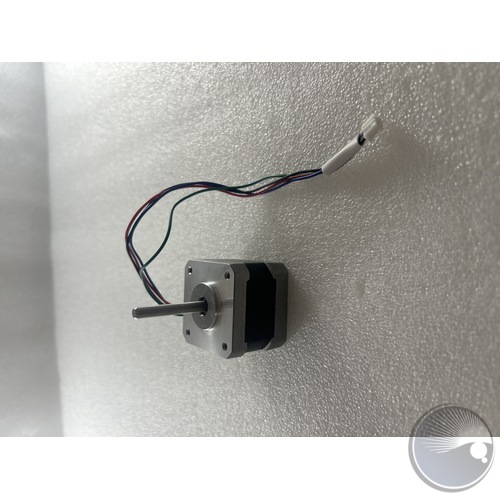

PTH2030101381001stepper motor 17HDFB1218-35-600 (BOM#240)
PTH2030101384641stepper motor 42SHK4603-10 (BOM#161)
PTH2030101408221stepper motor 17HDFB1218-26-600 (BOM#198)
PTH2030103364621stepper motor 11HA2007Z-18 (BOM#181)
fan 12V⎓0.12A DFM5010B (BOM#33)PTH2030201204591fan 12V⎓0.12A DFM5010B (BOM#33)

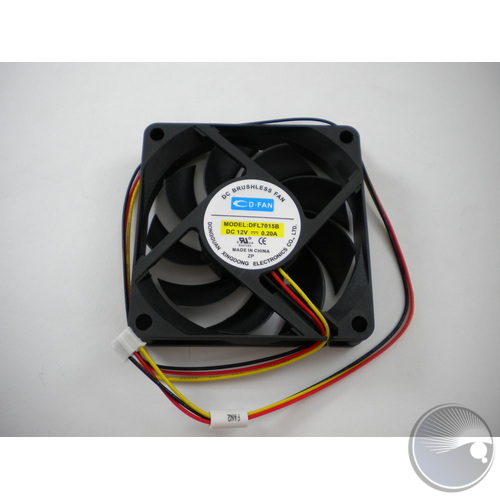

Base fan 12V?0.20A DFL7015B 3-pin female (BOM#18)PTH2030201262032Base fan 12V?0.20A DFL7015B 3-pin female (BOM#18)

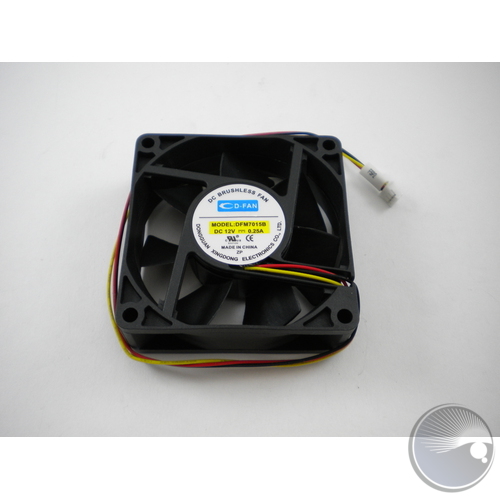

fan DFL7025B (BOM#11)PTH2030201262041fan DFL7025B (BOM#11)

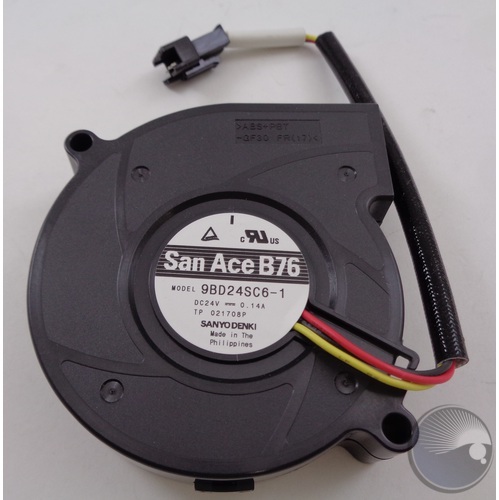

fan 9BD24SC61 24V .14A (BOM#164)PTH2030202270891fan 9BD24SC61 24V .14A (BOM#164)
PTH2030700252521power supply CA500-80V6A (BOM#24)
power supply H03-UP300S30 (BOM#24)PTH2030700378121power supply H03-UP300S30 (BOM#24)
tilt bushing 1 LSIS-440 LED Moving Spot (BOM#64)PTH2040000277891tilt bushing 1 LSIS-440 LED Moving Spot (BOM#64)
tilt bushing 2 LSIS-440 LED Moving Spot,M-1D LED Moving Wash (BOM#55)PTH2040000277901tilt bushing 2 LSIS-440 LED Moving Spot,M-1D LED Moving Wash (BOM#55)
PTH2040000372661frost M440P (BOM#163)
PTH2040107279481focus set A152-471-1 (BOM#171)

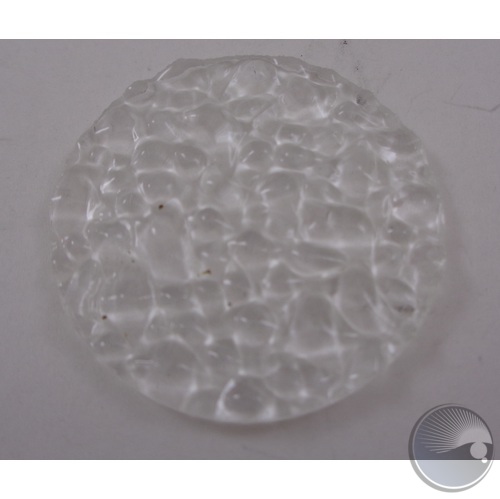

Shower Glass GOBO#5 (Wheel 2)PTH2040501253551Shower Glass GOBO#5 (Wheel 2)

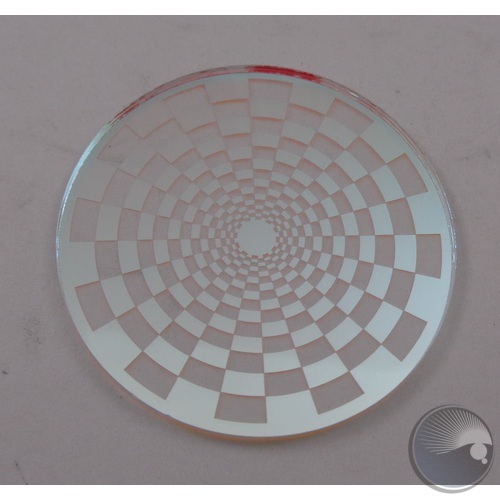

Checker Vortex glass gobo ?32-C070-30-C01 (BOM#247)PTH2040501253741Checker Vortex glass gobo ?32-C070-30-C01 (BOM#247)

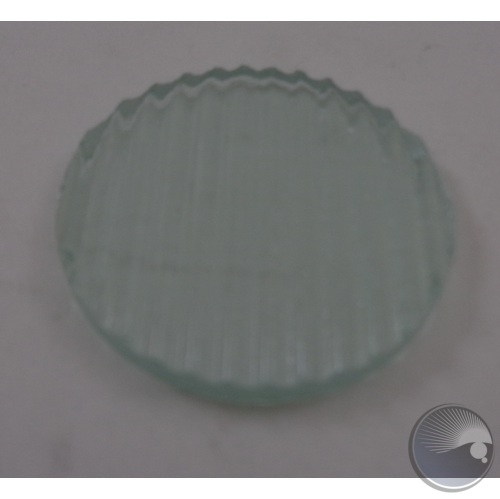

Lenticular glass gobo ?32-C075-28-D03 (BOM#244)PTH2040501262441Lenticular glass gobo ?32-C075-28-D03 (BOM#244)

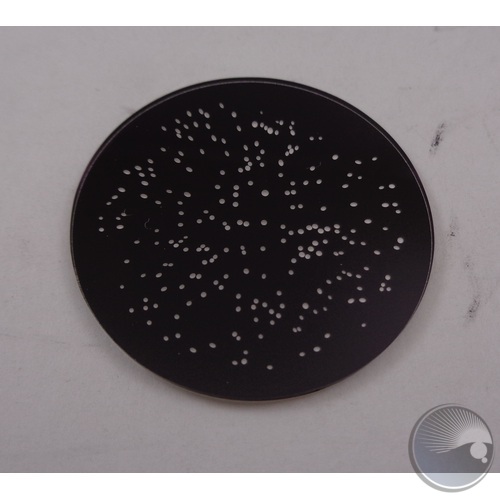

Star Field glass gobo ?32-C074-28-C01 (BOM#245)PTH2040501277301Star Field glass gobo ?32-C074-28-C01 (BOM#245)

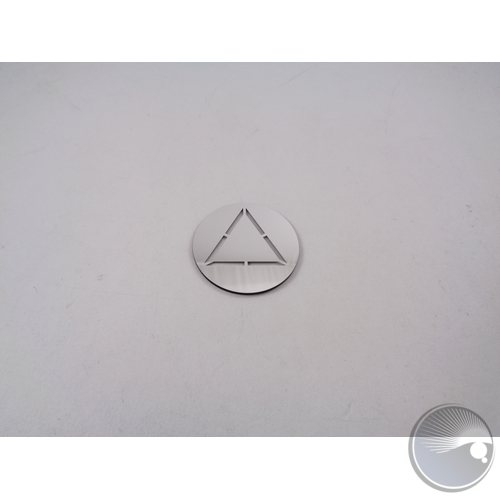

glass gobo ?32-C028-28-C01 (BOM#246)PTH2040501277311glass gobo ?32-C028-28-C01 (BOM#246)

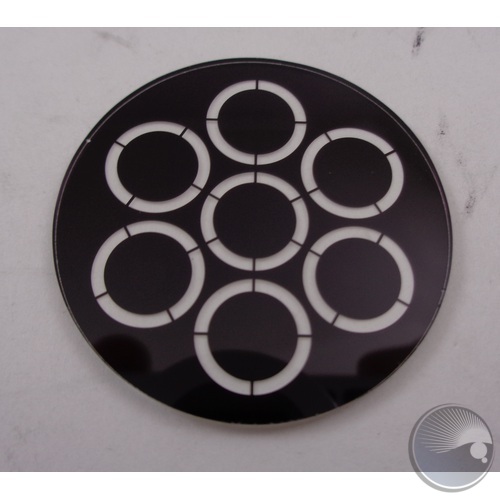

Rings of Rings glass gobo ?32-C084-28-C01 (BOM#248)PTH2040501277321Rings of Rings glass gobo ?32-C084-28-C01 (BOM#248)

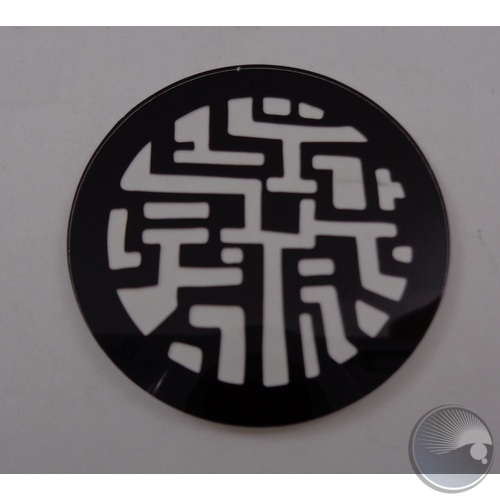

Circuits Glass gobo ?32-C088-26-C01 (BOM#249)PTH2040501289431Circuits Glass gobo ?32-C088-26-C01 (BOM#249)

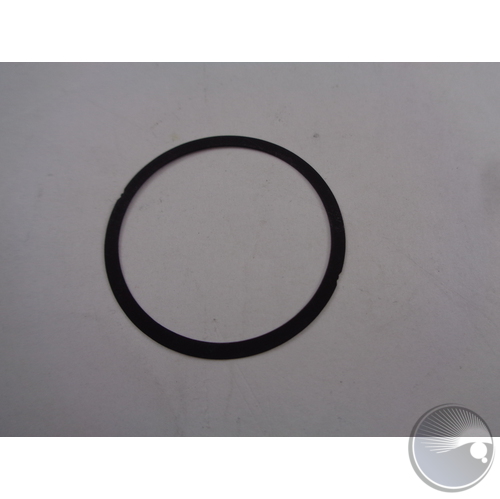

stainless steel open ?32-C001-28-B01 (BOM#243)PTH2040502409301stainless steel open ?32-C001-28-B01 (BOM#243)

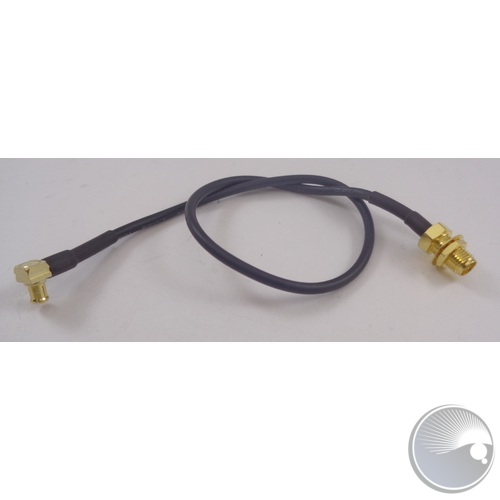

wireless connection cable A40921 (BOM#96)PTH2050700291771wireless connection cable A40921 (BOM#96)
PTH2070501358521black sticker M440P (BOM#55)

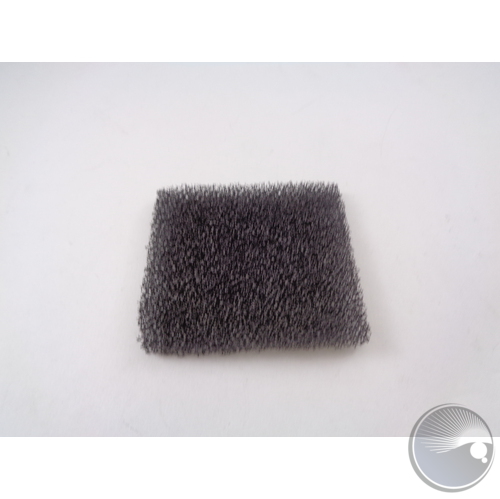

dust proof sponge/filter 62mm×68mm×7mm (BOM#142)PTH2071100304521dust proof sponge/filter 62mm×68mm×7mm (BOM#142)

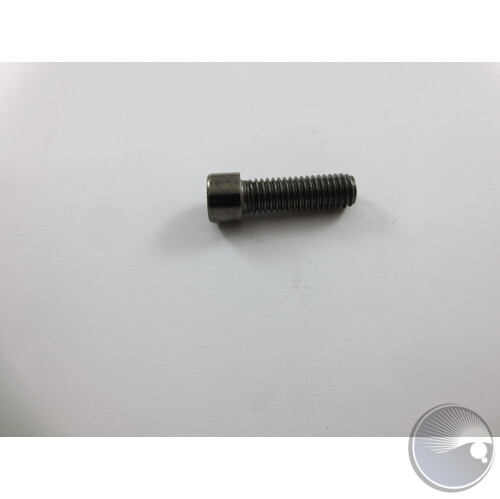

screw M8×25 (BOM#22)PTH2080502173331screw M8×25 (BOM#22)
quick lock screw CD-D07 (BOM#228)PTH2081200377811quick lock screw CD-D07 (BOM#228)
PTH2090101247172syncronization belt 3M-411-4mm (BOM#129)
PTH2090101274371syncronization strap 3M1684mm (BOM#221)
PTH2090101279551belt 3M-189-8mm (BOM#187)

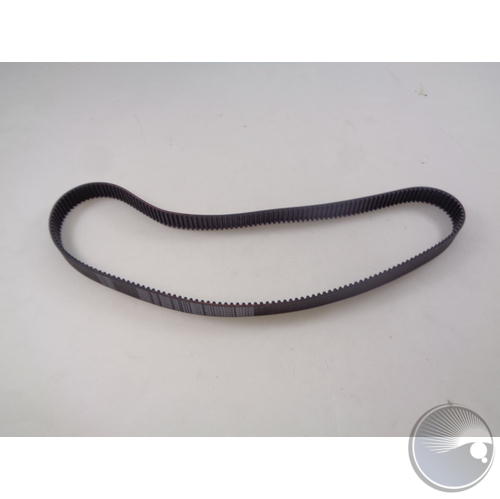

syncronization strap 3M69910mm (BOM#62)PTH2090101312901syncronization strap 3M69910mm (BOM#62)

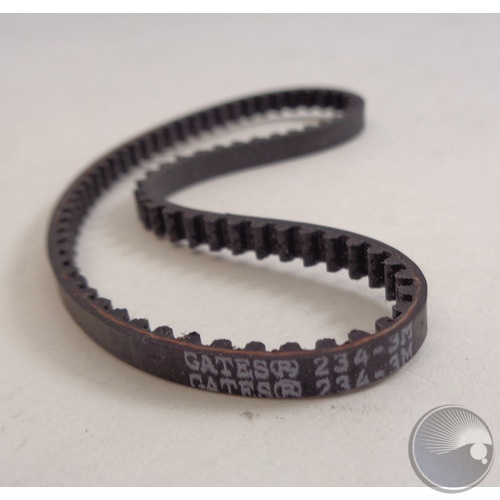

syncronization strap 3M2344mm (BOM#188)PTH2090101320741syncronization strap 3M2344mm (BOM#188)
PTH2090101363181syncronization belt 3M-513-12mm (BOM#86)
PTH2090101364791syncronization belt 3M-357-3mm (BOM#210)
PTH2090101372501syncronization belt 3M-321-3mm (BOM#208)
PTH2090102262091syncronization belt B220MXL-2.5mm (BOM#267)
PTH2090102372491syncronization belt B192MXL-4mm (BOM#236)
PTH2090102372511syncronization belt B144MXL-4mm (BOM#224)
PTH2090201171871bearing 694ZZ (BOM#273)
PTH2090201261721bearing MR115ZZ (BOM#310)
PTH2090300301181rope buckle T3306 (BOM#148)
PTH2090300429331wire clip M-820P-C08 (BOM#120)
PTH2090400231032standoff H68 (BOM#164)
PTH2090400254311wire rubber ring ?8×?18 (BOM#166)
button cap AJM-10x6 (BOM#28)PTH2090400256161button cap AJM-10x6 (BOM#28)

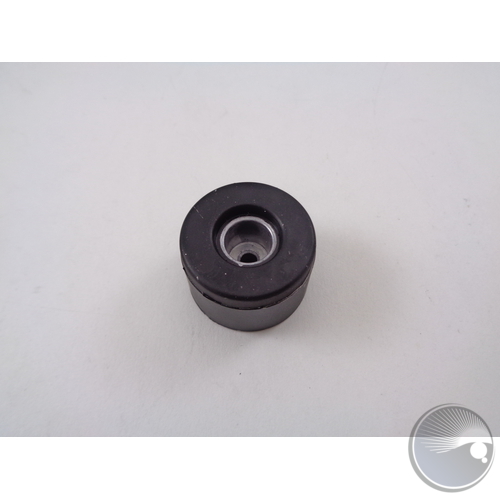

machine feet (BOM#129)PTH2090400259771machine feet (BOM#129)
standoff H6x23 (BOM#12)PTH2090400304613standoff H6x23 (BOM#12)
standoff H6x33 (BOM#13)PTH2090400304623standoff H6x33 (BOM#13)
silicone ring 82 M-820P-A03-68 (BOM#228)PTH2090400392582silicone ring 82 M-820P-A03-68 (BOM#228)
PTH2090400417511wire rubber ring 1222 (BOM#195)

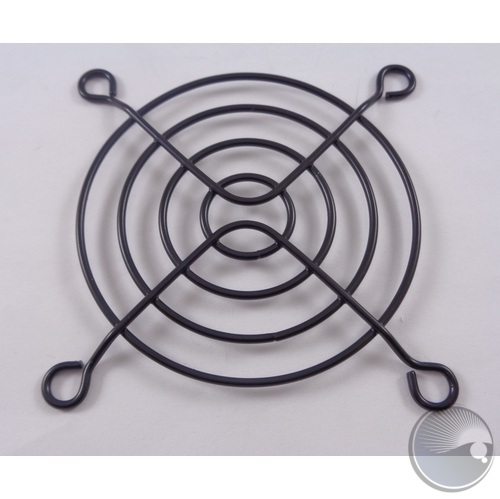

fan net 7×7 (BOM#19)PTH2090500170761fan net 7×7 (BOM#19)
quick lock screw M20 (BOM#47)PTH2090500180091quick lock screw M20 (BOM#47)

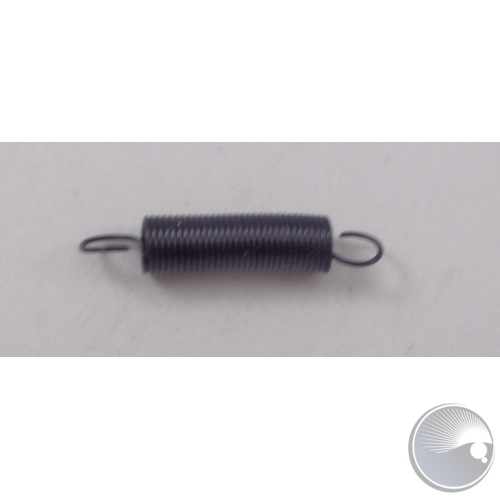

spring ?4×20×0.4 (BOM#103)PTH2090601168481spring ?4×20×0.4 (BOM#103)

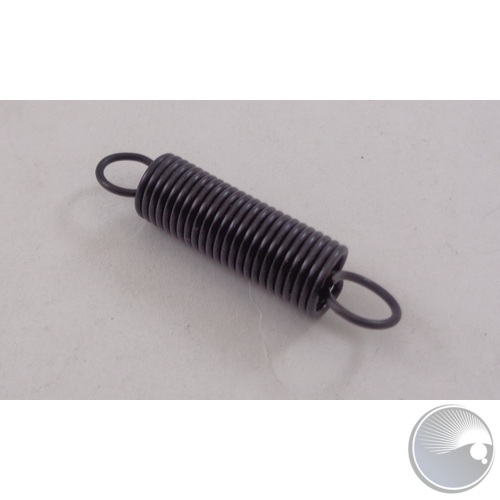

spring ?10×47×1.2 (BOM#68)PTH2090601276121spring ?10×47×1.2 (BOM#68)
PTH2090601354481spring 1.2x8.0x180 x43.0L (BOM#79)
PTH2090602303631spring ?6×9×0.8 (BOM#85)

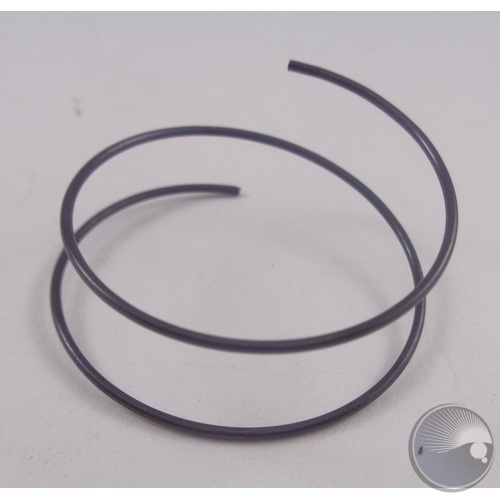

spiral circlip ?(35+31.5)×16×1.0 (BOM#242)PTH2090602326591spiral circlip ?(35+31.5)×16×1.0 (BOM#242)
prism spring NH3181.0mm (BOM#217)PTH2090603340601prism spring NH3181.0mm (BOM#217)

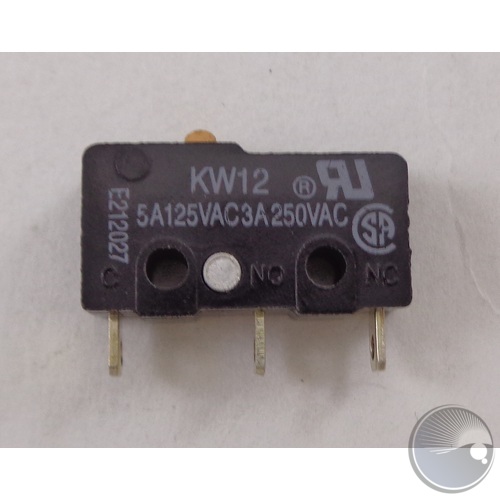

assembled switch pcb ZJ009A KW12 5A/3A 125/250VAC BOM#261)PTH2090701168841assembled switch pcb ZJ009A KW12 5A/3A 125/250VAC BOM#261)
power switch R599-20A (BOM#2)PTH2090704353661power switch R599-20A (BOM#2)
PTH2090803308941safety socket FH1-B-MW (BOM#139)

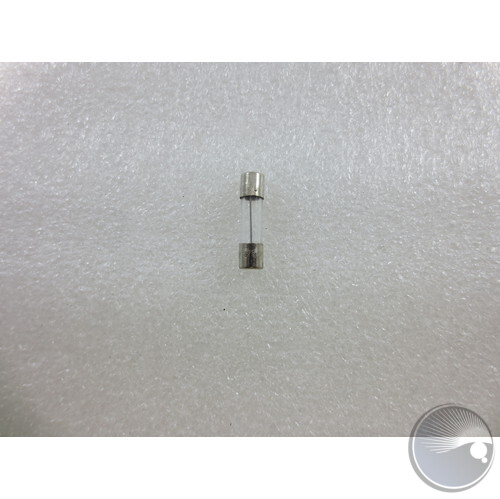

fuse 12A 520 250V (BOM#9)PTH2090900246921fuse 12A 520 250V (BOM#9)

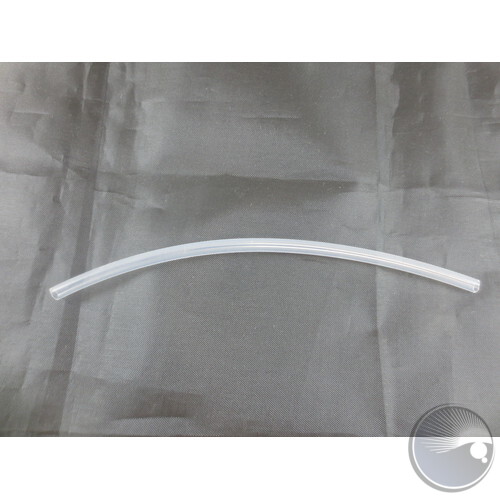

silicone tube ?3×4 (BOM#121)PTH2091004210162silicone tube ?3×4 (BOM#121)

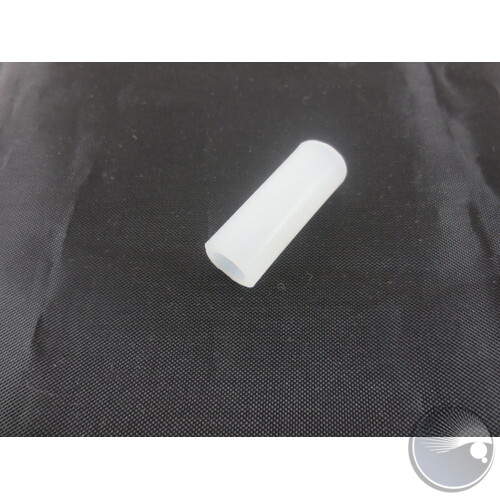

silicone tube ?5×7 (BOM#122)PTH2091004223992silicone tube ?5×7 (BOM#122)
PTH2091101166831copper post 3×8 (BOM#175)

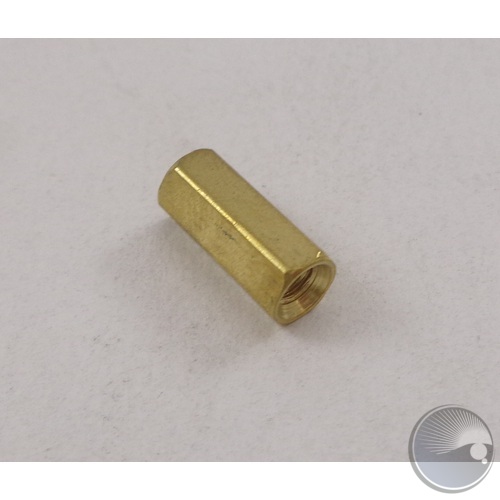

copper post 3×11 (BOM#21)PTH2091101166861copper post 3×11 (BOM#21)
PTH2091101179061copper post 3×6+6 (BOM#194)
PTH2091101291791copper post 3×12.5 (BOM#104)
PTH2091302169571open circlip 3 (BOM#280)
PTH2091302169601axis circlip 351.5 (BOM#61)

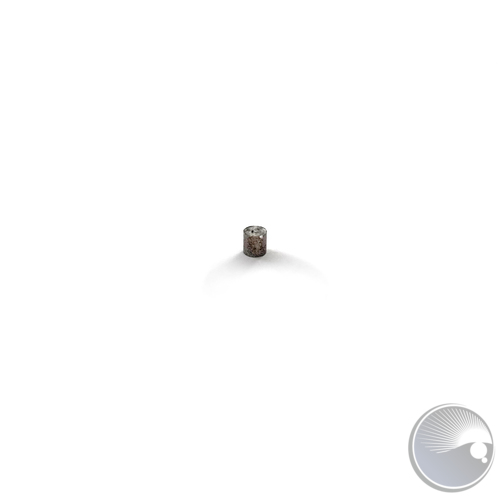

magnet ?3×3 (BOM#159)PTH2091400168401magnet ?3×3 (BOM#159)

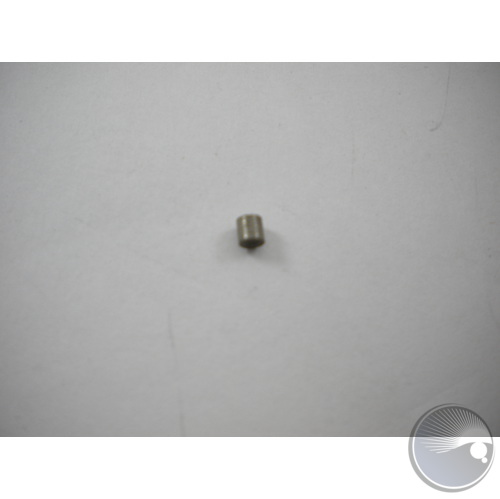

magnet ?3×3 (BOM#77)PTH2091400234741magnet ?3×3 (BOM#77)
PTH2091400287631magnet ?3×2 (BOM#93)
PTH2091400333391magnet ?6×2.5 (BOM#61)
PTH2091400414201magnet ?3×4 (BOM#333)
PVC rubber cover 14x8 (BOM#68)PTH2091500249071PVC rubber cover 14x8 (BOM#68)
PTH2091500353421silicone mat CP30064×38 (BOM#80)
PTH2091500391521steel rope JL201A1.0mm×15cm (BOM#120)
gear DL-220-02 (BOM#271)PTHDL22002gear DL-220-02 (BOM#271)
PTHEX575B27strap press wheel 2 EX575B27 (BOM#55)
PTHPRO200SA0311strap press chip PRO-200S-A03-11 (BOM#156)

Es sind leider keine Geräte verfügbar.

Es kann vorkommen, dass in unserem Lager noch gebrauchte Geräte vorhanden sind. Fragen Sie gerne über unsere Service-Hotline +49 871 40875521 oder per Email info@lights-whatever.de bei uns nach. Wir helfen Ihnen gerne weiter!

Bewertungen lesen, schreiben und diskutieren... mehr
Kundenbewertungen für "Maverick MK2 Profile"
Bewertung schreiben
Bewertungen werden nach Überprüfung freigeschaltet.

Die mit einem * markierten Felder sind Pflichtfelder.

Ich habe die Datenschutzbestimmungen zur Kenntnis genommen.

Zuletzt angesehen
