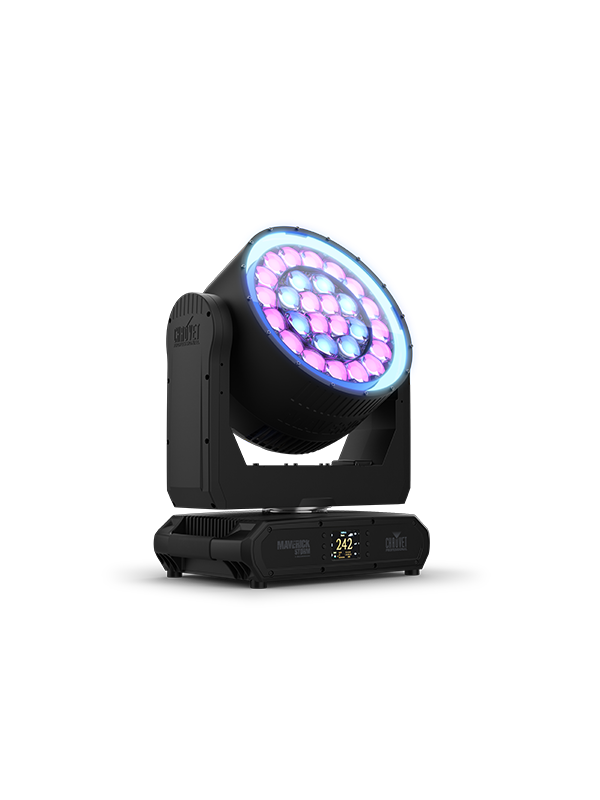

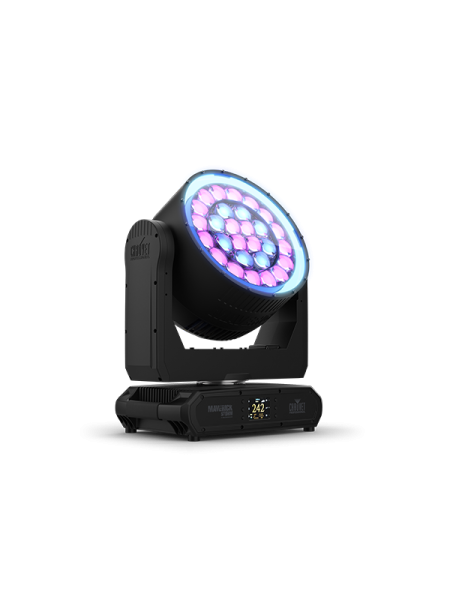

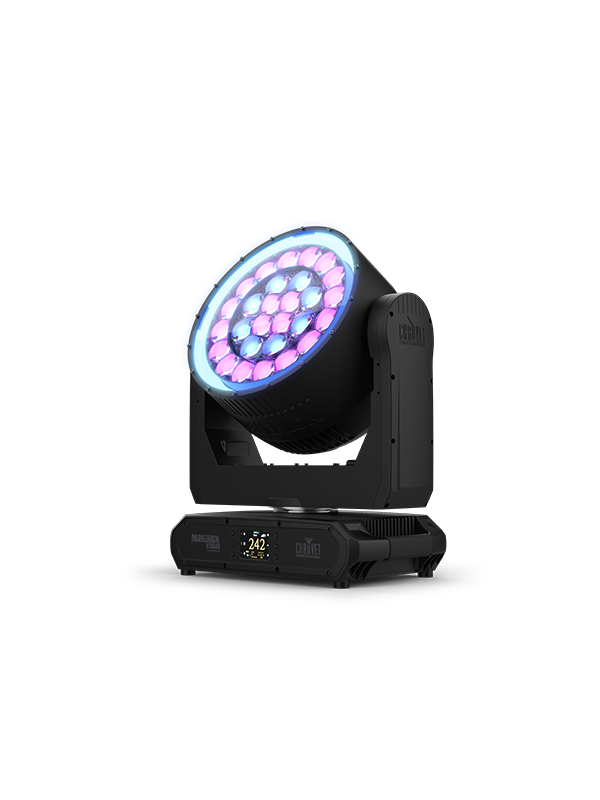

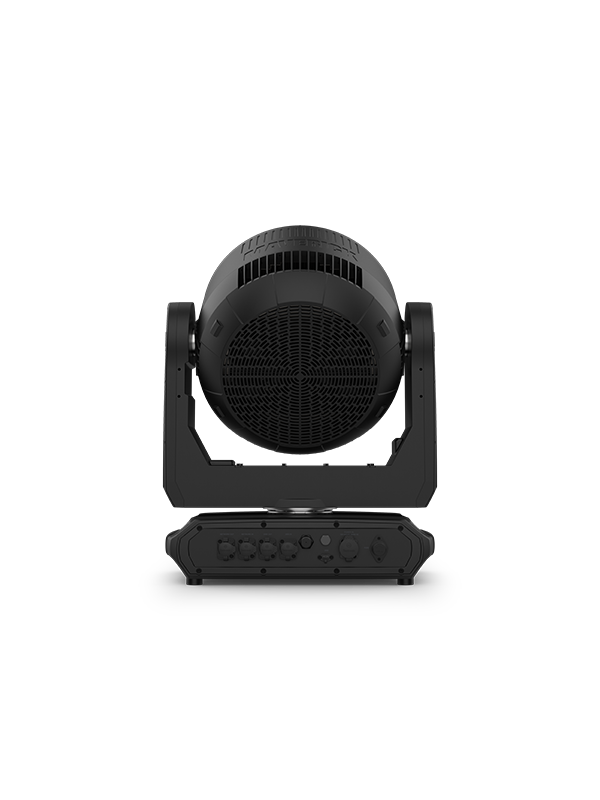

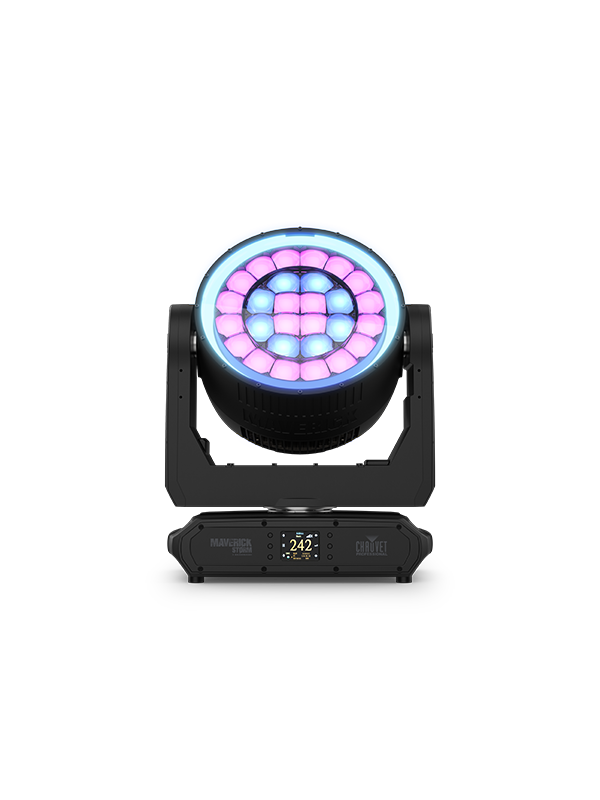

Maverick Storm 3 BeamWash (IP65 rated)

7.657,65 € *

inkl. MwSt. zzgl. Versandkosten

Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.

  • MAVERICKSTORM3BEAMWASH
Maverick Storm 3 BeamWash features a 12-zone pixel-mappable RGB LED outer ring for even more... mehr
Produktinformationen "Maverick Storm 3 BeamWash (IP65 rated)"

Maverick Storm 3 BeamWash features a 12-zone pixel-mappable RGB LED outer ring for even more stunning eye candy effects when you need them and a stealth filter for when you don’t. Its 16-lens outer zone and 12-lens inner zone deliver massive lumen output from 28x45W RGBW LEDs and provide two zones of independent zoom control to create beam and wash combinations from a single fixture. Built-in macros with foreground and background control easily generate complex pixel eye candy. A unique lens design delivers excellent color blending, tight aerial beam effects and visual impact live or on camera. Dual mode operation enables pixel-mapped eye candy to run under ArtNet/sACN control with separate assignment of motorized functions to DMX. Housed in an advanced IP65-rated alloy body, Maverick Storm 3 BeamWash is built with the durability and versatility to perform in any venue, indoors or out.

At a Glance

  • Full-featured, compact IP65 BeamWash with (28) 45w RGBW LEDs that zoom down to 3.9 degrees to produce powerful, tight aerial beams and out to 53.8 degrees for wide washes and individual pixel control for stunning eye candy effects with two independent zones of zoom control along with a (256) LED ring with 12 zones of control for even more eye candy effects.

  • 3.9° to 53.8° zoom range in both zoom zones

  • 12 zone pixel-mappable RGB LED outer ring under a stealth filter for added effect possibilities

  • Incredibly bright! Over 18,500 lumens!

  • Fully pixel mappable LEDs

  • User selectable full output 7500 K calibrated white

  • Selectable PWM settings for camera operation

  • 6 distinct dimming modes for advanced control

  • Simple and complex DMX channel profiles for programming versatility including dual mode operation.

  • 5-pin DMX and EtherCON input/output connections

  • RDM Enabled for remote addressing & troubleshooting

  • Easy to read OLED display with simple, effective menu options

  • USB-C port for convenient software uploads

  • Easily accessible web server for testing and setting fixture functions

  • Removable handles on the arms make moving the fixture easy.

  • Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost

Weiterführende Links zu "Maverick Storm 3 BeamWash (IP65 rated)"

PTH010101011471battery press board MIP-1950W-A01-03 (BOM#22)
PTH010101011823pan pulley bracket TOUGH-1600-A02-02 (BOM#76)
PTH010101012018pan lock stopper TOUGH-1600-A01-07 (BOM#21)
PTH010101012393pan motor bracekt MIP-2850W-A02-01 (BOM#108)
PTH010101012394fan bracket MIP-2850W-A03-02 (BOM#116)
PTH010101012395fan bracket MIP-2850W-A03-04 (BOM#161)
PTH010101012396glass press board MIP-2850W-A03-01 (BOM#109)
PTH010101012398arm cover board MIP-2850W-A02-02 (BOM#102)
PTH010101012400light shield MIP-2850W-A03-03 (BOM#135)
PTH010101012401pan magnetic sensor bracket MIP-1950W-A02-02 (BOM#79)
PTH010101012415pan bracket TOUGH-1600-A02-13 (BOM#102)
PTH010101012416pan lock pick TOUGH-1600-A02-20 (BOM#72)
PTH010101012599motor barrier MIP-2850W-A03-13 (BOM#138)
PTH010101012769focus bracket MIP-2850W-A03-15 (BOM#124)
DMX PCB mat IP-2W-A01-18 (BOM#40)PTH010102000409DMX PCB mat IP-2W-A01-18 (BOM#40)

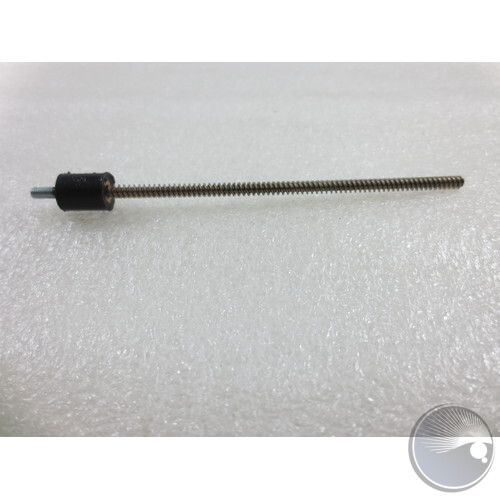

damping spiral LG-3.5-109 (BOM#93)PTH010102002227damping spiral LG-3.5-109 (BOM#93)
PTH010102012463display press board MIP-1950W-A01-02 (BOM#17)
PTH010102012791ethernet switch PCB bracket MIP-1950W-A01-10 (BOM#27)
USB press board IP-1W-A01-05 (BOM#8)PTH010102012834USB press board IP-1W-A01-05 (BOM#8)
PTH010102013321PSU press board 2 TOUGH-1600-A01-04 (BOM#32)
PTH010102013322base switch board bracket TOUGH-1600-A01-02 (BOM#13)
PTH010102013323PSU press board 1 TOUGH-1600-A01-03 (BOM#31)
PTH010102013356USB connection board TOUGH-1600-A01-10 (BOM#17)

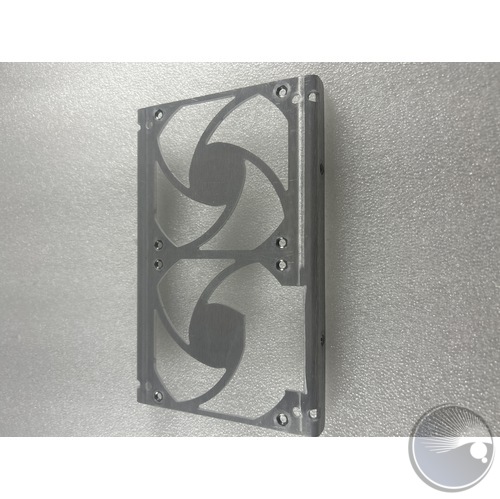

base fan bracket TOUGH-1600-A01-05 (BOM#39)PTH010102013526base fan bracket TOUGH-1600-A01-05 (BOM#39)
PTH010102013753pan lock mat TOUGH-1600-A02-08 (BOM#70)
PTH010102014297pan positioning board TOUGH-1600-A02-10 (BOM#78)
PTH010102014701pan positioning pad TOUGH-1600-A02-19 (BOM#74)
PTH010102014703wire barrier TOUGH-1600-A01-08 (BOM#91)
PTH010102014705focus motor bracket MIP-2850W-A03-05 (BOM#156)

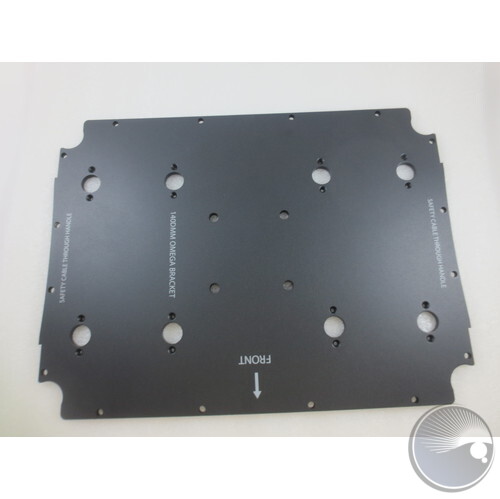

base board TOUGH-1600-A01-01 (BOM#43)PTH010102015488base board TOUGH-1600-A01-01 (BOM#43)
PTH010102016624bearing press chip MIP-2850W-A02-05 (BOM#60)

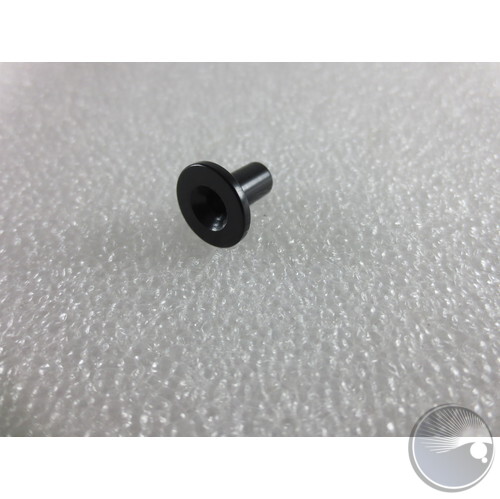

focus press ring 2 M-2735-B08 (BOM#122)PTH010201000094focus press ring 2 M-2735-B08 (BOM#122)

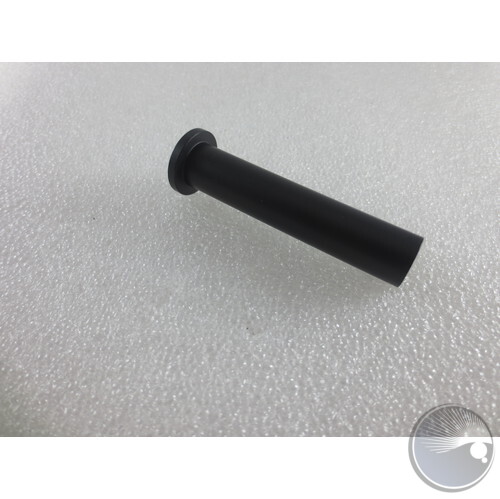

slider cover IP-1W-B08 (BOM#97)PTH010201010190slider cover IP-1W-B08 (BOM#97)
PTH010201010413pan positioning post TOUGH-1600-B17 (BOM#48)
PTH010201010454slider cover MIP-2850W-B01 (BOM#160)
PTH010201010455motor cover MIP-2850W-D05 (BOM#159)
PTH010201010457bearing fasten part TOUGH-1600-B24 (BOM#88)
PTH010201010489slider holder MIP-2850W-B10 (BOM#152)
PTH010201010518rotary screw cover MIP-2850W-B14 (BOM#147)

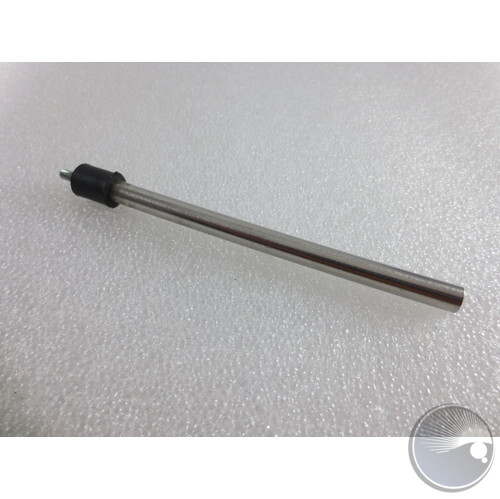

damping slider PRO-740-B04 (BOM#92)PTH010203000730damping slider PRO-740-B04 (BOM#92)
PTH010203004244focus flange TOUGH-800BAR-B16 (BOM#144)

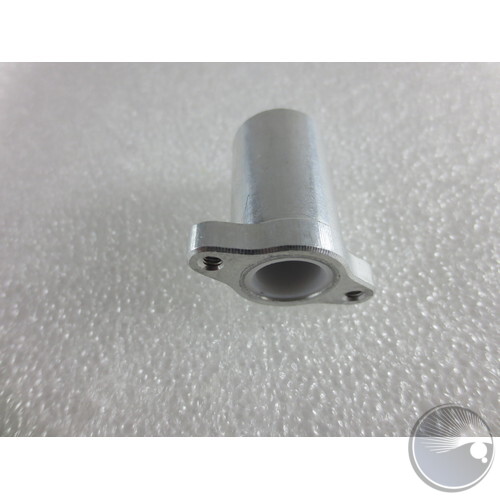

slider cover TOUGH-950W-B08 (BOM#143)PTH010203004634slider cover TOUGH-950W-B08 (BOM#143)
PTH010203004995slider TOUGH-950W-B12 (BOM#117)
PTH010203005110slider fix block IP-1W-B15 (BOM#95)
PTH010203005288gear DL-3114-08 (BOM#58)
PTH010203005673rotary screw mat cover MIP-2850W-B03 (BOM#153)
PTH010203005674slider fix block MIP-2850W-B02 (BOM#96)

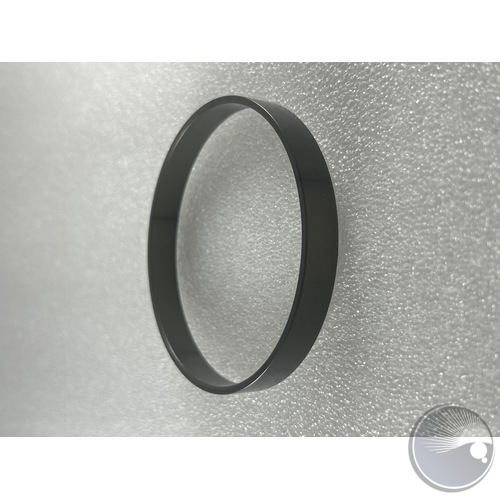

gasket TOUGH-1600-B25 (BOM#82)PTH010203005700gasket TOUGH-1600-B25 (BOM#82)
PTH010203005702pan axis TOUGH-1600-BZ04 (BOM#86)
PTH010203005703gear DL-3114-09 (BOM#79)
PTH010203005704bearing bushing TOUGH-1600-B23 (BOM#87)
PTH010203005705pan bushing TOUGH-1600-BZ05 (BOM#77)
PTH010203005712pan support bracket MIP-1250-D10 (BOM#74)
PTH010203005854slider fix block MIP-2850W-B07 (BOM#132)
PTH010203005973slider cover MIP-2850W-B13 (BOM#142)
PTH010203006441tilt axis 1 MIP-2850W-C13 (BOM#93)
Omega Bracket Washer 6mm washer For 140Dmm Omega hanging bracket (CD-D13-04) EUPTH010203006478Omega Bracket Washer 6mm washer For 140Dmm Omega hanging bracket (CD-D13-04) EU
PTH010301000097standoff 6*5 (BOM#114)
PTH010301003787standoff 8*3 (BOM#140)
PTH010302003783standoff H5*16+6 (BOM#136)
PTH010405010198Omega Bracket CD-D24-140D-2 VERSION 4 (BOM#45)
PTH010503010830heatsink CD-Z56 (BOM#150)
PTH010504000107base front cover MIP-1250-D01 (BOM#20)
PTH010504000108display front cover MIP-1250-D02 (BOM#29)
PTH010504000109PSU base board MIP-1250-D03 (BOM#10)
quick lock IP cover IP-1W-B12 (BOM#35)PTH010504000184quick lock IP cover IP-1W-B12 (BOM#35)
PTH010504000193head front cover MIP-2850W-D03 (BOM#112)
PTH010504000197arm cover MIP-2850W-D02 (BOM#46)
PTH010504000198arm bracket MIP-2850W-D01 (BOM#65)

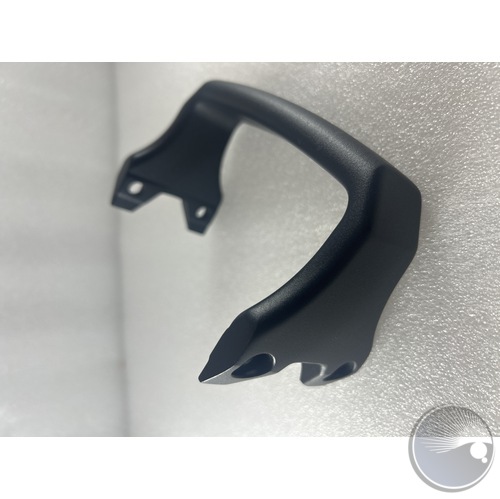

Handle (MIP-1250-D14)PTH010504000272Handle (MIP-1250-D14)

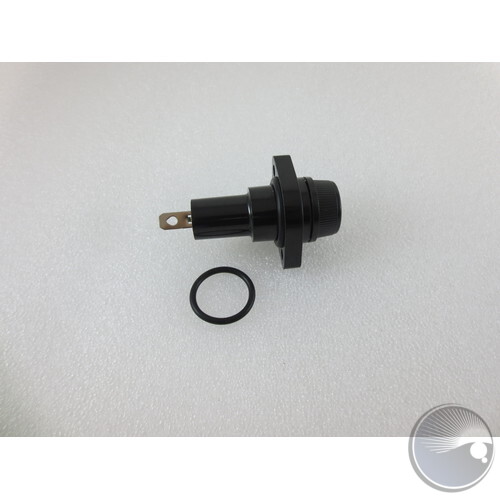

IP fuse holder R3-18 (BOM#6)PTH021000010979IP fuse holder R3-18 (BOM#6)
antenna A40531G4YAG (BOM#10)PTH021200000005antenna A40531G4YAG (BOM#10)
battery 14430 (BOM#21)PTH021800000002battery 14430 (BOM#21)
PTH021800000003battery 14430, wire length 40cm
magnetic sensor HE-10 D (BOM#134)PTH030100000098magnetic sensor HE-10 D (BOM#134)
magnetic sensor HE-10 (BOM#38)PTH030100000099magnetic sensor HE-10 (BOM#38)
switch PCB ZJ038 B (BOM#21)PTH030100000277switch PCB ZJ038 B (BOM#21)
switch PCB ZJ050 B (BOM#13)PTH030100000282switch PCB ZJ050 B (BOM#13)
wireless PCB A40895G5-R (BOM#19)PTH030100003246wireless PCB A40895G5-R (BOM#19)

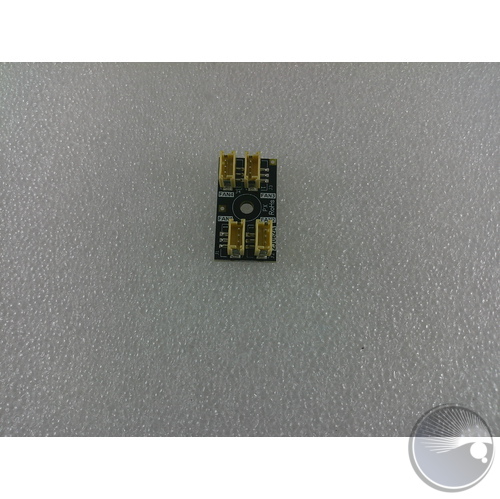

switch PCB ZJ062 (BOM#233)PTH030100003437switch PCB ZJ062 (BOM#233)

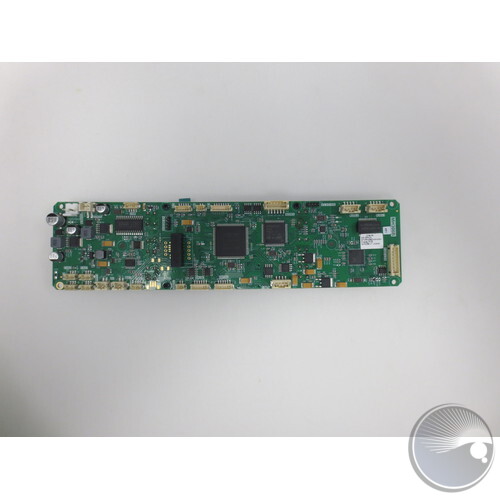

display PCB MIP-2850 (BOM#22)PTH030100003997display PCB MIP-2850 (BOM#22)

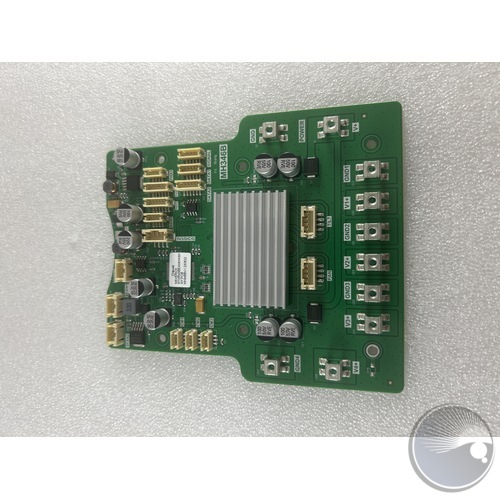

pan/tilt PCB MH346 (BOM#105)PTH030100004087pan/tilt PCB MH346 (BOM#105)

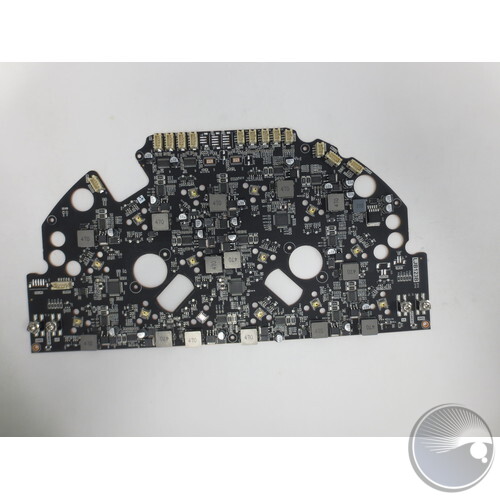

LED PCB LJB123 (BOM#143)PTH030100004280LED PCB LJB123 (BOM#143)

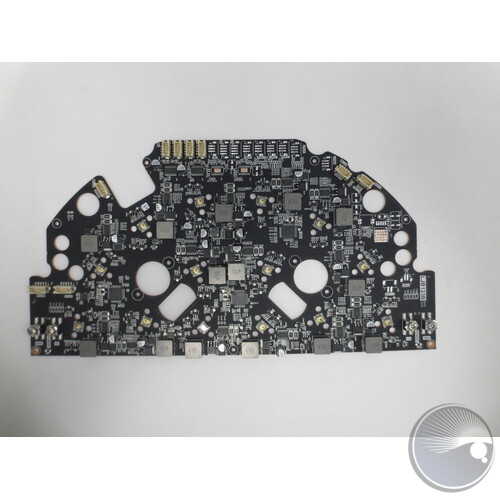

LED PCB LJB123 (BOM#144)PTH030100004281LED PCB LJB123 (BOM#144)

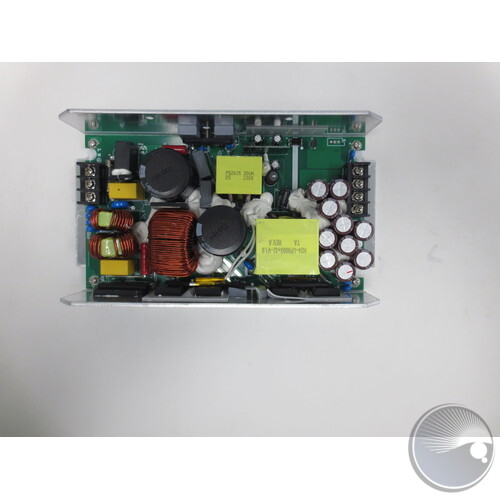

PSU H70-UP700S+32 (BOM#35)PTH040301010916PSU H70-UP700S+32 (BOM#35)

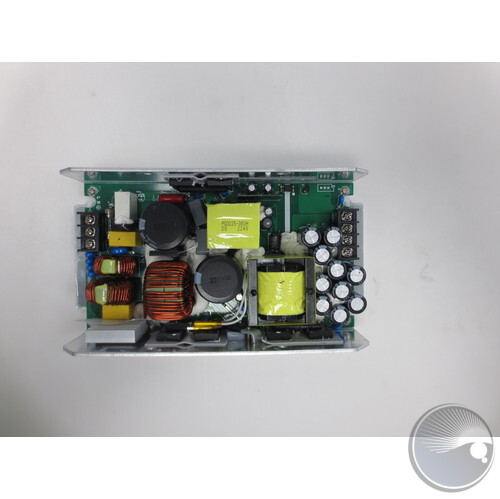

PSU H70-UP900S+32 (BOM#34)PTH040301010921PSU H70-UP900S+32 (BOM#34)
PTH050101004284glass 352*3 (BOM#111)
PTH05010201167612 in 1 cluster CD-F14 (BOM#98)
PTH050102011677lens cluster CD-F15 (BOM#120)
display sealing cover IP-2W-C10 (BOM#18)PTH070100000091display sealing cover IP-2W-C10 (BOM#18)
PTH070100004500wire cover IP-1W-C12 (BOM#66)

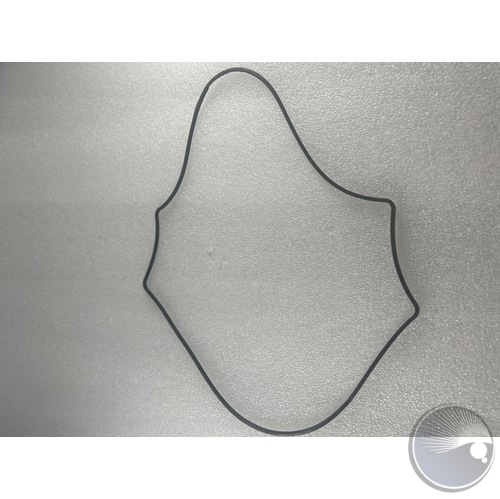

display front cover gasket MIP-1100P-C02 (BOM#19)PTH070100004600display front cover gasket MIP-1100P-C02 (BOM#19)

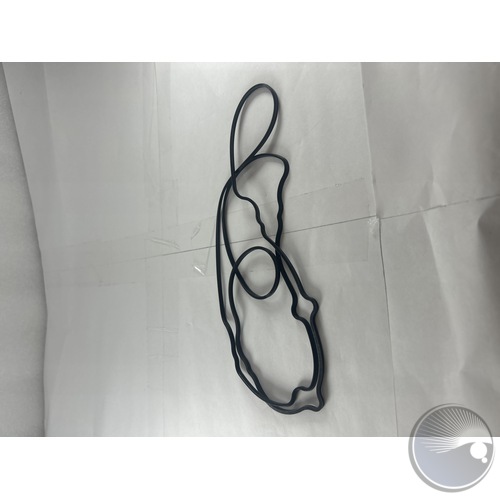

base gasket MIP-1100P-C01 (BOM#30)PTH070100004601base gasket MIP-1100P-C01 (BOM#30)
PTH070100004673glass gasket MIP-2850W-C06 (BOM#110)
PTH070100004674head gasket MIP-2850W-C07 (BOM#148)
PTH070100004676motor cover gasket MIP-2850W-C09 (BOM#158)
PTH070100004677gasket MIP-2850W-C10 (BOM#101)
PTH070100004678arm gasket MIP-2850W-C11 (BOM#47)
PTH070100004686head back cover MIP-2850W-C01 (BOM#118)
PTH070100004687center lens bottom cover MIP-2850W-C02 (BOM#129)

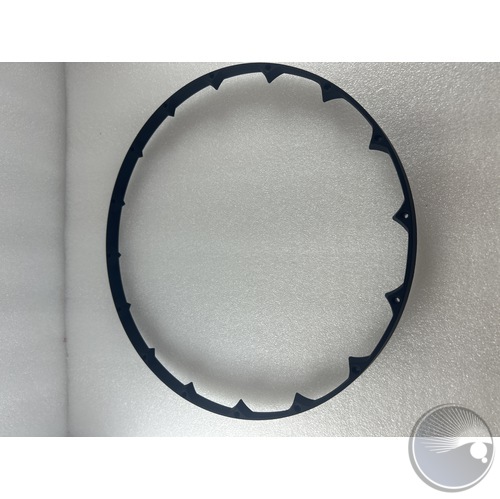

ring lens top cover MIP-2850W-C04 (BOM#119)PTH070100004689ring lens top cover MIP-2850W-C04 (BOM#119)

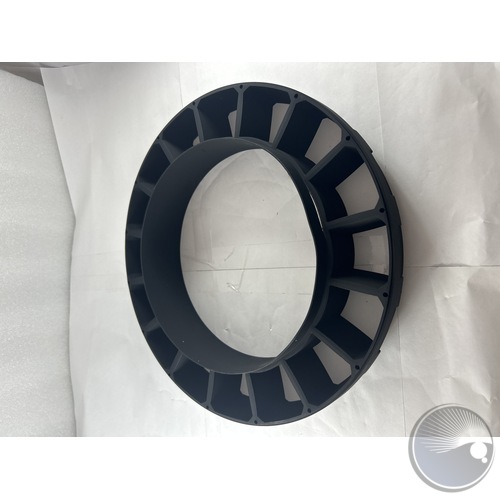

ring lens bottom cover MIP-2850W-C05 (BOM#121)PTH070100004690ring lens bottom cover MIP-2850W-C05 (BOM#121)
PTH070100004692base wiring cover MIP-1250-C03 (BOM#70)
PTH070100004767handle glove MIP-1250-C04 (BOM#15)
PTH070100004814lens top cover MIP-2850W-C03 (BOM#99)

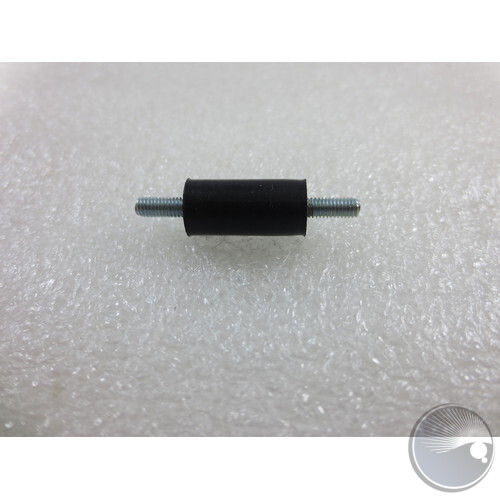

damping spiral φ8*17 (BOM#95)PTH070200000004damping spiral φ8*17 (BOM#95)
IP button cap FSAJM-78 (BOM#16)PTH070200000005IP button cap FSAJM-78 (BOM#16)
PTH070200000054machine foot CD-JD30-21 (BOM#39)
PTH070200000061rubber ring 5?11*9.5 (BOM#123)
PVC rubber cover 148 (BOM#58)PTH070200000067PVC rubber cover 148 (BOM#58)
PTH070200011753silicone ring 20*?1.5 (BOM#147)
silicone ring ?10*2 (BOM#76)PTH070200011755silicone ring ?10*2 (BOM#76)
PTH070200011756silicone ring 15*1.5 (BOM#146)
PTH070200011765silicone O ring 85*?2 (BOM#100)
silicone O ring 12*?2 (BOM#103)PTH070200011767silicone O ring 12*?2 (BOM#103)
IP cover gasket IP-1W-C09 (BOM#37)PTH070200011846IP cover gasket IP-1W-C09 (BOM#37)
display board gasket IP-2W-C19 (BOM#19)PTH070200011847display board gasket IP-2W-C19 (BOM#19)
PTH070200011904base left rubber mat MIP-1250-C07 (BOM#18)
PTH070200011905base right rubber mat MIP-1250-C06 (BOM#12)
connector K5F2C-W-B-LY (BOM#2)PTH080400000013connector K5F2C-W-B-LY (BOM#2)
connector J5F2C-W-B-LY (BOM#1)PTH080400000014connector J5F2C-W-B-LY (BOM#1)
connector SE8FDYH-31-B (BOM#3)PTH080400000015connector SE8FDYH-31-B (BOM#3)
connector SAC3MPX-LY (BOM#9)PTH080500000013connector SAC3MPX-LY (BOM#9)
connector CNAC-MPX-LY (BOM#42)PTH080500000016connector CNAC-MPX-LY (BOM#42)
USB-C SCCMCDF-01 (BOM#5)PTH080500000027USB-C SCCMCDF-01 (BOM#5)
PTH10101011847tilt lock pick TOUGH-1600-A02-04 (BOM#89)
PTH10101012019tilt lock fix board TOUGH-1600-A02-07 (BOM#88)
PTH10101012021tilt pulley bracket TOUGH-1600-A02-06 (BOM#58)
PTH10101012297tilt wire bracket TOUGH-1600-A02-14 (BOM#103)
PTH10101012319fan bracket TOUGH-1600-A02-18 (BOM#100)
PTH10101012399tilt lock block MIP-2850W-A02-03 (BOM#91)
PTH10102012237tilt touching board TOUGH-300S-A02-12 (BOM#49)
PTH10102013324tilt motor bracket TOUGH-1600-A02-03 (BOM#63)
PTH10102013768tilt lock mat TOUGH-1600-A02-09 (BOM#55)
PTH10201010380pick fixing piece 1 TOUGH-1600-B11 (BOM#90)
PTH10201010414pick fixing piece 2 TOUGH-1600-B18 (BOM#69)
PTH10203004541screw press board TOUGH-300S-B20 (BOM#57)
PTH10203005147optocoupler bracket TOUGH-1600-B07 (BOM#62)
PTH10203006442tilt axis 2 MIP-2850W-C14 (BOM#98)
PTH110100004367bearing 6910Z (BOM#75)
PTH120101000196Head back cover screw M3*8 stainless steel hexagon socket head cap screw black spray-paint #316
PTH120102000095Screw (M8*14) for Handle 010504000272
304 screw M56 (BOM#56)PTH120105000006304 screw M56 (BOM#56)
PTH120305010764circlip 45*1.75 (BOM#56)
nut M22 (BOM#23)PTH120500000017nut M22 (BOM#23)
PTH151000004310silicone pad 55*25*5mm (BOM#354)

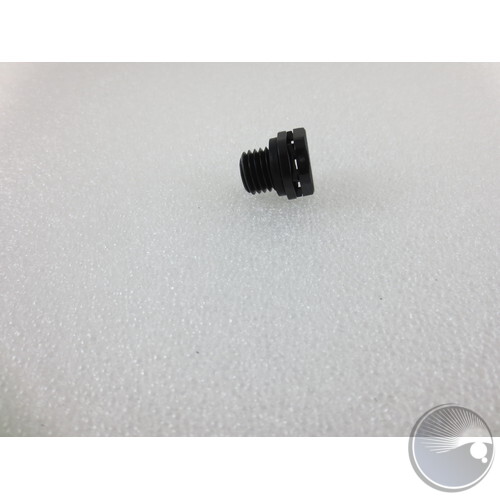

valve VV-P465-00-KS1 (BOM#9)PTH170200011814valve VV-P465-00-KS1 (BOM#9)

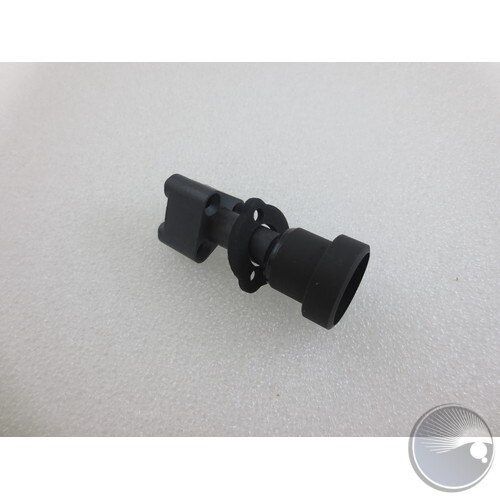

light guide assembly CD-FA-02-A-03 (BOM#115)PTH210200012791light guide assembly CD-FA-02-A-03 (BOM#115)
PTH210200013154pan/tilt driving wheel TOUGH 1600 BSWF (BOM#65)
PTH210200013290fan assembly MIP-1250 LED PROFILE/MIP-2850 (BOM#39)
PTH210200013592tilt bushing assembly MIP-2850 (BOM#53)
PTH210200013593arm bracket bushing TOUGH-1600 (BOM#81)
PTH210200013764tilt belt press wheel MIP-2850 (BOM#59)
PTH210200013765pan belt press wheel MIP-2850 (BOM#84)
PTH210200013805tilt driving wheel MIP-2850 (BOM#60)
PTH210200013831pan motor set MIP-2850 (BOM#106)
PTH210200013832tilt motor set MIP-2850 (BOM#64)
PTH210200013833fan MIP-2850 (BOM#162)
PTH210200013834zoom motor MIP-2850 (BOM#139)
PTH210200013835zoom motor MIP-2850 (BOM#157)
PTH210200013836defrost fan MIP-2850 (BOM#113)
PTH210200013837defrost fan MIP-2850 (BOM#117)
PTH210200013838fan assembly MIP-2850 (BOM#99)

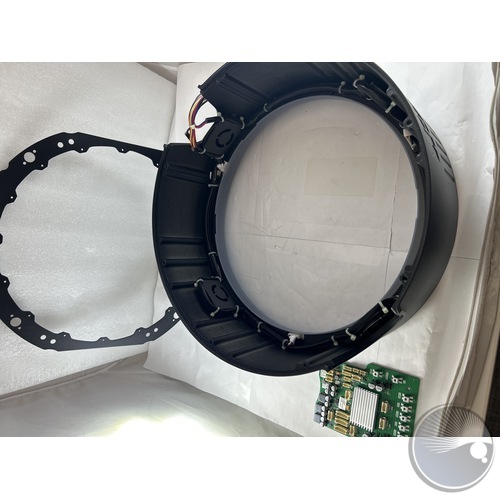

Upgrade kits for storm 3 beamwashPTH210200014508Upgrade kits for storm 3 beamwash

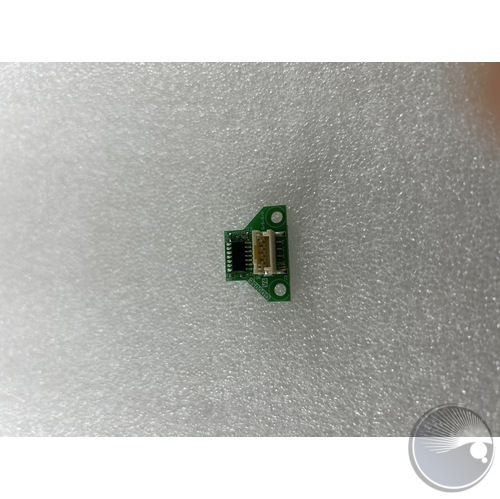

PTH30100000089optocoupler PCB GD005 (BOM#61)
PTH70100004788arm wire cover MIP-1250-C05 (BOM#104)
PTH70200011756silicone ring 15*1.5 (BOM#73)
PTH70200011829silicone ring 120*2 (BOM#80)
PTH70200011830silicone ring 70*2 (BOM#54)

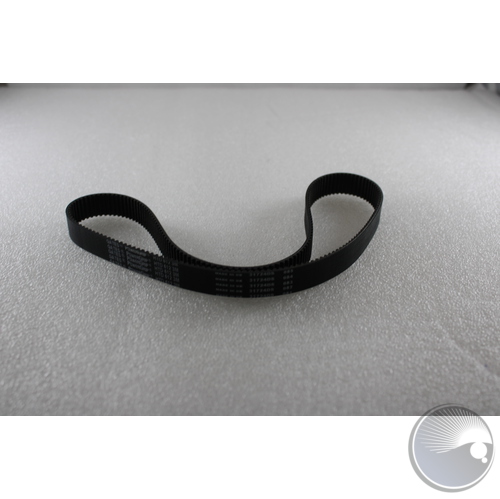

PTH90200004242belt 3M-612-15mm (BOM#82)

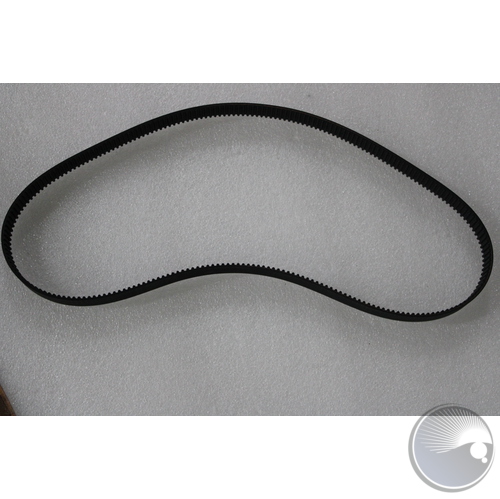

PTH90200004265belt 3M-708-15mm (BOM#50)

Es sind leider keine Geräte verfügbar.

Es kann vorkommen, dass in unserem Lager noch gebrauchte Geräte vorhanden sind. Fragen Sie gerne über unsere Service-Hotline +49 871 40875521 oder per Email info@lights-whatever.de bei uns nach. Wir helfen Ihnen gerne weiter!

Bewertungen lesen, schreiben und diskutieren... mehr
Kundenbewertungen für "Maverick Storm 3 BeamWash (IP65 rated)"
Bewertung schreiben
Bewertungen werden nach Überprüfung freigeschaltet.

Die mit einem * markierten Felder sind Pflichtfelder.

Ich habe die Datenschutzbestimmungen zur Kenntnis genommen.

Zuletzt angesehen
