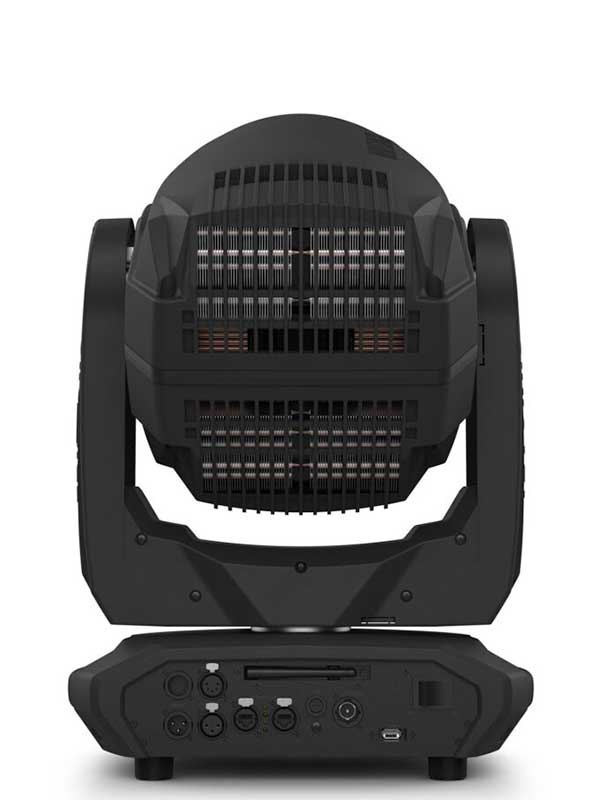

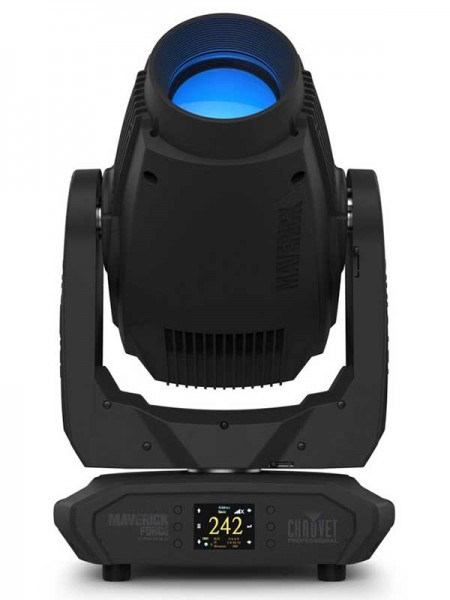

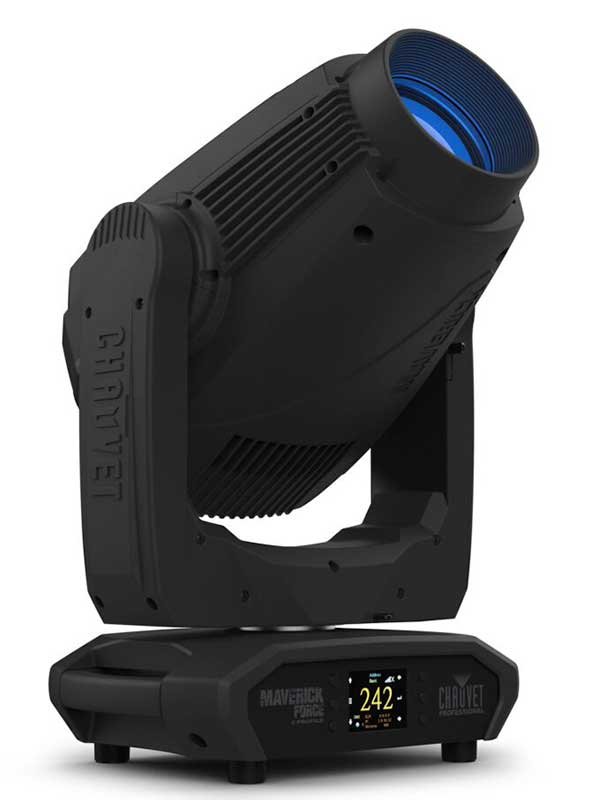

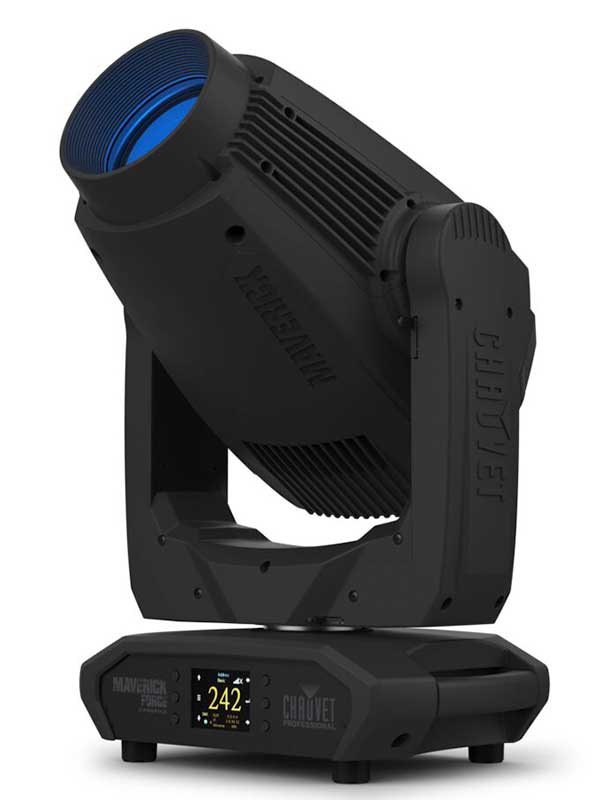

Maverick Force 2 Profile
Maverick Force 2 Profile is a lightweight, tour-grade moving head with a big presence. The powerful unit features an output of over 20,000 lumens and an artillery of speedy effects housed in a deceptively compact frame, under 60lbs. Maverick Force 2 Profile features CMY + CTO color-mixing, a color wheel with a CTB and CRI option, and an extensive zoom range of 7 to over 50 degrees that maintains a flat field of focus even when fully wide. A custom-built framing system containing 4 dual axis shutters with a 120-degree field of rotation, motorized iris, focus, zoom, and frost capabilities, alongside a 5-facet rotating prism give an abundance of tools for beam shaping. Two rotating glass gobo wheels featuring gobos created in collaboration with leading designers can be stacked on top of one another for dynamic effects. Control as you see fit with DMX, sACN, Art-Net or W-DMX.
AT A GLANCE
-
Fully featured, compact and lightweight 580 W LED yoke profile fixture including CMY + CTO color mixing, a four-blade framing shutter system with rotation, a color wheel, 8:1 zoom, a 5 facet prism wheel, and two rotating gobo wheels
-
16-bit dimming of master dimmer for smooth control of fades
-
Variable CMY + CTO color mixing system to create a wide pallet of colors
-
CRI and CTB filters on color wheel for added flexibility
-

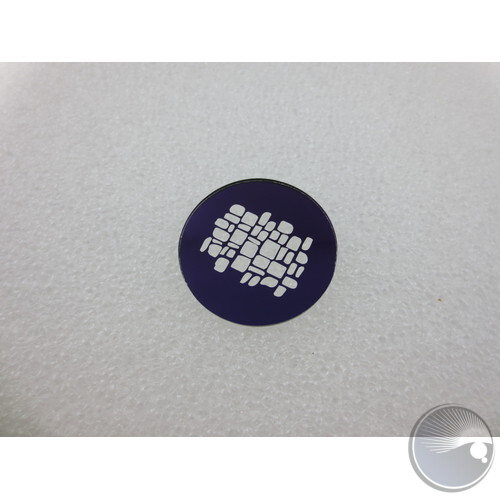

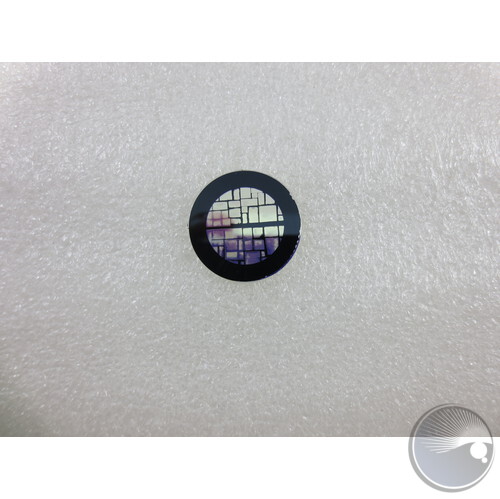

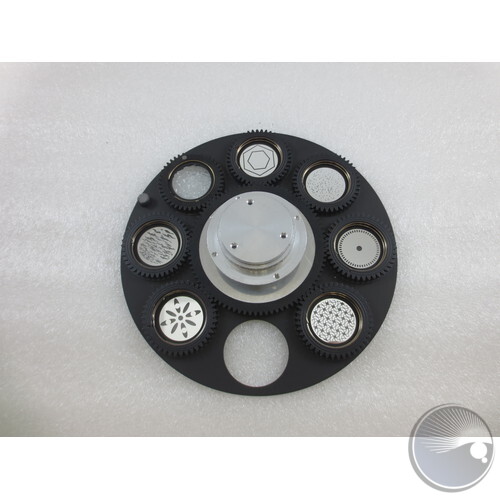

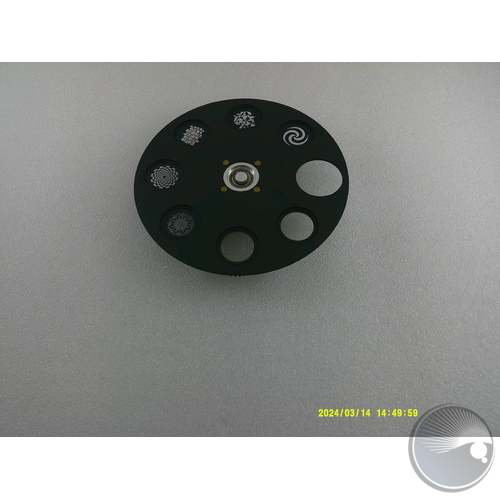

Two rotating, indexing and interchangeable slot and lock gobo wheels
-
DMX , WDMX, sACN, and Art-Net for full flexibility of control options
-
RDM control over DMX for fixture reporting
-
6.8° to 55.9° zoom range for variable beam sizes
-
Iris, 5-facet prism and frost for beam control
-
True 1 compatible power input
-
Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
-
USB slot for software uploads
-
Battery backup display with auto-rotate depending on fixture orientatio
SPECIFICATIONS
OPTICAL
- Light Source: 1 LEDs (CW) 580 W, (4.2 A), 7055 K, 50,000 hours life expectancy
- Color Temperature (at full): 7055 K
- CRI: 70.8
- CRI with CRI Filter: 89.3
- Front Lens Diameter: 127 mm
- Beam Angle: 6.8° to 48.1°
- Field Angle: 7.6° to 54.9°
- Cutoff Angle: 8.4° to 55.9°
- Zoom Range: 6.8° to 55.9°
- Lumens – Source: 39,000
- Lumens – Output: 20,856
- Illuminance (7°) 51,865 lux @ 5 m
- Illuminance (55.9°) 1,648 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
DYNAMIC EFFECTS
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
- Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
- Colors: CMY flags, CTO flag

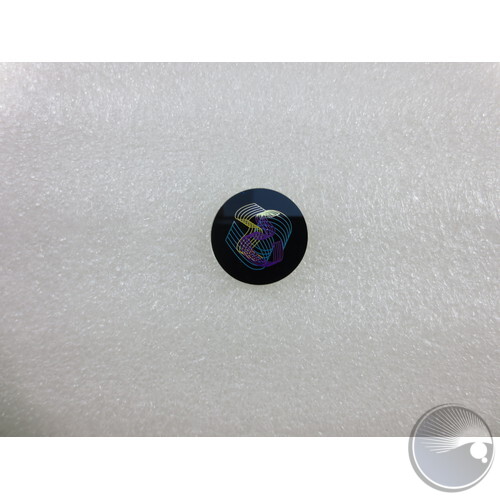

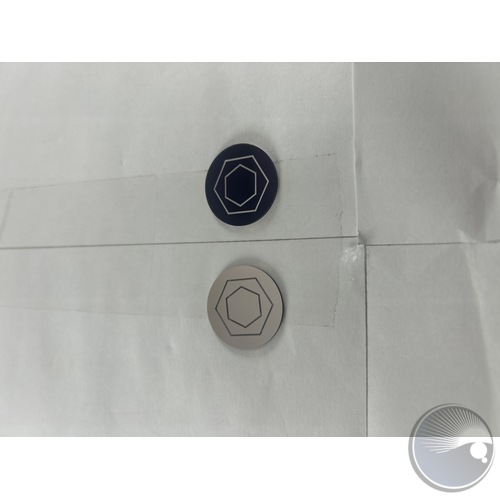

- Gobos (1): 7 + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Gobos (2): 7 + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

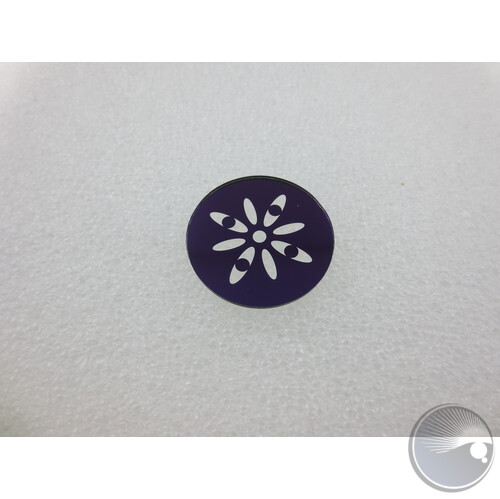

- Gobo Size: Gobo Wheel 1 (rotating): 25.5 mm (outside), 20 mm (image), 1.1 mm (max. thickness)
- Gobo Size: Gobo Wheel 2 (rotating): 22.5 mm (outside), 18.5 mm (image), 1.1 mm (max. thickness)

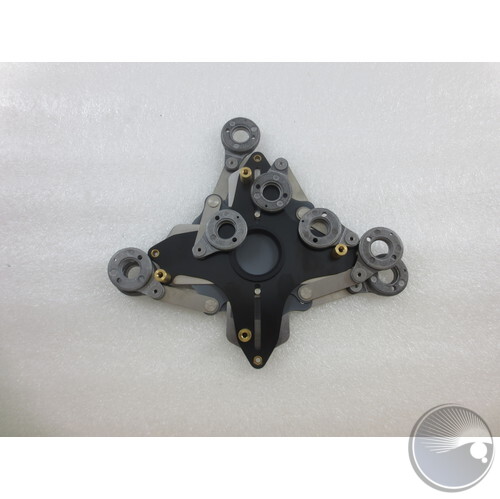

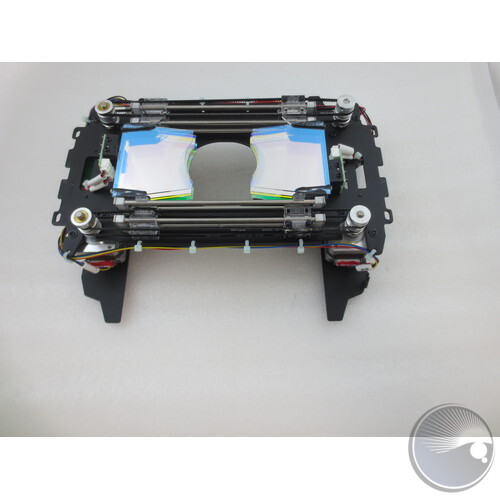

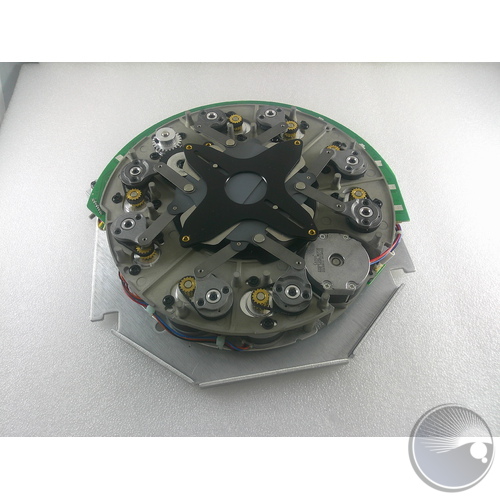

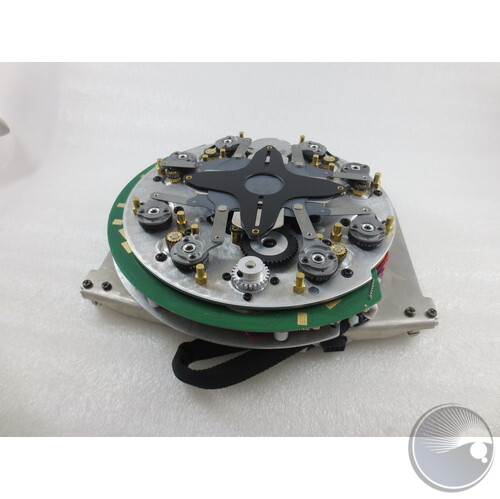

- Framing Shutters: 4 blades, each with dual axis movement.
- Framing Shutter rotation: 120° total rotation.
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Focus: Motorized
- Frost: Motorized
- Iris: Motorized
- Prism: 5 Facets, motorized, rotating
- Strobe Rate: 0 to 20 Hz
- Move-in-Black: Yes
- Dim Curves: 4
CONSTRUCTION / PHYSICAL
- Dimensions: 15.51 x 10.71 x 26.38 in (394 x 272 x 670 mm)
- Dimensions (shipping size): 30.12 x 13.58 x 19.1 in (765 x 345 x 485 mm)
- Weight: 57.3 lb (26 kg)
- Weight (shipping weight): 61.73 lb (28 kg)
- Exterior Color: Black
- Housing Material: High-impact flame-retardant polymer
CONNECTIONS
- Power Connection: Edison plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Data Connectors: 3- and 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
- Cable Length (power): 5 ft (1.5 m)
CONTROL
- Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
- DMX Channels: 33 or 50
- Art-Net Channels: 33 or 50
- Modes/Personalities: 2 personalities (33, 50)
ELECTRICAL
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 800 W, 8.01 A @ 100 V, 60 Hz
- Power and Current: 780 W, 6.41 A @ 120 V, 60 Hz
- Power and Current: 764 W, 3.68 A @ 208 V, 60 Hz
- Power and Current: 754 W, 3.31 A @ 230 V, 50 Hz
- Power and Current: 762 W, 3.19 A @ 240 V, 50 Hz
- Power and Current (resting): 102 W, 1.02 A @ 100 V, 60 Hz
- Power and Current (resting): 101 W, 0.801 A @ 120 V, 60 Hz
- Power and Current (resting): 111 W, 0.532 A @ 208 V, 60 Hz
- Power and Current (resting): 123 W, 0.485 A @ 230 V, 50 Hz
- Power and Current (resting): 125 W, 0.467 A @ 240 V, 50 Hz

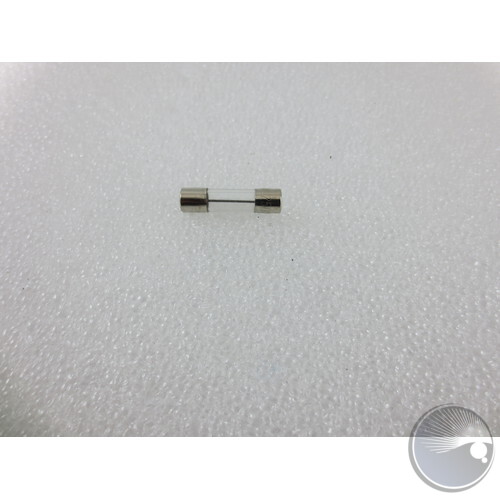

- Fuse Size: F13 A, 250 V
CERTIFICATIONS / QUALIFICATIONS
- CE, MET, FCC
- IP Rating: IP20, dry location
- Noise Level (ambient): 37 dB level @ 1 m
- Noise Level (static - Full): 47.3 dB level @ 1 m
- Noise Level (static - ECO): 40.7 dB level @ 1 m
- Noise Level (Static - Auto): 40.9 dB level @ 1 m
- Noise Level (Static - Max): 51.7 dB level @ 1 m
- Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
- Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)
WHAT'S INCLUDED
- Maverick Force 2 Profile
- Seetronic Powerkon IP65 power cord
- Omega bracket with mounting hardware
- Warranty Card
- Quick Reference Guide or User Manual
OPTIONAL ACCESSORIES
- Professional Clamps: CTC-50HC, CTC-50HCN
- Safety Cable: SC-07
- IP Rated Seetronic® Powerkon Extensions
- DMX cables
- Ethercon Extension cables
- Flight Case
- UPLOAD 08 software uploader
