Vesuvio II

Auf Anfrage!

  • VESUVIOII
Vesuvio  II Vesuvio II  illuminates bursts of fog with advanced RGBA+UV LED... mehr
Produktinformationen "Vesuvio II"

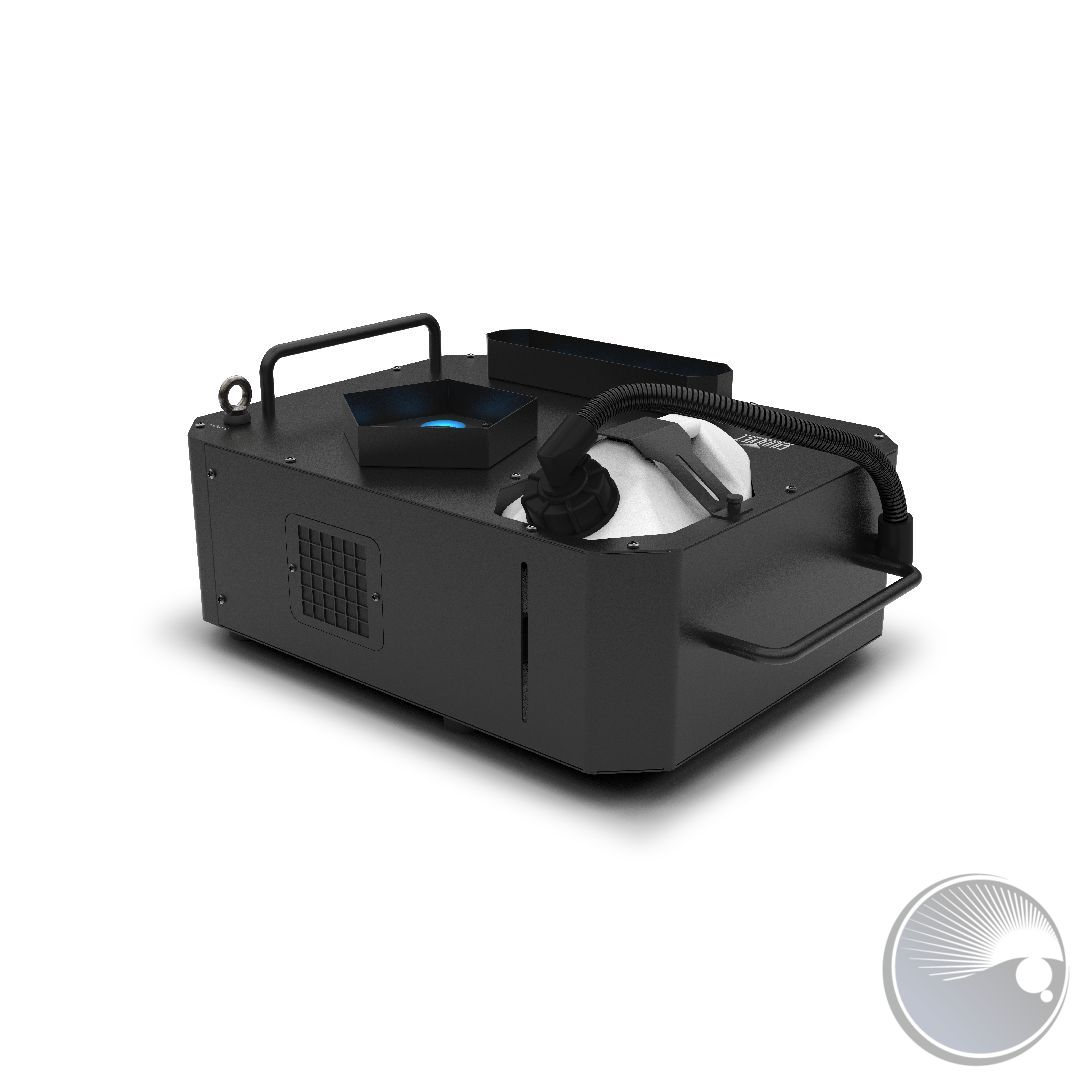

Vesuvio II

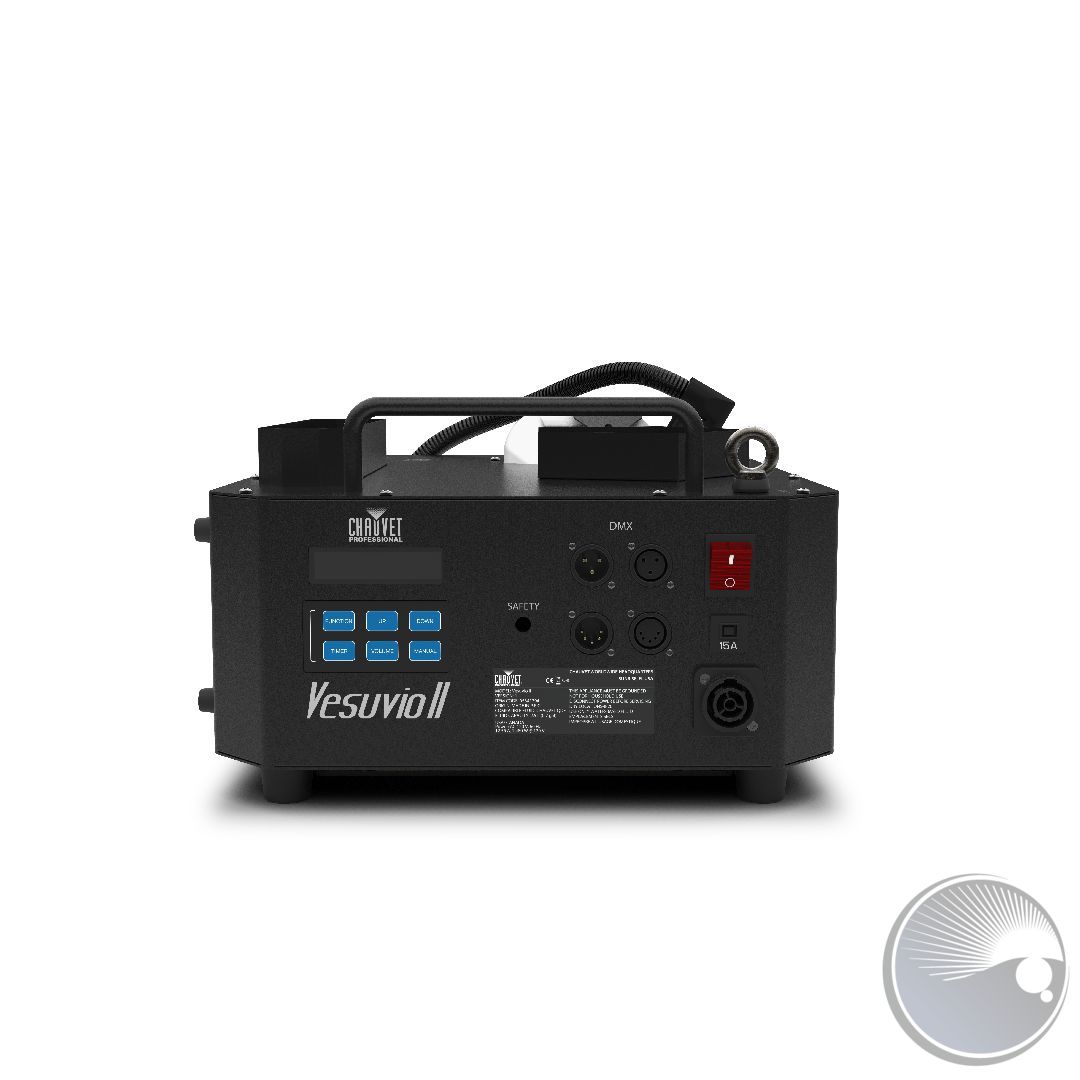

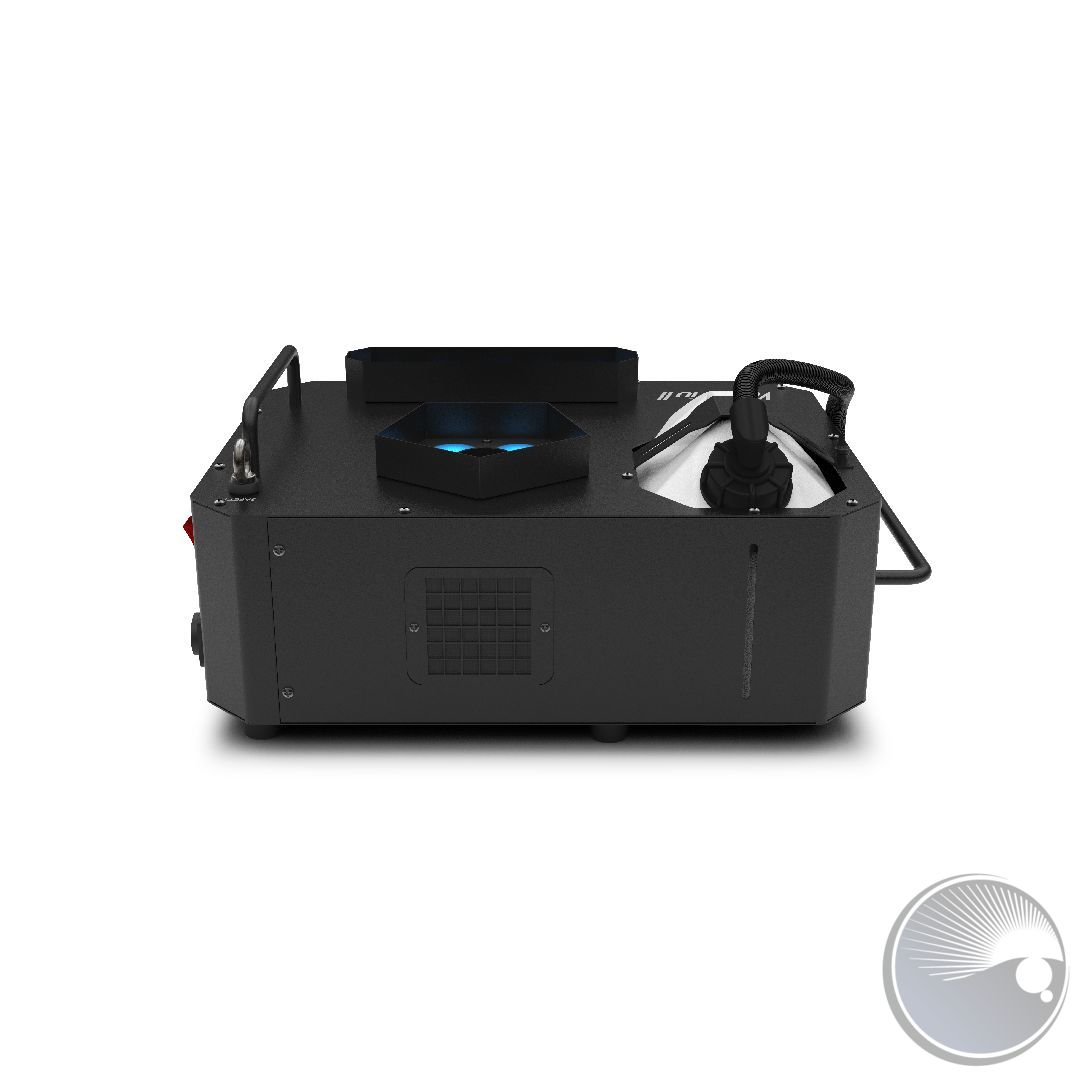

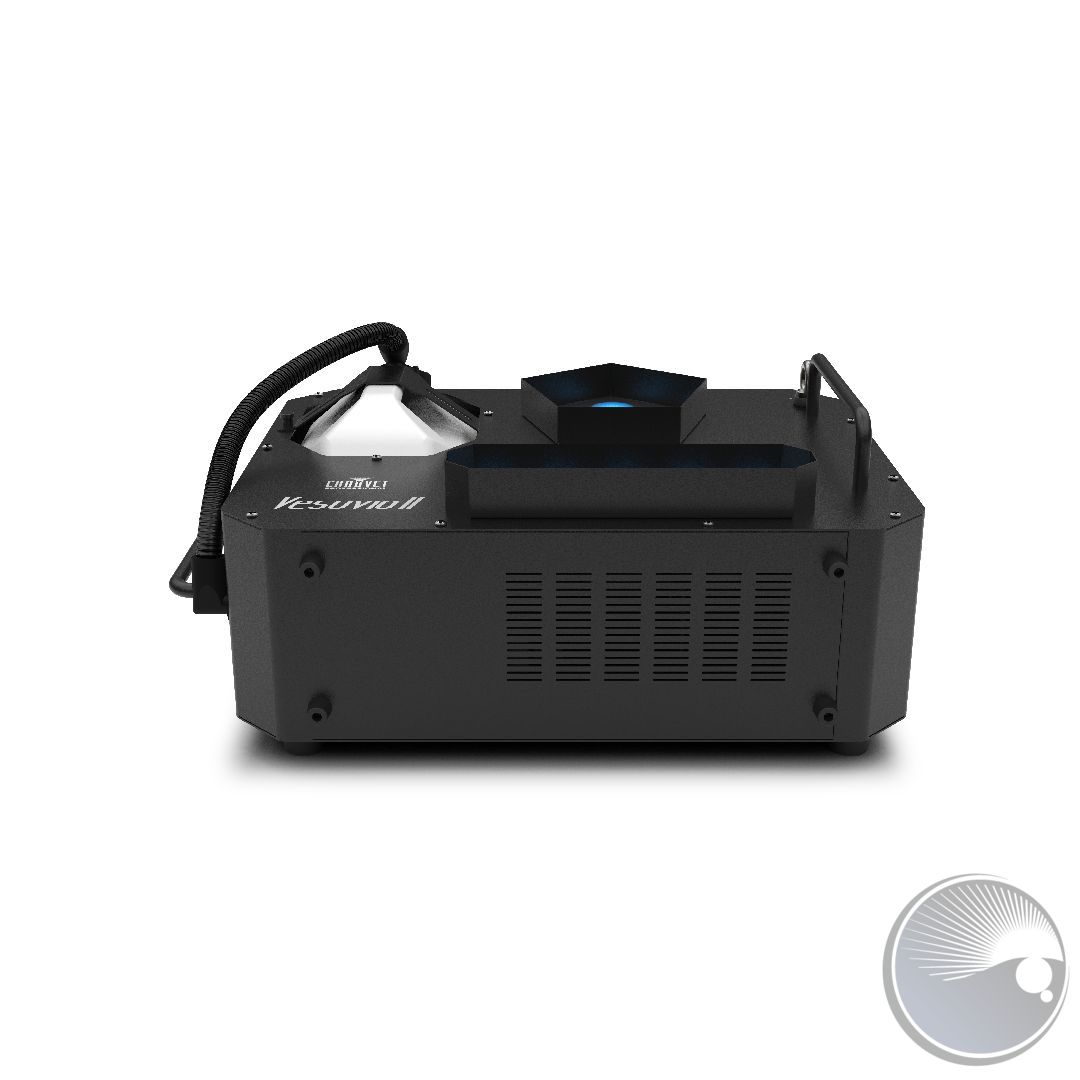

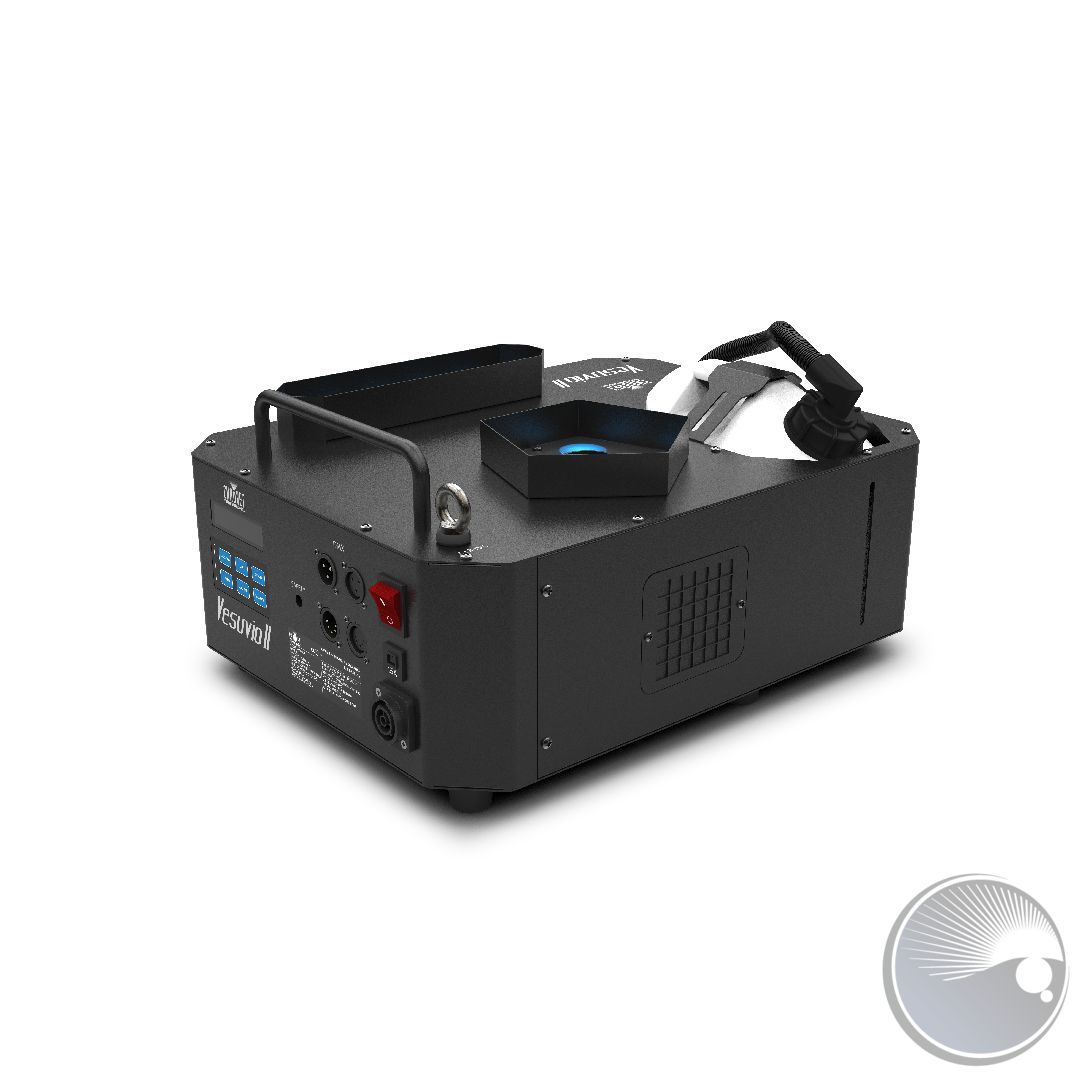

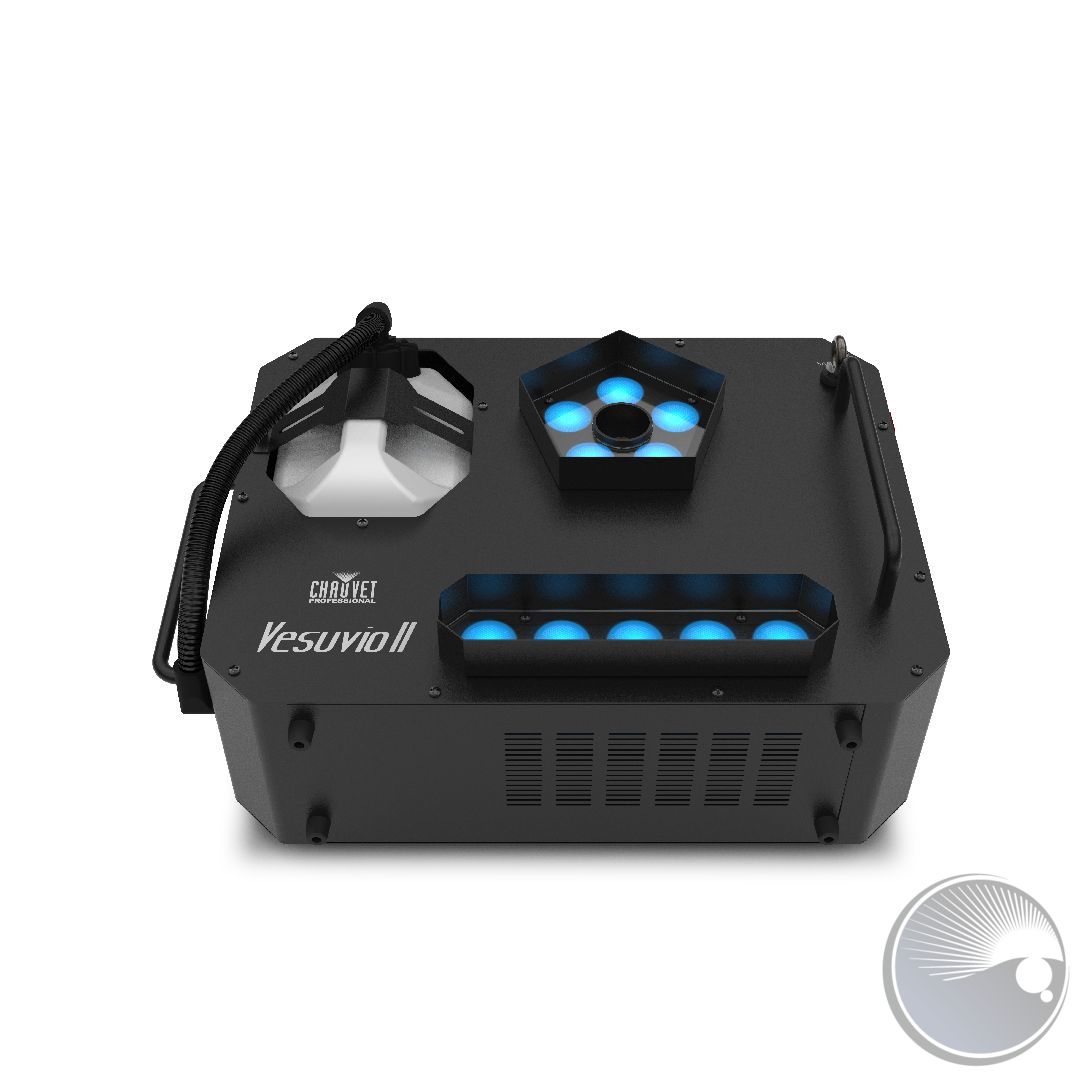

Vesuvio II illuminates bursts of fog with advanced RGBA+UV LED color mixing, providing ferocious effects for events and performances. Featuring an impressive 40,000 cubic feet of fog per minute, it boasts a best in class 40 seconds of full burst output. New dual LED sections give greater creative control for a more even coverage of light. The Vesuvio II is built for efficiency, consuming only 80 ml/min of QDF fluid. This highly versatile unit can run in three different positions: vertically, horizontally or from overhead with mounting brackets. It works best with CHAUVET QDF quick dissipating fluid.

AT A GLANCE

  • Advanced red, green, blue, amber, and UV (RGBA/UV) LED color mixing

  • 40 second continuous bursts of fog, for intense effects and performance

  • 40,000 CFM fog output for intense, large effects

  • 2.5 l fluid tank for reliability in production

  • Strong, sturdy construction for numerous production types

  • DMX control for ease of use in production situations

  • 3- and 5-pin DMX input/output connections

SPECIFICATIONS

OPTICAL

  • Light Source: 10 LEDs (RGBA/UV) 8.5 W, (3 A), 50,000 hours life expectancy
  • Illuminance (Center): 199.5 lux @ 5 m
  • Illuminance (Linear): 154 lux @ 5 m
  • Illuminance (Both): 334 lux @ 5 m
  • PWM Frequency: 126 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 20 Hz
  • Output: 40,000 cfm
  • Low Fluid Shutdown: No

CONSTRUCTION / PHYSICAL

  • Dimensions: 19.49 x 13.18 x 9.39 in (495 x 335 x 239 mm)
  • Weight: 28.4 lb (12.9 kg)
  • Exterior Color: BLACK
  • Housing Material: Steel
  • Tank Capacity: 0.7 gal (2.5 l)
  • Fluid Consumption: 80 ml/min
  • Maximum Run time: 1 hour @ 40s bursts, 1m intervals (using Chauvet QDF fluid)
  • Maximum Run time: 2 hours @ 40s bursts, 2m intervals (using Chauvet QDF fluid)
  • Maximum Run time: 2.5 hours @ 40s bursts, 3m intervals (using Chauvet QDF fluid)

CONNECTIONS

  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX
  • DMX Channels: 15
  • Modes/Personalities: 1 personalities
  • On-Board Control: Yes
  • Included Remote: No

ELECTRICAL

  • Input Voltage (120V): 120 VAC, 60 Hz
    Input Voltage (220V): 230 VAC, 50 Hz
  • Power and Current (120V): 1,480 W, 12.55 A @ 120 V, 60 Hz
    Power and Current (220V): 2,880 W, 12.55 A @ 230V, 60 Hz
  • Heat-up Time (120V): 10 min
    Heat-up Time (220V): 10 min
  • Breaker Size (120V): 15A
    Breaker Size (220V): 15A

CERTIFICATIONS / QUALIFICATIONS

  • CE
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
  • Thermal Dissipation @ 120V: 5,050 BTU per hour (max)
  • Thermal Dissipation @ 230V: 9,825 BTU per hour (max)

WHAT'S INCLUDED

  • Vesuvio II
  • Seetronic Powerkon IP65power cord



Weiterführende Links zu "Vesuvio II"

waterproof power socket (BOM#24)PTF1100000469waterproof power socket (BOM#24)
Power cord (BOM#41)PTFX20147Power cord (BOM#41)
Nut and brass seal 60 (BOM#49)PTGD0015Nut and brass seal 60 (BOM#49)
Red power switch RS606B (BOM#30)PTGK065Red power switch RS606B (BOM#30)
Fluid Tank/Container - 2.5L 170X131X177mm (BOM#6)PTGQTSLJ102Fluid Tank/Container - 2.5L 170X131X177mm (BOM#6)
Copper FilterPTGQTYZ005Copper Filter
PTGYB032120V magnetic valve (BOM#41)
PTGYB038120V pump (BOM#34)
SAFETY HOOK (BOM#1)PTH4400005SAFETY HOOK (BOM#1)
PTI002323120V OVERLOADED PROTECTOR (BOM#17)
Aluminum cap 4.3 (BOM#31)PTI008082Aluminum cap 4.3 (BOM#31)
3-way connector ?3.7X?3.7X?5.1 (BOM#28)PTI0081433-way connector ?3.7X?3.7X?5.1 (BOM#28)
PTI016038Fan (BOM#9)
(HYALINE) POLYURETHANE TUBING 0.4/meter 4X2.5MM ?4X2.5 30 Inches or 1.5 feet for each cut piece. (BOPTI017003(HYALINE) POLYURETHANE TUBING 0.4/meter 4X2.5MM ?4X2.5 30 Inches or 1.5 feet for each cut piece. (BO

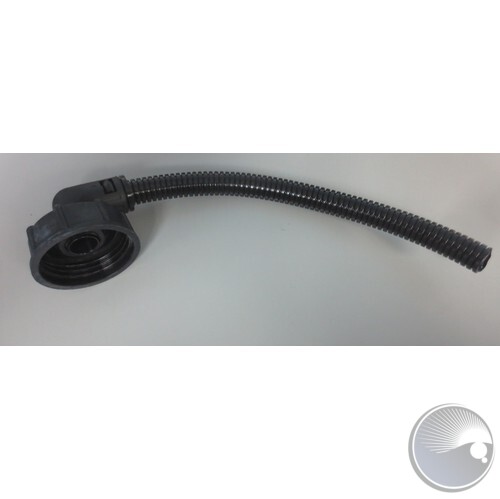

CAP ASSEMBLY (BOM#59)PTI021080CAP ASSEMBLY (BOM#59)

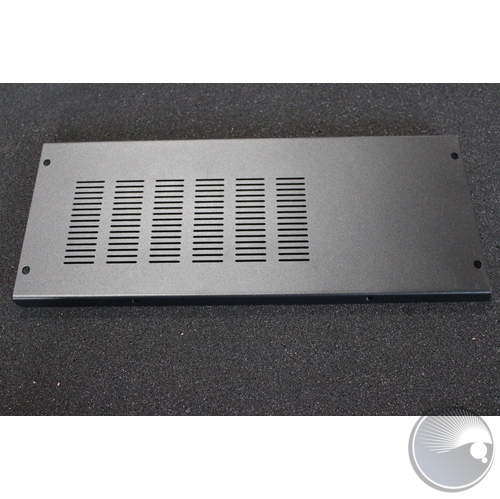

PTI101011059LEFT COVER (BOM#56)

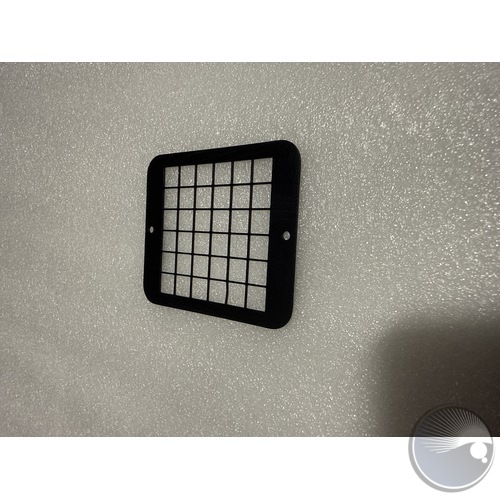

PTI101011062Filter net (BOM#13)
PTI101011064Heater top cover (BOM#15)
PTI101011065Heater bottom cover (BOM#17)

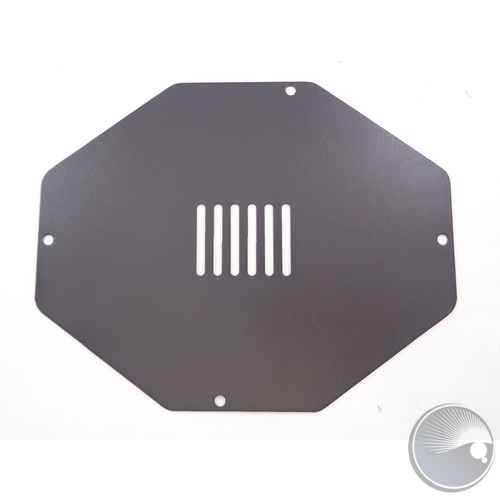

Fluid container bottom plate (BOM#36)PTI101011220Fluid container bottom plate (BOM#36)

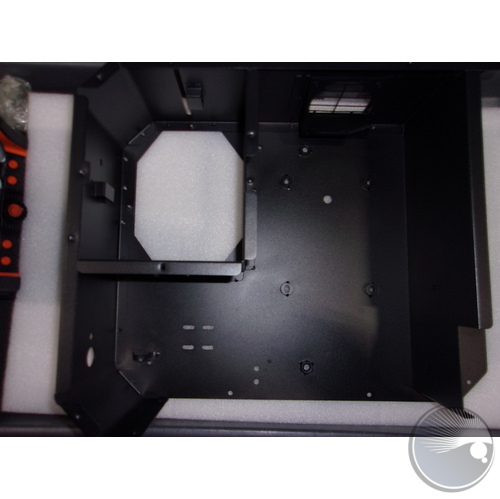

PTI101011768Botton housing (BOM#19)

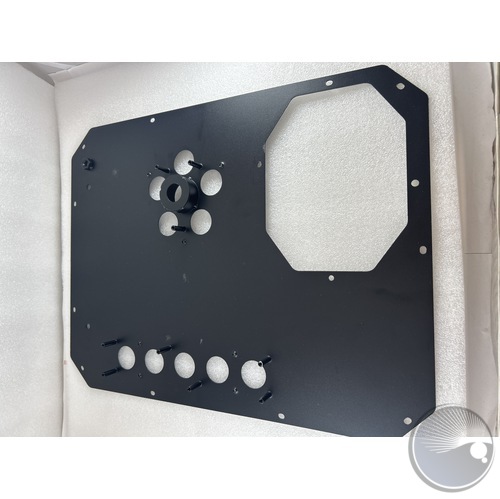

PTI101011769Top cover (BOM#4)
PTI101011770Control panel (BOM#21)

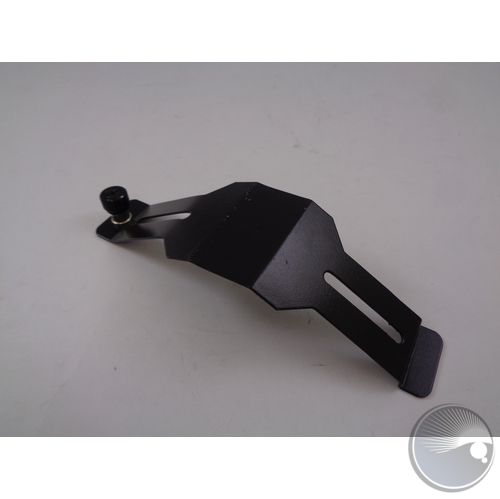

CONTAINER BRACKET (BOM#3)PTI101011771CONTAINER BRACKET (BOM#3)

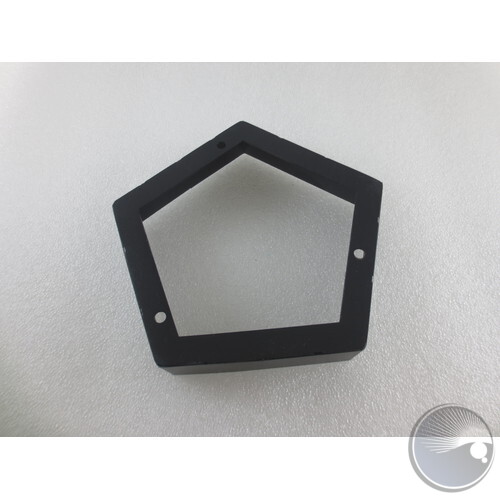

Lamp frame (BOM#2)PTI101011772Lamp frame (BOM#2)

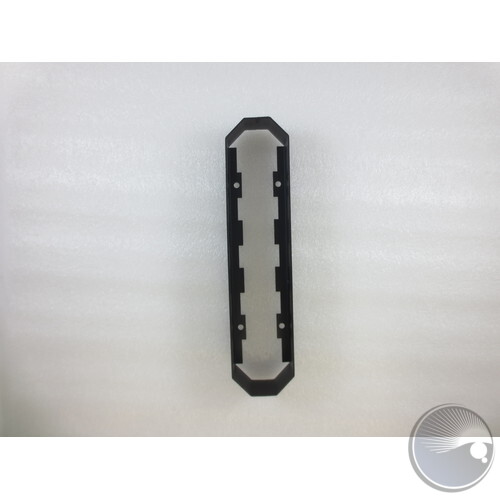

Lamp frame (BOM#64)PTI101011773Lamp frame (BOM#64)

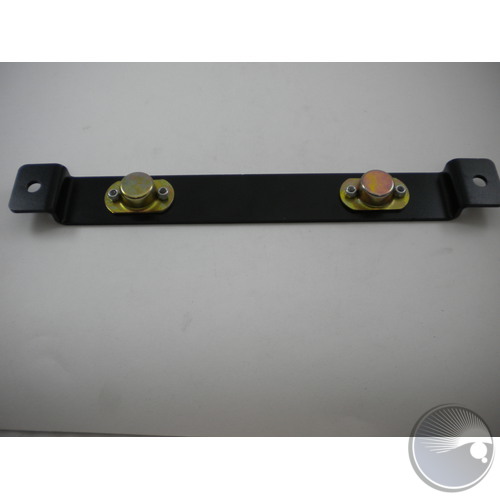

Hanger bracket (BOM#32)PTI101011774Hanger bracket (BOM#32)

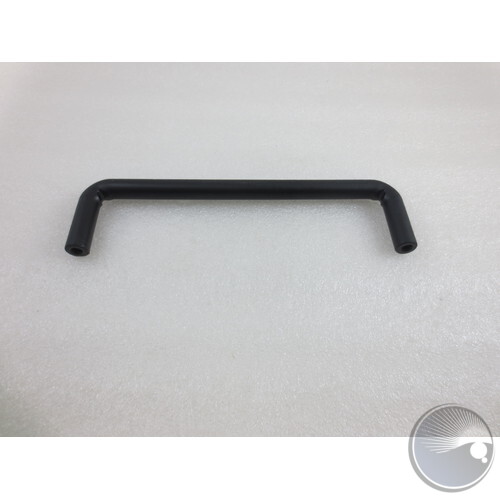

Handle (BOM#8)PTI101011838Handle (BOM#8)
Copper ring ?5 (BOM#36)PTI103010004Copper ring ?5 (BOM#36)
Copper cap (BOM#37)PTI103010005Copper cap (BOM#37)

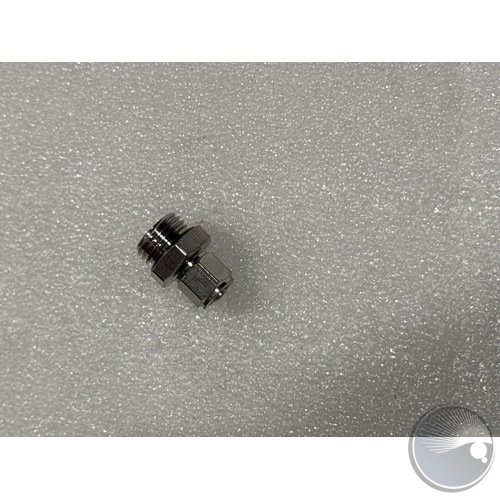

PTI103010008Copper cap (BOM#44)
Solenoid copper connector - male (BOM#42)PTI103010009Solenoid copper connector - male (BOM#42)
Copper ring ?3.6 (BOM#35)PTI103010011Copper ring ?3.6 (BOM#35)
Copper cap (BOM#30)PTI103010017Copper cap (BOM#30)

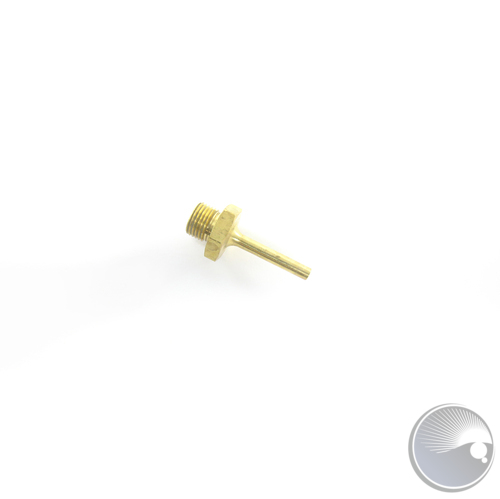

Threaded Brass Stem (BOM#45)PTI103010057Threaded Brass Stem (BOM#45)
Solenoid copper connector - female (BOM#40)PTI10301006Solenoid copper connector - female (BOM#40)
Straight Aluminum connector ?4 ?6 (BOM#19)PTI103020043Straight Aluminum connector ?4 ?6 (BOM#19)

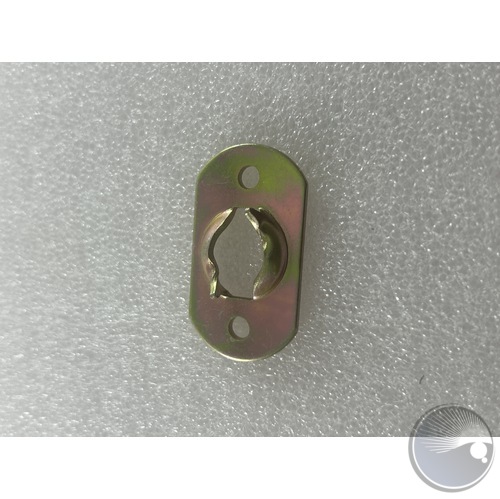

PTI103990076Fastener mounting hole (BOM#33)

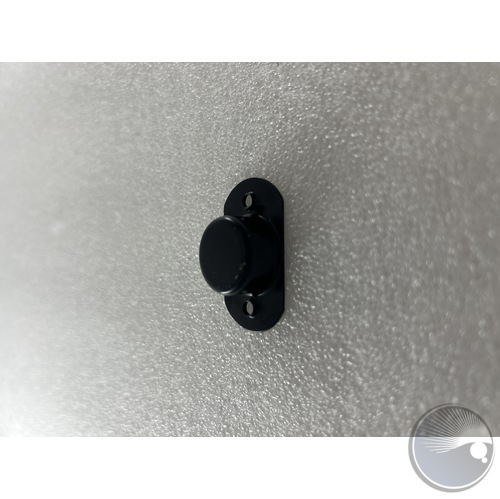

PTI103990077Fastener mounting hole (BOM#34)

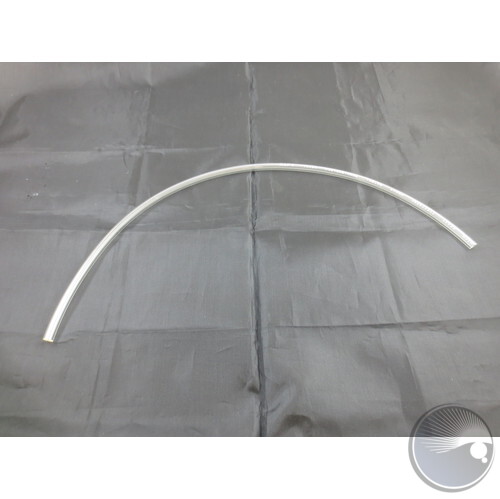

(HYALINE) TUBING ?6X4 (BOM#52) 0.4 M / 1.5 FTPTI104010002(HYALINE) TUBING ?6X4 (BOM#52) 0.4 M / 1.5 FT
Black fluid hose (BOM#46) - LENGTH .31M/1.02 FTPTI104010022Black fluid hose (BOM#46) - LENGTH .31M/1.02 FT
RUBBER FEET 25X25MM (BOM#35,40)PTI104030044RUBBER FEET 25X25MM (BOM#35,40)
PTI104030054Water-proof washer (BOM#29)
silicone tube (BOM#23)PTI104030134silicone tube (BOM#23)
LCD screen Y (BOM#30)PTI104060001LCD screen Y (BOM#30)

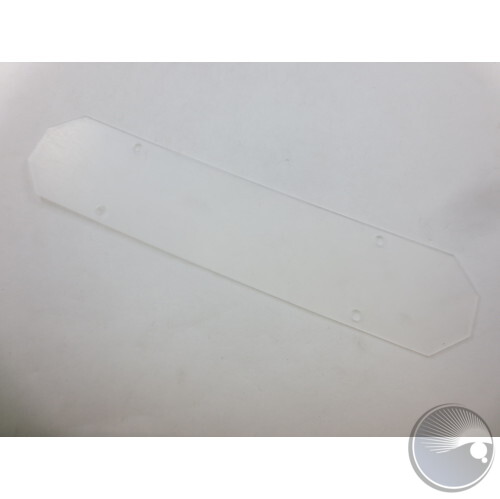

Plastic cover 223*48*1MM (BOM#5)PTI104060021Plastic cover 223*48*1MM (BOM#5)

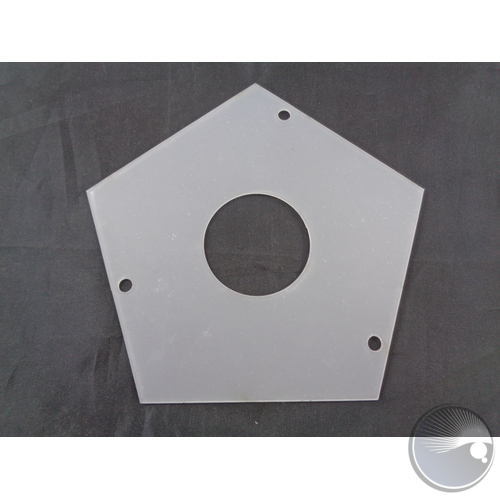

Plastic cover 136*129.3*1MM (BOM#1)PTI104060022Plastic cover 136*129.3*1MM (BOM#1)
Quick connector (BOM#43)PTI104080010Quick connector (BOM#43)
PTI104090001Lens (BOM#4)

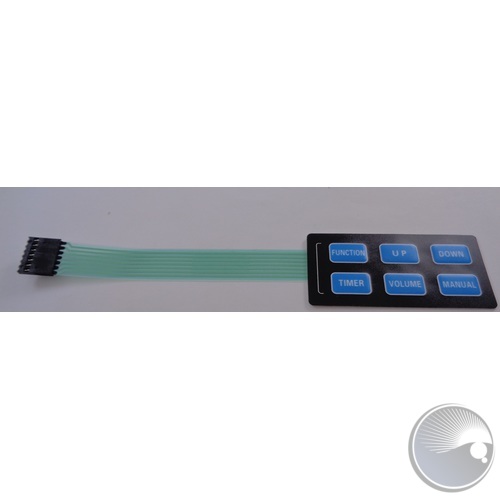

MEMBRANE KEYPAD (BLUE) (BOM#27)PTI104110004MEMBRANE KEYPAD (BLUE) (BOM#27)
Feet (BOM#14)PTI104120008Feet (BOM#14)
(BLACK) RUBBER TUBING 0.4/meter 8X4 MM (BOM#11)PTI104120009(BLACK) RUBBER TUBING 0.4/meter 8X4 MM (BOM#11)

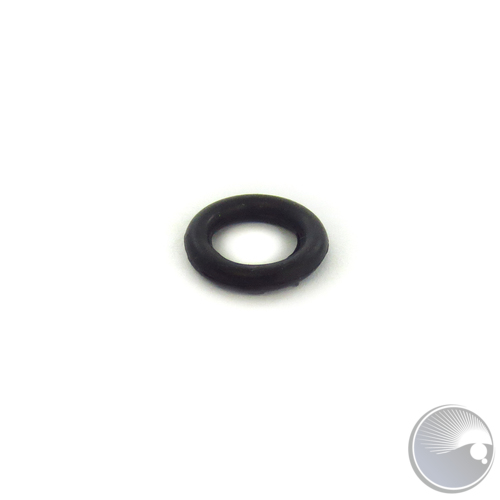

50 degree O-shape washer ?11x2mm (BOM#47) ring seal for part # PTI103010091PTI10412002550 degree O-shape washer ?11x2mm (BOM#47) ring seal for part # PTI103010091

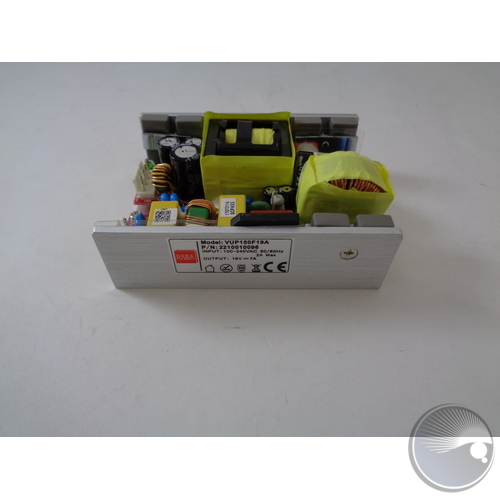

Power supply VUP150F26/19B654 DC19V3.5A 26V3A (BOM#31)PTI106080031Power supply VUP150F26/19B654 DC19V3.5A 26V3A (BOM#31)

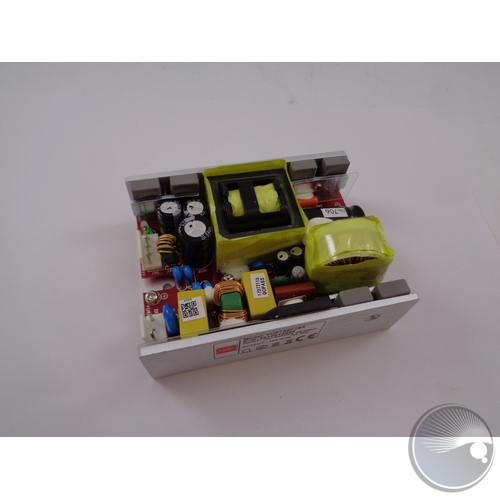

Power supply DC19V7A (BOM#31)PTI106080033Power supply DC19V7A (BOM#31)
PTI106110001230V magnetic valve (BOM#41)
120V 210° celsius manual-reset thermostat - KSD301-GR (16A/125V) (BOM#27)PTI106130022120V 210° celsius manual-reset thermostat - KSD301-GR (16A/125V) (BOM#27)
210° celsius degree thermostat (10A/250V) 210 10A/250V TUV (BOM#53)PTI106130230210° celsius degree thermostat (10A/250V) 210 10A/250V TUV (BOM#53)
PTI108011004230V power cord 5MM (BOM#62)

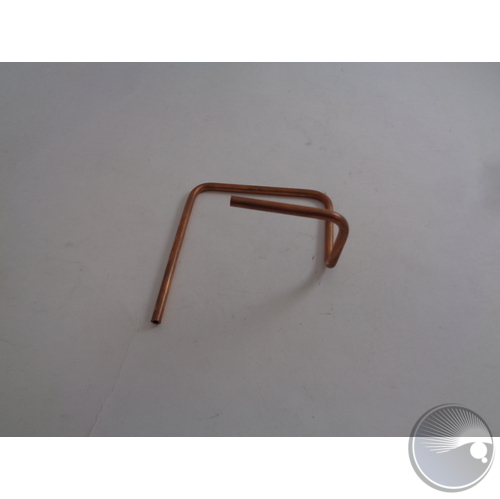

Copper tube (BOM#37)PTI117010031Copper tube (BOM#37)

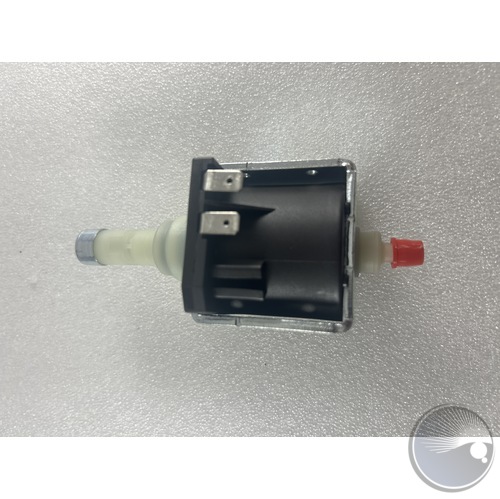

Pump (BOM#41)PTI117020042Pump (BOM#41)
Fan Filter (BOM#10)PTI118020021Fan Filter (BOM#10)

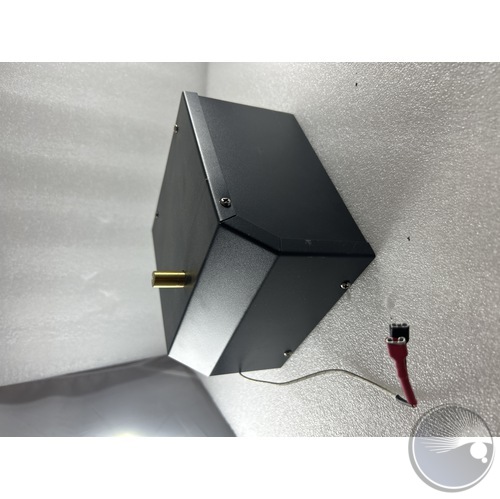

PTI201020138230V Complete heater core with metal housing (BOM#16)

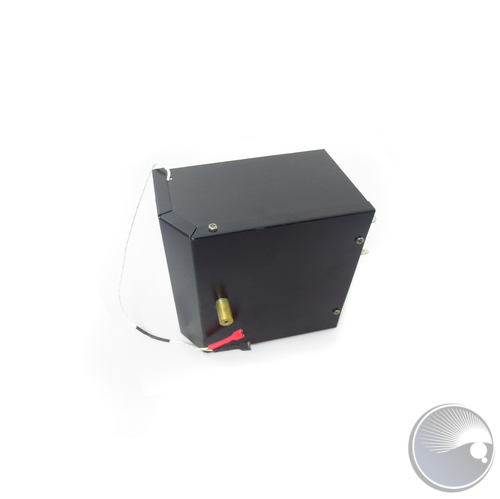

120V Complete heater core with metal housing (BOM#16)PTI201020139120V Complete heater core with metal housing (BOM#16)
PTI2010301543-pin DMX PCB (BOM#22)

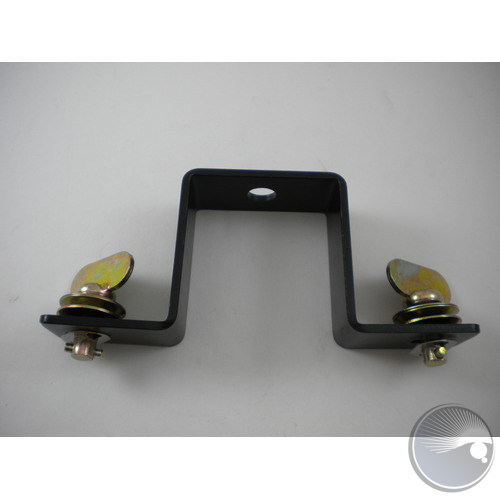

Omega Bracket with 1/4-turn fasteners (BOM#61)PTI201030156Omega Bracket with 1/4-turn fasteners (BOM#61)

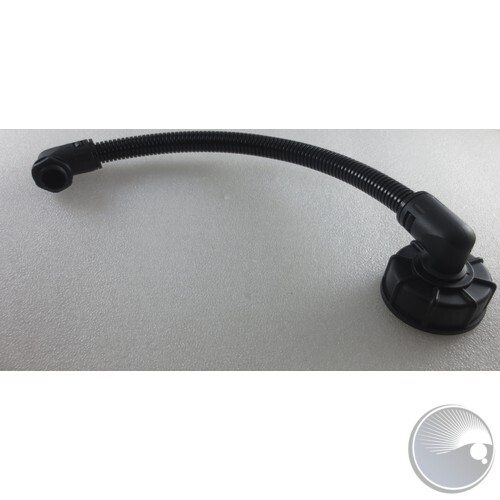

FLUID CAP WITH CONNECTOR & HOSE ASSEMBLY (BOM#59)PTI201050007FLUID CAP WITH CONNECTOR & HOSE ASSEMBLY (BOM#59)

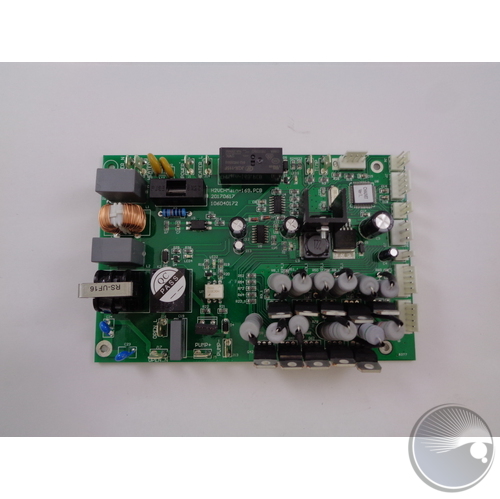

230V MPCB 120V/230V H-2VCH V1 (BOM#20)PTI203011192230V MPCB 120V/230V H-2VCH V1 (BOM#20)

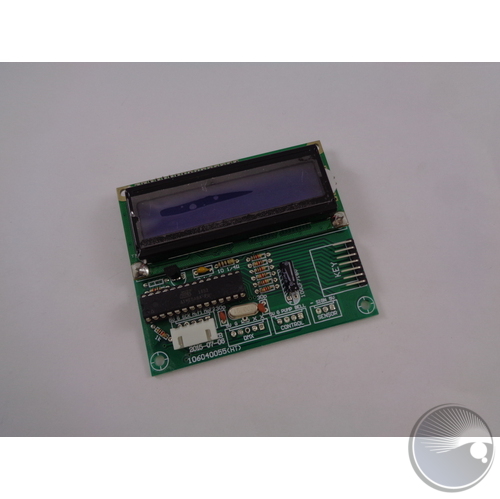

Display PCB 120V/230V H-2VCH V1 (BOM#30)PTI203021082Display PCB 120V/230V H-2VCH V1 (BOM#30)

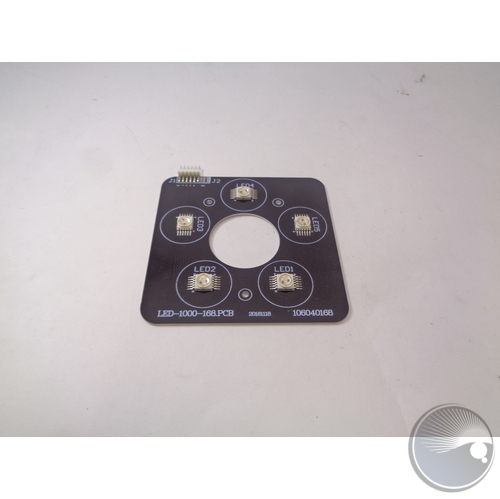

LED PCB LED-1000-168 (BOM#10)PTI203032024LED PCB LED-1000-168 (BOM#10)

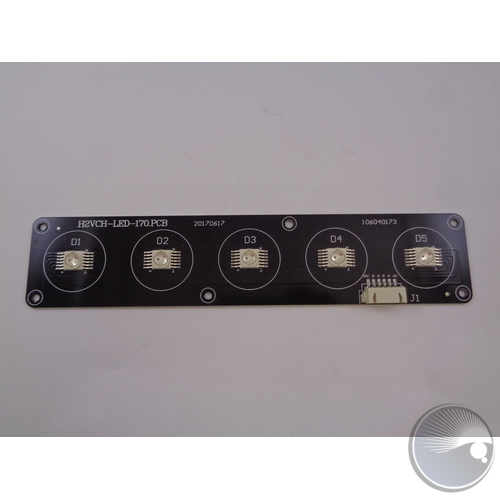

LED PCB H-2VCH-LED-170 (BOM#11)PTI203032025LED PCB H-2VCH-LED-170 (BOM#11)
5-pin DMX PCB (BOM#26)PTI2030420015-pin DMX PCB (BOM#26)
?8 PLASTIC GASKET (BOM#2)PTJ3021700480?8 PLASTIC GASKET (BOM#2)
