Amhaze  Whisper Amhaze Whisper  is an ideal haze machine for use in television... mehr
Produktinformationen "Amhaze Whisper"

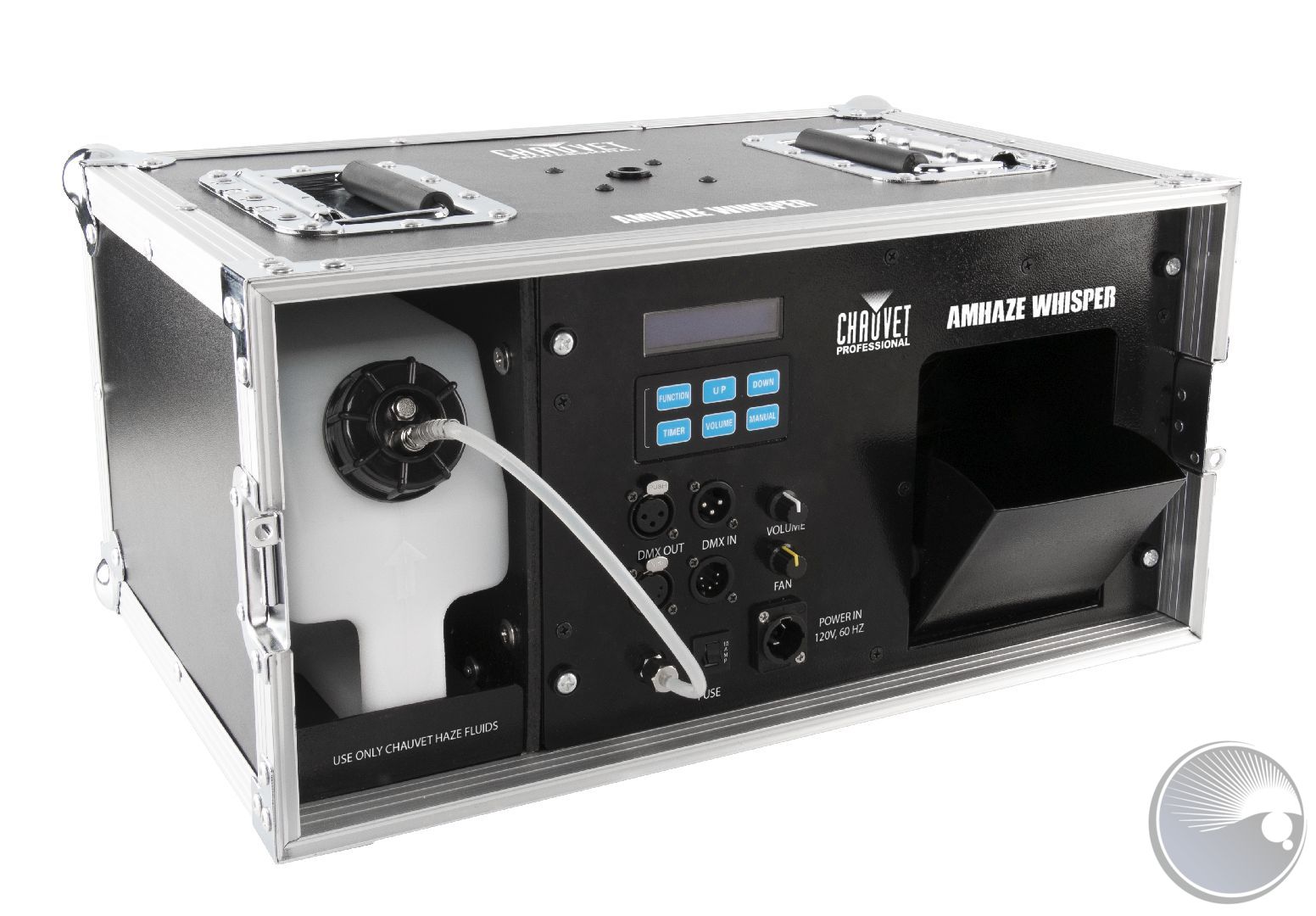

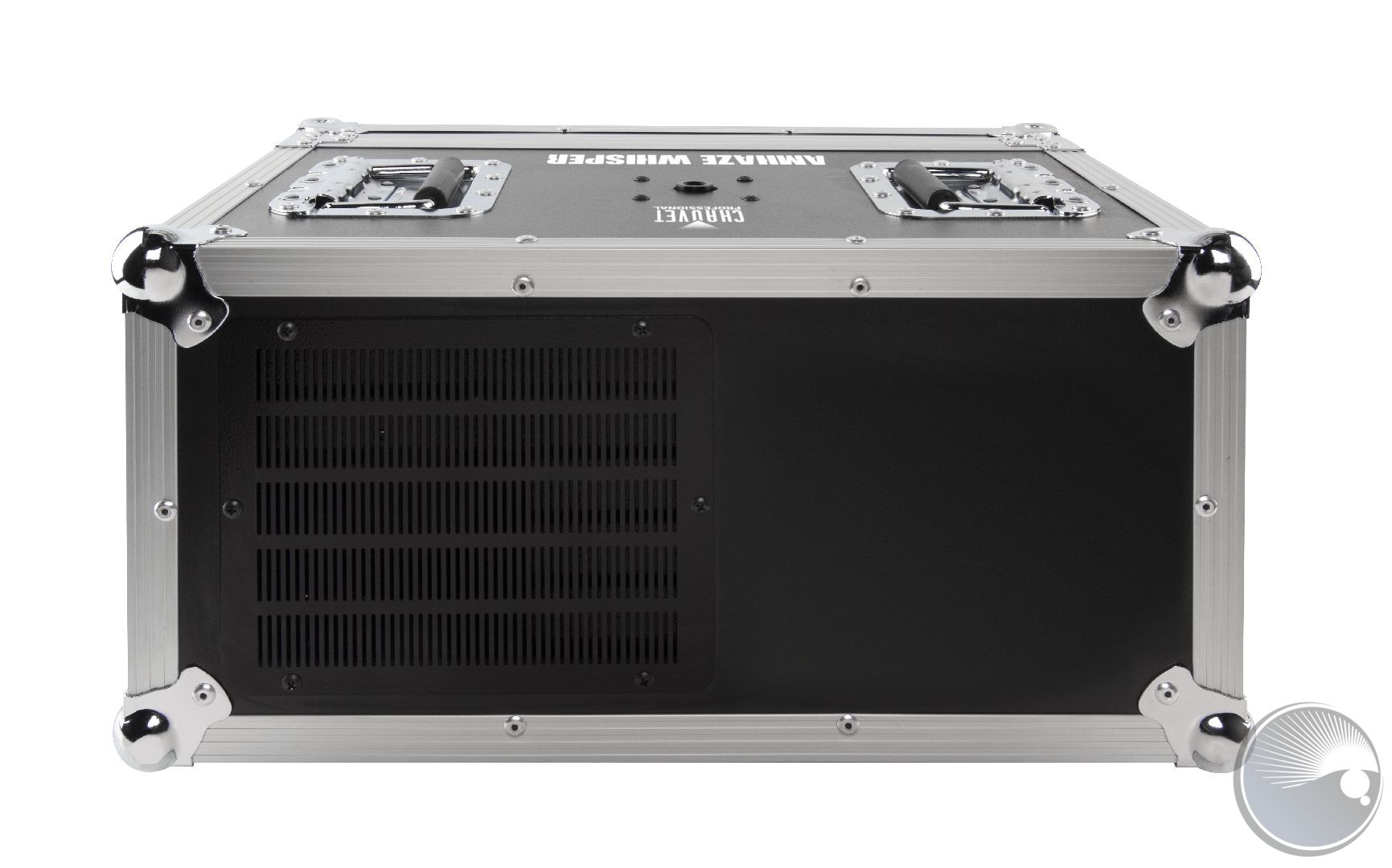

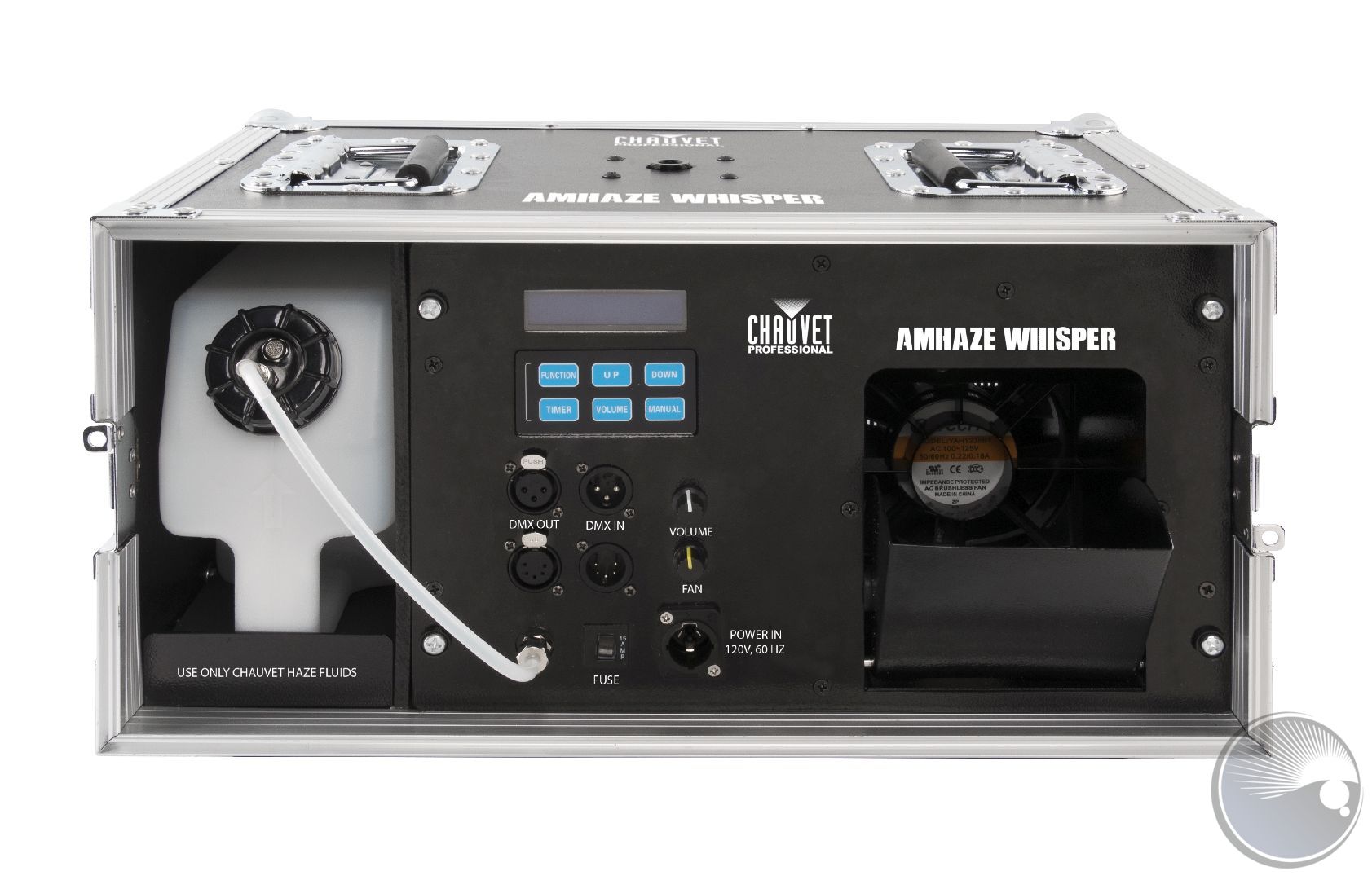

Amhaze Whisper

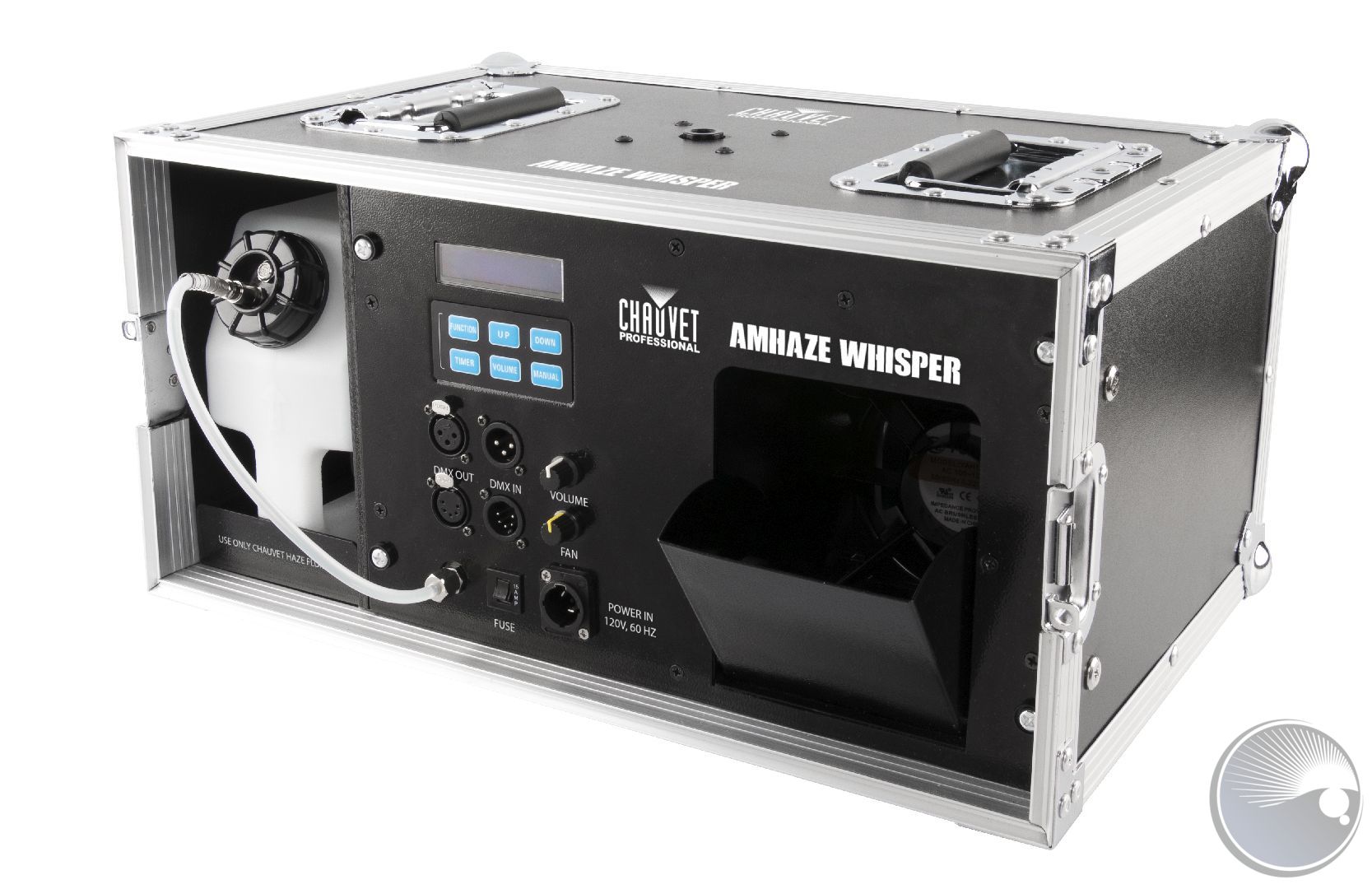

Amhaze Whisper is an ideal haze machine for use in television studios and theatrical productions where discreet operation and rapid heat up time are key. The speed of the fan is controllable and the volume of haze is fully adjustable up to a maximum of 77 cfm.



AT A GLANCE

  • Professional water-based haze machine

  • Quiet operation for theatrical and studio usage

  • Removable vent louver for directional haze flow

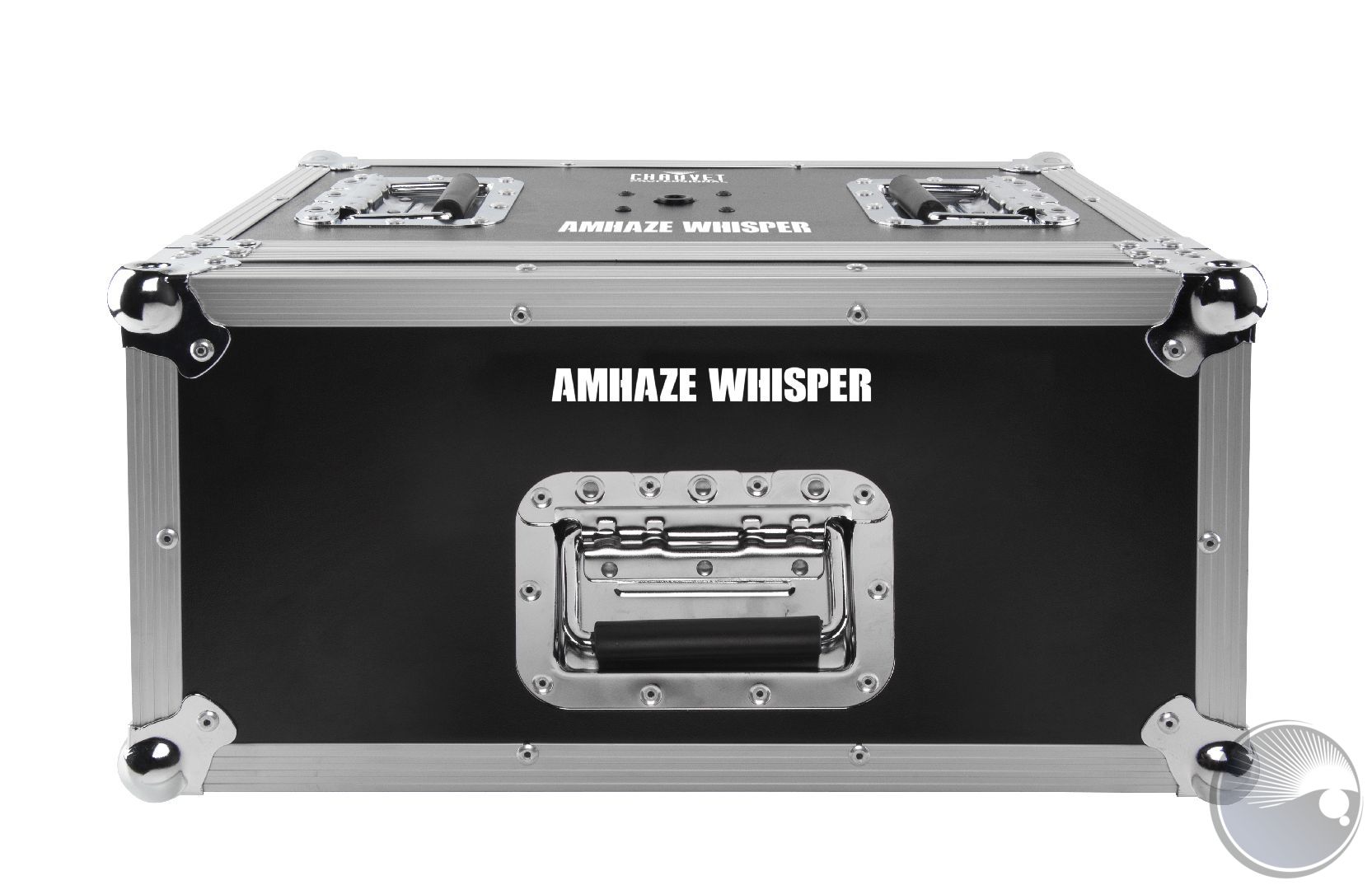

  • Tour-ready with a rugged road case and M12 threaded rigging insert

  • Efficient fluid consumption lasts up to 11.5 hours on a single fluid container

  • Achieve continuous variable haze output and blower speed, adjusted via DMX or the manual knobs

SPECIFICATIONS

DYNAMIC EFFECTS

  • Fan Speed: 77 cfm
  • Low Fluid Shutdown: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 19.29 x 14.96 x 10.62 in (490 x 380 x 270 mm)
  • Weight: 34.1 lb (15.5 kg)
  • Exterior Color: Black
  • Tank Capacity: 0.92 gal (3.5 l)
  • Fluid Consumption: 5.06 ml/min (0.08 gallons/hour)
  • Maximum Run time: 11.5 hours @ full volume

CONNECTIONS

  • Power Connection: Edison (local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX
  • DMX Channels: 2
  • Modes/Personalities: 1 personality
  • On-Board Control: Yes

ELECTRICAL

  • Input Voltage: 120 VAC, 50/60 Hz or 230 VAC, 50 Hz
  • Power and Current: 1070 W, 8.5 A @ 120 V, 50/60 Hz
  • Power and Current: 1285 W, 8.5 A @ 230 V, 50 Hz
  • Heat-up Time: 30 sec

CERTIFICATIONS / QUALIFICATIONS

  • CE
  • IP Rating: IP20, dry location
  • Thermal Dissipation @ 120V: 3,650 BTU per hour (max)
  • Thermal Dissipation @ 230V: 4,385 BTU per hour (max)

WHAT'S INCLUDED

REQUIRED ACCESSORIES

Weiterführende Links zu "Amhaze Whisper"

waterproof power socket (BOM#24)PTF1100000469waterproof power socket (BOM#24)
Power cord (BOM#41)PTFX20147Power cord (BOM#41)
120V Pump (BOM#35)PTGYB010120V Pump (BOM#35)
120V OVERLOADED PROTECTOR (BOM#17)PTI002323120V OVERLOADED PROTECTOR (BOM#17)
3-PIN DMX PCB DMXDMX-70DFZ-60017001800 (BOM#11)PTI0559553-PIN DMX PCB DMXDMX-70DFZ-60017001800 (BOM#11)
Pump dead plate (BOM#5)PTI101010531Pump dead plate (BOM#5)
PTI101011349Air pump dead plate (BOM#4)
PTI101011350Aluminum heater sink (BOM#33)
PTI101011563Body bottom (BOM#2)
PTI101011564Top cover (BOM#6)
PTI101011566Control panel (BOM#17)
PTI101011567Air inlet (BOM#5)

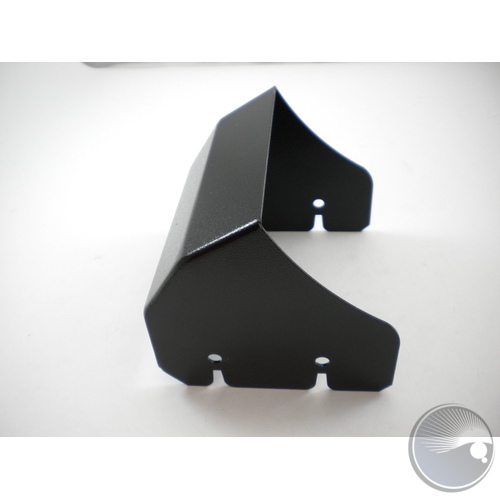

Air deflector (BOM#12)PTI101011568Air deflector (BOM#12)

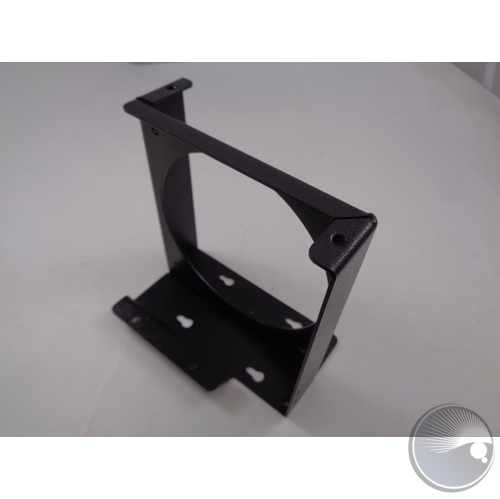

Fan mounting (BOM#7)PTI101011569Fan mounting (BOM#7)

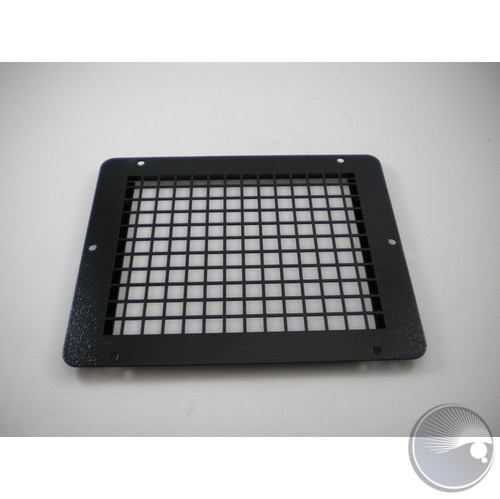

Outer Ventilation PlatePTI101011570Outer Ventilation Plate

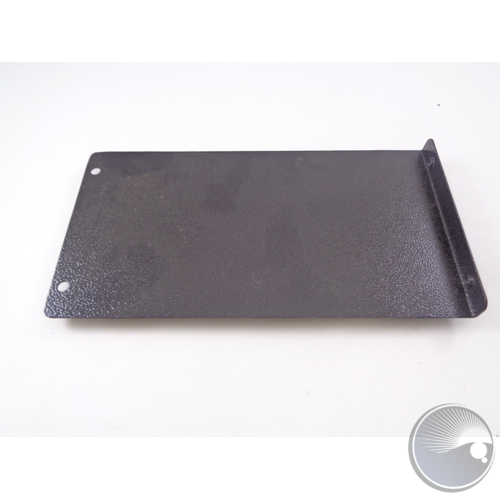

MPCB dead plate (BOM#34)PTI101011572MPCB dead plate (BOM#34)
PTI101011628Inner Ventilation Plate
Copper cap (BOM#31)PTI103010055Copper cap (BOM#31)
Copper connector (BOM#30)PTI103010056Copper connector (BOM#30)
Nut (BOM#37)PTI103010095Nut (BOM#37)
Male Copper connector for pump-to-hose connection (BOM#36)PTI103010099Male Copper connector for pump-to-hose connection (BOM#36)
cassette nut with compression clip for flight casePTI103040050cassette nut with compression clip for flight case
Fan mesh (BOM#8)PTI103990001Fan mesh (BOM#8)
PTI104020062Plastic joint (BOM#10)
Heat filter (BOM#28)PTI104020091Heat filter (BOM#28)
3-way connector (BOM#38)PTI1040201323-way connector (BOM#38)
RUBBER FEET 25X25MM (BOM#35,40)PTI104030044RUBBER FEET 25X25MM (BOM#35,40)
Rubber support for pump. Needs Left & Right rubber.PTI104030064Rubber support for pump. Needs Left & Right rubber.
silicone tube (BOM#23)PTI104030134silicone tube (BOM#23)
FLUID CONTAINER (BOM#33)PTI104050043FLUID CONTAINER (BOM#33)
LCD SCREEN (BLUE) (BOM#11)PTI104070011LCD SCREEN (BLUE) (BOM#11)
Silicone tube 60 ?5X3 (BOM#3) or 1.5 ft.PTI104120040Silicone tube 60 ?5X3 (BOM#3) or 1.5 ft.
AC fan 230V YAH1238B2 AC 220-240V 0.12/0.11A length: 50CM (BOM#6)PTI106050025AC fan 230V YAH1238B2 AC 220-240V 0.12/0.11A length: 50CM (BOM#6)
AC fan 120V YAH1238B1 AC 100-125V 0.22/0.18A length: 50CM (BOM#6)PTI106050027AC fan 120V YAH1238B1 AC 100-125V 0.22/0.18A length: 50CM (BOM#6)
130° celsius degree thermostat (10A/250V) (BOM#33)PTI106130032130° celsius degree thermostat (10A/250V) (BOM#33)
130° celsius degree thermostat (16A/125V) (BOM#32)PTI106130034130° celsius degree thermostat (16A/125V) (BOM#32)
PTI106140002NUTRIX POWER CONNECTION (BOM#40)
230V power cord(bare-wire) (BOM#41)PTI108019006230V power cord(bare-wire) (BOM#41)
PTI117020016110V Pump for HHAZE2D (BOM#35)
Air pump (BOM#6)PTI117020056Air pump (BOM#6)
Air pump (BOM#6)PTI117020064Air pump (BOM#6)
PTI117140034Flight Case Top Cover Only BOM (1)

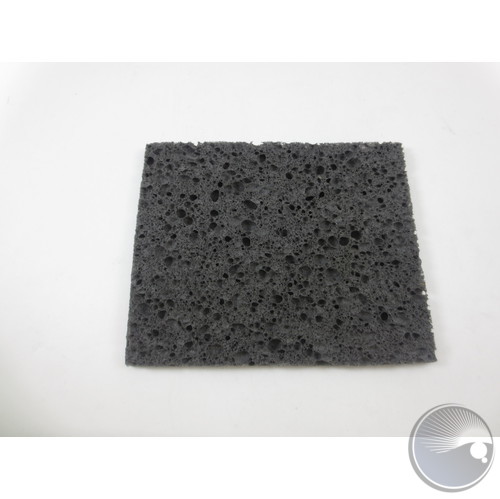

Absorbent wool (BOM#11)PTI118020106Absorbent wool (BOM#11)
AIR FILTER FOR AIR PUMPPTI118040011AIR FILTER FOR AIR PUMP
Quick heater -120V (BOM#29)PTI201021002Quick heater -120V (BOM#29)
PTI201021003230V Quick heater (BOM#29)
PTI202030059Flightcase assembly (BOM#1)
PTI202030063Air outlet (BOM#9)

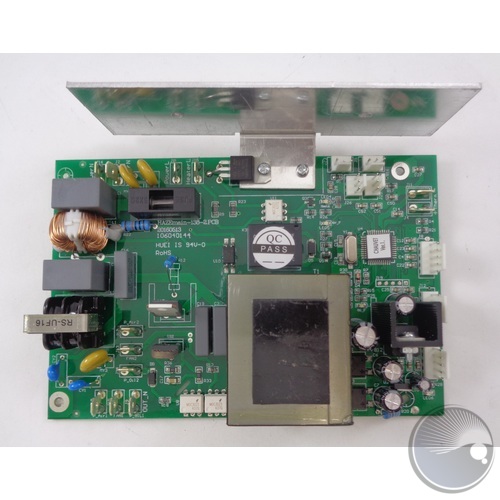

120V MPCB (BOM#30)PTI203011168120V MPCB (BOM#30)

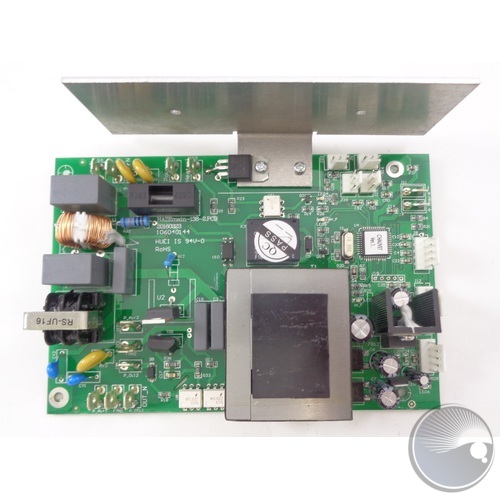

230V MPCB (BOM#30)PTI203011189230V MPCB (BOM#30)

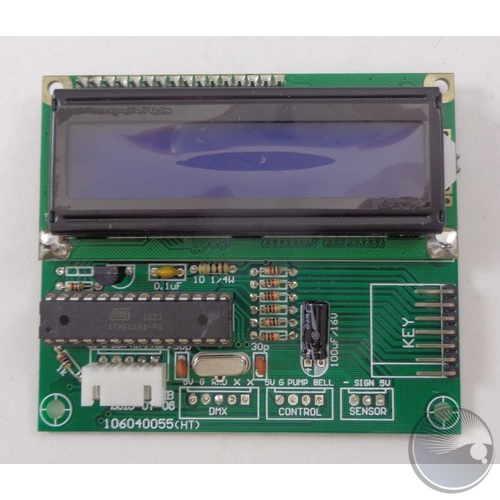

DISPLAY PCB (BOM#31)PTI203011190DISPLAY PCB (BOM#31)

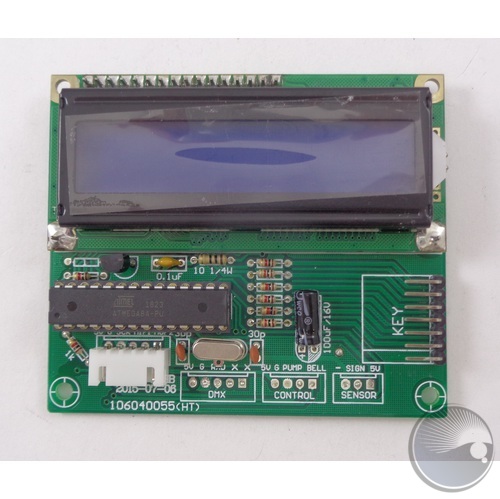

DISPLAY PCB (BOM#31)PTI203021066DISPLAY PCB (BOM#31)
5-pin DMX PCB (BOM#26)PTI2030420015-pin DMX PCB (BOM#26)
DMX PCB (BOM#23)PTI203092019DMX PCB (BOM#23)
CAP ASSEMBLY (BOM# 31,32,33,34,35,36,37 & 52 combined) (BOM#34)PTIAMIICAPCAP ASSEMBLY (BOM# 31,32,33,34,35,36,37 & 52 combined) (BOM#34)
