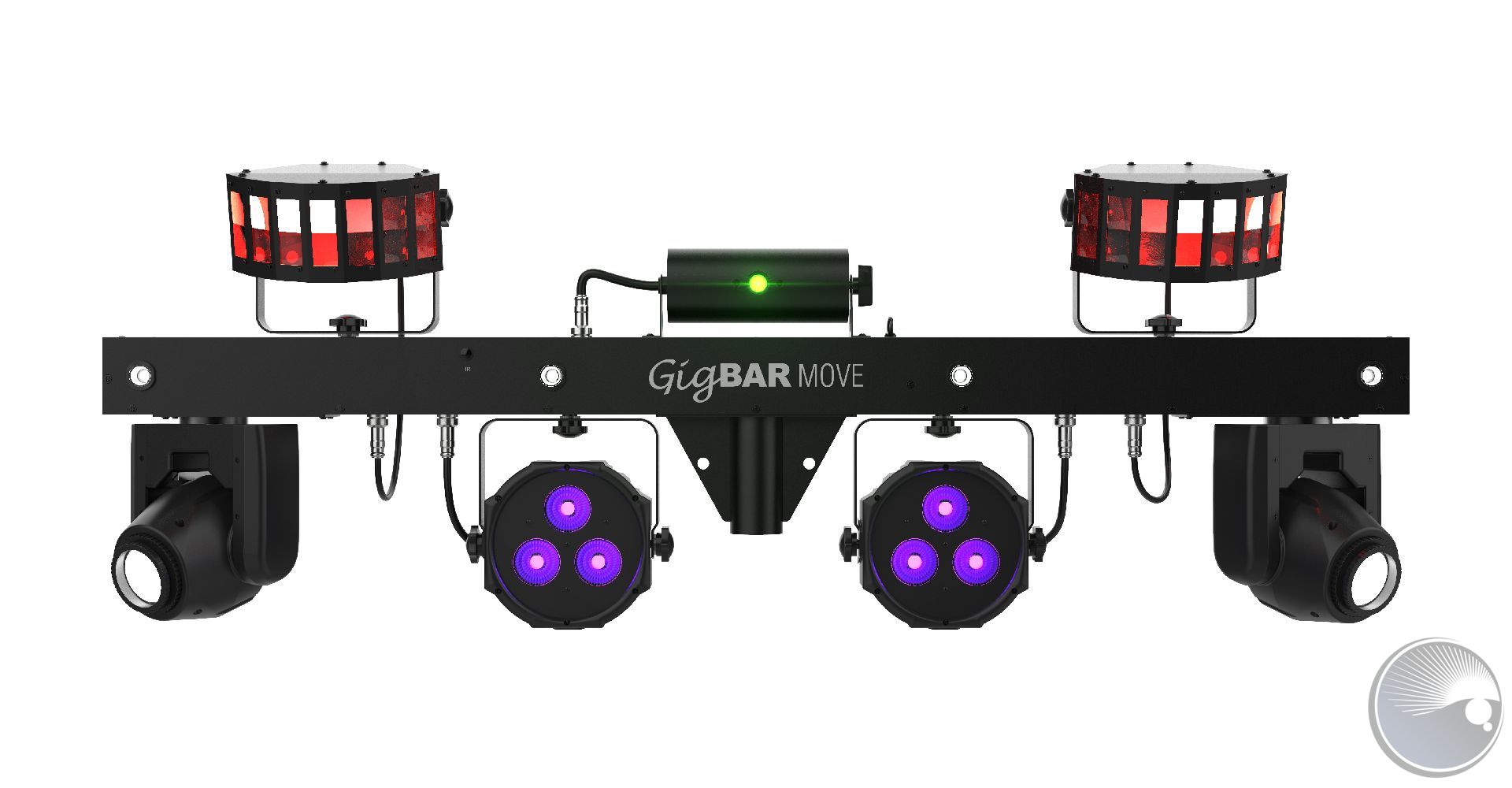

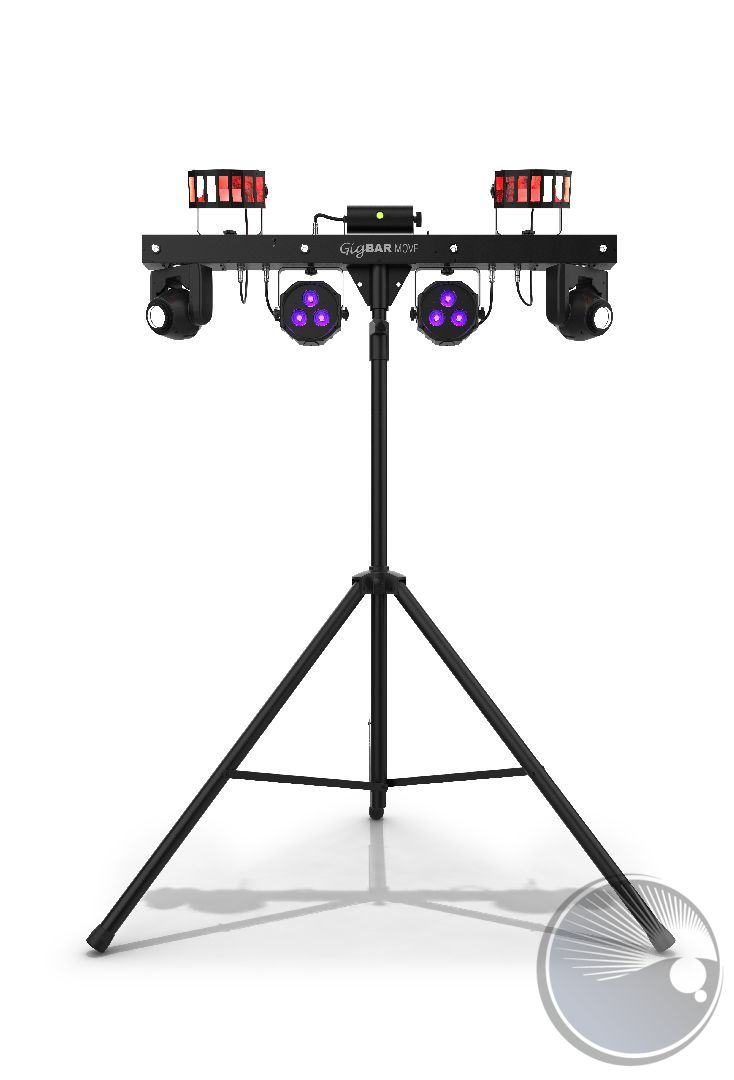

Gig Bar Move

Auf Anfrage!

Artikel-Nr.: GIGBARMOVE

GigBAR Move ist das ultimative 5-in-1 Lichtsystem für noch mehr Power, Vielseitigkeit und... mehr

Menü schließen

Produktinformationen "Gig Bar Move"

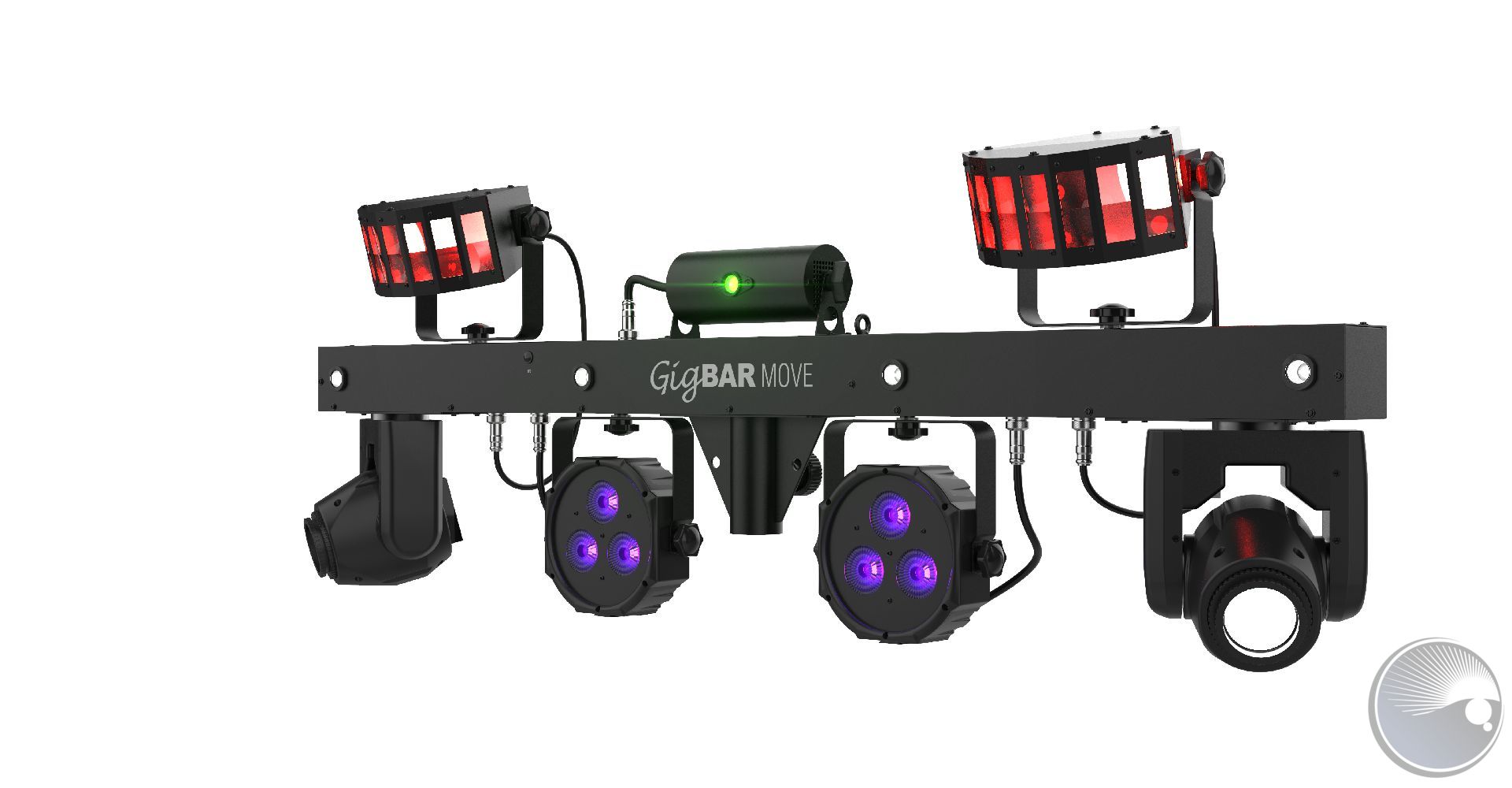

GigBAR Move ist das ultimative 5-in-1 Lichtsystem für noch mehr Power, Vielseitigkeit und Komfort bei deinem Auftritt! Moving Heads, Stroboskop, Derby-, Wash- und Laser-Effekte alles in einem Gerät. Alle Geräte sind vormontiert und bereit für den schnellen Einsatz ohne viel Zeit beim Aufbau zu verlieren. Die Moving Heads bieten seperate Farb- und Gobo-Wheels für noch mehr Kreativität. Der Totem-Modus sorgt dafür, dass das Licht auf dem Dance Floor bleibt. Individuelle Kontrollmöglichkeiten sichern dir wirklich den Look, den du für dein Event haben willst - inkl. Schwarzlicht dank der eingebauten UV-LEDs. Die Steuerung ist ebenso vielseitig wie einfach: Stand-Alone, DMX, kabellose IRC-6-Fernbedienung oder mit dem Fußschalter - alles im Lieferumfang! Mit Hilfe von Master/Slave ist die GigBAR Move sogar mit der GigBAR2 kompatibel.

5-in-1 Pack-and-Go-Lichtsystem
10W Movingheads mit "Totem Mode"
Seperate Gobo & Color Wheels
Gobos: 7 + offen
Farben: 7 + weiß
Vierfarbige (RGB+UV) LED-Wash-Pars für Schwarzlicht-Effekte
Dynamische Derby-Effekte
Laser-Effekte in rot & grün
Schwarzlicht mit weißem und UV-Stroboskop
Alles inklusive: Dreibeinstativ, kabelloses Fußpedal, IRC-6-Fernbedienung und Tragetasche im Set enthalten
Einfache Programmierung dank des leicht zu lesenden LCD-Menüs
Perfekte Ergänzung zur GigBAR 2

Weiterführende Links zu "Gig Bar Move"

mehr

Zurück

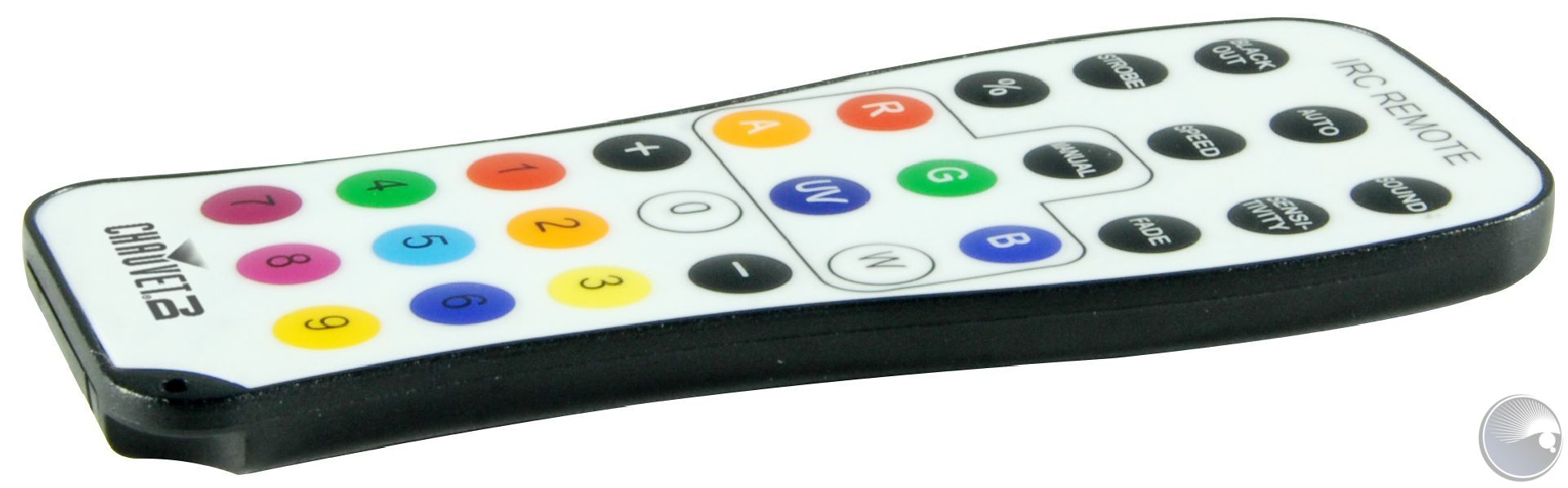

	IRC6	Infrared Remote Control 6

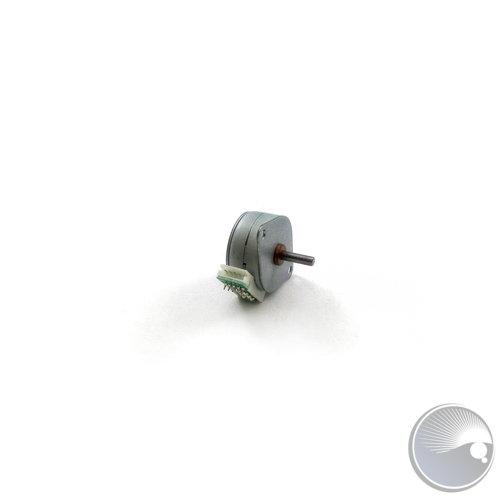

	PTD05AC03	Stepper motor PM25S-048-132 7.55 (BOM#14)
	PTF1491100043	Hexagon nynon nut M4 7x5mm Fe (T-Bar)
	PTJ3022011072	Power cable L1.5M 6.3 KH-9922AKH-9923 SVT 18AWG3C 105 UL
	PTJ3023007007	Tri-pod stand bag large
	PTJ3027002001	POWER OUT Edison socket IEC 2.0 15A 250V VDE UL CCC DB-14-ML (BOM#2.T-Bar)
	PTJ3031001010	Power switch 250V 3A 125V 6A KCD1-11 1510 CE CQC (BOM#5.Footswitch)
	PTK104052006	Wire harness for the LED board PVC 5p 2468 5x0.5mm 6.8mm L400mm M16 5P18L36.0
	PTK104052013	5-pin cable for footswitch
	PTK113000007	Fuse 5X20 250V T3.15AL VDE UL
	PTK115010009	Travel switch_KW20-N02B-25 (BOM#5.Main Body)
	PTK115060004	Foot pedal (with cable L=220mm) (FS BOM#7)
	PTK115060005	Foot pedal (with cable L=120mm) ABS L61.5xW100xH34.5 XH L120mm (BOM#3.Footswitch)
	PTK115060007	Foot pedal (with cable L=350mm) ABS L61.5xW100xH34.5 XH L350mm (BOM#9.Footswitch)
	PTK116010043	Power socket input IEC DB 14 F24P (BOM#4.Tbar)
	PTK119010005	Strap for the bracket screw PP

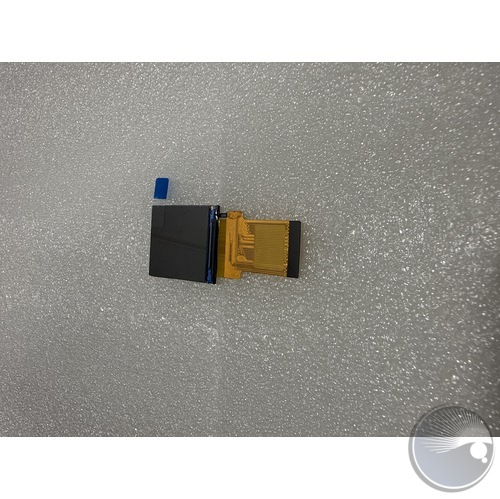

	PTK121000002	LCD display LCD Z133202HS-A 240240 2.5-3.3V 26.1629.221.85mm3 23.423.4mm2 FPC3016.5mm
	PTK122010022	Fan (Laser)
	PTK123010049	Step motor 24BYJ48 954A 12V 200mm8mm 125 (BOM#8.Kinta)
	PTK123010071	Step motor 42BYGH309 B 22DP 8.8V 42.3x42.3x28 4.5x18 1.8 (BOM#35.Moving head)
	PTK123010072	Stepper motor 42BYGH160 B 22DP 10.8V 42.3x42.3x28 4.5x18 1.8
	PTK127021015	Filter (Laser)
	PTK127033001	Filter Pink 2417.4T1
	PTK127033002	Filter Green 2417.4T1
	PTK127033003	Filter Tellow 2417.4T1
	PTK127033004	Filter Light Blue 2417.4T1
	PTK127033005	Filter Red 2417.4T1
	PTK127033006	Filter Orange 2417.4T1
	PTK127033007	Filter Blue 2417.4T1
	PTK127040022	LED lens (T-Bar)
	PTK127040032	Convex lens 238 238 93 PMMA 27mm SM SC2308 (BOM#16.Moving head)
	PTK127040040	Convex lens 50 507.6mm 2mm 118mm (BOM#4.Moving head)

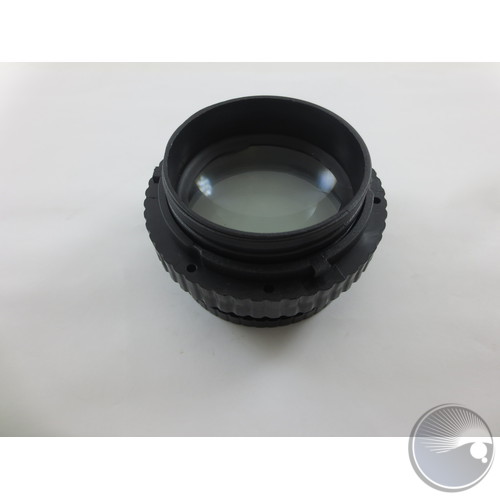

	PTK127041234	Assembled Lens Holder (BOM# 1,2,3,4.Moving head)
	PTK127059003	Grating (10100.2) YG 226 10100.2 PET 27cm (BOM#24.Laser)
	PTK127059006	Burst grating (φ16*0.2) YG 121 160.2PET 50cm (BOM#2.Laser)
	PTK127070066	Clear PC PC L30W30T2 95
	PTK127090022	LED lenses (BOM#3)
	PTK128010093	Power supply CPS-120W-A12 100240VAC 47HZ63Hz DC12V10A 120W 16642mm 3Pin d3.96mm 180 DIP XH2.54 2P2 V
	PTK130010006	Safety loop OD20xID9.5 M6x8 Fe (BOM#10)
	PTK130011013	Screw PM 3x6mm PM 3x6mm Fe (BOM#18.Moving head)
	PTK130011014	Screw PM 3x8mm Fe 48
	PTK130011015	Screw PM 3x8mm Fe (BOM#45,53.Moving head)

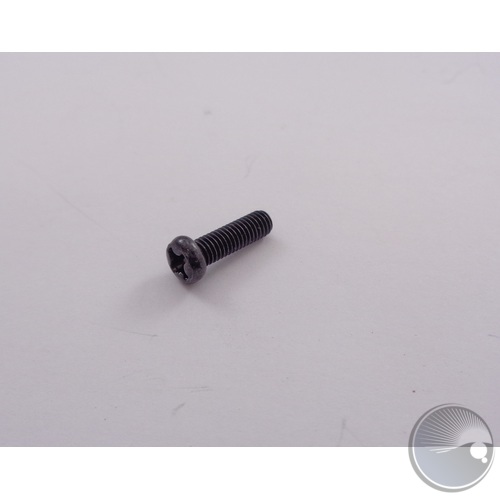

	PTK130011016	Screw PM 3x10mm Fe 48
	PTK130011017	Screw PM_3x10mm
	PTK130011018	Screw PM 3×12mm (BOM#17)
	PTK130011020	Cross round head screw(PM_3x14mm)
	PTK130011021	Screw PM_3x16mm
	PTK130011023	Screw PM 3x18mm (BOM#15)
	PTK130011026	Screw PM 4x8mm Fe
	PTK130011057	Screw PM 2.5x12mm PM 2.5x12mm Fe (BOM#49.Moving head)
	PTK130012005	Screw KM 3x6mm Fe 48
	PTK130012006	Screw KM 3x10mm KM 3x10mm Fe 48 (BOM#15)
	PTK130013008	Cross round head screw PWM4*6 (BOM#2)
	PTK130013010	Cross round head screw(PWM_4x10mm) (BOM#4)
	PTK130013058	Screw PWM 4x8mm Fe
	PTK130013059	Screw PWM 3x7mm Fe
	PTK130014003	Screw M3x10mm Fe 48
	PTK130014027	Screw M3x8mm M3x8mm
	PTK130014030	Screw M4x6mm
	PTK130015003	Screw M3.5x10mm
	PTK130016004	Screw (BOM#3.9)
	PTK130016005	Screw PB_3x8mm
	PTK130016006	Screw PB 3x8mm Fe
	PTK130016007	Screw PB 3×12mm
	PTK130016008	Screw PB 3×12mm
	PTK130016011	Screw KB 3x8mm
	PTK130016017	Screw KA 4×12mm

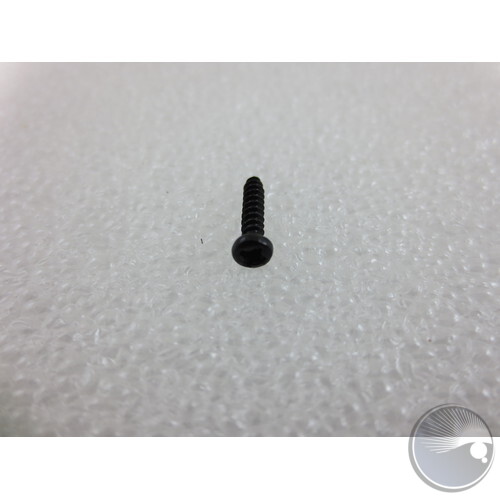

	PTK130016024	Screw PA_2x8mm
	PTK130016051	Screw PA 2x8mm
	PTK130016086	Screw PA 4x12mm
	PTK130017039	Bracket screw ∅30xH15 30xH15 M6x12mm (BOM#19.Laser)
	PTK130017041	Bracket screw 30xH15 M8x16mm
	PTK130017045	Bracket screw 39xH24 39xH24 M8x26mm (BOM#2.Tbar)
	PTK130021003	hegagon nut (BOM#25)
	PTK130022001	Hexagon nut (BOM#15)
	PTK130022003	Hexagon nylon nut _M6_10x6mm
	PTK130022004	Hexagon nylone nut M8 M8 Fe (BOM#6.Tbar)
	PTK130041002	Plain washer ID4xOD8xH0.8mm ID4xOD8xH0.8mm Fe (BOM#10.Tbar)
	PTK130041006	Plain washer
	PTK130041023	Clear washer (BOM#15)
	PTK130042002	Lock washer (BOM#13)
	PTK130052001	ABS Pillar ID3xOD7xH2 ABS ID3xOD7xH2 (BOM#19.Moving head)
	PTK130052027	ABS Pillar ID3xOD7xH4 ABS ID3xOD7xH4 (BOM#9.Moving head)
	PTK130056002	Plastic pillars H5xM3x10mm (BOM#23)
	PTK130071005	Deep groove ball bearing (BOM#3.Left Plate)
	PTK130081010	Tension spring 6.5 1.2mm L8.5mm 4 72A6.58.541.2 (BOM#7.Tbar)
	PTK130121006	TRIPOD STAND - fits 1 to 1.4 in (26 to 37) mm
	PTK130141005	Magnet φ4*1
	PTK199010006	Strain Relief bushing NYLON66(94V-2) 6N-4 NYLON6694V 2 6N 4 (BOM#5.Kinta)
	PTK199010008	wire sleeve _10x7.5
	PTK199010020	Wire fixing head NYLN6694V 2 PG 7 (BOM#4.Laser)
	PTK199010023	Strain Relief bushing NYLON66(94V-2) CC-0 NYLON6694V 2 CC 0 3.2
	PTK199030027	Battery 9VGN1604S (BOM#6.Footswitch)
	PTK199040017	Synchronous belt HTD-258-3M-09 HTD 258 3M 09
	PTK2300021505	Bearing sleeve (BOM#4.Left Plate)
	PTK2300021518	Limited ring_φ28*3 (BOM#5.Left Plate)
	PTK2300030503	Laser housing (Laser)
	PTK2300030504	Fixing plate for the fan (Laser)
	PTK2300030505	side panel (left) (Laser)
	PTK2300030506	side panel (right) (Laser)
	PTK2300030507	Fixed mounter 1 MPB LASER 1 (BOM#17.Laser)
	PTK2300030508	Fixed mounter 2 MPB LASER 2 (BOM#6.Laser)
	PTK2300030511	Motor mounter for the Kinta (Derby)
	PTK2300030513	Top plate MPB KINTA
	PTK2300030536	Back-up plate for the stand (T-Bar)
	PTK2300030547	Top plate GIG BAR 3 (BOM#25.Tbar)

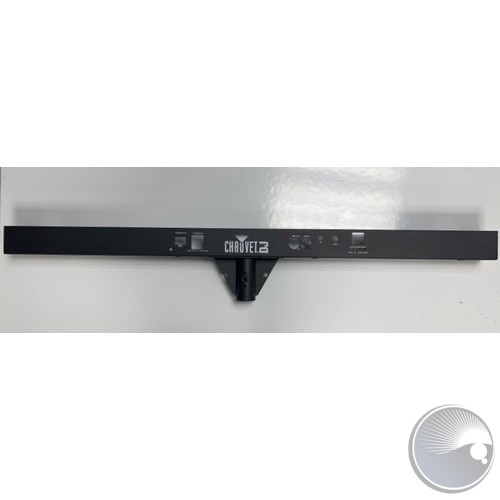

	PTK2300030548	Bottom plate T-Bar (BOM#1.Tbar)
	PTK2300030549	Motor mounter GIG BAR 3 (BOM#50.Moving head)
	PTK2300030550	Motor fixing plate GIG BAR 3 (BOM#51.Moving head)
	PTK2300030551	Synchronous pulley HTD-15-3M-09F HTD 15 3M 09F1819
	PTK2300030552	Fixing plate for the limit switch L16W12T5 (BOM#52.Moving head)
	PTK2300030553	Spacer pin L18W8T5 L18W8T5 (BOM#48.Moving head)
	PTK2300030554	Back-up plate right GIG BAR 3 (BOM#36.Moving head)
	PTK2300030555	Connective bar GIG BAR 3
	PTK2300030556	Reinforcing plate GIG BAR 3 (BOM#39.Moving head)
	PTK2300030557	Tube_Φ27.5*31.5 (BOM#17.Main Body)
	PTK2300030558	Limited ring_Φ28*4 (BOM#14.Main Body)
	PTK2300030559	Block L38W38T5 GIG BAR 3L38W38T5 (BOM#47.Moving head)
	PTK2300030560	Limited board L50.5W37T3 GIG BAR 3L50.5W37T3 (BOM#44.Moving head)
	PTK2300030561	Reinforcing plate for bottom plate GIG BAR 3 (BOM#21.Tbar)
	PTK2300030562	Back-up plate left GIG BAR 3 (BOM#30.Moving head)
	PTK2300030563	Block 504 GIG BAR 3504 (BOM#31.Moving head)
	PTK2300030564	Heat radiator GIG BAR 3 (BOM#22.Moving head)
	PTK2300030565	Heat radiator mounter GIG BAR 3 (BOM#21.Moving head)
	PTK2300030566	Filter motor mounter GIG BAR 3 (BOM#15.Moving head)
	PTK2300030567	Connective bar of Gobo Φ15*7 GIG BAR 3157
	PTK2300030568	Gobo motor mounter GIG BAR 3 (BOM#7.Moving head)
	PTK2300030569	Window frame mounter GIG BAR 3 (BOM#5.Moving head)
	PTK2300030572	Gobo colored filter GIG BAR 3 64T1 (BOM#12.Moving head)
	PTK2300030573	Gobo Pattern GIG BAR 3 63T0.3 (BOM#11.Moving head)
	PTK2300030574	Bottom plate T-Bar (BOM#1.Tbar)

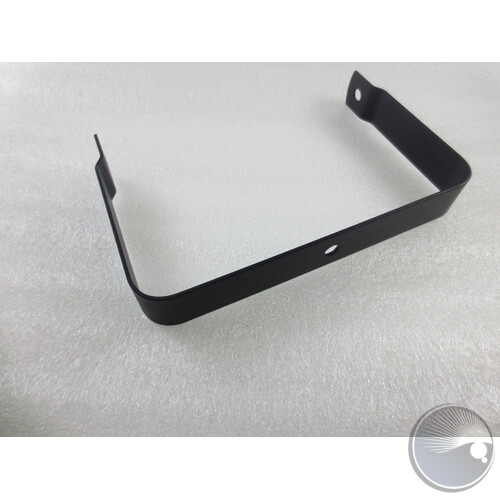

	PTK2340010104	Hanging bracket 40 POWER WLS 66 (BOM#28.Tbar)
	PTK2340030509	Bottom cover 40 POWER WLS 66 KINTA (BOM#4.Kinta)
	PTK2500010105	Cooling plate 13 L35xW30xH6 (BOM#8)
	PTK2500010106	Casing L35xW30xH13 210013012213L35xW30xH13 (BOM#7.Laser)
	PTK311020002	Nyon tube PA66 Φ8.0 L=12m

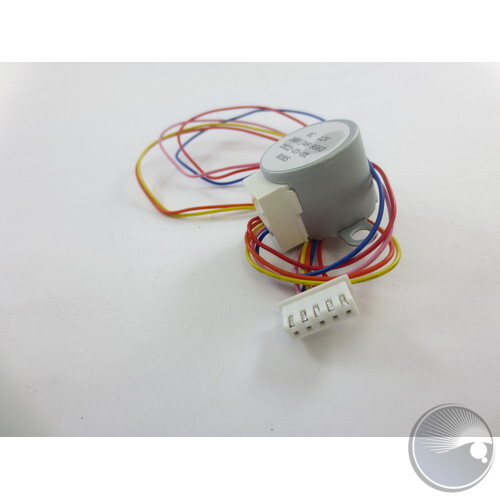

	PTK42301003108	Step motor 24BYJ48 1231 12V 150mm 125 6.5mm (BOM#13.Laser)
	PTK430000030503	Complete red & green laser assembly

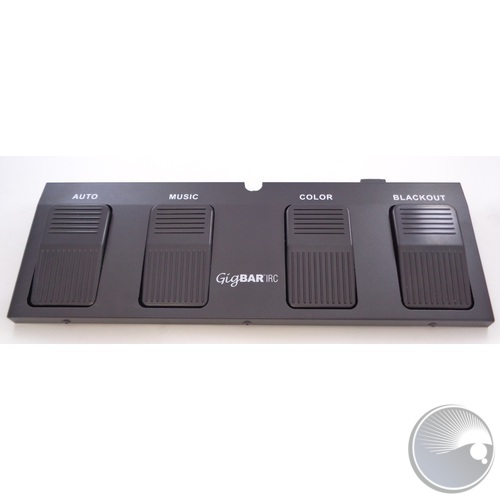

	PTK430000030517	GIGBARIRC COMPLETE FOOTSWITCH, WIRELESS (BOM#6) (was "GIGBARIRC" silk screen, changed to "Chauvet DJ

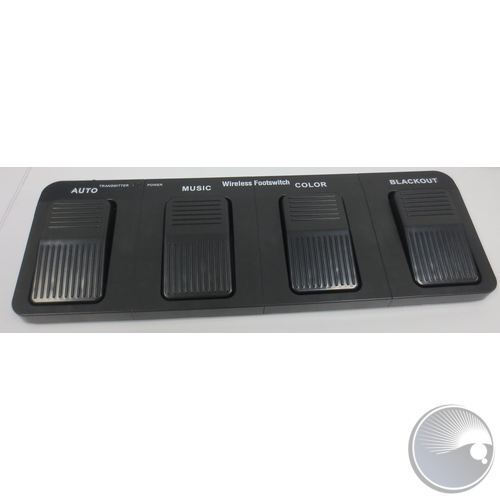

	PTK430000030521	Footswitch assembled

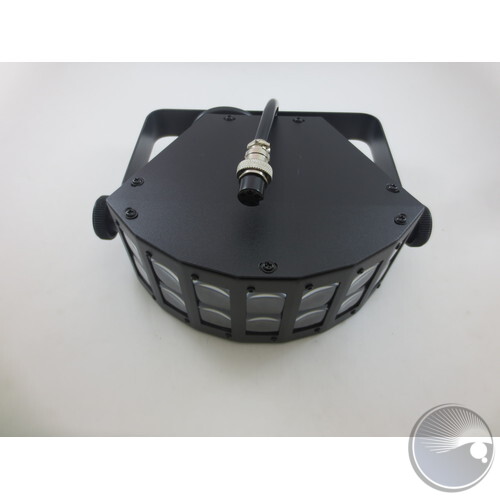

	PTK4301000305131	Kinta assembled - Position 1
	PTK4301000305134	Kinta assembled - Position 4

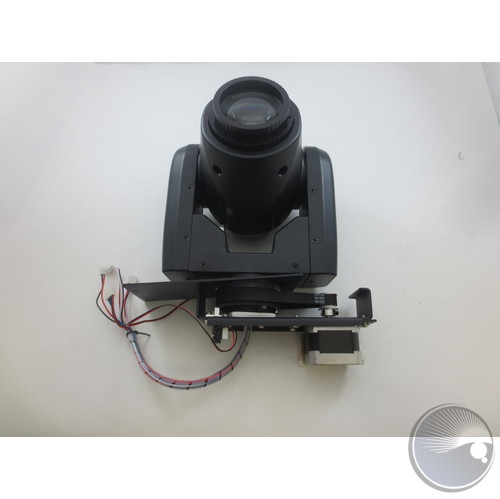

	PTK430100030515	Moving head assembled
	PTK4301000305155S	Moving head assembled (Head # 2) with shorter flat steel panel 5 3/4 inches
	PTK430100030515H1	Moving head assembled (Head # 1)
	PTK430100030515H2	Moving head assembled (Head # 2)
	PTK4301000305232	COMPLETE PAR - CHANNEL/POSITION 2

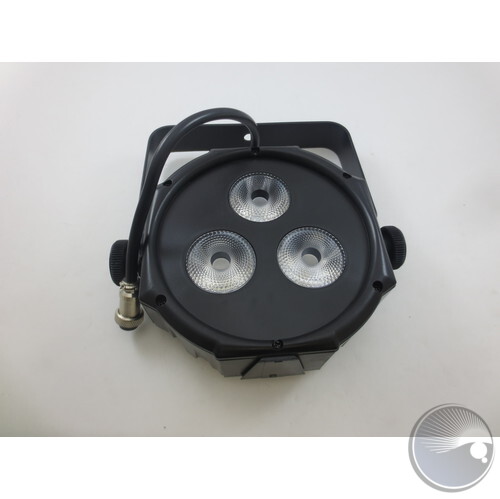

	PTK4301000305233	COMPLETE PAR - CHANNEL/POSITION 3

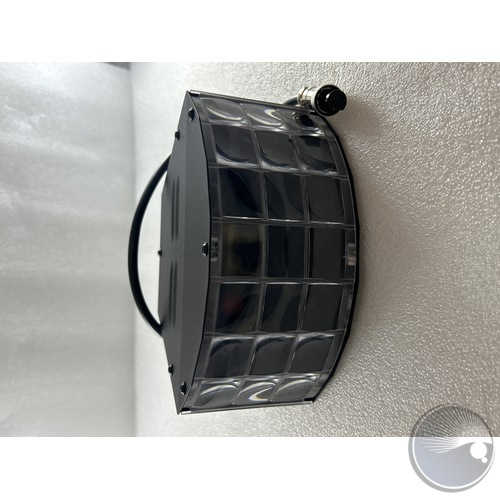

	PTK430100030548	Kinta Assembled - CHANNEL/POSITION 1
	PTK510001197	Main PCB Gigbar 3 V1.0 CRT MB Gigbar 3 V1.0 (BOM#16.Tbar)

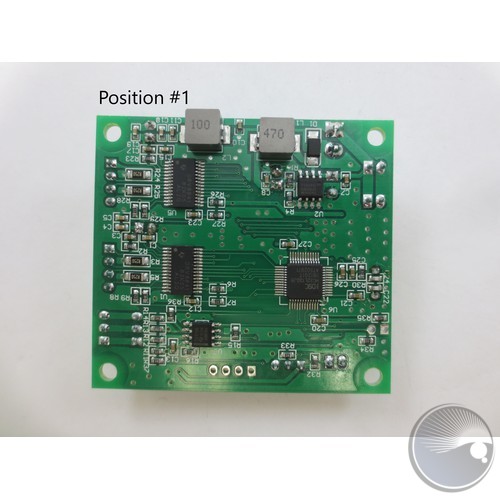

	PTK510001200	Driver PCB Position 1 Moving GigBar 3 V1.0 (BOM#15.Tbar)
	PTK510001201	Driver PCB Position 2 Moving GigBar 3 V1.0
	PTK510002006	DMX board V1.2 (BOM#16)
	PTK510002096	Auxiliary board AS-IR 4BAR LT BT V1.0 PCBACRT AS IR 4BAR LT BT V1.0 (BOM#23.Tbar)
	PTK510002098	Driver PCB_AS-HALL_LLM ARRAY V1.0 (BOM#4.Right Plate)
	PTK510002122	Auxiliary board__AS-HALL_Gig bar 3 V1.0

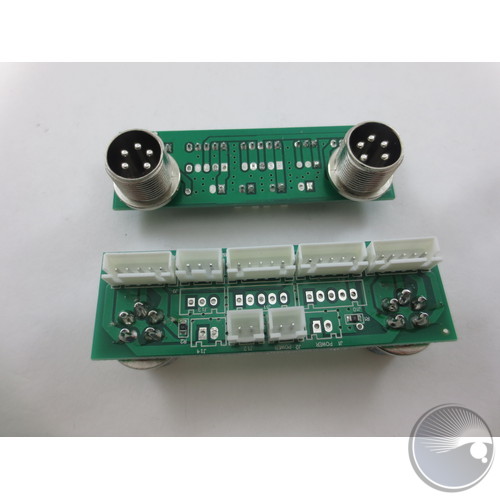

	PTK510002123	Auxiliary board AS WL-44 V1.0 PCBACRT AS POWER WL 44 V1.0 (BOM#17.Tbar)
	PTK510002128	Auxiliary board AS Mpcb V2.0 PCBACRT

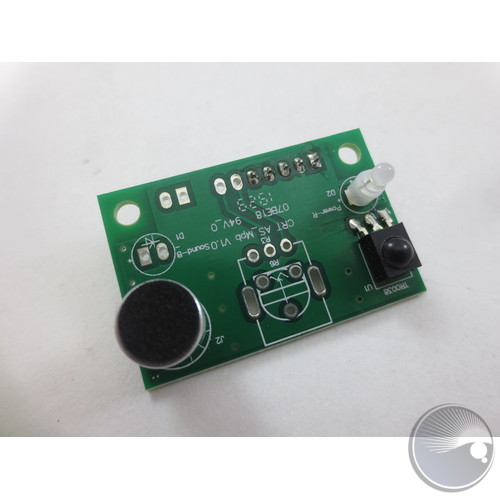

	PTK510002129	Auxiliary board AS Mpcb V1.0Gig Bar Move PCBACRT AS Mpb V1.0Gig Bar Move (BOM#18.Tbar)

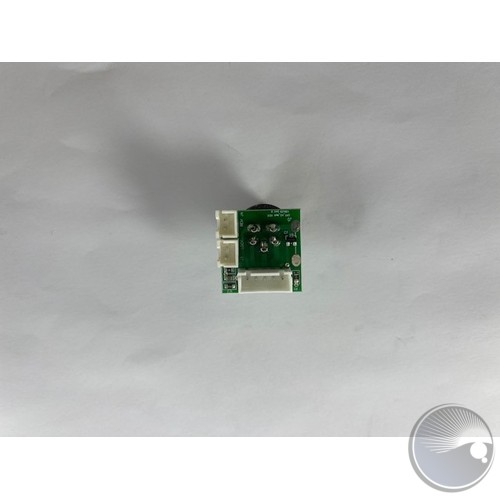

	PTK510002135	Driver PCB T-Bar(BOM#26)

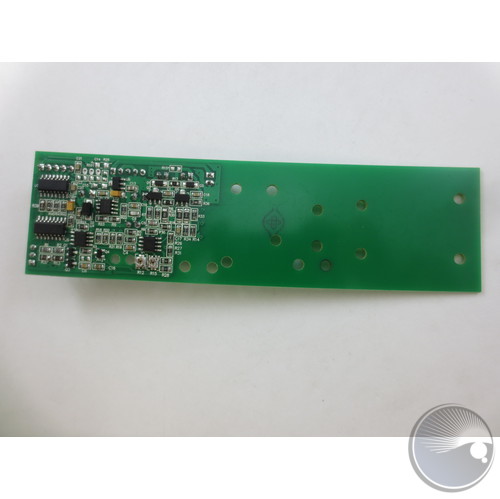

	PTK510003029	Driver PCB (Laser) CRT DR LAS Mpb V2.0 (BOM#12.Laser)
	PTK510003051	Driver PCB Position 1 (BOM#3.Kinta)

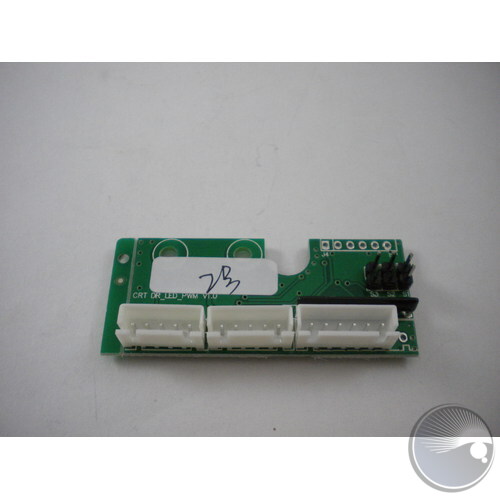

	PTK510003054	Driver PCB Position 4 (BOM#3.Kinta)
	PTK510003073	Driver PCB (Par) CRT DR LED PWMV1.0 (BOM#3.Par)
	PTK510003103	Driver PCB Moving head Position 1 (BOM#26.Moving head)

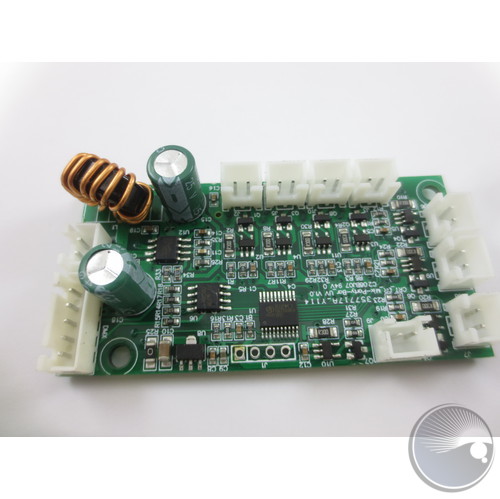

	PTK510003104	LED Driver PCB CRT DR UV V1.0 (BOM#22.Tbar)

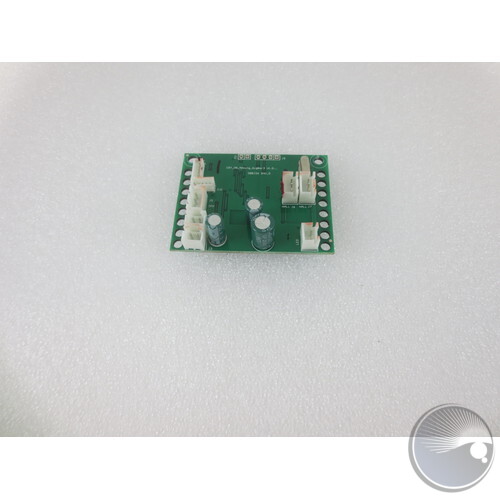

	PTK510003105	Driver PCB Moving head Position 2 (BOM#26.Moving head)

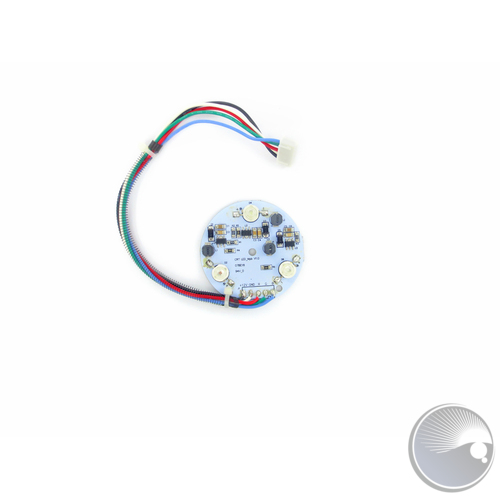

	PTK510004017	LED board (BOM#12.Kinta)

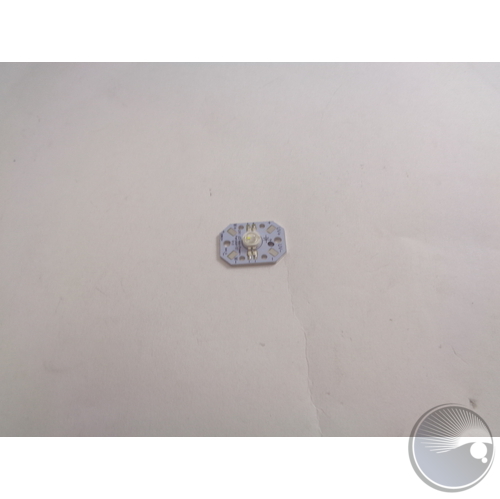

	PTK510004057	LED board strobe CRT LED Mix Power Strobe V1.0 (BOM#27.Tbar)
	PTK510004058	LED board (Par) CRT LED RGBUV Mix V1.0 (BOM#5.Par)
	PTK510004140	LED board Moving head CRT LED Moving GigBar 3 V1.0 (BOM#20.Moving head)
	PTK510101022	Wireless receive module (footswitch) HS2264WL4455 5V 9V 12MA 54MM40MM HED PWC433 TX CT (BOM#4.Footsw

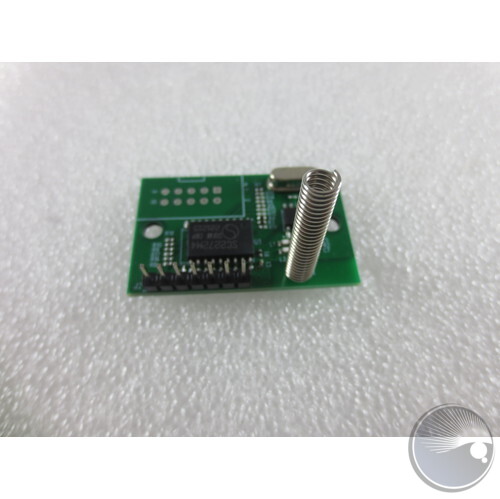

	PTK510101023	Wireless receive board T-Bar HS2272WL600 3V 5V 40MM25MM HED PWC433 RX CT (BOM#20.Tbar)
	PTK520008029	Travel switch Main Body KW20-N02B-25 KW20 N02B 25 With Cable (BOM#5.Main Body)
	PTK520009017	Red laser diode R100 650nm S LD 1315 L100mm (BOM#10.Laser)

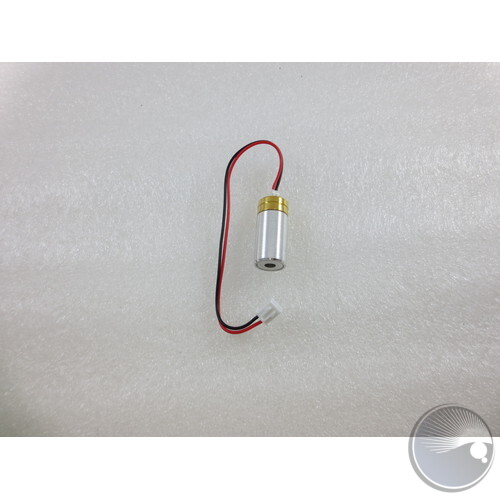

	PTK520405004	Green laser diode G35 532nm S MINI 1325.5 XH 2Y 2P L100 520405001 (BOM#8.Laser)
	PTK530000010	Bottom cover for the par can (Par)
	PTK530000014	Rotary shaft __L22W11.515MM_NYLON66_94V-2_ (Kinta)
	PTK530000015	Mounting plate for the bracket screw (Derby)

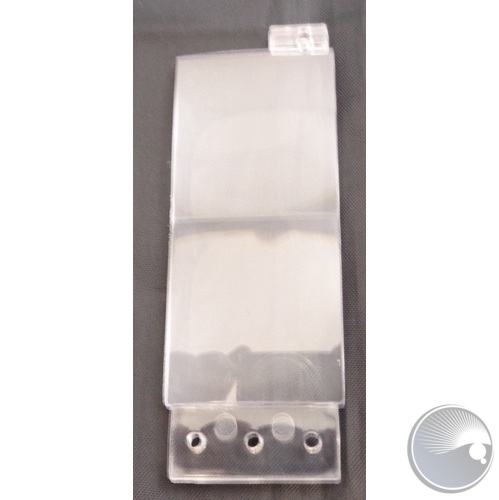

	PTK530000016	Plastic lens (Derby)
	PTK530000034	Motor mounter (Bottom cover) 38397 (BOM#20.Laser)
	PTK530000035	Top cover for the motor
	PTK530000036	Small gear
	PTK530000038	laser mounter 27.52115 13 ABS (BOM#9.Laser)
	PTK530000040	Synchronous pulley (big) ABSHTD-60-3M-09_
	PTK530000057	Top cover for the par can PARTYBARABS L141xW141xH34 (BOM#1.Par)
	PTK530000059	Synchronous pulley_φ47.8*28 (BOM#7.Right Plate)
	PTK530000060	Side plate L136W60H27 LLM Array L136W60H27 ABS765A V0 (BOM#28.Moving head)
	PTK530000071	Lense mounter 2613.6 2613.6 ABS (BOM#17.Moving head)
	PTK530000074	fixing ring for the lens holder 68.514.5 ABS (BOM#3.Moving head)
	PTK530000075	Lens holder 6040 ABS (BOM#1.Moving head)
	PTK530000076	Casing Moving head GIG BAR 3 (BOM#27.Moving head)
	PTK530000077	Motor cover L101W60H52 GIG BAR 3 L101W60H52 ABS765A V0 (BOM#34.Moving head)
	PTK530003003	window frame MPB POB L9.5x22mm (BOM#1.Laser)
	PTK530003028	Cover plate for the battery 4Bar USB L70.5W30.5H3.2 ABS UL94 VO (BOM#8.Footswitch)
	PTK530003029	Top cover for the footswitch 4L420W140H31 ABS UL94 VO (BOM#1.Footswitch)
	PTK530003030	Bottom cover for the footswitch MixPartBar 4L415.5W135.5H31 ABS UL94 VO (BOM#7.Footswitch)
	PTK530017018	IR filter 124.6 PCV0 900nm-1000nm,

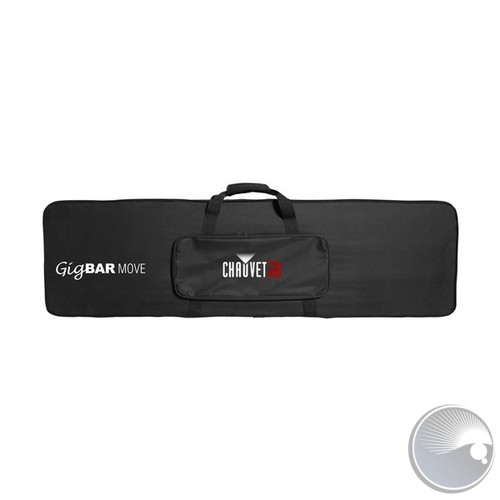

	PTK6301030706	Carry bag 01 Gig Bar Move LOGO

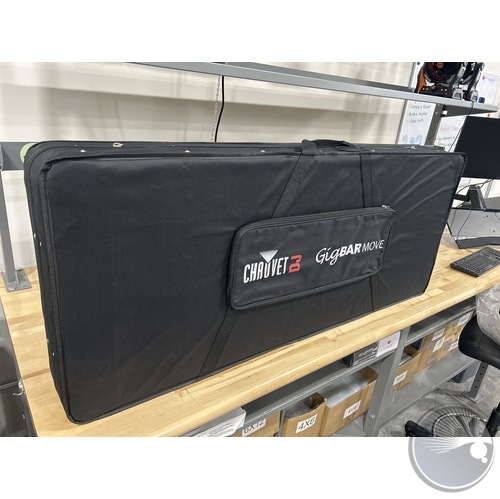

	PTK6301030708	Carry bag 01 Gig Bar Move LOGO (New Carry Bag- with FootSwitch Section)

mehr

Zurück

Es sind leider keine Geräte verfügbar.

Es kann vorkommen, dass in unserem Lager noch gebrauchte Geräte vorhanden sind. Fragen Sie gerne über unsere Service-Hotline +49 871 40875521 oder per Email info@lights-whatever.de bei uns nach. Wir helfen Ihnen gerne weiter!

Bewertungen lesen, schreiben und diskutieren... mehr

Menü schließen

Kundenbewertungen für "Gig Bar Move"

Bewertung schreiben

Bewertungen werden nach Überprüfung freigeschaltet.
