MAC 250 Krypton Ersatzteile

Auf Anfrage!

Artikel-Nr.: 90225600

The MAC 250 Krypton is a high performance profile with a separate gobo and color wheel, an... mehr

Produktinformationen "MAC 250 Krypton Ersatzteile"

The MAC 250 Krypton is a high performance profile with a separate gobo and color wheel, an achromatic lens system and a rotating prism.

Features

250 W long life discharge lamp
Total output up to 5000 lumens
12 position color wheel plus open
Interchangeable rotating prism
Strobe effect up to 14 Hz, pulse effects, instant open and blackout
Rapid strobe effects (up to 14 Hz)
Motorized focus
Mechanical dimming
Pan and tilt range of 540°/257°
Quiet operation
7 indexable rotating gobos plus open

Weiterführende Links zu "MAC 250 Krypton Ersatzteile"

mehr

Zurück

	05520503	Martin Microswitch 5A/250V no legs
	05701602	Martin Step motor 17PM-K004-09V Ø5/24
	05701804	Martin Step motor 23HS1001-22 Ø6,35/21
	05741801	Martin Fan 12V DC Brushless 80mm
	08050702	Martin M3x6 ph torx black
	08050803	Martin M3x8 cs torx black
	08053806	Martin M3x7 stand off m5/f3,5 black
	08070502	Martin M4x12 cs pz black
	08070702	Martin M4x6 ph torx tapt spike black
	08070710	Martin M4x12 bh torx black
	08112701	Martin M6 nut lock PA shiny
	08200102	Martin PT 2,9x6,5 ph torx black
	08200107	Martin PT 5x12 ph pz black
	08230113	Martin Scheibe, Durchmesser 5mm Ø5 starlock brown
	08240106	Martin 1/4 turn 4mm retaining spring
	08240109	Martin 1/4 turn 4mm receptacle
	08240127	Martin 1/4 turn receptacle 4mm shiny
	11040516	Wire yellow/green 1x0,75# 20cm
	11320501	Martin Wire ye/gr 1x0,75#uL siff 30cm
	11501013	Mains cable I.E.C. 3pin , 3 m
	11750005	Martin Wireset 10 pole flatcable 15cm

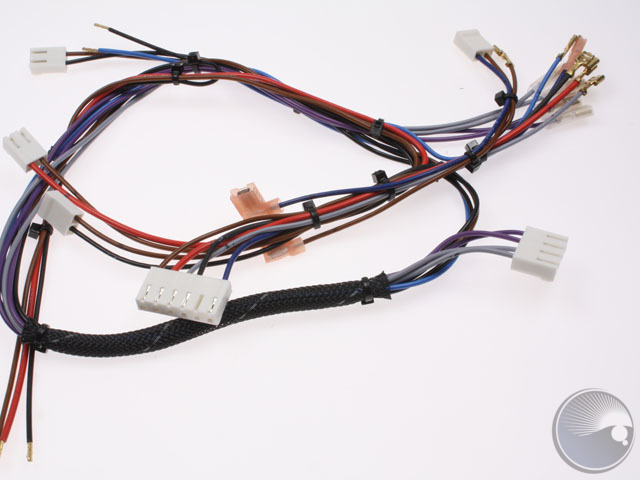

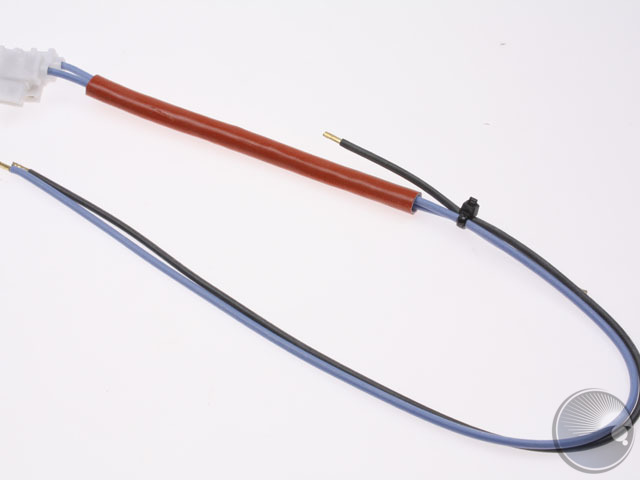

	11850052	Martin Wireset MAC250Kr/Ent. head HV
	11850053	Martin Wireset mac250series HV main

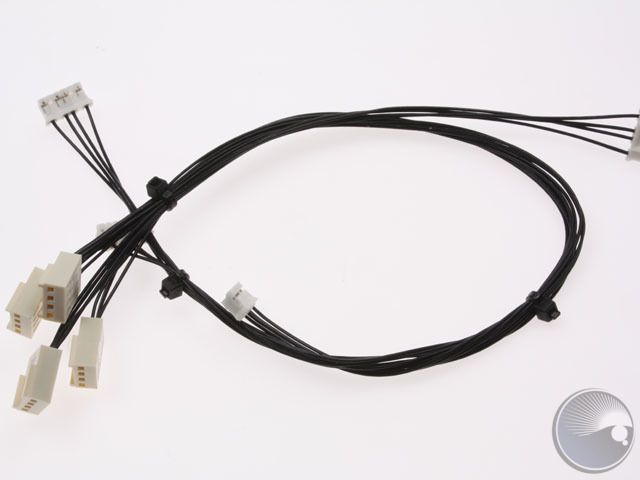

	11860084	Martin Wireset, dimmer module, MAC 250

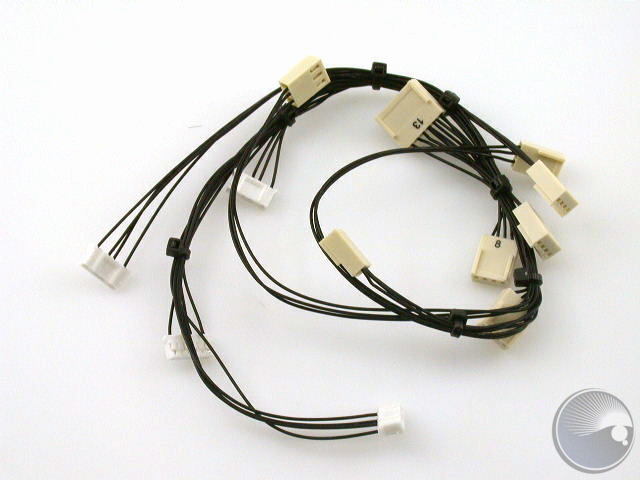

	11860086	Martin Wireset, color/gobo module, MAC 250 Kr.

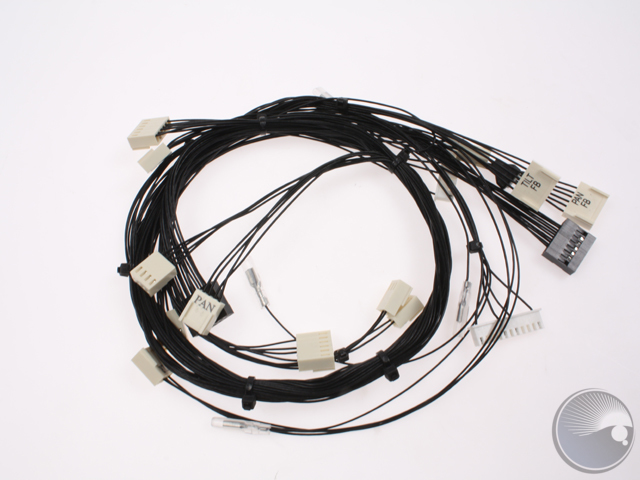

	11860087	Martin Wireset, base-arm, MAC 250 Kr.

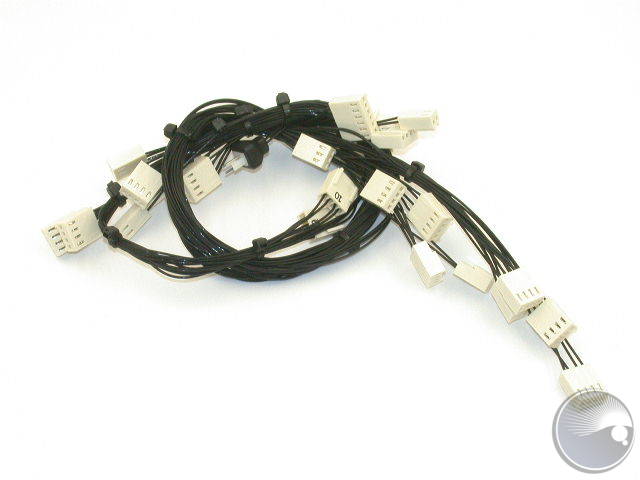

	11860108	Martin Wireset,mac250, Arm to head
	13101008	Martin Wire Retainer Flexible
	13101010	Wire Retainer Flexible, 4mm
	13104000	Martin Strap,black,high temp,2.5x98
	13104003	Martin Strap, black, 3.6x140mm
	13200001	Martin Rubber grommet DA 95/130/15
	13200007	Martin Rubber grommet DA 60/90/20
	13201010	Martin Protector for wires PT,M250-2K
	14026004	Martin Tube rubber d=4,0 D=9 (for m
	14026013	Silicone tube 3/7 transparent
	15802003	Martin Silicon/glas sleeve d=7mm ,Bl
	16000120	Timing wheel T2,5 z=24 wide
	16000160	Timing wheel T2,5-62 M500
	16000210	Martin Timing wheel T2,5 z=24 std
	16000290	Martin Timing wheel S3M-32 w6 ø6,35 tahco
	16000500	Martin Timingwheel S3M-134 w8
	16040050	Martin Timing belt 40 S3M 486
	16040090	Martin Timing belt 40 S3M 564
	16040440	Martin Timing belt T2,5-200-04 CF
	16040470	Martin Timing belt T2,5-265-04 CF

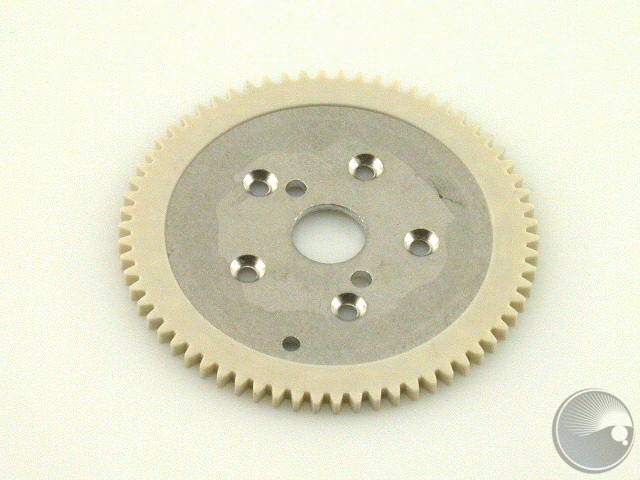

	16080250	Martin Silicone spur gear, MAC250

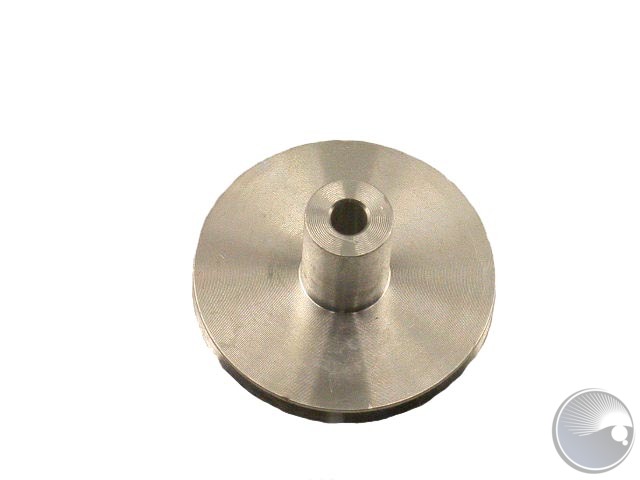

	16100240	Pully for Prisme, D42 d5
	16120070	Martin Belt Viton d75,87 w2,62
	16170020	Spindel for focus, Effect modu
	16170030	Martin Plasticguide for focusmodule,
	16300131	Adaptor w. 5mm hole

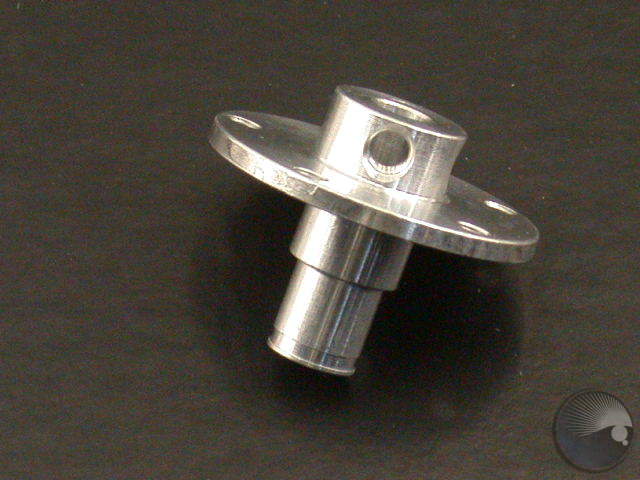

	16300350	Motor adaptor for rot gobo
	16300410	Universal adaptor
	16700022	Martin Sliding bearing d=6, Special
	16720110	Shaft for bearing, MAC600
	16760021	Martin Bearing 8/22x7 608-ZZ
	16760060	Bearing 25/37x7 61805
	16760090	Martin Bearing 25/47x12 6005-ZZN
	16760240	Bearing 50/65x7 61810-ZZNR/C3

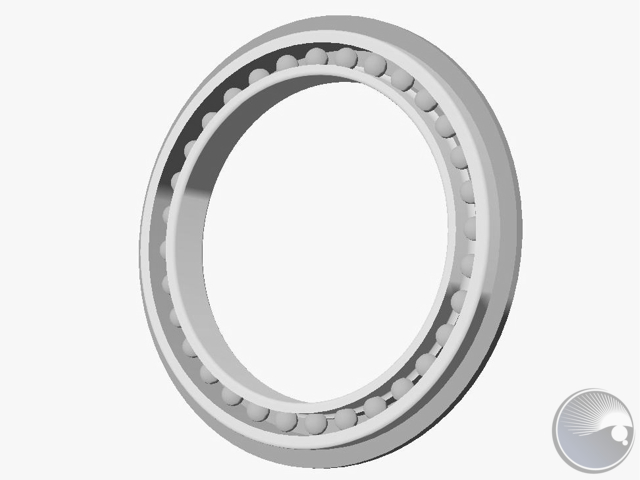

	16760280	Bearing 25/32x4 6705-ZISNR/C4
	16780170	Martin Bushinglock, MAC2000
	16900060	Shaft for pan M600
	16900150	Martin Bearing adaptor, MAC 250 Yoke
	16900160	Martin Ball Bearing adaptor MAC250
	16920170	Martin Yoke Distanceplate, MAC2000P
	16920210	Martin Bearing retainer plate
	17000270	Pl.for int. colorwheel M250Pro
	17040050	Dimmer plate, Mac 250

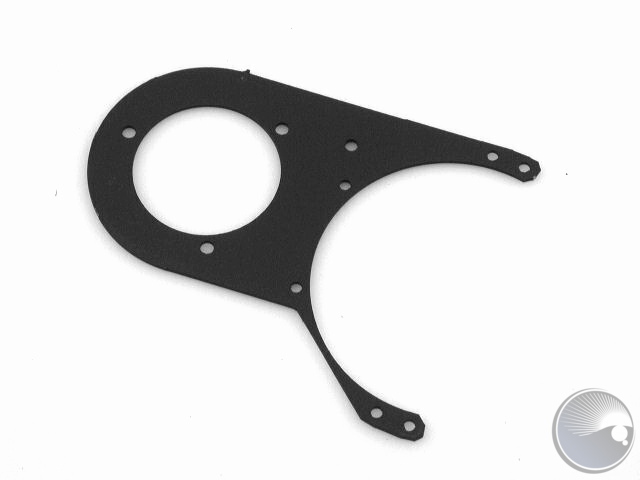

	17060170	Martin Prisme rotationarm

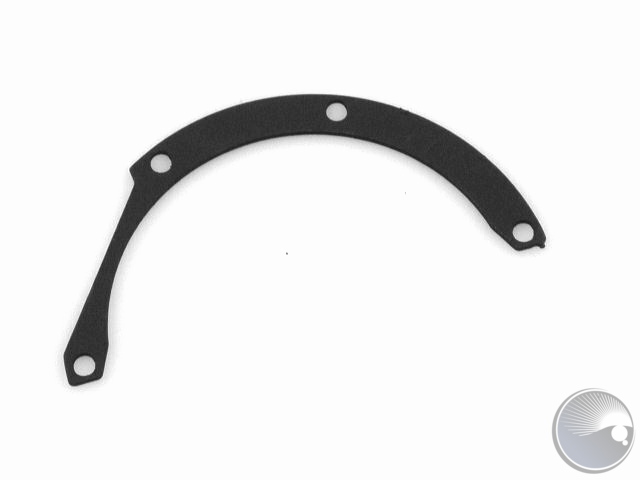

	17060180	Martin Prisme mounting bracket
	17200560	Martin Adaptor focus lens, MAC250+
	17500010	Pin for modules, plast, black
	17720050	Martin Compression spring D8,4/d1,0x25
	17740020	Martin Tension spring D10/d1x25
	17740080	Martin Tension spring D10,4/d1,2x27
	17760160	Circular spring D43/d1,4 with bend
	17760170	Martin Circular spring D56/d1,4

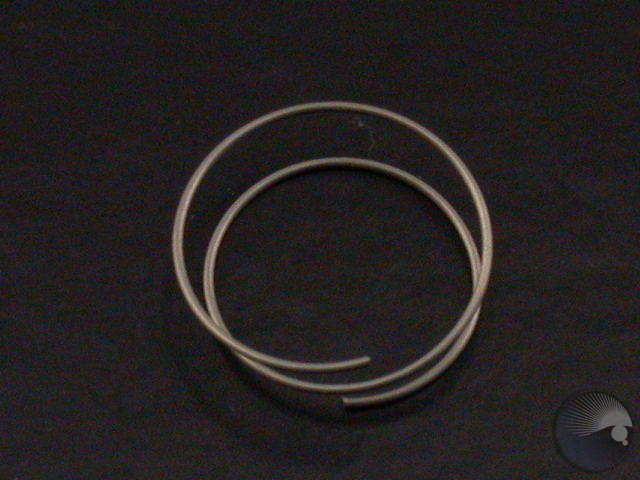

	17760360	Martin Conical spring for gobo Ø22,5
	17780030	Martin Spring, base, MAC600, drilled
	17800020	Spacer
	17800270	Spacer
	18000190	5mm tapx13.5+WAF6x3.5+M3x7.5 b
	18020200	Mechanical stop, base, MAC600,

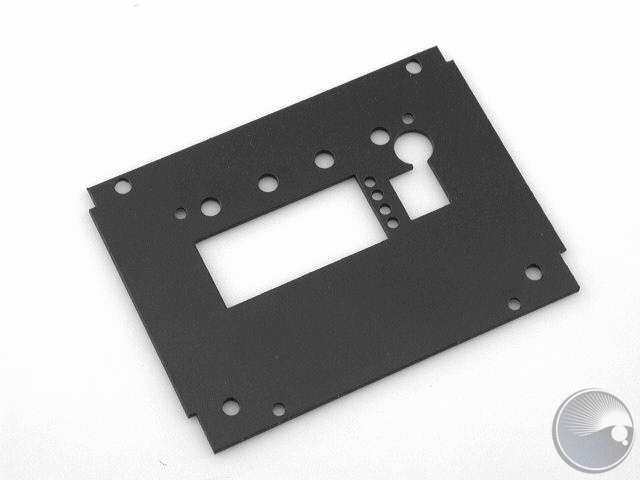

	18240100	Plate for display PCB

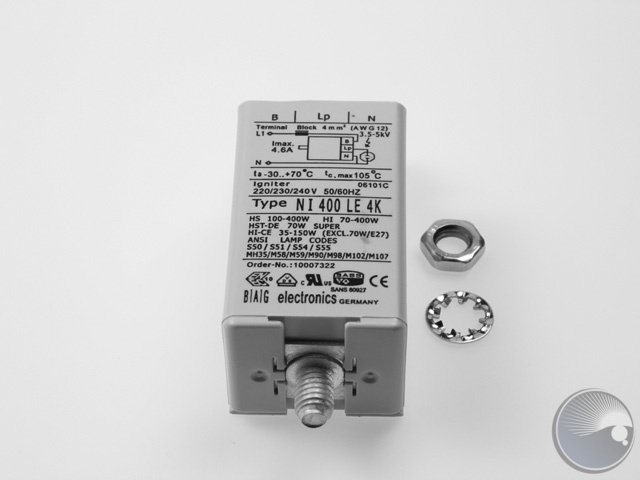

	18260290	Starter NI 400LE 4K BAG Zündgerät
	18300090	Pan Switch stop Pl. MAC2000P

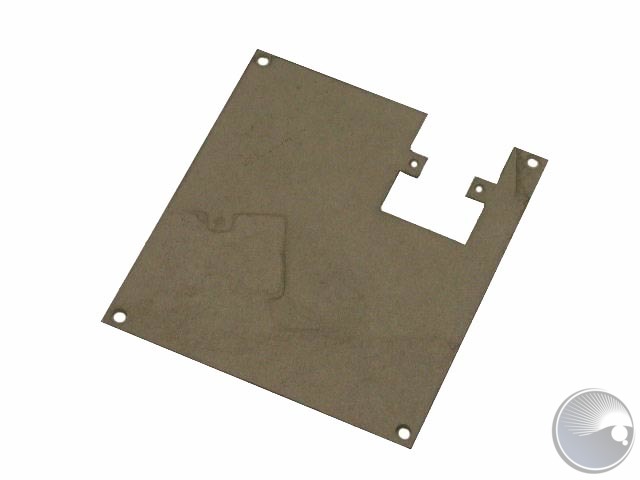

	18360230	Plate f. connector PCB, MAC250
	18400030	Martin Opto encoder wheel

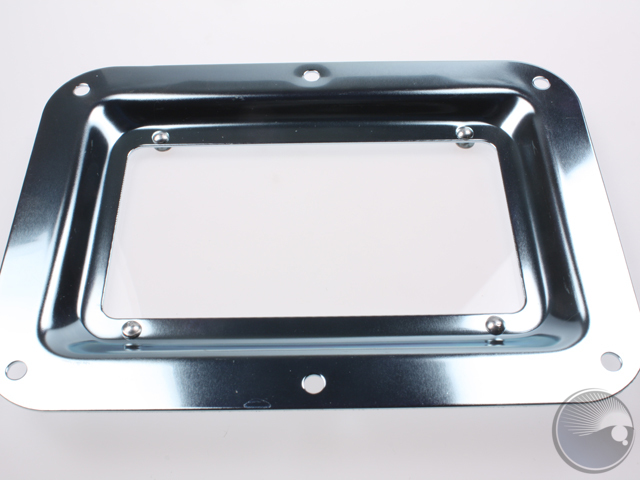

	19006001	Barcode scan window 178x127mm
	19040030	Lid stay w. 10mm deep dish
	19040100	Piano Hinge angled, 80x135+35
	19400060	Martin Wheel, 100 mm, Blue

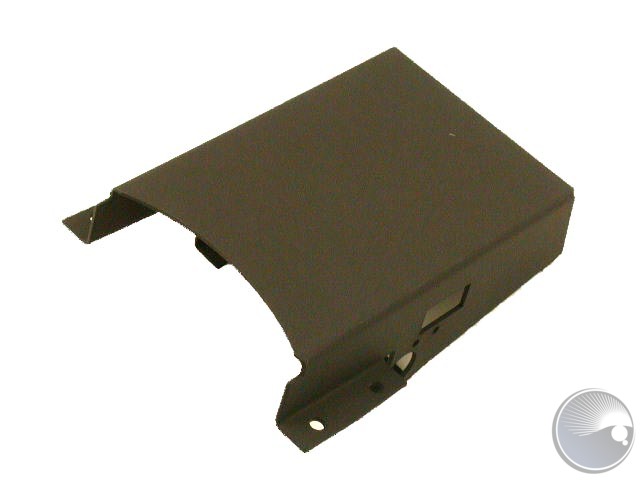

	19800220	Martin Holdunit for fan

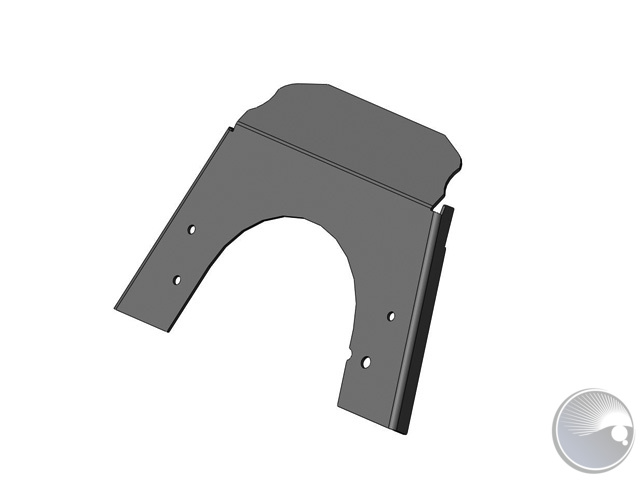

	19800280	Air guide for PCB fan

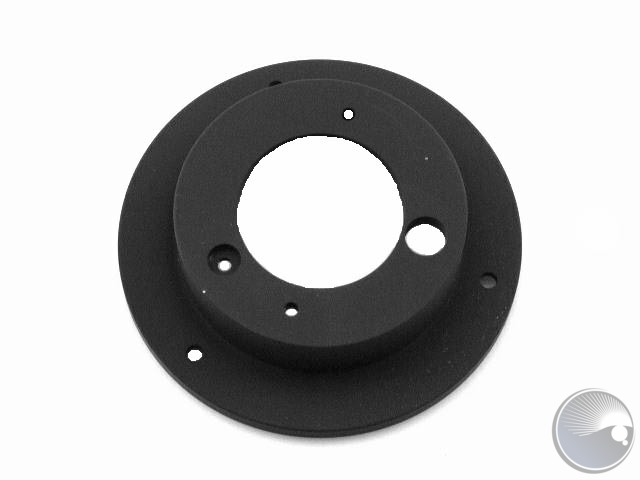

	20200510	Martin Lamp socket adjusment plate
	23400990	Martin Plast, Front ring, MX-10 ect.

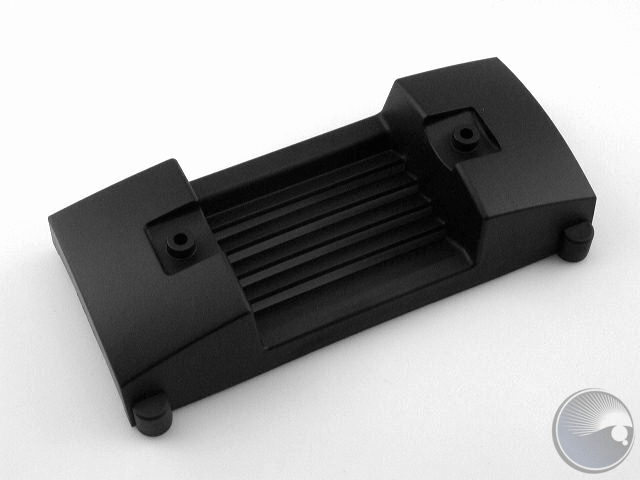

	23401340	Martin Plast gable, base, MAC250

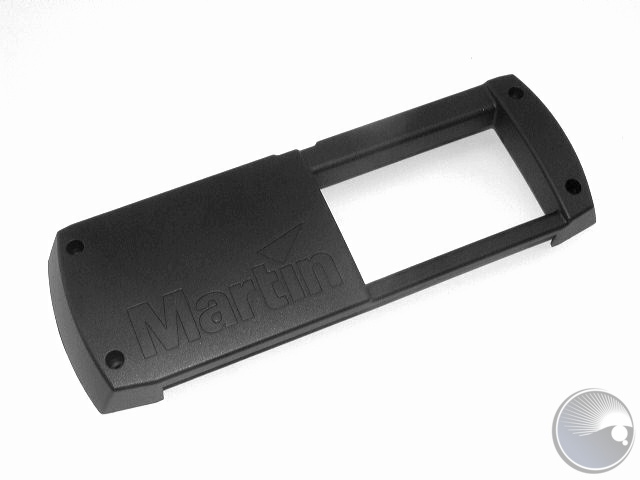

	23401350	Martin Plast cover, base, MAC250

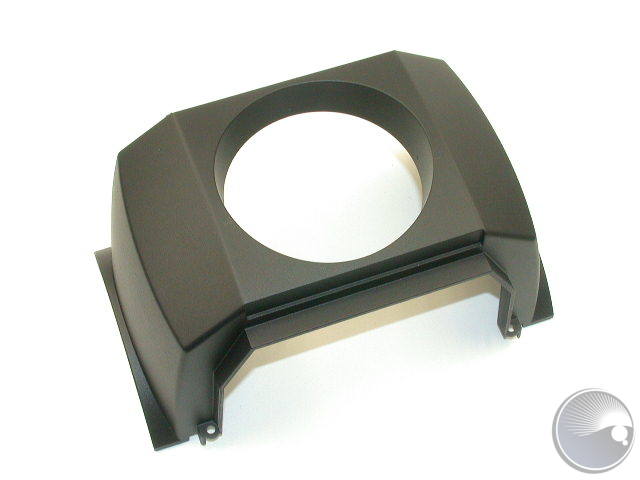

	23401360	Martin Rear cover, head, MAC250

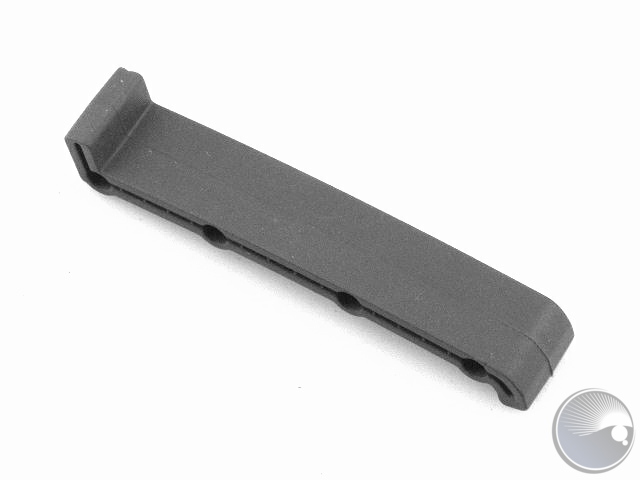

	23401370	Martin Mould, head, MAC250

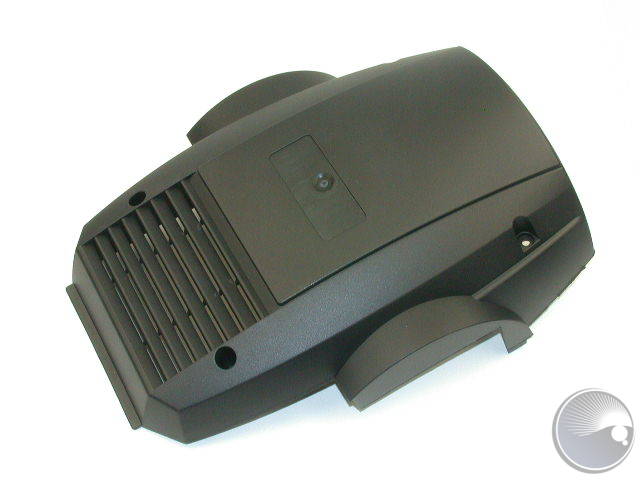

	23401380	Martin Cover, head, MAC250
	23401390	Martin TopInnerCover, yoke,MAC250
	23401400	Martin Inner Cover, yoke, MAC250
	23401410	Martin Main Cover, yoke, MAC250
	23803510	Spacer f.gearwheel,base,MAC600
	23807440	MX-10 + Mac250 lens support

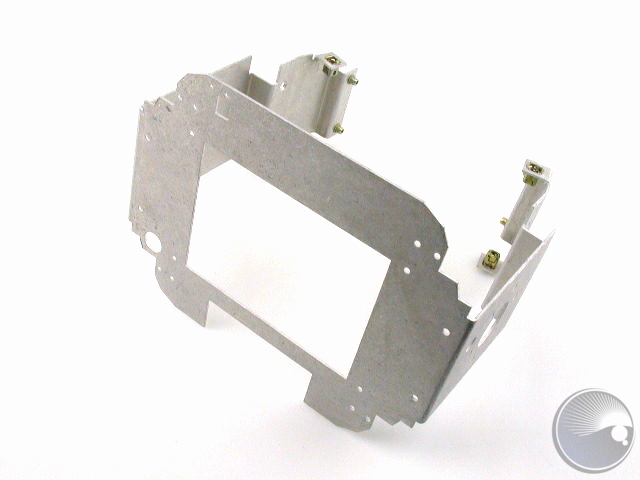

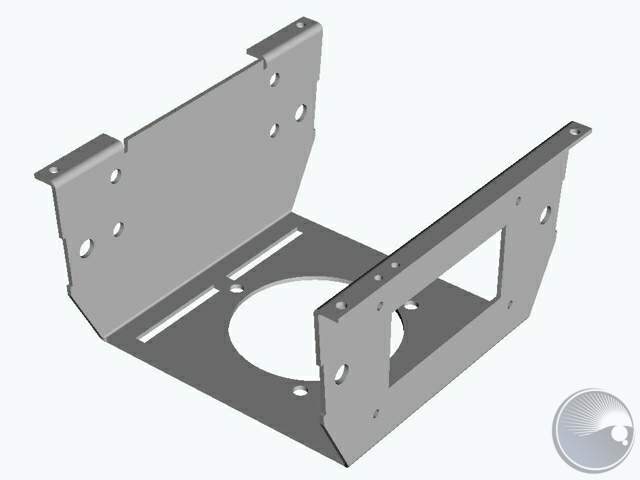

	23809180	Martin Back Chassis, MAC250
	23809190	Martin Head Chassis, MAC250

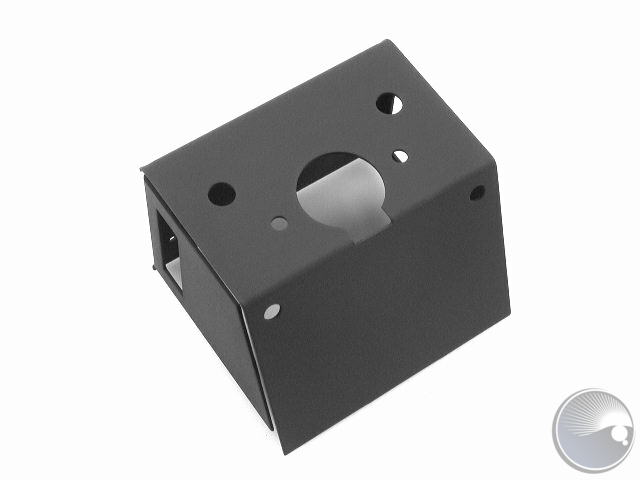

	23809220	Plate for fan opening

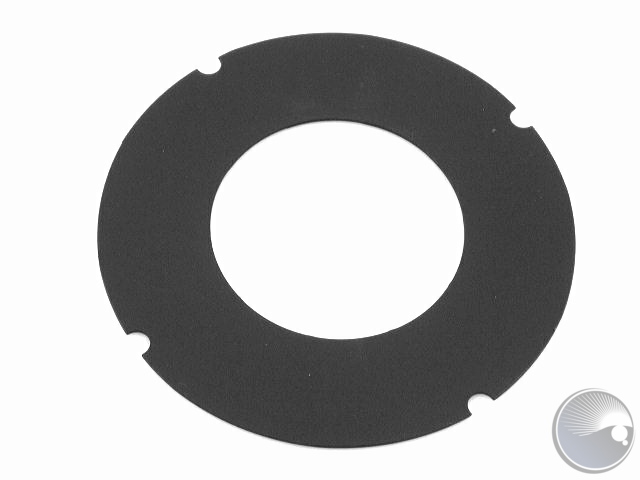

	23809230	Front cover plate

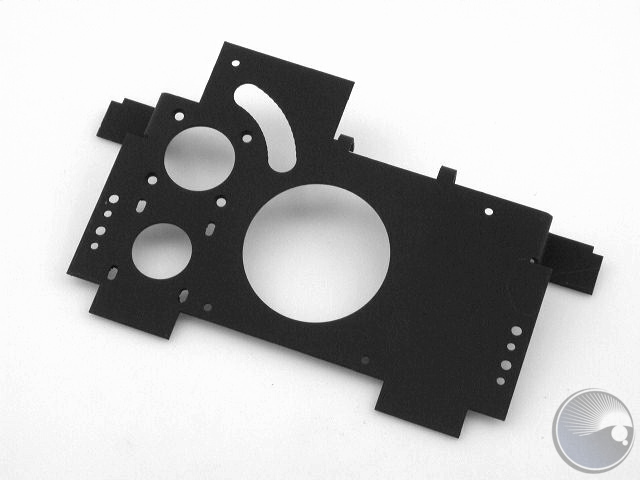

	23809250	Martin Prisme module plate

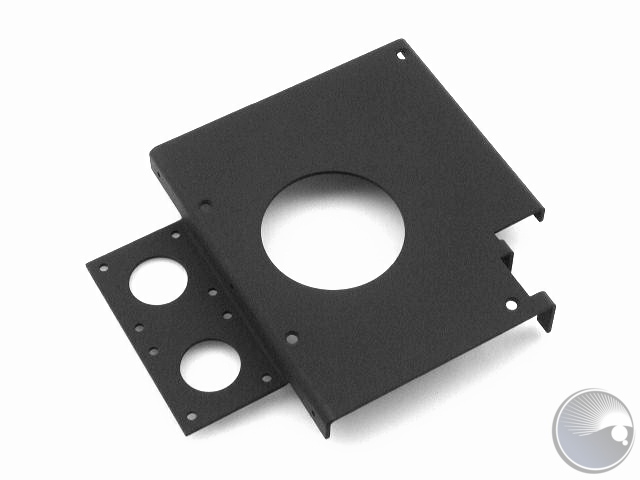

	23809260	Dimmer modulbracket
	23809280	Martin Stiffener, Motorplate

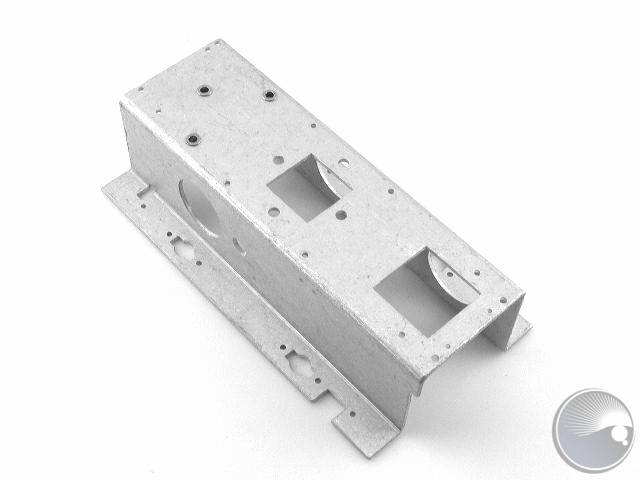

	23809290	Pan frame

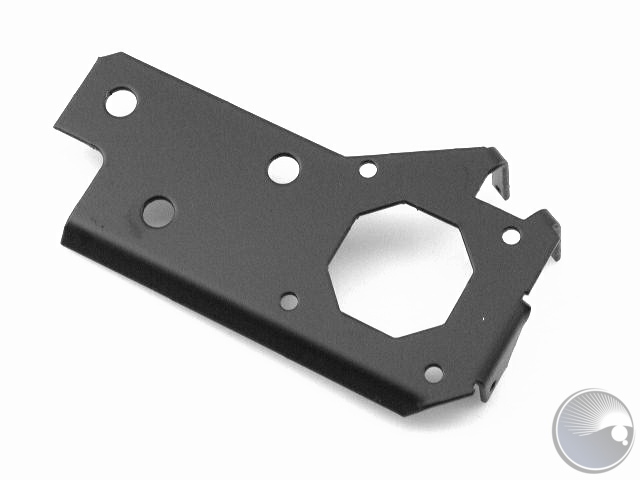

	23809300	Martin Plate for panmotor M250 Series

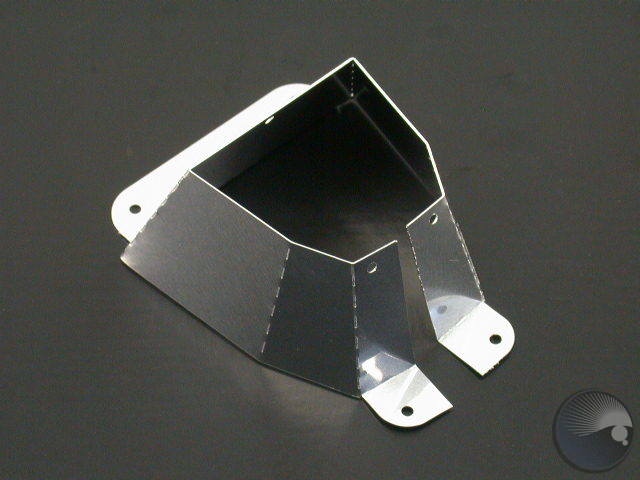

	23809310	Martin Headshield head ,MAC250

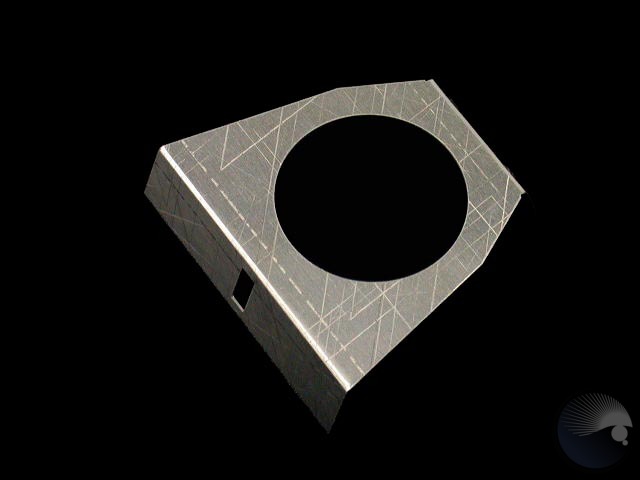

	23809320	Headshield front 2 ,MAC250
	23809441	Martin Tilt lock disc,MAC550/250laser

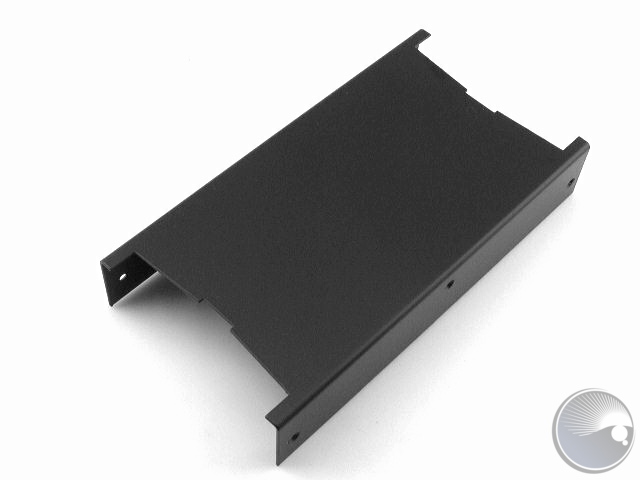

	23809470	Martin Coverplate for yoke, MAC250
	23809480	Martin Yoke tiltmotor bracket, MAC250

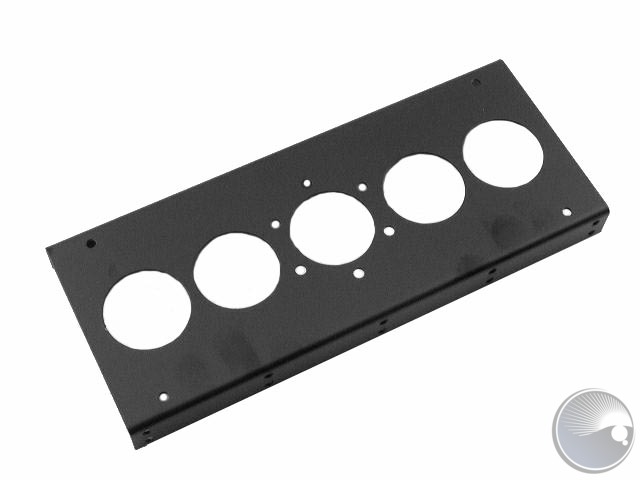

	23809510	Martin Stiffener f. Yoke, MAC250

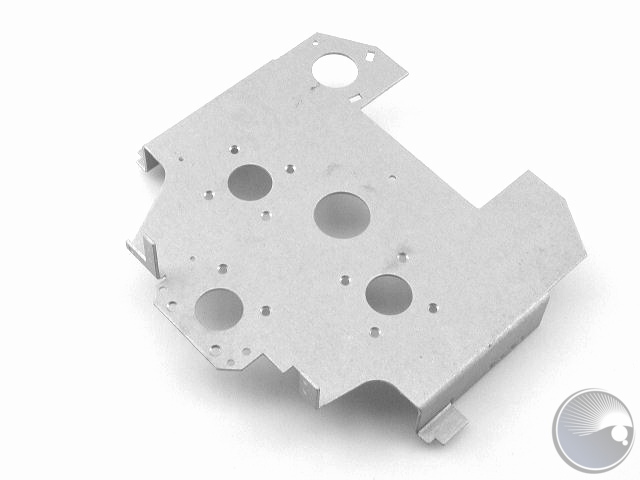

	23809560	Gobo module plate ,MAC250 Kr

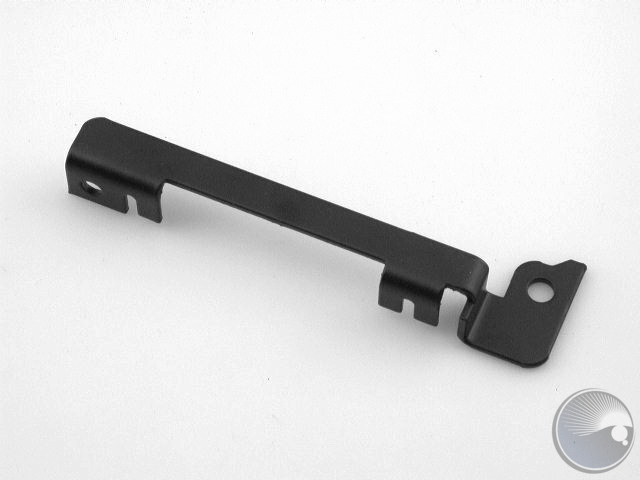

	23809640	Rockerarm left rail, MAC250

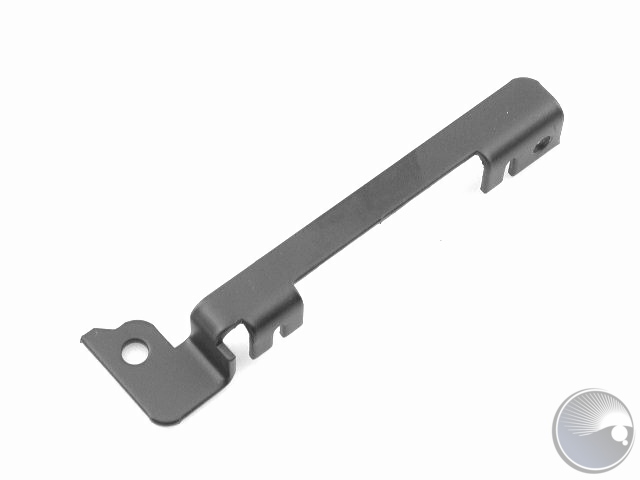

	23809650	Rockerarm right rail, MAC250

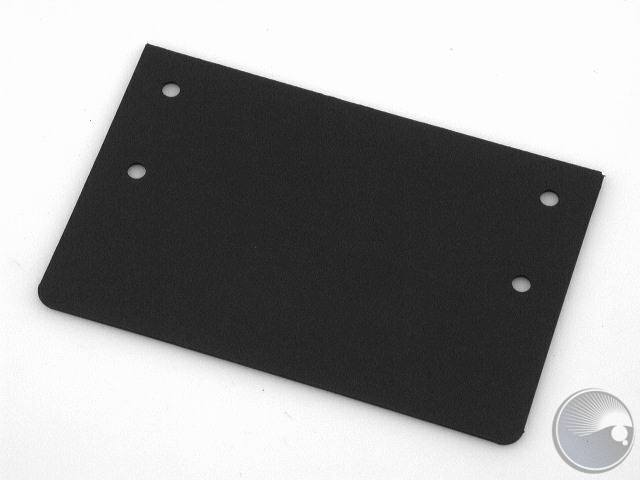

	23809700	Martin Insulation cover, MAC250 Serie

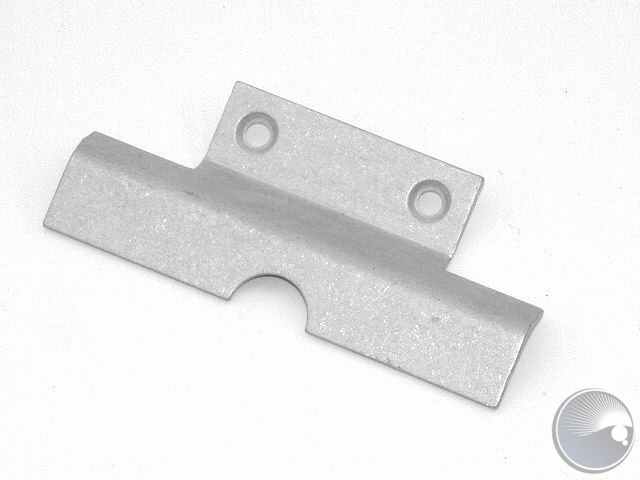

	23809720	Wire bracket MAC250 Series

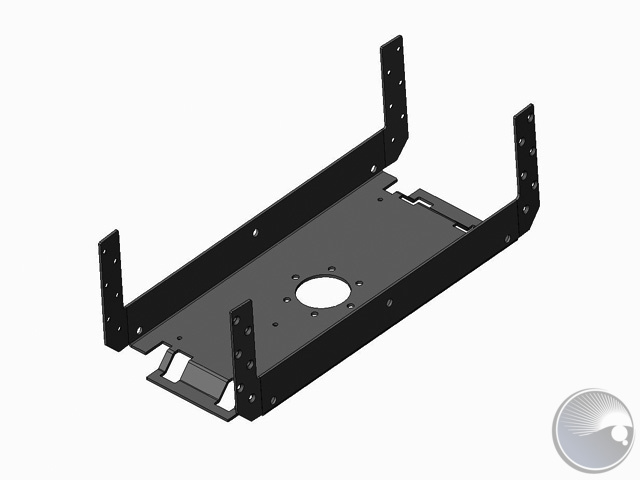

	23814000	Martin Bottom chassis,Yoke,MAC250Seri

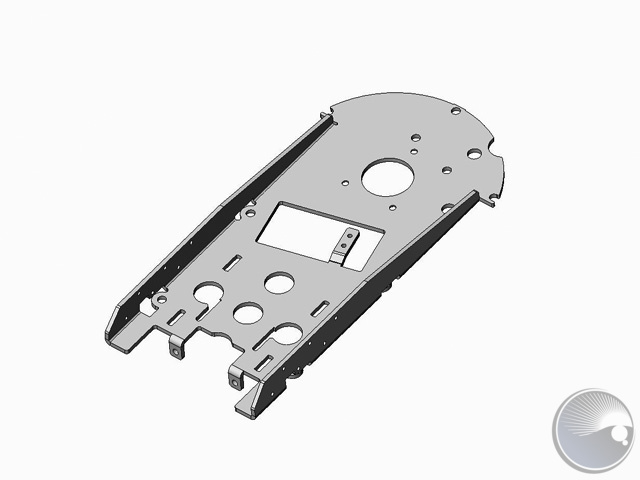

	23814010	Martin Motorside for yoke,Mac250 Ser.

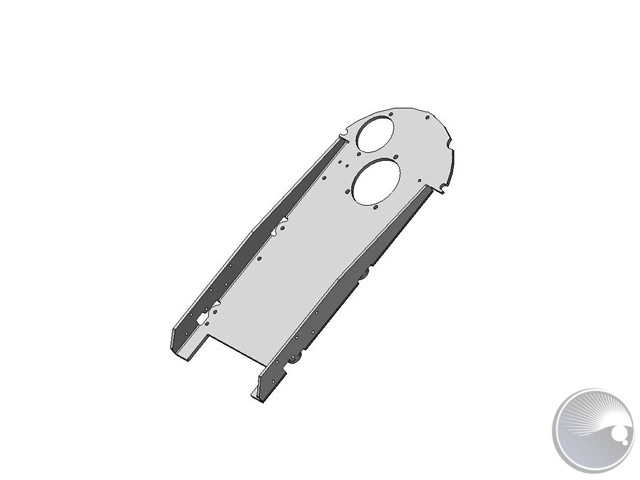

	23814020	Martin PCB-side for yoke, Mac250 Ser.

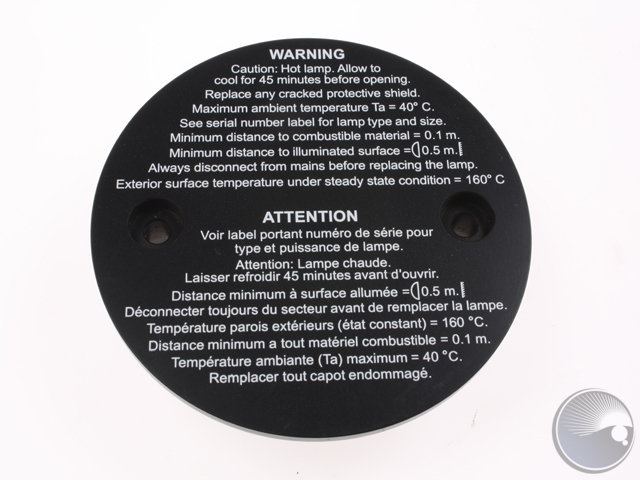

	23900016	Martin Lampsokkel w. silkprint MAC250

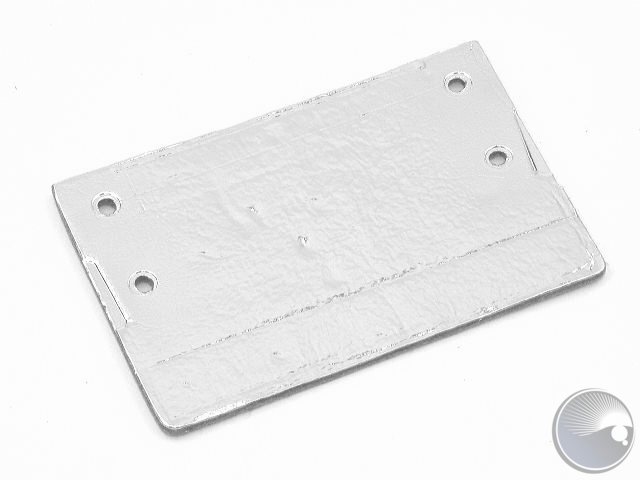

	26520520	Martin Ceramic isolation pl. MAC250
	26840041	Wheelpl. Right, various FC
	26840042	Wheelpl. Left, various FC
	33001018	Martin Flightcase writing pad

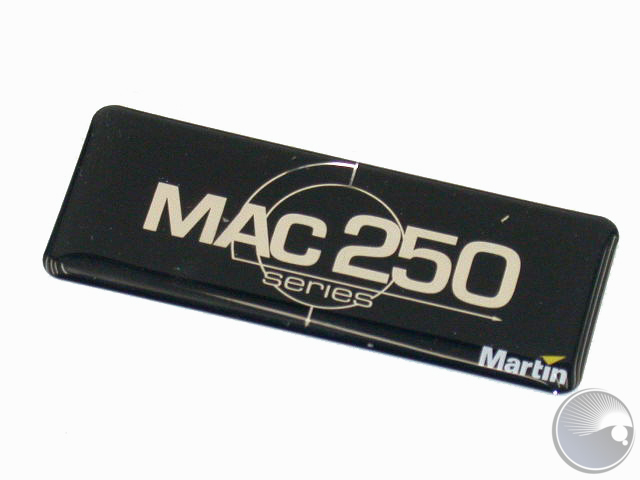

	33001039	MAC250 Series Logo Label
	33001040	Martin MAC250 Series Keyboard Overlay
	33001042	Martin MAC Series, Logo Label,Yoke RH

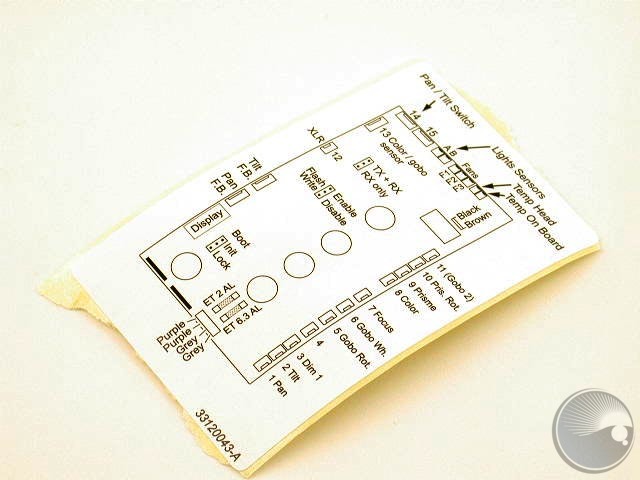

	33120043	Label PCB connec. MAC250 Kr.

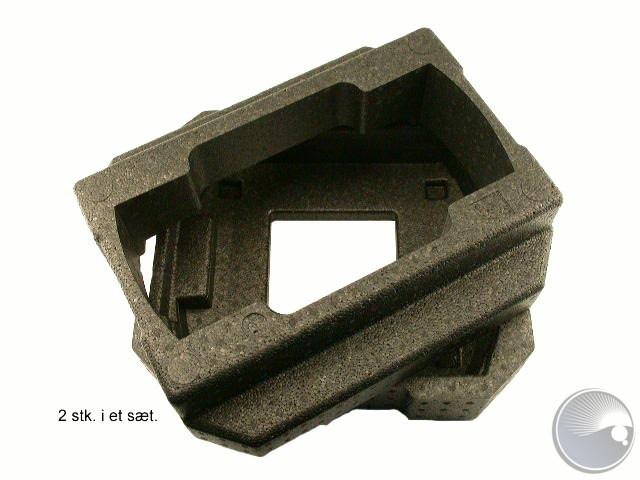

	34204016	MAC250 EPP Top+mid inlay Flc.
	34240001	Plast bag 90x180
	37021002	Loctite 243 10ml
	37302008	Martin Molykote D, Grease

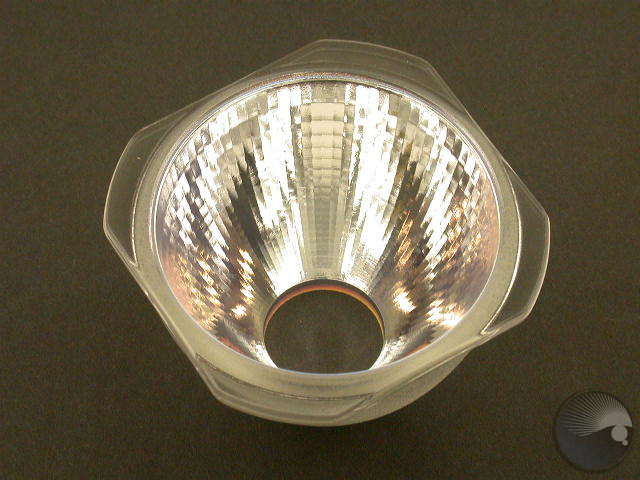

	41002046	Martin D=65,6/25 F=50 Elliptic Reflec
	41201046	Martin D=40 f=95.4 Meniscus coated
	41201048	D=50 f=84 Biconvex, Coated
	41202020	Martin D=60 f=192.3 Achromat Coated
	41300010	Martin Facets Prism D=47, 3 Coated
	43082008	Martin Gobo, Happy Yins, D22.5/d17, colored gla

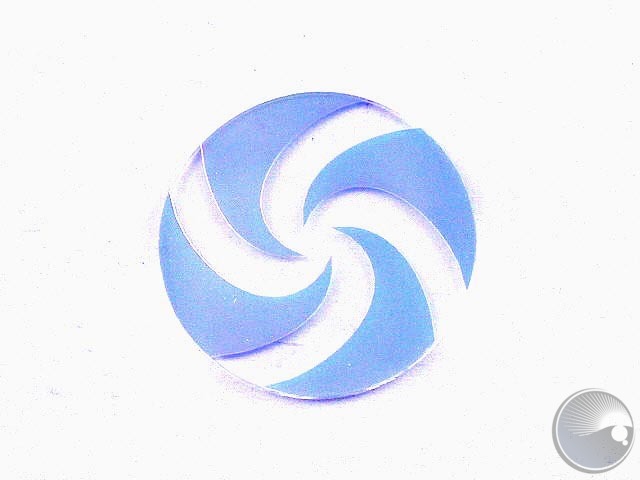

	43082009	Martin Gobo, Drain, D22.5/d17, colored glass
	43086023	Martin Gobo, Eclipse, D22.5/d17, alu, painted

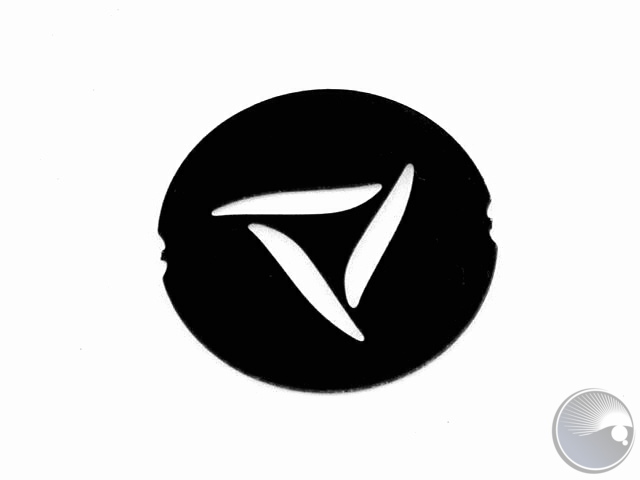

	43086031	Martin Gobo, Twisted Triangle, D22.5/d17, alu,

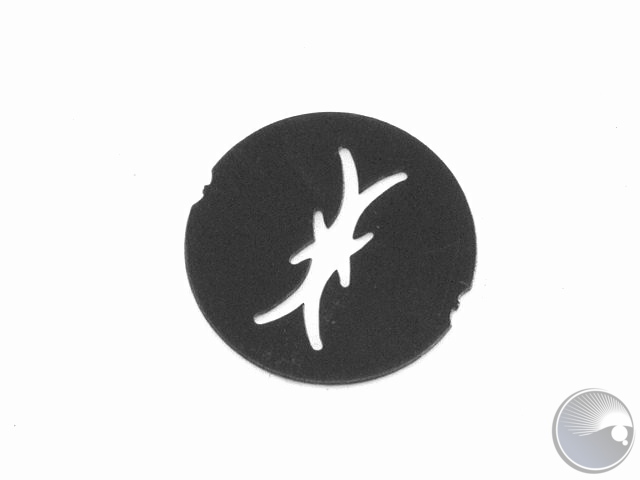

	43086032	Martin Gobo, Fat Bar, D22.5/d17, alu, painted
	43086037	Martin Gobo, Splash, D22.5/d17, alu, painted

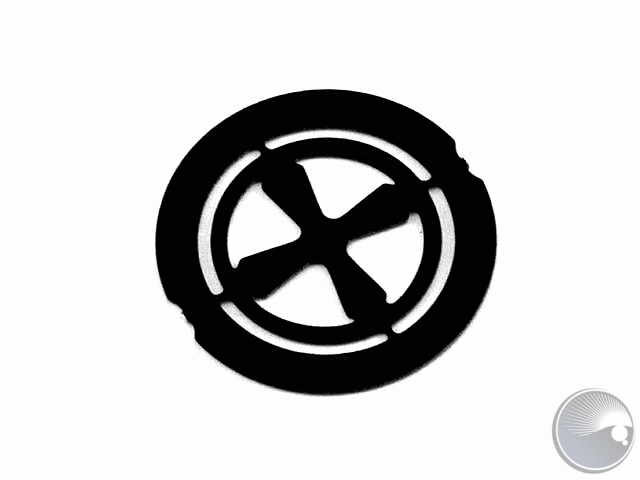

	43086130	Martin Gobo, 4 Fan, D22.5/d17, alu, painted
	46404603	Blue 104 MAC250 shape
	46404604	Pink 312 MAC250 shape
	46404608	Martin Magenta 507 MAC250 shape
	46404609	Martin Blue 101 MAC250 shape
	46404610	Orange 306 MAC250 shape
	46404631	Martin Blue 108 MAC250 shape
	46404633	Martin CTC5500-2900K V2 MAC250 shape
	46404634	Martin Purple 502 MAC250 shape
	46404635	Martin Green 206 MAC 250 shape
	46404637	Martin Red 301 MAC250 Shape
	62000082	Martin PCBA Disp./Keyboard MX-10, tested

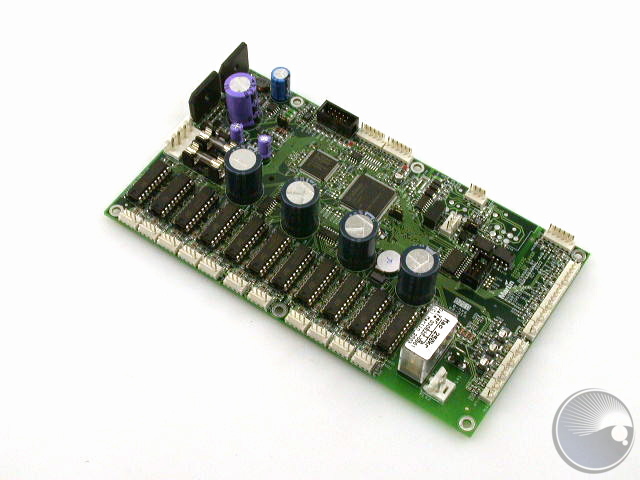

	62000088	Martin PCBA Mainboard MAC 250 Krypton, tested
	62003008	Martin PCBA Duo Opticcal sensor 5mm ga
	62003013	Martin PCBA NTC thermistor
	62003019	Martin PCBA MAC 2000 Performance Hall sensor
	62003021	Martin PCBA Lightsensor New, mounted
	62003023	Martin PCBA Hall sensor,short version
	62004512	Martin PCBA Conn. 2x(5x4pol+1x6pol)
	62004554	Martin PCBA 3/5pin XLR male/female, mo
	62004593	PCBA Connector 4x4pol, no print

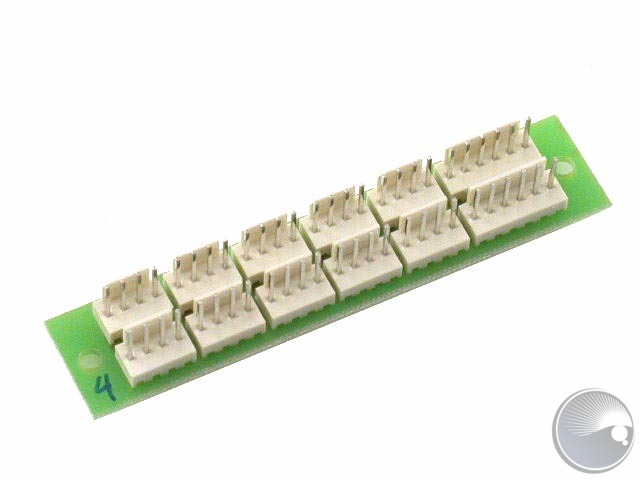

	62004604	PCBA Con.10x4p+6x2p,printed

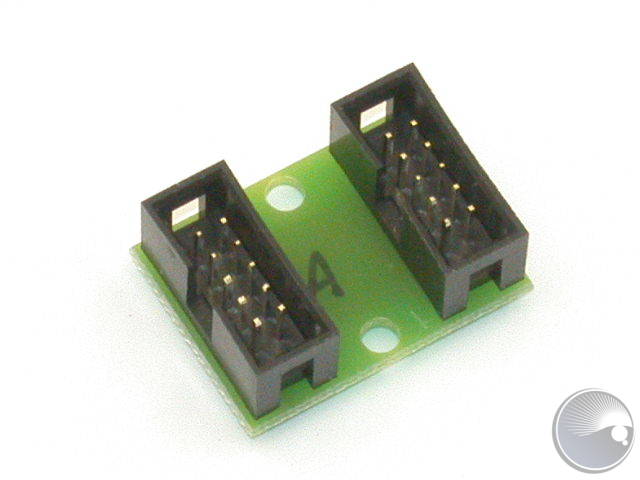

	62004607	Martin PCBA Conn. for display,mac250kr
	62004610	PCBA Connector 3x(1x4pol) mix

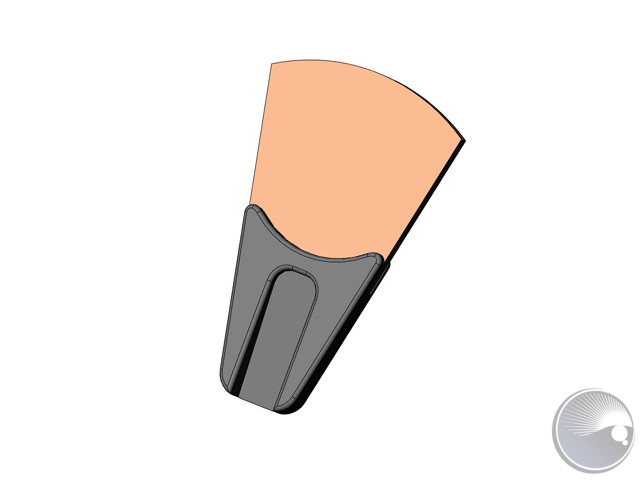

	62327050	Martin CTC5500 glued w.adaptor,M250Pr

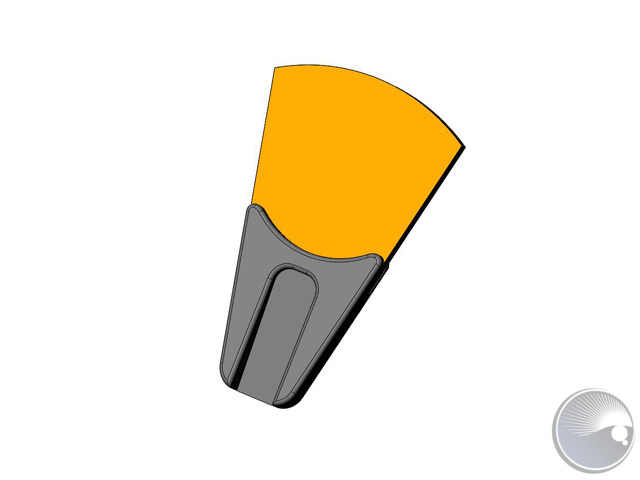

	62327051	Martin Yellow 603 glued w.adap,M250Pr

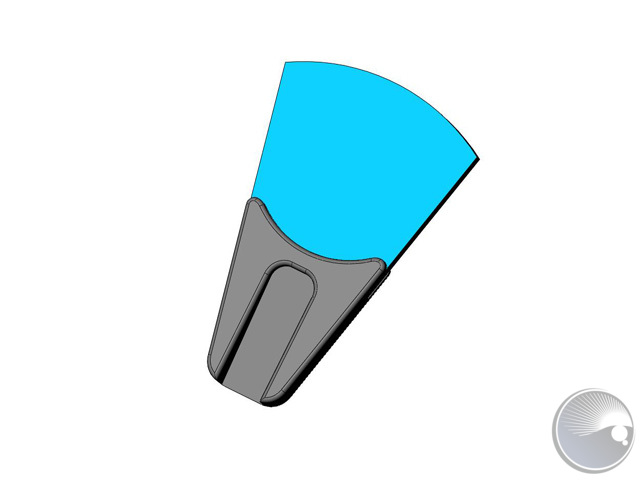

	62327052	Martin Blue 104 glued w.adap,M250Pr

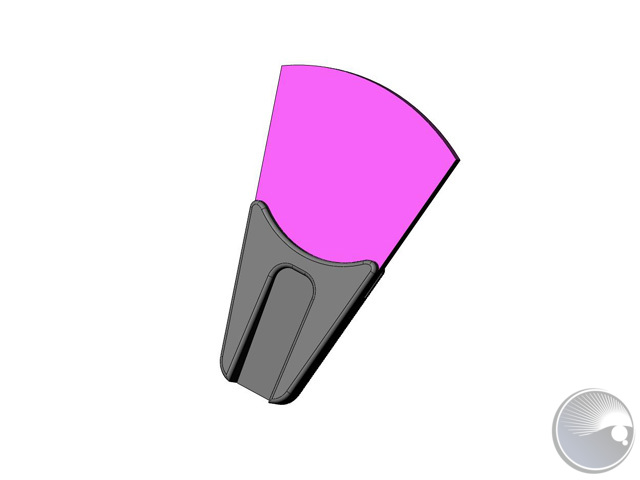

	62327053	Pink 312 glued w.adap,M250 Pro

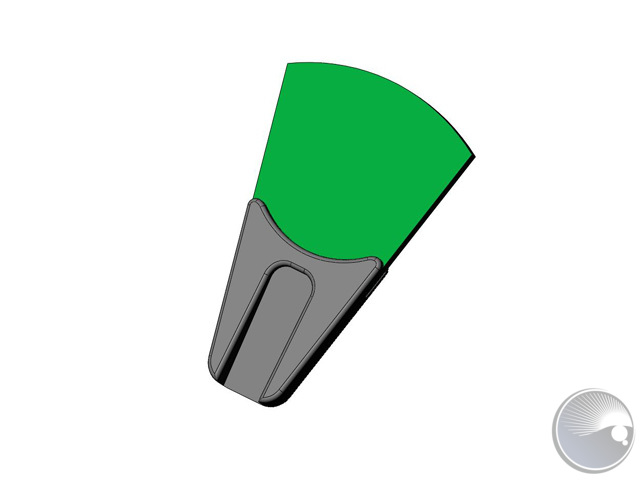

	62327054	Martin Green 206 glued w.adap,M250Pro

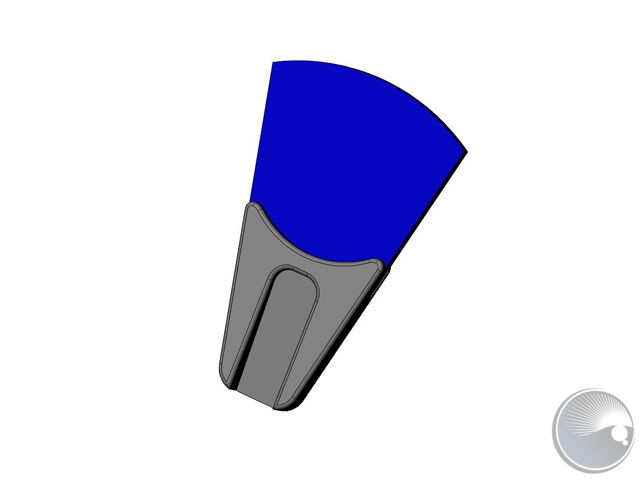

	62327055	Martin Blue 108 glued w.adap,M250Pro

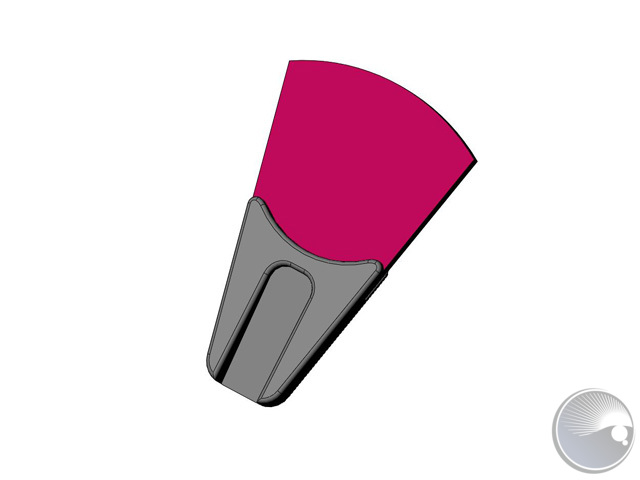

	62327056	Martin Red 301 glued w.adap,M250+

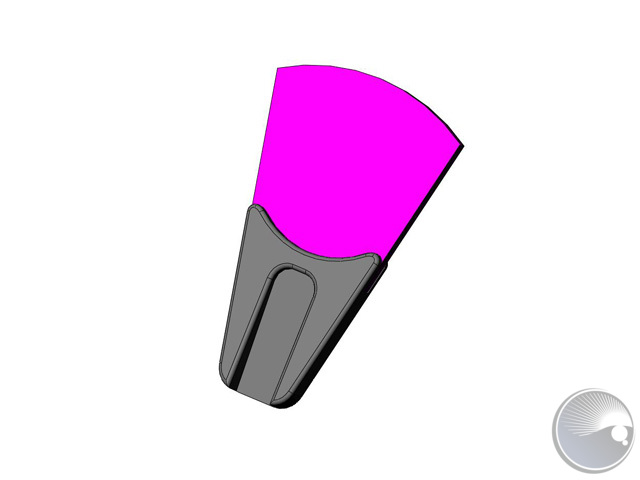

	62327057	Martin Magenta 507 glued w.adap,M250+
	62327058	Martin Blue 101 glued w.adap, M250+

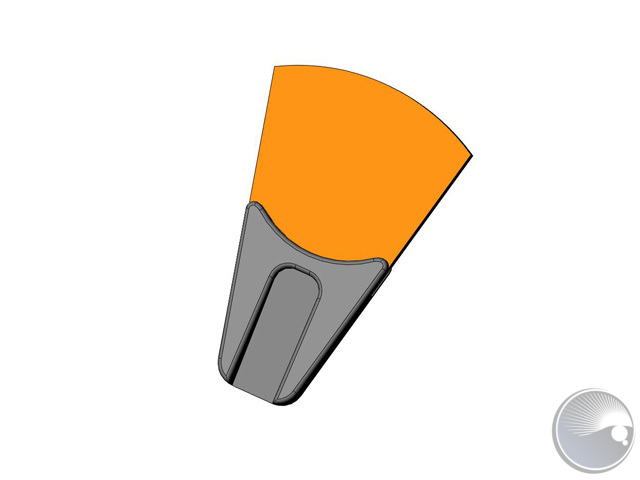

	62327059	Martin Orange 306 glued w.adap,M250+

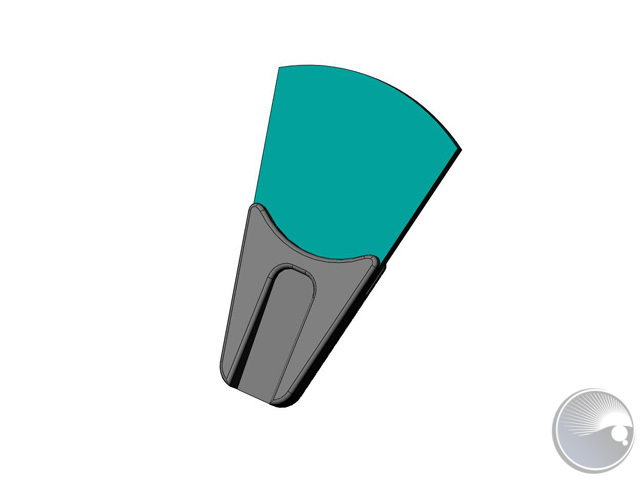

	62327060	Martin Green 202 glued w.adap,M250+

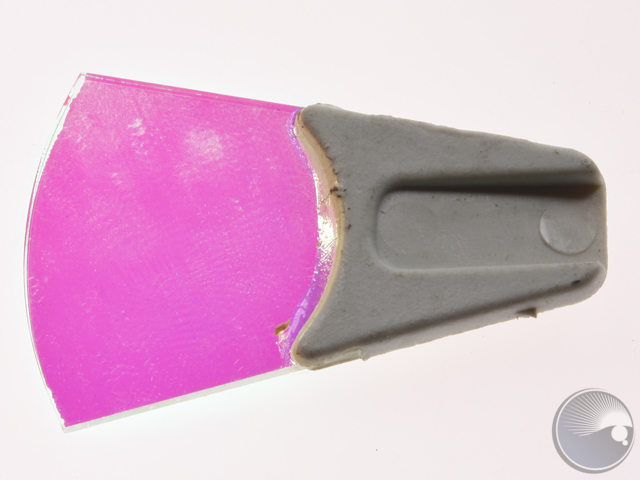

	62327061	Martin Purple 502 glued w.adap,M250+
	62400327	Martin Steelwire w/safety hook Mac550

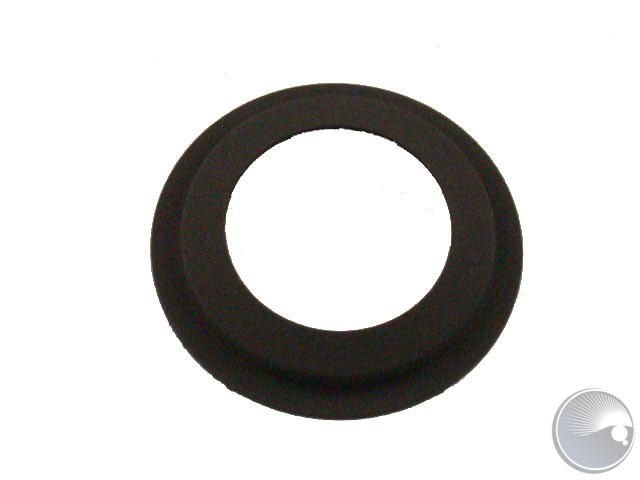

	62400341	Open gobo adapt HT paint
	91602008	Martin Omega-Adapter, T-Shape mit 2x Camlock, 107mm

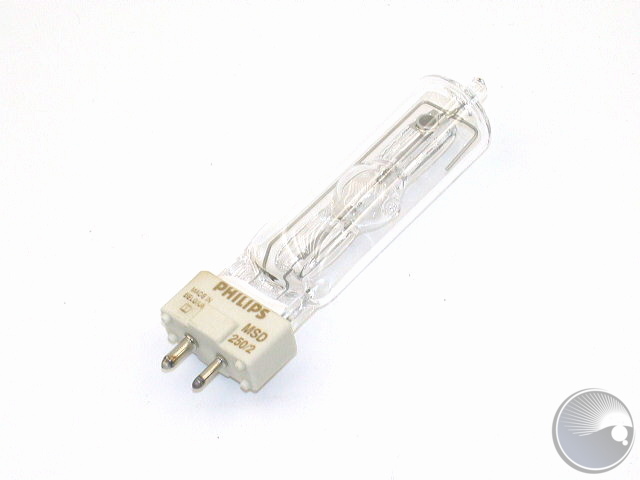

	97010114	Martin Sylvania BA 250/2 lamp
