Martin MAC 600 Ersatzteile

Auf Anfrage!

Artikel-Nr.: 90210000

The industry standard MAC 600 is a powerful wash light with a CMY color mixing system, 440°... mehr

Produktinformationen "Martin MAC 600 Ersatzteile"

The industry standard MAC 600 is a powerful wash light with a CMY color mixing system, 440° of pan and 306° of tilt and a fast and smooth movement.

Features

575 W discharge lamp
CMY color mixing system
4 position color wheel plus open
Frost and indexable beamshaper
Strobe effect up to 8 Hz, random strobe
18°, 25° (standard) and 65° lens options
Mechanical dimming
Pan and tilt range of 440°/306°
Modular design for easy maintenance and servicing
Quiet operation

Weiterführende Links zu "Martin MAC 600 Ersatzteile"

mehr

Zurück

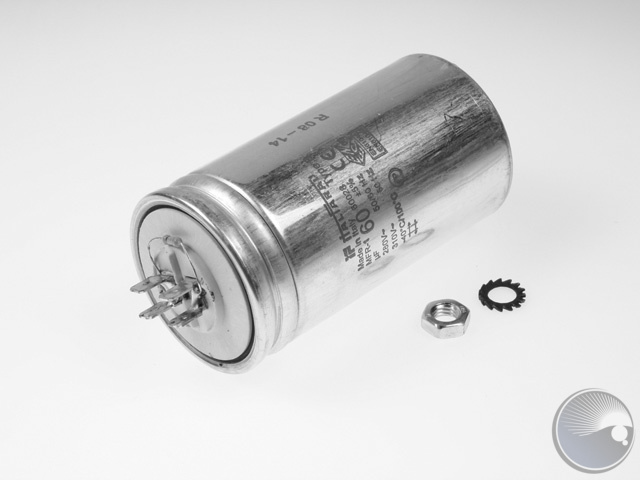

	04030088	Martin MFR-1/C 60 uF w. Terminals

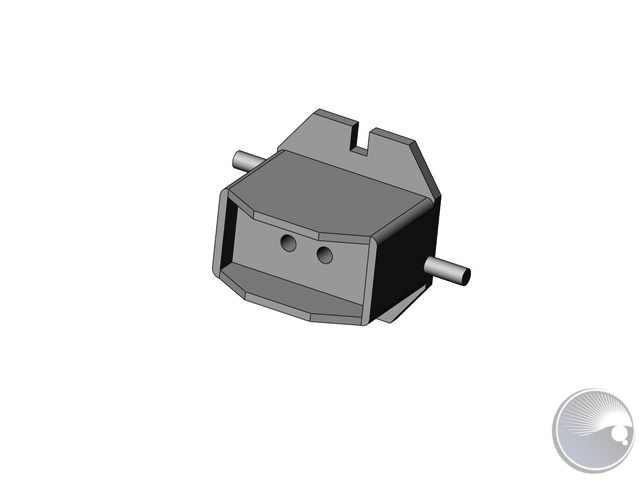

	05221201	Martin Socket MSR 575 GX 9,5 (High te
	05520503	Martin Microswitch 5A/250V no legs
	05701607	Martin Step motor 17PM-K105-04V Ø5/24
	05741801	Martin Fan 12V DC Brushless 80mm
	05749001	Martin Guard for fan 3

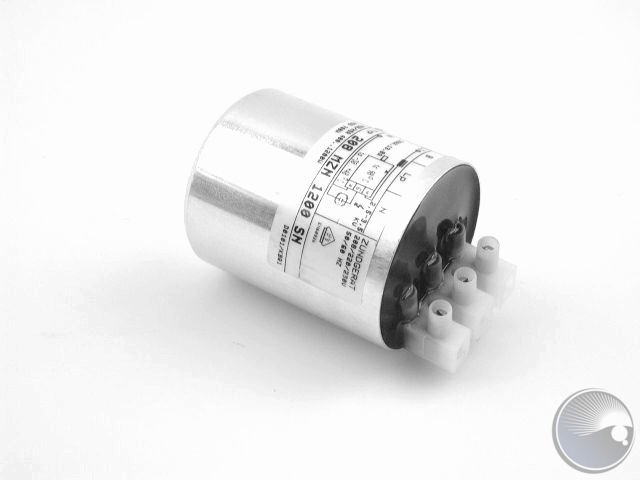

	06020020	Martin Starter MSR575/700/1200
	08050702	Martin M3x6 ph torx black
	08050803	Martin M3x8 cs torx black
	08053806	Martin M3x7 stand off m5/f3,5 black
	08070502	Martin M4x12 cs pz black
	08070503	Martin M4x20 cs pz black
	08070710	Martin M4x12 bh torx black
	08112701	Martin M6 nut lock PA shiny
	08114301	Martin M6 washer 6,4/12x1,6 black
	08190504	Martin ST5.5x19 torx/hex black
	08200102	Martin PT 2,9x6,5 ph torx black
	08200107	Martin PT 5x12 ph pz black
	08240113	Martin 1/4 turn fastener, wingbolt
	11040516	Wire yellow/green 1x0,75# 20cm
	11040533	Martin Wire yellow/green 1x0,75# 25cm

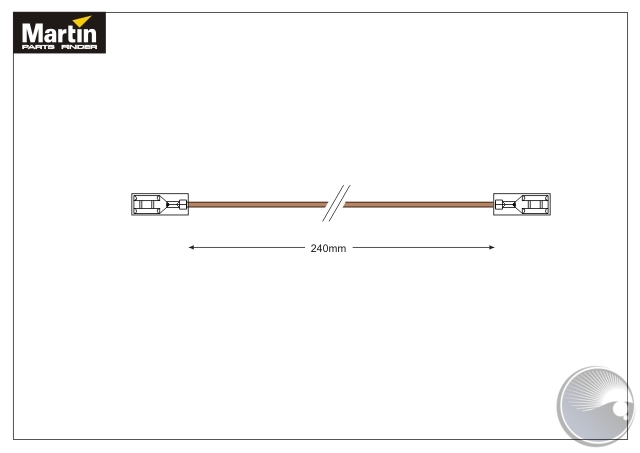

	11041028	Wire brown 1x0,75# 27cm
	11041030	Wire brown 1x0,75# 11cm

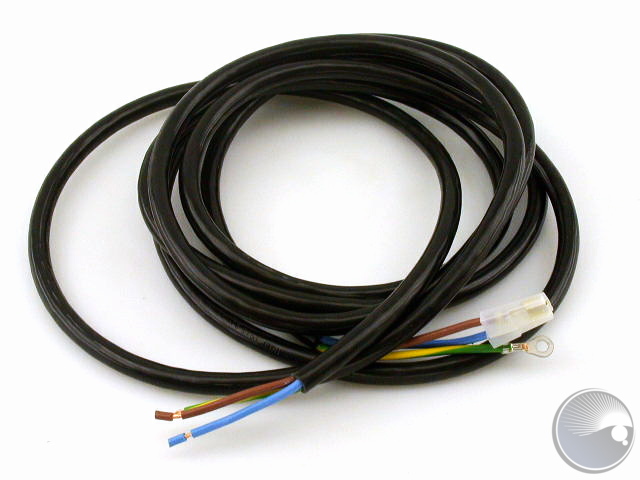

	11521004	Mains cable 3x1,5#(Univ) 300cm
	11700017	Wireset 4x0.22# Screen,350mm

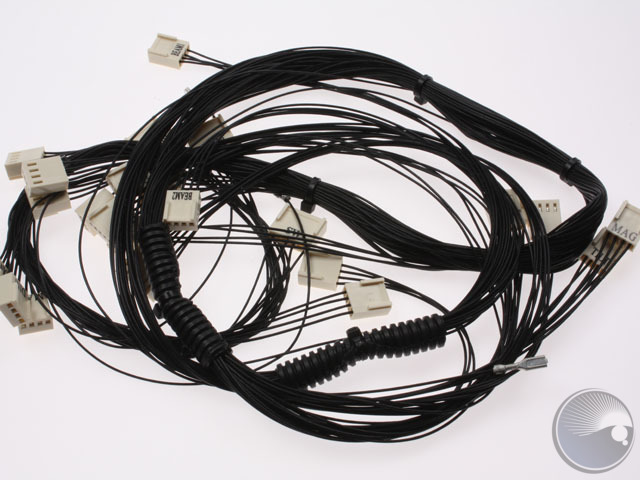

	11860059	Wireset, PCB - arm, MAC 600

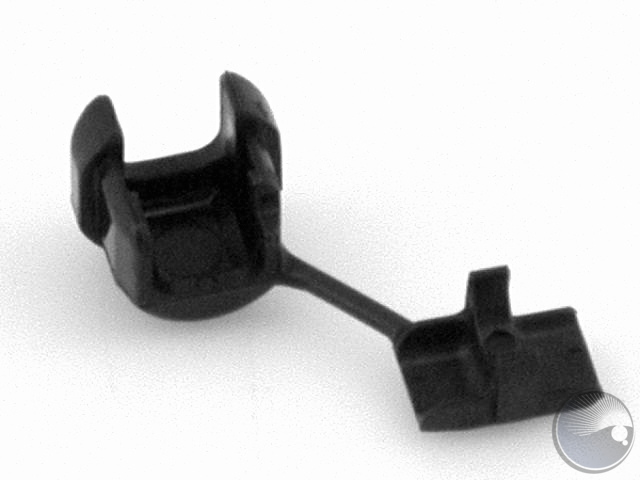

	13101005	Heyco Nylon Cable Clamp
	13104000	Martin Strap,black,high temp,2.5x98
	13104003	Martin Strap, black, 3.6x140mm
	13200007	Martin Rubber grommet DA 60/90/20
	14002412	Myoflex PVS,0.35mm,0.91x50m ro

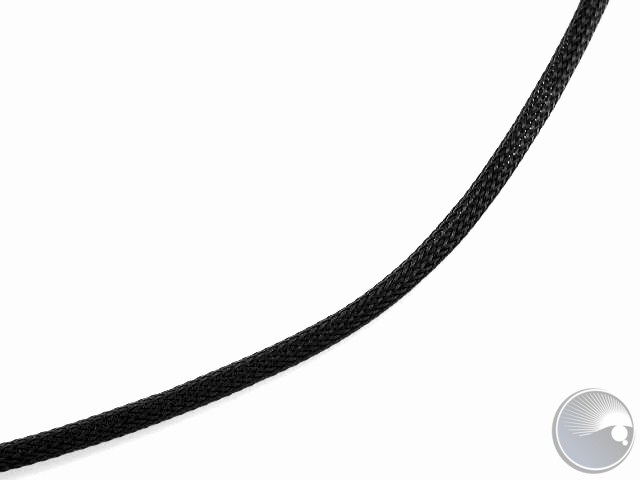

	15800000	Martin Sleeve flexible ,hose 5mm, bl
	15802003	Martin Silicon/glas sleeve d=7mm ,Bl
	16000060	Martin Timing wheel S3M-16 w6 ø6,35
	16000130	Timing wheel MXL z=40 f. sleev
	16000140	Martin Timing wheel MXL 20 w5 ø57
	16000500	Martin Timingwheel S3M-134 w8
	16040050	Martin Timing belt 40 S3M 486
	16060070	Martin Timing belt 118 MXL 4,0 red

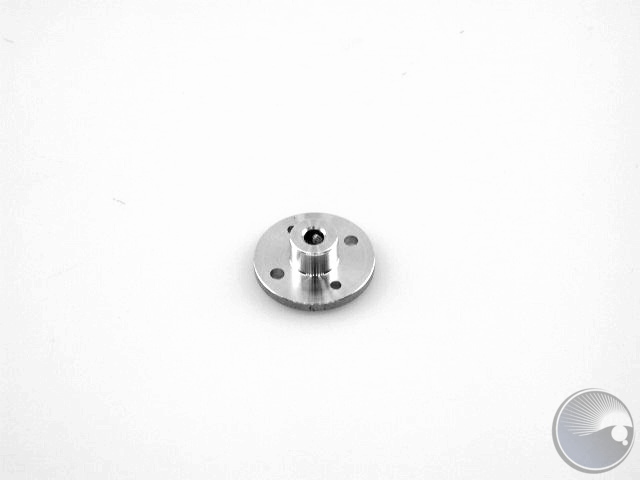

	16300131	Adaptor w. 5mm hole
	16700022	Martin Sliding bearing d=6, Special

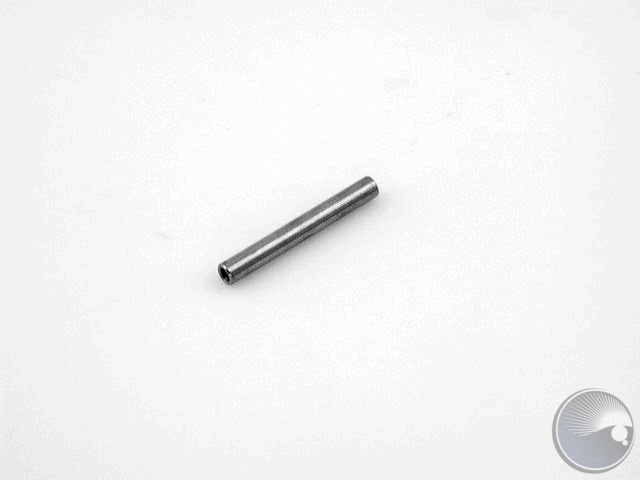

	16720110	Shaft for bearing, MAC600
	16760090	Martin Bearing 25/47x12 6005-ZZN

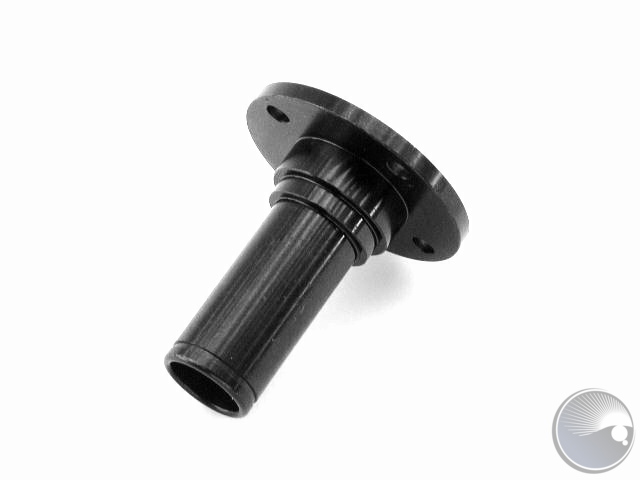

	16900060	Shaft for pan M600

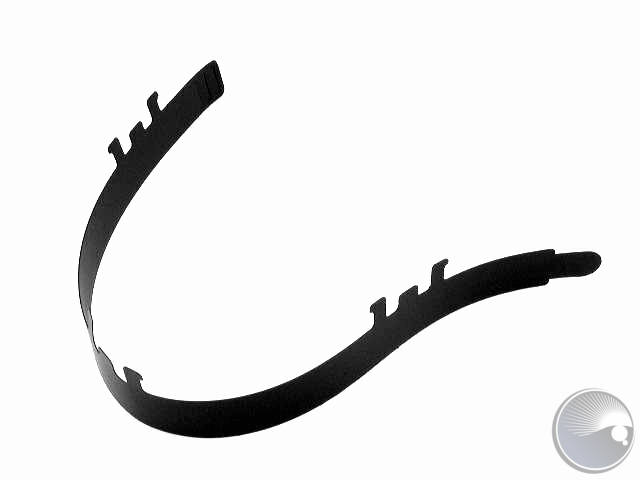

	17100010	Sidelight protector for MAC600

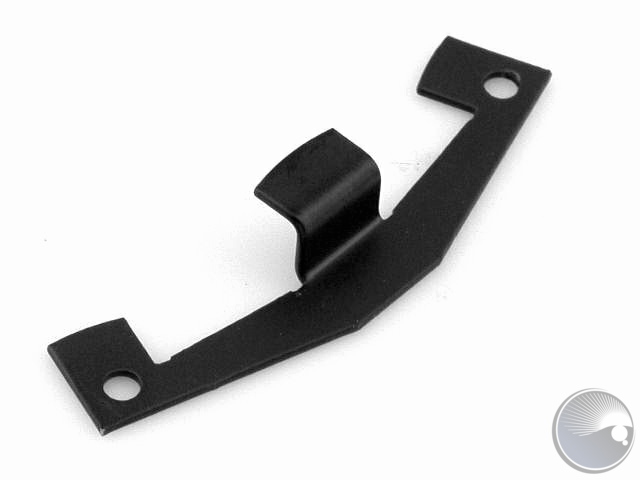

	17200270	Lens holder, front, MAC600, pa

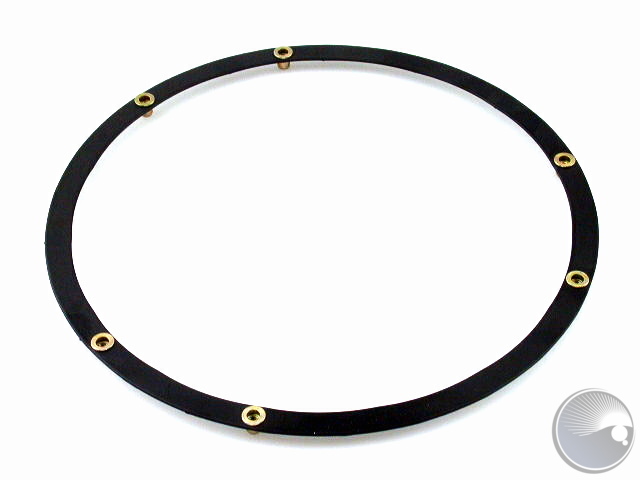

	17200480	Ring, front, MAC600, after-tre
	17720010	Compression spring D6/d0,6x8

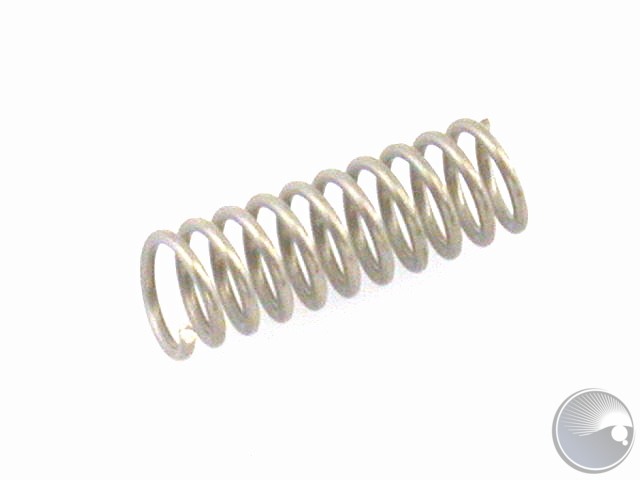

	17720050	Martin Compression spring D8,4/d1,0x25

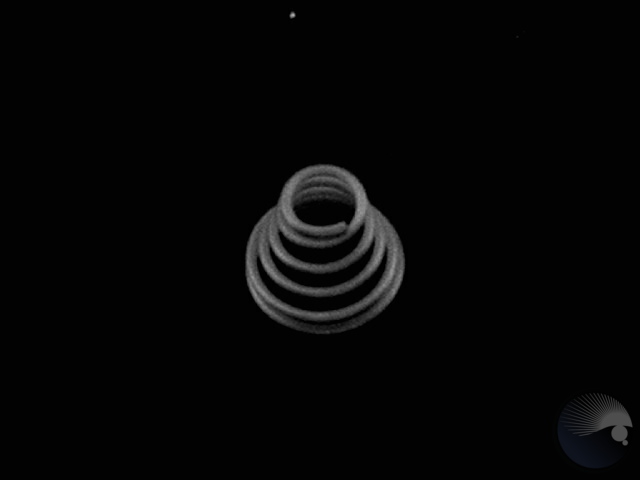

	17720110	Conical spring 6 mm
	17740020	Martin Tension spring D10/d1x25
	17740080	Martin Tension spring D10,4/d1,2x27
	17780030	Martin Spring, base, MAC600, drilled

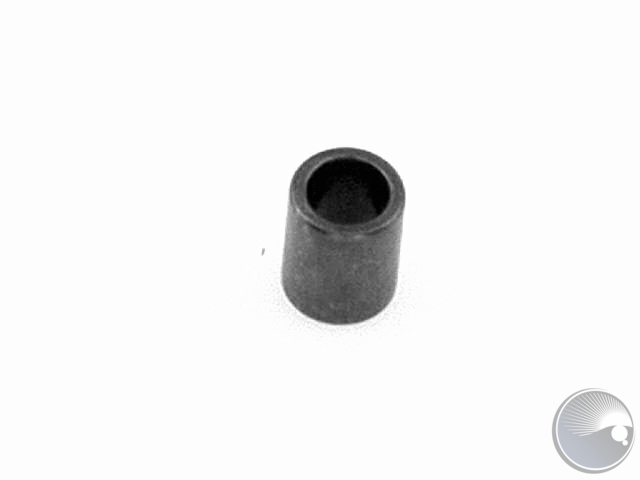

	17800170	spacer
	17800270	Spacer
	17820010	Tefl.spacer, mek.sec. ,MAC600,
	17820070	Washer f. quarter turn, base,

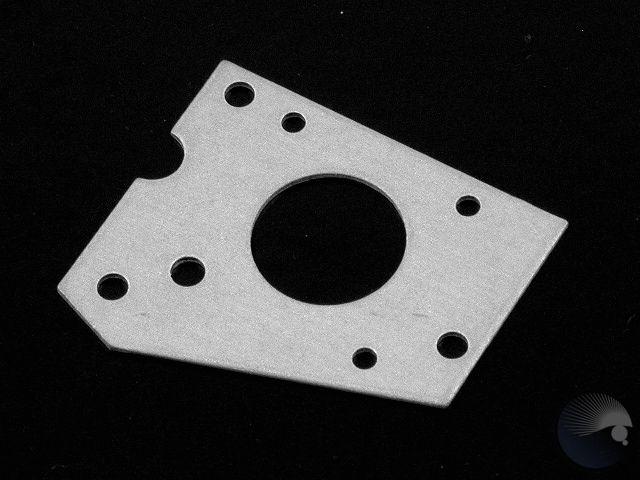

	17820080	Spacer pl, mek.sec. ,MAC600, d

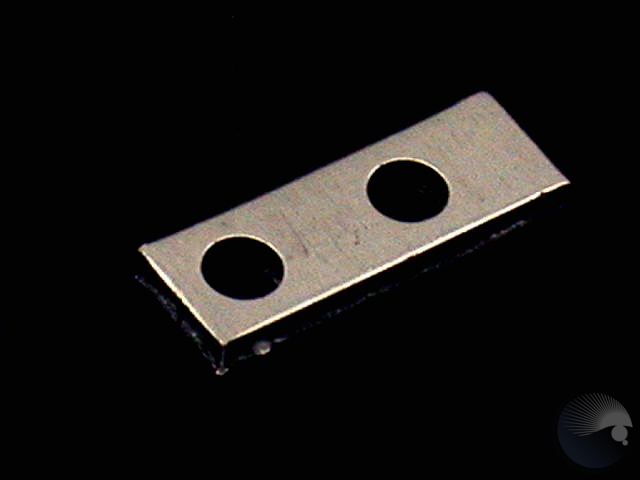

	17820170	Spacer, PCB fixture M500/600

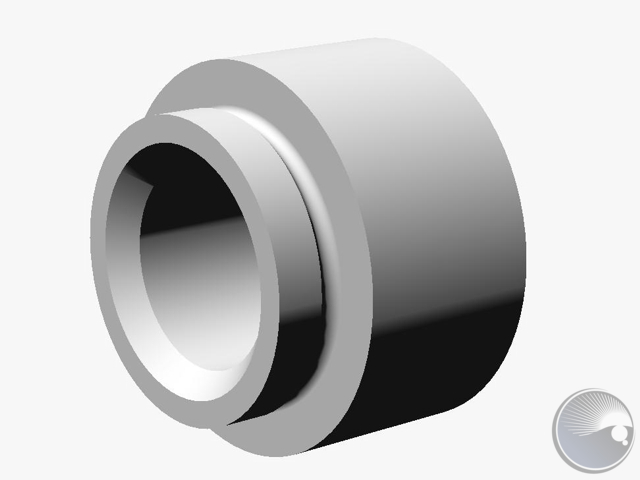

	17820300	Spacer , mek. sec. MAC600

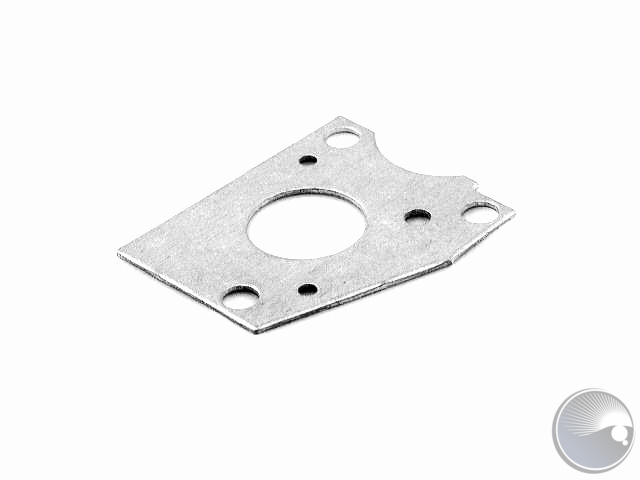

	17820310	Spacer plate
	18000450	Martin Silicone stop ø5-Ø9-L10
	18020200	Mechanical stop, base, MAC600,

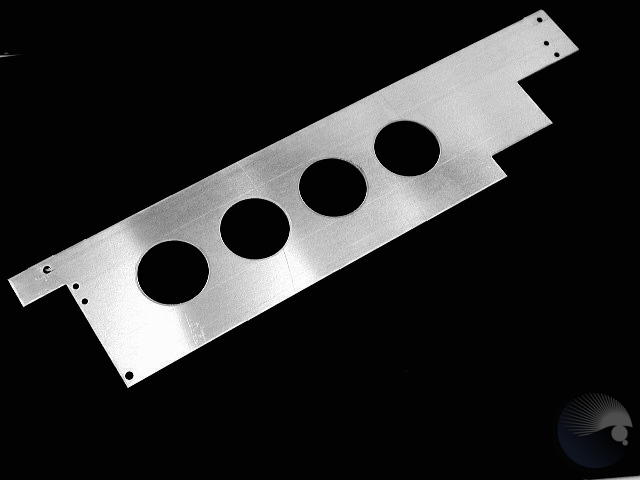

	18200070	PCB plate A, base, MAC600, ben

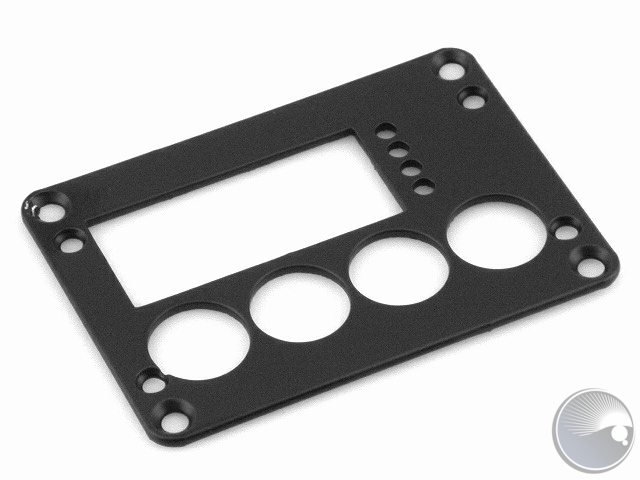

	18240050	Plate for display/keyboard uni

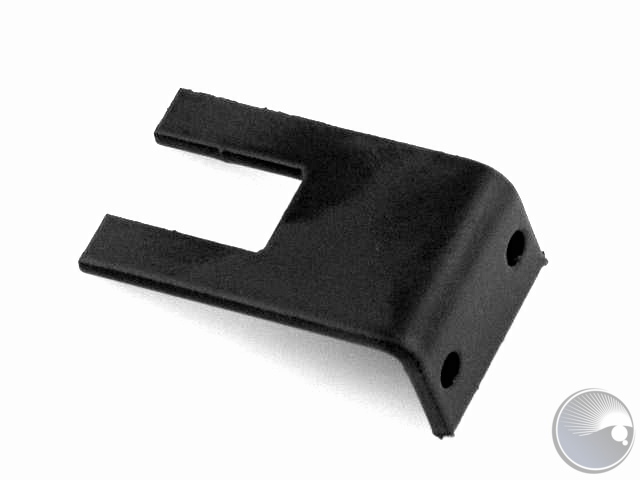

	18260190	plate for starter,ImageScan,pa

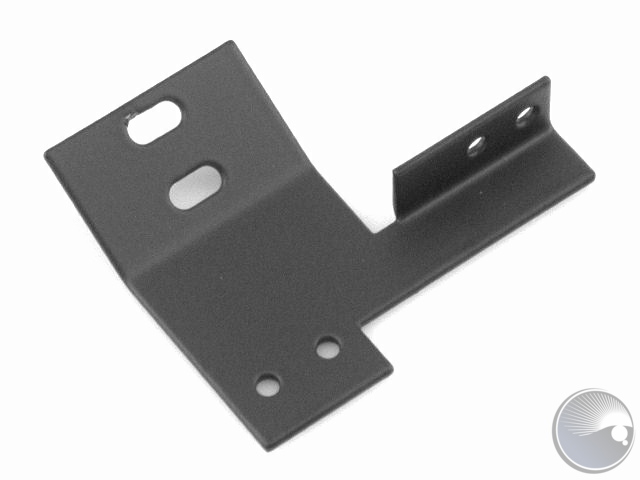

	18300020	Plate for switch, base, MAC600

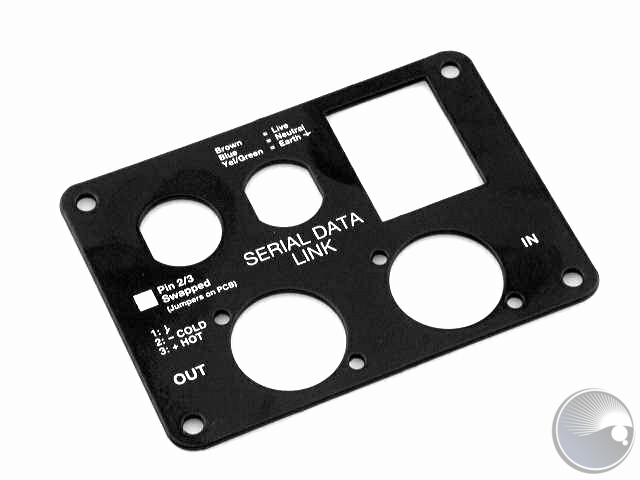

	18360020	Plate for I/O, base, MAC 500/6
	18400030	Martin Opto encoder wheel
	18400040	Martin Adaptor for codewheel, base

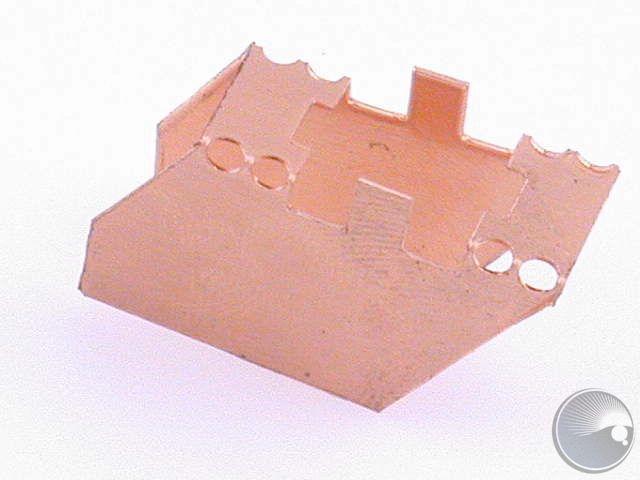

	18820010	Heatsink, 22pin Microstepdrive

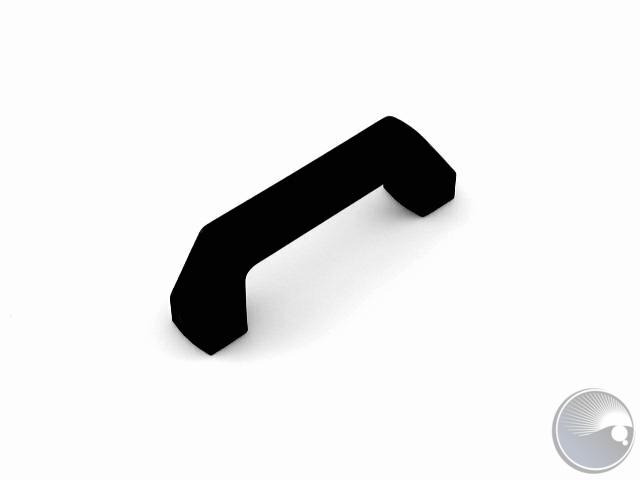

	19200030	Martin 115mm Handle black

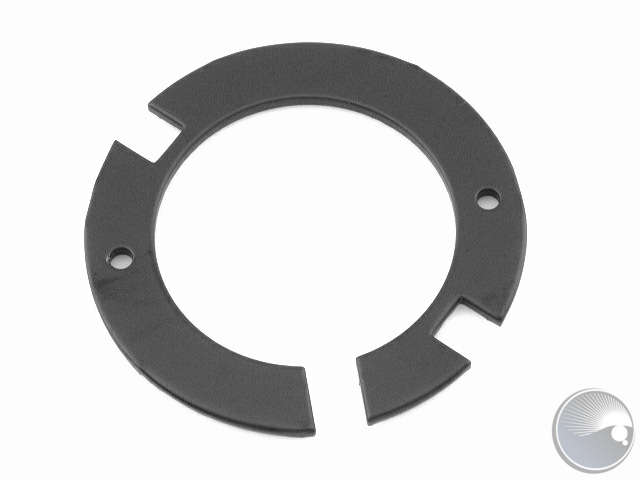

	19600100	Counterweight pl. Mac600 NT

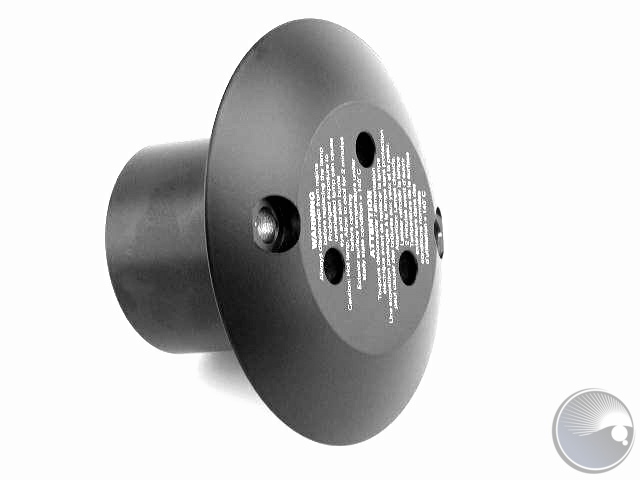

	20200050	Radiator core, SocketCool sec.

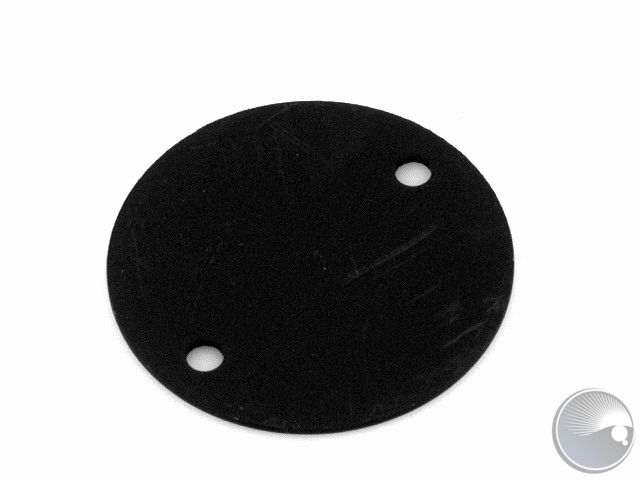

	20200180	Plate for lampadjusting, cool.

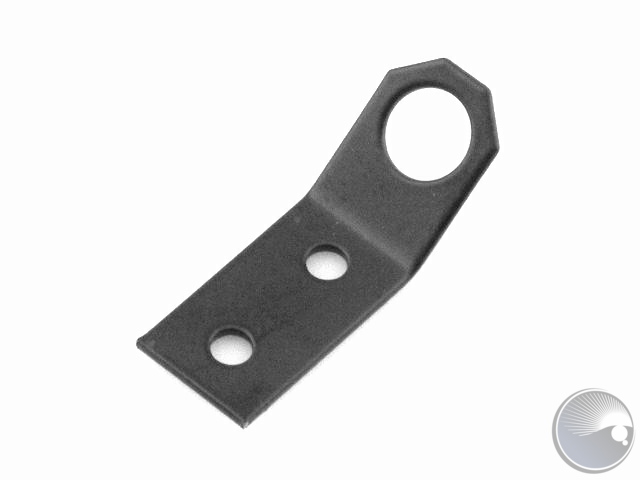

	21040010	Pl.,for sec.-wire,head,MAC 600

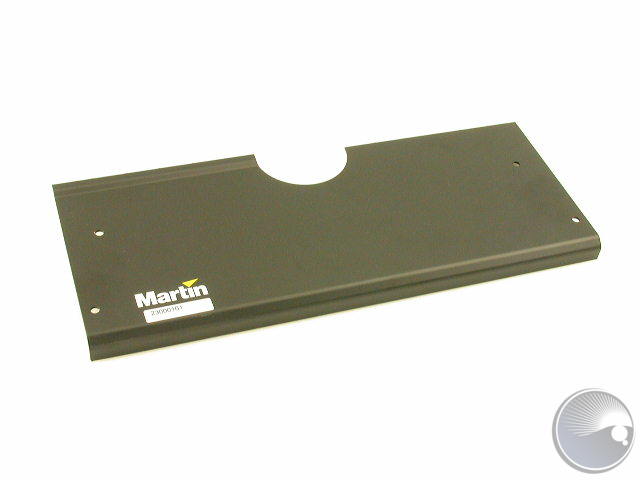

	23000161	Topcover,base,MAC600,seriegr.

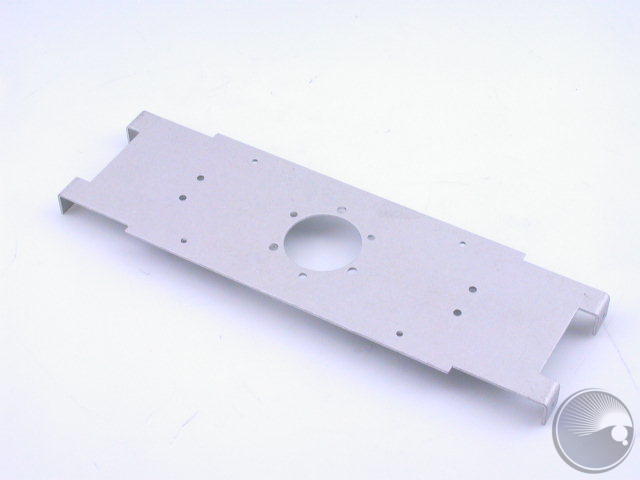

	23000950	Top pl.A,Pan, MAC500/600

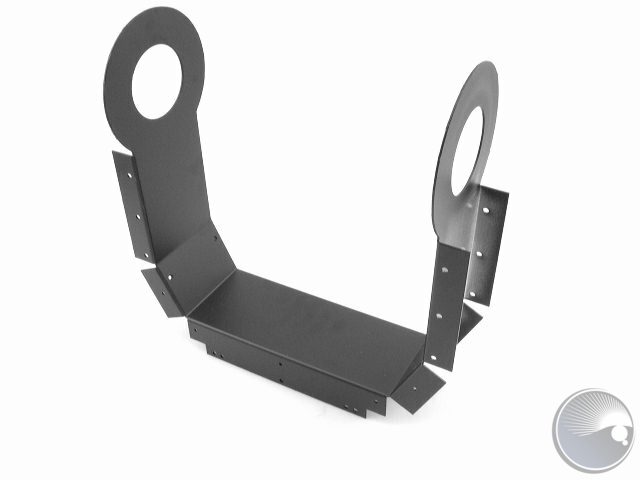

	23001180	Plate f. arm MAC600+500

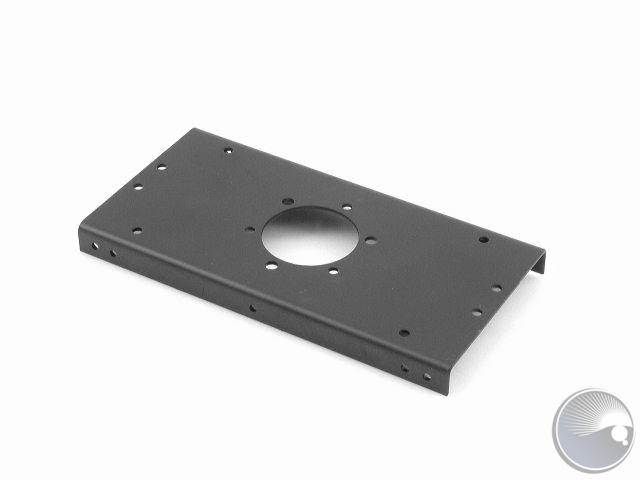

	23001200	Top pl.B,Pan,MAC500/600

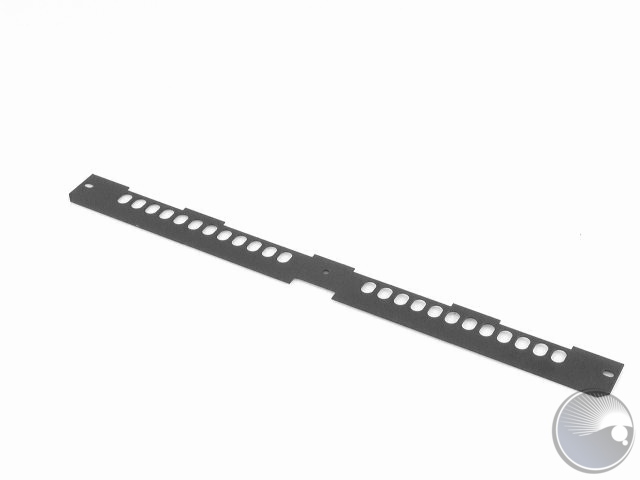

	23001250	Side pl.,Head,MAC600,painted

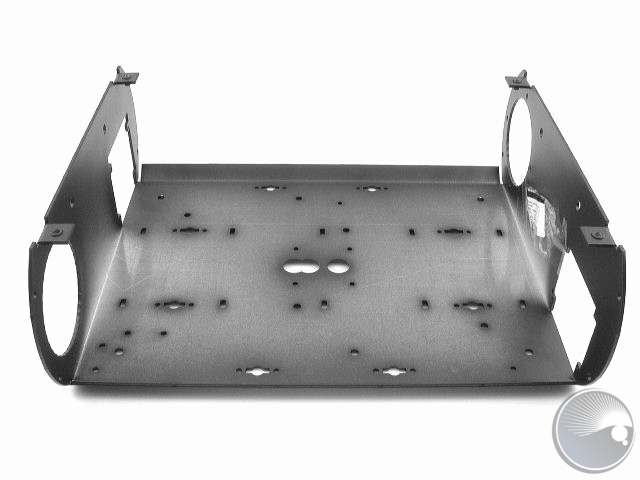

	23002100	Basechassis, MAC600

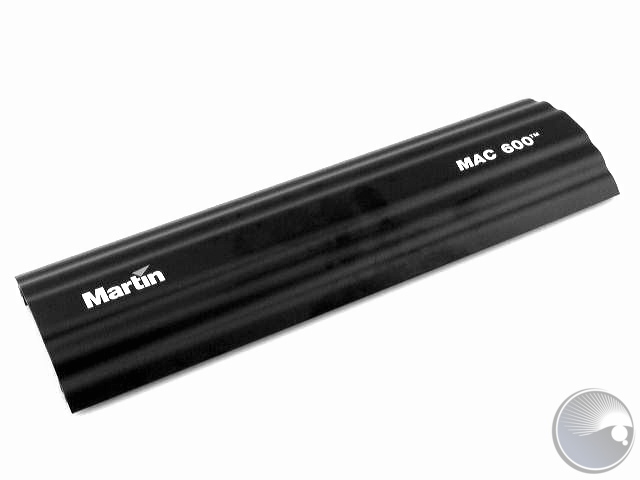

	23200410	Alu-prof,MAC600,black,serigr.

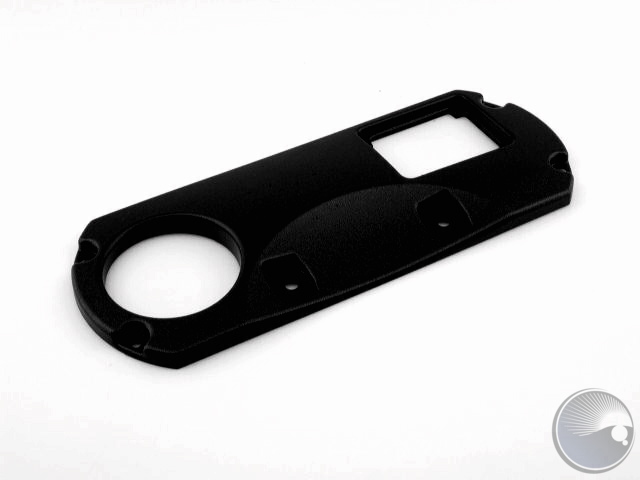

	23400110	PlasticCover for Base,M500/600

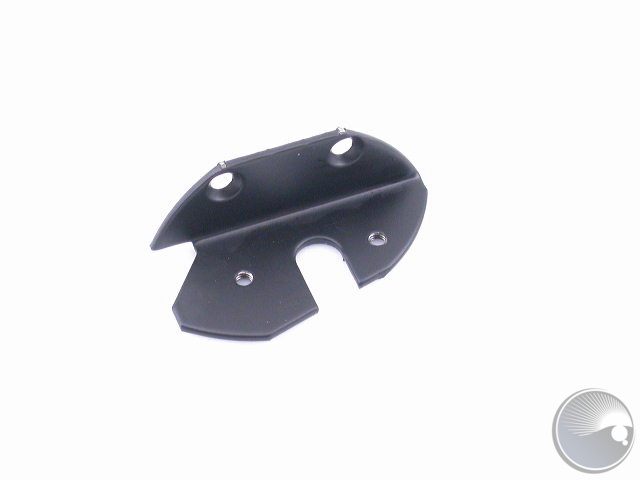

	23800140	Plate A,Casing for tilt,Mac600

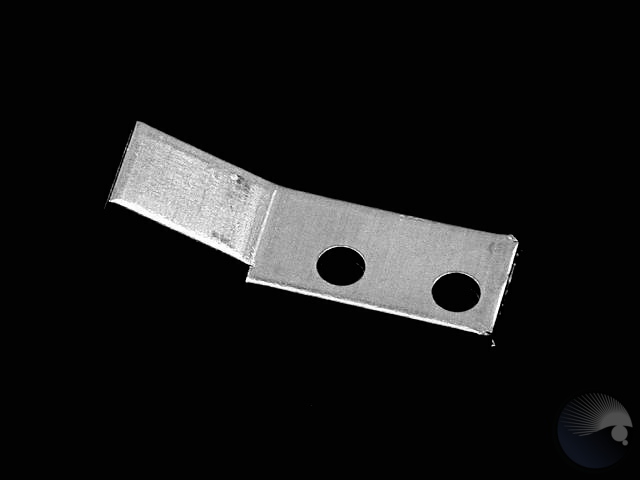

	23800350	Steer plate A, base, MAC600,

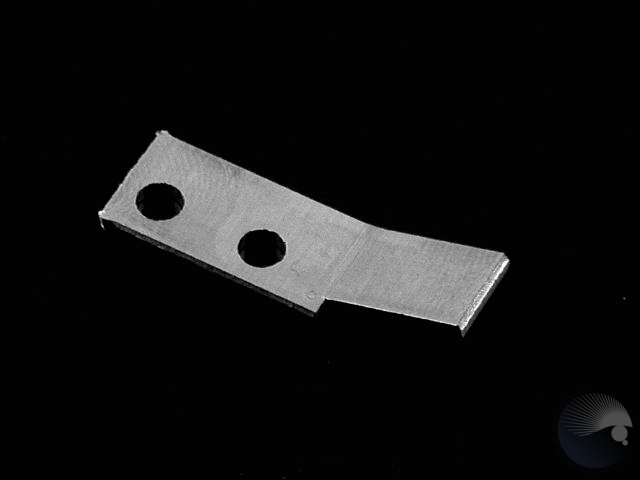

	23800360	Steer plate B, base, MAC600,

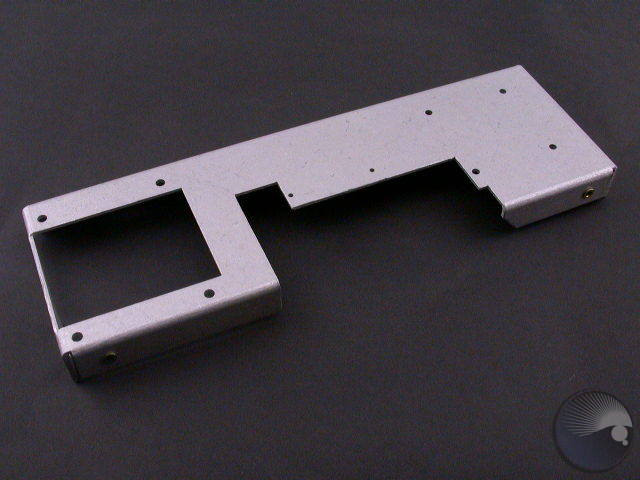

	23800630	Trafo plate B, base, MAC600,

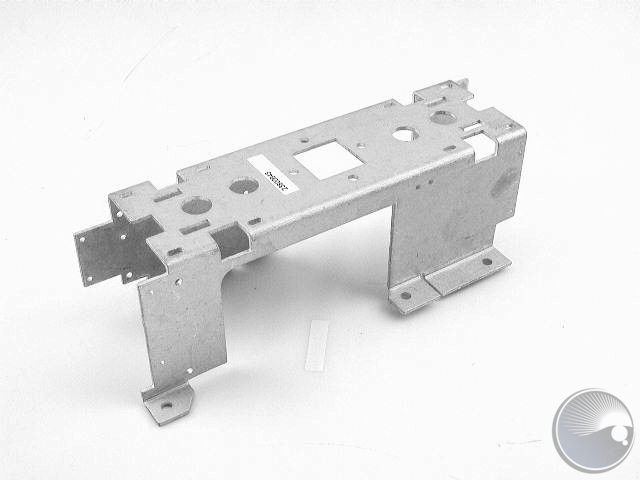

	23800643	Pan module pl. base, MAC600 NT

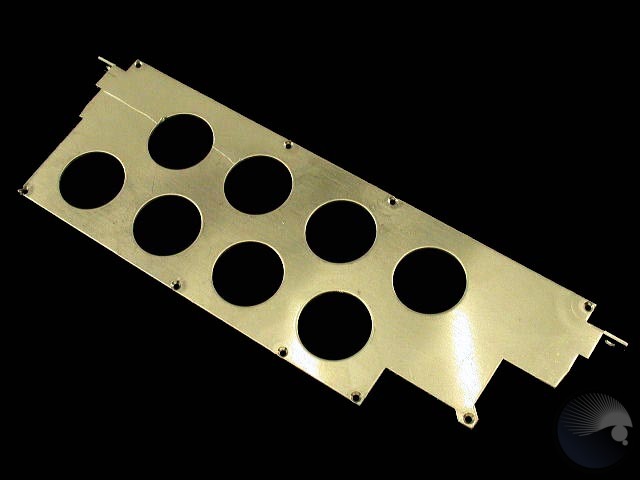

	23800680	PCB plate B, base, MAC600,

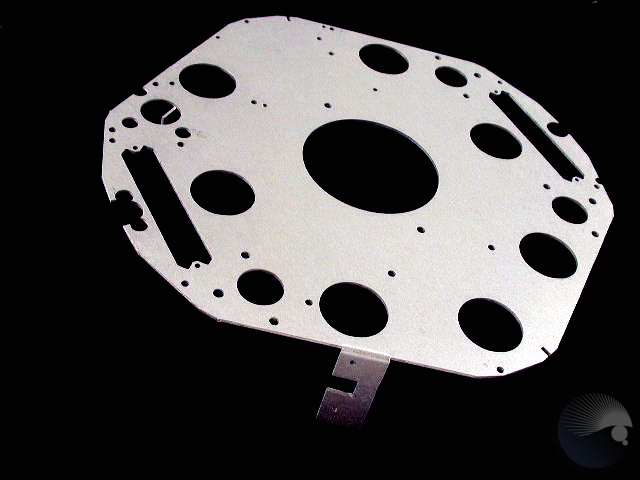

	23800691	Pl. f. motor

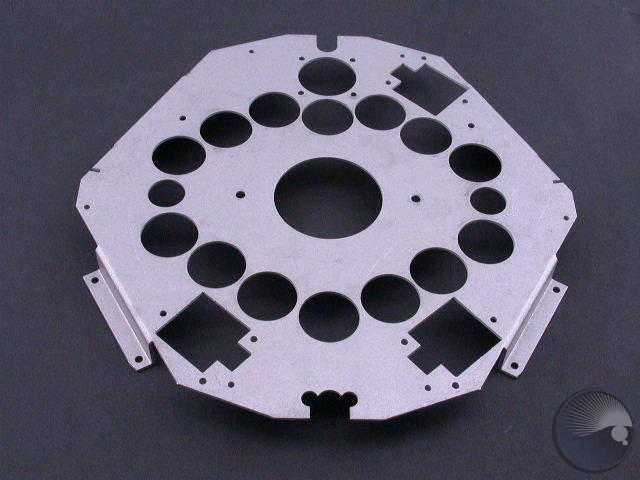

	23800700	Pl.f. fixture, mek.sec.,MAC600

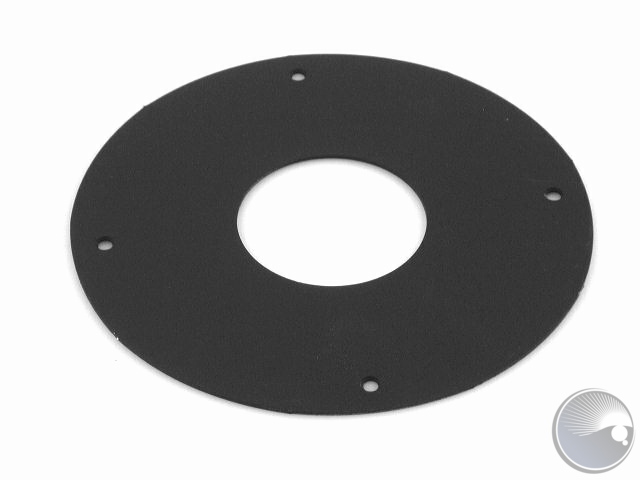

	23800830	Light stain, Head ,MAC600,

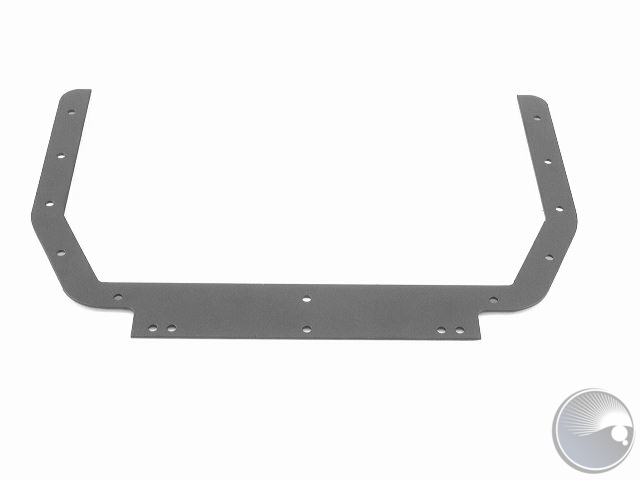

	23801350	Stiffening for arm, MAC600,

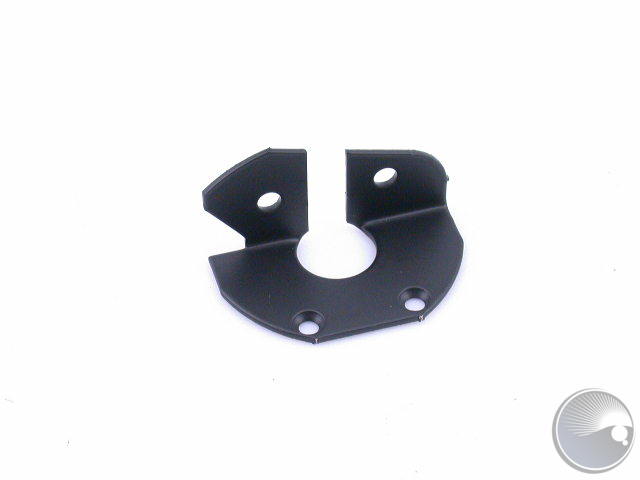

	23801370	Plate B,Casing for tilt,MAC600

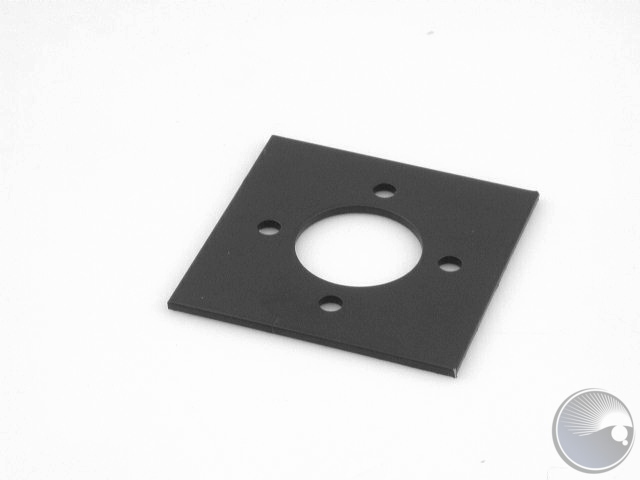

	23801390	Stiffening f.motorpl.base,M600
	23803510	Spacer f.gearwheel,base,MAC600

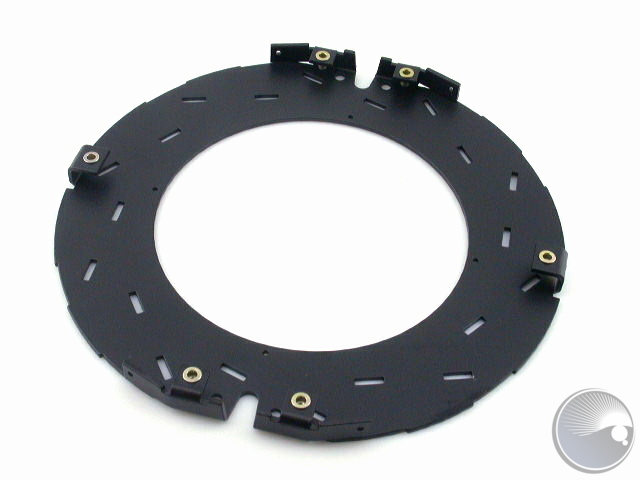

	23803560	Front w.suspension,cool.sec,M6

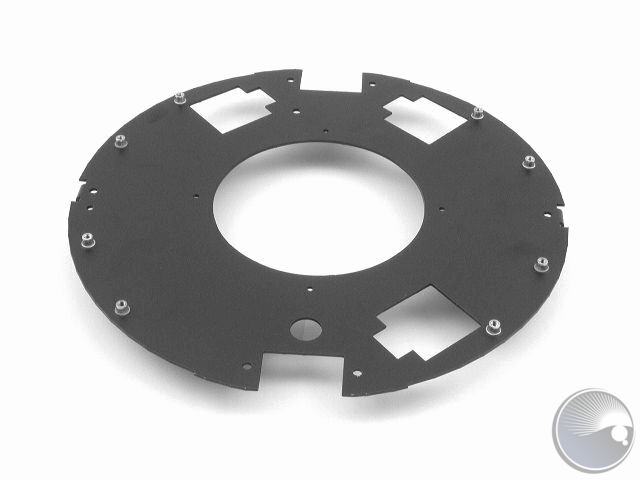

	23803580	Mecanical pl., Head ,MAC600,

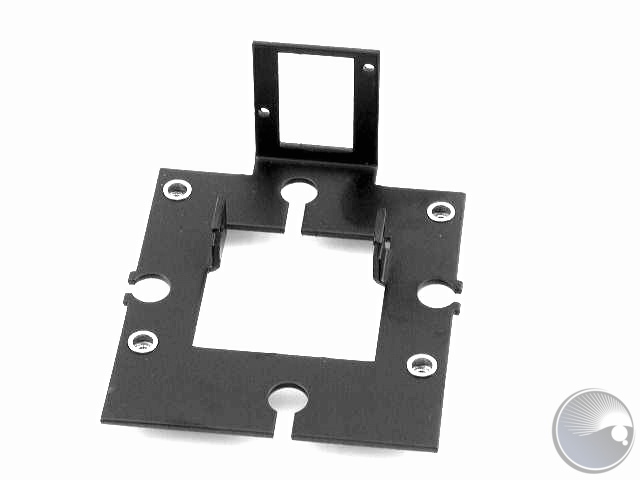

	23804951	Motor plate f. taco, pan mod.

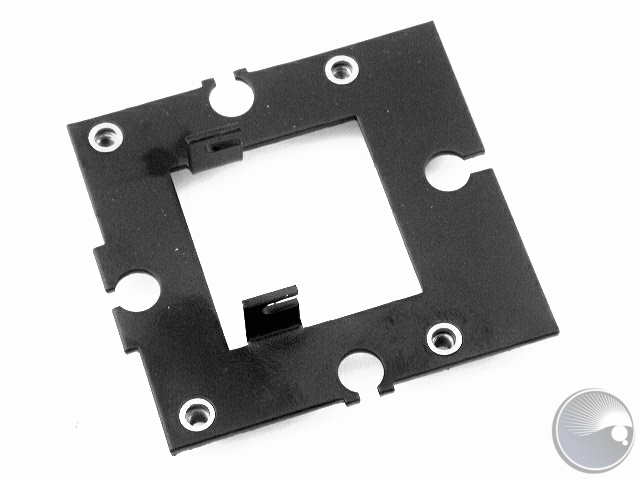

	23804961	Motor plate, pan module

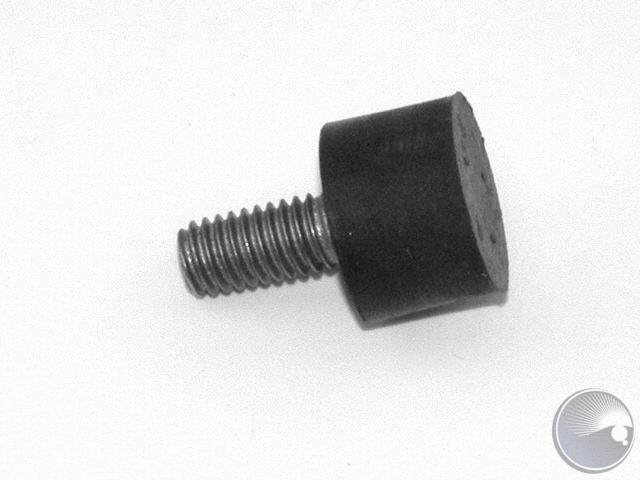

	32022501	Rubber foot M6

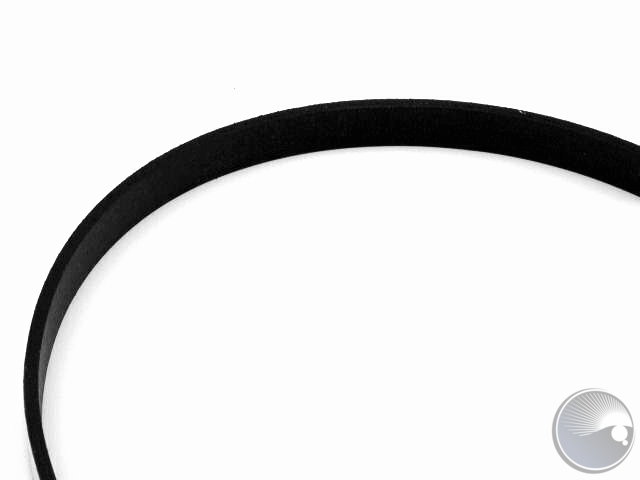

	32023003	Neophrene tape w = 14mm, 70 s

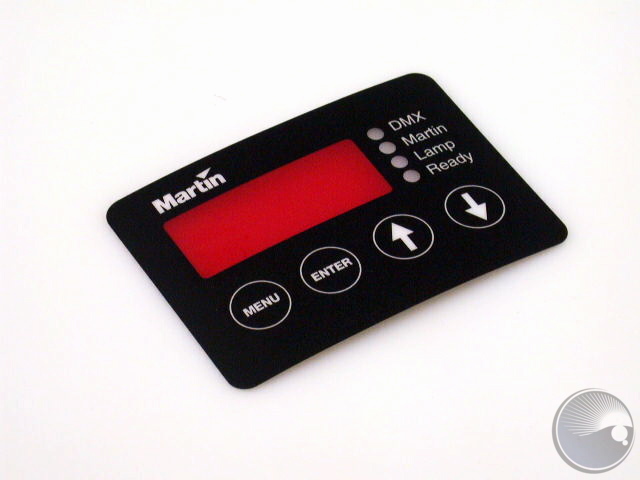

	33001001	MAC 500/600, Keyboard Overlay

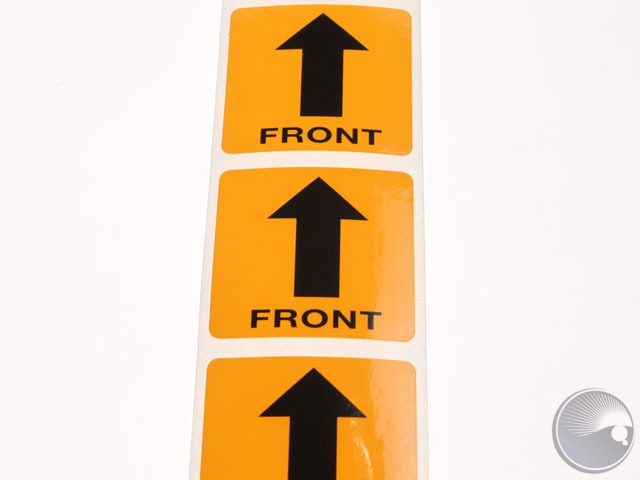

	33190009	Label Front
	33190082	Martin WEEE label, black
	33300501	Felt pad for mek. stop
	34240008	Martin Plast bag 600/250x1200x0.
	34240018	Plasticbag 250x360x40x0,04mm
	37001001	Martin Loctite 5368 black 310ml
	37001201	Martin Loctite 5927 red silicone high temp (SAL
	37021002	Loctite 243 10ml
	37302008	Martin Molykote D, Grease
	41002067	Martin D=130 F=80 Cold Light Ref Ø34
	41204010	Martin Fresnel borosilica D=200 f=140

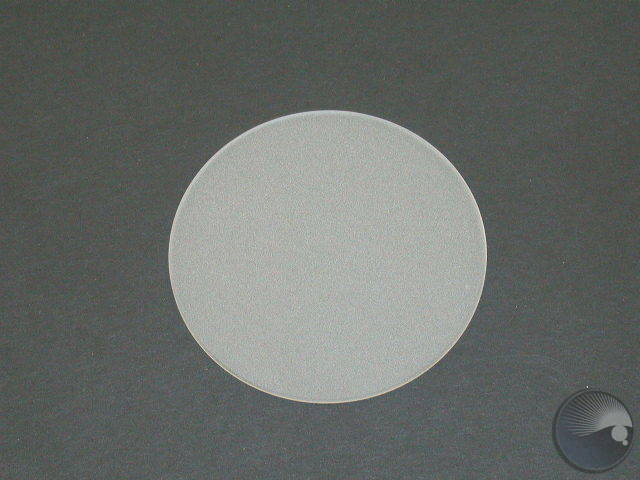

	41600004	D=60, 1.75mm Frosted borosilic

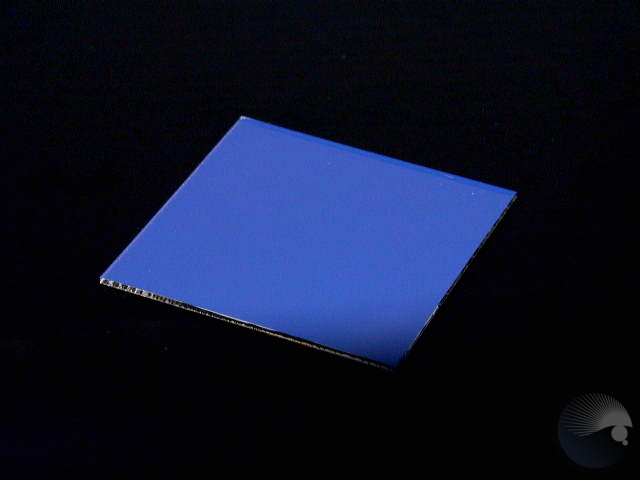

	46402201	CTC 5500-3400K 45x45
	46402202	Red 301 45x45

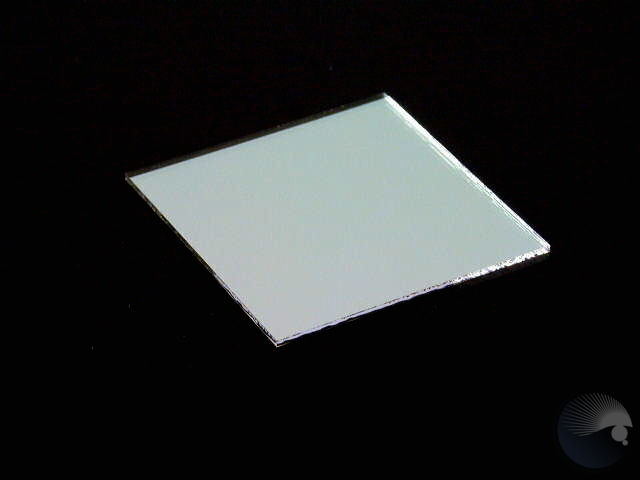

	46402203	Green 206 45x45

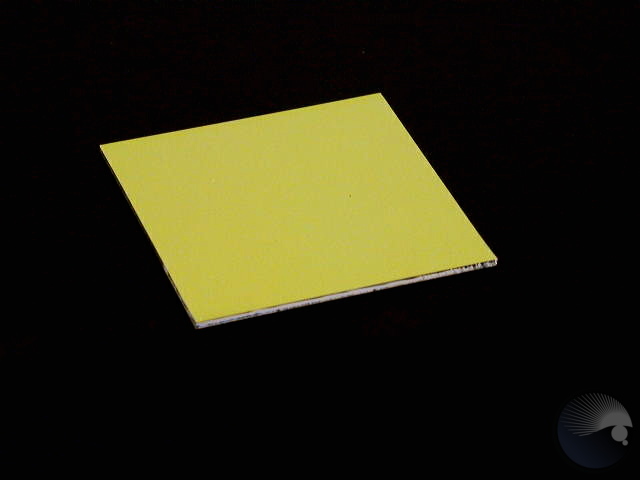

	46402204	Blue 101 45x45

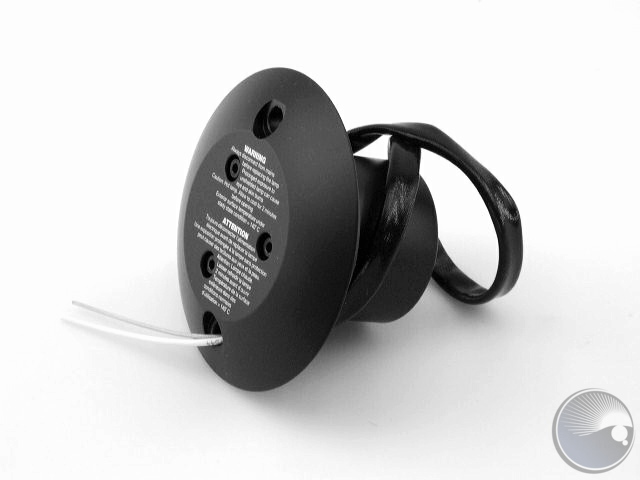

	55210002	Lamp socket module MAC 600

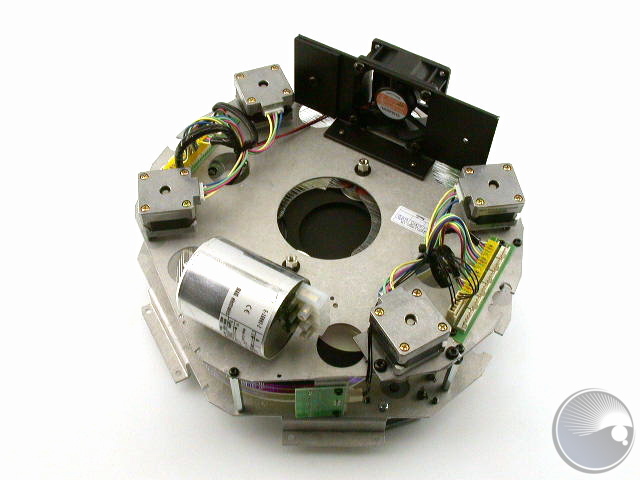

	55210004	CMY/dimmer/color/effect MAC 600

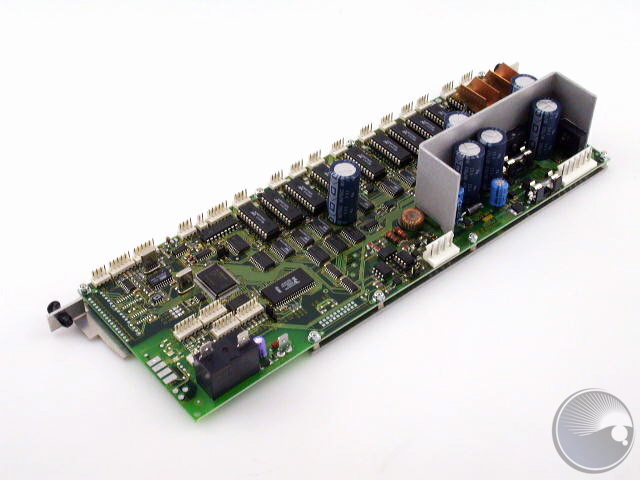

	55210006	PCB motherboard module MAC 600

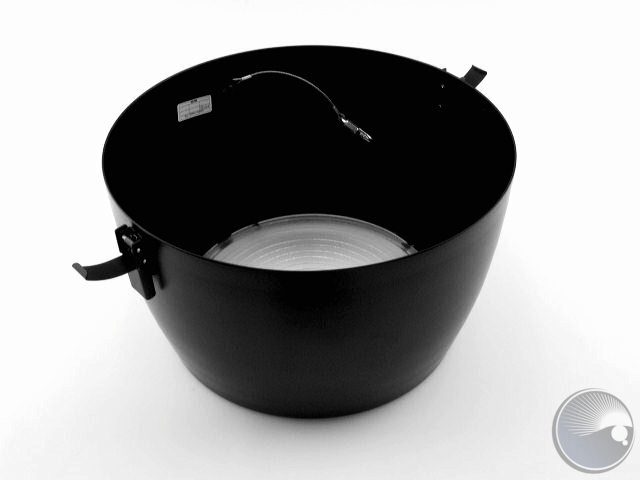

	55210052	Front glued with sec MAC 600

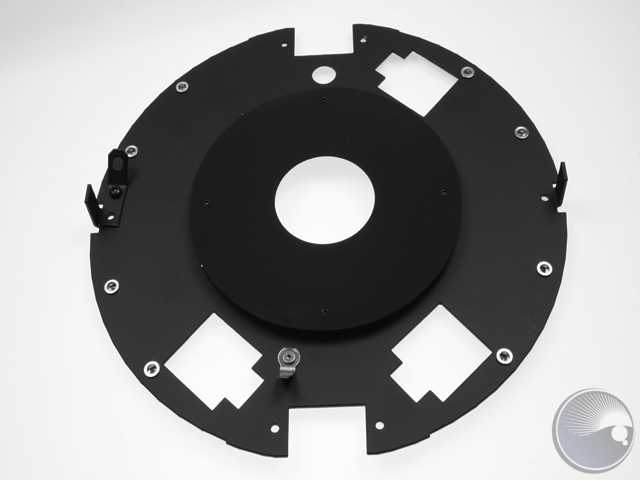

	55210071	Mechanical pl head MAC 600

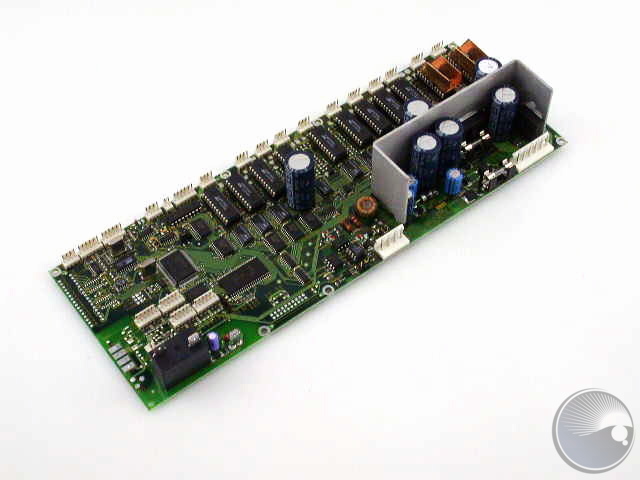

	62000022	PCBA Mainboard MAC 600
	62000502	Martin PCBA M250/500/600/2k disp/keyb.

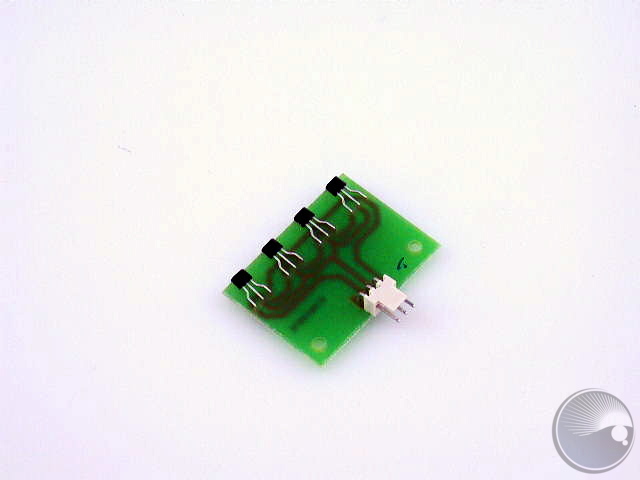

	62003006	PCBA Hall sensors MAC600 , moun
	62003008	Martin PCBA Duo Opticcal sensor 5mm ga
	62003015	Martin PCBA Duo Opticcal sensor 5mm ga

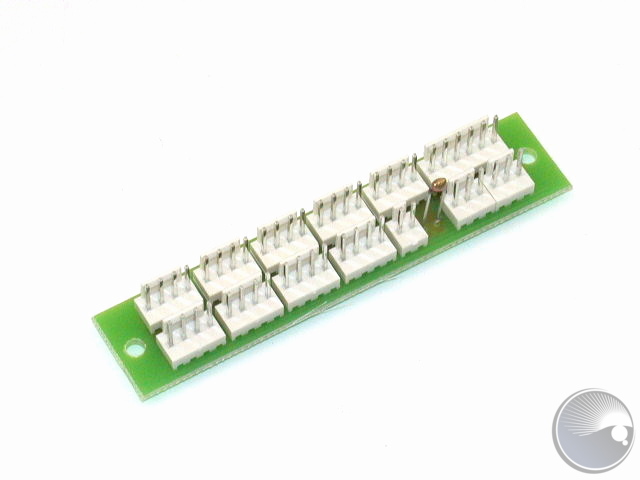

	62004511	PCBA Connector 9x4pol + 2x6pol

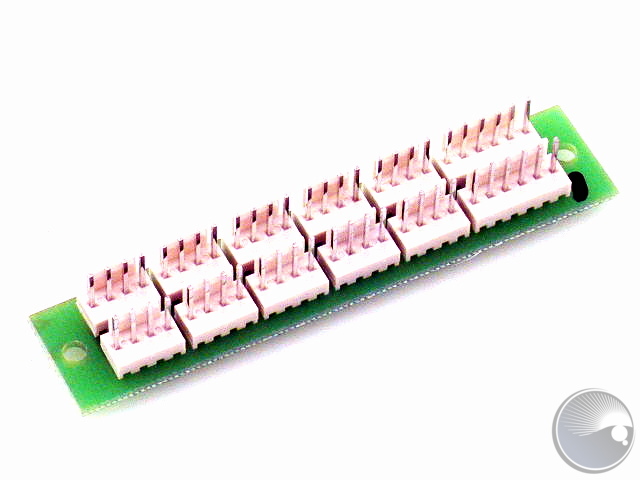

	62004512	Martin PCBA Conn. 2x(5x4pol+1x6pol)
	62004514	PCBA Connector 3x(1x4pol)

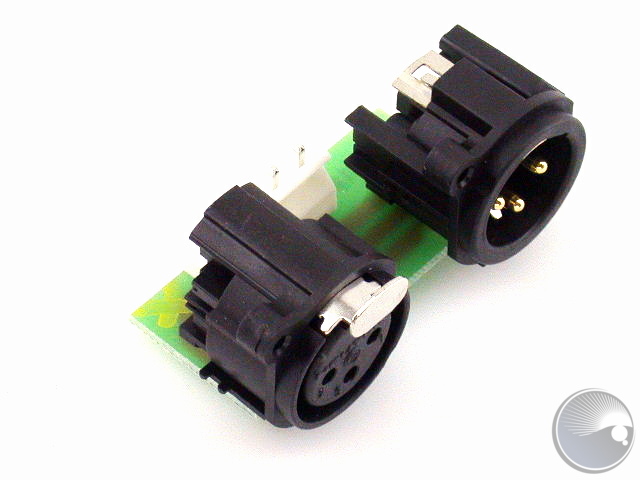

	62004519	PCBA 3pin XLR male/female , mo

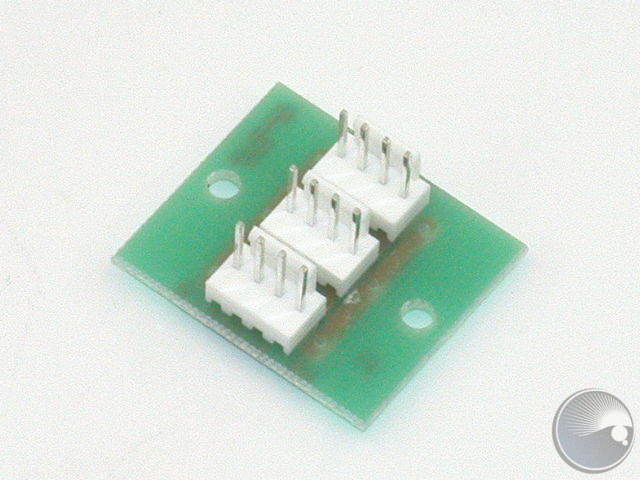

	62004522	PCBA Connector 3x(1x6pol), pr

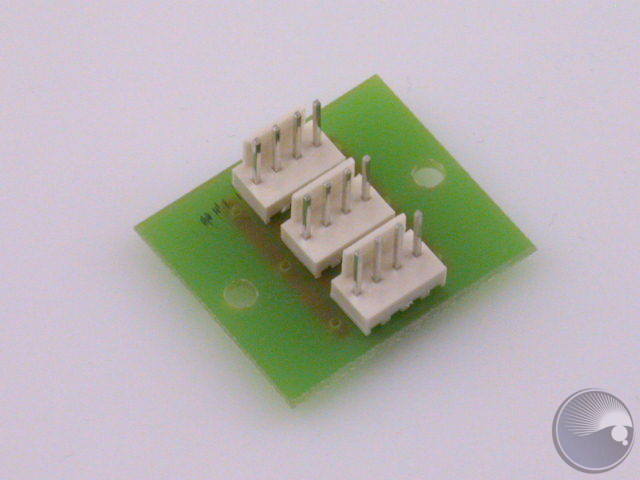

	62004523	PCBA Connector 3x(1x6pol), pr

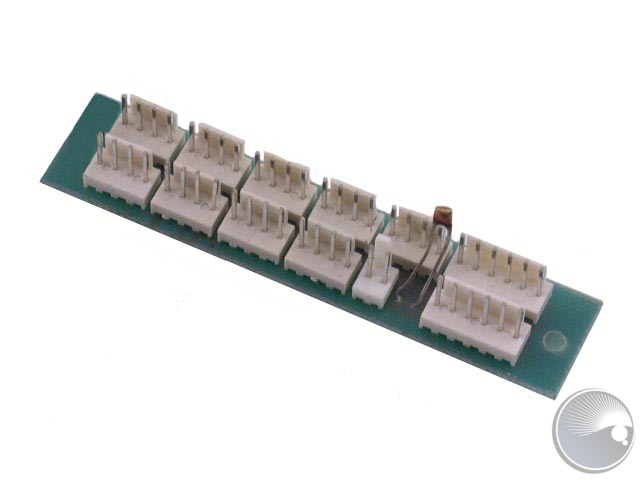

	62004526	PCBA Connector 9x4pol+2x6pol+1

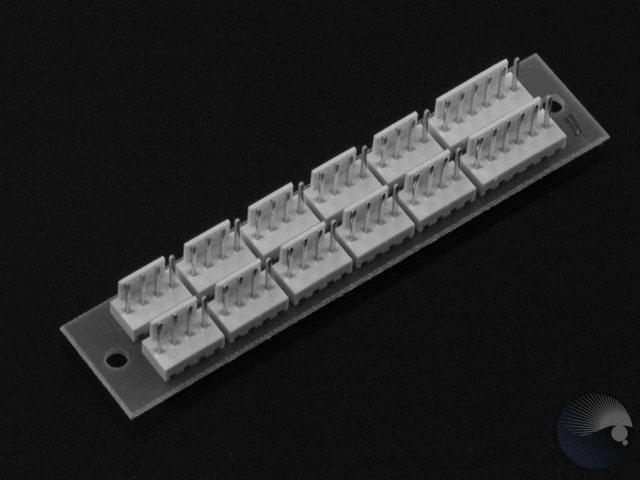

	62004534	PCBA Connector 2x(5x4pol+1x6po

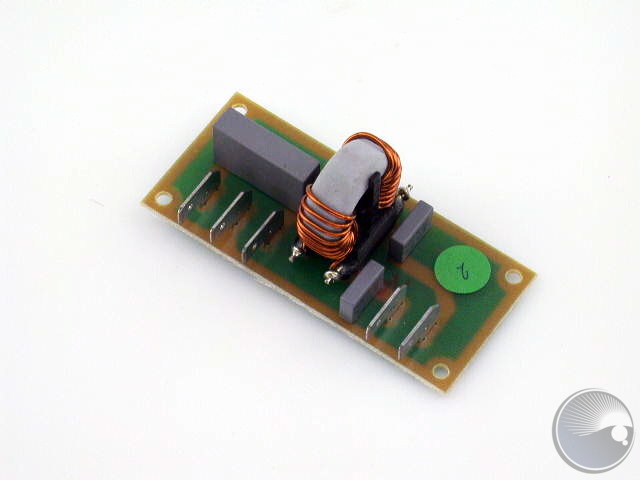

	62006011	Martin PCBA Mains filter, 575W, 9A

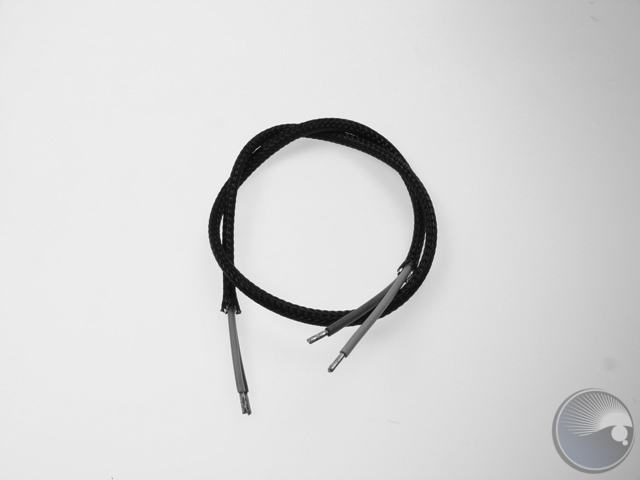

	62201005	Blue/black wire in flex hose

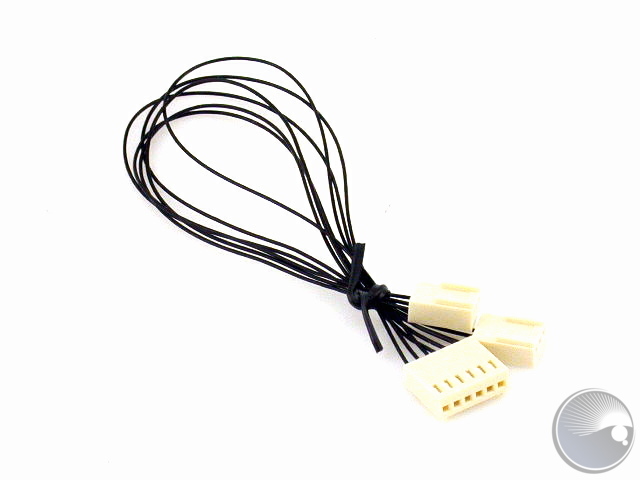

	62203019	Wire for hall sensors, MAC 600

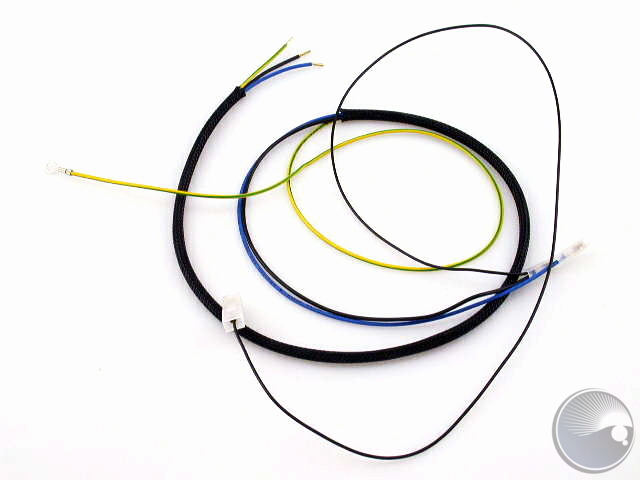

	62203112	Wireset high-volt, MAC 500/600

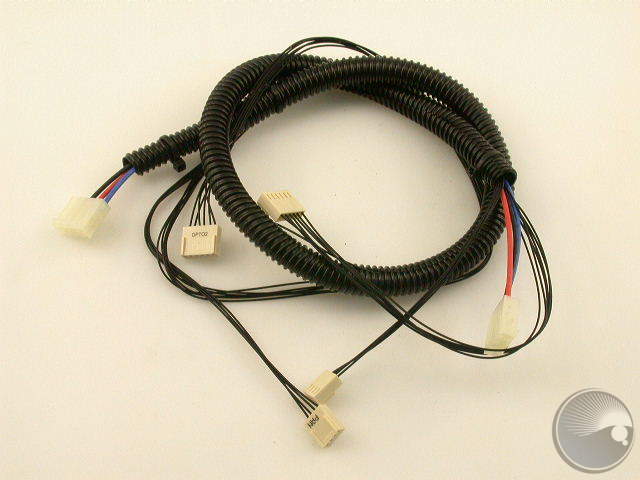

	62203113	Wireset XLR, MAC500/600

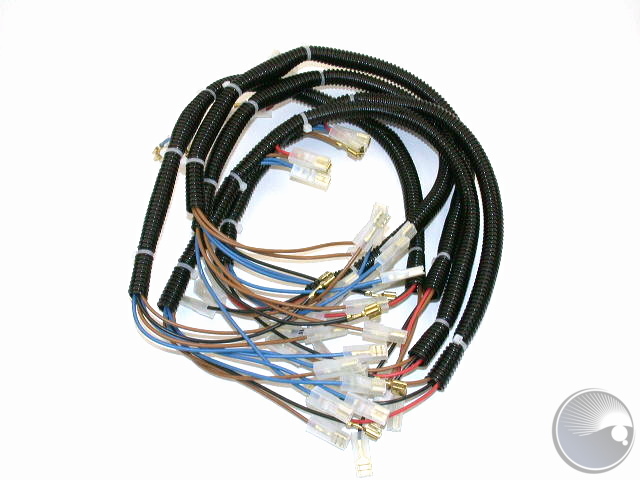

	62203122	Wireset High-volt, base, MAC 6

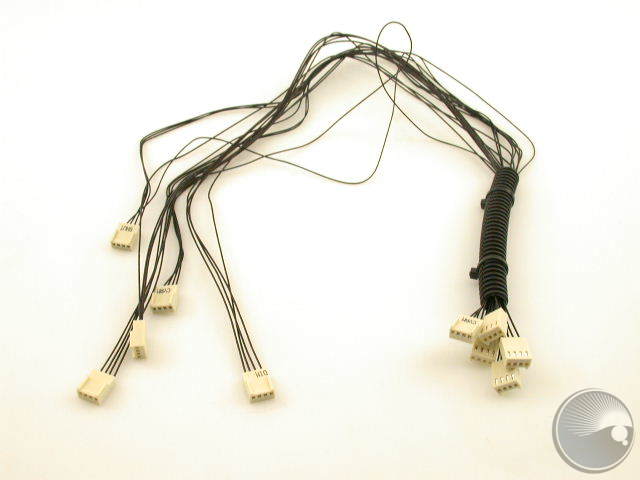

	62203126	Wireset bracket, SHUT, CYAN, Y

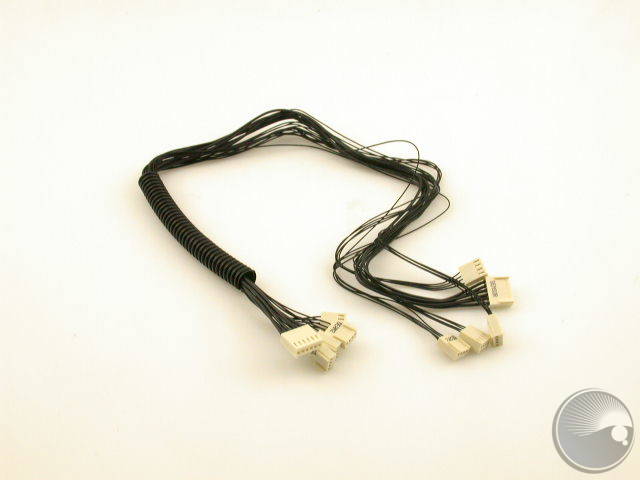

	62203139	Wireset bracket, SENSOR, BEAM1

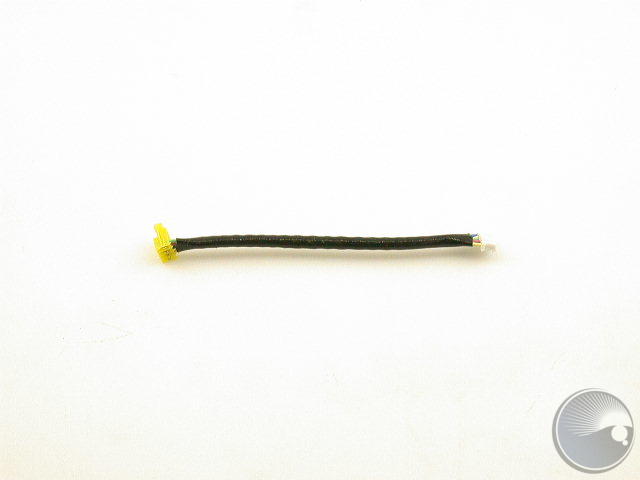

	62205106	Stepm.Micro,NMB 155mmw.pl/flex

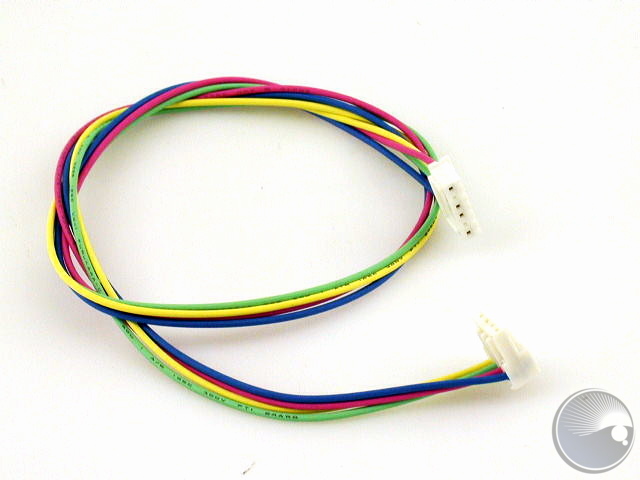

	62205115	Stepm.wire(to339035),470mm w.p

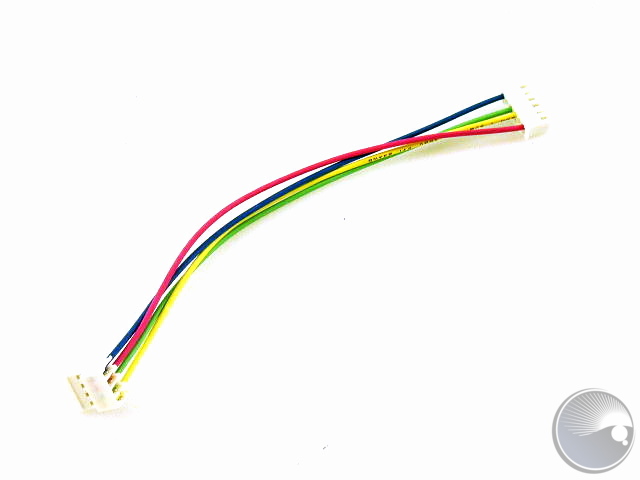

	62205116	Stepm.wire(to339035),140mm w.p

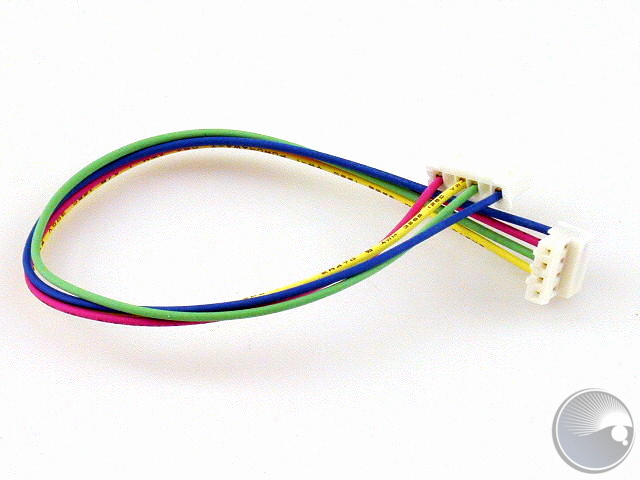

	62205117	Stepm.wire(to339035),200mm w.p

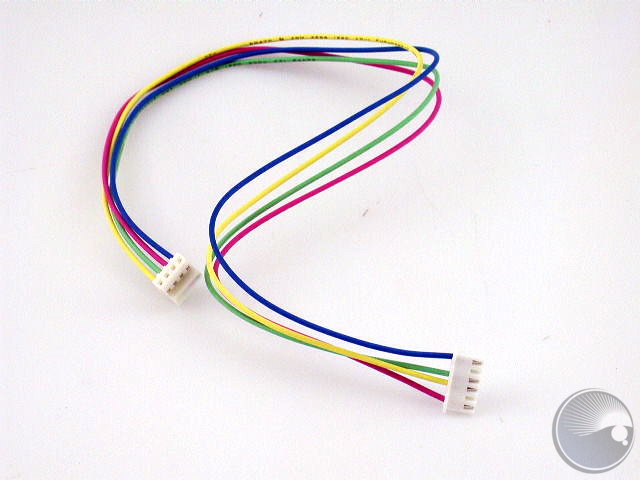

	62205119	Stepm.wire(to339035),340mm w.p
	62222020	Martin Fan 12V DC 3` with plug 350mm

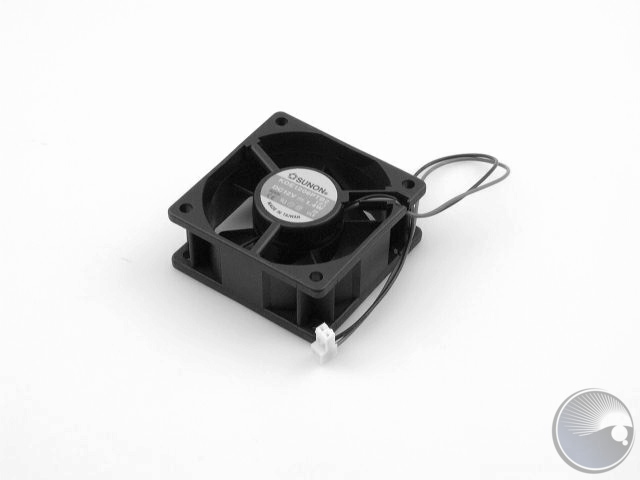

	62222021	Fan with 2 pole plug, 17,5cm

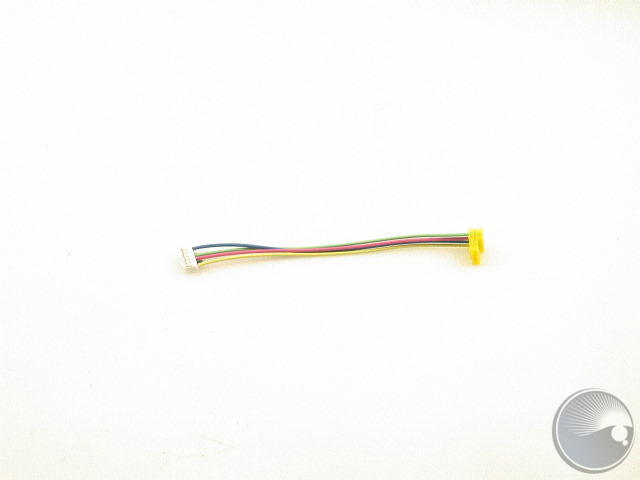

	62226007	Wire step 339030 w. plug, 130m

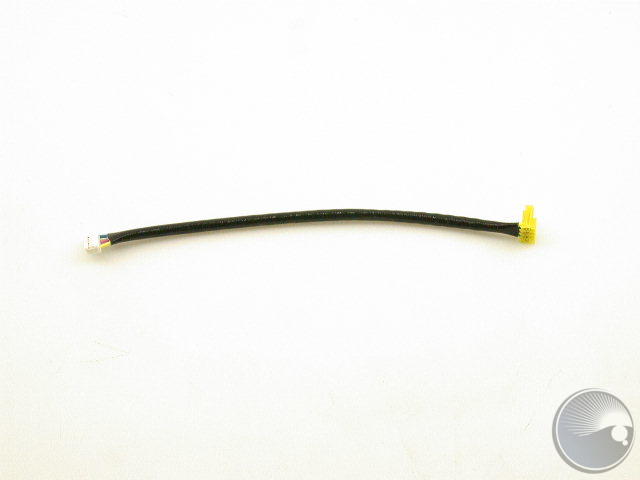

	62226016	190mm wire+flex

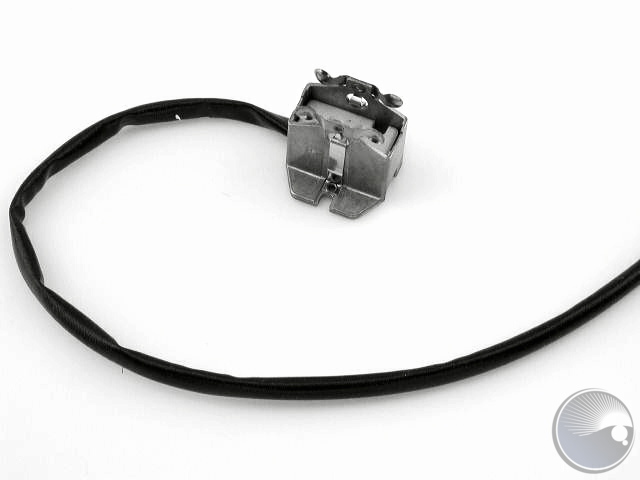

	62322004	Socket MSR 575 with silicon/gl

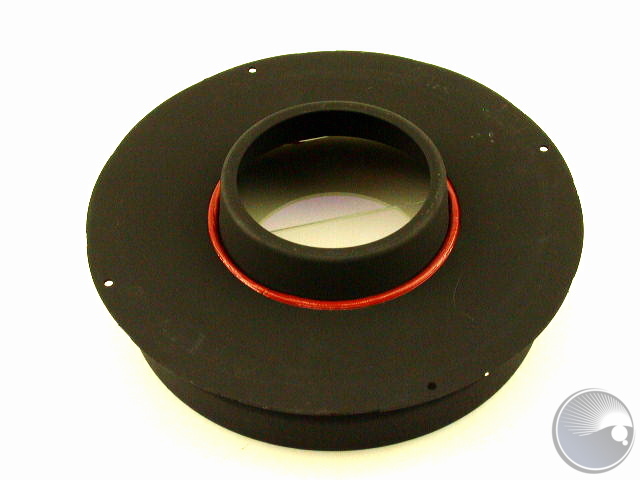

	62323001	MAC600 heat filter module, asm

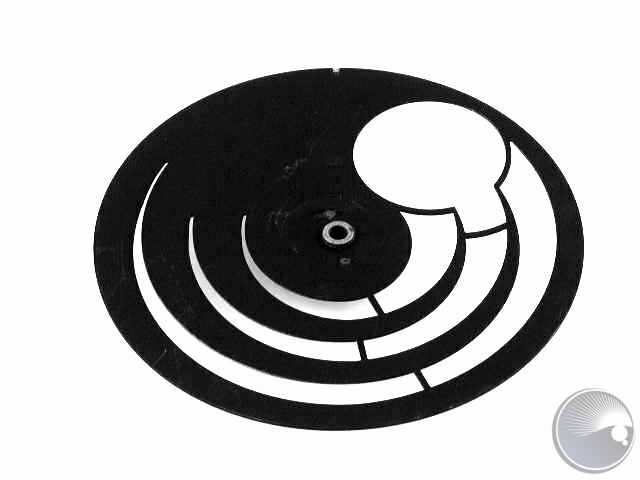

	62324006	Dimmer Wheel w timing pulley

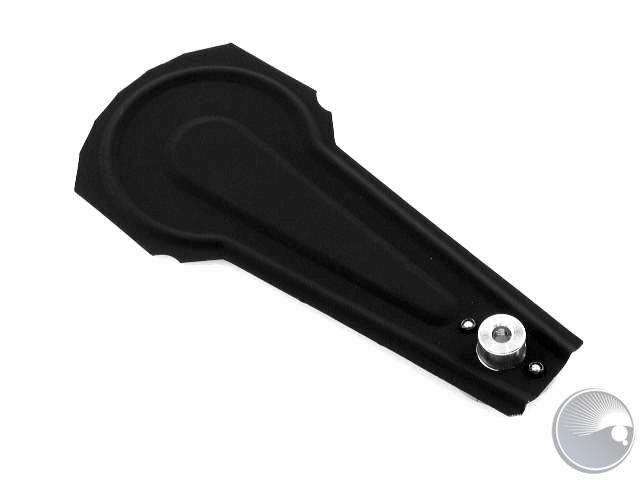

	62324014	Martin Shutter Mac600+Ext.600 glued

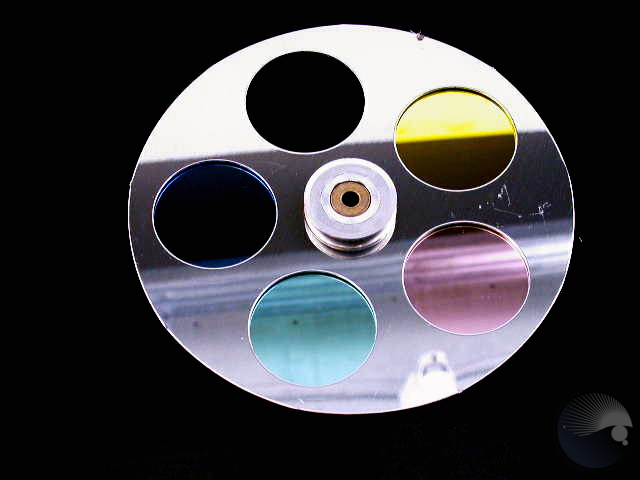

	62326012	Color Wheel w timing pulley

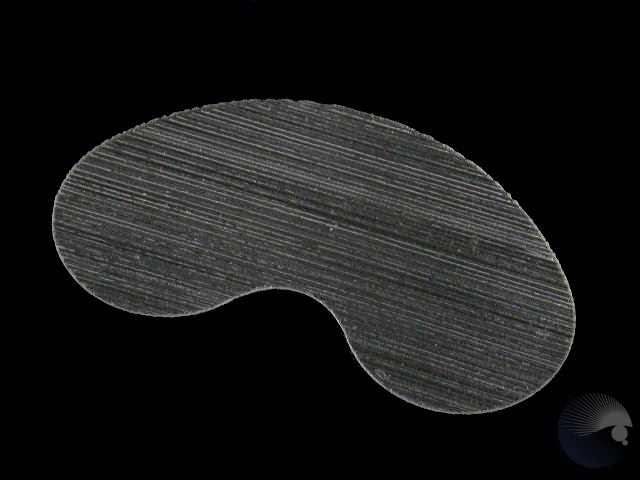

	62326048	Martin Cut fibroid burned

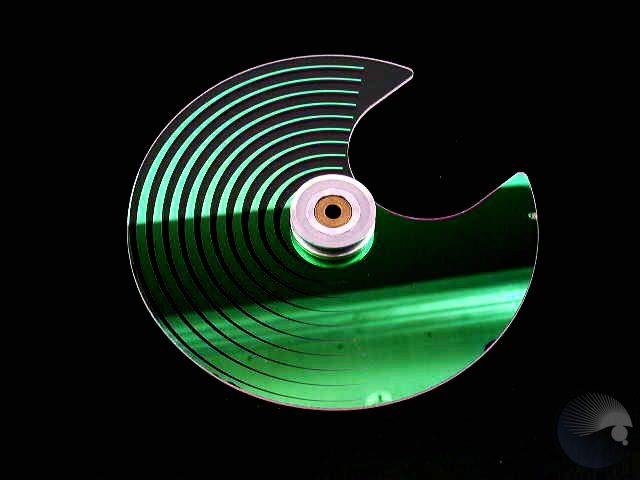

	62327003	Magenta Wheel w timing pulley

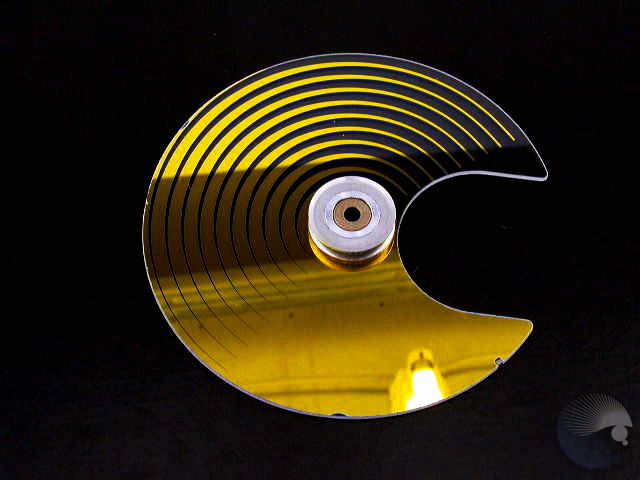

	62327004	Cyan Wheel w timing pulley

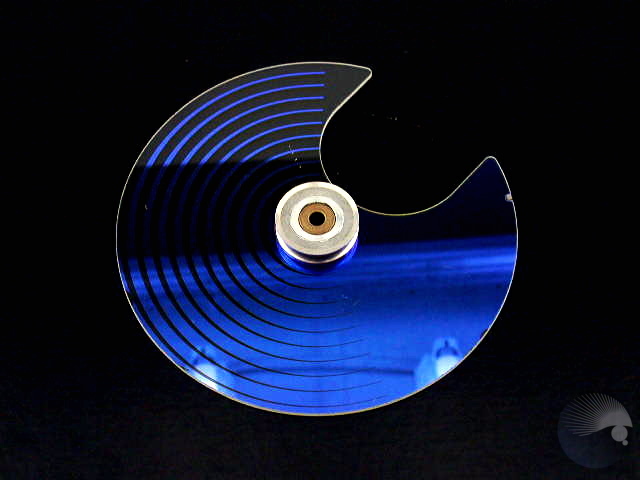

	62327005	Yellow Wheel w timing pulley

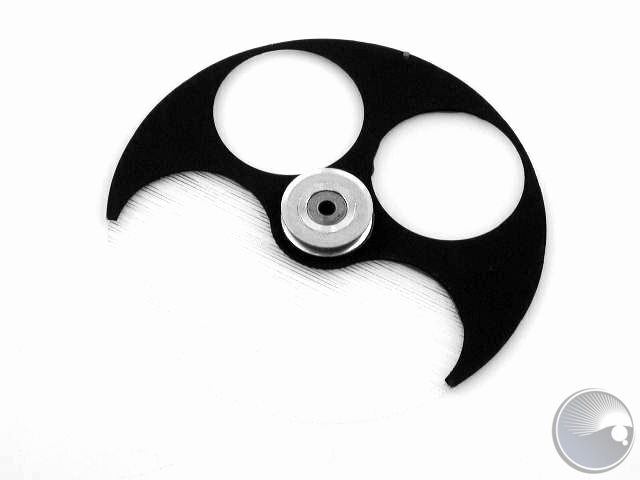

	62328000	Beam 2/frost w.timing pul.M600

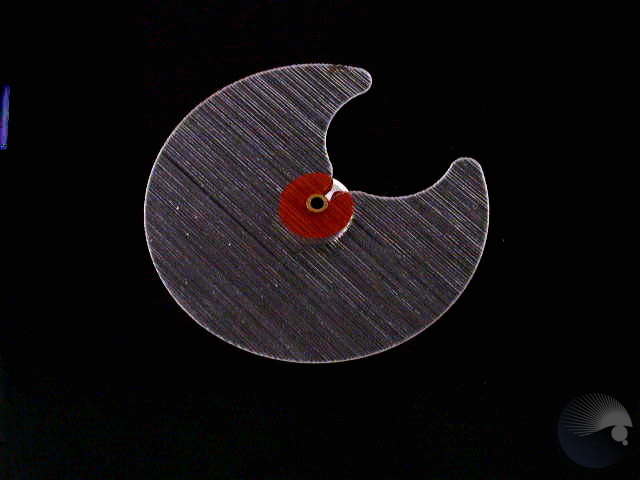

	62328001	Beam 1 Wheel w timing pully MAC 600
	62334002	Martin Timing pul.l=17mm,w.tacho,Tilt

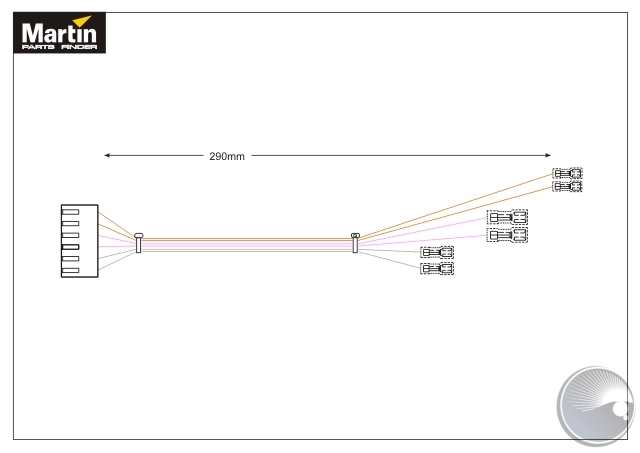

	62400076	Wire prepared for trafo,M500/6

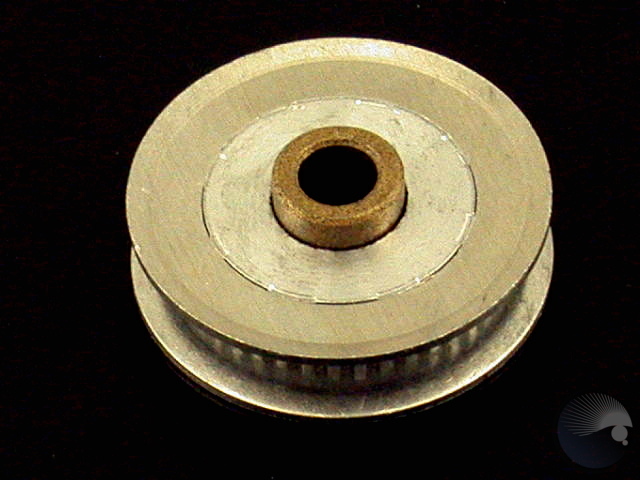

	62400102	MXL,40tooth,w.bea/flange

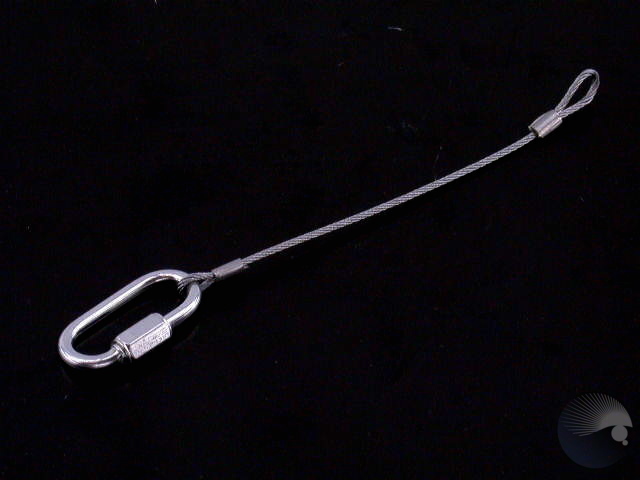

	62400104	Steelwire, head, MAC600
	62400172	Martin Tim.pul.l=17mm,w. out tacho

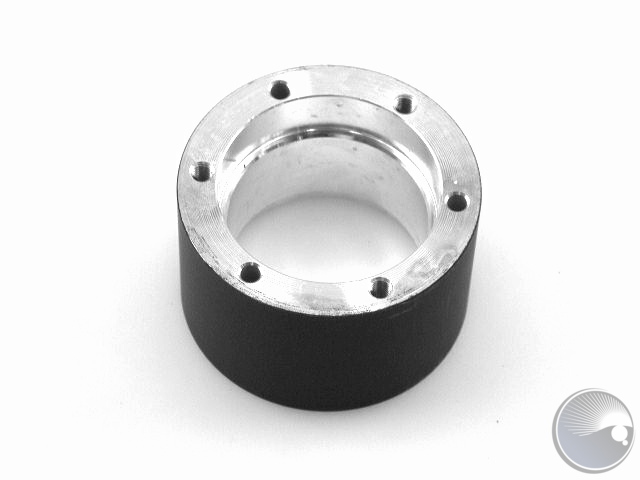

	62400236	Casing for pan HTpaint Mac 600
	91602001	Martin Omega-Adapter mit 2x Camlock, 107mm
