Strike Saber

Auf Anfrage!

  • STRIKESABER
STRIKE  Saber STRIKE Saber is a powerful blinder, footlight or tunable warm-white wash... mehr
Produktinformationen "Strike Saber"

STRIKE Saber

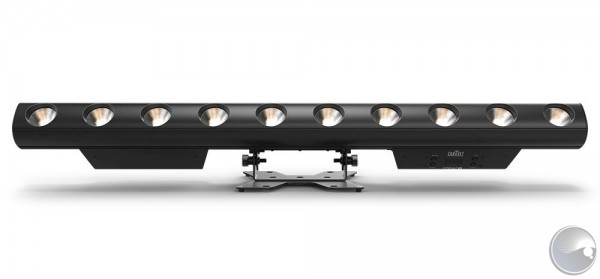

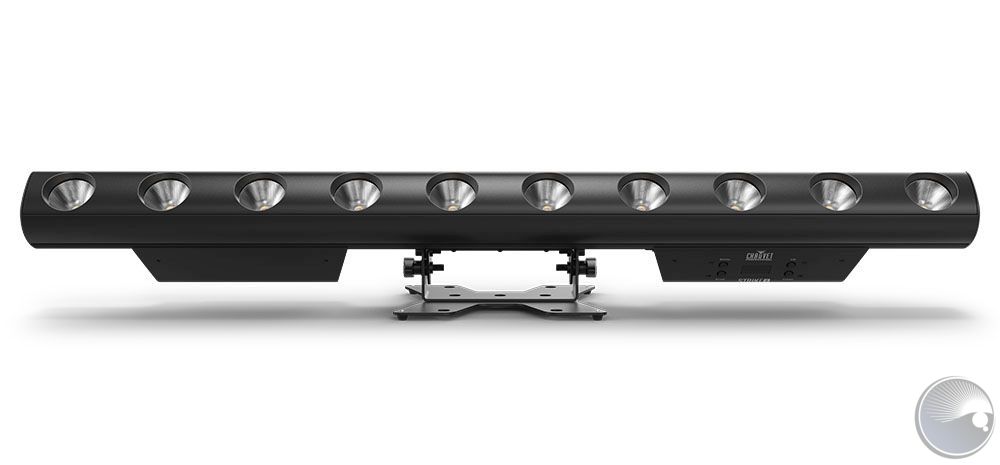

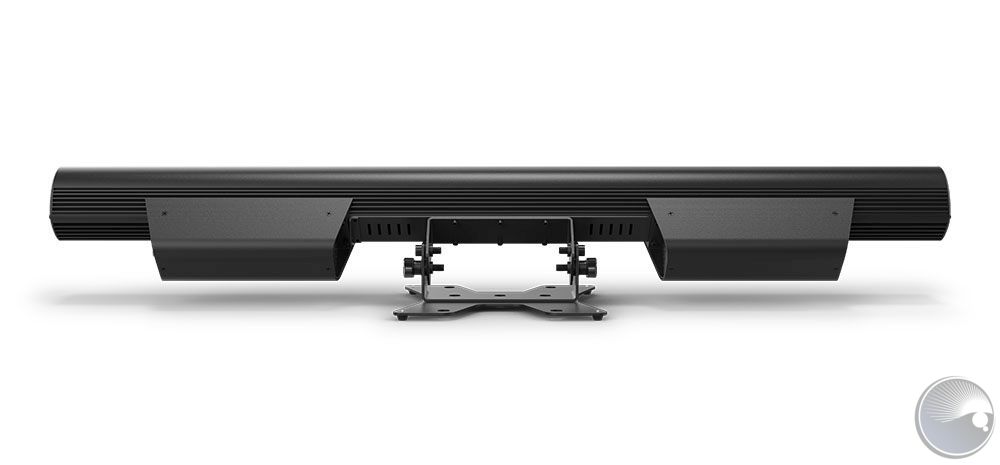

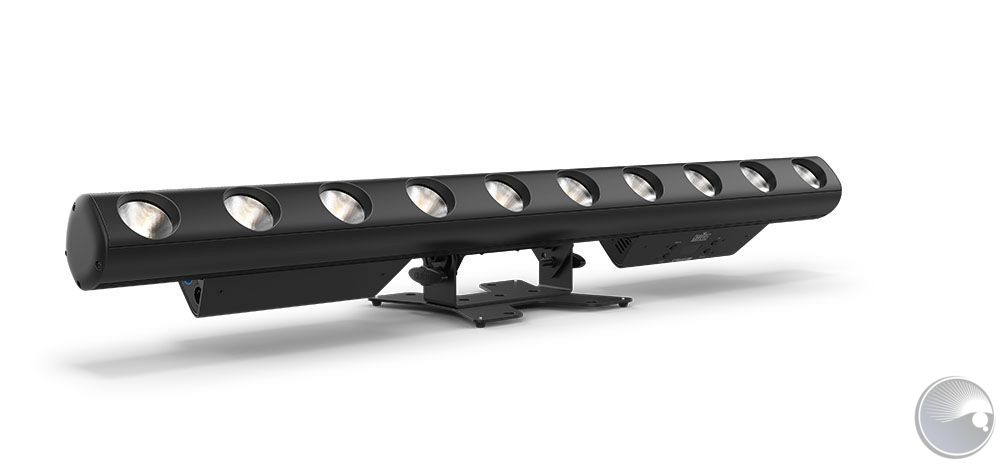

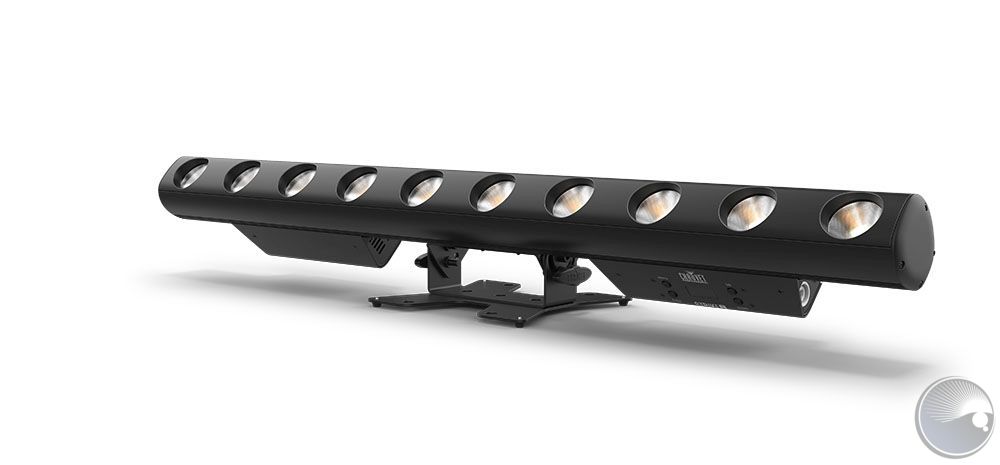

STRIKE Saber is a powerful blinder, footlight or tunable warm-white wash powered by 10 17 W bi-color (WW/Amber) LEDs. It’s also pixel-mappable for awesome chase and strobe effects. An emulated “amber shift” warms the Color Temperature of the light as it dims to perfectly mimic incandescent lights. This dynamic batten also comes with a floorplate for easy ground level mounting and includes RDM control and 16-bit dimming for smooth, perfect fades.



AT A GLANCE

  • Intense 10-cell batten perfect as a blinder, footlight or tunable warm-white

  • Emulated “red shift” to mimic incandescent fixtures perfectly

  • 16-bit dimming control for smooth, perfect fades

  • Strobe functionality for high-impact effects on-the-fly

  • Pixel mappable for intense chase and strobe effects

  • Included floor plate for easy ground level mounting

  • Easy to use OLED display

  • Adjustable Pulse Width Modulation (PWM)

  • RDM (Remote Device Management) for added flexibility

SPECIFICATIONS

OPTICAL

  • 10, LEDs (Warm White/Amber) 17 W, (310 mA), 3134 K, 50,000 hours life expectancy
  • Color Temperature (at full): 3134 K
  • CRI: 89
  • Beam Angle vertical: 15°
  • Beam Angle horizontal: 18°
  • Field Angle vertical: 30°
  • Field Angle horizontal: 35°
  • Lumens: 5,675
  • Illuminance: 2,466 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Strobe: Electronic
  • Strobe Rate: 0 to 26.7 Hz
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 39.3 x 3.08 x 6.18 in (1000 x 78.4 x 157 mm)
  • Weight: 14.6 lb (6.7 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Steel

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 3, 7, 10, 11, 20, or 27
  • Modes/Personalities: 6 personalities (1ch, 3ch, 7ch, 10ch, 11ch, 20ch, 27ch)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 9 units @ 120 V; 16 units @ 208 V; 18 units @ 230 V
  • Power and Current: 174 W, 1.434 A @ 120 V, 60 Hz
  • Power and Current: 172 W, .829 A @ 208 V, 60 Hz
  • Power and Current: 170 W, .741 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

OPTIONAL ACCESSORIES

Weiterführende Links zu "Strike Saber"

3.15AMPGMAF3.15AL250V FUSE
PTF1001002202Aviation plug power output socket (BOM#2)
PTF1001002302Power socket (Blue) IP44 55-210351-15 31.2x26.5x35 CE ROSH UL (BOM#18)
PTF2700003804US Powercon Cable (Type B NEMA 5-15 Style)
DISPLAY PCBPTJ2020201330DISPLAY PCB

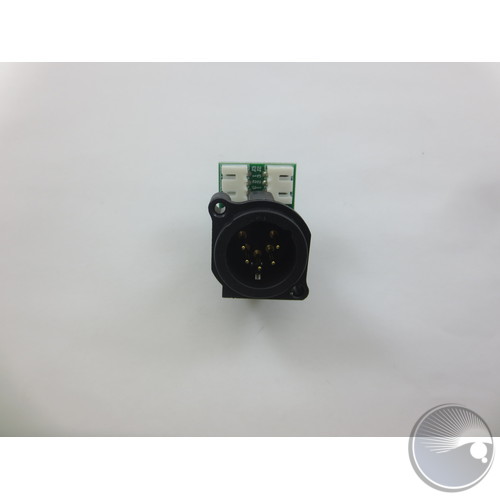

DMX IN PCB (BOM#4)PTJ2020202367DMX IN PCB (BOM#4)

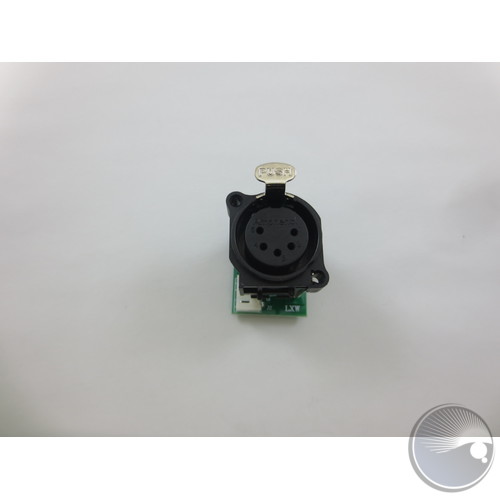

DMX OUT PCB (BOM#21)PTJ2020202368DMX OUT PCB (BOM#21)

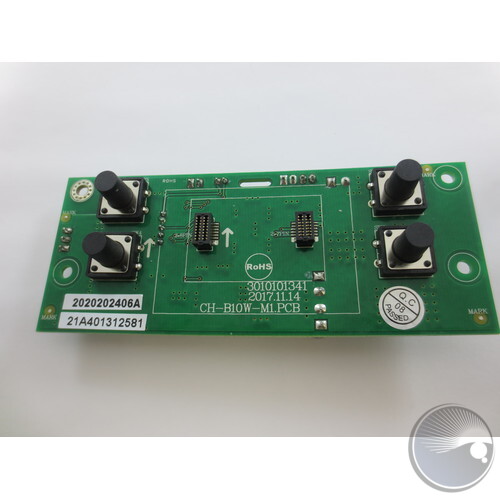

MPCB (BOM#29)PTJ2020202406AMPCB (BOM#29)

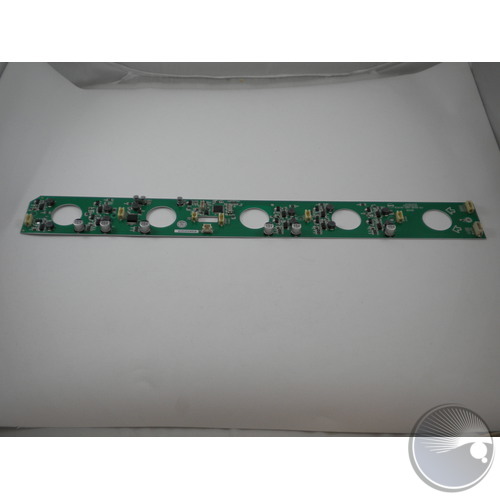

DRIVER PCB B (BOM#38)PTJ2020202482ADRIVER PCB B (BOM#38)

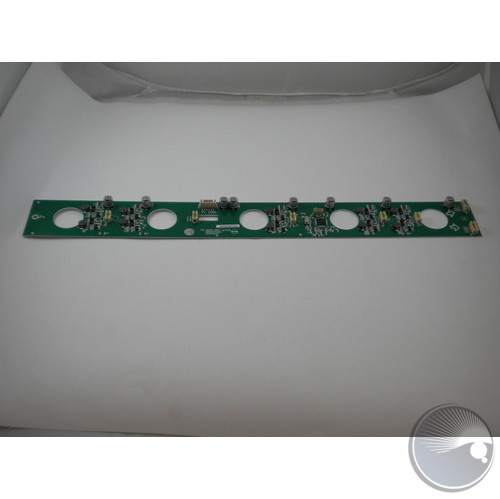

DRIVER PCB A (BOM#8)PTJ2020202530ADRIVER PCB A (BOM#8)
PTJ21000246MPCB - DISPLAY PCB ASSEMBLY

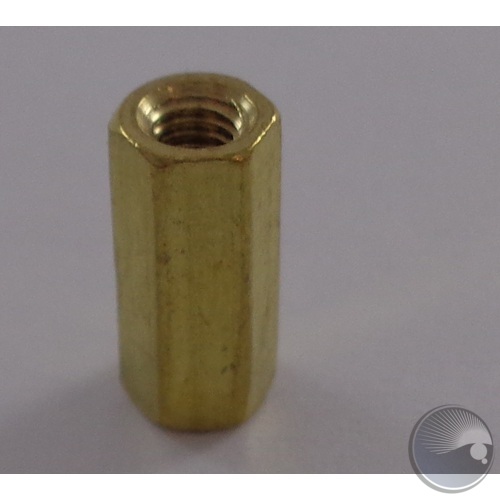

STAND OFF (BOM#3)PTJ3001001006STAND OFF (BOM#3)

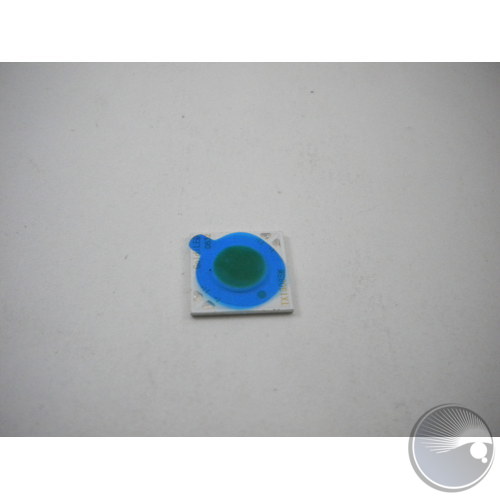

LED W/ Cables (BOM#7)PTJ3010500276LED W/ Cables (BOM#7)
PTJ3019001043BUTTON COVER (BOM#12)
PTJ3020200073DISPLAY CLEAR LENS(BOM#7)
ORGANIC RING (BOM#2)PTJ3020200332AORGANIC RING (BOM#2)

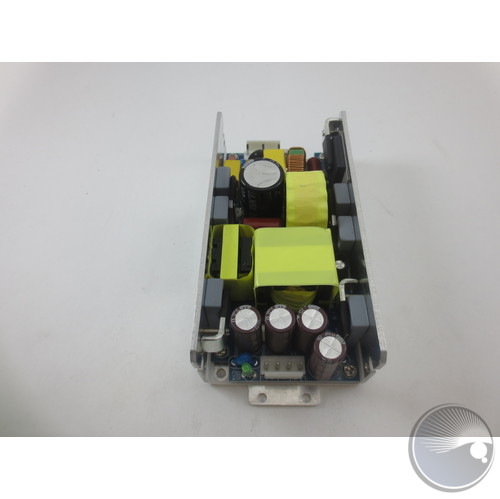

POWER SUPPLY (BOM#10)PTJ3020400288POWER SUPPLY (BOM#10)

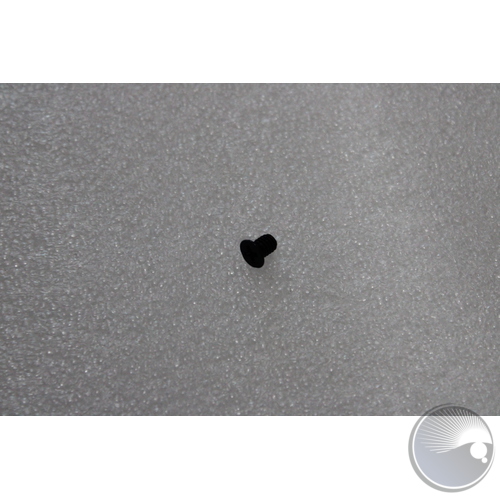

PTJ3021700232STANDING BRACKET SCREW (BOM#22)
?8 PLASTIC GASKET (BOM#2)PTJ3021700480?8 PLASTIC GASKET (BOM#2)
PTJ3022100062PLASTIC PANEL (BOM#11)
Panel mount fuse holder (BOM#29)PTJ3027001001Panel mount fuse holder (BOM#29)

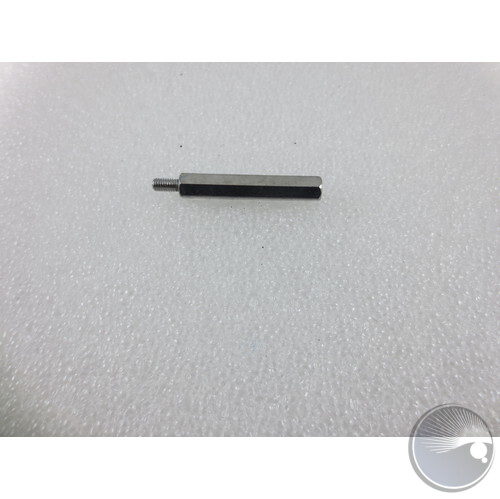

IRON PROP (BOM#4)PTJ3030100271IRON PROP (BOM#4)
PTJ3050102423INNER BOX (BOM#40)
PTJ3050601346QRG (BOM#42)
PTJ4010302041POWER SOCKET COVER (BOM#19)

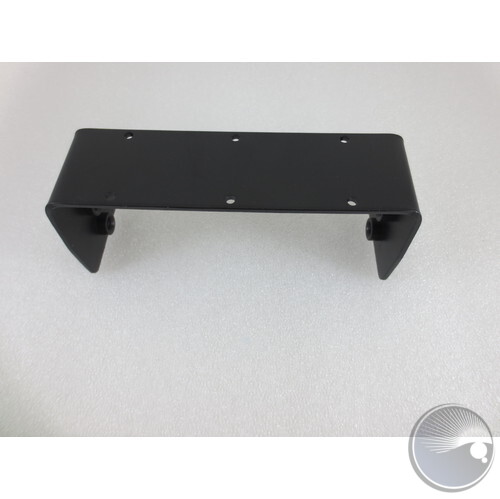

BRACKET STAND (BOM#34)PTJ4010304207BRACKET STAND (BOM#34)

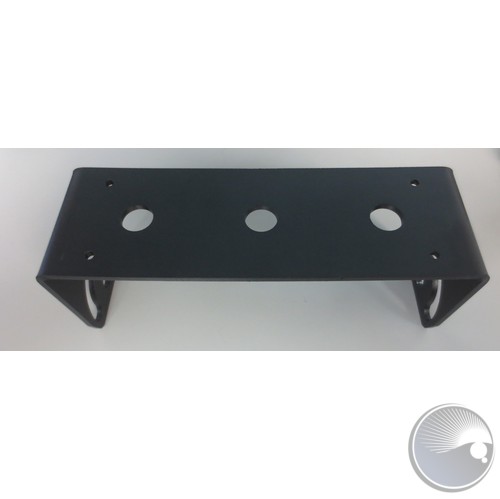

HANGING BRACKET (BOM#23)PTJ4010304208HANGING BRACKET (BOM#23)

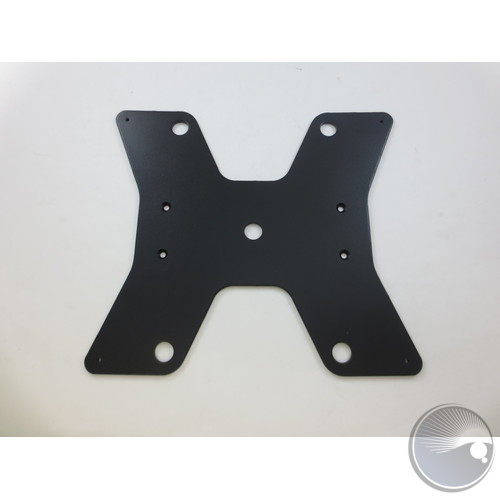

STANDING BRACKET (BOM#22)PTJ4010304209STANDING BRACKET (BOM#22)
PTJ4010304211BSIDE PANEL 2 FOR HOUSING BASE (BOM#20)
PTJ4010304212REFLECT CUP COVER (BOM#3)

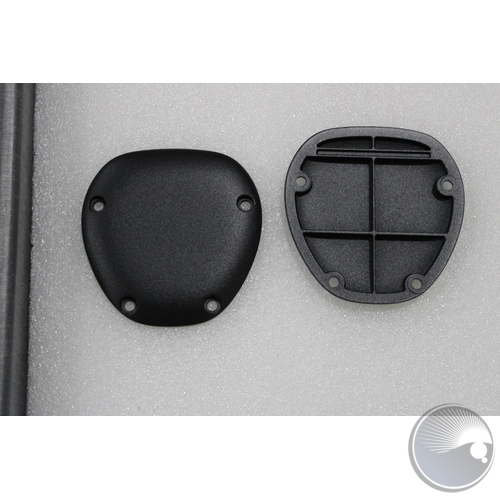

PTJ4010304213SIDE PANEL FOR HOUSING (BOM#9)
PTJ4010304215SLING (BOM#35)
PTJ4010304216HOUSING COVER (BOM#36)
PTJ4010402130SIDE PANEL 1 FOR HOUSING (BOM#15)
PTJ4010402131SIDE PANEL 3 FOR HOUSING BASE (BOM#30)
PTJ4010402133HOUSING BASE 1 (BOM#19)
PTJ4020200073UNDER-CHASSIS (BOM#9)
PTJ4020200407LIGHT GUIDE (BOM#6)
PTJ4020200408REFLECT CUP (BOM#5)

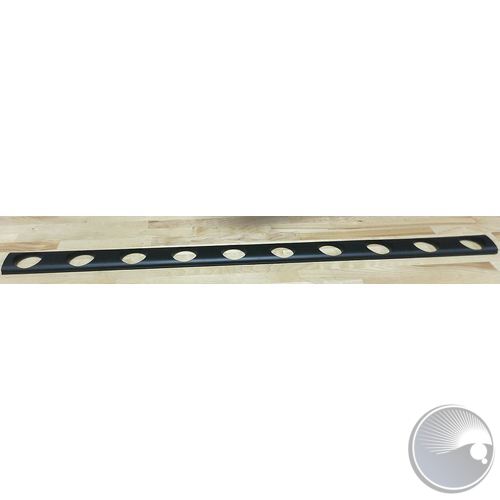

TOP COVER (BOM#1)PTJ4020200409TOP COVER (BOM#1)
KNOB FOR HANGING BRACKET (BOM#23)PTJ5011120010KNOB FOR HANGING BRACKET (BOM#23)
