Strike 4

Auf Anfrage!

  • STRIKE4
STRIKE  4 STRIKE 4   is an electrifying audience blinder and strobe with four... mehr
Produktinformationen "Strike 4"

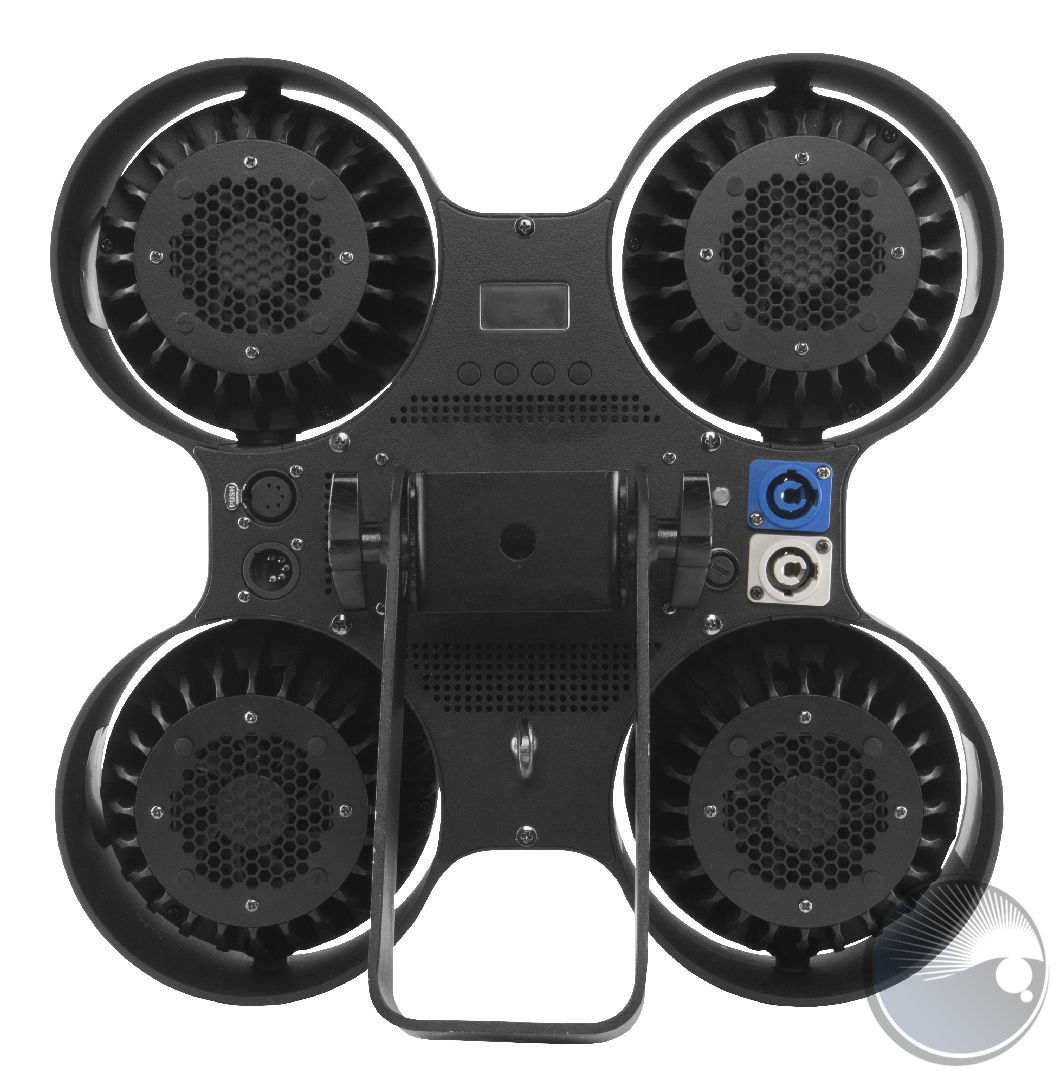

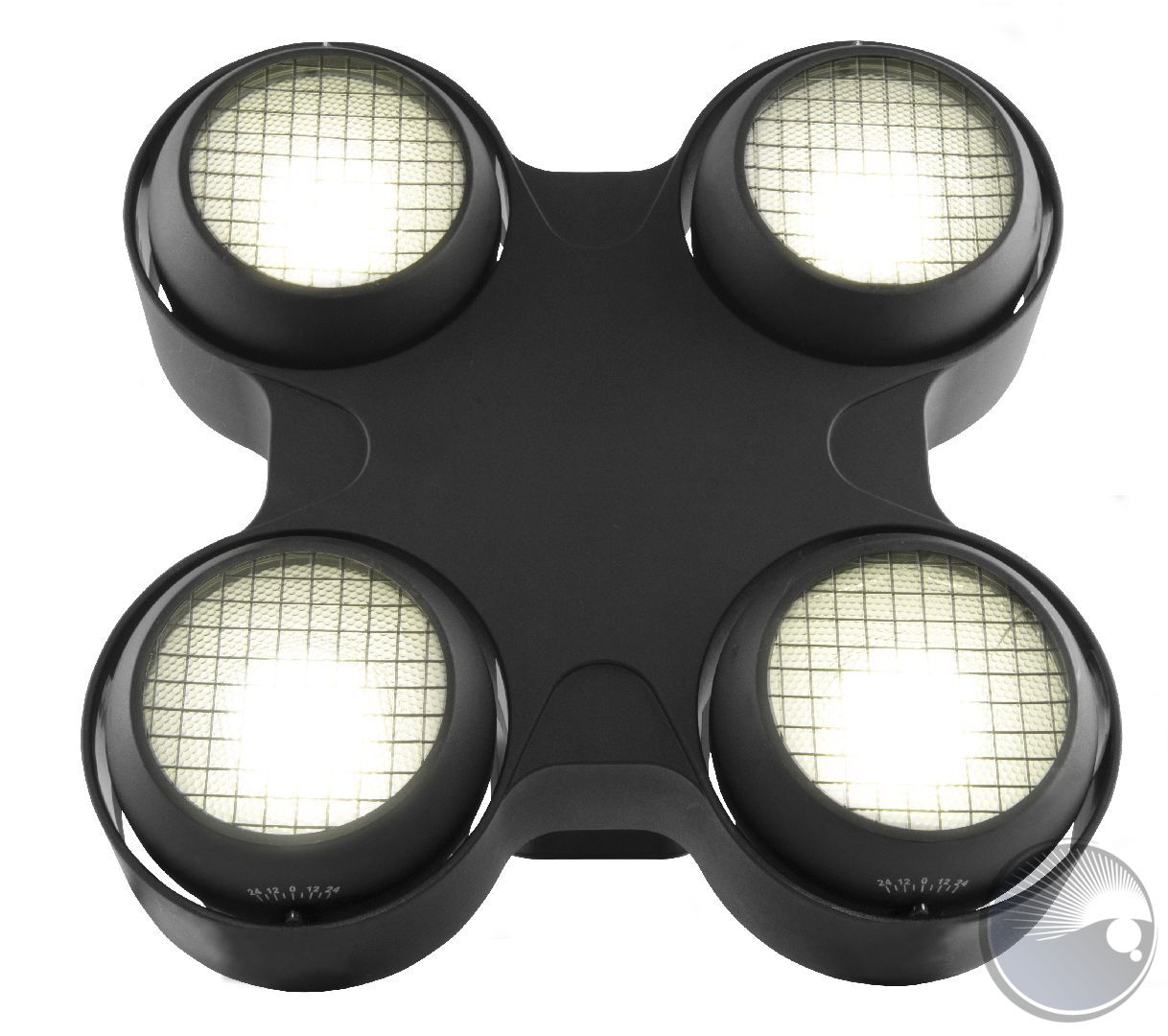

STRIKE 4

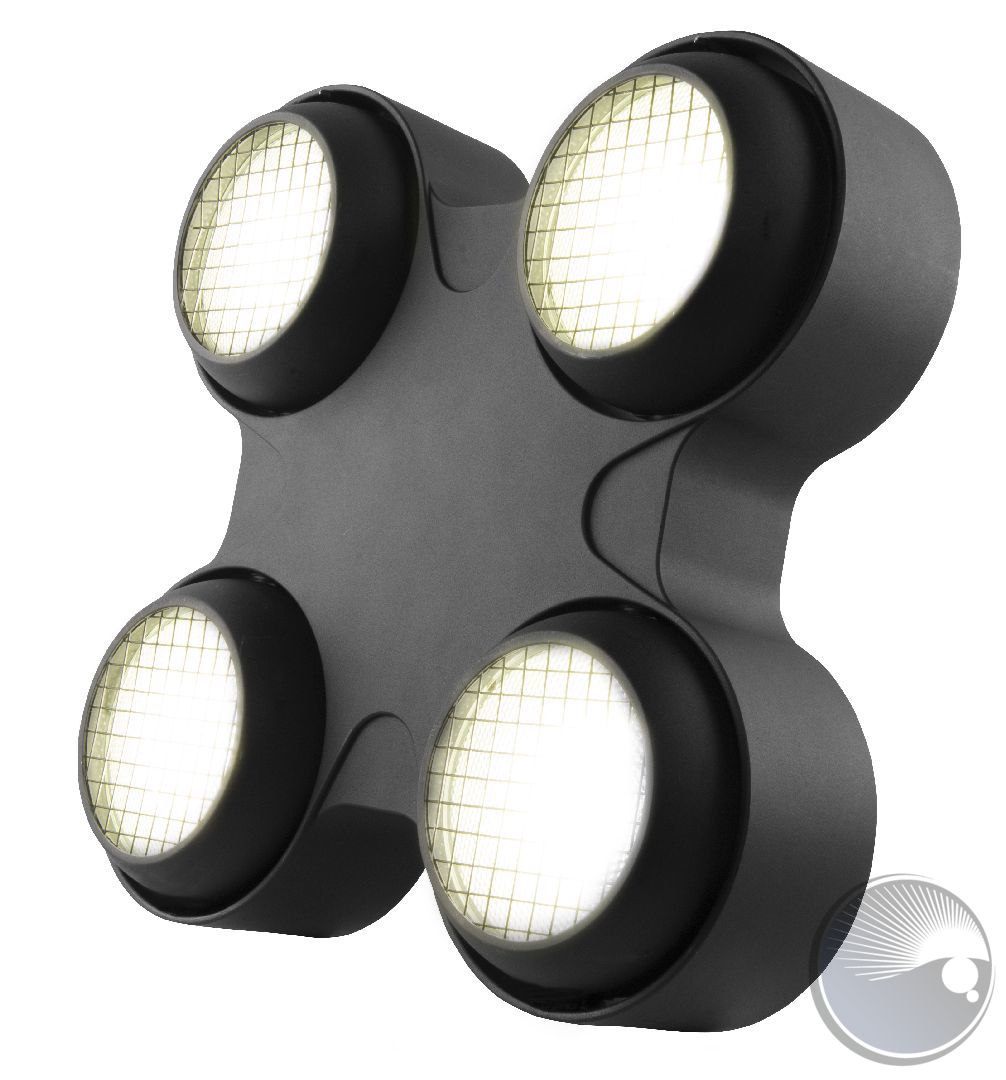

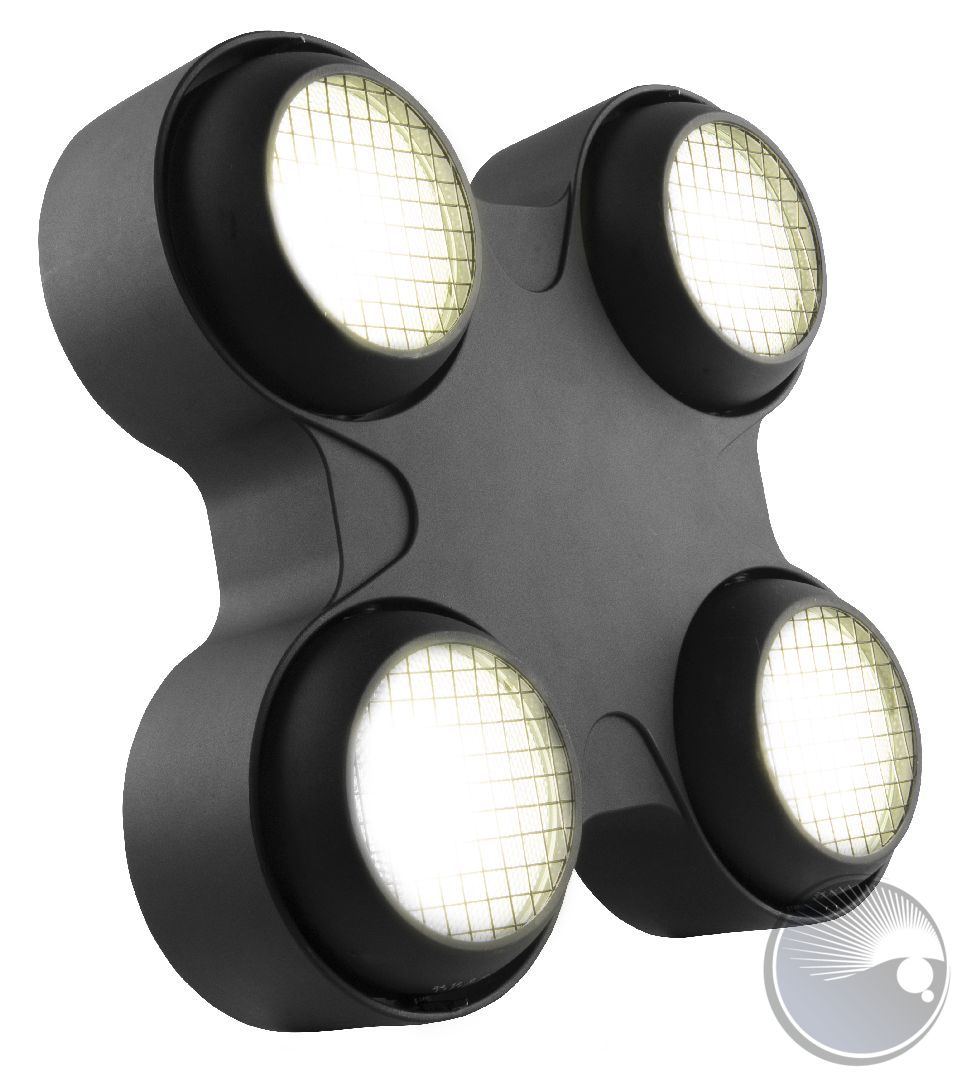

STRIKE 4 is an electrifying audience blinder and strobe with four high-power COB LEDs housed in independently focusable pods. It’s the go-to-choice for high energy automated strobe effects and its smooth 16-bit dimming curve facilitates incandescent-style fades. Its adjustable PWM is ideal in film and studio applications. STRIKE 4 comes standard with basic and advanced control personalities for flexibility in programming, and an easy-to-read OLED display for quick onboard adjustments.



AT A GLANCE

  • 16-bit dimming control for smooth, perfect fades

  • Individual pan of each head to allow for directional adjustment of light output

  • Simple and complex DMX channel profiles for programming flexibility

  • Easy to use OLED display

  • Automated strobing programs for easy programming

  • Adjustable Pulse Width Modulation (PWM) control to eliminate flicker on camera

SPECIFICATIONS

OPTICAL

  • Light Source: 4 LEDs (WW) 100 W, (2.3 A ), 3096 K, 50,000 hours life expectancy
  • Color Temperature (at full): 3096 K
  • Beam Angle: 49°
  • Field Angle: 79°
  • Illuminance (total): 999 lux @ 5 m
  • Illuminance (per cell): 242 lux @ 5 m
  • Pixels: 2 x 2
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Pan: ± 24° manual adjustment per pod
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 14.2 x 6.4 x14.2 in (362 x 163 x 362 mm)
  • Weight: 19 lb (8.7 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX
  • DMX Channels: 1, 3, 4 or 9

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V
  • Power and Current: 301 W, 2.49 A @ 120 V, 60 Hz
  • Power and Current: 287 W, 1.43 A @ 208 V, 60 Hz
  • Power and Current: 286 W, 1.29 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

OPTIONAL ACCESSORIES

Weiterführende Links zu "Strike 4"

PTF1001002202Aviation plug power output socket (BOM#2)
PTF1001002302Power socket (Blue) IP44 55-210351-15 31.2x26.5x35 CE ROSH UL (BOM#18)
PTF2700003804US Powercon Cable (Type B NEMA 5-15 Style)
5-PIN DMX XLR SOCKET PCB (BOM#19)PTJ20100337005-PIN DMX XLR SOCKET PCB (BOM#19)
PTJ2010238000THERMAL SWITCHES (BOM#31)

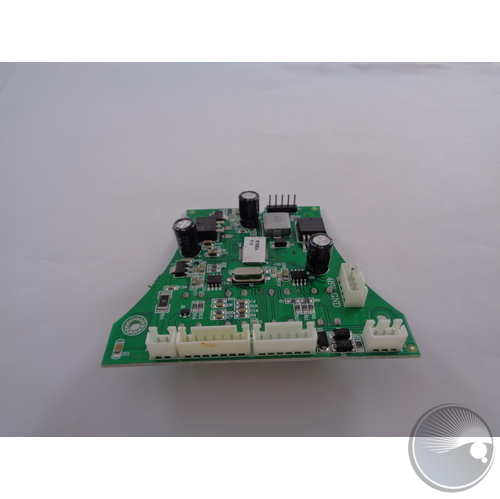

MPCB (BOM#5)PTJ2010407000MPCB (BOM#5)

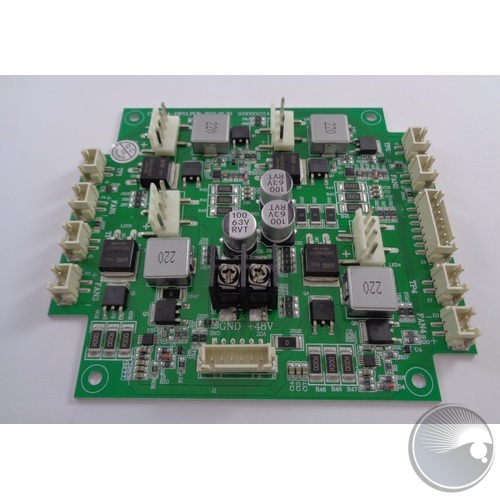

DRIVER PCB (BOM#2)PTJ2010408000DRIVER PCB (BOM#2)

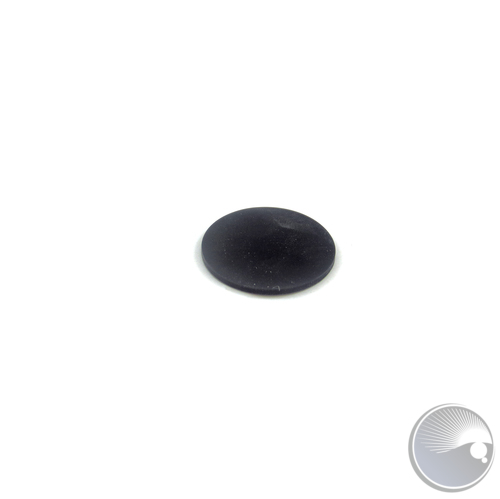

RUBBER RING FOR HEAD HOUSING (BOM#1)PTJ2015041101RUBBER RING FOR HEAD HOUSING (BOM#1)
PTJ2015041103DRIVER PCB HOLDER (BOM#3)

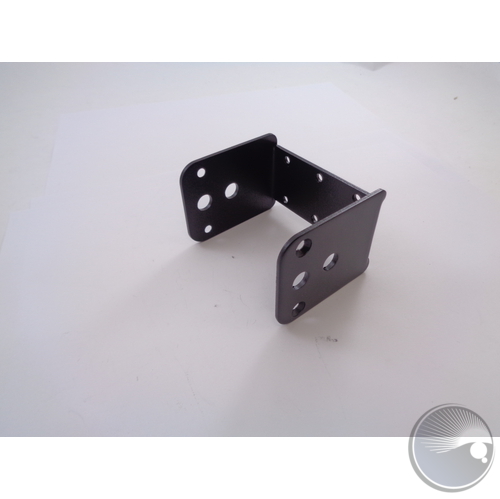

HANGING BRACKET CONNETOR (BOM#14)PTJ2015041108HANGING BRACKET CONNETOR (BOM#14)

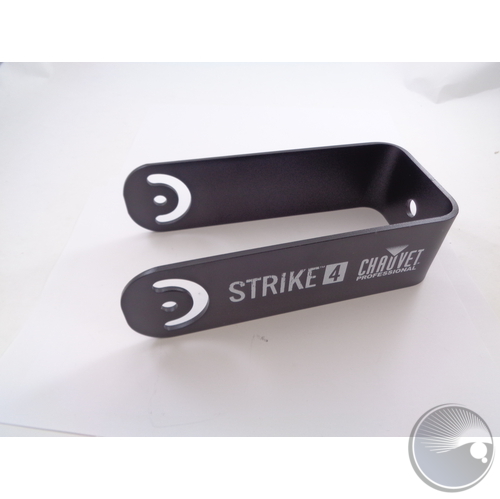

HANGING BRACKET-OUTER (BOM#15)PTJ2015041109HANGING BRACKET-OUTER (BOM#15)

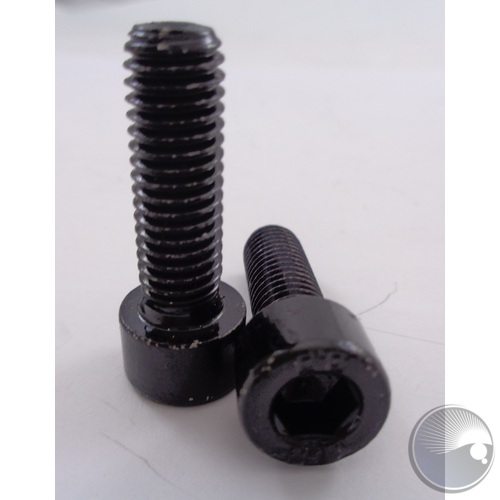

CM SCREW (BOM#17)PTJ2015041110CM SCREW (BOM#17)

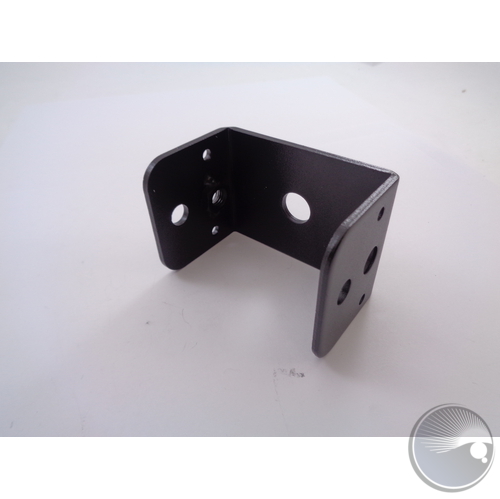

HANGING BRACKET-IN (BOM#18)PTJ2015041111HANGING BRACKET-IN (BOM#18)
PTJ2015041112HEAD HOLDER (BOM#22)

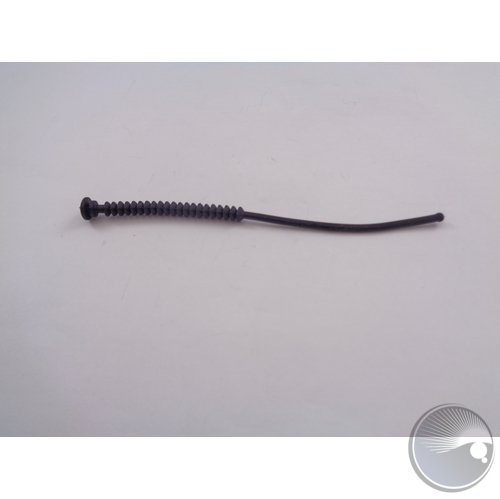

FAN RIVET (BOM#24)PTJ2015041114FAN RIVET (BOM#24)

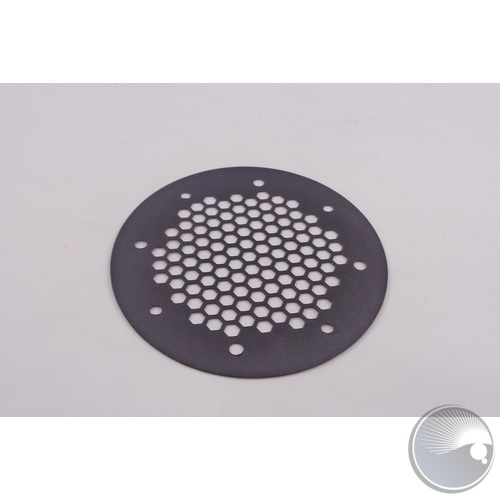

FAN HOLDER PLATE (BOM#25)PTJ2015041115FAN HOLDER PLATE (BOM#25)

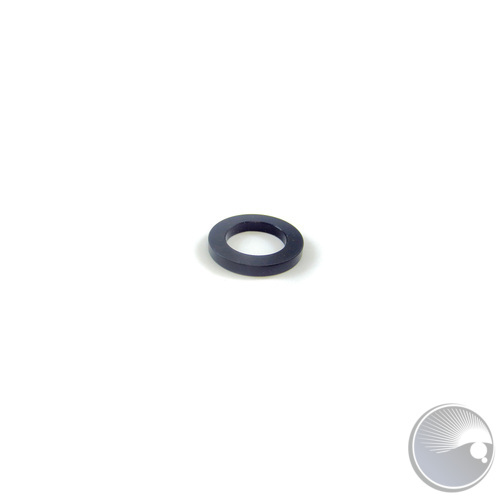

PLASTIC RING FOR HEAD HOLDER (BOM#26,27)PTJ2015041117PLASTIC RING FOR HEAD HOLDER (BOM#26,27)

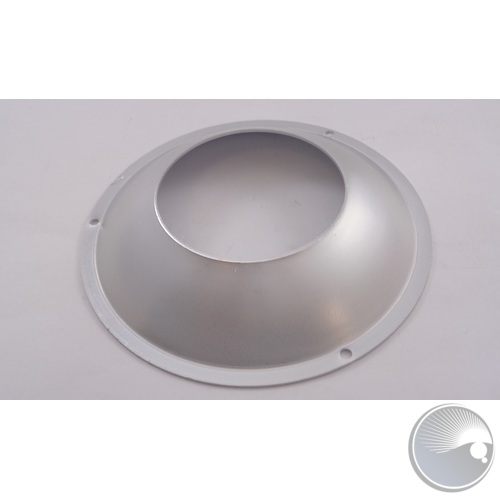

REFLECT CUP (BOM#36)PTJ2015041119REFLECT CUP (BOM#36)

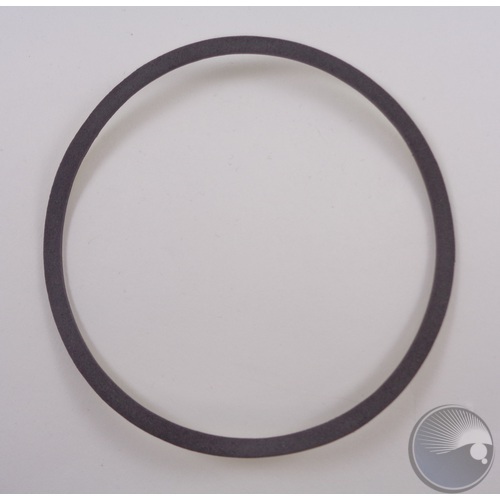

PLASTIC RING FOR REFLECT CUP (BOM#37)PTJ2015041120PLASTIC RING FOR REFLECT CUP (BOM#37)

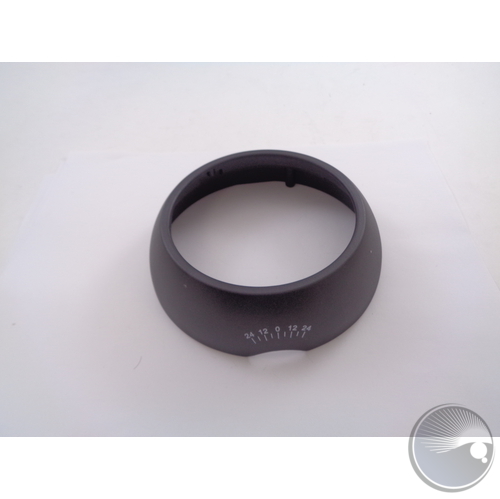

HEAD COVER (BOM#39)PTJ2015041121HEAD COVER (BOM#39)

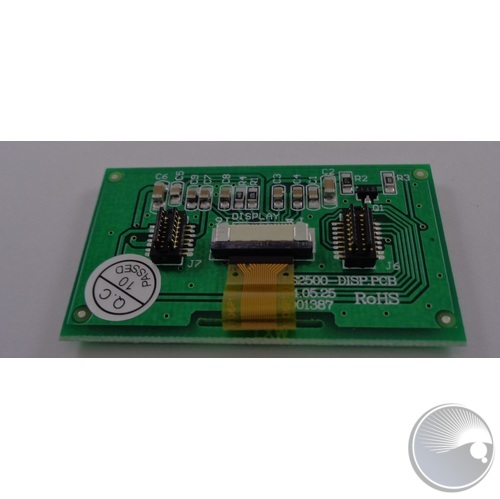

Display PCBPTJ2020201329Display PCB

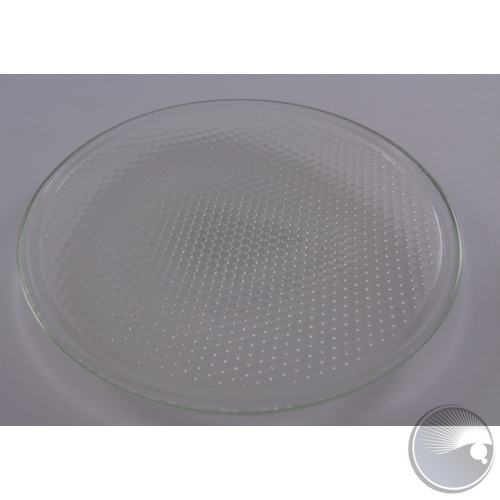

Front LENS (BOM#38)PTJ3002000006Front LENS (BOM#38)

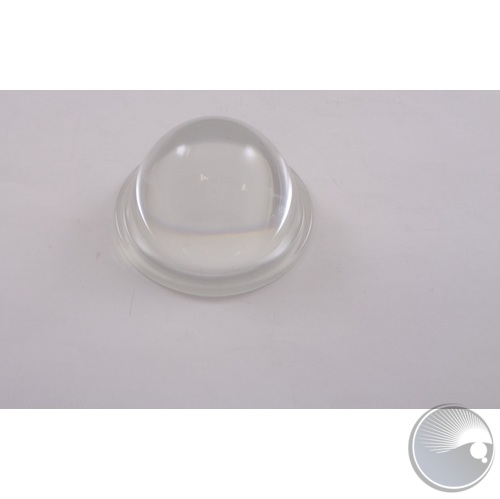

ASPHERIC SURFACE LENS (BOM#34)PTJ3002002006ASPHERIC SURFACE LENS (BOM#34)

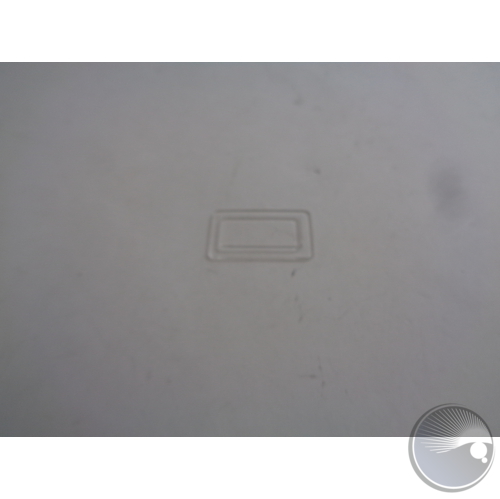

Display Cover (BOM#7)PTJ3003003064Display Cover (BOM#7)

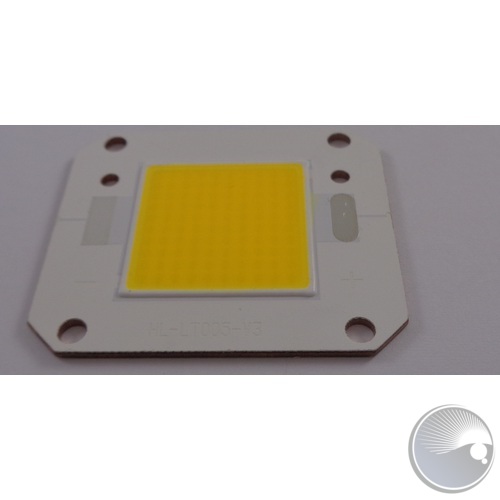

LED PCB (BOM#29)PTJ3009006006LED PCB (BOM#29)
PTJ300900600602LED SNAPS (BOM#30)

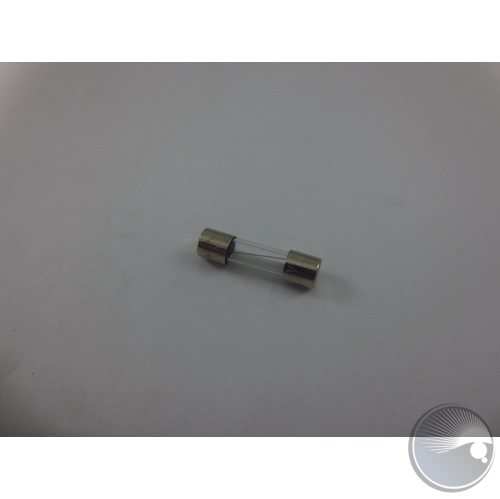

FUSE (BOM#10)PTJ3012023006FUSE (BOM#10)

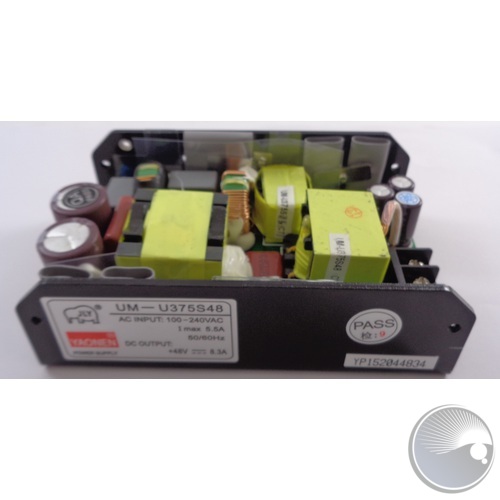

POWER SUPPLY +48V?8.3A (BOM#4)PTJ3013001162POWER SUPPLY +48V?8.3A (BOM#4)

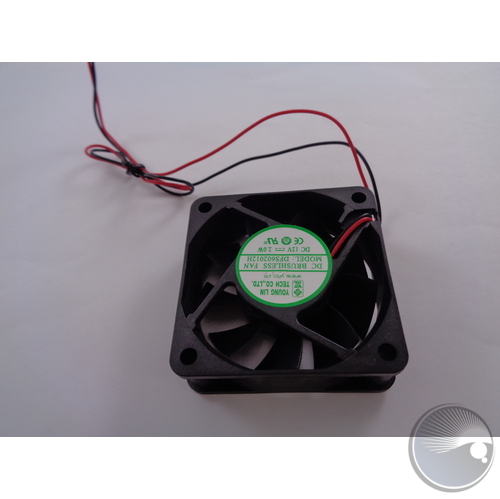

FAN DFS602012H 12V?2.0W (BOM#20)PTJ3017002017FAN DFS602012H 12V?2.0W (BOM#20)
PTJ3019001043BUTTON COVER (BOM#12)

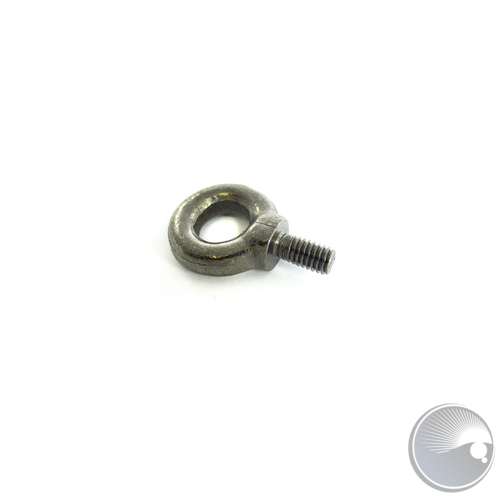

SAFETY LOOP (BOM#23)PTJ3020015001SAFETY LOOP (BOM#23)
?8 PLASTIC GASKET (BOM#2)PTJ3021700480?8 PLASTIC GASKET (BOM#2)

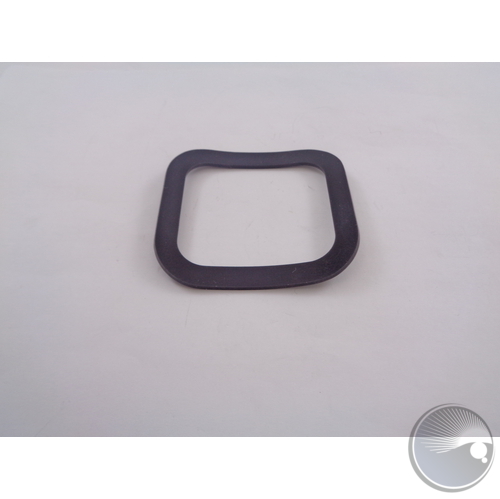

RUBBER RING (BOM#33)PTJ3026004045RUBBER RING (BOM#33)
Panel mount fuse holder (BOM#29)PTJ3027001001Panel mount fuse holder (BOM#29)
PTJ4010102954Power Supply Subplate

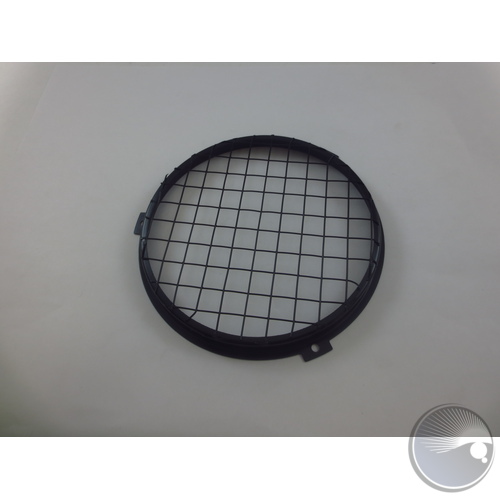

Bezel/Cross hatch/Screen for Front Lens CoverPTJ4010302254Bezel/Cross hatch/Screen for Front Lens Cover
REAR (BOM#8)PTJ4010401179REAR (BOM#8)
KNOB FOR HANGING BRACKET (BOM#23)PTJ5011120010KNOB FOR HANGING BRACKET (BOM#23)
FRONT GLASS PRESSURE PLATE (BOM#35)PTJ5019840090FRONT GLASS PRESSURE PLATE (BOM#35)
PTJ5019840130GLASS HOLE PLATE (BOM#32)
