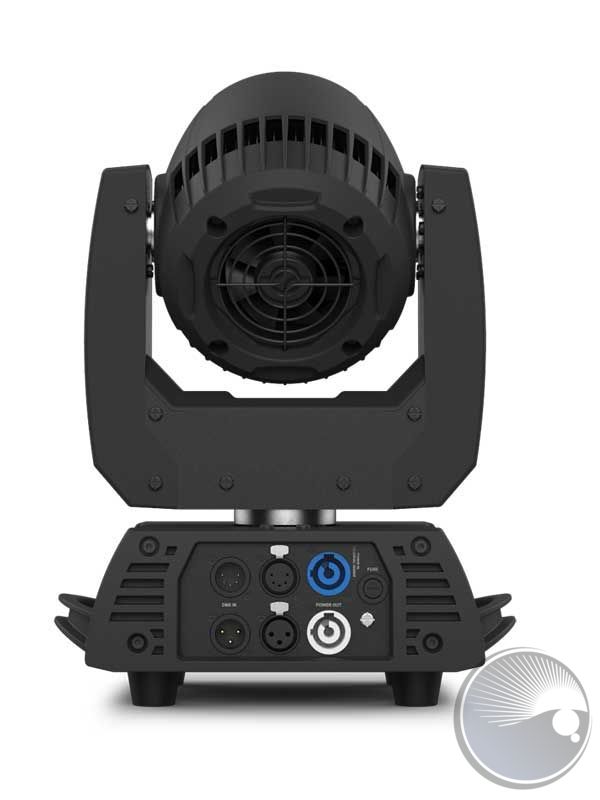

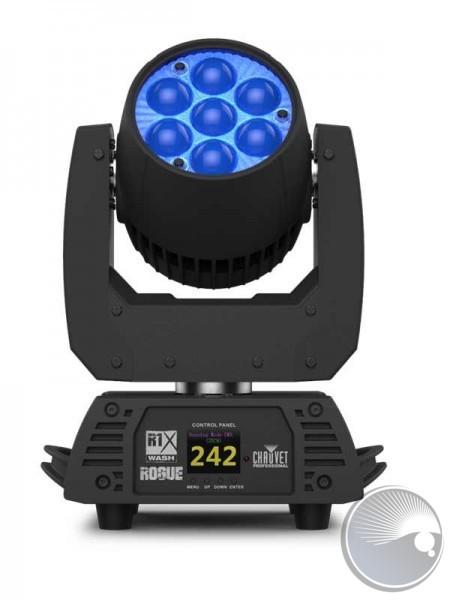

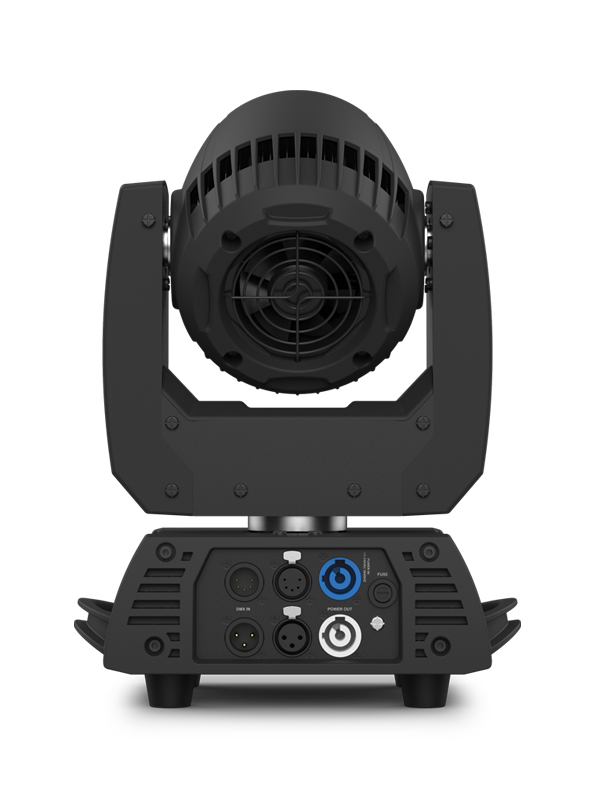

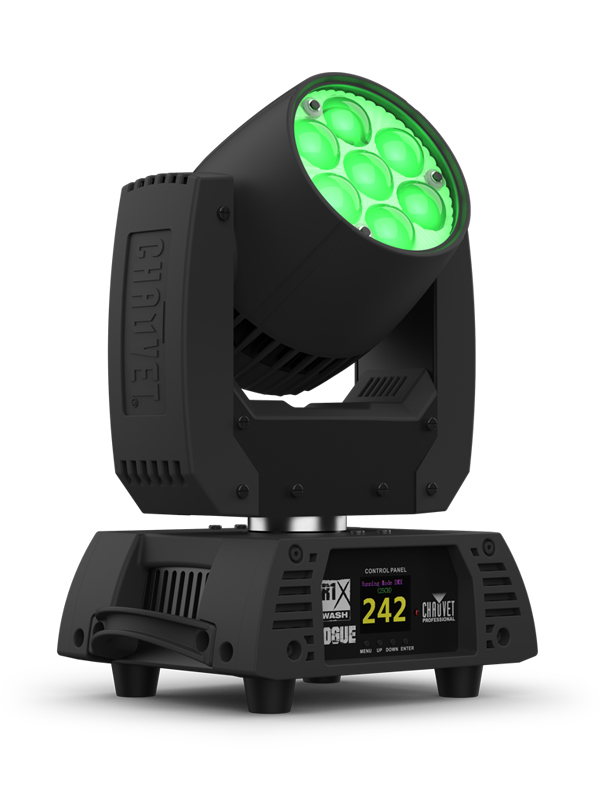

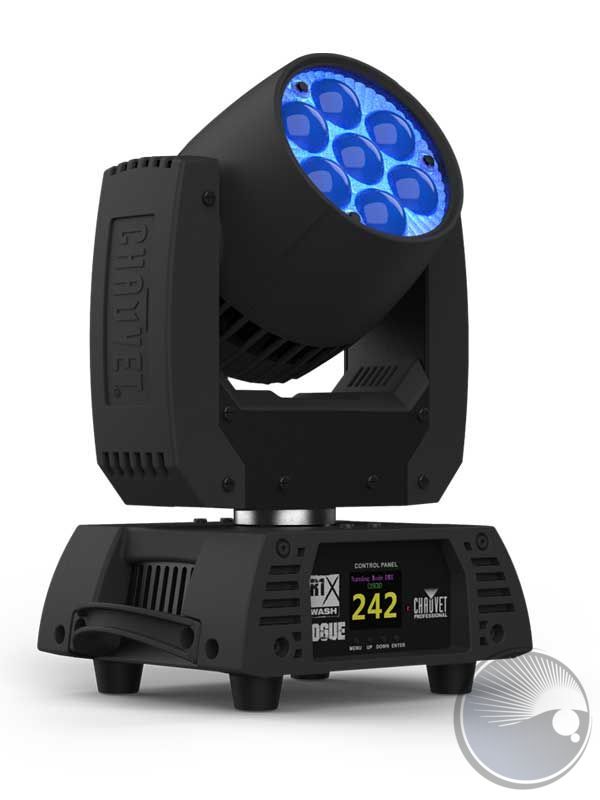

Rogue R1X Wash

Auf Anfrage!

  • ROGUER1XWASH
Rogue  R1X Wash Rogue R1X Wash distinguishes itself by offering a combination of... mehr
Produktinformationen "Rogue R1X Wash"

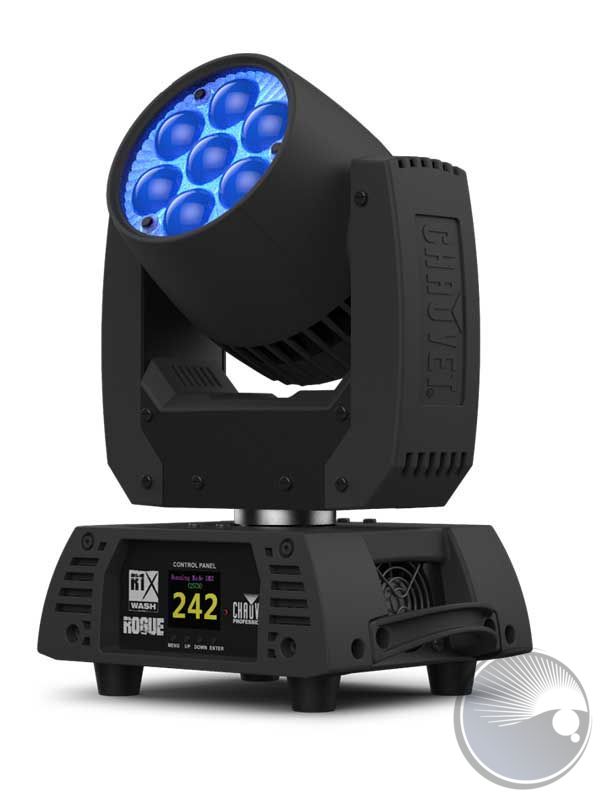

Rogue R1X Wash

Rogue R1X Wash distinguishes itself by offering a combination of performance features unique to its price class. Powered by seven RGBW 25 W quad-LEDs, this bright and versatile moving wash zoom fixture features a unique “bubble” lens design for excellent color rendering and stunning visual effects. Other standout features include an incredible 7.9° to 62.7° zoom range, incredibly fast and smooth pan and tilt movements, simple and complex DMX channel profiles, plus 3-pin and 5-pin DMX connectors. Versatility, value and performance make this fixture a welcome addition to any touring rig or permanent installation.



AT A GLANCE

  • Fully featured RGBW LED yoke wash fixture with zoom

  • 16-bit dimming of master dimmer as well as individual colors for smooth control of fades

  • 7 RGBW LEDs, 25 W each

  • 3- and 5-pin DMX input/output connections

  • Unique lens design for excellent color blending

  • Fast, smooth pan and tilt movement

  • RDM enabled for remote addressing and trouble shooting

  • Selectable LED maximum output to match legacy Rogue R1 Washes

  • Selectable PWM settings for camera operation

  • 6 distinct dimming modes for advanced control

  • User-selected calibrated white for 7500 K at full output

  • Omega mounting bracket, fits all Rogue and Maverick fixtures

  • Easy to read OLED display with simple, effective menu options

  • Simple and complex DMX channel profiles for programming versatility

SPECIFICATIONS

OPTICAL

  • Light Source: 7 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K Beam Angle: 8° to 30°
  • Beam Angle: 7.9° to 35.5°
  • Field Angle: 11.5° to 50.8°
  • Cutoff Angle: 19.3° to 62.7°
  • Zoom Range: 7.9° to 62.7°
  • Lumens – Source: 4,000
  • Lumens – Output: 2,455
  • Illuminance (11°): 2,872 lux @ 5 m
  • Illuminance (50.8°): 279 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

  • Pan and Tilt: 540°/230°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Built-in Automated Programs: Yes
  • Customizable Programs: No
  • Recall Custom Programs: No

CONSTRUCTION / PHYSICAL

  • Dimensions: 7.36 x 10.43 x 13.94 in (187 x 265 x 354 mm)
  • Weight: 13.6 lb (6.2 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 14, 15, 19 or 21
  • Modes/Personalities: 4 personalities (14, 15, 19, 21)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 10 units @ 120 V; 18 units @ 208 V; 20 units @ 230 V
  • Power and Current: 157 W, 1.33 A @ 120 V, 60 Hz
  • Power and Current: 152 W, 0.738 A @ 208 V, 60 Hz
  • Power and Current: 153 W, 0.660 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

  • Rogue R1X Wash
  • Neutrik® powerCON® power cord
  • Omega bracket with mounting hardware

OPTIONAL ACCESSORIES

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Safety Cable: SC-07
  • Neutrik® powerCON® cables
  • DMX Cables
  • Flight Case: CP6CASER1W
  • UPLOAD 08
Weiterführende Links zu "Rogue R1X Wash"

PTF1001002202Aviation plug power output socket (BOM#2)
PTF1001002302Power socket (Blue) IP44 55-210351-15 31.2x26.5x35 CE ROSH UL (BOM#18)
PTF2700003804US Powercon Cable (Type B NEMA 5-15 Style)
PTH010405010191Omega Bracket CD-D23-140 Version 4

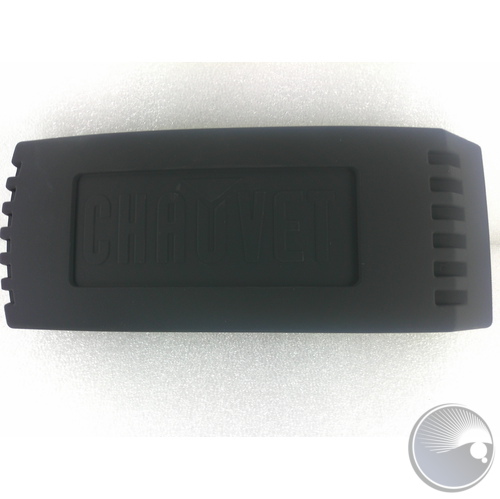

arm cover PRO-715-C04 (BOM#31)PTH01060100382191arm cover PRO-715-C04 (BOM#31)
FAN DC 12V 0.13A DFL6010B (BOM#12) upper fan Longer wires than PTH2030201101291PTH020060101FAN DC 12V 0.13A DFL6010B (BOM#12) upper fan Longer wires than PTH2030201101291
fan net 6×6 (BOM#14)PTH02100600fan net 6×6 (BOM#14)
PTH040100000154motor 17HEF4101-25-500 (BOM#41) Tilt Motor ( Longer Wire)

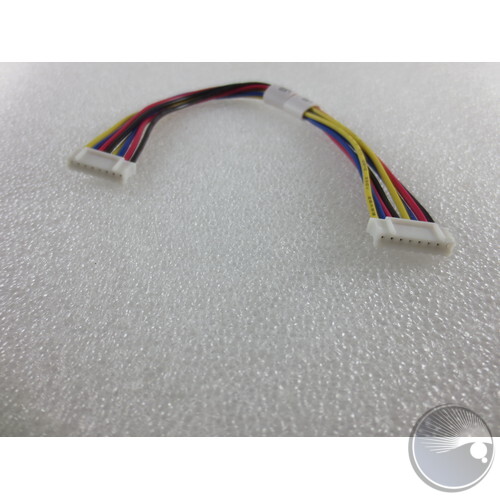

Wire Harness goes from the Driver to LEDPTH100700000011Wire Harness goes from the Driver to LED's PCB board
PTH1010102215513display PCB bracket PRO-715-A01-02 (BOM#16)
PTH1010102215531power supply board PRO-715-A01-03 (BOM#2)
hanging bracket PRO-715-A01-04 (BOM#19)PTH1010102215551hanging bracket PRO-715-A01-04 (BOM#19)
fan mat board PRO-715-A01-05 (BOM#12)PTH1010102215571fan mat board PRO-715-A01-05 (BOM#12)

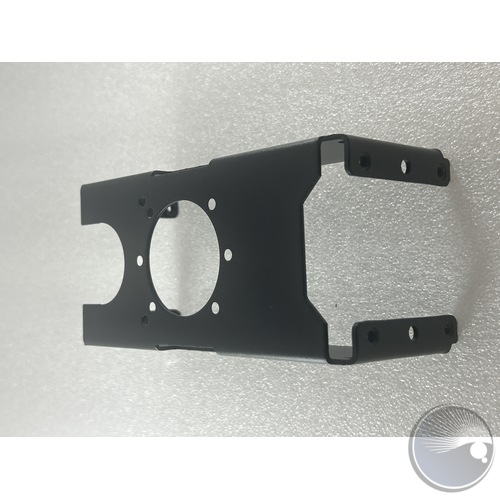

PTH1010102215591arm connection bracket PRO-715-A02-01 (BOM#58)

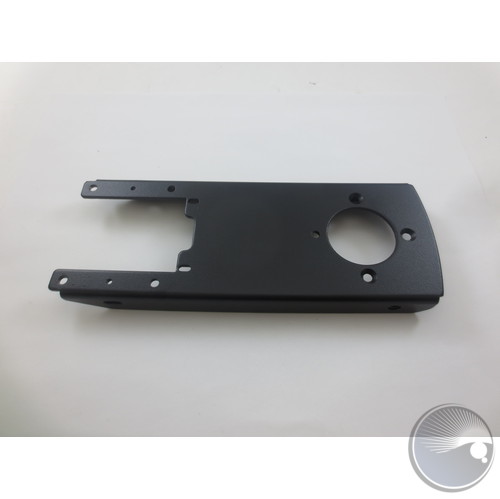

tilt motor bracket PRO-715-A02-02 (BOM#42)PTH1010102215611tilt motor bracket PRO-715-A02-02 (BOM#42)

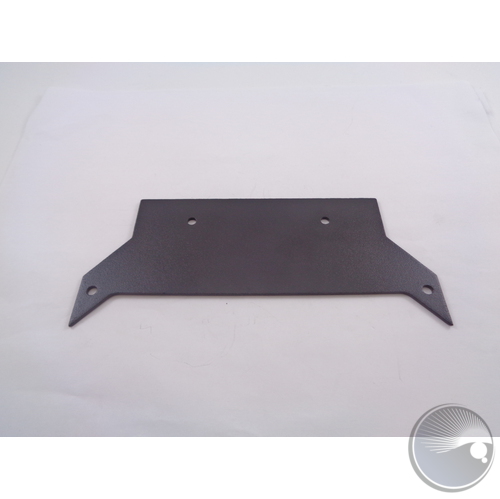

arm front board PRO-715-A02-03 (BOM#36)PTH1010102215631arm front board PRO-715-A02-03 (BOM#36)

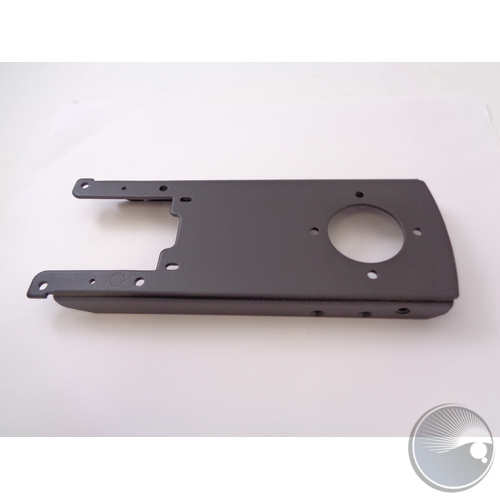

tilt bracket PRO-715-A02-04 (BOM#38)PTH1010102215651tilt bracket PRO-715-A02-04 (BOM#38)

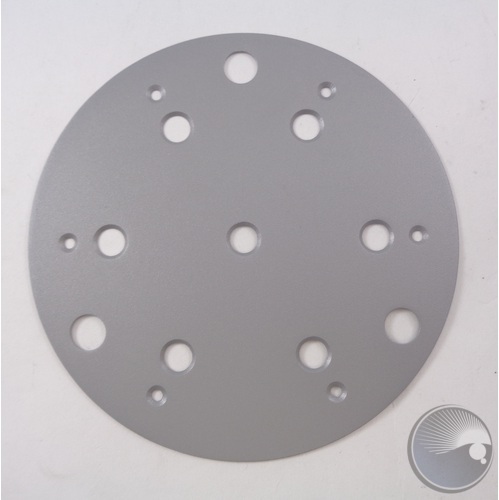

frost holder PRO-715-A03-02 (BOM#79)PTH1010102215691frost holder PRO-715-A03-02 (BOM#79)

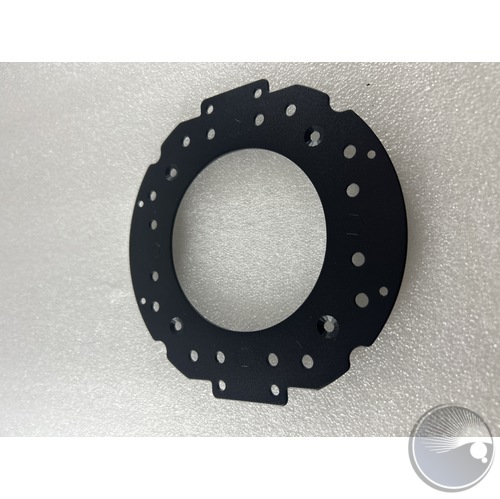

PTH1010102215711fan bracket PRO-715-A03-03 (BOM#93)

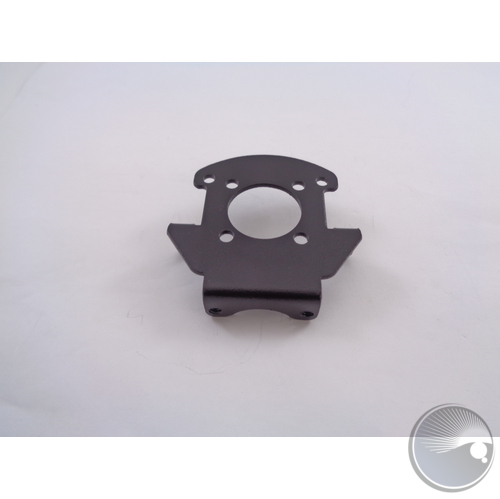

head side bracket PRO-715-A03-04 (BOM#72)PTH1010102215731head side bracket PRO-715-A03-04 (BOM#72)

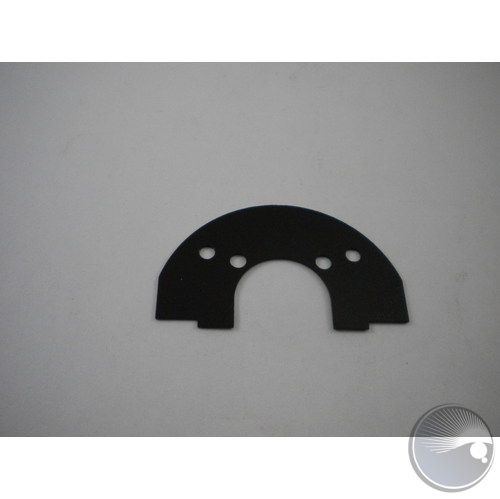

light blocker PRO-715-A03-05 (BOM#71)PTH1010102215751light blocker PRO-715-A03-05 (BOM#71)

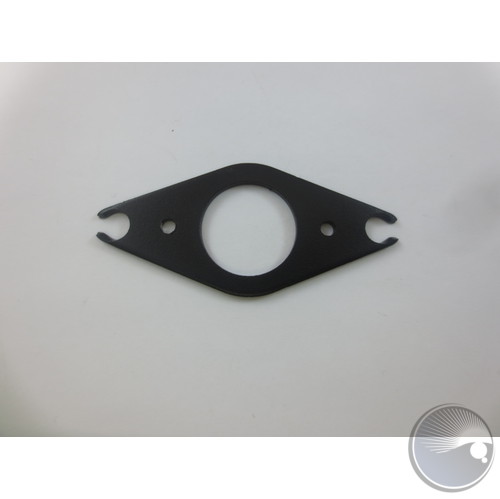

motor support bracket PRO-715-A03-06 (BOM#93)PTH1010102215771motor support bracket PRO-715-A03-06 (BOM#93)
PTH1010102228971pan motor bracket PRO-715-A02-05 (BOM#60)

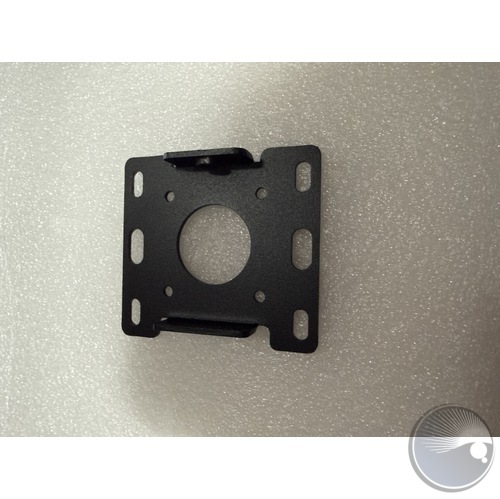

PTH1010102228991tilt motor adjust bracket PRO-715-A02-06 (BOM#48)
PTH1010102229011tilt wire press board PRO-715-A02-07 (BOM#30)
PTH1010102229031pan motor fix bracket PRO-715-A02-08 (BOM#58)
PTH1010102229051pan motor fix bracket PRO-715-A02-09 (BOM#59)

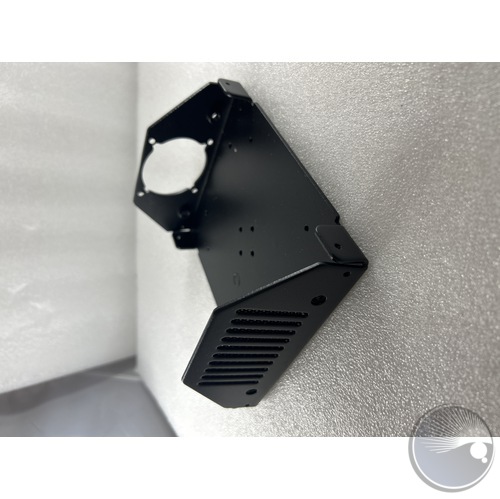

PTH1010102381651base board PRO-715-A01-01 (BOM#23)
washer PRO-715-A01-06 (BOM#24)PTH1010102381681washer PRO-715-A01-06 (BOM#24)

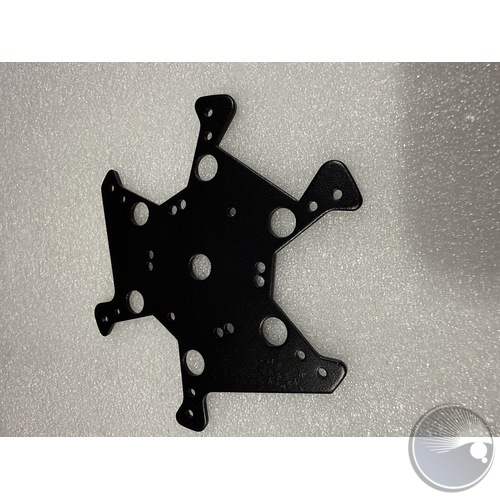

PTH1010102385861focus motor bracket PRO-715-A03-01 (BOM#86)
PTH1010102517731belt blocker X-25S-A02-05 (BOM#45)
standoff PRO-715-B01 (BOM#87)PTH1010202215801standoff PRO-715-B01 (BOM#87)

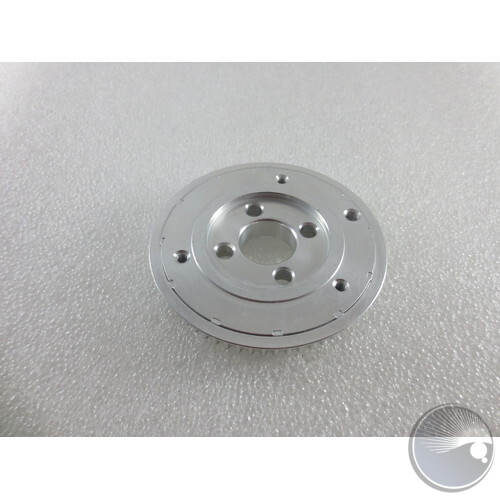

gear DL-363-06 (BOM#53)PTH1010202229071gear DL-363-06 (BOM#53)
PTH1010202229091mat cover PRO-715-B03 (BOM#50)
pan mat cover PRO-715-BZ01 (BOM#6)PTH1010202229111pan mat cover PRO-715-BZ01 (BOM#6)

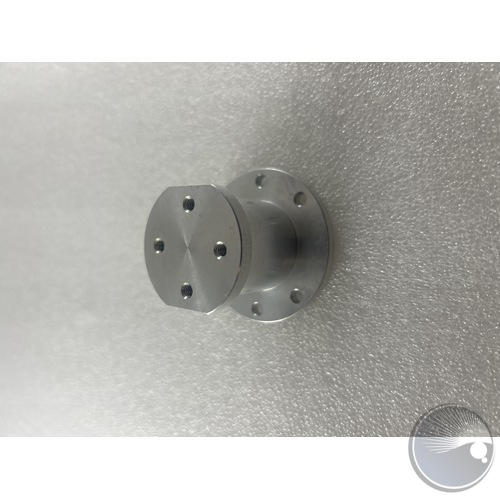

PTH1010202229121base post PRO-715-BZ02 (BOM#25)

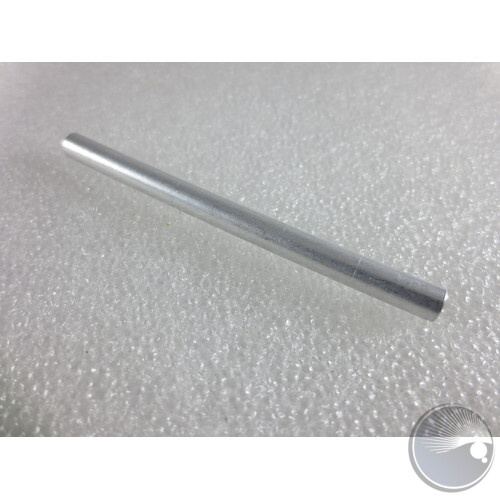

standoff 568 M3 (BOM#51)PTH1010401229701standoff 568 M3 (BOM#51)
PTH1010401412951standoff 562 M3 (BOM#33)

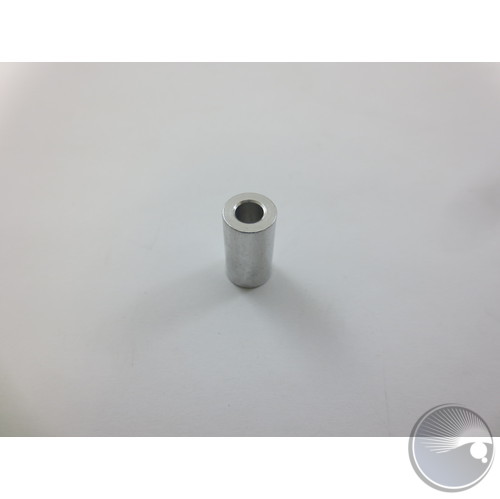

standoff 815 4.2 (BOM#5)PTH1010402229691standoff 815 4.2 (BOM#5)
PTH1010403164371standoff H823 M4 (BOM#94)

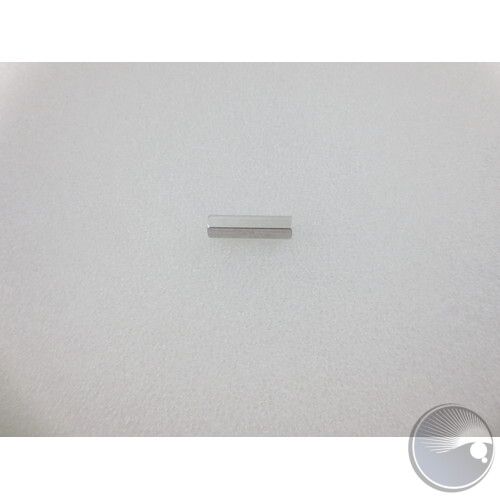

standoff H622 M3 (BOM#78)PTH1010403165681standoff H622 M3 (BOM#78)
aluminium post H6×24 M3 (BOM#78)PTH1010403165701aluminium post H6×24 M3 (BOM#78)
PTH1010403216201standoff H613.56 M3 M3X6 (BOM#89)
PTH1010403229552standoff H626 M3 (BOM#69)

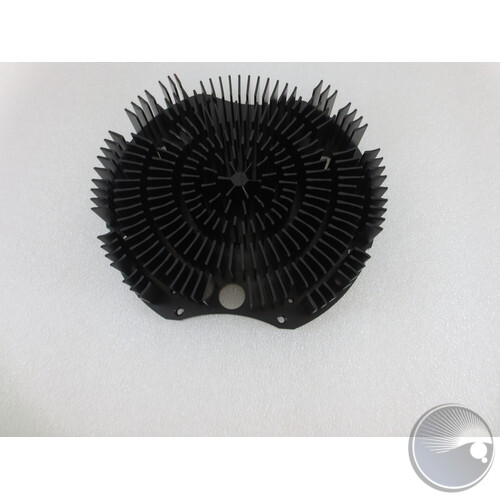

heatsink PRO-715-BS01 (BOM#70)PTH1010502215821heatsink PRO-715-BS01 (BOM#70)
140Dmm OMEGA BRACKET (BOM#34)PTH1040000230891140Dmm OMEGA BRACKET (BOM#34)
PTH1040000238071tilt bushing PRO-715 LED Moving Wash (BOM#35)

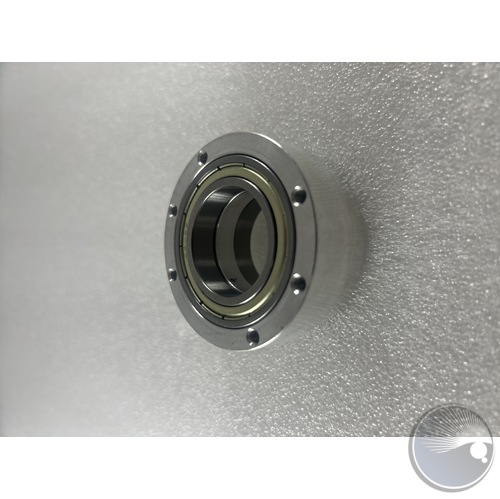

PTH1040000238081pan bushing PRO-715 LED Moving Wash (BOM#8)
belt wheel X-700PRO-1915PRO-715 LED Moving Spot (BOM#47)PTH1040000249321belt wheel X-700PRO-1915PRO-715 LED Moving Spot (BOM#47)
belt wheel PRO-1915/PRO-715 (BOM#54)PTH1040000258411belt wheel PRO-1915/PRO-715 (BOM#54)
PTH1060100208061base front cover PRO-715-C01 (BOM#1)
base side cover PRO-715-C02 (BOM#13)PTH1060100208071base side cover PRO-715-C02 (BOM#13)

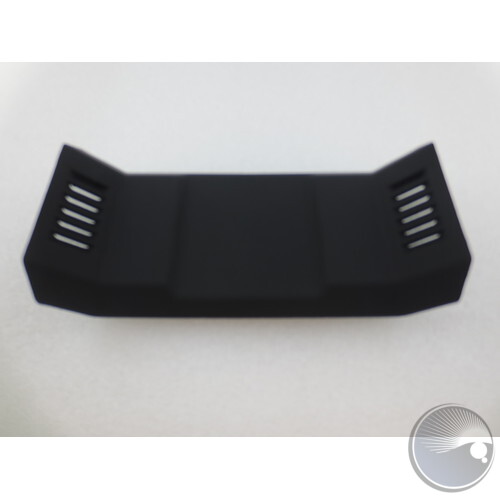

arm top cover PRO-715-C03 (BOM#39)PTH1060100208081arm top cover PRO-715-C03 (BOM#39)

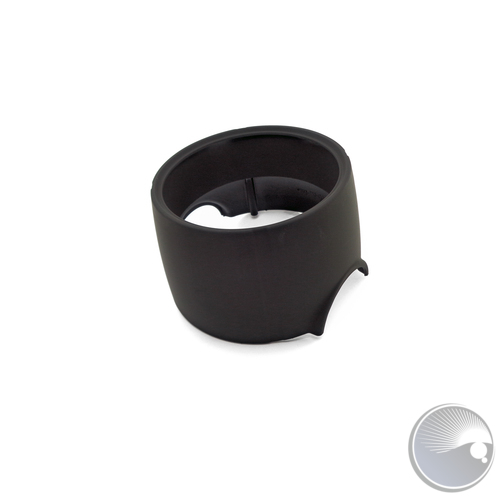

head front cover PRO-715-C05 (BOM#83)PTH1060100208101head front cover PRO-715-C05 (BOM#83)
handle PRO-715-C07 (BOM#15)PTH1060100208121handle PRO-715-C07 (BOM#15)

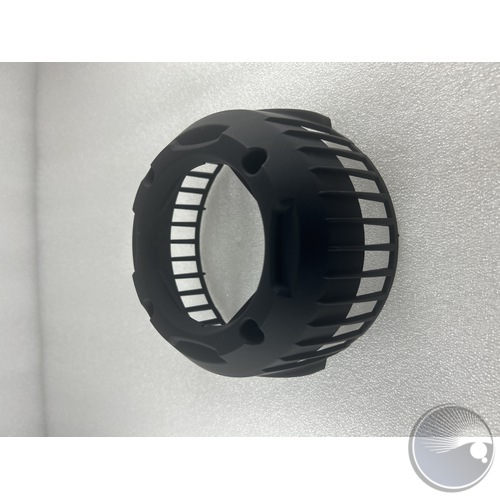

head back cover PRO-715-C06 (BOM#65)PTH1060100247281head back cover PRO-715-C06 (BOM#65)
display lens cover CDC39×32×2.5 (BOM#9)PTH1060200181811display lens cover CDC39×32×2.5 (BOM#9)

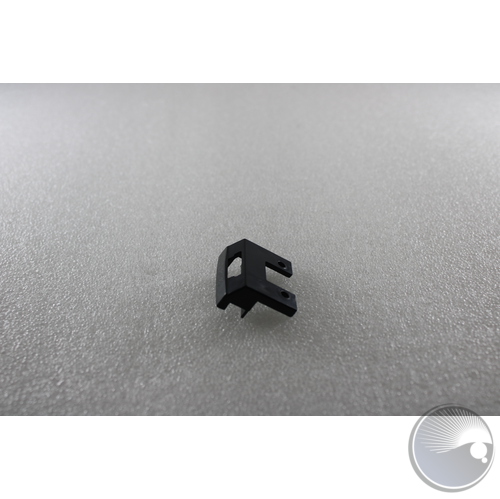

PTH1060200205161optocoupler cover PRO-5R-C09 (BOM#59)

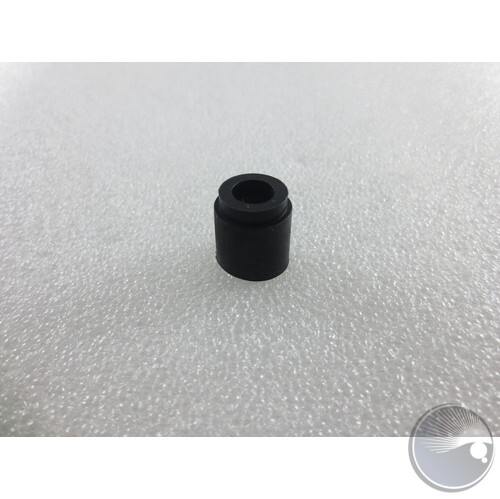

motor cover 3 PRO-715-C09 (BOM#117)PTH1060200229721motor cover 3 PRO-715-C09 (BOM#117)
motor cover 2 PRO-715-C08 (BOM#85)PTH1060200241181motor cover 2 PRO-715-C08 (BOM#85)

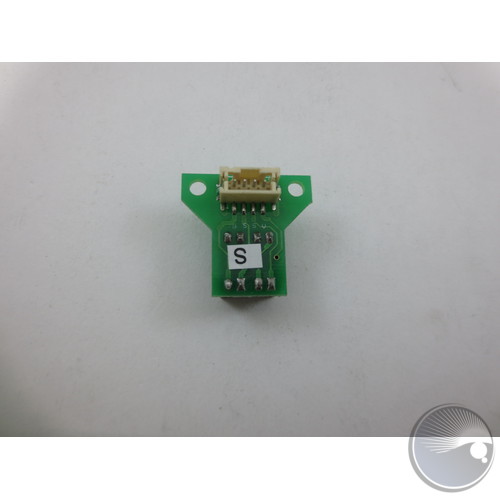

optocoupler pcb AGD005A (BOM#64)PTH2020302181121optocoupler pcb AGD005A (BOM#64)
DMX board DMX012B (BOM#40)PTH2020302267381DMX board DMX012B (BOM#40)

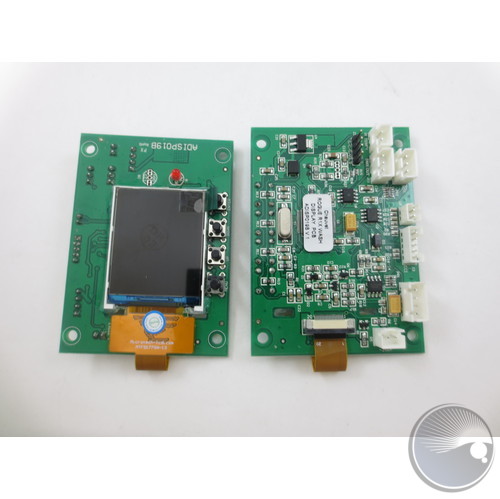

display PCB ADISP019B (BOM#22)PTH2020302490822display PCB ADISP019B (BOM#22)

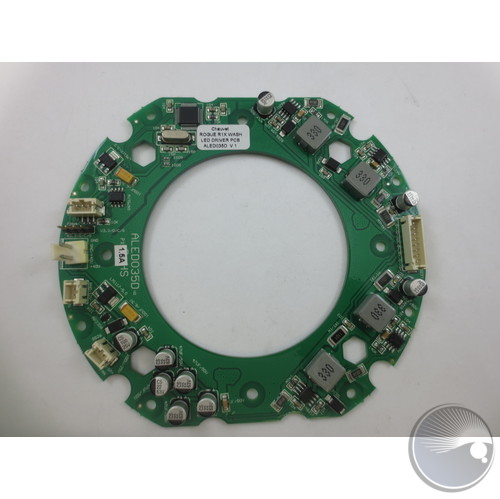

LED driver PCB ALED035D (BOM#68)PTH2020302504591LED driver PCB ALED035D (BOM#68)

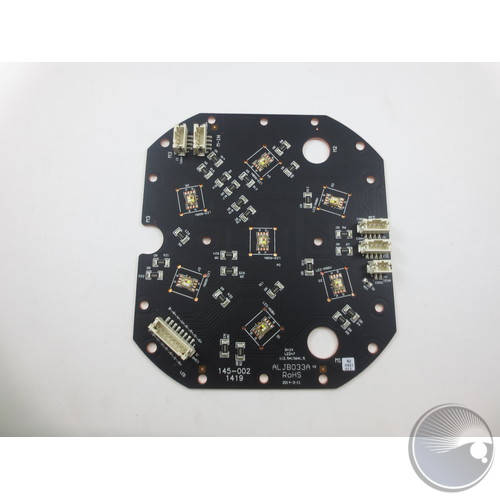

LED PCB ALJB033A (BOM#91)PTH2020302511201LED PCB ALJB033A (BOM#91)

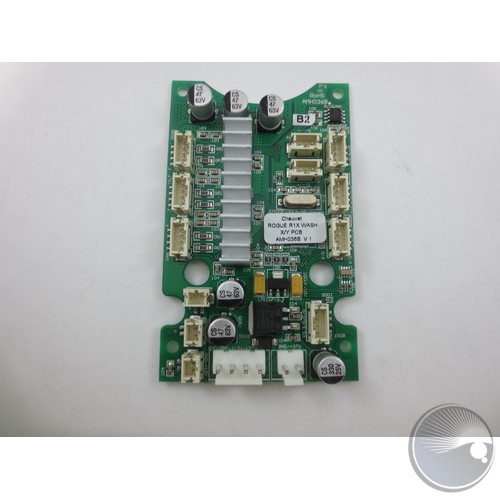

pan tilt PCB AMH036B (BOM#37)PTH2020302517711pan tilt PCB AMH036B (BOM#37)

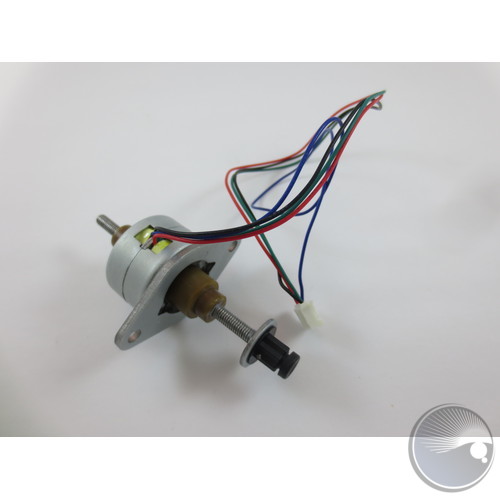

motor 25PM30006-05N (BOM#123)PTH2030101342041motor 25PM30006-05N (BOM#123)

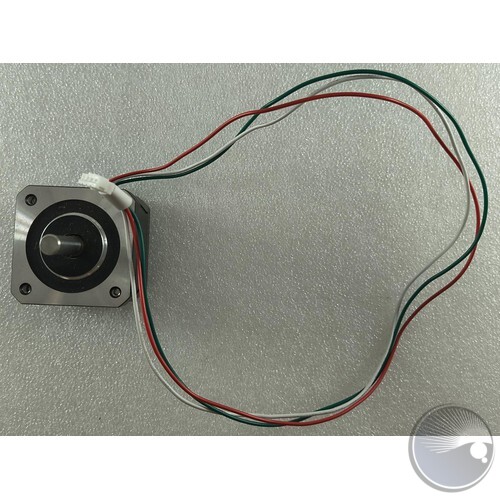

PTH2030103504961motor 17HEF4101-25-500 (BOM#41)

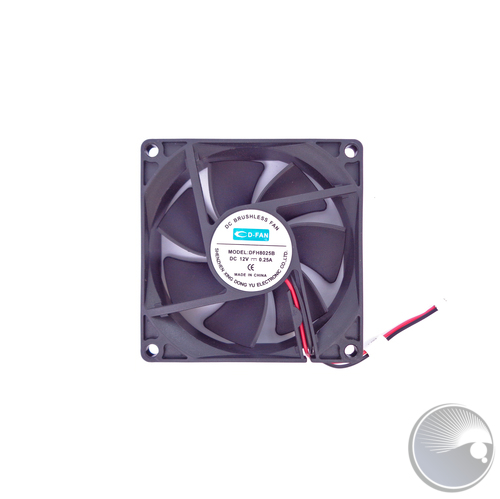

fan DFH8025B (BOM#67)PTH2030201101311fan DFH8025B (BOM#67)

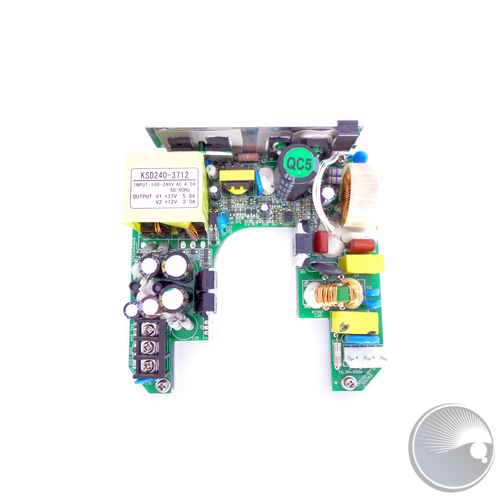

power supply KSD240-3712 (BOM#9)PTH2030700227901power supply KSD240-3712 (BOM#9)
fog 14×16mm 10° (BOM#86)PTH2040606230221fog 14×16mm 10° (BOM#86)
light guide post LL01EDBKH100L06 (BOM#79)PTH2040900214301light guide post LL01EDBKH100L06 (BOM#79)
light guide post bracket LL01OSTY100H2 (BOM#80)PTH2040900214311light guide post bracket LL01OSTY100H2 (BOM#80)

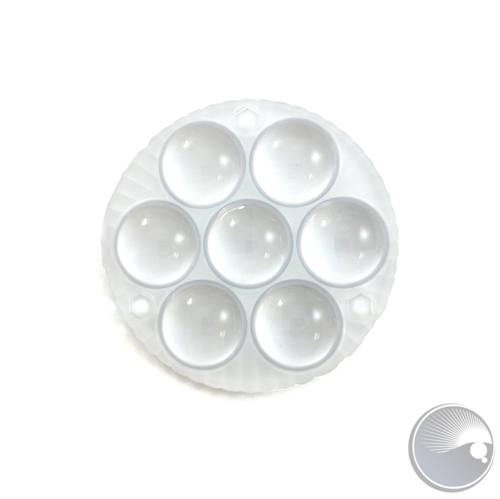

lens LL07OS-BPD60L06 (BOM#80)PTH2040900214721lens LL07OS-BPD60L06 (BOM#80)
PTH2070501522481sticker ROGUE R1X WASH (BOM#29)
PTH2080502127551screw M410 (BOM#92)
screw M6X16 (BOM#14)PTH2080502127701screw M6X16 (BOM#14)

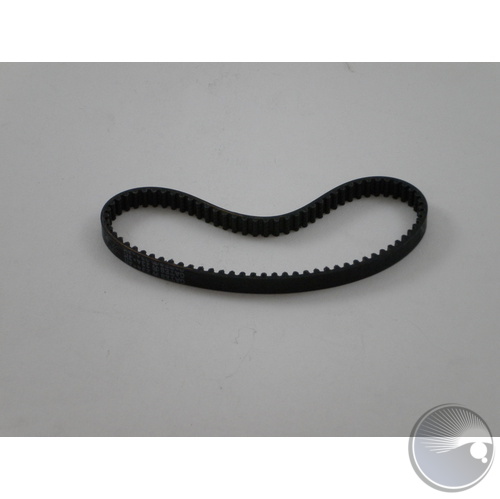

belt 3M-234-6mm (BOM#52)PTH2090101214341belt 3M-234-6mm (BOM#52)
machine feet GL-012 (BOM#2)PTH2090400177052machine feet GL-012 (BOM#2)
rubber ring 5119.5 (BOM#116)PTH2090400177062rubber ring 5119.5 (BOM#116)
fan vent 88 (BOM#66)PTH2090500054831fan vent 88 (BOM#66)
quick lock screw M20 (BOM#47)PTH2090500180091quick lock screw M20 (BOM#47)
spring ?6×27×0.8 (BOM#58)PTH2090601168501spring ?6×27×0.8 (BOM#58)
safety tube 3A ?5×20 250V (BOM#60)PTH2090900167241safety tube 3A ?5×20 250V (BOM#60)
circlip ?24 (BOM#34)PTH2091302169561circlip ?24 (BOM#34)
open circlip ?4 (BOM#66)PTH2091302169621open circlip ?4 (BOM#66)
rubber ring 136 (BOM#82)PTH2091500227791rubber ring 136 (BOM#82)
PTH210200014412Omega hanging bracket V2, Shorter with 6mm wahser CD-D13 140mm (BOM#57)
optocoupler pcb AGD004 B (BOM#70)PTH28AGD004Boptocoupler pcb AGD004 B (BOM#70)

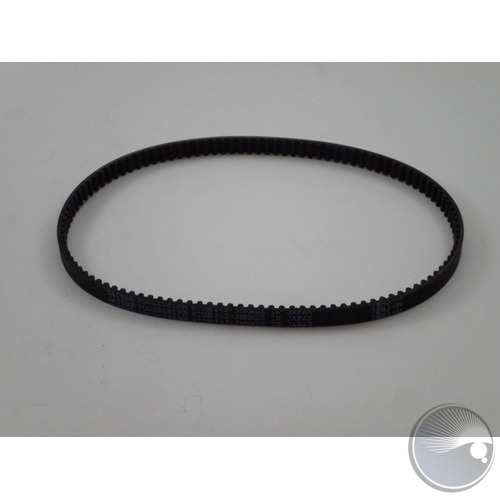

belt 3M-342-6mm (BOM#46)PTH934235belt 3M-342-6mm (BOM#46)

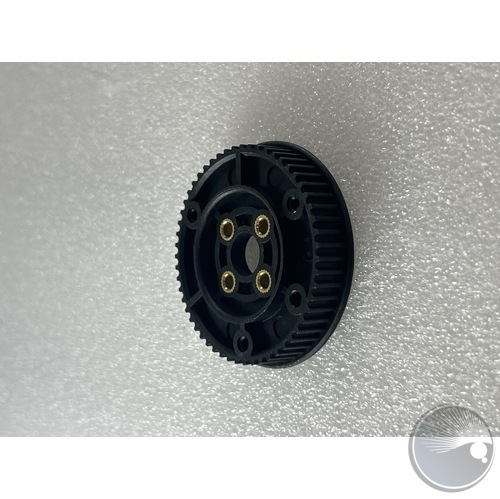

PTHDLC35501gear DL-C355-01 (BOM#44)
PTHTOP715A0206pan oriantation chip TOP715A0206 (BOM#53)
pan oriantation mat TOP715A0207 (BOM#52)PTHTOP715A0207pan oriantation mat TOP715A0207 (BOM#52)
PTHTOP715A0210belt press chip TOP-715-A02-10 (BOM#51)
PTHTOP715BZ01pan axis TOP715BZ01 (BOM#9)
PTHTOP715BZ03tilt axis 1 TOP-715-BZ03 (BOM#36)

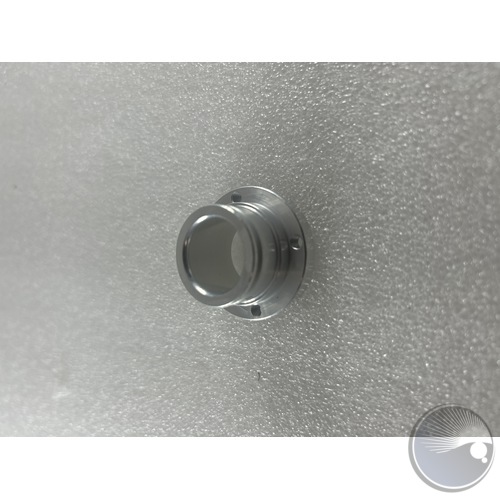

PTHTOP715BZ05tilt axis 2 TOP-715-BZ05 (BOM#34)
Panel mount fuse holder (BOM#29)PTJ3027001001Panel mount fuse holder (BOM#29)
UPLOAD08UPLOAD08/MR UPLOAD (CPMOVEUP) ***Order from Location 1***
