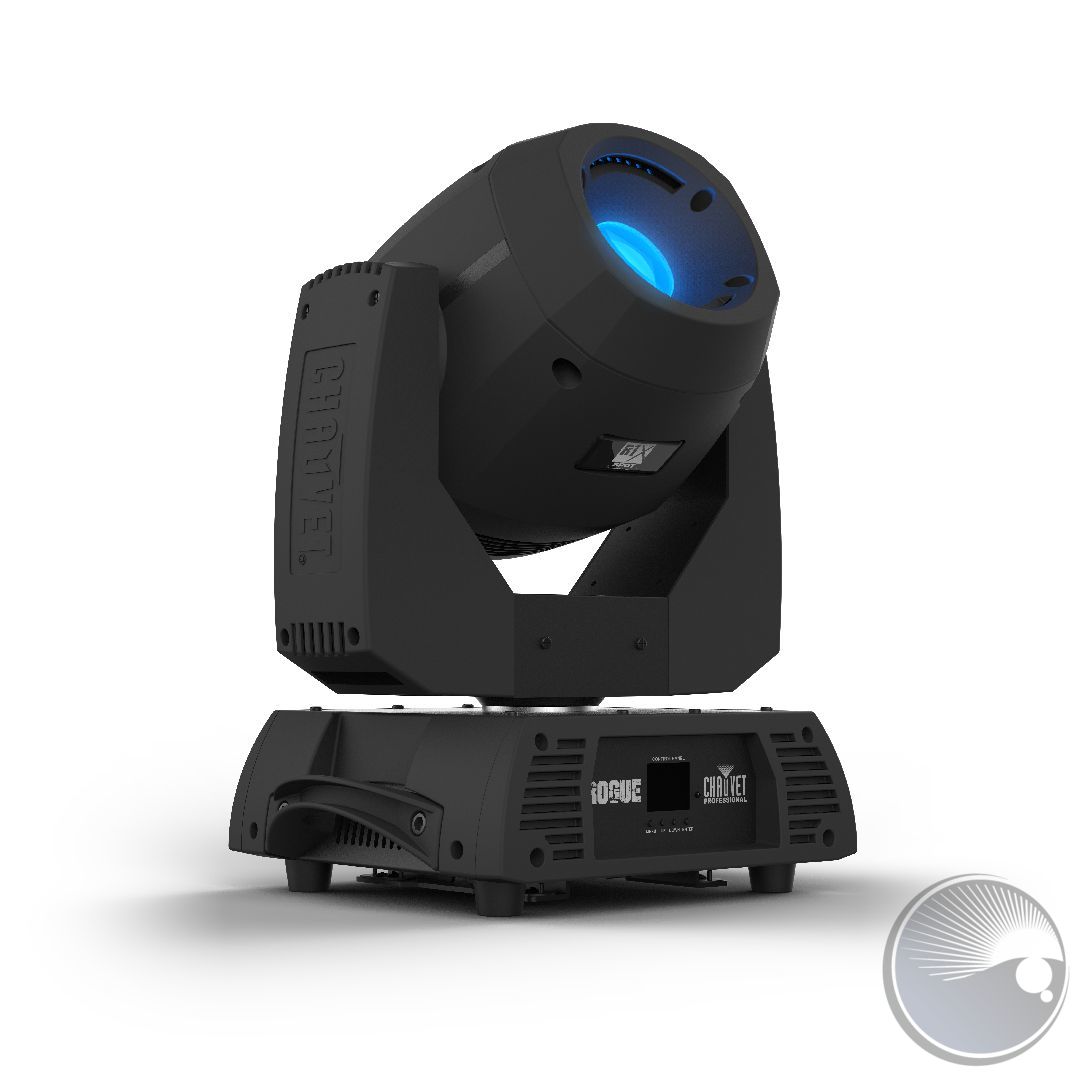

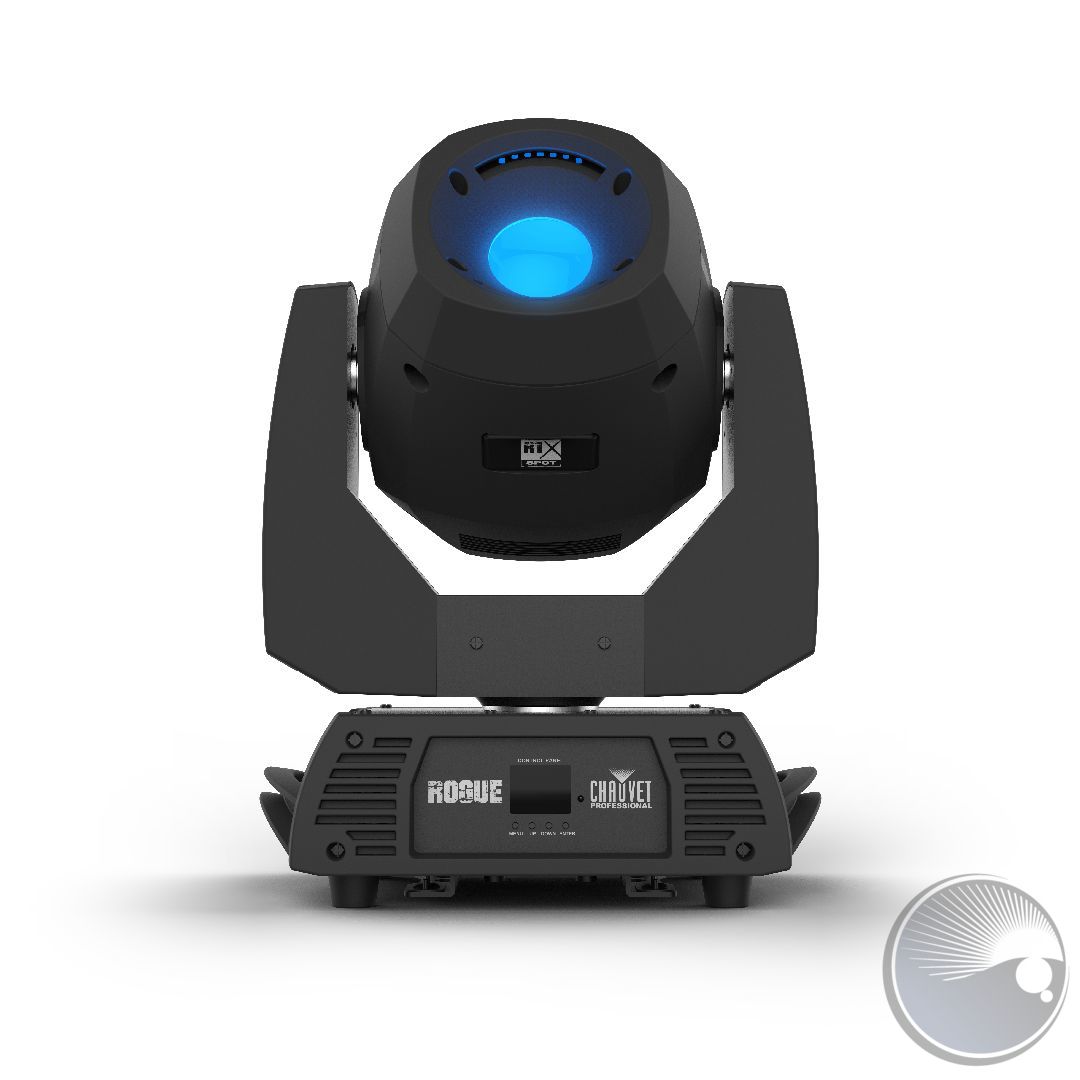

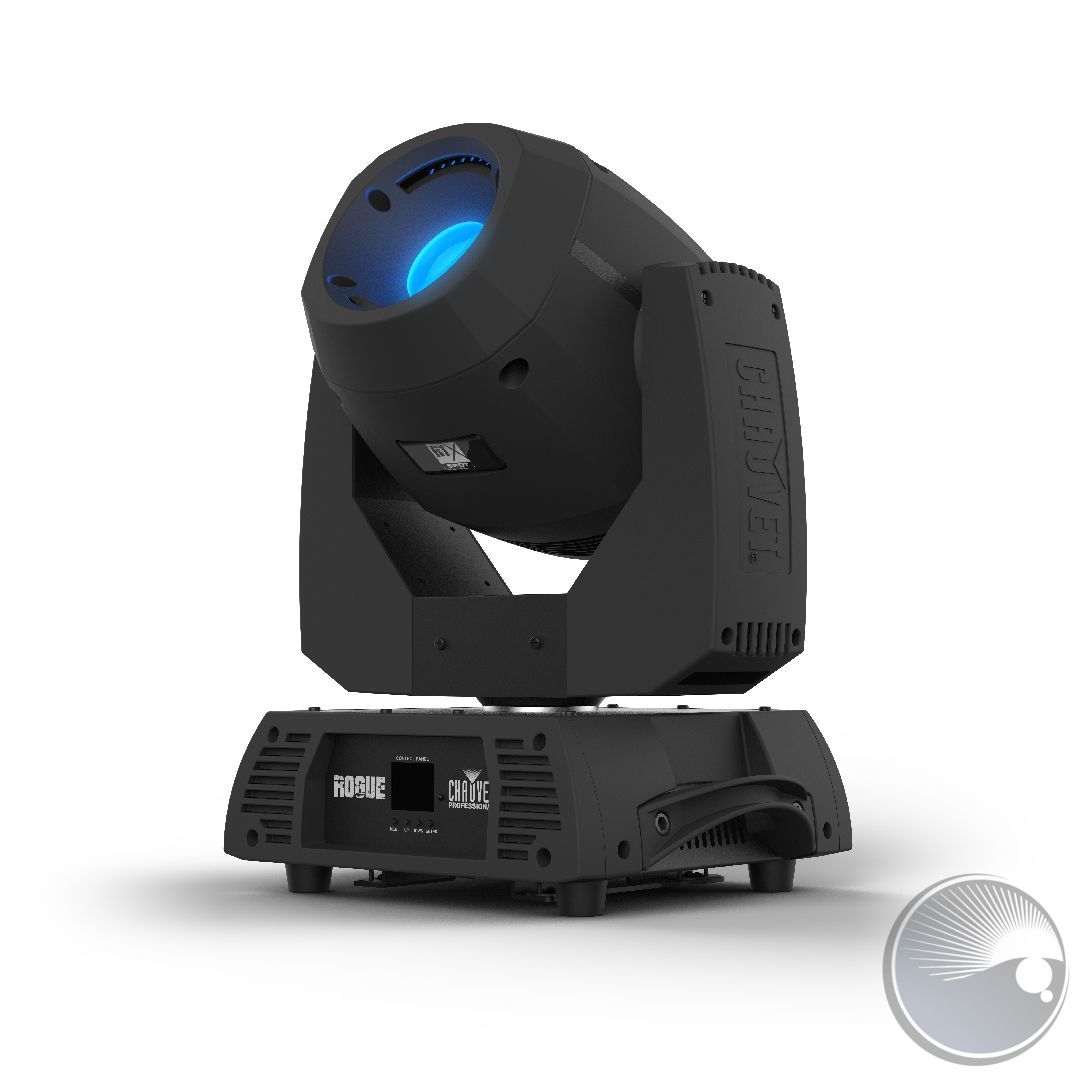

Rogue R1X Spot

Auf Anfrage!

  • ROGUER1XSPOT
Rogue  R1X Spot Rogue R1X Spot  brings innovation and creativity with a rotating... mehr
Produktinformationen "Rogue R1X Spot"

Rogue R1X Spot

Rogue R1X Spot brings innovation and creativity with a rotating 3-facet prism for stunning aerial effects, a motorized iris and focus for beam shaping, as well as two gobo wheels, one of which rotates and has 7 interchangeable gobos for custom looks. Rogue R1X Spot shines brightly with a 170 W LED light source in a 14° beam angle for crisp gobo projections in a range of eight beautiful colors.



AT A GLANCE

  • Bold, bright 170 W LED light engine for punchy, solid beams

  • Color wheel with 8 colors, split color ability, and continuous variable-speed scrolling

  • Two gobo wheels: one fixed slot scrolling wheel and one rotating, interchangeable, scrolling wheel

  • Iris and 3-facet prism for stunning visual effects

  • Neutrik® powerCON® power input/output connections for power linking

  • 3- and 5-pin DMX input/output connections

  • RDM enabled for remote addressing and trouble shooting

  • Selectable LED maximum output to match legacy Rogue R1 Spots

  • Selectable PWM settings to maintain flicker free operation on camera

  • Simple and complex DMX channel profiles for programming versatility

SPECIFICATIONS

OPTICAL

  • Light Source: 1 LEDs (CW) 170 W, (7.4 A), 8847 K, 50,000 hours life expectancy
  • Color Temperature (at full): 8847 K
  • Front lens diameter: 65 mm
  • CRI: 75.2
  • Beam Angle: 14°
  • Field Angle: 15.6°
  • Cutoff Angle: 15.9°
  • Lumens – Source: 12,000
  • Lumens – Output: 5,479
  • Illuminance (total): 4,388 lux @ 5 m
  • Selectable LED Power output: 50-100
  • Selectable PWM: 600 Hz, 1,200 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

  • Pan and Tilt: 540°/250°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 250° tilt
  • Colors: 8 + white, split colors, continuous scroll at variable speeds
  • Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 8 + open (8 metal),continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating): Positions 1, 2, 3, 4, and 7 (metal); size: 26.9 mm (outside), 22.5 mm (image), 0.5 mm (max. thickness)
  • Gobo Size: Gobo Wheel 1 (rotating): Positions 5 and 6 (glass); size: 25 mm (outside), 23 mm (image), 3 mm (max thickness)
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Focus: Motorized
  • Iris: Motorized
  • Prism: 3 Facets, motorized, rotating
  • Strobe Rate: 0 to 22 Hz
  • Move in Black: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions (single unit): 11.10 x 14.20 x 17.60 in (282 x 360 x 447 mm)
  • Weight (single unit): 37.6 lb (17.1 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 16 or 19
  • Modes/Personalities: 2 personalities (16, 19)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 5 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V
  • Power and Current: 303 W, 2.34 A @ 120 V, 60 Hz
  • Power and Current: 297 W, 1.35 A @ 208 V, 60 Hz
  • Power and Current: 299 W, 1.20 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

  • Rogue R1X Spot
  • Neutrik powerCON power cord
  • 2 Omega brackets with mounting hardware

OPTIONAL ACCESSORIES

Weiterführende Links zu "Rogue R1X Spot"

FUSE5AMPGMAFUSE
PTF1001002202Aviation plug power output socket (BOM#2)
PTF1001002302Power socket (Blue) IP44 55-210351-15 31.2x26.5x35 CE ROSH UL (BOM#18)
PTF2700003804US Powercon Cable (Type B NEMA 5-15 Style)
Omega Bracket CD-D23-140 Version 4PTH010405010191Omega Bracket CD-D23-140 Version 4

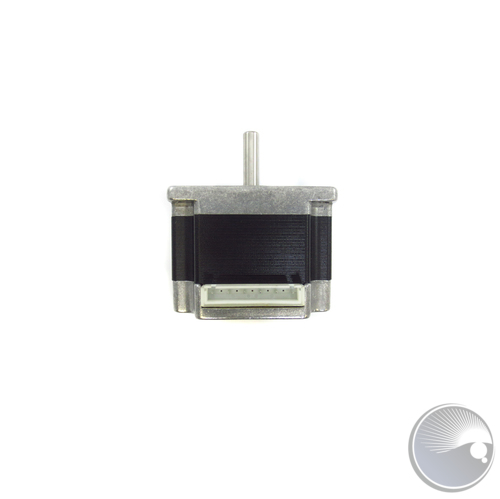

stepper motor 57SHD011225AM (BOM#48)PTH0157SHD011225AMstepper motor 57SHD011225AM (BOM#48)

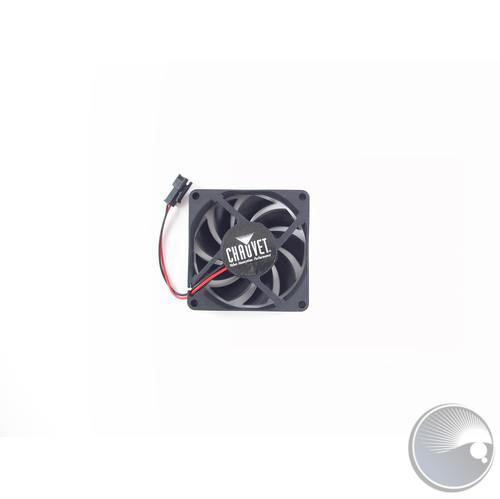

FAN DC 12V 0.17A DFL6010B - 2-pin female 2.54 (BOM#25)PTH0200601201310FAN DC 12V 0.17A DFL6010B - 2-pin female 2.54 (BOM#25)
fan 12V?0.20A DFM9025B - 2-pin - 2514 male (BOM#119)PTH02009025fan 12V?0.20A DFM9025B - 2-pin - 2514 male (BOM#119)
fan net 6×6 (BOM#14)PTH02100600fan net 6×6 (BOM#14)

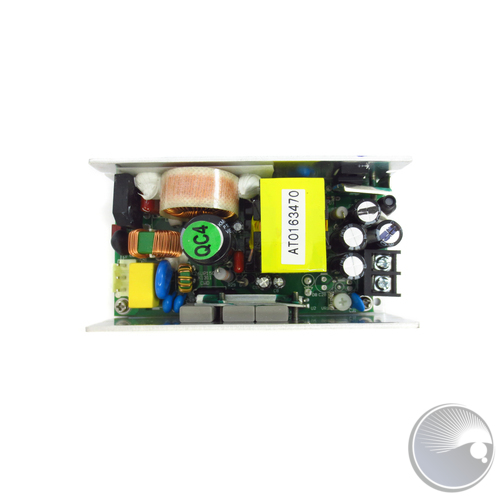

power supply K26H-UP150S30 30V, 5A (BOM#17)PTH03K26HUP150S30power supply K26H-UP150S30 30V, 5A (BOM#17)
PTH0803485rubber O ring ?45*?5 (BOM#80)
PTH100703000819temperature wire
PTH1010102136641pan mat chip EX-575-A01-20 (BOM#65)
PTH1010102194021lens press chip X-300S-A03-13 (BOM#127)
PTH1010102195541power supply socket board PRO-100S-A01-02 (BOM#21)
PTH1010102195561fan bracket PRO-100S-A01-03 (BOM#12)

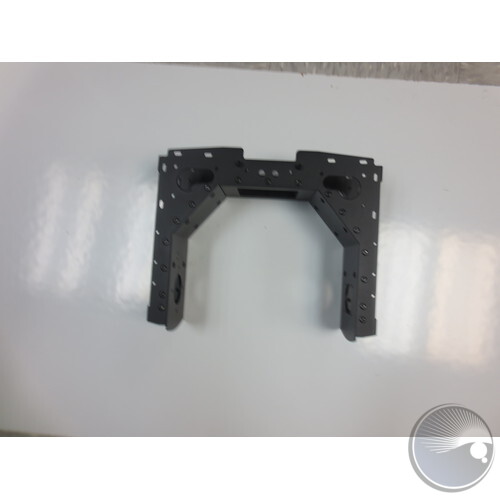

arm main bracket connection PRO-100S-A02-01 (BOM#43)PTH1010102195581arm main bracket connection PRO-100S-A02-01 (BOM#43)
PTH1010102195601arm connection bracket PRO-100S-A02-02 (BOM#55)
PTH1010102195621arm bracket cover board PRO-100S-A02-03 (BOM#46)
PTH1010102195641arm wire board PRO-100S-A02-04 (BOM#51)

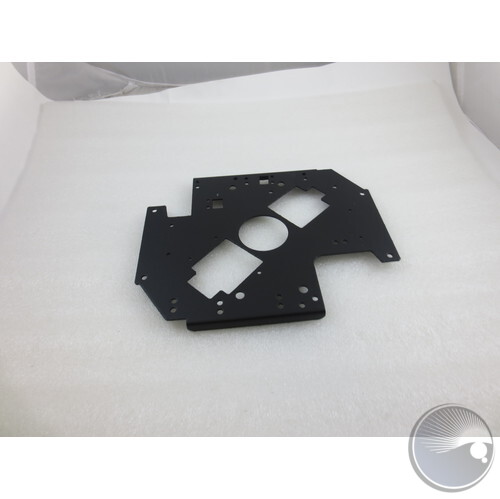

color motor bracket PRO-100S-A03-01 (BOM#91)PTH1010102195661color motor bracket PRO-100S-A03-01 (BOM#91)
PTH1010102195681head side bracket PRO-100S-A03-02 (BOM#103)
PTH1010102195701gobo motor bracket PRO-100S-A03-03 (BOM#142)

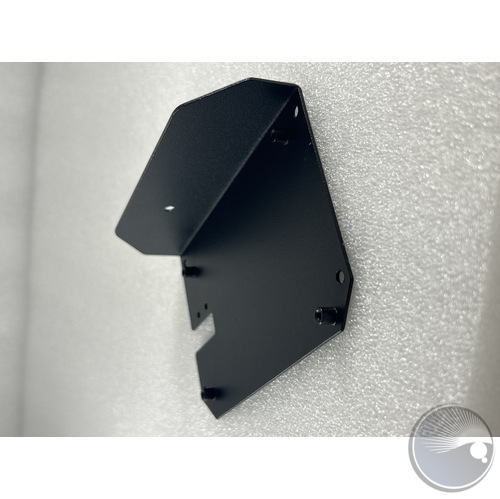

pcb bracket PRO-100S-A03-05 (BOM#107)PTH1010102195741pcb bracket PRO-100S-A03-05 (BOM#107)

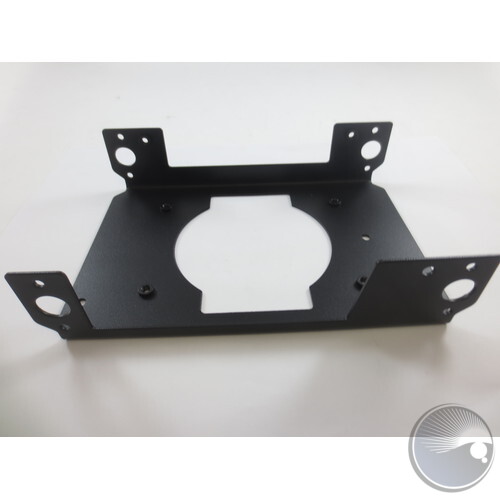

lens bracket PRO-100S-A03-06 (BOM#126)PTH1010102195761lens bracket PRO-100S-A03-06 (BOM#126)

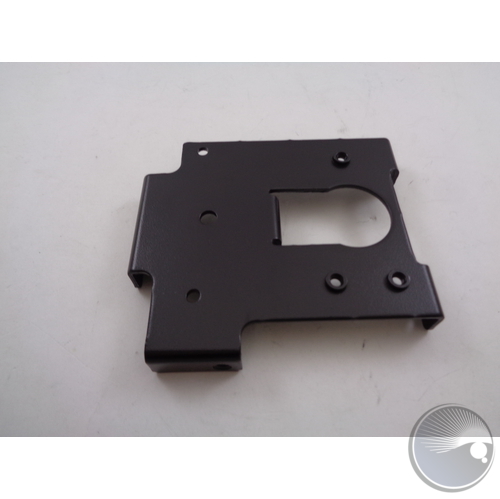

focus motor bracket PRO-100S-A03-08 (BOM#162)PTH1010102195801focus motor bracket PRO-100S-A03-08 (BOM#162)

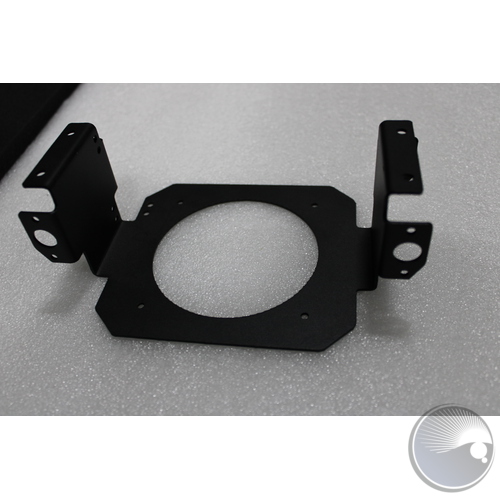

PTH1010102195821head back bracket PRO-100S-A03-09 (BOM#78)
PTH1010102196201adjust motor board PRO-200S-A03-12 (BOM#165)
PTH1010102196221cable barrier PRO-200S-A03-13 (BOM#146)

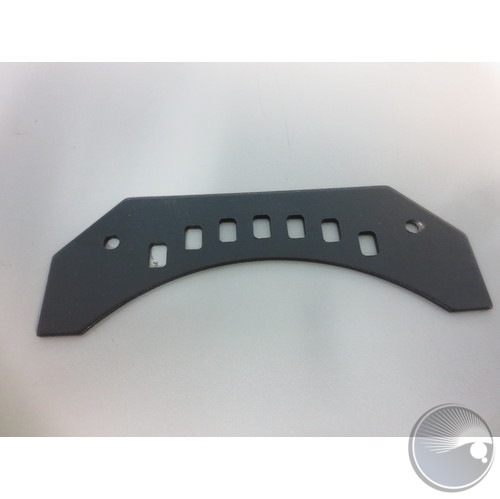

dust barrier PRO-200S-A03-14 (BOM#128)PTH1010102196241dust barrier PRO-200S-A03-14 (BOM#128)
PTH1010102196281base board PRO-2R-A01-01 (BOM#8)

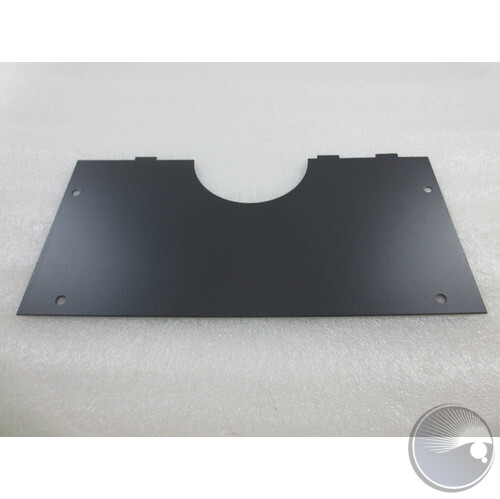

base front cover PRO-2R-A01-02 (BOM#16)PTH1010102196301base front cover PRO-2R-A01-02 (BOM#16)
PTH1010102196321pan bracket PRO-2R-A01-03 (BOM#18)
PTH1010102196361display board bracket PRO-2R-A01-04 (BOM#4)
PTH1010102196421base side board PRO-2R-A01-06 (BOM#4)

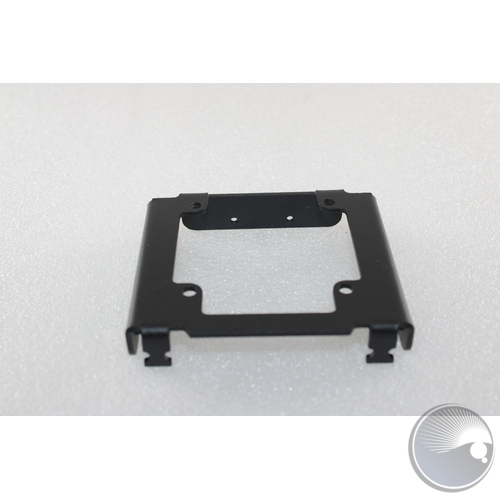

PTH1010102196561tilt motor bracket PRO-2R-A02-04 (BOM#74)
PTH1010102196581pan motor bracket PRO-2R-A02-05 (BOM#56)
PTH1010102196601arm bracket reinforcement PRO-2R-A02-06 (BOM#53)
PTH1010102196621pan oriantation chip PRO-2R-A02-07 (BOM#66)
PTH1010102196641pan magnetic sensor bracket PRO-2R-A02-08 (BOM#72)
PTH1010102196661pan strap barrier PRO-2R-A02-09 (BOM#60)

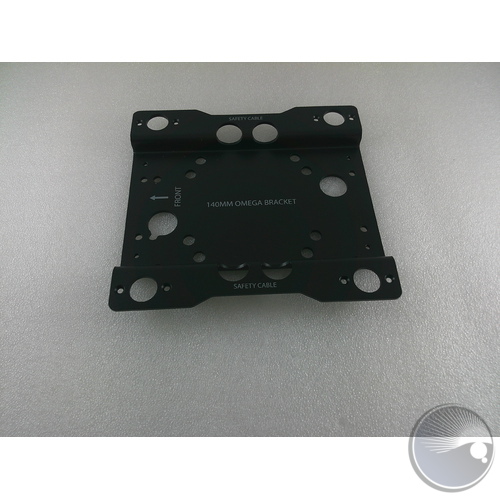

base bracket PRO-5R-A01-02 (BOM#5)PTH1010102197081base bracket PRO-5R-A01-02 (BOM#5)
tilt strap barrier PRO-5R-A02-19 (BOM#39)PTH1010102197621tilt strap barrier PRO-5R-A02-19 (BOM#39)
PTH1010102200081motor board X-200-A03-13 (BOM#98)
PTH1010102200091belt press chip PRO-200S-A03-11 (BOM#158)
PTH1010102251281motor mat board LS-440-A03-22 (BOM#348)
PTH1010102252501quick loct mat board IB-2R-A03-01 (BOM#100)
PTH1010102320091quick lock screw mat board IS-100-A03-01 (BOM#80)
PTH1010102371021focus lens bracket PRO-100S-A03-10 (BOM#134)
PTH1010102384491condenser mat chip PRO-100S-A03-11 (BOM#145)
PTH1010102409251prism motor bracket PRO-100S-A03-07 (BOM#121)
PTH1010202151701circlip mat cover EX-300-BZ07 (BOM#49)
PTH1010202151861copper screw EX-575-B03 (BOM#64)
PTH1010202153251driver wheel X-50S-B01 (BOM#122)

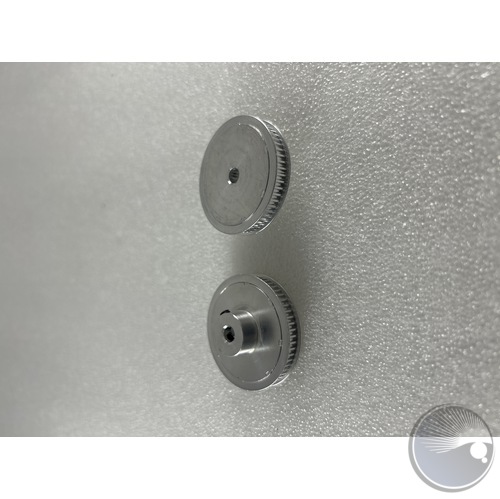

gear DL-258-01 (BOM#101)PTH1010202153501gear DL-258-01 (BOM#101)
PTH1010202154961led mat post X-90-B01 (BOM#90)
PTH1010202154971led mat chip X-90-B02 (BOM#89)
PTH1010202171011gear DL-315-01 (BOM#164)
PTH1010202173461pan oriantation mat cover PRO-2R-B02 (BOM#69)
PTH1010202173471lens slider PRO-200S-BZ02 (BOM#137)
PTH1010202173481belt wheel axis PRO-200S-BZ04 (BOM#161)
PTH1010202173501pan oriantation post PRO-5R-B19 (BOM#70)
PTH1010202200711heat sink PRO-100S-BS01 (BOM#79)

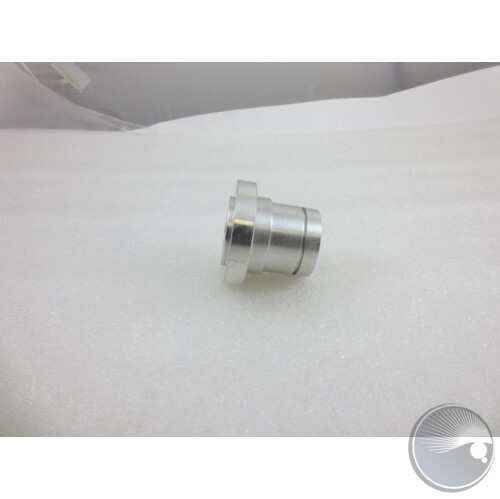

tilt axis PRO-100S-BZ01 (BOM#45)PTH1010202200721tilt axis PRO-100S-BZ01 (BOM#45)
PTH1010202200731tilt axis 2 PRO-100S-BZ02 (BOM#47)
PTH1010202200741focus socket PRO-100S-BZ03 (BOM#138)
PTH1010202200781belt press wheel PRO-200S-BZ05 (BOM#160)
PTH1010202200901pan support post PRO-5R-B14 (BOM#28)
PTH1010202200941pan axis PRO-5R-BZ01 (BOM#67)
PTH1010202205091gear DL-378-01 (BOM#38)

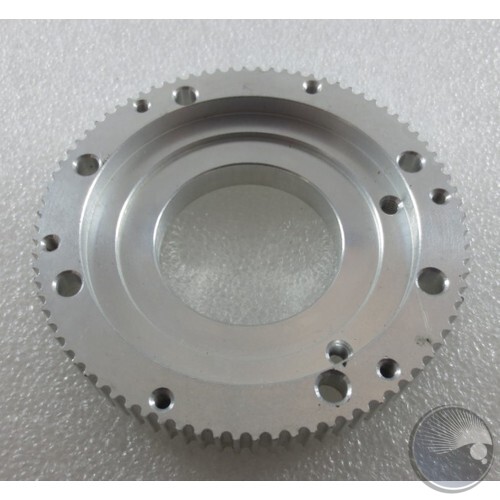

PTH1010202205101gear DL-384-02 (BOM#61)
gear CL-5008-01 (BOM#290)PTH1010202272201gear CL-5008-01 (BOM#290)
PTH1010202379761open holder XZTAP-16-06 (BOM#149)

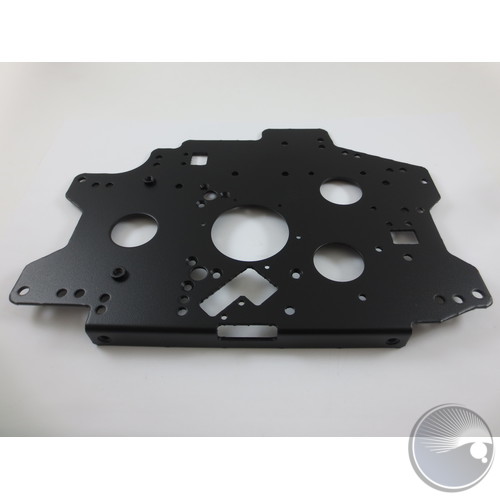

iris bracket PRO-150S-A03-01 (BOM#112)PTH1010202392761iris bracket PRO-150S-A03-01 (BOM#112)
PTH1010401160671aluminum post Φ8×19 M4 (BOM#120)
PTH1010401160781aluminum post Φ8×30两 M4 (BOM#131)
PTH1010401162491aluminum post Φ5×79 M3 (BOM#52)
PTH1010401173691aluminum post Φ5×82.5 M3 (BOM#50)
aluminum tube ?6×2.5?4.2 (BOM#44)PTH1010402163611aluminum tube ?6×2.5?4.2 (BOM#44)
PTH1010402163621aluminum tube ?6×3?3.2 (BOM#81)
PTH1010402208531aluminum post ?10×3.5?5.2 (BOM#44)
PTH1010403164171aluminum post H8×13 M4 (BOM#96)
PTH1010403164251aluminum post H8×17 M4 (BOM#88)
PTH1010403165051aluminum post H8×64 M4 (BOM#114)
PTH1010403165131aluminum post H8×71 M4 (BOM#113)
PTH1010403165581aluminum post H6×12 M3 (BOM#97)
PTH1010403166131aluminum post H6×13.5 M3 (BOM#108)
PTH1010403166161aluminum post H6×16.5 M3 (BOM#143)
PTH1010403166321aluminum post H6×32.5 M3 (BOM#38)
PTH1010403207951aluminum post H8×102.5 M4 (BOM#115)
PTH1010403207961aluminum post H8×47.5 M4 (BOM#92)
PTH1040000244301pan bushing IW-1915/IW-1915C LED Moving Wash,IB-2R Moving Beam,PRO-100/IS-100 LED Moving Spot (BOM#6

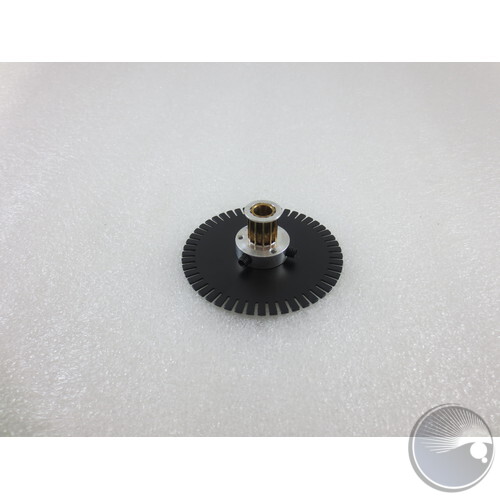

strap wheel (BOM#94)PTH1040000244431strap wheel (BOM#94)

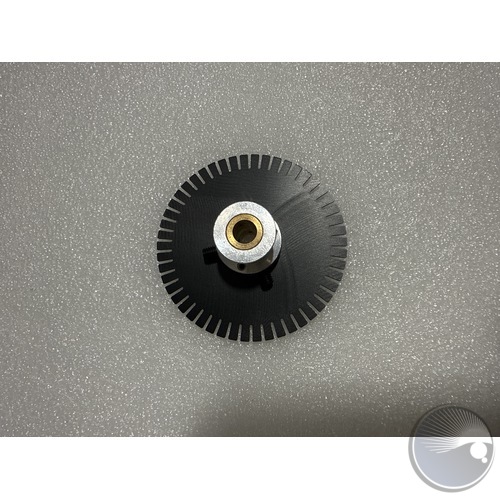

PTH1040000244451belt wheel 2 PRO-100/IS-100 LED Moving Spot (BOM#57)
PTH1040000248581tilt bushing 2 (BOM#55)
PTH1040000248591tilt bushing 1 (BOM#44)
PTH1040000392801prism wheel PRO-150S LED Moving Spot (BOM#124)

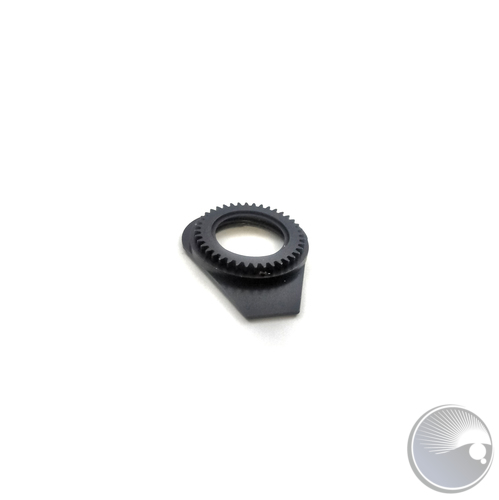

gobo holder 2 PRO-150S LED Moving Spot (BOM#148)PTH1040000409941gobo holder 2 PRO-150S LED Moving Spot (BOM#148)

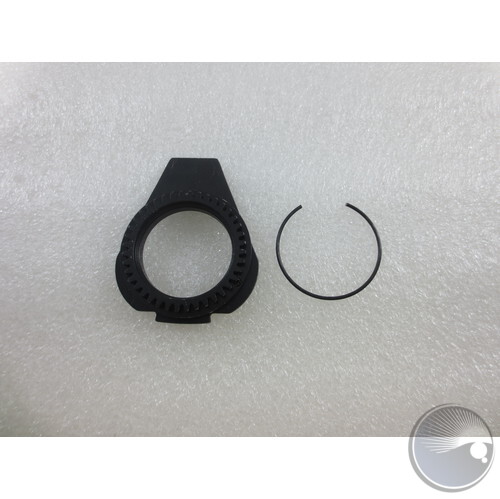

gobo holder 1 PRO-150S LED Moving Spot (BOM#147)PTH1040000409951gobo holder 1 PRO-150S LED Moving Spot (BOM#147)

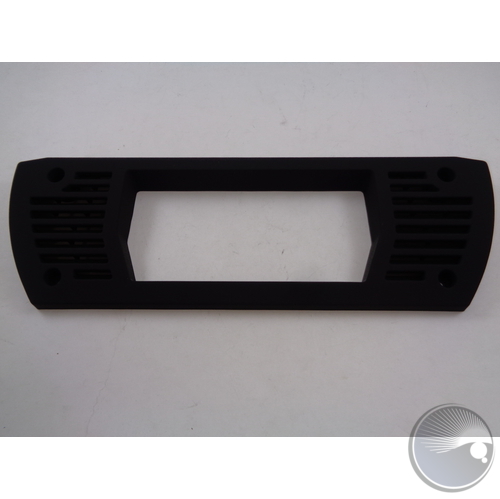

base front cover PRO-100S-C01 (BOM#3)PTH1060100181931base front cover PRO-100S-C01 (BOM#3)

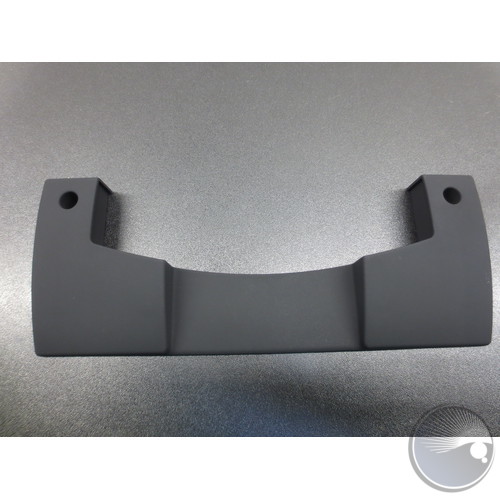

base side cover PRO-100S-C02 (BOM#3)PTH1060100181941base side cover PRO-100S-C02 (BOM#3)
base side cover PRO-100S-C02 (BOM#3)PTH1060100181941base side cover PRO-100S-C02 (BOM#3)
base side cover PRO-100S-C02 (BOM#3)PTH1060100181941base side cover PRO-100S-C02 (BOM#3)
base side cover PRO-100S-C02 (BOM#3)PTH1060100181941base side cover PRO-100S-C02 (BOM#3)
base side cover PRO-100S-C02 (BOM#3)PTH1060100181941base side cover PRO-100S-C02 (BOM#3)

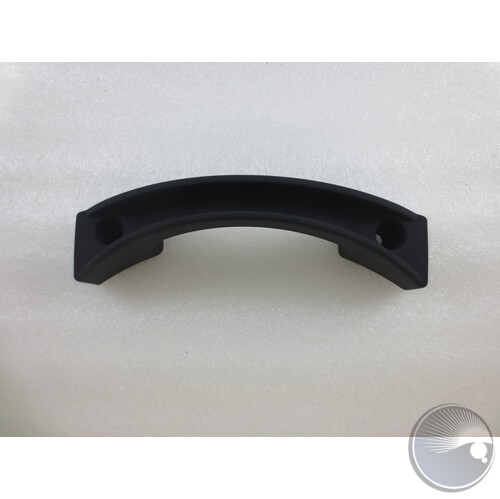

handle PRO-100S-C03 (BOM#2)PTH1060100181951handle PRO-100S-C03 (BOM#2)

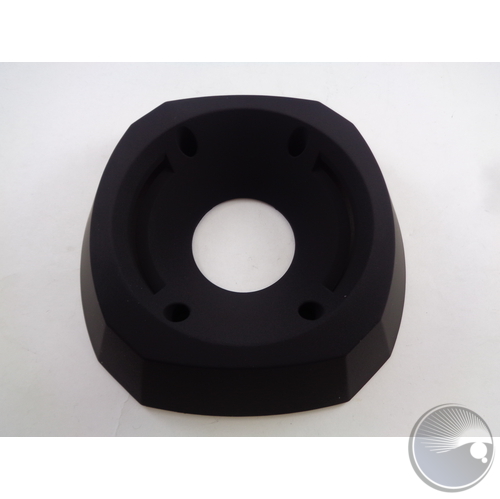

lens cover PRO-100S-C06 (BOM#129)PTH1060100181981lens cover PRO-100S-C06 (BOM#129)

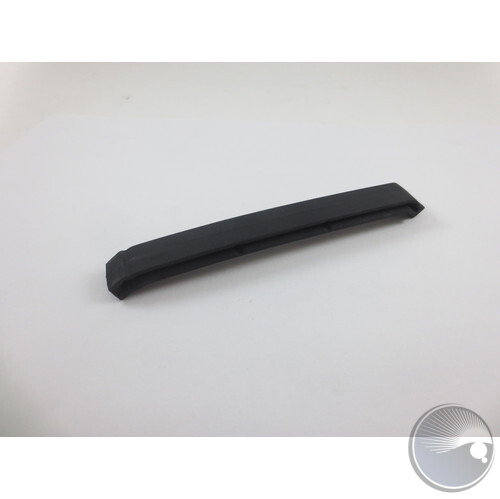

long tape PRO-100S-C08 (BOM#163)PTH1060100182001long tape PRO-100S-C08 (BOM#163)

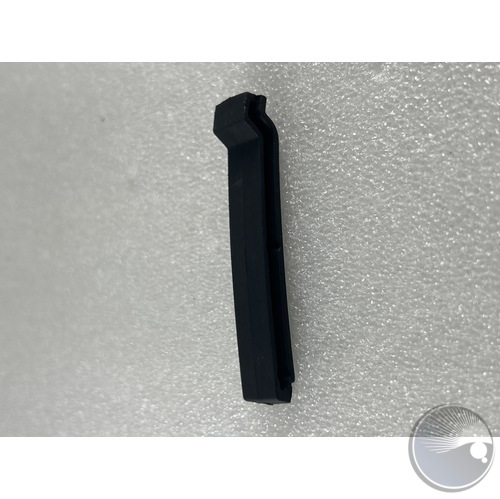

short tape PRO-100S-C09 (BOM#164)PTH1060100182011short tape PRO-100S-C09 (BOM#164)

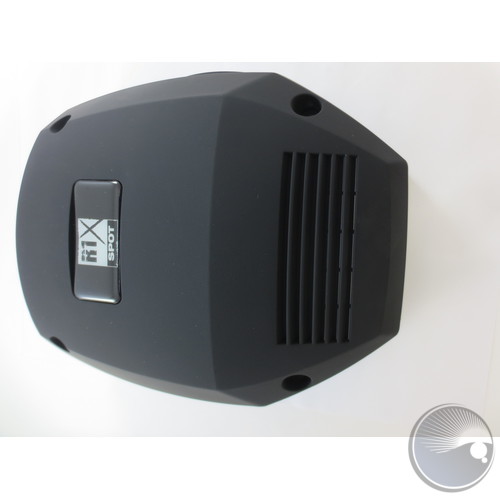

head cover PRO-100S-C05 (BOM#104)PTH1060100392081head cover PRO-100S-C05 (BOM#104)
display lens cover CDC39×32×2.5 (BOM#9)PTH1060200181811display lens cover CDC39×32×2.5 (BOM#9)
PTH1060200205161optocoupler cover PRO-5R-C09 (BOM#59)
Locking Washer for Fast LockPTH152000222Locking Washer for Fast Lock
PTH2020302181251motor pcb MH069 A8 (BOM#106)

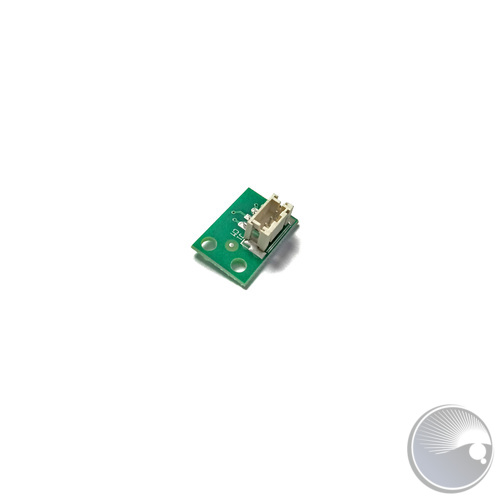

magnetic sensor HE-10 D (BOM#71)PTH2020302181331magnetic sensor HE-10 D (BOM#71)
PTH2020302208150MPCB/Display MH067 (BOM#7)
DMX board DMX012B (BOM#40)PTH2020302267381DMX board DMX012B (BOM#40)

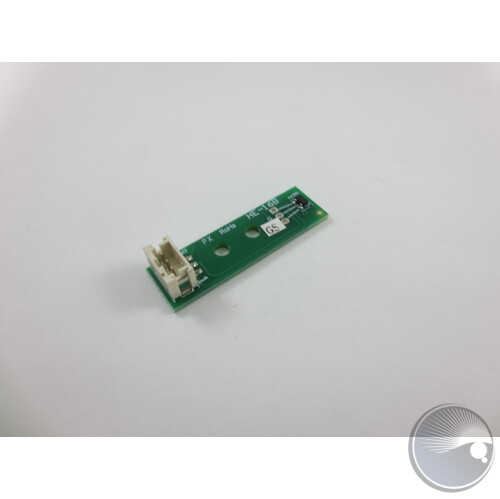

magnetic sensor HE-16 (BOM#36)PTH2020302275061magnetic sensor HE-16 (BOM#36)
magnetic sensor HE-09 (BOM#109)PTH2020302285541magnetic sensor HE-09 (BOM#109)

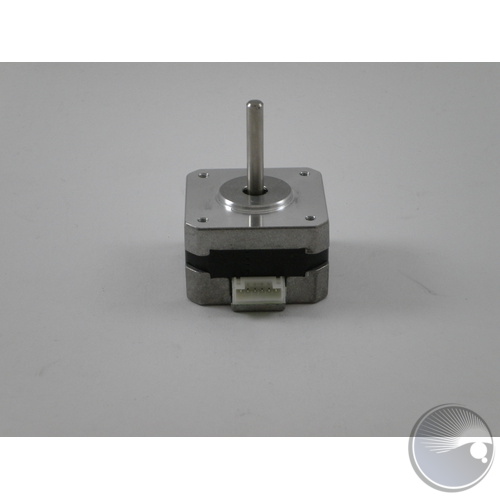

stepper motor 17HD503-30V2 (BOM#154)PTH2030101100661stepper motor 17HD503-30V2 (BOM#154)
stepper motor 16HY018-18H (BOM#169)PTH2030101100901stepper motor 16HY018-18H (BOM#169)
stepper motor 17HD003N-24 (BOM#86)PTH2030101101181stepper motor 17HD003N-24 (BOM#86)

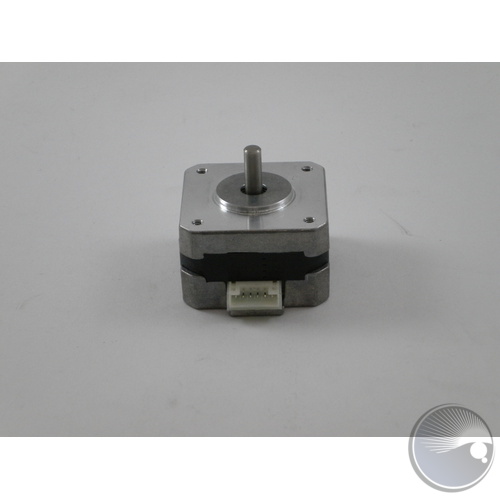

motor 17HD503-15V2 (BOM#104)PTH2030101176831motor 17HD503-15V2 (BOM#104)

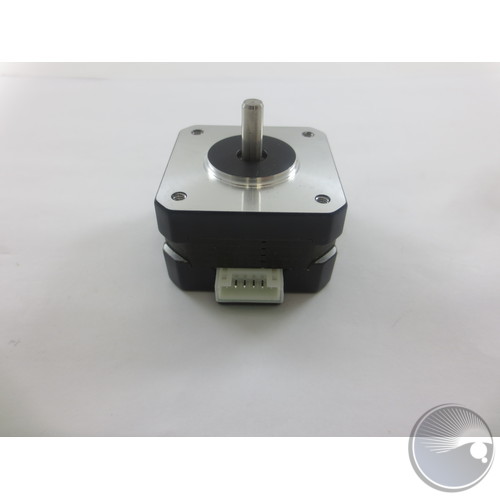

stepper motor 17HD503-15HV2 (BOM#87)PTH2030101346631stepper motor 17HD503-15HV2 (BOM#87)

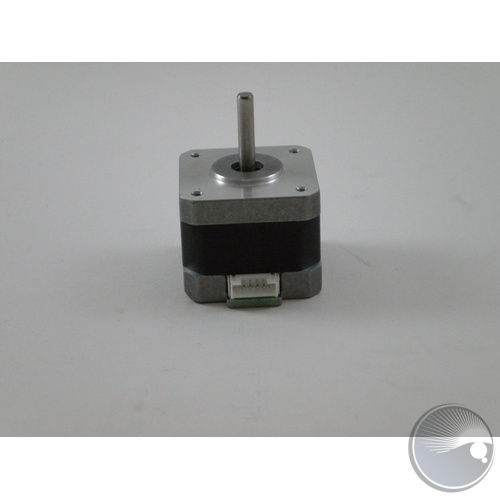

stepper motor 17HDC1051-25 (BOM#136)PTH2030101398791stepper motor 17HDC1051-25 (BOM#136)

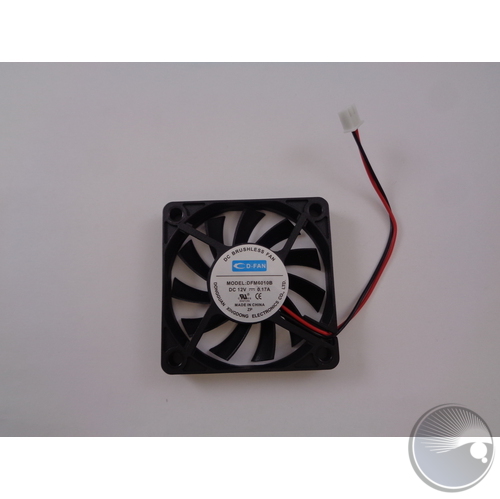

FAN DC 12V 0.13A DFL6010B - 2-pin female 2.0 (BOM#124)PTH2030201101291FAN DC 12V 0.13A DFL6010B - 2-pin female 2.0 (BOM#124)

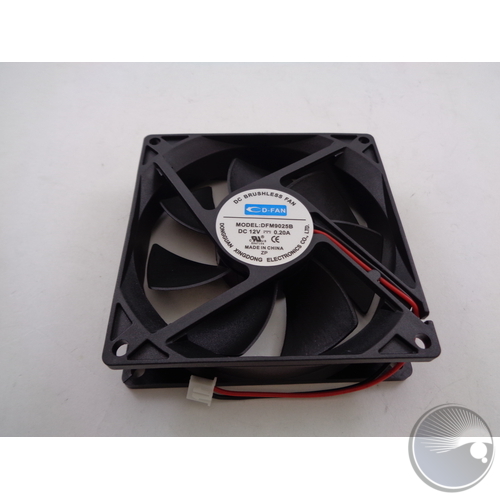

fan 12V?0.20A DFM9025B 2-pin - 2.54 female (BOM#84)PTH2030201180641fan 12V?0.20A DFM9025B 2-pin - 2.54 female (BOM#84)
PTH2030700365191power supply H03-UP200S+20V (BOM#22)

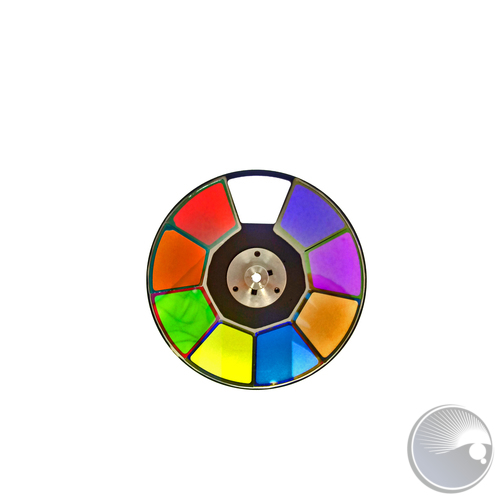

color wheel PRO-100/IS-100 LED Moving Spot (BOM#99)PTH2040000201841color wheel PRO-100/IS-100 LED Moving Spot (BOM#99)
PTH2040000256121lens slide cover PRO-200/IS-200, PRO-100/IS-100 LED Moving Spot (BOM#136)

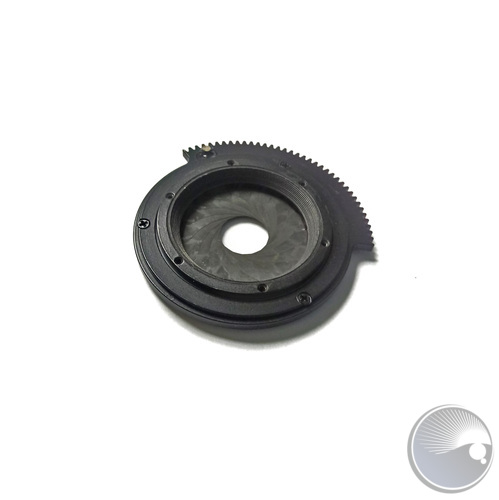

iris set LS/IS-440,PRO-150S/300S (BOM#167)PTH2040000277961iris set LS/IS-440,PRO-150S/300S (BOM#167)

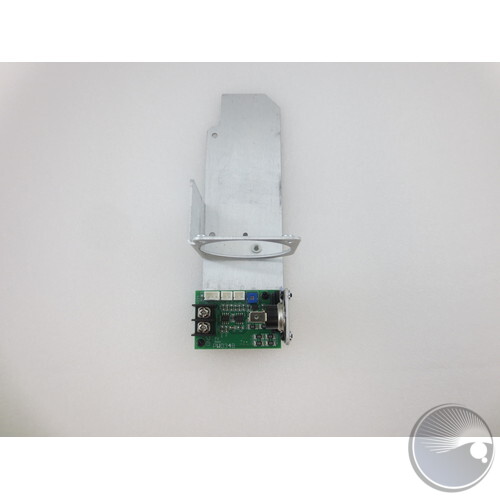

led pcb driverPTH2040000370711led pcb driver

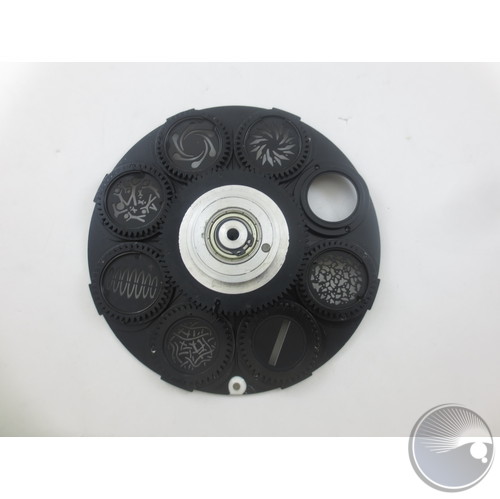

rotating gobo wheel PRO-150S LED Moving Spot (BOM#141)PTH2040000399591rotating gobo wheel PRO-150S LED Moving Spot (BOM#141)

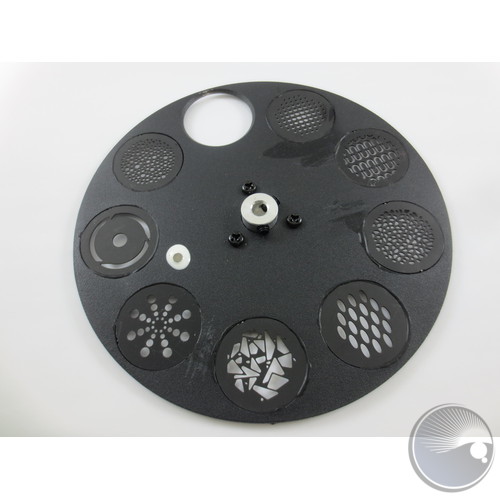

fix gobo wheel PRO-150S LED Moving Spot (BOM#102)PTH2040000409651fix gobo wheel PRO-150S LED Moving Spot (BOM#102)

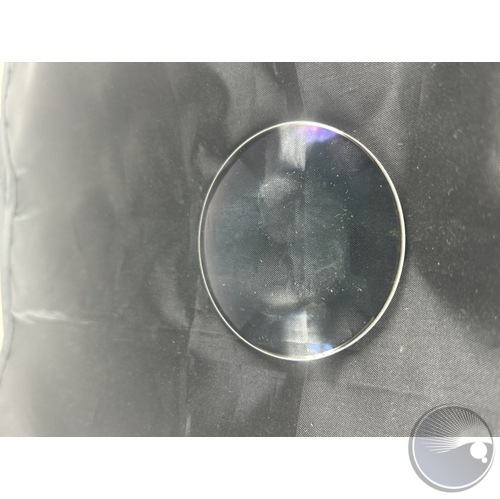

planoconvex lens Φ65 800° 10.5 (BOM#130)PTH2040101179441planoconvex lens Φ65 800° 10.5 (BOM#130)

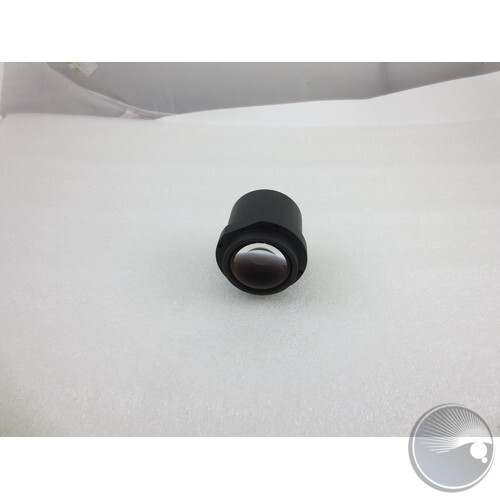

focus set KO-9020 (BOM#133)PTH2040107116621focus set KO-9020 (BOM#133)

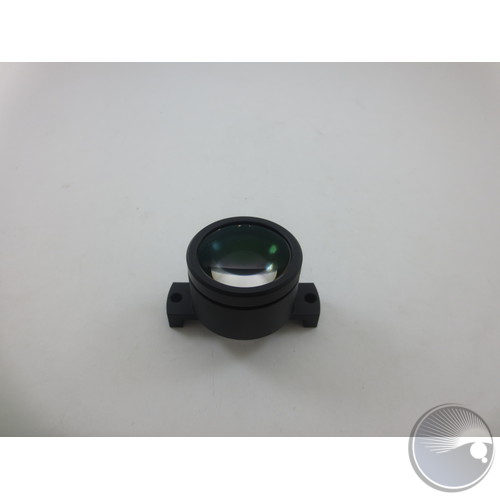

condenser A152-L190-1 (BOM#85)PTH2040107411251condenser A152-L190-1 (BOM#85)

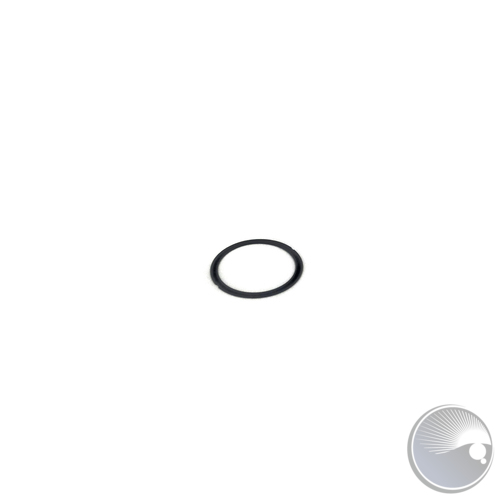

open Φ25-C001-21-B01 (BOM#166)PTH2040502408161open Φ25-C001-21-B01 (BOM#166)

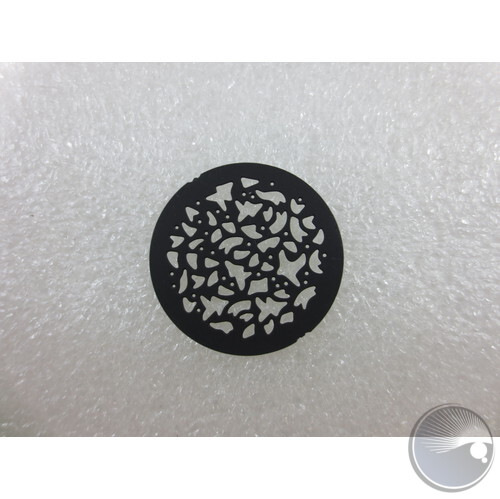

aluminum gobo Φ27-C012-22.5-A02 (BOM#153)PTH2040503401481aluminum gobo Φ27-C012-22.5-A02 (BOM#153)

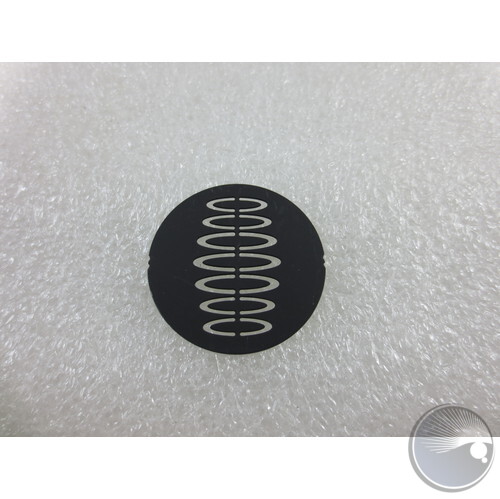

aluminum gobo Φ27-C015-22.5-A02 (BOM#168)PTH2040503401491aluminum gobo Φ27-C015-22.5-A02 (BOM#168)

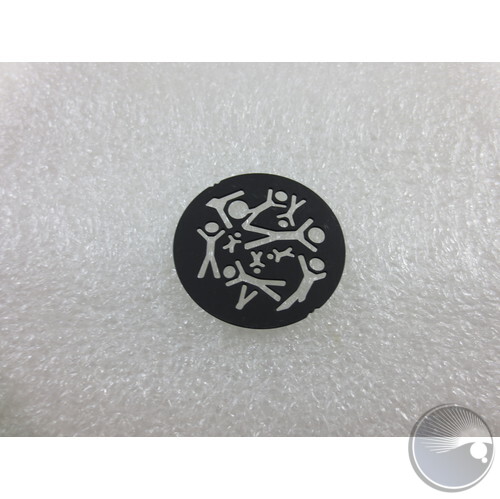

aluminum gobo Φ27-C016-22.5-A02 (BOM#169)PTH2040503401501aluminum gobo Φ27-C016-22.5-A02 (BOM#169)

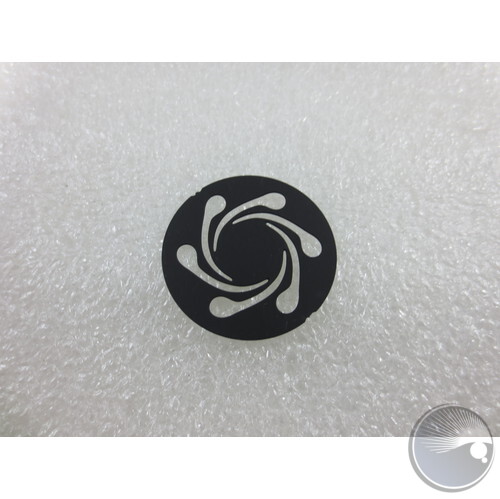

aluminum gobo Φ27-C017-22.5-A02 (BOM#150)PTH2040503401511aluminum gobo Φ27-C017-22.5-A02 (BOM#150)

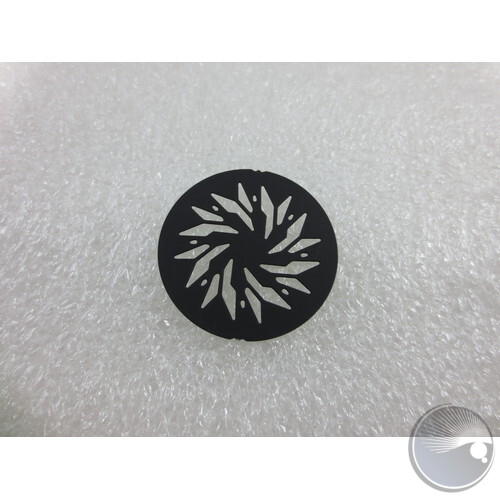

aluminum gobo Φ27-C018-22.5-A02 (BOM#151)PTH2040503401521aluminum gobo Φ27-C018-22.5-A02 (BOM#151)

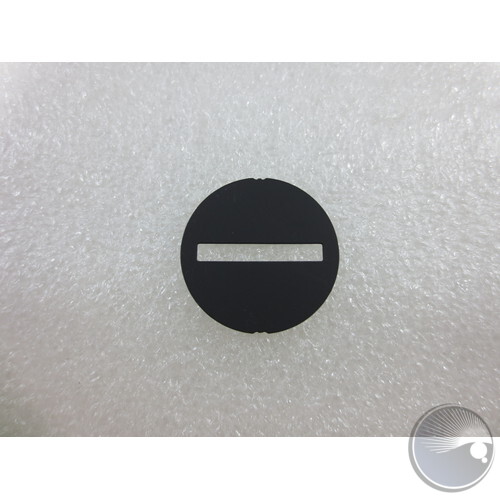

aluminum gobo Φ25-C013-20.5-A02 (BOM#154)PTH2040503401531aluminum gobo Φ25-C013-20.5-A02 (BOM#154)

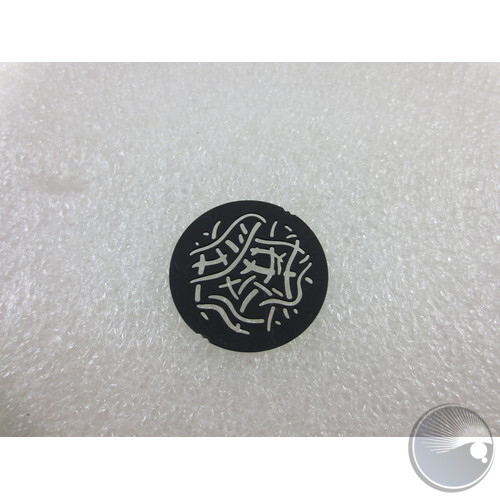

aluminum gobo Φ25-C014-20.5-A02 (BOM#167)PTH2040503401541aluminum gobo Φ25-C014-20.5-A02 (BOM#167)

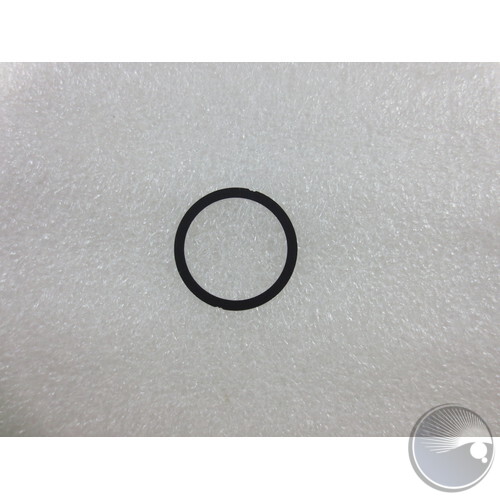

open Φ27-C001-22.5-B01 (BOM#152)PTH2040503408171open Φ27-C001-22.5-B01 (BOM#152)
PTH2070501384341sticker PRO-150S LED Moving Spot (BOM#33)

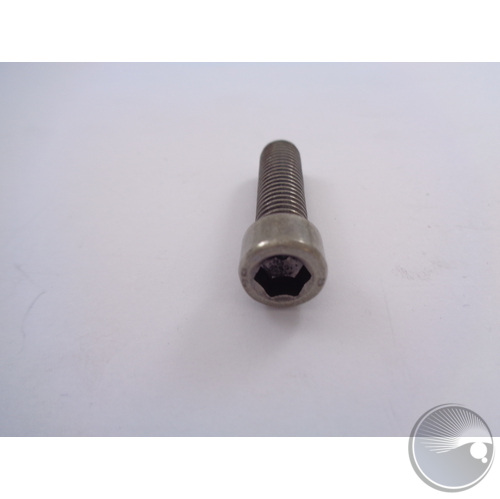

screw M8×30 (BOM#47)PTH2080502127751screw M8×30 (BOM#47)

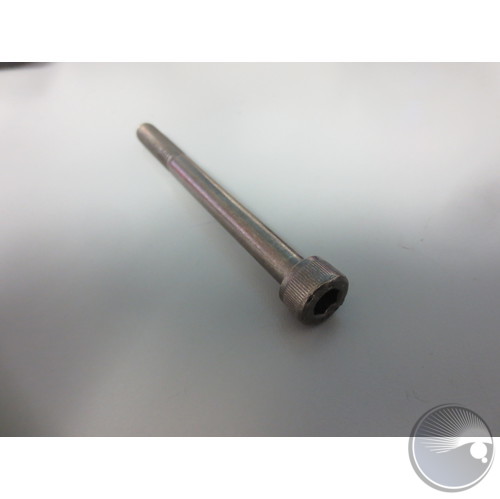

screw M8×90 (BOM#31)PTH2080502179851screw M8×90 (BOM#31)
screw M8 (BOM#69)PTH2081002126951screw M8 (BOM#69)

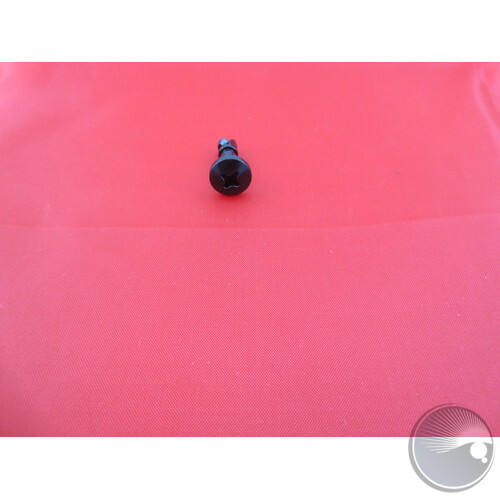

1/4 quick lock screw ?12×?6×18.5 (BOM#105)PTH20817003845411/4 quick lock screw ?12×?6×18.5 (BOM#105)
PTH20817003845511/4 quick lock shrapnel 33×20×10 (BOM#82)

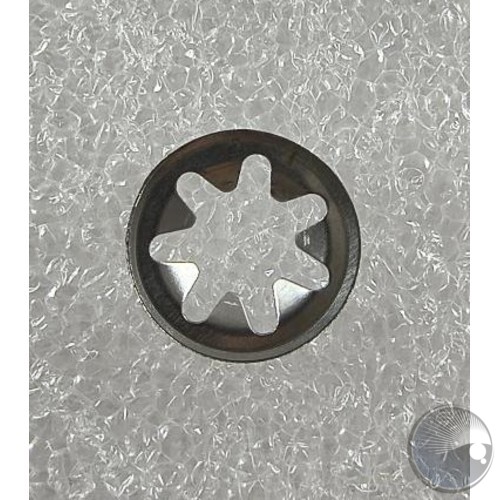

PTH20817003845611/4 quick lock ring ?12.5 (BOM#81)

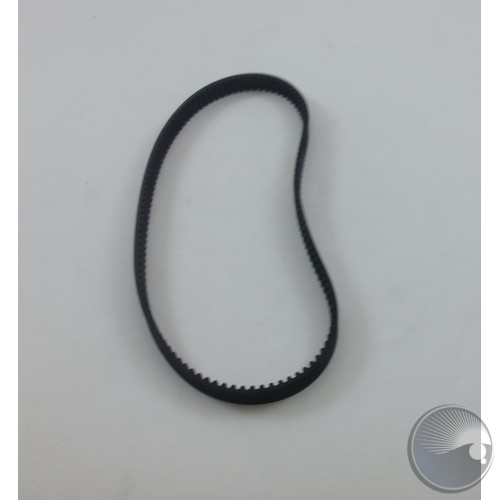

syncronization strap 3M-375-8mm (BOM#62)PTH2090101177971syncronization strap 3M-375-8mm (BOM#62)
PTH2090101181641syncronization strap 3M-150-5mm (BOM#159)

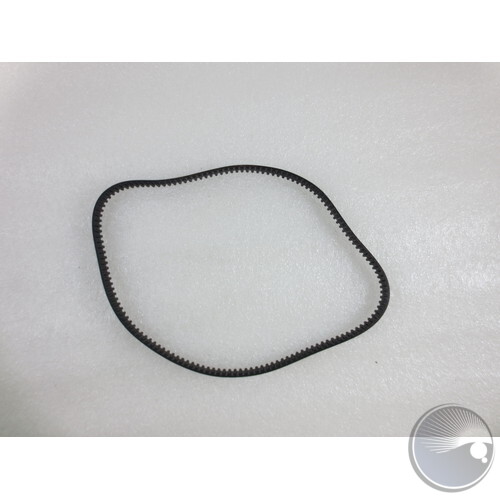

syncronization strap 3M-432-8mm (BOM#35)PTH2090101213876syncronization strap 3M-432-8mm (BOM#35)
PTH2090102170332syncronization strap B147MXL-4mm (BOM#100)
PTH2090400171631cable rubber ring Φ6×Φ15 (BOM#132)

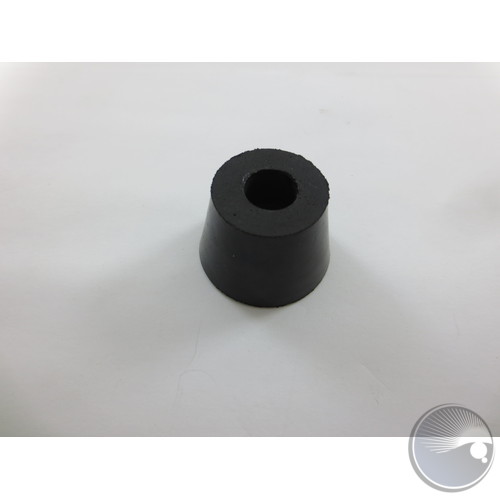

machine feet GL-012 (BOM#2)PTH2090400177052machine feet GL-012 (BOM#2)
fan vent 99 (BOM#65)PTH2090500170781fan vent 99 (BOM#65)
quick lock screw M20 (BOM#47)PTH2090500180091quick lock screw M20 (BOM#47)
spring ?10×38×1.2 (BOM#78)PTH2090601173371spring ?10×38×1.2 (BOM#78)

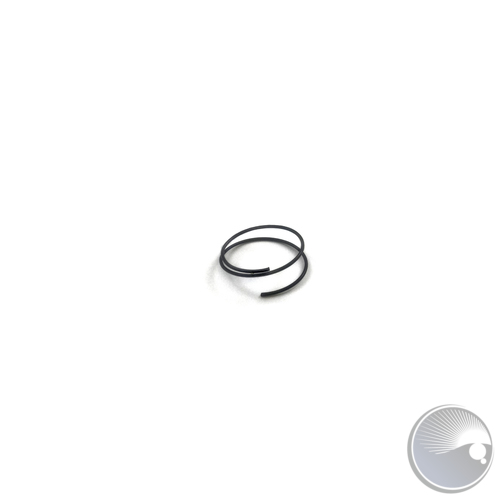

gobo helix circip Φ25×1.0 (BOM#156)PTH2090602168601gobo helix circip Φ25×1.0 (BOM#156)

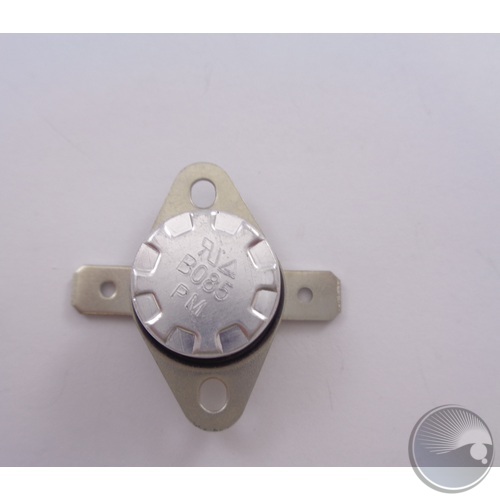

temperature controller 85? 250V 10A (BOM#83)PTH2090702277041temperature controller 85? 250V 10A (BOM#83)
POWER SUPPLY switch RF1004 (BOM#49)PTH2090704169132POWER SUPPLY switch RF1004 (BOM#49)
PTH2091101166801copper post 3×6 (BOM#16)
PTH2091101166831copper post 3×8 (BOM#175)

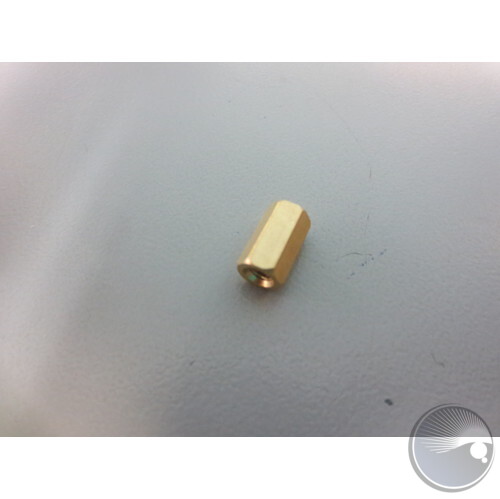

copper post 3×9 (BOM#173)PTH2091101166841copper post 3×9 (BOM#173)
axis circlip ?30×1.2 (BOM#55)PTH2091302169581axis circlip ?30×1.2 (BOM#55)
circlip ?5 (BOM#83)PTH2091302173221circlip ?5 (BOM#83)

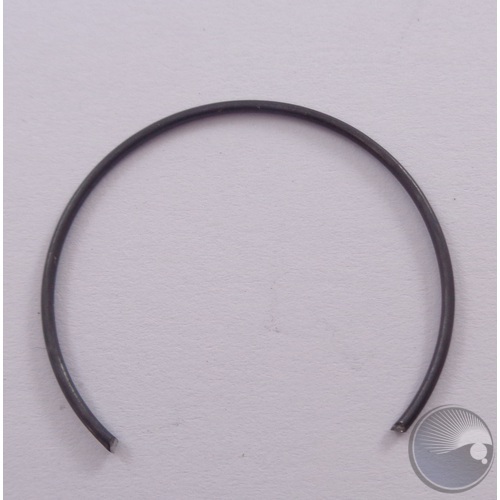

gobo circlip ?30×1 (BOM#155)PTH2091303169671gobo circlip ?30×1 (BOM#155)
magnet ?3×3 (BOM#77)PTH2091400234741magnet ?3×3 (BOM#77)

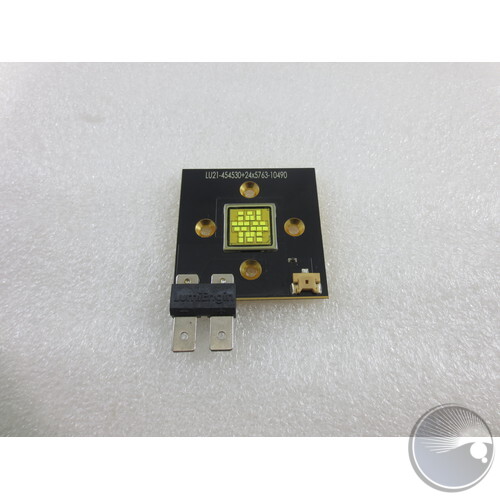

PTH2120100365201LED PCB/module LCOB-2400FC2-W (BOM#84)
optocoupler pcb AGD004 B (BOM#70)PTH28AGD004Boptocoupler pcb AGD004 B (BOM#70)
magnetic sensor HE09 (BOM#16)PTH28HE09magnetic sensor HE09 (BOM#16)

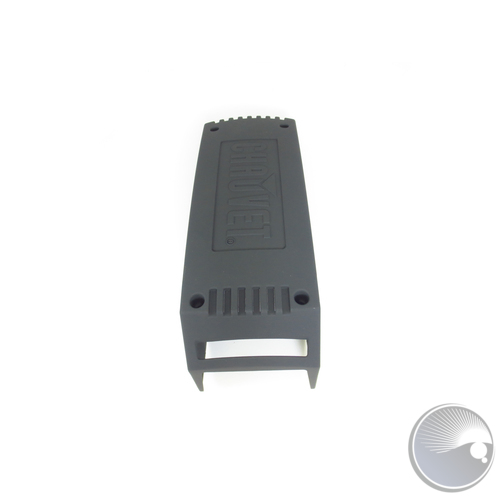

arm cover PRO-100S-C04 (BOM#34)PTHPRO100SC04arm cover PRO-100S-C04 (BOM#34)
Panel mount fuse holder (BOM#29)PTJ3027001001Panel mount fuse holder (BOM#29)
UPLOAD08UPLOAD08/MR UPLOAD (CPMOVEUP) ***Order from Location 1***

Es sind leider keine Geräte verfügbar.

Es kann vorkommen, dass in unserem Lager noch gebrauchte Geräte vorhanden sind. Fragen Sie gerne über unsere Service-Hotline +49 871 40875521 oder per Email info@lights-whatever.de bei uns nach. Wir helfen Ihnen gerne weiter!

Bewertungen lesen, schreiben und diskutieren... mehr
Kundenbewertungen für "Rogue R1X Spot"
Bewertung schreiben
Bewertungen werden nach Überprüfung freigeschaltet.

Die mit einem * markierten Felder sind Pflichtfelder.

Ich habe die Datenschutzbestimmungen zur Kenntnis genommen.

Zuletzt angesehen
