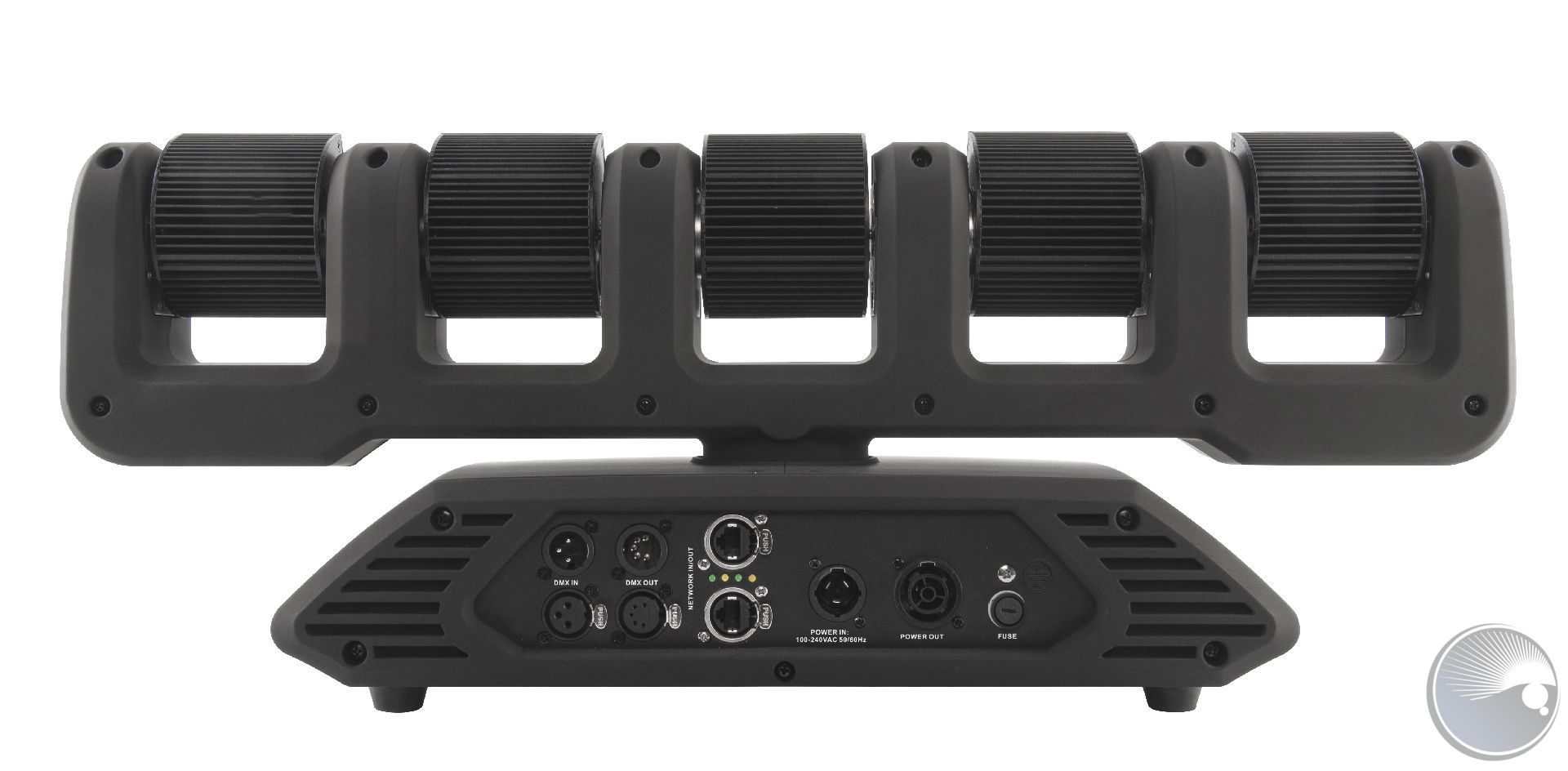

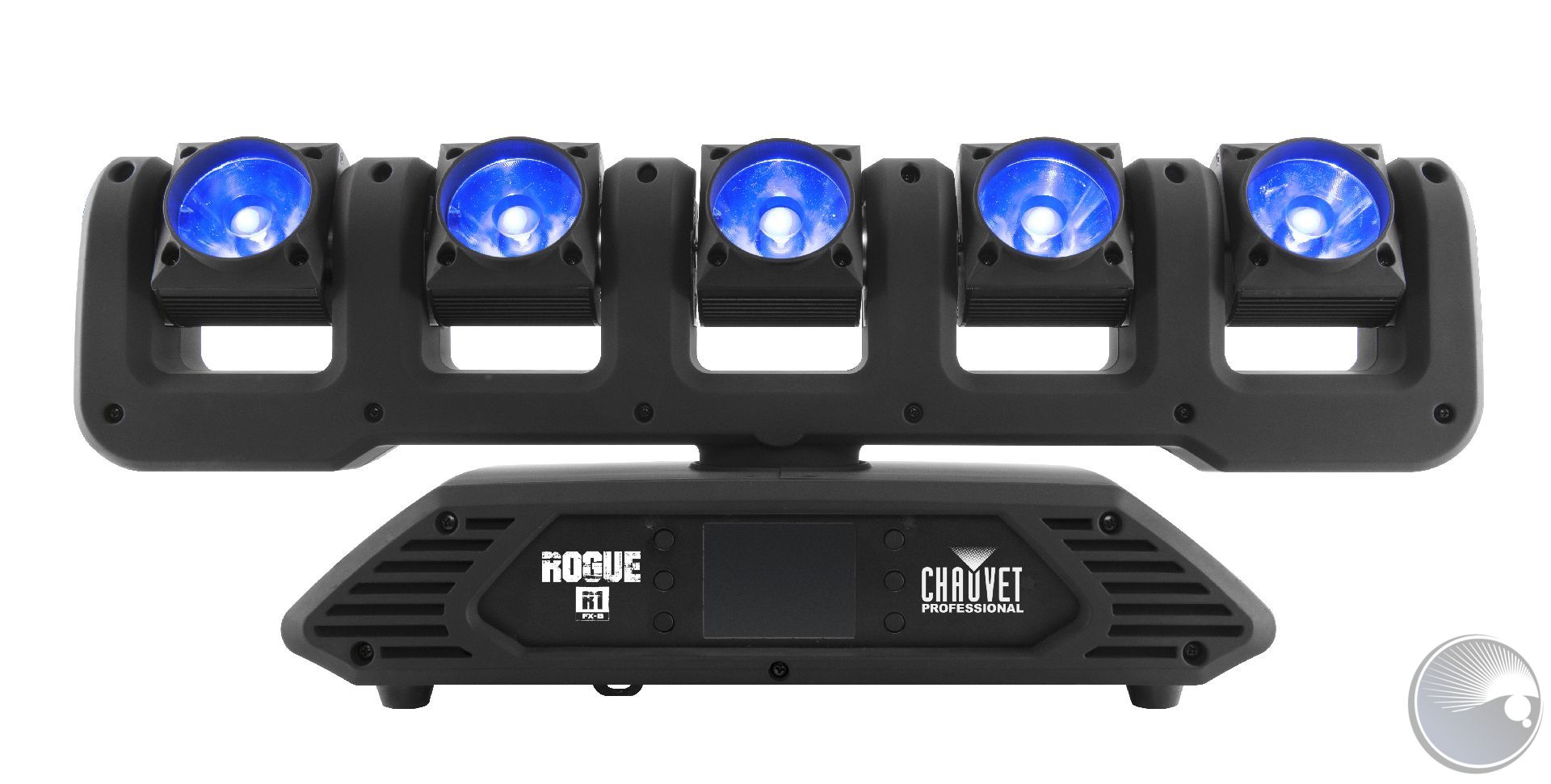

Rogue R1 FX-B

Auf Anfrage!

  • ROGUER1FXB
Rogue  R1 FX-B Rogue R1 FX-B  shakes things up, five times over. It orchestrates... mehr
Produktinformationen "Rogue R1 FX-B"

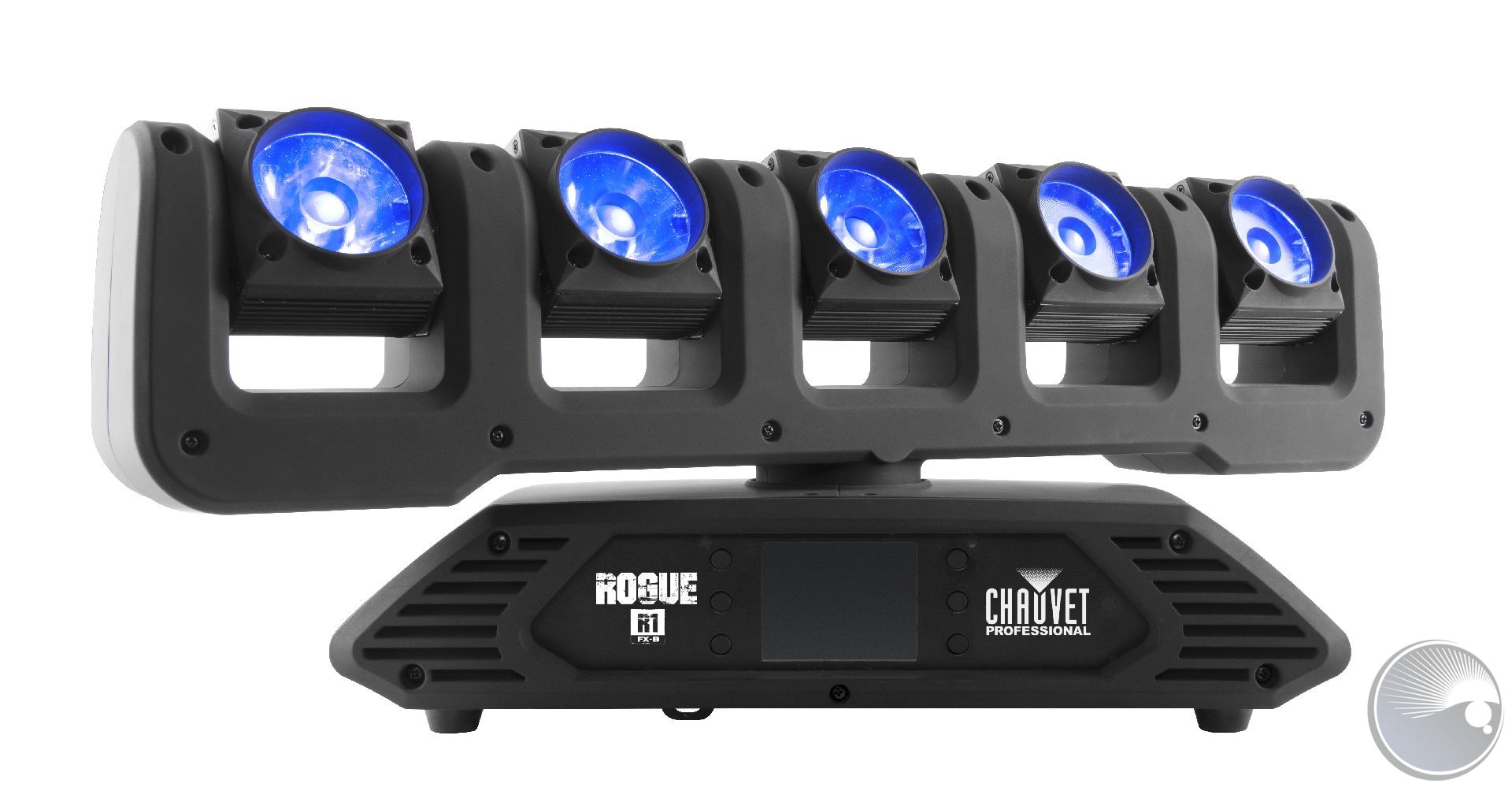

Rogue R1 FX-B

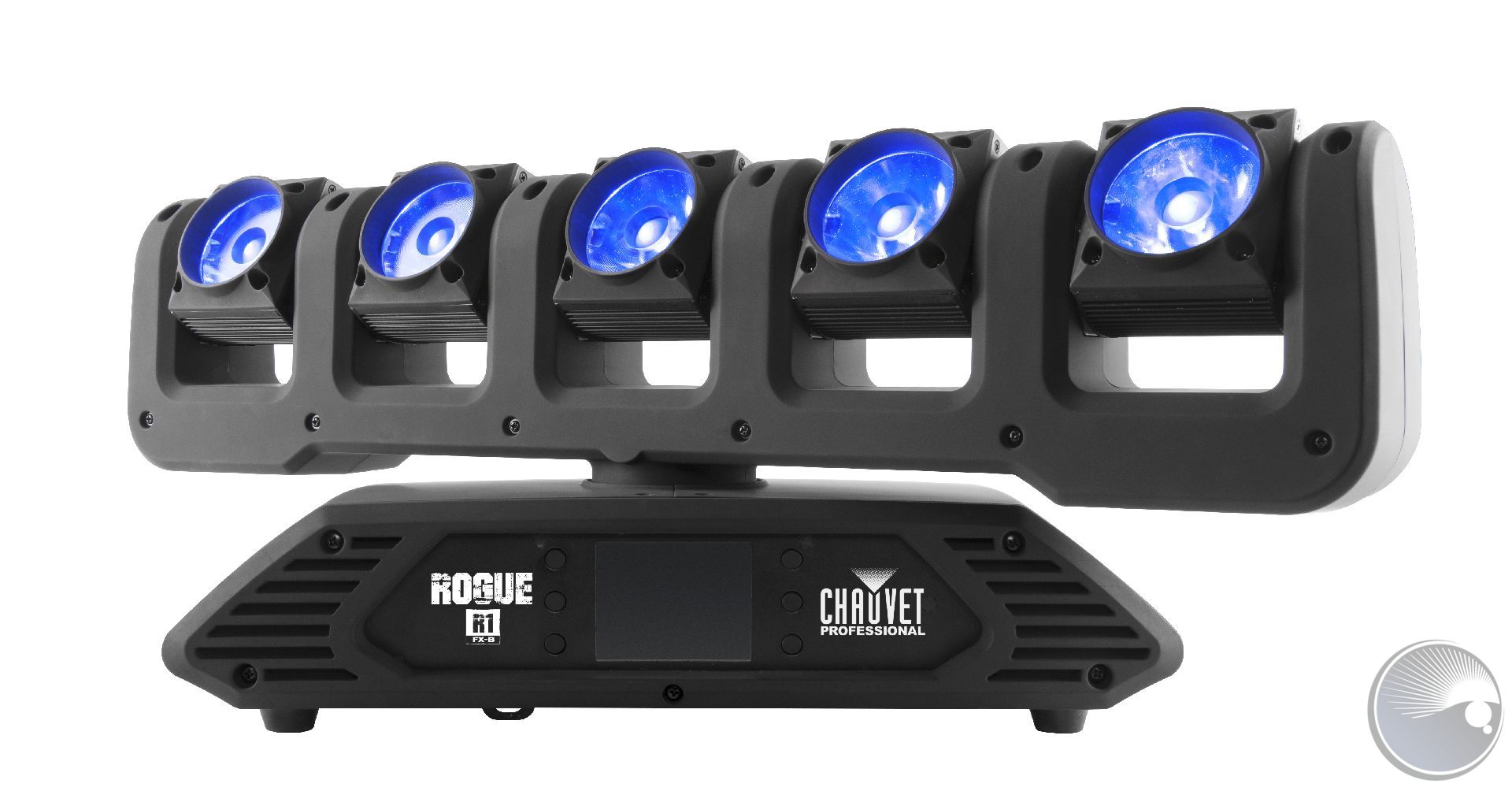

Rogue R1 FX-B shakes things up, five times over. It orchestrates an infinite rotation of both pan and tilt for its five individually controlled heads, powered by five pixel mappable 15 W RGBW LEDs. Crisp beams, a sizzling output and rocket quick movements create amazing aerial effects. Control is achieved with DMX, Art-Net, sACN, or Kling-Net.



AT A GLANCE

  • Fully featured RGBW LED yoke effect beam fixture with pixel mapping

  • 16-bit Dimming of master dimmer as well as individual colors for smooth control of fades

  • Built in color and tilt macros for quick design possibilities

  • Continuous movement of pan and tilt functions

  • Individual control of all five heads for movement and output

  • Quiet operation for a wide range of installation situations

  • DMX, sACN, Art-Net, and Kling-Net control for full flexibility

  • 6.2° beam angle to create crisp and defined areal beam effects

  • User selectable PWM frequencies to eliminate camera roll

  • Battery backup display with auto rotate depending on fixture orientation

SPECIFICATIONS

OPTICAL

  • Light Source: 5 LEDs (quad-color RGBW) 15 W, (4 A), 50,000 hours life expectancy
  • Installed Optics: 5°
  • Beam Angle: 6.2°
  • Field Angle: 10.1°
  • Cutoff Angle: 12.7°
  • Lumens - Source: 2,500
  • Lumens - Output: 5,020
  • Illuminance : 6,008 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Pan and Tilt: 540°/540°
  • Pan and Tilt Ranges: Infinite, 540°, 360°, 180° pan/ Infinite, 540°, 270°, 180° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: No
  • Color Temperature Presets: No
  • Move-in-Black: Yes
  • Dim Curves: 4

CONSTRUCTION / PHYSICAL

  • Dimensions: 25.19 x 7.05 x 9.72 in (640 x 179 x 247 mm)
  • Weight: 24.2 lb (11 kg)
  • Exterior Color: BLACK
  • Housing Material: High-impact flame-retardant polymer

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: Art-Net, Kling-Net, DMX, sACN
  • DMX Channels Single Mode: 18, 25, 47 or 52
  • DMX Channels Dual Mode – Function: 9, 17, 23
  • DMX Channels Dual Mode – Pixel: 15 or 20
  • Art-Net Channels Single Mode: 18, 25, 47 or 52
  • Art-Net Channels Dual Mode – Function: 9, 17, 23
  • Art-Net Channels Dual Mode – Pixel: 15 or 20

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 9 units @ 120 V; 15 units @ 208 V; 18 units @ 230 V
  • Power and Current: 207 W, 1.68 A @ 120 V, 60 Hz
  • Power and Current: 200 W, 0.938 A @ 208 V, 60 Hz
  • Power and Current: 197 W, 0.876 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

  • Rogue RX1
  • Edison (Local) plug to Neutrik powerCON
  • Omega bracket with mounting hardware

OPTIONAL ACCESSORIES

Weiterführende Links zu "Rogue R1 FX-B"

PTF1001002202Aviation plug power output socket (BOM#2)
PTF1001002302Power socket (Blue) IP44 55-210351-15 31.2x26.5x35 CE ROSH UL (BOM#18)
PTF2700003804US Powercon Cable (Type B NEMA 5-15 Style)
Power cord (BOM#41)PTFX20147Power cord (BOM#41)
FAN DC 12V 0.13A DFL6010B (BOM#12) upper fan Longer wires than PTH2030201101291PTH020060101FAN DC 12V 0.13A DFL6010B (BOM#12) upper fan Longer wires than PTH2030201101291
fan net 5×5 (BOM#18)PTH021050fan net 5×5 (BOM#18)
battery press board IB-5R-A01-07 (BOM#35)PTH1010102198361battery press board IB-5R-A01-07 (BOM#35)
safety buckle M515A0112B (BOM#30)PTH1010102284961safety buckle M515A0112B (BOM#30)

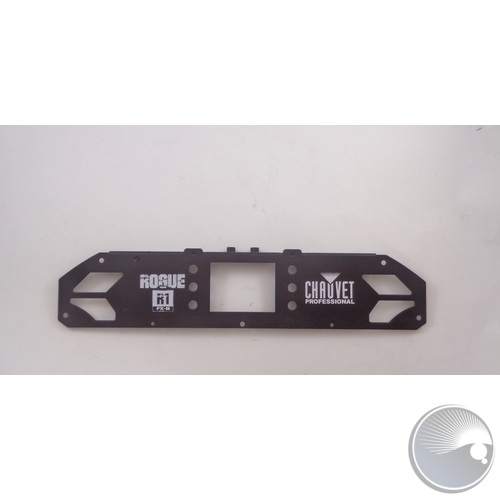

Front metal panel for display M515A0102 (BOM#75)PTH1010102285951Front metal panel for display M515A0102 (BOM#75)
PTH1010102286051pan strengthen board M515A0107 (BOM#80)

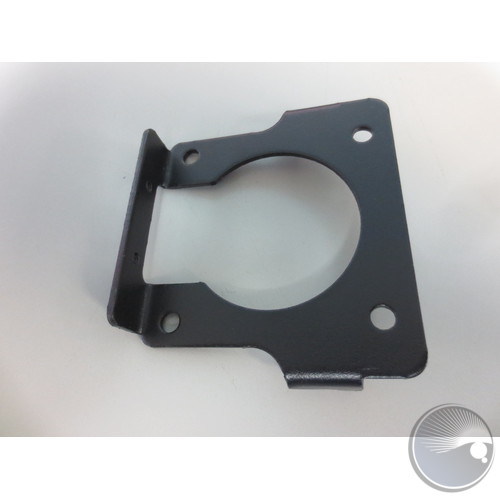

pan motor bracket M515A0108 (BOM#53)PTH1010102286071pan motor bracket M515A0108 (BOM#53)

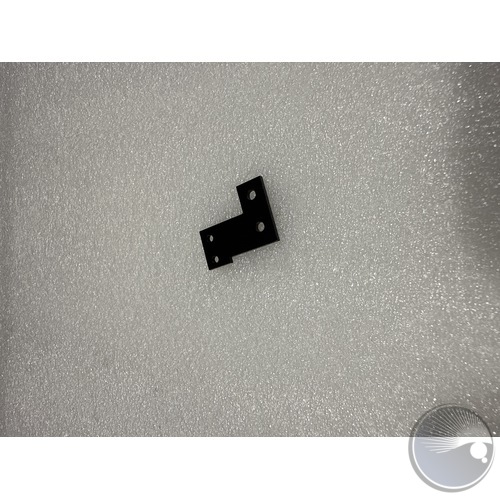

PTH1010102286091pan magnetic sensor bracket M515A0109 (BOM#66)
PTH1010102286131base fan bracket M515A0111 (BOM#32)

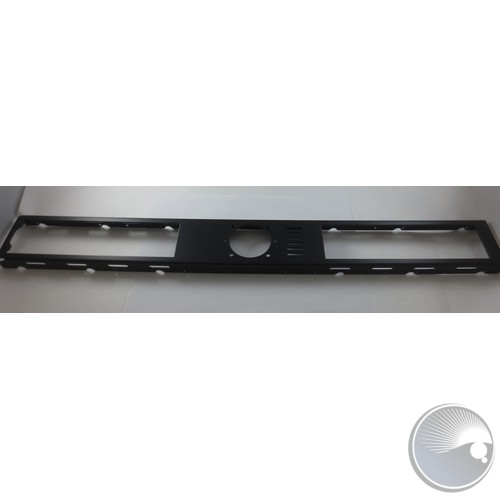

arm connection bracket M515A0201 (BOM#24)PTH1010102286151arm connection bracket M515A0201 (BOM#24)

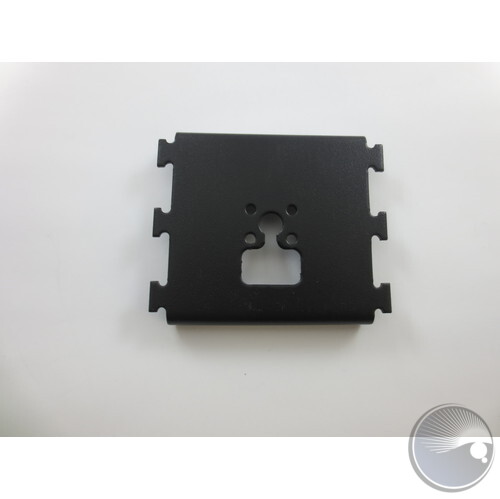

arm strengthen board M515A0202 (BOM#25)PTH1010102286171arm strengthen board M515A0202 (BOM#25)

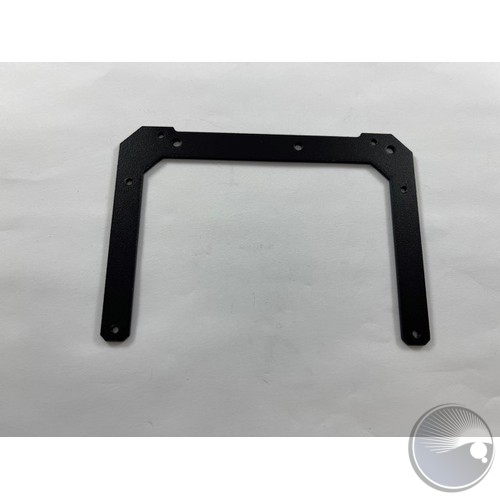

arm front bracket M515A0203 (BOM#3)PTH1010102286191arm front bracket M515A0203 (BOM#3)

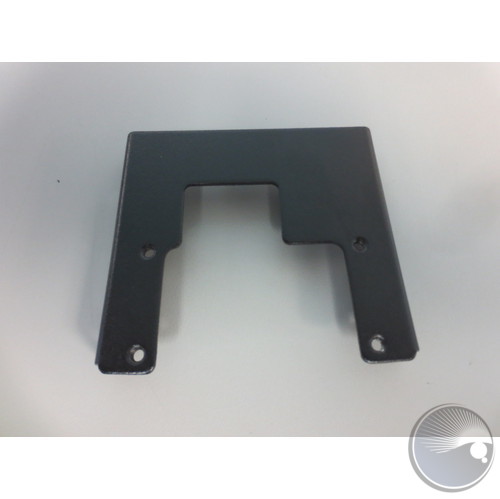

arm right bracket M515A0204 (BOM#21)PTH1010102286211arm right bracket M515A0204 (BOM#21)

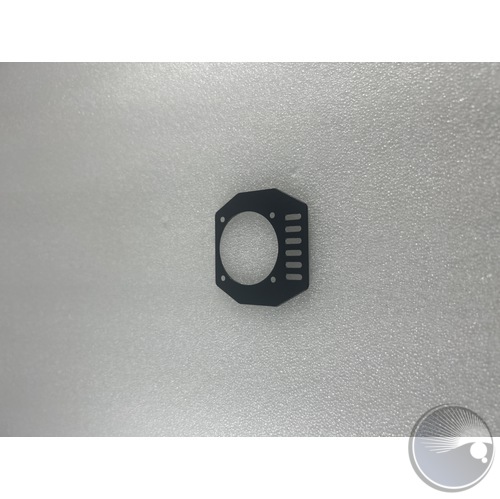

arm bracket barrier M515A0206 (BOM#7)PTH1010102286251arm bracket barrier M515A0206 (BOM#7)

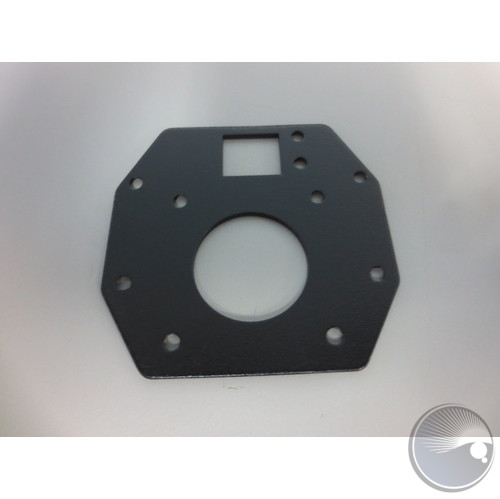

tilt motor bracket M515A0207 (BOM#17)PTH1010102286271tilt motor bracket M515A0207 (BOM#17)
PTH1010102286331pcb fix board M515A0210 (BOM#27)

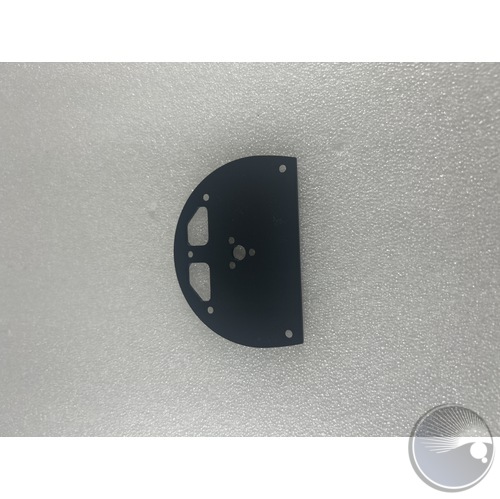

head right bracket M515A0301 (BOM#16)PTH1010102286351head right bracket M515A0301 (BOM#16)

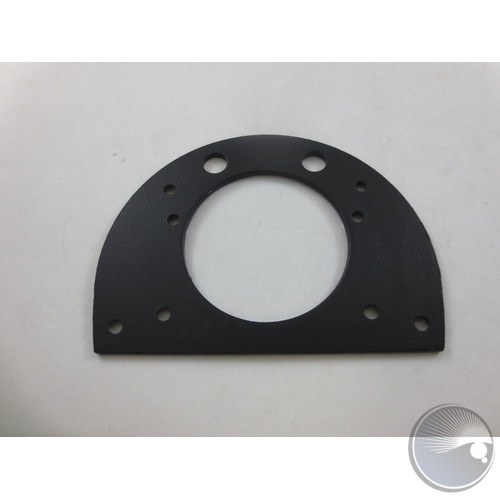

head left bracket M515A0302 (BOM#5)PTH1010102286371head left bracket M515A0302 (BOM#5)

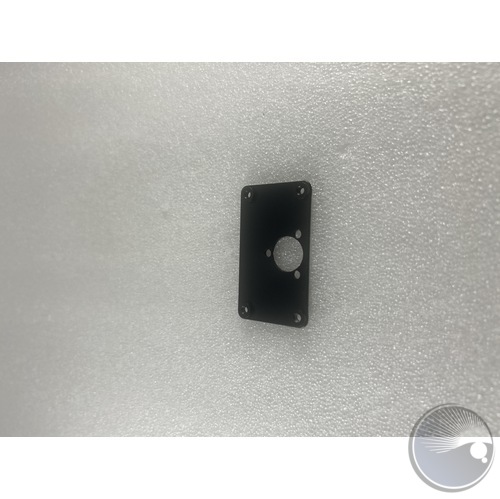

flange bracket M515A0304 (BOM#4)PTH1010102286411flange bracket M515A0304 (BOM#4)
PTH1010102293371base board M515A0101 B (BOM#34)
PTH1010102293391pan bracket M515A0104 B (BOM#52)
PTH1010102293411base right bracket M515A0105 B (BOM#38)
PTH1010102293431base left bracket M515A0106 B (BOM#69)

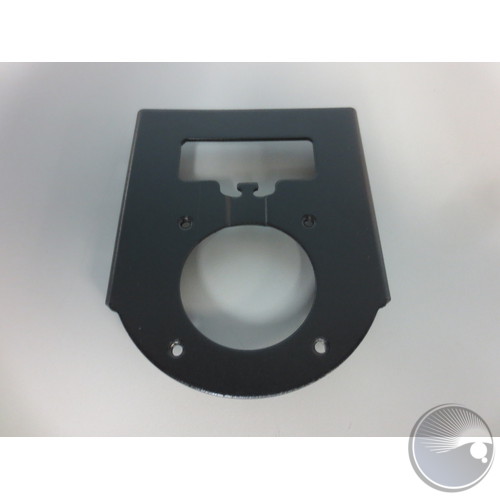

arm left bracket M515A0205 B (BOM#9)PTH1010102293451arm left bracket M515A0205 B (BOM#9)

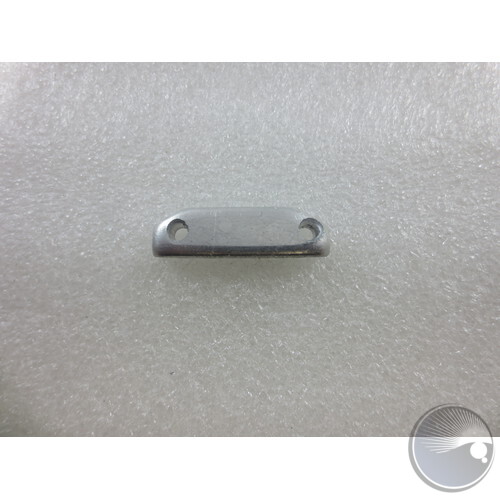

mat board M515A0211 (BOM#18)PTH1010102296031mat board M515A0211 (BOM#18)

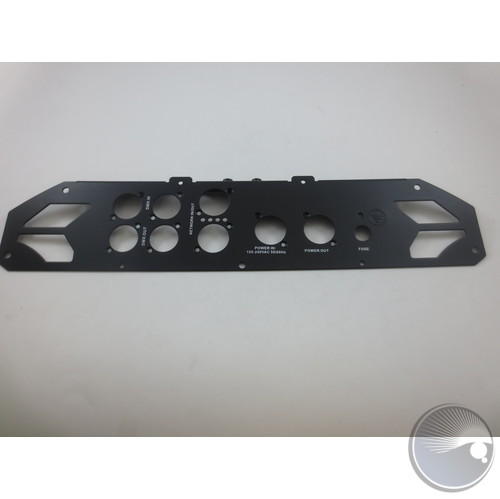

power socket board M515A0103 B (BOM#44)PTH1010102296161power socket board M515A0103 B (BOM#44)

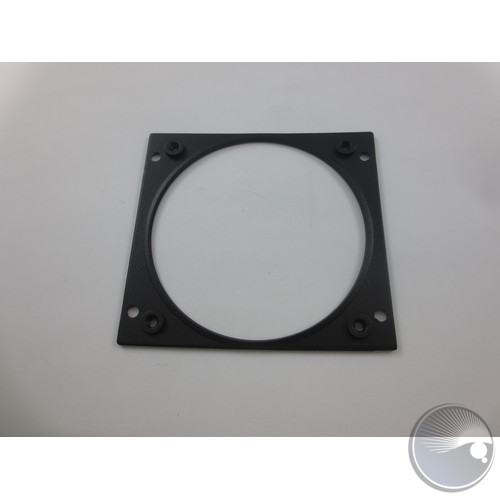

lens press board M515A0303 F (BOM#13)PTH1010102303291lens press board M515A0303 F (BOM#13)
PTH1010202286431gear DL39001 (BOM#61)

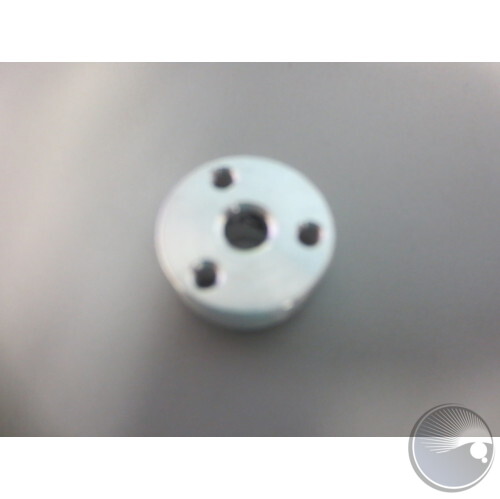

flange M515B01 (BOM#15)PTH1010202286441flange M515B01 (BOM#15)
PTH1010202286451pan support post M515B02 (BOM#68)

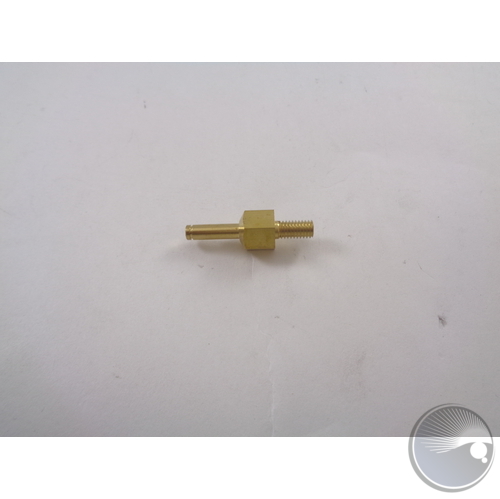

pan slide wheel axis M515B03 (BOM#59)PTH1010202286461pan slide wheel axis M515B03 (BOM#59)
PTH1010202286491pan axis M515BZ01 (BOM#56)

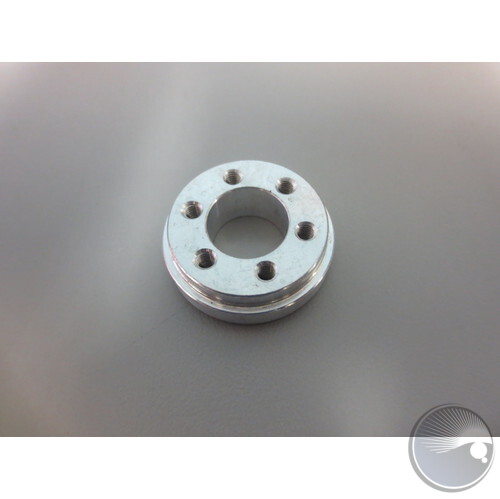

tilt axis M515BZ03 B (BOM#6)PTH1010202298371tilt axis M515BZ03 B (BOM#6)

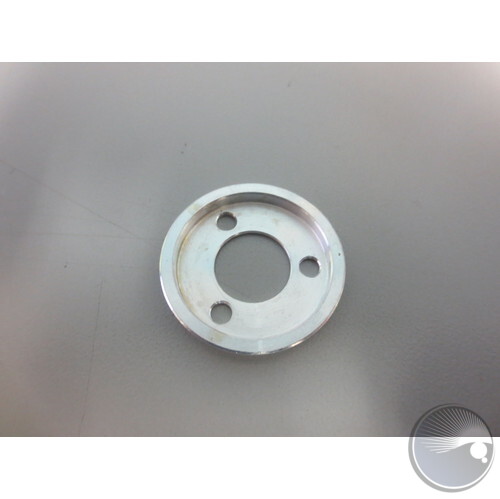

slide ring fix ring M515B04 (BOM#11)PTH1010202298381slide ring fix ring M515B04 (BOM#11)
PTH1010402163641standoff 64 3.2 (BOM#235)
aluminum post H8×51 M4 (BOM#48)PTH1010403164921aluminum post H8×51 M4 (BOM#48)
PTH1010403298391aluminum post H8×141.7 M4 (BOM#70)
PTH1010502286471heat sink M515BS01 (BOM#1)
pan slider wheel (BOM#65)PTH1040000278641pan slider wheel (BOM#65)

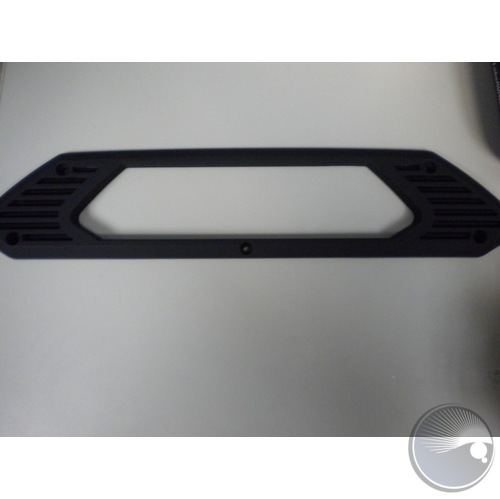

base front cover M515C01 (BOM#45)PTH1060100283331base front cover M515C01 (BOM#45)

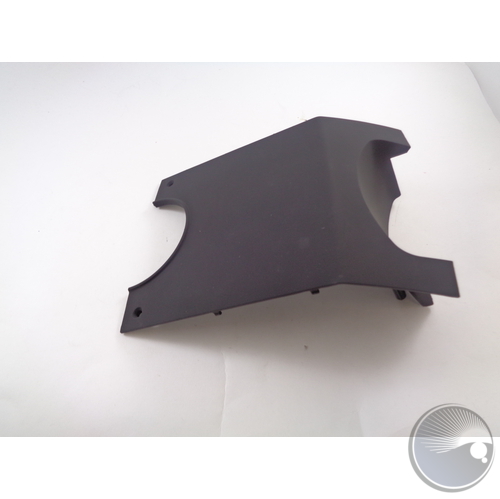

base face cover M515C02 (BOM#39)PTH1060100283341base face cover M515C02 (BOM#39)
PTH1060100283351handle M515C03 (BOM#46)

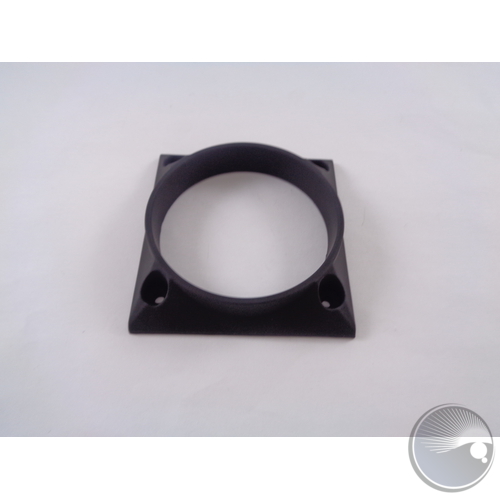

lens cover M515C06 (BOM#12)PTH1060100296051lens cover M515C06 (BOM#12)

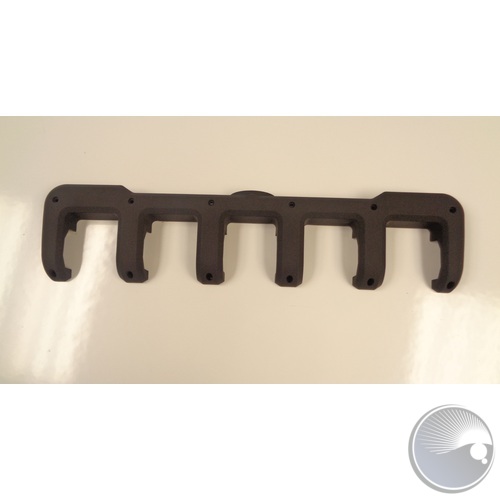

arm front cover M515C05 (BOM#23)PTH1060100300811arm front cover M515C05 (BOM#23)
optocoupler pcb AGD005A (BOM#64)PTH2020302181121optocoupler pcb AGD005A (BOM#64)
DMX board DMX012B (BOM#40)PTH2020302267381DMX board DMX012B (BOM#40)
ethernet connector ZJ034 Amphenol (BOM#7)PTH2020302269051ethernet connector ZJ034 Amphenol (BOM#7)

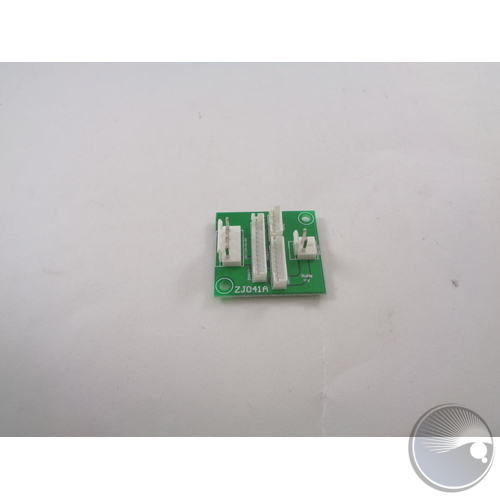

switch pcb ZJ041A (BOM#26)PTH2020302279621switch pcb ZJ041A (BOM#26)
full color display PCB LCD014 (BOM#30)PTH2020302288791full color display PCB LCD014 (BOM#30)

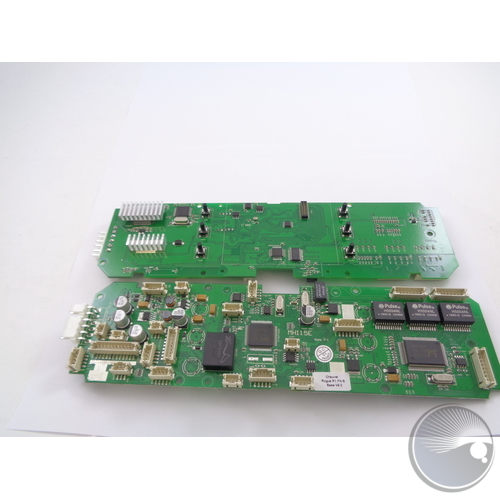

MPCB MH115E (BOM#72)PTH2020302299011MPCB MH115E (BOM#72)

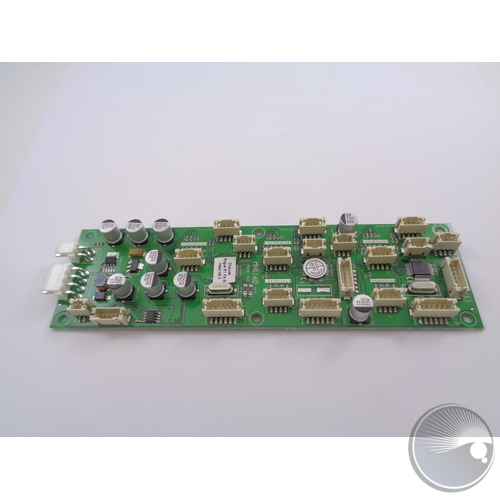

motor DRIVER PCB MH116D (BOM#28)PTH2020302299031motor DRIVER PCB MH116D (BOM#28)

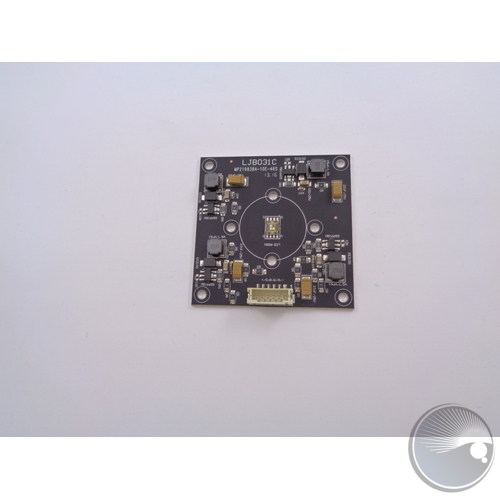

LED PCB LJB031 1A (BOM#2)PTH2020302301711LED PCB LJB031 1A (BOM#2)
battery with pcb ICR14430-500mAh 3.7V, 1.85wh (BOM#112)PTH2021900301511battery with pcb ICR14430-500mAh 3.7V, 1.85wh (BOM#112)
stepper motor 17HDB002015 (BOM#22)PTH2030101287361stepper motor 17HDB002015 (BOM#22)
stepper motor 24HC430807C (BOM#48)PTH2030117179931stepper motor 24HC430807C (BOM#48)
fan 12V?0.12A DFM5010B (BOM#162) 2-wire 2-pin femalePTH2030201204578fan 12V?0.12A DFM5010B (BOM#162) 2-wire 2-pin female

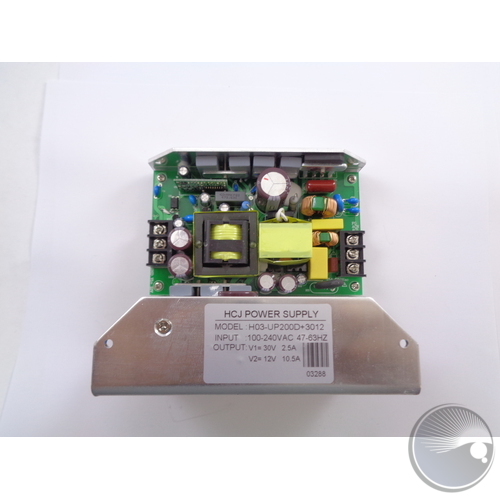

POWER SUPPLY H03UP200D+3012 (BOM#71)PTH2030700283981POWER SUPPLY H03UP200D+3012 (BOM#71)

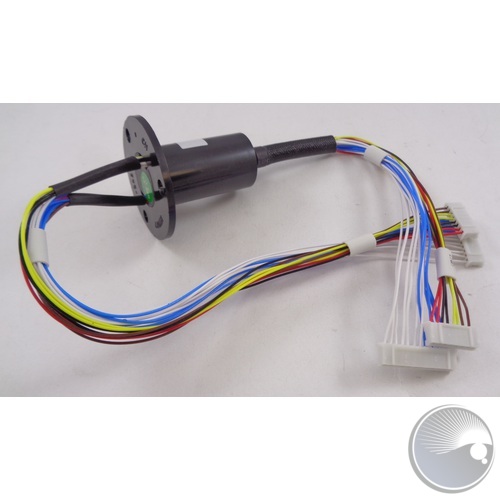

slide ring & wire assembly C200601 (BOM#67)PTH2030800211521slide ring & wire assembly C200601 (BOM#67)

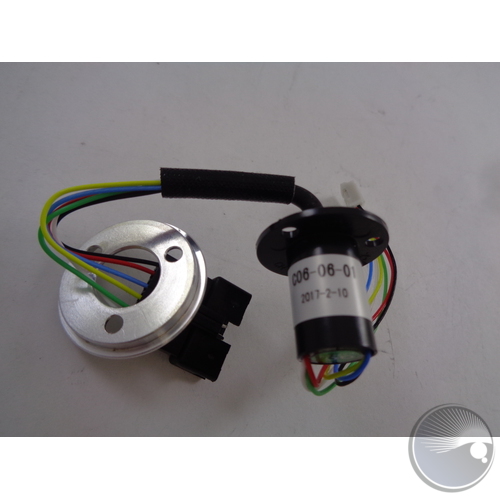

slide ring & wire assembly C060601 (BOM#10)PTH2030800277851slide ring & wire assembly C060601 (BOM#10)

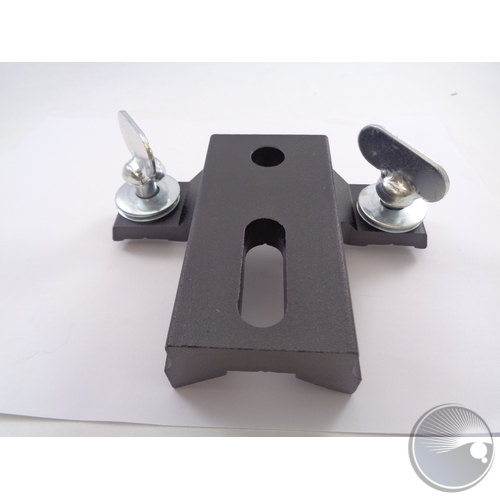

quick lock hanging bracket CDD02 (BOM#86)PTH2040000230901quick lock hanging bracket CDD02 (BOM#86)
gear set DL3150701 (BOM#69)PTH2040000277941gear set DL3150701 (BOM#69)
PTH2040000297811pan bushing M515 LED Moving Spot (BOM#62)

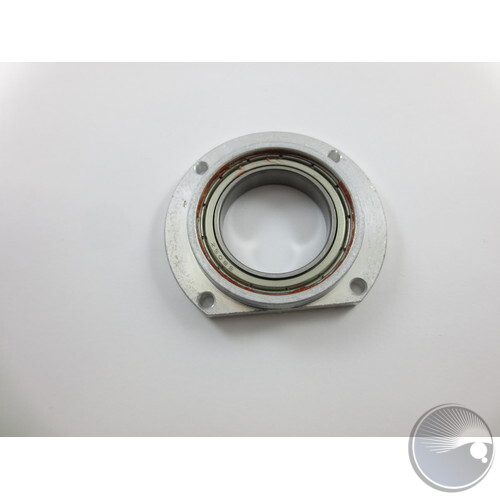

tilt bushing M515 LED Moving Spot (BOM#8)PTH2040000297821tilt bushing M515 LED Moving Spot (BOM#8)
Fan assembly DFM5010B 12V .12A FAN1J140.15 3-Pin Female (BOM#109)PTH2040000506091Fan assembly DFM5010B 12V .12A FAN1J140.15 3-Pin Female (BOM#109)

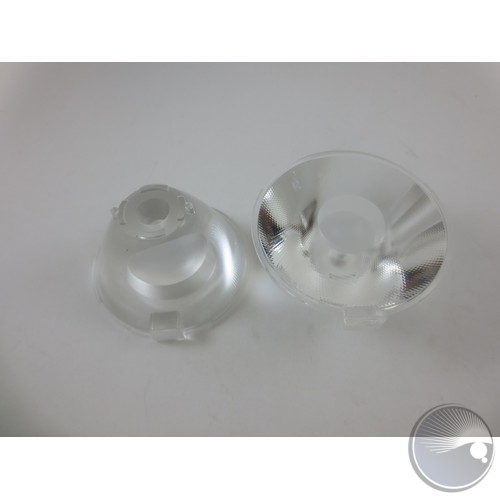

lens XMDMXGS04D6538K (BOM#14)PTH2040900246781lens XMDMXGS04D6538K (BOM#14)
screw M8×30 (BOM#47)PTH2080502127751screw M8×30 (BOM#47)

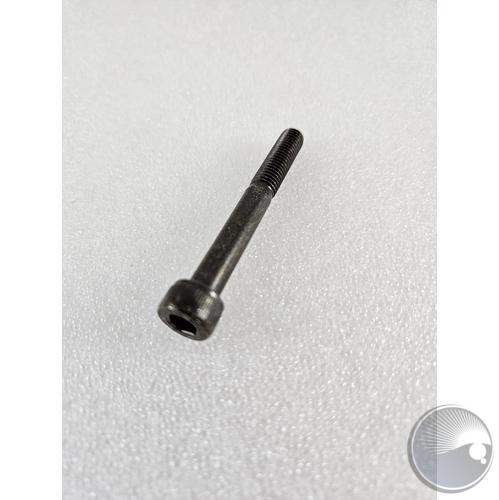

screw M8×65 (BOM#79)PTH2080502277201screw M8×65 (BOM#79)
screw M8 (BOM#69)PTH2081002126951screw M8 (BOM#69)
matel ring M12 (BOM#24)PTH2081101126491matel ring M12 (BOM#24)
syncronization strap 3M37512mm (BOM#77)PTH2090101293281syncronization strap 3M37512mm (BOM#77)
machine feet (BOM#4)PTH2090400171661machine feet (BOM#4)
button cap AJM-10x6 (BOM#28)PTH2090400256161button cap AJM-10x6 (BOM#28)
PTH2090400306821plastic space post H6×10 (BOM#87)
quick lock screw M20 (BOM#47)PTH2090500180091quick lock screw M20 (BOM#47)
spring ?10×38×1.2 (BOM#78)PTH2090601173371spring ?10×38×1.2 (BOM#78)
safety tube 3A ?5×20 250V (BOM#60)PTH2090900167241safety tube 3A ?5×20 250V (BOM#60)
axis circlip ?30×1.2 (BOM#55)PTH2091302169581axis circlip ?30×1.2 (BOM#55)
open circlip ?4 (BOM#66)PTH2091302169621open circlip ?4 (BOM#66)
magnet ?3×3 (BOM#159)PTH2091400168401magnet ?3×3 (BOM#159)
PTH2091500296961silicone mat LADS320 (BOM#29)
magnetic sensor HE10 C (BOM#142)PTHHE10Cmagnetic sensor HE10 C (BOM#142)
Panel mount fuse holder (BOM#29)PTJ3027001001Panel mount fuse holder (BOM#29)
dust cover 41.3×23×11.6 (BOM#121)PTJ5014950170dust cover 41.3×23×11.6 (BOM#121)
