Ovation SP-300CW

4.016,25 € *

inkl. MwSt. zzgl. Versandkosten

Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.

  • OVATIONSP300CW
Ovation  SP-300CW Ovation SP-300CW is a quiet, medium throw LED powered... mehr
Produktinformationen "Ovation SP-300CW"

Ovation SP-300CW

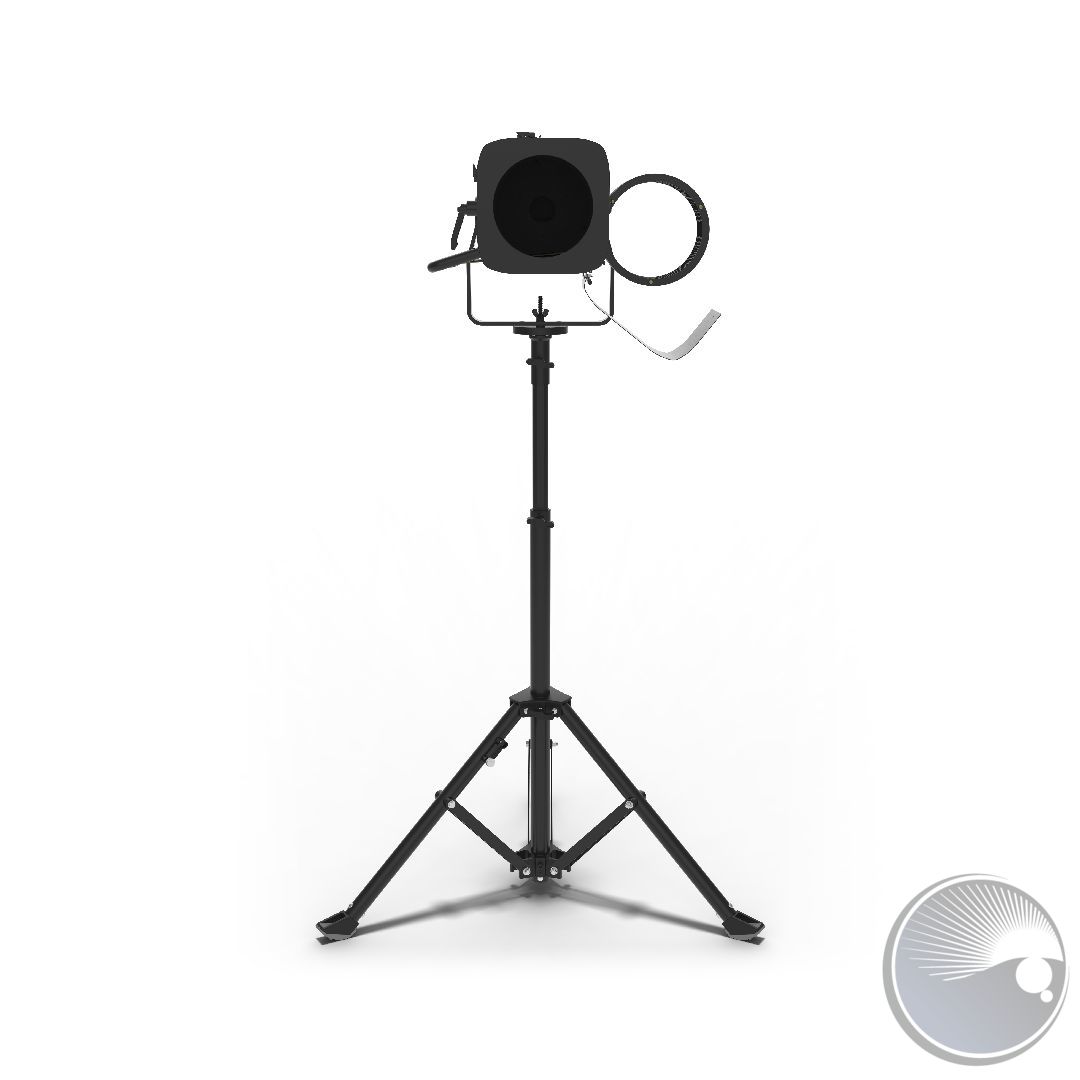

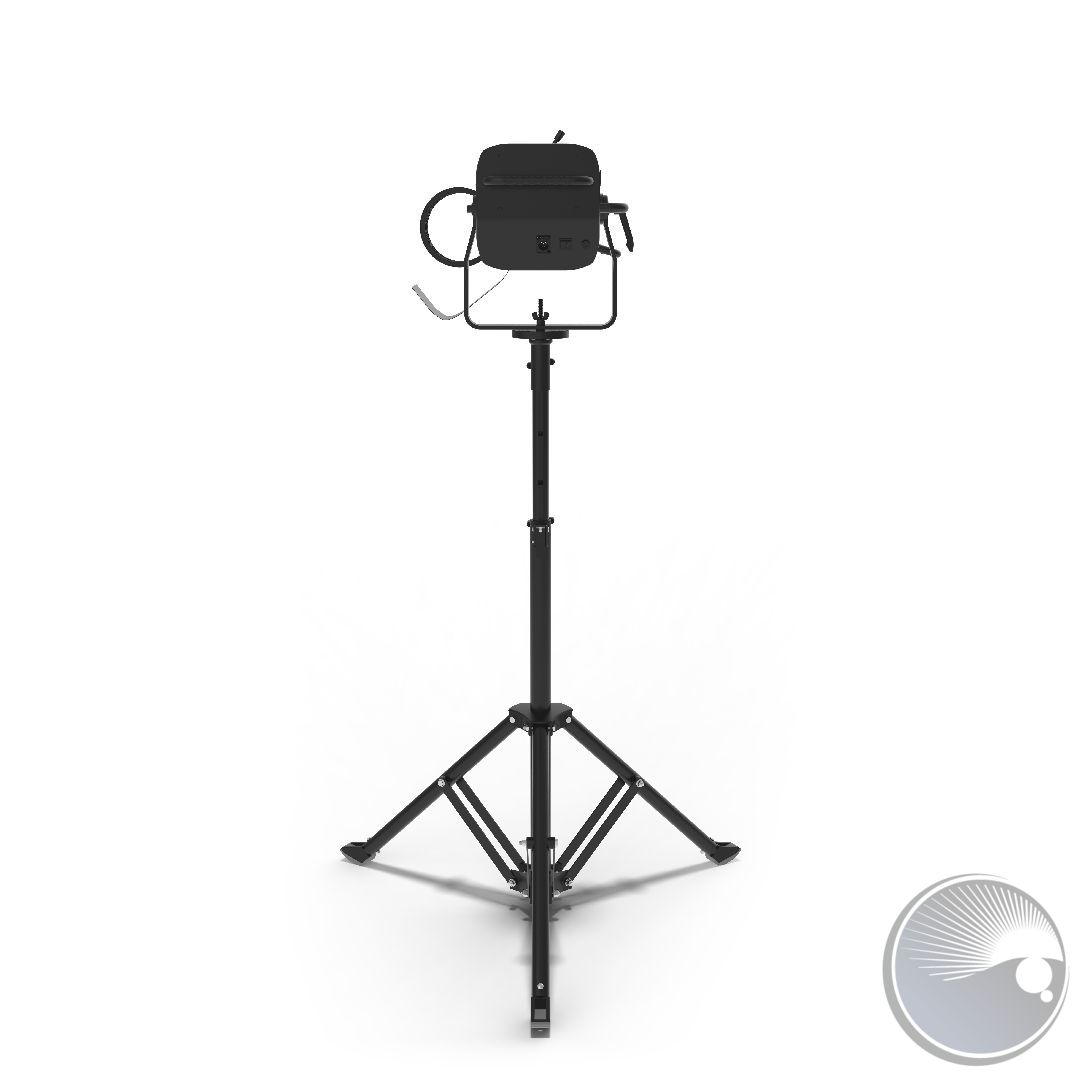

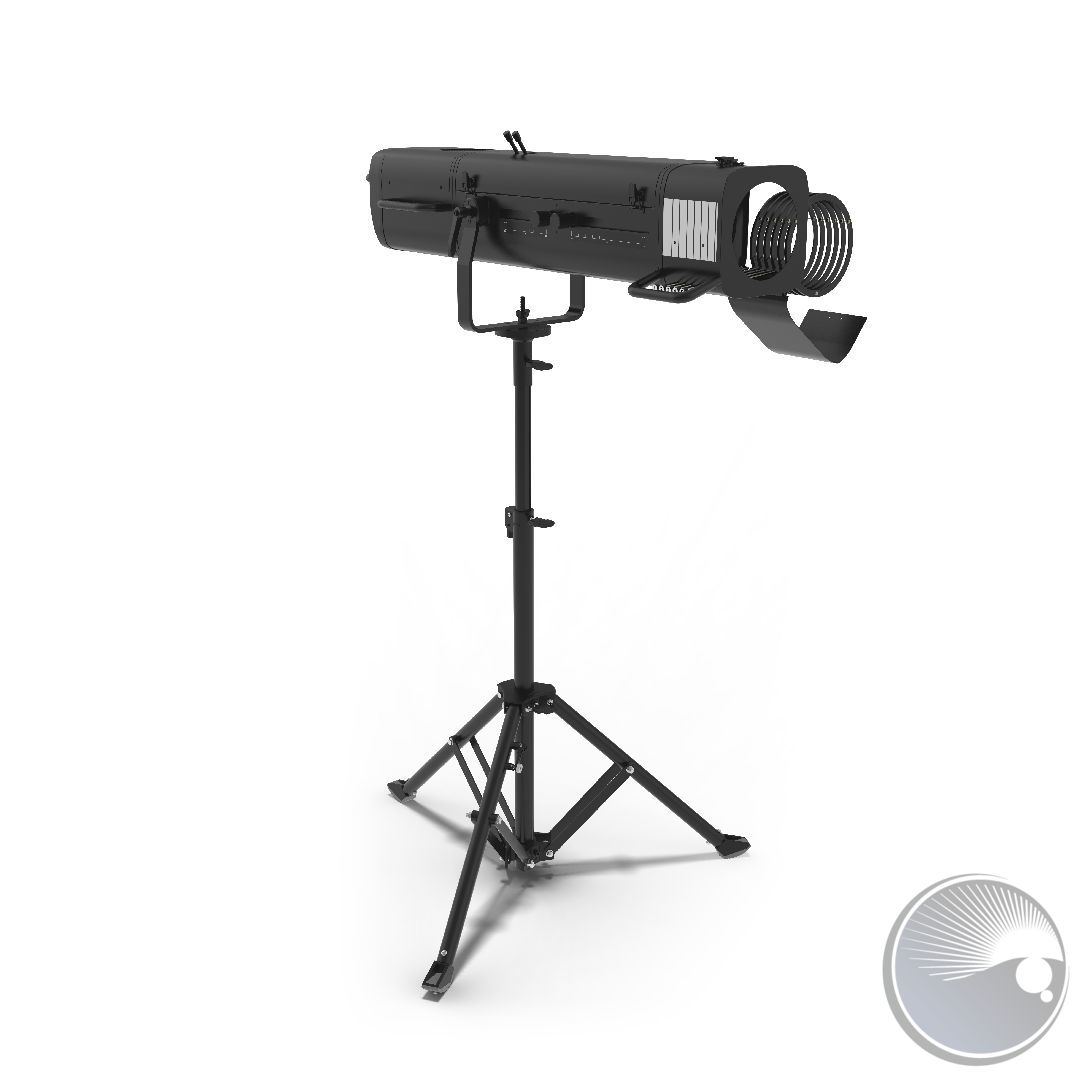

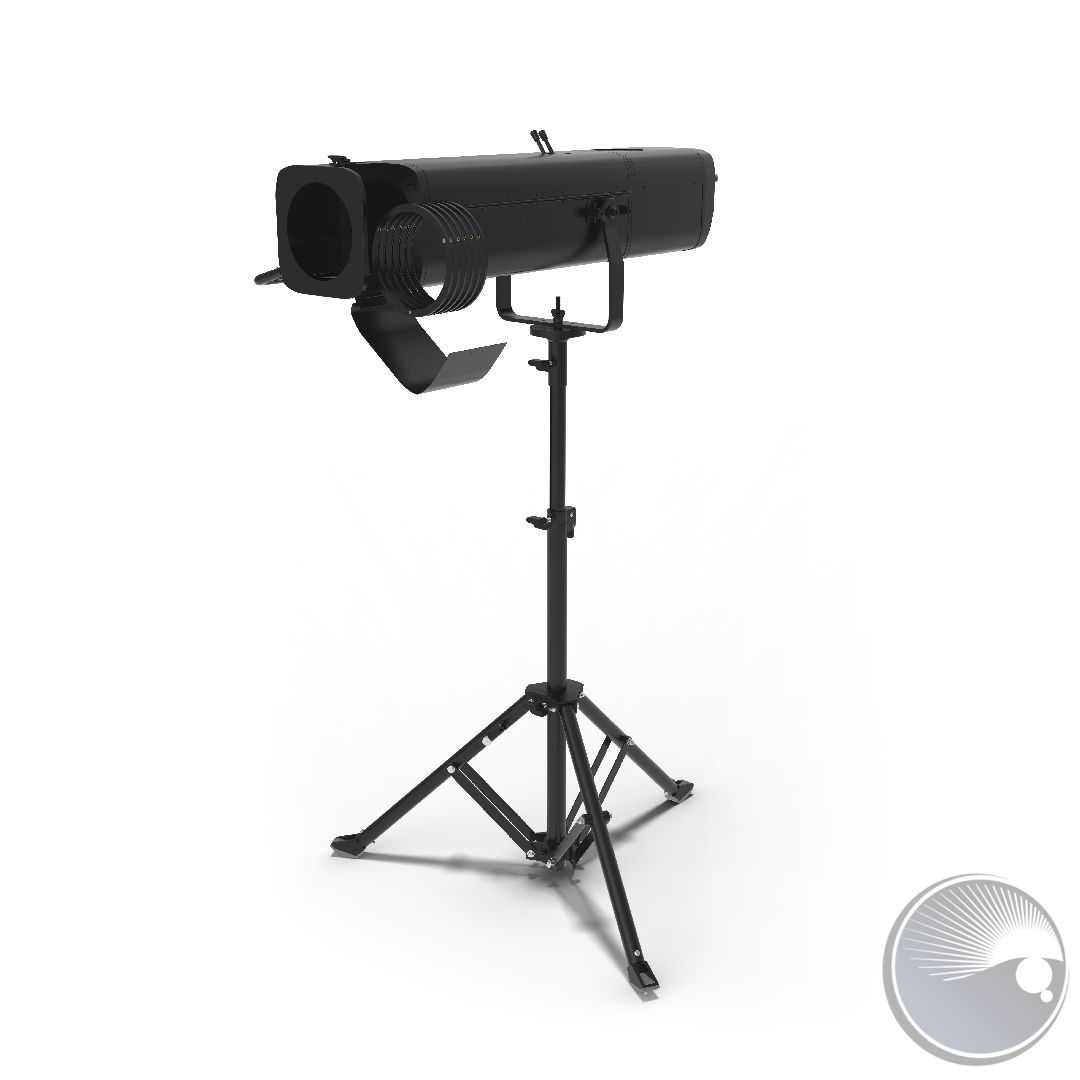

Ovation SP-300CW is a quiet, medium throw LED powered followspot that projects a crisp cool white beam. On board manual dimming and a full-blackout iris are standard for beam control along with smooth manual sliders for zoom and focus to adjust from a spot to a flood. A 6-slot manual boomerang is attached to the front of the unit to add your favorite gel colors and provide quiet color changing.

AT A GLANCE

  • High power LED followspot with stand for mid-sized venues

  • 5,500 K cool white spot with 9° to 17° zoom

  • Full blackout, 24-leaf iris

  • Manual linear dimmer

  • 6-position, removable color changer

  • Virtually silent operation for use in studio and theatre applications

  • Easy access hatch for cleaning optics

SPECIFICATIONS

OPTICAL

  • Light Source: 1 LEDs (CW) 260 W, (3.6 A), 5,640 K, 50,000 hours life expectancy
  • Color Temperature (at full): 5640 K
  • CRI: 88
  • Beam Angle: 9° to 13°
  • Field Angle: 9° to 17°
  • Zoom Range: 9° to 17°
  • Illuminance (Narrow): 15,400 lux @ 5 m
  • Illuminance (Wide): 7,070 lux @ 5 m
  • PWM Frequency: 2300 Hz

DYNAMIC EFFECTS

  • Colors: 6 + white
  • Dimmer: Manual, Linear
  • Zoom: Manual
  • Focus: Manual
  • Iris: 24-leaf, full blackout

CONSTRUCTION / PHYSICAL

  • Dimensions: 44.7 x 13.9 x 15.8 in (1,137 x 354 x 403 mm)
  • Dimensions (Stand with fixture, optimal open): 46.8 x 13.98 x 62.4 in (1,189 x 355 x 1,585 mm)
  • Diameter (Stand with fixture, optimal open): 33.8 in (stand) 52.8 in (fixture)
  • Dimensions (Stand with fixture, max open): 46.8 x 13.98 x 81.6 in (1,189 x 355 x 2,073 mm)
  • Diameter (Stand with fixture, max open): 39.6 in (stand) 52.8 in (fixture)
  • Weight: 52.8 lb (24 kg)
  • Exterior Color: Black
  • Housing Material: Steel

CONNECTIONS

  • Power Connection: Edison (Local) plug to Seetronic Powerkon (powerCON Compatible)
  • Power Input: Seetronic Powerkon (powerCON Compatible)
  • Cable Length (power): 5 ft (1.5 m)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 223 W, 2.22 A @ 100 V, 60 Hz
  • Power and Current: 207 W, 1.73 A @ 120 V, 60 Hz
  • Power and Current: 197 W, 1.03 A @ 208 V, 60 Hz
  • Power and Current: 197 W, 0.94 A @ 230 V, 50 Hz
  • Power and Current: 194 W, 0.90 A @ 240 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

  • Ovation SP-300CW
  • Seetronic Powerkon IP65 power cord
  • Tripod stand
  • Starter pack of gels

ORDERING INFO

  • Item Code: 01041452



Weiterführende Links zu "Ovation SP-300CW"

3.15AMPGMAF3.15AL250V FUSE

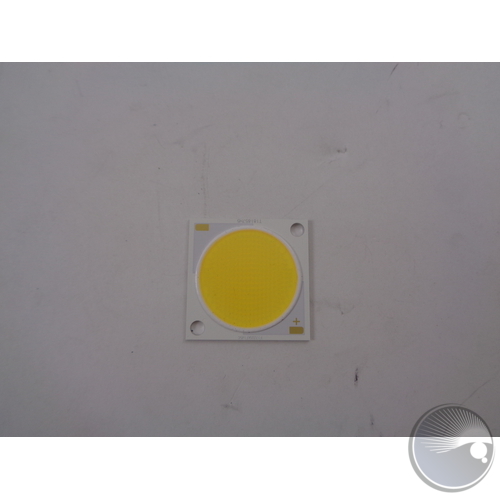

cool white led (BOM#P1.3)PTF1070000576cool white led (BOM#P1.3)

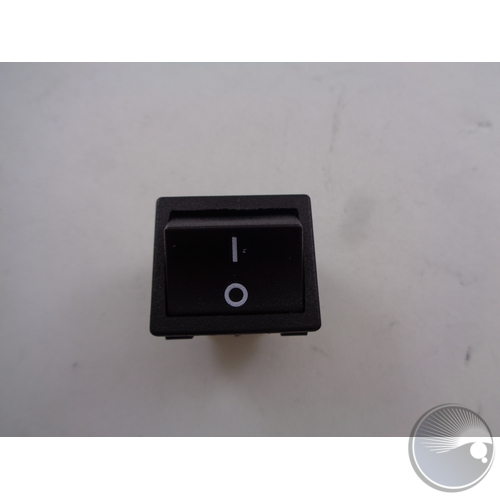

power switch (BOM#P1.16)PTF1080000052power switch (BOM#P1.16)
waterproof power socket (BOM#24)PTF1100000469waterproof power socket (BOM#24)
PTF1120200253Φ120Glue mirror (BOM#P2.17)
PTF1120200254Φ171 Biconvex mirror (BOM#P2.11)
PTF1120200255Φ100Flat convex mirror (BOM#P2.53)
PTF1140000293PC mat (BOM#P2.28)
PTF1140000303Thermal silicone pad (BOM#P1.7)
PTF1140000305Thermal silicone pad (BOM#P1.12)

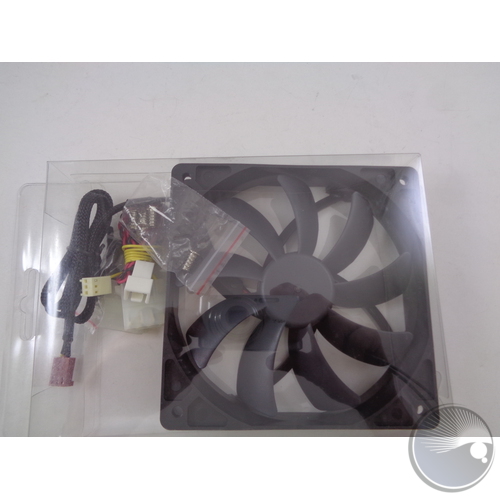

Fan (BOM#P1.22)PTF1160000546Fan (BOM#P1.22)

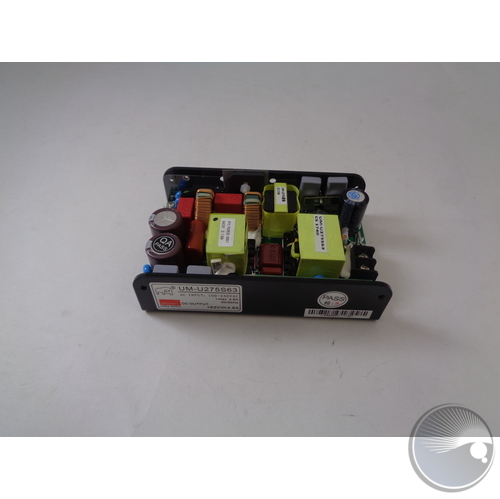

power supply (BOM#P1.11)PTF1160000551power supply (BOM#P1.11)
PTF1180000414dust-proof sponge (BOM#P1.20)
PTF1180000430Rubber wire ring (BOM#P2.3)
PTF1180000432Spongy Cushion (BOM#P2.22)
PTF1180000444Sponge gasket (BOM#P2.6)
PTF1180000445limit rubber (BOM#P3.13)
PTF1180000446Focusing Sponge gasket (BOM#P2.7)
PTF1180000447U-shaped rubber 2 (BOM#P3.16)

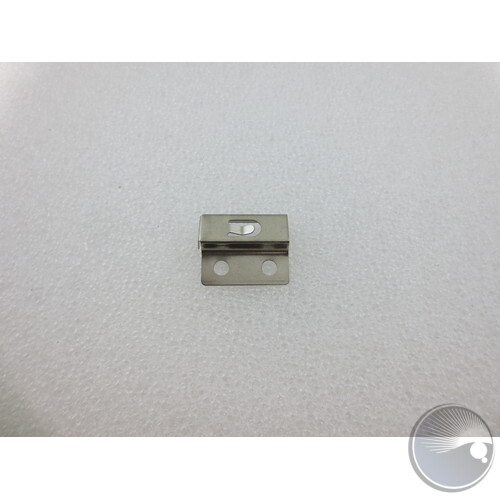

fixing bracket (BOM#11)PTF1340100036fixing bracket (BOM#11)

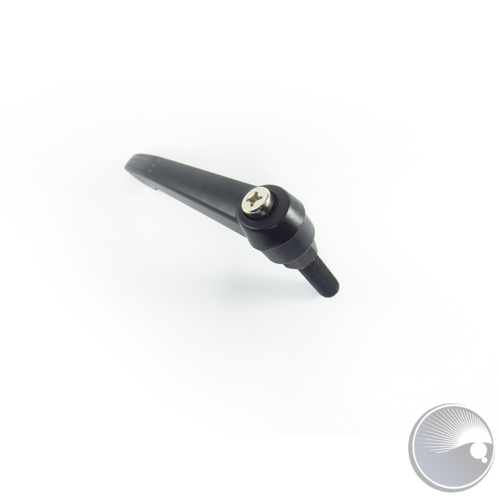

M10 handle/shank (BOM#24)PTF1340100039M10 handle/shank (BOM#24)
PTF1340112359rod of the gel frame (BOM#P3.7)

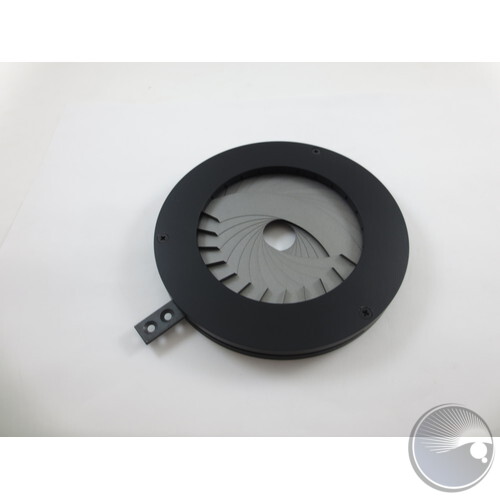

Full blackout shutter (BOM#P2.52)PTF1340112379Full blackout shutter (BOM#P2.52)
PTF1340112457power supply fixed plate (BOM#P1.13)
PTF1340112461heat sink (BOM#P1.5)
PTF1340500911slider (BOM#P2.14)
PTF1340602312NO.8 hanging bracket (BOM#P1.4)
PTF1340602340U-shaped rubber (BOM#P3.10)

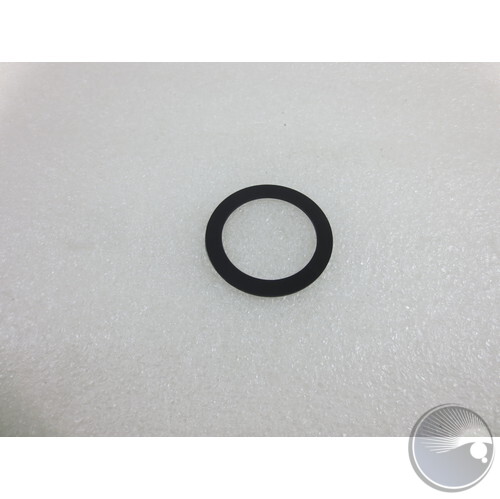

PC gaskets (BOM#P2.30)PTF1340602347PC gaskets (BOM#P2.30)
PTF1340602349rod handle (BOM#P2.25)
PTF1340802957mounting shaft (BOM#P3.15)
PTF1340802971Focusing Pole (BOM#P2.1)
PTF1340802999Lens aluminum column (BOM#P2.15)
PTF1340900061Clamp bearings (BOM#P2.10)

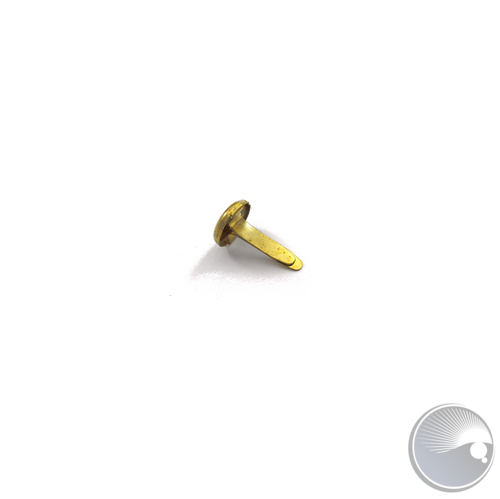

the gel frame holder clip (BOM#P3.1)PTF1491200042the gel frame holder clip (BOM#P3.1)

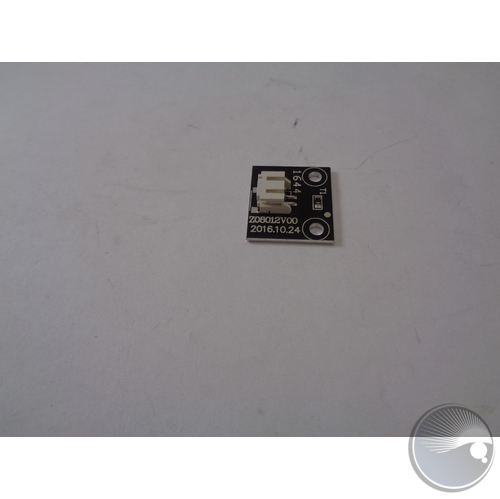

Adapter PCB (BOM#P1.1)PTF2260002313Adapter PCB (BOM#P1.1)

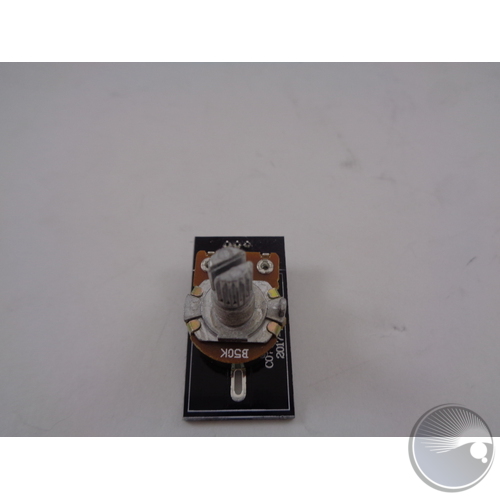

control PCB - BK50 (BOM#P2.44)PTF2260002445control PCB - BK50 (BOM#P2.44)

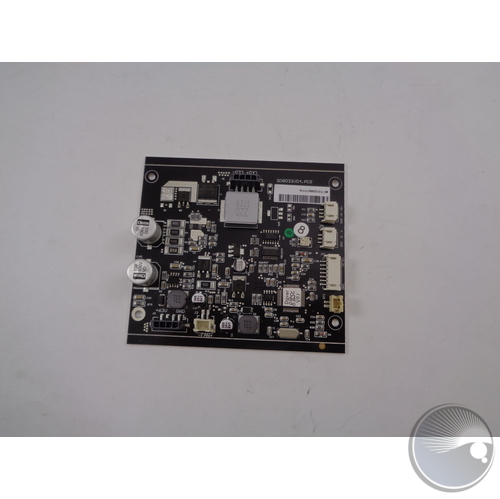

drive PCB (BOM#P1.8)PTF2260002446drive PCB (BOM#P1.8)

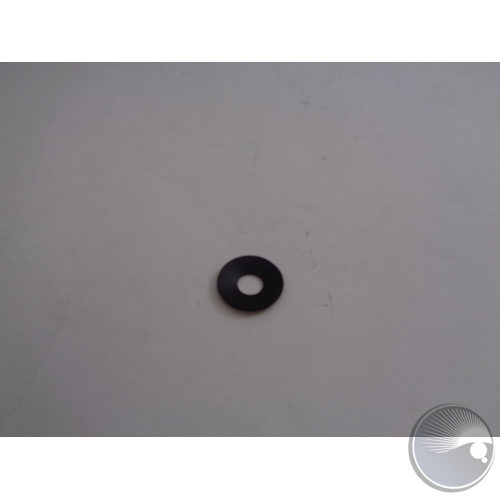

gaskets-P (BOM#P2.59)PTF2440100882gaskets-P (BOM#P2.59)
PTF2440104979Counterweight board (BOM#P1.14)
PTF2440104984lens gaskets 1 (BOM#P2.40)
PTF2440104986Lens plate 3 (BOM#P2.16)
PTF2440104988lens gaskets 3 (BOM#P2.18)

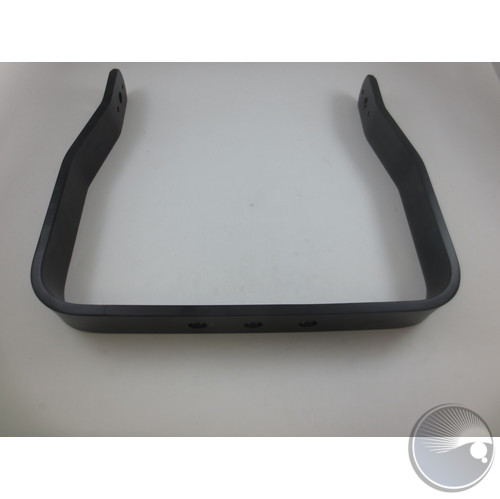

hanging bracket (BOM#P2.60)PTF2440104989hanging bracket (BOM#P2.60)
PTF2440104990fixed plate of fan (BOM#P1.23)
PTF2440105001hanging bracket of gel frame (BOM#P3.6)

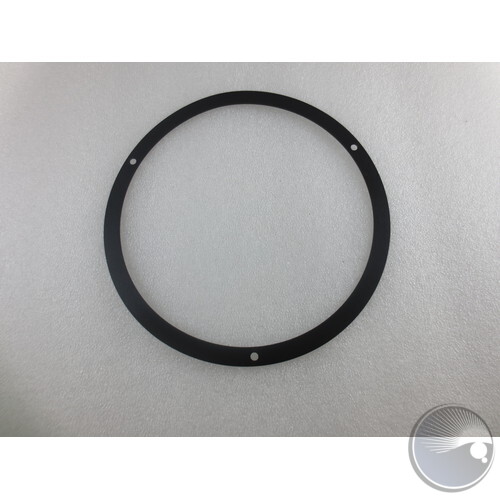

the gel frame plate (BOM#P3.3)PTF2440105002the gel frame plate (BOM#P3.3)
PTF2440105013the gel frame spring (BOM#P3.12)
PTF2440105057heat sink fixed plate-2 (BOM#P1.24)
PTF2440105058Lens plate 1 (BOM#P2.39)
PTF2440105060lens gaskets 2 (BOM#P2.35)
PTF2440105063Lens plate 4 (BOM#P2.4)
PTF2440105064lens gaskets 4 (BOM#P2.12)
PTF2440105090Light barrier 3 (BOM#P2.21)
PTF2440105091Light barrier 2 (BOM#P2.2)
PTF2440105092Aperture fixed plate (BOM#P2.50)
PTF2440105093Aperture light barrier (BOM#P2.31)
PTF2440105094Potentiometer mounting plate (BOM#P2.23)
PTF2440105095Potentiometer plate (BOM#P2.49)
PTF2440105096Lens mounting plate 2 (BOM#P2.54)
PTF2440105097Hanger fixed plate -2 (BOM#P2.55)
PTF2440105100Cover limit plate (BOM#P3.11)
PTF2440105101mat (BOM#P2.5)
PTF2440105109slider fixed plate (BOM#P2.61)

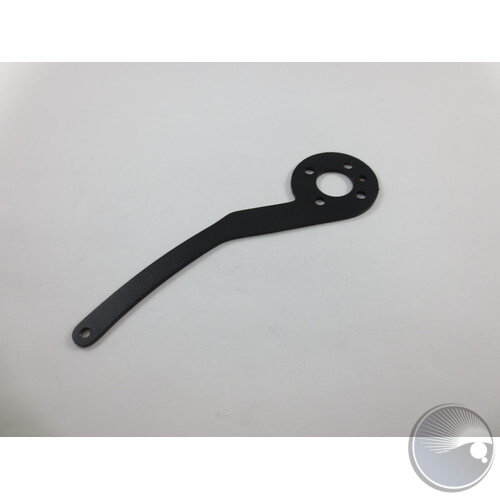

connecting rod-1 (BOM#P2.51)PTF2440105120connecting rod-1 (BOM#P2.51)

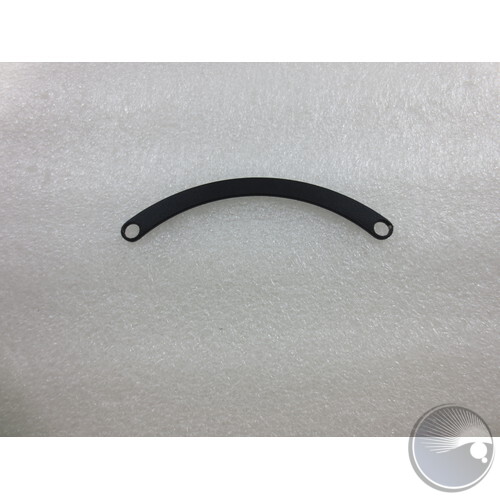

connecting rod-2 (BOM#P2.33)PTF2440105121connecting rod-2 (BOM#P2.33)

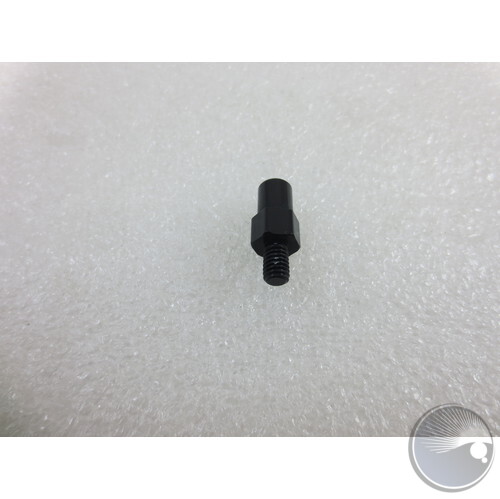

Bracket limit column-2 (BOM#P2.45)PTF2440105123Bracket limit column-2 (BOM#P2.45)
PTF2440105124pillar (BOM#P2.46)
PTF2440105125Connecting rod spacing column-2 (BOM#P2.34)
PTF2440105126Connecting rod spacing column (BOM#P2.32)
PTF2440105171Lens mounting plate 3 (BOM#P2.19)
PTF2440105172Lens mounting plate 4 (BOM#P2.13)
PTF2440105173heat sink fixed plate-1 (BOM#P1.6)
PTF2440105174hanger fixed plate-1 (BOM#P2.41)
PTF2440105175Electronic card board (BOM#P1.17)
PTF2440105176Light box handle (BOM#P1.21)
PTF2440105177Color box handle (BOM#P3.9)
PTF2440105181Φ120Glue mirror (BOM#P2.38)
PTF2440500272Focusing components (BOM#P2.8)
PTF2440500284Light box bottom cover (BOM#P1.10)
PTF2440500285Light box top cover (BOM#P1.9)
PTF2440500286Lens case (BOM#P2.20)
PTF2440500290the gel frame box (BOM#P3.14)

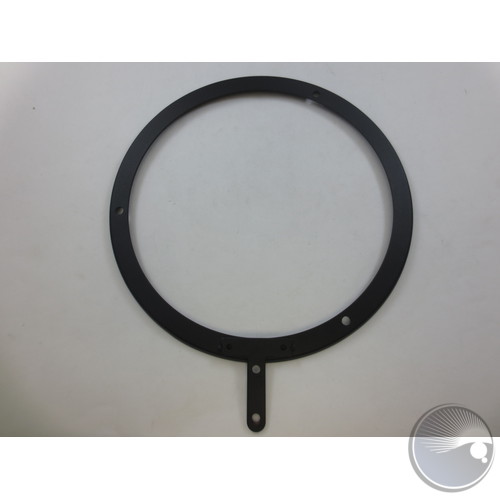

the gel frame (BOM#P3.2)PTF2440500294the gel frame (BOM#P3.2)
PTF2440800408Hanger fixed disk-2 (BOM#P2.57)
PTF2440800411Hanger fixed disk (BOM#P2.56)

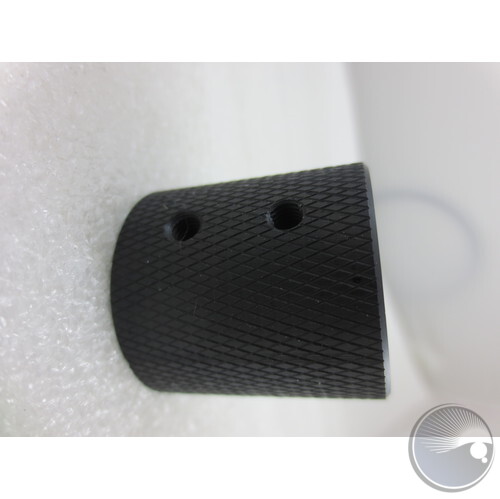

Turn the focus knob (BOM#P2.9)PTF2440800412Turn the focus knob (BOM#P2.9)
PTF2440800415Separation column-2 (BOM#P3.5)
PTF2440800416Separation column-1 (BOM#P3.4)

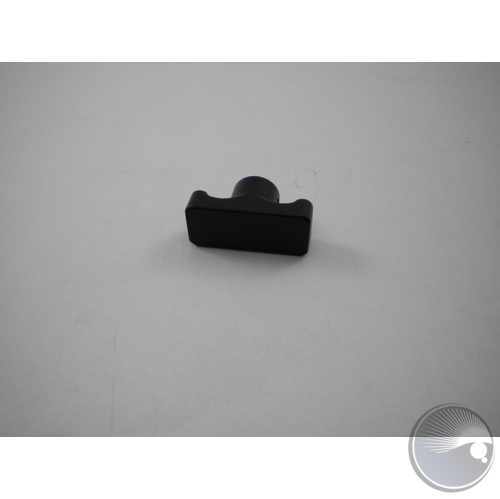

rod cap of the gel frame (BOM#P3.8)PTF2440800417rod cap of the gel frame (BOM#P3.8)

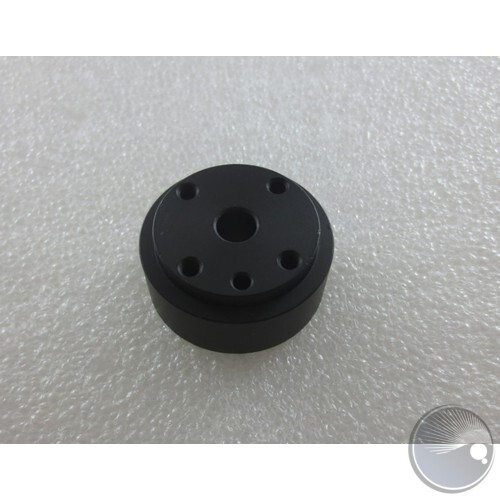

PTF2440800424Shaft-2 (BOM#P2.29)
PTF2440800425rod (BOM#P2.26)

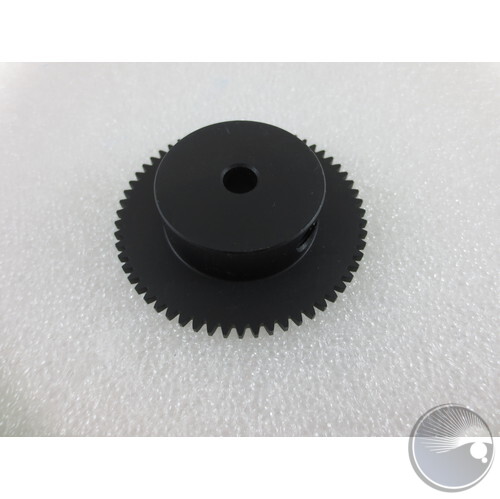

gear (BOM#P2.48)PTF2440800426gear (BOM#P2.48)
PTF2440800427driven wheel (BOM#P2.27)

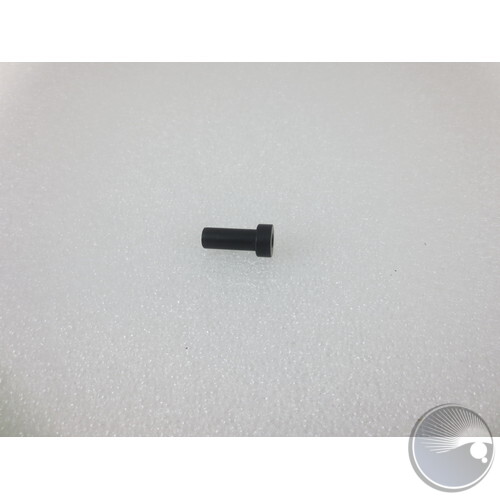

Gear fixed shaft (BOM#P2.47)PTF2440800428Gear fixed shaft (BOM#P2.47)
PTF2440800429lens pillar 2 (BOM#P2.36)

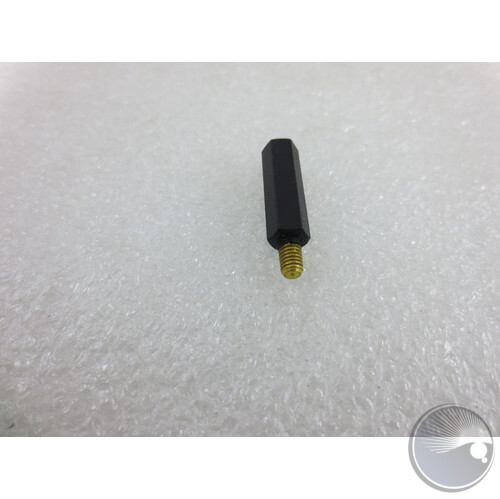

Limit copper pillar (BOM#P2.24)PTF2440800435Limit copper pillar (BOM#P2.24)

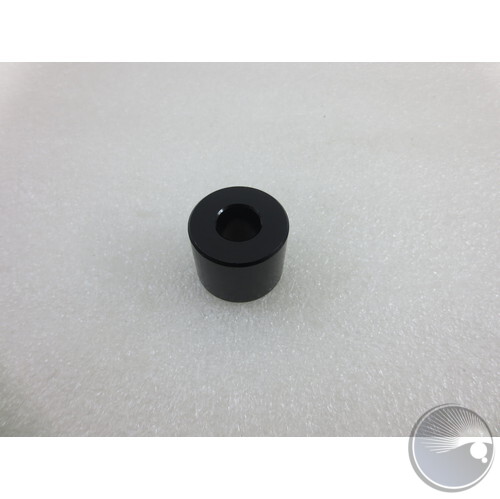

Bracket limit column (BOM#P2.43)PTF2440800436Bracket limit column (BOM#P2.43)
Power cord (BOM#41)PTFX20147Power cord (BOM#41)
Panel mount fuse holder (BOM#29)PTJ3027001001Panel mount fuse holder (BOM#29)
Stand for Followspot 1200PTSFS1200STANDStand for Followspot 1200
