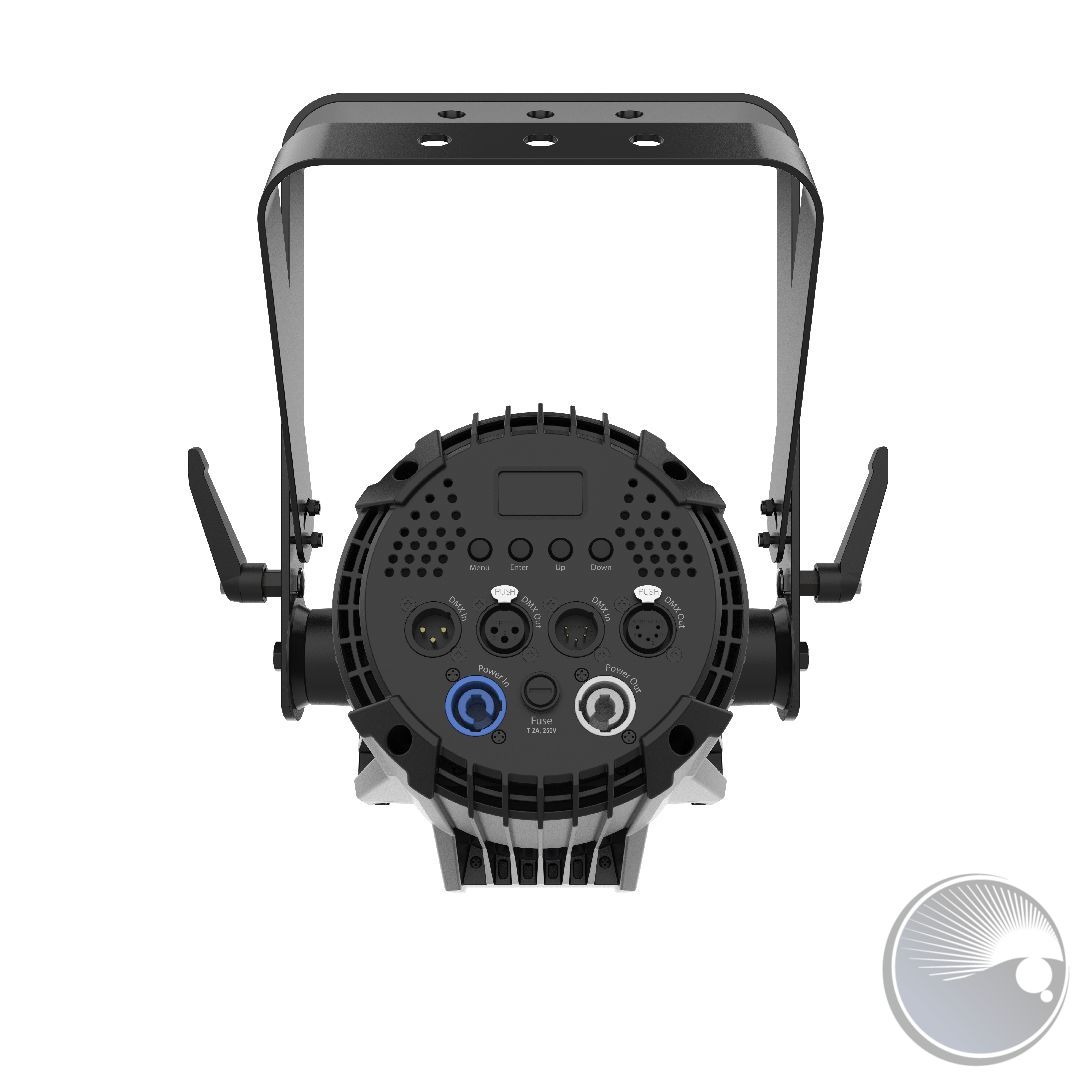

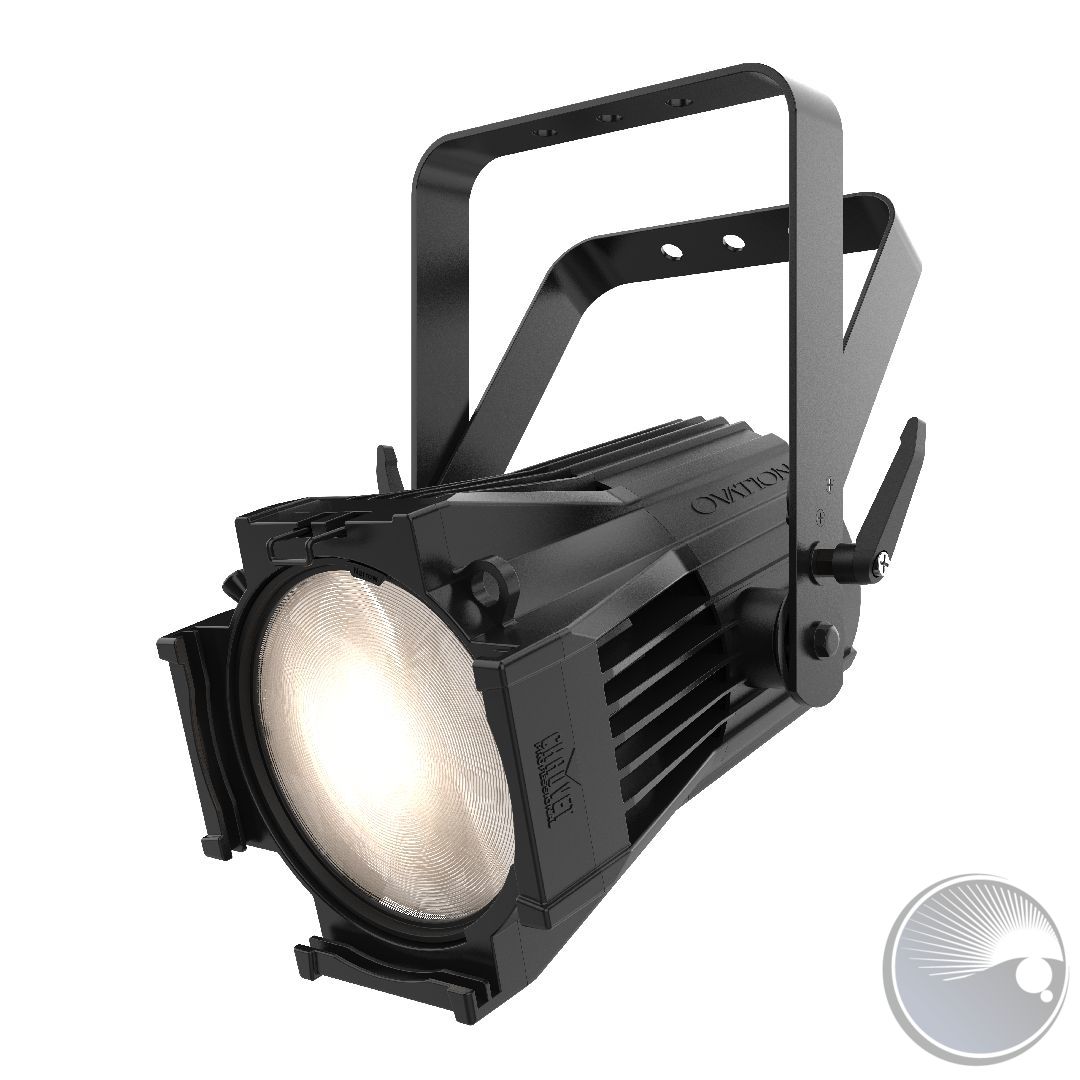

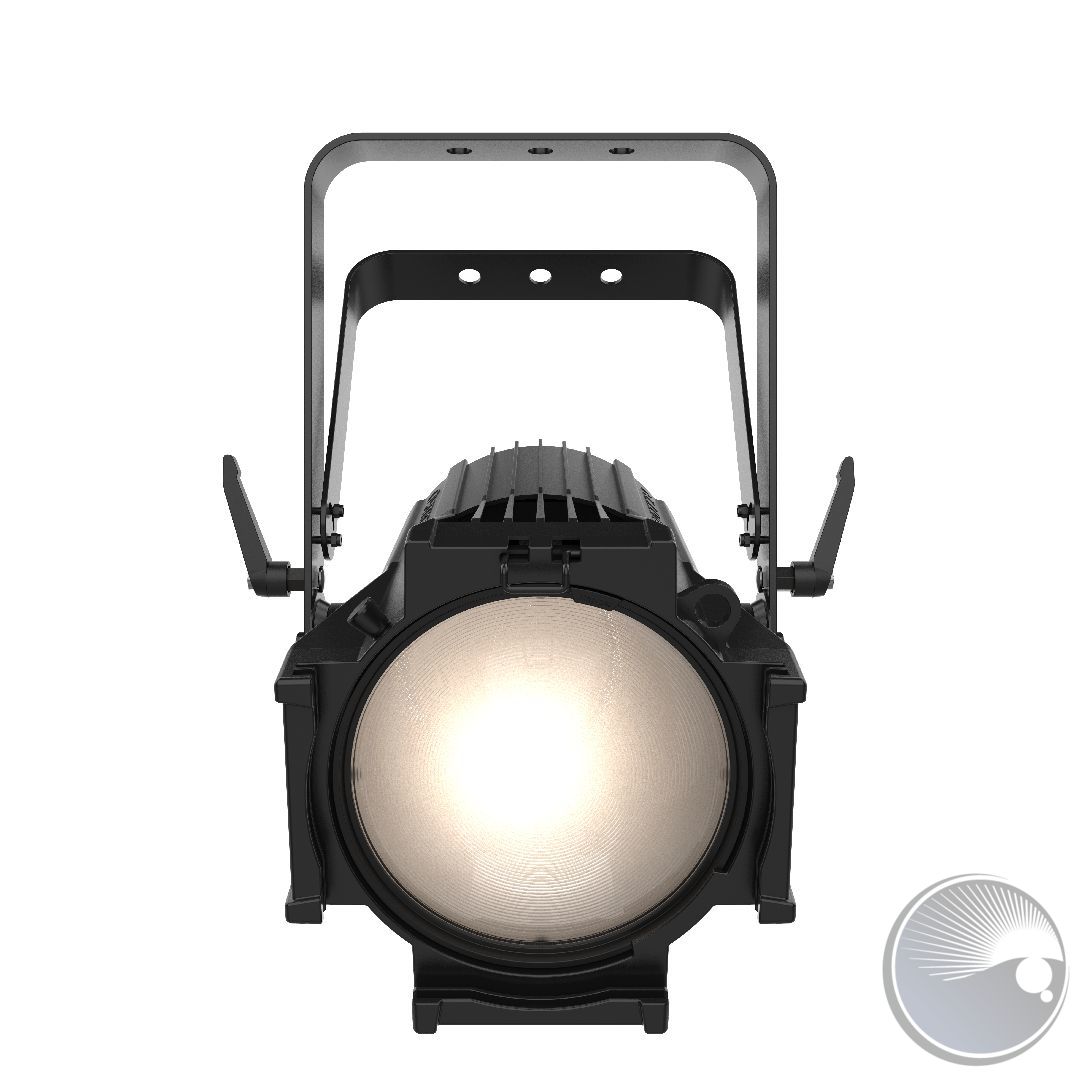

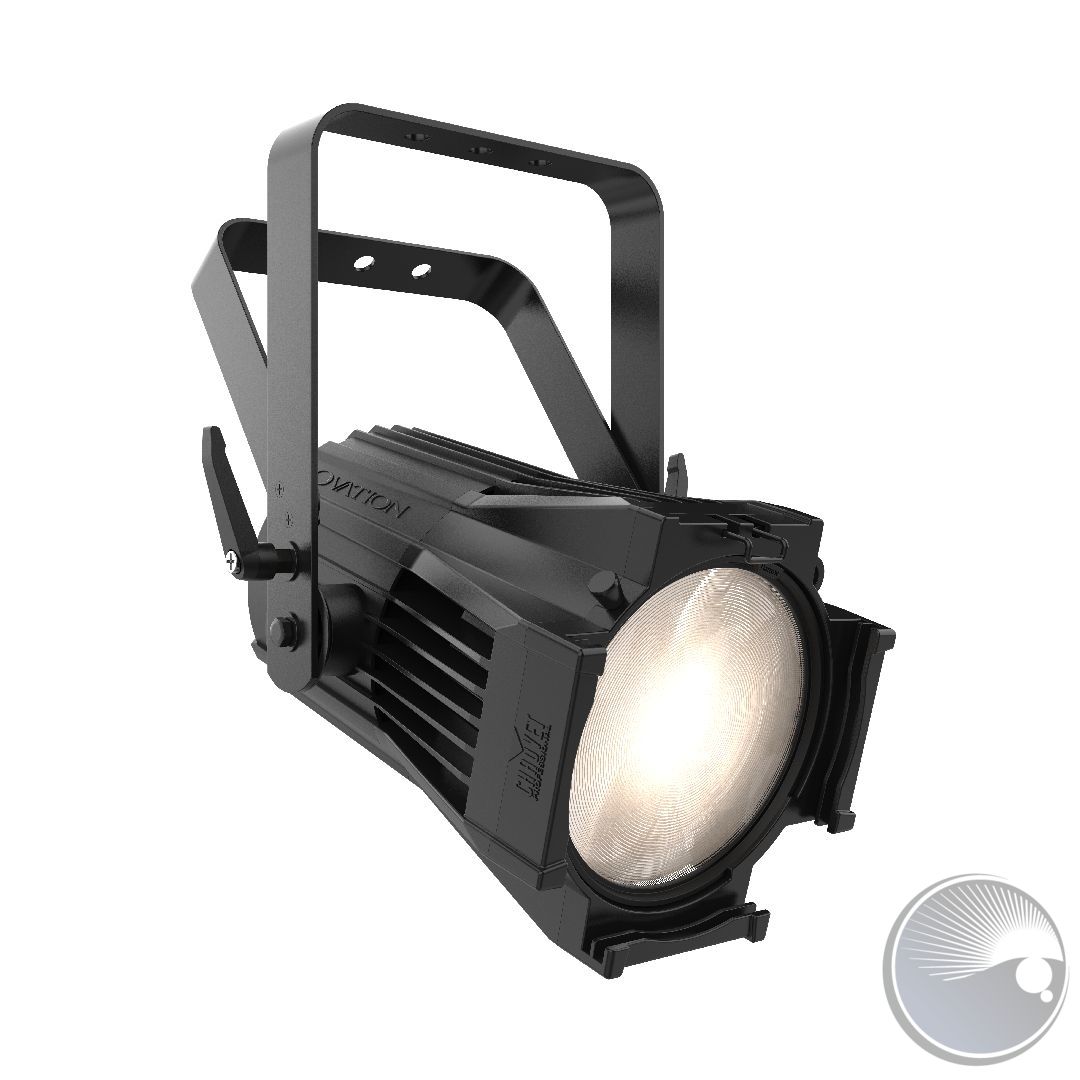

Ovation P-56VW

1.184,05 € *

inkl. MwSt. zzgl. Versandkosten

Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.

  • OVATIONP56VW
Ovation  P-56VW Ovation P-56VW is a compact, bright, and virtually silent par that... mehr
Produktinformationen "Ovation P-56VW"

Ovation P-56VW

Ovation P-56VW is a compact, bright, and virtually silent par that produces a homogenized, flat and even field of light from an advanced, single source LED. The unit features the same 6-color LED system found in the Ovation E-930VW ellipsoidal to produce nearly any temperature of white with high CRI and CQS. The par’s Color Temperature can be even further adjusted for +/- green, making it ideal for TV studios and broadcasted events. Interchangeable lens plates are included for medium and wide beam angles and the unit accepts standard 7.5” beam shaping accessories. The virtually silent par also features extremely smooth 16-bit dimming, as well as RDM and PWM for set-up ease.

AT A GLANCE

  • Variable white PAR-style fixture with homogenized single source of light

  • Interchangeable lens plates included for medium and wide beam angles

  • Soft, even field of light

  • Quiet operation for use in any situation with fan speed control

  • +/- Green adjustment via DMX or on-board control

  • Independent color control over the 6-color engine when a splash of color is needed

  • RDM and variable Pulse Width Modulation for setup ease

  • Accepts standard 7.5” beam shaping accessories

  • 16-bit dimming resolution for smooth fades

SPECIFICATIONS

OPTICAL

  • Light Source: 48 LEDs (6 red, 6 green, 10 blue, 4 R. blue, 6 orange, 16 lime) 3 to 4 W, (1 A), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 8000 K
  • CRI: 92-93
  • Beam Angle (Medium lens): 21°
  • Beam Angle (Wide lens): 54°
  • Beam Angle (Wide lens w/ egg crate): 40°
  • Field Angle (Medium lens): 35°
  • Field Angle (Wide lens): 84°
  • Field Angle (Wide lens w/ egg crate): 66°
  • Lumens (Medium Lens): 3,967
  • Lumens (Wide Lens): 4,476
  • Illuminance (Medium Lens): 1220 lux @ 5 m
  • Illuminance (Wide Lens): 220 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 29 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
  • Weight: 12 lb (5.5 kg)
  • Exterior Color: Black
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 3, 5, 6, 8, 11, 15 or 17
  • Modes/Personalities: 7 personalities (3, 5, 6, 8, 11, 15, 17)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 11 units @ 120 V; 18 units @ 208 V; 20 units @ 230 V
  • Power and Current: 150 W, 1.22 A @ 120 V, 60 Hz
  • Power and Current: 155 W, 0.70 A @ 208 V, 60 Hz
  • Power and Current: 158 W, 0.66 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

OPTIONAL ACCESSORIES

ORDERING INFO

  • Item Code: 03031501
Weiterführende Links zu "Ovation P-56VW"

3.15AMPGMAF3.15AL250V FUSE
PTF1001002202Aviation plug power output socket (BOM#2)
PTF1001002302Power socket (Blue) IP44 55-210351-15 31.2x26.5x35 CE ROSH UL (BOM#18)
M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)PTF1340110771M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)
FLAT WASHER (BOM#3)PTF1490500042FLAT WASHER (BOM#3)
PTF2700003804US Powercon Cable (Type B NEMA 5-15 Style)

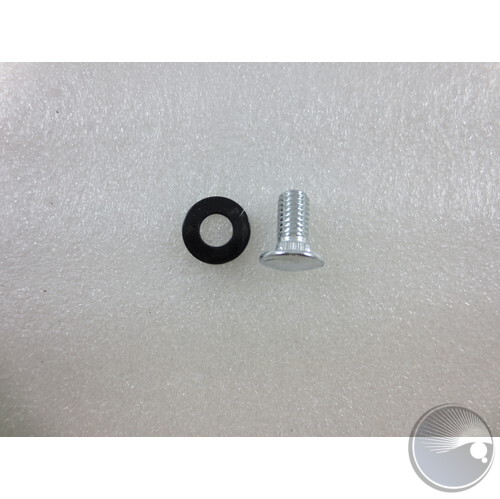

SCREW ASSEMBLY FOR BRACKET PTJ14000346SCREW ASSEMBLY FOR BRACKET
5-PIN DMX XLR SOCKET PCB (BOM#19)PTJ20100337005-PIN DMX XLR SOCKET PCB (BOM#19)
PTJ2010325000DMX XLR SOCKET PCB 3 (BOM#20)
DISPLAY PCBPTJ2020201330DISPLAY PCB

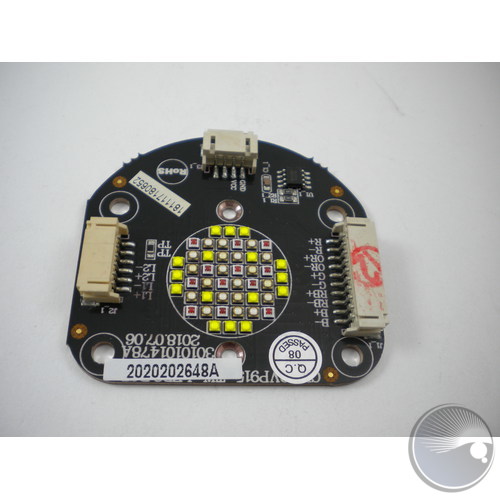

LED PCB (BOM#12)PTJ2020202648ALED PCB (BOM#12)

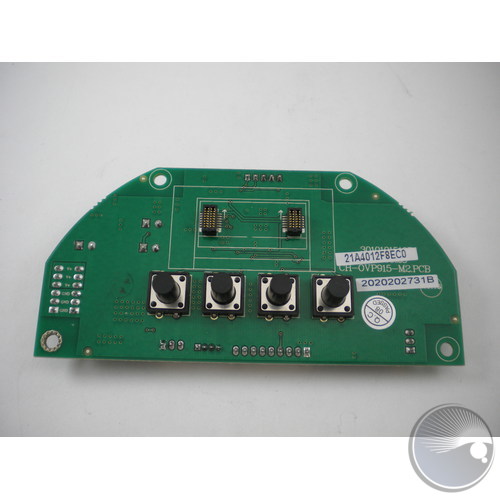

MPCB (BOM#21)PTJ2020202731MPCB (BOM#21)

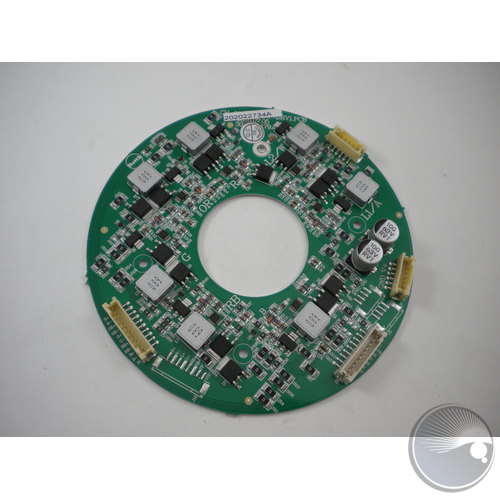

DRIVER PCB (BOM#11)PTJ2020202734ADRIVER PCB (BOM#11)
Wide lens (BOM#2,3)PTJ2030100148Wide lens (BOM#2,3)
Medium lens (BOM#2,3)PTJ2030100149Medium lens (BOM#2,3)
PTJ3019001043BUTTON COVER (BOM#12)

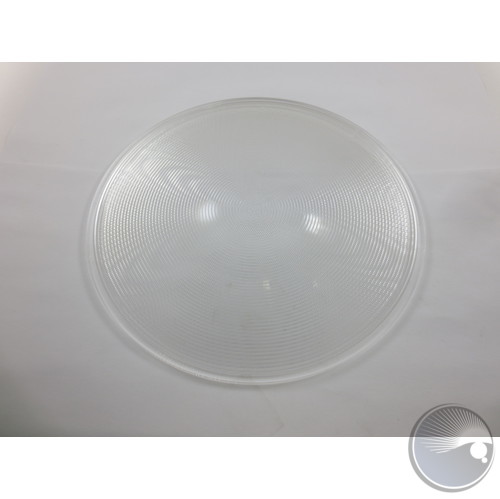

FRESNEL LENS (BOM#3)PTJ3020100425AFRESNEL LENS (BOM#3)
DISPLAY CLEAR LENS (BOM#13)PTJ3020200064DISPLAY CLEAR LENS (BOM#13)

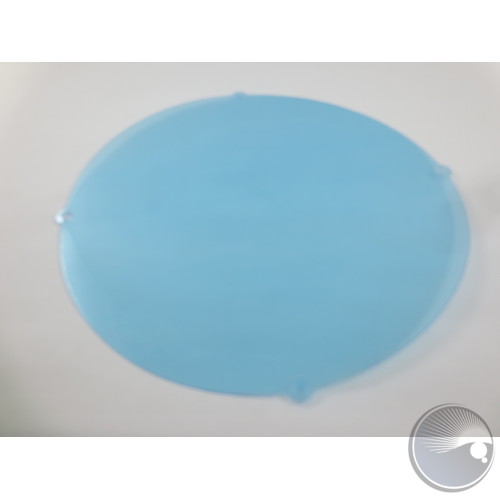

FILTER (BOM#9)PTJ3020300428FILTER (BOM#9)
POWER SUPPLY (BOM#18)PTJ3020400304POWER SUPPLY (BOM#18)
PTJ3020900027FAN NET (BOM#15)
DC FAN (BOM#17)PTJ3020900071ADC FAN (BOM#17)
PTJ3021600060LOCK RING (BOM#51)
LARGE INSIDE SCREW HANGING BRACKET (BOM#27)PTJ3021700412LARGE INSIDE SCREW HANGING BRACKET (BOM#27)
?8 PLASTIC GASKET (BOM#2)PTJ3021700480?8 PLASTIC GASKET (BOM#2)
HM SCREW (BOM#26)PTJ3021700587HM SCREW (BOM#26)
PLASTIC RING (BOM#35)PTJ3021701039PLASTIC RING (BOM#35)
Panel mount fuse holder (BOM#29)PTJ3027001001Panel mount fuse holder (BOM#29)
PTJ4010104125POWER HOLDER (BOM#19)

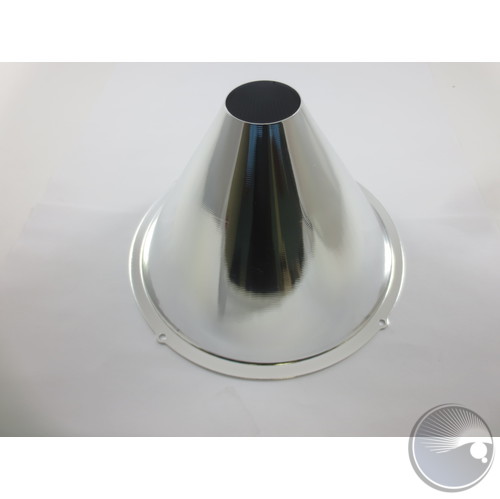

REFLECT CUP (BOM#10)PTJ4010104333REFLECT CUP (BOM#10)
PTJ4010302041POWER SOCKET COVER (BOM#19)
SEMI-CIRCLE FOR HANGING BRACKET (BOM#24)PTJ4010302483SEMI-CIRCLE FOR HANGING BRACKET (BOM#24)
PTJ4010303009SPRING USE ON TOP COVER (BOM#4)
GEL FRAME (BOM#1)PTJ4010303080AGEL FRAME (BOM#1)
PTJ4010304308LOCK (BOM#6)
LOCK PLATE (BOM#8)PTJ4010304309LOCK PLATE (BOM#8)
HANGING BRACKET-OUTER (BOM#31)PTJ4010304310AHANGING BRACKET-OUTER (BOM#31)
HANGING BRACKET-INNER (BOM#30)PTJ4010304311AHANGING BRACKET-INNER (BOM#30)
PTJ4010304312AHEAD HOUSING (BOM#14)
TOP COVER (BOM#5)PTJ4010304313ATOP COVER (BOM#5)
PTJ4010304315BACK PLATE (BOM#16)
REAR (BOM#20)PTJ4010402149REAR (BOM#20)
PTJ4020200416THREAD LENS COVER (BOM#2)
