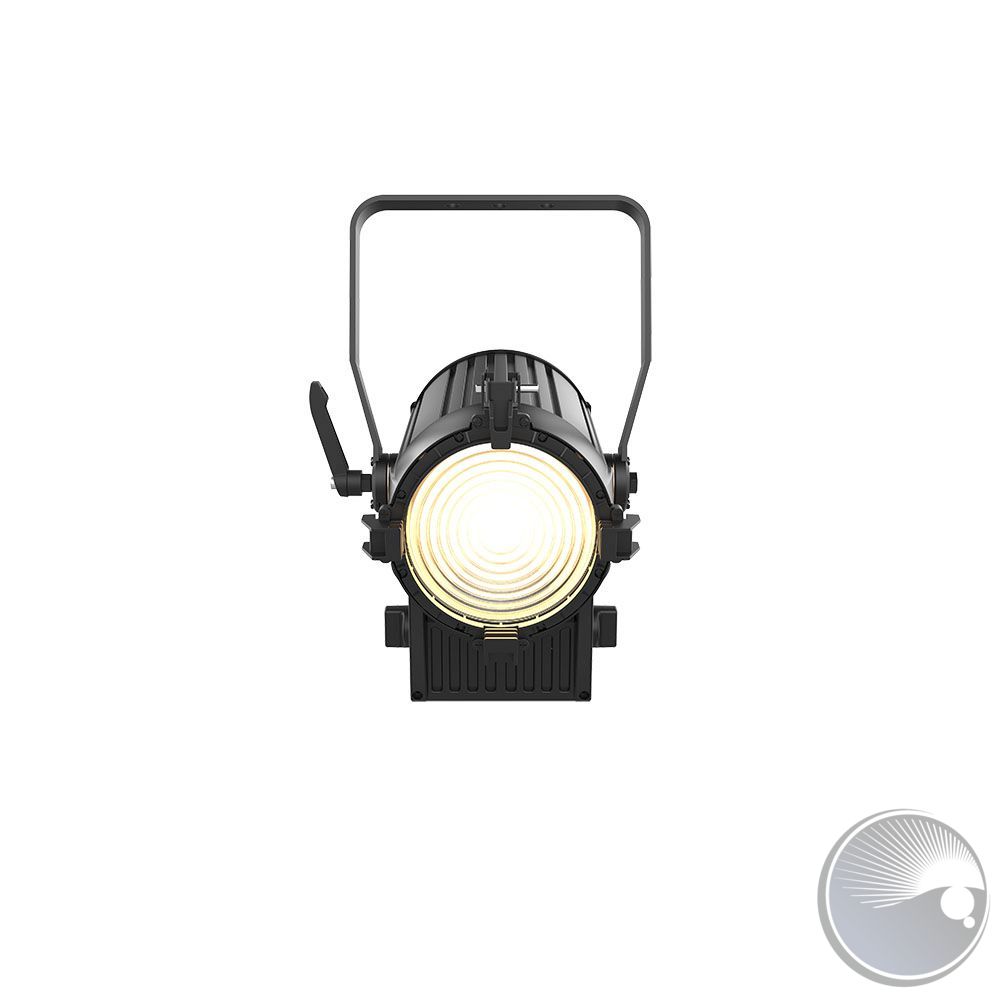

Ovation FD-105WW

1.130,50 € *

inkl. MwSt. zzgl. Versandkosten

Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.

  • OVATIONFD105WW
Ovation FD-105WW Ovation  FD-105WW Ovation F D-105WW is a LED Fresnel wash... mehr
Produktinformationen "Ovation FD-105WW"

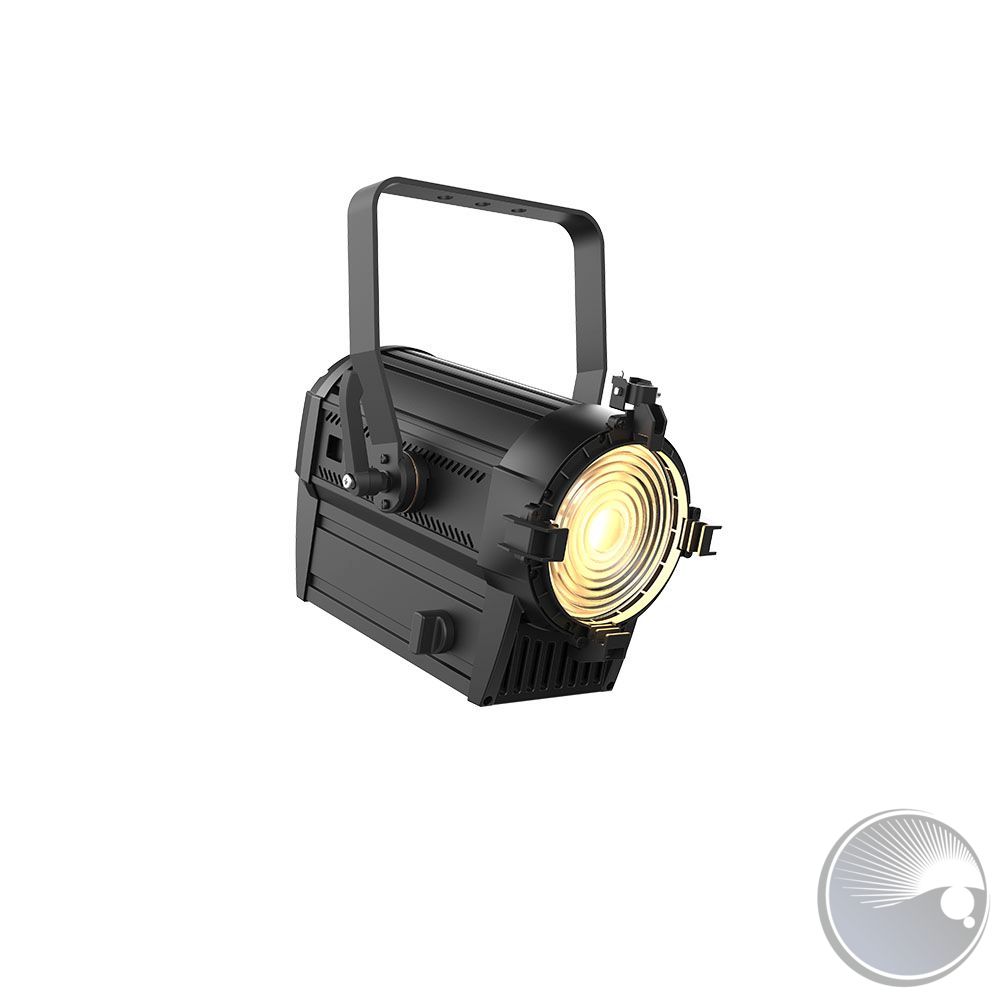

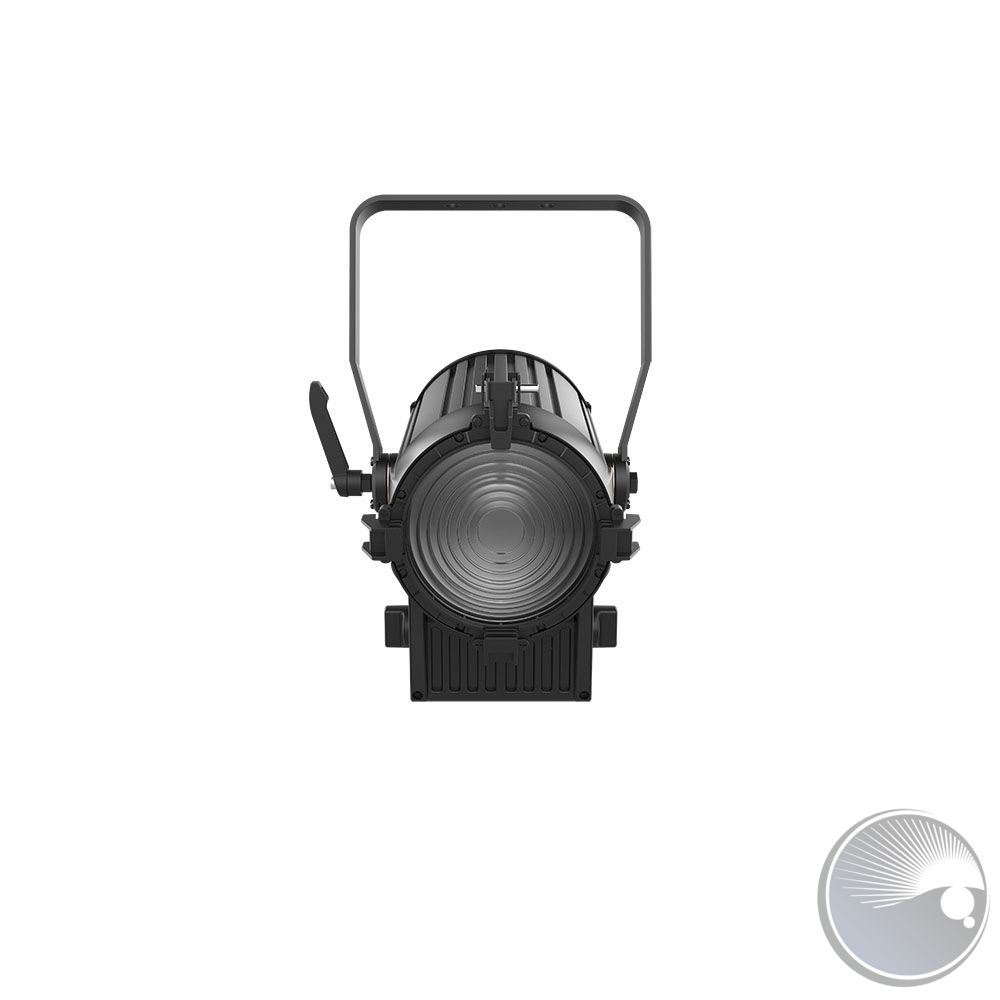

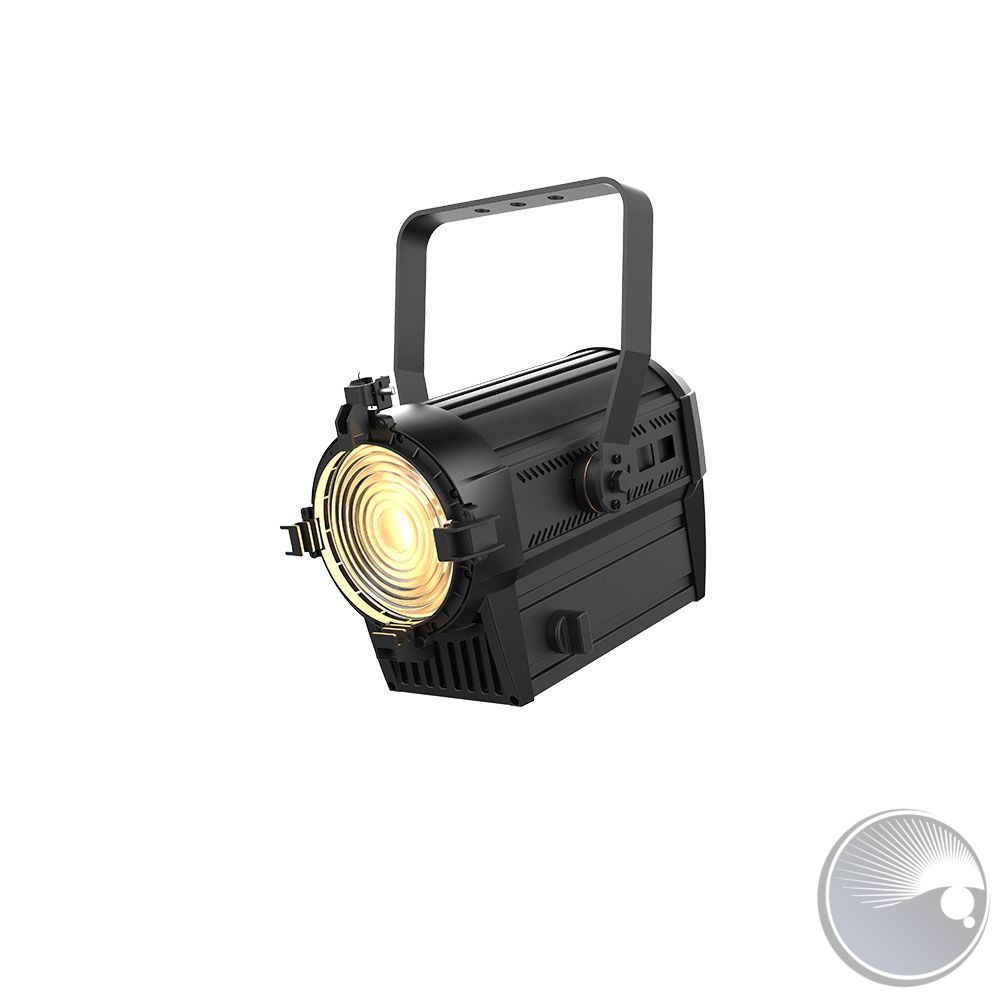

Ovation FD-105WW

Ovation FD-105WW

Ovation FD-105WW is a LED Fresnel wash utilizing data and power sensors that make it possible to run on both dimming power systems and constant power rigs. A massive zoom range of 8° to 63° and a beautifully soft, warm white wash with high CRI make it a worthy LED replacement for aging incandescent six-inch Fresnels. Enjoy the benefits of LED lighting without being held back by previous investments made in major dimming systems.



AT A GLANCE

  • 6“ warm white LED Fresnel with class leading output

  • Soft and even field of light

  • Works perfectly on conventional dimmers or constant power with DMX

  • Auto-senses power/data and responds appropriately

  • Superior low end dimming whether using dimmers or constant power

  • Perfect fixture for the retrofit market, utilizes existing dimming infrastructure flawlessly

  • 16-bit dimming resolution (DMX mode) for smooth fades

  • Flat, even field of light, with manual zoom (8-63 deg)

  • Virtually silent operation for use in any situation

SPECIFICATIONS

OPTICAL

  • Light Source: 1 LEDs (WW) 80 W, (2 A), 50,000 hours life expectancy
  • Color Temperature (at full): 3,197K
  • CRI: 91
  • Beam Angle: 8° to 51°
  • Field Angle: 14° to 63°
  • Zoom Range: 8° to 63°
  • Illuminance (14°): 6,609 lux @ 5 m
  • Illuminance (63°): 340 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Manual
  • Strobe Rate: 0 to25 Hz
  • Dim Modes: 5
  • Dim Curves: 4

CONSTRUCTION / PHYSICAL

  • Dimensions: 12.8 x 11 x 16.5 in (325 x 279 x 420 mm)
  • Weight: 13 lb (5.9 kg)
  • Exterior Color: Black
  • Accessory Holder/Gel Frame Size: 6.25 in/159 mm

CONNECTIONS

  • Power Connection: Local plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM, Dimmer
  • DMX Channels: 1, 2 or 3
  • Modes/Personalities: 3 personalities (UNO, DOS, STD-P)

ELECTRICAL

  • Input Voltage: 120/230 VAC, 50/60 Hz (switchable)
  • Power Linking: 14 units @ 120 V; 25 units @ 230 V
  • Power and Current: 115 W, 0.951 A @ 120 V, 60 Hz
  • Power and Current: 125 W, 0.541 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

  • Ovation FD-105WW
  • Neutrik® powerCON® power cord
  • Gel frame (6.25 in/159 mm accessories)

OPTIONAL ACCESSORIES

ORDERING INFO

  • Item Code: 01031457
Weiterführende Links zu "Ovation FD-105WW"

3.15AMPGMAF3.15AL250V FUSE
PTF1001002202Aviation plug power output socket (BOM#2)
PTF1001002302Power socket (Blue) IP44 55-210351-15 31.2x26.5x35 CE ROSH UL (BOM#18)
PTF1040000676Metal aluminum shell resistance (BOM#66)
PTF1120200251150mm thread mirror (BOM#12)
PTF1130003569Control plate (BOM#63)
PTF1130003845Adapter plate (BOM#44)
PTF1140000297Insulation gasket of Power (BOM#89)
PTF1140000306Power insulation mat (BOM#30)

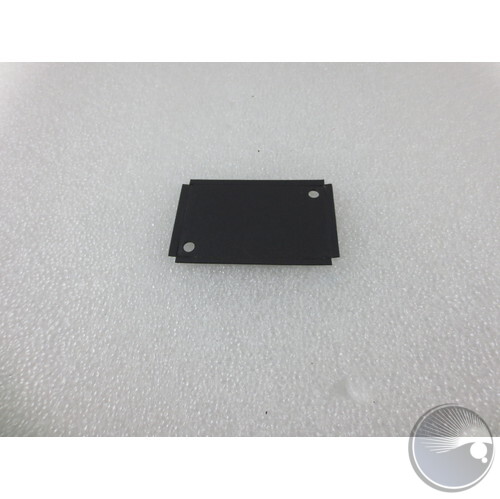

Insulation gasket of Power Board (BOM#69)PTF1140000314Insulation gasket of Power Board (BOM#69)
PTF1140000316Insulation thermal silica gasket (BOM#65)

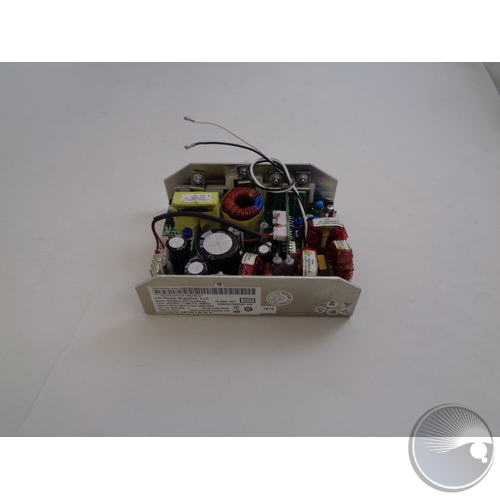

power supply (BOM#32)PTF1160000554power supply (BOM#32)
PTF1340112645Drive radiator (BOM#64)

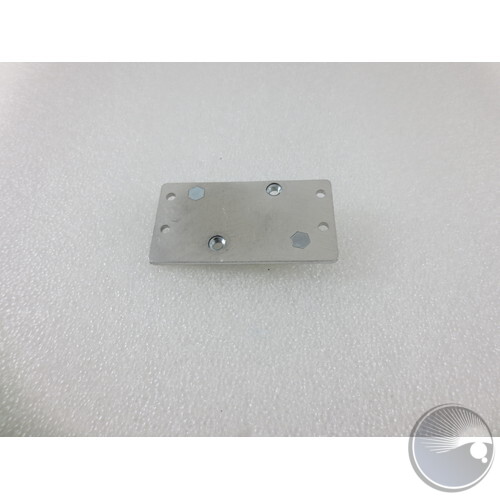

Fixed plate (BOM#67)PTF1340112646Fixed plate (BOM#67)
PTF13406023131919 support bracket (BOM#91)
PTF1340802550Connecting rod (BOM#25)
PTF1340803009shade leaf buckle of spindle (BOM#3)
PTF1490100044Countersunk cross self tapping (BOM#55)
PTF1490100090Round cross self tapping (BOM#11)
PTF1490200005cross screws (BOM#18)

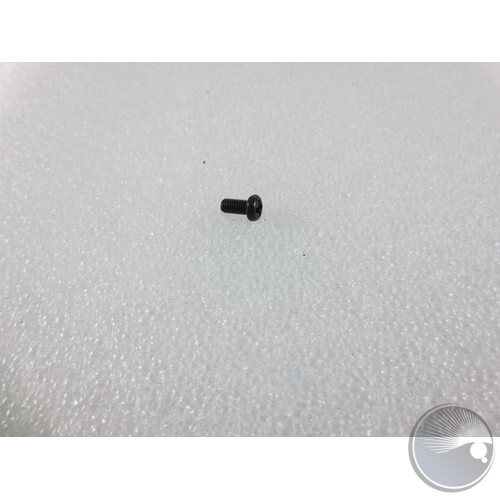

Round Head Cross Screw (BOM#63)PTF1490300009Round Head Cross Screw (BOM#63)
PTF1490300051Round head cross screws (BOM#13)
PTF1490300054Round head cross screws (BOM#75)
PTF1490400017Countersunk cross screw (BOM#23)
PTF1490400035Countersunk cross screw (BOM#10)
PTF1490500035stainless steel metal thin gasket (BOM#5)
PTF1491000231Copper pillar of fixed plate (BOM#68)
PTF1491000232Copper pillar of drive PCB (BOM#52)
PTF1491000233Copper pillar of display PCB (BOM#48)
PTF1491200019column (BOM#2)
PTF1491500029outer screw (BOM#72)
PTF1491600012Black metal thick gasket (BOM#76)

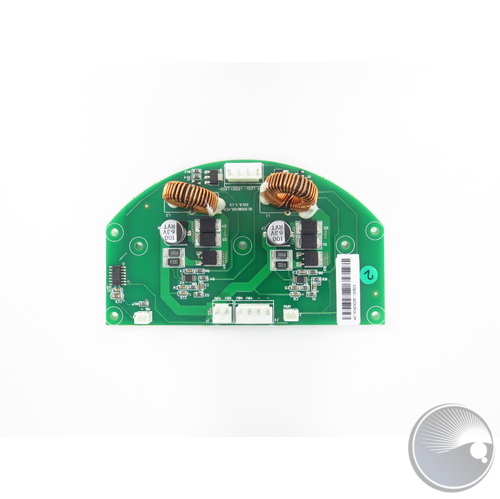

DRIVER PCB (BOM#37)PTF2260001707DRIVER PCB (BOM#37)

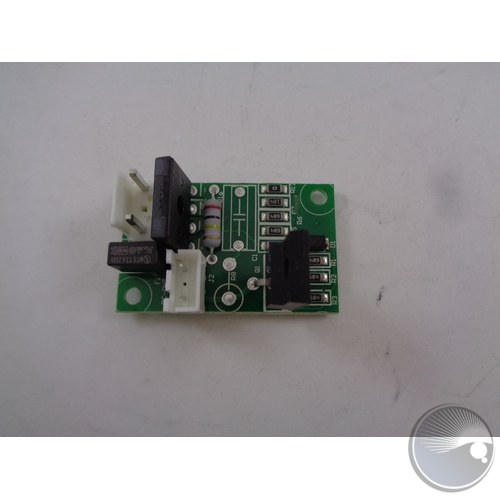

power PCB (BOM#69)PTF2260002007power PCB (BOM#69)

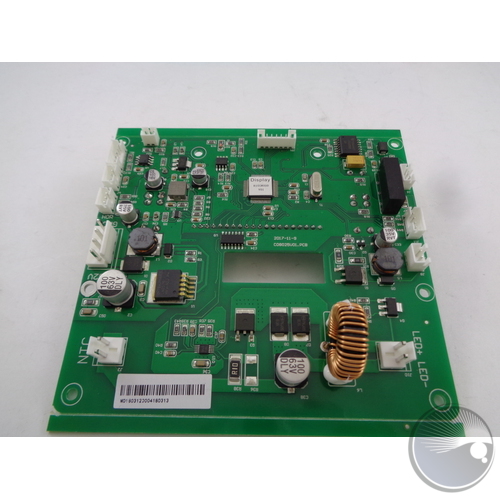

Control PCB (BOM#47)PTF2260002584Control PCB (BOM#47)

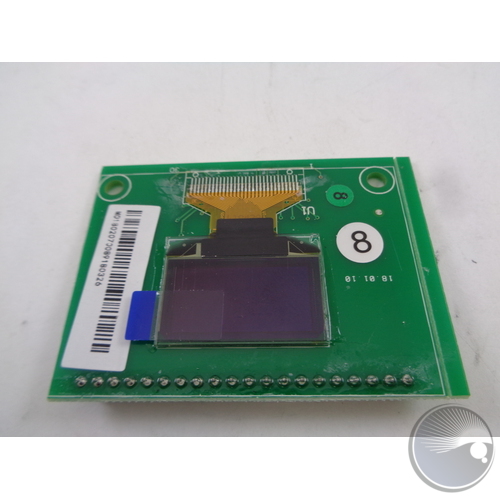

Display PCB (BOM#51)PTF2260002586Display PCB (BOM#51)

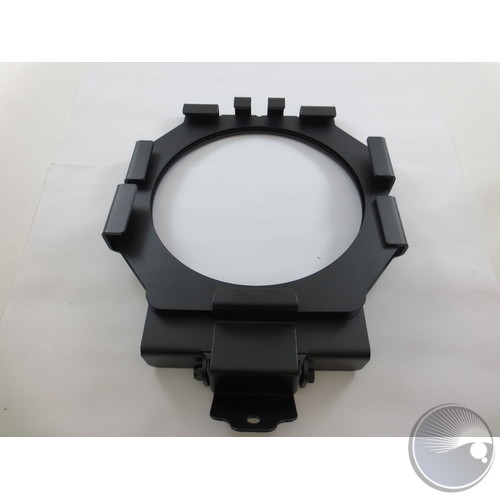

Gel FramePTF2440010219Gel Frame
PTF2440102475Lock bar plate (BOM#24)
PTF2440102483Siding plate (BOM#85)
PTF2440102484Shading plate (BOM#86)
PTF2440102485up cover (BOM#81)
PTF2440104462fore board (BOM#17)
PTF2440105152down cover (BOM#22)
PTF2440105197shade leaf buckle mouting bracket (BOM#6)

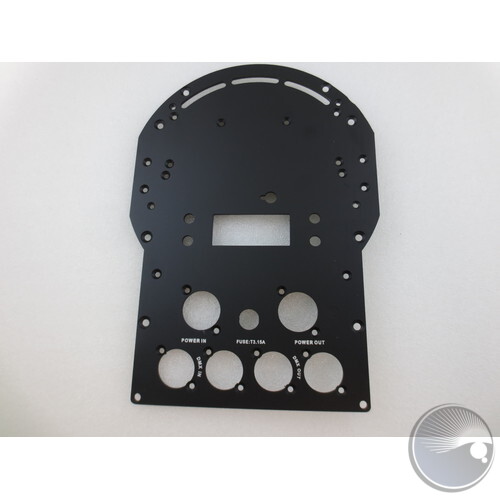

Back plate (BOM#54)PTF2440105245Back plate (BOM#54)
PTF2440800240Connecting column 2 (BOM#71)

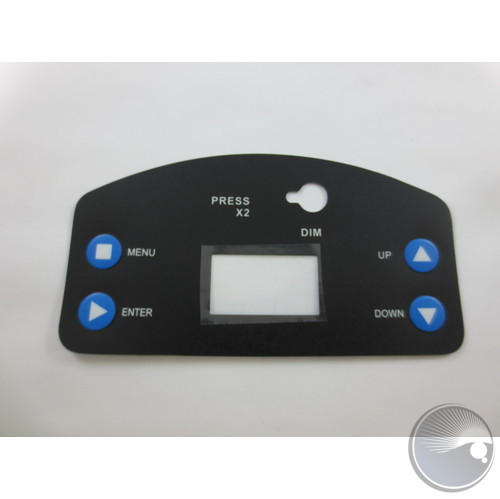

Display sticker (BOM#59)PTFP40868Display sticker (BOM#59)
Panel mount fuse holder (BOM#29)PTJ3027001001Panel mount fuse holder (BOM#29)
Upload01Upload 01- Colorado - Illuminarc
