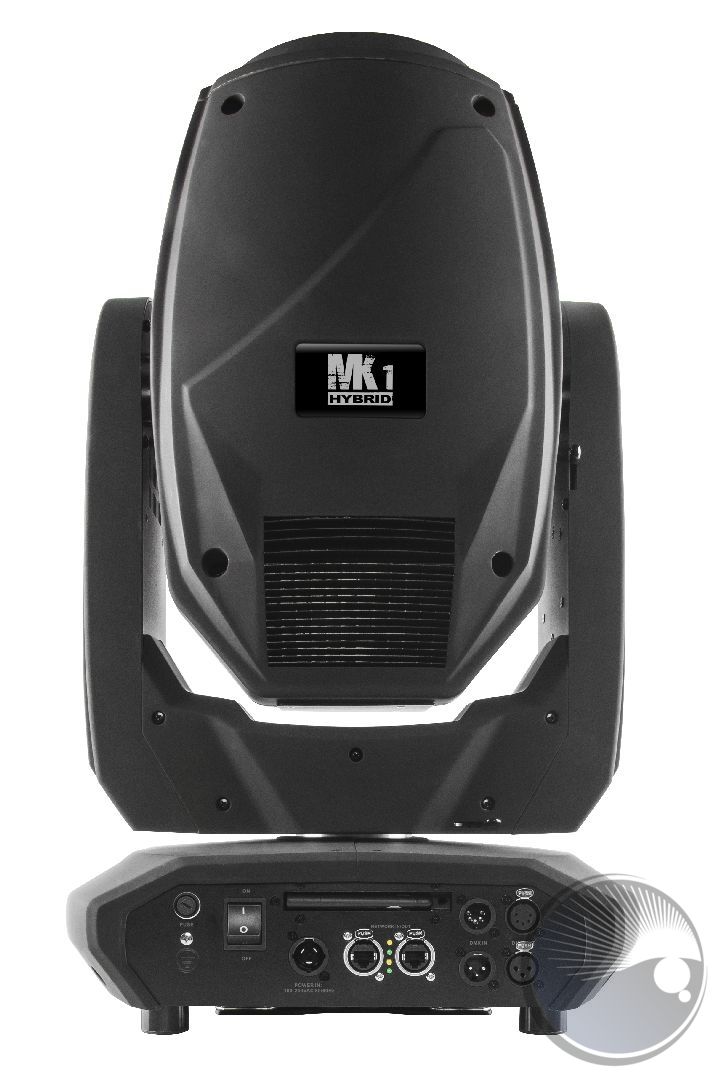

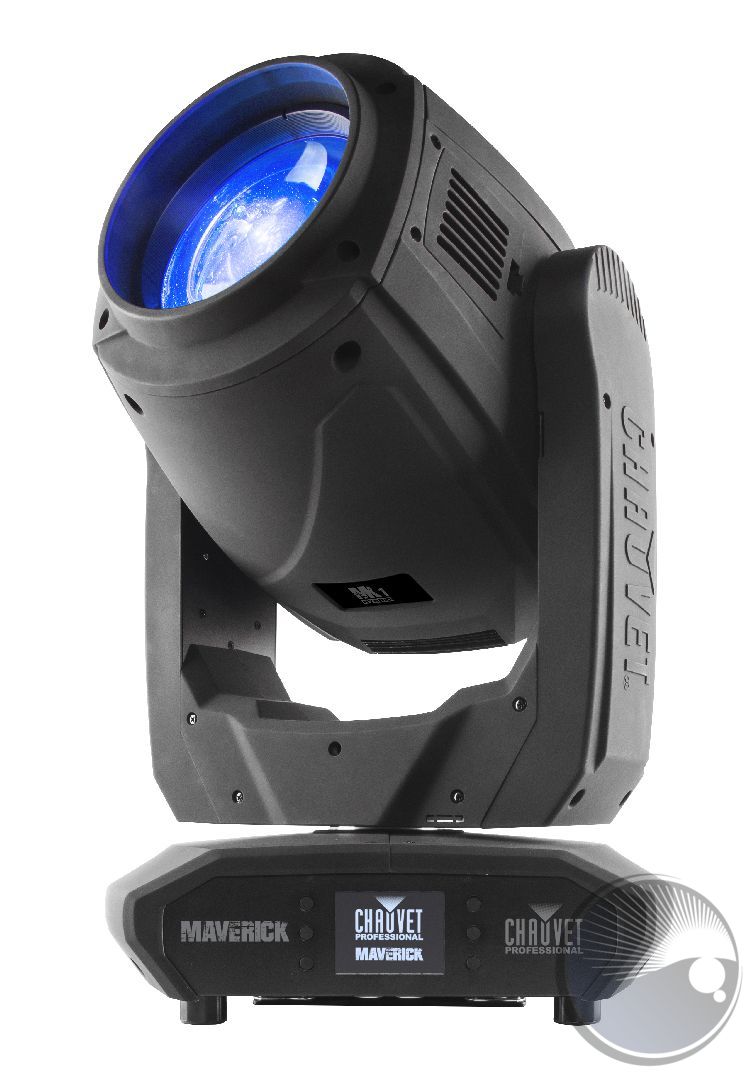

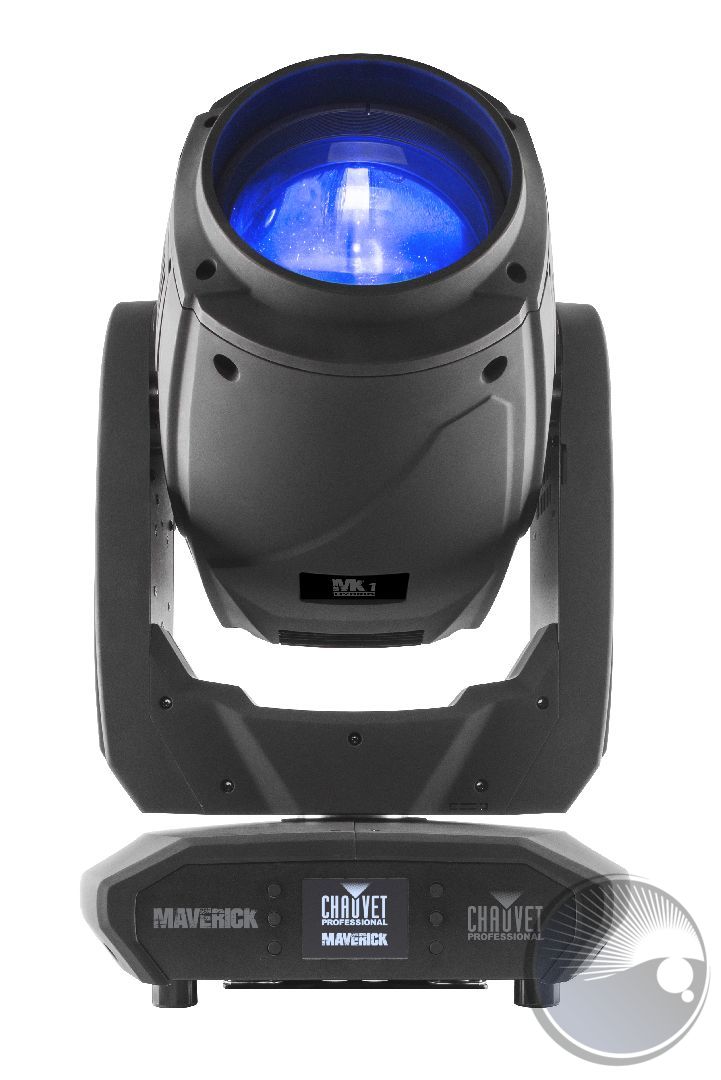

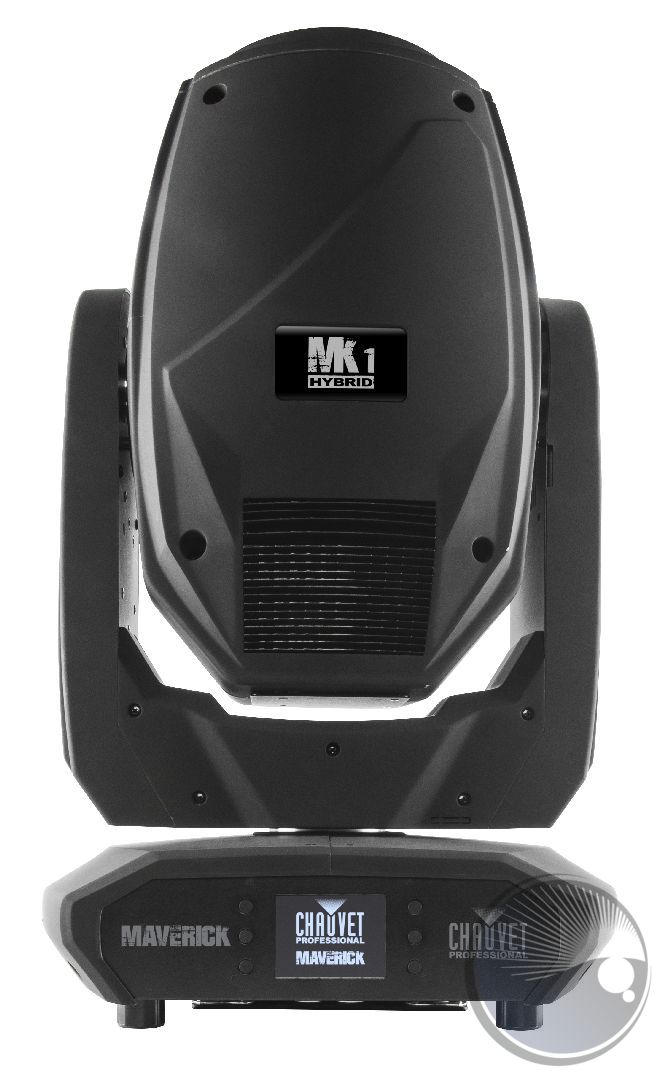

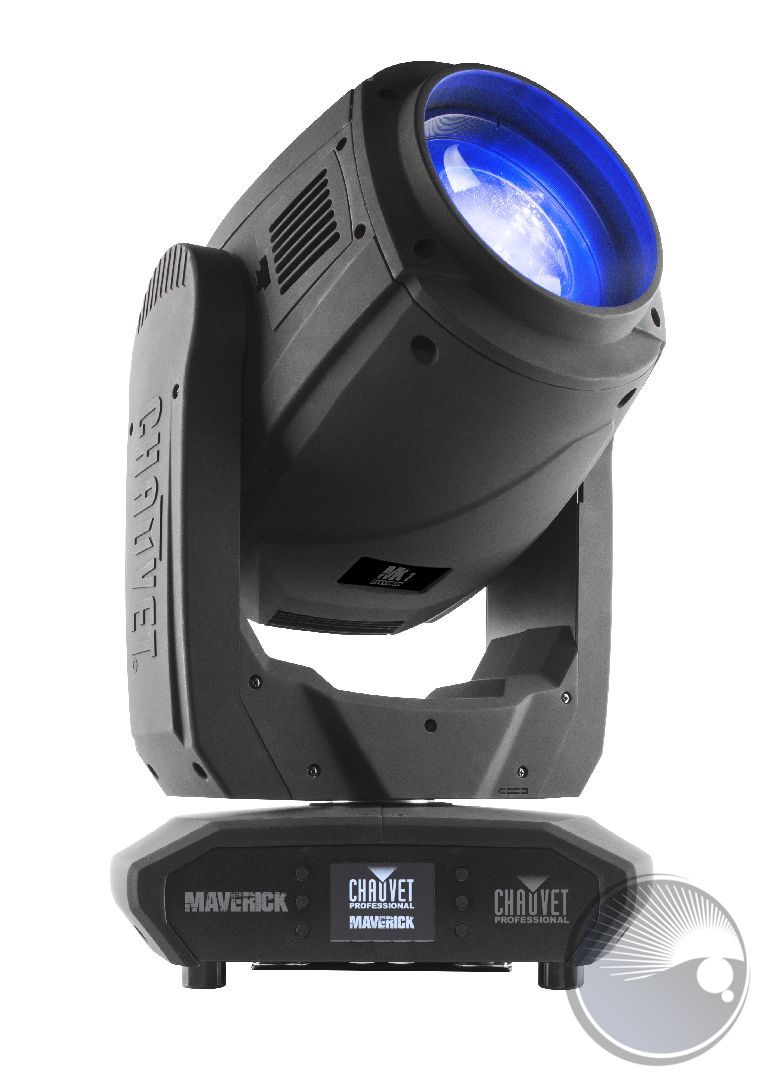

Maverick MK1 Hybrid

Auf Anfrage!

  • MAVERICKMK1HYBRID
Maverick  MK1 Hybrid Maverick MK1 Hybrid  puts a world of options at your... mehr
Produktinformationen "Maverick MK1 Hybrid"

Maverick MK1 Hybrid

Maverick MK1 Hybrid puts a world of options at your fingertips with advanced optics, overlapping 8 and 4-facet prisms, a versatile gobo package, a 3° – 18° zoom range in spot mode and 19° – 41° in wash mode, and a robust CMY color system. Powered by a 440 W Osram Sirius reflector lamp, this supercharged hybrid awaits your command to dazzle with stunning output and effects. Choose from DMX, sACN, Art-Net, or W-DMX for control.

AT A GLANCE

  • Fully featured, high powered Spot/Beam combination fixture with CMY color mixing and overlapping prisms

  • Fast and precise movement of Pan and Tilt functions

  • Variable CMY color mixing and static colors to create a wide range of color options

  • Individually controllable and overlappable 8 and 4-facet prisms

  • Frost and beam flattening options for even light distribution

  • Zoom angle of 3° to 18° in spot mode and 19° to 41° in wash mode for multiple coverage options

  • Tight 1° beam for extremely focused areal effects

  • 6 rotating and 18 static gobos for massive visual impact

  • DMX , W-DMX, sACN, and Art-Net for full flexibility of control options

  • True 1 compatible power input

  • Battery backup display with auto rotate depending on fixture orientation.

  • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup

SPECIFICATIONS

OPTICAL

  • Light Source: Osram Sirius 440W lamp, 7000 K (Color Temp), 1,500 hours life expectancy
  • Color Temperature (at full): 6207 K
  • Front Lens diameter: 174 mm
  • Beam Angle: 1° to 6° (Spot mode)
  • Field Angle: 3° to 18° (Spot mode)
  • Beam Angle: 1° (Beam mode)
  • Field Angle: 2° (Beam mode)
  • Beam Angle: 9° to 22° (Wash mode)
  • Field Angle: 19° to 41° (Wash mode)
  • Zoom Angle (Spot mode): 3° to 18°
  • Zoom Angle (Wash mode): 19° to 41°
  • Lumens - Source: 22,000
  • Lumens - Output: 15,500
  • Illuminance (2°): 212,100 lux @ 15 m
  • Illuminance (3°): 123,200 lux @ 15 m
  • Illuminance (18°): 25,800 lux @ 5 m
  • Illuminance (19°): 16,000 lux @ 5 m
  • Illuminance (41°) : 2,235 lux @ 5 m

DYNAMIC EFFECTS

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: 15 + white, split colors
  • Colors: CMY flags, CTO
  • Gobos (1): 6 + open (6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 18 + open (18 metal), continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating): 22 mm (outside), 13 mm (image), 1.1 mm (max. thickness)
  • Effect Wheel: 1 effect
  • Framing Shutters: No
  • Dimmer: Motorized
  • Shutter/Strobe: Motorized
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Prism (1): 4 Facets, motorized, rotating
  • Prism (2): 8 Facets, motorized, rotating
  • Move-in-Black: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 15.51 x 12.09 x 24.76 in (394 x 307 x 629 mm)
  • Weight: 66.7 lb (30.3 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

CONNECTIONS

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: Art-Net, DMX, W-DMX, sACN
  • DMX Channels: 27 or 30
  • Art-Net Channels: 27 or 30
  • Modes/Personalities: 2 personalities (27, 30)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 670 W, 5.45 A @ 120 V, 60 Hz
  • Power and Current: 648 W, 3.12 A @ 208 V, 60 Hz
  • Power and Current: 651 W, 2.81 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

  • Maverick MK1 Hybrid
  • Seetronic Powerkon IP65 power cord
  • Omega bracket with mounting hardware

OPTIONAL ACCESSORIES

  • Professional Clamps: CTC-50HCCTC-50HCN
  • Safety Cable: SC-07
  • IP rated Seetronic Powerkon extensions
  • DMX cables
  • Flight case: CPSINGLECASEA1



Weiterführende Links zu "Maverick MK1 Hybrid"

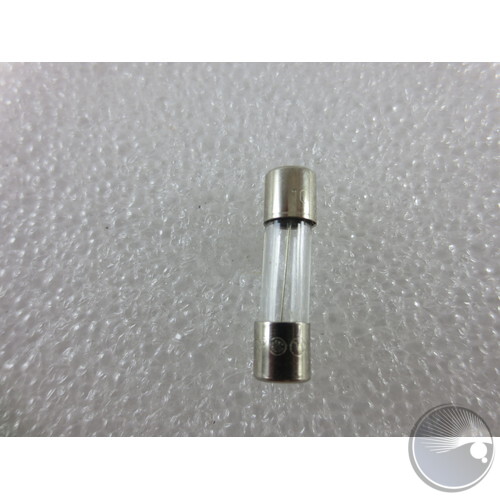

FUSE - 10A250V10AMPGMAFUSE - 10A250V
PTF1013000100antenna A40501 (BOM#8)
waterproof power socket (BOM#24)PTF1100000469waterproof power socket (BOM#24)
Power cord (BOM#41)PTFX20147Power cord (BOM#41)

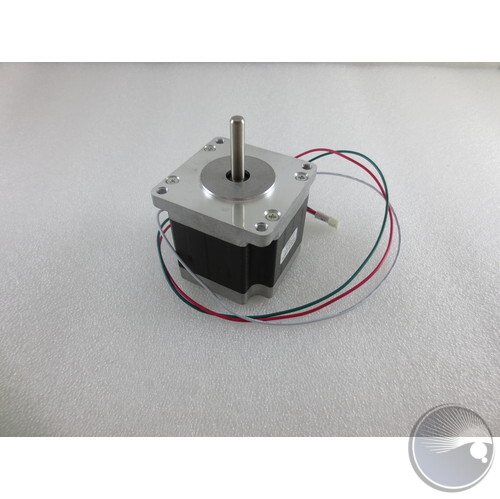

stepper motor 17HD003N-20 (BOM#111)PTH0117HD003N20stepper motor 17HD003N-20 (BOM#111)

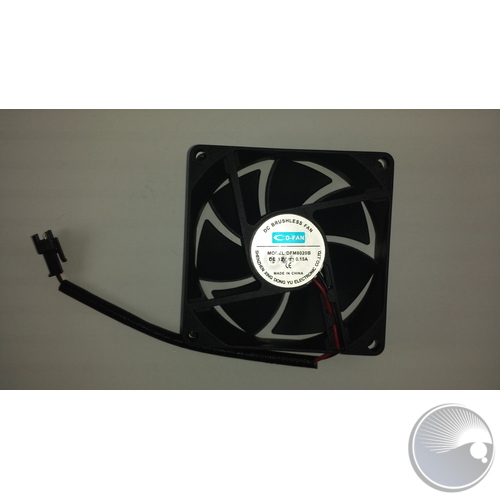

Fan DC 12V 0.12A DFM8020B (BOM#5)PTH02008020023Fan DC 12V 0.12A DFM8020B (BOM#5)

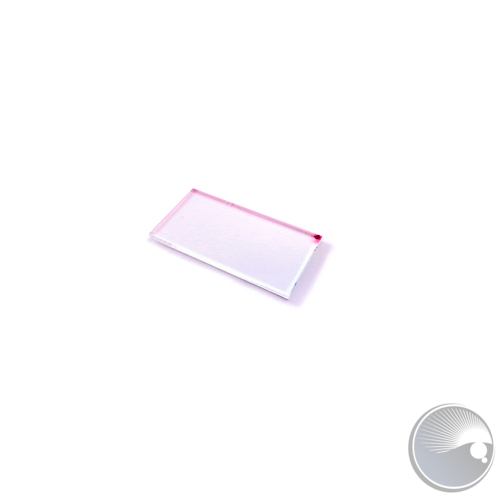

glass heat sinkPTH042254520glass heat sink
ROTATING GOBO C-RING ?27×0.8PTH10002708ROTATING GOBO C-RING ?27×0.8
battery press board IB-5R-A01-07 (BOM#35)PTH1010102198361battery press board IB-5R-A01-07 (BOM#35)

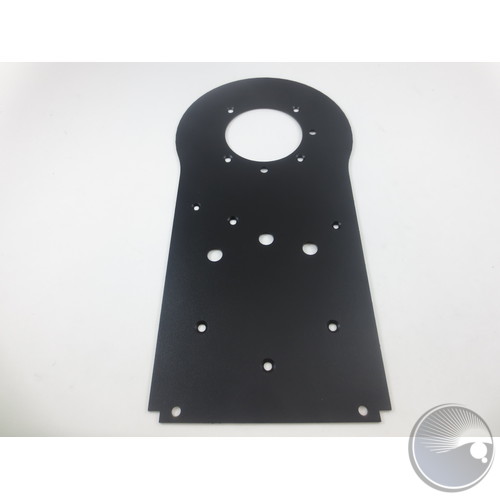

tilt motor bracket accessory LS440A0204 (BOM#76)PTH1010102250491tilt motor bracket accessory LS440A0204 (BOM#76)
PTH1010102250501tilt bracket accessory LS440A0205 (BOM#76)
PTH1010102250651pan magnetic sensor bracket LS440A0211 (BOM#133)
sider wheel bracket LS440A0212 (BOM#90)PTH1010102250671sider wheel bracket LS440A0212 (BOM#90)

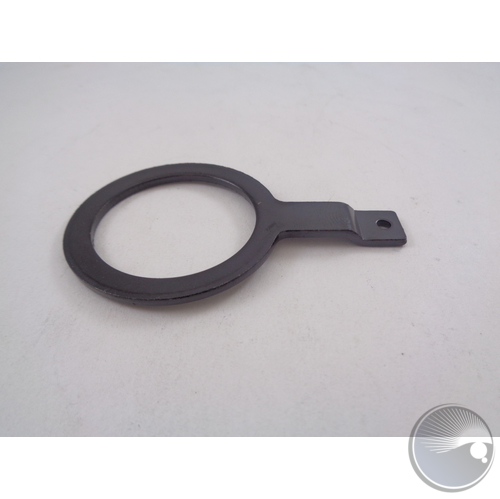

pan oriantation chip LS440A0213 (BOM#74)PTH1010102250691pan oriantation chip LS440A0213 (BOM#74)
tilt lock wheel LS-440-A02-14 (BOM#66)PTH1010102250711tilt lock wheel LS-440-A02-14 (BOM#66)
PTH1010102250731pan lock pick LS-440-A02-15 (BOM#92)

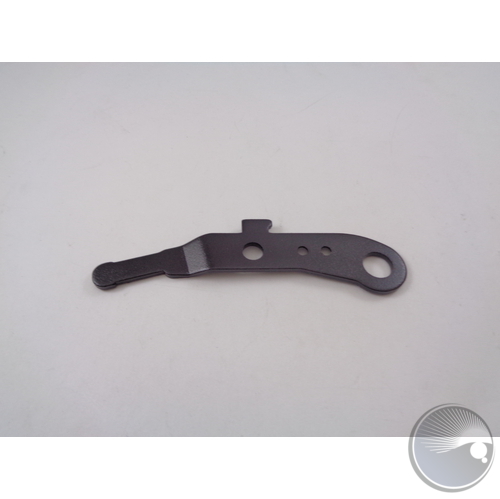

tilt lock pick LS440A0216 (BOM#81)PTH1010102250751tilt lock pick LS440A0216 (BOM#81)
tilt lock shrapnel LS-440-A02-17 (BOM#78)PTH1010102250771tilt lock shrapnel LS-440-A02-17 (BOM#78)
PTH1010102250781tilt motor installation board LS440A0218 (BOM#106)
PTH1010102250801wheel bracket LS440A0219 (BOM#94)
PTH1010102251281motor mat board LS-440-A03-22 (BOM#348)
PTH1010102260001pan optocoupler bracket LS440A0222 (BOM#65)
PTH1010102260061safety rope buckle LS-440-A03-29 (BOM#192)
wifi bracket LS-440-A01-08 (BOM#14)PTH1010102265661wifi bracket LS-440-A01-08 (BOM#14)
PTH1010102265681wire board bracket LS440A0109 (BOM#3)
power socket board accessory LS-440-A01-10 (BOM#9)PTH1010102267161power socket board accessory LS-440-A01-10 (BOM#9)
stainless steel chip LS-440-A02-21 (BOM#82)PTH1010102271511stainless steel chip LS-440-A02-21 (BOM#82)
PTH1010102275851ballast bracket A0103 (BOM#17)
PTH1010102275931arm front blocker A0202 (BOM#74)
PTH1010102278001base strengthen LS440A0111 (BOM#35)
antenna clip LS-440-A01-12 (BOM#10)PTH1010102278171antenna clip LS-440-A01-12 (BOM#10)
PTH1010102281391fan barrier A0304 (BOM#152)
PTH1010102281491base strengthen board A0107 (BOM#1)
PTH1010102281501lock shrapnel A0313 (BOM#172)

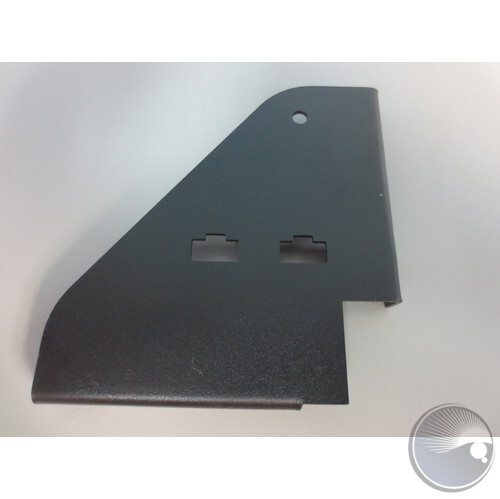

fan strengthen bracket A0314 (BOM#153)PTH1010102281511fan strengthen bracket A0314 (BOM#153)
PTH1010102281541head strengthen board A0316 (BOM#174)
PTH1010102281601aperture board A0320 (BOM#232)
PTH1010102281621color wheel press board A0321 (BOM#224)
PTH1010102281661animation wheel motor bracket A0323 (BOM#244)
PTH1010102281681fix gobo wheel bracket A0324 (BOM#261)
PTH1010102281761motor board A0328 (BOM#315)
PTH1010102281921balance iron A0340 (BOM#212)
PTH1010102281961socket bracket A0338 (BOM#202)

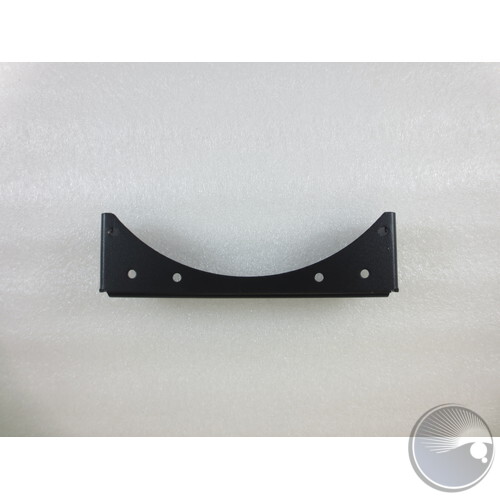

head upper bracket A0339 (BOM#183)PTH1010102282031head upper bracket A0339 (BOM#183)
PTH1010102294721arm cover installation bracket A0204 (BOM#61)

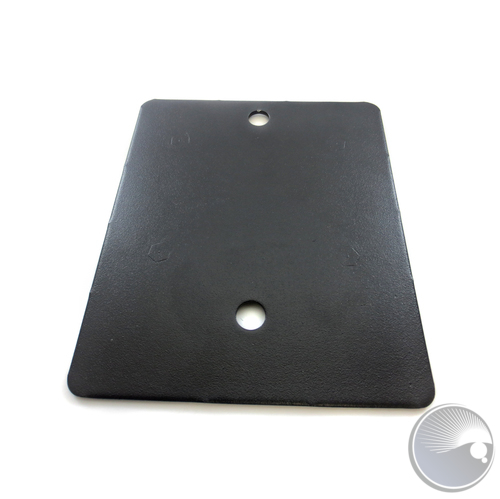

back seal board A0341 (BOM#213)PTH1010102294831back seal board A0341 (BOM#213)
PTH1010102294881fan bracket A0343 (BOM#170)
PTH1010102295031strengthen board M-20R-A03-57 (BOM#143)
PTH1010102295091motor fix board A0307 (BOM#243)
PTH1010102296601ballast wind guide slot A0108 (BOM#44)
PTH1010102296611base strengthen board A0109 (BOM#48)
PTH1010102297381spring press chip A0346 (BOM#205)
PTH1010102301231wind guide board A0361 (BOM#295)
PTH1010102301251wind guide board A0362 (BOM#298)
PTH1010102301271quick lock mat board A0369 (BOM#182)
PTH1010102301781wire board A0205 (BOM#93)
PTH1010102304141pan motor bracket LS-440-A02-10 (BOM#68)
PTH1010102307211press wheel bracket A0366 (BOM#188)
PTH1010102307271heat board A0373 (BOM#331)
PTH1010102309031arm bracket strengthen board 2 LS-440-A02-23 (BOM#91)
PTH1010102309051arm bracket strengthen board 3 LS-440-A02-24 (BOM#92)
PTH1010102323361focus strap bracket A0330 (BOM#275)

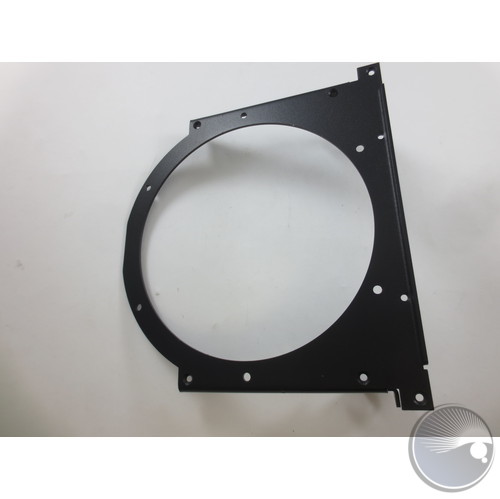

lens bracket A0332 (BOM#296)PTH1010102323381lens bracket A0332 (BOM#296)

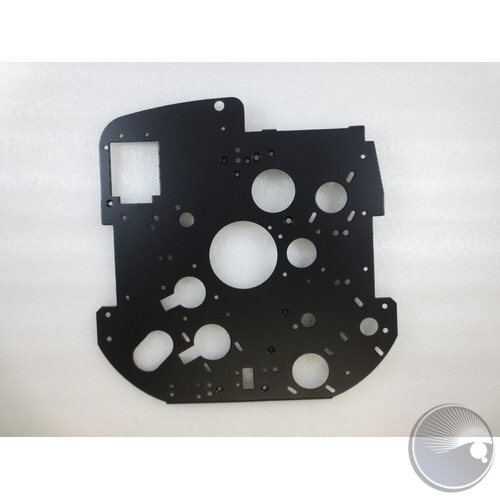

gobo motor bracket A0317 (BOM#249)PTH1010102323601gobo motor bracket A0317 (BOM#249)
PTH1010102323691head fan bracket A0303 (BOM#151)
PTH1010102323791arm connection bracket A0201 (BOM#109)
PTH1010102323811fan bracket A0110 (BOM#29)
PTH1010102323861pan bracket A0105 (BOM#24)
PTH1010102328091power socket board A0104 (BOM#22)
PTH1010102333091wind guide set A0315 (BOM#165)
PTH1010102333161strengthen board A0347 (BOM#171)
PTH1010102333181heat sink bracket A0368 (BOM#199)
PTH1010102335221lamp adjust board A0311 (BOM#161)
PTH1010102335231spring bracket A0342 (BOM#157)
PTH1010102335321dust proof net A0112 (BOM#38)

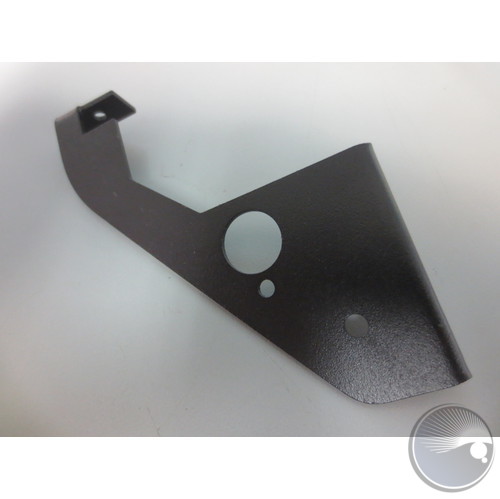

wind bloker A0336 (BOM#216)PTH1010102335351wind bloker A0336 (BOM#216)
PTH1010102335411lamp bracket A0309 (BOM#201)
PTH1010102335471motor board A0329 (BOM#319)

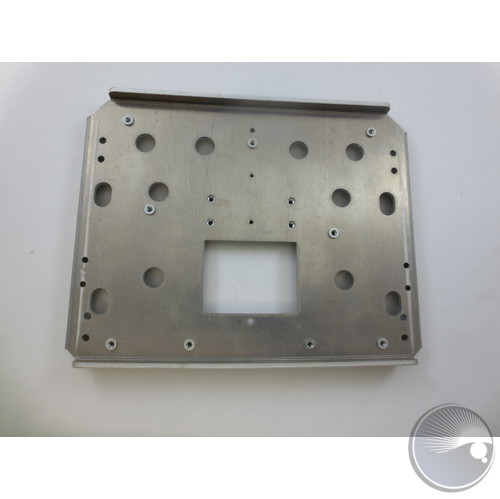

focus bracket A0367 (BOM#330)PTH1010102335761focus bracket A0367 (BOM#330)
PTH1010102335771POWER SUPPLY socket A0102 (BOM#33)
PTH1010102335791head fan bracket A0305 (BOM#214)

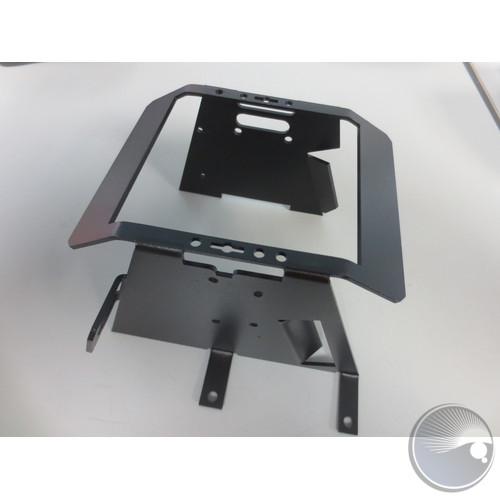

head back barrier A0308 (BOM#155)PTH1010102338391head back barrier A0308 (BOM#155)
PTH1010102338501display board bracket A0106 (BOM#43)
PTH1010102340381zoom strap bracket A0331 (BOM#313)
PTH1010102340411magnetic sensor A0325 (BOM#268)
PTH1010102340451head back block A0337 (BOM#210)

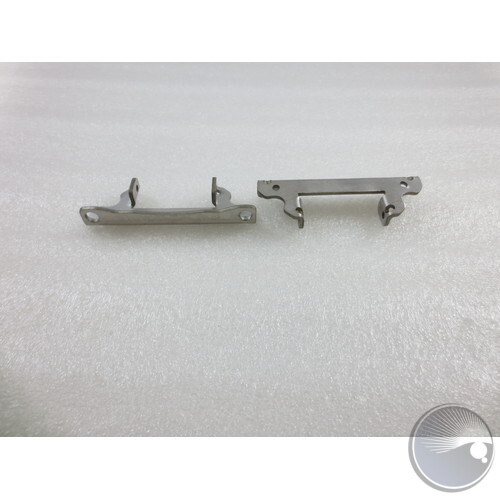

press wheel bracket A0344 (BOM#184)PTH1010102340561press wheel bracket A0344 (BOM#184)
PTH1010102340591press wheel bracket A0351 (BOM#342)
PTH1010102341631wind guide board A0306 (BOM#215)

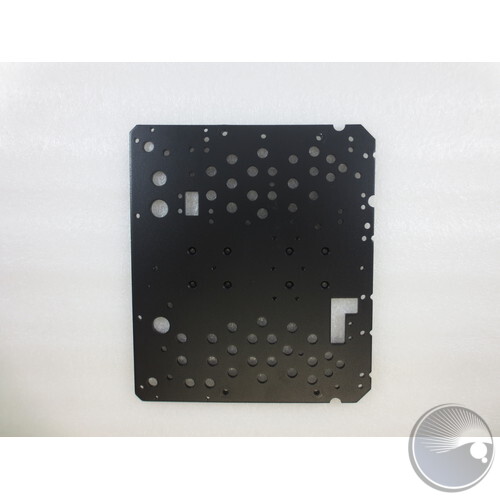

head main bracket A0301 (BOM#169)PTH1010102342341head main bracket A0301 (BOM#169)
PTH1010102342351quick lock shrapnel CDD05 (BOM#154)
PTH1010102342791frost motor bracket A0333 (BOM#294)
PTH1010102342811focus press wheel board A0374 (BOM#347)

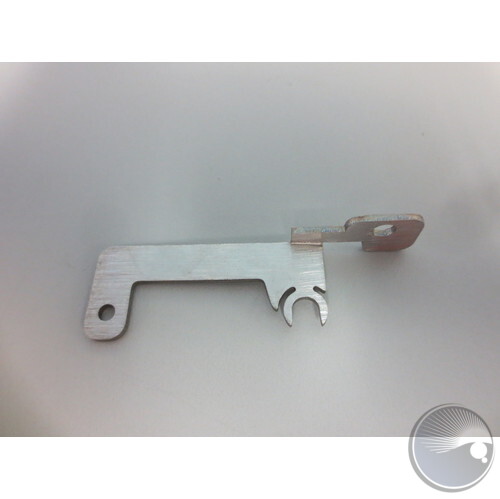

lamp spring lock board A0312 (BOM#156)PTH1010102345811lamp spring lock board A0312 (BOM#156)
PTH1010102345861lens main bracket A0327 (BOM#324)
PTH1010102345901prism motor bracket A0335 (BOM#285)
PTH1010102345921arm cover installation bracket A0203 (BOM#92)
PTH1010102345951arm bracket strengthen board LS440A0209 (BOM#110)
PTH1010102345961animation wheel bracket A0322 (BOM#239)

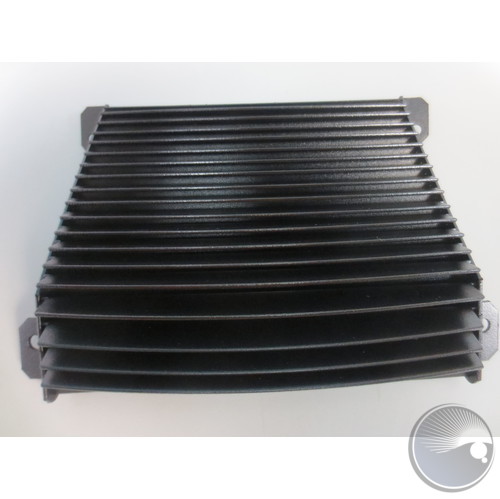

nest A0345 (BOM#139)PTH1010102347751nest A0345 (BOM#139)

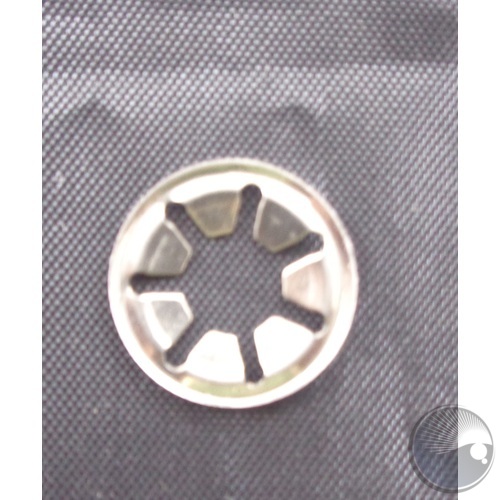

quick lock ring ?12.5 (BOM#167)PTH101012quick lock ring ?12.5 (BOM#167)
PTH1010202170821gear DL-218-01 NR (BOM#145)
PTH1010202170881gear DL23003 (BOM#237)
PTH1010202171081gear DL32001 (BOM#318)
PTH1010202251381pan support post LS440B01 (BOM#37)

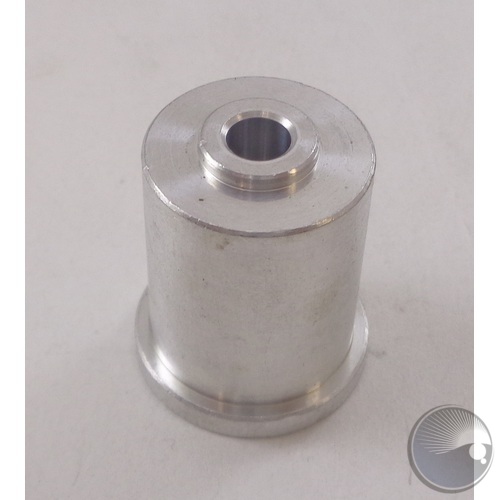

pan lock axis LS440B02 (BOM#87)PTH1010202251391pan lock axis LS440B02 (BOM#87)
PTH1010202251401pan lock block LS440B03 (BOM#121)

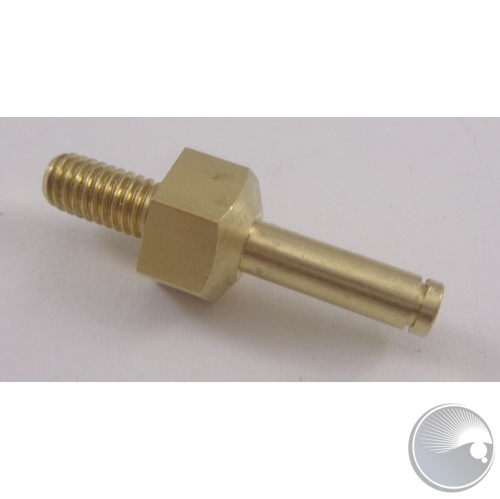

pan slider axis LS440B05 (BOM#64)PTH1010202251421pan slider axis LS440B05 (BOM#64)
tilt slider axis LS440B07 (BOM#81)PTH1010202251431tilt slider axis LS440B07 (BOM#81)
tilt lock axis LS-440-B08 (BOM#81)PTH1010202251501tilt lock axis LS-440-B08 (BOM#81)
ball screw LS-440-B20 (BOM#65)PTH1010202251561ball screw LS-440-B20 (BOM#65)
PTH1010202251571pan axis LS440BZ01 (BOM#110)
PTH1010202251631tilt axis LS440BZ07 (BOM#96)

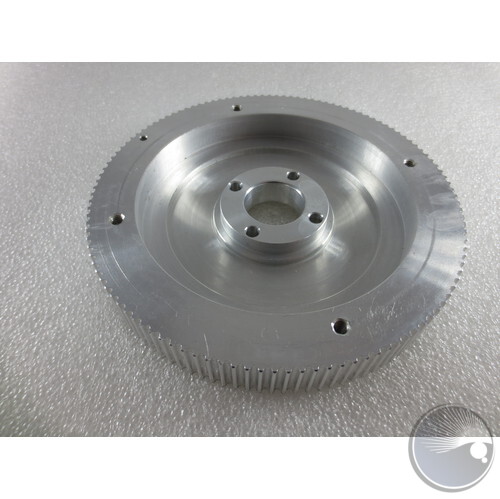

gear DL312001 (BOM#89)PTH1010202254231gear DL312001 (BOM#89)
PTH1010202254241gear DL312002 (BOM#119)
PTH1010202254251gear set DL340360 (BOM#98)
PTH1010202255271base dust filter blocker M-20R-B39 (BOM#18)

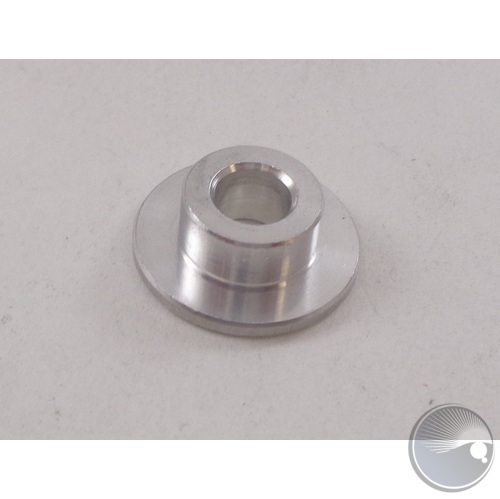

pan lock cover LS440B19 (BOM#89)PTH1010202259701pan lock cover LS440B19 (BOM#89)
PTH1010202259731pan bearing cover LS440B23 (BOM#81)
PTH1010202259741axis bushing LS440B24 (BOM#50)
slider wheel axis LS440B26 (BOM#42)PTH1010202263001slider wheel axis LS440B26 (BOM#42)
PTH1010202275951pan support post B01 (BOM#34)
PTH1010202275961tilt axis BZ01 (BOM#75)
PTH1010202275971tilt axis BZ02 (BOM#69)
PTH1010202282011gear DL25002 (BOM#222)
PTH1010202282021gear DL25003 (BOM#234)
PTH1010202282041touching mat post B03 (BOM#175)
PTH1010202282091animation wheel axis B08 (BOM#240)

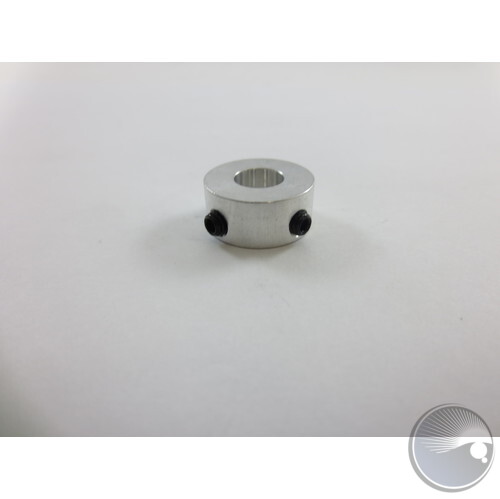

limit cover B11 (BOM#336)PTH1010202282121limit cover B11 (BOM#336)
PTH1010202282131fix block B12 (BOM#248)
PTH1010202282141lens fix block B13 (BOM#326)

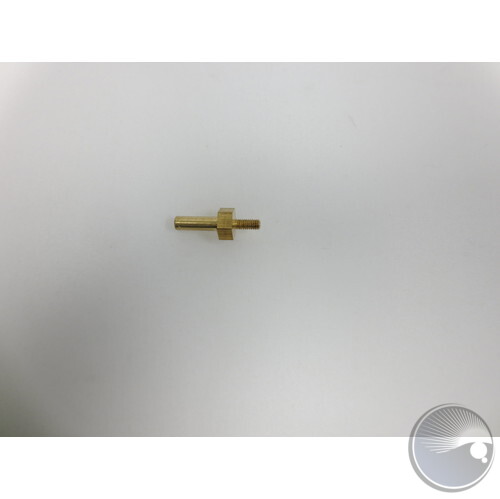

strap wheel axis B14 (BOM#322)PTH1010202282151strap wheel axis B14 (BOM#322)
PTH1010202282181lens mat cover B17 (BOM#278)

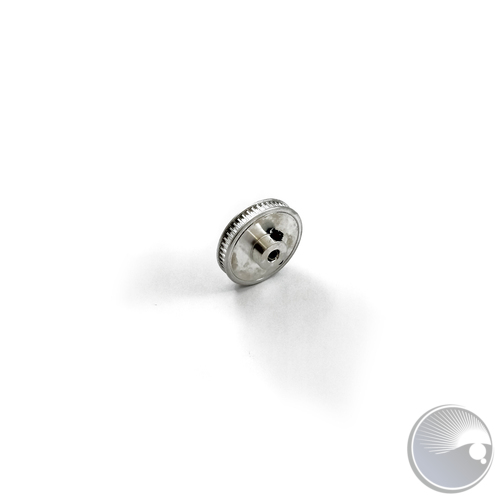

gear DL25005 (BOM#228)PTH1010202294601gear DL25005 (BOM#228)
PTH1010202294621lamp fix block B20 (BOM#203)
PTH1010202294651lamp support block B23 (BOM#162)

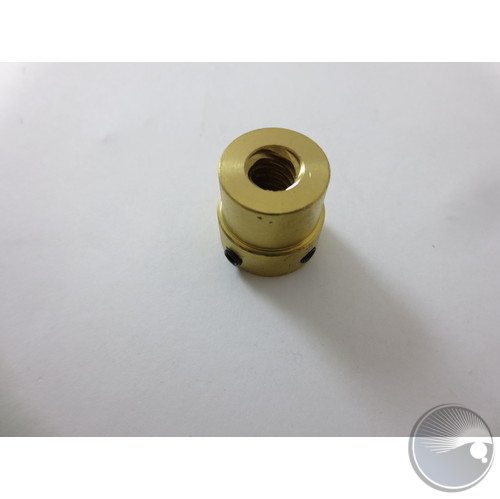

press spring guide cover B29 (BOM#339)PTH1010202302191press spring guide cover B29 (BOM#339)
PTH1010202302251gear DL32002 (BOM#256)
PTH1010202306591gear DL25006 (BOM#227)
PTH1010202307191zoom bracket B18 (BOM#281)
PTH1010202307231oriantation lock rod B21 (BOM#325)

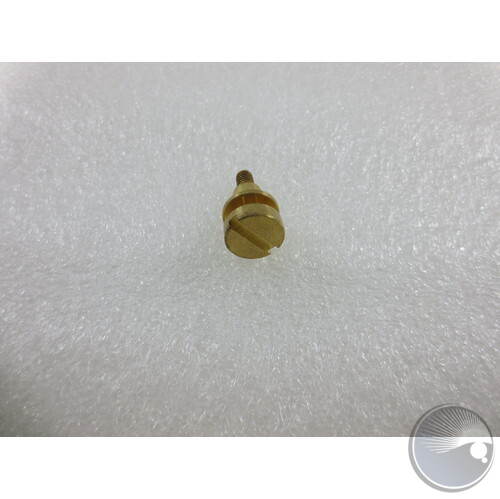

limit screw B30 (BOM#177)PTH1010202307281limit screw B30 (BOM#177)
PTH1010202308611lens mat block B19 (BOM#280)

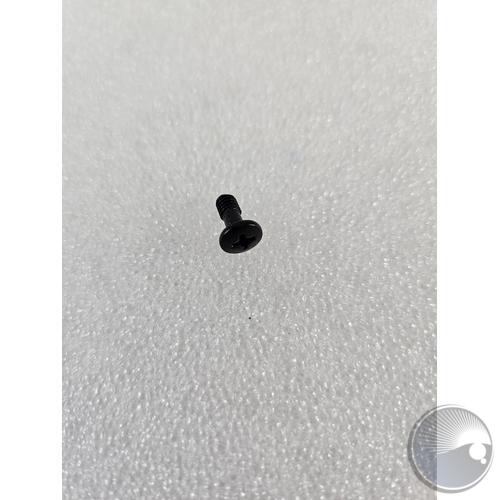

press spring lock rod B38 (BOM#208)PTH1010202318421press spring lock rod B38 (BOM#208)
PTH1010202323441frost reset post B28 (BOM#307)
PTH1010202323631press wheel B27 (BOM#238)

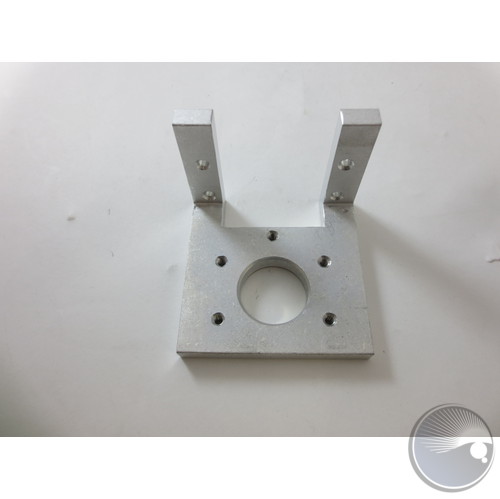

Lens bracket post B15 (BOM#327)PTH1010202323971Lens bracket post B15 (BOM#327)

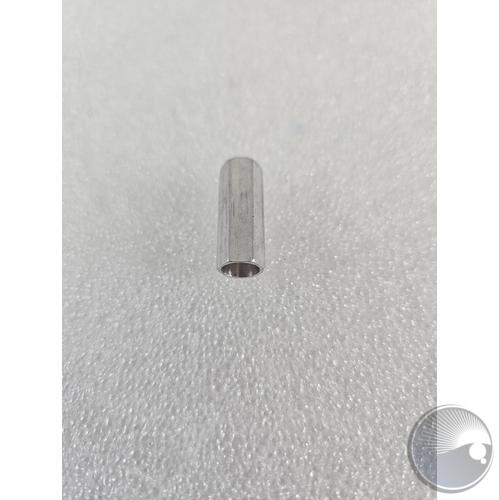

aluminum post B33 (BOM#207)PTH1010202335241aluminum post B33 (BOM#207)
PTH1010202335251slider wheel axis B22 (BOM#265)
PTH1010202335431lamp adjust screw B40 (BOM#204)
PTH1010202335452lamp adjust screw B35 (BOM#200)
PTH1010202338471fix block B02 (BOM#173)
PTH1010202340371lens press wheel B24 (BOM#186)

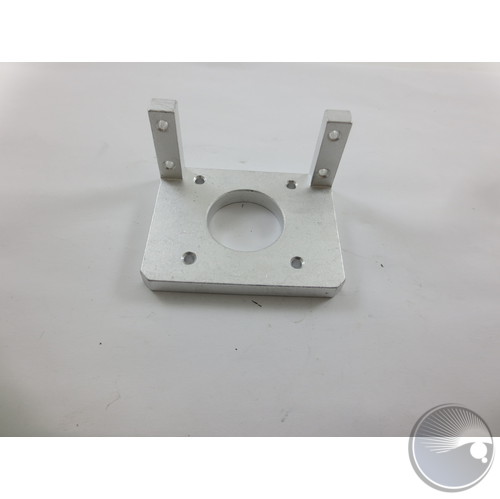

motor bracket B10 (BOM#335)PTH1010202340421motor bracket B10 (BOM#335)
PTH1010202340441focus lens bracket B16 (BOM#274)
PTH1010202340551press wheel cover rod B31 (BOM#185)
PTH1010202340571press wheel cover rod B36 (BOM#344)
PTH1010202341961press wheel B32 (BOM#189)
PTH1010202346041motor bracket post B45 (BOM#350)
PTH1010401156122aluminum post M3 (BOM#242)
PTH1010401156391aluminum post 628 M3 (BOM#54)
PTH1010401156531aluminum post ?6×14M3 (BOM#346)
PTH1010401157042copper post ?5×12M3 (BOM#178)
PTH1010401158621standoff 68 M3 (BOM#359)
PTH1010401285552magnetic post ?5×9M3?3.1×3 (BOM#277)
PTH1010401301461aluminum post ?5×92M3 (BOM#73)
PTH1010401332461copper post ?6×2?4.2 (BOM#206)
PTH1010402163061aluminum tube ?5×8?3.2 (BOM#303)
PTH1010402163232aluminum tube ?6×5?4.2 (BOM#340)
PTH1010402163312aluminum tube ?6×9?4.2 (BOM#310)
PTH1010402163342aluminum tube ?6×11?3.2 (BOM#219)
aluminum tube ?6×2.5?4.2 (BOM#44)PTH1010402163611aluminum tube ?6×2.5?4.2 (BOM#44)
PTH1010402163621aluminum tube ?6×3?3.2 (BOM#81)
PTH1010402163911standoff 6x2 3.2 (BOM#216)
PTH1010402253592copper tube ?10×4?5.2 (BOM#79)
PTH1010402253602copper tube ?10×3.5?6 (BOM#111)

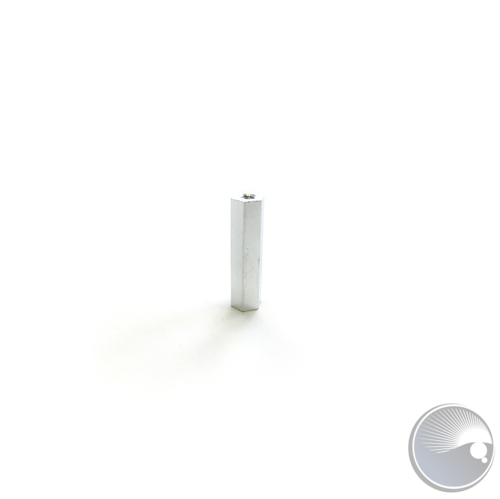

HEXAGONAL ALUMINUM POSTPTH1010403164551HEXAGONAL ALUMINUM POST
PTH1010403165591aluminum post H6×13M3 (BOM#179)
PTH1010403165661aluminum post H620 M3 (BOM#82)
PTH1010403165671aluminum post H6×21 M3 (BOM#72)
aluminium post H6×24 M3 (BOM#78)PTH1010403165701aluminium post H6×24 M3 (BOM#78)
PTH1010403165711aluminum post H6×25M3 (BOM#121)
PTH1010403165731aluminum post H6×27M3 (BOM#137)
PTH1010403165851aluminum post H6×39 M3 (BOM#77)
PTH1010403166091aluminum post H6×9.5M3 (BOM#317)
PTH1010403166121aluminum post H612.5 M3 (BOM#94)
PTH1010403166181aluminum post H6×18.5M3 (BOM#247)
PTH1010403166211aluminum post H6×21.5M3 (BOM#311)

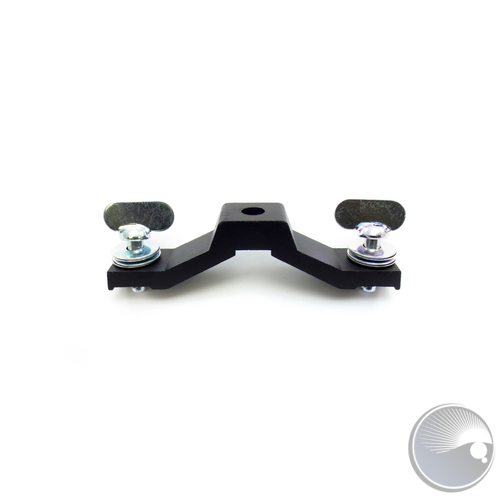

140Dmm OMEGA BRACKET (BOM#34)PTH1040000230891140Dmm OMEGA BRACKET (BOM#34)
PTH10400002812615-facet prism (BOM#291)
PTH1040000329611shutter blade (BOM#191)
PTH1040000329621shutter blade (BOM#192)

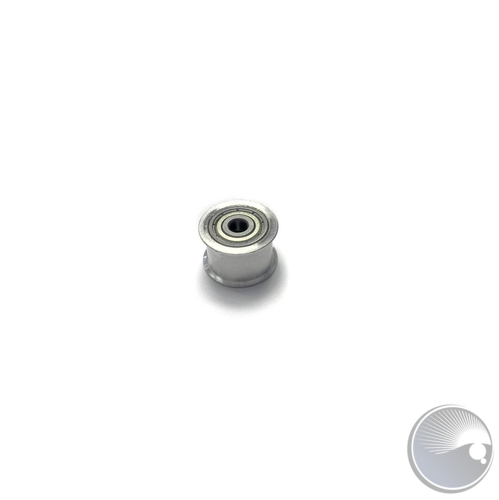

pulley M-20R Moving Spot,PRO-3715 (BOM#40)PTH1040000331031pulley M-20R Moving Spot,PRO-3715 (BOM#40)
PTH1040000331041pan slider wheel (BOM#129)
PTH1040000341901focus press wheel set B44 (BOM#345)

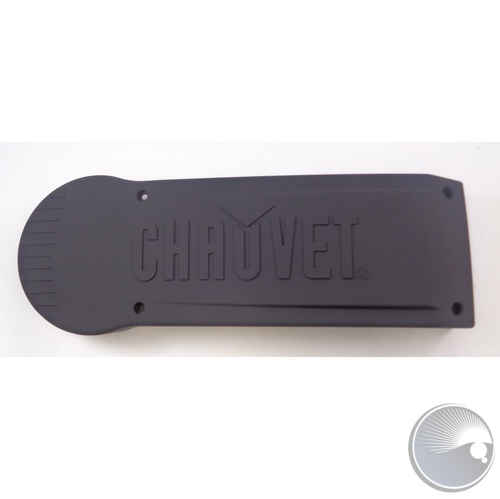

arm cover LS440C03 (BOM#59)PTH1060100257021arm cover LS440C03 (BOM#59)
handle LS-440-C02 (BOM#38)PTH1060100257031handle LS-440-C02 (BOM#38)

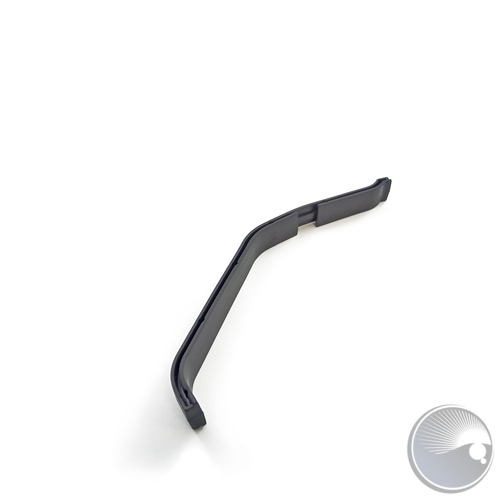

rubber tape C06 (BOM#140)PTH1060100295971rubber tape C06 (BOM#140)
dust proof cover cover LS440C09 (BOM#143)PTH1060100308771dust proof cover cover LS440C09 (BOM#143)

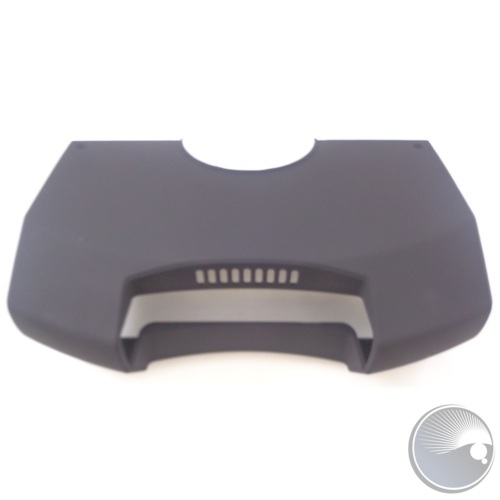

base face cover C01A (BOM#32)PTH1060100335711base face cover C01A (BOM#32)

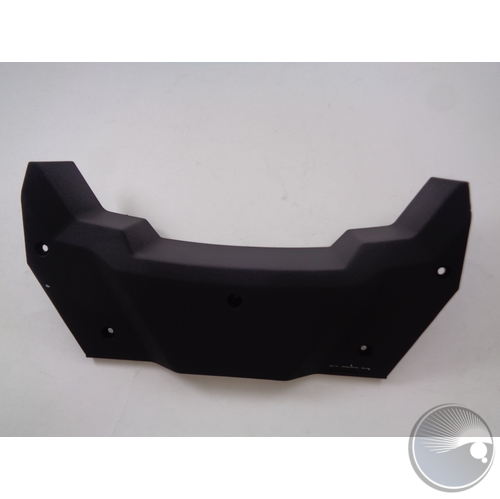

arm front cover C02A (BOM#70)PTH1060100335721arm front cover C02A (BOM#70)

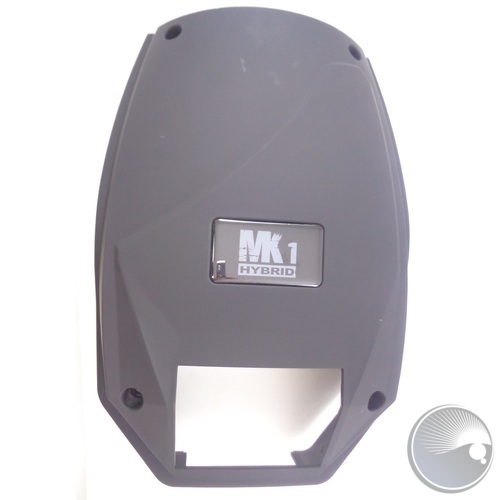

head cover C03A (BOM#141)PTH1060100335731head cover C03A (BOM#141)

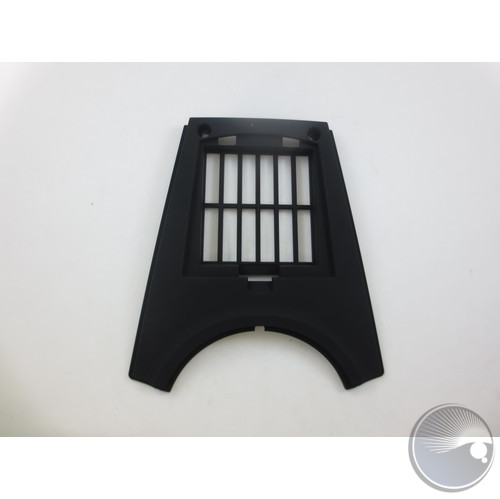

head side cover C04B (BOM#144)PTH1060100335741head side cover C04B (BOM#144)

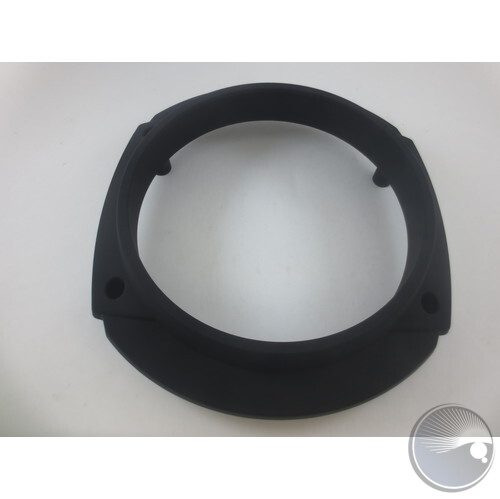

lens cover C05A (BOM#145)PTH1060100335751lens cover C05A (BOM#145)
PTH1060200308732wire cover M-20R-C07 (BOM#51)
Locking Washer for Fast LockPTH152000222Locking Washer for Fast Lock

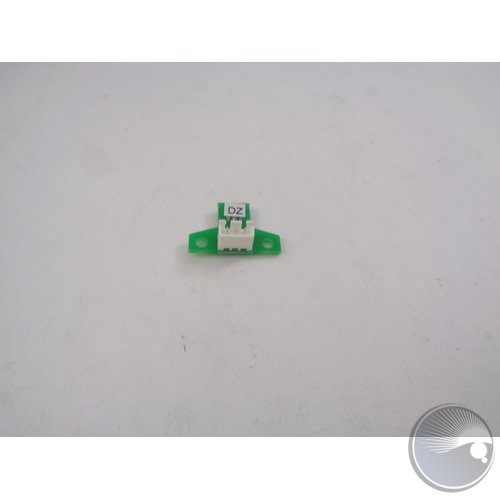

magnetic sensor HE14A (BOM#73)PTH2020302252331magnetic sensor HE14A (BOM#73)

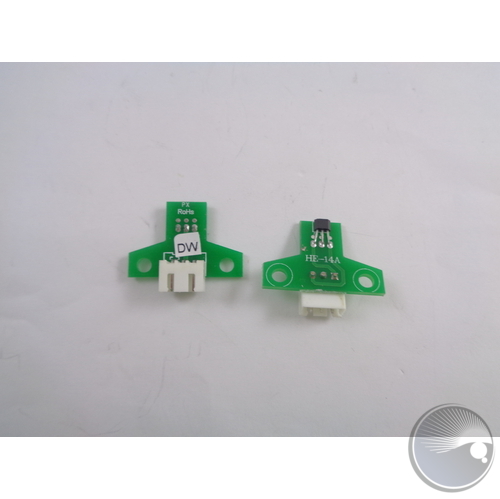

magnetic sensor HE14A (BOM#32)PTH2020302253611magnetic sensor HE14A (BOM#32)
PTH2020302262761full color display board LCD014A (BOM#140)
switch pcb ZJ038A (BOM#105)PTH2020302263901switch pcb ZJ038A (BOM#105)
DMX board DMX012B (BOM#40)PTH2020302267381DMX board DMX012B (BOM#40)
ethernet connector ZJ034 Amphenol (BOM#7)PTH2020302269051ethernet connector ZJ034 Amphenol (BOM#7)

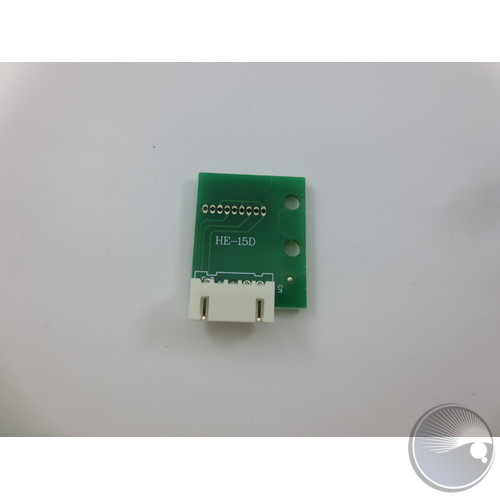

magnetic sensor HE15C (BOM#269)PTH2020302336231magnetic sensor HE15C (BOM#269)
wireless pcb A40895G4-R_GPTH2020303265531wireless pcb A40895G4-R_G

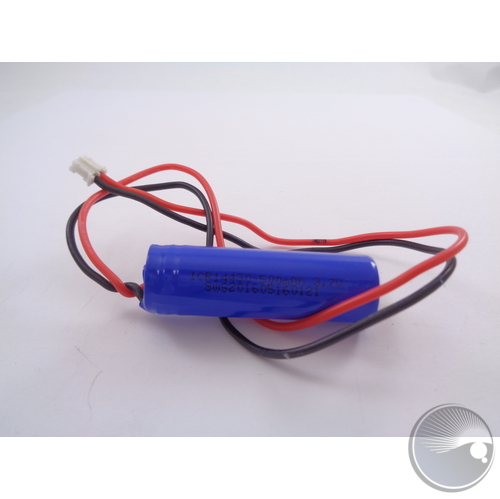

battery with pcb ICR14430-500mAh 3.7V, 1.85wh (BOM#112)PTH2021900301511battery with pcb ICR14430-500mAh 3.7V, 1.85wh (BOM#112)
PTH2021900342031insulating strip A0111 (BOM#16)

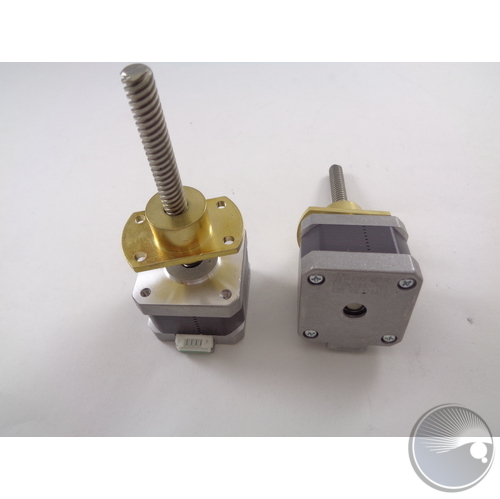

stepper motor 17HDC103378N (BOM#334)PTH2030100297511stepper motor 17HDC103378N (BOM#334)
stepper motor 17HD003N15 (BOM#153)PTH2030101101171stepper motor 17HD003N15 (BOM#153)

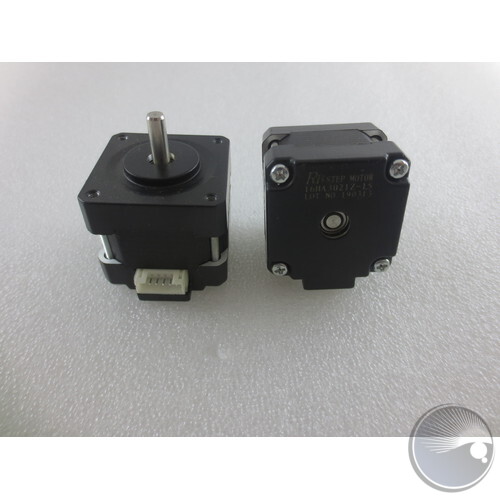

stepper motor 16HA3021Z15 (BOM#299)PTH2030101290161stepper motor 16HA3021Z15 (BOM#299)

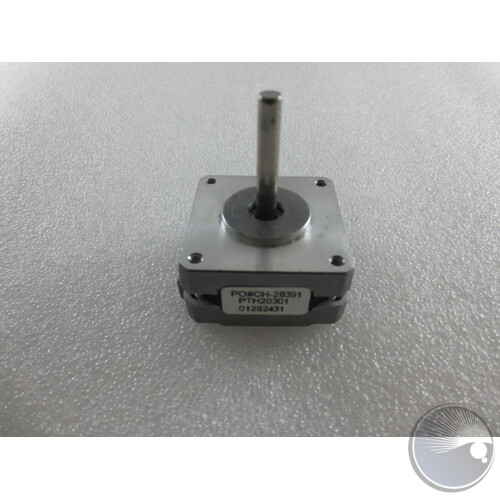

stepper motor 16HA002530 (BOM#300)PTH2030101292431stepper motor 16HA002530 (BOM#300)

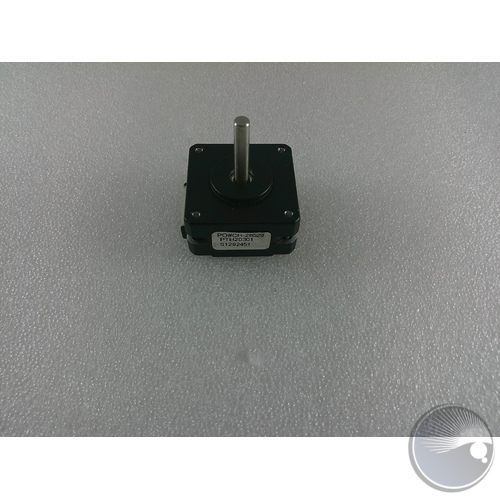

stepper motor 16HA002525 (BOM#245)PTH2030101292451stepper motor 16HA002525 (BOM#245)

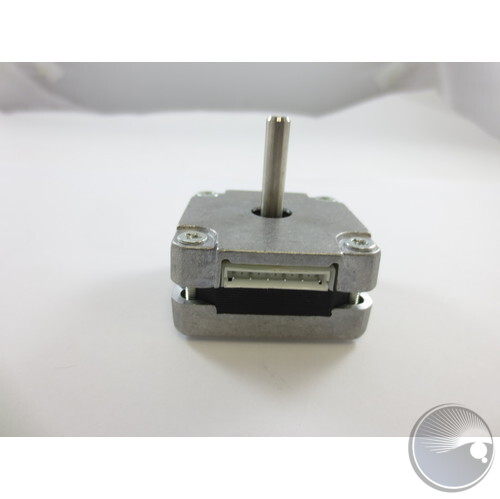

stepper motor 16HA0025020 (BOM#229)PTH2030101292461stepper motor 16HA0025020 (BOM#229)

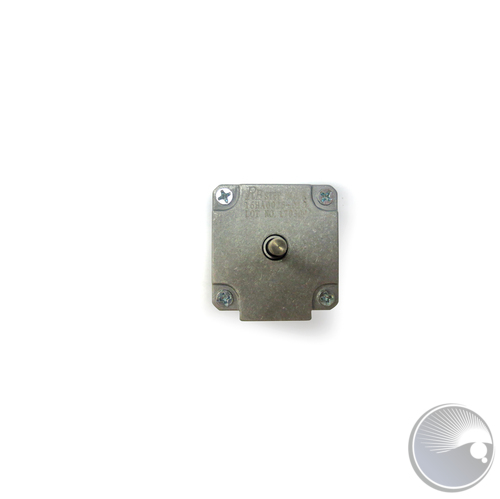

stepper motor 16HA0025010 (BOM#230)PTH2030101292471stepper motor 16HA0025010 (BOM#230)

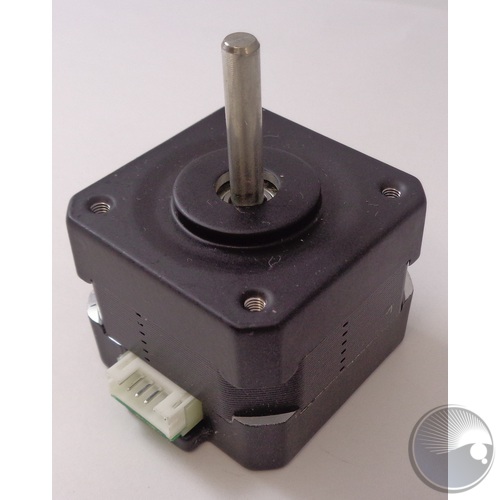

stepper motor 17HD0054Z25 (BOM#314)PTH2030101301191stepper motor 17HD0054Z25 (BOM#314)
PTH2030101301431stepper motor 17HDC1037Z30 (BOM#312)
motor 17HDC1037Z-15 (BOM#178)PTH2030101309931motor 17HDC1037Z-15 (BOM#178)

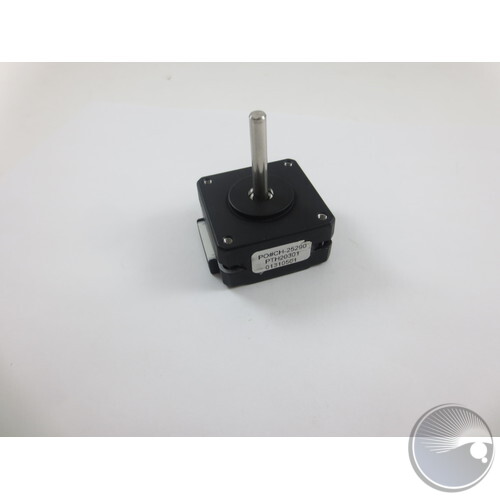

stepper motor 16HA0026Z30 (BOM#246)PTH2030101310501stepper motor 16HA0026Z30 (BOM#246)
PTH2030101322871stepper motor 17HD006330 (BOM#255)
motor 16HA0025-35 (BOM#198)PTH2030101323901motor 16HA0025-35 (BOM#198)

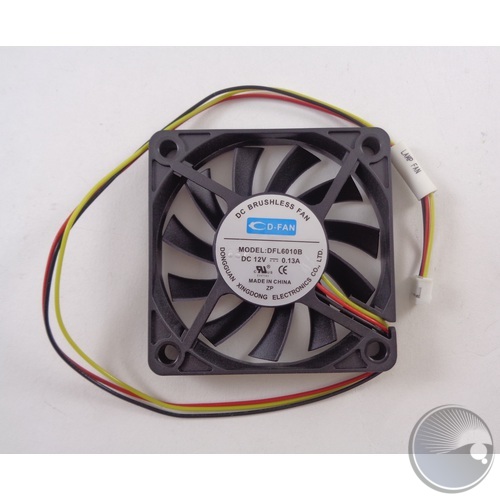

12V 0.13A fan DFL6010B 3P - 3 wire: b/r/y Small White Connector(BOM#181)PTH203020121783112V 0.13A fan DFL6010B 3P - 3 wire: b/r/y Small White Connector(BOM#181)

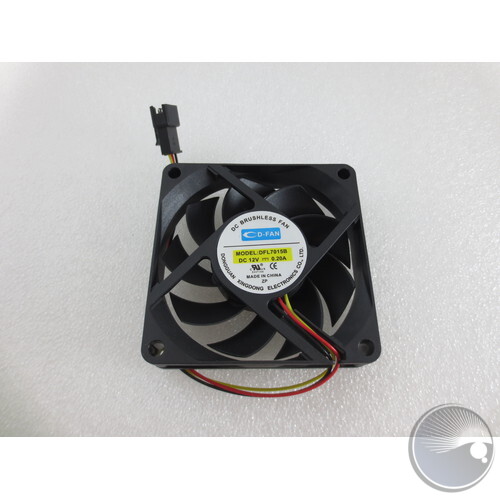

Base fan 12V?0.20A DFL7015B 3-pin male (BOM#27)PTH2030201262027Base fan 12V?0.20A DFL7015B 3-pin male (BOM#27)
PTH2030201322211Head fan 9A0924F407 (BOM#150)

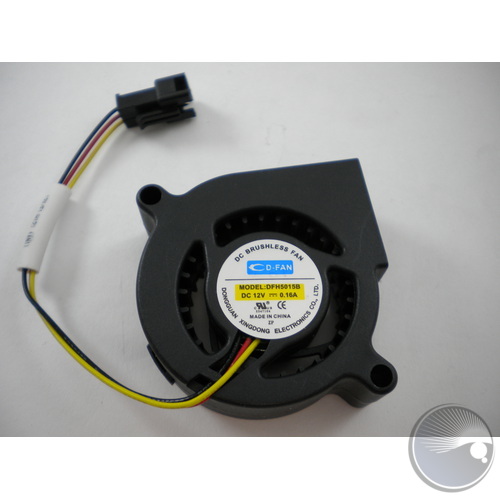

fan DFH5020B (BOM#267)PTH2030202264031fan DFH5020B (BOM#267)
fan 9BD24SC61 24V .14A (BOM#164)PTH2030202270891fan 9BD24SC61 24V .14A (BOM#164)
PTH2040000277911pan bushing LS440 LED Moving Spot (BOM#99)
PTH2040000277921pan bushing LS/IS440/ (BOM#123)

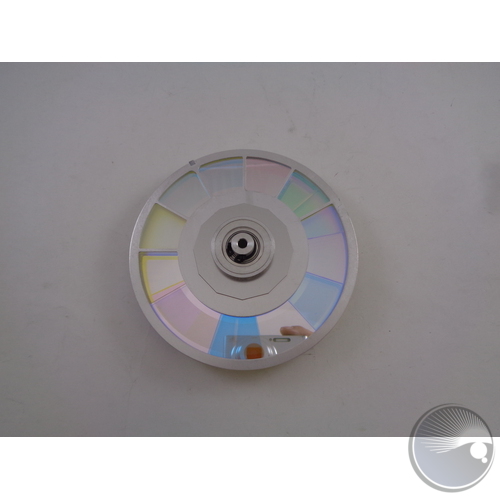

Color Wheel Assembly (BOM#225)PTH2040000285861Color Wheel Assembly (BOM#225)

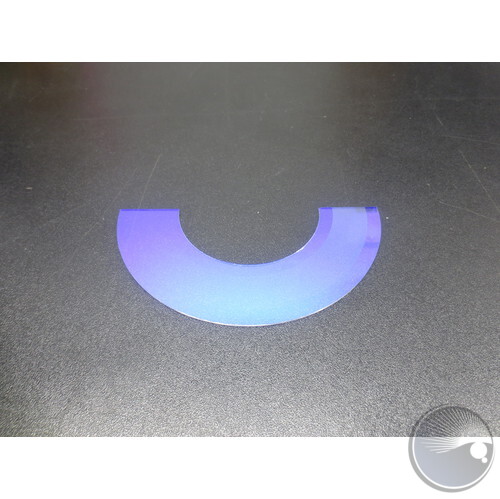

CMY filter set (BOM#223)PTH2040000302271CMY filter set (BOM#223)
PTH2040000328771tilt bushing (BOM#66)
PTH2040000328781tilt bushing (BOM#85)

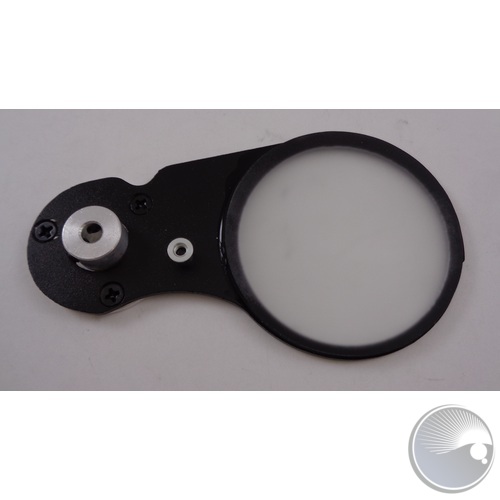

frost set (BOM#304)PTH2040000328811frost set (BOM#304)
gear set DL-315-07-03 (BOM#76)PTH2040000330901gear set DL-315-07-03 (BOM#76)

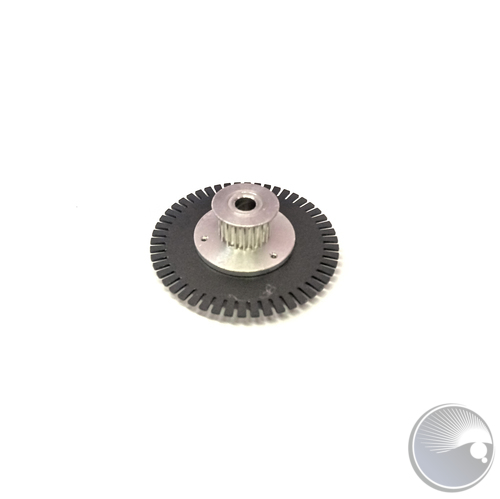

gear set DL3180501 (BOM#99)PTH2040000330911gear set DL3180501 (BOM#99)
Fan assembly DFM5010B 12V .12A FAN1J140.15 3-Pin Female (BOM#109)PTH2040000506091Fan assembly DFM5010B 12V .12A FAN1J140.15 3-Pin Female (BOM#109)

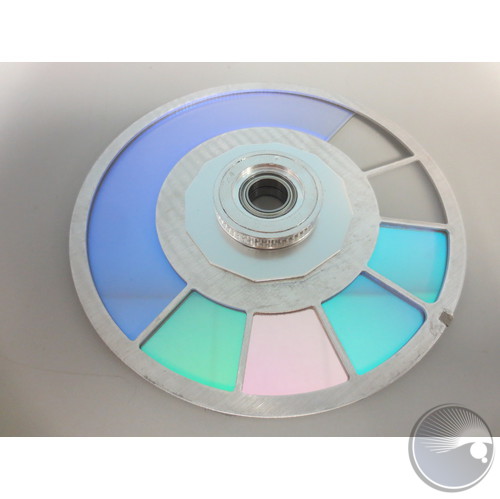

Color Wheel 3 - bottomPTH2040000508181Color Wheel 3 - bottom

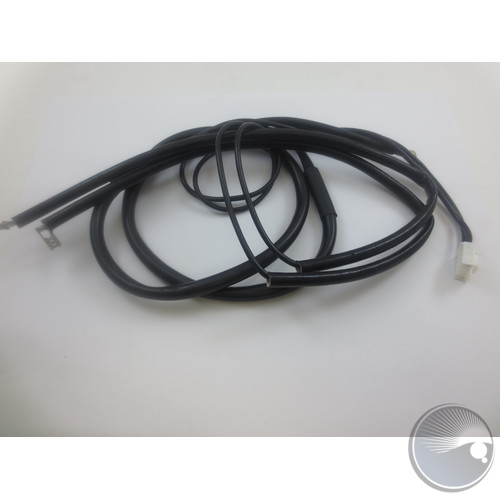

Cable for LED ModulePTH2040000550731Cable for LED Module

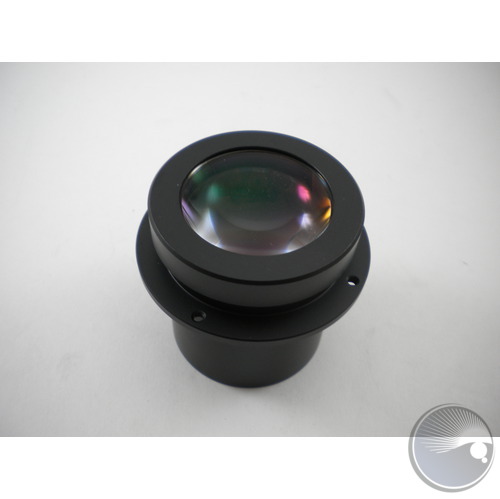

focus set A1524421 (BOM#279)PTH2040107276701focus set A1524421 (BOM#279)

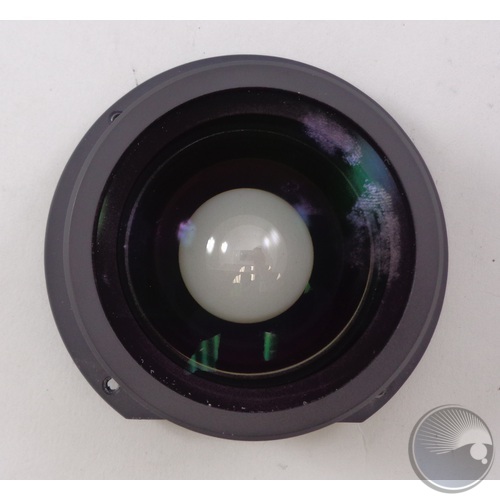

zoom set A1524422 (BOM#282)PTH2040107276711zoom set A1524422 (BOM#282)
heat sink 46×21×2.0mm (BOM#198)PTH2041004324001heat sink 46×21×2.0mm (BOM#198)
wireless connection cable A40921 (BOM#96)PTH2050700291771wireless connection cable A40921 (BOM#96)
PTH2070501286791sticker (BOM#57)
dust proof sponge/filter 62mm×68mm×7mm (BOM#142)PTH2071100304521dust proof sponge/filter 62mm×68mm×7mm (BOM#142)
screw M8×25 (BOM#22)PTH2080502173331screw M8×25 (BOM#22)
PTH2080502250041screw M8×80 (BOM#53)
PTH2080701252601screw SNLS02 (BOM#220)
screw M8 (BOM#69)PTH2081002126951screw M8 (BOM#69)

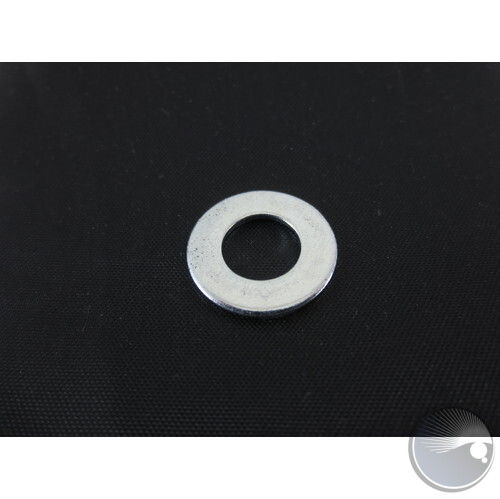

ring ?8×?16×1 (BOM#84)PTH2081103252391ring ?8×?16×1 (BOM#84)
PTH2081106253031ring ?10 (BOM#88)

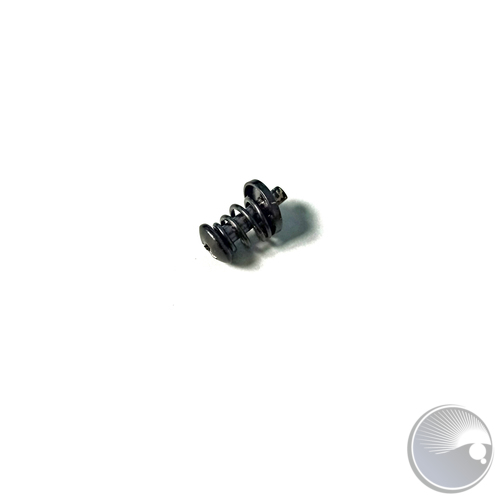

QUICK-LOCK SCREW SET (SCREW, WASHER, SPRING)PTH2081200336021QUICK-LOCK SCREW SET (SCREW, WASHER, SPRING)

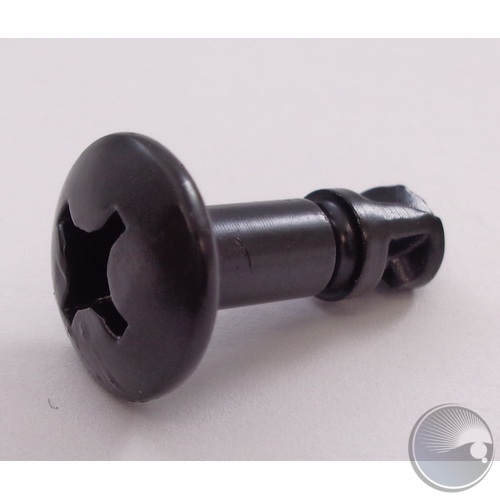

quick lock screw ?12×?6×18.5 with phillips head (BOM#166)PTH2081700176951quick lock screw ?12×?6×18.5 with phillips head (BOM#166)

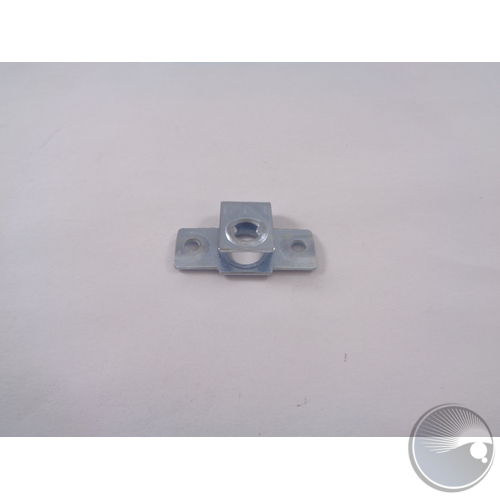

quick lock shrapnel 33×20×10 (BOM#168)PTH2081700176971quick lock shrapnel 33×20×10 (BOM#168)

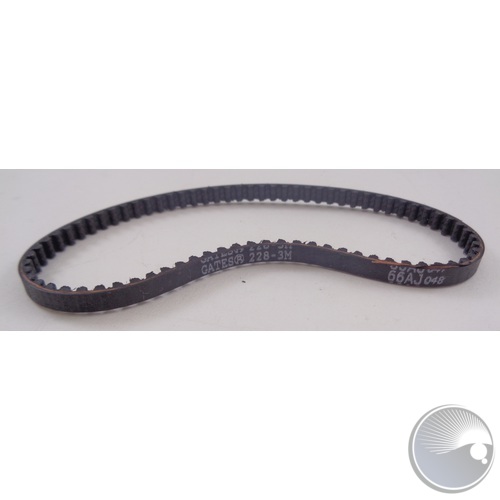

syncronization strap 3M2284mm (BOM#272)PTH2090101210102syncronization strap 3M2284mm (BOM#272)
PTH2090101275631syncronization strap 3M-591-10.5mm (BOM#38)
PTH2090101275641syncronization strap 3M28510.5mm (BOM#97)

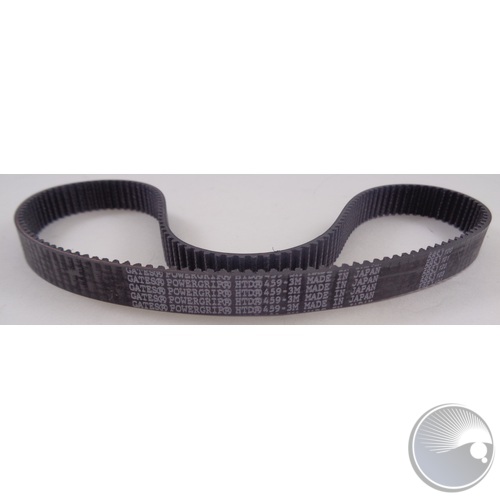

syncronization strap 3M45912mm (BOM#120)PTH2090101275731syncronization strap 3M45912mm (BOM#120)

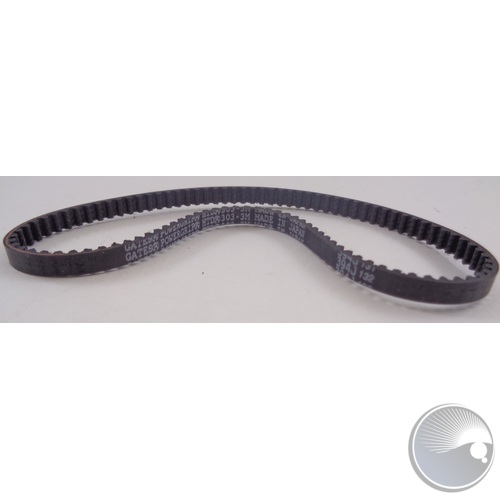

syncronization strap 3M3035mm (BOM#321)PTH2090101281291syncronization strap 3M3035mm (BOM#321)
belt 3M-180-3mm (BOM#207)PTH2090101303821belt 3M-180-3mm (BOM#207)

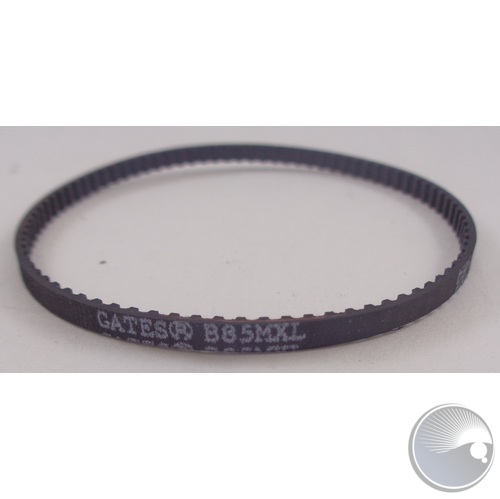

syncronization strap B85MXL3mm (BOM#236)PTH2090102289951syncronization strap B85MXL3mm (BOM#236)

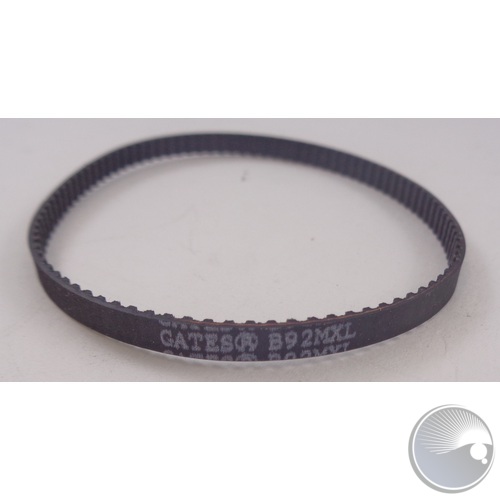

strap B92MXL4mm (BOM#290)PTH2090102292541strap B92MXL4mm (BOM#290)

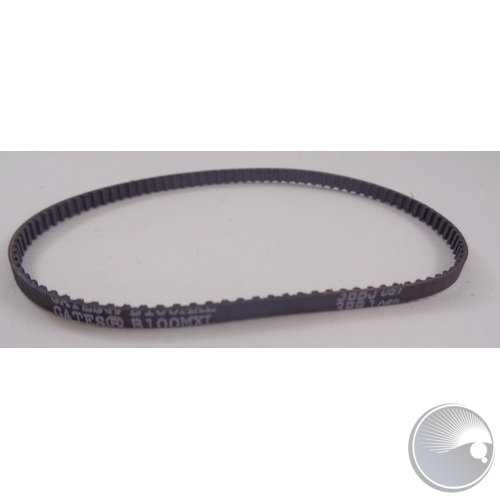

syncronization strap B100MXL3mm (BOM#226)PTH2090102303811syncronization strap B100MXL3mm (BOM#226)

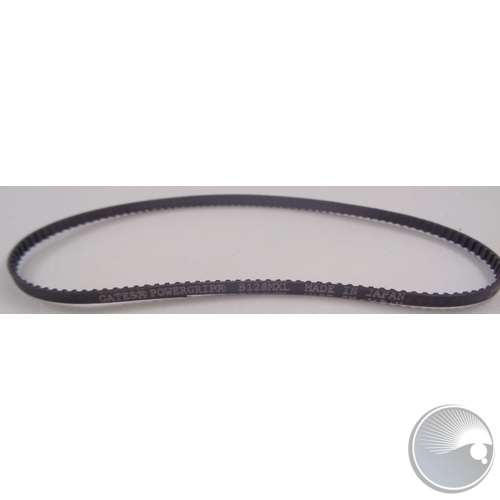

syncronization strap B128MXL3mm (BOM#273)PTH2090102303881syncronization strap B128MXL3mm (BOM#273)

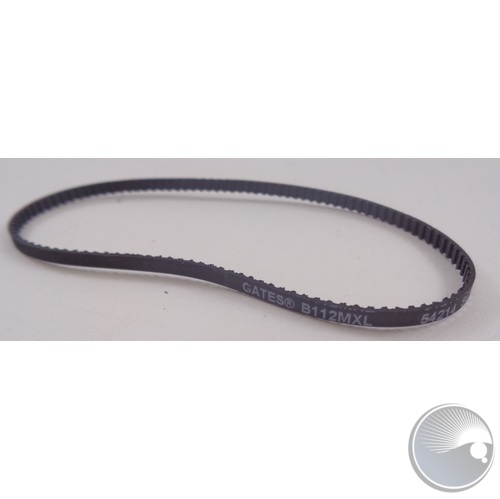

syncronization strap B112MXL3mm (BOM#266)PTH2090102322851syncronization strap B112MXL3mm (BOM#266)
PTH2090201296341bearing 6801ZZ12215 (BOM#156)
PTH2090300275111round buckle T10 (BOM#149)
PTH2090300301181rope buckle T3306 (BOM#148)
button cap AJM-10x6 (BOM#28)PTH2090400256161button cap AJM-10x6 (BOM#28)
machine feet (BOM#129)PTH2090400259771machine feet (BOM#129)
standoff H6x23 (BOM#12)PTH2090400304613standoff H6x23 (BOM#12)
standoff H6x33 (BOM#13)PTH2090400304623standoff H6x33 (BOM#13)
fan net 7×7 (BOM#19)PTH2090500170761fan net 7×7 (BOM#19)
quick lock screw M20 (BOM#47)PTH2090500180091quick lock screw M20 (BOM#47)
spring ?10×38×1.2 (BOM#78)PTH2090601173371spring ?10×38×1.2 (BOM#78)
spring ?10×47×1.2 (BOM#68)PTH2090601276121spring ?10×47×1.2 (BOM#68)
PTH2090601303621spring ?5.5×26.3×0.5 (BOM#301)
PTH2090601308621spring 5.6260.6 (BOM#172)
PTH2090602303631spring ?6×9×0.8 (BOM#85)
PTH2090602303641lamp press spring 57×84.6×23×2.0mm (BOM#159)
prism spring NH3181.0mm (BOM#217)PTH2090603340601prism spring NH3181.0mm (BOM#217)

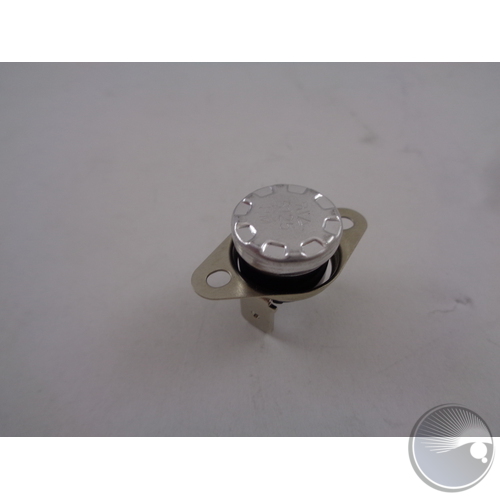

temperature controller 125? 250V 10A (BOM#217)PTH2090702296581temperature controller 125? 250V 10A (BOM#217)

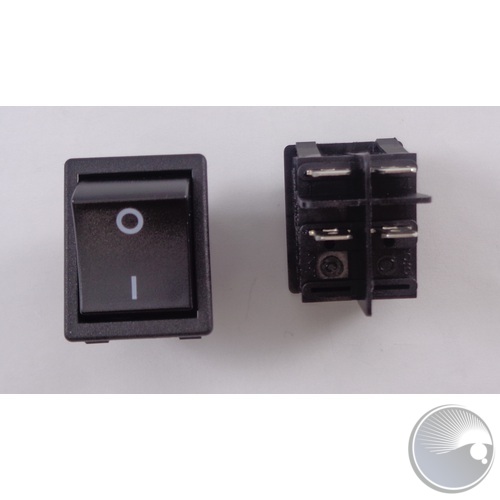

POWER SUPPLY switch RF1004 (BOM#49)PTH2090704169132POWER SUPPLY switch RF1004 (BOM#49)

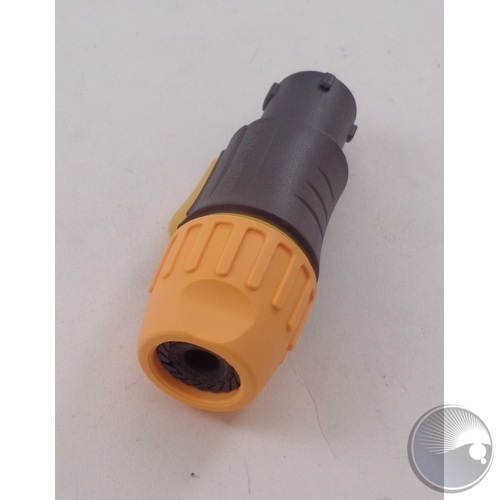

POWER SUPPLY plug SAC3FX (BOM#133)PTH2090802266601POWER SUPPLY plug SAC3FX (BOM#133)
PTH2090804279821switch socket HDEC62P (BOM#250)
PTH2090804279831switch socket HDEC62P (BOM#251)
PTH2090804340071switch socket HDEC26P (BOM#195)
PTH2090804340081switch socket HDEC26P (BOM#196)
PTH2090804340091switch connector HDEC44P (BOM#190)
PTH2090804340101switch socket HDEC44P (BOM#287)

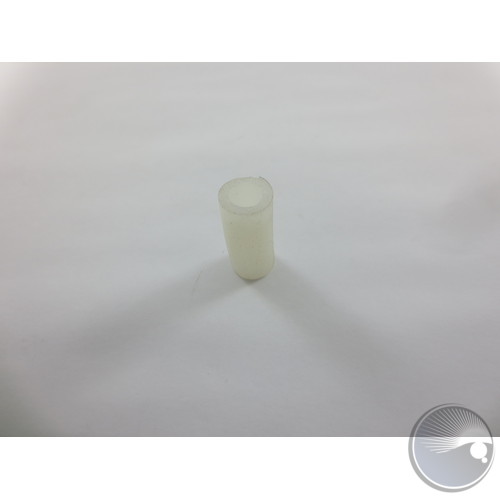

silicone tube ?7×11 (BOM#149)PTH2091004169241silicone tube ?7×11 (BOM#149)
PTH2091101166791copper post 3×5 (BOM#259)
PTH2091101166801copper post 3×6 (BOM#16)
copper post 3×11 (BOM#21)PTH2091101166861copper post 3×11 (BOM#21)
PTH2091101179061copper post 3×6+6 (BOM#194)
PTH2091101291791copper post 3×12.5 (BOM#104)
PTH2091302169521black axis circlip 12 (BOM#188)
PTH2091302169571open circlip 3 (BOM#280)
PTH2091302169601axis circlip 351.5 (BOM#61)
open circlip ?4 (BOM#66)PTH2091302169621open circlip ?4 (BOM#66)

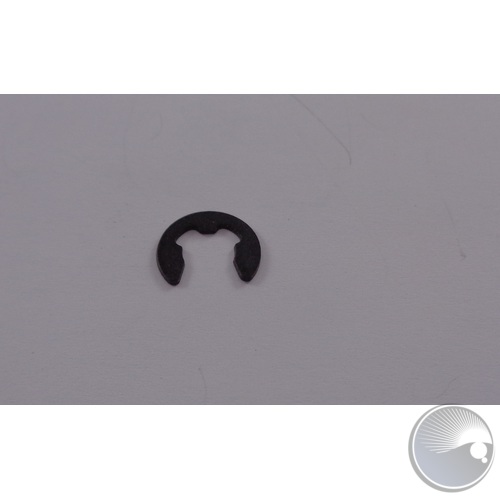

circlip ?5 (BOM#83)PTH2091302173221circlip ?5 (BOM#83)
PTH2091302210151circlip ?9 (BOM#348)
magnet ?3×3 (BOM#77)PTH2091400234741magnet ?3×3 (BOM#77)
PTH2091400234791magnet ?3×1.5 (BOM#349)

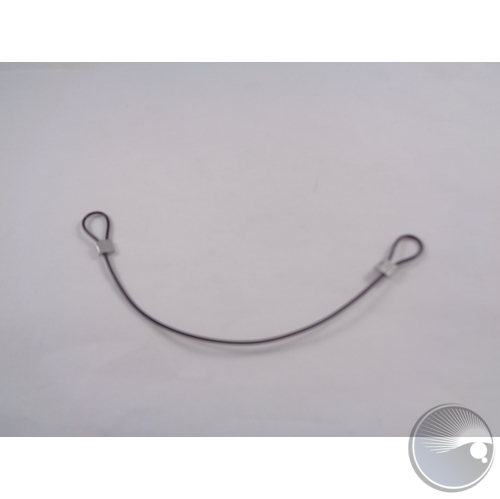

steel rope JL201 1.0mm×15cm (BOM#146)PTH2091500217051steel rope JL201 1.0mm×15cm (BOM#146)
PVC rubber cover 14x8 (BOM#68)PTH2091500249071PVC rubber cover 14x8 (BOM#68)
PTH2091500281191slider rail MGN9C2R150ZOCM (BOM#323)

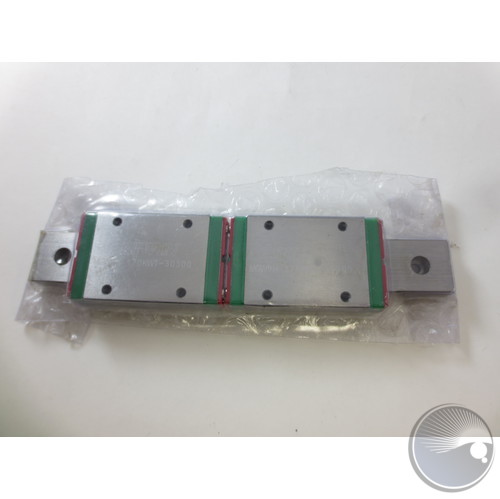

slider rail MGW9H2R140ZOCM (BOM#329)PTH2091500281201slider rail MGW9H2R140ZOCM (BOM#329)
PTH2091500312261silicone mat CP300165×143 (BOM#332)
PTH2091500312331steel rope JL201 1.0mm×9cm (BOM#147)
PTH2091700179151half open round magnetic ring SCRC 16×16×8 (BOM#50)
PTH2091700179161magnetic ring ?20×10×10 (BOM#160)
PTH2091700179171square magnetic ring SCRC 130A 293032 (BOM#33)

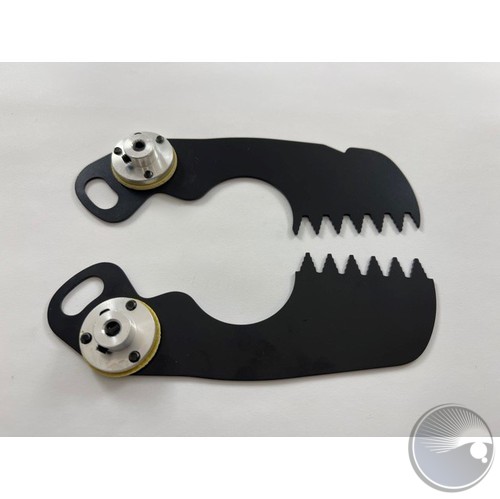

Shutter blade assemblyPTH210200013011Shutter blade assembly
optocoupler pcb AGD004 B (BOM#70)PTH28AGD004Boptocoupler pcb AGD004 B (BOM#70)

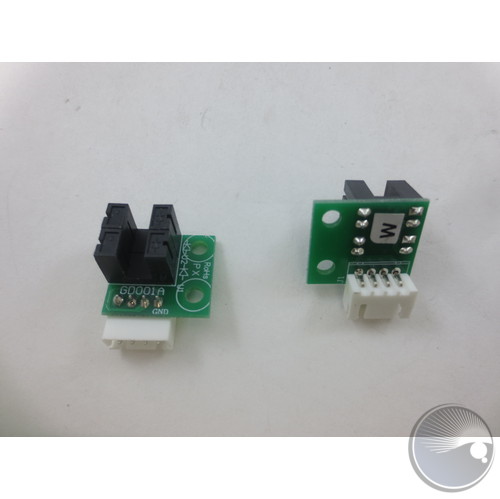

PTH28GD001A1optocoupler pcb GD001A (BOM#107)

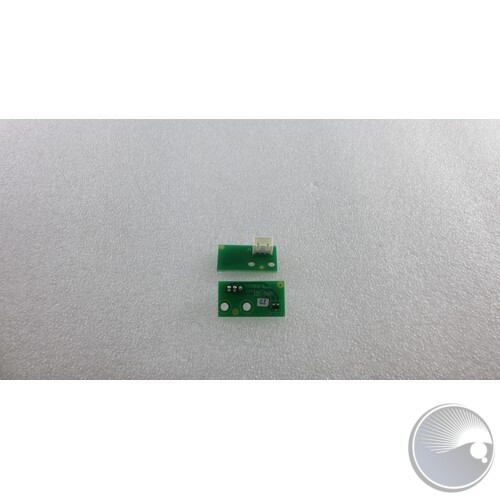

magnetic sensor HE09 (BOM#16)PTH28HE09magnetic sensor HE09 (BOM#16)

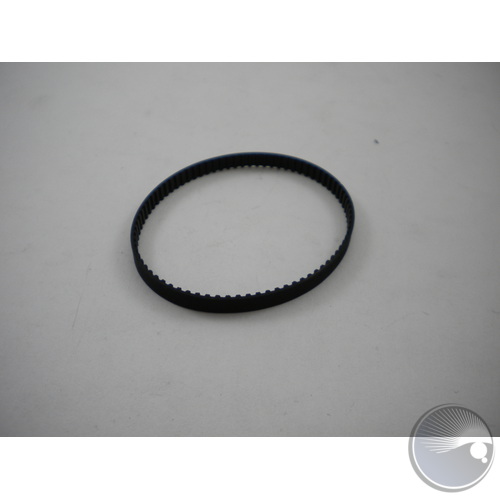

syncronization strap B80MXL4mm (BOM#309)PTHB80MXL4MMsyncronization strap B80MXL4mm (BOM#309)
PTHDL31503gear DL31503 (BOM#271)
pan mat chip EX575A0120 (BOM#74)PTHEX575A0120pan mat chip EX575A0120 (BOM#74)

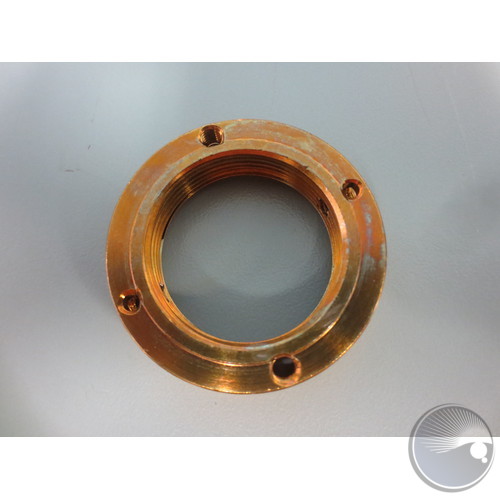

copper screw EX575B03 (BOM#82)PTHEX575B03copper screw EX575B03 (BOM#82)
PTHHE04magnetic sensor HE04 (BOM#29)

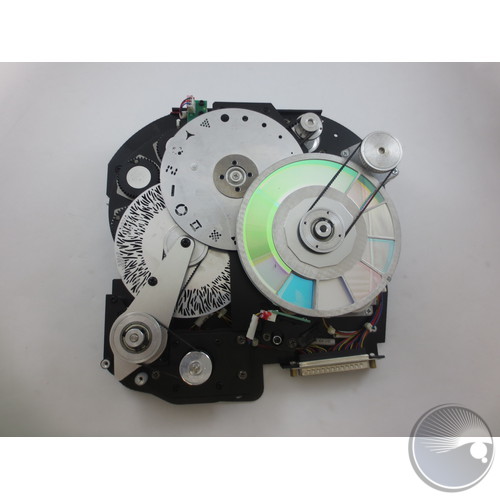

Module B - Gobo/Prism Wheel AssemblyPTHM20R030200Module B - Gobo/Prism Wheel Assembly
PTHM20R1010102361441Focus bracket mounting plate M-20R-A03-79 (BOM#356)
PTHM20R1010102361461Prism strengthen board M-20R-A03-54 (BOM#355)
PTHM20R1010102361481Focus limitation board M-20R-A03-52 (BOM#357)
PTHM20R1010202323971Lens bracket post
PTHM20R1010202360761wind guide set 1 M-20R-B46 (BOM#353)
PTHM20R1010202363981wind guide set 2 M-20R-B47 (BOM#354)

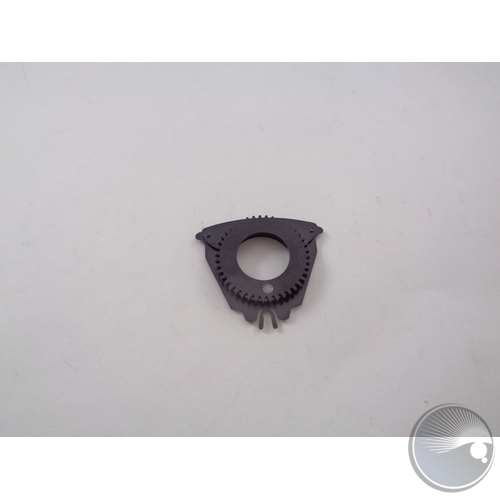

gobo holder M-20R Moving Spot (BOM#358)PTHM20R1040000371831gobo holder M-20R Moving Spot (BOM#358)

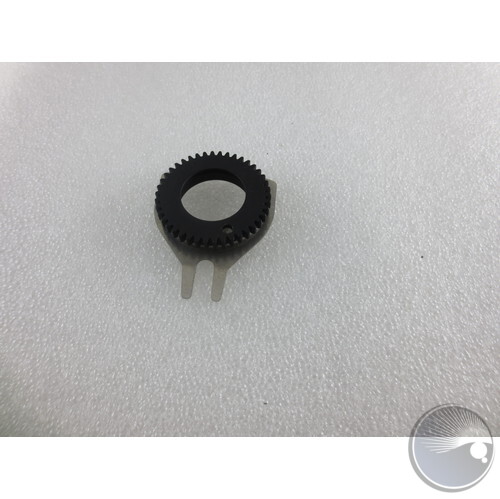

gobo holder M-20R Moving Spot w/ silver metal 2-prong clip (BOM#358)PTHM20R1040000371832gobo holder M-20R Moving Spot w/ silver metal 2-prong clip (BOM#358)

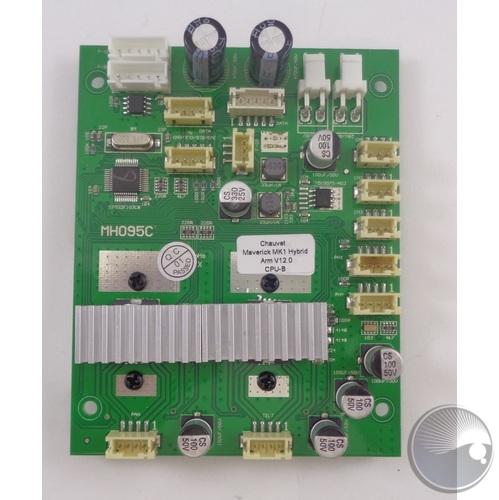

ARM PCB MH095C (BOM#62)PTHM20R2020302266311ARM PCB MH095C (BOM#62)

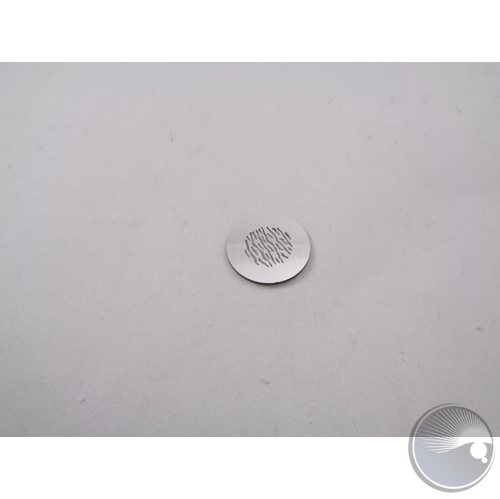

glass gobo #2 ?22-C092-13-C01 (BOM#360)PTHM20R2040501290661glass gobo #2 ?22-C092-13-C01 (BOM#360)

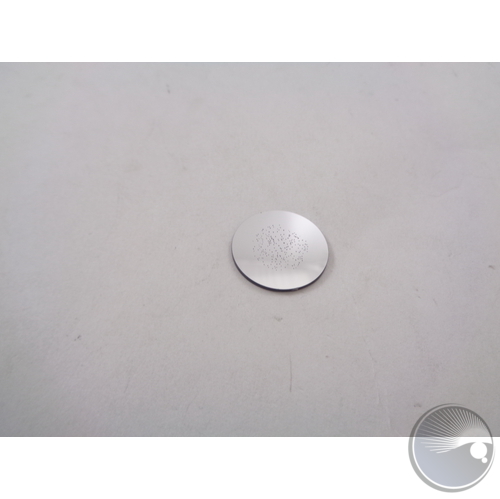

glass gobo #4 ?22-C074-13-C01 (BOM#362)PTHM20R2040501290671glass gobo #4 ?22-C074-13-C01 (BOM#362)

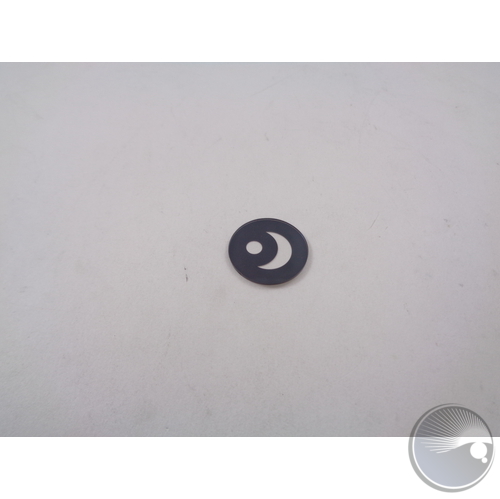

glass gobo #6 ?22-C089-13-C01 (BOM#364)PTHM20R2040501290681glass gobo #6 ?22-C089-13-C01 (BOM#364)

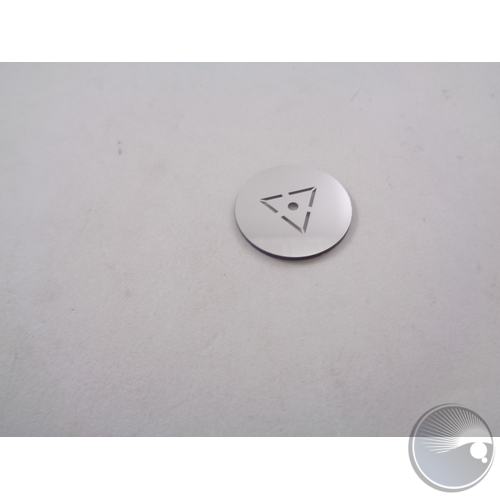

glass gobo #5 ?22-C090-13-C01 (BOM#363)PTHM20R2040501290691glass gobo #5 ?22-C090-13-C01 (BOM#363)

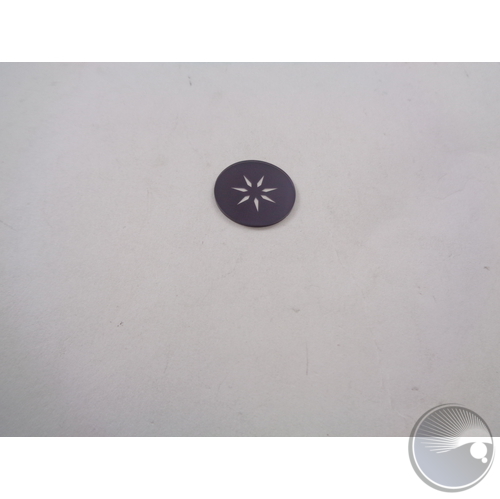

glass gobo #3 ?22-C050-13-C01 (BOM#361)PTHM20R2040501290701glass gobo #3 ?22-C050-13-C01 (BOM#361)

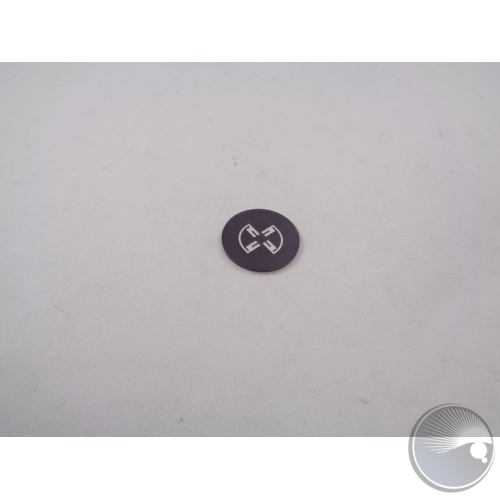

glass gobo #1 ?22-C091-13-C01 (BOM#359)PTHM20R2040501290711glass gobo #1 ?22-C091-13-C01 (BOM#359)
PTHM20R2081200347991Quick lock thrust Washer CD-D06-01 (BOM#352)
PTHPRO200SA0311strap press chip PRO-200S-A03-11 (BOM#156)
PTHPRO2RBZ03axle bushing (BOM#52)

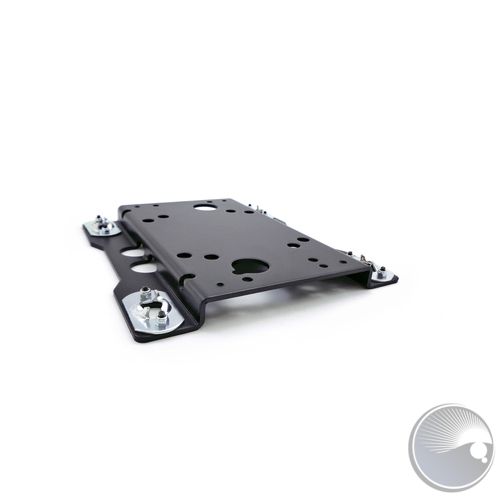

base bracket PRO-5R-A01-02 (BOM#30)PTHPRO5RA0102base bracket PRO-5R-A01-02 (BOM#30)

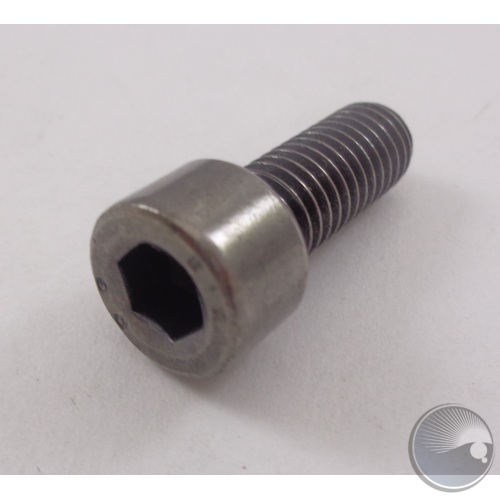

CM SCREW (BOM#16)PTJ3021700361CM SCREW (BOM#16)
Panel mount fuse holder (BOM#29)PTJ3027001001Panel mount fuse holder (BOM#29)
USSR440***LOC1*** OSRAM#55082 440 SR LAMP

Es sind leider keine Geräte verfügbar.

Es kann vorkommen, dass in unserem Lager noch gebrauchte Geräte vorhanden sind. Fragen Sie gerne über unsere Service-Hotline +49 871 40875521 oder per Email info@lights-whatever.de bei uns nach. Wir helfen Ihnen gerne weiter!

Bewertungen lesen, schreiben und diskutieren... mehr
Kundenbewertungen für "Maverick MK1 Hybrid"
Bewertung schreiben
Bewertungen werden nach Überprüfung freigeschaltet.

Die mit einem * markierten Felder sind Pflichtfelder.

Ich habe die Datenschutzbestimmungen zur Kenntnis genommen.

Zuletzt angesehen
