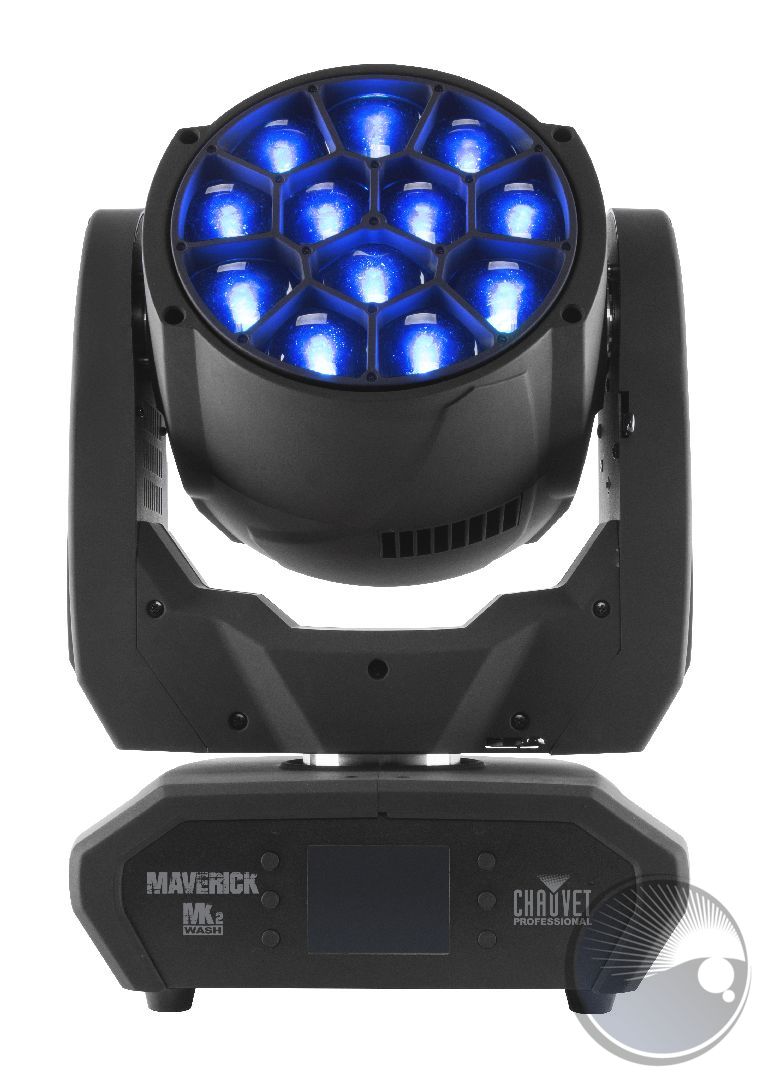

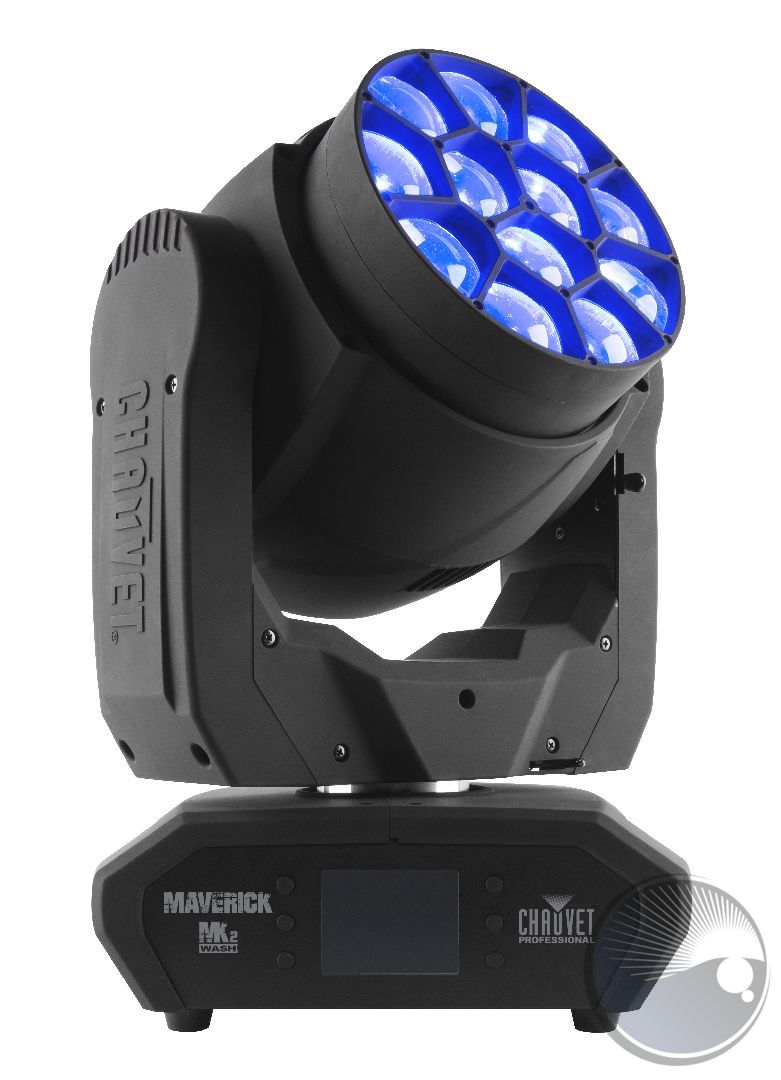

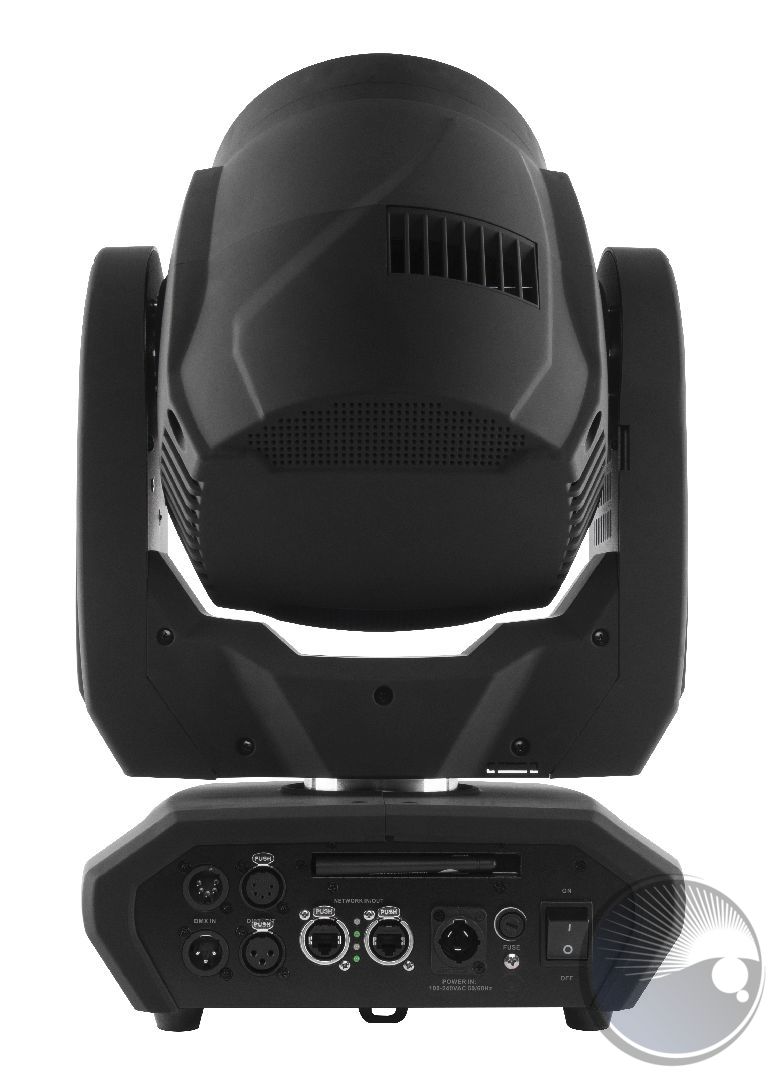

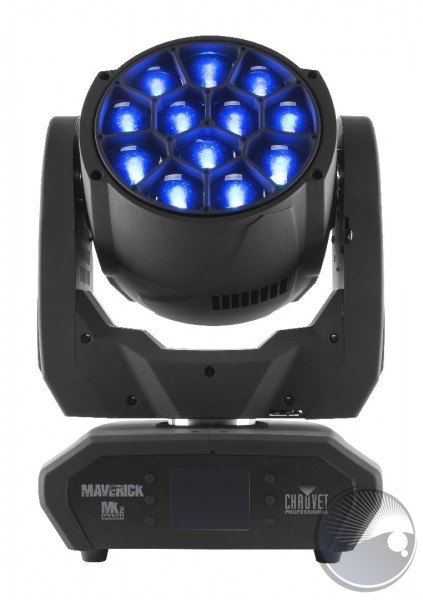

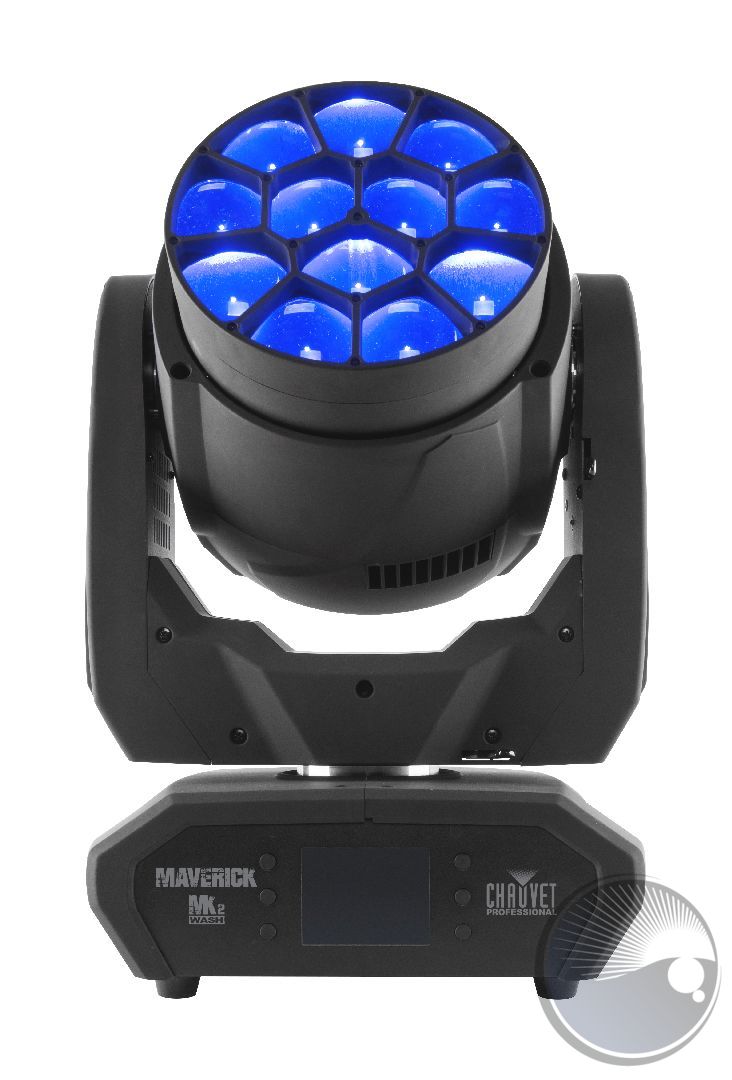

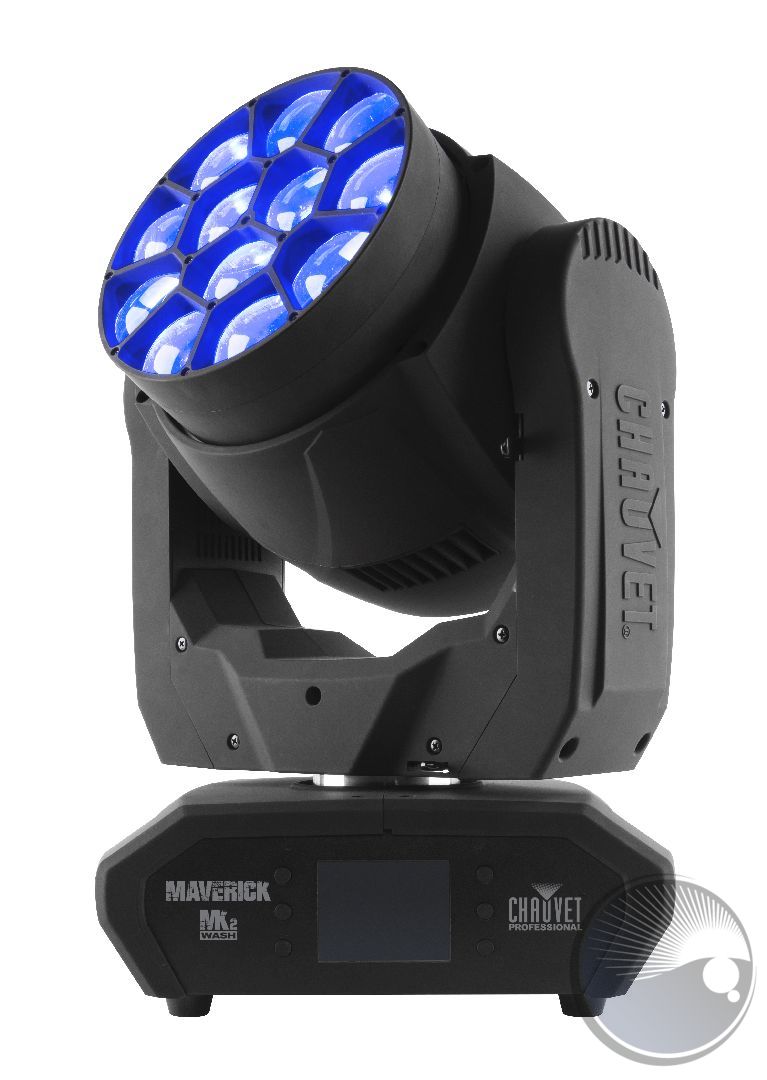

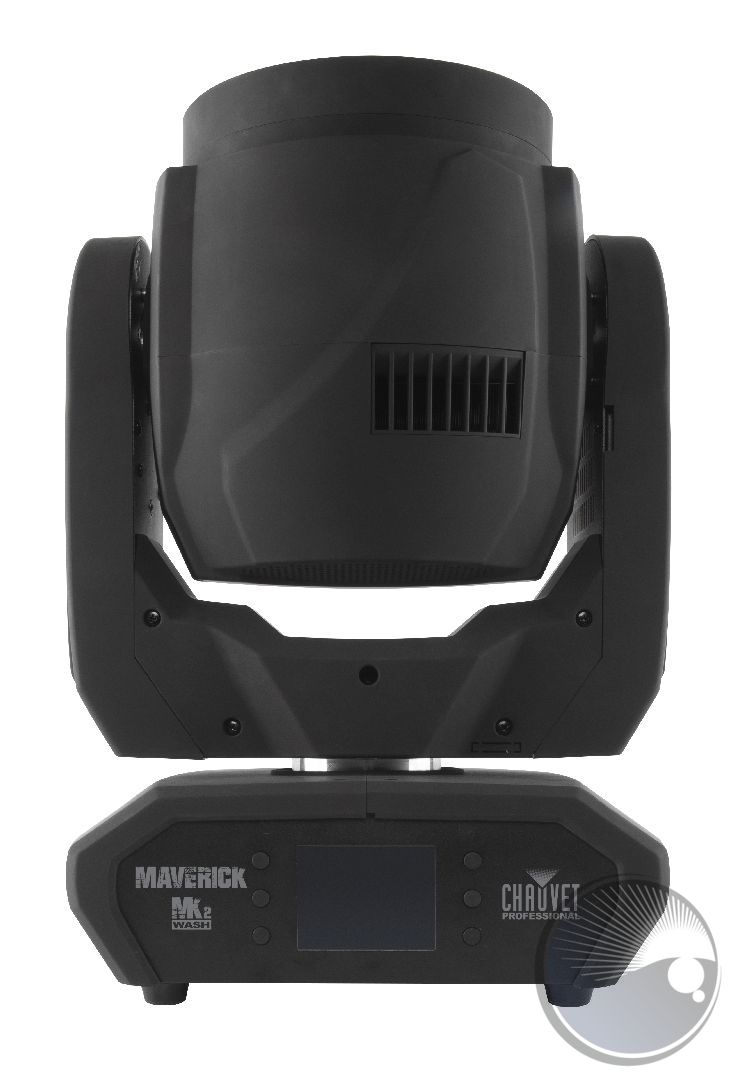

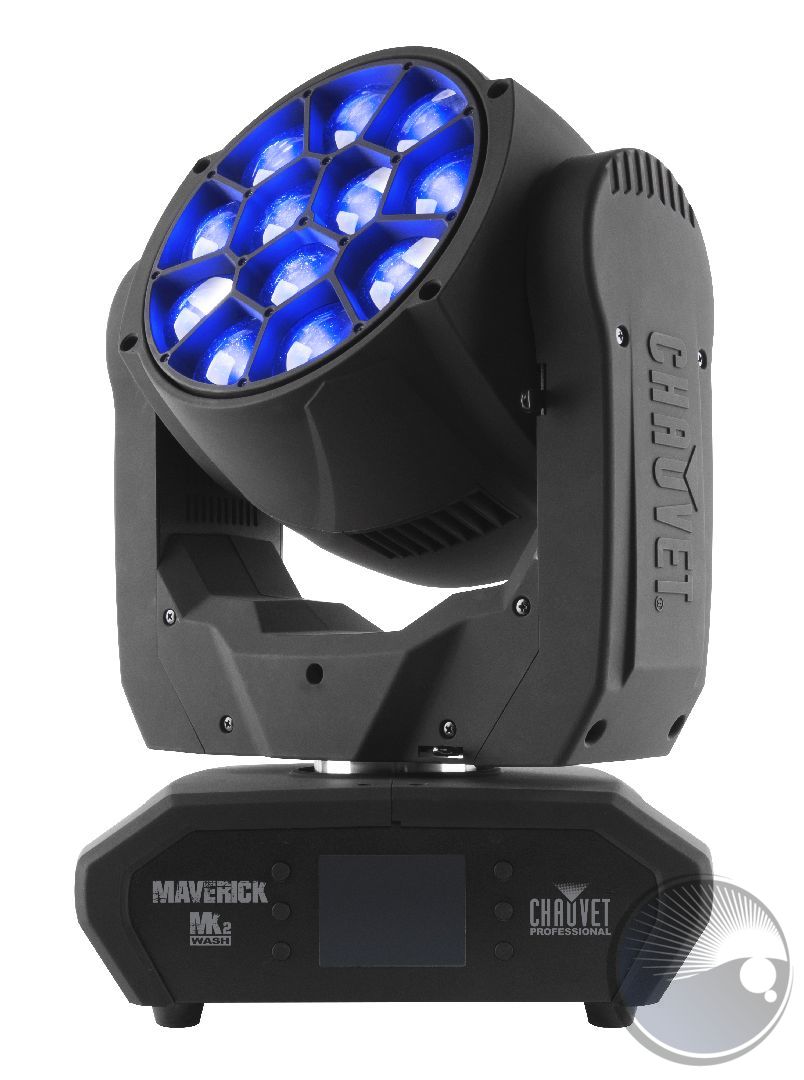

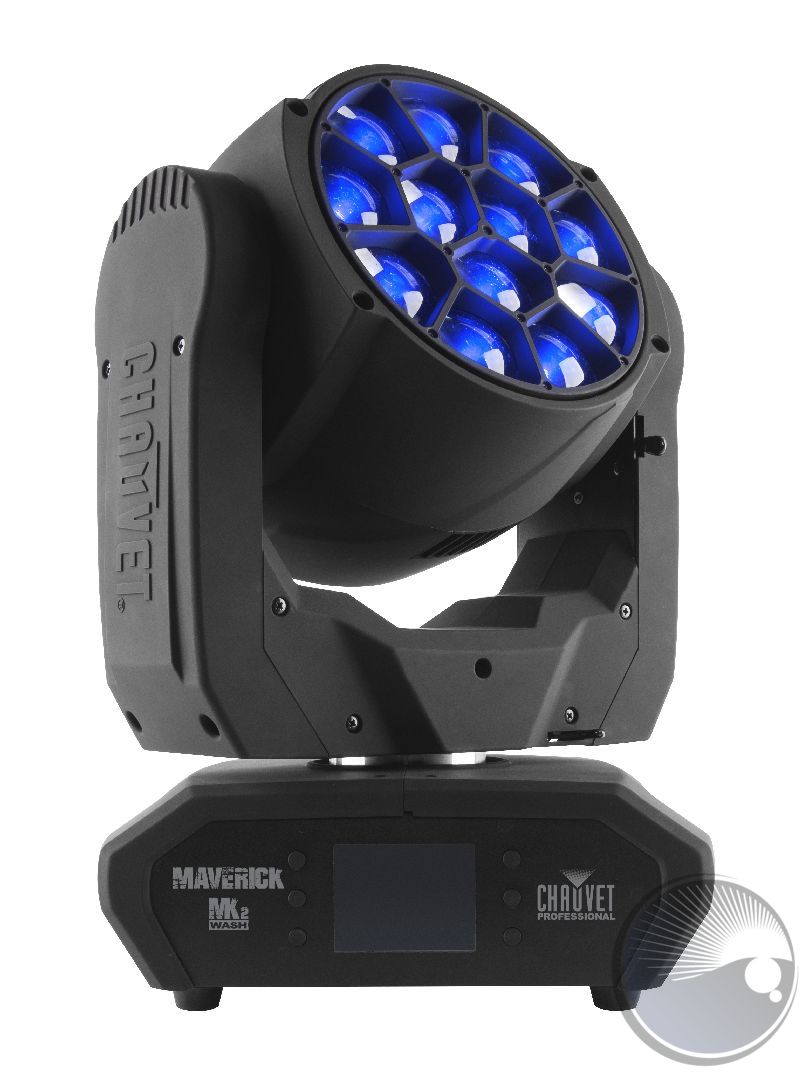

Maverick MK2 Wash

Auf Anfrage!

  • MAVERICKMK2WASH
Maverick  MK2 Wash Maverick MK2 Wash  rewrites the rules on wash fixtures with... mehr
Produktinformationen "Maverick MK2 Wash"

Maverick MK2 Wash

Maverick MK2 Wash rewrites the rules on wash fixtures with its flawlessly even output, custom designed optics, full pixel mapping, virtual gobo wheel with background colors, pre-programmed colors and 4.7° – 65.5° zoom range. Powered by 12 (40 W) Osram RGBW LEDs, it can handle any application, even aerial washing, with ease. Take control with DMX, sACN, Art-Net, Kling-Net or W-DMX.



AT A GLANCE

  • Fully featured RGBW LED yoke wash fixture with pixel mapping and zoom

  • 16-bit Dimming of master dimmer as well as individual colors for smooth control of fades

  • Virtual Color wheel with instantaneous access to 21 colors

  • Built in colors for quick design possibilities

  • Built in virtual gobo wheel with background colors for impressive atmospheric effects fast movement of pan, tilt, and zoom

  • Quiet operation for a wide range of installation situations

  • DMX, WDMX, S ACN, Art-Net, and Kling-Net control for full flexibility

  • 4.7° - 65.5° Zoom range for variable beam sizes

  • True 1 compatible power input

  • Battery backup display with auto rotate depending on fixture orientation

SPECIFICATIONS

OPTICAL

  • Light Source: 12 LEDs (quad-color RGBW) 40 W, (2.6 A), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K
  • Beam Angle: : 4.7° to 37.5°
  • Field Angle: 7.9° to 55.1°
  • Cutoff Angle: 9.2° to 65.5°
  • Zoom Range: 4.7° to 65.5°
  • Lumens – Source: 8,800
  • Lumens – Output: 5,900
  • Illuminance (7.9°): 19,972 lux @ 5 m
  • Illuminance (55.1°): 807 lux @ 5 m
  • PWM Frequency: 600 Hz, 1,200 Hz, 2,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: No
  • Color Temperature Presets: Yes
  • Move-in-Black: Yes
  • Dim Curves: 4

CONSTRUCTION / PHYSICAL

  • Dimensions: 12.72 x 9.17 x 18.54 in (323 x 233 x 471 mm)
  • Weight: 32.8 lb (14.8 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

CONNECTIONS

  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input/Output: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: Art-Net, sACN, Kling-Net, DMX, W-DMX, RDM
  • DMX Channels Single Mode: 20, 69, 115
  • DMX Channels Dual Mode – Function: 8, 20, 26
  • DMX Channels Dual Mode – Pixel: 36, 48, 60
  • Art-Net Channels Single Mode: 20, 69, 115
  • Art-Net Channels Dual Mode – Function: 8, 20, 26
  • Art-Net Channels Dual Mode – Pixel: 36, 48, 60

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V
  • Power and Current: 503 W, 4.08 A @ 120 V, 60 Hz
  • Power and Current: 506 W, 2.33 A @ 208 V, 60 Hz
  • Power and Current: 509 W, 2.17 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

  • MK2 Wash
  • Seetronic Powerkon IP65 power cord
  • Omega bracket with mounting hardware

REQUIRED ACCESSORIES

OPTIONAL ACCESSORIES

Weiterführende Links zu "Maverick MK2 Wash"

FUSE - 10A250V10AMPGMAFUSE - 10A250V
PTF1013000100antenna A40501 (BOM#8)
Power socket Assembly (out) (BOM#26)PTF1100000468Power socket Assembly (out) (BOM#26)
waterproof power socket (BOM#24)PTF1100000469waterproof power socket (BOM#24)
Power cord (BOM#41)PTFX20147Power cord (BOM#41)
fan net 6×6 (BOM#14)PTH02100600fan net 6×6 (BOM#14)
battery press board IB-5R-A01-07 (BOM#35)PTH1010102198361battery press board IB-5R-A01-07 (BOM#35)
pan oriantation chip LS440A0213 (BOM#74)PTH1010102250691pan oriantation chip LS440A0213 (BOM#74)
tilt lock shrapnel LS-440-A02-17 (BOM#78)PTH1010102250771tilt lock shrapnel LS-440-A02-17 (BOM#78)
PTH1010102260001pan optocoupler bracket LS440A0222 (BOM#65)
wifi bracket LS-440-A01-08 (BOM#14)PTH1010102265661wifi bracket LS-440-A01-08 (BOM#14)
power socket board accessory LS-440-A01-10 (BOM#9)PTH1010102267161power socket board accessory LS-440-A01-10 (BOM#9)

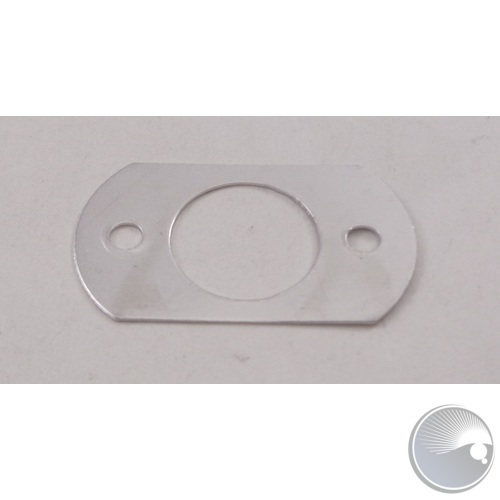

quick lock mat board MK1W-A01-09 (BOM#26)PTH1010102270191quick lock mat board MK1W-A01-09 (BOM#26)

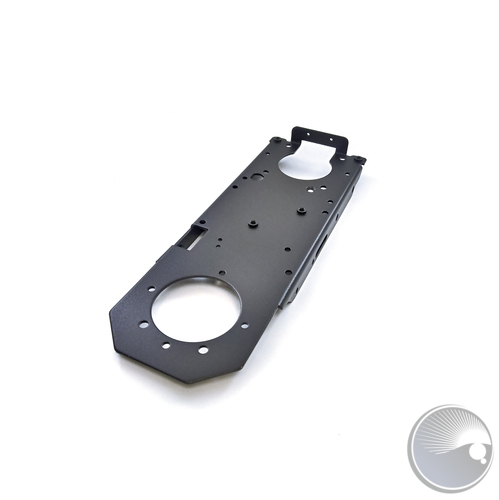

tilt motor bracket MK1WA0202 (BOM#44)PTH1010102270231tilt motor bracket MK1WA0202 (BOM#44)

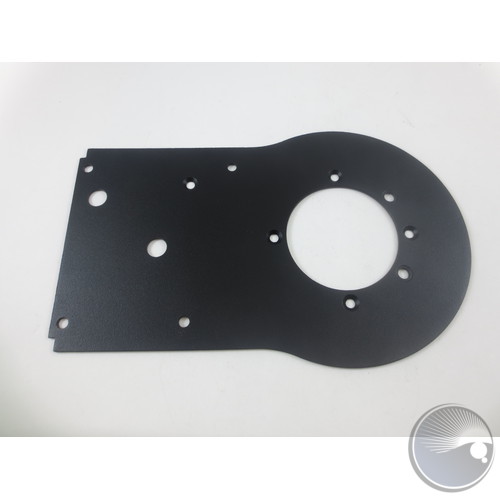

tilt motor bracket accessory MK1W-A02-04 (BOM#66)PTH1010102270271tilt motor bracket accessory MK1W-A02-04 (BOM#66)

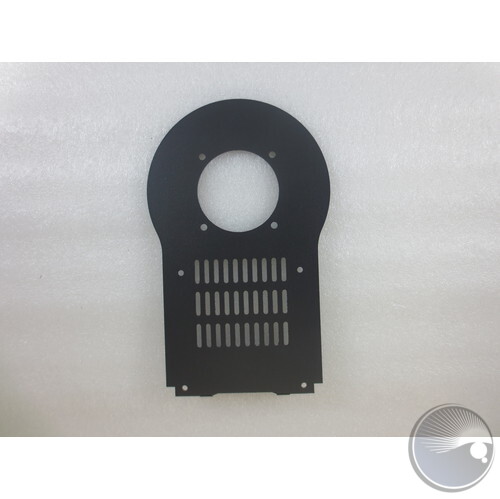

tilt bracket accessory MK1WA0205 (BOM#55)PTH1010102270301tilt bracket accessory MK1WA0205 (BOM#55)
PTH1010102270351tilt lock wheel MK1WA0208 (BOM#43)

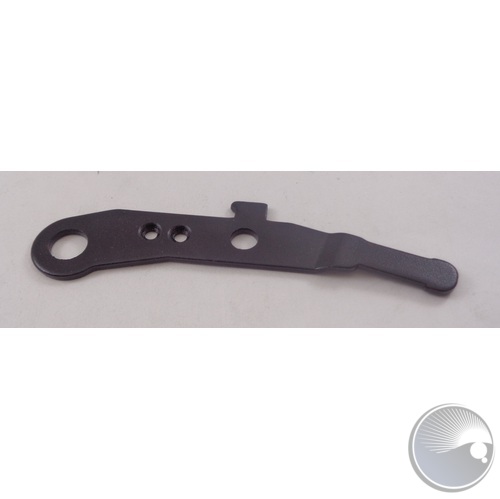

tilt lock pick MK1W-A02-09 (BOM#60)PTH1010102270371tilt lock pick MK1W-A02-09 (BOM#60)

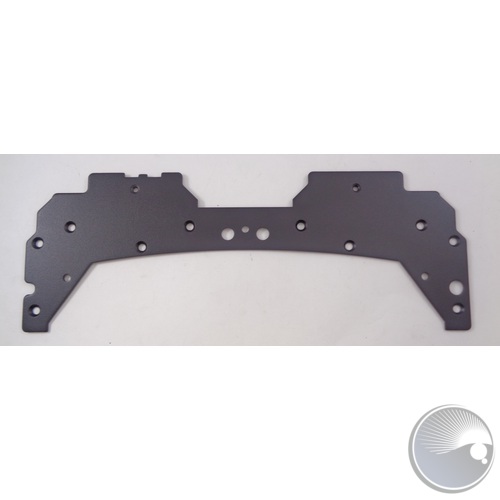

arm front board MK1WA0210 (BOM#50)PTH1010102270391arm front board MK1WA0210 (BOM#50)

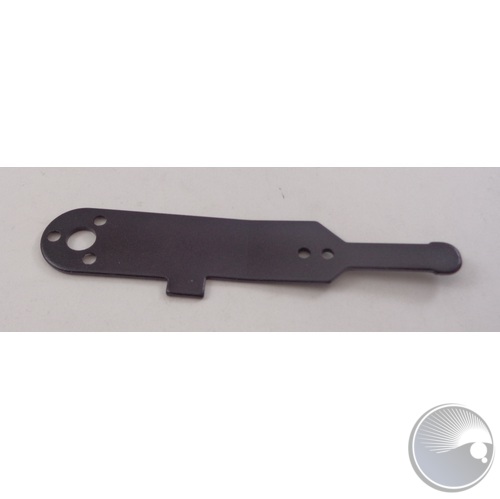

pan lock pick MK1WA0212 (BOM#86)PTH1010102270431pan lock pick MK1WA0212 (BOM#86)
PTH1010102270471motor mat MK1WA0214 (BOM#47)

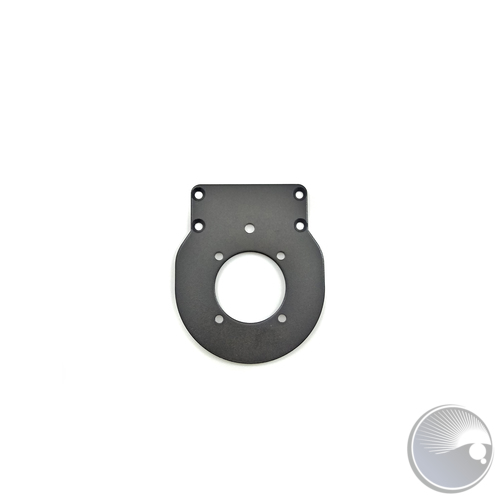

head side bracket MK1WA0302 (BOM#17)PTH1010102270511head side bracket MK1WA0302 (BOM#17)

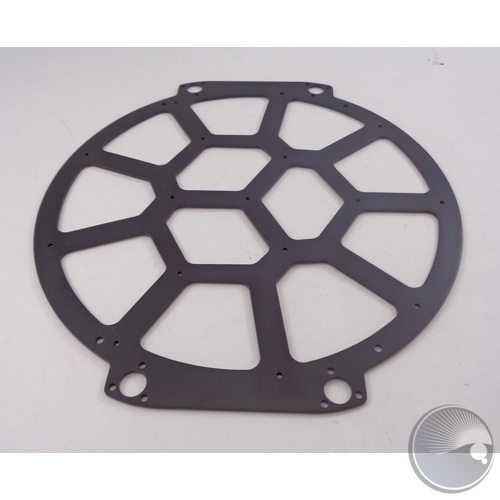

Foucs bracket MK1WA0303 (BOM#1)PTH1010102270531Foucs bracket MK1WA0303 (BOM#1)

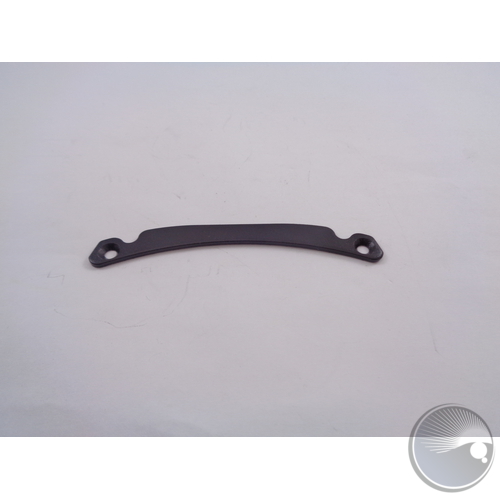

slider bracket MK1WA0304 (BOM#4)PTH1010102270551slider bracket MK1WA0304 (BOM#4)
PTH1010102270571back bracket MK1WA0305 (BOM#24)
stainless steel chip LS-440-A02-21 (BOM#82)PTH1010102271511stainless steel chip LS-440-A02-21 (BOM#82)
antenna clip LS-440-A01-12 (BOM#10)PTH1010102278171antenna clip LS-440-A01-12 (BOM#10)
safety buckle M515A0112B (BOM#30)PTH1010102284961safety buckle M515A0112B (BOM#30)

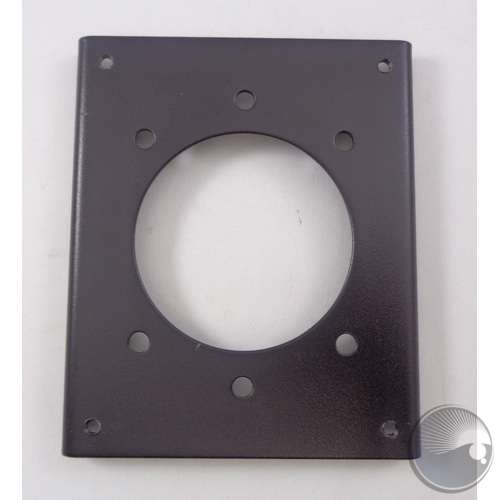

pan strengthen board MK1WA0105B (BOM#114)PTH1010102297471pan strengthen board MK1WA0105B (BOM#114)
PTH1010102302721base fan bracket MK1WA0108B (BOM#127)
PTH1010102302761arm cover installation board MK1WA0206B (BOM#31)
PTH1010102302781arm cover installation bracket MK1WA0207C (BOM#61)

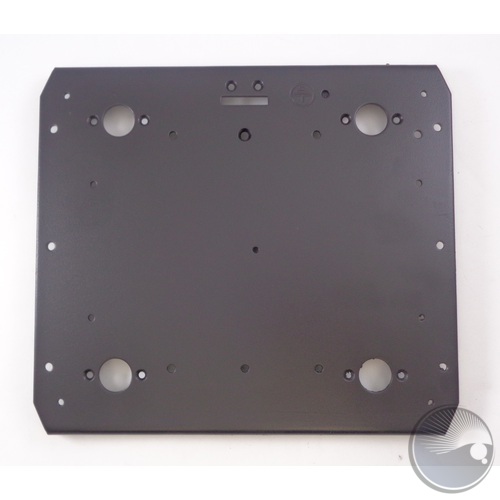

base board MK1WA0101C (BOM#125)PTH1010102302921base board MK1WA0101C (BOM#125)

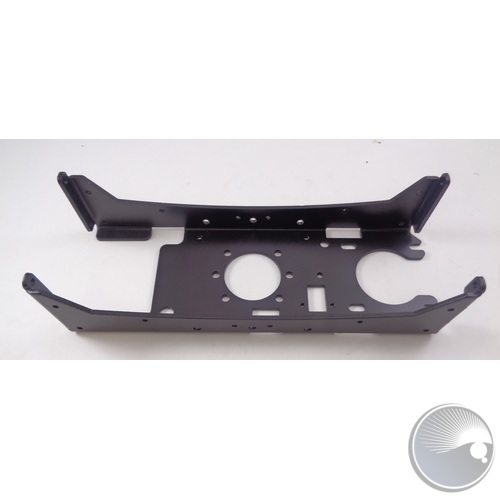

arm connection bracket MK1WA0201B (BOM#49)PTH1010102302941arm connection bracket MK1WA0201B (BOM#49)

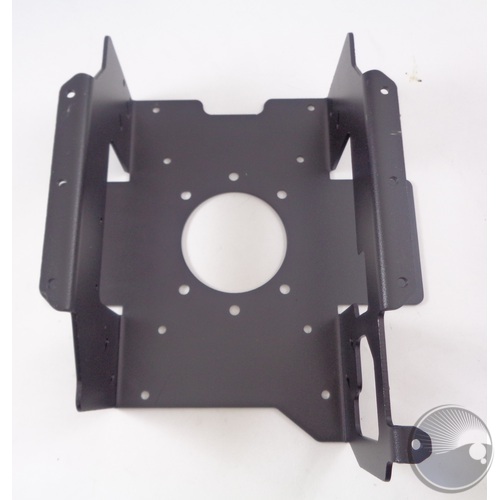

pan bracket MK1WA0102C (BOM#107)PTH1010102302981pan bracket MK1WA0102C (BOM#107)
PTH1010102303001pan cable barrier MK1WA0106B (BOM#115)
PTH1010102303021base side board MK1WA0107B (BOM#142)

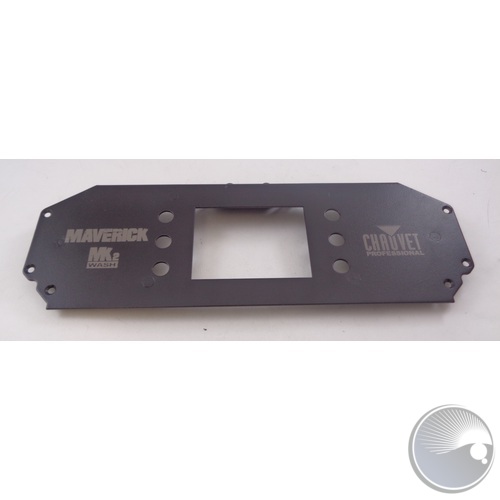

display board bracket MK1WA0103B (BOM#139)PTH1010102303041display board bracket MK1WA0103B (BOM#139)

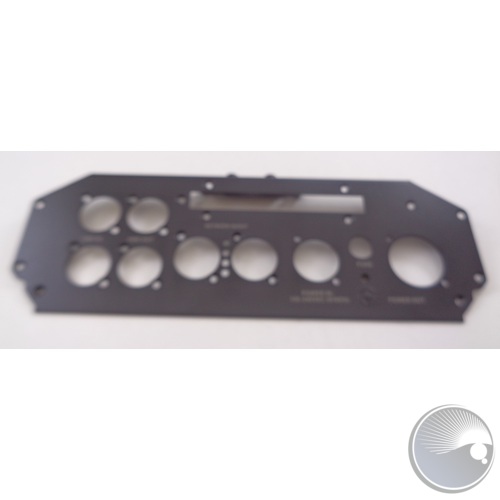

POWER SUPPLY socket board MK1WA0104D (BOM#97)PTH1010102303061POWER SUPPLY socket board MK1WA0104D (BOM#97)

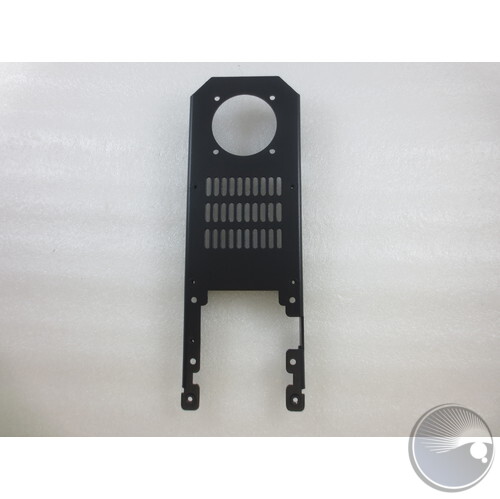

tilt bracket MK1WA0203C (BOM#56)PTH1010102304161tilt bracket MK1WA0203C (BOM#56)

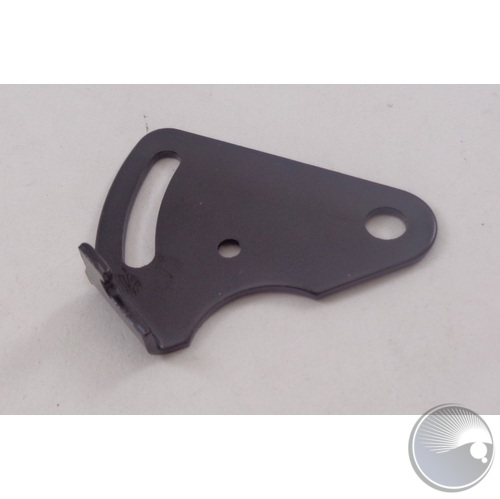

pulley bracket MK1W-A02-13 (BOM#63)PTH1010102304181pulley bracket MK1W-A02-13 (BOM#63)
PTH1010102304211pan motor bracket MK1WA0211B (BOM#67)

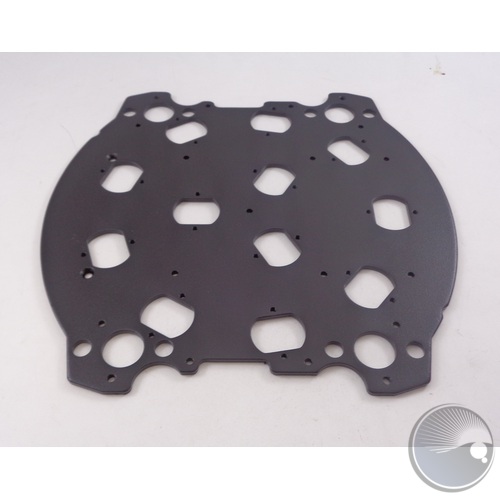

front bracket MK1WA0301B (BOM#9)PTH1010102306571front bracket MK1WA0301B (BOM#9)

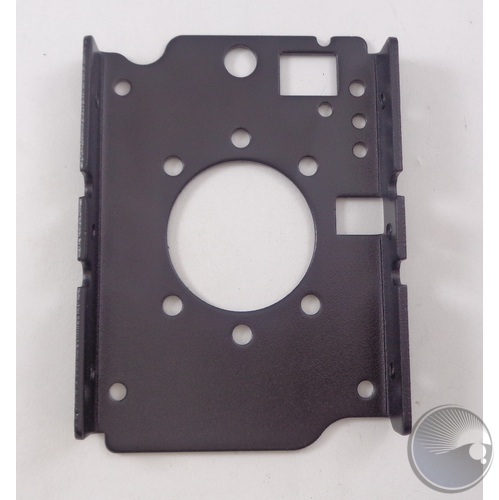

strengthen board MK1WA0216 (BOM#52)PTH1010102312131strengthen board MK1WA0216 (BOM#52)
pan lock axis LS440B02 (BOM#87)PTH1010202251391pan lock axis LS440B02 (BOM#87)
pan slider axis LS440B05 (BOM#64)PTH1010202251421pan slider axis LS440B05 (BOM#64)
tilt slider axis LS440B07 (BOM#81)PTH1010202251431tilt slider axis LS440B07 (BOM#81)
tilt lock axis LS-440-B08 (BOM#81)PTH1010202251501tilt lock axis LS-440-B08 (BOM#81)
ball screw LS-440-B20 (BOM#65)PTH1010202251561ball screw LS-440-B20 (BOM#65)
pan lock cover LS440B19 (BOM#89)PTH1010202259701pan lock cover LS440B19 (BOM#89)
PTH1010202259731pan bearing cover LS440B23 (BOM#81)
PTH1010202259741axis bushing LS440B24 (BOM#50)

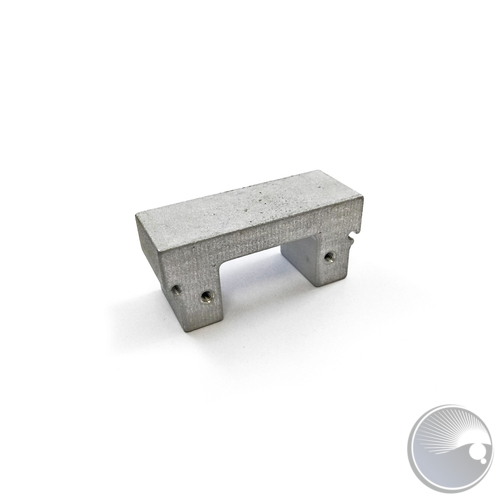

head connection block MK1WB01 (BOM#18)PTH1010202270591head connection block MK1WB01 (BOM#18)
pan oriantation cover MK1WB04 (BOM#62)PTH1010202270601pan oriantation cover MK1WB04 (BOM#62)

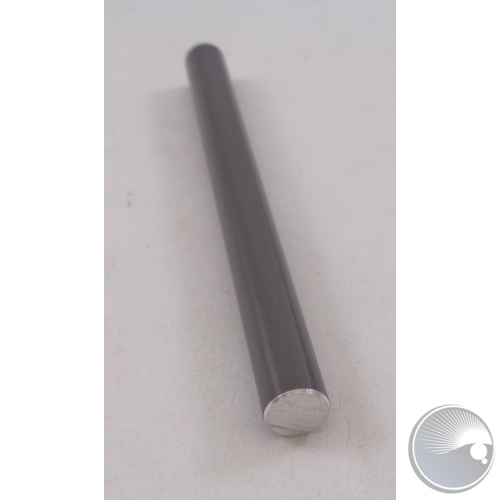

slider MK1W-B03 (BOM#119)PTH1010202270611slider MK1W-B03 (BOM#119)
Magnetic Post MK1WB05 (BOM#82)-FOR USE WITH PT# PTH2091400168401 (Magnet NOT Included)PTH1010202270632Magnetic Post MK1WB05 (BOM#82)-FOR USE WITH PT# PTH2091400168401 (Magnet NOT Included)
PTH1010202270641pan axis MK1WBZ01 (BOM#71)

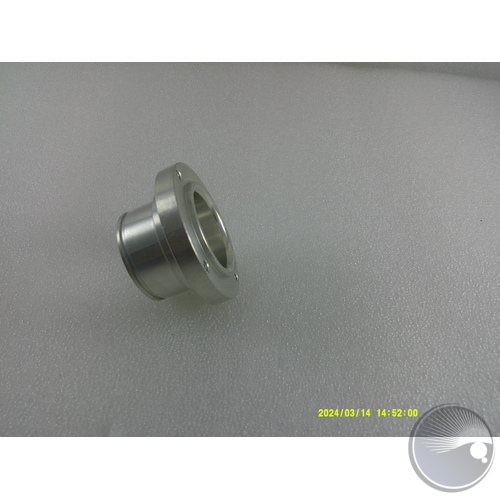

tilt axis MK1WBZ03 (BOM#54)PTH1010202270661tilt axis MK1WBZ03 (BOM#54)

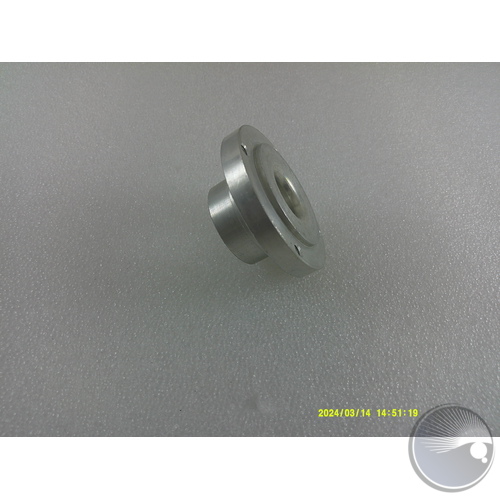

tilt axis MK1WBZ04 (BOM#46)PTH1010202270671tilt axis MK1WBZ04 (BOM#46)
PTH1010202270691gear DL39604 (BOM#84)

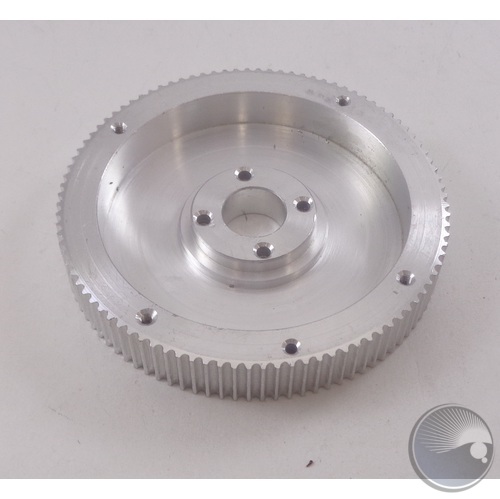

gear DL39605 (BOM#34)PTH1010202270701gear DL39605 (BOM#34)

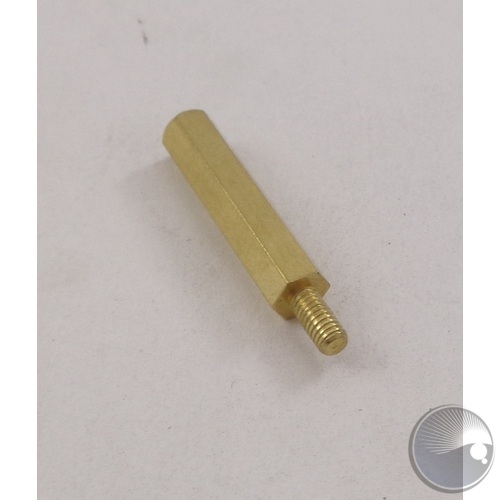

copper post MK1WB06 (BOM#15)PTH1010202302672copper post MK1WB06 (BOM#15)

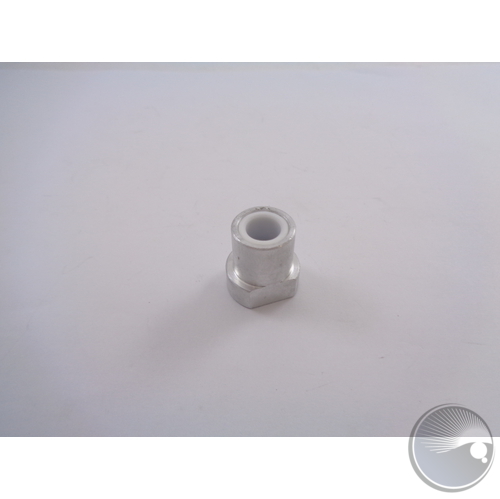

slider cover MK1WB02B (BOM#2)PTH1010202302801slider cover MK1WB02B (BOM#2)

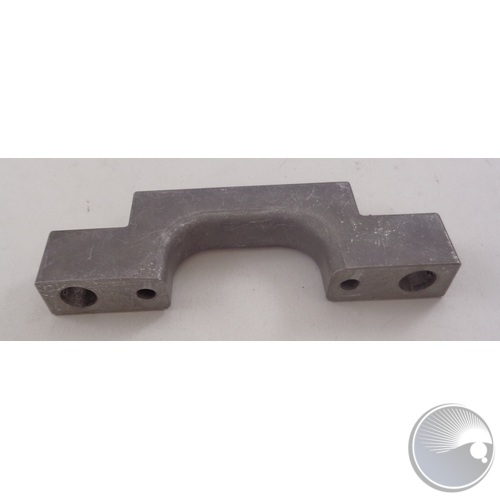

light guide fix cover MK1WB11 (BOM#10)PTH1010202310681light guide fix cover MK1WB11 (BOM#10)
PTH1010202310691light guide fix cover MK1WB12 (BOM#26)

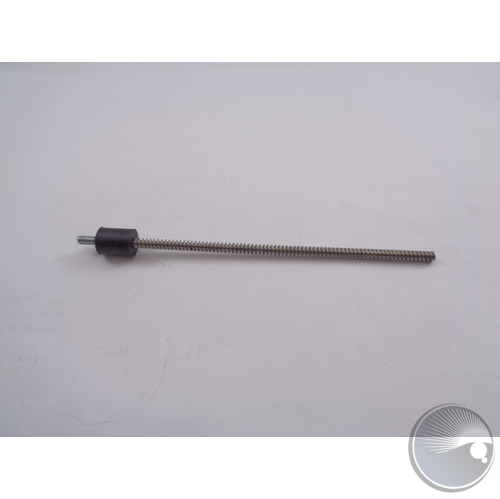

shake-proof spiral LG3.5115 (BOM#3)PTH1010202311791shake-proof spiral LG3.5115 (BOM#3)

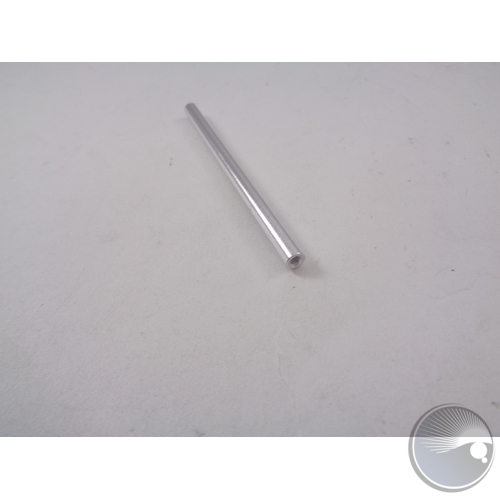

aluminum post ?5×81 M3 (BOM#53)PTH1010401216211aluminum post ?5×81 M3 (BOM#53)
PTH1010401267721aluminum post Φ5×83.5 M3 (BOM#62)
aluminum tube ?6×2.5?4.2 (BOM#44)PTH1010402163611aluminum tube ?6×2.5?4.2 (BOM#44)

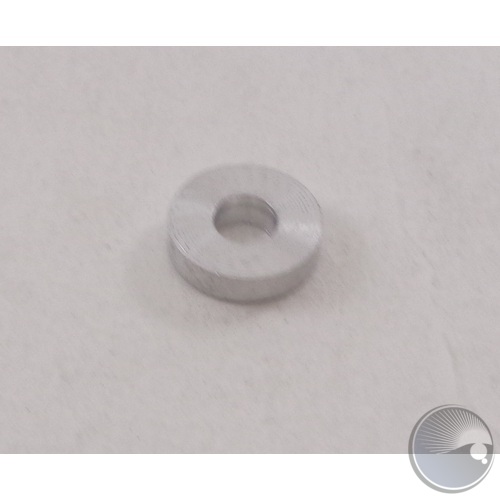

aluminum tube Φ8×2Φ3.2 (BOM#120)PTH1010402287061aluminum tube Φ8×2Φ3.2 (BOM#120)

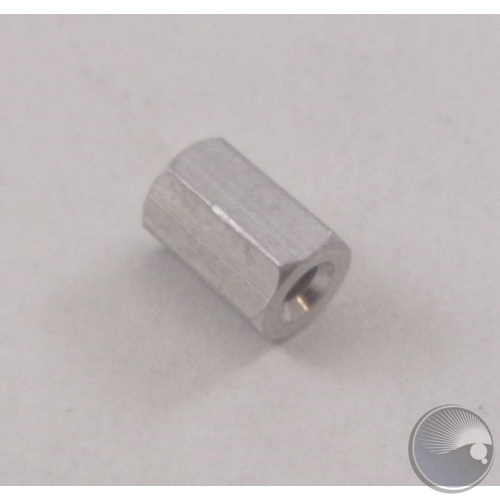

aluminum post H6×9M3 (BOM#8)PTH1010403165551aluminum post H6×9M3 (BOM#8)
PTH1010403165861aluminum post H6×40M3 (BOM#43)
PTH1010502267551heat sink CDZ05 (BOM#16)
140Dmm OMEGA BRACKET (BOM#34)PTH1040000230891140Dmm OMEGA BRACKET (BOM#34)
PTH1040000308381pan bushing M1235C (BOM#80)

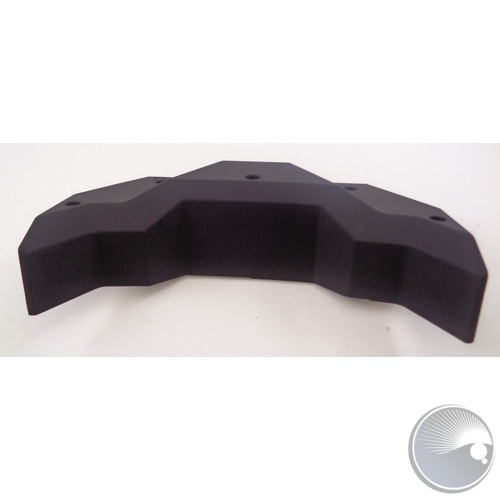

arm front cover MK1WC04 (BOM#51)PTH1060100283401arm front cover MK1WC04 (BOM#51)

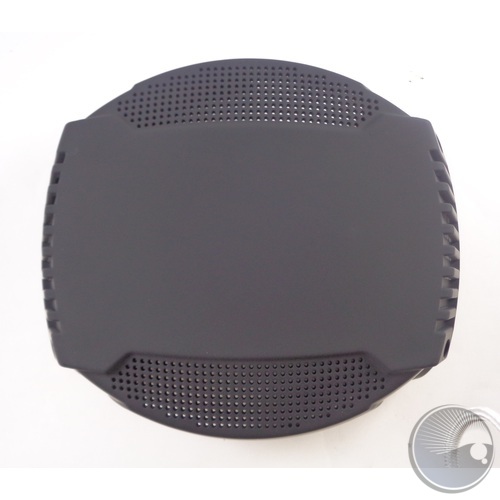

head back cover MK1WC06 (BOM#22)PTH1060100283421head back cover MK1WC06 (BOM#22)
PTH1060100283431wind guide cover MK1WC07 (BOM#19)

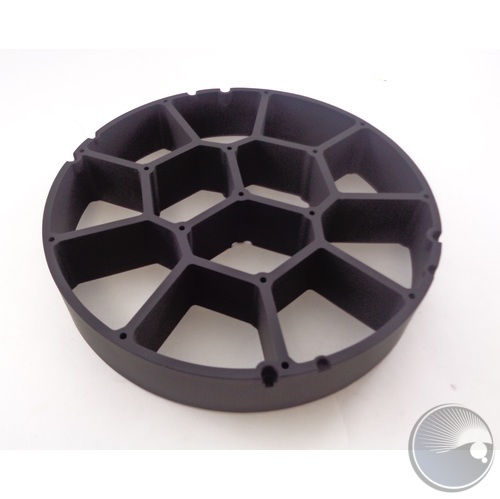

lens lower cover MK1WC08 (BOM#27)PTH1060100283441lens lower cover MK1WC08 (BOM#27)

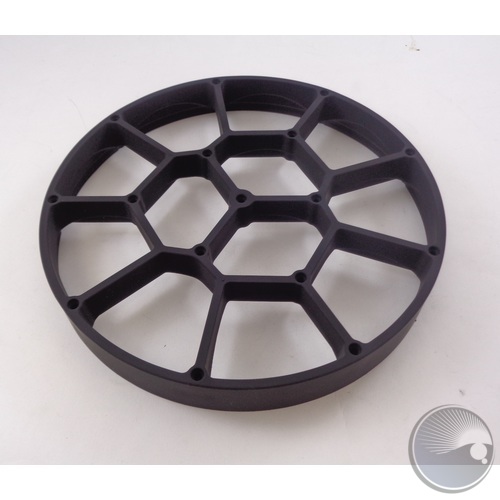

lens upper cover MK1WC09 (BOM#29)PTH1060100283451lens upper cover MK1WC09 (BOM#29)

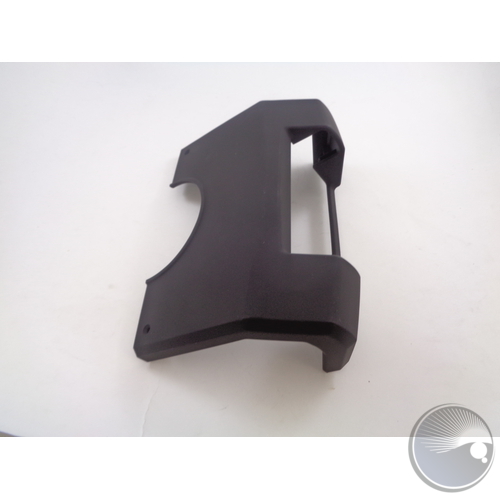

base side cover MK1W-C01 (BOM#21)PTH1060100283461base side cover MK1W-C01 (BOM#21)

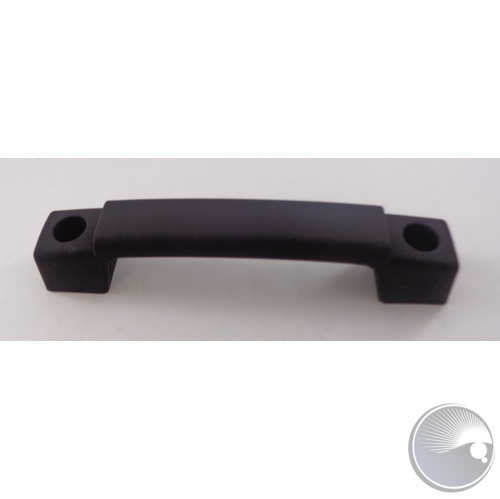

handle MK1W-C02 (BOM#22)PTH1060100283471handle MK1W-C02 (BOM#22)

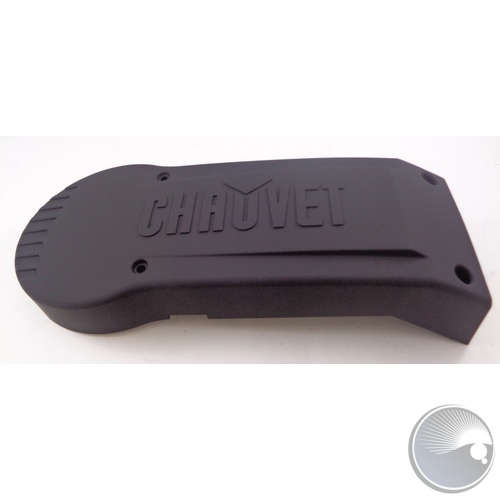

arm cover MK1WC03 (BOM#30)PTH1060100283481arm cover MK1WC03 (BOM#30)

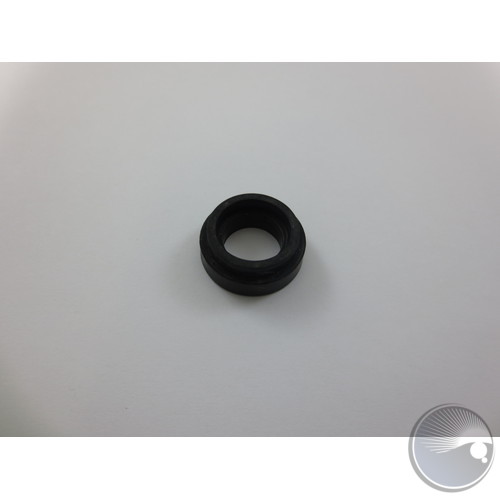

motor cover MK1WC10 (BOM#11)PTH1060100307791motor cover MK1WC10 (BOM#11)

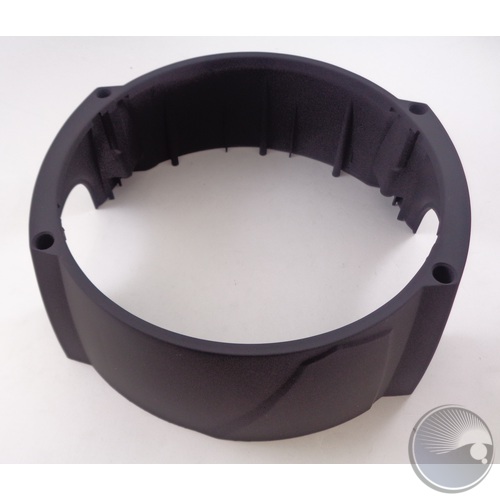

head front cover MK1WC05 (BOM#7)PTH1060100308781head front cover MK1WC05 (BOM#7)
Locking Washer for Fast LockPTH152000222Locking Washer for Fast Lock
optocoupler pcb AGD005A (BOM#64)PTH2020302181121optocoupler pcb AGD005A (BOM#64)

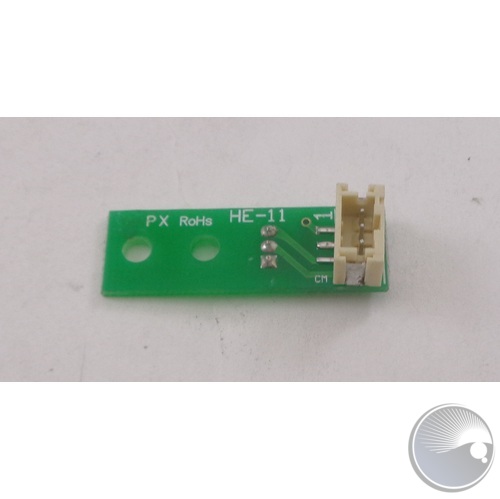

magnetic sensor HE11 (BOM#75)PTH2020302225811magnetic sensor HE11 (BOM#75)
magnetic sensor HE14A (BOM#73)PTH2020302252331magnetic sensor HE14A (BOM#73)
magnetic sensor HE14A (BOM#32)PTH2020302253611magnetic sensor HE14A (BOM#32)
PTH2020302262761full color display board LCD014A (BOM#140)
switch pcb ZJ038A (BOM#105)PTH2020302263901switch pcb ZJ038A (BOM#105)
DMX board DMX012B (BOM#40)PTH2020302267381DMX board DMX012B (BOM#40)
ethernet connector ZJ034 Amphenol (BOM#7)PTH2020302269051ethernet connector ZJ034 Amphenol (BOM#7)

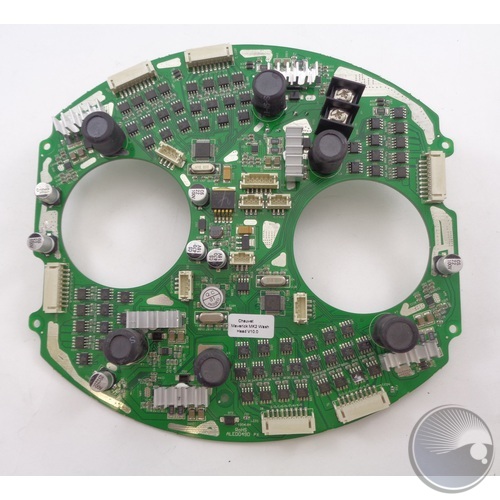

LED DRIVER PCB ALED049D (BOM#21)PTH2020302274621LED DRIVER PCB ALED049D (BOM#21)

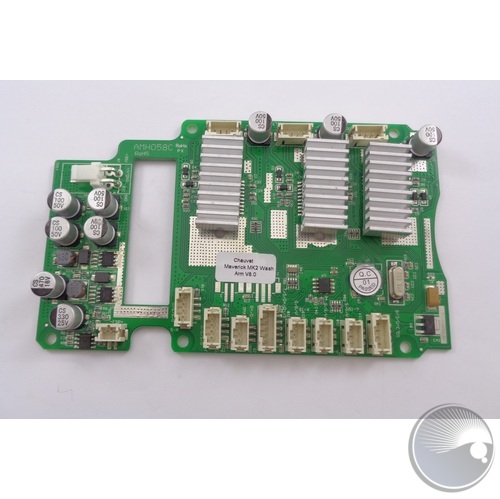

XY PCB AMH058C (BOM#60)PTH2020302279331XY PCB AMH058C (BOM#60)

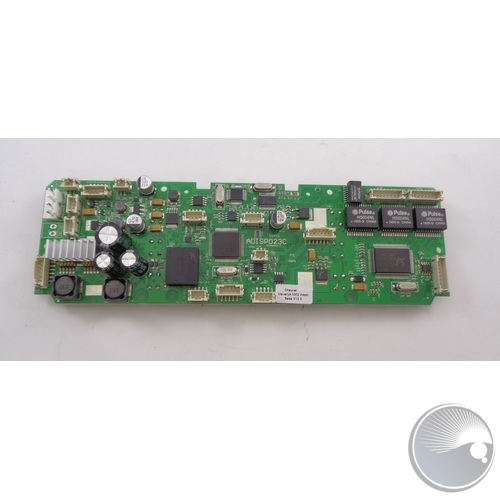

MPCB ADISP023C (BOM#137) Version 13.0PTH2020302288851MPCB ADISP023C (BOM#137) Version 13.0

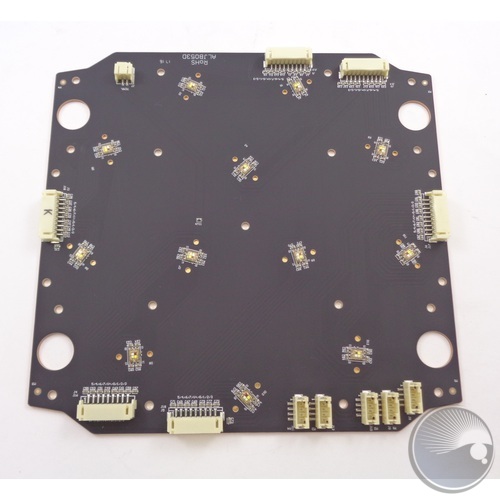

LED PCB ALJB053D (BOM#25)PTH2020302297791LED PCB ALJB053D (BOM#25)
wireless pcb A40895G4-R_GPTH2020303265531wireless pcb A40895G4-R_G
battery with pcb ICR14430-500mAh 3.7V, 1.85wh (BOM#112)PTH2021900301511battery with pcb ICR14430-500mAh 3.7V, 1.85wh (BOM#112)

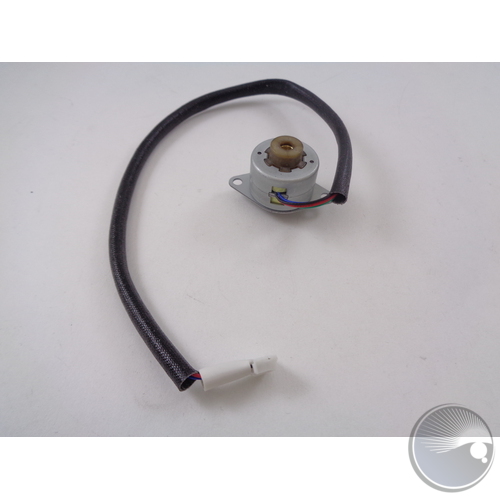

ZOOM Motor 25PM30013-01 (BOM#112)PTH2030103282341ZOOM Motor 25PM30013-01 (BOM#112)

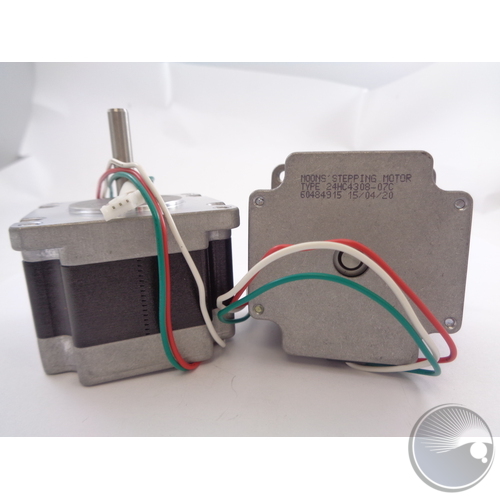

stepper motor 24HC430807C (BOM#48)PTH2030117179931stepper motor 24HC430807C (BOM#48)
FAN DC 12V 0.13A DFL6010B - 2-pin female 2.0 (BOM#124)PTH2030201101291FAN DC 12V 0.13A DFL6010B - 2-pin female 2.0 (BOM#124)

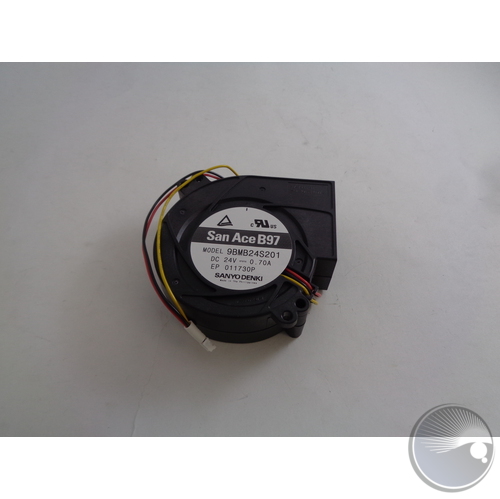

3-Pin Female fan 9BMB24S201 (BOM#23)PTH20302022641633-Pin Female fan 9BMB24S201 (BOM#23)
POWER SUPPLY H14UP650+32 (BOM#25)PTH2030700353011POWER SUPPLY H14UP650+32 (BOM#25)
gear set DL3150701 (BOM#69)PTH2040000277941gear set DL3150701 (BOM#69)
gear set DL3150901 (BOM#94)PTH2040000303891gear set DL3150901 (BOM#94)
PTH2040000308991tilt bushing M1235C (BOM#42)
PTH2040000309001tilt bushing M1235C (BOM#57)
PTH2040000309011tilt slider wheel M1235C (BOM#92)
PTH2040000309021pan slider wheel M1235C (BOM#77)
light guide set M-1235 LED Moving Wash (BOM#114)PTH2040000311811light guide set M-1235 LED Moving Wash (BOM#114)

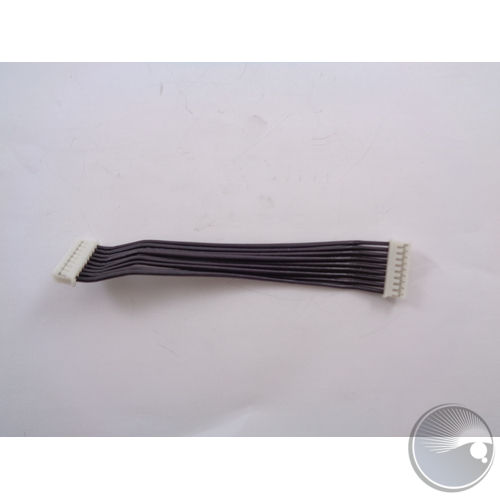

Single Wire Harness - LED-to-LED Driver (#1,2,4,5)PTH2040000347011Single Wire Harness - LED-to-LED Driver (#1,2,4,5)
Fan assembly DFM5010B 12V .12A FAN1J140.15 3-Pin Female (BOM#109)PTH2040000506091Fan assembly DFM5010B 12V .12A FAN1J140.15 3-Pin Female (BOM#109)

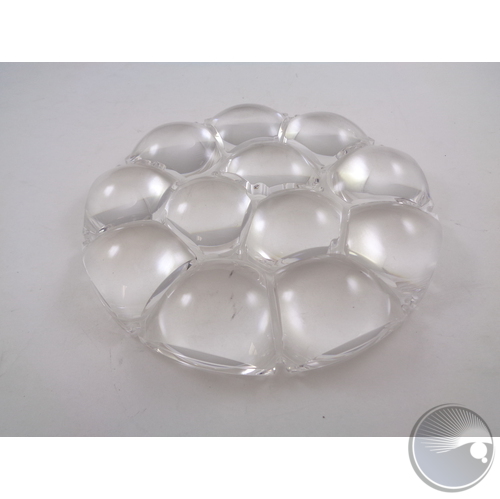

cluster 12 CINDY72409 (BOM#28)PTH2040900279311cluster 12 CINDY72409 (BOM#28)
wireless connection cable A40921 (BOM#96)PTH2050700291771wireless connection cable A40921 (BOM#96)
Screw to Mount LensPTH2080302267412Screw to Mount Lens
matel ring M12 (BOM#24)PTH2081101126491matel ring M12 (BOM#24)
PTH2081106253031ring ?10 (BOM#88)
rubber shake proof screw 817 (BOM#72)PTH2081200308972rubber shake proof screw 817 (BOM#72)

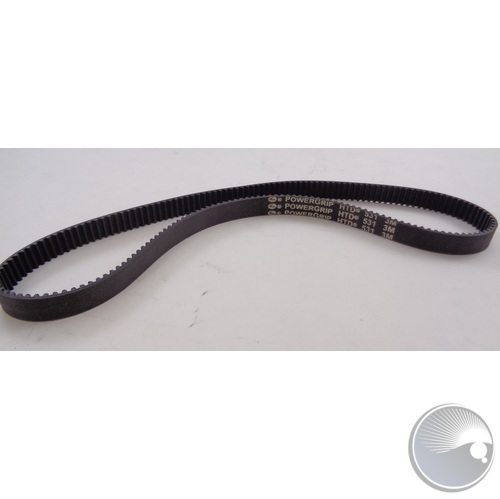

syncronization strap 3M531-10mm (BOM#35)PTH2090101271281syncronization strap 3M531-10mm (BOM#35)
syncronization strap 3M37512mm (BOM#77)PTH2090101293281syncronization strap 3M37512mm (BOM#77)
button cap AJM-10x6 (BOM#28)PTH2090400256161button cap AJM-10x6 (BOM#28)
machine feet (BOM#129)PTH2090400259771machine feet (BOM#129)
standoff H6x23 (BOM#12)PTH2090400304613standoff H6x23 (BOM#12)
standoff H6x33 (BOM#13)PTH2090400304623standoff H6x33 (BOM#13)
quick lock screw M20 (BOM#47)PTH2090500180091quick lock screw M20 (BOM#47)
spring ?10×38×1.2 (BOM#78)PTH2090601173371spring ?10×38×1.2 (BOM#78)
spring ?10×47×1.2 (BOM#68)PTH2090601276121spring ?10×47×1.2 (BOM#68)
POWER SUPPLY plug SAC3FX (BOM#133)PTH2090802266601POWER SUPPLY plug SAC3FX (BOM#133)
PTH2091101291791copper post 3×12.5 (BOM#104)

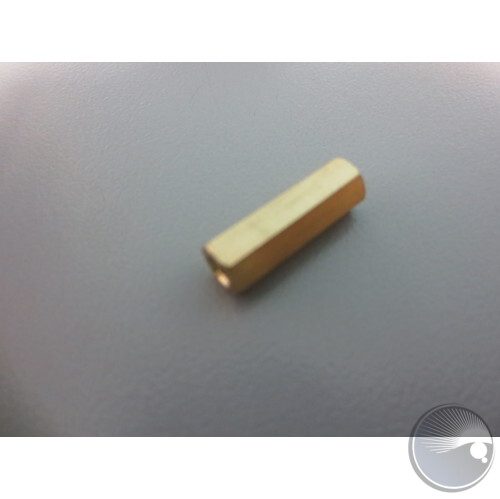

copper post 3×16 (BOM#18)PTH2091101291801copper post 3×16 (BOM#18)
PTH2091302169601axis circlip 351.5 (BOM#61)
open circlip ?4 (BOM#66)PTH2091302169621open circlip ?4 (BOM#66)
magnet ?3×3 (BOM#159)PTH2091400168401magnet ?3×3 (BOM#159)
PVC rubber cover 14x8 (BOM#68)PTH2091500249071PVC rubber cover 14x8 (BOM#68)
PTH2091500296861silicon mat LADS220 (BOM#138)
Single LEDPTH2120100258351Single LED
optocoupler pcb AGD004 B (BOM#70)PTH28AGD004Boptocoupler pcb AGD004 B (BOM#70)
pan mat chip EX575A0120 (BOM#74)PTHEX575A0120pan mat chip EX575A0120 (BOM#74)
copper screw EX575B03 (BOM#82)PTHEX575B03copper screw EX575B03 (BOM#82)
pan oriantation post PRO5RB19 (BOM#63)PTHPRO5RB19pan oriantation post PRO5RB19 (BOM#63)
CM SCREW (BOM#16)PTJ3021700361CM SCREW (BOM#16)
Panel mount fuse holder (BOM#29)PTJ3027001001Panel mount fuse holder (BOM#29)
dust cover 41.3×23×11.6 (BOM#121)PTJ5014950170dust cover 41.3×23×11.6 (BOM#121)

Es sind leider keine Geräte verfügbar.

Es kann vorkommen, dass in unserem Lager noch gebrauchte Geräte vorhanden sind. Fragen Sie gerne über unsere Service-Hotline +49 871 40875521 oder per Email info@lights-whatever.de bei uns nach. Wir helfen Ihnen gerne weiter!

Bewertungen lesen, schreiben und diskutieren... mehr
Kundenbewertungen für "Maverick MK2 Wash"
Bewertung schreiben
Bewertungen werden nach Überprüfung freigeschaltet.

Die mit einem * markierten Felder sind Pflichtfelder.

Ich habe die Datenschutzbestimmungen zur Kenntnis genommen.

Zuletzt angesehen
