COLORdash Batten H12XIP

909,28 € *

inkl. MwSt. zzgl. Versandkosten

Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.

  • COLORDASHBATTENH12XIP
The rugged COLORdash Batten H12X IP RGBWAUV linear wash with 12 individually-controllable... mehr
Produktinformationen "COLORdash Batten H12XIP"

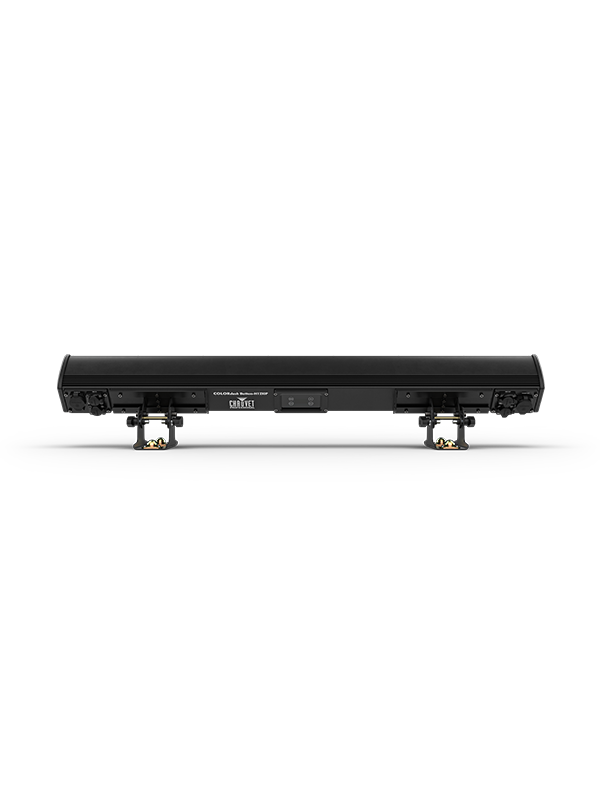

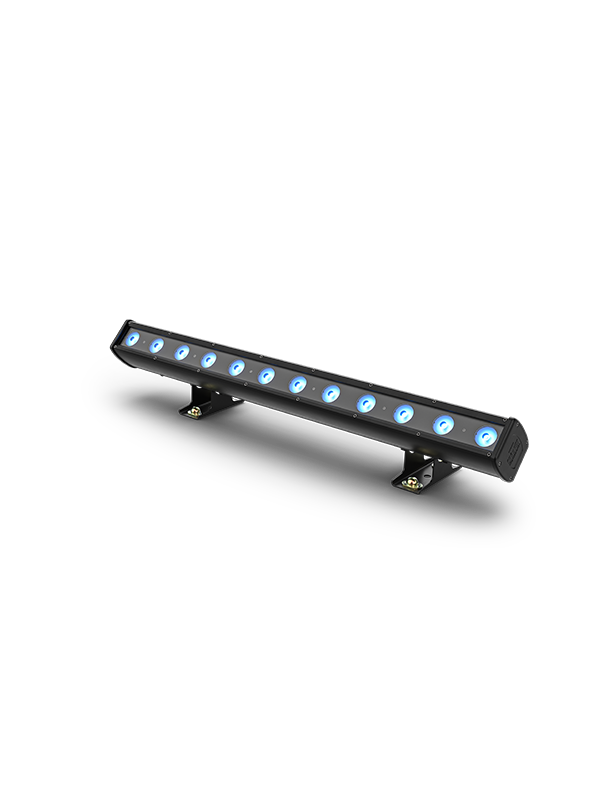

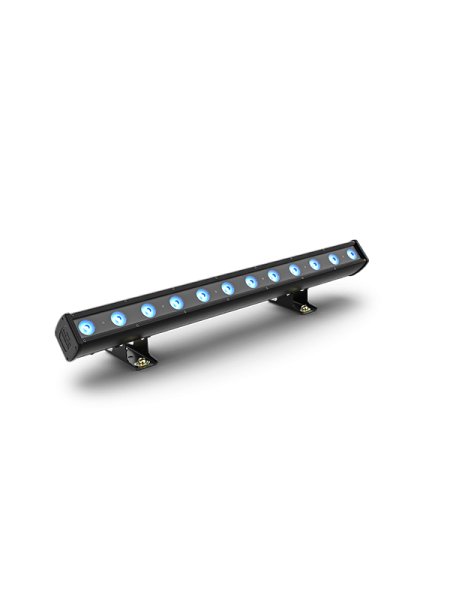

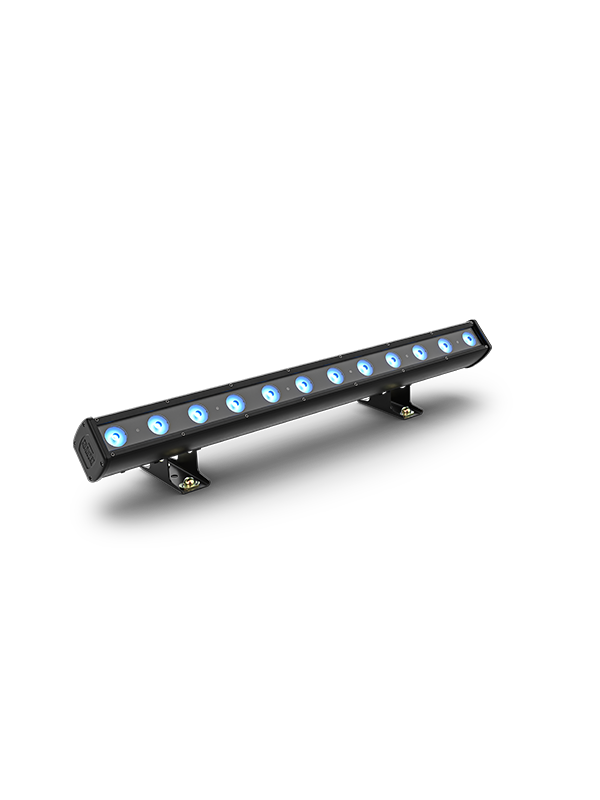

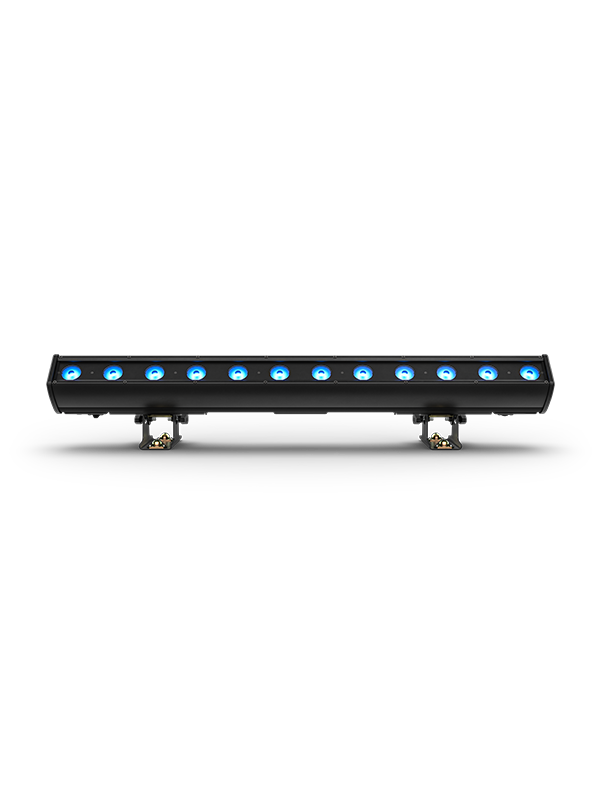

The rugged COLORdash Batten H12X IP RGBWAUV linear wash with 12 individually-controllable hex-colored LEDs efficiently delivers a broad palette of subtle to saturated color with beautiful precision, weighing in under 18 lbs while delivering over 4,700 lumens of output. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Maintains an even pixel pitch for perfect pixel mapped looks when used in multiples. Setup is easy with hanging brackets that double as floor stands. With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, COLORdash Batten H12X IP offers convenient operation and excellent performance as an IP65-rated all-weather die-cast workhorse at home in any environment, in the rig or on the floor, live or on camera, indoor or out.

At a Glance

  • Rugged RGBWA-UV LED batten for events where indoor/outdoor flexibility is needed

  • At home in any weather conditions with IP rated power and DMX connections

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • RDM (Remote Device Management) for added flexibility

  • Selectable, smooth dimming curves for eliminate flicker and choppiness in fades

  • Easy to read OLED display with password protection and touchscreen interface

  • Advanced optics provide exceptional color mixing and high efficiency

  • Floor trunions with omega bracket for easy hanging

Weiterführende Links zu "COLORdash Batten H12XIP"

PTK114030017Power cable
PTK116010062Power socket (input) (BOM#30)
PTK116010063Power socket (output) (BOM#14)

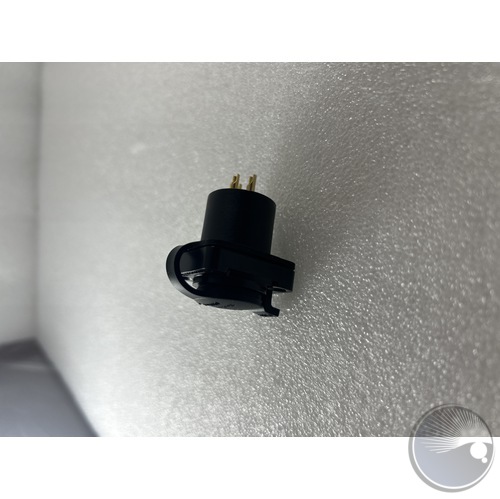

PTK1160200293Pin XLR socket (female) (BOM#31)
PTK1160200395Pin XLR socket (male) (BOM#15)
PTK1160200405Pin XLR socket (female) (BOM#32)
OLED displayPTK121000011OLED display
PTK127034002Tempered glass 979*57*T4 (BOM#1)
PTK127034013Tempered glass for the MPCB (BOM#27)
LED lenses (BOM#3)PTK127090022LED lenses (BOM#3)

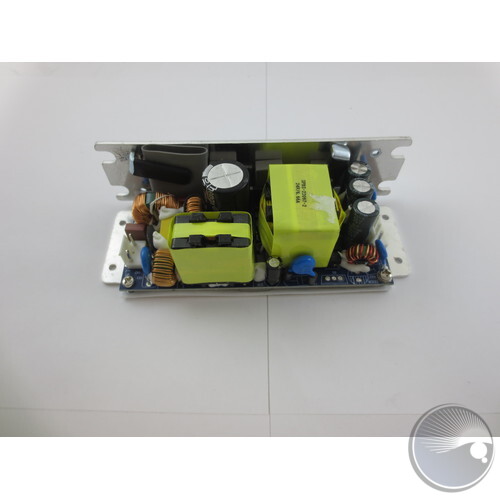

Power supply (BOM#35)PTK128010132Power supply (BOM#35)

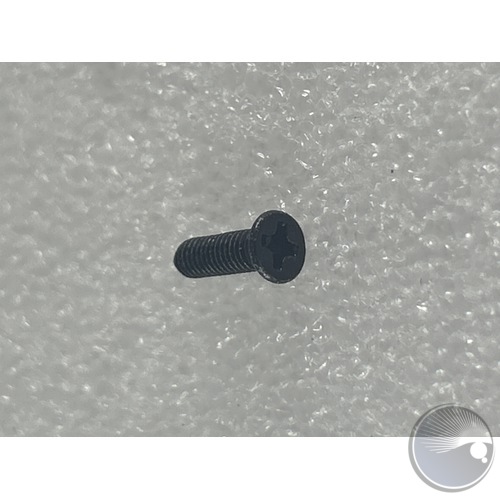

Countersunk screw KM_3*10mmPTK130012046Countersunk screw KM_3*10mm
Bracket screw (BOM#22)PTK130017057Bracket screw (BOM#22)

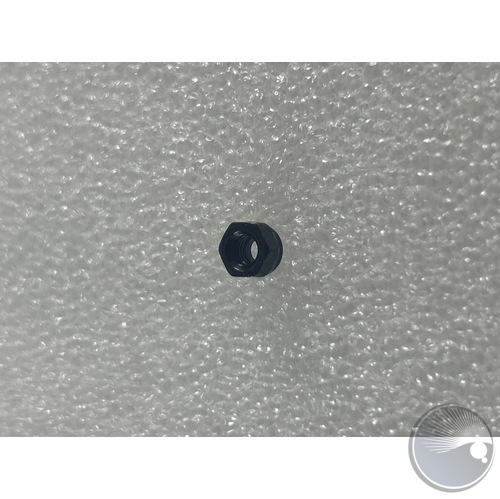

Hexagon nylon nut M3_5.5*4mmPTK130022009Hexagon nylon nut M3_5.5*4mm
Clear washer (BOM#15)PTK130041023Clear washer (BOM#15)
Hexagon copper pillar M3x26+6 (BOM#4)PTK130051025Hexagon copper pillar M3x26+6 (BOM#4)
Waterproof cap for the Omega bracket (BOM#29)PTK130900009Waterproof cap for the Omega bracket (BOM#29)
Lock plate for the Omega bracket (BOM#)PTK130900010Lock plate for the Omega bracket (BOM#)
Omega bracketPTK130900016Omega bracket
PTK199010081Silicone ring 962*60*7 40A (BOM#2)
PTK199010102Sealing silicon for the side plate (BOM#9)
PTK199010103Sealing silicon for the socket (BOM#11)
PTK199110001Waterproof air vent valve (BOM#16)
PTK2300011327Main casing (BOM#10)
PTK2300011341Pressing plate for the LED lens (BOM#4)
PTK2300011342Battens 982*15.53*6.7 (BOM#1)
PTK2300011343Side plate (BOM#8)
PTK2300011344Block for the power input socket (BOM#34)
PTK2300011345Output socket pad (BOM#12)
PTK2300011346Foot bracket 150*84.25*66*T2.5 (BOM#24)
PTK2300011347Bracket mounter (BOM#16)
PTK2300011348Battens for the foot bracket (BOM#18)
PTK2300011350Block for the foot bracket (BOM#17)
PTK2300021019Press plate for the MPCB (BOM#31)

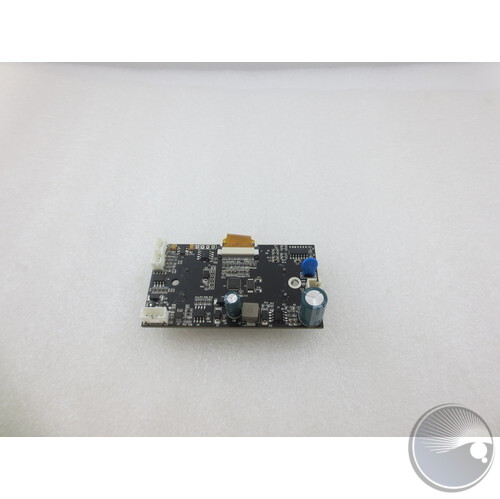

MPCB (BOM#28)PTK510001310MPCB (BOM#28)

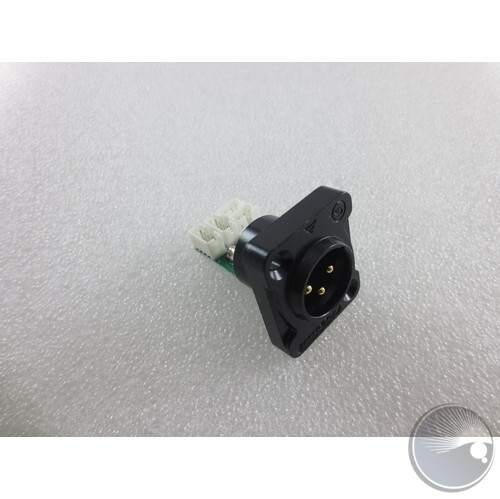

DMX PCBPTK510002177DMX PCB

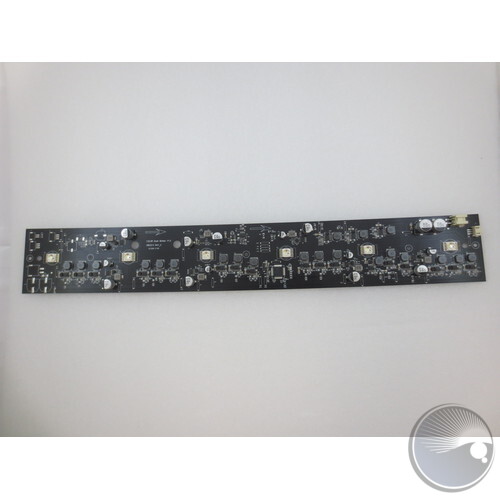

LED driver PCB - A (BOM#7)PTK510003190LED driver PCB - A (BOM#7)

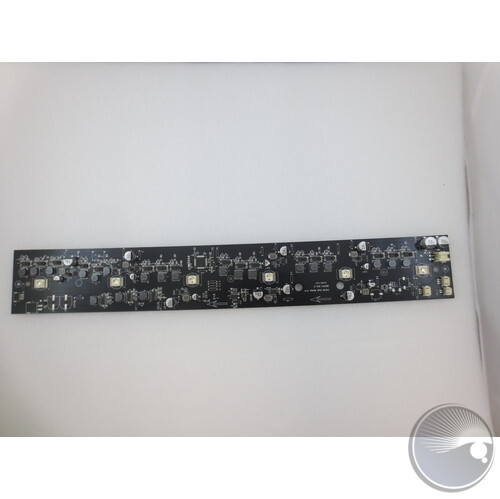

LED Driver PCB - BPTK510003191LED Driver PCB - B
