COLORado Batten 72X

Auf Anfrage!

  • COLORADOBATTEN72X
COLORado  Batten 72X COLORado Batten 72X is a class leading, powerful IP65... mehr
Produktinformationen "COLORado Batten 72X"

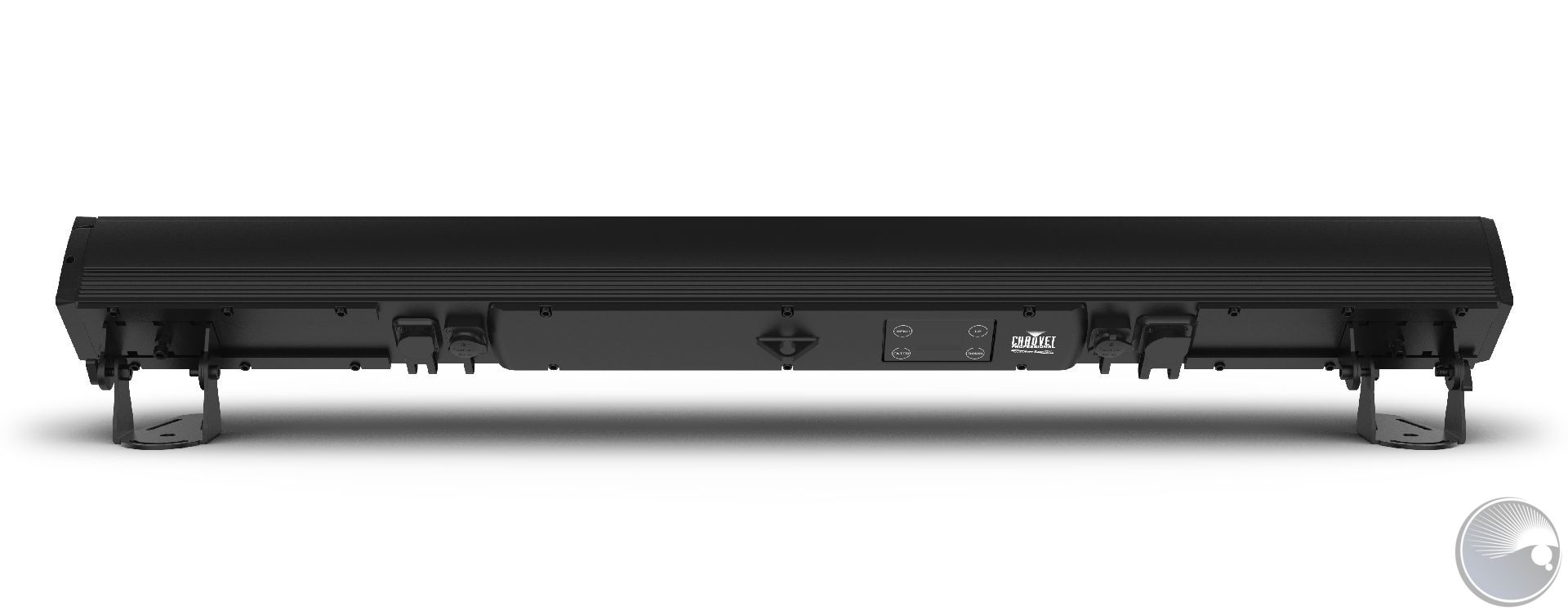

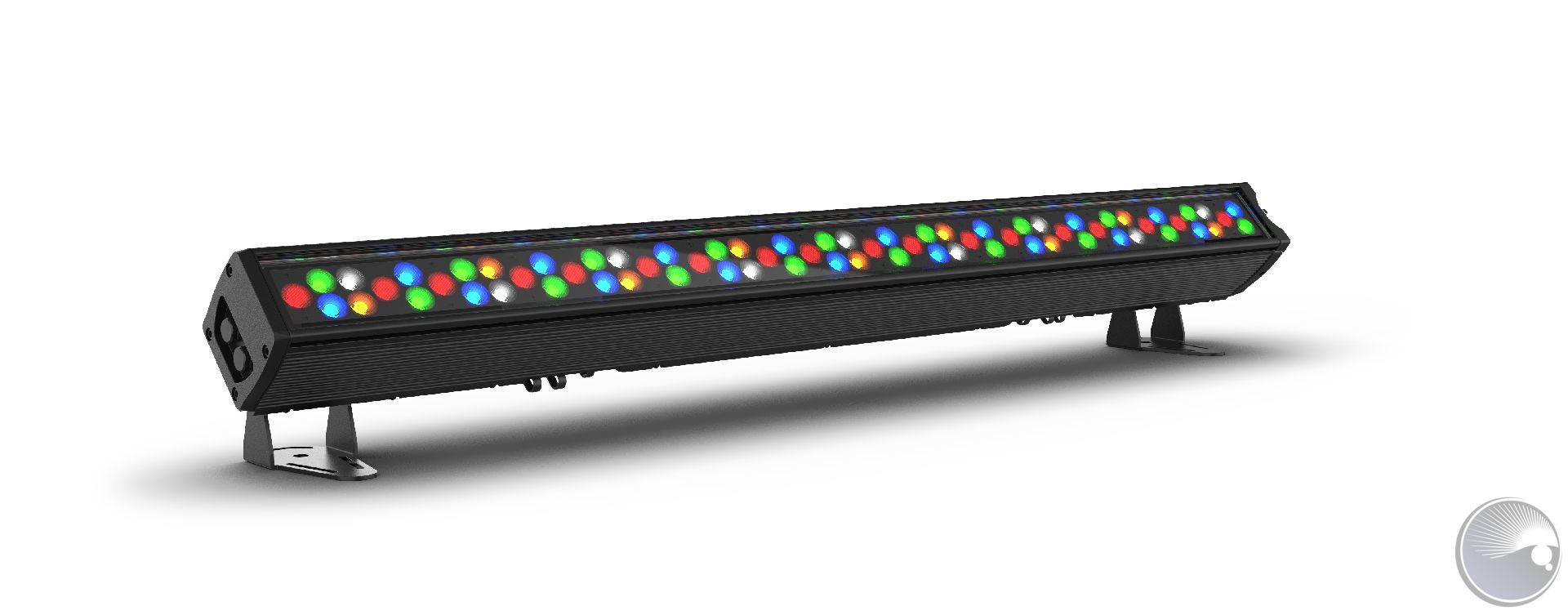

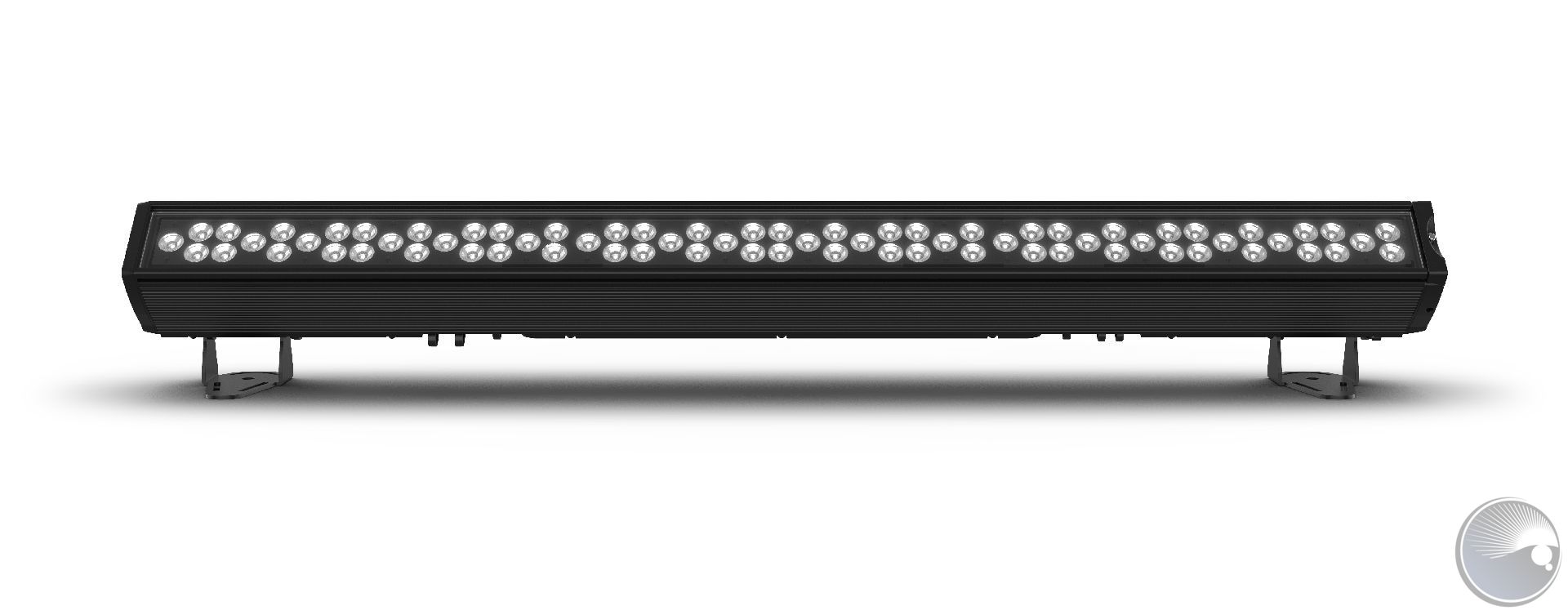

COLORado Batten 72X

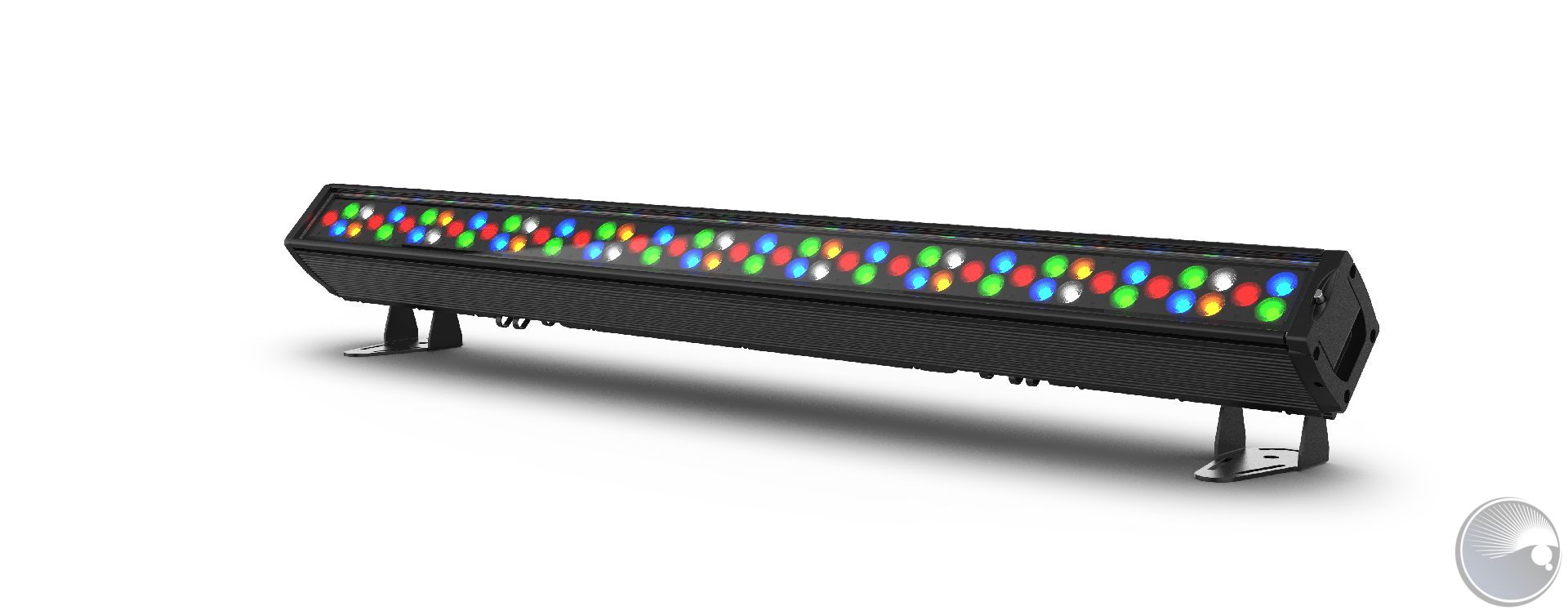

COLORado Batten 72X is a class leading, powerful IP65 batten-style wash light powered by 72 calibrated RGBWA LEDs. The compact, tour-ready unit produces superb color rendering and a vast palette from soft pastels to saturated hues. Its 16-bit dimming capability, as well as five selectable dimming curves provides smooth fades and facilitate its incorporation into aging traditional rigs. Integrated trunnions accommodate clamps for vertical or horizontal hanging.


AT A GLANCE

  • RGBAW LED Batten for touring, rental, and production, indoors or out

  • All environment operation with IP rated power and DMX connection

  • Color temperature presets, from 3200 K to 10000 K

  • Selectable, smooth dimming curves for programming versatility

  • Built for touring, live event, television, and theatrical productions

  • Large, easy to navigate display with password protection

SPECIFICATIONS

OPTICAL

  • Light Source: 72 LEDs (18 red, 18 green, 18 blue, 9 white, 9 amber) 3 W, (690 mA), 50,000 hours life expectancy
  • Color Temperature (range): 3200 to 10000 K
  • CRI (3200 K): 80
  • Installed Optics: 24°
  • Beam Angle (Horizontal): 22°
  • Beam Angle (Vertical): 18°
  • Field Angle (Horizontal): 39 °
  • Field Angle (Vertical): 34°
  • Lumens: 3,631
  • Illuminance (total): 1730 lux @ 5 m
  • Selectable PWM: 600, 1200 Hz, 2000, 2400 Hz, 4000 Hz, 6000 Hz, 25000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 25 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 5
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 39.37 x 6.14 x 2.95 in (1000 x 156 x 75 mm)
  • Weight: 18.6 lb (8.4 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast

CONNECTIONS

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 16
    3 Cell: 9, 12, 15, 21, 22, 24, 27, 30, 43
  • Modes/Personalities: 18 personalities

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 10 units @ 120 V; 17 units @ 208 V; 19 units @ 230 V
  • Power and Current: 161 W, 1.33 A @ 120 V, 60 Hz
  • Power and Current: 164 W, 0.79 A @ 208 V, 60 Hz
  • Power and Current: 163 W, 0.71 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

  • COLORado Batten 72X
  • Seetronic powerKON® IP65 power cord
  • (2) Omega bracket
Weiterführende Links zu "COLORado Batten 72X"

5 pin XLR IP connecter(M) (BOM#30)PTF11000004645 pin XLR IP connecter(M) (BOM#30)
5 pin XLR IP connecter(F) (BOM#22)PTF11000004655 pin XLR IP connecter(F) (BOM#22)
Power socket Assembly (out) (BOM#26)PTF1100000468Power socket Assembly (out) (BOM#26)
waterproof power socket (BOM#24)PTF1100000469waterproof power socket (BOM#24)

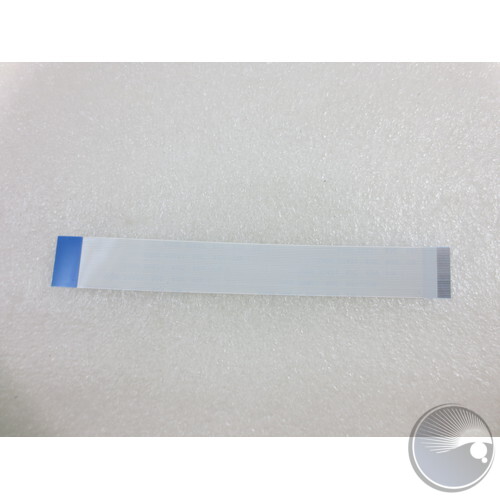

UPLOAD01PTF1100000523UPLOAD01
ribbon cable - MPCB-to-Display PTF1110000032ribbon cable - MPCB-to-Display
ribbon cable - MPCB-to-Display PTF1110000032ribbon cable - MPCB-to-Display
ribbon cable - MPCB-to-Display PTF1110000032ribbon cable - MPCB-to-Display
ribbon cable - MPCB-to-Display PTF1110000032ribbon cable - MPCB-to-Display
ribbon cable - MPCB-to-Display PTF1110000032ribbon cable - MPCB-to-Display

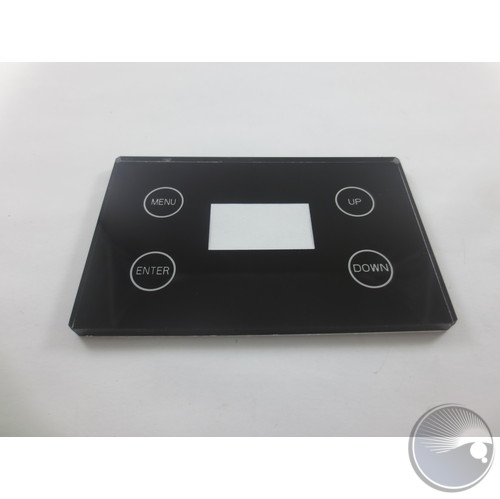

glass of display (BOM#34)PTF1120000214glass of display (BOM#34)

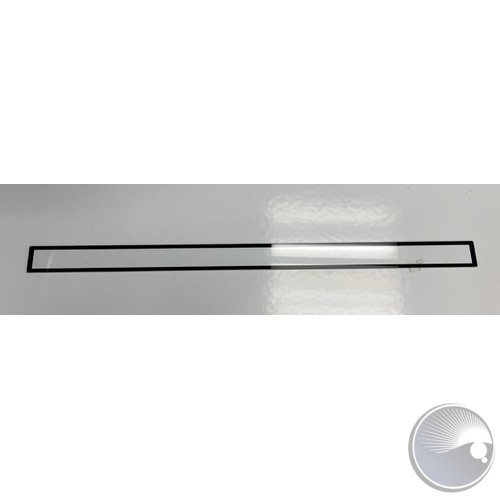

Reinforced glass (BOM#54)PTF1120000228Reinforced glass (BOM#54)
PTF112030017625°Lens (BOM#49)

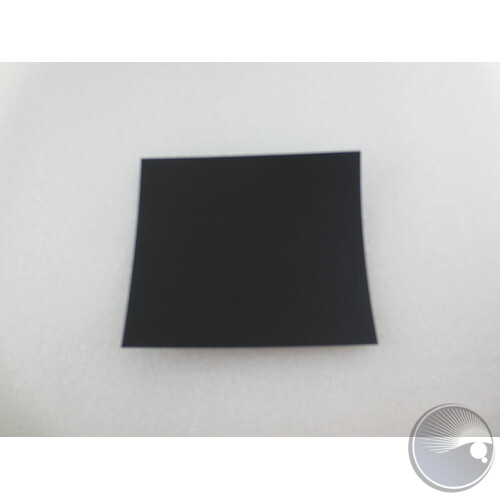

Power supply insulation (BOM#27)PTF1140000337Power supply insulation (BOM#27)

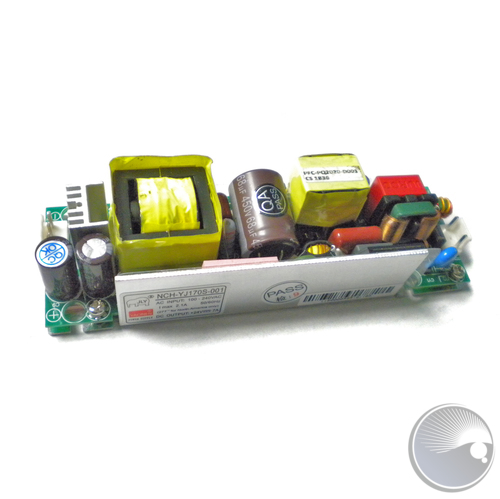

Power supply (BOM#26)PTF1160000595Power supply (BOM#26)

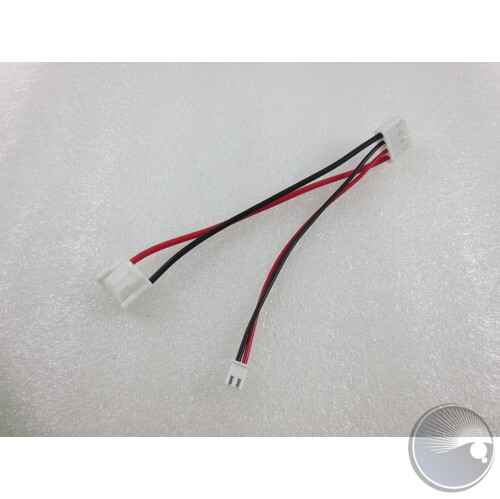

Wire Harness CablePTF1170302017Wire Harness Cable

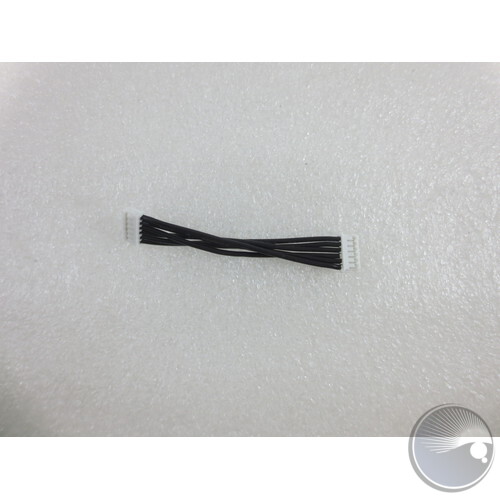

Data Cable for LED Assembly Part # PTF22600003895PTF1170302426Data Cable for LED Assembly Part # PTF22600003895
foam cotton (BOM#53)PTF1180000319foam cotton (BOM#53)
RUBBER COVER Power socket cover (out) (BOM#27)PTF1180000375RUBBER COVER Power socket cover (out) (BOM#27)
RUBBER COVER Power socket cover (in) (BOM#29)PTF1180000376RUBBER COVER Power socket cover (in) (BOM#29)
PTF1180000488Power thermal insulation gasket (BOM#25)
PTF1210000398Metal rotating head (BOM#21)

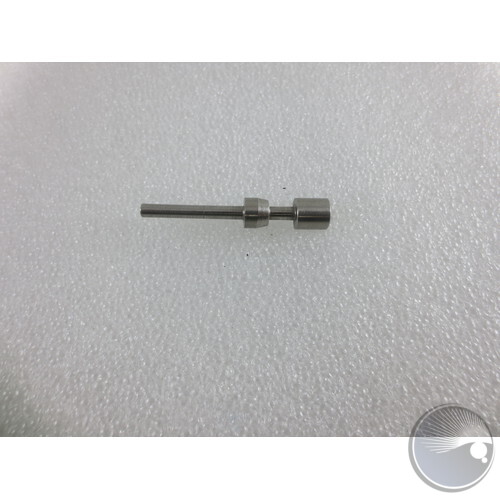

button (BOM#1)PTF1340110189button (BOM#1)
PTF1340112918Socket connector 1 (BOM#18)
PTF1340112919Socket connector 2 (BOM#35)
PTF1340112921plate of lens holder (BOM#50)
PTF1340112922base plate of Lens holder (BOM#48)
PTF1340112928block (BOM#39)

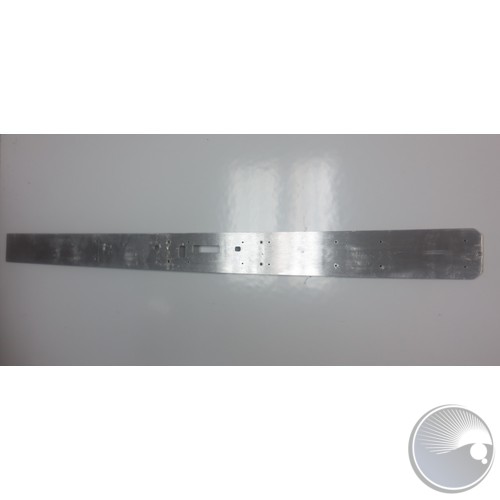

heat dissipation plate (BOM#45)PTF1340112929heat dissipation plate (BOM#45)

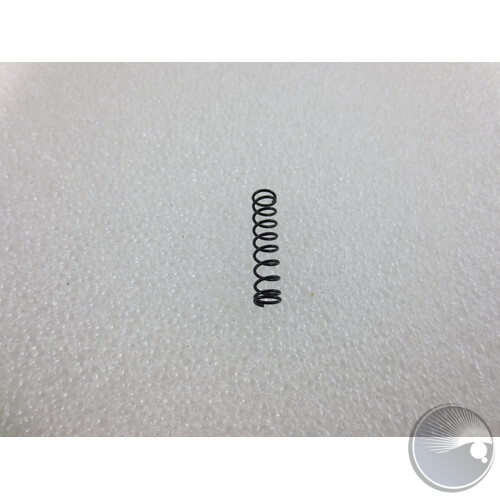

spring (BOM#2)PTF1340300223spring (BOM#2)
PTF1340602380Rear cover waterproof ring (BOM#28)
PTF1340602381waterproof ring (BOM#9)

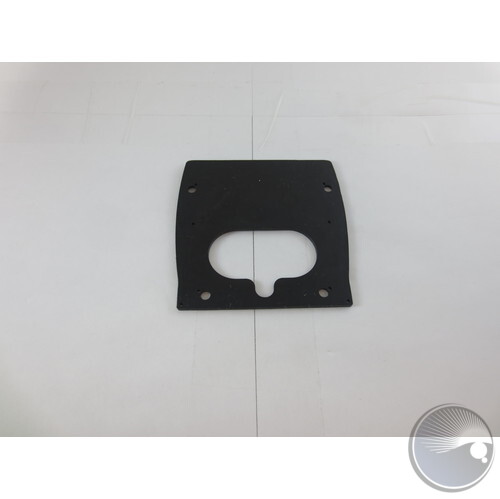

waterproof ring for cover B (BOM#40)PTF1340602382waterproof ring for cover B (BOM#40)

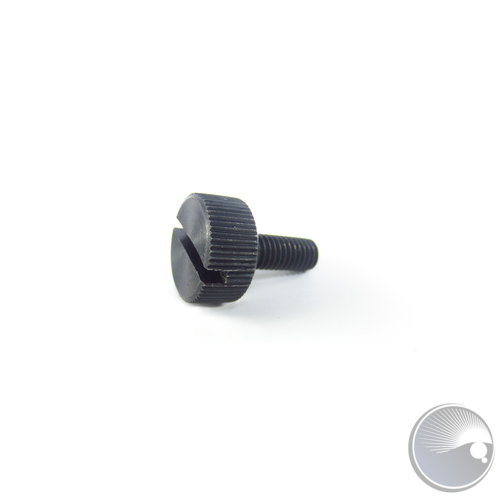

positioning screw (BOM#15)PTF1340800770positioning screw (BOM#15)

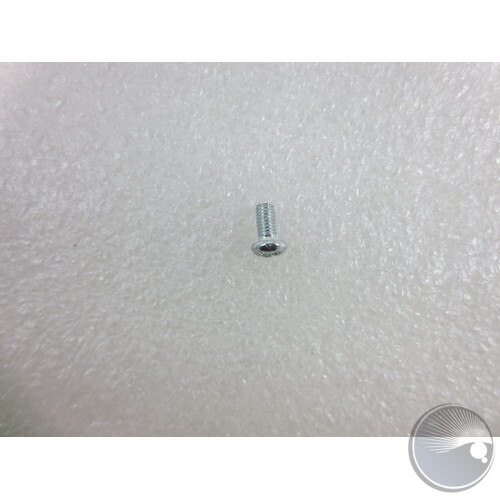

Round head Cross screw M3*6 M36 (BOM#8)PTF1490300008Round head Cross screw M3*6 M36 (BOM#8)
PTF1490300010Round head cross screw (BOM#32)
PTF1490400006cross screw (BOM#5)
Countersunk cross screw (BOM#12)PTF1490400012Countersunk cross screw (BOM#12)

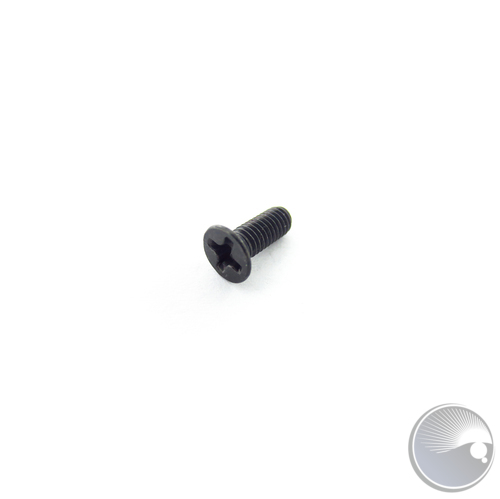

Countersunk cross screw (BOM#24)PTF1490400018Countersunk cross screw (BOM#24)
PTF1490400021cross screw (BOM#52)
PTF1490400043cross screw (BOM#21)

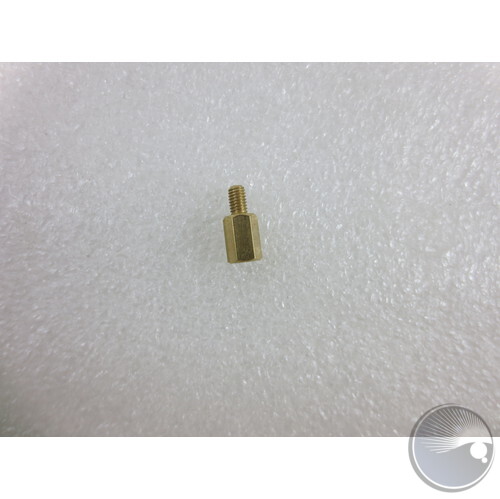

Hexagon brass column (BOM#47)PTF1491000243Hexagon brass column (BOM#47)

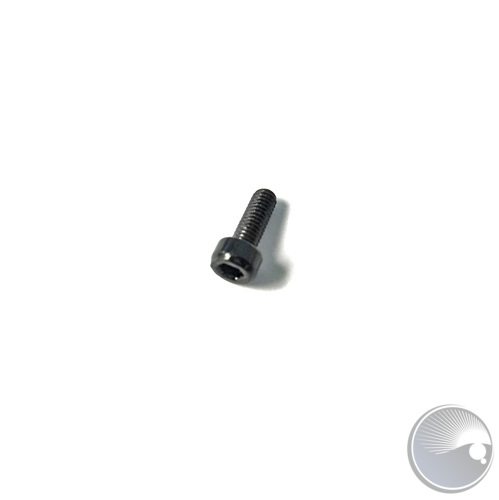

inner screw (BOM#9)PTF1491400011inner screw (BOM#9)

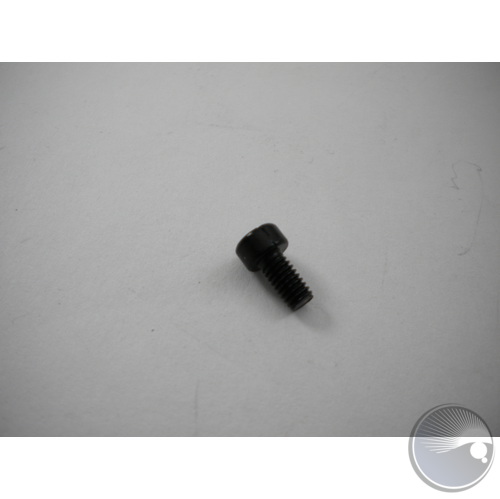

inner screw (BOM#24)PTF1491400012inner screw (BOM#24)
PTF1491400044inner screw (BOM#51)
PTF1491400071inner screw (BOM#24)

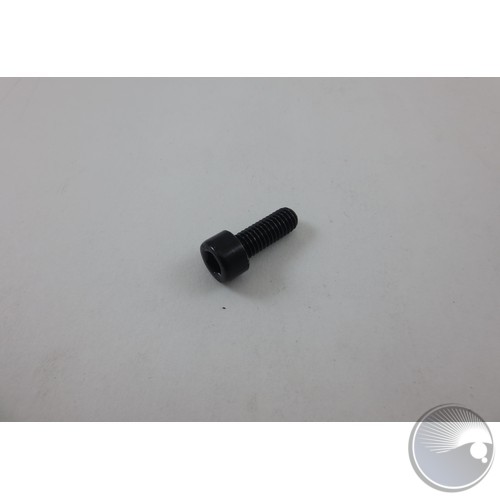

rnner screw (BOM#6)PTF1491400087rnner screw (BOM#6)
PTF1491400230hexagon screwM4*12 M412316 (BOM#1)

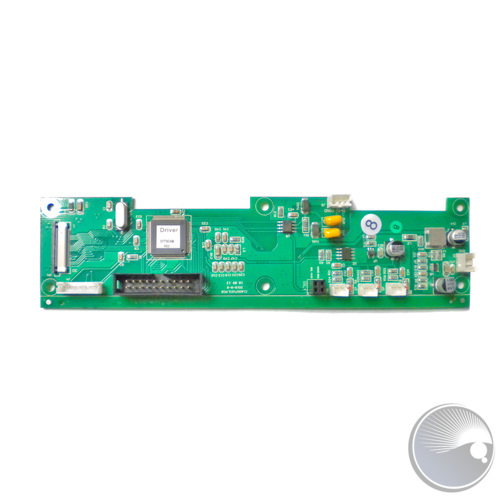

Control PCB (BOM#30)PTF2260002659Control PCB (BOM#30)
Display PCB (BOM#54)PTF2260002660Display PCB (BOM#54)

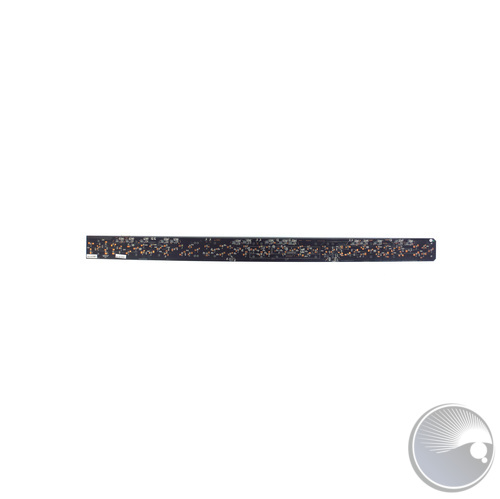

LED PCB (BOM#46)PTF2260002775LED PCB (BOM#46)

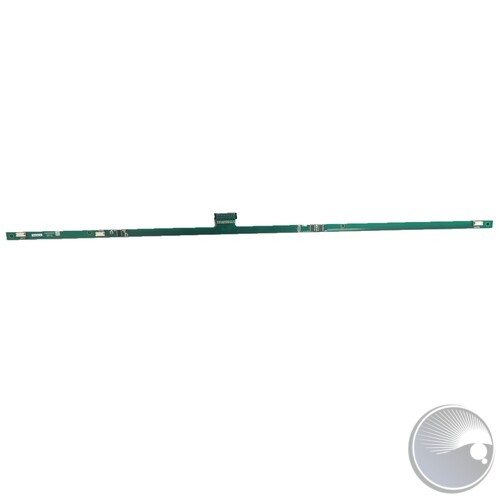

LED PCB for soldering to LED Assembly (Old Part # PTF2260002775 ) (New Part # PTF2260003895)PTF2260003638LED PCB for soldering to LED Assembly (Old Part # PTF2260002775 ) (New Part # PTF2260003895)

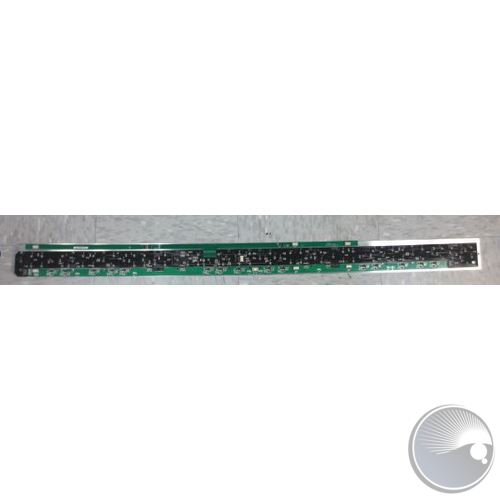

Complete LED Assembly (New) Upgraded from PTF2260002775PTF2260003895Complete LED Assembly (New) Upgraded from PTF2260002775

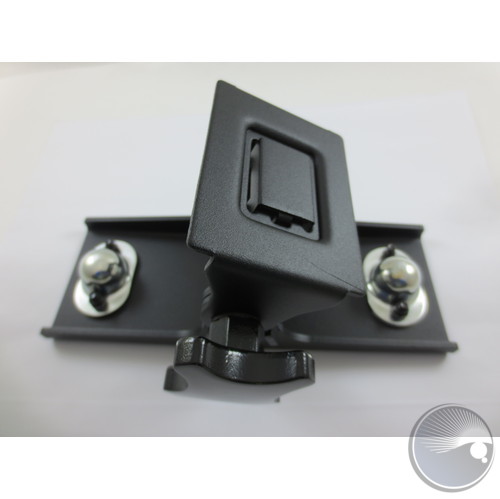

Foot Bracket version2PTF2440010687Foot Bracket version2
PTF2440100517support bracket A (BOM#13)
PTF2440100522support bracket B (BOM#16)

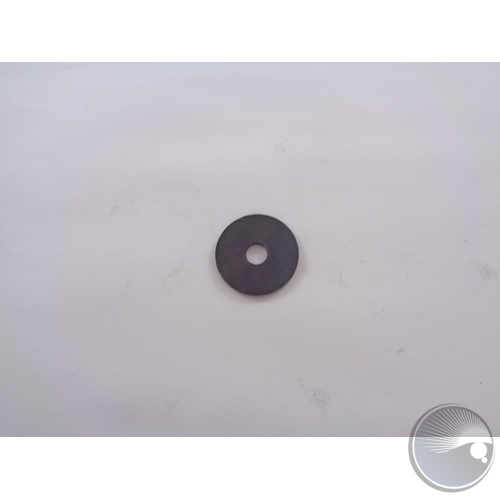

gasket of bracket (BOM#14)PTF2440100698gasket of bracket (BOM#14)
PTF2440102591end cover (BOM#4)
PTF2440105551Tripod plate (BOM#11)
PTF2440105552roof of lens holder (BOM#51)
PTF2440105554holder (BOM#44)
PTF2440105555end cover A (BOM#8)

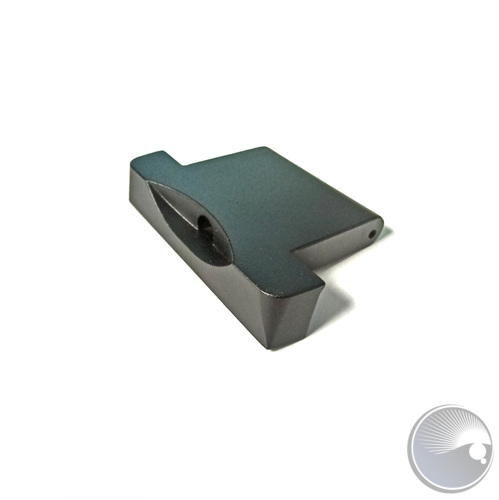

Top of end cover A (BOM#3)PTF2440105556Top of end cover A (BOM#3)
PTF2440105557end cover B (BOM#41)
PTF2440105559back cover (BOM#29)

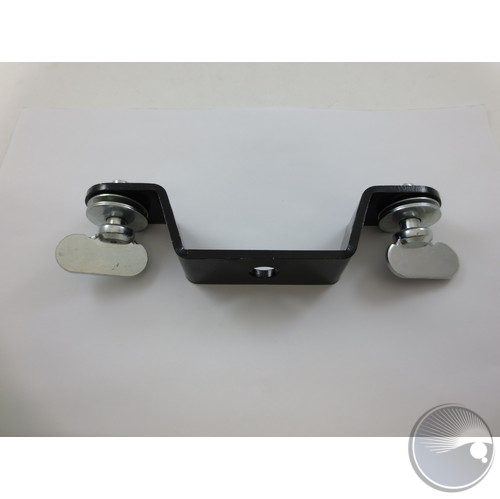

Assembled Omega Bracket (140mm, new version)PTF2440106672Assembled Omega Bracket (140mm, new version)
PTF2440117203Stainless Steel Base for LED Assembly PTF2260003895

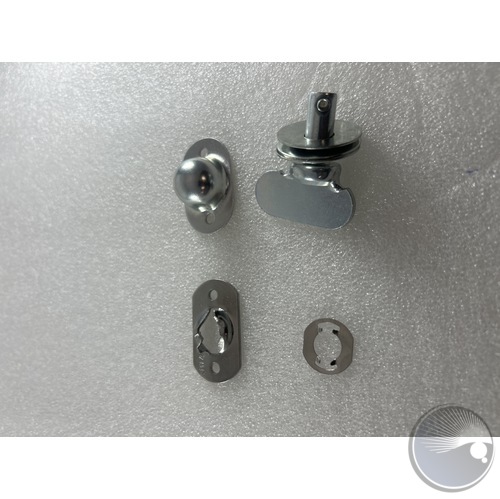

PTF2440805376Quick Lock For Omega Bracket

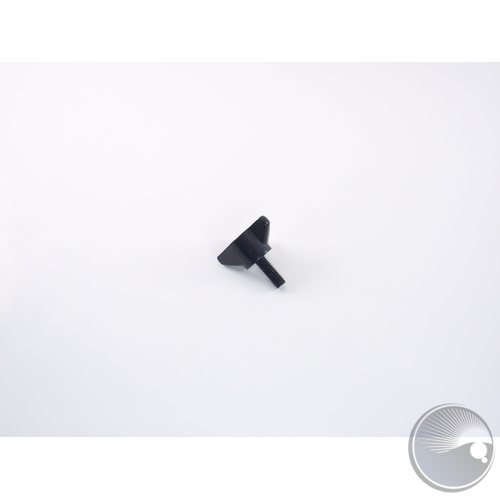

handing screw (BOM#12)PTF4913LED317021A0handing screw (BOM#12)
Power cord (BOM#41)PTFX20147Power cord (BOM#41)

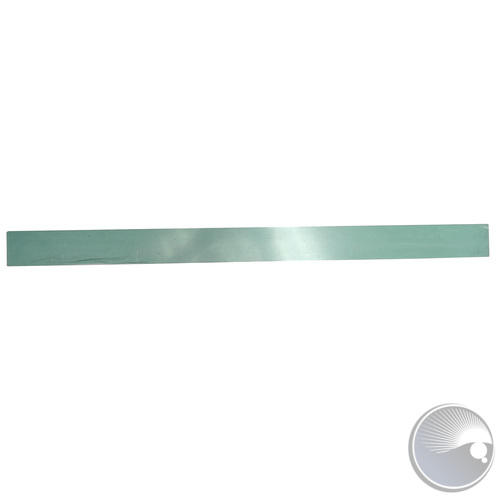

FilterPTFX40429Filter
Upload01Upload 01- Colorado - Illuminarc
